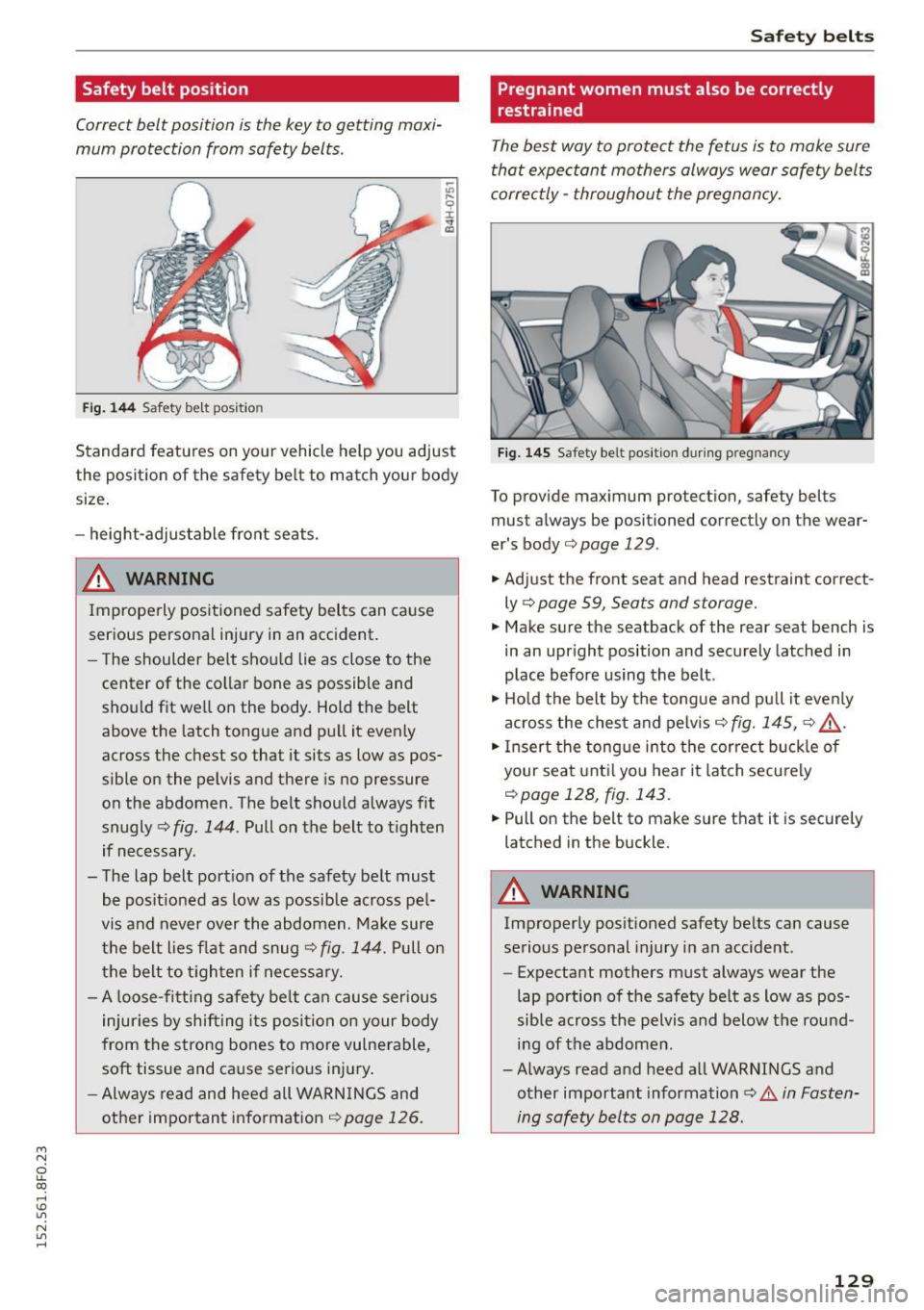

Safety belt position
Correct belt position is the key to getting maxi­
mum protection from safety belts .
Fig. 144 Saf ety belt pos it io n
~
"' l'-9 r .. a,
Standard features on your vehicle help you adjust
the position of the safety belt to match your body
size .
- height-adjustable front seats.
A WARNING
Improperly positioned safety belts can cause
serious personal injury in an accident.
- T he shoulder belt shou ld lie as close to the
center of the collar bone as possible and
should fit well on the body. Hold the belt
above the latch tongue and pull it evenly
across the chest so that it sits as low as pos­
sible on the pelvis and there is no pressure
on the abdomen . The belt should always fit
snugly ¢
fig. 144. Pull on the belt to tighten
if necessary .
- The lap belt port ion of the safety belt must
be positioned as low as possible across pe l­
vis and never over the abdomen. Make sure
the belt lies flat and snug
¢ fig. 144. Pull on
the belt to tighten if necessary.
- A loose-fitt ing safety be lt can cause serious
injuries by shifting its position on your body
from the strong bones to more vulnerable,
soft tissue and cause serious injury .
- Always read and heed all WARN INGS and
other important information
¢ page 126 .
Safety belts
Pregnant women must also be correctly
restrained
The best way to protect the fetus is to make sure
that expectant mothers always wear safety belts
correctly -throughout the pregnancy.
Fig. 145 S afety belt position during pregnancy
To provide maximum protection, safety belts
must always be positioned correctly on the wear­
er's body
¢ page 129.
.. Adjust the front seat and head restraint co rrect­
ly
¢ page 59, Sea ts and storage.
.,. Make sure the seatback of the rear sea t bench is
in an upright position and securely latched in
place before using the belt .
.,. Ho ld the belt by the tongue and pull it evenly
across the chest and pelv is
¢fig. 145, ¢ ,&..
.. Insert the tongue into the correct buckle of
your seat until you hear it latch securely
¢page 128, fig . 143.
.. Pull on the belt to make sure that it is securely
latched in the buckle.
A WARNING
-
Improperly positioned safety belts can cause
serious personal injury in an accident .
- Expectant mothers must always wear the
lap portion of the safety belt as low as pos­
sible across the pelvis and below the round­
ing of the abdomen .
- Always read and heed all WARNINGS and
other important information¢&.
in Fasten­
ing safety belts on page 128.
129

Safety belts
Unfastening safety belts
Unbuckle the safety belt with the red relea se
button only after the vehicle has stopped .


Fig. 146 Re le as ing th e to ngu e fr om th e buck le
.. Push the red re lease button on the b uck le
Q fig. 146 . The belt tongue wi ll spring out of
the buckle
Q ,& .
.. Let the belt wind up on the retr actor as you
guide the bel t tongue to its stowed position.
A WARNING
Never unfasten safety belt while the veh icle is
moving . Doing so will increase your risk of be­
ing injured or killed.
Improperly worn safety belts
a
~ 0 :i: .. 0J
Incorrectly positioned safety belts can cause se­
vere injuries .
Wearing safety belts improperly can cause seri­
ous injury or death. Safe ty belts can only work
when they are correctly posit ioned on the body .
Improper seating pos it ions reduce the effective­
ness of safety belts and will even inc rease the risk
of injury and death by moving the safety be lt to
cr itica l areas of the body . Improper seati ng posi­
tions a lso increase the risk of serious injury and
death when an airbag deploys and strikes an oc­
cupant who is not in the correct seating position.
A driver is responsible for the safety of all vehicle
occupants and espec ially for children. Therefore :
.. Never perm it anyone to ass ume an incorrect sit -
ting position in the vehicle while traveling
Q A .
130
A WARNING
Improperly worn safety belts increase the r isk
of ser ious personal injury and death whenever
a veh icle is being used .
- Always make sure that all vehicle occupants
are correctly restrained and stay in a correct
seating position whenever the vehicle is be­ing used.
- Always read and heed all WARNINGS and
other important information
Q page 126 .
Belt tensioners
How safety belt pretensioners work
In front, side and rear-end collisions above a
particular sev erity, saf ety belts are tensioned au­
tomatically .
The safety belts are equipped with safety belt
pre tensioners. The system is act ivated by sensors
in front, side and rear-end collisions o f great se ­
verity. This tightens the belt and takes up belt
s lack
¢ .&. in Service and disposal of safety belt
pretensioner on page 131.
Taking up the slack
helps to reduce forward occupan t movement dur­
i ng a collision .
@ Note
Never let the belt remain over a rear seatback
that has been folded forward.
@ Tips
The safety belt pretensioner can only be acti­
vated once.
- In minor frontal and side collisions, in rear­
end co llisions and in accidents involving
very little impact force, the safety belt pre­
tensioner are not activated.
- When the safety belt pretensioners are acti­ vated, a fine dust is released . This is normal
and is not caused by a fire in the vehicle .
- The re levant safety requirements must be
observed when the vehicle or components
of the system are scrapped. An authorized
Audi dealer or qua lified workshop is familiar
with these regulations a nd will be pleased
to pass on the information to yo u. ...

M N
ci u.. co ,...., \!) ..,.,
N ..,., ,....,

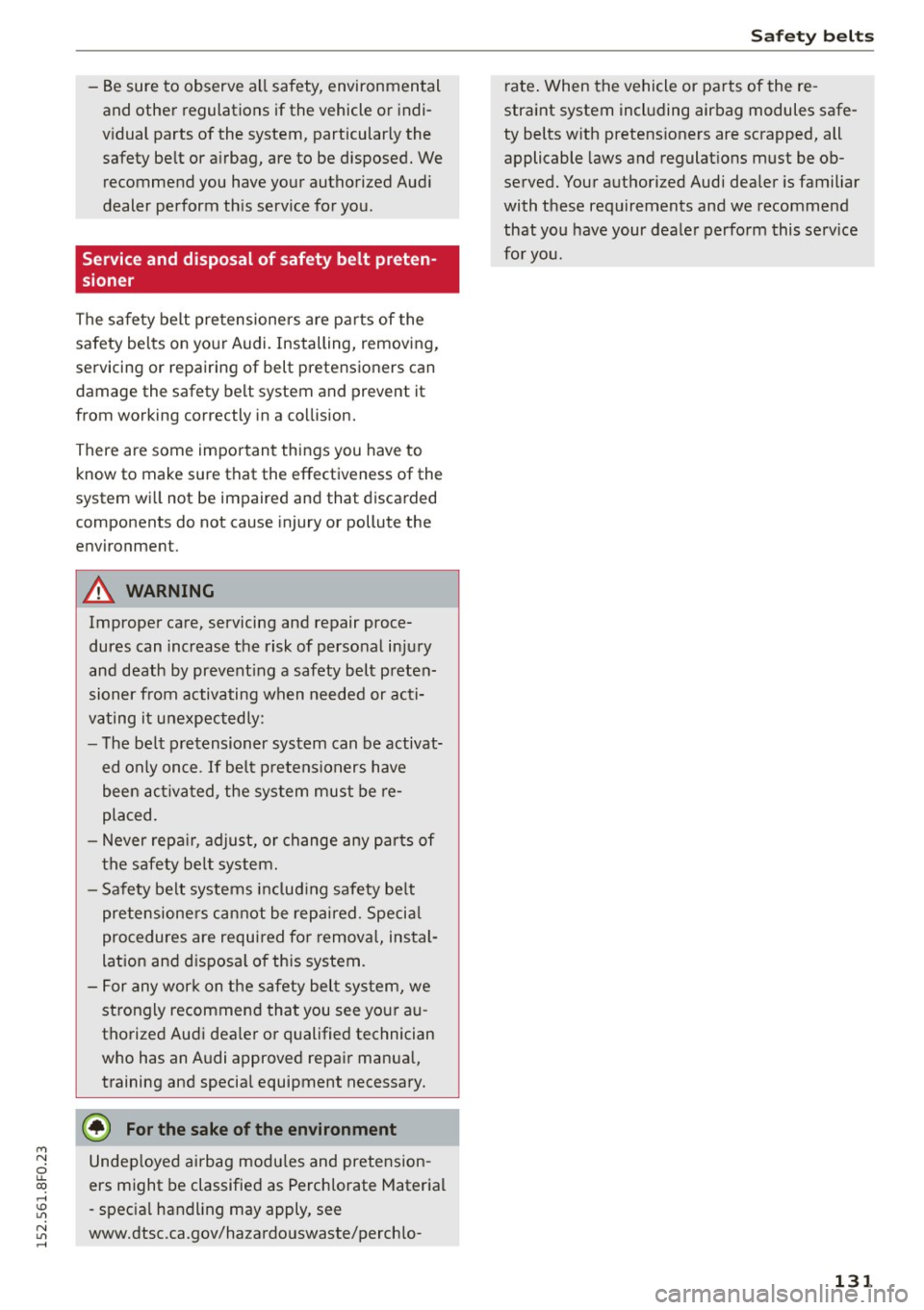

-Be sure to observe all safety, environmental
and other regulations if the vehicle or indi­
vidual parts of the system, particularly the
safety belt or airbag, are to be disposed. We
recommend you have your authorized Audi
dealer perform this service for you.
Service and disposal of safety belt preten­
sioner
The safety belt pretensioners are parts of the
safety belts on your Audi. Installing, removing ,
servicing or repairing of belt pretensioners can
damage the safety belt system and prevent it
from working cor rectly in a collision.
There are some important things you have to know to make sure that the effectiveness of the
syst em will not be impaired and that discarded
components do not cause injury or pollute the
environment.
_&. WARNING
Improper care, servicing and repair proce­
dures can increase the risk of personal injury
and death by preventing a safety belt preten­
sioner from activating when needed or acti­
vating it unexpectedly :
- The belt pretensioner system can be activat­
ed only once.
If belt pretensioners have
been activated , the system must be re­
placed.
- Never repair, adjust, or change any parts of
the safety belt system.
- Safety belt systems including safety belt
pretensioners cannot be repaired. Special
procedures are required for removal, instal­
lation and disposal of this system.
- For any work on the safety belt system, we
strongly recommend that you see your au­
thorized Audi dealer or qualified technician
who has an Audi approved repair manual,
training and special equipment necessary.
@) For the sake of the environment
Undeployed airbag modules and pretension­
ers might be classified as Perchlorate Material
- special handling may apply, see
www.dtsc.ca .gov/hazardouswaste/perchlo-
Safety belts
rate. When the vehicle or parts of the re­
straint system including airbag modules safe­
ty belts with pretensioners are scrapped, all
applicable laws and regulations must be ob­
served. Your authorized Audi dealer is familiar
with these requirements and we recommend
that you have your dealer perform this service
for you .
131

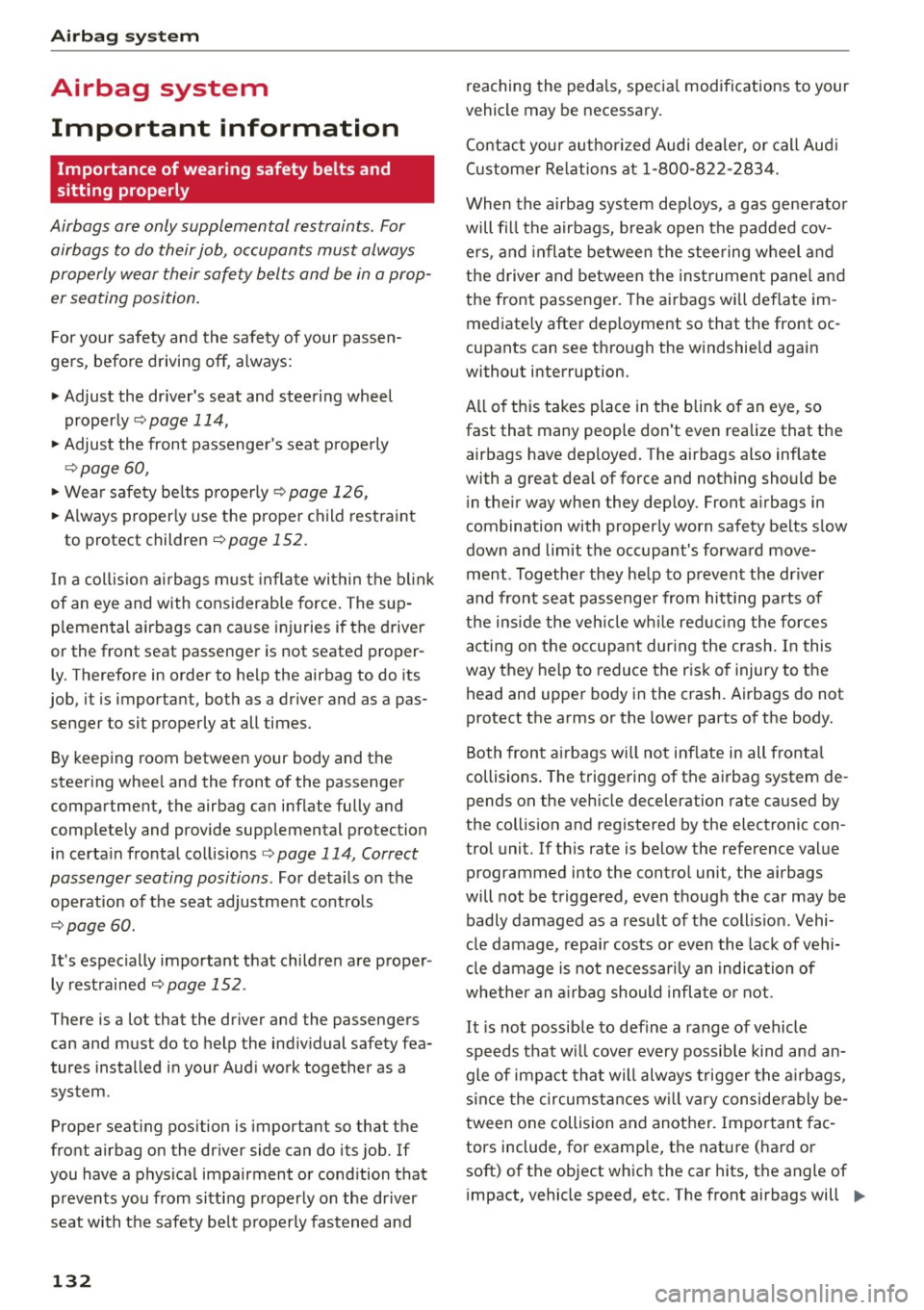

Airbag system
Airbag system
Important information
Importance of wearing safety belts and
sitting properly
Airbags are only supplemental restraints . For
airbags to do their job, occupants must always
properly wear their safety belts and be in a prop­ er seating position.
For your safety and the safety of your passen­
gers, befo re driving off, always:
"' Adjust the driver's seat and steering wheel
properly
Q page 114,
"' Adjust the front passenger's seat properly
Qpage 60,
"'Wear safety be lts properly C? page 126,
"'Always properly use the proper child restraint
to protect children
Qpage 152.
In a coll is ion airbags must inflate within the blink
of an eye and with considerab le force. The sup­
p lemental airbags can cause injuries if the driver
or the front seat passenger is not seated proper•
Ly. Therefore in order to help the airbag to do its
job, it is important, both as a driver and as a pas­
senger to sit properly at all times.
By keeping room between your body and the
steering whee l and the front of the passenger
compartment, the airbag can inflate fully and
completely and provide supplemental protection
in certain frontal collisions
c> page 114, Correct
passenger seating positions.
Fo r details on the
operation of the seat adjustment controls
c>page 60.
It's especially important that children are proper­
ly restrained
Qpage 152.
There is a lot that the driver and the passengers
can and must do to help the individual safety fea­
tures installed in your Audi work together as a
system .
Proper seat ing position is important so that the
front airbag on the driver side can do its job. If
you have a phys ical impairment or condition that
prevents you from sitt ing properly on the dr iver
seat with the safety be lt properly fastened and
132
reaching the pedals, specia l modifications to your
vehicle may be necessary.
Contact your authorized Audi deale r, or call Audi
Customer Relat ions at 1-800-822-2834.
When the airbag system dep loys , a gas generator
will fill the airbags, break open the padded cov­
ers, and inflate between the steering wheel and
the driver and between the instrument panel and
the front passenger. The airbags wi ll deflate im ­
mediate ly after deployment so that the front oc­
cupants can see through the w indshield again
without interruption.
All o f this takes place in the blink o f an eye, so
fast that many people don't even realize that the
airbags have dep loyed . The airbags also inflate
with a great deal of force and nothing should be
in their way when they deploy. Front a irbags in
combination with properly worn safety belts slow
down and lim it the occupant's forwa rd move­
ment . Together they he lp to prevent the driver
and front seat passenge r from hitting parts of
the insid e the veh icle wh ile reduc ing the forces
acting on the occupant dur ing the crash. In this
way they help to reduce the risk o f injury to the
head and upper body in the crash. Airbags do not
protect the arms or the lower parts of the body.
Both front airbags will not inflate in all fronta l
collisions . The triggering of the airbag system de ­
pends on the vehicle deceleration rate caused by
the collis ion and registered by the electronic con ­
trol unit. If this rate is below the reference value
programmed into the control unit, the airbags
will not be triggered, even though the car may be
badly damaged as a result of the coll is ion . Vehi­
cle damage, repair costs or even the lack of vehi­
cle damage is not necessar ily an indication of
whether an airbag should inflate or not.
It is not possible to define a range of vehicle
speeds that w ill cover every possible kind and an­
gle of impact that will always trigger the air bags,
since the circumstances will vary conside rably be­
tween one collision and another. Impo rtant fac­
tors include, for example, the nature (hard or
soft) of the object which the car hits, the angle of
impact, vehicle speed, etc . The front airbags will
IJ>-

M N
ci u.. co ,...., \!) 1.1'1
N 1.1'1 ,....,

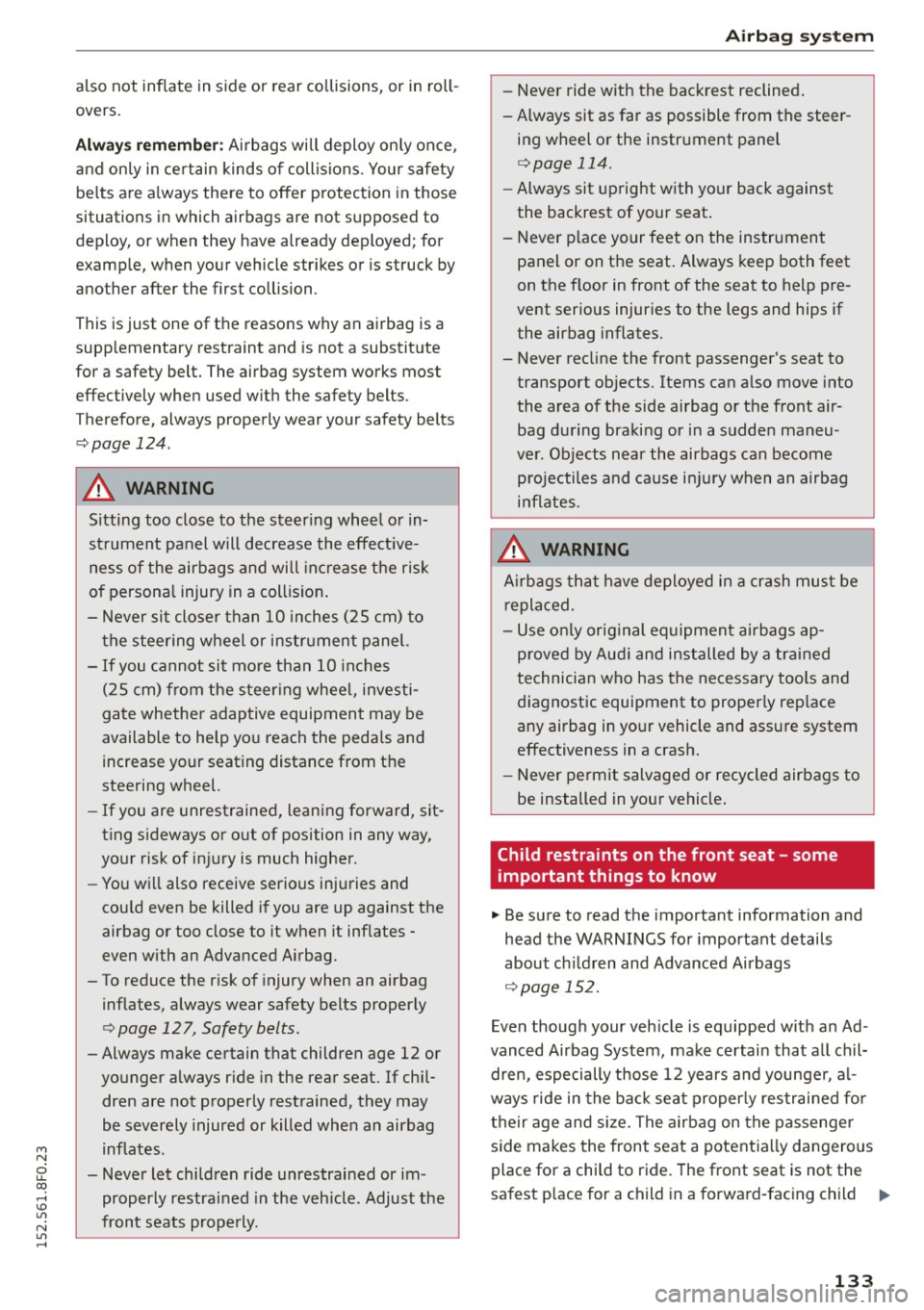

also not inflate in side or rear co llisions, or in roll­
overs .
Alwa ys rememb er: Airbag s wi ll deploy on ly once,
and on ly in cer tain kinds of collisions. Your safety
b e lts a re a lways there to offer protection in those
situations in which airbags are not supposed to
deploy, or when they have already deployed; for
examp le, when your vehicle str ikes or is struck by
another after the first collision .
This is just one of the reasons why an airbag is a
supp lementary restraint and is not a substitute
for a safety belt. The airbag system works most
effectively when used w ith the safety belts.
Therefore, always properly wear your safety belts
c::>page 124.
A WARNING
Sitting too close to the steer ing whee l o r in­
strument panel will decrease the effect ive­
ness of the airbags and will increase the risk
o f persona l injury in a coll is ion .
- Never sit closer than 10 inches (25 cm) to
the steering wheel or instrument panel.
- If you cannot sit more than 10 inches
(25 cm) from the steer ing whee l, investi­
gate whethe r adaptive equipment may be
available to help yo u reach the peda ls and
increase your seating distance from the
steering wheel.
- If you are unrestrained, lean ing forward, sit­
ting s ideways or out of position in any way,
your risk of in jury is much higher.
- You will also receive serio us injuries and
cou ld even be killed if you are up against the
airbag or too close to it when it inflates -
even with an Advanced Airbag.
- To reduce the r isk of injury when an airbag
inflates, always wear safety belts properly
<=> page 12 7, Safety belts .
- Always make certain that children age 12 or
younger always r ide in the rear seat. If chil­
dren are not properly restrained, they may
be severely injured or killed when an airbag
inflates .
- Never let children ride unrestrained or im­
properly restrained in the veh icle. Adjust the
front seats properly.
-
Airbag syste m
- Never ride with the back rest reclined .
- Always sit as far as possible from the steer -
ing wheel o r the instrument panel
c::> page 114.
- Always sit up right with your back against
the backrest of your seat.
- Never p lace your feet on the instrument
panel or on the seat. Always keep both feet
on the floor in front of the seat to help pre­
vent serious injur ies to the legs and hips if
the airbag inflates.
- Never recline the front passenger's seat to transport objects. Items can also move into
the area of the side airbag or the front air­
bag d uring braking or in a sudden maneu­
ver. Objects near the airbags can become
p rojectiles and ca use in jury when an airbag
inflates.
A WARNING
A irbags tha t have deployed i n a crash mus t be
r eplaced.
- Use o nly orig inal equipment airbags ap ­
p rove d by Aud i an d in stalled by a trained
technici an who has the ne cessary too ls and
diagnostic equipment to properly rep lace
any airbag in yo ur vehicle and assu re system
effectiveness in a crash.
- Never permit salvaged or recycled airbags to
be installed in you r vehicle .
Child restraints on the front seat - some
important things to know
.,. Be su re to read the important information and
head the WARNI NGS for important details
about ch ild ren and Advanced Airbags
c::> page 152.
Even though your veh icle is equipped wit h an Ad ­
vanced Airbag System, make certain that a ll chil­
dren, especially those 12 years a nd you nger, a l­
ways ride in the bac k seat properly restrained fo r
the ir age and size. The airbag on the passenger
s ide makes the front seat a potent ia lly dangerous
place for a child to ride. The front seat is not the
sa fest p lace for a child in a forward-facing ch ild ..,.
133

Airbag system
safety seat. It can be a very dangerous place for
an infant or a child in a rearward-facing seat.
The Advanced Airbag System in your veh icle has
been ce rtified to comp ly w ith the Requirements
of United States Federal Motor Vehicle Safety
Standard 208 as applicable at the time your vehi ­
cle was manufactured.
The Standard requires the front airbag on the
passenger side to be turned off ("suppressed") if
a child up to about one year of age restrained in
one of the rear-fac ing or forward-facing infant re­
straints listed in Federal Motor Vehicle Safety
Standard 208 w ith which the Advanced A irbag
System in your vehicle was certified has been in ­
stalled on the front passenger seat. Fo r a listing
of the ch ild restraints that were used to certify
comp liance with the US Safety Standard
¢page 154.
The PASSENGER AIR BAG OFF light in the instru­
ment panel tells you when the front Advanced
Ai rbag on the passenger side has been turned off
by the electron ic control unit.
E ach t ime you turn on the ignition, the
PASSEN­
GER AIR BAG OFF light will come on for a few
seconds and:
- will stay on if the front passenger seat is not
occupied,
- will stay on if there is a small child or child re­
stra int on the front passenger seat,
- will go off if the front passenger seat is occu­
pied by an adult as registered by the weight­
sensing mat¢
page 142, Monitoring the Ad­
vanced Airbag System.
The PASSENGER AIR BAG OFF light comes on
when the control un it detects a total weight on
the front passenger seat that requ ires the front
ai rbag to be turned off.
If the tota l weight on the front passenger seat is
more than that of a typical 1 year -old child but
less than the we ight of a small adult, the front
ai rbag on the passenger side can deploy (the
PASSENGER AIR BAG OFF light does not come
on). If the
PASSENGER AIR BAG OFF light does
not come on, the front airbag on the passenger
side has not been turned off by the electronic
134
control unit and can dep loy if the control unit
senses an impact that meets the conditions stor­
ed in its memory .
For example, the airbag may deploy if:
-a small ch ild that is heavier than a typical 1
year-old chi ld is on the front passenger seat (re­
ga rdl ess of whethe r the child is in one of the
child safe ty seats listed¢
page 154), or
- a child who has outgrow n chi ld restraints is on
the front passenger seat .
If the front passenger airbag is turned off, the
PASSENGER AIR BAG OFF light comes on in the
instr ument cluster and stays on.
The front airbag on the passenger side may
not
deploy (the PASSENGER AIR BAG OFF light does
not illuminate and stay lit) even if a sma ll adult
o r teenager, or a passenger who is not sitt ing up­
r ight w ith their back against a non-reclined back­
rest with their feet on the vehicle floor in front of
the seat is on the front passenger seat
¢ page 114, Proper seating position for the driv­
er .
If the front passenger airbag deploys, the Federal
Standard requires the airbag to meet the "low
risk" deployment criteria to reduce the risk of in­
ju ry through interaction with the airbag. "Low
risk" deployment occurs in those crashes that
take place at lower decelerations as defined in
the electronic control unit ¢
page 142, PASSEN­
GER AIR BAG OFF light .
Always remember, a child safety seat or infant
carr ier installed on the front seat may be struck
and knocked out of position by the rapidly inflat­
i ng passenger's airbag in a frontal collision . The
airbag could greatly reduce the effectiveness of
the child restraint and even seriously injure the
child during inflation.
For th is reason, and because the back seat is the
safest place for children - when prope rly restra in­
ed accord ing to their age and size -we strong ly
recommend that children always sit in the back
seat ¢
page 152, Child safety. ..,.

M N
ci u.. co ,...., \!) 1.1'1
N 1.1'1 ,....,
A WARNING ,~
A child in a rearward-facing child safety seat
installed on the front passenger seat will be
seriously injured and can be killed if the front
airbag inflates - even with an Advanced Airbag
System.
- The inflating airbag will hit the child safety
seat or infant carrier with great force and
will smash the child safety seat and child
against the backrest, center armrest, door
or roof.
- Always install rear-facing child safety seats
on the rear seat.
- If you must install a rearward facing child
safety seat on the front passenger seat be­
cause of exceptional circumstances and the
PASSENGER AIR BAG OFF light does not
come on and stay on, immediately install
the rear-facing child safety seat in a rear
seating position and have the airbag system
inspected by your authorized Audi dealer.
- Forward-facing child safety seats installed
on the front passenger's seat may interfere
with the deployment of the airbag and cause serious personal injury to the child .
A WARNING
If, in exceptional circumstances, you must in­
stall a forward-facing child restraint on the
front passenger's seat:
-Always make sure the forward-facing seat
has been designed and certified by its man­
ufacturer for use on a front seat with a pas­
senger front and side airbag.
- Never put the forward-facing child restraint
up against or very near the instrument pan­
el.
- Always move the passenger seat into its
rearmost position in the seat's fore and aft
adjustment range, as far away from the air­
bag as possible before installing the for­
ward-facing child restraint. The backrest must be adjusted to an upright position.
- Make sure that the
PASSENGER AIR BAG
OFF
light comes on and stays on all the time
whenever the ignition is switched on.
Airbag system
A WARNING
To reduce the risk of serious injury, make sure
that the
PASSENGER AIR BAG OFF light will
be displayed whenever a child restraint is in­
stalled on the front passenger seat and the ignition is switched on .
- If the
PASSENGER AIR BAG OFF light does
not stay on, perform the checks described
~ page 142, Monitoring the Advanced Air­
bag System.
- Take the child restraint off the front passen­
ger seat and install it properly at one of the
rear seat positions if the
PASSENGER AIR
BAG OFF
light does not stay on.
- Have the airbag system inspected by your
authorized Audi dealer immediately.
-Always carefully follow instructions from
child restraint manufacturers when instal­
ling child restraints.
A WARNING
If, in exceptional circumstances, you must in­
stall a forward or rearward-facing child re­
straint on the front passenger's seat:
- Improper installation of child restraints can
reduce their effectiveness or even prevent
them from providing any protection.
- An improperly installed child restraint can
interfere with the airbag as it deploys and
seriously injure or even kill the child -even
with an Advanced Airbag System.
-Always carefully follow the manufacturer's
instructions provided with the child safety
seat or carrier.
- Never place additional items on the seat
that can increase the total weight registered
by the weight-sensing mat and can cause in­
jury in a crash.
135

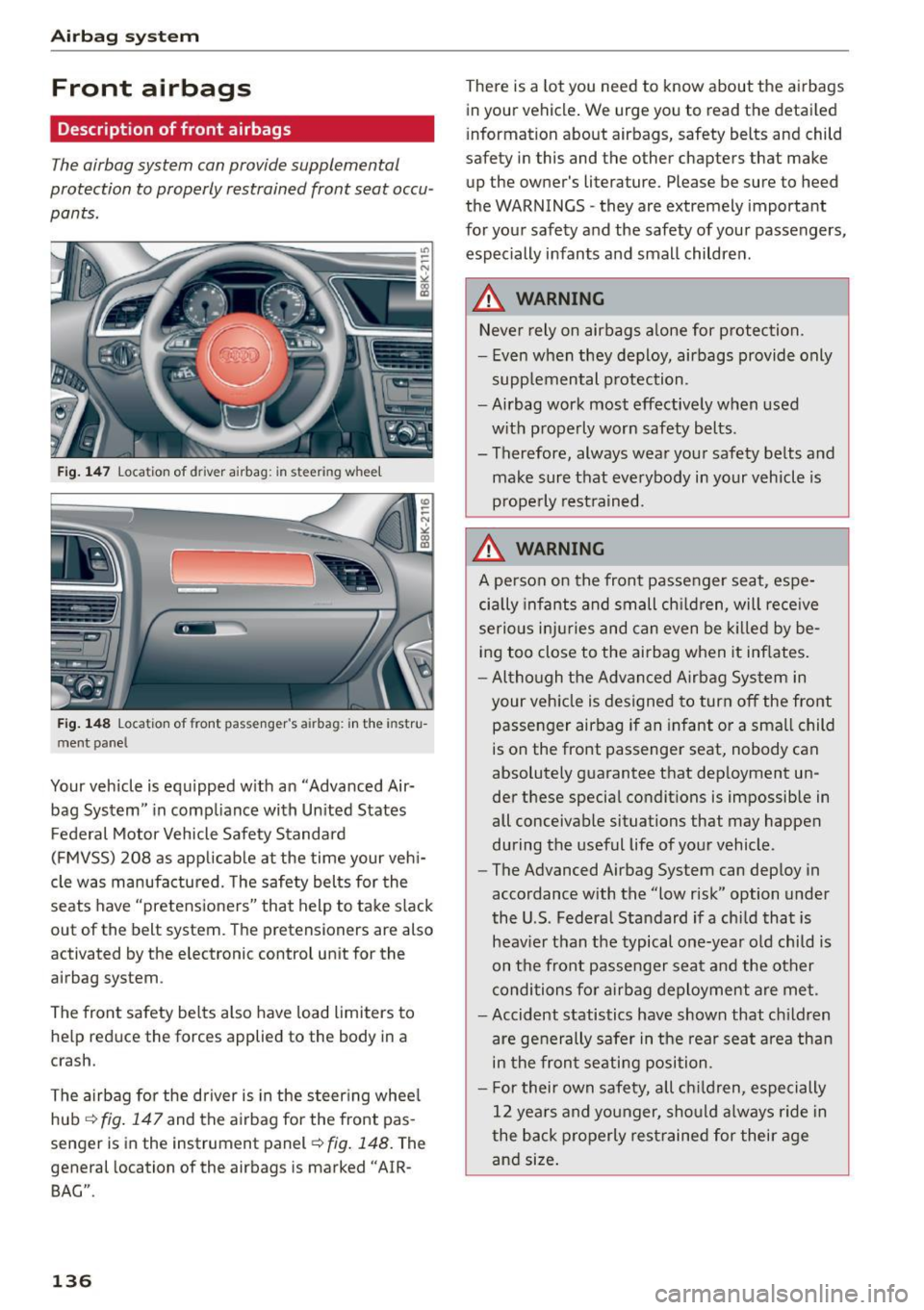

Airb ag syst em
Front airbags
Description of front airbags
The airbag system can provide supplemental
protection to properly restrained front seat occu­
pants .
Fig. 147 Location of driver airbag : in steering whee l
Fig. 148 Location of front passenger's airbag: in the instru­
ment panel
Your vehicle is equ ipped with an "Advanced Air­
bag System" in compliance with Un ited States
Federal Motor Vehicle Safety Standard
(FMVSS) 208 as applicab le at the time your veh i­
cle was manufactured. The safety belts for the
seats have "pretensioners" that help to take s lack
out of the belt system . The pretensioners are also
activated by the electronic control unit for the
airbag system .
The front safety belts a lso have load limiters to
help reduce the forces applied to the body in a
crash.
The airbag for the driver is in the steer ing wheel
hub ¢
fig. 147 and the airbag for the front pas ­
senger is in the instrument panel¢
fig. 148. The
general location of the airbags is marked "AIR­
BAG".
1 36
There is a lot you need to know about the airbags
in your vehicle . We urge you to read the detailed
i nformation about airbags, safety belts and child
safety in this and the other chapters that make
up the owner's literature. Please be sure to heed
the WARNINGS -they are extremely important
for your safety and the safety of your passengers, especially infants and small children .
,&_ WARNING -
Never rely on airbags alone for protection.
- Even when they deploy, airbags provide only supp lemental protection.
- Airbag work most effectively when used with properly worn safety belts .
- Therefore, always wear your safety be lts and
make sure that everybody in your vehicle is
properly restrained.
,&_ WARNING
A person on the front passenger seat, espe­
cially infants and small ch ild ren, will rece ive
serious i njuries and can even be killed by be­
ing too close to the airbag when it inf lates .
- Although the Advanced Airbag System in your vehicle is designed to turn off the front passenger airbag if an infant or a sma ll child
is on the front passenger seat, nobody can
absolutely guarantee that deployment un­
der these special condit ions is impossible in
all conceivable situations that may happen
during the useful life of your vehicle .
- The Advanced Airbag System can dep loy in
accordance with the "low risk" option under
the U .S. Federal Standard if a chi ld that is
heav ier than the typical one-year old child is
on the front passenger seat and the other
conditions for airbag deployment are met.
- Accident statistics have shown that ch ildren
are generally safer in the rear seat area than
in the front seating position .
- For their own safety, all children, especially
12 years and younger, sho uld a lways ride in
the back properly restrained for their age
and size .
-

M N
ci u.. co ,...., \!) 1.1'1
N 1.1'1 ,....,

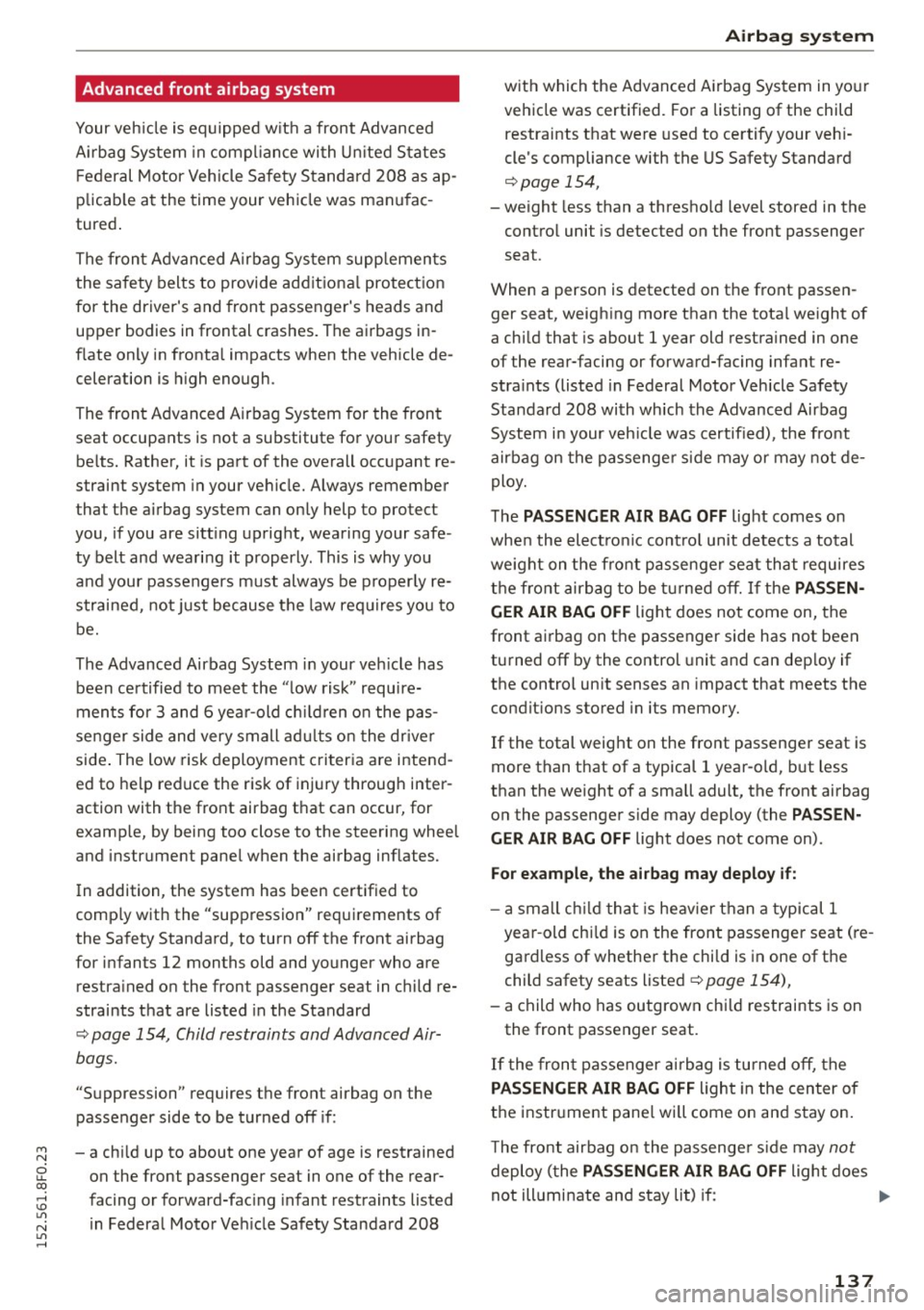

Advanced front airbag system
Your vehicle is equipped w ith a front Advanced
Airbag System in compliance with United States
F ederal Motor Vehicle Safety Standard 208 asap­
plicable at the time your vehicle was manufac­
tured.
The front Advanced Airbag System supplements
the safety belts to provide additiona l protection
for the driver's and front passenger's heads and
upper bodies in frontal crashes. The airbags in­
flate only in frontal impacts when the vehicle de­
celeration is high enough.
The front Advanced Airbag System for the front
seat occupants is not a substitute for your safety
be lts. Rather, it is part of the overall occupant re­
straint system in your vehicle. Always remember
that the airbag system can only help to protect
you, if you are sitt ing upright, wearing your safe­
ty belt and wearing it properly . This is why you
and your passengers must always be properly re­
strained, not just because the law requires you to
be.
The Advanced Airbag System in your veh icle has
been certified to meet the "low risk" require­
ments for 3 and 6 year-old children on the pas­
senger side and very small adults on the driver
side . The low risk deployment criteria are intend­
ed to help reduce the risk of injury through inter ­
action with the front airbag that can occur, for
examp le, by being too close to the steering whee l
and instrument panel when the airbag inflates.
I n addition, the system has been certified to
comp ly with the "suppression" requirements of
the Safety Standard, to turn
off the front airbag
for infants 12 months old and younger who are
restra ined on the front passenger seat in child re­
straints that are listed in the Standard
c::> page 154, Child restraints and Advanced Air­
bags.
"Suppression" requires the front airbag on the passenger side to be turned
off if:
- a ch ild up to about one year of age is restrained
on the front passenger seat in one of the rear­
facing or forward-fac ing infant restraints listed
in Federa l Motor Veh icle Safety Standard 208
Airbag system
with which the Advanced Airbag System in your
vehicle was certified. For a listing of the child
restraints that were used to certify your veh i­
cle's compliance with the US Safety Standard
c::>page 154,
- weight less than a thresho ld level stored in the
control unit is detected on the front passenger
seat.
When a person is detected on the front passen ­
ger seat, weighing more than the tota l weight of
a child that is about 1 year old restrained in one
of the rear-facing or forward-facing infant re­
stra ints (listed in Federal Motor Vehicle Safety
Standard 208 with which the Advanced Airbag
System in your veh icle was certified), the front
airbag on the passenge r side may or may not de­
ploy.
The
PASSENGER AIR BAG OFF light comes on
whe n the electronic contro l unit detects a total
weight on the front passenger seat that requires
the front airbag to be turned
off. If the PASSEN­
GER AIR BAG OFF
light does not come on, the
front airbag on the passenger side has not been
turned
off by the control unit and can deploy if
the control un it senses an impact that meets the
condit ions stored in its memory.
If the total weight on the front passenger seat is
more than that of a typical 1 year-old, but less
than the weight of a small adult, the front airbag on the passenger s ide may deploy (the
PASSEN­
GER AIR BAG OFF
light does not come on).
For example , the airbag may deploy if:
- a small child that is heav ier than a typical 1
yea r-old chi ld is on the front passenger seat (re ­
gardless of whether the chi ld is in one of the
child safety seats listed
c::> page 154),
- a child who has outgrown child restraints is on
the front passenger seat.
If the front passenger airbag is turned off, the
PASSENGER AIR BAG OFF light in the center of
the instrument panel wi ll come on and stay on.
T he front airbag on the passenge r sid e may
not
deploy (the PASSENGER AIR BAG OFF light does
not illuminate and stay lit) if: .,..
137

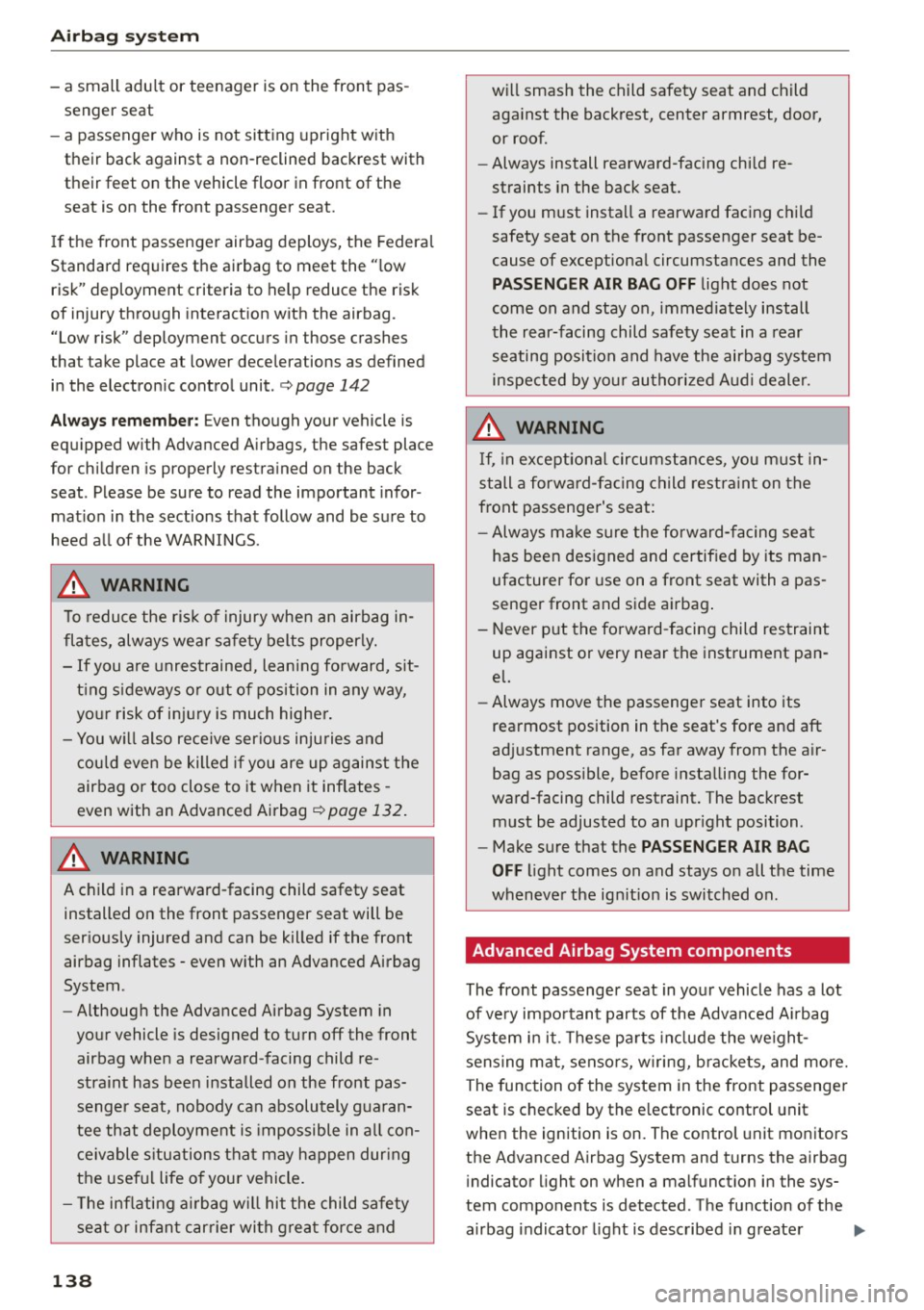

Airbag syste m
-a small adu lt or teenager is on the front pas ­
senger seat
- a passenger who is not sitting upright with
their back against a non -reclined backrest with
their feet on the vehicle floor in front of the
seat is on the front passenger seat.
I f the front passenger airbag deploys, the Federal
Standard req uires the airbag to meet the " low
risk" deployment criteria to help reduce the risk
of injury through interaction with the airbag .
"Low risk" deployment occurs in those crashes
that take place at lower decelerations as defined in the electron ic control unit.¢ page
142
Alw ays re member: Even though your vehicle is
equ ipped w ith Advanced Airbags, the safest place
for children is properly restrained on the back
seat . Please be sure to read the important infor ­
mat ion in the sections that follow and be sure to
heed a ll of the WARNINGS.
_& WARNING
To reduce the ris k of injury when an airbag in­
fla tes, always wear safety belts proper ly.
- If you are unrestrained, leaning fo rward, s it­
t ing s ideways or out of position in any way,
your risk of injury is much higher .
- You w ill also receive serious inju ries and
could even be killed if you are up against the
airbag or too close to it when it inflates -
even with an Advanced Airbag¢ page
132.
_& WARNING
A child in a rearward-facing child safety seat
installed on the front passenger seat will be
ser iously injured and can be killed if the front
airbag inflates - even w ith an Advanced Airbag
System.
- Although the Advanced Airbag System in
your vehicle is designed to turn off the front
airbag when a rearward -facing child re­
straint has been installed on the front pas­
senger seat, nobody can absolutely guaran­
tee that deployment is impossible in al l con­
ceivable s ituations that may happen dur ing
the usef ul life o f your vehicle .
- The inflating a irbag w il l hit the child safety
seat or infant carrier wi th great force and
138
w ill smash the child safety seat and child
aga inst the backrest, center armrest, door,
or roof.
- Always install rearward-facing chi ld re­
straints in the back seat.
- If you must insta ll a rearward fac ing ch ild
safety seat on the front passenger seat be­
cause of exceptional circumstances and the
PAS SENGER AIR BAG OFF light does not
come on and stay on, immediately install
the rear-facing child safety seat in a rear
seating position and have the airbag system
inspected by your au thorized Aud i dealer .
_& WARNING
If, in exceptiona l circumstances, you must in­
stall a forwa rd-facing child restra int on the
front passenger's seat:
- Always ma ke sure the forward-facing sea t
has been des igned and certif ied by its man ­
ufacturer for use on a front seat with a pas­
senger front and s ide a irbag .
- Never p ut the fo rward-facing child restraint
up against or very near the instrument pan ­
el.
-Always move the passenger seat into its
rearmost position in the seat's fore and aft
ad justment range, as far away from the a ir­
bag as poss ible, before insta lling the for­
ward-facing child restraint. The backrest
must be adjusted to an upr ight position .
- Make sure that the
PASSENGER AIR BAG
OFF
li ght comes on and stays on all the time
whenever the ign it ion is switched on.
Advanced Airbag System components
The front passenger seat in your vehicle has a lot
of ve ry impo rtant parts of the Advanced A irbag
System in it. These pa rts include the we ight ­
sensing mat, senso rs, w iring, bracke ts, and more.
The function of the system in the front passenge r
seat is checked by the e lectronic control unit
when the ignition is on. The control unit mon itors
the Advanced Airbag System and turns the airbag i ndicator light on when a malfunct io n in the sys­
tem components is detected. The function of the
a irbag indicator light is described in greate r
