& WARNING
• If your vehicle should break down for mechanical or other
reasons, park at a safe distance from moving traffic, turn off the
engine and turn on the hazard warning lights
=> page 57, "Emer­
gency flashers
A".
• Never open the hood if you see or hear steam or coolant
escaping from the engine compartment -you risk being scalded.
Wait until you can no longer see or hear steam or coolant
escaping.
• The engine compartment of any vehicle is a dangerous area .
Before you perform any work in the engine compartment, turn of
the engine and allow it to cool . Follow the warning stickers
=> page 263, "Engine compartment".
0 Note
Do not continue driving if the -F-symbol illuminates. There is a
malfunction in the engine cooling system -you could damage your
engine .•
Engine oil pressure malfunction 9=::7-
The red engine oil pressure warning symbol requires
immediate service or repair. Driving with a low oil pres­
sure indication is likely to cause severe engine damage.
If the ~ symbol on the display flashes, the engine oil pres­
sure is too low. A driver message appears as well to explain
the malfunction in more detail. The driver warning goes out
after about 5 seconds, but it can be brought up at any time
by pressing the [SET] button again.
Switch off engine and check oil level
- Stop the vehicle.
Controls and equip ­
ment
Driver information display
Turn the engine off.
- Check the brake fluid level=>
page 275.
Seek professional assistance if necessary.
Engine oil level too low
If the engine oil level is too low, add engine oil=> page 275.
Engine oil level correct
If the symbol "t::7-flashes even though the engine oil level is correct,
please seek professional assistance. Do not continue driving . Do not
leave the engine running
idle, either.
[ i] Tips
• The engine oil pressure symbol "t::7-is not an indicator for a low
engine oil level. Do not rely on it. Instead, check the oil level in your
engine at regular intervals, preferably each time you refuel, and
always before going on a long trip .
• The yellow oil level warning indication .,... requires oil refill or
workshop service without delay. Do not wait until the red oil pres­
sure warning
"t::7-starts to flash before you respond to the low oil
level warning . By then, your engine may already have suffered
serious damage. •
Fill engine oil now ~ ..
~-Please replenish oil now
If the ~ symbol lights up, then the oil has to be replenished right
now =>
page 275. •
I • •

Opening and closing
Opening and closing
Keys
Key set
@ Ma ster key wi th remote control
Fi g. 28 Key set
You can centrally lock and unlock your vehicle and start the engine
with the master key with remote control.
@ Em erg ency key
The emergency key is not in tended for constant use . It sho uld only
be used in an emergency . Keep it in a safe place and do not carry it
on your key ring.
K ey repl aceme nt
If you lose a key, contact your authori zed Audi dealer immed iate ly
to have the
lost key disabled . Be sure to bring all your keys with you.
D ata in the ma ster key
During driving, service and maintenance -re levant data is continu ­
ously s tored on your master key . Your Audi service adviser can read
out this data and tel l you about the work your vehic le needs. This
applies als o to vehic les with convenience key*.
P ersonal comf ort settings
If two peop le use one vehicle, it is recommended that each person
always uses "their own" master key. When the igni tion is turned off
or when the vehicle is locked, persona l convenience settings for the
f ollowi ng sys tems are store d and assigned to the remot e master
key.
• Climate control
• Centra l locking system
• Seat me mory*
• Parking system *
• Audi side assist*
• Audi drive se lect*
T he stored setti ngs are automatically recalled when you unlock the
vehic le, when you open the doors or when you turn on the ignition.
& WARNING
• Do not leave your vehicle unattended with the key in the igni ­
tion lock . Entry by unauthorized per sons co uld end anger you or
result in theft or damage th e vehicle . Alway s lock all doors and
take the key .
• Do not leave children unattended in the vehicle , especiall y with
acce ss to vehi cle key s. Unguarded access to the key s prov ide s
children the opportunity to start th e engine and /or a ctivate vehicle
sys tem s such as the po wer windo ws et c. Un supervi sed oper ation
of any v ehi cle system by children can result in serio us injur y.
• Do not remove the key from the ig nition lock until the vehicle
ha s com e to a complete s top. Otherwi se the steering column lock
could suddenly engage -cau sing the ri sk of an accident. .,

Opening and closing
& WARNING
• After closing the rear lid, always pull up on it to make sure that
it is properly closed. Otherwise it could open suddenly when the
vehicle is moving .
• To help prevent poisonous exhaust gas from being drawn into
the vehicle, always keep the rear lid closed while driving . Never
transport objects larger than those which fit completely into the
luggage area, because then the rear lid cannot be fully closed.
• Never leave your vehicle unattended especially with the rear lid
left open. A child could crawl into the car through the luggage
compartment and pull the lid shut, becoming trapped and unable
to get out. To reduce the risk of personal injury, never let children
play in or around your vehicle. Always keep the rear lid as well as
the vehicle doors closed when not in use.
• Always ensure that no one is within range of the rear lid when
it is moving, in particular close to the hinges -fingers or hands can
be pinched .
[ i J Tips
• When the vehicle is locked, the rear lid can be opened separately
by pressing the button
cs on the master key. When you close the
rear lid again, it locks automatically.
• If the rear lid is open or not properly closed when the ignition is
turned on, the door and rear lid warning=>
page 21 appears in the
instrument cluster display. •

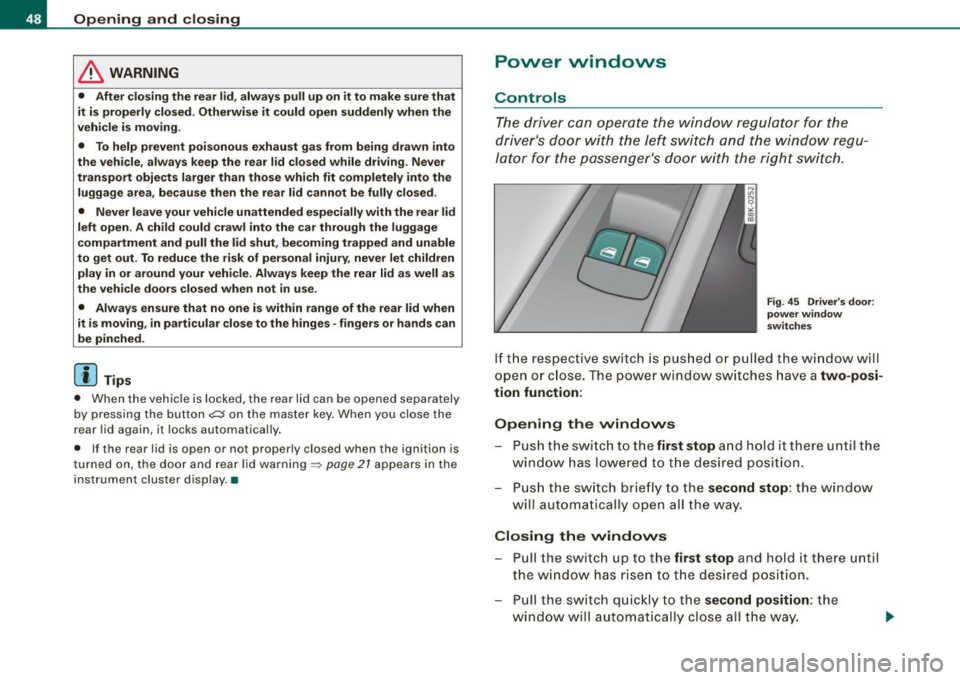

Power windows
Controls
The driver can operate the window regulator for the
driver's door with the left switch and the window regu­
lator for the passenger's door with the right switch.
Fig. 45 Driver's door:
power window
switches
If the respective switch is pushed or pulled the window will
open or close. The power window switches have a
two-posi ­
tion function:
Opening the windows
- Push the switch to the first stop and hold it there until the
window has lowered to the desired position.
- Push the switch briefly to the
second stop: the window
will automatically open all the way.
Closing the windows
- Pull the switch up to the first stop and hold it there until
the window has risen to the desired position.
- Pull the switch quickly to the
second position: the
w indow will automatically close all the way. .,

& WARNING
• Do not leave children unattended in the vehicle, especially with
access to vehicle keys. Unsupervised use of the keys can result in
starting of the engine and use of vehicle systems such as power
windows, etc. which could result in serious injury.
• Remember -you can still open or close the power windows for
about ten minutes after the ignition is switched off. Only when
either of the doors are opened are the power windows switched
off.
• Be careful when closing the windows . Check to see that no one
is in the way, or serious injury could result!
• Always remove the ignition key whenever you leave your
vehicle.
• If you lock your vehicle from the outside, no one, especially chil­
dren, should remain in the vehicle.
• Do not stick anything on the windows or the windshield that
may interfere with the driver's field of vision.
[ i) Tips
• When you open the doors, the windows automatically lower
about 10 mm .
• Afte r the ignition has been switched off , the windows can still be
opened or closed for about 10 minutes . The window regulators are
not switched until the driver's or passenger 's door is opened. •
Controls and equip ­
ment
Opening and closing

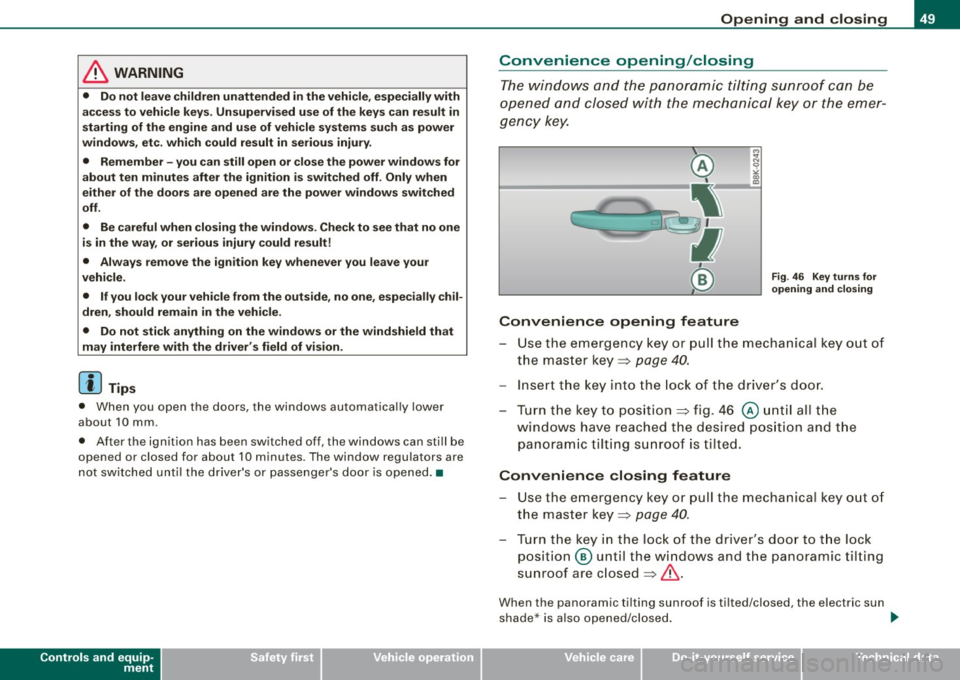

Convenience opening /closing
The windows and the panoramic tilting sunroof can be
opened and closed with the mechanical key or the emer­
gency key.
Convenience opening feature
~ N 0
"' "' m
Fig. 46 Key turns for
opening and closing
- Use the emergency key or pull the mechanical key out of
the master key::} page
40.
- Insert the key into the lock of the driver's door.
Turn the key to position ::} fig. 46
@ until all the
windows have reached the desired position and the
panoramic tilting sunroof is tilted.
Convenience closing feature
-Use the emergency key or pull the mechanical key out of
the master key::} page
40.
Turn the key in the lock of the driver's door to the lock
position @ until the windows and the panoramic tilting
sunroof are closed::}& .
When the panoramic tilting sunroof is tilted/closed, the electric sun
shade * is also opened /closed. ._
I • •

Clear vision
& WARNING
Automatic headlights are only intended to assist the driver. They do not relieve the driver of his responsibility to check the head­
lights and to turn them on manually according to the current light
and visibility conditions. For example, fog cannot be detected by
the light sensors. So always switch on the headlights under these
weather conditions and when driving in the dark
tD .
[ i ) Tips
• The light sensor* for headlight control is located in the rear view
mirror mount. You should therefore not apply any stickers to the
windshield in this area in order to prevent malfunctions or failures.
• The sensitivity level for the light sensor* set at the factory can be
changed in the MMI* menu ~
page 55 in the automatic driving
lights function.
• When you remove your key from the ignition while the vehicle's
lights are turned on, a buzzer sounds as long as the driver's door is
open.
• Please obey all laws when using the lighting systems described
here.
• The coming home/leaving home function* is available only with
the switch in the AUTO position. •
Fog lights
Fig. 52 Fog light
switch
To turn on the fog lights }D, press button (D => fig. 52.
- To turn on the rear fog lights
Ot press button @.
Fog lights
The side marker lights or low beams must be switched on. When the
fog lights are switched on, the green check light at the edge of the
switch comes on.
If automatic driving light control AUTO is activated, the low beams
are switched on when the fog lights are turned on.
Rear fog lights
Low beams or side marker lights with fog lights must be turned on.
When the rear fog lights are turned on, the yellow check light at the
edge of the switch comes on.
0 Note
The rear fog lights should only be turned on in accordance with
traffic regulation, as the lights are bright for following traffic. •

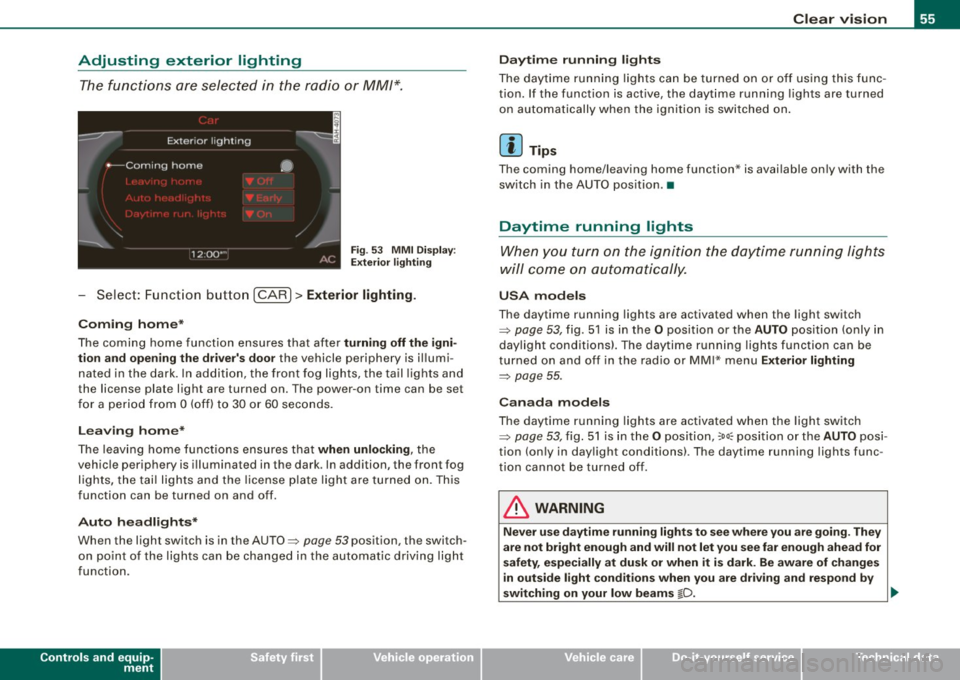

Adjusting exterior lighting
The functions are selected in the radio or MM/*.
Fig. 53 MMI Display:
Exterior l ighting
-Select: Function button [CAR]> Exterior lighting .
Coming home*
The coming home function ensures that after
turning off the igni ­
tion and opening the driver's door
the vehicle periphery is illumi ­
nated in the dark. In addition, the front fog lights, the tail lights and
the license plate light are turned on. The power-on time can be set
for a period from
O (off) to 30 or 60 seconds.
Leaving home*
The leaving home functions ensures that
when unlocking, the
vehicle periphery is illuminated in the dark. In addition, the front fog
lights, the tail lights and the license plate light are turned on. This
function can be turned on and off.
Auto headlights*
When the light switch is in the AUTO~
page 53 position, the switch­
on point of the lights can be changed in the automatic driving light
function.
Controls and equip ­
ment
Clear vision
Daytime running lights
The daytime running lights can be turned on or off using this func ­
tion. If the function is active, the daytime running lights are turned
on automatically when the ignition is switched on.
[ i] Tips
The coming home/leaving home function * is available only with the
switch in the AUTO position . •
Daytime running lights
When you turn on the ignition the daytime running lights
will come on automatically .
USA models
The daytime running lights are activated when the light switch
~ page 53, fig. 51 is in the O position or the AUTO position (only in
daylight conditions). The daytime running lights function can be
turned on and off in the radio or
MMI* menu Exterior lighting
~ page 55.
Canada models
The daytime running lights are activated when the light switch
~ page 53, fig. 51 is in the O position, ooo: position or the AUTO posi­
tion (only in daylight conditions). The daytime running lights func­
tion cannot be turned off.
& WARNING
Never use daytime running lights to see where you are going. They
are not bright enough and will not let you see far enough ahead for
safety, especially at dusk or when it is dark. Be aware of changes
in outside light conditions when you are driving and respond by
switching on your low beams
io. ~
I • •

Clear vision
0 Note
Always be aware of changes in outside light conditions while you
are driving. Respond in time to fading daylight by turning the light
switch to position
gO (or "AUTO") to turn on your headlights. •
Instrument lighting
The basic brightness of the illumination for the instru ­
ments, the center console and the display can be
adjusted.
Press the knob to release it.
Fig. 54 Instrument
lighting
- Rotating the knob to the right"+" will increase the basic
brightness when it is dark.
Rotating the knob to the left" -" will decrease the basic
brightness when it is dark.
- Pressing the knob will prevent unintentiona l changes.
0 Note
The instrument cluster and center console illumination (gauges and
needles) comes on when you switch on the ignition and the
vehicle headlights are off
.
Be aware of the following difference between
models built to US or Canadian specifications:
• USA models: illumination of the instrument cluster (gauges and
needles), dash and center console around the gearshift lever is
controlled by a light sensor located in the instrument panel. The
instrument panel illumination will automatically become dimmer
as the daylight fades away and eventually will go out completely
when outside light is very low. This is to remind you, the driver, to
switch on the headlights before it gets too dark.
• Canada models: instrument panel illumination will stay bright
regardless of the intensity of ambient light . Always be aware of
changes in outside light conditions while you are driving. Respond
in time to fading daylight by turning the light switch to position
gD
(or "AUTO" if your car is equipped with this feature) to turn on your
headlights. •
Applies to vehicles : w ith xenon head ligh ts
Xenon headlights
After starting the engine, the xenon headlights are automatically
adjusted to the load and angle of the vehicle (for example, during
acceleration and braking!. This prevents oncoming traffic from
experiencing unnecessary headlight glare from your xenon head­
lights.
If the system is not operating properly, a warning symbol in the
Auto-Check Control is displayed
:::::> page 36. •

[ i J Tips
• Pressing the button l~•~ l seve ral times consecutively can tr igger
the over load protection . The sun shade can only be
extended/re tracted again af ter a brief waiting period.
• The rea r window sun shade only functions when the vehicle inte ­
rio r is wa rmer than 23°F (-5°Cl. •
Wiper and washer system
Switching on the windshield wipers
Fig. 6 3 Win dshield
w iper l ever
M ove the windshield w iper lever to the c orresp onding position :
@-Windshie ld w iper off
G) -Interva l mode. To extend/shorten the wiper inte rvals, move the
sw itc h @ to the lef t/right. In vehic les wi th a rain sensor*, the w ind­
shield wipers are activated automatically starting at a speed of
2 mph (4 km/h). The higher the sensitivity of t he rain senso r* is set
(switch @to the right), the earlier the windshield wipers react to
moisture on the windshie ld.
@ -Slow wipi ng
© -Fast wiping
Con tro ls and eq uip­
ment
Clear vision
© -Single wipe
© -C lean the windshie ld. To eliminate wate r droplets, the wind­
shie ld wiper performs one afterwipe operation after several
seconds whi le d riving. You can switch this function off by moving
the lever to pos ition © within 10 seconds o f the afterwipe opera ­
tion. The afterwipe function is reactivated the next time the ignition
is sw itched on.
Cleaning the headlights *. The headlight washer system * only func ­
tions when the light is switched on . The headlights are automati ­
ca lly c leaned the first time and every fifth time the lever is moved to
pos ition
® · They are also cleaned every time you hold the lever in
pos ition © for longer than 2 seconds.
& WARNING
• The rain sen sor is only intended to a ssi st the driver . The driver
is still responsible for manually swit ching the wiper s on according
to the visibility conditions .
• The windshield may not be treated with water -repelling wind ­
s hield coating agents . Unfavorab le conditions , such as wetnes s,
darkness , low sun , can result in increased glare . Wiper bl ade
c hatter is also po ssible .
• Properly functioning windshield w iper blades are required for a
clear view and safe driving
~ page 63 , "Installing new wiper
blades ".
0 Note
• I n the case of frost, check whether the windshie ld wiper blades
are frozen to the windshield . Switching on the windshield wipers
ca n damage the wiper b lades !
• P rior to using a car wash, the windshield wiper system must be
switched off (lever in posi tion 0). This prevents un intentiona l
switching on and damage to the windshield wiper system. .,.
Vehicle care I I irechnical data

Clear vision

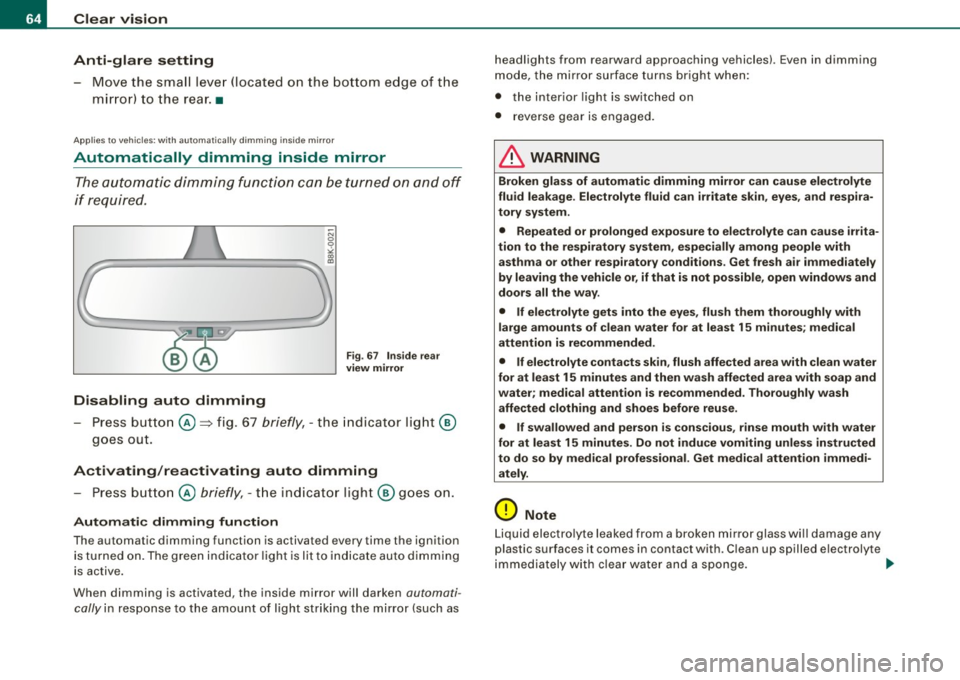

Anti-glar e setting
- Move the small leve r (located on the bottom edge of the
mirror) to the rear. •
Applies to vehi cles: wit h a utom atica lly dimm in g ins id e mirro r
Automatically dimming inside mirror
The aut omatic dimming function can be turned on and off
if required.
Disabling auto dimming
F ig . 6 7 Ins ide r ear
vi ew mirror
- Press button©=> fig. 67 briefly, -the indicator light @
goes out.
Activating /rea ctivating auto dimming
- Press button© briefly, -th e indicator ligh t@ goes on .
Automatic dimming fun ction
The automatic dimming function is activated eve ry time th e ignition
is turned on . The green indicator light is lit to indicate auto d imming
is active.
When dimming is activated , the inside mirror will darken automati­
cally in response to the amount of light striking the mirror (such as headlights from rearward approaching vehicles). Even in dimming
mode,
the mirror surface t urns bright when:
• the inter ior light is switched on
• r everse gear is engaged.
& WARNING
Broken glas s of au tomati c dimming mir ror can cau se elect rol yte
flu id l eaka ge . Ele ctr olyte fluid can irritate s kin , eyes , and re s pir a­
t o ry sy stem.
• Repeated or prolonged e xposure to el ectro lyte can cause irrita­
ti on to the re spiratory sy stem , espe cially am ong people wi th
a sthm a or other re spirator y conditions . Get fr esh air immediatel y
by leavin g the vehicl e or , if that i s not po ssib le , open window s and
door s all the wa y.
• If electrolyte get s into the eye s, flu sh them thorough ly with
l a rge amou nts of cle a n wa ter for at le ast 15 mi nute s; me dic al
a tt ention is recommended .
• If ele ctrolyte cont acts sk in , flu sh affe cted are a w ith cle an w ater
for a t lea st 15 minute s and then wa sh affe cted ar ea with soap and
wa ter; medi cal attention is re commended . Thoroughl y w ash
affected cloth ing and shoe s before reu se .
• If swallo wed and person is consciou s, rinse mouth w ith w ater
for at lea st 1 5 minute s. Do no t indu ce vomiting unle ss instru cted
to do so by medi cal profess iona l. G et me dica l attenti on immedi­
ately.
0 Note
Liquid electro lyte leaked from a broken mir ror glass wi ll damage any
plastic surfaces it comes in contact wi th . C lean up spilled electrolyte
immediately with c lear water and a sponge . ..

Clear vision
[ i ] Tips
If there should be a malfunction in the electrical system, you can
sti ll adjust the outside mirrors by pressing the edge of the mirror. •
Applies to ve hicles: with automatically adjusting outside m irrors
Automatic dimming for the outside mirrors
The outside mirrors dim at the same time as the inside mirror. When
the ignition is switched on, the mirrors automatically dim
depending on the amount of light striking the mirrors (such as head­ lights shining into the vehic le from the rear).
When the inte rior lighting is switched on and when reve rse gear is
engaged, the mirrors are switched back to their original brightness
{not dimmed) .
& WARNING
Broken glass of automati c dimming mirror can cau se e lectrolyte
fl uid leakage. Ele ctrolyte f luid c an irritate skin , eye s, an d re spir a­
tory system .
• Repeated or pr olonged e xposure to electrol yte can cause irrita ­
tion to the resp iratory sy stem , e specially among people with
a sthma or oth er re spir atory condition s. Get fre sh air immedi ately
by leaving the vehi cle or, if that is not po ssibl e, op en windows and
d o ors all the way .
• If electrolyte get s into the eyes , flush them thoroughly with
large amount s of clea n water for at lea st 15 minute s; medi cal
attention is recommended .
• If electrolyte contact s skin, flush affe cted area w ith clean water
for at least 15 minute s and then wa sh affected area with soap and
water ; m edic al a ttention is recommend ed . Thoroughl y wash
affected clothing and shoes before reuse .
• If swallowed and per son is con sciou s, rinse mout h with water
for at least 15 minute s. Do not induce vomiting unles s ins tructed
& W ARN ING (continued )
to do so by m ed ical p rofess ional. Get medic al attent ion immedi­
ately .
0 Note
Liquid electro lyte leaked from a broken mirror glass wi ll damage any
plastic surfaces it comes in contact with. C lean up spilled e lectrolyte
immediately with c lear wate r and a spo nge.
[ i ] Tips
• Switching off the dimming function of the inside rear view
mirror al so dea ctivate s the autom atic dimm ing fun ction of the e xte ­
rior mirrors .
• Automatic dimming for the mirror only operates properly if the
sun shade* for the rear window is not in use or the light striking the
inside mirror is not hindered by other objects. •
