Driving Safely ---------------=------------'-
Proper adjustment of head restraints
Correctly adjusted head restraints are an important part
of your vehicle's occupant restraint system and can help
to reduce the risk of injuries in accident situations.
Fig. 182 Correctly
adjusted head restraint
viewed from the side
The head restraints must be correctly adjusted to achieve
the best protection.
-Adjust the head restraint so that the upper edge of the
restraint is level with the top of your head, but no lower
than eye level and so it is as close to the back of your
head as possible ~
page 173, fig. 182.
Adjusting head restraints=> page 76.
& WARNING
Driving without head restraints or with improperly adjusted head
restraints increases the risk of serious injuries in a collision . To
help reduce the risk of injury :
• Always drive with the head restraints in place and properly
adjusted.
• Every person in the vehicle must have a properly adjusted head
restraint.
Controls and equip­ ment Safety first Vehicle operation
& WARNING (continued)
•
Always make sure each person in the vehicle properly adjusts
their head restraint. Each head restraint must be adjusted
according to occupants' size so that the upper edge is as even
with the top of the person's head, but no lower than eye level and
so it is as close to the back of to the head as possible .
• Never attempt to adjust head restraint while driving. If you
have driven off and must adjust the driver headrest for any reason,
first stop the vehicle safely before attempting to adjust the head
restraint.
• Children must always be properly restrained in a child restraint
that is appropriate for their age and size=>
page 213. •
Examples of improper seating positions
The occupant restraint system can only reduce the risk of
injury if vehicle occupants ore properly seated.
Improper seating positions can cause serious injury or
death . Safety belts can only work when they are properly
positioned on the body. Improper seating positions reduce
the effectiveness of safety belts and will even increase the
risk of injury and death by moving the safety belt to critical
areas of the body. Improper seating positions also increase
the risk of serious injury and death when an airbag deploys
and strikes an occupant who is not in the proper seating
position. A driver is responsible for the safety of all vehicle
occupants and especially for children. Therefore:
- Never allow anyone to assume an incorrect seating posi­
tion when the vehicle is being used~& .
The following bulletins list only some sample positions that will
increase the risk of serious injury and death. Our hope is that these .,_
Vehicle care Do-it-yourself service Technical data

___ o_ r_iv _ i _n....; g::;_ S_ a_f _e _ly=-- -------------------------------------------------

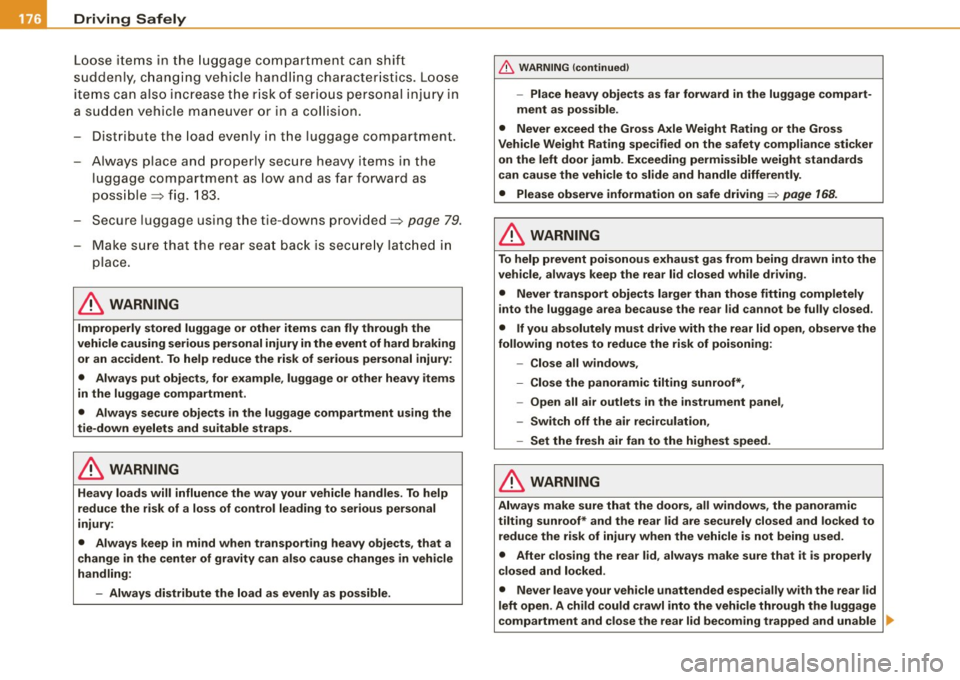

Loose items in the luggage compartment can shift
suddenly, changing vehicle handling characteristics. Loose
items can also increase the risk of serious personal injury in
a sudden vehicle maneuver or in a collision.
- Distribute the load evenly in the luggage compartment.
- Always place and properly secure heavy items in the
luggage compartment as low and as far forward as
possible
~ fig. 183.
Secure luggage using the tie-downs provided~
page 79.
- Make sure that the rear seat back is securely latched in
place.
& WARNING
Improperly stored luggage or other items can fly through the
vehicle causing serious personal injury in the event of hard braking or an accident. To help reduce the risk of serious personal injury:
• Always put objects , for example, luggage or other heavy items
in the luggage compartment.
• Always secure objects in the luggage compartment using the
tie-down eyelets and suitable straps.
& WARNING
Heavy loads will influence the way your vehicle handles. To help
reduce the risk of a loss of control leading to serious personal
injury:
• Always keep in mind when transporting heavy objects, that a
change in the center of gravity can also cause changes in vehicle
handling:
-Always distribute the load as evenly as possible.
& WARNING (continued)
-Place heavy objects as far forward in the luggage compart­
ment as possible.
• Never exceed the Gross Axle Weight Rating or the Gross
Vehicle Weight Rating specified on the safety compliance sticker on the left door jamb. Exceeding permissible weight standards
can cause the vehicle to slide and handle differently.
• Please observe information on safe driving~
page 168.
& WARNING
To help prevent poisonous exhaust gas from being drawn into the
vehicle, always keep the rear lid closed while driving.
• Never transport objects larger than those fitting completely
into the luggage area because the rear lid cannot be fully closed.
• If you absolutely must drive with the rear lid open, observe the
following notes to reduce the risk of poisoning:
-Close all windows,
- Close the panoramic tilting sunroof*,
- Open all air outlets in the instrument panel,
- Switch off the air recirculation,
- Set the fresh air fan to the highest speed.
& WARNING
Always make sure that the doors, all windows, the panoramic
tilting sunroof* and the rear lid are securely closed and locked to
reduce the risk of injury when the vehicle is not being used.
• After closing the rear lid, always make sure that it is properly
closed and locked.
• Never leave your vehicle unattended especially with the rear lid
left open. A child could crawl into the vehicle through the luggage
compartment and close the rear lid becoming trapped and unable .,_

________________________________________________ D_r_iv _ i _n_ g~ S_ a_ fe_ ly __ !II
& WA RNIN G (continu ed )
to get out . Being tr apped in a vehi cle can lead to serious personal
injury.
• Never let children play in or around the vehicle .
• Never let pa ssengers ride in the lugg age compartment . Vehicle
occupants must always be properly restrained in one of the
vehicle 's seating po sitions.
[ i ] Tips
• Air circu lation helps to reduce window fogging . Stale air escapes
to the outside through vents in the tr im panel. Be sure to keep these
s lots free a nd ope n.
• T he tire pressure must correspond to the load. The ti re pressure
is shown on th e tire pressure label. On USA vehicles, the tire pres ­
sure label is located on the driver 's side 8 -pillar. On Canada vehicles,
t he t ire pressure la bel is located e ither on the driver's s ide 8 -p illar
or ins ide the fuel fil ler flap. The tire pressu re labe l lists the recom ­
m en ded c old tire in flati on press ures for the vehicle at i ts m axim um
capacity weight and the tires that were on your vehicle at the time
i t w as manu factur ed. F or rec ommend ed tire pressu res for normal
load conditions, p lease see chapter=>
page 291 . •
Tie-downs
T h e lu gga ge compart ment is equipped with four tie­
do wns t o sec ure lu gg ag e and oth er item s.
Use the tie -downs to secure your cargo properly=> page 175,
"Lo adi ng th e luggag e compartm ent".
I n a co llis ion, the laws of physics mean that even smaller items that
are l oose i n t he vehic le wi ll become heavy mis siles that can ca use
serious injur y. It e ms in the vehicle possess energy which vary with
veh ic le speed and the weight of the item . Vehic le speed is the most
s ign ificant factor.
Controls and equip­
ment Safety first Vehicle operation
F
or example, in a frontal co llision at a speed of 30 mph ( 48 km/h),
t he forces acting on a 10 -lb (4. 5 kg) o bjec t are abo ut 20 times the
normal weight of the item . This means that the we ight of the item
wo uld sudden ly be about 200 lbs . (90 kg) . Yo u can imagine the inj u­
ries that a 200 lbs . (90 kg) item flying free ly through the passenger
compa rtment cou ld cause in a coll ision like this .
& WARNING
Weak, damaged or improper straps used to secure items to tie ­
downs can fail dur ing hard braking or in a collision and cause
serious personal injury.
• Always use suitable mounting straps and properly secure
items to the tie -downs in the luggage compartment to help
prevent items from shifting or flying forward as dangerous
missiles .
• When the rear seat ba ckrest is folded down , always use suit ­
able mounting straps and properly secure items to the tie -downs
in the luggage compartment to help prevent items from flying
forward as dangerous missiles into the passenger compartment .
• Never atta ch a ch ild safety seat tether strap to a tie -down . •
Reporting Safety Defects
Applicable to U.S.A. If you believe that your vehicle has a defect
which could cause a crash or could cause injury or death , you should immediately inform
the National Highway Traffic Safety Adminis ­
tration (NHTSA) in addition to notifying Audi of
America, In c. _,.
Vehicle care Do-it-yourself service Technical data

_______________________________________________ S_a _f _e _t -=-y _ b_ e_lt _s __ __
Safety belts
General notes
Always wear safety belts!
Wearing safety belts correctly saves lives!
This chapter explains why safety belts are necessary, how
they work and how to adjust and wear them correctly.
- Read all the information that follows and heed all of the
instruct ions and WARNINGS.
& WARNING
Not wearing safety belts or wearing them improperly increases
the risk of serious personal injury and death.
• Safety belts are the single most effective means available to
reduce the risk of serious injury and death in automobile acci­
dents . For your protection and that of your passengers , always
correctly wear safety belts when the vehicle is moving.
• Pregnant women, injured, or physically impaired persons must
also use safety belts . Like all vehicle occupants, they are more
likely to be seriously injured if they do not wear safety belts . The
best way to protect a fetus is to protect the mother -throughout
the entire pregnancy. •
Number of seats
Your Audi has a total of four seating positions: two in the front and
two in the rear. Each seating position has a safety belt .
Controls and equip­ ment Safety first
Vehicle operation
& WARNING
Not wearing safety belts or wearing them improperly increases
the risk of serious personal injury and death .
• Never strap more than one person, including small children,
into any belt. It is especially dangerous to place a safety belt over
a child sitting on your lap.
• Never let more people ride in the vehicle than there are safety
belts available.
• Be sure everyone riding in the vehicle is properly restrained
with a separate safety belt or child restraint. •
Safety belt warning light ~
Your vehicle has a warning system for the driver and (on
USA models only) front seat passenger to remind you
about the importance of buckling-up.
Before driving off, always:
Fig . 184 Safety belt
warning light in the
instrument cluster -
enlarged
- Fasten your safety belt and make sure you are wearing it
properly.
1J,,
Vehicle care Do-it-yourself service Technical data

___ S_a_ f_ e_ t-= y_ b_e_ l_ t _s _______________________________________________ _

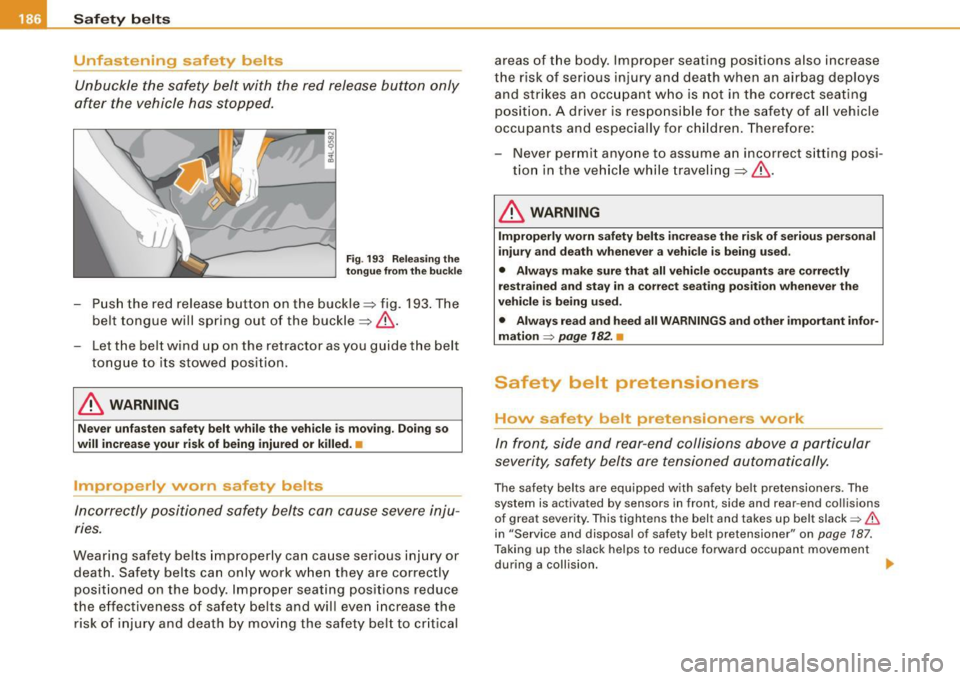

Unfastening safety belts
Unbuckle the safety belt with the red release button only
after the vehicle has stopped.
Fig . 193 Releasing the
tongue from the buckle
-Push the red release button on the buckle~ fig. 193. The
belt tongue will spring out of the buckle~&_ .
- Let the belt wind up on the retractor as you guide the belt
tongue to its stowed position.
& WARNING
Never unfasten safety belt while the vehicle is moving. Doing so
will increase your risk of being injured or killed. •
Improper ly worn safetY belts
Incorrectly positioned safety belts can cause severe inju­
nes.
Wearing safety be lts improperly can cause serious injury or
death. Safety belts can only work when they are correctly positioned on the body. Improper seating positions reduce
the effectiveness of safety belts and will even increase the risk of injury and death by moving the safety belt to critical areas
of the body. Improper seat ing positions also increase
the risk of serious injury and death when an airbag deploys and strikes an occupant who is not in the correct seating
position. A driver is responsible for the safety of all vehicle
occupants and especially for children. Therefore:
- Never permit anyone to assume an incorrect sitting posi­
tion in the vehicle while traveling
~ &_.
& WARNING
Improperly worn safety belts increase the risk of serious personal
injury and death whenever a vehicle is being used.
• Always make sure that all vehicle occupants are correctly
restrained and stay in a correct seating position whenever the
vehicle is being used.
• Always read and heed all WARNINGS and other important infor­
mation
~ page 182. •
Safety belt pretensioners
How safety belt pretensianers work
In front, side and rear-end collisions above a particular
severity, safety belts are tensioned automatically.
The safety belts are equipped with safety belt pretensioners. The
system is activated by sensors in front, side and rear-end collisions
of great severity. This tightens the belt and takes up belt slack~,&
in "Service and disposal of safety belt pretensioner " on
page 187 .
Taking up the slack helps to reduce forward occupant movement
during a collision. .,

___ A_ ir_ b_ a-g _ s_y _s_ t_ e_ m _________________________________________________ _
Airbag system
Important things to know
Importance of wearing safety belts and
sitting properly
Airbags are only supplemental restraints. For airbags to
do their job, occupants must always properly wear their
safety belts and be in a proper seating position.
For your safe ty a nd the safety of your passengers, before
driving o ff, a lways:
- Adjust the driver's seat and steering wheel properly
~ page 170,
-Adjust the front passenger's seat properly~ page 70,
- Wear safety belts properly~ page 182,
-Always properly use the proper child restraint to pro tect
children~
page 213 .
In a col lision airbags must inflate within the blink of an eye and with
considerable force. The supplemental airbags can cause injuries if
the driver or the front seat passenger is not seated properly. There ­
fore in order to help the airbag to do its job, it is important, both as
a driver and as a passenger to sit properly at a ll times.
By keep ing room between your body and the steering wheel and the
front of the passenger compartment, the airbag can inflate fu lly and
comp letely and prov ide supplementa l protection in certain frontal
collisions =>
page 170, "Proper occupant seating positions". For
detai ls on the operation of the seat adjustment controls=>
page 72.
It's especially important that children are properly restrained
=>
page 213 .
There is a lot that the driver and the passengers can and must do to
help the individual safety features installed in your Audi work
together as a system.
P roper seating position is important so that the front airbag on the
driver side can do its job. I f you have a physical impairment or
condition that prevents you from sitting properly on the driver seat
with the safety belt proper ly fastened and reaching the peda ls,
special modifications to your vehicle may be necessary.
Contact your authorized Audi dealer, or call Audi Customer Rela ­
tions at 1 -800-822-2834 .
When the airbag system deploys, a gas generator will fill the
airbags, break open the padded covers, and inflate between the
steering wheel and the driver and between the instrument panel
and the front passenger . The airbags will def late immediate ly after
deployment so that the front occupants can see through the wind­
shield again without interruption.
All of this takes p lace in the b link of an eye, so fast that many people
don't even rea lize that the airbags have dep loyed. The airbags also
inflate with a great dea l of force and nothing shoul d be in their way
when they deploy . Front airbags in combination with properly worn
safe ty belts slow down and limi t the occupant's fo rward movement .
Together they help to prevent the driver and front seat passenger
from hitting parts of the inside the vehicle while reducing the forces
act ing on the occupant during the crash. In this way they help to
reduce the risk of injury to the head and upper body in the crash.
Airbags do not protect the arms or the lower parts of the body .
Both front airbags will not inflate in all frontal col lisions. The trig­
gering of the a irbag system depends on the veh ic le dece leration
rate caused by the collision and registered by the electronic contro l
unit . If this rate is below the refe rence value programmed into the
control unit, the airbags will not be triggered, even though the car
may be bad ly damaged as a result of the collision . Vehicle damage, _,.

___ A_ ir_ b_ a-g _ s_y _s_ t_ e_ m _________________________________________________ _
Child restraints on the front seat - some
important things to know
-Be sure to read the important information and head the
WARNINGS for important details about ch ildren and
Advanced Airbags~
page 213 .
Even though your vehic le is equipped with an Advanced Airbag
System, make certain that a ll children, especia lly those 12 years and
younger , always ride in the back seat proper ly restrained for their
age and size . The airbag on the passenger side makes the front seat
a potentia lly dangerous place for a child to ride. The front seat is not
the safest place for a chi ld in a forward -facing child safety seat. It
can be a very dangerous place for an infant or a child in a rearward ­
facing seat.
The Advanced Ai rbag System in your vehicle has been certified to
comply with the Requirements of United States Federal Motor
Vehicle Safety Standard 208 as applicable at the time your vehicle
was manufactured.
The Standard requires the front airbag on the passenger side to be
turned off ("suppressed") if a chi ld up to about one year of age
restrained in one of the rear-facing or forward-facing infant res traints listed in Federa l Motor Vehicle Safety Standard 208 with
which the Advanced Airbag System in your vehicle was cert ified has
been insta lled on the front passenger seat. For a listing of the child
restraints that were used to certify compliance with the US Safety
Standard =>
page 215.
The PASS ENGER AIR B AG OFF light in the instrument panel tells you
when the front Advanced Airbag on the passenger side has been
t urned off by the electronic control unit.
Each time you turn on the ignition , the
PASSEN GER AIR BA G OFF
light will come on for a few seconds and:
• will stay on if the front passenger seat is not occupied, •
will stay on if there is a small child or child restraint on the front
passenger seat,
• will go off if the front passenger seat is occupied by an adult as
registered by the weight-sensing mat=>
page 199, "Monitoring the
Advanced Airbag System" .
The
P AS SENGER AIR BAG OFF light comes on when the control unit
detects a tota l weight on the front passenger seat that requires the
front airbag to be turned off.
If the total weight on the front passenger seat is more than that of
a typica l 1 year -old child but less than the weight of a small adult,
the front airbag on the passenger side can deploy (the
PA SSE NGER
A IR BA G OFF
light does not come on). If the P ASSE NGER AIR B AG
O FF
light does not come on, the front airbag on the passenger s ide
has not been turned off by the electronic control unit and can
deploy if the control unit senses an impact that meets the condi ­
tions stored in its memory.
F o r e xample , th e a ir b ag m ay dep loy if:
• a small ch ild that is heavier than a typical 1 year -o ld child is on
the front passenger seat (regardless of whether the child is in one
of the child safety seats listed
=> page 215), or
• a child who has outgrown chi ld restraints is on the front
passenger seat.
If the front passenger airbag is turned off, the
PASSEN GER AIR BA G
OFF
light comes on in the instrument cluster and stays on.
The fron t airbag on the passenger side may
not deploy (the
PA SS ENGER AIR BA G OFF light does not illuminate and stay lit) even
if a small adult or teenager, or a passenger who is no t sitting upright
with their back against a non -reclined backrest with their feet on the
vehic le floor in front of the seat is on the front passenger seat
=> page 170, "Proper seating position for the driver".
If the front passenger airbag deploys, the Federal Standard requires
the airbag to meet the "low risk" deployment criteria to reduce the risk of injury through interact ion with the airbag. "Low risk" d eploy­
ment occu rs in those crashes that take place at lower decelerations .,.

___ A_ ir_b _a_ g;:::;_ s--:.. y_s _t _e _m _________________________________________________ _
& WARNING (con tinued )
• Improper in stallation of child re straints can reduce their effec­
tiveness or even prevent them from p roviding any protection .
• An improperly installed child re straint can interfere with the
airbag as it deploys and seriously injure or even kill the child -
even with a n Advanced Airbag System .
• Always carefully follow the manufa cturer's instruction s
provided with the child safety seat or carrier .
• Never pl ace additional items on the seat that can in crease the
total weight regi stered by the weight -sensing mat and can cause
injury in a crash .
u
Front airbags
Description of front airbags
The air bag system c an pr ovi de su ppleme ntal pr otecti on
t o prop erl y re stra ined fr ont se at occu pant s.
Fig . 194 Location of
driver airbag: in
s teering wheel F
ig . 195 Locat ion of
front pa ssenger' s
airbag : in the in stru ­
ment pa nel
Your vehicle is equipped with an "Advanced Airbag System" in
complia nce with United States Federal M oto r Ve hicle Sa fe ty Stan ­
dard (FMVSS) 208 as applicable at the time your vehicle was manu ­
f actured. The sys tem senses the posi tion o f the front sea ts a nd
co ntrols front airbag i nflat io n with a va lve, depending on the
distance between the respective seat and the steering whee l or
i nstru ment pane l. The sa fety be lts for t he seats have "pr eten­
sioners" that help to take slac k out of the belt system. The preten ­
s io n ers are als o ac tiva ted by the electronic con trol unit fo r t he
a irbag system.
T he front safe ty be lts als o have load limite rs t o h elp reduce the
fo rces applied to the body in a crash.
T he airbag for the driver is in the steering wheel hub~ fig. 194 and
t h e air bag for the fr ont passeng er is in th e in stru men t pa nel
~ fig. 195. The genera l location of the airbags is marked " AIRBAG".
T here is a lot you nee d to know ab out the airbags in y our ve hicle. We
ur ge you to read the deta iled information about airbags, safety belts
and child safety in this and the other chapters that make up the
owner's literature . P lease be sur e to heed the WARNINGS - th ey are
e xtremely important for your safety and the safety of your passen ­
gers, espec ia lly in fants a nd sma ll ch ildr en.
& WARNING
Never rely on airbags alone for protection.

__________________________________________________ A_ i_ r _b _a...: g::::_ s_ y=--- s_t _e _m __ lllll
& W ARNING (continued )
• Even when they deploy, airbags provide only supplemental
p rotect ion .
• Airbag work most effectively when used with properly worn
safety belts .
• Therefore , always wear your safety belts and make sure that
everybody in your vehi cle is properly restrained .
& WARNING
A person on the front passenger seat , especially infants and small
children, will receive serious injuries and can even be killed by
being too close to the a irbag when it inflates .
• Although the Advanced Airbag System in your vehicle is
designed to tu rn off the front passenger airbag if an infant or a
small child is on the front pa ssenger seat, nobody can absolutely
guarantee that deployment under these special cond itions is
impossible in all conceivable situations that may happen during
the useful life of your vehi cle .
• The Advanced Airbag System can deploy in accordance with
the "low risk" option under the U .S . Federal Standard if a child that
is heavier than the typical one -year old child is on the front
passenger seat and the other conditions for airbag deployment
are met.
• Accident statistics have shown that children are generally safer
in the rear seat area than in the front seating position .
• For their own safety , all children , espec ially 12 years and
younger, should always ride in the back properly restrained for
their age and size . •
Controls and equip­ ment Safety first Vehicle operation
Advanced front airbag system
Your vehicle is equipped with a front Advanced Airbag Syste
m in
compl ia nce w it h Un ited States Federal M oto r Ve hicle Sa fe ty S tan ­
dard 208 as appl icab le at the time your vehic le was manufactured.
The fro nt Advanced Ai rbag System supplemen ts the safety bel ts to
provide additional protection for the driver's and front passenger's
heads and upper bodies in fronta l cras hes. The ai rbags inflate o nly
i n fronta l im pac ts when the vehic le dece leratio n is h ig h enou gh.
T he front Advanced Airbag System for the front seat occupants is
n ot a su bstit ute fo r y ou r sa fety belts. Ra ther, i t is par t of th e overa ll
occupant restraint system in you r vehicle . A lways remember that
t he ai rbag sys te m can o nly h elp to pro tec t yo u, if y ou are sit ting
upright, wearing your safety be lt and wearing it properly. This is why
yo u an d your pas senge rs mu st always be p rope rly restrai ned, not
j us t because th e law requ ire s you to be.
T he Advanced Airbag System in your vehicle has been certified to
m ee t the " low r is k" requ ireme nts fo r 3 a nd 6 year -o ld c hildr en o n the
passenger s ide and very small adults on the driver side. The low risk
de ploym ent cr iteria a re inte nd ed t o he lp reduc e th e risk of in jury
through interaction with the front airbag that can occur, for
e xam ple, by be ing to o cl ose to the stee rin g wh eel and i nstru men t
panel w hen th e airbag inflates .
I n addition, the system has been certified to comply with the
"suppressio n" r eq uirem ents of t he Sa fety Standard , to tu rn off th e
front airbag for infants 12 months old and younger who a re
r es train ed o n th e fr ont p assenger sea t i n c hild re strai nts that a re
listed in the Standard ~
page 215, "Child restraints and Advanced
A irb ags" .
"Suppression" requires the front airba g on the passenger side to be
turned off if :
• a child up to abo ut on e year o f age is res traine d on the fr ont
passenger seat in one of the rear -facing or forward -facing infant
res traints l is te d in Federal Moto r Ve hicle Safe ty Standar d 208 wit h
which the Advanced Airbag System in your vehicle was certifi ed . For ...
Vehicle care Do-it-yourself service Technical data

__________________________________________________ A_ i_ r _b _a...; g::- s_ y=--- s_t _e _m __ lffllll
& WA RN ING (co ntinued)
• Th e inflating airb ag will hit th e child safety sea t o r inf ant
ca rrier with g re at f orc e and will sm ash th e child safety sea t a nd
c hild again st t he backre st, c enter armre st, doo r, or roof .
• Alway s in sta ll re arwa rd-f acing child re str aints i n the ba ck seat.
• If you mu st in stall a rearw ard facing child safety seat on the
fro nt pa ssenger seat be cau se of e xceptional cir cumstance s and
the PASSENGER AIR BAG OFF light doe s not come on and stay on ,
imm edi ately in sta ll the re ar- fa cing child safe ty s eat in a rea r
seating p osition and h ave th e airbag system in spected by your
autho riz e d Audi de aler.
& WARNING
If, in e xceptional circum sta n ce s, y ou mu st in stall a forw ard -f aci ng
c hild restraint on the front pa ssenger' s seat:
• Alway s make sure the forw ard -fa cing seat has b een de signed
and cert ified by it s manufa cturer for use on a front seat with a
pa ssenge r fr ont and side airb ag .
• Never put the forward -facing child re straint up again st or very
near the instrum ent p anel .
• Alway s move the p assenger seat into it s rearmo st po sition in
the seat's fore and aft adju stme nt r ange , as far aw ay from the
a irb ag as pos sible , before in stalling the forward -fac ing child
r e stra int . The b ackrest must be adjusted to an upright po sition .
• Make sure that the PASSEN GER AIR BAG OFF light come s on
a nd stay s on all the time whe never the ign it ion i s sw itch ed on . •
Advanced Airbag System components
The front passenger seat in your vehicle has a lot of very important
parts of the Advanced A irbag System in it. These parts inc lude the
weight -sensing mat, sensors, wiring, brackets, and more. The func -
Controls and equip­ ment Safety first Vehicle operation tion of the system in the front passenger seat is checked by
the elec­
tronic contro l unit when the ignition is on . The control unit monitors
the Advanced Airbag System and turns the a irbag indicator light on
when a malfunction in the system components is detected . The
function of the airbag indicator light is described in greater detail below. Because the front passenger seat conta ins important parts
of the Advanced Airbag System, you must take care to prevent it
from being damaged. Damage to the seat may prevent the
Advanced Airbag for the front passenger seat from doing its job in
a crash.
T he front Ad van ced Airbag System consi sts of th e
following:
• Crash sensors in the front of the vehicle that measure vehicle
acce leration/deceleration to provide information to the Advanced
A irbag System about the sever ity of the crash .
• An electronic control unit, with integrated crash sensors for front
and side impac ts. The control unit "decides" whether to fire the
front airbags based on the information received from the crash sensors . The control unit also "decides" whether the safety belt
pretensioners should be activated.
• An Advanced Airbag w ith gas generator and contro l valve for the
driver inside the steering wheel hub.
• An Advanced Airbag with gas generator and contro l valve inside
the instrument panel for the front passenger .
• A weight -sensing mat under the upholstery padding of the front
passenger seat cushion that measures the total weight on the seat .
The information registered is sent continuously to the e lectronic
control unit to regu late dep loyment of the front Advanced Airbag on
the passenger s ide.
• An airbag monito ring system and indicator light in the instru ­
ment cluster=> page
199.
• A sensor in each front sea t registers t he distance between the
respective seat and the steering wheel or instrument panel. The
information registered is sen t continuously to the electronic control
unit to regulate dep loyment of the front Advanced Airbags. ._
Vehicle care Do-it-yourself service Technical data
