________________________________________________ T_ i _r_e _s_ a_n_ d_ w_ h_ e_e _ l_s __ lR
•
Groove
means the space between two adjacent tread ribs.
L oad ra ting (code)
means the maximum load that a tire is rated to carry for a given
inflation pressure. You may not find this information on all tires
because it is not required by law.
M ax im um l oad ra tin g
means the load rating for a tire at the maximum permissib le infla­
tion pressure for that tire.
Ma ximum l oaded v ehi cle weigh t
means the sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehic le capacity weight, and
(ct) Production options weight
M ax im um (p er mi ssibl e) infl ati on pr essur e
means the maximum cold inflation pressure to wh ich a tire may be
inflated. Also ca lled "maximum inflation pressure."
Normal occ upa nt wei ght
means 150 lbs. (68 kilograms) times the number of occupants
seated in the vehicle up to the to tal seating capacity of your vehicle.
O ccupant di stributi on
means distribution of occupants in a vehicle .
Outer di am eter
means the overall diameter of an inflated new tire.
O ve rall wi dth
means the linear distance between the exteriors of the sidewa lls of
an inflated tire, includ ing elevations due to labeling, decorations, or
protective bands or ribs.
Pl y
means a layer of rubber -coated para lle l cords.
P rodu ction opt io ns wei ght
means the combined weight of those installed regular production
options weighing over 5 lbs . (2.3 kg) in excess of those standard
i t ems wh ich they replace, not previously considered in curb weigh t
or accessory weight, including heavy duty brakes, ride levelers, roof
rack, heavy duty battery, and specia l trim .
Radi al p ly tire
means a pneumatic tire in which the ply cords that extend to the
beads are laid at substantially 90 degrees to the centerline of the
tread .
Reco mm ended infl ati on pr essu re
see => page 288, "Cold tire inflation pressure".
Rein force d tir e
means a tire des ign to operate at higher loads and at higher infla­
tion pressures than the corresponding standard tire. Reinforced
t ires may be identi fied as "XL", "x i", "EXTRA LOAD", or "RF" on the
sidewall.
R im
means a metal support for a tire or a tire and tube assembly upon
wh ich the t ire beads are seated.
Rim di amet er
means nominal diameter of the bead seat. If you change your whee l
size, you wi ll have to purchase new tires to match the new rim diam ­
eter .
Rim siz e de sig nation
means rim diameter and width.
Rim wid th
means nominal distance between rim flanges.
Vehicle care I t •

_L_T~ ir~e :..:s~ a~n~ d~ w~ h ~e~e~ l~ s '.,_ ______________________________________________ _
Sidewall
means that portion of a tire between the tread and bead.
Speed rating means the speed at which a tire is designed to be driven for
extended periods of time. The ratings range from 93 mph (150 km/h)
to 186 mph (298 km/h)=>
page 300. You may not find this informa ­
tion on a ll tires because it is not required by law.
The speed rating letter code, where applicable, is molded on the tire sidewa ll and indicates the maximum perm issible road speeds=>
&
in "Winter tires" on page 304.
Tire pressure monitoring system*
means a system that detects when one or more of a vehicle 's tires
are under inflated and illuminates a low tire pressure warning te ll­
tale.
Tread
means that portion of a tire that comes into contact with the road.
Tread separation
means pu lling away of the tread from the tire carcass.
Treadwear indicators (TWI)
means the projections within the principa l grooves designed to give
a visual indication of the degrees of wear of the tread . See
=>
page 297, "Tread Wear Indicator (TWI)" for more information on
measuring tire wear.
Uniform Tire Quality Grading
is a tire information system developed by the United States National
Highway Traffic Safety Adm inistration (NHTSA) that is designed to
help buyers make relative comparisons among tires. The UTQG is
not a safety rati ng and not a guarantee that a tire will last for a
prescribed number of miles (kilometers) or perform in a certain way.
It simply gives tire buyers additional informat ion to combine with
other considerations, such as price, brand loyalty and dealer recom-mendations. Under UTQG, tires are graded by the tire manufac­
t urers in three areas: treadwear, traction, and temperature resis­
tance . The UTQG information on the tires, molded into the
sidewalls.
U .S. DOT Tire Identification Number (TIN }
This is the tire's "seria l number". It begins with the letters "DOT"
and indicates that the tire meets al l federa l standards. The next two
numbers or letters indicate the plant where it was manufactured,
and the last four numbers represent the week and year of manufac­
ture. For example,
DOT ... 2209 ...
means that the tire was produced in the 22nd week of 2009 . The
other numbers are marketing codes that may or may not be used by
the tire manufacturer . This information is used to contact
consumers if a tire defect requires a reca ll.
Vehicle capacity weight
means the rated cargo and luggage load plus 150 lbs. (68 kilograms)
times the vehicle's tota l seating capacity as listed on the label
located either on the driver's side 8-pillar or on the inside of the fuel
filler flap.
Vehicle maximum load on the tire
means that load on an individual tire that is determined by distrib­
uting to each axle its share of the maximum loaded vehicle weight
and dividing by two.
Vehicle normal load on the tire
means that load on an individual tire that is determined by distrib­
uting to each axle its share of the curb weight, accessory weight,
and normal occupant weight (distributed in accordance with table
below =>
page 291) and dividing by two. _..

__________________________________________________ T_ ir_e _ s_ a_ n _ d_ w_ h_ e_ e_ls _ ____._
Occupant loading and distribution for vehicle normal load for various designated seating capacities
Designated seating capacity , num­
ber of occupants Vehicle normal load
, number of
occupants Occupant distribution in a normally
loaded vehicle
4
2 2 in front •
Cold tire inflation pressure
Tire pressure affects the overall handling, performance and safety of a vehicle.
Fig. 229 Tire pressure
label: located either on
driver's side B-pillar or
inside the fuel filler flap
Tir e pressure generally refers to the amount of air in a tire that it
needs it to do its job and safely carry the combined load of the entire
vehicle and its contents. T ire pressure is measured in kilopascals
(kPa), the international measuring unit and in pounds per square
inch (PSll. Tire pressure is based in part on the vehicle's design and
load limit -the greatest amount of weight that the vehicle can carry
safely and the tire size . The proper tire pressure is frequently
referred to as the "recommended cold tire inflation pressure." Air in
the tires expands when the tire heats up because of internal friction
when it flexes in use. The tire pressure is higher when the tire has
warmed up than when it is "cold." It is the inflation pressure in a
"cold" tire that counts. Therefore, you should never let air out of a
warm tire to match "cold tire inflation pressure" recommendations.
The tires would then be underinflated and could fail suddenly.
(.
~ ( SEATING CAPACllY JOTAL l:FRONT l:CENTER I )!EAR I )
TIRE AND LOADING INFORMATION
Tot--w,lglodOCC1>-,ndQ,gc>"""-"1 ___ "90,_ , ...
TI RE SIZE CotO TIRE PRESSURE
FRO NT -KPa, - PSI
REAR -KPa, -PSI
Fig. 230 Tire pressure
label
Main taining proper tire pressure is one of the most important
things you can do to help avoid sudden tire failure. Underinflated
tires are a major cause of sudden tire failure. Keeping tires at the
right pressure is also important for safe and responsive vehicle
handling, traction, braking and load carrying.
Tire pressures are
particularly important when the vehicle is being driven at higher
speeds, and then especially when heavily loaded even within the
permissible load-carrying capacities approved for your vehicle.
The recommended tire pressures for your Audi depend on the kind
of tires on your vehicle and the number of passengers and/or
amount of luggage you will be transporting.
On USA vehicles, the tire pressure label is located on the driver's
side B-pillar. On Canada vehicles, the tire pressure label is located
either on the driver's side B-pillar or inside the fuel filler flap . The tire
pressure label lists the recommended cold tire inflation pressures ..,.
Vehicle care I I irechnical data

-~_T_ ir_e_ s_ a_ n_d _ w_ h_ e_e _l_s _________________________________________________ _
for the vehic le at its maximum capacity weight and tires that were
on your veh ic le at the time it was manufactu red .
If you wish to improve comfort when operating the vehicle at
normal load (up to 3 occupants) , you can adjust tire pressures to
those specified for normal vehicle load. Before operating the vehicle at maximum load, you must increase the tire pres sures to those
s pecified for maximum vehicle load =>
&.
Bear in mind that the tire pressure monitoring system* can on ly
m onito r the tir e pres sures you have stored. The sys tem does not
recognize the load condition of your veh ic le.
The effectiveness of the tire p ressure monitoring system* will be
impaired i f you store normal load pressures but then operate the
vehic le at its maximum load=>&. See
the illustrat ion=>
page 291, fig. 229 for the location of the label
ei ther on d river's s id e B-p illar or ins ide the fuel fille r fl ap (c olor of
the actual label and exact location on the vehicle w ill vary sl ight ly).
N ote that the fol lowing tab le is accurate at the time of going to
press and is subject to cha nge . In the eve nt of d iscrepa nc ies, t he tire
pressure label (On USA vehic les, the tire press ure labe l is located on
t he drive r's sid e B- pilla r. On Ca nada ve hicles, the tir e pressu re label
is located either on the driver's side B-pillar or inside the fuel fil ler
fl ap) always takes prece den ce.
T he tab le below l ists the recommended cold tire inflation pressures
f o r the A udi m odel co vered by your Owner's Litera ture at the
veh ic le 's capacity we ight and the ti re s izes installed on t he respec ­
tive mode ls as o rigi nal eq uipment, o r as a facto ry opti on.
Engine Tire designation Tire pressure front Tire pressure rear
(displace- normal load normal load
ment in condition (up to full load
condition (up full load
liter)
condition condition 2 occupants) to 2 occupants)
PSI PSI kPA kPA
4-cylinder 225/50 R17 94H All Season
32 2 20 33 23 0 29 200 33 230
2 .0
245/45 R17 95H All Season 32 220 33 230 29 200 33 230
245/40 R18 93H All Season 33 230
35 240 29 20
0 35 24 0
255 /35 R19 96V XL High Performance
32 220 33 230 32 220 33 230
265 /30 R20 94V XL High Performance 30 210 3 3 230 29 200 33 2 30
& -cylinder 225 /50 R17 94H All Season
33 230 35 240 29 200
33 230
3 .2
245/45 R17 95H All Season
33 230 35 240
29 200 33 230
245 /40 R18 93H All Season 33 230 36 250 29 200 35 240
255/35 R19 96V XL High Performance 32 220
35 24
0 32 22 0 33 23 0
265 /30 R20 94V XL High Performance
30 2
10
33 230 29 200 33 230
XL
= reinforced or extra load tire . It may also appear as xi , EXTRA LOAD, or RF on the tire sidewall.

__________________________________________________ T_ ir_e_ s_ a_ n_d _ w_ h_ e_ e_l_s __ l9III
•
T he correct tire pressure for the spare wheel is located on a label
either on the driver's side B -pi llar or inside the fuel filler flap.
Because technical changes may be made to vehicle equipment
during the mode l year, always compare the tire size designation on
the tire pressure label on your vehicle with the tires on your vehicle. Make sure that the tire size information on the vehicle labe l is the
same as the size of the tires on the vehicle. This is especially impor­
tant if the vehicle belongs to someone else or you bought the
vehic le with different rims/tires or you bought the vehicle as a previ ­
ously owned vehicle.
Remember, your safety and that of your passengers a lso depends
on making sure that load l imits are not exceeded. Vehicle load
includes everybody and everything in and on the vehicle . These load
limits are techn ically referred to as the vehicle's Gross Veh icle
Weight Rating ("GVWR"l. The Gross Axle Weight Rating ("GAWR"l is
the maximum load that can be applied at each of the vehicle's two axles. The Gross Vehicle Weight Rating and the Gross Axle Weight
Rating are l is ted on t he safety compliance sticker labe l located
either on the driver's side B-pillar or on the inside of the fuel fi ller
flap. The ti re pressure labe l on your Audi lists the maximum
combined weight of a ll of the occupants and luggage or other cargo
t hat the vehic le can carry. For the location of the tire pressure label
=>
page 291, fig. 229.
& WARNING
O verl oad ing a vehi cle can c ause lo ss of vehi cle co ntrol , a cras h or
other ac cident , seriou s per sonal injur y, and even death .
• Carry ing m ore w eight t han yo ur vehic le was designed t o carry
will p revent the vehicle from ha ndling properl y and increa se the
ri sk o f a loss of vehi cle co ntrol.
• The br ake s on a ve hicle tha t has been o verloaded may not be
a bl e to st op the veh icle with in a sa fe di stan ce .
• Tires o n a veh icle th at ha s been ov erlo aded ca n fail sudd enl y
ca usin g l oss of co ntrol an d a c rash.
& WARN ING (c ontinued )
• Always m ake sure that the total load being tr ansported -
in cluding the weight of a trailer hitch and the t ongue we ight of a
loaded trailer -do es not m ake the vehicle he avier tha n th e
v ehi cle's Gr oss Vehi cle Weight R ating .
& WARNING
• In corre ct t ire pre ssure s an d/o r underi nfl atio n can lead to a
s eriou s or fatal a ccident.
• In corre ct tire pr essures and/or u nde rin fla tion cau se in cre as ed
tire wear and can affect th e handlin g of the vehicl e.
• Inc orre ct t ir e pre ssu res and /or underinfl ation can a ls o l ead to
s udden tire failure , including a blowout and sudden d eflation ,
ca usi ng loss of vehi cle contr ol. •
Checking tire pressure
The correct tire pressure for the tires originally installed
on your vehicle is listed on the tire pressure label located
either on driver's side B-pillar or inside the fuel filler flap .
The recommended tire pressures are on the ti re pressure label and
in the table=>
page 291, "Cold tire inflation pressure".This means
that the pressure must be checked and adjusted when the tire has
not been driven for more than a couple of mi les (kilometers) at low
speeds during the previous three hours. Air in the tires expands
when the tire heats up as a result of internal friction as i t flexes in
use. The tire pressure is higher when the tire has warmed up than
when it is "cold ."
It is the inflation pressure in a "cold" tire that counts. Therefore, you
should never let air out of a warm tire to match "Co ld tire inf lation
pressure" recommendations=>
page 291. The tires wou ld then be
underinflated and could fail suddenly. .,_
Vehicle care I t •

-~_T_ ir_e_ s_ a_ n_d _ w_ h_ e_e _l_s _________________________________________________ _
The tire pressure label on your Audi lists the recommended cold tire
in flation pressures at maximum capacity for the new, origina l equip ­
ment tires that were on your vehicle at the time it was manufac­
tured. For the location of the label
~ page 291, fig. 229 .
Most tires lose air natural ly over time. They can a lso lose some air if
you drive over a pothole or hit a curb while parking. It is usually not
possible to see whether the radial t ires used today are underinflated
just by looking at them.
Therefore, be sure to check tire pressures at least once a month and always before going on a long trip. Make sure to take the number of
people and the amount of luggage into account when adjusting tire
pressure for a trip - even one that you would not consider to be
"long ." See ~
page 295, "Tires and vehicle load limits" for more
important information .
Always use an accurate tire pressure gauge when checking and adjusting inflation pressures. Check a ll of the tires and be sure not
to forget the spare tire . If the pressure in any tire is too high when
the tire is "cold," let air out of the tire s lowly with the edge of the tire
gauge and keep checking the pressure until you reach the pressure
that is correct for the load (passengers and luggage) and kind of
driving you p lan to do.
If the pressure in any tire is too low, note the difference between the
press ure in the cold t ire and the pressure you need and add the air
that you need to reach the correct pressure for the vehicle load
(passengers and luggage) for the tires on your vehicle as listed on
the on your vehicle and in this manual and the kind of driving you p lan to do .
Nev er e xce ed the m aximum i nflation pr essure listed on the tir e
s ide wall for any re aso n .
Reme mber that the veh ic le manufacturer, not the tire manufacturer,
determines the correct tire pressure for the tires on your vehicle .
It is important to check the tire pressure when the tires are cold.
• Read the required tire pressure from the tire pressure label. On
USA vehicles, the tire pressure label is located on the driver's side 8-pillar
. On Canada vehicles , the tire pressure label is located either
on the driver's side B -pi llar or inside the fuel fi ller flap . The ti re pres ­
sure labe l lists the recommended co ld tire inflation pressures for
the vehicle at its maximum capacity weight and the tires that were
on your vehicle at the time it was manufactured . For recommended
tire p ressu res for normal load conditions, please see chapter
=> page 291.
• Turn the va lve stem cap counte r-clockwise to remove it from the
tire valve.
• Place the air pressure gauge on the valve.
• T he tire pressures should only be checked and adjusted when
the tires are co ld . The s lightly raised pressures of warm tires must
not be reduced .
• Adjust the tire pressure to the load you are carrying.
• Reinstal l the valve stem cap on the valve.
Wh en should I ch ec k th e tir e pr ess ure?
The correct tire pressure is especially important at high speeds. The
pressure should therefore be checked at least once a month and
a lways before starting a journey . Do not forget to check the tire pres ­
sure for the spare wheel.
When should I adjust the tire p res sure s?
Adjust the tire pressure to the load you are carrying . After changing
a wheel
or replacing whee ls you have to adjust the tire pressu res on
a ll wheels . In addition, you must then initialize the new t ire pres­
sures in the tire pressure monitoring system*~
page 307.
& WARNING
Incorrect tire pre ssur es a nd/or und erinflat ion can lead sudden t ire
fa ilure , loss of cont rol , co llision , seri ous person al inj ury or e ven
death.
• When the w arning symbol
f) a ppe ars in the in strument
cluste r, stop and inspe ct th e tires .

________________________________________________ T.:......... ir--=e :....:s:......: a--=n..:.. d.::..:..... w..:....:.... h :....:..:e:....:e:..: 1-=s :..._ __
•
& WARNING (continu ed )
• Incorrect tire pressure and /or under inflation can cause
in creased tire wear and can affect the handling of the vehicle and
stopping ability .
• Incorrect t ire pressures and /o r underinflat ion can also lead to
sudden tire failure, including a blowout and sudden deflation,
causing lo ss of vehicle control .
• The driver is respon sible for the correct tire pressures for all
tires on the vehicle. The applicable pre ssure values are located on
a sticker on the driver 's side 8-pillar or on the inside of the fuel
filler flap .
• Only when all tires on the vehicle are filled to the correct pres ­
sure , the tire pressure monitoring system * can work correctly .
• The use of incorrect tire pressure values can lead to accidents
or other damage . Therefore it is essential that the driver observe
the specified tire pressure value s for the tires and the correct pres ­
sures for the function of the tire pressure monitoring system *.
• Always inflate tires to the re commended and correct tire pres ­
sure before driving off .
• Driving with underinflated tires bend more , letting them get
too hot resulting in tread separation , sudden tire failure and loss
of control.
• Ex cessive speed and /overloading can cause heat build-up ,
s udden tire failure and lo ss of control .
• If the tire pres sure is too low or too high , the t ires will wear
prematurely and the vehicle will not handle well .
• If the tire is not flat and you do not have to change a wheel
immediately , drive at reduced speed to the nearest service station
to check the t ire pressure and add air as required.
0 Note
Dr iving wi thout valve stem caps ca n cause damage to t he tire
valves. To prevent this, always make sure that factory instal led va lve
stem caps o n all wheels are sec urely mou nted on the va lve .
c£> For the sake of the environment
Underi nflate d tir es w ill a lso inc rease the fue l consu mptio n.•
Tires and vehicle load limits
There are li m its to the a mou nt o f load or weig ht th at any ve hic le and
any tire can carry . A vehicle that is overloaded wil l not handle wel l
and is more diff icu lt to stop . Overload ing ca n no t only lead to loss
of vehic le control, but can also damage important parts of the
ve hicle a nd can lead to sud den tire failu re, i nclu di ng a bl owou t and
sudden deflat ion that can cause the vehic le to crash.
Your safety an d that of your passengers also depends on ma kin g
su re tha t load l imits are not exceeded . Vehicle load includes eve ry ­
body and everything in and on the vehic le. These load limits are
t echnica lly re ferred to as the ve hicle's
Gross Vehicle Weight Rating
("GVWR"l.
The "GVWR" in clu de s th e we ig ht of t he basi c veh ic le, all fac tory
insta lled accessories, a ful l tank of fuel, oil, coolant and other fluids
plus m aximu m load. The maxi mum l oad inc lude s the n umber of
passen gers that the vehicle is intended to carry !"seating capacity")
with an assumed weight of 150 lbs . (68 kg) for each passenger at a
designated seating position and the total weight of any lugga ge in
the vehicle. If you tow a trailer, the weight of the trailer hitch and the
to ngue we ig ht of th e loaded tra iler must b e included as par t of th e
vehic le load.
The
Gross Axle Weight Rating ("GAWR") is the m aximum loa d th at
can be applied at each of the vehicle's two ax les. _,,,
Vehicle care I t •

-~_T_ i_ r _e _s _ a _ n_d _ w_ h_e_ e_ l _s _____________________________________________ _

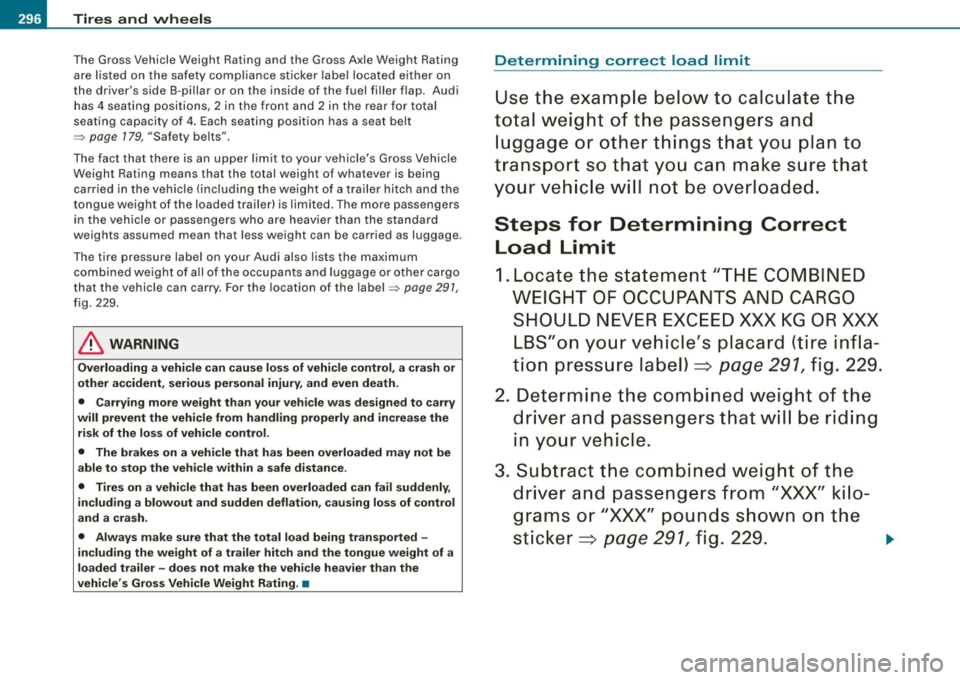

The Gross Vehicle Weight Rating and the Gross Axle Weight Rating
are listed on the safe ty comp liance st icker labe l located either on
the driver's s ide B -p illa r or on the inside of the fue l fi ller f lap. Aud i
has 4 seating positi ons, 2 in the front and 2 i n the rear f or total
seating capacity of 4. Each seat ing position has a seat belt
=> page 179, "Safety belts".
T he fact t hat there is a n up per l im it to your ve hicle's Gross Vehic le
Weight Rating means that the total we ight of whatever is being
carried in the vehic le (i nclu ding the we igh t of a traile r hitch and th e
tongue weight of the loaded trailer) is limited. The more passengers
in the ve hic le o r passen gers w ho are heavier tha n the standa rd
weights assumed mean that less weight can be carried as lug gage .
The ti re p ressu re labe l o n yo ur A udi a lso list s the maxi mum
comb ined we ight of a ll o f th e occupa nts a nd luggage o r ot her cargo
that the vehicle can carry. For the location of the la bel=>
page 291,
fig . 229.
& WARNING
Overloading a vehicle can cause loss of vehicle control , a crash or
other accident, serious personal injury , and even death.
• Carrying more weight than your vehicle was designed to carry
will prevent the vehicle from handling properly and increase the
ri sk of the loss of vehicle control.
• The brakes on a vehicle that has been overloaded may not be
able to stop the vehicle with in a safe distance .
• Tires on a vehicle that has been overloaded can fail suddenly ,
in cluding a blowout and sudden deflation , causing loss of control
and a crash .
• Always make sure that the total load being transported -
including the weight of a trailer hitch and the tongue weight of a
loaded trailer -does not make the vehi cle heavier than the
vehicle's Gross Vehicle Weight Rating. •
Determining correct load limit
Use the example below to calculate the
total weight of the passengers and luggage or other things that you plan to
transport so that you can make sure that
your vehicle will not be overloaded.
Steps for Determining Correct Load Limit
1. Locate the statement "THE COMBINED
WEIGHT OF OCCUPANTS AND CARGO
SHOULD NEVER EXCEED XXX KG OR XXX
LBS "on your vehicle's pla card (tire infla ­
tion pressure label)=> page 291, fig. 229.
2. Determine the combined weight of the driver and passengers that will be riding in your vehicle.
3. Subtract the combined weight of the driver and passengers from
"XXX" kilo­
grams or
"XXX" pounds shown on the
sticker =>
page 291, fig. 229. ~

4. The resulting figure equals th e available
amount of cargo and luggage load capacity. For example, if the
" XXX"
amount equals 1400 lbs. and there will
be five 150 lbs. passeng ers in your
v ehicle , the amount of available cargo
and luggage load capacity is 650 lbs.
(1400-750 (5
X 150) = 650 lbs.)
5. Determine the combined weight of luggage and cargo being loaded on the
vehicle. That weight may not safely
exceed the available cargo and luggage
load capa city calculated in Step 4.
6. If your vehicle will be towing a trailer ,
load from your trailer will be transferred
to your vehicle. Consult this manual to determine how this reduces the avail­
able cargo and luggage load capacity of
your vehicle.
- Check the tire sidewall (~
page 299 ,
fig. 233) to determine the designat ed
load rating for a specific tire. •
Tires and wheels -
Tire service life
T he ser vic e life of ti res depends on a lo t o f different things
inclu ding p roper i nstallation and bal ancing, correc t tire
pressu re a nd drivi ng style .
(-----~
_____ __,,:)
Tread Wear Ind icator (TWll
N
"' 0 9
"" ~
Fig . 2 3 1 Tire tread:
tre ad we ar indi cato rs
(TWll
Fig . 232 Rotating tire s
for mo re even wear
The or iginal tires on your vehicle have 1 /16 inch ( 1.6 mm) high " wea r
indicators"=> fig. 231 running across the tread. Depending on the
make, the re w ill be six to eight of them even ly p la ced a rou nd the
t ire . Marks on the tire sidewall (for example "TWI" or other symbols)
indicate the positions of the tread wear indicators. Worn tires must
be r eplaced. Di fferen t fi gures may apply in other countries ::::>,& . .,_
Vehic le care I I Technical data

-~_T_ ir_e_ s_ a_ n_d _ w_ h_ e_e _l_s _________________________________________________ _
Tire pr essure
Inco rrect tire pressure causes prematu re wear and can cau se
sudden tire blow-out. For this reason, tire pressure must be checked
at least once a month
~ page 293 .
Driving style
Dr iv ing fa st around curves, heavy acceleration and hard brak ing
increase tire wear.
Rotating tire s for more even wear
For all four t ires on your vehic le to have the same service life, we
recommend that the front and rea r tires are rotat ed acc ord ing to the
tire manufacturer 's suggested tire rotation intervals. Please
remembe r the f ollo wi ng :
• Tire rotat ion i nterva ls m ay d iffer from the vehic le serv ice inte r­
vals outl ined in your Maintenance and Warranty Book let.
• The longer one tire is used in one location on the vehicle, t he
more it wears at certain points; the refo re, we recommend that you
f ollow the tire manu facturer's sug ges ted t ire rotat ion i nte rvals.
• Vehicles with fro nt-w hee l dr ive e xper ience more tread wear on
the front wheels compared to all -wheel drive (quattro®l .
• Please rotate tires as sh ow n~
page 297, fig. 232 .
• Extra care must be taken when rotating direction -specific tires
~ pag e 318 .
Wheel balancing
T he w heels o n new v ehic les are balanced. However, various s itua ­
tions during everyday driving can cause them to become unba l­
anc ed, resu lti ng in vib rati ons yo u ca n usually feel thro ugh t he
steer ing whee l.
U nba la nce d w heels must be re ba lance d to avoid excessive wea r on
steering, suspension and tires. A whee l must a lso be reba lanced
when a new tire is installed.
Incorrect wheel alignment
Incorrect w hee l al ig nm ent ca n cause e xcess ive ti re wea r, impa iring
t h e s afety of th e veh ic le. If t ires show excessive wear, have the
w hee l a lig nme nt checke d by a n autho rize d Aud i deale r or qualifie d
wo rkshop.
All wheel drive
Vehic les with quattro® must always have tires of the same size,
co nstruct ion an d tread ty pe. For deta ils see ~
page 240.
& WARNING
Sudden tire failure can lead to loss of control , a crash and serious
personal injury !
• Never drive a vehicle when the tread on any tire is worn down
to the wear indicators.
• Worn tires are a safety hazard , they do not grip well on wet
roads and in crease your risk of "hydroplaning " and loss of control.
• Always keep chemicals that can cause tire damage , such as
grease, oil, gasoline and brake fluid away from tires .
• Tires age even if they are not being used and can fail suddenly ,
especially at high speeds. Tires that are more than 6 years old can
only be used in an emergency and then with special care and at
lower speeds .
• Never mount used tires on your vehicle if you are not sure of
their "previous history. " Old used tires may have been damaged
even though the damage cannot be seen that can lead to sudden
tire failure and loss of vehicle control . •
