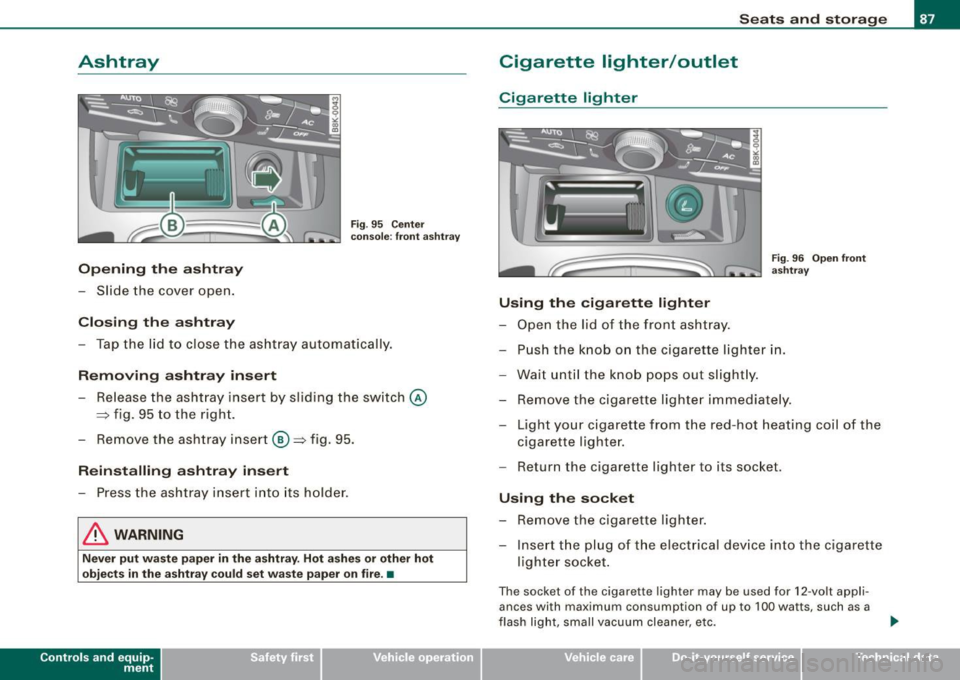

Ashtray
Opening the ashtray
-Slide the cover open.
Closing the ashtray
Fig . 95 Center
console : front ashtray
- Tap the lid to close the ashtray automatically.
Removing ashtray insert
-Release the ashtray insert by sliding the switch ©
=:, fig. 95 to the right.
- Remove the ashtray insert®=:, fig. 95.
Reinstalling ashtray insert
- Press the ashtray insert into its holder.
& WARNING
Never put waste paper in the ashtray. Hot ashes or other hot
objects in the ashtray could set waste paper on fire. •
Con tro ls and eq uip­
ment
Seats and storage
Cigarette lighter /outlet
Cigarette lighter
Fig . 96 Open front
ashtray
Using the cigarette lighter
- Open the lid of the front ashtray.
- Push the knob on the cigarette lighter in.
- Wait until the knob pops out slightly.
Remove the cigarette lighter immediately.
- Light your cigarette from the red -hot heating coil of the
cigarette lighter.
- Return the cigarette lighter to its socket.
Using the socket
-Remove the cigarette lighter.
- Insert the plug of the electrical device into the cigarette lighter socket.
The socket of the cigarette lighter may be used for 12-volt appli­
ances with maximum consumption of up to 100 watts, such as a
flash light, small vacuum cleaner, etc .
Vehicle care I I irechnical data

The amount of oil used is related to engine load and speed .
It is normal for the oil consumption of a new engine to reach its
lowest va lue after a certain mileage has been driven.
You must drive your vehicle about 3,000 mi les (5,000 kilometers)
before you can properly assess oil consumption.
This also applies to fuel consumption and engine output.
0 Note
• Have your vehicle maintained properly and in accordance with
the service recommendations in your Warranty
& Maintenance
booklet. Lack of proper maintenance as well as improper use of the
vehic le wi ll impair the function of the emission control system and
cou ld lead to damage.
• Do not alter or remove any component of the Emiss ion Contro l
System unless approved by the manufacturer.
• Do not alter or remove any device, such as hea t shields,
switches, ignition wires, valves, which are designed to protect your
vehicle's Emission Control System and other important vehicle
components. •
Fewer short trips
~-----------------
Fu e I consumptio n will always be relat ively high on short
tri ps.
- Try to avo id driving s hor t distan ces wit h a cold engine.
The engine and catalytic converter have to reach their optimal oper­
ating t emper ature
to reduce fuel consumption and noxious emis­
sions effective ly .
Just after starting, a cold engine in a mid-size car only achieves a
fue l economy of 6 -8 miles per gallon (30 -40 1/100 km). After about a
half a mile, fuel economy climbs to 12 mpg (201/100 kml. After about
2.5 miles (4 km), the engine is at its proper operating temperature
Controls and equip­
ment Safety first Vehicle operation
Dri
ving and environm ent
and fuel economy has reached a normal level. So you can see that
you sh ould avoid short trips whenever possib le .
The
o ut side t emper atu re is also critical in this regard. Your car
consumes more fuel in the winter than in the summer .•
Vehicle care Do-it-yourself service Technical data

-~_C_ h_e _c _ k_ i_n ...:::g::;...._ a_n_ d_ f_ i_ll _in -'g:::;.._ ___________________________________________ _
than a total of 0.5 qt/liter engine oil that does not conform to Audi
oi l specification VW 502 00.
For more information about engine oi l that has been approved for
your vehicle, please contact e ither your authorized Audi dealer or
Aud i Custo mer Relations at 1 (800) 822 -2834 or visit our web site at
www.audiusa.com or www.audicanada.ca. Here you will a lso find a
current list of o ils (manufacture rs, brand names etc.) that con form
to Audi oi l standard VW 502 00.
Changing the engine oil
The engine oil and oil fil ter must be changed according to the
mi leage (kilometers) and time intervals specified in your vehicle's
Warranty & Maintenance booklet. Do not exceed these intervals -
harmful deposits from old engine oil can reduce engine perfor­
mance a nd can lead to expens ive eng ine repairs.
Changing the oil at the recommended intervals is so very important because the lubricating properties of oi l decrease gradual ly during
normal vehicle use. If you are not sure when you have your oil
changed, ask your authorized Audi Service Adviso r.
Under some circumstances the engine oil should even be changed more frequently . Change oil more often if you drive mostly short
distances, ope rate the vehicle in dusty areas or m ostly under stop ­
and -go traffic cond itions, or when you use your vehicle where
temperatu res stay below freezing point for long per iods.
Detergent additives in the oil will make fresh oil look dark after the
engine has been running for a short time. This is normal and is not
a reason to change the oi l more o ften than recommended.
Dam age or malfunctions d ue to la ck of ma inten ance
It is essential that you change your oi l a t the recommended in terva ls
using on ly engine oil that complies with Audi oil standard
VW 502 00. Your Limited New Vehicle Warranty does not cover
damag e or ma lfunctions due to failure to follow recommended
maintenance and use requirements as set forth in the Audi Owner's
Manual and War ranty & Mai ntenance booklet. Your dealer wi ll have
to deny warranty coverage unless you present to the dealer proof in the form of Service or Repair Orders that all schedu
led maintenance
was performed in a timely manner. •
Engine oil consumption
The e ngine in your vehicle depends on an adequate
amount o f oil to lubricate and cool all of its moving parts.
In order to provide effective lubrica tion and coo ling of in terna l
engine components, all interna l combustion engines consume a
cer tain amoun t of oil. Oi l consump tion varies from e ngine to engine
and may change significantly over the life of the engine. Typical ly,
engi nes w ith a specified break -in p eriod (see =>
page 243) consume
more o il during the break- in period than they consume after oil
consump tion has stabi lized .
Under normal conditions, the ra te of oil consumpt ion depends on
the quality and viscosity of the oil, the R PM (revolutions per minute)
at which the engine is operated, the ambient temperature and road
conditions. Further factors are the amount of oil di lution from water
con densa tion or fue l residue and the oxi dation leve l of t he oi l. As
any engine is subject to wear as mileage builds up, the oil consump ­
tion may increase over time until replacemen t of wo rn components
may become necessary.
With all these variables coming into play, no standard rate of oi l
consumptio n can be establ ished o r speci fied. There is no alternat ive
to regular and frequent checking of the oil level, see
Note .
If the yel low engine oil l evel warn ing sy mbol in t he instrumen t
cluster ._ lights up, you should check the oil level as soon as
p ossible :::::>
page 275. Top off the o il at your earliest conven ience
=>
page 275.
& WARNING
Befo re you che ck anything in the engine compartment , always
read and heed all WARNINGS
:::::> & in "Working in the engine
c ompartment " on
page 271 .

Checking and filling -
-----------------=-----==-----...J
0 Note
Driving with an insufficient oil level is likely to cause severe damage
to the engine.
[ i] Tips
• The oil pressure warning display~ is not an indicator of the oil
level. Do not rely on it. Instead, check the oil level in your engine at
regular intervals, preferably each time you refuel, and always before
going on a long trip.
• If you have the impression your engine consumes excessive
amounts of oil, we recommend that you consult an authorized Audi
dealer to have the cause of your concern properly diagnosed. Keep
in mind that the accurate measurement of oil consumption requires
great care and may take some time. An authorized Audi dealer has
instructions about how to measure oil consumption accurately. •
Checking the engine oil level
Read oil level
Fig. 223 MMI Display;
Oil level indicator
Select: Function button [CARI> Oil level.
- Park your vehicle so that it is horizontally level. Shut
the engine off when it is at operating temperature.
Wait approx. two minutes. Read the oil level in the MMI* Display=> fig. 223. Add
engine oil if the bar of the oil level indicator is near "Min"
=>
page 275
Depending on the way the vehicle is driven and the operating condi­
tions, oil consumption can be up to a 1/2 quart per 600 miles (0.5
liter per 1000 kml. Consumption may be higher within the first 3000
miles (5000 kml.
[ i] Tips
The oil level indicator in the MMI* Display is only an information
display. If the oil level is too low, a minimum oil warning appears in
the instrument cluster. Add oil
=> page 275. If the hood has been
opened, the current oil level is shown in the instrument cluster the
next time the ignition is switched on. •
Adding engine oil ~
Fig. 224 Engine
compartment; Oil filler
cap location
Before you check anything in the engine compartment,
always read and heed all WARNINGS=> & in "Working in
the engine compartment" on
page 271. .,,_
Vehicle care I I irechnical data

__________________________________________________ T_ ir_e_ s_ a_ n_d _ w_ h_ e_ e_l_s __ _
•
ffi For the sake of the environment
Use summe r tires whe n weather co nditio ns perm it. Th ey are
quieter, do not wear as quic kly and reduce fue l consumption. •
Snow chains
Snow cha ins may be fitted only to the front wheels, and only to
certa in t ire s izes. Ask your author ized Aud i dea ler on wh ic h tir e
s izes snow chains can be used .
The snow c hai ns mu st have low -pro file l inks and must n ot be thicker
than 0.53 inch (13 .5 mm), including the loc k.
R emove wheel cente r covers a nd trim di scs bef ore p utting snow
c h ains on you r ve hicle=:>
0 . For sa fety reasons cove r caps must
then be fitted o ver the wheel bo lts . These a re avai lable fr om autho­
r iz ed Au di deale rs.
& WARNING
Using the wrong snow chains for your vehicle or installing them
incorrectly can increase the risk of loss of control leading to
serious per sonal injury.
• Snow chains are available in different sizes. Always make sure
to follow the instructions provided by the snow chain manufac ­
turer.
• When driving with snow chains never drive faster than the
speed permitted for your specific snow chains.
• Always observe local regulations .
0 Note
• Remove snow chains before driving on roads not covered with
s no w to avoid da mag ing tires a nd wea ring the s now cha ins down
unnecessari ly. •
Snow chains, which come into direct contact with the wheel rim,
can s cratch or damage i t. Therefo re, ma ke s ure t hat the sn ow cha ins
are suitably covered . Check the pos itio n of the snow c hains after
driv ing a few ya rds a nd co rrec t if necessa ry . Fo llow the i nstr uct ions
from the snow chain manufacturer when doing so.
[ i ] Tips
W here snow cha ins are manda tory on certa in roads, t his no rmally
a lso a ppl ies to ve hic les with all wheel d rive. •
Wheel bolts
Wheel bol ts mus t alw ays be ti ght en ed to the corr ec t
t orque .
The de sign of whee l bolts i s matched t o the fac to ry ins tal led rims. I f
d ifferent rims are fitted, the correct wh eel bo lts with the ri ght l ength
and c orrectly s haped bo lt head s mus t be use d. T his ensu res that
w hee ls are fitted securely and that the brake sys tem func tio ns
co rrectly.
I n certa in c ircumsta nces, you may not use w heel bo lts fr om a
different vehicle -even if it is the same model=:>
page 341.
& WARNING
Improperly tightened or mainta ined wheel bolts can become loose
causing loss of control , a collision and serious personal injury .
• Always keep the wheel bolts and the threads in the wheel hubs
clean so the wheel bolts can turn easily and be properly tightened.
• Never grease or oil the wheel bolts and the threads in the wheel
hubs . They can become loose while driving if greased or oiled ,
even if tightened to the specified torque .
• Only use wheel bolts that belong to the rim being installed .
• Never use different wheels bolt s on your vehicle.
Vehicle care
I t •

__________________________________________________ C_o_ n _ s_u_ m_ e ___ r_l_ n _f_ o_ r _m...:....:.. a:.;..:. ti .... o:.. n ........ _lllllll
& WA RNIN G (continu ed )
• The engine compartment of any motor vehi cle i s a potentially
h az ardou s area. N ev er re ach into the are a arou nd or to uch the
r a di ator fan . It is temperature co ntrolled and can swi tc h o n
s uddenly -even wh en the engine i s off and the ignition key h as
been removed . The r adiator f an switches on autom atic all y w hen
the coolant reache s a certain temperature and will continue to run
until the coo lant t emper ature drop s.
• Alway s remov e th e ignition key befo re anyone get s under the
v ehi cle .
• Alway s s upport your vehi cle with safety sta nd s if it i s ne ces­
sa ry to wor k unde rne ath the veh icle . The ja ck suppl ied with the
v ehic le i s not adequ ate for thi s purpo se and could coll ap se
c au sin g s eriou s per son al in jury .
• If you m ust w ork under neath the vehi cle with the wheel s on
the ground , alwa ys m ake sure the veh icle i s on l eve l ground , that
the wheels ar e always securely blocked and that the engine
ca nn ot be sta rted .
• Alway s mak e sure the tran sm iss ion selecto r leve r (automatic
tr ansmi ssion ) is in "P " (Park po sition ) or Neutr al (manu al tr ansmi s­
s ion ) and th e park br ake i s firmly applied.
c£> For the sake of the environment
• Changing the engine settings w ill adverse ly affect emission
levels . This is detrimenta l to the environment and increases fuel
consumption.
• Always observe environmenta l regu lations when disposing of
old engine oil, used brake fluid, dirty engine coolant, spent batteries
or worn out tires.
• Undeployed airbag modules and pretens ioners might be classi ­
fied as Perchlorate Material -specia l handling may apply, see
www .dtsc .ca .gov/hazardouswaste/perchlorate. When the vehicle or
parts of the restraint system including airbag modules safety belts
with pretens ioners are scrapped, all applicable laws and regu la-
Controls and equip­
ment Safety first Vehicle operation
tions must be observed. Your authorized Audi dealer is familiar with
these requirements and we rec
ommend that you have your dea ler
perform this service for you .•
Additional accessories ,
modifications and parts replacement
Addition al a ccessori es and parts
replacement
Always c onsul t an authorized Audi dealer before
purchasing accessories.
Your vehicle incorporates the latest safety design features ensuring a high standard of act ive and passive safe ty .
This safety could be compromised by non -approved changes to the
vehic le . F or this reason, if par ts have to be replaced, please observe
the following points when insta lling additiona l accessories:
Approved Audi accessories and genuine Audi parts are avai lable
from authorized Audi dealers.
These dealers also have the necessary facilities, tools and trained specialis ts to install the parts and accessories prope rly.
& WARNING
Using the wrong spare part s or u sing non-approved acce ssorie s
c an cause d am age to the vehi cle and seriou s pe rsonal injur y.
• Use onl y acc essorie s ex pres sly approved by Audi and g enuine
Audi spare p art s
• The se p art s and acce ssorie s have been spe cia lly de signed to
be used on you r vehi cle .
• Nev er in stall acc ess orie s s uch a s telep hone cra d le s or
be ver age holder s on airb ag cover s or within th e airbag deploy-
Vehicle care Do-it-yourself service Tec hn ica l da ta

ffl Alphabetical index ----=------...:..:...::... ___________________________ _
Electronic immobilizer .... ...... ... 11, 41
Electronic power contro l
(EPC) warning/indicator light .. .... .. 13
Electronic stabilization program (ESP) How the system works . . . . . . . . . . . . 234
Warni ng/indicator lights ........... 13
Emergency braking .... ..... .. ...... 114
Emergency flasher . . . . . . . . . . . . . . . . . . . 57
Warning/indicator lights ........... 14
Emergency key . . . . . . . . . . . . . . . . . . . . . . 38
Starting engine .... ....... ........ 41
Emergency locking of the doors ........ 47
Emergency release Selector lever . . . . . . . . . . . . . . . . . . . . 154
E . mergency starting . . . . . . . . . . . . . . . . . 326
Emergency towing .................. 329
Emergency un locking
Ignition key ...... .... .... .... .... 40
Energy management ...... ... ... .... 241
Battery power . . . . . . . . . . . . . . . . . . . 242
Driver notification . . . . . . . . . . . . . . . . 242
Engine Compartmen t ........ ...... . .. .. 272
Coolant .. .... ..... ... ... .... .... 277
Hood ...... ........... ....... ... 270
Starting .................. ...... 108
Starting with jumper cables ....... 326
Stopping ....................... 109
Engine compartment Safety instructions . . . . . . . . . . . . . . . 271
Working the engine compartment .. 271
E . I ngme coo ant system .... ... ... .. ... 277
Adding coolant ... .... ...... ..... 279
Checking coo lant level .. .... .... .. 278
Check ing the engine coolant level .. 278
Malfunction ......... .... ......... 30
Radiator fan ...... .... .... .... ... 280
Engine coolant temper.ature
Temperature gauge ...... .... ..... . 8
Engine data .. ................ ...... 337
Engine hood Closing .. .... .... ... .. .... ...... 271
How to release the hood . . . . . . . . . . 270
Engine oil .......................... 273
Adding ......................... 275
Additives .. ....... .... ...... .... 275
Changing . .... .... .... .... .... .. 276
Check oil level ............. ...... 275
Consumption ... .. ............ ... 275
Oil consumption ................. 274
Oil grades ... .. ...... .... ... .. ... 273
Specification and viscosity ...... .. 273
Engine oil level ...................... 36
Engine oil pressure Malfunction .. .... ....... ......... 31
Engine oil sensor defective ............ 36
Engine speed limitation ............... 36
Environment Break -in period .... ........ ...... 243
Catalytic converter ........ ....... 244
Disposing of your vehicle battery ... 285
Driving at high speeds .... ... .. ... 246
Driving to minimize pollution and noise 245 Fuel ..
...... ... .. . ... .... .... ... 267
Fuel economy ... ....... .... ...... 245
Leaks under your vehicle ....... ... 271
Letting the vehicle stand and warm up ..
246
Proper disposal of drained brake fluid
281
Proper disposal of drained engine coolant ... .. ...... ... .. ... .... . 279
Proper disposal of drained engine oil ....
275 ,276
Recycling used engine oi l ...... ... 275
Unleaded fuel ........ .... .... ... 265
What should I do with an old battery?
285
Environmental note Rear window defogger .. ....... 95, 102
Roof rack ... ... .. .. .. .... .... .... 85
EPC See Electronic power control .... .... 13
ESP See Electronic stabi lization program
(ES P) ... ......... ... ............ 13
Event Data Recorder (EDR) ............ 234
Expansion tank ..................... 278
Eyeglasses compartment .............. 89
F
Fan
Deluxe automatic c limate control .... 93
Deluxe automatic climate control plus ...
100
Radiator ........ ... .. .... .... ... 280
