remote start AUDI A5 COUPE 2010 Owners Manual

Table of contents
Table of contents
Vehicle literature ........ .
About this Owner's Manual ..... . .. ...... ....... .
Controls and
equipment ................. .
Instrumen ts and con trols ..... .
Genera l ill ustration ............. .
Ins trumen ts and
warning/indicat or lig hts ....... .
Instruments ... .... ........... . .
Warning/indicator lights ........ .
Driver in fo rma tion disp lay ... .. .
Introduction ... .......... ... ... .
On-Board Diagnostic system (OBD)
Trip compute r ................. .
Speed war ning system .... ..... .
Auto Chec k Control ... ... ...... .
Opening a nd closing ..... .... . .
Keys ..................... ..... .
Power loc king system .......... .
Opening and closing rear lid/trunk
lid ... ... ... ... ...... ......... . .
Power windows ... .... ... •.....
Valet pa rking .................. .
Pa no ramic t ilt in g sunroof ... ... . .
C lear v ision ............... ..... .
Lights ............. ........... .
Inter io r ligh ts .. ....... ....... .. .
V is ion ........................ .
Wiper and washer system ... ... .
4
5
6
7
7
8
8
12
1 8
1 8
22
23
26
27
38
38
41
47
48
50
51
53 53
59
60
61
Mirrors ... . ...... ...... ...... . .
Digital compass ............... .
Seats and storage ............ .
Genera l recommendations ..... .
Ad just ing fro nt sea ts manua lly ..
E asy entry funct ion ............ .
Power front seat ad justment ... .
Easy entry function ........ ... . .
Seat memory ................. .
Head res train ts ... ..... .. ... .. .
Center armrest ................ .
Luggage compartment . ... ... . .
Roof rack ................ ..... .
Beverage holders . .... ........ .
As htray ................ ...... .
Cigarette lighter/outlet .. .• .... ..
Storage ......... ......... ... . .
War m and cold ........... ... . .
Deluxe automat ic climate contro l
Deluxe automatic c limate control
plus ... ... ............ .... .. . .
Deluxe automatic c limate control
plus -basic settings ........... .
Seat heating ........... .. .. ... .
On the road .... ........... ... . .
Steering ... ... ......... ... ... . .
Ignition lock and ignition switch .
Starting and stopping the engine
with convenience key .. ...... . .
Elect romec hanical parking brake .
Cr uise control ................. .
Adaptive cruise control ....... .
Speed and distance con trol system
Drive r information ............. .
63
67
69
69
7 0
7 2
72
74
7 4
7 6
78
78
84
86
87
87
88
90
90
96
10 4
105
107
107
108
1 10
1 12
1 15
1 18
1 18
124
System limitations .. .... ... •....
Audi brak ing guard .. .......... .
Audi side assist ............... .
Lane change assistant ......... .
No tes ........................ .
Audi drive select ..... ..... .... .
Driv ing settings ............... .
Transmission .............. ... . .
Manua l transmission ........... .
Automatic transm ission ........ .
Park assist .................... .
Parking system .. ... ... ... ... .. .
Parking system (r ear) ........... .
Parking system (rear, w ith rear view
camera) ...................... .
HomeLink® .................... .
Universal remote control
Safety first ...... ...... .... .
Driving Safe ly . ....... ..... .... .
General notes ................ . .
Prope r occupan t seating pos it ions
Driver and passenger side footwe ll
Peda l area ...... ... ........... .
Stow ing luggage .......... .... .
Report ing Safety Defects ... .... .
Safety belts ................... .
General notes ....... ...... .... .
Why safe ty be lts? .......... .... .
Safety belts ............... .... .
Safety belt pretensioners ....... .
130
132
135
135
142
144
144
147
147
147
155
155
155
157
164
164
168
168
168
170
174
17 4
175
17 7
179
1 7 9
180
183
186

Opening and closing
Opening and closing
Keys
Key set
@ Ma ster key wi th remote control
Fi g. 28 Key set
You can centrally lock and unlock your vehicle and start the engine
with the master key with remote control.
@ Em erg ency key
The emergency key is not in tended for constant use . It sho uld only
be used in an emergency . Keep it in a safe place and do not carry it
on your key ring.
K ey repl aceme nt
If you lose a key, contact your authori zed Audi dealer immed iate ly
to have the
lost key disabled . Be sure to bring all your keys with you.
D ata in the ma ster key
During driving, service and maintenance -re levant data is continu ­
ously s tored on your master key . Your Audi service adviser can read
out this data and tel l you about the work your vehic le needs. This
applies als o to vehic les with convenience key*.
P ersonal comf ort settings
If two peop le use one vehicle, it is recommended that each person
always uses "their own" master key. When the igni tion is turned off
or when the vehicle is locked, persona l convenience settings for the
f ollowi ng sys tems are store d and assigned to the remot e master
key.
• Climate control
• Centra l locking system
• Seat me mory*
• Parking system *
• Audi side assist*
• Audi drive se lect*
T he stored setti ngs are automatically recalled when you unlock the
vehic le, when you open the doors or when you turn on the ignition.
& WARNING
• Do not leave your vehicle unattended with the key in the igni ­
tion lock . Entry by unauthorized per sons co uld end anger you or
result in theft or damage th e vehicle . Alway s lock all doors and
take the key .
• Do not leave children unattended in the vehicle , especiall y with
acce ss to vehi cle key s. Unguarded access to the key s prov ide s
children the opportunity to start th e engine and /or a ctivate vehicle
sys tem s such as the po wer windo ws et c. Un supervi sed oper ation
of any v ehi cle system by children can result in serio us injur y.
• Do not remove the key from the ig nition lock until the vehicle
ha s com e to a complete s top. Otherwi se the steering column lock
could suddenly engage -cau sing the ri sk of an accident. .,

- Have the electrical system inspected by an authorized
Audi dealership. •
Starting the vehicle with the emergency key
Fig. 34 Glove compart­
ment: Adapter for
emergency key
Fig . 35 Insert emer­
gency key into the
adapter
- Take the adapter for the emergency key out of the glove
box~ fig. 34.
- Push the emergency key~ fig. 35 fully into the adapter.
Make sure that the Audi rings are facing up.
- Press the emergency key in the adapter down until it
latches audibly.
Contro ls and eq uip­
ment
Opening and closing
-Insert the adapter with the emergency key forward into
the ignition switch. The engine can now be started as
usual. •
Electronic immobilizer
The immobilizer prevents your vehicle from being started
by unauthorized persons.
Inside the key there is a computer chip. This chip automatically
deactivates the electronic immobilizer when you insert the key in
the ignition lock. When you remove the key from the ignition lock,
the elec tronic immobilizer is automatically activated once again.
I f an unauthorized key was used,
SAFE is displayed continuously in
the odometer display field.
[ i] Tips
• Your engine can only be started using the factory-equipped key.
• You may not be able to start your vehicle if an ignition key of a
different vehicle make is also located on your set of keys.
• For Declaration of Compliance to United States FCC and Industry
Canada regulations~ page 342. •
Power locking system
General description
The power locking system locks or unlocks all doors and
the rear lid simultaneously.
You can lock and unlock the vehicle centrally. You have the following
choices :
• Remote master key~ page 43, .,,.
Vehicle care
I I irechnical data

Opening and closing

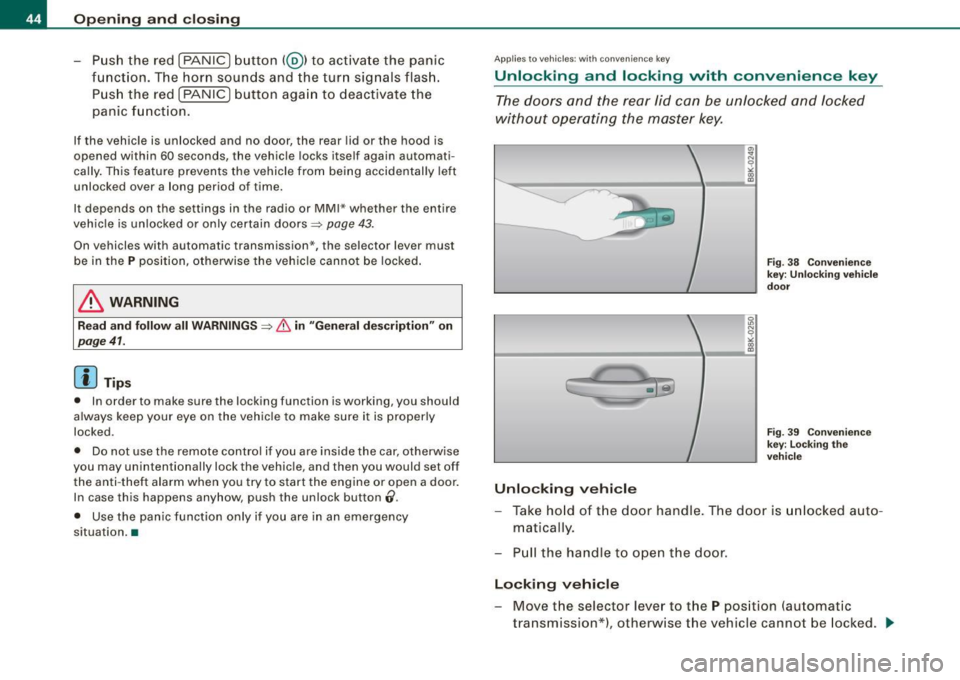

- Push the red
I PANIC I button (@ ) to activate the panic
function. The horn sounds and the turn signals flash.
Push the red [PANIC] button again to deactivate the
panic function.
If the vehicle is unlocked and no door, the rear lid or the hood is
opened within 60 seconds, the vehicle locks itself again automati­
cally. This feature prevents the vehicle from being accidentally left
unlocked over a long period of time.
I t depends on the settings in th e radio or MMI* whether the entire
vehicle is unlocked or only certain doors~
page 43.
On vehicles with automatic transmission *, t he selector lever must
be in the P position, otherwise the vehicle cannot be locked.
& WARNING
Read and follow all WARNINGS ~ & in "General description" on
page 41.
[ i ] Tips
• In order to make sure the locking function is working, you should
always keep your eye on the vehicle to make sure it is properly
locked .
• Do not use the remote control if you are inside the car, otherwise
you may uninten tionally lock the vehicle, and then you would set off
the anti -theft alarm when you try to start the engine or open a door.
In case this happens anyhow, push the unlock button
0 .
• Use the panic function only if you are in an emergency
situation. •
Applies to veh ic les: w it h co nveni ence key
Unlocking and locking with convenience key
The doors and the rear lid can be unlocked and locked
without operating the master key.
Unlocking vehicle
Fig. 38 Convenience
key: Unlocking vehicle
door
Fig. 39 Convenience
key: Locking the
vehicle
- Take hold of the door handle. The door is unlocked auto-
matically.
- Pull the handle to open the door.
Locking vehicle
- Move the selector lever to the
P position (automatic
transmission*), otherwise the vehicle cannot be locked. _,,,

• ..__O_ n_ t_h _ e_ r_ o_ a_ d ____________________________________________________ _
Ignition lock and ignition switch
Starting engine with the key
The ignition is switched on and the engine started with
the ignition key.
Fi g. 11 7 Ignit ion key
Insert the key into the ignit ion lock .
Manual transmission : Fully depress the clutch pedal a nd
move t he shi ft lever to the neutra l posi tion .
Automatic transmission*: Step on the brake peda l and
move the selector lever to the
P or N posit ion.
Press the key=::> fig . 117 -the eng ine will sta rt.
By pressing the key w ithout stepping on the clutch or the brake, the
ign ition is switched on and off. With the ignition on, the steering
whee l is unlocked.
You can only remove the key with the ignition switched off. To do
this, you have to press on the key again. With an automatic trans­ mission, the selector lever m ust be in the
P position.
When starting the engine, major electrical loads are switched off
temporarily. After starting a cold engine
, there may be a brief period of increased
noise because the o il pressure must first build up in the hydraulic
valve adjusters . This is normal and not a cause for concern .
I f the engine should not start immediately, the starting process is
automatically stopped a fter a short t ime . Repeat starting procedure.
Driv er me ssage in the instrument clust er di spl ay
Pre ss b rake ped al to s ta rt engine
This message appears if you do not step on the brake pedal to start
the engine on a vehicle with an automatic transmission .
Press clut ch pedal to sta rt engine
T his message appears if you do not step on the c lutch peda l to start
the engine on a vehicle with a manua l transmission .
Engage N or P to start engine
This message appea rs when attempting to start the engine if the
selector lever for the automatic transmission is not in the
P or N
position . The engine can only be started with the selec tor in these
positions.
S hift to P, othe rwis e veh icle can roll away. Doors do not lock if le ver
is not in
P.
This message appears for safety reasons along with a warning
signal. It appears if the selector lever for the automatic transmiss ion
is not in the
P p o sition after the ign it ion is switched off. Move the
selector lever to the
P position, otherwise the vehicle is not secured
aga inst ro lling away. You a lso cannot l ock the vehicle using the
locking bu tton on the door handle or using the remote key .
& WARNING
• Always take the key with you wheneve r you leave yo ur vehi cle .
Otherwi se , the engine could be start ed or electr ical equipment
s u ch as the po wer windows could be oper ated . Th is ca n lead to
seri ous injury.

___________________________________________________ O _n_ t_h _ e_ r_ o _ a_ d __ lfflll
& WA RN IN G ( continu ed )
• Never le ave children or per son s requiring a ssis ta nce unat­
te nded in the veh icle . The do ors can be locked u sing the remote
tr ansmitter, pre venting people from es caping fro m the vehi cle on
their own in t he event of an emergen cy. D epending on the time of
year , people inside the veh icle can be e xpo sed to ver y high or very
low t emperature s.
• Never remove the ignit ion key from t he ig nition loo k while the
v ehic le is moving . Othe rwi se, the steering lock could sudden ly
e ngage and you w ould not be able to steer the ve hicle .
0 Note
• In the event of a malfunction in the electronic ignition lock a
symbol in the ins trument cluster flashes with the message
Ign ition
l ock defe cti ve .
• Avo id high engine speeds, fast acce leration or heavy engine
loads while the engine is sti ll cold. This could damage the engine.
To avoid unnecessary engine wear and to reduce exhaust emis ­
sions, do not let your vehic le stand and war m up. Be ready to drive
off immediate ly after starting your vehicle . Maintain moderate
speed until the engine is completely warm . Remember, the engine
performs best a t operating temperature .
[ i J Tip s
• If the key cannot be removed from the ignition lock, you have to
pul l the mechanica l key out of the master key in orde r to be ab le to
lock the vehic le The vehicle can be locked with the mechanical key
=> page 40.
• I f you open the driver's door with the ignition switched on , a
buzzer sounds and the message
Ignition i s on appears in the instru ­
ment cluster display. Switch the ignition off .•
Controls and equip ­
ment
Stopping the engine
Bring t he vehicle to a full s to p.
- Automatic transmission*: Move t he selector lever to the P
or N posi tion.
Press on the ignition key . The engine is turned off.
Emergen cy off
If it is necessary in unusual circumstances, the engine can be
switched off while the vehic le is moving. The engine will be
switched o ff if you press on the key for an extended pe riod .
& WARNING
• Nev er turn off the engine until the vehicle h as come t o a
c omplete stop.
• The b ra ke boo ster and se rvot ronic onl y work w hen the eng ine
is running . With the ignition turned off , you have to app ly mo re
force when ste ering or br aking . Since you cannot stee r and stop
norm ally, th is c an le ad to a ccidents and serious injurie s.
• The rad iator f an ca n cont inu e to ru n fo r up t o 10 minute s eve n
after you have turned off the engine and remo ved the ign ition ke y.
The r adi ator fan can als o tu rn on ag ain if the engine coolant he ats
up be cau se of inten se sunl ight or heat build-up in the engine
compartment.
0 Note
Do not s top the engine immed iately after hard or extended driving .
Keep the engine running for approxima te ly two minut es to prevent
excessive heat bui ld-up. •
I • •

On the road -
----------------
engine again . Moreover, you cannot lock the vehicle from the
ou tside with the key.
S hift to P, other wise v ehicle can roll a way. Doors d o not lo ck if lev er
i s not in
P.
This message appears for safety reasons along with a warning
signal. It appears if the selector lever for the automatic transmission
is not in the P position when switching off the ignition with the
I START ENG INE STOP I button. Move the selec tor lever to the P
position, otherwise the vehicle is not secured against rolling away.
You a lso cannot lock the vehic le using the locking button on the
door handle or using the remote key .
Convenience key defective ! Use ign it ion lock
This message appears if the vehicle has to be started not with the
I S TART ENG IN E STOP I button bu t with the ignition key .
& WARNING
• Nev er allow the engine to run in confined spaces · danger of
asphy xia ti on.
• Never turn off th e engine until th e vehicl e ha s come to a
c omplete stop .
• The br ake boo ster and servotronic only work when the engine
is running . With the ignit ion turned off , you have to apply m ore
force wh en ste ering or braking. Since you cannot steer and stop
norm ally , th is c an lead to accidents and serious injuries.
0 Note
• Avoid high engine rpm, ful l throttle and heavy engine loads unti l
the engine has reached operating temperature -o therwise you risk
engine damage .
• The engi ne cannot be started by pushing or tow ing the vehic le .
• I f the engine has been under heavy load for an extended period,
heat builds up in the engine compa rtment after the engine is
Controls and equip ­
ment
switched off -there is a risk of damaging the engine . Allow the
engine to run at idle for about 2 minutes be fore switch ing it off .
[ i ] Tips
If you open the driver's door with the ign it ion switched on, a buzzer
sounds and the message
Ign itio n is on appears in the instrument
c luster display. Sw itc h t he ign ition off .•
Ap plies to ve hic les: w it h con venie nc e key
Switching engine off with th e
[START ENGINE STOP] button
-Bring you r vehi cle to a comp lete st op.
- Automat ic transm ission*: Move the selector lever to the
P or N position .
-Press the[S TA RT EN GINE S TO P] button => page 110,
fig. 118.
Em ergen cy OFF fun ction
If necessary, the engine can be sw itc hed off wit h the selector lever
in the
R , D or S* positions . To do so, step on the brake pedal and
press and hold the
I S TA RT ENGINE ST OP I button (vehicle speed
must be less than 6 mph/ 10 km/h.
& WARNING
• Never turn off the engine unt il the vehicle h as come to a
complete s top.
• The brake boo ster and servotroni c on ly wor k when the eng ine
is running . With the ignition turned off , you have to apply more
for ce when stee ring or braking . Since you cannot steer and stop
norm ally, t his can lead to accident s and seriou s injuries .
~
I • •

• ..__A_ u_ d_ i _d _ r_ i_v _e_ s_ e_ le_c_ t _________________________________________________ _
& WARNING
Pay attention to t raffi c when operating Audi dri ve se lect to prevent
potenti al risk of an accid ent.
[ i J Tips
If you remove the igniti on key, AUTO mode is se t the next time you
start the ignition .•
App lies to vehicles: w ith MM I and dr ive select
Setting the INDIVIDUAL mode
Y ou can pe rsonally specify the vehicle setup in the M M/.

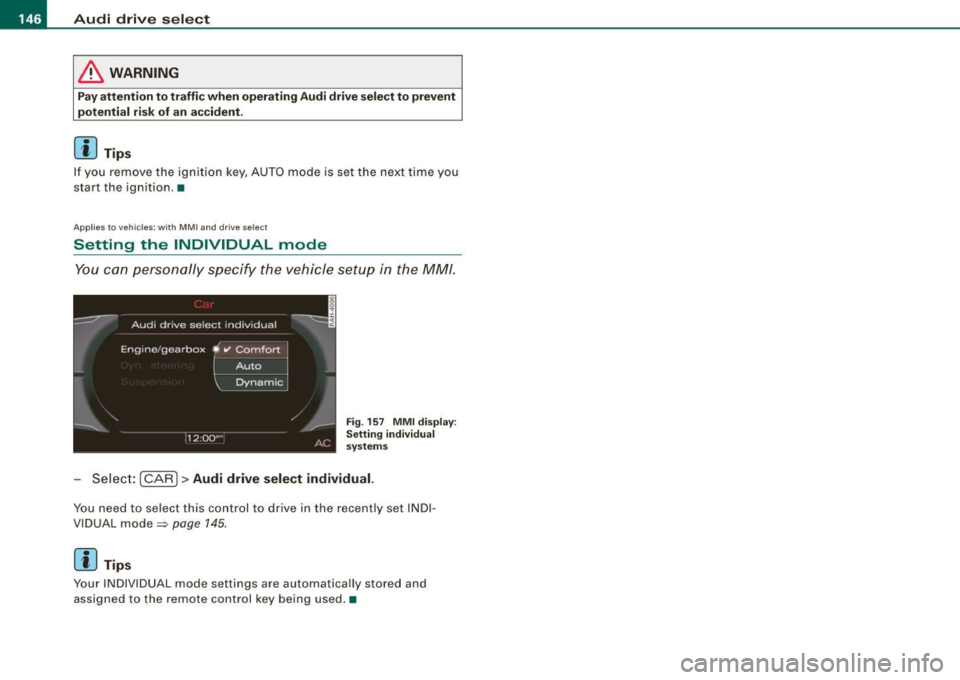

Fi g. 15 7 MMI di spl ay:
S etting individu al
sy stem s
Sele ct: [CAR]> Audi drive select individual.
Yo u n eed to se le ct this con trol to dr ive in the recently set I NDI­
V IDUAL mode=:>
page 145.
[ i J Tips
Your INDIVI DUAL mode settings are automatically stored and
assigned to the remote con trol key being used .•

• .___H_ o_ m _ e _L_i _ n _k _® ____________________________________________________ _
Homelink®
Universal remote control
Applies to vehic les: w ith Home link ® universal remote cont ro l
General information
The HomeLink® fe ature can le arn up to th ree r adio
fre quency codes for m ost c urrent transmitters used for
operating garage doors, es tate gates , home or outdoor
ligh ting sy stems, and other devices .
You m ust first pro gram the H omel in k® trans mitter befor e you can
use the system=>
page 165, "Programm ing th e Homelink® trans ­
m itter".
In order to pro gram t he Homelink® transmitter fo r devices utilizing
ro lling code, a second person on a ladder who can safe ly reach the
ga rage door o pene r m oto r is rec omm ended . It is also necessa ry to
locate the "learn" button on your garage door opener motor. Refer
to t he op era ting instructions for the opene r, as the loca tion and
co lor of this button may vary by manufacturer .
Y ou can still use the o rigina l remote c ontrol fo r th e dev ice at any
time.
& WARNING
• Never use the Homelinkl1JI transmitter with any garage door
opener that does have not the safety stop and reverse feature as
requ ired by federal safety standards . This in cludes any garage
door opener model manufactured before April 1, 1982.
• A garage door opener which cannot detect an object , signaling
the door to stop and reverse does not meet current federal safety
standards . Using a garage door opener without these features
increases risk of serious injury or death .
& WARNING (continued)
• For safety reasons never release the parking brake or start the
engine while anyone is standing in front of the vehicle.
• A garage door or an estate gate may sometimes be set in
motion when the Homelink ® remote control is being
programmed . If the devi ce is repeatedly activated , this can over ­
strain motor and damage its electrical components -an over ­
heated motor is a fire hazard!
• To avoid possible injuries or property damage , please always
make absolutely certain that no persons or objects are located in
the range of motion of any equipment being operated.
[ i ] Tips
• I f you wou ld l ik e mor e infor mation o n Hom elink®, w here to
purchase the Homelink ® compatib le products, or wou ld li k e to
pu rchase the Homeli nk® Home Ligh ting Package, please call t oll­
free: 1 -8 0 0 -355 -3515.
• F or Dec lara tion of Compliance to U nite d Sta tes FCC an d Indu stry
C anada regulations=>
page 342 . •

___________________________________________________ H_ o_m _ e_ L_ i_ n _k_ @_R _ __.1111
Applies to vehicles: with Homelin k® un iversal remote contro l
Programming the Homelink ® transmitter
The transmitter is programmed in two phases. For rolling
code transmitters, a third phase is also necessary.
,,,,, r, o: o "'' '''"
Fig . 177 Overhead
console: HomeLink ®
keypad
Fig . 178 Radiator grille
Phase 1: programming the overhead keypad
1. Make sure your vehicle is within operating range of the
remote controlled garage door opener.
2. Set the parking brake==>
& in "General information" on
page 764.
3. Turn the ignition on. Do not start the engine!
Contro ls and eq uip­
ment
4. Press and hold the two outside Homelink® buttons 0
and @for approximately 20 seconds until indicator
light@==> fig. 177 begins to flash. Then release both
buttons. Do not hold the buttons for longer than
30
seconds.
- This procedure only needs to be performed
once . It
erases the factory-set default codes and does not have to
be repeated to program additional remote controls.
5. Press and hold the Homelink® button
0,@ or@ until
the indicator light @starts flashing slowly. Release the
button.
- The system will remain in programming mode for 5
minutes.
Go to the front of the vehicle and proceed with
phase 2.
Phase 2: at the radiator grille
6. Point the
original remote control to the middle of the
radiator grille of your vehicle==> fig. 178.
7. Hold the original remote control at a distance between
0-
5 in. (0-13 cm) (use the shortest distance possible).
8. Press and hold the activation button on the remote control.
- May be different in Canada . If so, press and re -press
(cycle) the activation button on your remote control every
two seconds.
9. The emergency flashers will flash
three times (after
about
15 -60 seconds) when the programming is
successful. Release the button on the remote control.
- To program more devices, repeat steps 4 to 9.
Vehicle care I I irechnical data
