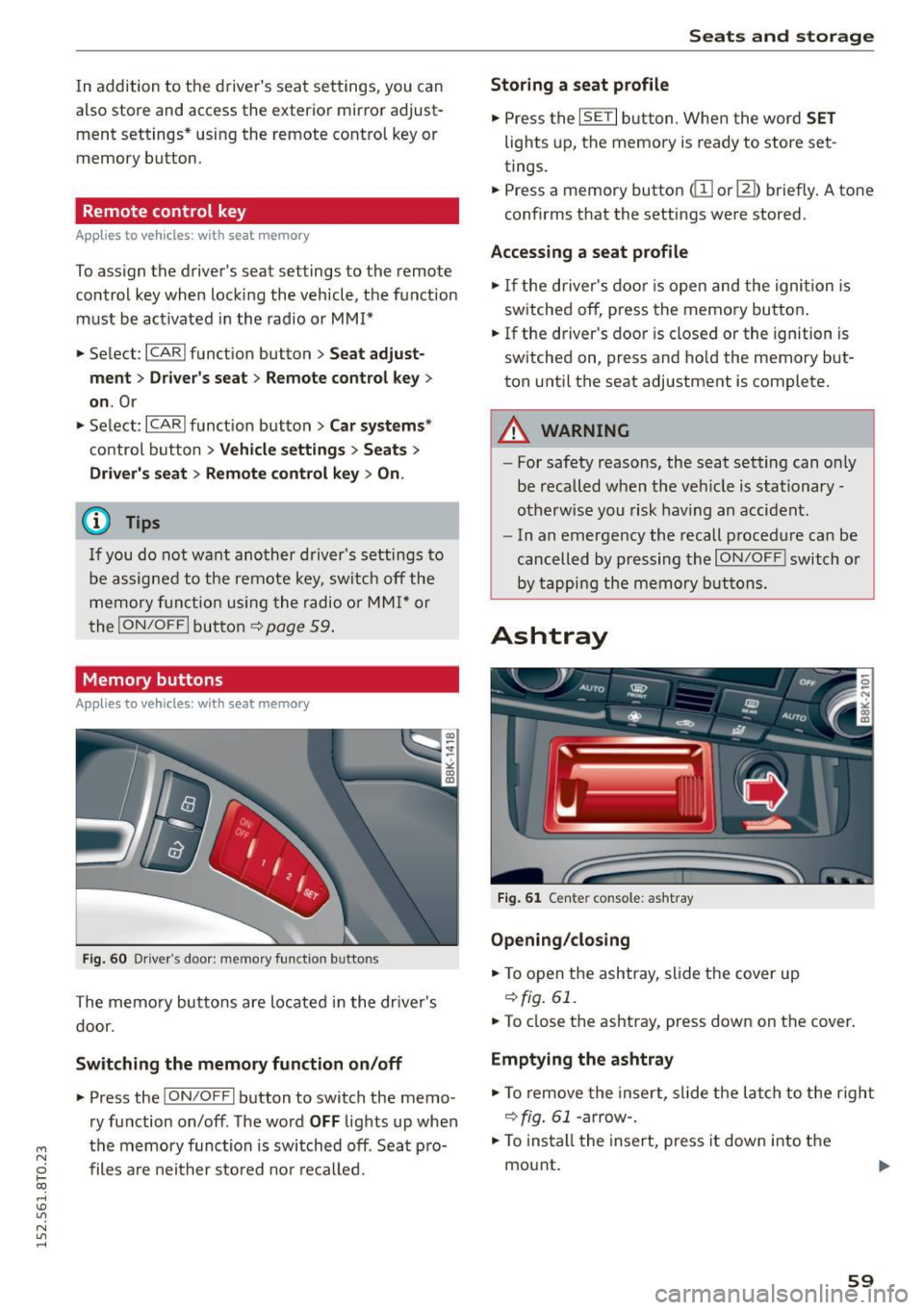

In addition to the d river 's seat settings, you can
also store and access the exterior mirror adjust­
ment settings* using the remote control key or
memory button.
Remote control key
App lies to vehicles: with seat memory
To assign the driver's seat settings to the remote
control key when locking the veh icle, the funct ion
must be act ivated in the radio or
MM!*
• Select: I CARI function button > Seat adjust·
ment
> Driver's seat > Remote control key >
on .Or
• Select : I CAR I function button > Car sy stem s*
control button > Vehicle settings > Seats >
Driver' s seat > Remot e contro l key > On .
@ Tips
If you do not want anoth er driver's settings to
be assigned to the remote key, sw itc h off the
memory f un ct io n using the radio or MM I* or
the
I O N/OFF I but ton ¢ page 59 .
Memory buttons
Applies to vehicles: with seat memo ry
Fig. 6 0 Driver's door: memory fu nct io n buttons
The memory butto ns are located in the dr iver's
d oor.
Switching the memory function on /off
• Press the ION/O FF I button to switch the memo­
ry function on/off . The word
OFF lights up when
the memory function is switched off. Seat p ro·
files are nei ther stored no r r eca lled.
Seats and storage
Storing a seat profile
• Press the ISET I button. Whe n the word SET
lights up, the memory is ready to store set ­
tings.
• Press a memory button
dil or [II) briefly . A tone
confirms that the settings were stored.
Accessing a seat profile
• If the driver's door is open and the ignition is
sw itched off, press the memory button .
• If the driver's door is closed or the ignition is
switched on, press and hold the memory but­
ton unti l the seat adjustment is complete.
A WARNING
- For safety reasons, the seat setting can o nly
be recalled when the veh icle is stationary·
otherwise you risk hav ing an accident.
- In an emergency the recall procedure can be
cancelled by pressing the
I O N/OF F! switch o r
by tappi ng the memory buttons.
Ashtray
Fi g. 6 1 Center console: ashtray
Opening /clo sing
• To open the ashtray, sl ide the cover up
r:!) fig. 61.
• To close the ashtray, press down on the cover.
Emptying the ashtray
• To remove the insert, slide the latch to the right
r:!) fig. 61 -arrow-.
• To insta ll the insert, press it down into the
mou nt.
59

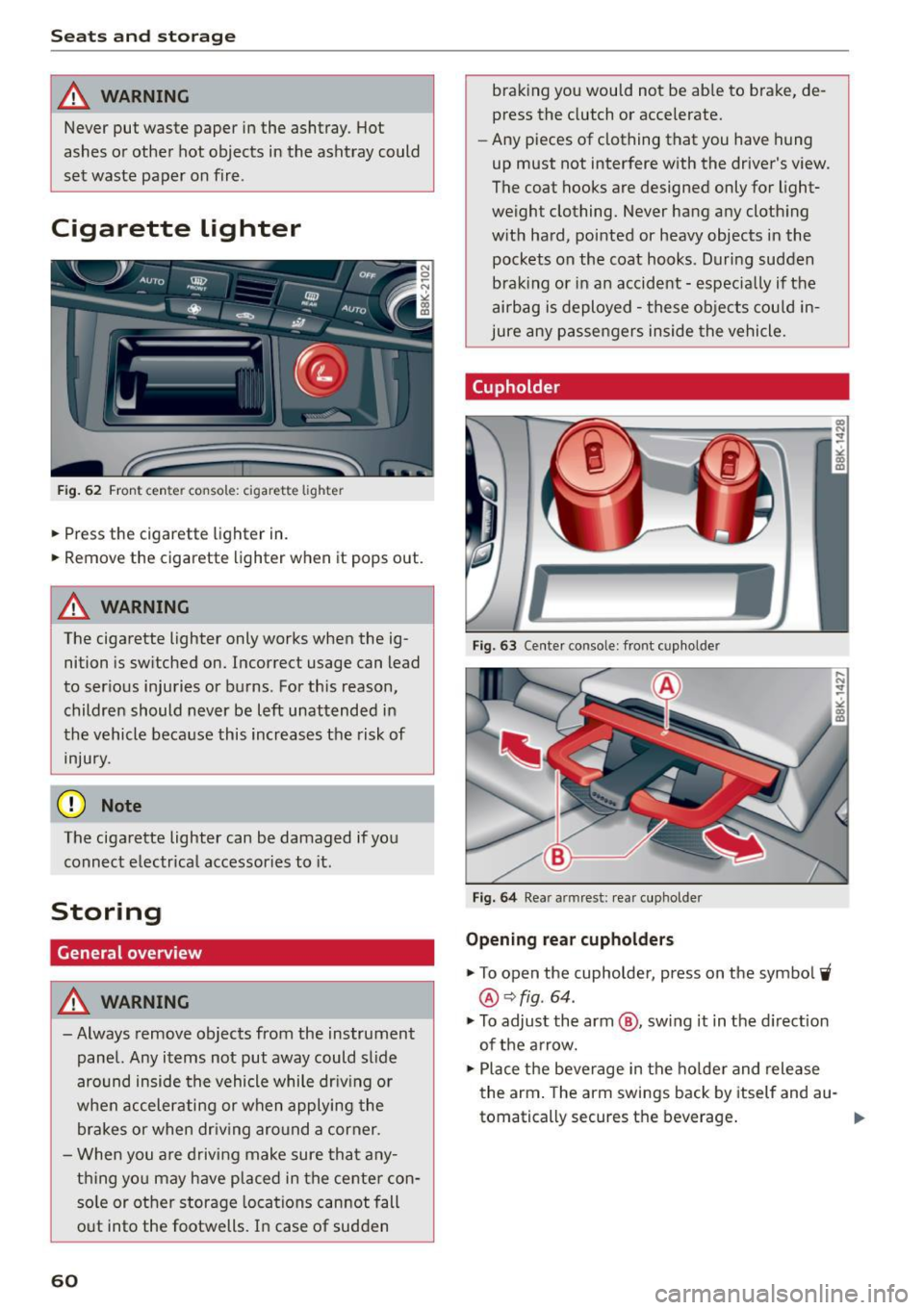

Seats and storag e
_& WARNING
Never put waste paper in the ashtray . Hot
ashes or other hot objects in the ashtray could
set waste paper on fire .
Cigarette Lighter
Fig. 62 Fron t center c onso le: cig arett e lighter
.,. Press the c igarette lighter in .
.,. Remove the cigarette lighter when it pops out .
_& WARNING
The cigarette lighter only works when the ig­
nition is sw itched on. Incorrect usage can lead
to ser ious injuries or burns. For this reason,
children should never be left unattended in
the vehicle because this increases the risk of
injury.
(D Note
The ciga rette lighter can be damaged if you
connect electrical accessories to it .
Storing
General overview
_& WARNING
- Always remove objects from the instrument
panel. Any items not put away could slide
around inside the vehicle while dr iv ing or
when accelerating or when applying the brakes or when dr iv ing aro und a corner .
- When you a re driv ing make sure that a ny­
thing yo u may have placed in the ce nter con­
so le or ot her storage locations can not fall
o ut into the footwells. In case of sudden
60
braking you would not be ab le to brake, de­
press the clutch or accelerate.
- Any pieces of clothing that you have hung
up must not interfere with the driver's view .
The coat hooks are designed only for light­
weigh t clothing. Never hang any cloth ing
w ith ha rd, pointed or heavy objects in the
pockets on the coat hooks. During sudden
braking or in an accident -espec ially if the
airbag is deployed -these objects cou ld in­
jure any p assengers inside the vehicle.
Cupholder
F ig. 63 Center co nsole: front cup holde r
Fig. 6 4 Rea r arm rest: rear cuphol der
Opening re ar cupholders
.,. To open the cupholder, press on the symbol~
®Qfig . 64 .
.,. To adjust the arm @, sw ing it in the d irection
of the a rrow.
.,. Place the beverage in the ho lder and release
the arm . The arm sw ings back by itself and au-
tomatically secures the beverage .
Ill>-

M N
0 l­oo
rl I.O
"' N
"' rl

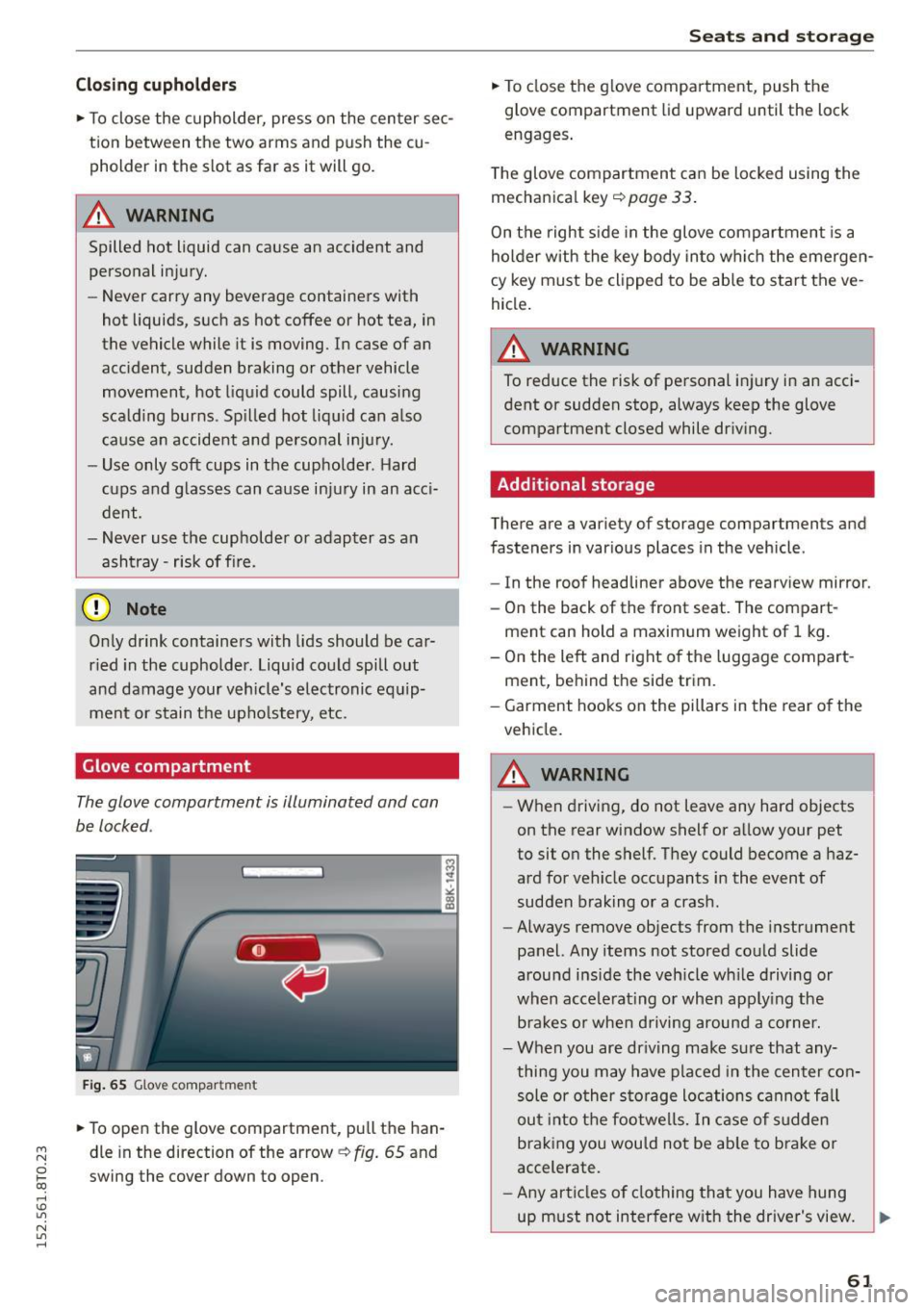

Closing cupholders
• To close the cupholder, press on the center sec­
tion between the two arms and push the cu­
pholder in the slot as far as it will go.
.&_ WARNING
Spilled hot liquid can cause an accident and
personal injury.
- Never carry any beverage containers with
hot liquids, such as hot coffee or hot tea, in
the vehicle while it is moving. In case of an
accident, sudden braking or other vehicle
movement, hot liquid could spill, causing
scalding burns . Spil led hot liquid can also
cause an accident and personal injury.
- Use only soft cups in the cupholder. Hard
cups and glasses can cause injury in an acci­
dent .
- Never use the cupholder or adapter as an
ashtray - risk of fire.
(y Note
Only drink containers with lids should be car­
r ied in the cupholder . Liquid could spill out
and damage your vehicle's electronic equip­
ment or stain the upholstery, etc.
Glove compartment
The glove compartment is illuminated and can
be locked .
Fig. 65 Glove compar tmen t
• To open the glove compartment, pull the han­
dle in the direction of the arrow~
fig. 65 and
swing the cover down to open .
Seats and storage
• To close the glove compartment, push the
glove compartment lid upward until the lock
engages .
The glove compartment can be locked using the
mechanical key
~ page 33 .
On the right side in the glove compartment is a
holder with the key body into which the emergen­
cy key must be clipped to be able to start the ve­
hicle.
A WARNING
-
To reduce the risk of personal injury in an acci-
dent or sudden stop, always keep the glove
compartment closed while driving.
Additional storage
There are a variety of storage compartments and
fasteners in various places in the vehicle .
- In the roof headliner above the rearview mirror.
- On the back of the front seat . The compart -
ment can hold a maximum weight of 1 kg.
- On the left and right of the luggage compart­
ment, behind the side trim .
- Garment hooks on the pillars in the rear of the
vehicle.
A WARNING ,..___
- When driving, do not leave any hard objects
on the rear window shelf or allow your pet
to sit on the shelf. They could become a haz­
ard for vehicle occupants in the event of
sudden braking or a crash .
- Always remove objects from the instrument
panel. Any items not stored could slide
around inside the vehicle whi le driving or
when accelerating or when apply ing the
b rakes or when driving around a corner.
- When you are driving make sure that any­
thing you may have placed in the center con­
sole or other storage locations cannot fall
out into the footwells. In case of sudden
braking you would not be able to brake or
accelerate.
- Any articles of clothing that you have hung
up must not interfere with the driver's view .
~
61

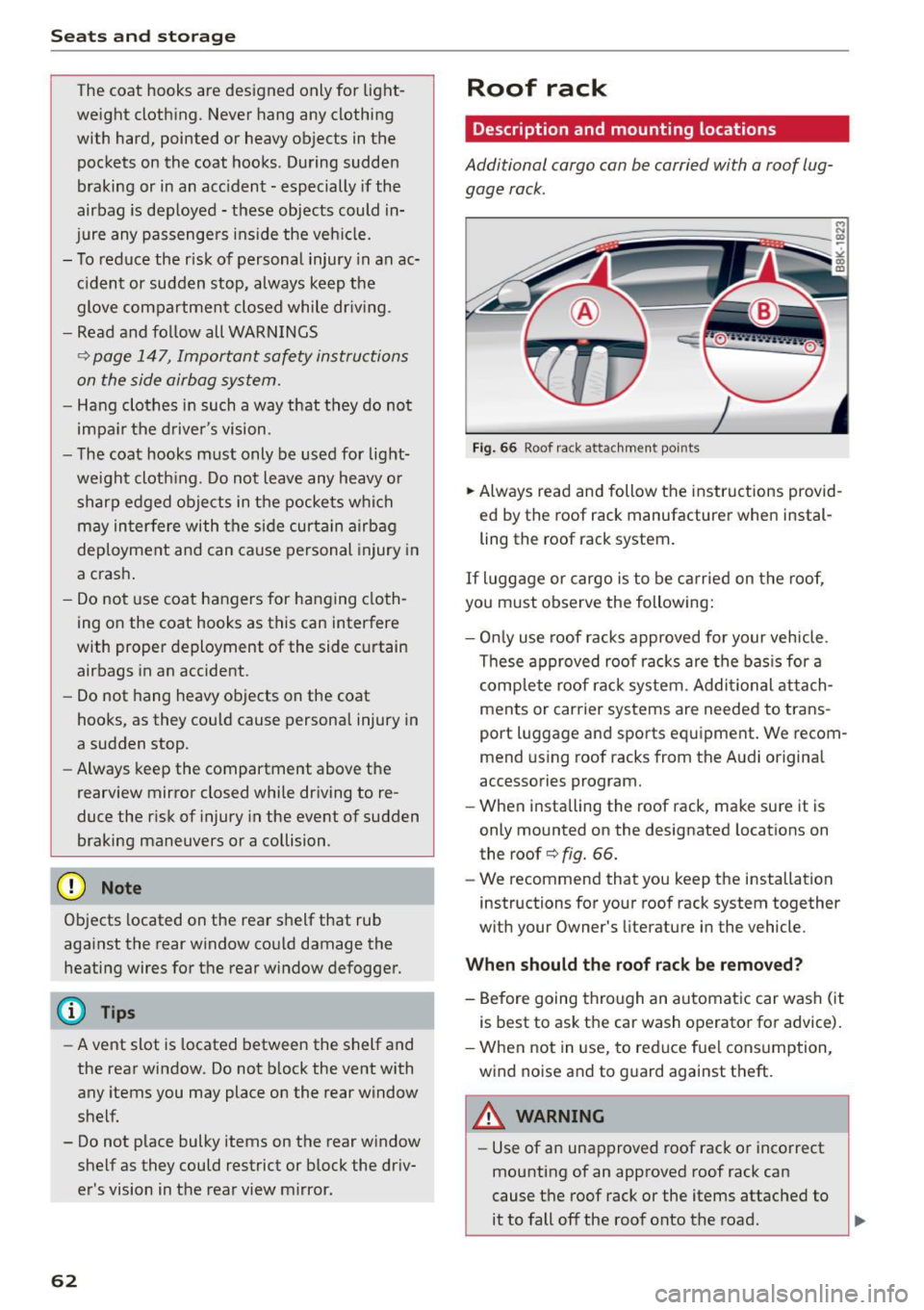

Seats and storag e
The coat hooks are des igned only for light­
weight cloth ing . Never hang any clothing
with hard, pointed or heavy objects in the
pockets on the coat hooks . During sudden
braking or in an acc ident -especially if the
airbag is deployed -these objects could in­
jure any passenge rs ins ide the veh icle.
- T o reduce the r isk of persona l injury in an ac­
cident or sudden stop, always keep the
glove compartment closed while dr iv ing .
- Read and follow all WARNINGS
9 page 147, Important safety instructions
on the side airbag system.
- Hang clothes in such a way that they do not
impa ir the d river's vision.
- The coat hooks must only be used for light­
weight clot hing . Do not leave any heavy o r
sharp edged objects in the pockets which may in terfere with the side curtain airbag
deployment and can cause personal injury in
a cras h.
- Do not use coat hangers for hanging cloth­
ing on the coat hooks as this can interfere
with proper deployment of the side c urtain
airbags in an accident.
- Do not hang heavy objects on the coat
hooks, as they could cause personal injury in
a sudden stop.
- Always keep the compartment above the
rearview mirror closed while dr iving to re­
duce the r isk of injury in the event of sudden
braking maneuvers or a collision .
(D Note
Objects located on the rear shelf that rub
against the rear window could damage the
heating wires for the rear window defogger.
(D Tips
- A vent slot is located between the shelf and
the rear window. Do not b lock the
vent with
any items you may place on the rear window
shelf.
- Do not place bulky items on the rear w indow
shelf as they could restrict or b lock the driv­
er 's vision in the rear view m irror.
62
Roof rack
Description and mounting locations
Additional cargo can be carried with a roof lug­
gage rack .
Fig. 66 Roof ra ck attachm en t po ints
.. Always read and follow the instructions provid­
ed by the roof rack manufacturer when instal ­
ling the roof rack system .
If luggage or cargo is to be carr ied on the roof,
you must observe the following:
- Onl y use roof racks approved for your vehicle .
T hese approved roof racks are the bas is for a
comp le te roof rack system . Addi tional attach­
ments or carrier systems are needed to trans­
port luggage and sports equipment. We recom­
mend using roof racks from the Aud i origina l
accessories program.
- When installing the roof rack, make sure it is
only mounted on the designated locations on
the roof
c:> fig. 66.
- We recommend that you keep the installation
instructions for your roof rack system together
w ith your Owner 's litera ture in the vehicle.
When should the roof rack be r em oved?
- Before going through an automatic car wash (it
is best to ask the car wash operator for advice).
- When not in use, to reduce fue l consumption,
wind noise and to guard against theft .
A WARNING
-Use of an unapproved roof rack or incorrect
mounting of an approved roof rack can
cause the roof rack or the items attached to
it to fall off the roof onto the road .
~

M N
i? co

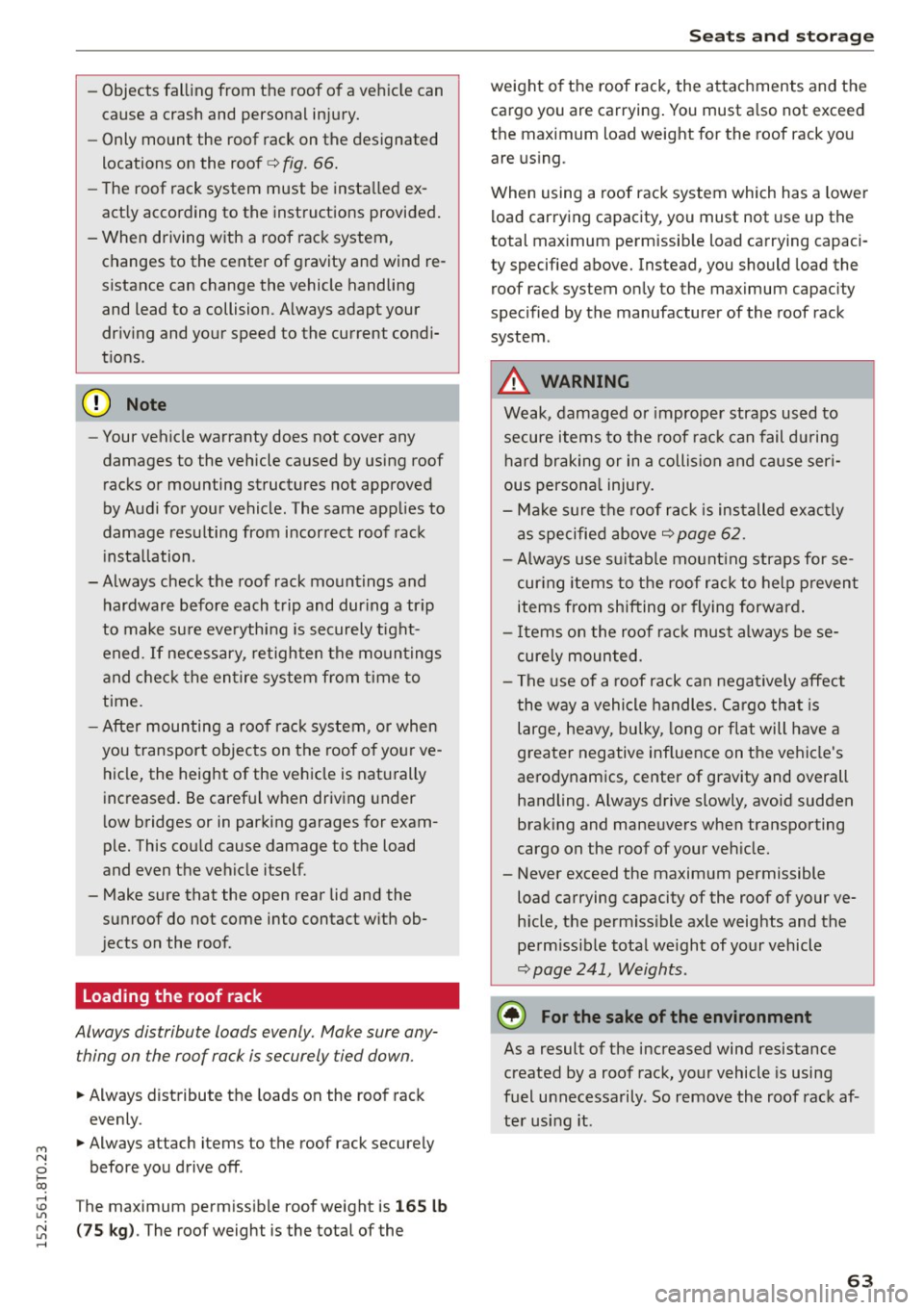

-Objects fall ing from t he roof of a vehicle can
cause a crash and personal injury.
- Only mount the roof rack on the designated
locations on the roof
c> fig. 66.
- The roof rack system must be insta lled ex­
act ly according to the instructions provided .
- When driving with a roof rack system,
changes to the center of g ravity and wind re­
sistance can change the vehicle handling
and lead to a collision. A lways adapt your
dr iv ing and your speed to the current condi­
t ions .
- Your vehicle warranty does not cover any
damages to the vehicle caused by using roof
racks or mounting structures not approved
by Aud i for your vehicle. The same applies to
damage resulting from incor rect roof rack
i nsta llation.
- Always check the roof rack mount ings and
hardware before each t rip and dur ing a tr ip
to make su re eve ryth ing is securely t ight­
ened.
If necessary, re tighten the mo untings
and c he ck the en tire system from time to
time.
- After mounting a roo f rac k system, o r when
you transport objec ts on the roof of your ve­
hicle, the heig ht of the vehicle is nat urally
increased. Be caref ul when driving under
l ow bridges or in parking garages for exam­
ple. This cou ld cause damage to the load
and even t he vehicle itself.
- Make sure that the open rear lid and the
sunroof do not come into contact w ith ob­
jects on the roof.
Loading the roof rack
Always distribute loads evenly. Make sure any­ thing on the roof rack is securely tied down.
~ Always dist ribute the loads on the roof rack
evenly.
~ Always attach items to the roof rack securely
before you drive
off .
~ The maximum perm iss ible roof weight is 165 lb ..,.,
~ ( 7 S kg ). The roof weight is the total of the ,....,
Seat s and stor age
weight of the roof rack, the attachments and the
cargo you are carrying . You must a lso not exceed
the max imum load weight for the roof rack you
are using.
When using a roof rack system which has a lower
load carrying capacity, you must not use up the
total max imum permissib le load carrying capaci­
ty specified above. Instead, you should load the
roof rack system only to the maximum capacity
specified by the manufacturer of the roof rack
system .
A WARNING
= -Weak, damaged or improper straps used to
secure items to the roof ra ck can fail d uring
h ard braking or in a collision and cause ser i­
ous persona l injury.
- Ma ke s ure t he roof rack is in stalled exac tly
as specified above
I::!) page 62.
- Always use s uitable mount ing straps for se­
cur ing items to the roof rack to help p revent
items from sh ifting o r flying forwa rd .
- It ems on the roof rac k must a lways be se­
cure ly moun ted.
- T he use of a roof rack can negatively affect
the w ay a vehicle handles. Ca rgo th at is
large, heavy, bu lky, long or fla t will have a
g reater negative inf luence on the vehi cle's
ae rodynamics, center of gravity and overall
handling. Always drive slowly, avoid sudden
brak ing and mane uvers when transporting
cargo on the roof of your veh icle.
- Never exceed the maxim um permissible
load carrying capacity of the roof of your ve­ h icle, the permiss ible axle weights and the
perm issib le tota l we ight of your vehicle
I::!) page 241, Weights .
@ For the sake of the environment
As a result of the increased wind resistance
created by a roof rack , your vehicle is using
fuel u nnecessarily . So remove the roof rack af­
ter using it.
63

Seats and storag e
Luggage compartment
General information
A WARNING
Read and follow the impo rtant safety preca u­
tions on
r=;, page 118, Storing cargo correctly.
Enlarging the luggage compartment
App lies to veh icles: w ith fol ding rear sea tback
The backrests can be folded forward separately
or together using the two release levers .
•
Fig . 67 Luggage compartment: release lever
F ig . 68 Backrest : release lever, securing knob and latch
Release lever in luggage compartment
• Pull the release leve r r=;,fig. 67 in the direction
of the arrow to fold the backrest forward.
R elease handle on the backrest
• Pull the release lever @ c::> fig. 68 in the direc-
tion of the a rrow to fold t he backrest forward.
Folding the backrest back into the upright
posit ion
• Fol d the backrest back up again until it latches
and the red mar kin g @ is no longer vis ib le
r:!;, A .
64
You can lock the backrest when it is latched in
place using the mechanical key
r=;, page 33 ©
r=;, fig. 68 . This prevents any access to the luggage
compartment from the vehicle interior .
You can on ly en large the luggage compartment if
the backrest is not locked.
A WARNING
- The backrest must always be secure ly latc h­
ed so that the safety belt of the center seat­
ing position can work proper ly to help pro­
tect the occupant.
- The backrest must be securely latched in po­
sition so that no items contained in the lug­
gage compartment can slide forward upon
sudden b rak ing .
- Always check whether the latch is fully en­
gaged by pu lli ng the seatback forward .
- Never a llow safety belts to become dam­
aged by be ing caught i n door or seat hard­
ware.
- Torn or frayed safety be lts can tear and
damaged be lt hardwa re can b reak in a crash .
I nspect the belts periodically. Belts show ing
damage to webbing, bindings, buckles, or
retractors must be re placed.
(D Note
- If you move the front seat back when the
rear seat backrest is folded forward, you
cou ld damage the head res traints on the
rear se at.
- Slide the be lt g uide on the o utside safety
belt all t he way up befo re folding the back­
res t back forw ard. Make sure t he se at belt is
no t pin ched or damaged when the rear seat
backrest if folded back. Other objects
should be removed from the rear seat bench
to protect the seatback from damage.

M N
0 l­oo
rl I.O
"' N
"' rl
Tie-downs and cargo net
Applies to vehicles: with cargo net
The cargo net prevents small objects from slid­
ing .
Fig. 69 Luggage compartmen t: cargo net stretc hed out
Fig. 70 Luggage compartment: cargo net at the top of the
luggage compar tment
Net stretched out
.,. To secure objects wit h the cargo net, hang the
front hooks on the net in the t ie-downs first
and then hang the rear hooks~
fig. 69 .
.,. Read and heed all WARNI NGS ¢page 118,
Storing cargo correctly .
Net at the top of the luggage comp artment
.,. Hang the hooks on the cargo net in the tie­
downs on the floor at the rear of the luggage
compartment ~
fig. 70.
.,. Fold down the hooks at the upper area of the
luggage compa rtment down, pull the net up
and hang the eyele ts on the net on the hooks .
.,. Read and heed all WARNINGS
~ page 118,
Storing cargo correctly.
You can a lso use the hooks c;, fig . 70 to hang bags
an d other objects. If noth ing is hung on the
hooks, they will fo ld back in by themselves .
Seats and storage
A WARNING
-~
Weak, damaged or improper straps used to
secure items to tie-downs can fail duri ng ha rd
braking o r in a coll is ion and cause serious per­
sona l injury .
-Always use su itable reta ining straps and
properly secu re items to the tie-downs in
the luggage compa rtment to he lp prevent
items from sh ifting or flying forward.
- Never attach a ch ild s eat tether strap to a
tie-dow n.
- For strength-re lated reasons, the mou nti ng
hooks can only be used to secure objects
weighing up to 10 lb. (5 kg). Heav ier objec ts
will no t be adequately secure d -there is a
ris k of injury.
Ski sack
Applies to vehicles: with ski sack
Long objects such as skis or snowboards can be
transported in the ski sack.
Fi g. 7 1 Backrest : pass-t hro ug h cover
.,. To load the ski sack in the vehicle, fold the rear
center armrest down .
.,. Fold the pass-through cover down
c;, fig. 71 .
.,. Slide the ski sack from the luggage compart­
ment through the opening w ith the zipper at
t he rear.
.,. Sec ure the ski sac k
¢page 66.
A WARNING
Objects must only be transported in the ski
sack since the sk i sack can be secured . Individ­
ua l objects cannot be secured. There is a risk
of injury.
-
65

Seats and storage
@ Tips
-You can open the pass-through from the
luggage compartment. Push the release
button down and push the cover forward.
- You can lock or unlock the pass-through us­
ing the mechanical key. This prevents any
access to the luggage compartment from
the vehicle interior.
Securing the ski sack
App lies to veh icles: w ith s ki sac k
The ski sack must be secured in the luggage com­
partment.
Fig. 72 Luggage compartmen t: Securing t he s ki sack
Fig. 73 Rear bench seat: securing the sk i sack
There are two straps with hooks on the bottom
side of the ski sack
~ fig. 72 @ . There is also a
securing strap@~
fig. 73 on the sack.
.. To secure the ski sack in the luggage compart­
ment, hang the hooks in the rear tie-downs
~fig. 72.
.. Tighten the strap on the ski sack to prevent the
objects in the sack from sliding
~ fig. 73.
66
A WARNING
-The ski sack is intended only for the trans­
portation of skis and other light objects. To
reduce the risk of serious personal injury,
never transport heavy or pointed objects in
the ski sack.
- When braking rapidly or during an accident,
the load could be displaced and cause injury to occupants.
- Sharp edges on the load must be covered
for protection. Always fasten the belt tightly
around the sack and its contents~
fig. 73.
-For safety reasons, do not transport more
than two pairs of skis in the ski sack.
- You must secure the ski sack with the strap
after loading.
- Make sure that all objects you are transport­
ing in the pass-through are secured. Other­
wise they could slide around during sudden
braking maneuvers and cause injuries.
(D Tips
- Never stow the ski sack away when it is still
wet or damp (for example, snow melting
from skis). Allow it to dry completely before
stowing it away.
- When transporting skis or snowboards,
tighten the securing strap between the
bindings.
- Position skis in the ski sack with the pointed
ends facing the front and ski poles with the
pointed ends facing the rear.
- You can lock or unlock the pass-through us­
ing the mechanical key. This prevents any
access to the luggage compartment from
the vehicle interior.
Parcel shelf
The parcel shelf behind the rear seatback can be
used to carry light items of clothing.
A WARNING
No heavy or hard objects should be placed on
the parcel shelf. They are a hazard to the vehi­
cle occupants during sudden braking. The is a risk of injury.

M N
i? co ,...., \!) ..,.,
N ..,., ,....,

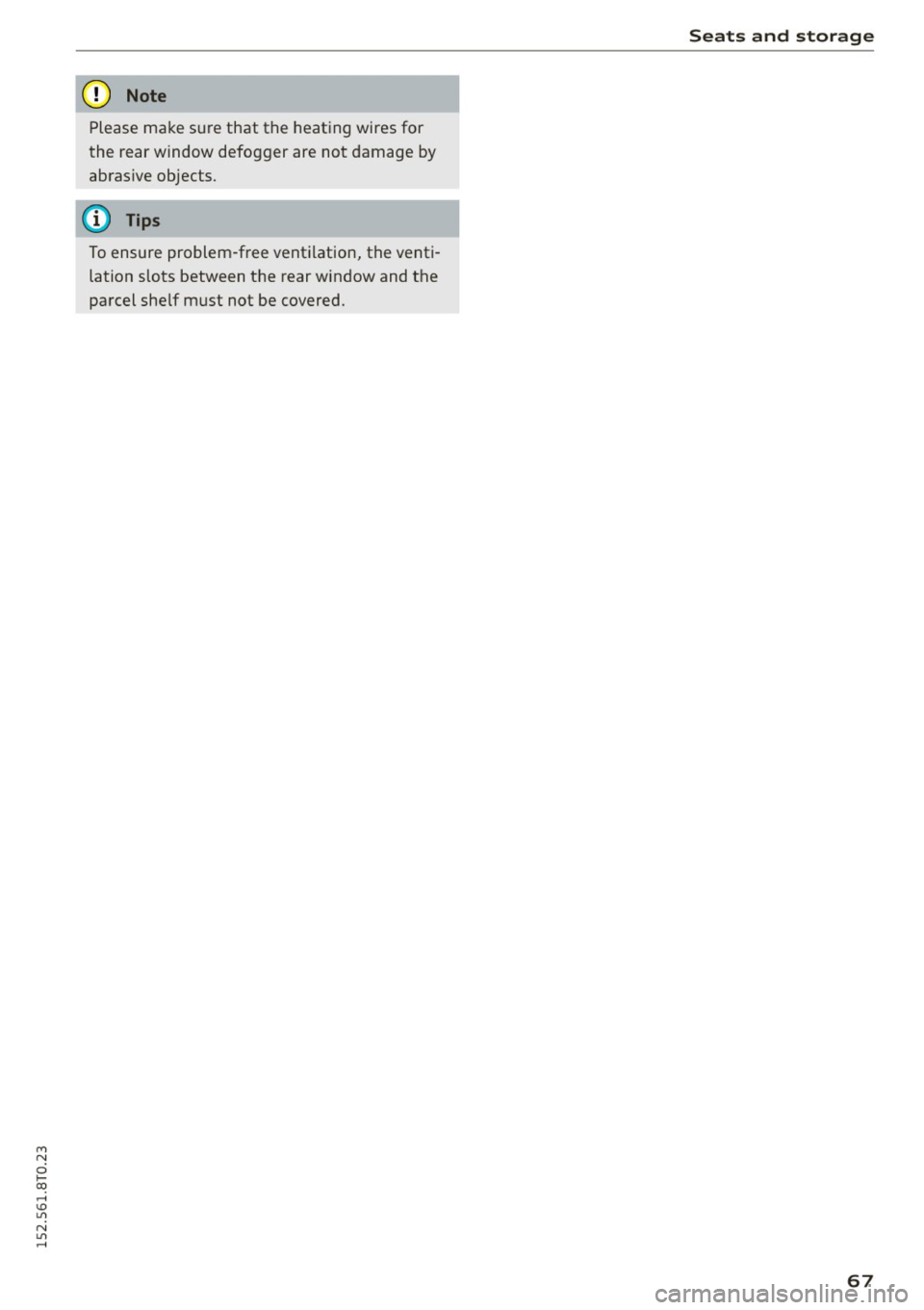

(D Note
Please make s ure that t he heat ing wires for
t he rear window defogger are not damage by
ab ras ive objects.
@ Tips
To ensure problem -free vent ilation, the venti­
lation slots between t he rear w indow and t he
pa rcel she lf m ust not be covered.
Seats and storage
67

Warm and cold
Warm and cold Climate control system
Description
The climate control system warms, cools and
adds humidity to the air in the vehicle interior. It
is the most effective when the windows and sun­
roof are closed. If there is a build-up of heat in­
side the vehicle , ventilation can help to speed up
the cooling process.
In all heating mode functions except
defrost, the
blower only switches to a higher speed once the
engine coolant has reached a certain tempera­
ture.
Condensation from the cooling system can drip
and form a puddle of water under the vehicle.
This is normal and does not mean there is a leak.
Pollutant filter
The pollutant filter removes pollutants such as
dust and pollen from the air.
The air pollutants filter must be changed at the
intervals specified in your Warranty & Mainte­
nance booklet, so that the air conditioner can
properly work.
If you drive your vehicle in an area with high air pollution , the filter may need to be changed
more frequently than specified in your Audi War­
ranty
& Maintenance booklet. If in doubt, ask
your authorized Audi Service Advisor for advice.
Key coded settings
The climate control settings are automatically
stored and assigned to the remote control key
that is in use .
.8, WARNING
Reduced visibility is dangerous and can cause
accidents.
- For safe driving it is very important that all
windows be free of ice, snow and condensa­
tion.
68
- Completely familiarize yourself with the
proper use and function of the heating and
ventilation system and especially how to de­
fog and defrost the windows .
- Never use the windshield wiper/washer sys­
tem in freezing weather until you have
warmed the windshield first, using the heat­
ing and ventilation system . The washer solu­
tion may freeze on the windshield and re­
duce visibility .
(D Note
-If you suspect that the air conditioner has
been damaged, switch the system off to
avoid further damage and have it inspected
by a qualified dealership.
- Repairs to the Audi air conditioner require
special technical knowledge and special
tools. Contact an authorized Audi dealer for
assistance.
@ For the sake of the environment
By reducing the amount of fuel you use, you
also reduce the amount of pollutants emitted
into the air.
(D Tips
-Keep the air intake slots (in front of the
windshield) free from ice, snow and debris
in order to maintain the proper function of
the climate control system.
- The energy management system may switch
the seat heating* or rear window defroster
off temporarily. These systems are available
again as soon as the energy balance has
been restored.
- Air escapes through vents under the rear
window. When placing items of clothing on
the luggage compartment cover, ensure
that the openings are not covered.
