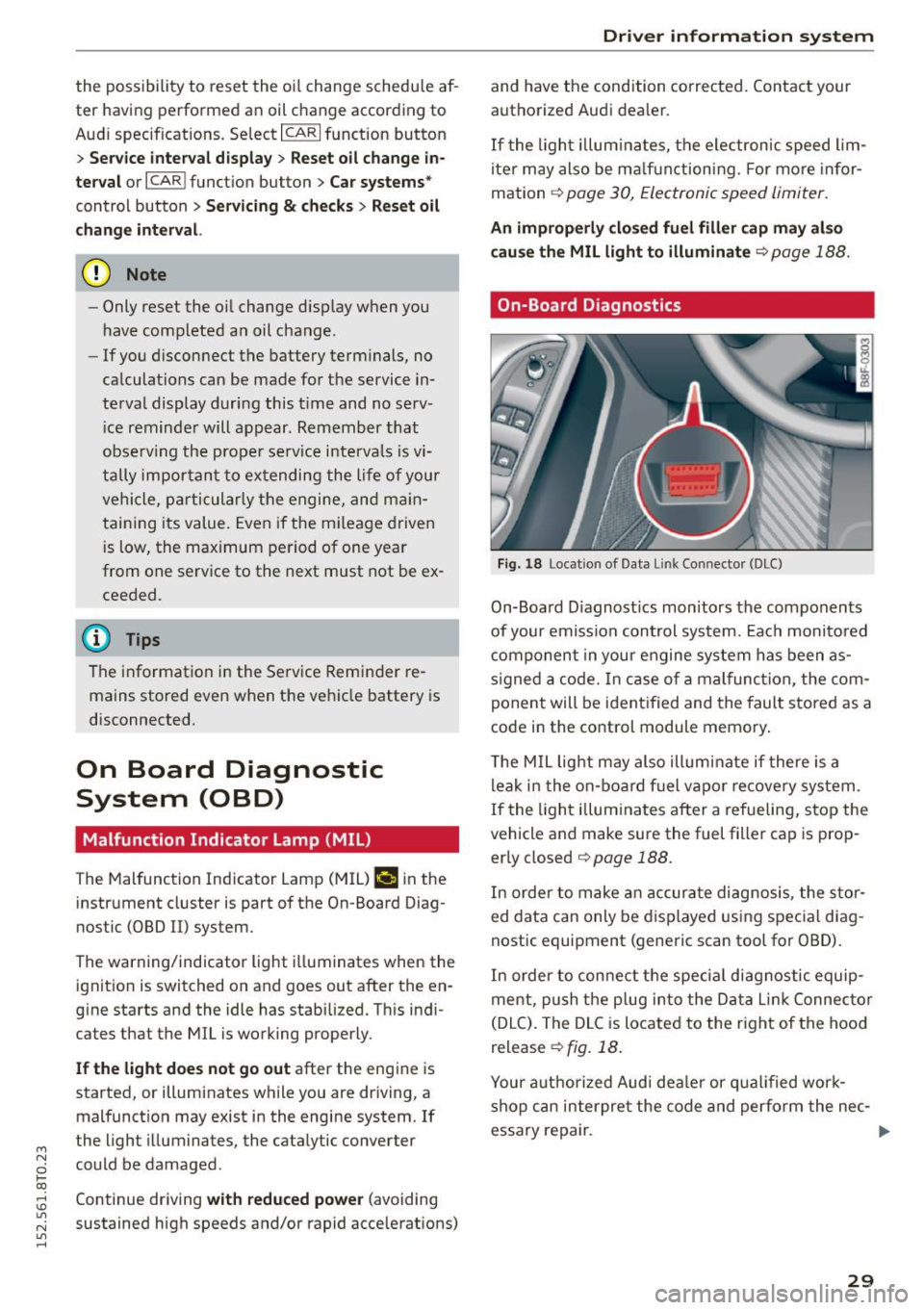

the possibility to reset the oi l change schedu le af ­
ter having performed an oil change according to
Audi specif ications. Select
ICARI function button
> Service interval display > Reset oil change in­
terval
or I CAR ! function button > Car systems*
control button > Servicing & checks > Reset oil
change interval.
(D Note
- Only reset the oil change d isp lay when you
have completed an oil change .
- If you d isconnect the battery terminals, no
calculations can be made for the service in­
terval display during this t ime and no serv­
i ce reminder will appear . Remember that
obse rv in g the proper serv ice intervals is vi­
tally impor tant to extending the life of your
vehicle, particularly the engine, and main­
taining its value. Even if the mi leage driven
i s low, the maximum period of one year
from one service to the next must not be ex­
ceeded.
(D Tips
The information in the Service Reminder re­
mains stored even when the veh icle battery is
disconnected.
On Board Diagnostic
System (OBD)
Malfunction Indicator Lamp (MIL)
The Malfunction Indicator Lamp (MIL) ¢-4 in the
instrument cluster is part of the On-Board Diag ­
nostic (OBD II) system.
The warning/indicator light illuminates when the
ignition is switched on and goes out after the en­
gine starts and the idle has stabilized. This indi­
cates that the MIL is working properly.
If the light does not go out after the engine is
started, or illuminates while you are driving, a malfunct ion may exist in the engine system. If
the light illuminates, the catalytic converter
could be damaged.
Continue driving
with reduced power (avoiding
sustained high speeds and/or rapid accelerations)
Dri ver information system
and have the condition corrected. Contact your
authorized Audi dea ler.
If t he light illuminates, the electronic speed lim­
ite r may also be ma lf u nctioning. For more infor­
mation
¢ page 30, Electronic speed limiter .
An improperly closed fuel filler cap may also
cause the MIL light to illuminate ¢
page 188.
On-Board Diagnostics
Fig. 18 Locat ion of Data Link Connector (DLC)
On-Board D iagnost ics monitors the components
of your emission control system. Each monito red
component in your engine system has been as­
signed a code. In case of a malfunction, the com­
ponent will be ident ified and the fault stored as a
code in the control module memory.
T he MIL light may also illum inate if there is a
leak in the on-board fuel vapo r recovery system .
If the light illuminates after a refueling, stop the
vehicle and make sure the fuel filler cap is prop­
erly closed
¢ page 188.
In order to make an accurate diagnosis, the stor­
ed data can only be displayed using special diag­
nostic equipment (generic scan tool for OBD).
In order to connect the spec ial diagnostic equip­
ment, push the plug into the Data Lin k Connec tor
(DLC). The DLC is located to the right of the hood
release
¢ fig. 18.
Your authorized Audi deale r or qualified work­
shop can interpre t the code and perform the nec-
essary repair. .,,.
29

Driver inform ation system

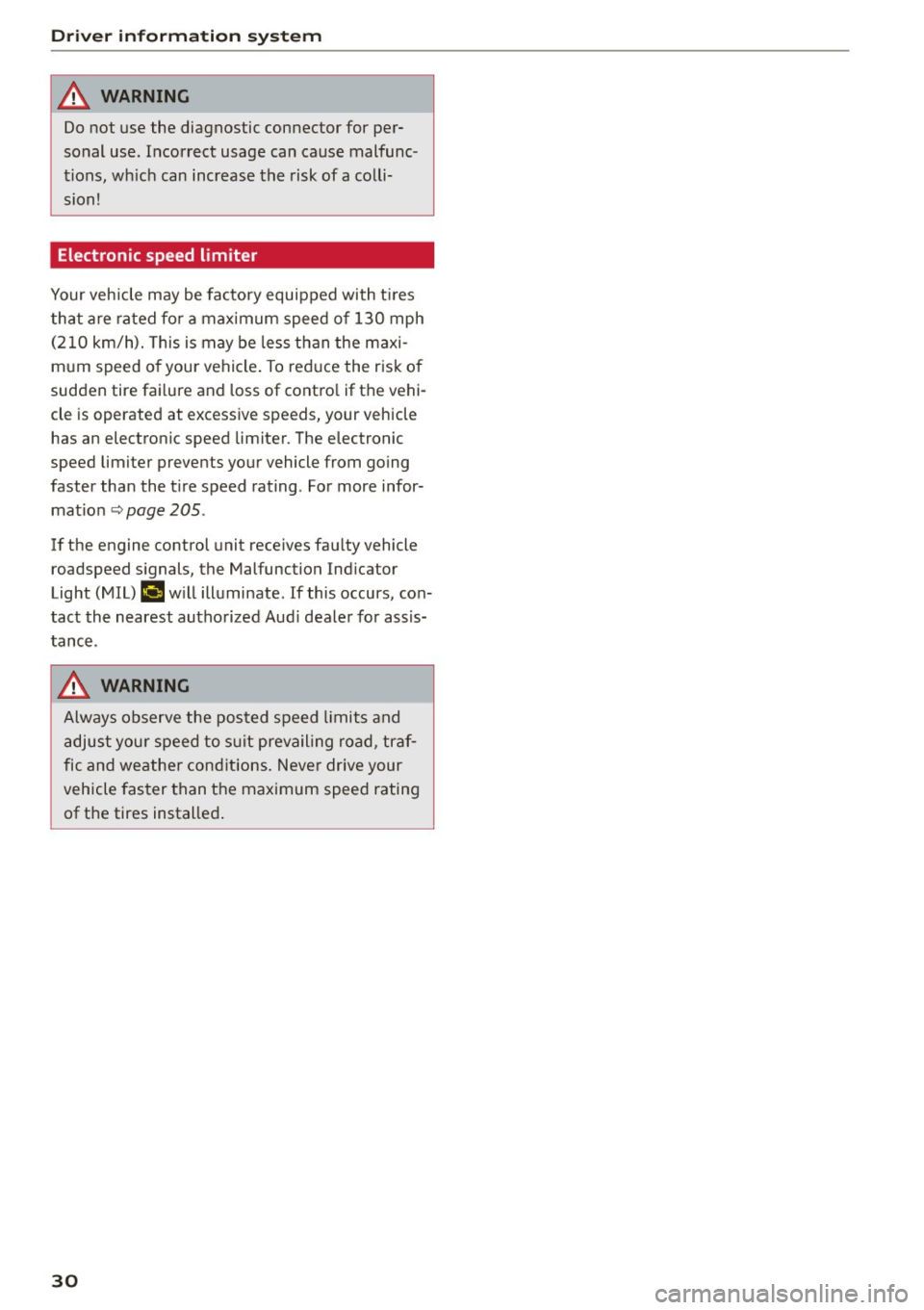

A WARNING
Do not use the diagnostic connector for per­
sonal use. Incorrect usage can cause malfunc­
tions, wh ich can increase the risk of a colli­
sion!
Electronic speed limiter
Your veh icle may be facto ry equipped with t ires
that a re rated fo r a maximum speed of 130 mph
(210 km/h). This is may be less than the maxi­
m um speed o f your vehicle . To red uce the risk of
sudden tire fa ilure and loss of contro l if the vehi­
cle is operated at excessive speeds, your vehicle
has an electronic speed limite r. The electronic
speed limiter prevents your vehicle from going
faster than the t ire speed rating . Fo r more infor­
ma tion ~ page
205 .
If the engine control unit rece ives fa ulty vehicle
roadspeed signals, the Malfunction Ind icator
Light (MIL)
II w ill illuminate . If this occurs, co n­
tact the nearest authorized Aud i dealer for assis­
tance .
A WARNING
Always observe the posted s peed limits and
adjust you r speed to s uit prevail ing road, traf­
fic and weathe r cond itions. Never drive your
vehicle faster than the maximum speed rating
of the tires installed .
30
.

M N
i? co ,...., \!) 1.1'1
N 1.1'1 ,....,

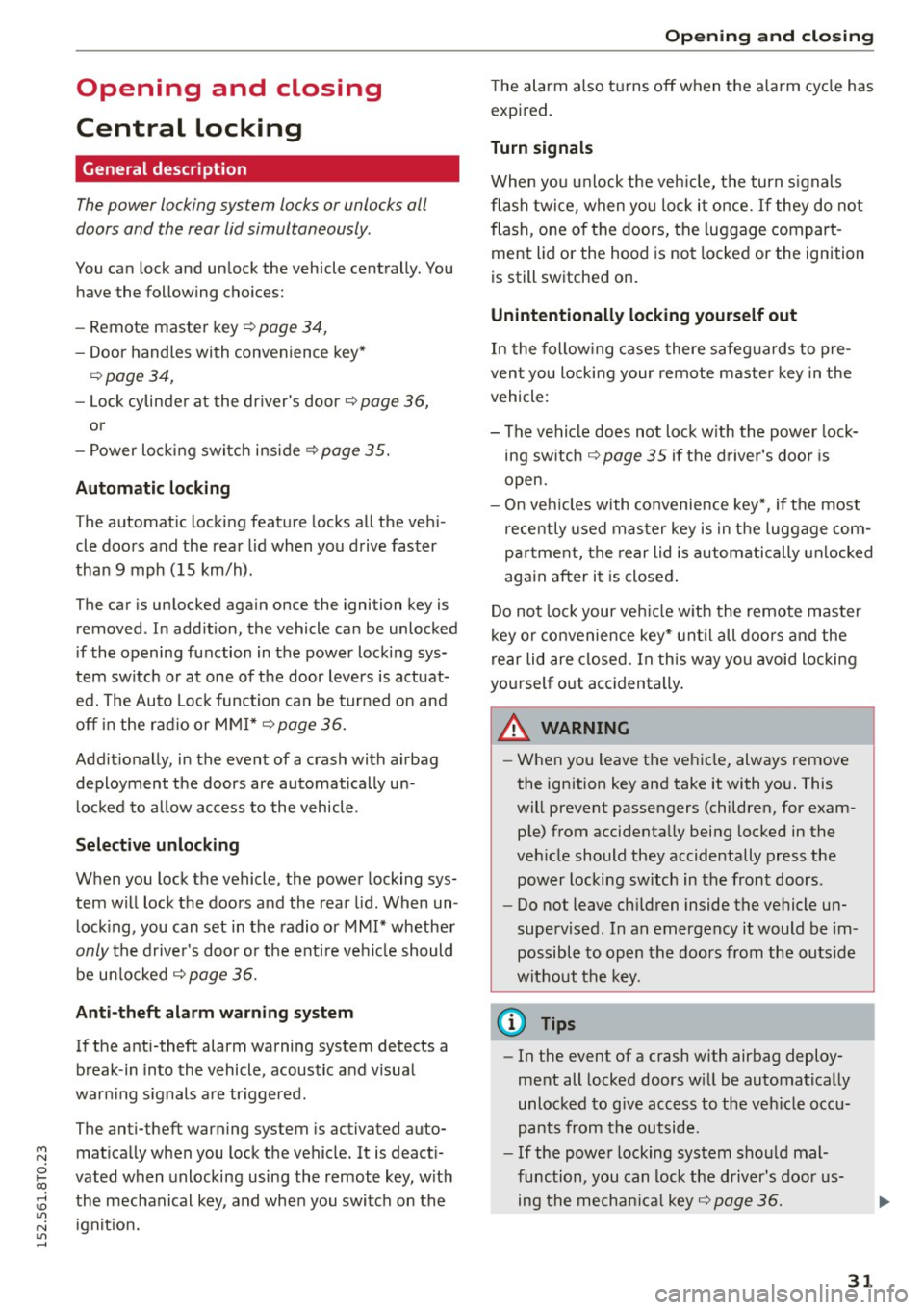

Opening and closing
Central locking
General description
The power locking system locks or unlocks all
doors and the rear lid simultaneously.
You can lock and unlock the vehicle centrally. You
have the following choices:
- Remote master key
c:::> page 34,
-Door handles with convenience key*
c:::> page 34,
-Lock cylinder at the dr iver's door c:::> page 36,
or
- Power loc king switch inside
c:::> page 35.
Automatic locking
The automat ic locking feature locks all the veh i­
cle doors and the rear l id when you drive faster
than 9 mph ( 15 km/h).
The car is unlocked again once the ignition key is
removed . In add ition, the vehicle can be unlocked
if the opening function in the power locking sys­
tem sw itch or at one of the door levers is actuat­
ed. The Auto Lock function can be turned on and
off in the rad io or MMI*
c:::> page 36.
Additionally, in the event of a crash with a irbag
deployment the doors are automatically un­ locked to allow access to the vehicle .
Selective unlo cking
When you lock the vehicle, the power locking sys­
tem w ill lock the doors and the rear lid. When un ­
lock ing, you can set in the radio or
MMI* whether
only the drive r's door o r the ent ire vehicle should
be un locked
c:::> page 3 6.
Anti- theft alarm w arning sy stem
If the anti-theft alarm warning system detects a
break-in into the vehicle, acoustic and v isual
warn ing s ignals are tr iggered .
The anti-theft warning system is activated auto­
mat ically when you lock the vehicle. It is deact i­
vated when unlocking using the remote key, w ith
the mechanical key, and when you switch on the
i gnit ion.
Op ening and cl osing
The alarm also turns off when the a larm cycle has
expired.
Turn signals
When you unlock the veh icle, the turn s ignals
flash twice, when you lock it once. If they do not
flash , one of the doors, the luggage compart­
ment lid or the hood is not locked or the ignition
is still switched on.
Unint entionally locking your self out
In the follow ing cases there safeguards to pre­
vent you locking your remote master key in the
vehicle:
- The vehicle does not lock w ith the power lock­
ing sw itch
c:::> page 35 if the d river's door is
open.
- On veh icles with co nvenience key*, if the most
recently used master key is in the luggage com­
par tment, the rear lid is automatically unlocked
again after it is closed .
Do not lock your veh icle w ith the remote master
key or co nvenience key* unt il all doors and the
rear lid are closed. In this way you avoid locking
yourself out accidentally .
A WARNING ,-c=-
-When you leave the vehicle, always remove
the ignition key and take it with you. This
will prevent passengers (children, for exam­
ple) from accidentally being locked in the
veh icle should they accidentally press the
power locking sw itch in the front doors .
- Do not leave children inside the vehicle un­
supervised . In an emergency it would be im­
possible to open the doors from the outs ide
without the key.
(D Tips
- In the event of a crash with airbag deploy­
ment all locked doors w ill be automatically
unlocked to give access to the veh icle occu­
pants from the outside.
- If the power locking system should mal­
function, you can lock the driver's door us­ ing the mecha nical key
c:::> page 36.
3 1

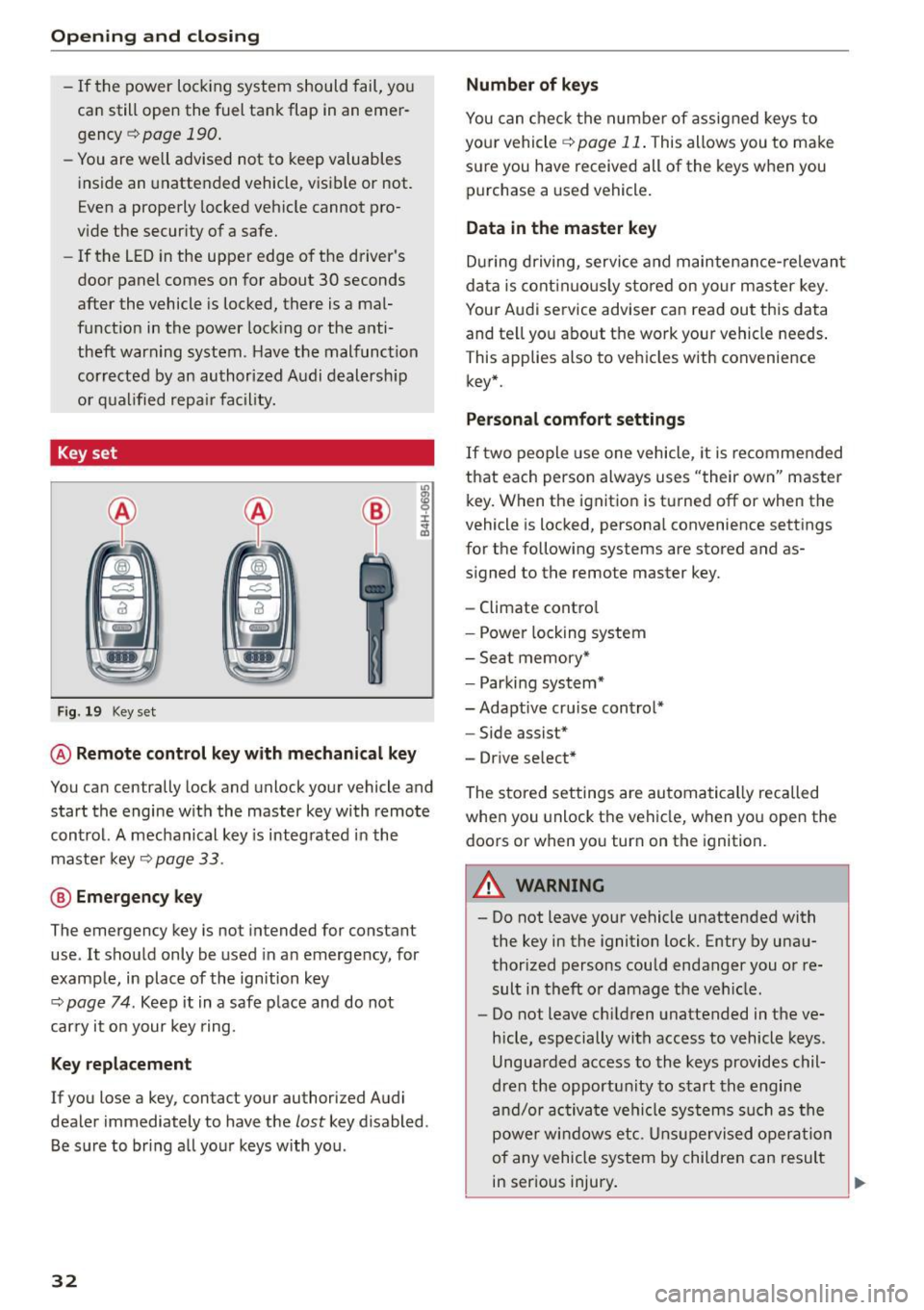

Opening and closing
-If the power locking system should fail, you
can still open the fuel tank flap in an emer­
gency ~
page 190.
-You are well advised not to keep valuables
inside an unattended vehicle, visible or not.
Even a properly locked vehicle cannot pro­
vide the security of a safe.
- If the LED in the upper edge of the driver's
door panel comes on for about 30 seconds
after the vehicle is locked, there is a mal­
function in the power locking or the anti­
theft warning system. Have the malfunction
corrected by an authorized Audi dealership
or qualified repair facility.
Key set
Fig . 19 Key set
m 0 ±
~
@ Remote control key with mechanical key
You can centrally lock and unlock your vehicle and
start the engine with the master key with remote
control. A mechanical key is integrated in the
master key
~ page 33.
@ Emergency key
The emergency key is not intended for constant
use . It should only be used in an emergency, for
example, in place of the ignition key
~ page 7 4 . Keep it in a safe place and do not
carry it on your key ring.
Key replacement
If you lose a key, contact your authorized Audi
dealer immediately to have the
lost key disabled.
Be sure to bring all your keys with you .
32
Number of keys
You can check the number of assigned keys to
your vehicle
¢ page 11. This allows you to make
sure you have received all of the keys when you purchase a used vehicle.
Data in the master key
During driving, service and maintenance-relevant
data is continuously stored on your master key .
Your Audi service adviser can read out this data
and tell you about the work your vehicle needs.
This applies also to vehicles with convenience
key*.
Personal comfort settings
If two people use one vehicle, it is recommended
that each person always uses "their own" master key. When the ignition is turned off or when the
vehicle is locked, personal convenience settings
for the following systems are stored and as­
signed to the remote master key.
- Climate control
- Power locking system
- Seat memory*
- Parking system*
- Adaptive cruise control* - Side assist*
- Drive select*
The stored settings are automatically recalled
when you unlock the vehicle, when you open the
doors or when you turn on the ignition.
A WARNING
-Do not leave your vehicle unattended with
the key in the ignition lock. Entry by unau­
thorized persons could endanger you or re­
sult in theft or damage the vehicle.
- Do not leave children unattended in the ve­
hicle, especially with access to vehicle keys.
Unguarded access to the keys provides chil­
dren the opportunity to start the engine
and/or activate vehicle systems such as the
power windows etc. Unsupervised operation
of any vehicle system by children can result
in serious injury.
.

-Do not remove the key from the ignition lock
until the vehicle has come to a complete
stop. Otherwise the steering column lock
could suddenly engage -causing the risk of
an acc ident.
(D Tips
- The operation of the remote control key can
be temporar ily disrupted by interference
from transmitters in the vicinity of the vehi­
cle work ing in the same frequency range
(e .g. a cell phone, rad io equipment) .
- For security reasons, replacement keys are only available from author ized Audi dealer.
- For Declarat ion of Compliance to United
States FCC and Industry Canada regulations
<::>page 247.

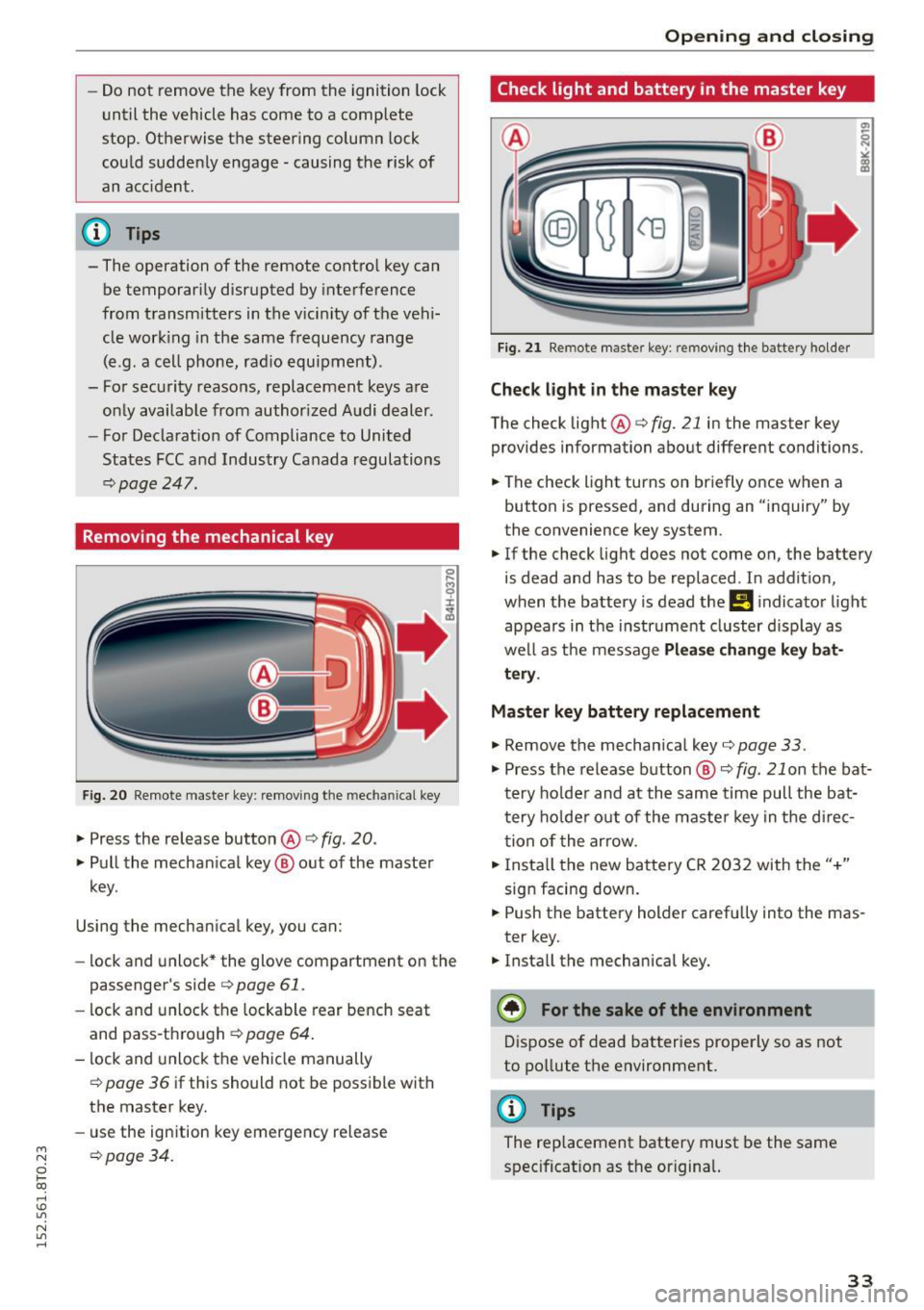

Removing the mechanical key
F ig. 20 Remote maste r key: remov ing the mechanical key
.,. Press the release button @ i:> fig. 20.
.,. Pull the mechan ical key @ out of the master
key .
Using the mechan ical key, you can:
- lock and unlock* the glove compartment on the
passenger's side
i:> page 61 .
-lock and unlock the lockable rear bench seat
and pass-through
c:> page 64 .
-lock and unlock the vehicle manually
i=> page 36 if this should not be possible with
the master key.
- use the ign ition key emergency release
~ i=> page 34.
0 l­oo
rl I.O
"' N
"' rl
Open ing and clo sing
Check light and battery in the master key
Fig. 2 1 Remote master key: removing th e battery holder
Check light in the master key
The check light @i=> fig. 21 in the master key
provides information about different conditions.
.,. The check light turns on briefly once when a
button is pressed, and during an "inquiry" by
the convenience key system.
.,. If the check light does not come on, the battery
is dead and has to be replaced. In addit ion,
when the battery is dead the
!I i ndicator light
appears in the instrument cluster d isp lay as
well as the message
Pl ea se change k ey bat­
tery .
Master key battery replacement
.,. Remove the mechan ical key i=> page 33 .
.,. Press the release button @ c:> fig. 21 on the bat·
tery ho lder and at the same time pull the bat­
tery ho lder out of the maste r key in the d irec­
tion of the arrow .
.,. Insta ll the new battery CR 2032 with the"+"
sign facing down .
.,. Push the battery holder carefu lly into the mas·
ter key.
.,. Insta ll the mechanical key.
@) For the sake of the env ironment
Dispose of dead batteries properly so as not
to pollute the environment.
@ Tips
The replacement battery must be the same
spec ificat ion as the origina l.
33

Opening and closing

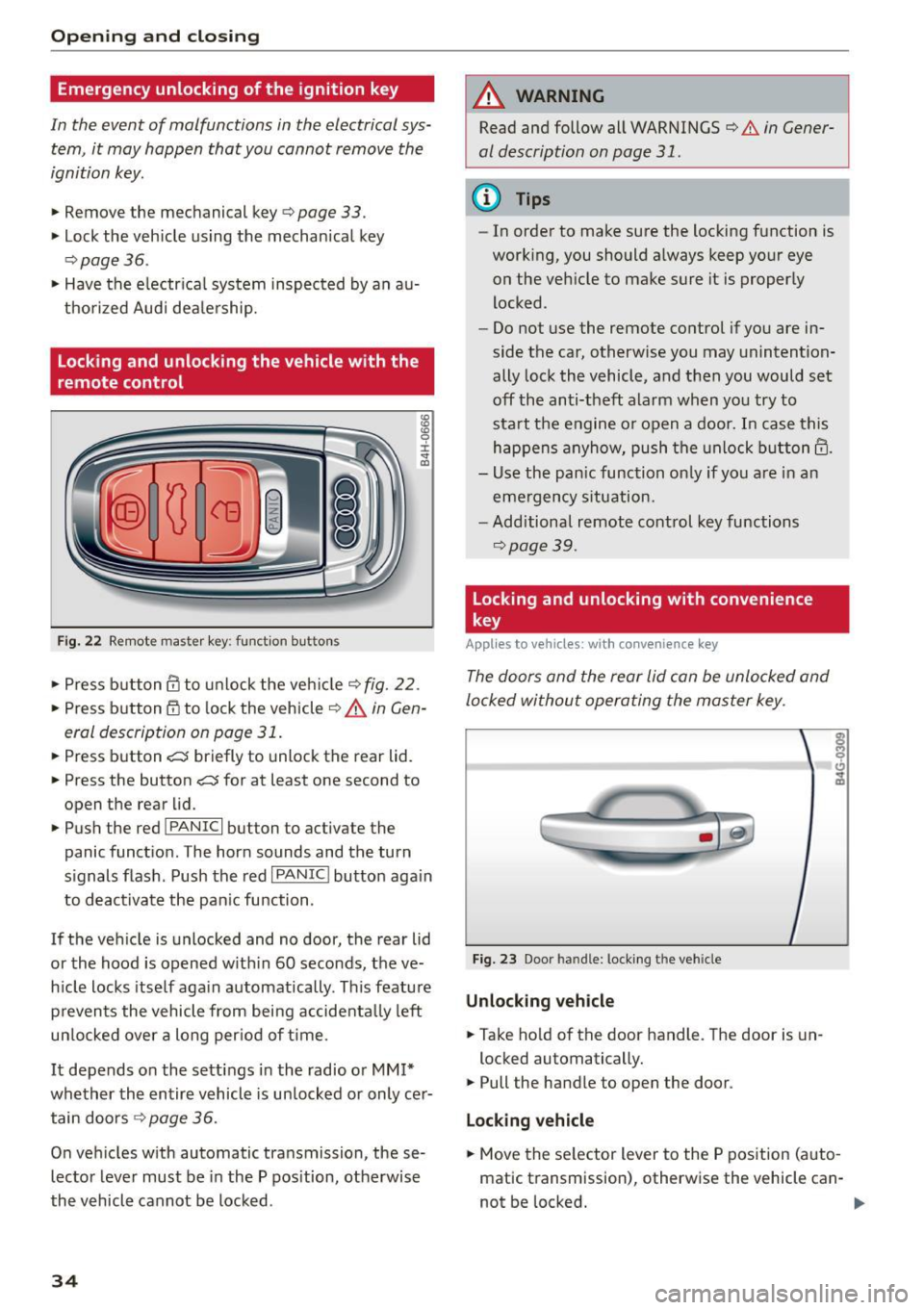

Emergency unlocking of the ignition key
In the event of malfunctions in the electrical sys­
tem, it may happen that you cannot remove the
ignition key.
.,. Remove the mechanical key <=>page 33.
.,. Lock the vehicle using the mechanical key
<=>page 36.
.,. Have the e lectrica l system inspected by an au­
thorized Aud i dea lership.
Locking and unlocking the vehicle with the
remote control
Fig. 22 Remote master key: funct ion bu tto ns
:8
"' 0 ±
"' OJ
.,. Press b utton ill to unlock the vehicle<=> fig. 22.
... Press button m to lock the vehicle ¢ A in Gen­
eral description on page 31 .
.,. Press button c::5 briefly to unlock the rear lid .
.,. Press the button
c::5 for at least one second to
open the rear lid .
.,. Push the red
!PANIC I button to activate the
panic function. The horn sounds and the turn
s ignals flash . Push the red
I PANIC! button aga in
to deactivate the pan ic function .
If the vehicle is unlocked and no door, the rear lid
or the hood is opened w ith in 60 seconds, the ve­
hicle locks itself again automatically . This feature
prevents the vehicle from being accidenta lly left
un locked over a long per iod of time .
It depends on the settings in the radio or
MM!*
whether the entire vehicle is unlocked or only cer­
tain doors <=>
page 36.
On vehicles with automatic transmission, these­
lector lever must be in the P pos ition, otherwise
the vehicle cannot be locked .
34
A WARNING
Read and follow all WARNINGS
<=> .&. in Gener­
al description on page 31.
(D Tips
- In order to make sure the locking function is
work ing, you should always keep your eye
on the vehicle to make sure it is properly
locked .
- Do not use the remote control if you are in­
side the car, otherwise you may unintention­
ally lock the vehicle, and then you would set
off the anti-theft alarm when you try to
start the engine or open a door. In case this
happens anyhow, push the unlock button@.
- Use the pan ic function on ly if you are in an
emergency situation.
- Additional remote control key functions
¢page 39.
Locking and unlocking with convenience
key
Applies to vehicles: wit h co nvenience key
The doors and the rear lid can be unlocked and
locked without operating the master key .
Fig. 23 Door handle: lock ing the vehicle
Unlocking vehicle
.,. Ta ke hold of the door handle. The door is un-
locked automatically.
.,. Pull the handle to open the door .
Locking vehicle
.,. Move the se lector lever to the P position (auto­
matic transmission), otherwise the vehicle can-
not be locked. .,..

M N
0 l­oo
rl I.O
"' N
"' rl

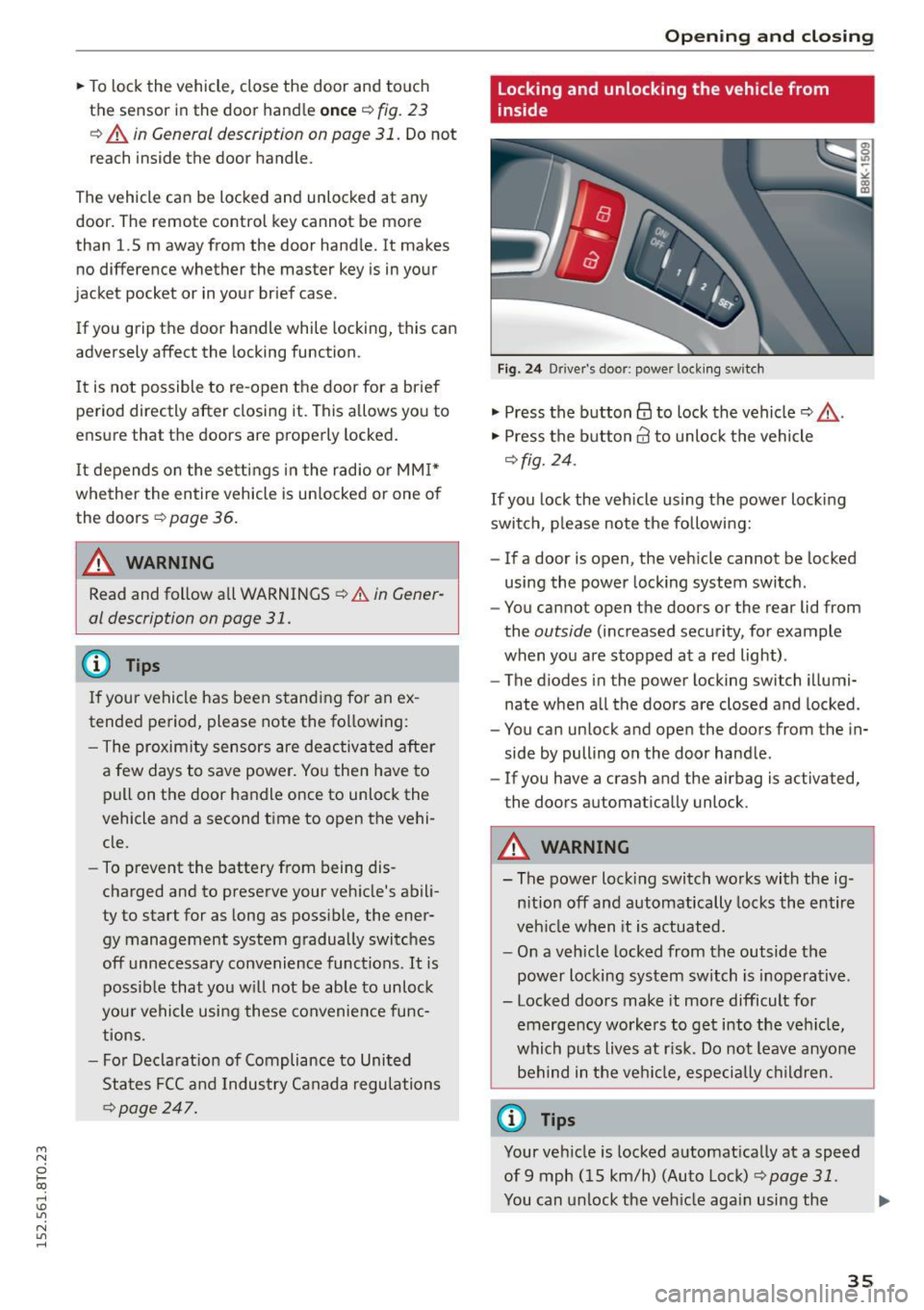

"'To lock the vehicle, close the door and touch
the sensor in the door hand le
once ¢ fig. 23
¢ A in General description on page 31 . Do not
reach inside the door handle.
The vehicle can be locked and unlocked at any
door. The remote control key cannot be more
than 1.5 m away from the door hand le. It makes
no difference whether the master key is in your
jacket pocket or in your brief case .
If you g rip the door handle while locking, this can
adversely affect the locking function.
It is not possible to re -open the door for a brief
pe riod directly after closing it . This allows yo u to
ensure that the doors are properly locked .
It depends o n the se ttings i n the radio or MM I*
whether the entire vehicle is un locked or one o f
the doors ¢
page 36.
A WARNING
Read and follow all WARNINGS ¢ A in Gener·
al description on page 31.
@ Tips
I f your vehicle has been stand ing fo r an ex ­
tended period, please note the following:
- The proximity sensors are deac tivated after
a few days to save power. Yo u then have to
pull on the door handle once to unlock the
vehicle and a second time to open the vehi­
cle.
- To prevent the battery from being dis­
charged and to preserve your veh icle's abili­
ty to start for as long as possible, the ener­
gy management system g radually switc hes
off unnecessary convenience functions. It is poss ible that you w ill not be ab le to unlock
you r vehicle using these convenie nce func­
tions .
- Fo r Decla rat ion of Compliance to Uni ted
Sta tes FCC a nd Industry Canada regulations
~ page 24 7.
Open ing and clo sing
Locking and unlocking the vehicle from
inside
F ig. 2 4 Driver's door; power lock ing sw itch
"' Press the button@ to lock the vehicle¢_& .
"' Press the button@ to unlock the vehicle
¢fig. 24 .
If you lock the veh icle using the power loc king
swit ch, p lease note the following:
- If a door is open, the veh icle cannot be locked
using the power locking system switch .
- You cannot open the doors or the rear lid from
the
outside (increased security, for example
when you are stopped at a red light) .
- The diodes in the power locking switch illumi­
nate when a ll the doors are closed and locked .
- You can unlock and open the doors from the in­
side by pulling on the door hand le .
- If you have a crash and the airbag is activated,
the doors automa tically unlock .
A WARNING
-- The power lock ing switch works with the ig-
n ition off and automatically locks the entire
veh icle when it is actuated.
- On a vehicle locked from the outside the
power locking sy stem switch is inoperative .
- Locked doors make it more difficult for
emerge ncy worke rs to get into the veh icle,
which puts liv es at r isk. Do not leave anyone
be hind in the vehi cle, especially children .
@ Tips
Your vehicle is locked a utomat ically at a speed
of9 mph ( 15 km/h) (Auto Loc k)
¢ page 31.
You can unlock the veh icle aga in using the .,.
35

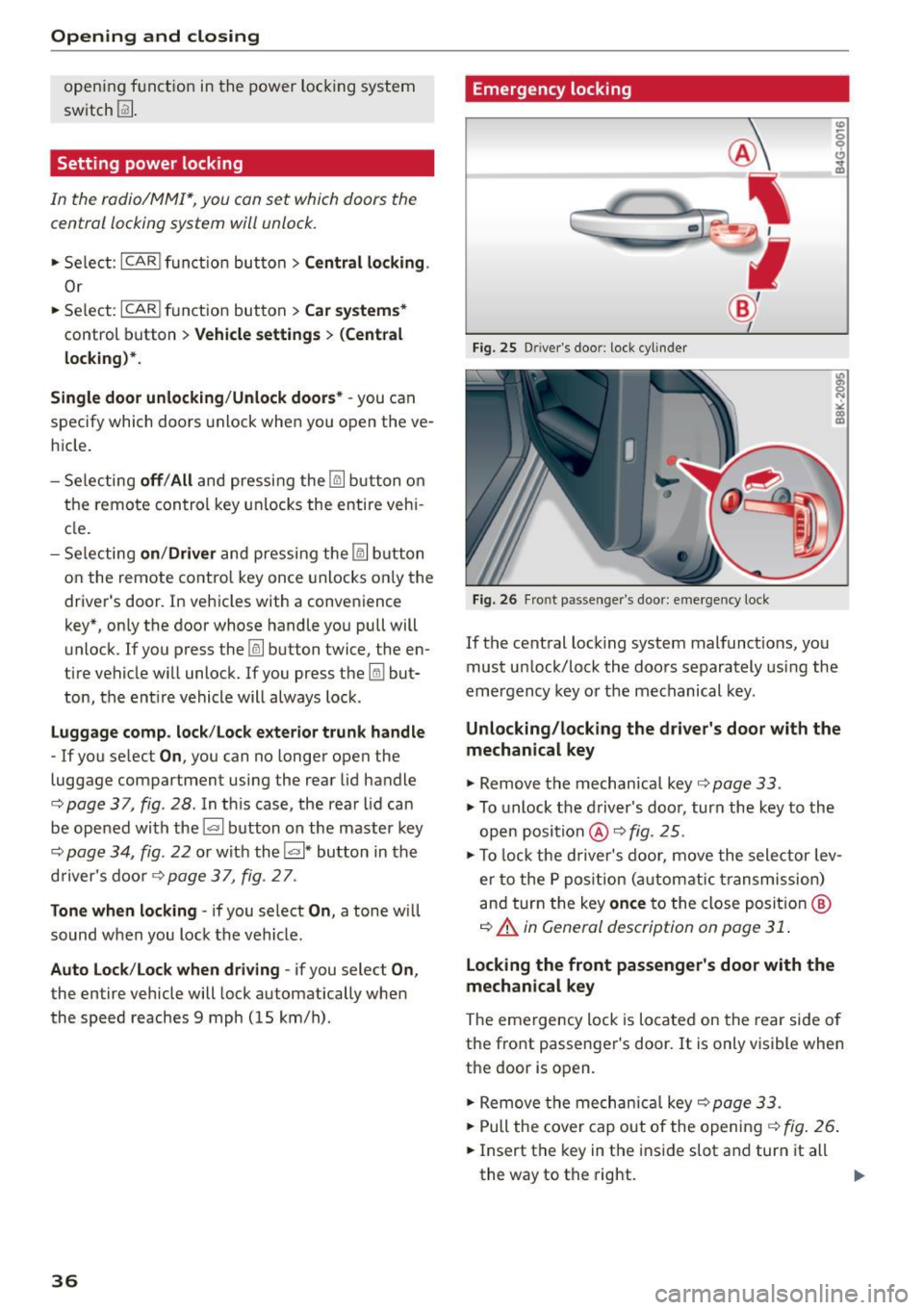

Opening and closing
opening f unct ion in the power lock ing system
switch
l:@J .
Setting power locking
In th e radio/MM!*, you can set which doors the
central locking system will unlock .
.,. Se lect : ICA RI funct ion button > Central locking .
Or
.,. Se lect : IC AR I functio n button> Car sy stem s*
control button > Vehicle settings > (Central
loc king )*.
Single door unlocking /Unl ock door s* -
you can
specify which doo rs unlock whe n you open the ve­
hicle.
- Se lecting
off / All and pressing the~ button o n
the remote con tro l key unlocks the entire veh i­
cle .
- Se lecting
on/ Driver and pressing the~ button
on the remote control key once unlocks on ly the
driver 's door. In vehicles with a conve nience
key*, only the door whose handle you pull will
u nlock . If you press the[@] button twice , the en­
tire vehicle w ill unlock. If you press the [@) but­
ton, the ent ire vehicle will always lock .
Luggage comp. lock/Lock ex terior trunk handle
-If you se lect On , you can no longe r open the
luggage compartment using the rear lid handle
c::>
page 3 7 , fig. 28 . In this case, the rear lid can
be opened wi th the ~ button on the master key
c::>
page 34 , fig . 22 or with the~* button in the
d river's doo r
c::> page 3 7, fig. 2 7 .
Tone when locking -if you select On, a tone w ill
sound w hen you Lock the vehicle .
Auto Lock/Loc k when driving -if you select On,
the entire vehicle will lock automatically when
the speed reaches 9 mph (15 km/h) .
36
Emergency locking
Fig. 25 Drive r's doo r: lock cylind er
Fig. 26 Fro nt p assenge r's doo r: e merge ncy lock
If the cent ral lock ing system malfunct ions, you
must un lock/Lock the doo rs separately using the
emergency key or the mechanical key .
Unlocking/locking the driver's door with the
mechanical key
.,. Remove the mechanical key c::> page 33.
.,. To unlock the driver's doo r, turn the key to the
open position @c::>
fig. 25 .
.,. To lock the driver's door, move the selector lev­
er to the P pos ition ( automatic transmission)
an d tur n the key
once to the close posit io n @
c::> A in General description on page 31 .
Locking the front passenger's door with the
mechanical key
The emergency lock is located on the rear side o f
the fro nt passenger 's door. It is only visible when
the door is open .
.,. Remove the mechanica l key
c::> page 33 .
.,. Pull the cover cap out of the open in g c::> fig . 26 .
.,. Insert the key in the i nside s lot a nd turn it all
the way to th e right. ..,.

M N
0 l­oo
rl I.O
"' N
"' rl

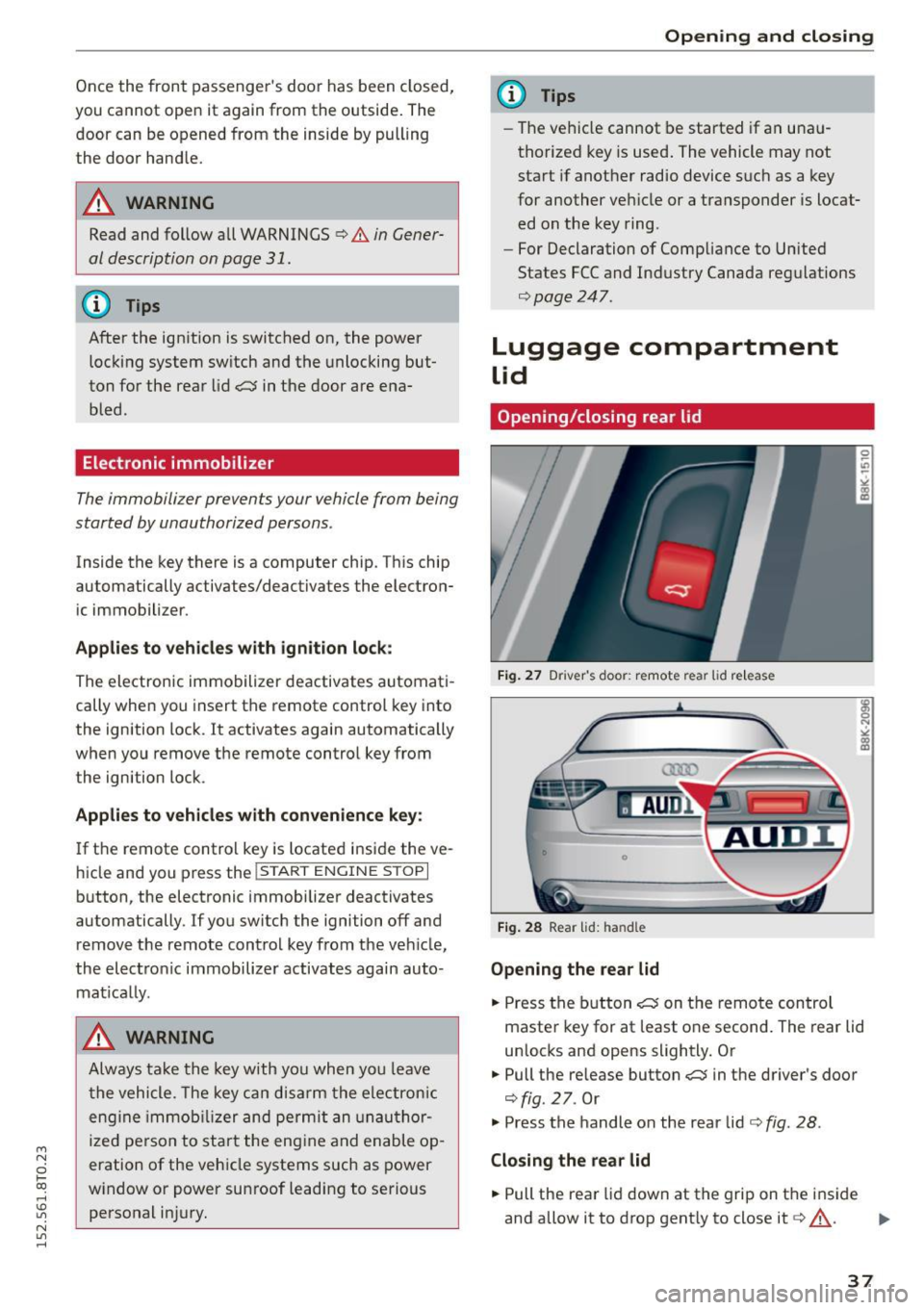

Once the front passenger's door has been closed,
you cannot open it again from the outside. The
doo r can be opened from the inside by pulling
t he door hand le.
A WARNING
Read and follow all WARNINGS q .&. in Gener­
al description on page 31 .
@ Tips
After the ignition is switched on, the power
locking system sw itch and the unlocking but­
ton for the rear lid
.c::5 in the door are ena­
bled .
Electronic immobilizer
The immobili zer prevents your vehicle from being
s tarted by unauthorized persons .
Inside the key there is a computer chip. This chip
automatically activates/deact ivates the electron­
ic immobili zer.
Applie s to vehicl es with ign ition lock :
The electronic immobilizer deactivates automati ­
cally when you insert the remote control key into
the ignition lock . It activates again automatically
when you remove the remote control key from
t he ignition lock .
Applies to v eh icl es with conven ienc e key :
If t he remote control key is located inside the ve­
hicle and you press the
! S TAR T ENGINE ST OPI
button, the electronic immobilizer deactivates
au tomatically . If you switch the igni tion off and
remove the remote control key from the ve hicle,
the electronic immobilizer activates again auto ­
mat ica lly.
A WARNING
Always take the key with you when you leave
the vehicle. The key ca n disa rm the electron ic
eng ine immob ilizer and permit an unau thor­
ized pe rson to start the eng ine and enable op ­
eration of the vehicle systems such as power
w indow or power sunroof leading to serious
personal in jury.
Open ing and clo sing
(D Tips
- The vehicle cannot be started if an una u­
thorized key is used . The vehicle may not
start if another radio device s uch as a key
for another ve hicle or a transponder is locat­
ed on the key ring.
- For Declaration of Comp liance to United
States FCC and Industry Canada regulations
¢ page 247.
Luggage compartment
Lid
Opening/closing rear lid
Fig. 2 7 Drive r's doo r: remot e rear lid re le a se
Fig . 2 8 Rea r lid : han d le
Opening the rear lid
.. Press the b utton .c::5 on t he remote control
maste r key for at least o ne second. The rear lid
unlocks and opens slightly. Or
.,. Pull the release button
.c::5 in the driver's door
¢fig. 27. Or
.,. Press the handle on the rear lid¢
fig. 28 .
Closing the rear lid
.. Pull the rea r lid down at the grip on t he i nside
and allow it to drop gent ly to close it¢,&. .
II>-
37

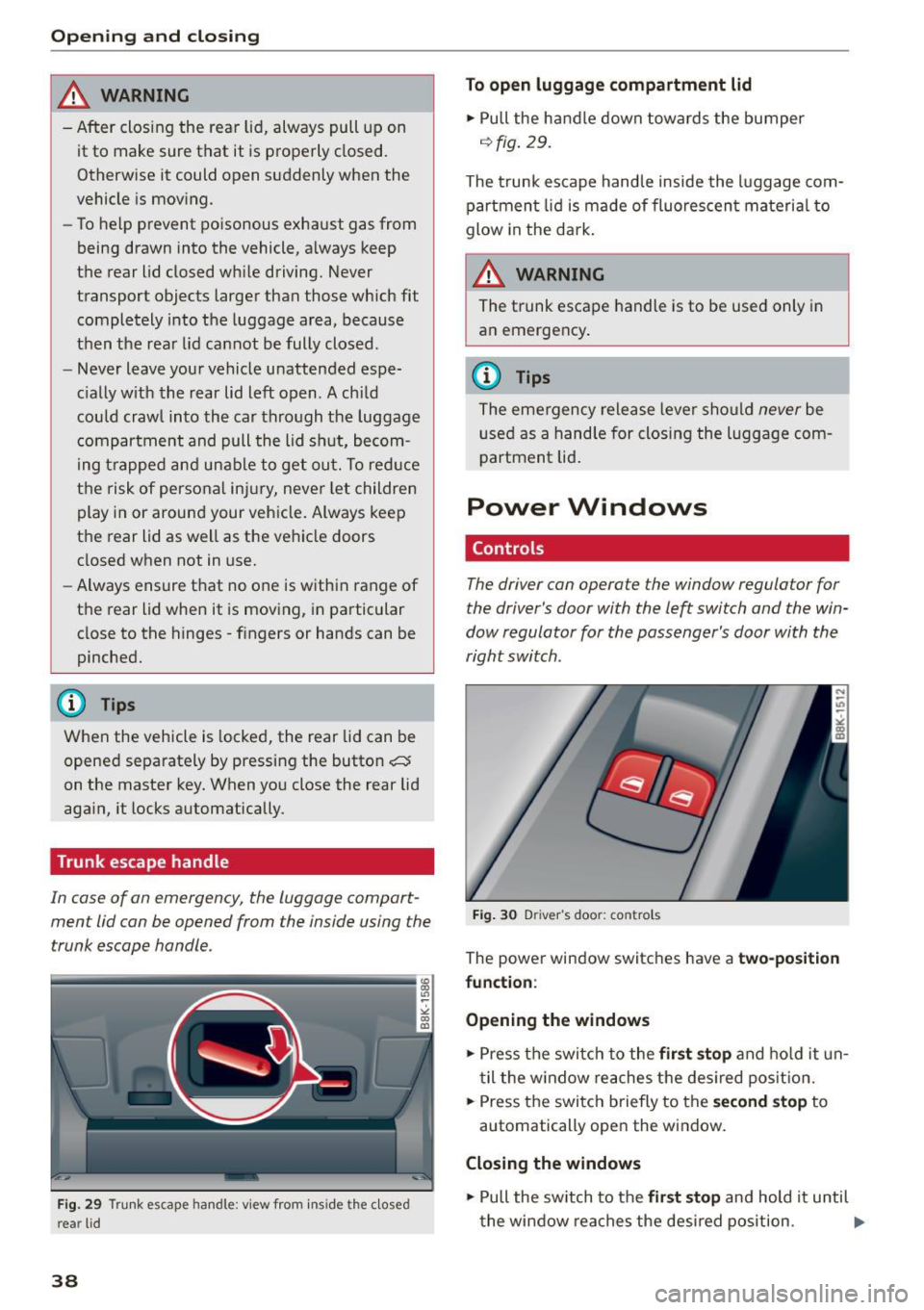

Opening and closing
_& WARNING
- After closing the rear lid, always pull up on
it to make sure that it is properly closed .
Otherwise it could open suddenly when the
vehicle is moving.
- To help prevent poisonous exhaust gas from
being drawn into the vehicle, a lways keep
the rear lid closed while driving. Never
transport objects larger than those which fit completely into the luggage area, because
then the rear lid cannot be fully closed .
- Never leave your vehicle unattended espe­
cially w ith the rear lid left open . A child
could crawl into the car through the luggage
compartment and pull the lid shut, becom­
ing trapped and unable to get out. To reduce
the risk of personal injury, never let children
play in or around your veh icle. Always keep
the rear lid as well as the vehicle doors
closed when not in use.
- Always ensure that no one is within range of
the rear lid when it is moving, in particular
close to the hinges -fingers or hands can be
pinched.
(D Tips
When the vehicle is locked, the rear lid can be
opened separately by pressing the button
c:::5
on the master key. When you close the rear lid
again, it locks automatically.
Trunk escape handle
In cas e of an emergency, th e luggage compart­
men t lid can be opened from the inside using the
trunk escape handle .
Fig. 29 Trunk esc ape han dle: v iew from ins ide the close d
r e ar lid
38
To open luggage compartment lid
.,. Pull the handle down towards the bumper
<=:>fig. 29 .
The trunk escape handle inside the luggage com­
partment lid is made of fluorescent material to
glow in the dark .
_& WARNING
The trunk escape handle is to be used only in
an emergency .
{!) Tips
The emergency release lever should never be
used as a handle for closing the luggage com­
partment lid.
Power Windows
Controls
The driver can operate the window regulator for
the driver's door with the Left switch and the win­
dow regulator for the passenger's door with the
right switch .
Fig. 30 Driver 's doo r: contro ls
The power w indow switches have a two-position
function :
Opening the windows
.,. Press the switch to the first stop and hold it un­
til the w indow reaches the desired posit ion .
.,. Press the switch briefly to the
second stop to
automatically open the window.
Closing the windows
.,. Pull the sw itch to the first stop and hold it until
the window reaches the desired position. .,.
