AUDI A5 COUPE 2016 Owners Manual

,-1 N
0 1-CX)
,-1 I.Cl U"I
,-1 I.Cl ......

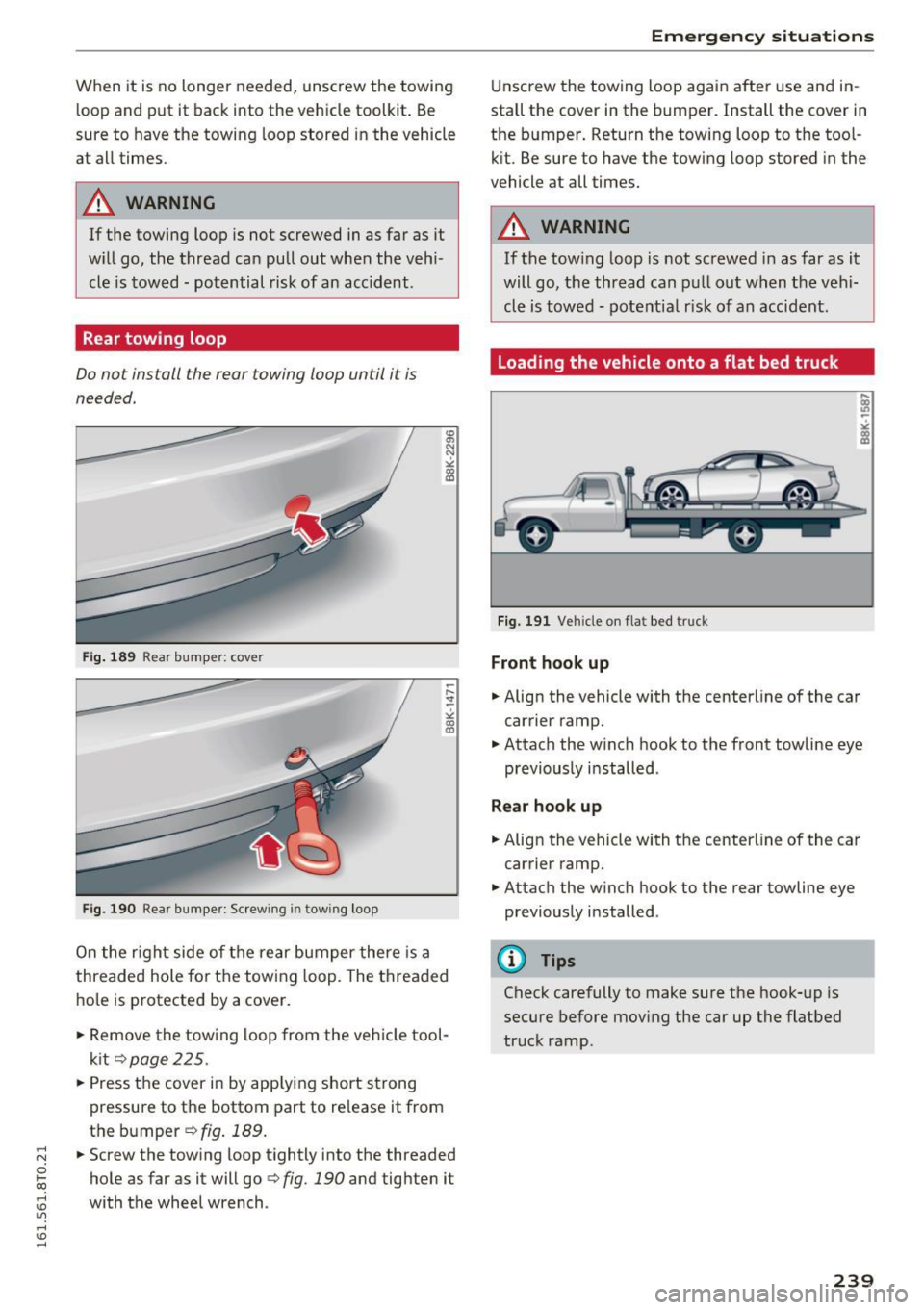

When it is no longer needed, unscrew the towing
loop and put it back into the vehicle toolkit. Be
sure to have the towing loop stored in the vehicle
at all times.
A WARNING
If the towing loop is not screwed in as far as it
w ill go, the thread can pull out when the vehi­
cle is towed -potential risk of an accident .
Rear towing loop
Do not install the rear towing loop until it is
needed.
Fig. 189 Rear bumper: cover
Fig. 190 Rear bumper: Screwing i n tow ing loop
ID
"' N N ~ 0) IX)
On the r ight side of the rear bumper there is a
threaded hole for the towing loop. The threaded
hole is protected by a cover.
• Remove the towing loop from the vehicle tool­
kit
r::!;> page 225.
• Press the cover in by applying short strong
pressure to the bottom part to re lease it from
the bumper
¢fig. 189.
• Screw the towing loop tightly into the threaded
hole as far as it will go
r::!;> fig. 190 and tighten it
with the wheel wrench .
Emergency situations
Unscrew the towing loop again after use and in­
stall the cover in the bumper. Install the cover in
the bumper. Return the towing loop to the tool­ kit. Be sure to have the towing loop stored in the
vehicle at all times.
A WARNING
-If the tow ing loop is not screwed in as far as it
will go, the thread can pull out when the vehi­
cle is towed -potential risk of an accident.
Loading the vehicle onto a flat bed truck
Fig . 191 Veh icle on flat bed truck
Front hook up
• Align the vehicle with the centerline of the car
carrier ramp.
• Attach the w inch hook to the front towline eye
previously installed .
Rear hook up
• Align the vehicle with the centerline of the car
carrier ramp.
• Attach the winch hook to the rear towline eye
previously installed .
@ Tips
Check carefully to make sure the hook-up is
secure before mov ing the car up the flatbed
truck ramp.
239

Emergency situations

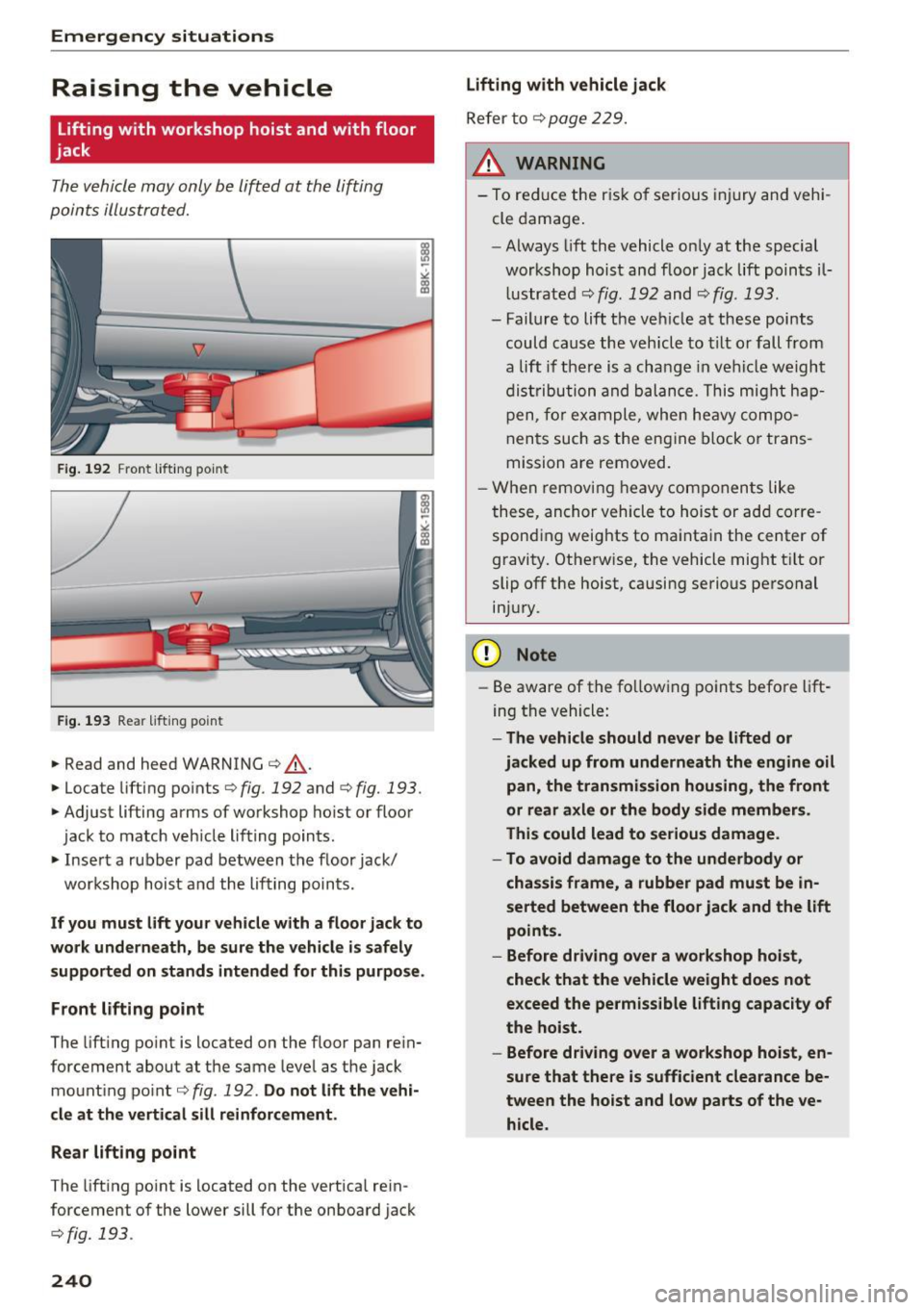

Raising the vehicle
Lifting with workshop hoist and with floor
jack
Th e vehicle may only b e lift ed at the lifting
poin ts illust rated.
F ig .. 19 2 Fro nt lift ing po int
F ig. 193 Rea r lifti ng po int
.,. Read and heed WARNING ¢ A-
.,. Locate lifti ng po ints ¢ fig . 192 and ¢ fig. 193.
.,. Adjust li fting arms of wo rkshop hoist or floor
jack to match veh icle lifting points.
.,. In se rt a rubb er pad between t he floor jack/
wor kshop hoist a nd the lif ting poin ts .
If you must lift your vehicle with a floor jack to
work underneath, be sure the vehicle is safely
supported on stands intended for this purpose .
Front lifting point
The lift ing po int is located on the floo r pan re in­
forcement about at the same leve l as the jack
mo unt ing point ¢
fig. 192 . Do not lift the vehi­
cle at the vertical sill rei nforcement.
Rear lifting point
The lift ing po int is located on the vertica l re in­
for cement of the lower sill fo r the on board jack
¢fig. 193.
240
Lifting with vehicle jack
Refer to ~ page 229.
A WARNING
- To re duce the r is k of serious injury and vehi ­
cle dama ge .
- Always lift the vehicle o nly at the special
workshop hois t an d floor jack lift points il­
l ustrat ed
~ fig. 192 and ~ fig. 193.
- Failure to lift the v ehicle at these points
could ca use the veh icle to tilt or fall from
a lift if the re is a cha ng e i n ve hicle weigh t
dis tribu tion and ba lan ce . T his mig ht hap­
p en, for exa mple, whe n he avy co mpo ­
n en ts such as the engine block o r tr an s­
mission are removed.
- W hen re m ov in g h eavy co mponen ts like
these, an cho r veh icle to hoist or ad d co rre ­
spond ing weights to ma inta in the ce nter of
gravity . Othe rw ise, the vehicle mi ght t ilt o r
slip off t he hoist, causing serious pe rsonal
in jur y.
(D Note
- Be aware of the fo llowing po ints befo re lift ­
ing the vehicle:
- The vehicle should never be lifted or
jacked up from underneath the engine oil pan, the transmission housing, the front
or rear axle or the body side members .
This could lead to serious damage .
- To avoid damage to the underbody or
chassis frame, a rubber pad must be in­
serted between the floor jack and the lift
points.
- Before driving over a workshop hoist,
check that the vehicle weight does not
exceed the permissible lifting capacity of
the hoist.
- Before driving over a workshop hoist , en­
sure that there is sufficient clearance be­
tween the hoist and low parts of the ve­
h icle.

.... N
0 1-CX)
.... I.Cl U"I
.... I.Cl ....
Technical data
Vehicle identification
F ig. 194 Vehi cle Ident if ication Number (VlN) plate : loca·
tion on dr iver 's side dash panel
XXXXX XX -X -XXXX XXX XX
CD+ ~t :1:: xxxxxxxx xx x xxxxxxxx
TVP/fffl XXX XXX
XX XXXXXXX XX X X xx
XXX KW XXX
®i ~:J·f lfils~~ XXXX XXX XXX
®-+ ~ N:a=i~l xxxx ; xxxx xxx ; xx
II.· AUSS, I OPTIONS
,__ __
EOA 7D5
2EH JOZ
3FC
FOA
TL6 3KA
lXW
7T6 CV7
3L4 lSA 4UB
6XM 5SG
llB l AS
SMU 7Xl
9G3 OG7 0YH
8EH UlA X98
803 908 824
7K0 4X3 2K2
4KC 3Y0 413
7GB
01A
5RW
18A
OJF QZ7
020
502
4G0
XX . X XX X XX X XXXX
Fig. 195 The vehicle identificat ion label: inside the l ug·
gage compartment
Veh icle Identification Number (VlN )
The Vehicle Identification Number is located in
different p laces:
- under the windshield on the driver's side
~fig. 194.
-in the radio or in the MMI*: Select: !CAR! func­
t ion button
> Vehicle ID number (VIN) or se­
lect :
I CAR ! funct ion button > Car systems* con­
t rol button
> Servicing & checks > VIN num­
ber .
-on the vehicle identification label.
Technical data
Vehicle identification label
The vehicle identification label is located in the
luggage compartment near the battery.
The label
~ fig. 195 shows the follow ing vehicle
data:
(D Vehicle Identification Number (VIN)
@ Vehicle type, eng ine output, transm ission
@ Engine and transmission code
@ Paint number and interior
® Optional equipment numbers
T he information of the vehicle identification label
can also be found in your Warranty
& Mainte­
nance booklet.
Safety compliance sticker
The safety compliance sticker is your assurance
that your new vehicle complies w ith all applicable
Federal Motor Vehicle Safety Standards which
were in effect at the time the vehicle was ma nu­
factured. You can find this sticker on the door
jamb on the driver's side. It shows the month and
year of production and the vehicle identification number of your vehicle (perforation) as well as
the Gross Vehicle Weight Rat ing (GVWR) and the
Gross Axle Weight Rating (GAWR).
H igh voltage warning label
The high voltage warning label is located in the
engine compartment next to the engine hood re­
lease. The spark ignition system complies with
the Canadian standard ICES-002.
Weights
Gross Vehicle W eight Rating
The Gross Vehicle Weight Rating (GVWR), and
the Gross Axle Weight Rating (GAWR) for front
and rear are listed on a sticker on the door jamb
on the driver 's side.
T he Gross Vehicle Weight Rating includes the
weight of the basic vehicle plus full fuel tank, oil
and coolant, plus maximum load, which includes
passenger weight (150 lbs/68 kg per designated
seating position) and luggage weight
c:> .&, . .,.
241

Tech nical data

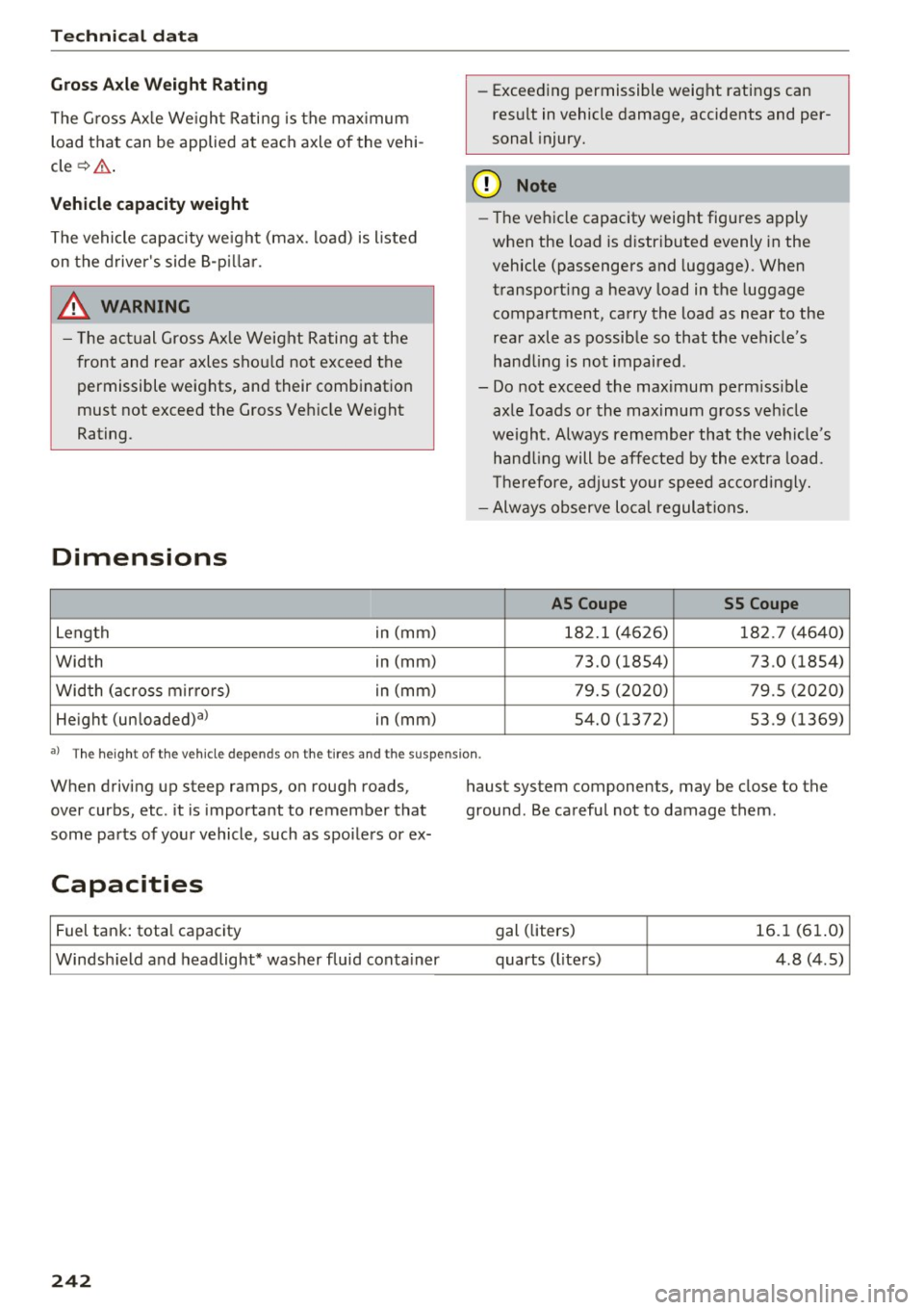

Gross Axle Weight Rating
The G ross Ax le We ight Rating is the max imum
load that can b e applied at each axle of the vehi ­
cle ¢& .
Vehicle capacity weight The vehicle capacity we ight (max . load) is l isted
on the d river's side 8-p illar.
_& WARNING
- T he ac tual Gross Axle Weight Rating a t the
front and rear axles sho uld not exceed the
permissible weights, and their combination
must not exceed the Gross Veh icle Weight
Rating .
Dimensions
Length in (mm)
Width in (mm)
Width (across m irro rs) in (mm)
He ight (un loaded) al in (mm) -
Exceed ing permissible weight ratings can
result in vehicle damage, accidents and per­
sonal injury.
(D Note
- The vehicle capacity weight figures apply
when the load is d istr ibuted evenly in the
vehicle (passengers and luggage) . When
t ransporting a heavy load in the luggage
compartment, carry the load as near to the
rea r axle as possib le so that the vehicle's
hand ling is not impaired .
- Do not exceed the max imum perm iss ible
axle loads or the maximum g ross veh icle
we ight. Always remember that the ve hicle 's
han dling will be affe cted by the extra load .
T herefore , ad just your speed acco rd ingly.
- Always observe lo cal regulations.
AS Coupe S5 Coupe
182.1 (4626) 182 .7 (46 40)
73.0 (1854) 73 .0 (1854)
7 9.5 (202 0) 79 .5 (2020)
54.0 (1372) 53 .9 (1369)
• > T h e heigh t of the ve hicl e depends on the tir es and the s uspensio n.
When driving up steep ramps, on rough roads,
over curbs, etc . it is important to remember that
some parts of your vehicle , such as spoi le rs or ex-
Capacities
Fuel tank: tota l capacity
Windsh ield and headlight* washer fluid con ta iner
242
haust system components, may be close to the
ground . Be careful not to damage them .
gal (liters) 16.1 (6 1.0)
quarts (l ite rs) 4
.8 (4 .5)

.... N
0 I­co .... .... Gasoline engines
AS Coupe 2.0, 4 cylinder
Maximum output SAE net
Maximum torque SAE net
Displacement
Engine oil with filter change
1>
Fuel
55 Coupe 3 .0, 6 cylinder
Maximum output SAE net
Maximum torque SAE net
Displacement
Engine oil with filter changell
Fuel
1> For specific engi ne oil capac ities, please see
the most cur rent information fo r the USA at
http ://www.audiusa.com/he lp/ma intenance or
for Canada at http ://www.audi.ca/ca/brand/ en/
your _aud i/ aud i_services_a nd/Ca re_and_M a i nte­
na nce/ schedu le.html or call 800-822-2834 .
Technical data
hp@ rpm 220 @4450-6000
l b-ft@ rpm 259@ 1500-4300
CID (cm
3 ) 121 (1984)
Premium unleaded (91 AKI)
c::> page 186, Fuel
or Bio-ethanol (E85) c::> page 187, Ethanol fuel
(Bio-ethanol).
hp@ rpm 333@ 5500-6500
lb-ft@rpm 325@ 2900-5300
CID (cm
3 ) 182.8 (2995)
Premium unleaded (91 AKI) ¢
page 186, Fuel
243

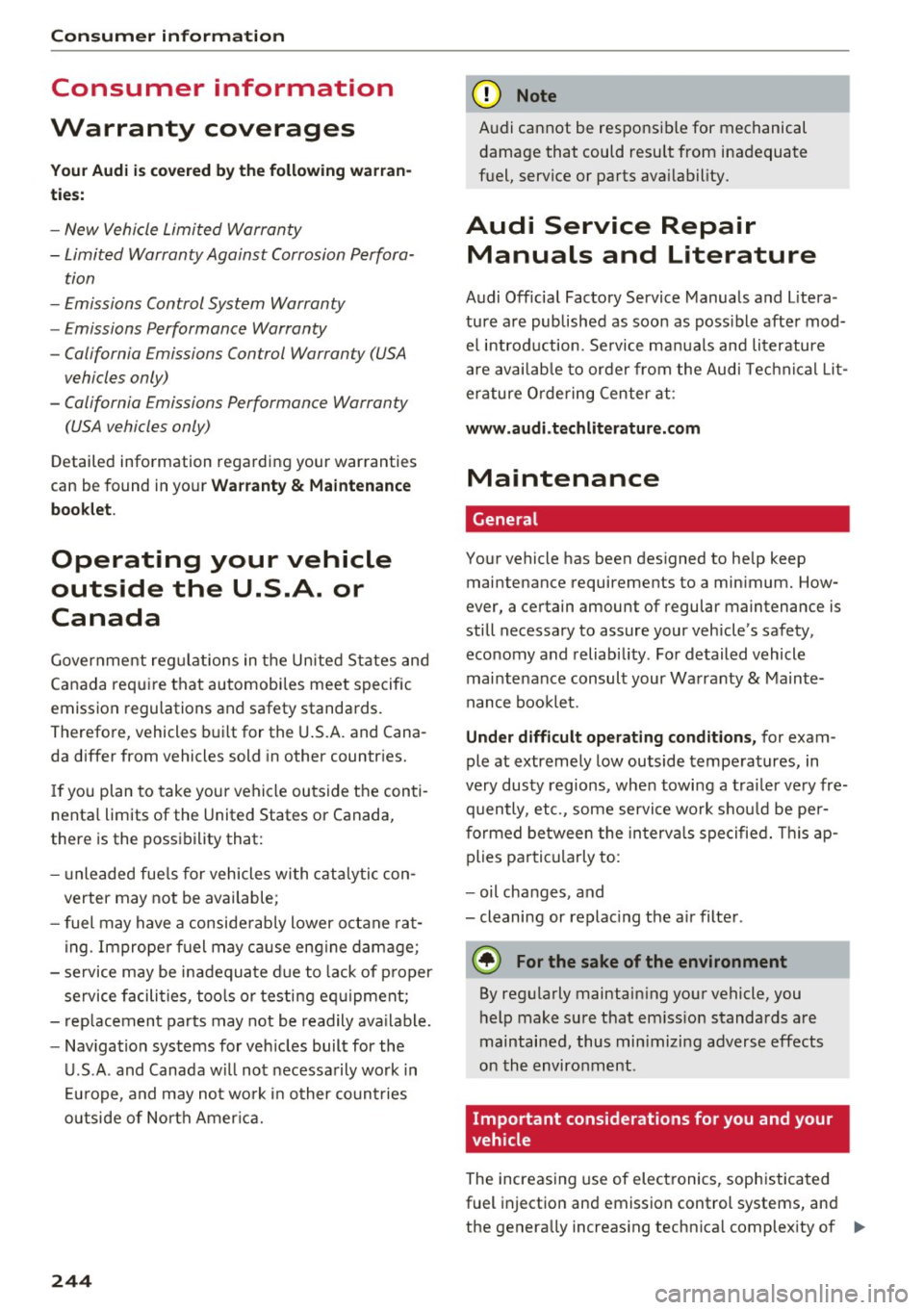

Consumer information
Consumer information
Warranty coverages
Your Audi is covered by the following warran­
ties:
- New Vehicle Limited Warranty
- Limited Warranty Against Corrosion Perfora-
tion
- Emissions Control System Warranty
- Emissions Performance Warranty
- California Emissions Control Warranty (USA
vehicles only)
- California Emissions Performance Warranty
(USA vehicles only)
Detailed information regarding your warranties
can be found in your
Warranty & Maintenance
booklet .
Operating your vehicle
outside the U.S.A. or
Canada
Government regulati ons in the United States and
Canada require that automobi les meet specific
emission regulations and safety standards.
Therefore, vehicles built for the U.S.A. and Cana ­
da differ from vehicles sold in other countries.
If you plan to take your vehicle outside the conti­
nenta l limits of the United States or Canada,
there is the poss ibility that:
- un leaded fue ls for vehicles with catalytic con­
verter may not be available;
- fuel may have a considerably lower octane rat­
ing . Improper fuel may cause engine damage;
- service may be inadequate due to lack of proper
service facilities, tools or testing equipment;
- r eplacement parts may not be readily available.
- Nav igation systems for veh icles built for the
U.S .A . and Canada will not necessarily work in
Europe, and may not work in other countries
outside of North America.
244
(D Note
Audi cannot be responsib le for mechanical
damage that could result from inadequate
fuel, service or parts ava ilability.
Audi Service Repair
Manuals and Literature
Audi Official Factory Service Manuals and Litera ­
ture are published as soon as poss ible after mod­
el introduction . Service manuals and literature
are available to order from the Audi Technical Lit ­
erature Ordering Center at :
www.audi.techliterature .com
Maintenance
General '
Your vehicle has been designed to help keep
maintenance requirements to a minimum. How­
ever, a certain amount of regular maintenance is
still necessary to assure your vehicle's safety,
economy and reliability . For detailed vehicle
maintenance consult your Warranty & Mainte­
nance booklet .
Under difficult operating conditions, for exam ­
ple at extremely low outside temperatures, in
very dusty regions, when towing a trailer very fre­
quently, etc., some service work should be per­
formed between the intervals specified. This ap­
plies particularly to:
- oil changes, and
- cleaning or replac ing the a ir filter .
'
@) For the sake of the environment
By regularly maintain ing your vehicle, you
help make sure that em iss ion standards are
maintained, thus minimizing adverse effects
on the environment .
Important considerations for you and your
vehicle
The increasing use of electronics, sophisticated
fuel injection and emission control systems, and
the generally increas ing technica l complexity of ..,_

.... N

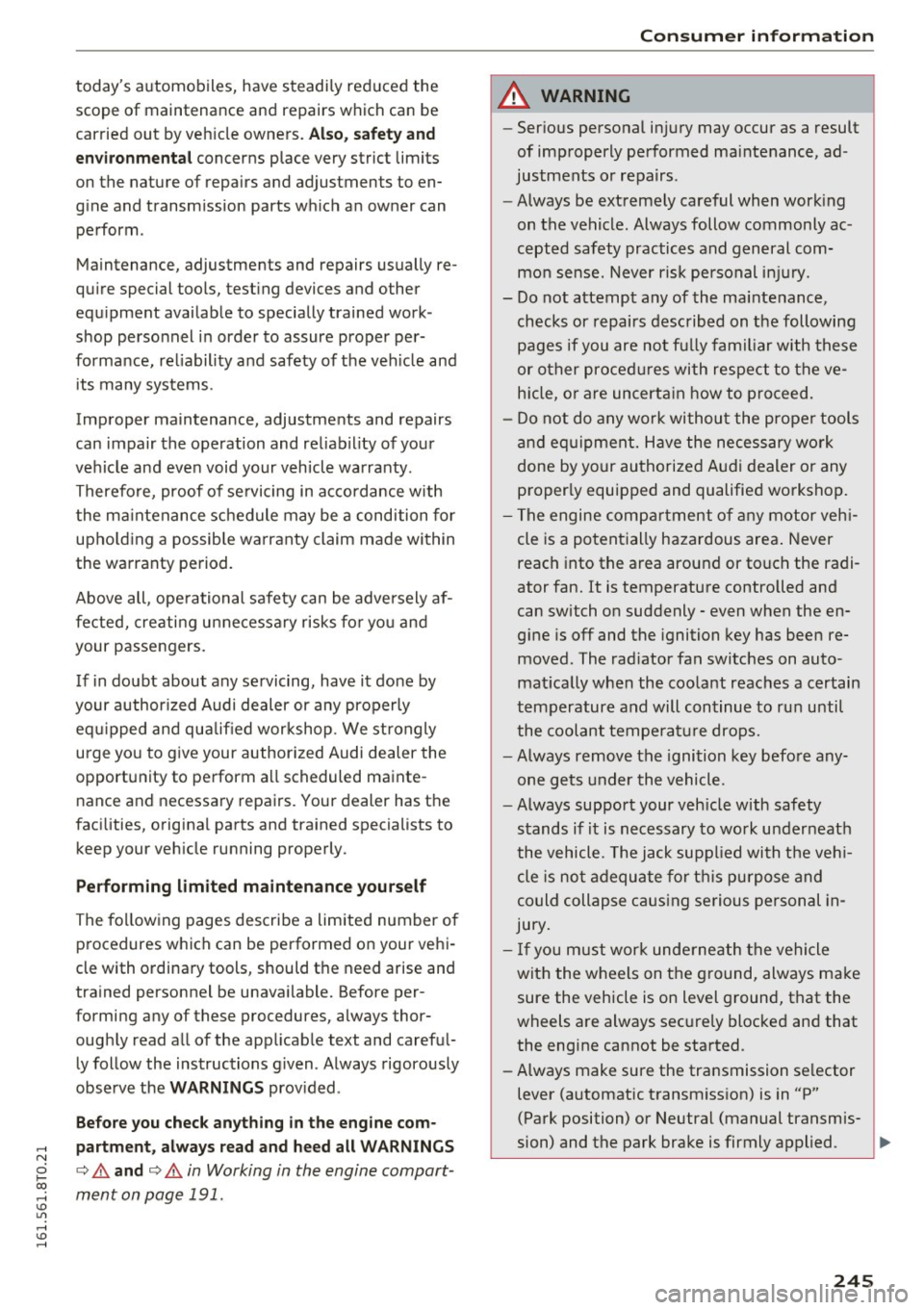

0 I-­co .... .... today's automobiles, have steadily reduced the
scope of maintenance and repairs which can be
carried out by vehicle owners.
Also, safety and
environmental
concerns place very strict limits
on the nature of repairs and adjustments to en­
gine and transmission parts which an owner can perform .
Maintenance, adjustments and repairs usually re­
quire special tools, testing devices and other
equipment available to specially trained work ­
shop personnel in order to assure proper per­
formance, reliability and safety of the vehicle and its many systems.
Improper maintenance, adjustments and repairs
can impair the operation and reliability of your
vehicle and even void your vehicle warranty .
Therefore, proof of servicing in accordance with
the maintenance schedule may be a condition for upholding a possible warranty claim made within
the warranty period.
Above all , operational safety can be adversely af­
fected, creating unnecessary risks for you and
your passengers.
If in doubt about any servicing, have it done by
your authorized Audi dealer or any properly equipped and qualified workshop. We strongly urge you to give your authorized Audi dealer the
opportunity to perform all scheduled mainte­ nance and necessary repairs. Your dealer has the
facilities, original parts and trained specialists to keep your vehicle running properly .
Performing limited maintenance yourself
The following pages describe a limited number of
procedures which can be performed on your vehi­
cle with ordinary tools, should the need arise and
trained personnel be unavailable. Before per­
forming any of these procedures, always thor­
oughly read all of the applicab le text and careful­
ly follow the instructions given . Always rigorously
observe the
WARNINGS provided .
Before you check anything in the engine com­
partment, always read and heed all WARNINGS
c::> .&. and c::> .&. in Working in the engine compart­
ment on page 191 .
Consumer information
A WARNING
-Serious personal injury may occur as a result
of improperly performed maintenance, ad­
justments or repairs .
- Always be extremely careful when working
on the vehicle. Always follow commonly ac­
cepted safety practices and general com­
mon sense. Never risk personal injury.
- Do not attempt any of the maintenance,
checks or repairs described on the following pages if you are not fully familiar with these
or other procedures with respect to the ve­ hicle, or are uncertain how to proceed.
- Do not do any work without the proper tools
and equipment. Have the necessary work
done by your authorized Audi dealer or any
properly equipped and qualified workshop.
- The engine compartment of any motor vehi­
cle is a potentially hazardous area. Never
reach into the area around or touch the radi­
ator fan. It is temperature controlled and
can switch on suddenly - even when the en­
gine is off and the ignition key has been re­
moved. The radiator fan switches on auto­
matically when the coolant reaches a certain
temperature and will continue to run until
the coolant temperature drops.
- Always remove the ignition key before any­
one gets under the vehicle.
-Always support your vehicle with safety
stands if it is necessary to work underneath
the vehicle . The jack supplied with the vehi­
cle is not adequate for this purpose and
could collapse causing serious personal in­
jury.
- If you must work underneath the vehicle
with the wheels on the ground, always make
sure the vehicle is on level ground, that the
wheels are always securely blocked and that
the engine cannot be started.
- Always make sure the transmission selector
lever (automatic transmission) is in "P"
(Park position) or Neutral (manual transmis-
sion) and the park brake is firmly applied . ..,.
245

Consumer inf orm ation

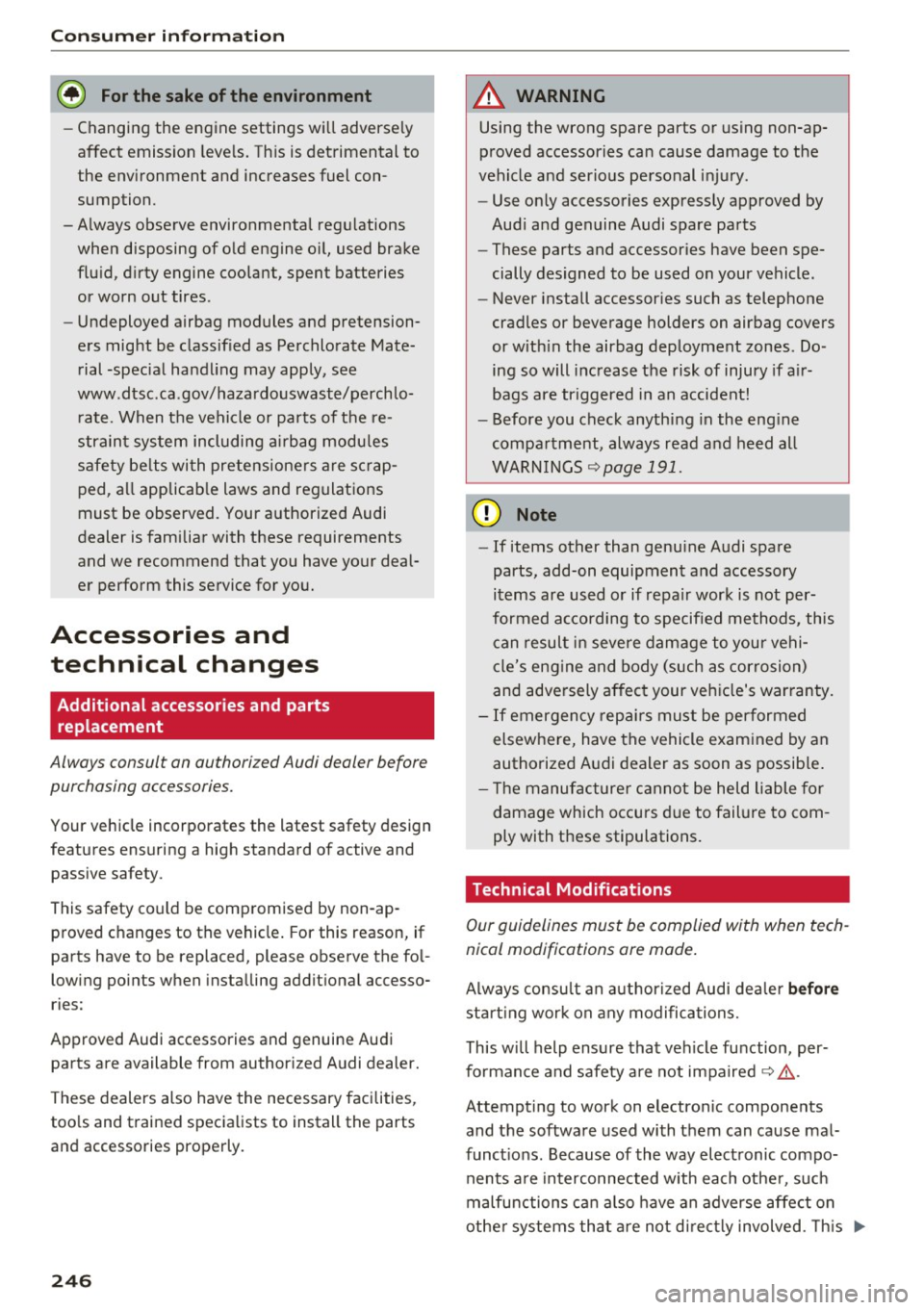

@ For the sake of the env ironment
- Changing the engine settings wi ll adversely
affect emission levels. Th is is detrimental to
the environment and increases fuel con­
sumption.
- A lways observe environmental regu lations
when disposing of old engine o il, used brake
fl ui d, d irty engine coolant, spent batteries
or worn out tires.
- Undeployed airbag modules and pretension­
ers mig ht be classified as Perchlorate Mate­
rial -special handl ing may apply, see
www.dtsc .ca.gov/hazardouswaste/perchlo­
r ate. When the vehicle or parts of the re­
straint system including airbag modu les
safety be lts wi th pretensioners are scrap­
ped, all applicab le laws and regulations
must be observed. Your authorized Audi
dealer is familiar with these requirements
and we recommend that you have your deal­ er perform this service for you.
Accessories and technical changes
Additional accessories and parts replacement
Always consult an authorized Audi dealer before
purchasing accessories.
Your vehicle incorporates the latest safety design
features ensuring a high standard of active and passive safety.
This safety could be comp romised by non-ap­
proved changes to the vehicle . For this reason, if
parts have to be replaced, please observe the fo l­
lowing points when insta lling addit ional accesso­
ries:
Approved Audi accessories and genuine Audi parts are available from author ized Audi dealer.
These dealers also have the necessary facilities,
too ls and trained specialists to install the parts
and accessories properly.
246
A WARNING
-
Using the wrong spare parts or using non-ap-
proved accessories can cause damage to the
vehicle and serious personal injury.
- Use only accessories expressly approved by
Aud i and genuine Audi spare parts
- These parts and accessor ies have been spe­
cially designed to be used on your vehicle.
- Never install accessor ies such as telephone
cradles or beverage holders on airbag covers
or w ith in the airbag deployment zones. Do­
ing so will increase the risk of injury if a ir­
bags are triggered in an accident!
- Before you check anything in the eng ine
compartment, always read and heed all
WARN INGS
Qpage 191.
(D Note
-If items other than genu ine Audi spare
parts, add-on equipment and accessory
items are used or if repair wor k is not per­
formed a ccording to specified methods, this
c an resul t in severe damage to you r vehi­
cle's eng ine and body (such as corrosion)
and adve rsely af fect your vehicle's war ranty.
- I f emergency repai rs must be performed
elsewhere, have the vehicle exam ined by an
authorized A udi dealer as soon as possib le .
- T he manuf acture r ca nnot be held liable for
damage which occurs d ue to failure to com ­
ply with these stipulations.
Technical Modifications '
Our guidelines must be complied with when tech ­
nical modifications are made .
Always consult an a uthorized Audi de aler bef ore
sta rt ing work on any modifica tions.
This will help ensure that vehicle fu nction, per­
fo rmance and safety are not impaired
Q ,& .
Attempting to work on electronic components
and the software used with them can cause mal­
funct io ns. Because of the way elect ronic compo­
nen ts a re interconnected with each othe r, such
malfunc tions c an also have an adverse affect on
othe r systems that are not d irectl y involved. This ..,.

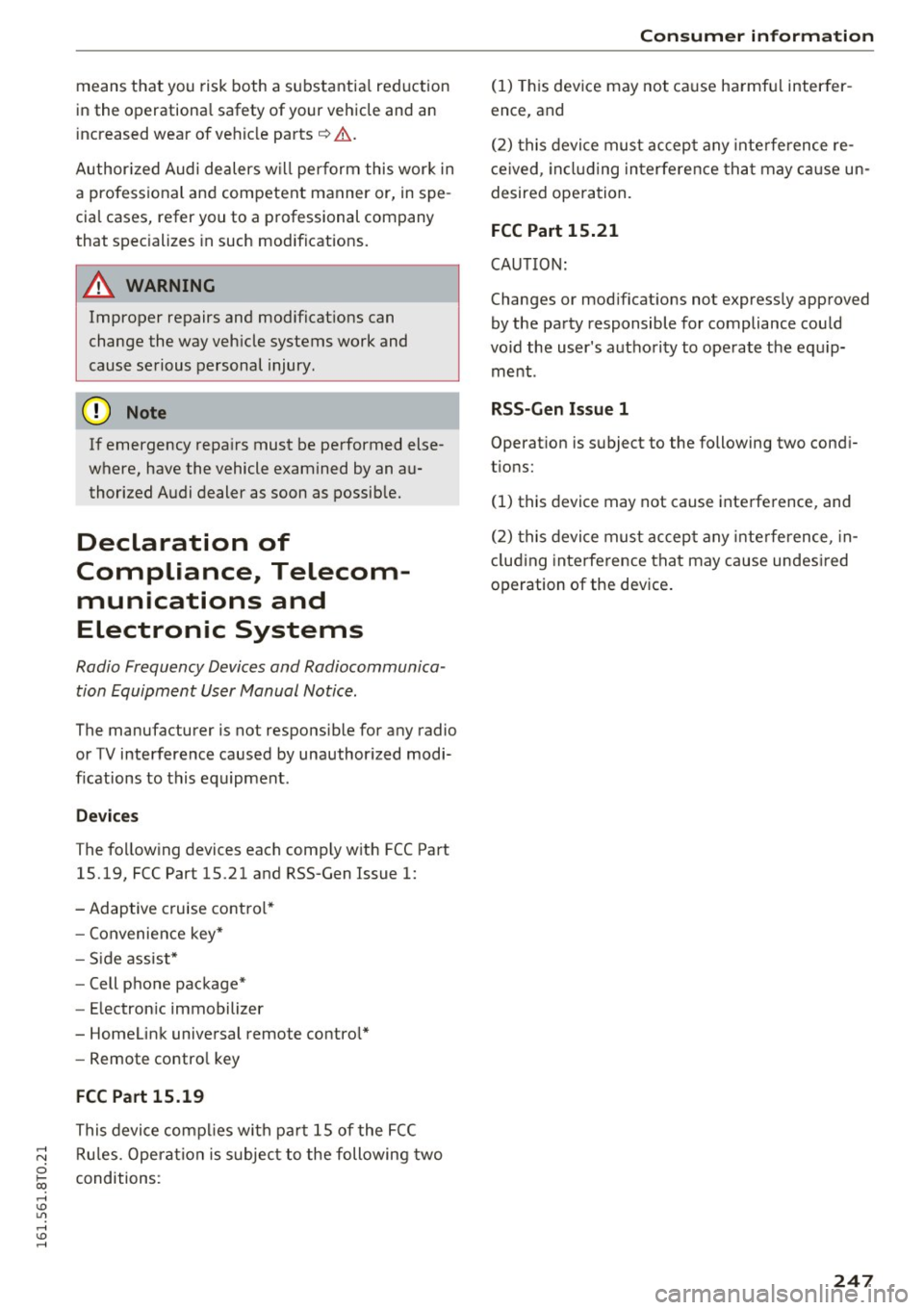

means that you risk both a substant ia l reduction
in the operationa l safety of your vehicle and an
increased wear of vehicle parts¢
A.
Author ized Audi dealers w ill per form this wor k in
a professional and competent manner or, in spe­
cial cases, refer you to a professional company
that spec ializes in such modifications.
A WARNING
Improper repairs and mod ificat ions can
change the way veh icle systems work and
cause serious personal injury.
(D Note
If emergency repairs must be performed else­
where, have the vehicle examined by an au­ thorized Audi dealer as soon as possib le.
Declaration of
Compliance, Telecom­
munications and
Electronic Systems
Radio Frequency Devices and Radiocommunica ­
tion Equipment User Manual Notice .
The manufacturer is not responsible for any radio
or TV interference caused by unauthor ized modi­
fications to this equ ipment .
Devices
T he fo llow ing devices each comp ly w ith FCC Part
15.19, FCC Part 15.21 and RSS -Gen Issue
1:
- Adaptive cruise control*
- Convenience key*
- Side assist*
- Cell p hone package*
- Electron ic immobilizer
- Homelink universal remote contro l*
- Remote contro l key
FCC Part 15.19
This device compl ies w ith pa rt 15 of the FCC
;::; Ru les. Opera tion is subjec t to the following two
~ conditions : co ,...., Consumer inf ormation
(1) This dev ice may not ca use ha rmf ul inter fer ­
ence, and
( 2 ) this devi ce must ac cep t any inte rference re­
ce ived, in clu ding in terference tha t may ca use un­
desired ope ration.
FCC Part 15.21
CAU TION:
Changes or mod ificat ions not express ly approved
by the party responsible for compliance cou ld
vo id the user's a uth ori ty to operate t he equ ip­
ment .
RSS-Gen Issue 1
Operat ion is subject to the following two cond i­
t ions:
(1) this device may not cause interference, and
( 2 ) this devi ce must accep t any inte rference, in­
clud ing interference that may cause undes ired
operation of the device .
247

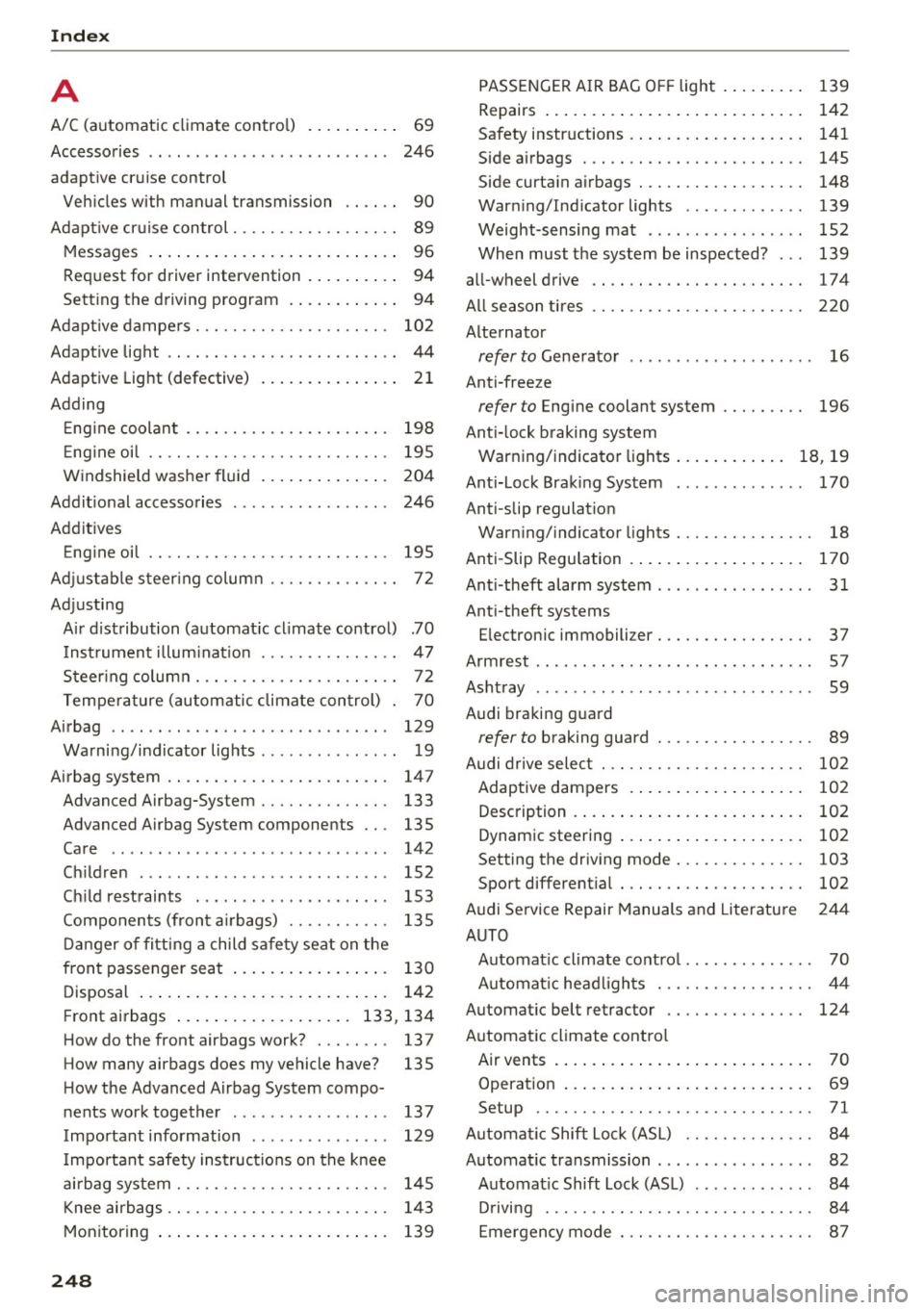

Index
A
A/C (automatic climate control) . . . . . . . . . . 69
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . 246
adaptive c ruise control
Vehicles with manual transmission . . . . . . 90
Adaptive cruise control. . . . . . . . . . . . . . . . . . 89
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Requ est for driver interv ention . . . . . . . . . . 94
Setting the driving program . . . . . . . . . . . . 94
Adaptive dampers . . . . . . . . . . . . . . . . . . . . . 102
Adaptive light . . . . . . . . . . . . . . . . . . . . . . . . .
44
Adaptive Light (defective) . . . . . . . . . . . . . . . 21
Adding Engine coolant . . . . . . . . . . . . . . . . . . . . . . 198
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Windshield washer fluid . . . . . . . . . . . . . . 204
Additional accessories
Add itiv es 246
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Adjustable steering column . . . . . . . . . . . . . . 72
Adjusting Air distribution (automat ic climate control) .70
Instrument illuminat ion . . . . . . . . . . . . . . . 47
Steering column . . . . . . . . . . . . . . . . . . . . . . 72
Temperature (automatic climate control) . 70
Airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 29
Warning/indicator lights . . . . . . . . . . . . . . . 19
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . 147
Adv anced Airb ag-Sys tem . . . . . . . . . . . . . . 133
Advanced Airbag System components . . . 135
Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Children . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Child restraints . . . . . . . . . . . . . . . . . . . . . 153
Components (front a irbags) . . . . . . . . . . . 135
Danger of fitting a child safety seat on the
front passenger seat . . . . . . . . . . . . . . . . . 130
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
F ront airbags . . . . . . . . . . . . . . . . . . . 133, 134
How do the front ai rbags work? . . . . . . . . 137
How many airbags does my vehicle have? 135
How the Advanced Airbag System compo-
nents work together . . . . . . . . . . . . . . . . . 137
Important information ........... ... .
Important safety instructions on the knee
airbag system . ............... .... .. .
Knee airbags .. .. .. . .......... .. .. .. .
Monitoring
248
129
145
143
139 PASSENGER AIR BAG
OFF light . . . . . . . . . 139
Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Safety instructions . . . . . . . . . . . . . . . . . . . 141
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . 14S
Side curtain airbags . . . . . . . . . . . . . . . . . . 148
Warning/Indicator lights . . . . . . . . . . . . . 139
Weight-sensing mat . . . . . . . . . . . . . . . . . 152
When must the system be inspected? . . . 139
all-wheel drive 174
All season tires . . . . . . . . . . . . . . . . . . . . . . . 220
Alternator
refer to Generator . . . . . . . . . . . . . . . . . . . . 16
Anti-free ze
refer to E ngine coolant system . . . . . . . . . 196
Ant i-lock braking system
Warning/indicator lights . . . . . . . . . . . . 18, 19
Anti-Lock Braking System . . . . . . . . . . . . . . 170
Anti-slip regulation
Warning/indicator lights . . . . . . . . . . . . . . . 18
Anti-Slip Regulation . . . . . . . . . . . . . . . . . . . 170
Anti-theft alarm system . . . . . . . . . . . . . . . . . 31
Anti-theft systems Electronic immobili ze r .............. ... 37
Armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Audi braking guard
refer to braking guard . . . . . . . . . . . . . . . . . 89
Audi drive select . . . . . . . . . . . . . . . . . . . . . . 102
Adaptive dampers . . . . . . . . . . . . . . . . . . . 102
Description . . . . . . . . . . . . . . . . . . . . . . . . . 102
Dynamic steering . . . . . . . . . . . . . . . . . . . . 102
Setting the driving mode . . . . . . . . . . . . . . 103
Sport differential . . . . . . . . . . . . . . . . . . . . 102
Audi Se rvice Repair Manuals and Literature 244
AUTO Automatic climate control . . . . . . . . . . . . . . 70
Automat ic headl ights . . . . . . . . . . . . . . . . . 44
Automatic belt retrac tor . . . . . . . . . . . . . . . 124
Automatic climate control Air vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Automat ic Shift Lock (ASL) . . . . . . . . . . . . . . 84
Automatic transmission . . . . . . . . . . . . . . . . . 82
Automatic Shift Lock (ASL) . . . . . . . . . . . . . 84
Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Emergency mode . . . . . . . . . . . . . . . . . . . . . 87
