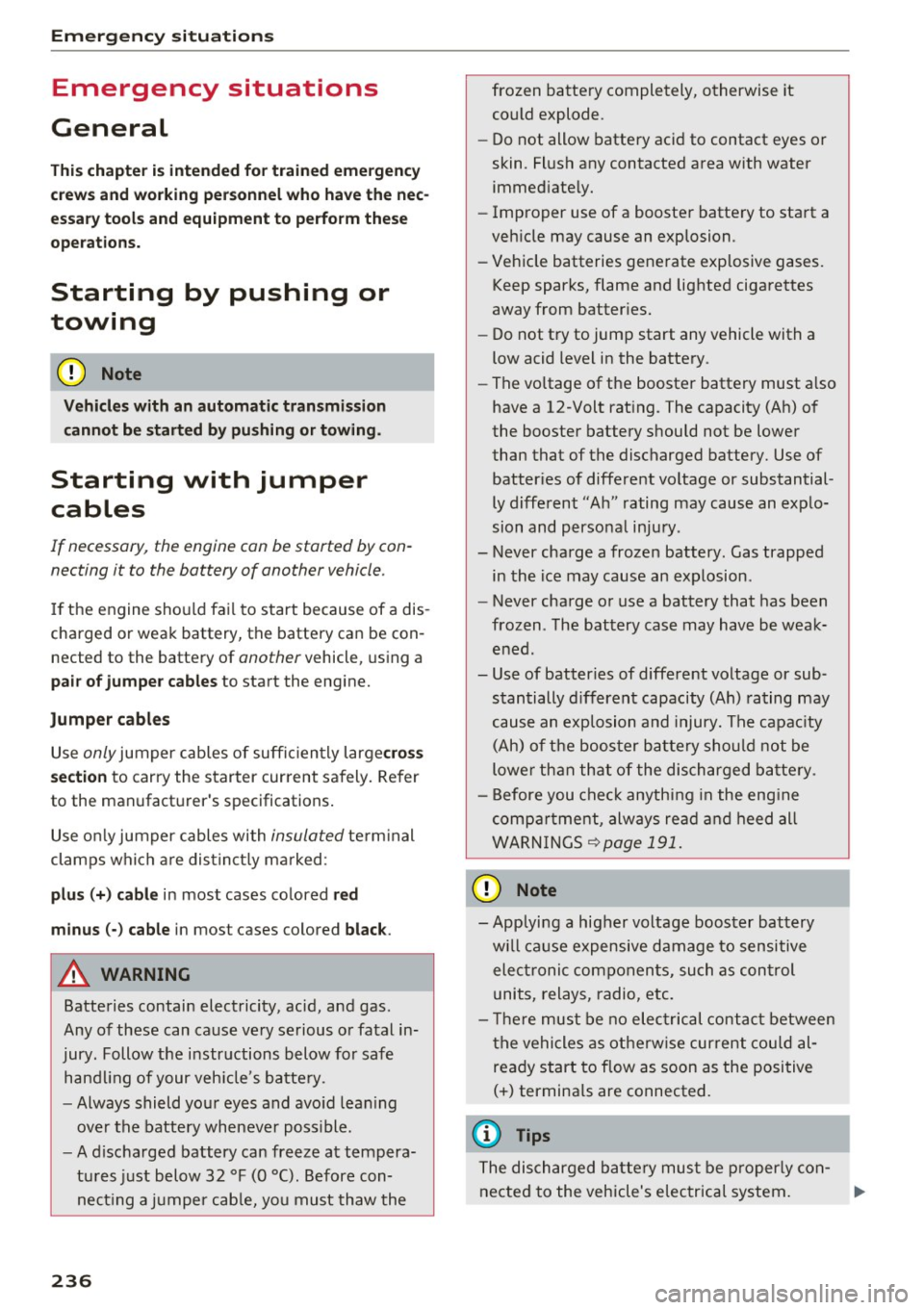

Emergency situations
Emergency situations
General
This chapter is intended for trained emergency crews and working personnel who have the nec­
essary tools and equipment to perform these
operations.
Starting by pushing or
towing
CD Note
Vehicles with an automatic transmission
cannot be started by pushing or towing.
Starting with jumper
cables
If necessary, the engine con be started by con­
necting it to the battery of another vehicle.
If the engine should fail to start because of a dis­
charged or weak battery, the battery can be con­
nected to the battery of
another vehicle, using a
pair of jumper cables to start the engine.
Jumper cables
Use only jumper cables of sufficiently largecross
section
to carry the starter current safely. Refer
to the manufacturer's specifications.
Use only jumper cables with
insulated terminal
clamps which are distinctly marked :
plus(+) cable in most cases colored red
minus(-) cable
in most cases colored black.
A WARNING
Batteries contain electricity, acid, and gas.
Any of these can cause very serious or fatal in­
jury. Follow the instructions below for
safe
handling of your vehicle's battery.
-Always shield your eyes and avoid leaning
over the battery whenever possible.
-A discharged battery can freeze at tempera­
tures just below 32 °F (0 °C). Before con­
necting a jumper cable, you must thaw the
236
frozen battery completely, otherwise it could explode.
- Do not allow battery acid to contact eyes or
skin. Flush any contacted area with water immediately.
- Improper use of a booster battery to start a
vehicle may cause an explosion.
- Vehicle batteries generate explosive gases.
Keep sparks, flame and lighted cigarettes
away from batteries.
- Do not try to jump start any vehicle with a
low acid level in the battery.
- The voltage of the booster battery must also
have a 12-Volt rating. The capacity (Ah) of
the booster battery should not be lower
than that of the discharged battery. Use of
batteries of different voltage or substantial­
ly different "Ah" rating may cause an explo­
sion and personal injury.
- Never charge a frozen battery. Gas trapped in the ice may cause an explosion.
- Never charge or use a battery that has been
frozen . The battery
case may have be weak­
ened .
- Use of batteries of different voltage or sub­
stantially different capacity (Ah) rating may
cause an explosion and injury. The capacity
(Ah) of the booster battery should not be
lower than that of the discharged battery.
- Before you check anything in the engine
compartment, always read and heed all
WARNINGS
~page 191.
CD Note
-Applying a higher voltage booster battery
will cause expensive damage to sensitive
electronic components, such as control
units, relays, radio, etc.
- There must be no electrical contact between
the vehicles as otherwise current could al­
ready start to flow as soon as the positive
(+) terminals are connected.
@ Tips
The discharged battery must be properly con-
nected to the vehicle's electrical system. .,..

....

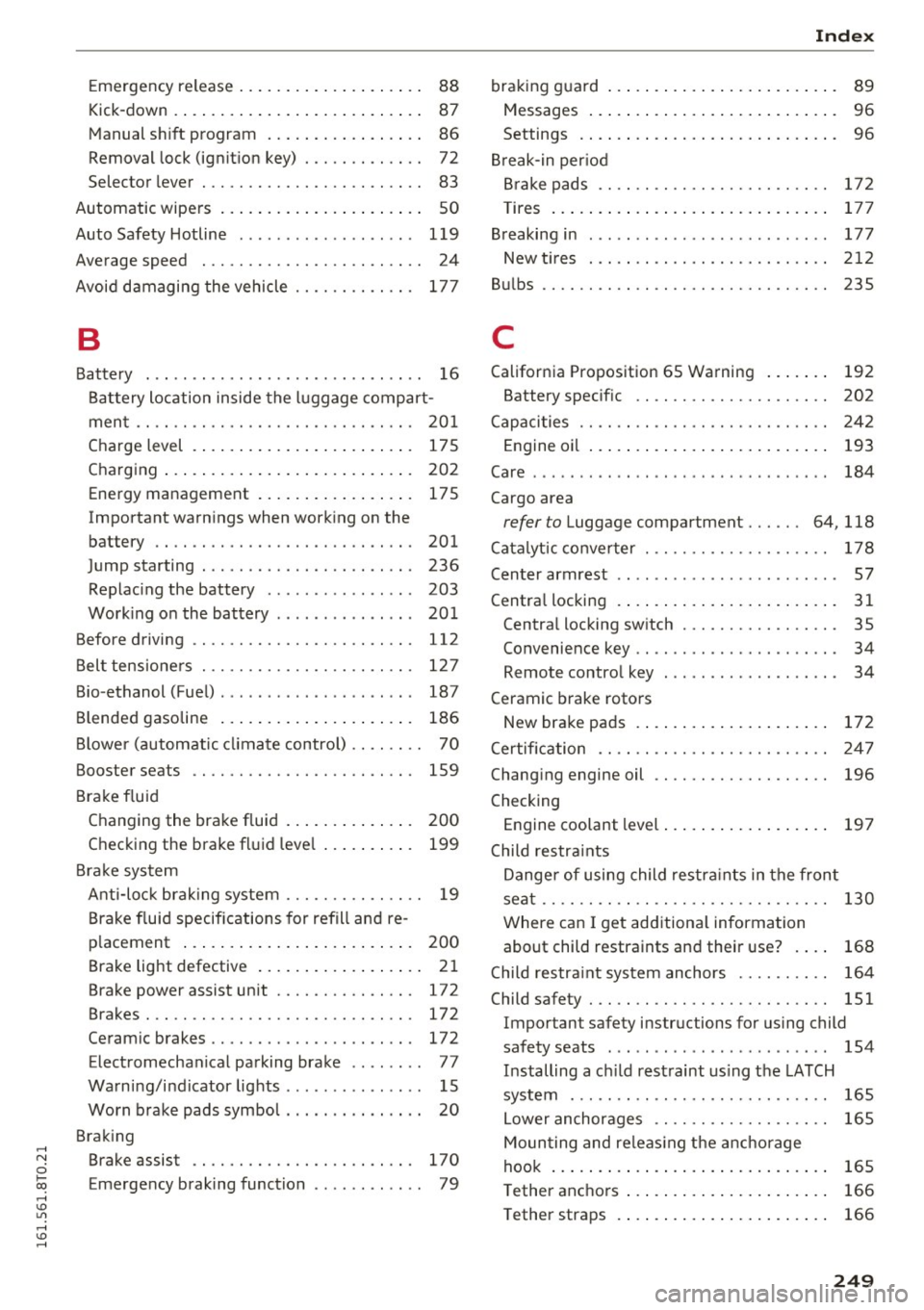

Emergency release . . . . . . . . . . . . . . . . . . . . 88
Kick -down . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Manual shift program . . . . . . . . . . . . . . . . . 86
Removal lock (igni tion key) . . . . . . . . . . . . . 72
Selector lever . . . . . . . . . . . . . . . . . . . . . . . . 83
Automatic wipers . . . . . . . . . . . . . . . . . . . . . . 50
Auto Safety Hotline . . . . . . . . . . . . . . . . . . . 119
Average speed . . . . . . . . . . . . . . . . . . . . . . . . 24
Avoid damaging the vehicle . . . . . . . . . . . . . 177
B
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Battery location inside the luggage compart-
ment .. .. .. .. .... . .......... .. .. .. . 201
Charge level . . . . . . . . . . . . . . . . . . . . . . . . 175
Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Energy manag ement . . . . . . . . . . . . . . . . . 17 5
Important w arnings when working on the
batte ry . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Jump starting . . . . . . . . . . . . . . . . . . . . . . . 236
Replacing the battery . . . . . . . . . . . . . . . . 203
Work ing on the battery . . . . . . . . . . . . . . . 201
Befo re driving . . . . . . . . . . . . . . . . . . . . . . . . 112
Belt tensioners . . . . . . . . . . . . . . . . . . . . . . . 127
Bio -ethanol (Fuel) . . . . . . . . . . . . . . . . . . . . . 187
Blended gasoline . . . . . . . . . . . . . . . . . . . . . 186
Blower (automatic climate control) . . . . . . . . 70
Booster seats . . . . . . . . . . . . . . . . . . . . . . . . 159
Brake fluid
Changing the brake fluid . . . . . . . . . . . . . . 200
Checking the brak e fluid level . . . . . . . . . . 199
Brake system
Anti-lock braking system . . . . . . . . . . . . . . . 19
Brake fluid specifications for refill and re­
p lacement . . . . . . . . . . . . . . . . . . . . . . . . . 200
Brake light defective . . . . . . . . . . . . . . . . . . 21
B rake power assist unit . . . . . . . . . . . . . . . 17 2
Br akes. .. .. .. .... ........... .. .. .. . 172
Ceramic brakes . . . . . . . . . . . . . . . . . . . . . . 172
E lectromechanical parking brake . . . . . . . . 77
Warning/indicator lights . . . . . . . . . . . . . . . 15
Worn brake pads symbol . . . . . . . . . . . . . . . 20
Braking
"' Brake assist . . . . . . . . . . . . . . . . . . . . . . . . 170
0
~ Emergency braking function . . . . . . . . . . . . 79 .... .... Index
braking guard . . . . . . . . . . . . . . . . . . . . . . . . . 89
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Break-in period
Brake pads . . . . . . . . . . . . . . . . . . . . . . . . . 172
T ires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Breaking in . . . . . . . . . . . . . . . . . . . . . . . . . . 177
New t ires . .. .. .. .. ............. .. .. 212
Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
C
California Proposition 65 Warning . . . . . . . 192
Battery specific . . . . . . . . . . . . . . . . . . . . . 202
Capacities . . . . . . . . . . . . . . . . . . . . . . . . . . . 242
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Cargo a rea
refer to Luggage compartment ...... 64, 118
Catalytic converter . . . . . . . . . . . . . . . . . . . . 178
Center armrest . . . . . . . . . . . . . . . . . . . . . . . . 5 7
C entral locking . . . . . . . . . . . . . . . . . . . . . . . . 31
Central locking switch . . . . . . . . . . . . . . . . . 35
Convenien ce key . . . . . . . . . . . . . . . . . . . . . . 34
Remote control key . . . . . . . . . . . . . . . . . . . 34
Ceramic brake rotors New brake pads . . . . . . . . . . . . . . . . . . . . . 172
Certification . . . . . . . . . . . . . . . . . . . . . . . . . 247
Changing engine oil . . . . . . . . . . . . . . . . . . . 196
Checking Engine coolant level . . . . . . . . . . . . . . . . . . 197
Child restra ints
Danger of using child restraints in the front
seat.. .... .. .. .. .. ............... .. 130
Where can I get additional information
about child restraints and their use? . . . . 168
Child restra int system anchors . . . . . . . . . . 164
Child safety . .. .. .. .. ...... ......... .. 151
I mpor tan t safety ins truc tions for using child
safety seats . . . . . . . . . . . . . . . . . . . . . . . . 154
Installing a child restraint using the LATCH
system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Lower anchorages . . . . . . . . . . . . . . . . . . . 165
Mounting and releas ing the anchorage
hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Tether anchors . . . . . . . . . . . . . . . . . . . . . . 166
Tether straps . . . . . . . . . . . . . . . . . . . . . . . 166
249

.... N
0 I­co .... .... Driving safe ly . ..... .. .... ... .. .. .... . 112
Dr iving throug h wate r . . . . . . . . . . . . . . . . . 177
Driving time . . . . . . . . . . . . . . . . . . . . . . . . . . 24
D ust filte r
re fer to Po llutant filter (au toma tic A/C sys -
tem) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
D ynamic stee ring . .......... .. 102,170 ,174
E
E85 (F ue l) . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Easy entry function . . . . . . . . . . . . . . . . . . . . . 56
E ff iciency p rogra m . . . . . . . . . . . . . . . . . . . . . 26
Fu el economy mess ages . . . . . . . . . . . . . . . 28
M emory levels . . . . . . . . . . . . . . . . . . . . . . . 24
Othe r equipment . . . . . . . . . . . . . . . . . . . . . 27
Shift indicator . . . . . . . . . . . . . . . . . . . . . . . 27
E lect ro-mechan ica l powe r ass ist . . . . . . . . . 17 4
Electromechanical parking brake
Emergency braking . . . . . . . . . . . . . . . . . . . 79
Indicator light . . . . . . . . . . . . . . . . . . . . . . . 77
Pa rking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Re leas ing and closing . . . . . . . . . . . . . . . . . 77
St arting assis t . . . . . . . . . . . . . . . . . . . . . . . 78
S tarting from rest . . . . . . . . . . . . . . . . . . . . 78
S tarting off w ith a t railer . . . . . . . . . . . . . . . 78
Warning/indicator lights . . . . . . . . . . . . . . . 16
E lec tronic d ifferential lock
Wa rn in g/i ndic ator lig hts . . . . . . . . . . . . . . . 18
Electronic Differential Lock . . . . . . . . . . . . . 170
Electronic differential lock (EDL)
Wa rning/i ndicator lig hts.. ... .. .. .... .. 1 9
E lec tronic im mob iliz er . . . . . . . . . . . . . . . 12 , 37
Electronic power control (EPC) warning/ind icator light . . . . . . . . . . . 20
Elect ronic speed limiter . . . . . . . . . . . . . . . . . 29
E lect ronic stab iliz at io n cont rol
Sport mode . . . . . . . . . . . . . . . . . . . . . . . . 17 1
Electronic Stabilization Control . . . . . . . . . . 170
Electronic Stabilization Control (ESC) Wa rning/indicator lights . . . . . . . . . . . . . . . 1 8
E me rge ncy ac tuati on
D oors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
I gnition key . . . . . . . . . . . . . . . . . . . . . . . . . 34
P ano ram ic tilting sunroo f . . . . . . . . . . . . . . 4 0
Sun shade (roof) . . . . . . . . . . . . . . . . . . . . . 4 0
E me rge ncy brak ing . . . . . . . . . . . . . . . . . . . . . 79
Index
E mergency flasher . . . . . . . . . . . . . . . . . . . . . 46
War ning/indicator lights . . . . . . . . . . . . . . . 22
E mergency key . . . . . . . . . . . . . . . . . . . . . . . . 32
Start ing engi ne . . . . . . . . . . . . . . . . . . . . . . 74
Emergency ope ration
Emergency braking function (parking brake) .7.9
Emergency start ing . . . . . . . . . . . . . . . . . . . 236
E nergy manage men t . . . . . . . . . . . . . . . . . . 175
B attery power . . . . . . . . . . . . . . . . . . . . . . . . 16
Drive r notification . . . . . . . . . . . . . . . . . . . . 16
E ngine
Compartment . . . . . . . . . . . . . . . . . . . . . . . 193
Coo la nt . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 96
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Sta rt ing . . . . . . . . . . . . . . . . . . . . . . . . . 72 , 75
Start ing wi th ju mpe r cables . . . . . . . . . . . 236
Stopping . . . . . . . . . . . . . . . . . . . . . . . . . 7 4, 76
En gine compartment . . . . . . . . . . . . . . . . . . 193
Safety i nstr uctions .. ............. .. .. 191
Wo rking the engine compa rtment . . . . . . 191
E ngine coolant
I n dicator light . . . . . . . . . . . . . . . . . . . . . . . 17
Engine coolant system . . . . . . . . . . . . . . . . . 196
Adding coolant . . . . . . . . . . . . . . . . . . . . . . 198
Checking coolant level . . . . . . . . . . . . . . . . 197
Checking the engine coo lant level. . . . . . . 197
Radiator fan . . . . . . . . . . . . . . . . . . . . . . . . 199
Engine coolant temperature
Temperature gauge . . . . . . . . . . . . . . . . . . . 10
E ngine hood
Closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
How to release the hood . . . . . . . . . . . . . . 191
E ngine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 93
Adding . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Addi tives. ... .. .. .. ... .. ..... ... .. .. 195
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Check oil level . . . . . . . . . . . . . . . . . . . . . . 195
Cons umption . . . . . . . . . . . . . . . . . . . . . . . 195
Indicator light . . . . . . . . . . . . . . . . . . . . 17, 20
Oil consumpt io n . . . . . . . . . . . . . . . . . . . . . 194
Pressure malfunct ion . . . . . . . . . . . . . . . . . 17
Senso r defect ive . . . . . . . . . . . . . . . . . . . . . . 20
Spec ificatio n and viscosity . . . . . . . . . . . . . 193
Engine speed limitation . . . . . . . . . . . . . . . . . 20
E nv ironmen t
C atalytic converter . . . . . . . . . . . . . . . . . . . 178
Dispos ing of your veh icle battery . . . . . . . 203
251
