AUDI A5 COUPE 2018 Owners Manual

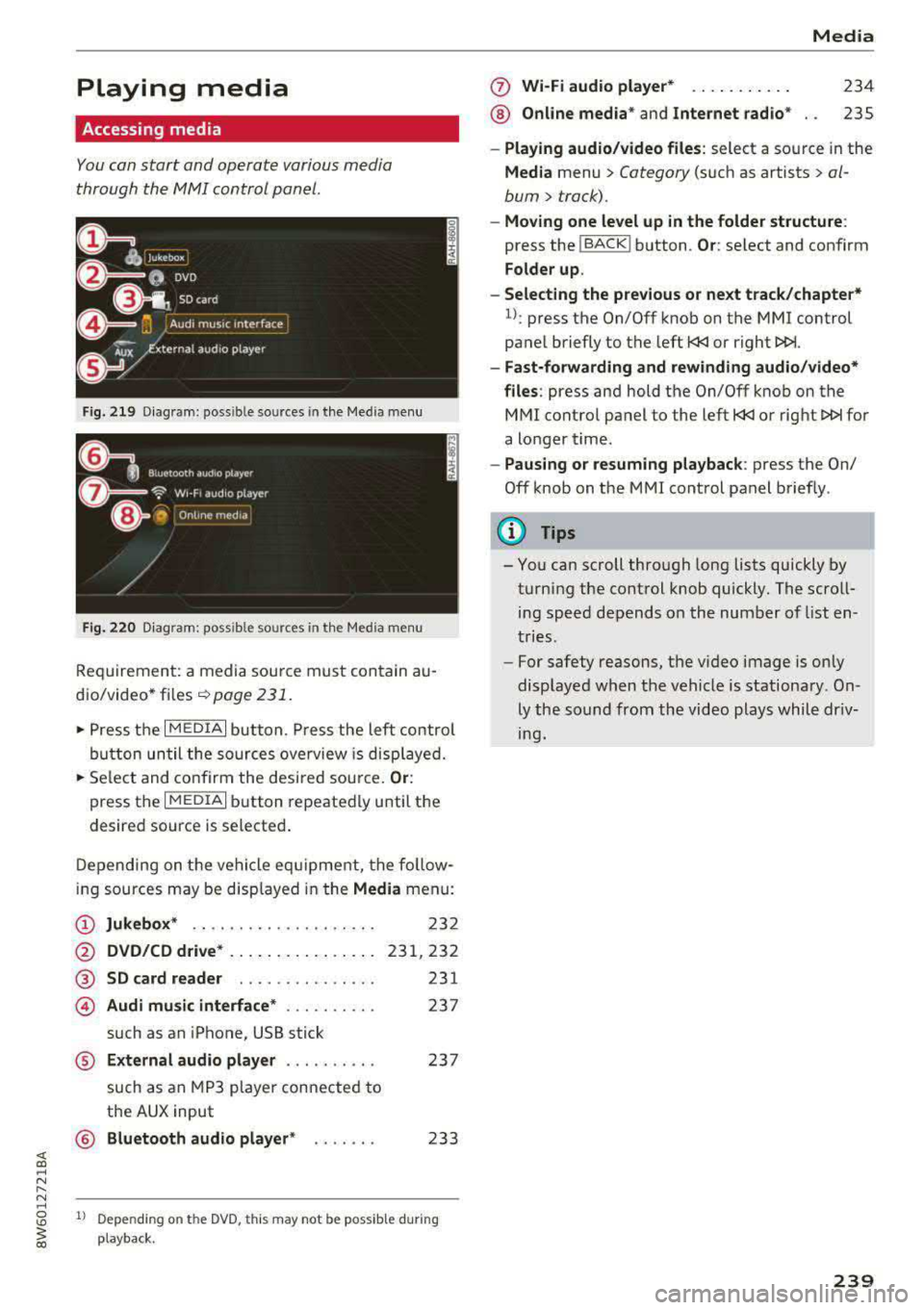

Playing media
Accessing media
You can start and operate various media
th rough the MMI control panel.
F ig . 2 19 Diag ram: possible sources in the Med ia m enu
Fi g. 22 0 Diagram : poss ible sources in the Medi a me nu
Requi rement: a media sou rce mu st co ntain a u­
dio/video* files
¢page 231.
~ P ress t he I M EDIA i button. Press the left control
bu tton until the so urces ove rview is disp laye d.
~ Se le ct and confirm the desi red sou rce. Or :
press the I MEDIAi button repeated ly until the
desired source is selecte d.
D epen ding on t he veh icle eq uipment, the fo llow ­
ing sources may be disp layed in the
Media menu:
(D Jukebox * ................. .. .
@ DVD /CD d rive * ... . .... ... .. .. .
@ SD card reader ......... ... .. .
@ Audi mu sic interface * ......... .
such as an iPhone, USB stick
2 3 2
23 1,232
231
2 37
® External audio player . . . . . . . . . . 237
such as an MP3 playe r con nected to
the AUX input
© B luetooth audio player * . . . . . . . 233
1l Depe nding on th e DVD, t his may not be poss ib le d urin g
playback .
0 Wi-Fi audio player* ... ... ... . .
® Online med ia * and Internet radio * Media
23
4
235
- Playing audio/video files : select a source in the
Media menu > Category (such as artists > al­
bum
> track) .
-Moving one level up in the folder structure :
press the !BACKI button. Or : select and confirm
Folder up .
- Selecting the previous or next track /chapte r*
1
l: press the On/Off knob on the MMI control
panel briefly to the left
tt >L
- Fast-forw arding and rewinding audio/video*
files :
press and hold the On/Off knob on t he
MMI control pa nel to the left
tt>I for
a longer t ime .
-Pausing or resuming playback : press the On/
Off knob on the MMI cont rol panel brief ly.
(D Tips
- You can scroll through long lists quickly by
turning the control knob quickly . The scroll­
ing speed depends o n the numbe r of li st en­
tries.
- For safety reasons, t he v ideo image is on ly
displaye d when the vehicle is stationa ry. On­
ly the so und from th e video plays whil e dr iv­
ing.
239

Media

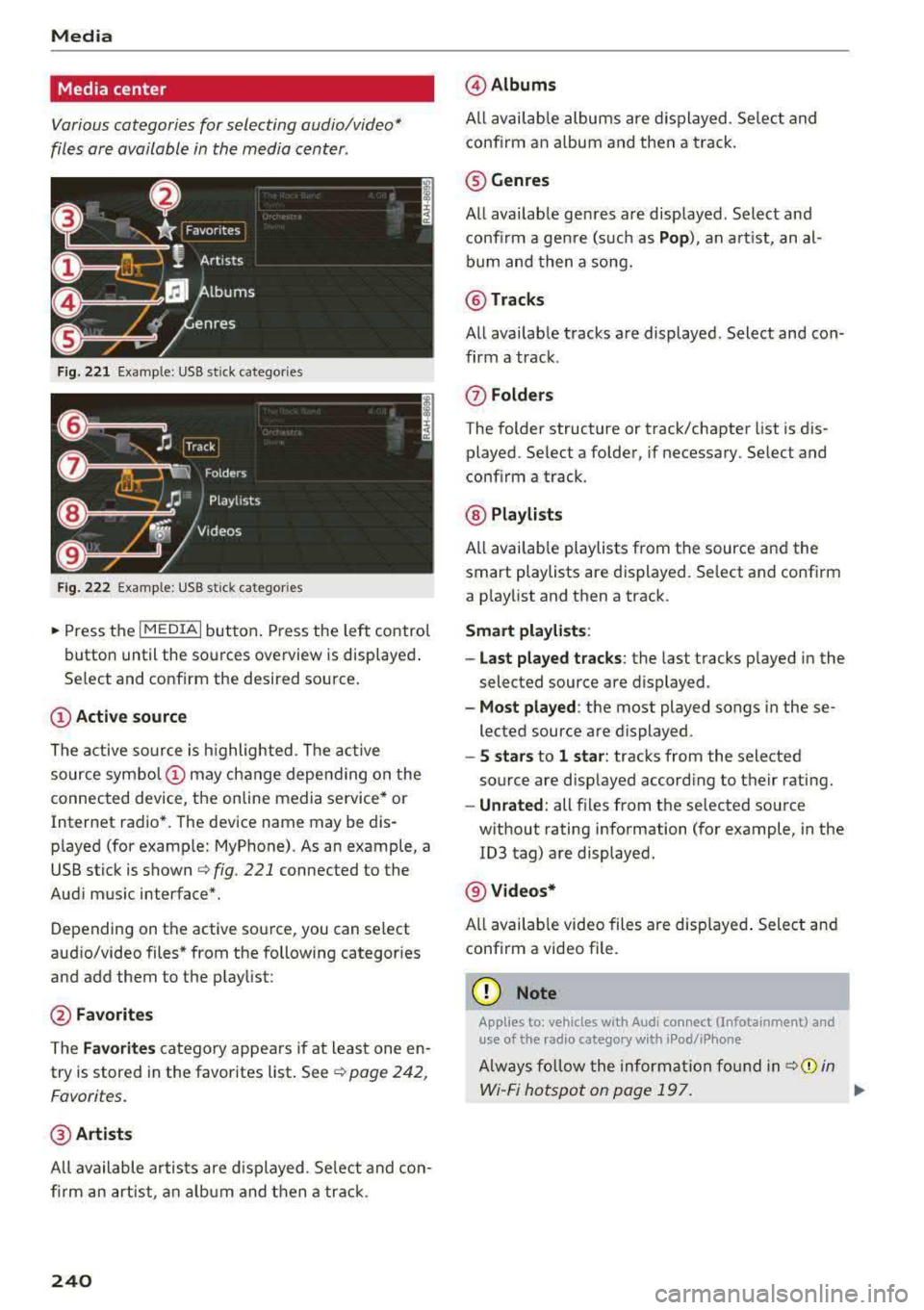

Media center
Various categories for selecting audio/video*
files ore available in the media center .
Fig. 221 Example : USB stick categories
F ig. 222 Example: USB stick cat egories
~ Press the I MEDIAi but ton. Press the left control
button until the sources overview is displayed .
Se lect and confirm the desired source.
(D Active source
The active source is highlighted . T he active
source
symbol (!) may change depending on the
connected device, the online media service* or
Internet radio*. The device name may be dis­
played (for example: MyPhone). As an example, a
USB stick is shown
Q fig . 221 connected to the
Aud i mus ic interface*.
Depending on the active source, you can select
aud io/video files * from the following categor ies
and add them to the playlist :
@Favorites
The Favorites category appea rs if at least one en­
try is stored in the favorites list . See
Q poge 242 ,
Favorites.
@ Artists
All available artists are displayed. Select and con­
firm an artist , an album and then a track .
240
@Albums
All available albums are displayed . Select and
confirm an album and then a track.
® Genres
All available genres are displayed . Select and
confirm a genre (s uch as
Pop ), an artist, an al­
bum and then a song.
@Tracks
All availab le tracks are displayed . Select and con­
firm a track.
0 Folders
The folder structure or track/chapter list is dis­
played. Se lect a folder , if necessary. Select and
conf irm a track .
@ Playlists
All available playlists from the source and the
smart playlists are displayed . Select and confirm
a playlist and then a track .
Smart playlists :
- Last played tracks :
the last tracks played in the
selected source are displayed.
-Most played : the most played songs in these­
lected source are displayed.
- S stars to 1 star: tracks from the selected
source are disp layed according to their rating.
- Unrated: all fi les from the selected source
w ithout rating information (for example, in the
103 tag) are displayed.
@ Videos*
All availab le video files are displayed. Select and
conf irm a video file .
(D Note
Applies to: veh icles with Audi co nnect (Infotainment) a nd
use of the radio category w ith iPod/iP hone
Always follow the information found in q(i) in
Wi-Fi hotspot on page 197.
.,.

@ Tips
-Only the categories supported by the medi­
um are available. For example, CD/DVD­
ROM tracks cannot be selected with catego­
ries such as
Artists, Albums or Genres.
With an iPod/iPhone (source: Audi music in­
terface¢ page 236), the Podcasts, Audio
books
and Composers categories are also
available .
- For safety reasons, the video image is only
displayed when the vehicle is stationary.
On­
ly the sound from the video plays while driv­
ing .
- When synchronizing a portable device with
"Cloud" services, playlists may display incor­
rectly in the MMI. Use the media center in
the device.
- With an iPod/iPhone (media source: Audi
music interface
¢ page 236), the Podcasts,
Audio books
and Composers categories are
also available.
(D Tips
Applies to: iPod/lPhone on Audi music Interface
- An Internet connection is required to use
the additional
Radio category, an on line
media service. Also see the chapter
¢ page 19 7, Wi-Fi hotspot. Also read the in­
formation on the Audi music interface and
the supported
devices ¢ page 236.
-Depending on the Internet connection and
network traffic, a connection loss can occur
during playback of on line media services.
- The use of online media services depends on
the service availability of the third party
provider.
- Audi AG simply makes the access to on line
media services possible through the MMI
and does not take any responsibility for the
contents of the online media services.
Media

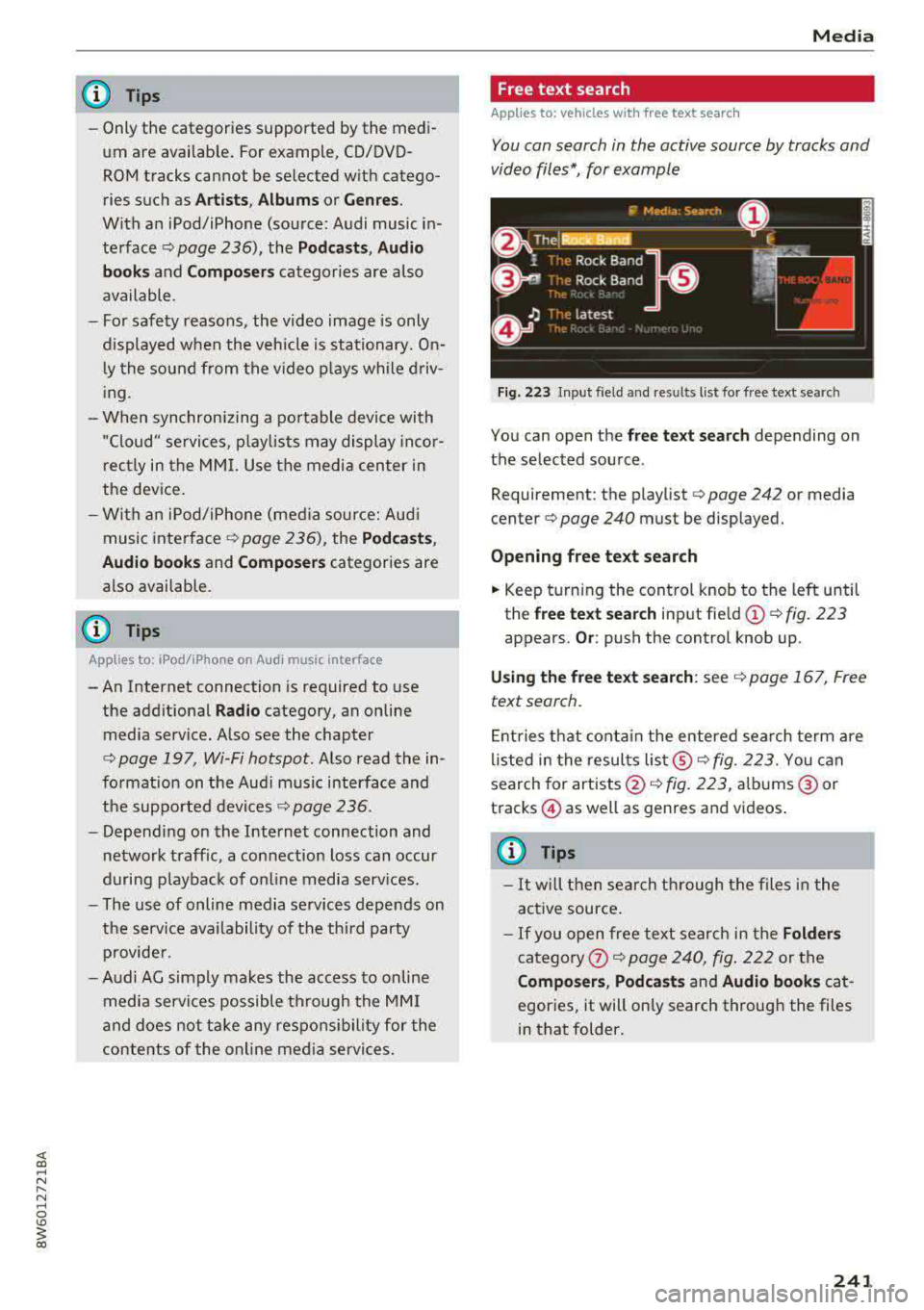

Free text search
Applies to: veh icles w ith free text search
You can search in the active source by tracks and
video files*, for example
Fig. 223 Input field and results list for free text search
You can open the free text search depending on
the selected source .
Requirement: the playlist
¢ page 242 or media
center¢ page 240 must be displayed.
Opening free text search
.. Keep turning the control knob to the left until
the
free text search input field @¢ fig. 223
appears. Or: push the control knob up.
Using the free text search: see ¢ page 167, Free
text search.
Entries that contain the entered search term are
listed in the results
list@¢ fig. 223. You can
search for
artists@¢ fig. 223, albums @or
tracks @) as well as genres and videos.
@ Tips
-It will then search through the files in the
active source.
-If you open free text search in the Folders
category 0 ¢ page 240, fig. 222 or the
Composers, Podcasts and Audio books cat­
egories, it will only search through the files
in that folder.
241

Media

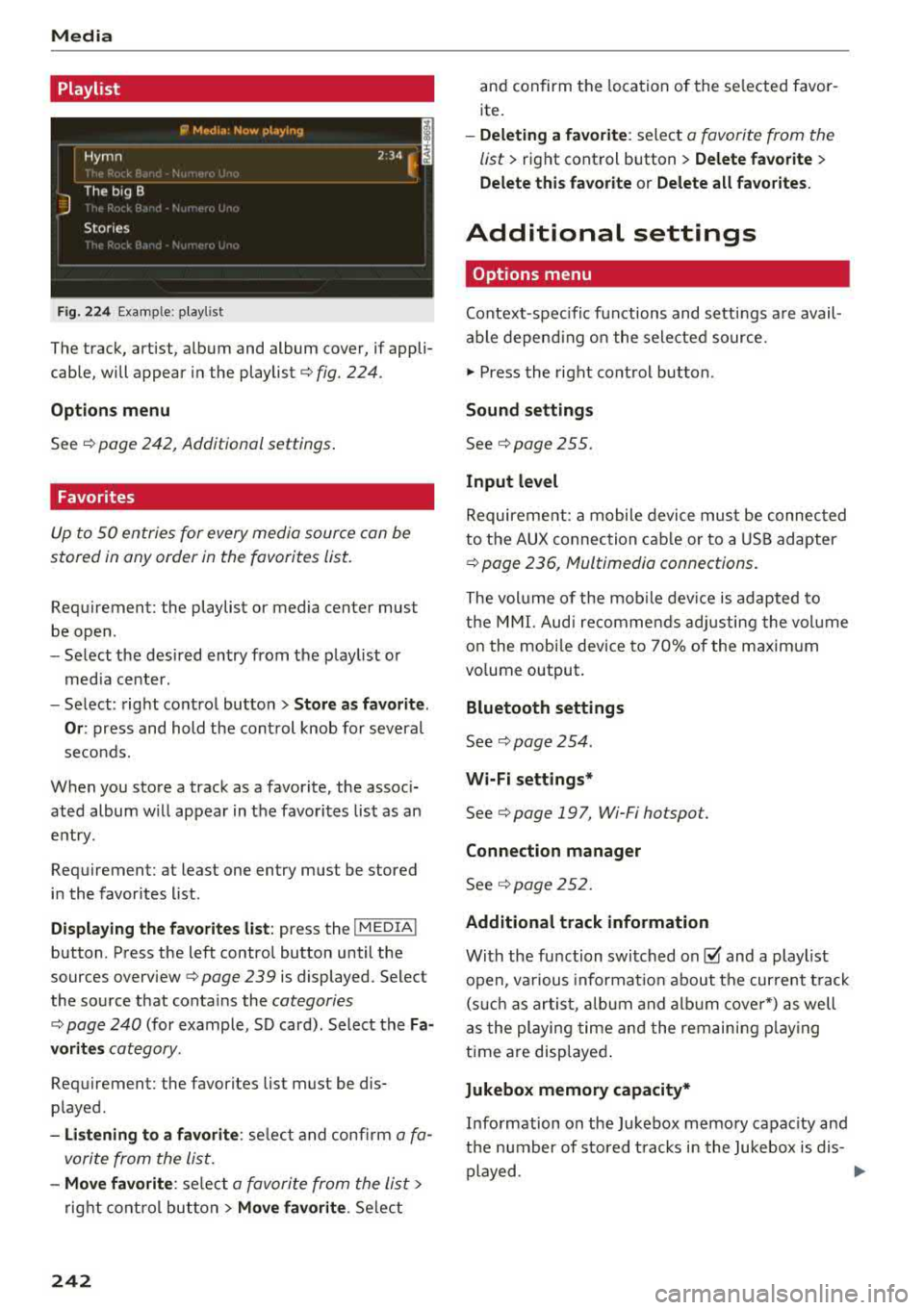

Playlist
Fig . 2 24 Example: play list
The track, artist, album and album cover, if appli­
cable, will appear in the playlist
¢ fig. 224.
Option s menu
See ¢ page 242, Additional settings .
Favorites
Up to 50 entries for every media source can be
stored in any order in the favorites list.
Requirement: the playlist or media center must
be open.
- Select the des ired entry from the play list or
med ia center.
- Select: right control button
> Store a s favorit e.
Or :
press and hold the cont rol knob for several
seco nds.
When you store a track as a favorite, the assoc i­
ated album w ill appear in the favorites list as an
entry.
Requirement: at least one entry must be stored
in the favorites list.
Displaying the fa vorite s list : press the !MEDIA !
button. Press the left contro l button until the
sources
overview ¢ page 239 is displayed. Select
the source that conta ins the
categories
¢ page 240 (for example, SD card). Select the Fa­
v orit es
category .
Requirement: the favorites list must be dis­
p layed.
- List ening to a favorite : select and confirm a fa­
vorite from the list.
- Mov e favorite : select a favorite from the list>
right cont rol button > Move fa vorite . Select
242
and confirm the location of the se lected favor ­
ite.
- Deleting a f avorit e: select a favorite from the
list>
right control b utton> Delete fa vorite >
Delete thi s favorite or Delete all fa vo rite s.
Additional settings
' Options menu
Context-spec ifi c fu nctions and settings a re avail­
able depend ing on the sele cted source.
" Press the right control button .
Sound settings
See c:::> page 255.
Input l evel
Requirement: a mobile device mus t be connec ted
to the AUX connection cab le or to a USB adapter
c:::> page 236, f\1ultimedia connections .
The volume of the mob ile dev ice is adapted to
t h e MMI. Aud i recommends adj usting the volume
on the mobi le device to 70% of the maximum
vo lume output.
Bluetooth settings
See c:::> page 2 54.
Wi-Fi settings*
See ¢ page 19 7, Wi-Fi hotspot.
Connection manager
See c:::> page 252.
Additional track information
With the fu nction swi tched on~ and a playlist
open, va rious informat io n about t he cur rent t rack
(such as artist, a lbum and alb um cove r*) as well
as the playing time and the remain ing p lay ing
time are displayed .
Jukebox memory capacity*
Information on the Jukebox memory capac ity and
the number of stored t racks i n the Jukebox is dis-
played.
""'

<( a, .... N ,....
N .... 0 \0
3 a,

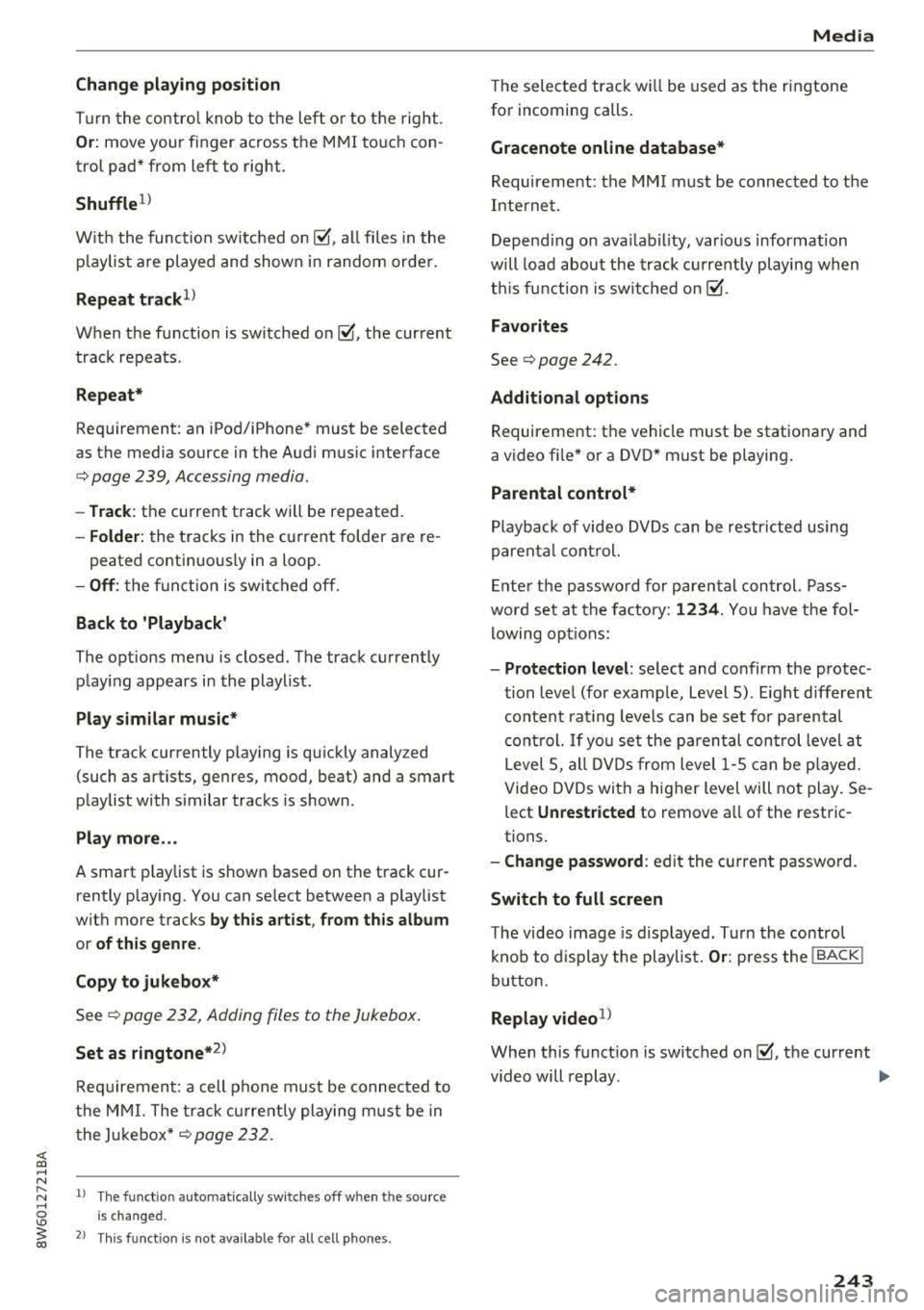

Change playing position
Tu rn the contro l knob to the left o r to the right.
Or: move your finger across the MMI touch con­
trol pad* from left to right.
Shuffle1
)
W ith the function switched on~. a ll files in the
p lay list are played and shown in random order.
Repeat track ll
When the function is switched on~. the current
track repeats.
Repeat*
Requirement: an iPod/iPhone* must be selected
as the media source in the Audi music interface
c:> page 239, Accessing media.
- Track : the current track will be repeated.
-Folder: th e tracks in the current folder are re-
peated contin uously in a loop.
- Off : the function is switched off.
Back to 'Playback'
The options menu is closed . The track currently
p lay ing appears in the playlist.
Play similar music*
The track currently playing is quickly analyzed
(such as artists, genres, mood, beat) and a smart
playlist with similar tracks is shown.
Play more ...
A smart p laylist is shown based on the track cur­
rently play ing. You can se lect between a playlist
with more track s
by this artist, from this album
or of this genre .
Copy to jukebox*
See c:> page 232, Adding files to the Jukebox.
Set as ringtone*2
)
Requirement: a cell phone must be connected to
the MMI. The track currently playing must be in
the Jukebox*
c:> page 232.
l) The func tion automa tica lly sw itches off when the sou rce
i s changed.
2> Th is function is not available for all cell phones.
Media
The selected track wi ll be used as the ringtone
for incoming calls .
Gracenote online database*
Requirement: the MMI must be connected to the
Internet.
Depend ing on ava ilabil ity, var ious information
will load about the track current ly playing when
t hi s function is switched
on~-
Favorites
See c:> page 242.
Additional options
Requirement: the vehicle must be stationary and
a video fi le* or a DVD* must be playing .
Parental control*
Playback of video DVDs can be restr icted using
parental control.
Enter the password for parental control. Pass­
word set at the factory: 1234. You have the fol­
lowing options:
- Protection level : select and confirm the protec­
tion level (for examp le, Level S) . Eight different
content rat ing levels can be set for parental
control. If you set the parental control level at
Level 5, all DVDs from level 1-5 can be pla yed.
Video DVDs with a higher level will not play. Se­
lect
Unrestricted to remove a ll of the restric­
tions.
- Change password : edit the current password.
Switch to full screen
The video image is disp layed. Turn the control
knob to display the playlist.
Or: press the I BACKI
button.
Replay video1
)
When this funct ion is switched on~' the current
video will replay.
..,.
243

Media

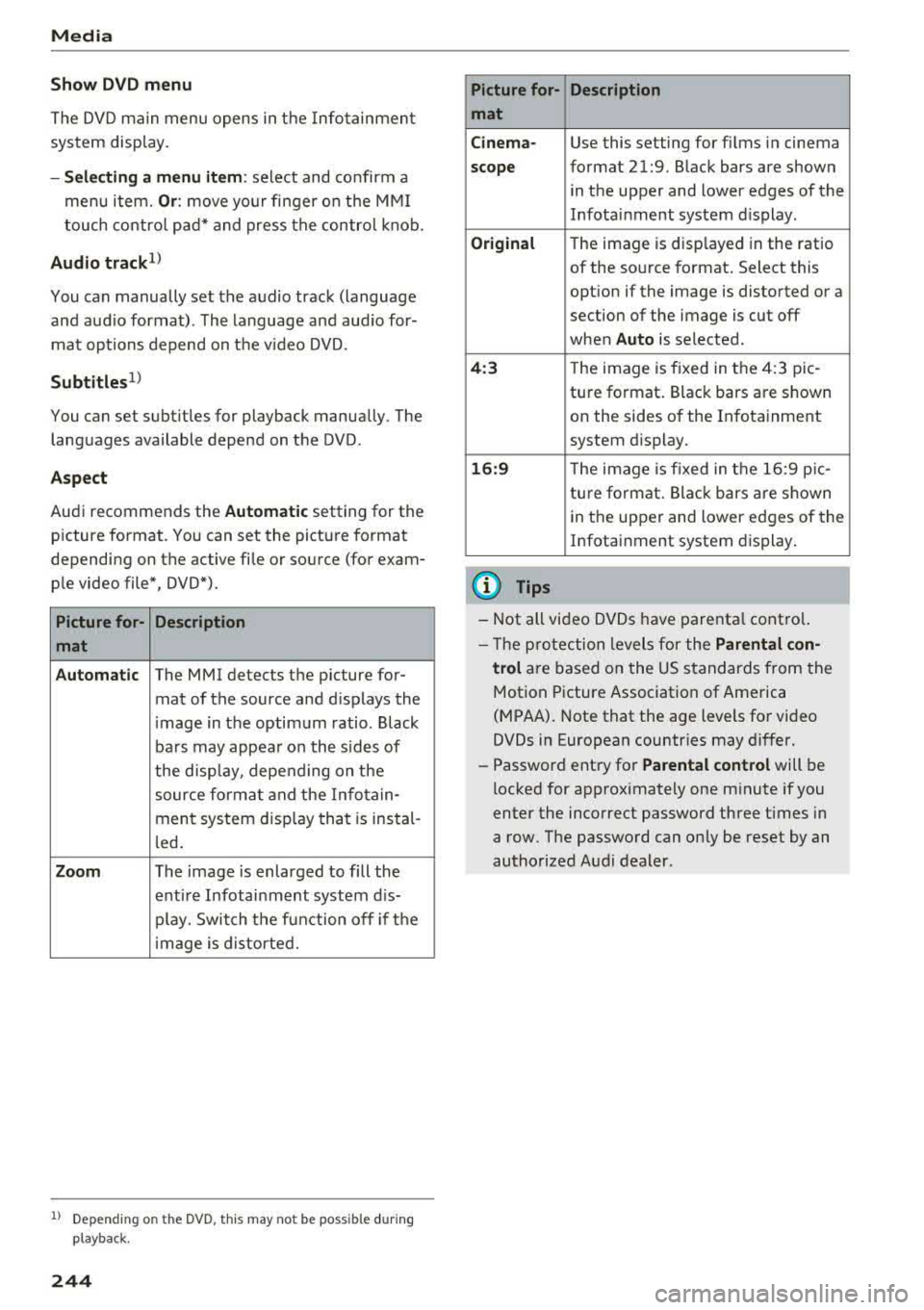

Show DVD menu
The DVD main menu opens in the Info tainmen t
sys tem display.
- Selecting a menu item : select and confirm a
menu i tem.
Or : move yo ur finger on the M MI
t ouch contro l pa d* and press the contro l kno b.
Audio track ll
You can manually set the a udio track (language
and aud io format) . The language and aud io for­
mat op tions depend on t he v ideo DVD .
Subtitles1l
You can set subt itles for playback manua lly . The
languages available depend on t he DVD .
Aspect
Aud i recommends the Automatic setting for the
p icture format. You can set the pict ure format
depending on the active fi le or so urce (for exam­
p le video file*, DVD*).
Picture for- Description
mat
Automatic
The MMI detects the p icture for-
mat of the source and d isp lays the
i mage in the optim um ratio . Black
ba rs may appea r on the s id es of
the disp lay, depe nding on the
source forma t and the Infotain -
ment sys tem disp lay tha t is instal-
l ed .
Zoom The image is enlarged to fill the
e nti re Infotai nment system d is-
pl ay. Switch the f un ction off i f th e
i mage is distorte d.
l) Depe nding o n th e DVD , thi s may not be possib le d uring
p layba ck.
244
Picture for- Description
mat
Cinema -
Use this setting for fi lms in cinema
scope format 21:9. B lack bars are shown
in the upper and lower edges of the
Infota inment system d isplay.
Original T he image is disp layed in the rat io
of the so urce format . Select this
opt ion if the image is disto rted or a
section of the image is cut off
when
Auto is selected.
4 :3 Th e image is f ixed in the 4:3 pie -
tu re format . Black bars are s hown
on the sides of the In fota inment
system d isplay.
16:9 Th e image is fixed in the 1 6:9 p ie -
t u re fo rmat. Bla ck bars a re s hown
in t he upper and lower e dges of the
Infotai nment system display .
(D Tips
-Not all video D VDs have parenta l cont rol.
- T he p ro te ct ion leve ls for the
Parental con-
trol
are based on the US stan dards from the
Motion P icture Association of America
( M PAA) . Note that the age levels fo r video
DVDs in European countr ies may differ.
- Password ent ry fo r
Parental control will be
locked for approximately one m inute if you
enter the inco rrect password three t imes in
a row. The passwo rd can on ly be reset by an
authorized Audi dealer.

<( a, ..... N ,....
N ..... 0 \0
3 a,
Media

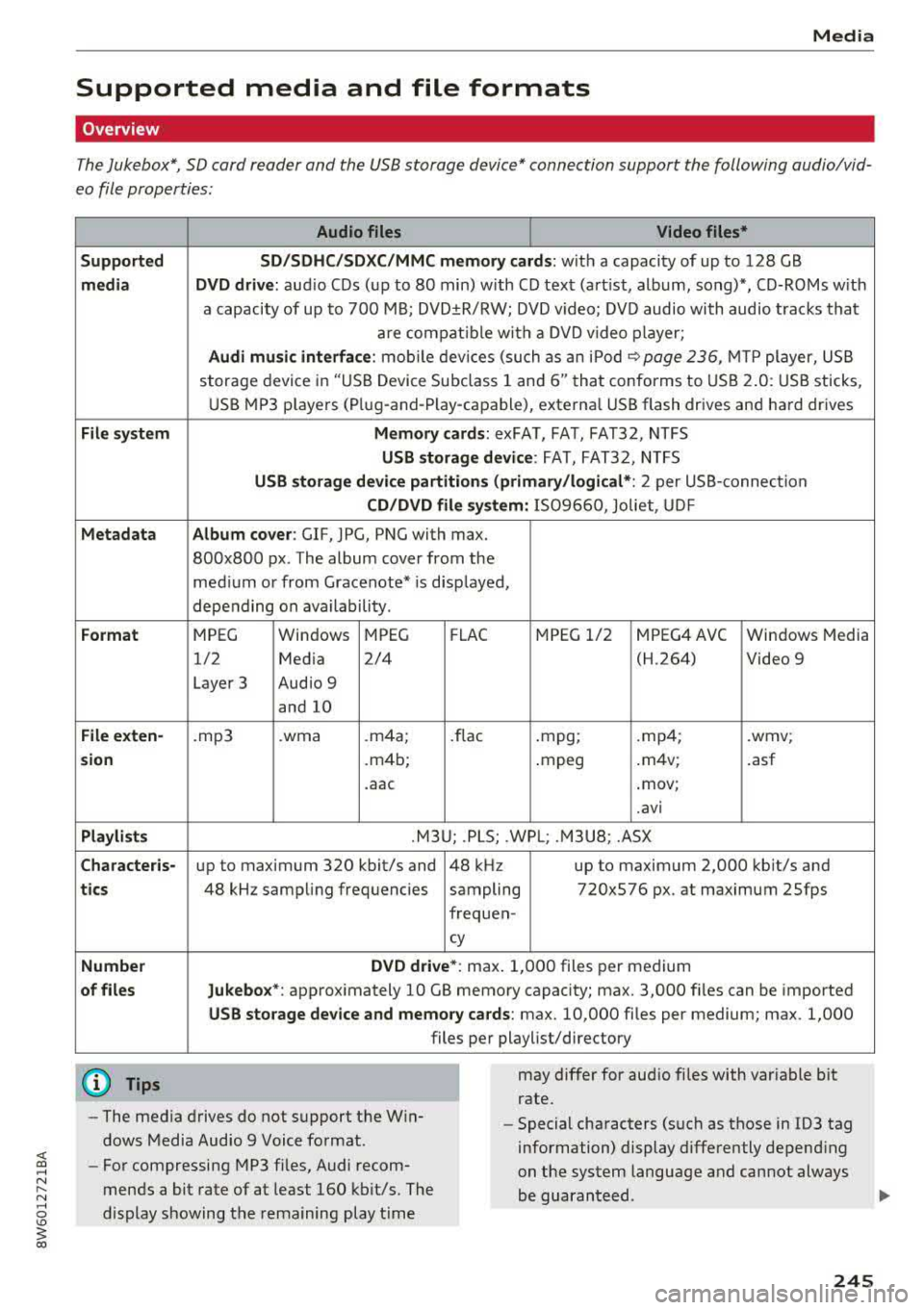

Supported media and file formats
Overview
The Jukebox*, SD card reader and th e USB storage d evice* connection support the follo wing audio/vid­
e o file prop erti es :
Supported
media
File system
Metadata
Format
File exten-
s ion
Playlists
Character is-
tic s
Number
of files Audio files
Video files*
SD /SDHC/SDXC/MMC memory cards: w ith a capaci ty of up to 128 GB
DVD drive: au dio C Ds (u p to 80 min) w ith CD tex t (art ist, album, song)*, CD-ROMs w ith
a capacity of up to 700 M B; DVD ±R/RW; DVD video; DV D audio with audio trac ks tha t
a re compatible w ith a DVD video p layer;
Audi music interface : mobile devi ces (su ch as a n iP od <:? page 236, MTP player, US B
stor age device in "US B Device Subclass 1 and
6" tha t conforms to USB 2.0 : U SB sticks,
U SB MP3 p laye rs (P lug-and -P lay-capable), external USB flash drives and ha rd dr ives
Memory cards : exFAT, FAT, FAT32, NTFS
USB storage de vice : FAT, FAT32, NTFS
USB storage device partitions (primary /logical *: 2 per USB -connection
CD /DVD file sy stem: 1509660, Joliet, UDF
Album cover: GIF, JPG, PNG with max.
800x800 px. The album cover from the
med ium or from Gracenote* is disp layed,
depending on availability.
MPEG Windows MPEG
FL AC M
PEG 1/2 MPEG4 AVC
Windows Media
1/2 Media 2/4 (H.264) Video 9
Layer 3 Audio 9
and 10
. mp3 .wma .m4a;
.flac .mpg; .mp4; .wmv;
.m4b; .mpeg .
m4v; .asf
.aac .mov;
.avi
.M3 U; .PLS; .WPL; . M3U8; .ASX
up to maximum 320 kbit/s and 48 kHz up to maximum 2,000 kb it/s and
48 kHz sampling frequencies sampling 720x576 px. at maximum 2Sfps
frequen-
cy
DVD dri ve* : max . 1,000 files per medium
Jukebo x*: approximately 10 GB memory capacity; max. 3,000 files can be imported
USB stor age device and memory cards : max. 10,000 files per medium; max . 1,000
files per playlist/directory
may differ for aud io files with var iable b it
rate.
- The media drives do not support th e W in­
dows Media Audio 9 Voice format. -
Special characters (s uch as those in 103 tag
information) display differently depend ing
on the system language a nd cannot always
be guaranteed.
-
For compressing MP3 files, Audi recom­
mends a bit rate of at least 160 kb it/s. The
display showing the rema ining play t ime
245

Media
-The manufactu rer of the storage device can
provide information about its "USB Device
Subclass" . - Some MTP player functions are not support­
ed, such as rating music tracks and video
playback.

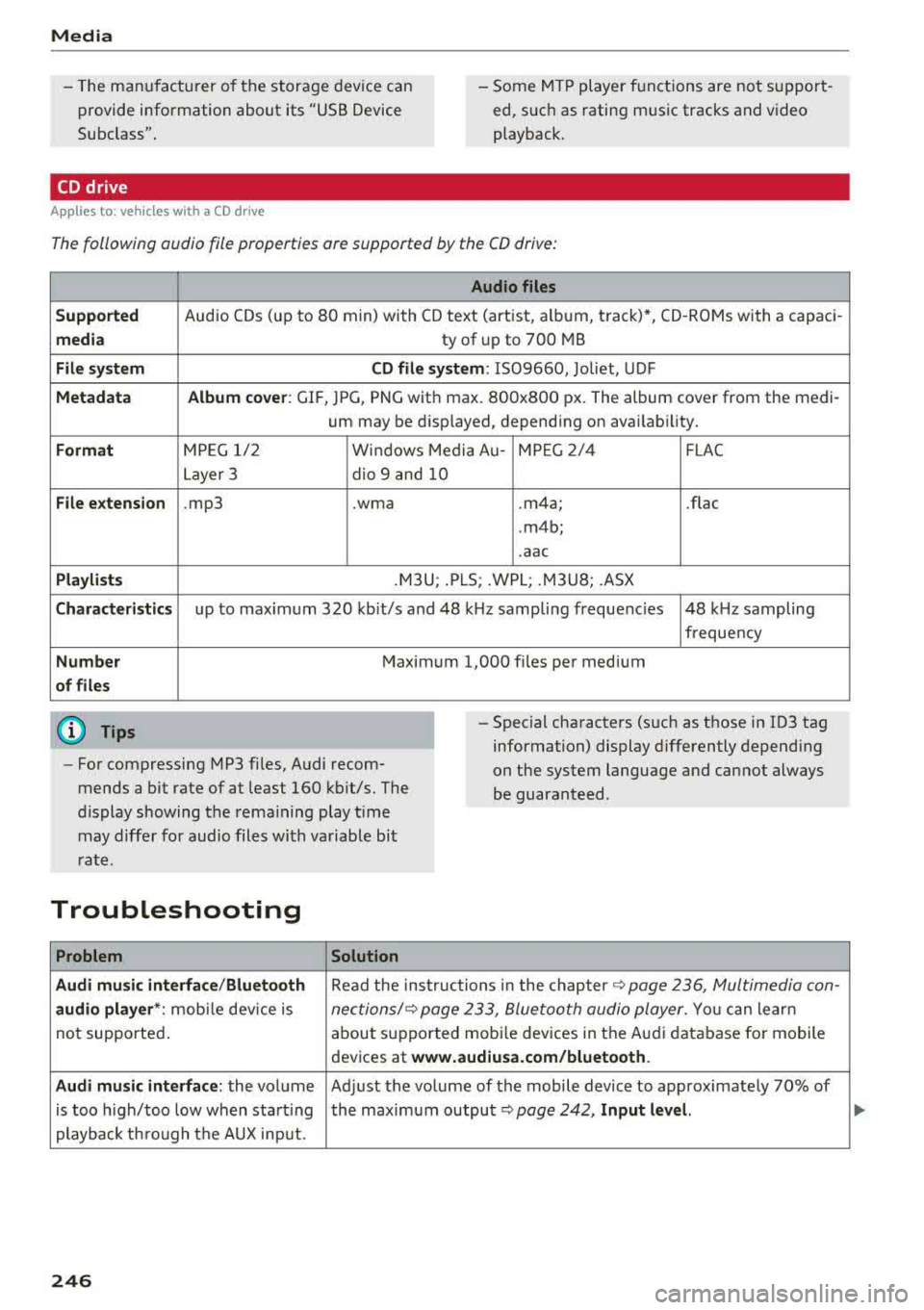

CD drive
Applies to: ve hicles w ith a CD drive
The following audio file properties are supported by the CD drive:
Audio files
Supported
Audio CDs (up to 80 min) with CD text (artist, alb um, track)*, CO-ROMs with a capaci-
media ty of up to 700 MB
File system CD file system: 1509660, Joliet, UDF
Metadata Album
cover : GlF, )PG, PNG with max . 800x800 px. The album cover from the medi-
um may be disp layed, depending on availability.
Format M PE G 1/2 Windows Media Au- MP EG 2/4 FLAC
Layer 3 dio 9 and 10
File extension .mp3 .wma
.m4a; .flac
. m4b;
. aac
Playlists .M3U; .PLS; .WPL; .M3U8; .ASX
Characteristics up to maximum 320 kbit/s and 48 kHz sampling frequenc ies 48 k Hz sampling
frequency
Number Maximum 1,000 files per medium
of files
(D Tips
-For compressing MP3 files, Audi recom­
mends a bit rate of at least 160 kb it/s. The
display showing the remaining play time
may differ for audio files with variable bit
rate .
-Special characters (such as those in 103 tag
information) display differently depending
on the system language and cannot always
be guaranteed .
Troubleshooting
Problem Solution
Audi music interface /Bluetooth
Read the instructions in the chapter ~ page 236, Multimedia con-
audio player *: mobile dev ice is nectionsl~ page 233, Bluetooth audio player . You can learn
not supported . about
supported mobi le devices in the Audi database for mobile
devices at
www.audiusa.com/bluetooth.
Audi music interface :
the volume Adjust the volume of the mobile device to approximately 70% of
is too h igh/too low when start ing the maximum
output ~ page 242, Input level.
playback th ro ugh the AUX input.
246

<( a, .... N ,....
N .... 0 \0
3 a,

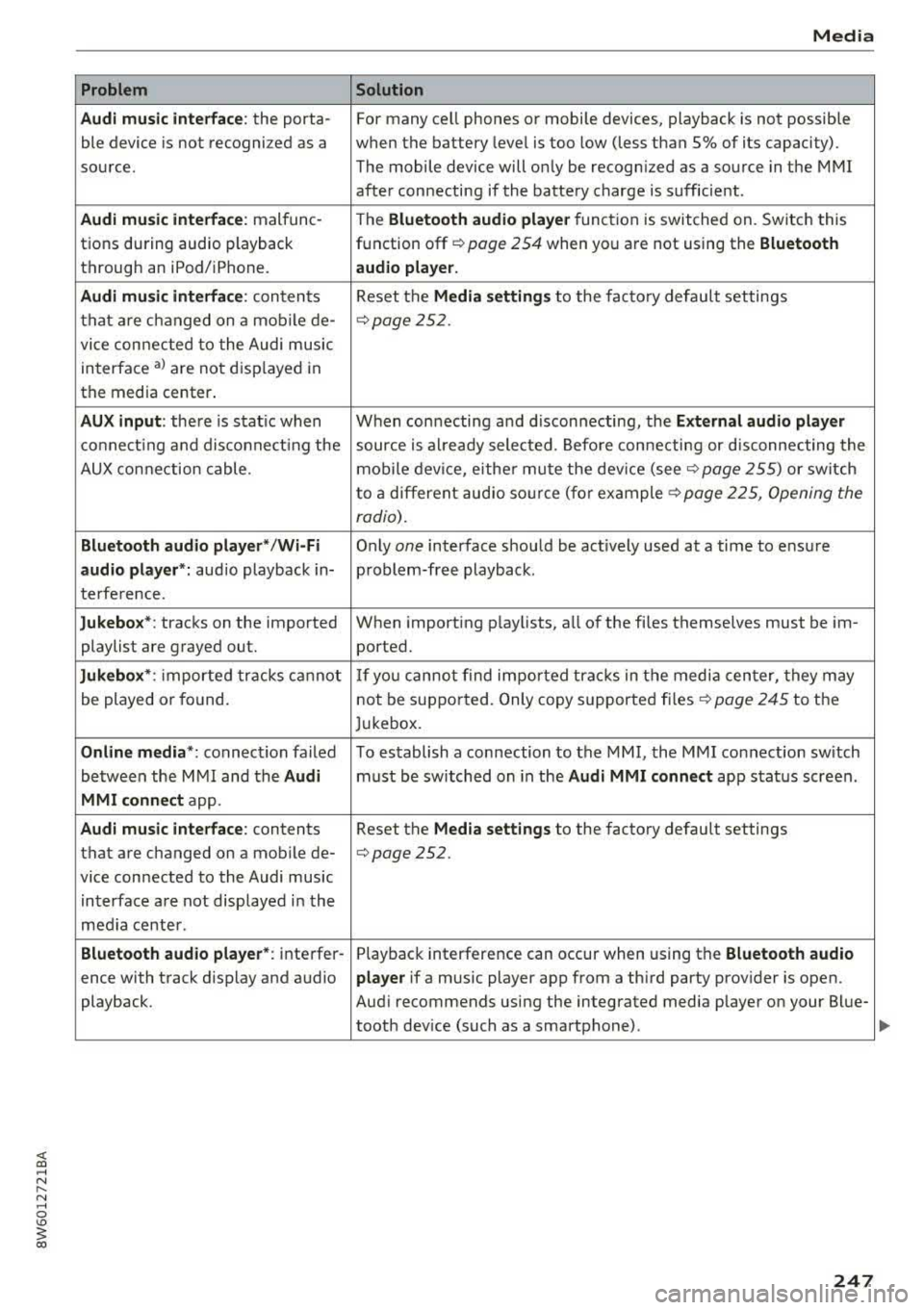

Problem
Audi music interface :
the porta-
ble device is not recogni zed as a
source.
Audi music interface : malfunc-
tions during audio playback
through an iPod/ iPhone.
Audi music interface : contents
that are changed on a mobile de-
vice connected to the Audi music
interface
a l are not displayed in
the media center.
AUX input: there is stat ic when
connecting and disconnecting the
AUX connection cable .
Bluetooth audio player* /Wi-Fi
audio player *:
aud io playback in-
terference.
Jukebox* : tracks on the imported
playlist are grayed out.
Jukebox* : imported tracks cannot
be played or found.
Online media *: connection failed
between the MMI and the
Audi
MMI connect
app.
Audi music interface: contents
that are changed on a mobile de-
vice connected to the Audi music
interface are not displayed in the
med ia center .
Bluetooth audio player *: interfer-
ence with track d isplay and audio
playback.
Media
Solution
For many ce ll phones or mobile devices, playback is not possible
when the battery level is too low (less than 5% of its capacity).
The mobile
de -vice will only be recognized as a source in the MMI
after connecting if the battery charge is sufficient .
The
Bluetooth audio player f unction is switched on. Switch this
function off
c:> page 2 54 when you a re not using the Bluetooth
audio player.
Reset the Media settings to the facto ry defau lt settings
¢ page 2 52.
When connecting a nd disconnecting, the External audio player
source is already selected. Before connecting or disconnecting the
mobile device, either mute the device (see
c:> page 255) or switch
to a different audio source (for example
c:> page 225, Opening the
radio) .
Only one interface should be act ively used at a time to ensure
problem-free playback .
When importing playlists, a ll of the fi les themselves must be im-
ported.
If yo u cannot find impor ted tracks in the media center, they may
not be supported. Only copy supported files
c:> page 245 to the
Jukebox.
To establish a connection to the MMI, the MMI connection sw itch
must be switched on in the
Audi MMI connect app status screen .
Reset the
Media settings to the factory default settings
c:> page 252.
Playback interference can occur when using the Bluetooth audio
player
if a music player app from a th ird party provider is open.
Aud i recommends using the integrated media player on your Blue-
tooth dev ice (such as a smartphone) .
247

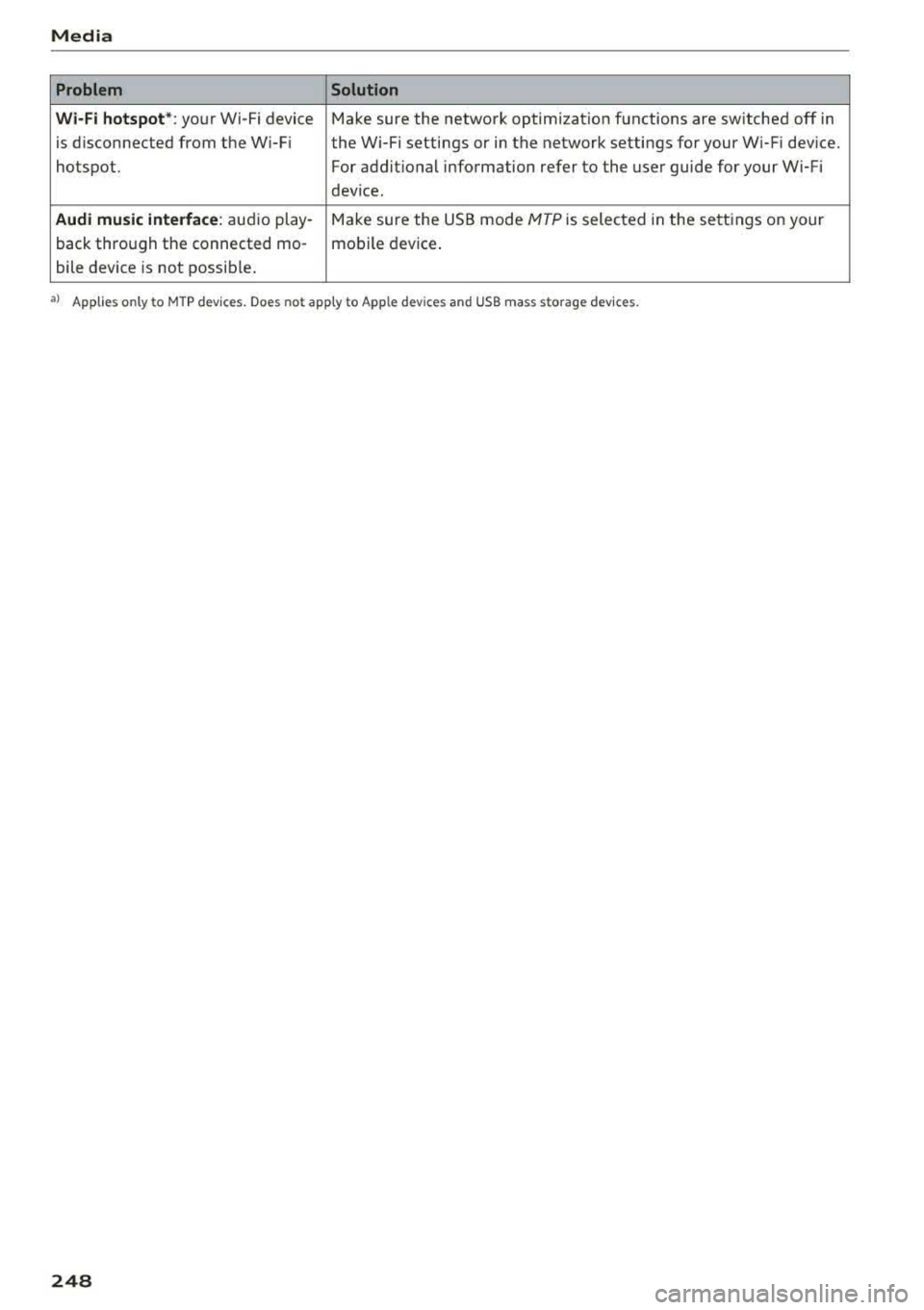

Media Problem Solution
Wi -Fi hotspot* :
your Wi-Fi device Make sure the network optimization functions are switched off in
is d isconnected from the W i-Fi the Wi-Fi settings or in the network settings for your W i-Fi device.
hotspot. For additional information refer to the user guide for your Wi-Fi
dev ice .
Audi music interface: audio play -Make sure the USB mode MTP is selected in the settings on your
back through the connected mo- mobile device.
bile device is not possib le .
a> Applies only to MTP dev ices. Does not apply to Apple devices and USB mass sto rage devices.
248
