Off -when the parking system is switched off,
only audible signals are given.
Warning tones
Front volume -front sensor vo lume
Front frequency -front sensor frequency
Rear volume -rear sensor volume
Rear frequency -rear sensor frequency
Music volume while parking -when the park­
ing system is switched on, the volume of the
active audio source is lowered.
The newly adjusted value is briefly heard from
the signal gene rator.
(D Tips
- The warning tones can also be adjusted
directly by the v isual display or the pic­
ture from the rear v iew camera. Simply
press the
Settings control button.
- Changed settings are activated when
parking system is switched on aga in.
- The settings are automatically stored
and ass igned to the remote control key.
Error messages
App lies to vehicles: with parking system plus or parking
syste m plus with rear v iew camera
There is an error in the system if the L ED on
the
[f;] switch is blinking and you hear a con­
tinuous alarm for a few seconds after switch­ ing on the parking system or when the park­
ing system is already act ivated . H ave your au­
thor ized Audi dealer correct the error .
(i) Tips
If the error is not corrected before you
switch off the ignition, when you switch on
the parking system aga in, the LED in the
[f;] switch wil l blink.
Parking system 119

120 Homelink®
Homelink®
Universal remote
control
General information
Applies to vehicles: with Home link® universal remote
control
The Homelink universal remote control can
be programmed with hand-held transmitters
from existing equipment.
Using the Homelink universal remote control,
you can operate equipment such as garage
doors, property gates and house lights from
ins ide your vehicle .
Using the Homelink universal remote control,
you can replace up to three separate hand­
held transmitters for equipment on your
property with just one universal remote con­
trol. Most of these transmitters are used to
ope rate ga rage doo rs and property gates. The
individual transmitters are programmed at
the front bumper. That is where the control
module is located.
The transmitters must be programmed first in
order to operate systems using the Homelink
universal remote control.
.&_ WARNING
-
-Never use the Homelink ® transmitter
with any garage door opener that does have not the safety stop and reverse fea­
ture as requ ired by federal safety stand­
ards. This includes any garage door open­
er model manufactured before April 1, 1982.
- A garage door opener which cannot de­
tect an object, signa ling the door to stop
and reverse does not meet current feder­
al safety standards . Using a garage door
opener witho ut these features increases
risk of serious injury or death.
- For safety reasons never release the
parking brake or start the engine while
anyone is standing in front of the vehicle .
- A garage door or an estate gate may
sometimes be set in motion when the Homelink
® remote control is being pro­
grammed. If the device is repeatedly ac­
tivated, this can overstrain motor and
damage its electr ical components - an
overheated motor is a fire hazard!
- To avoid possible injuries or property
damage, please always make absolutely
certain that no persons or objects are lo­
cated in the range of motion of any
equ ipment being operated.
(D Tips
- If you would like additional information
on the Homelink ® Universal Transceiver,
Homelink compatible products, or to
purchase other accessories such as the
Homelink® Light ing Package, please
contact Homelink at 1-800 -355-3515 o r
on the Internet at www.homelink .com.
- For Declaration of Comp liance to United
States FCC and Industry Canada regula­
tions¢
page 281.

Programming transmitters
Applies to vehicles: with Horne link
You con program the buttons in the Home­
Link universal remote control located in the
vehicle headliner.
F ig. 129 Contro l u ni t in th e headlin er
Fig. 130 Left front a rea of the b um per
Programming a button
M 0
9 C)
~
• Make sure your veh icle is within operating
range of the remote controlled garage door
opener.
• Set the parking brake¢
A in General infor­
mation on page 120.
• Switch the ignition on. Do not start the en­
gine!
• There are two ways to program a button :
press the button that you would like to pro ­
gram . The MMI will display instructions to
guide you through the programm ing . Or
• Select : IC ARI funct ion button >
Car systems
control button > Vehicle settings > Garage
door opener> Program garage door open­
er .
• Se lect the button that you would like to
program.
• Follow the instructions in the MMI.
• If the garage door opening must also be
synchronized w ith the Homelink module,
Homelink ® 121
refer to the owner's manua l for the garage
door opener .
Using the programmed button
• Press the programmed button¢ A in Gen­
eral information on page 120
to open the
garage door. The light @will blink or turn
on.
• Press the button again to close the garage
door ¢
A in General information on
page 120.
Erasing the button programming
• Select: !CAR !function button> Car systems
function key > Vehicle settings > Garage
door opener > Clear program settings
>
Yes.
Displaying the version/status/country
code
• Select: I CAR ! function button > Car systems
contro l button > Vehicle settings > Garage
door opener > Version information .
You can program both fixed code and rolling
code systems using these instructions.
Programming a button
The requ ired distance between the handheld
transmitter and the Homelink modu le in the
bumper depends on the system that you are
programming. You may have to try several
times.
Each of the buttons can be reprogrammed in­
dividually. The procedure is the same as for in­
itial programming .
¢page 121, Programming
a button.
Erasing the button programming
Individual buttons can be reprogrammed. Fol­
low the same steps used when first program­
ming the button.
If you would like to erase all programmed but­
tons at the same time, select Erase button
programming.

122 Homelink®
- To ensure your safety, erasing the pro­
grammed Homel ink buttons before sell­
i ng the vehicle is recommended.
- Depend ing on the model of the garage
door opener, you may need to release the
button on the remote and press it again
when programming.

Driving Safely
General notes
Safe driving habits
Please remember -safety first!
This chapter contains important information,
tips, instructions and warnings that you need
to read and observe for your own safety, the
safety of your passengers and others. We have
summarized here what you need to know
about safety belts, airbags, child restraints as
well as child safety. Your safety is for us
priori­
ty number 1.
Always observe the information
and warnings in this section - for your own
safety as well as that of your passengers.
The information in this section applies to all
model versions of your vehicle. Some of the
features described in this sections may be
standard equipment on some models, or may
be optional equipment on others. If you are
not sure, ask your authorized Audi dealer.
A WARNING
-Always make sure that you follow the in­
structions and heed the WARNINGS in
this Manual. It is in your interest and in
the interest of your passengers.
- Always keep the complete Owner's Liter­
ature in your Audi when you lend or sell
your vehicle so that this important infor­
mation will always be available to the
driver and passengers.
- Always keep the Owner's literature handy
so that you can find it easily if you have
questions.
Safety equipment
The safety features are part of the occupant
restraint system and work together to help
reduce the risk of injury in a wide variety of
accident situations.
Your safety and the safety of your passengers
should not be left to chance. Advances in
technology have made a variety of features
available to help reduce the risk of injury in an
Driving Safely 123
accident. The following is a list of just a few of
the safety features in your Audi:
- sophisticated safety belts for driver and all
passenger seating positions,
- safety belt pretensioners,
- safety belt force limiters for the front seats,
- safety belt height adjustment systems for the front seats,
- front airbags,
- knee airbags for the front seats*
- side airbags in the front seats and outer rear
seats*,
- side curtain airbags,
- special LATCH anchorages for child re-
straints,
- head restraints for each seating position,
- adjustable steering column.
These individual safety features, can work to­
gether as a system to help protect you and
your passengers in a wide range of accidents.
These features cannot work as a system if
they are not always correctly adjusted and cor­
rectly used.
Safety is everybody's responsibility!
Important things to do before driving
Safety is everybody's job! Vehicle and occu­
pant safety always depends on the informed and careful driver.
Fo r your safety and the safety of your passen­
gers,
before driving always:
.. Make sure that all lights and signals are op­
erating correctly.
.,. Make sure that the tire pressure is correct .
.. Make sure that all windows are clean and
afford good visibility to the outside.
.,. Secure all luggage and other items carefully
I::!) page 59, I::!) page 56.
.,. Make sure that nothing can interfere with
the pedals.
.. Adjust front seat, head restraint and mir­
rors correctly for your height.
.. Instruct passengers to adjust the head re-
straints according to the ir height. .,.. •
•

124 Driving Safel y
• Make sure to use the right child restraint
correct ly to protect children¢
page 168,
Child Safety.
• Sit properly in your seat and make sure that
your passengers do the same¢
page 50,
General recommendations.
• Fasten your safety belt and wear it properly.
Also instruct your passengers to fasten their
safety belts proper ly
r:::;, page 133 .
What impairs driving safety?
Safe driving is directly related to the condi­
tion of the vehicle, the driver as well as the
driver 's ability to concentrate on the road
without being distracted.
The driver is respons ible for the safety of the
vehicle and all of its occupants.
If you r ability
to drive is impa ired, safety r isks for everybody
i n the vehicle increase and yo u also become a
hazard to everyone else on the road
r:::;, .&_ .
Therefore:
• Do not let you rself be di stracted by passen­
gers or by using a cellular telephone.
• NEVER drive when yo ur driving ability is im ­
paired (by medications, alcohol, drugs, etc.).
• Observe all traffic laws, ru les of the road
and speed limits and plain common sense .
• ALWAYS adjust your speed to road, traffic
and weather condit ions .
• Take frequent breaks on long trips . Do not
dr ive for more than two hours at a stretch.
• Do NOT drive whe n you are ti red, under
pressure or when you are stressed.
_8. WARNING
Impaired driving safety increases the risk
of serious personal injury and death when­
ever a vehicle is being used.
Proper occupant
seating positions
Proper seating position for the driver
The proper driver seating position is impor­
tant for safe, relaxed driving.
Fig. 131 Correct seat ing posit ion
For your own safety and to reduce the risk of
injury in the event of an accident, we recom­
mend that you adjust the driver's seat to the
following position:
• Adjust the driver's seat so that you can easi­
ly push the pedals all the way to the floor
while keeping your knee(s) slightly bent
r:::;, A.
• Adjust the angle of the seatback so that it is
in an upr ight position so that your back
comes in full contact with it when you drive.
• Adjust the steering whee l so that there is a
distance of at least 10 inches (25 cm) be­
tween the steering wheel and your breast
bone r:::;,
fig. 131. If not possible, see your au­
thorized Audi dealership about adaptive equipment.
• Adjust the steering wheel so that the steer­
ing wheel and airbag cover points at your
chest and not at your face .
• Grasp the top of the steer ing whee l with
your elbow(s) slightly bent.
• Adjust the head restraint so the upper edge
is as even as possible with the top of your
head. If that is not possible, try to adjust
the head restraint so that it is as close to
this position as possib le.
• Fasten and wear safety belts correctly
r::::>page 136.

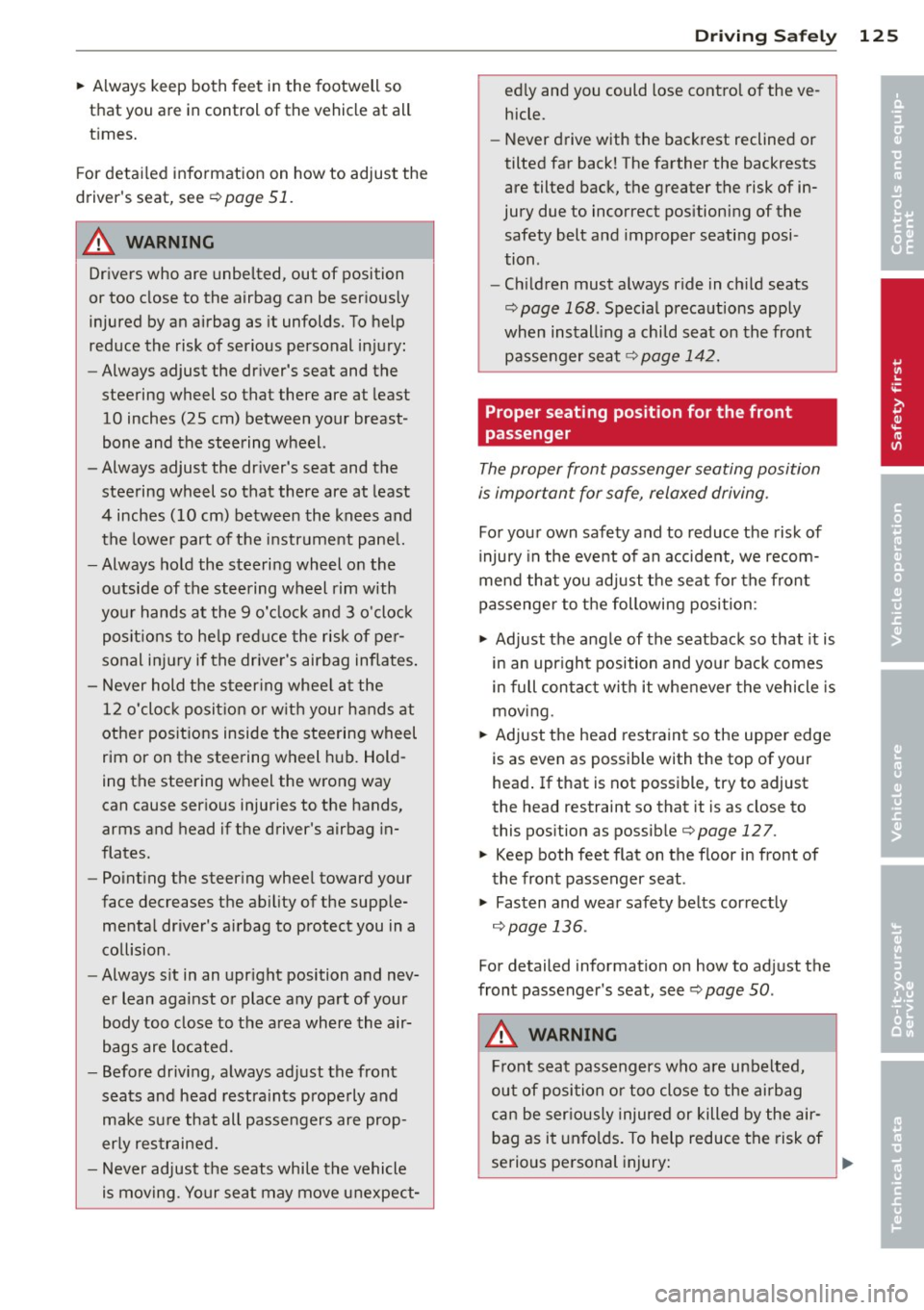

~ Always keep both feet in the footwell so
that you are in control of the vehicle at all
times.
For detailed information on how to adjust the
driver's seat, see
c:> page 51.
A WARNING
Drivers who are unbelted, out of position
or too close to the airbag can be seriously
injured by an airbag as it unfolds. To help
reduce the risk of serious personal injury:
- Always adjust the driver's seat and the
steering wheel so that there are at least
10 inches (25 cm) between your breast­
bone and the steering wheel.
- Always adjust the driver's seat and the
steering wheel so that there are at least
4 inches (10 cm) between the knees and
the lower part of the instrument panel.
- Always hold the steering wheel on the
outside of the steering wheel rim with
your hands at the 9 o'clock and 3 o'clock positions to help reduce the risk of per­
sonal injury if the driver's airbag inflates.
- Never hold the steering wheel at the
12 o'clock position or with your hands at
other positions inside the steering wheel
rim or on the steering wheel hub. Hold­
ing the steering wheel the wrong way
can cause serious injuries to the hands,
arms and head if the driver's airbag in­
flates.
- Pointing the steering wheel toward your
face decreases the ability of the supple­
mental driver's airbag to protect you in a
collision .
- Always sit in an upright position and nev­
er lean against or place any part of your
body too close to the area where the air­
bags are located.
- Before driving, always adjust the front
seats and head restraints properly and make sure that all passengers are prop­
erly restrained.
- Never adjust the seats while the vehicle
is moving. Your seat may move unexpect-
Driving Safely 125
ed ly and you could lose control of the ve­
hicle.
- Never drive with the backrest reclined or
tilted far back! The farther the backrests
are tilted back, the greater the risk of in­
jury due to incorrect positioning of the safety belt and improper seating posi­
tion .
- Children must always ride in child seats
c:> page 168 . Special precautions apply
when installing a child seat on the front passenger seat
c:> page 142.
Proper seating position for the front
passenger
The proper front passenger seating position
is important for safe, relaxed driving .
For your own safety and to reduce the risk of
injury in the event of an accident, we recom­
mend that you adjust the seat for the front
passenger to the following position :
~ Adjust the angle of the seatback so that it is
in an upright position and your back comes
in full contact with it whenever the vehicle is
moving.
~ Adjust the head restraint so the upper edge
is as even as possible with the top of your
head. If that is not possible, try to adjust
the head restraint so that it is as close to
this position as possible
<=:>page 127.
~ Keep both feet flat on the floor in front of
the front passenger seat .
~ Fasten and wear safety belts correctly
<=:>page 136.
For detailed information on how to adjust the
front passenger's seat, see
c:> page 50 .
A WARNING
Front seat passengers who are unbelted,
out of position or too close to the airbag
can be seriously injured or killed by the air­
bag as it unfolds. To help reduce the risk of
serious personal injury:
•
•

126 Driving Saf ely
- Passengers must always sit in an upright
posit ion and never lean against or place
any part of their body too close to the
area where the airbags are located.
- Passengers who are unbelted, out of po­
sit ion or too close to the airbag can be
seriously injured by an airbag as it un­
folds with g reat force in the blink of an
eye.
-Always make sure that there are at least 10 inches (25 cm) betwe en the front
passenge r's breastbone and the inst ru­
ment pane l.
- Always make sure that there are at least
4 inches (10 cm) between the front pas­
senger's knees and the lowe r part of the
ins trument panel.
- Each passenger m ust always s it on a seat
of the ir own and properly fasten and
wea r the safety belt be long ing to that
seat .
- Be fore driv ing, a lways ad just the front
passenger seat and head restraint prop­
er ly .
- Always keep your feet on the f loor in
front of the seat . Never rest them on the
seat, instr ument panel, out of the win­
dow, etc. The airbag system and safety
belt w ill not be ab le to protect you prop­
erly and can even increase the risk of in­
jury in a crash .
- Never drive with the backrest recl ined or
t ilted far back! The farther the back rests
are t ilted back, the greate r the risk of in­
jury due to incorrect positioning of the
safety belt and improper seating posi­
t ion.
- Children must always ride i n chi ld seats
~ page 168. Specia l precautions apply
when insta lling a child seat on the front
passenge r seat ~
page 142 .
Proper seating positions for passengers
in rear seats
Rear seat passengers must sit upright with
both feet on the floor consistent with their
physical si ze and be properly restrained
whenever the vehicle is in use.
T o redu ce the risk o f injury caused by an inco r­
rect seating posi tion in the event of a sudden
braking maneuver or an accident, your pas ­
sengers on the rear bench seat must always
observe the following:
.., Adjust the head rest raint so the upper edge
is as even as possible with the top of your
head . If t hat is not possible , try to adjust
the head restraint so that it is as close to
this pos ition as possib le
~ page 12 7 .
.., Keep both feet flat in the footwell in front
of the rear seat.
.., Fasten and wear safety belts p roperly
~ page 136 .
.., Make su re that children are always properly
restrai ned in a child restraint that is appro­
pria te fo r the ir s ize and age~
page 168.
.&, WARNING ,.__
Passengers who are imp roperly seated on
the rea r seat can be seriously injured in a
crash.
- Each passenger must always sit on a seat
of their own and properly fasten and
wear the safety belt belonging to that seat.
- Safety belts only offer maximum protec­
tion when the safety belts are properly
positioned on the body and securely
latched . By not sitting upr ight, a rear
seat passenger inc reases the r is k of per­
sonal injury from imp roperly pos itioned
safety belts!
- Always adjust the head rest raint p roperly
so that it can give maximum protection.

Proper adjustment of head restraints
Correctly adjusted head restraints are an im­
portant part of your vehicle's occupant re­
straint system and can help to reduce the risk of injuries in accident situations.
Fig. 132 Head re str ain t: vi ew ed fro m the front
The head restraints must be correctly adjust­
ed to achieve the best protection.
,.. For adjustable head restraints: adjust the
head restraint so the upper edge is as even
as possible with the top of your head. If that
is not possible, try to adjust the head re­
straint so that it is as close to this position
as possible
q fig. 132.
"'" If there is a passenger on the rear cen ter
seating position, slide the center head re­
straint upward at least to the next notch.
Adjusting head restraints
q page 52.
A WARNING
Driving without head restraints or with
head restraints that are not properly ad­
justed increases the risk of serious or fatal
neck injury dramatically. To help reduce
the risk of injury:
- Always drive with the head restraints in
place and properly adjusted.
- Every person in the vehicle must have a
properly adjusted head restraint.
-Always make sure each person in the ve­
hicle properly adjusts their head re­
straint. Adjust the head restraint so the
upper edge is as even as possible with
the top of your head. If that is not possi­
ble, try to adjust the head restraint so
Driving Safely 127
that it is as close to this position as pos­
sible.
- Never attempt to adjust head restraint
while driving. If you have driven off and
must adjust the driver headrest for any
reason, first stop the vehicle safely be­
fore attempting to adjust the head re­
straint.
- Children must always be properly re­
strained in a child restraint that is appro­
priate for their age and size
q page 168.
Examples of improper seating positions
The occupan t restraint sys tem can only re­
duce the risk of injury if vehicle occupants are
properly seated .
Improper seating positions can cause serious
injury or death . Safety belts can only work
when they are properly positioned on the
body . Improper seating positions reduce the
effectiveness of safety belts and will even in­
crease the risk of injury and death by moving
the safety belt to critical areas of the body.
Improper seating positions also increase the
risk of serious injury and death when an air­
bag deploys and strikes an occupant who is
not in the proper seating position. A driver is
responsible for the safety of all vehicle occu­
pants and especially for children. Therefore :
,.. Never allow anyone to assume an incorrect
seating position when the vehicle is being
used
q _&, .
The following bulletins list only some sample
positions that will increase the risk of serious
injury and death. Our hope is that these exam­
ples will make you more aware of seating po­
sitions that are dangerous.
Therefore, whenever the vehicle is moving:
- never stand up in the vehicle
- never stand on the seats
- never kneel on the seats
- never ride with the seatback reclined
- never lie down on the rear seat
- never lean up against the instrument panel ..,.
•
•

128 Driving Safely
-never si t on the edge of t he seat
- never sit s ideways
- n ever lean out the w indow
- never put your feet out the window
- never put your feet on the instrument panel
- never rest your feet on the seat cushion or
back of the seat
- never ride in the footwe ll
- never ride in the cargo area
A WARNING
Improper seat ing pos itions increase the
r isk of serious personal injury and death
whenever a veh icle is being used .
- Always make sure that all vehicle occu­
pants stay in a proper seating position
and are properly restra ined whenever the
vehicle is be ing used .
Driver and passenger
side footwell
Important safety instructions
Applies to vehicles: with knee airbags
A WARNING
Always ma ke s ure that the knee a irbag can
inflate without interfe rence. Objec ts be­
t ween yourse lf and the airbag can inc rease
t he risk of injury in an acc iden t by interfer ­
ing with the way the airbag deploys or by
being p ushed into you as the airbag de­
ploys.
- No persons (ch ild ren) or animals should
ride in the footwell in front of the pas­
senger seat. If the airbag deploys, this
can result in serious or fata l injuries.
- No objects of any kind sho uld be carried
in the footwell area in front of the driv­
er's or passenger's seat . Bulky objects
(shopp ing bags, for example) can ham­
per or prevent p roper deployment of the
airbag . Small objects can be throw n
through t he vehi cle if the airbag deploys
and inju re you o r you r passengers.
-
Pedal area
Pedals
The pedals must always be free to move and
must never be interfered with by a floor mat
or any other object.
Make sure that a ll peda ls move freely without
interference and that nothing prevents them
from retur ning to their orig inal positions .
Only use f loor mats t hat leave the pedal area
free and can be secured with floor mat fasten­ ers .
If a brake circ uit fa ils, increased brake pedal
trave l is required to bring the vehicle to a f ull
stop.
A WARNING
-Pedals that cannot move free ly can cause
'
l oss of vehicle control and increase the risk
of ser ious injury.
- Never p lace any objects i n the drive r's
footwell . An ob ject cou ld get into the
pedal area a nd inte rfe re with pedal func­
tion . In case of sudde n bra ki ng o r an a c­
cide nt, yo u wo uld not b e able to brake or
accelerate!
- Always make sure that no thing can fall
or move into the driver's footwel l.
Floor mats on the driver side
Always use floor mats that can be securely
attached to the floor mat fasteners and do
not interfere with the free movement of the
pedals.
"' Ma ke s ure that the floor ma ts are prope rly
secured and canno t move and in terfe re with
t he peda ls
~ .&_ .
Use only floor mats that leave the peda l area
u nobst ructed and that are firmly se cu red so
t h at they cannot slip o ut of position . You c an
obta in suitab le floo r mats from yo ur autho r­
ized Audi Dealer.
Floor ma t fastene rs a re insta lled in y our Aud i . .,.
