When the malfunction indicator is illuminat­
ed, the system may not be able to detect or
signal low tire pressure as intended. TPMS
malfunctions may occur for a variety of rea ­
sons, including the installation of replace­ ment or alternate tires or wheels on the vehi ­
cle that prevent the TPMS from function ing
properly . Always check the TPMS malfunction
tellta le after replacing one or more tires or
wheels on your vehicle to ensure that the re­
placement or alternate tires and wheels allow
the TPMS to continue to function properly.
Tire pressure indicator appears
Applies to vehicles: with tire pressure monitoring system
The tire pressure indicator in the instrument
cluster informs you if the tire pressure is too
low or if there is a system malfunction.
Fig. 196 Display : underinflatio n warning
Fig. 197 Display : Syste m malfun ctio n
Using the ABS sensors, the tire pressure moni ­
toring system compares the tire tread circum­
ference and vibration characteristics of the in­
dividual tires . If the pressure decreases in one
or more tires , th is is indicated in the instru­
ment cluster with a warning symbol
RE and a
message
¢fig . 196.
The tire pressure monitoring system must be
reset via MMI each time the pressures are ad-
Tires and wheels 259
justed (e.g. when switching between partial
and full load pressure) or after changing or re­
plac ing a tire on your vehicle¢
page 260. The
TPMS indicator only monitors the tire pres­
sure that you have previously stored. You can
find the recommended tire pressures for your
vehicle on the label on dr iver's side B-pillar
~page 244.
Tire tread circumference and vibration charac­
teristics can change and cause a tire pressure
warning if :
- the tire pressure in one or more tires is too
low,
- the tire has structural damage,
- the tire pressure was changed, wheels rotat-
ed or replaced but the TPMS was not reset
¢page 260.
Warning symbols
RE Loss of pressure in at least one tire¢.&. .
Check the tire or tires and replace or repair if
necessary. The indicator light
RE in the instru­
ment cluster also illuminates
¢ page 12.
Check/correct the pressures of all four tires
and reset TPMS via MMI.
11;;~, ( T ire Pressure Monitoring System) Tire
pressure! System malfunction.
If11NIS, appears after switching the ignition
on or while driving¢
fig. 197 and the indica­
tor light
RE in the instrument cluster blinks
for approximately one minute and then stays
on, there is a system malfunction.
Attempt to store the correct tire pressure
¢
page 260 . If the indicator light does not
turn off or if it turns on shortly thereafter, im­
mediately drive your vehicle to an authorized
Audi dealer or authorized repair facility to have the malfunction corrected .
A WARNING
-If the tire pressure ind icator appears in
the instrument cluster display, one or
more of your tires is significantly under­
inflated. Reduce your speed immediately
and avoid any hard steering or braking
maneuvers. Stop as soon as possib le and .,.

260 Tire s and wheel s
check the tires and their pressures. In­
flate the tire pressure to the proper pres­
sure as indicated on the vehicle's tire pressure label
c> page 244. Driving on a
significantly under-inflated tire causes
the tire to overheat and can lead to tire
failure. Under-inflation also is likely to impair the vehicle's handling and stop­
ping ability.
- T he driver is responsible for ma inta ining
the correct tire pressures. You must check the t ire pressures regular ly .
- Under certain cond itions (such as a spor­
ty driving s tyle, win ter condit ions or un­
paved roads), the pressure monitor indi ­
cator may be de layed .
- Ask your author ized Audi dealer if r un­
flat tires may be used on your vehicle .
You r vehicle regist ration becomes invalid
if yo u use these tires when not permit­
ted. Damage to your veh icle or accidents
cou ld also resu lt.
- The tire pressure monitoring system
stops wor king when there is an ESC/ABS
malfunction .
- Using snow chains may result in a system
malfunction.
- The tire pressure monitoring system on
your A udi was developed using tires with
the "AO" or "RO" identif ication on the
tire sidewall <:>page 251. We recom­
mend using these t ires.
Reset tire pressure monitoring system
App lies to vehicles: with tire pressure monito ring system
If the tire pressure is adjusted, wheels are ro­
tated or changed, the TPMS must be reset via
MMI.
., Switch on the ignition .
., Se lect in the MMI: !CAR !function button>
(Car )* syst ems contro l butto n > Serv icing &
checks > Tire pres sure mon itoring > Store
tire pre ssure s> Yes, store n ow .
(D Tips
Do not store the tire pressure if there are
snow cha ins on the tire .

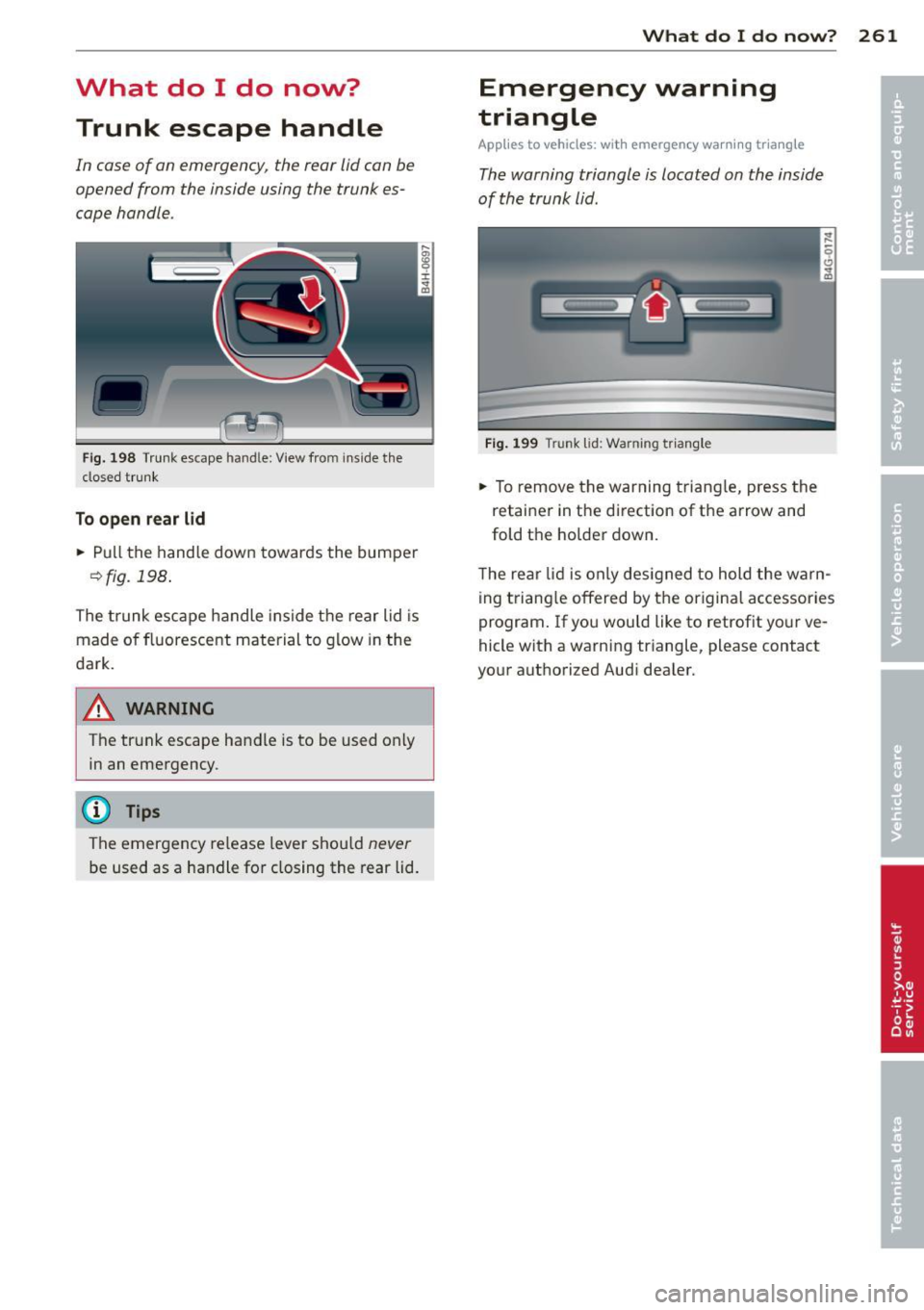

What do I do now? Trunk escape handle
In case of an emergency, the rear lid can be
opened from the inside using the trunk es­
cape handle .
Fig. 198 Trunk escape hand le : View from inside the
close d trunk
To open rear lid
.,. Pull the handle down towards the bumper
~fig. 198.
The trunk escape handle inside the rear lid is
made of fluorescent material to glow in the
dark.
A WARNING
The trunk escape handle is to be used only
in an emergency .
(D Tips
The emergency release lever shou ld never
be used as a handle for closing the rear lid.
What do I do now? 261
Emergency warning
triangle
App lies to veh icles: w it h emergency wa rning tria ng le
The warning triangle is located on the inside
of the trunk lid.
Fig. 199 Trunk lid: Warning triangle
.,. To remove the warning triangle, press the
retainer in the direction of the arrow and
fold the holder down .
The rear lid is only designed to hold the warn­
ing triang le offered by the original accessories
program. If you would like to retrof it yo ur ve­
hicle with a warning triangle, please contact
your authorized Audi dealer.

262 What do I do now?

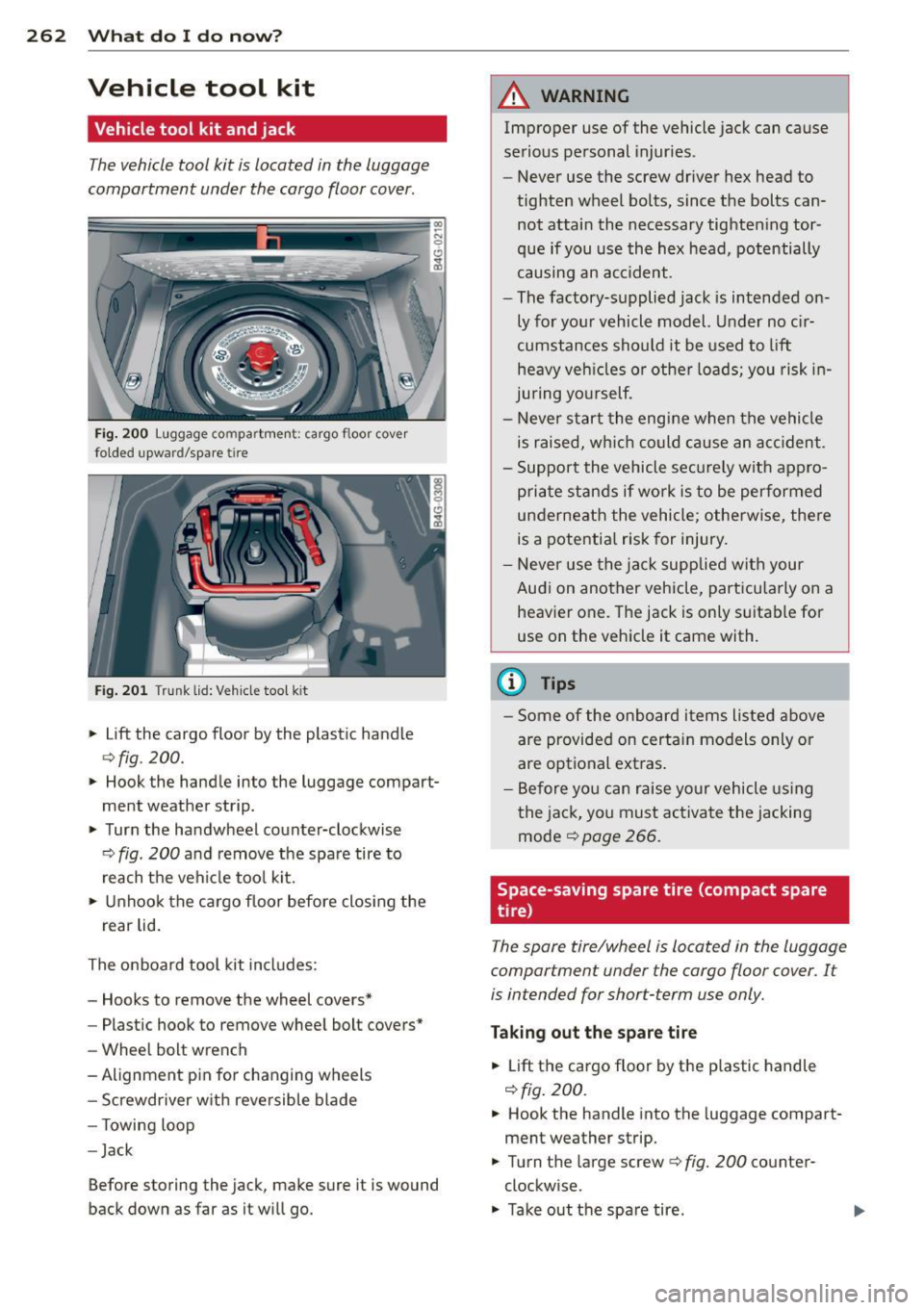

Vehicle tool kit
Vehicle tool kit and jack
The vehicle tool kit is located in the luggage
compartment under the cargo floor cover .
Fig. 200 Luggage compartment: cargo floor cover
folded upward/spare t ire
Fig . 201 Trunk lid: Vehicle tool kit
• Lift the cargo floor by the plastic handle
c:>fig. 200.
• Hook the handle into the luggage compart­
ment weather strip.
• Turn the handwheel counter-clockwise
c:> fig. 200 and remove the spare tire to
reach the vehicle tool kit.
• Unhook the cargo floor before closing the
rear lid.
The onboard tool kit includes:
- Hooks to remove the wheel covers*
- Plastic hook to remove wheel bolt covers*
- Wheel bolt wrench
-Alignment p in for changing wheels
- Screwdr iver w ith reve rsible blade
- T owing loop
- Jack
Before storing the jack, make sure it is wound
back down as far as it will go.
A WARNING ,-
Improper use of the vehicle jack can cause
serious personal injuries.
- Never use the screw driver hex head to
tighten wheel bolts, since the bolts can­
not attain the necessary tighten ing tor­
que if you use the hex head, potentially
causing an accident.
- The factory-supplied jack is intended on­
ly for your vehicle model. Under no c ir­
cumstances should it be used to lift
heavy vehicles or other loads; you risk in­
juring yo urself.
- Never start the engine when the vehicle
is raised, wh ich could cause an accident.
- Support the vehicle securely with appro­
priate stands if work is to be performed
underneath the vehicle; otherwise, there
is a potential risk for injury.
- Never use the jack supplied with your
Audi on another vehicle, particu larly on a
heavier one. The jack is only suitable for
use on the vehicle it came with.
(D Tips
- Some of the onboard items listed above
are provided on certain models only or
are optional extras .
- Before you can raise your vehicle using
the jack, you must activate the jacking
mode
c::> page 266.
Space-saving spare tire (compact spare
tire)
The spare tire/wheel is located in the luggage
compartment under the cargo floor cover . It
is intended for short-term use only.
Taking out the spare tire
.,. Lift the cargo floor by the p lastic handle
c::>fig. 200.
.,. Hook the handle into the luggage compart­
ment weather strip.
.,. Turn the large screw
c:> fig. 200 counte r­
clockw ise.
.,. Take out the spare tire .

.,. Always store the vehicle too l kit, the jack*
and the replaced tire in the luggage com­
partment
c!:> page 132.
.,. Unhook the cargo floor before closing the
rear lid.
Using the spare tire (compact spare tir e)
The compact spare tire is on ly intended for
emergencies until you can reach a repair shop .
Replace it as quick ly as poss ible with a stand­
ard wheel and tire.
There are some restrictions on the use of the
compact spare tire. The compact spare tire
has been designed specifically for your type of
veh icle. It must not be swapped with a com­
pact spare t ire from another type of vehicle.
Snow chain s
For technical reasons, the use of snow chains
on the compact spare tire is
not permitted.
If you do have to dr ive w ith snow cha ins and a
front tire f ails, mount the spare whee l with
tire instead of a rear tire . Install the snow
chains on the rear tire and use it to replace
the defective front tire.
A WARNING
-Never use the spare tire if it is damaged
o r if it is worn down to the tread wear in­
dicators .
- If the spare tire is more than 6 years o ld,
use it only in an emergency and w ith ex­
treme caution and careful driving.
- The spare tire is intended only for tem­
porary and short-term use. It should be
replaced as soon as possible w ith the
normal wheel and t ire.
- After mounting the compact spare tire,
the tire pressure must be checked as
soon as poss ible. The tire pressure of the
c ompact sp are tire must be 4.2 bar; oth­
erwise, you risk hav ing an accident .
- Do not drive faster than 50 mph (80 km/
h). You risk having an acc ident.
- Avoid fu ll-throttle acce le rat ion, heavy
braking, and fast corner ing . Yo u risk hav­
ing an acc iden t.
What do I do now? 263
- Never drive using more than one spare
wheel and tire. You r isk having an acci­
dent .
- Normal summer or winter t ires must not
be mounted on the compact spare wheel
rim.
- For technical reasons, the use of tire
chains on the spare tire is not permitted .
If it is necessary to drive w ith t ire chains,
the spare wheel must be mounted on the
front axle in the event of a flat in a rear
tire. The newly available front whee l
m ust then be instal led i n place of the
rea r whee l w ith the flat tire. Installing
the tire chain be fore mounting the whee l
and tire is recommended.
- Loose items in the passenger compart ­
ment can cause serious personal injury
during hard braking or in an accident. Never store the inflatab le spare tire or
jack and tools in the passenger compart­
ment.
Changing a wheel
Before changing a wheel
Observe the following precautions for your
own and your passenger's safety when chang­
ing a wheel.
.,. After you expe rience a t ire failure, p ull the
car well away from mov ing traffic and try to
reach
l e vel ground before you stop ¢ _& .
.,. All passengers should lea ve th e car and
move to a safe location (f or instance, behind
the guardrail) ¢
,&.
.. Engage the par king br ake to prevent your
veh icle from rolling unintentionally
c:> _&.
.,. Move selecto r le ver to pos ition P c:> _& .
.,. If you are towing a tra iler, unhitch the trail­
er from your vehicle.
.,. Take the
jack and the spar e tir e out of the
luggage compartment¢
page 262,
¢page 262. .,.
•
•

264 What do I do now?
&_ WARNING
You or your passengers could be injured
while changing a wheel if yo u do n ot fol­
low t hese safety precautions:
- If you have a flat t ire, move a safe dis­
tance
off the road. Turn off the engine,
turn the emergency flashers on and use other warning dev ices to alert other mo­
torists.
- Make sure that passengers wait in a safe
place away from the vehicle and well
away from the road and traff ic.
- T o help p revent the veh icle from mov ing
sudden ly and possibly slipping off the
ja ck, always fully set the parking b rake
and bloc k the whee l diagona lly opposite
the whee l being changed. When one
front whee l is lifted off the gro und, plac­
ing the Automat ic Transmiss ion in P
(Park) will
not prevent the vehicle from
moving.
- Before you change a wheel, be sure the
ground is level and firm. If necessary,
use a sturdy board under the jack.
- Always store the vehicle tool kit, the jack
and the replaced t ire i n the luggage com­
partment
¢ page 132.
Before chang ing the wheel, yo u m ust acti­
vate the jacking mode, so that the auto­ mat ic cont rols for the Adaptive Air S us­
pens ion* do not make it more difficult to
lift the vehicle with the jack
c> page 266.
Changing a wheel
When you change a wheel, follow these­
quence described below step-by-step and in
exactly that order .
1. Activate the vehicle jack mode*
~page 266.
-
2. Remove the decorative wheel cov er* . For
mo re details see also ¢
page 265, Deco­
rative wheel covers
or c> page 265,
Wheels with wheel bolt caps.
3 . L oosen the wheel bolts¢ page 265.
4. Locate the proper mounting point for the
jack and alig n the jack below that point
¢ page 266 .
5.
Raise the car with the jack¢ page 266.
6. Remove the wheel with the flat tire and
then insta ll
the s pare ¢page 267.
7. Tighten all whee l bolts lightly.
8 . Lower the vehicle with the jack .
9. Use the wheel bolt wrench and firmly
t igh ten al l w heel bo lts¢ page 265.
10. Rep lace the decorat ive wh eel co ver* .
11. Deactivate the vehicle jack mode* in the
MMI:
ICARI f u nction button > (Car )* sys­
tems
control button > Se rvicing & chec ks
> A ir susp .: jac k mode > Off .
The vehicle jack mode * switches off automati­
ca lly at speeds above
6 mph (1 0 km/h) .
&_ WARNING ,.__
Always read and follow all WARNINGS and
i nformat ion¢ &.
in Raising the vehicle on
page 266
and c> page 268.
After changing a wheel
A wheel change is not complete without the doing the following.
.,. Always store the vehicle tool kit, the jack *
and the rep laced tire in the luggage com­
partment
¢ page 132.
.,. Check t he ti re pressu re on the spare whee l
immed iate ly after mounting it .
.,. As soon as possib le, have the
tightening
torques
on all whee l bolts checked with a
t o rque wrenc h. The co rrect tighte ning tor ­
que is 90 ft lb (120 Nm).
.,. Have the flat tire
replaced as soon as possi­
b le.
(D Tips
- If you not ice th at the wheel bo lts a re
co rroded and difficult to turn while
changing a tire, they should be rep laced
before you check the tightening torque.
- Drive at reduced speed until you have the
tightening torques checked .
ll-

-After changing a wheel, the tire pressure
in all four tires must be checked/correct­
ed and the tire pressure mon itor ing indi­
cator must be stored in the MMI
qpage260 .

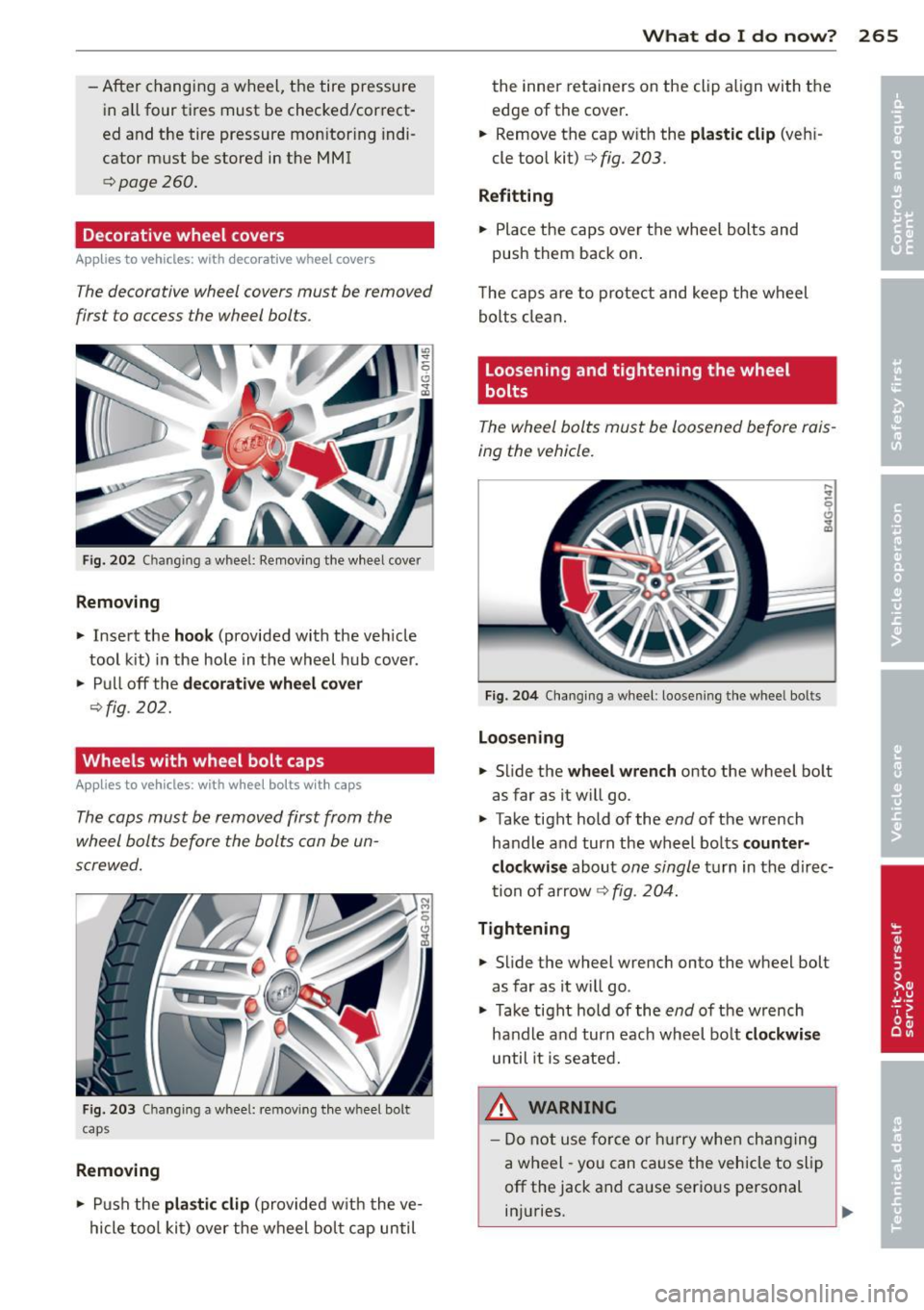

Decorative wheel covers
Applies to vehicles: with decorat ive wheel covers
The decorative wheel covers must be removed
first to access the wheel bolts.
Fig. 202 Changing a wheel: Removing the wheel cover
Removing
.,.. Insert the hook (provided with the veh icle
tool kit) in the hole in the wheel hub cover .
.,.. Pull off the
decorative wheel cover
qfig. 202.
Wheels with wheel bolt caps
Applies to vehicles: with wheel bo lts w it h caps
The caps must be removed first from the
wheel bolts before the bolts can be un­
screwed.
Fig . 203 Changing a whee l: remov ing t he wheel bolt
caps
Removing
.,.. Push the plastic clip (provided w ith the ve­
hicle tool kit) over the wheel bolt cap until
What do I do now? 265
the inner retainers on the clip align with the
edge of the cover .
.,.. Remove the cap w ith the
plastic clip (vehi­
cle tool kit)
q fig. 203.
Refitting
.,.. Place the caps over the wheel bolts and
push them back on .
The caps are to protect and keep the wheel
bolts clean.
loosening and tightening the wheel
bolts
The wheel bolts must be loosened before rais ­
ing the vehicle.
Fig . 204 Cha nging a wheel: l oosen ing th e whee l bo lts
loosening
.,.. Slide the wheel wrench onto the wheel bolt
as far as it w ill go.
.,.. Take tight hold of the
end of the wrench
handle and turn the wheel bolts
counter­
clockwise
about one single turn in the direc­
tion of arrow
q fig . 204.
Tightening
.,.. Slide the wheel wrench onto the wheel bolt
as far as it w ill go .
.,.. Take tight hold of the
end of the wrench
handle and turn each wheel bolt
clockwise
until it is seated.
_&. WARNING
- Do not use force or hurry when chang ing
a wheel -you can cause the vehicle to slip
off the jack and cause serious personal injuries.

266 What do I do n ow ?
-Do not loosen the wheel bolts more than
one turn
before you raise the veh icle with
the jack. -You risk an injury .
@ Tips
-Never use the hexagonal socket in the
handle of the screwdriver to loosen or
tighten the wheel bo lts.
- If a whee l bolt is very tight, you may find
it easier to loosen by carefully pushing
down on the end of the wheel bolt
wrench w ith
one foot only. As you do so,
hold on to the car to keep your balance
and take care not to slip .

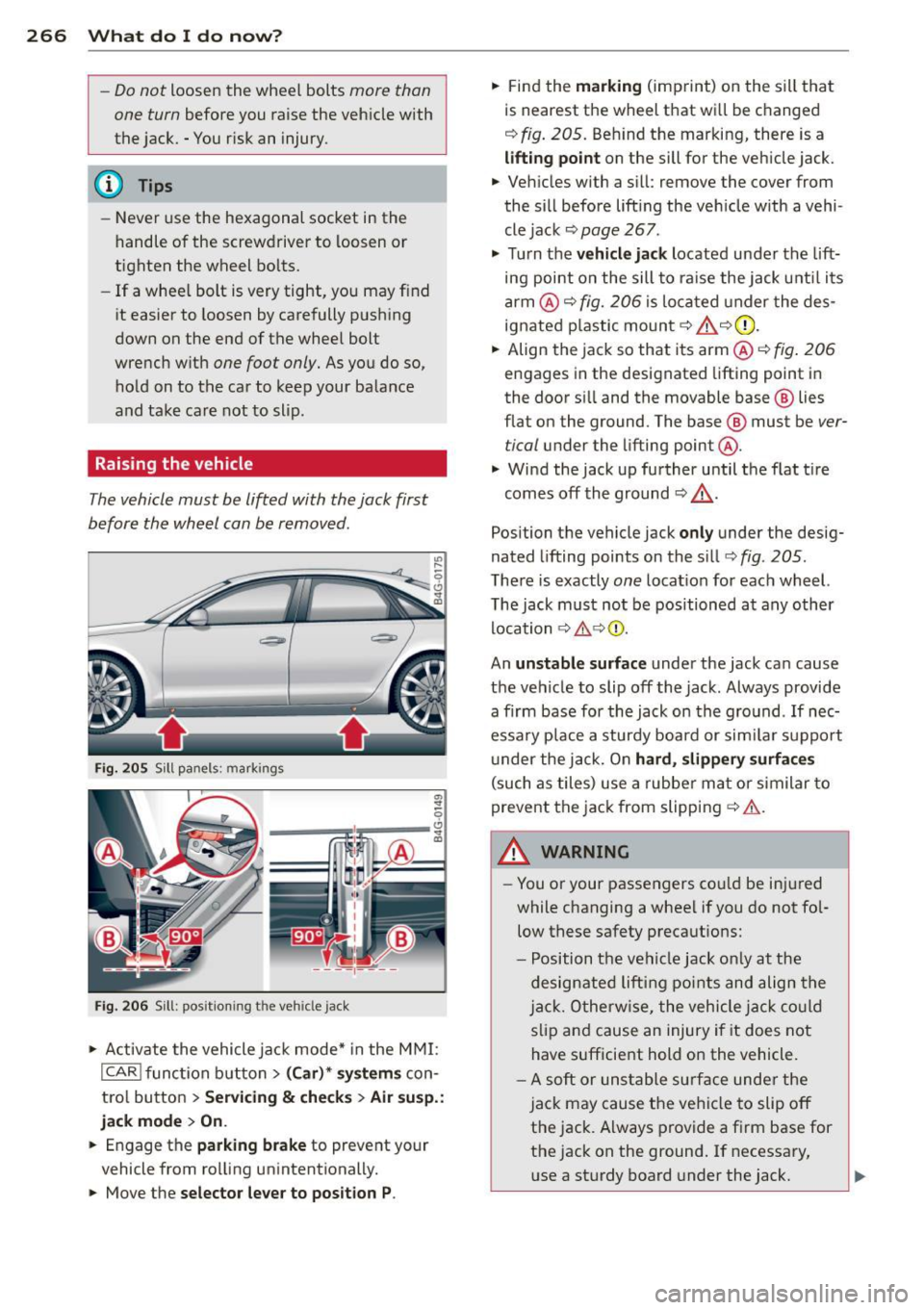

Raising the vehicle
The vehicle must be li~ed with the jack first
before the wheel can be removed .
Fig. 20 5 Sill pa nels : m ark ings
~
9
---;~ :~-;;:--~
Fi g. 20 6 Sill: pos ition ing the ve hicle jack
.,. Activate the vehicle jack mode* in the MMI :
I CAR! func tion button > (C ar)* sy ste m s con ­
t ro l butto n
> Servici ng & che ck s> Air su sp. :
j a ck mode > On .
.,. Engage the parking br ake to prevent your
vehicle from ro lling unintentionally.
.,. Move the
sel ector le ve r to po sit ion P .
.,. Find the marking (imprint) on the sill that
is nearest the wheel that wi ll be changed
¢
fig. 205. Be hind the marking, there is a
lift ing point on the sill for the vehicle jack .
.,. Vehicles with a sill: remove the cover from
the sill before lift ing the veh icle w ith a vehi ­
cle jack ¢
page 267.
.,. Turn the vehicl e jack located under the lift­
ing point on the sill to ra ise the jack u nti l its
arm @¢
fig. 206 is located under the des­
ignated p lastic mount ¢_&. ¢(!).
.,. Align the jack so that its arm@¢
fig. 206
engages in the designated lifting point in
the door si ll and the movable base @ lies
flat on the ground. The base ® must be
ver­
t ical
under the lifting point @ .
.,. Wind the jack up fu rther until the f lat t ire
comes off the ground ¢
,&..
Position t he veh icle jack onl y under the desig­
nated lifting points on the s ill ¢
fig . 205.
T here is exactly one locat ion for each wheel.
T he jack must not be positioned at any other
location ¢ _& ¢(j) .
An
un stab le surfa ce under the jack can cause
the vehicle to slip off the jack . Always provide
a firm base for the jack on the ground .
If nec­
essary place a sturdy board or sim ilar support
u nder the jack. On
h ard , s lipp ery surf aces
(such as tiles) use a rubber mat or similar to
preve nt the jack from slipping ¢
.&..
A WARNING
--You or your passengers co uld be injured
while changing a wheel if you do not fo l­
low these safety precautions:
- Position the vehicle jack on ly at the
designated lifting poi nts and align the
jac k. Otherw ise, the vehicle ja ck could
slip and cause an injury if it does not
have sufficient hold on the vehicle.
- A soft or uns table su rface under the
j ack may cause the vehicle to slip off
the jack . Always provide a firm base for
the jack on the ground. If necessary,
use a sturdy board under the jack. ,...

-On hard, slippery surface (such as tiles)
use a rubbe r mat or similar to prevent
the jack from slipping .
- To he lp prevent injury to yourself and
your passengers:
- Do not raise the vehicle until yo u are
sure the jack is secu rely engaged.
- Passengers must not remain in the ve­
h icle when it is jac ked up.
- Make sure that passengers wa it in a
safe p lace away from the vehicle and
well away from the road and t raffic.
- Make sure jack position is correct , ad­
just as necessary and then continue to
r ai se the jack.
- Changes in temperatur e or load can af­
fect the height of the ve hicl e.
(D Note
Do not lift the ve hicle by the s ill. Position
the vehicle jack only at the des ignated
lift­
ing points on the sill. Othe rwis e, your vehi­
cle will be damaged.
(D Tips
The vehicle jack mode* switches off auto­
mat ica lly at speeds above 6 mph (10 km/
h).

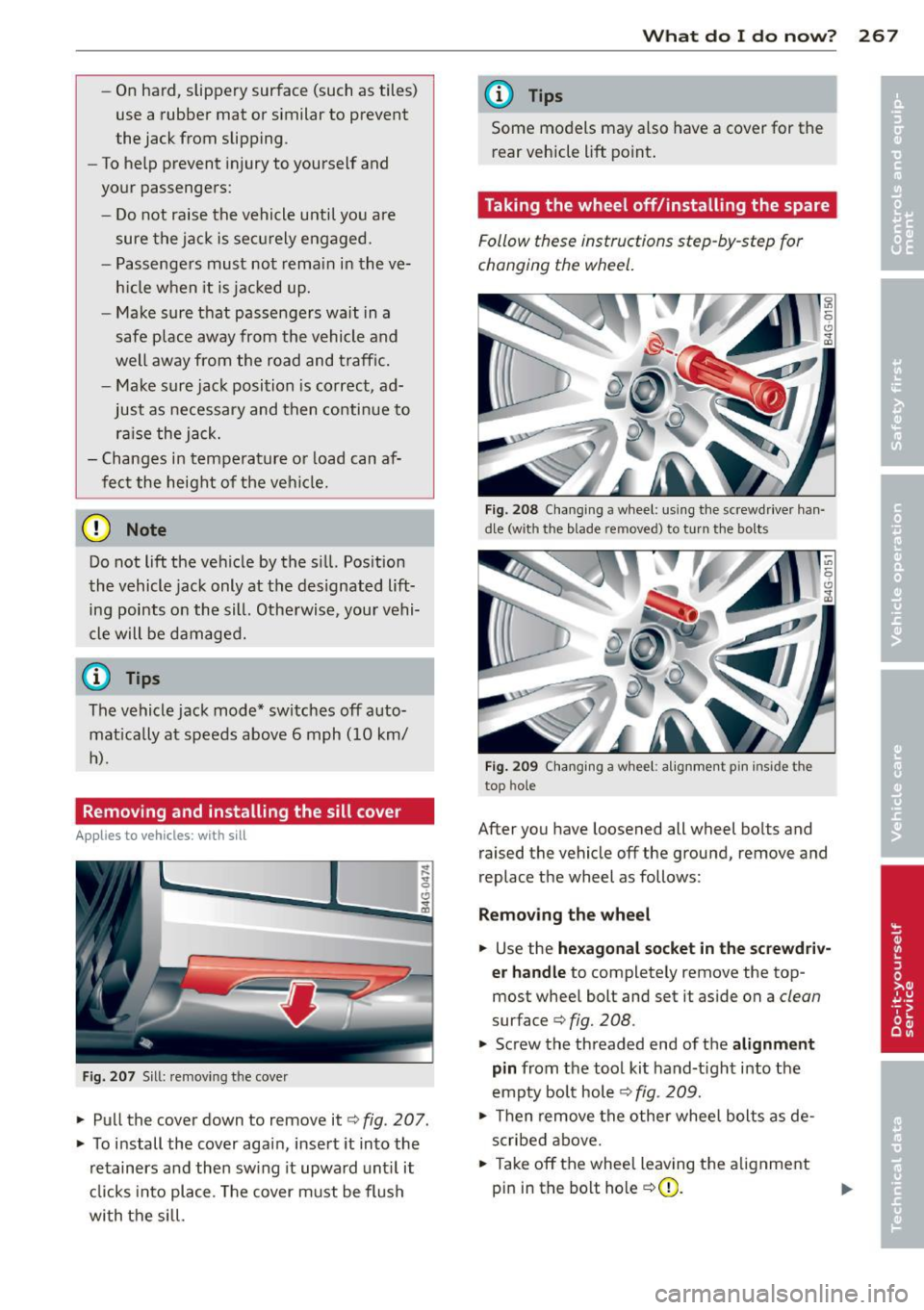

Removing and installing the sill cover
Applies to vehicles : wit h sill
Fig. 207 Sill: remov ing t he cover
.,. Pull the cover down to remove it c::> fig . 207.
.,. To install the cover again, inse rt it into the
retainers and then sw ing it upward unt il it
cl icks into place . T he cover m ust be flush
with the sill.
What do I d o now ? 267
@ Tips
Some models may also have a cover for the
rear vehicle lift po int.
Taking the wheel off/installing the spare
Follow these instructions step-by-step for
changing th e wheel.
Fi g. 208 Cha ngi ng a w heel: us ing th e screwd rive r ha n­
d le (w it h th e blade re m oved) to turn the bo lts
F ig . 209 Chang ing a whee l: a lig nment p in in sid e the
top hole
After you have loosened all wheel bo lts and
raised the vehicle
off the ground, remove and
replace the wheel as follows :
Removing th e wheel
.,. Use the hexagonal socket in the screwd riv ­
er handle
to complete ly remove the top­
most wheel bolt and set it aside on a
clean
surface c::> fig. 208 .
.,. Screw the threaded end of the alignment
pin
from the tool kit hand-t ight into the
empty bolt hol e
c::> fig. 209 .
.,. Then remove the other wheel bolts as de­
scribed above .
.,. Take
off the whee l leaving the alignment
pi n in the bolt hole
c::> (l).

268 What do I do no w?
P uttin g on the spare wheel
.. Lift the spare wheel and ca refully slide it
over the alignment pin to guide it in place
¢ (D .
.. Use the hexagonal socket in the screwdriver
handle to screw in and tighten all wheel
bolts
slightly.
.. Remove the alignment pin and insert and
t ighten the remaining wheel bolt slightly
L ike the rest .
.. Turn the jack handle cou nter -clockw ise to
lower the vehicle unt il the jac k is fully re­
leased.
.. Use the wheel bolt wrench to tighten all
wheel bolts firmly¢
page 265 . Tighten
them
crosswise, from one bolt to the (ap­
proximately) opposite one, to keep the
wheel centered.
When removing or installing the wheel,
the rim could hit the brake rotor and dam­
age the rotor. Work carefully and have a
second person help you .
(j) Tips
Never use the hexagonal socket in the han­
dle of the screwdriver to loosen or t ighten
the wheel bolts .
- Pull the reversible blade from the screw­
driver before you use the hexagonal
socket in the handle to turn the wheel bo lts.
- When mounting tires with
unid irectional
tread design
make sure the tread pat­
tern is pointed the right way
¢ page 268.
-The wheel bolts should be clean and easy
to tu rn . Check for d irt and corrosion on
the mat ing su rfaces of both the whee l
and the h ub. Remove al l dirt from these
surfaces before remo unting the wheel.
Tires with unidirectional tread design
Tires with unidirectional tread design must be
mounted with their tread pattern pointed in the right direction .
Using a sp are t ire w ith a tre ad pattern
intended for use in a specific direction
When using a spare t ire with a tread patter n
intended for use in a spec ific d irection , please
note the following :
- The direct ion of rotation is marked by an ar­
row on the side of the tire .
- If the spare tire has to be installed in the in­
correct direct ion, use the spare tire only
temporarily s ince the tire will not be able to
achieve its optimum performance cha racter­
isti cs wit h regard to aquap lan ing, no ise and
wear .
- We recommend that you pay part icu la r at­
t ention to th is fact d uring wet wea ther and
t ha t you adjust you r speed to match road
conditions .
- Replace the fl at tir e with a new one and
have it insta lled on you r vehicle as soon as
possible to restore the handling advantages
of a u nidirectional tire .
Notes on wheel changing
Please read the information¢ page 251, New
tires and replacing tires and wheels
if you a re
going to use a spare tire which is different
from the ti res on your vehicle .
After you change a tire:
- Check the tire pre ssure on the spar e imm e­
diately after install ation.
- Have th e whe el bolt tight ening torqu e
c hecked with a torque wrench as soon a s
pos sible by your author ized Audi de aler or
a q ualified service stat ion.
- With steel and allo y wheel r im s, the wheel
bolt s ar e cor re ctl y tightened at a torque of
90 ft lb (1 20 Nm ).
- If you noti ce th at the wheel bolts are cor­
roded and diffi cult to turn while changing
a ti re , they should be repl aced before you
check the t ightening torque. .,..
