heavy components such as the engi ne
b lock or transmiss ion are removed.
- W hen removing heavy components like
these, ancho r vehicle to hoist o r add cor­
respond ing weig hts to ma inta in the cen ­
ter of g ravity . Otherwise, the vehicle
m ight tilt o r sli p off the hoist, causi ng
ser ious p erso na l in ju ry.
([) Note
-Be awa re of the fo llowing points befo re
li fting t he vehicle:
- The vehicle should never be lifted or
jacked up from underneath the engine oil pan, the transmission housing, the
front or rear axle or the body side
members. This could lead to serious
damage.
- To avoid damage to the underbody or
chassis frame , a rubber pad must be
i nserted between the floor jack and
the lift points.
- Before driving over a workshop hoist,
check that the veh icle weight does not
exceed the permissible lifting capacity
of the hoist.
- Before driving over a workshop hoist,
ensure that there is sufficient clear­
ance between the hoist and low parts
of the vehicle.
Emergency situations 2 79
•
•

280 General information
General information
Explanation of
technical data
Some of the technical data listed in this man ­
ual requires further explanation .
The technical data for your vehicle is listed in
the charts starting on
r:::> page 282. This sec­
tion provides general information, notes and restrictions which apply to this data.
Vehicle identification
The key data is given on the vehicle identifica­
tion number (VIN) plate and the vehicle data
sticker .
Fig. 223 Veh icle Ide ntificat io n Number (VlN) p late: lo ­
cation on driver 's s ide das h panel
Fig. 224 The vehicle identi fication label -inside the
luggage co mpa rtmen t
The Vehicle Identification Number (VIN)
is located on the driver's side so that it is visi­
ble from the outside through the windshield
r:::> fig . 223. You can also display the Vehicle
Identification Number of your vehicle in the
MMI. Select: Function button
I CAR ! > (Car) *
systems
> VIN number . The
vehicle identification label
is located in the luggage compartment in the
spare wheel well.
The label¢
fig. 224 shows the follow ing vehi­
cle data :
(D Product ion control No .
@ Vehicle identification No.
® Type code number
@ Type designation/engine output in Kilo-
watts
® Engine and transmission code letter
@ Paint No./Interior
(f) Optional equipment No.'s
Vehicle data 2 to 7 are also found in your War­
ranty
& Maintenance booklet.
The safety compliance sticker
is your assurance that your new vehicle com­
plies with all applicable Federal Motor Vehicle
Safety Standards which were in effect at the
t ime the vehicle was manufactured . You can
find this sticker on the left door jamb .
It
shows the month and year of production and
the vehicle ident ification number of yo ur vehi ­
cle (perforation) as well as the Gross Vehicle
Weight Rating (GVWR) and the Gross Axle
Weight Rating (GAWR) .
The high voltage warning label
is located on the lock carrier.
The spark ignition system complies with
the Canadian standard ICES-002.
Weights
Gross Vehicle Weight Rating
The Gross Vehicle Weight Rat ing (GVWR), and
the Gross Axle Weight Rating (GAWR) for
front and rear are listed on a sticker on the
left door jamb.
The Gross Vehicle Weight Rating includes the
weight of the bas ic vehicle plus fu ll fuel tank,
oi l and coo lant, plus maximum load, which in­
cludes passenger weight (150 lbs/68 kg per
Ill>

designated seating position) and luggage
weight~&. .
Gros s Axle W eight Rating
The G ross Axle Weight Rating is the maximum
l oad tha t can be applied at each axle of the
vehicle
q .&. .
Vehicle capacit y weight
The vehicle capac ity we ight (max. load) is list­
ed either on the dr iver's side B-pillar or inside
the fuel filler flap.
Roof weight
The max imum perm issible roof weight is
220 lb (100 kg ). The roof weight is made up
of the weight of the roof rack system and the
weight of the object be ing transported
q page 60, Loading the roof rack .
.&, WARNING
- T he ac tual Gross Axle Weight Rat ing at
the front and rear axles shou ld not ex­
ceed the permiss ible weights, and their
combination must not exceed the Gross
Vehicle Weight Rat ing .
- Exceeding permissib le weight ratings can
result in vehicle damage, accidents and
personal injury.
CD Note
- The vehicle capacity weight figures apply
when the load is distributed evenly in the
vehicle (passengers and luggage). When
transporting a heavy load in the luggage
compartment, carry the load as near to
the rear axle as possib le so that the veh i­
cle's handling is not impa ired.
- Do not exceed the maximum permissible
axle loads or the max imum gross vehicle
weight. Always remember that the vehi­
cle's handling will be affected by the ex­
tra load. Therefore, adjust you r speed ac ­
cord ingly.
- Always observe loca l regu lations.
-
G ene ral in formation 28 1
Dimensions
The specifications refer to the basic model.
Differences may occur depending on the mod­
el type and options ordered, for example, tire
sizes.
CD Note
When driving up steep ramps, on rough roads, over curbs, etc. it is important to re­
member that some parts of your vehicle,
such as spoilers or exhaust system compo­ nents, may be close to the ground . Be
careful not to damage them .
•
•

282 Data
Data
A6 211 hp, 2.0 Liter 4-cylinder engine
Applies to vehicles: with 2.0 liter 4-cylinder engine
Engine data Ma ximum output SAE ne t
M aximum torque SAE net
No. of cylinders
Displacement
Stroke
Bo re
C ompress ion ratio
Fuel
Dimensions (approx .)
Leng th (w it h li cense pl ate bracket)
Width (across mirrors) He igh t (unloaded) hp@r
pm
lb-ft@ rpm
CID (cm
3 )
in (mm)
in (mm)
211 @4300-6000
4
121 (1984)
3.65 (92. 8)
3 .25 (82 .5)
9.6: 1
Premium unleaded (91 AKI) Recommended for maxi­
mum engine performance. Further details<=>
page 220,
Gasoline
in (mm) 1 9 3.9 (4 925)
in (mm) 82.1 (2086)
in (mm) 57 .8 (1 468)
Turning circle diameter (curb to curb) ft. (m) 39.0 (11.9)
Capacities (appro x.)
Fuel tank
- Total capacity
- Reserve (o f to tal capacity)
Windshield fluid container
Windshield and headlight wa sher
fluid container *
Engine oil with filter c hange gal (li
ters)
19.8 (75.0)
ga l (li ters) 2.6 (1 0 .0 )
quarts (liters) 3.7 (3.5)
qu arts ( li1ters) 5 .2 (4 .9)
quarts (li ters) 4.9 (4.6)

Data
A6 310 hp, 3.0 liter 6-cylinder engine
Applies to vehicles: with 3.0 liter 6-cylinder engine and all-wheel drive
Engine data
Maximum output SAE ne t
Maximum torque SAE net
No. of cylinders
Displacement
Stroke
Bore
C ompression ratio
Fuel
Dimensions (approx .)
L eng th (wit h license pl ate brac ket)
Width (across mirrors) He igh t (unloaded)
310@ 5500-6500 hp@ rpm
lb-ft@ rpm
-.. .--
C ID (cm3
)
in (mm)
in (mm)
__ ,
-~-- ,
325 @ 290 0-4500
6
182 (2995)
3.50 (89.0)
3 .33 (84.5)
10.3: 1
Premium unleaded (91 AKI) Recommended for maxi­
mum engine performance. Further details¢
page 220,
Gasoline
in (mm) 193.9 ( 4925)
in (mm) 82.1 (2086)
in (mm) 57 .8 ( 1468)
Turning circle diameter (curb to curb) ft. (m) 39.0 (11.9)
Capacities (appro x.)
Fuel tank
- Total capac ity
- Reserve (o f to tal capacity)
Windshield fluid container
Windshield and headlight washer
fluid container *
Engine oil with filter change gal (liters)
19.8 (75.0)
gal (li
ters) 2. 6 (10.0)
quarts (liters) 3.7 (3.5)
qu arts ( liters) 5 .2 ( 4.9)
quarts (lite rs) 7.2 (6.8)
283
•
•

284 Data
S6 420 hp, 4.0 Liter a-cylinder engine
Applies to vehicles: with 4.0 liter 8-cylinder engine and all-wheel d rive
Engine data
Maximum outpu t SAE ne t
Maximum torque SAE net
No. of cylinders
Stroke
Bore
Compressio n ratio
Fuel
Dimensions ( approx .)
Leng th (with lice nse pl ate bra cket)
Width (across mirrors) He igh t (unloaded) hp@ rpm
lb-ft@ rpm
CID (cm
3 )
in (mm)
in (mm)
__ ,
-~ .. ,
420 @ 5500-6400
406@ 140 0-5200
8
24 3 .67 (3993)
3 .50 (89 .0)
3 .33 (84.5)
10 .1: 1
Premium unleaded (91 AKI) Recommended for maxi­
mum engine performance . Further details¢
page 220,
Gasoline
in (mm) 193 .9 (4 925)
in (mm) 82.1 (2086)
in (mm) 57 .8 ( 1468)
Turning circle diamet er (curb to curb) ft. (m) 39 .0 (11.9)
Capacities (appro x.)
Fuel tank
- Total capacity
-Reserve (o f to tal capacity)
Windshield fluid container
Windshield and headlight wa sher
fluid container *
Engine oil
with filter c hange gal (li
ters)
19 .8 (75 .0)
gal (li ters) 2. 6 (10. 0)
q uarts (lit ers) 3 .7 (3 .5)
qu arts ( li1ters) 5 .2 ( 4.9)
quarts (li te rs) 8 .8 (8.3)

Consumer Information
Warranty coverages
Your Audi is covered by the following war­
ranties :
- New Vehicle Limited Warranty
- Limited Warranty Against Corrosion Perfo-
ration
- Emissions Control System Warranty
- Emissions Performance Warranty
- California Emissions Control Warranty (USA
vehicles only)
- California Emissions Performance Warranty
(USA vehicles only)
Detailed information regarding yo ur warran ­
ties can be found in your
Warranty & Mainte­
nance booklet .
Operating your vehicle
outside the U.S.A. or
Canada
Government regulations in the United States
and Canada require that automobiles meet
specific emission regulations and safety
standards. Therefore, veh icles built for the
U.S.A. and Canada differ from vehicles sold in
other countries .
I f you p lan to take your vehicle outside the
continental limits of the United States or Can­
ada, there is the possibility that:
- unleaded fuels for vehicles with cata lytic
converter may not be available;
- fuel may have a considerably lower octane
rating . Improper fuel may cause engine
damage;
- service may be inadequate due to lack of
proper service facilities, tools or testing
equipment;
- replacement parts may not be readily availa­
ble.
- Navigation systems for vehicles built for the
U.S.A. and Canada will not necessari ly work
in Europe, and may not work in other coun­
tries outside North America .
Consumer Information 285
@ Note
Audi cannot be responsible for mechanical
damage that could result from inadequate
fuel, serv ice or parts availab ility.
Audi Service Repair
Manuals and Literature
Audi Offic ial Factory Service Manuals and Lit ­
erature are published as soon as possible after
model introduct ion. Service manuals and lit­
erat ure are available to order from the Audi
T echnical Literature Ordering Center at:
www.audi.techliterature.com
Maintenance
' General
Your vehicle has been designed to help keep
maintenance requirements to a m inimum.
However, a certain amount of regular mainte­
nance is still necessary to assure your vehicle's
safety, economy and reliability . For detailed
vehicle maintenance consult your Warranty
&
Maintenance booklet.
Under difficult operating conditions , for ex­
ample at extremely low outside temperatures,
in very dusty regions, when towing a trailer
very frequently, etc., some serv ice work
shou ld be pe rformed between the intervals
specified. This applies particularly to:
- oil changes, and
- cleaning or replacing the air filter.
® For the sake of the environment
By regularly maintaining your veh icle, you
help make sure that emission standards
are maintained, thus min imiz ing adverse
effects on the environment .
Important considerations for you and
your vehicle
The increasing use of electronics, sophistica t­
ed fuel injection and emission contro l sys-
tems, and the genera lly increasing technica l ..,_
•
•

28 6 Con sum er Inf ormation
comp lexity of today's automobi les, have
steadi ly reduced the scope of maintenance
and repairs which can be carried out by vehicle
owners.
Also, s afety an d e nvir onm ent al con­
cerns place very strict limits on the nature of repairs and adjustments to engine and trans ­
miss ion pa rts which an owner can perform .
Maintenance, adjustments and repa irs usua lly
require special tools, testing devices and oth­
er equipment avai lab le to specially trained
workshop personnel in order to assure proper
performance, reliab ility and safety of the vehi­
cle and its many systems .
Improper ma intenance, adjustments and re ­
pa irs can impair the operation and reliab ility
of your vehicle and even void your vehicle war­ ranty. Therefo re , proof of servici ng in accord­
ance w it h the ma intenance sched ule may be a
condition for upholding a possible warranty
claim made within the warran ty period.
Above all, operational safety can be adve rsely
affected, creating unnecessary risks for you
and your passengers.
If in doubt about any serv icing, have it done
by your author ized Audi dealer or any other
p roperly equipped and qualified workshop .
We strong ly urge you to give your authorized
Audi dealer the opportunity to perform all
schedu led maintenance and necessary repairs .
Your dea ler has the facilities, or iginal parts
and tra ined spec ialists to keep your vehicle
running properly .
Performing lim it e d m aint en anc e y ourself
The fo llowing pages describe a limited num­
ber of procedures which can be performed on
you r vehicle with ordinary too ls, shou ld the
need arise and trained personnel be unavaila­
ble. Before performing any of these proce­
dures, always thoroughly read all of the app li­
cable text and ca refully follow the instruc­
tions given. Always rigorously obse rve the
WARNINGS p rovided .
Before you ch eck anything in th e engin e
compartme nt, alway s read an d heed all WARNINGS
¢ & a
nd ¢ & in Working in the
engine comportment on page 225 .
A WARNING
--Serious personal in jury may occur as a re-
sult of improperly performed mainte­ nance, adjustments or repa irs.
- Always be extremely careful when work­
ing on the vehicle. Always follow com­
monly accepted safety pract ices and gen­
eral common sense. Never r isk personal
in jur y.
- Do not attempt any of the maintenance,
checks or repairs descr ibed o n the fol­
lowing pages if you are not fu lly fam iliar
with these or other procedures with re­ spect to the vehi cle, or are uncerta in how
to proceed .
- Do not do any work withou t the proper
too ls and equipment . Have the necessary
work done by your authorized A udi deal ­
er or anothe r properly equipped and
qualified workshop.
- The engine compar tment o f any motor
vehicle is a potentially hazardous area. Never reach into the area around or
touch the rad iator fan. It is temperature
control led and can sw itch on suddenly -
even when the engine is off . The radiator
fan switches on automatically when the
coo lant reaches a ce rtain temperature
and will cont inue to ru n until the coo lant
tempera ture drops.
- Always sw itch off the ignition before any­
one gets under the vehicle.
- Always support your veh icle with safety
s tands if it is necessary to work under­
neath the vehicle. The j ack s upp lied with
the vehicle is not adequate for this pur­
pose and cou ld co llapse causing serio us
pe rsonal injury .
- If you must work underneath the vehicle
with the wheels on the ground, a lways
make sure the vehicle is on leve l ground,
that the wheels are a lways secure ly
blocked and that t he engine cannot be
started .

-Always make sure the transm ission se­
lector lever (automatic transmiss ion) is
in P (Park position) and the park brake is
applied.
@) For the sake of the environment
- Changing the eng ine settings w ill ad­
versely affect em ission levels. This is det­
rimental to the environment and increas­
es fuel consumption .
- Always observe env ironmental regula­
tions when d isposing of old engine oil,
used brake fluid, dirty engine coolant,
spent batter ies or worn out t ires.
- Undeployed airbag modules and preten­
s ioners might be classified as Perchlo­
rate Material -specia l hand ling may ap­
ply, see www.dts c.ca .gov/hazardous­
waste/perch lorate. When the veh icle or
parts of the restraint system includ ing
airbag modules safety belts wit h preten­
sioners are scrapped, all applicable laws
and regulations must be observed. Your
a uthorized Audi dea ler is familiar w ith
these requirements and we recommend
that you have your dea ler perform this
serv ice for you .
Additional accessories,
modifications and
parts replacement
Additional accessories and parts
replacement
Always consult an authorized Audi dealer be­
fore purchasing accessories.
Your veh icle incorporates the latest safety de­
sig n featu res ensu ring a high standard of ac ­
tive and passive safety.
This safety could be compromised by non-ap­ proved changes to the veh icle. For this reason,
if parts have to be replaced, please observe
the following points when install ing addition­
a l accessories:
Con sumer In formation 287
Approved Audi accesso ries and genuine Audi
parts are available from authorized Audi deal­
ers.
T hese dea lers a lso have the necessary facili­
ties, tools and trained specialists to install the
parts and accessories proper ly.
A WARNING
Using the wrong spare parts or using non­
approved accessories can cause damage to
the vehicle and serious persona l injury.
- Use on ly accessories express ly approved
by Audi and genu ine Audi spare parts
- These parts and accessories have been
specially designed to be used on your ve­
hicle .
- Never install accessories such as tele­
phone cradles or beverage holders on air­
bag covers or within the airbag deploy­
ment zones . Do ing so will increase the
risk of injury if a irbags are triggered in an
accident!
- Before you check anything in the engine
compa rtment, always read and heed all
WARNINGS
r:::;. page 219.
(D Note
-If items other than genuine Audi spare
parts, add-on equipment and accessory
items are used or if repair work is not
performed accord ing to spe cified meth­
ods, this can result in severe damage to
yo ur vehicle's engine and body (such as
corrosion) and adversely affect your vehi ­
cle's warranty .
- If emergency repairs must be performed
elsewhere, have the vehicle examined by
an authorized Audi dealer as soon as
possible.
- The manufacturer cannot be held liable
for damage wh ich occurs due to failure
to comply with these stipulations.
•
•

288 Consumer Information

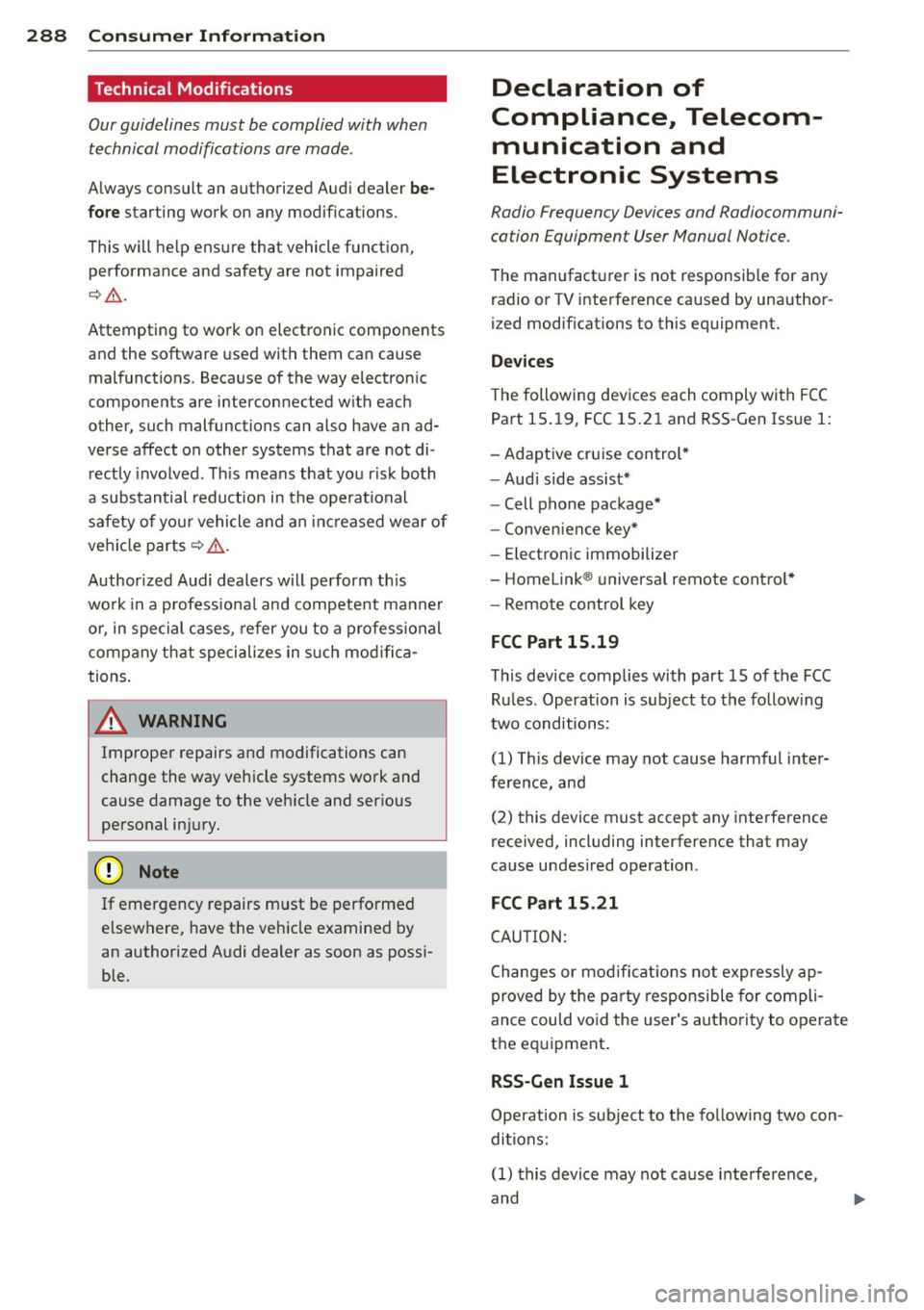

Technical Modifications
Our guidelines must be complied with when technical modifications are made .
Always consult an authorized Audi dealer be­
fore starting work on any modifications.
This will help ensure that vehicle function,
performance and safety are not impaired
¢ &. .
Attempting to work on electronic components
and the software used with them can cause
malfunctions. Because of the way electronic
components are interconnected with each
other, such malfunctions can also have an ad­
verse affect on other systems that are not di­
rectly involved. This means that you risk both
a substantial reduction in the operational
safety of your vehicle and an increased wear of
ve hicle parts ¢
A:,..
Author ized Audi dealers will perform th is
wo rk in a professiona l and competent manner
or, in special cases, refer you to a professional
company that specializes in such modifica­
tions .
A WARNING
Improper repairs and modifications can
change the way vehicle systems work and
cause damage to the vehicle and serious
personal injury.
-
If emergency repairs must be performed
elsewhere, have the vehicle examined by
an authorized Audi dealer as soon as possi­
ble.
Declaration of
Compliance, Telecom­
munication and
Electronic Systems
Radio Frequency Devices and Radiocommuni­
cation Equipment User Manual Notice.
The manufacturer is not responsib le for any
radio or TV interference caused by unauthor­
ized modifications to this equipment.
Devices
T he following devices each comply with FCC
Part 15.19, FCC 15.21 and RSS-Gen Issue 1:
- Adapt ive cru ise control*
- Aud i side assist*
- Cell phone package*
- Convenience key*
- Electron ic immobilizer
- Homelink ® universal remote contro l*
- Remo te control key
FCC Part 15.19
This device complies with part 15 of the FCC
Ru les. Operation is subject to the follow ing
two conditions:
(1) This device may not cause harmful inter­
ference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation .
FCC Part 15.21
CAUTION:
Changes or modificat ions not expressly ap­
proved by the party responsible for compli­
ance could void the user's authority to operate
the equipment .
RSS-Gen Issue 1
Operation is subject to the following two con­
ditions:
(1) this device may not cause interference ,
and
