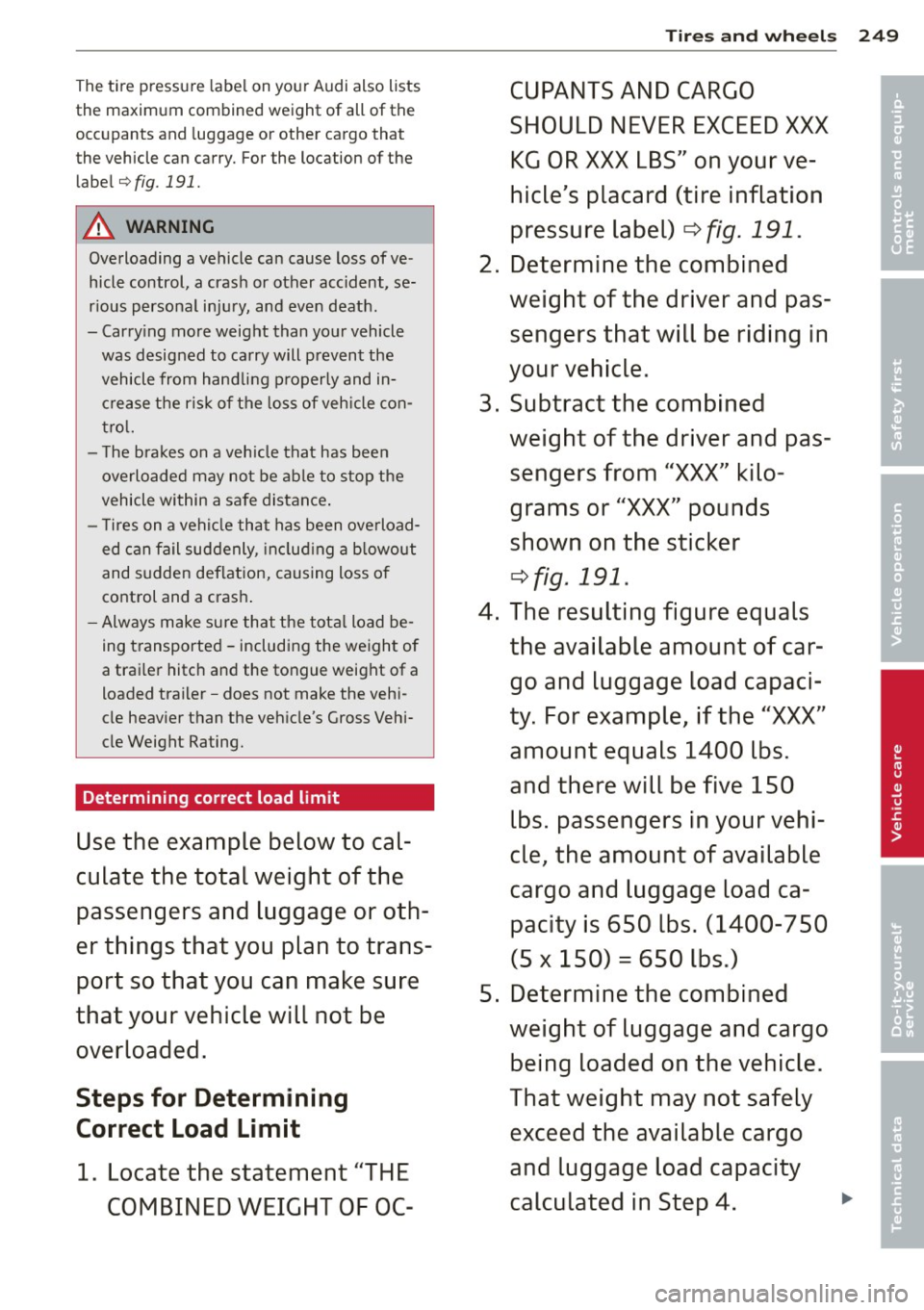

AUDI A6 2013 Owners Manual

The tire pressure label on your Audi also lists
the maximum combined weight of all of the
occupants and luggage or other cargo that
the vehicle can carry. For the location of the
label
c:::>fig. 191.
A WARNING
Overloading a vehicle can cause loss of ve­
hicle control, a crash or other accident, se­
rious personal injury, and even death.
- Carrying more weight than your vehicle
was designed to carry will prevent the
vehicle from handling properly and in­
crease the risk of the loss of vehicle con­
trol.
- The brakes on a vehicle that has been
overloaded may not be able to stop the
vehicle within a safe distance.
- Tires on a vehicle that has been overload­
ed can fail suddenly, including a blowout
and sudden deflation, causing loss of
control and a crash.
- Always make sure that the total load be­
ing transported -including the weight of
a trailer hitch and the tongue weight of a
loaded trailer -does not make the vehi­
cle heavier than the vehicle's Gross Vehi­
cle Weight Rating.
Determining correct load limit
Use the example below to cal­
culate the total weight of the
passengers and luggage or oth­
er things that you plan to trans­
port so that you can make sure
that your vehicle will not be
overloaded.
Steps for Determining
Correct Load Limit
1. Locate the statement "THE COMBINED WEIGHT OF QC-
Tires and wheels 249
CUPANTS AND CARGO
SHOULD NEVER EXCEED XXX KG OR XXX LBS" on your ve­
hicle's placard (tire inflation
pressure label)
¢ fig. 191.
2. Determine the combined weight of the driver and pas­sengers that will be riding in
your vehicle.
3. Subtract the combined weight of the driver and pas­sengers from
"XXX" kilo­
grams or
"XXX" pounds
shown on the sticker
¢ fig. 191.
4. The resulting figure equals
the available amount of car­
go and luggage load capaci­
ty. For example, if the
"XXX"
amount equals 1400 lbs.
and there will be five 150 lbs. passengers in your vehi­
cle, the amount of available
cargo and luggage load ca­ pacity is 650 lbs. (1400-7 50
(5
X 150) = 650 lbs.)
5. Determine the combined weight of luggage and cargo being loaded on the vehicle.
That weight may not safely exceed the available cargo
and luggage load capacity
calculated in Step 4.
•
•

250 Tires and wheels
6. If your vehicle will be towing
a trailer, load from your trail­
er will be transferred to your
vehi cle. Consult thi s manual
to determine how this re­
duces the available car go
and luggage lo ad capacity of
y o ur vehicle .
.,. Check the tire sidewall
(9 fig . 195) to de termine the
de signated load rating for a
s pe cifi c tir e.
Tire service life
The s ervi ce life of tires dep ends on a lot of
different things including proper installation
and balancing, correc t tire pressu re and driv­
ing style.
Fig. 193 T ire tread: tread wea r ind icators ( TWI)
( ,------- ')
l"-------
Fi g. 1 94 Rotat ing t ires fo r m ore eve n wear
Tread W ear Indicator (TWI)
The o rigi na l t ires o n your ve hicle have
1/16 inch (1.6 mm) high "wear indicators" ¢
fig. 193 r
u nning across the tread. Depend­
ing on the make, t here will be six to e ight of
them even ly placed aro und the tire. Marks on
the tire sidewall (for examp le "TWI" or other
symbols) ind icate the positions of the tread
wear indicato rs . Wor n tires must be rep laced.
D iffere nt f igures may apply in othe r countr ies
Q ,&. .
Tire pressure
Incorrect t ire pressure ca uses premature wear
and can cause sudde n tire blow-out. For this
reason, tire pressure must be checked at least
o nce a month ¢
page 246.
Driving style
Driving fast around c urves, heavy acce lerat ion
and hard braking increase tire wear .
Rotating tires for more even wear
Fo r all four tires on your ve hicl e to have the
same service life, we recommend that the
front and rear t ires a re rotated according to
the tire manu fact urer's suggested tire rota­
tion intervals. Please remember the follow­
ing :
- Tire rotation intervals may differ from t he
veh icle service interva ls outlined in your
Warranty
& M aintenance booklet.
- The longer one tire is used in one location
o n t he vehicle, the more it wears at certain
points; theref ore, we recommend t hat y ou
follow the tire manufacturer's suggested
tire rotation int ervals .
- Veh icles w ith front-wheel dr ive experience
more tread wear on the fro nt wheels com­
pa red to a ll-wheel d rive ( quattro ®).
- Please rotate tires as shown¢
fig. 194.
- Extra care must be taken when rotating di-
rection-specific tires ¢
page 268.

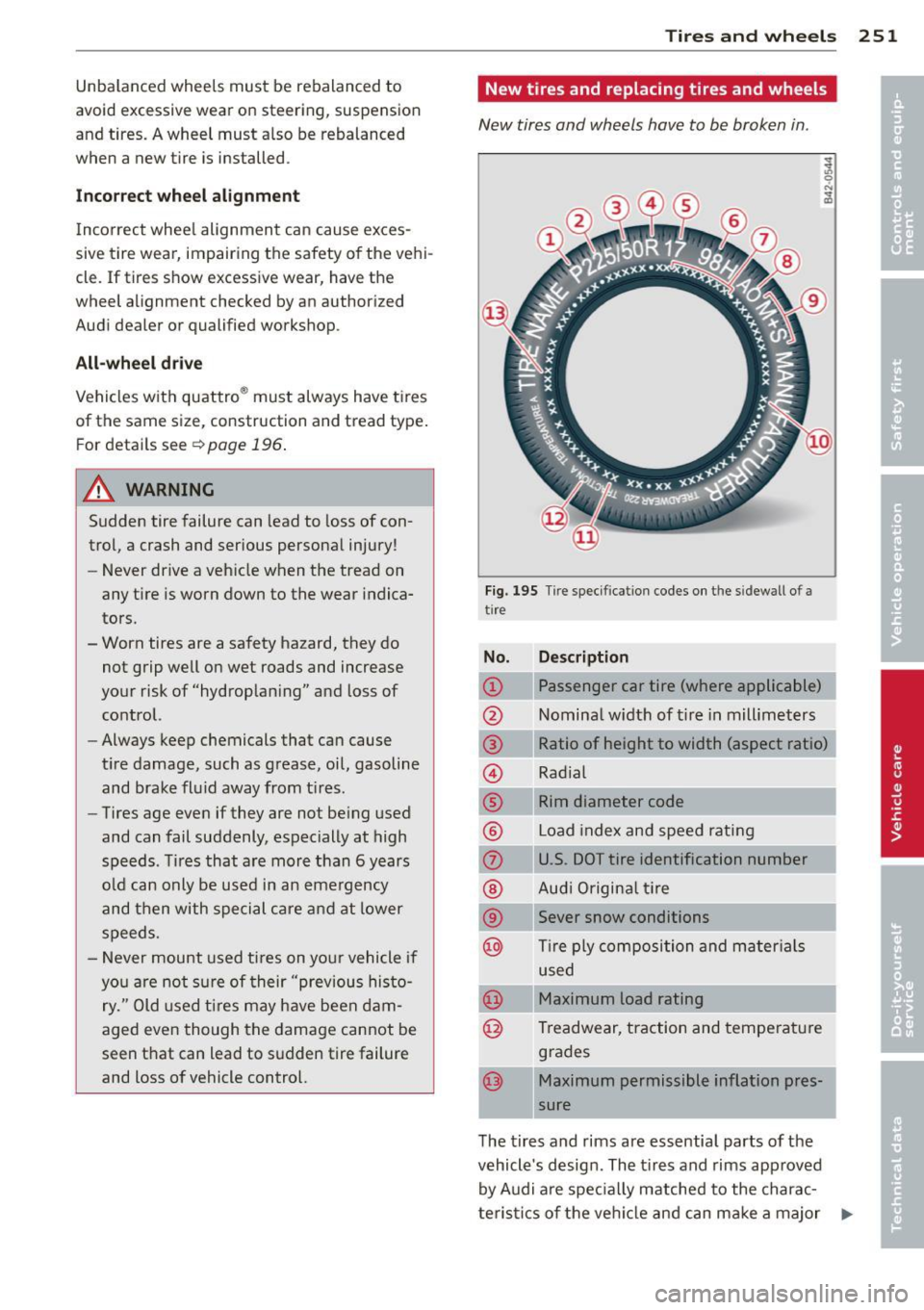

Wheel balancing
The wheels on new ve hicles are balance d.
Howeve r, various s ituations during everyday
dr iv ing can cause them to become unba l­
anced, resulti ng in vibrations you can usually
feel th rough the steer ing wheel.
liJJ,-

Unbalanced whee ls must be rebalanced to
avoid excessive wea r on steering, suspension
and tires. A wheel must a lso be rebalanced
when a new tire is installed .
Incorrect wheel alignment
Incorrect whee l alignment can cause exces­
sive tire wear, impairing the safety o f the vehi­
cle. If tires show excess ive wear, have the
wheel alignment checked by an authorized
Audi dealer or qualified workshop .
All-wheel d rive
Vehicles w ith quattro ® must always have tires
of the same size, construction and tread type .
F or detai ls see
r=!:> page 196 .
A WARNING
Sudden tire failure can lead to loss of con­
trol, a crash and serious persona l injury!
- Never drive a veh icle when the tread on
any tire is worn down to the wear indica­
tors.
- Worn tires are a safety hazard, they do not grip well on wet roads and increase
your risk of"hydrop lan ing" and loss of
co ntrol.
- Always keep chemicals that can cause
tire damage, such as grease, oil , gasoline
and brake fluid away from t ires.
- Tires age eve n if they are not be ing used
and can fail suddenly, especially at high
speeds. T ires that are more than 6 years
o ld can only be used in an emergency
and then with spe cial care a nd at lower
s peeds.
- Never mount used ti res on yo ur vehicle if
yo u a re not s ure of their "prev ious histo­
ry." Old used ti res may have been dam­
aged even though the damage cannot be
seen that can lead to s udden tire failure
and loss of vehicle control. Tires and wheels 251
New tires and replacing tires and wheels
New tires and wheels have to be broken in
.
Fig. 19 5 Tir e spec ificat io n codes on t he s idewall o f a
tire
No. De sc ription
CD Passenger car tire (where applicable)
@ Nomina l w idth of t ire in mill imeters
® Ratio of height to width (aspect ratio)
© Rad ial
® Rim diameter code
® Load index and speed rating
(f) U.S. DOT tire identification number
® Aud i Origina l tire
® Sever snow conditions
@ T ire ply composition and mater ials
used
@ Maximum load rating
@ Treadwear, traction and temperat ure
grades
@ Maximum permissible inflation pres-
sure

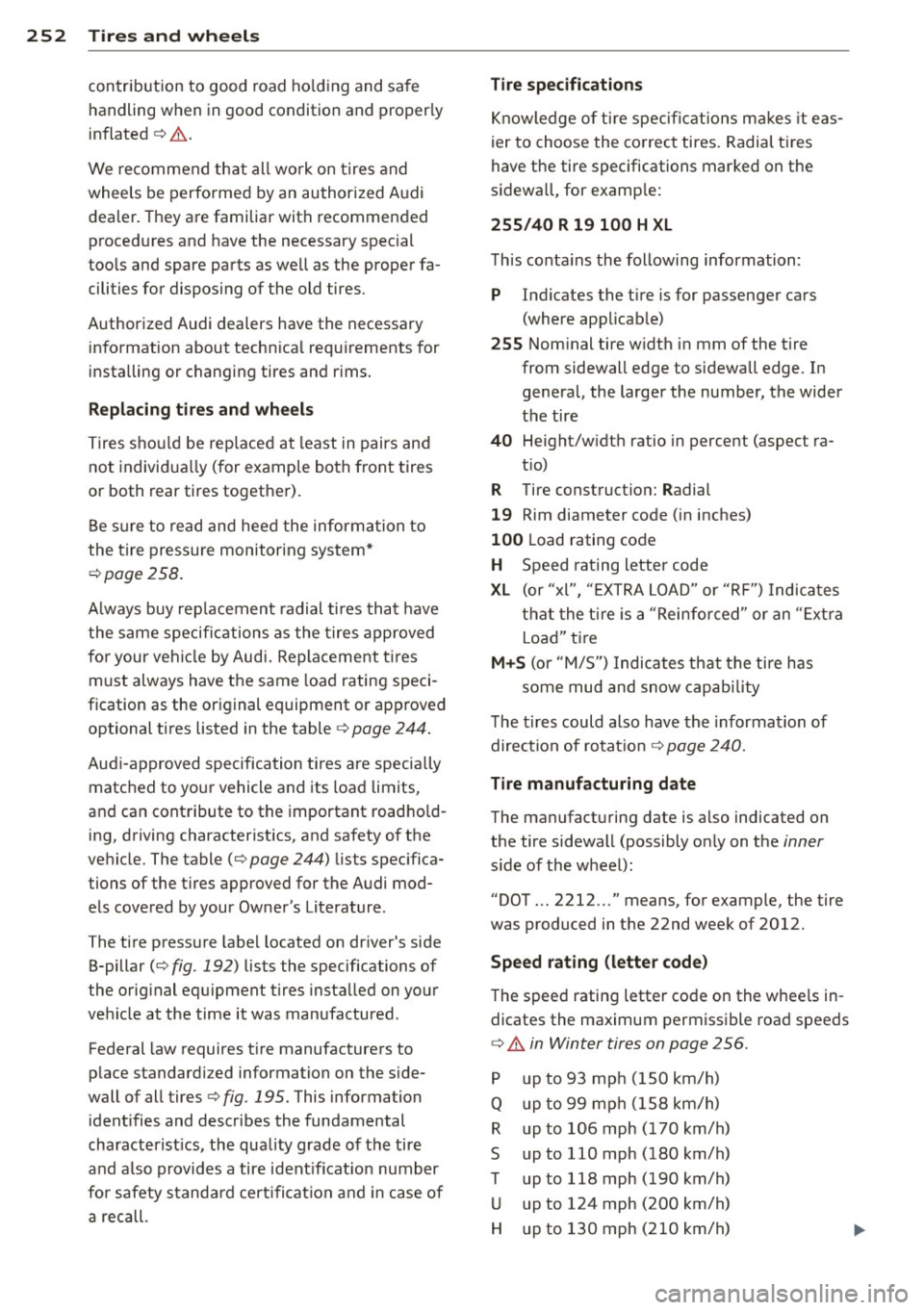

T he tires and rims are essential parts o f the
vehicle's design . The ti res and rims app roved
by Audi a re spec ia lly matched to the charac­
teris tic s of the ve hicl e and can m ake a major .,.
•

252 Tire s and wheel s
contribution to good road ho lding and safe
handling when in good condition and properly
inflated
¢ ,& .
We recommend that all work on tires and
wheels be perfo rmed by an authorized Audi
dea ler. They are familiar with recommended
proced ures and have the necessary spec ial
too ls and spare parts as well as the proper fa­
cilities for disposing of the old tires.
Authorized Audi dealers have the necessary information about techn ica l requ irements for
installing or changing tires and r ims.
Re placing t ires and whe els
Tires sho uld be rep laced at least in pairs and
not individua lly (for examp le both front tires
or both rear tires together).
Be sure to read and heed the information to
the tire pressure monitoring system*
¢page 258.
Always buy rep lacement radial tires that have
the same specifications as the tires approved
for your vehicle by Audi. Replacement t ires
must always have the same load rating speci­
fication as the original equipment or approved
optional tires listed in the table
c:> page 244.
Aud i-approved specification ti res are specially
matched to your vehicle and its load limits,
and can contribute to the important road ho ld­
ing, driving characteristics, and safety of the
vehicle. The table
(c:> page 244) lists spec ifica­
tions of the tires approved for the Audi mod­
els covered by your Owner's Literature .
The tire pressure labe l located on driver's side
B-pillar
(c:> fig. 192) lists the specifications of
the orig inal equipment tires installed on your
vehicle at the time it was manufactured.
Federal law requires tire manufacturers to
place standard ized information on the s ide­
wall of all tires
c:> fig. 195. This information
ident ifies and describes the fundamental
characterist ics, the quality grade of the tire
and a lso provides a tire ident ificat ion number
fo r safety standa rd cert ificat ion and in case of
a recall.
Tir e spe cification s
Knowledge o f ti re specifications ma kes it eas­
ier to choose the correct tires. Radial ti res
have the tire specifications marked on the
sidewa ll, for examp le:
255 /40 R 19 100 H XL
Th is conta ins the following information:
P Indicates the tire is for passenger cars
(where app licab le)
2 55 Nominal tire w idth in mm of the tire
from sidewall edge to sidewall edge. In general, the larger the number, the wider
the tire
40 Height/w idth ratio in percent (aspect ra-
t io)
R Tire construct ion: Radial
19 Rim diameter code (in inches)
100 Load rating code
H Speed ra ting letter code
XL (or "xl", "E XTRA LOAD" or "RF") Indica tes
that the t ire is a "Reinfo rced" or an "Ext ra
Load" t ire
M+S (or "M/5") Indicates that the ti re has
some mud and snow capabi lity
The tires could also have the information of
direction of rotat io n
¢ page 240.
Tire manufacturing d ate
The manufacturing date is also indicated on
the tire sidewall (possibly on ly on the
inner
s ide of the wheel):
"DOT ... 2212 ... " means, for example, the tire
was produced in the 22nd week of 2012.
Spe ed rating (le tte r cod e)
The speed rating letter code on the whee ls in ­
dicates the maximum permissible road speeds
c:> & in Winter tires on page 256.
p up to 93 mph (150 km/h)
Q u p to 99 mp h (158 km/h)
R up to 106 mph ( 170 km/h)
s up to 110 mph (180 km/h)
T up to 118 mph (190 km/h)
u up to 124 mph (200 km/h)
H up to 130 mph (210 km/h)

V up to 149 mph (240 km/h)1
)
Z over 149 mph (240 km/h)1)
W up to 168 mph (270 km/h)1l
Y up to 186 mph (298 km/h)
1 )
Your veh icle is norma lly factory equipped with
t ires, which posses s excellen t driving charac­
ter istics and give your Audi opt imum driving
comfort . An electronic speed limiter
~ page 30 w ill normally prevent your vehicle
from go ing faste r th an the tire speed rating
~ &. -
U.S. DOT T ire Identification Number (TIN )
and tire manufactur e date
This is the t ire's "serial numbe r" . It begins
with the le tters "DOT" and indicates that the
tire meets all federal standards . The next two
numbers or letters indicate the p lant where it
was manufactured, and the last four numbers represent the week and year of manufactu re.
Fo r example, the numbers 2212 mean the tire
was produced in the 22nd week of 2012. The
other numbers are market ing codes that may
or may not be used by the t ire manufacturer.
This informat ion is used to contact consumers
if a t ire defect requires a reca ll.
Audi Original tire
Tires with the iden tifica tion "AO" or "RO" have
been spec ially matched with your Aud i. We
recommend using only these tires because
they meet the highest standards regard ing
safety and d riving charac ter istics when used
correctly . Yo ur au thori zed Audi dealer w ill
g lad ly provide you with more information.
Tire ply composition and materials used
The numbe r of p lies ind icates the n umber of
l ayers of rubber-coated fabric i n the t ire. In
gener al, the grea ter the numbe r of p lies, the
more weig ht a tire can s upport. Tire man ufac­
turers a lso must indicate the materials in the
tire, wh ich include ste el, nylon, polyest er, and
others.
ll Fo r tires wit h a m ax im um s pee d ca pabil ity over
1 4 9 m ph (24 0 k m/h) , tire m an ufa ctur ers somet ime s
use the let ters "ZR."
Tire s an d wheel s 253
Maximum Load Rating
This number indicates the max imum load in
k ilograms and po unds t hat can be ca rr ied by
the tire.
Tire quality grading for treadwear ,
traction, and temp eratu re resistance
T read wear, t raction and tempe ra tu re grades
¢ page
254 .
Maximum Permissible Inflation Pressure
This number is the greatest amount of a ir
pressure that should ever be put in the tire
u nder norma l dr iv ing cond itions .
_& WARNING ~
- Using incorrect o r unmatched tires and I
or wheels or improper tire and wheel
comb inat ions can lead to loss of control,
coll is ion and serious personal in jury.
- Always use t ires , rims and whee l bolts
that meet the specif ications of original
factory- installed tires or other combina­
tions that have been sp ecifically ap­
proved by the vehicle manufacture r.
- Tires age even if they are not being used
and can fai l sudden ly, especially at high
speeds . Tires that are more than 6 yea rs
old can only be used in an emergency
and then w ith special care and at lower
speeds.
- Never mo unt used tires on your veh icle if
you are not sure of the ir "previous histo­
ry ." O ld used tires may have been dam­
aged even though the damage cannot be
seen that can lead to sudden tire fai lure
and loss of vehicle control.
-All four whee ls must be fitted with radial
tires of the same type, size (rolling cir­ cumference) and the same tread pattern .
Driving with different tires reduces vehi­
cle handling and can lead to a loss of
control.
•
•

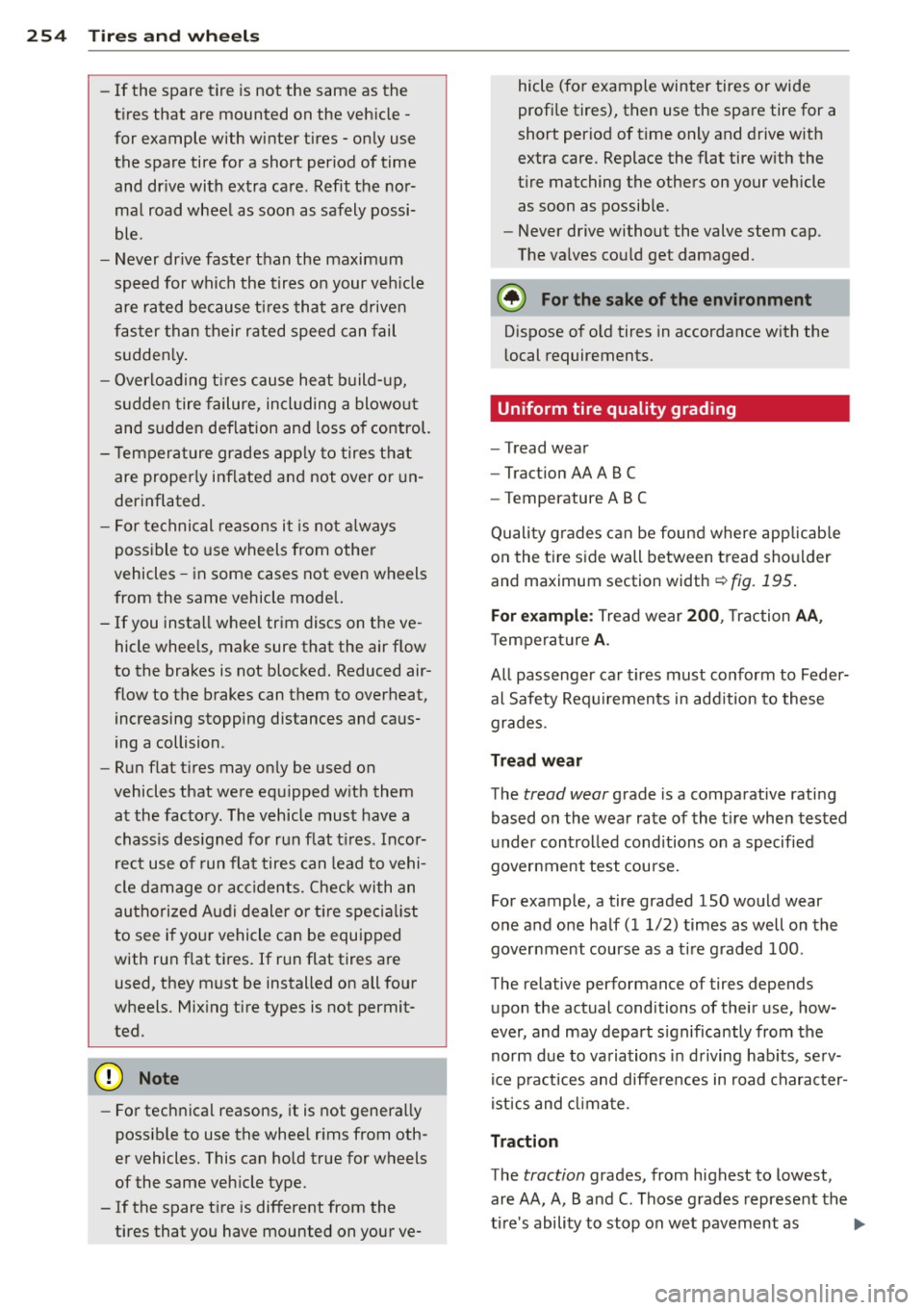

254 Tires and wheels
-If the spare tire is not the same as the
tires that are mounted on the vehicle -
for example with winter tires -only use
the spare tire for a short period of time
and drive with extra care. Refit the nor­
mal road wheel as soon as safely possi­
ble.
- Never drive faster than the maximum
speed for which the tires on your vehicle
are rated because tires that are driven
faster than their rated speed can fail
suddenly.
- Overloading tires cause heat build-up,
sudden tire failure, including a blowout
and sudden deflation and loss of control.
- Temperature grades apply to tires that
are properly inflated and not over or un­
derinflated.
- For technical reasons it is not always
possible to use wheels from other
vehicles -in some cases not even wheels
from the same vehicle model.
- If you install wheel trim discs on the ve­
hicle wheels, make sure that the air flow
to the brakes is not blocked. Reduced air­
flow to the brakes can them to overheat,
increasing stopping distances and caus­
ing a collision.
- Run flat tires may only be used on
vehicles that were equipped with them
at the factory. The vehicle must have a
chassis designed for run flat tires. Incor­
rect use of run flat tires can lead to vehi­
cle damage or accidents. Check with an
authorized Audi dealer or tire specialist
to see if your vehicle can be equipped
with run flat tires. If run flat tires are
used, they must be installed on all four
wheels. Mixing tire types is not permit­
ted.
- For technical reasons, it is not generally
possible to use the wheel rims from oth­
er vehicles. This can hold true for wheels
of the same vehicle type.
- If the spare tire is different from the
tires that you have mounted on your ve- hicle (for example winter tires or wide
profile tires), then use the spare tire for a
short period of time only and drive with
extra care. Replace
the flat tire with the
tire matching the others on your vehicle
as soon as possible.
- Never drive without the valve stem cap.
The valves could get damaged.
@ For the sake of the environment
Dispose of old tires in accordance with the
local requirements.
Uniform tire quality grading
-Tread wear
- Traction AA A B C
- Temperature ABC
Quality grades can be found where applicable
on the tire side wall between tread shoulder
and maximum section width
~fig. 195.
For example: Tread wear 200 , Traction AA,
Temperature A.
All passenger car tires must conform to Feder­
al Safety Requirements in addition to these
grades .
Tread wear
The tread wear grade is a comparative rating
based on the wear rate of the tire when tested
under controlled conditions on a specified
government test course.
Fo r example, a tire graded 150 would wear
one and one half (1 1/2) times as well on the
government course as a tire graded 100.
The relative performance of tires depends
upon the actual conditions of their use, how­
ever, and may depart significantly from the
norm due to variations in driving habits, serv­
ice practices and differences in road character­
istics and climate.
Traction
The traction grades, from highest to lowest,
are AA, A, Band
C. Those grades represent the

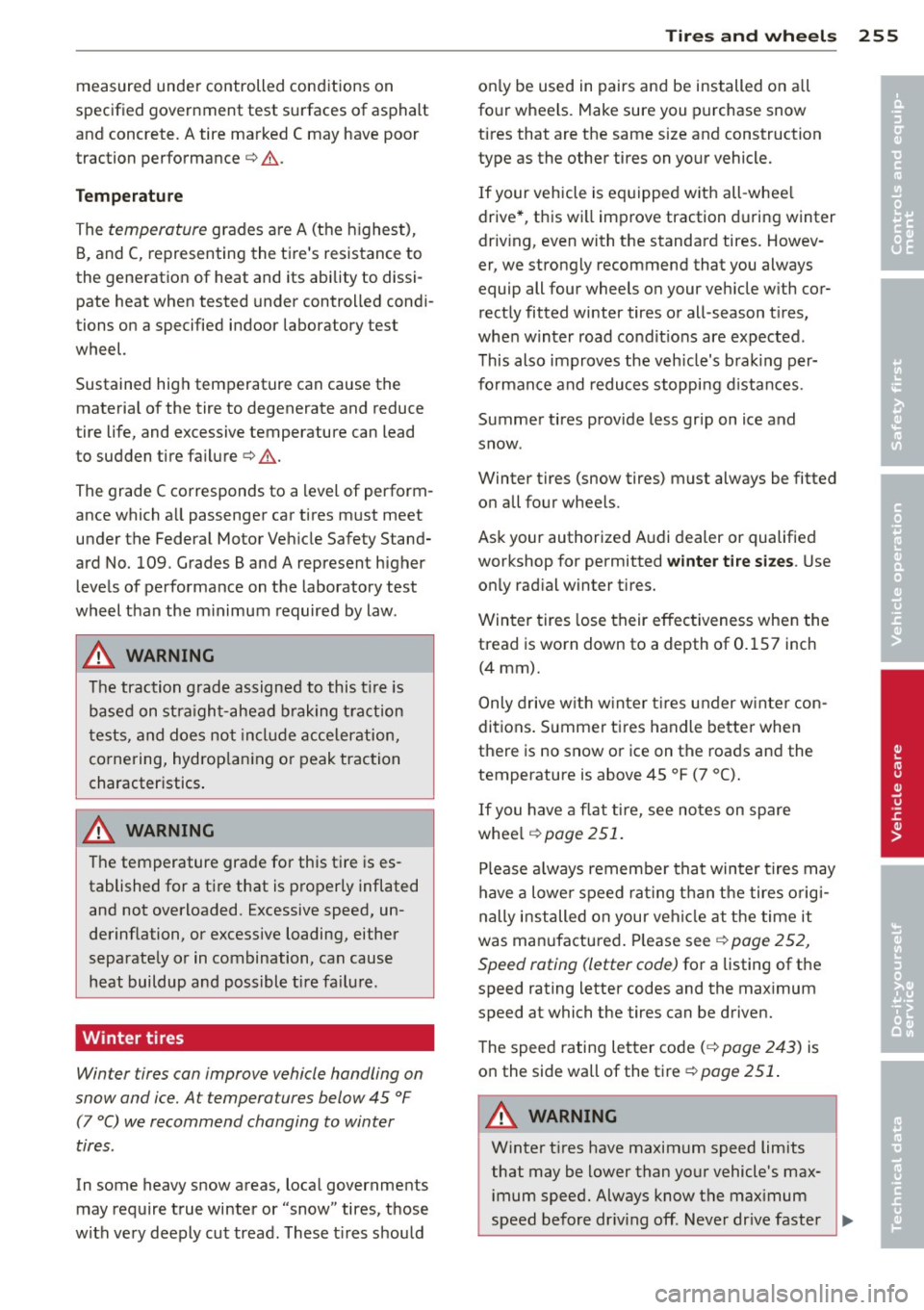

tire's ability to stop on wet pavement as ..,.

measured under controlled conditions on
specified government test surfaces of asphalt
and concrete. A tire marked C may have poor
traction performance
c::> & .
Temp erature
The temperature grades a re A (the highest),
B, and C , representing the tire's resistance to
the generation of heat and its ability to dissi­ pate heat when tested under controlled condi­
tions on a specified indoor laboratory test
wheel.
Sustained high temperature can cause the materia l of the tire to degenerate and reduce
tire life, and excessive temperature can lead
to sudden tire fa ilure
c::> & .
The grade C corresponds to a level of perform­
ance which a ll passenger car tires must meet
under the Federal Motor Veh icle Safety Stand­
ard No.
109. Grades Band A represent higher
levels of performance on the laboratory test
wheel than the m inimum required by law .
&, WARNING
The traction grade assigned to this t ire is
based on stra ight-ahead b raking traction
tests, and does not include acceleration,
cornering, hydrop lan ing or peak traction
character istics .
A WARNING
The temperature grade for this tire is es­
tablished for a tire that is properly inflated
and not overloaded . Excessive speed, un­
derinflation, or excessive loading, either
separate ly or in combination, can cause
heat buildup and possible tire fa ilure.
Winter tires
Win ter tires can improve vehicle handling on
snow and ice. At tempera tures below 45 °F
(7 °C) we recommend changing to winter
tires.
In some heavy snow areas, loca l governments
may require true winter or "snow" tires, those
with very deeply cut tread. These t ires should
Tire s an d wheel s 255
only be used in pairs and be installed on all
fo ur wheels. Make sure you purchase snow
tires that are the same size and construction
type as the other tires on your vehicle.
If your vehicle is eq uipped w ith all -whee l
drive*, this wi ll improve traction during winter
driv ing, even with the standard tires. Howev ­
er, we strongly recommend that you always equip all four wheels on your veh icle w ith cor­
rect ly fitted winter tires o r all -season t ires,
whe n w inter road cond it ions are expected.
T his also improves the veh icle's brak ing per­
fo rmance and redu ces stoppi ng d istances.
Summer tires provide less grip on ice and
snow .
Winter tires (snow tires) must always be fitted
on all four wheels.
Ask your authorized A udi dealer or qualified
workshop for permitted
wi nter ti re size s. Use
on ly rad ial winter t ires.
Winter tires lose their effectiveness when the
tread is worn down to a depth of
0 .1 57 inch
(4 mm).
Only drive w ith w inter tires under w inter con­
ditions. S umme r tires handle better when
there is no snow or ice on the roads and the
temperature is above 45
°F (7 ° ().
If you have a flat tire, see no tes on spare
whee l c::> page 251.
Please a lways remember that winter tires may
have a lowe r speed ra ting than the tires o rig i­
nally installed on your veh icle at the time it
was man ufactured. P lease see
c::> pag e 252,
Speed rating (letter code) for a listing of the
speed rating letter codes and the max imum
speed at which the tires can be driven.
The speed rating le tter code
(c::> page 243) is
on the side wall of the tire
c::> page 251 .
A WARNING
Winter t ires have maximum speed limits
that may be lower than yo ur vehicle's max­
imum speed. Always know the max imum
speed before dr iv ing off . Never dr ive faster
~
•
•

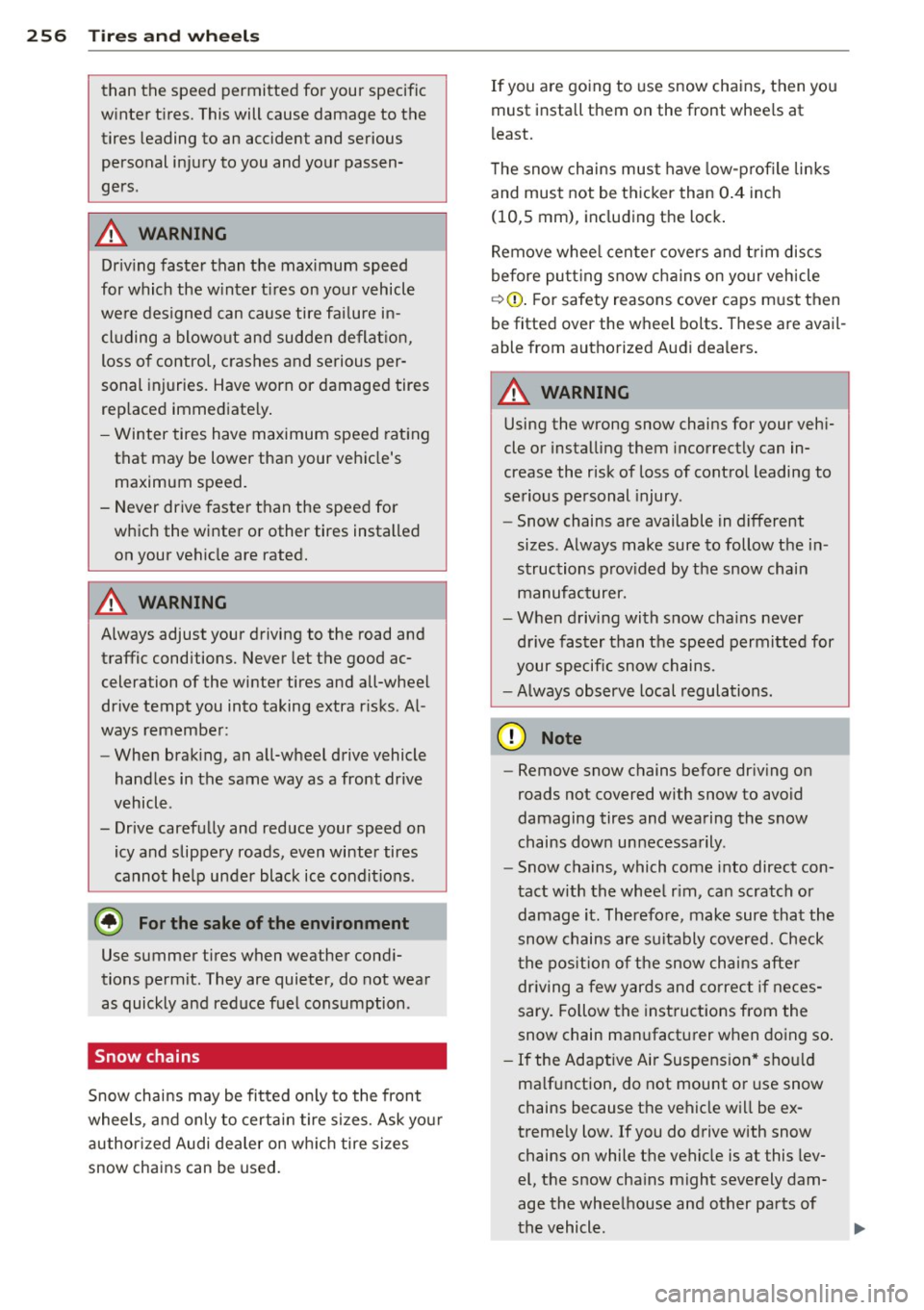

256 Tire s and wheel s
than the speed permitted for your specific
w inter t ires. This will cause damage to the
tires leading to an accident and serious
pe rsonal injury to you and your passen­
gers .
A WARNING
Driv ing faster than the maximum speed
for which the w inte r tires on your vehicle
we re designed can cause tire fai lu re in­
cl uding a blowout and sudden deflat ion,
loss of control, c rashes and serious per­
sonal injuries. Have worn or damage d tires
rep laced immediate ly .
- Winter tires have maximum speed rat ing
that may be lower tha n your veh icle's
maximum speed.
- Never drive faster than the speed for
which the winter or other tires installed
on your vehicle are rated.
A WARNING
Always adjust your d riving to the road and
traffic conditions. Never let the good ac­
celeration of the winter tires and all-whee l
drive tempt you into taking extra r isks. A l­
ways remember :
- When brak ing, an all-w heel drive vehicle
hand les in the same way as a front drive
vehicle .
- Drive carefu lly and reduce your speed on
icy and slippery roads, even winte r tires
cannot he lp under black ice condit ions .
@ For the sake of the environment
Use summer tires when weather cond i­
tions permit . They are quieter, do not wea r
as quickly and reduce f ue l consumption .
Snow chains
-
Snow chains may be fitted on ly to the front
wheels, and only to certa in tire sizes. Ask yo ur
author ized Audi dealer on wh ic h tire sizes
snow chains can be used.
If you are go ing to use snow chains, then you
must i nstall them on the front whee ls at
l east.
T he snow chains mus t have low-p rofile links
and must not be th icker than 0 .4 inch
(10,5 mm) , includ ing the lock .
Remove whee l cen ter covers and t rim discs
before pu tting snow c hains on your veh icle
¢ (D . For safety reasons cover caps m ust then
be fitted over the wheel bo lts. These are avail­
able from autho rized Aud i dealers .
A WARNING
Using the wrong snow chains for your veh i­
cle or installing them incorrect ly can in­
crease the risk of loss of contro l leading to
se rious pe rsonal injury.
- Snow chains are available in different
sizes . Always make sure to follow the in­
structions p rov ided by t he snow chain
manufacturer.
- W hen driving wi th s now cha ins never
d riv e faster than t he speed permitted for
your specifi c snow chains.
- Always observe local regulations.
(D Note
-Remove snow chains before dr iv ing on
roads not covered with snow to avoid
damaging tires and wea ring the snow
chains down un necessa rily.
- Snow chains, which come i nto direct con­
t act with the whee l rim, can scratch or
damage it. Therefo re, make sure that the
snow chains a re s uitably covered. Check
t he pos ition o f th e snow cha ins afte r
dr iv ing a few yards and correc t if neces ­
sary. Follow the inst ructions from the
snow chain ma nufactu rer when do ing so .
- If the Adaptive Air Suspens ion * sho uld
ma lf u nction, do not mount or use snow
chains because the vehicle w ill be ex­
treme ly low. If you do drive with snow
chains on while t he vehicle is at this lev­
el, t he snow cha ins might seve rely dam­
age the whee lhouse and o ther parts of
the vehicle.

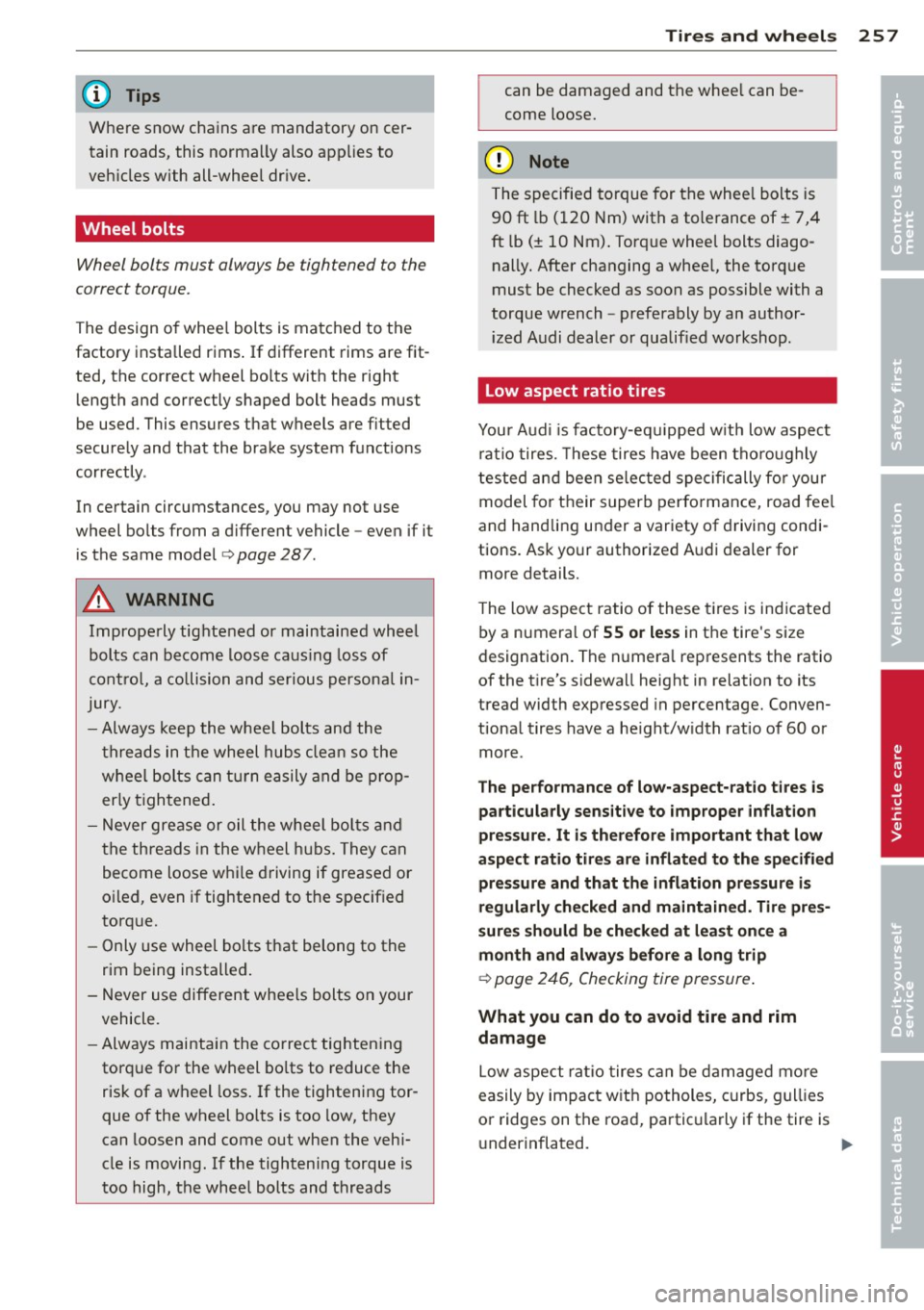

@ Tips
Where snow chains are mandatory oncer­
tain roads, this normally also applies to
veh icles with all-wheel dr ive.
Wheel bolts
Wheel bolts must always be tightened to the
correct torque .
The design of whee l bolts is matched to the
factory insta lled rims . If different rims are fit­
ted, the correct wheel bolts with the right
length and correctly shaped bolt heads must
be used. This ensures that wheels are f itted
securely and that the brake system functions
correctly .
In certain circumstances, you may not use
wheel bolts from a different vehicle -even if it
is the same model
<=> page 287.
.&_ WARNING
Improperly tightened or maintained wheel
bolts can becom e loose caus ing loss of
cont ro l, a co llision and serious persona l in­
Jury .
- Always keep the wheel bolts and the
threads in the wheel hubs clea n so the
w heel bolts can t urn easily and be prop ­
erly t ightened .
- Never grease or oil the wheel bolts and
the threads in the wheel hubs. They can
become loose while d riving if greased or
oi led, even if tightened to the specif ied
torque.
- Only use whee l bolts that belong to the
rim being installed .
- Never use different whee ls bolts on your
vehicle.
- Always maintain the co rrect tighten ing
torq ue for the wheel bo lts to reduce the
risk of a wheel loss . If the tightening tor­
que of the wheel bolts is too low, they
can loosen and come out when the vehi­
cle is moving. If the tightening torque is
too high, the whee l bolts and threads
Tire s an d wheel s 257
can be damaged and the whee l can be­
come loose.
(D Note
The specified torque for the whee l bolts is
90 ft lb (120 Nm) with a tolerance of± 7,4
ft lb(± 10 Nm) . Torq ue whee l bolts diago­
nally. After changing a whee l, the torq ue
must be checked as soon as possible with a
torque wrench -preferably by an author­
i zed Audi dealer or qualified workshop.
Low aspect ratio tires
You r Aud i is facto ry-equ ipped w it h low aspect
ra tio tires. These tires have been tho ro ughly
tested and been se lec ted spe cifically for you r
model for their superb perfo rmance, road fee l
and handling under a variety of driving condi­
tions. Ask your authorized Audi dealer for
more details .
T he low aspect ratio of these t ires is ind icated
by a numera l of
55 or le ss in the tire's s ize
designation. The numera l represents the ratio
of the t ire's sidewa ll height in relation to its
tread width expressed in percentage. Conven­
tiona l tires have a he ight/w idth rat io of 60 or
more .
The performance of low-aspect -ra tio tire s is
particularly sens it iv e to improper inflation
pressure. It is therefore important that low
aspect ratio t ires are inflated to the specified
pre ssure and that the inflation pressur e is
regularly che cked and maintain ed. Tire pre s­
s ures should be checked at least on ce a
m onth and alwa ys before a long trip
¢ page 246, Checking tire pressure .
What you can do to avoid tire and rim
damage
Low aspect ratio tires can be damage d mo re
easily by impact w ith potholes, curbs, g ull ies
or ridges on t he road, partic ularly if the tire is
u nderinflated.
Ill>-
•
•

258 Tires and wheels

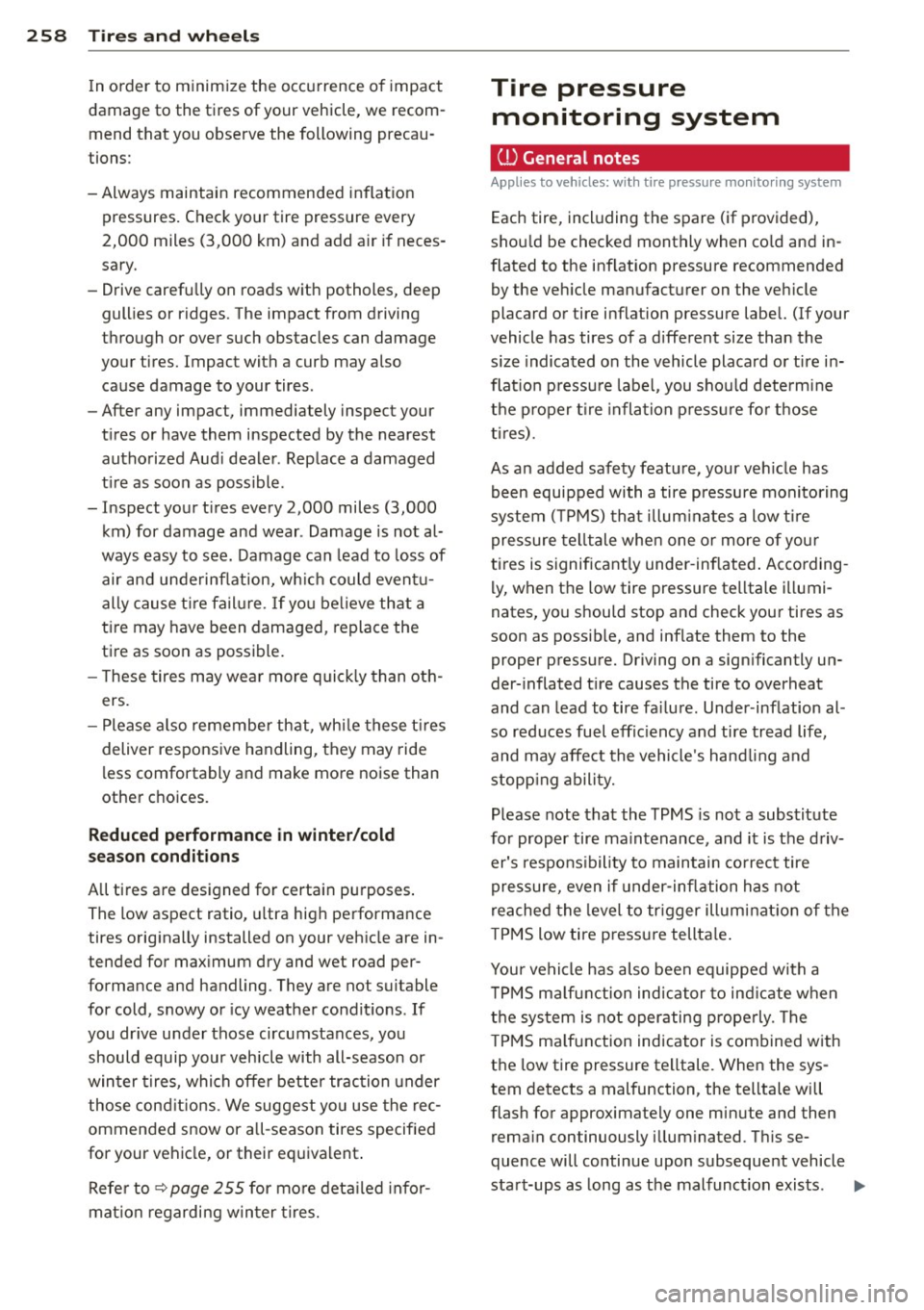

In order to minimize the occurrence of impact
damage to the tires of your vehicle, we recom­
mend that you observe the following precau­
tions :
- Always maintain recommended inflation
pressures. Check your tire pressure every
2,000 miles (3,000 km) and add a ir if neces­
sary.
- Drive carefu lly on roads with potholes, deep
gullies or ridges. The impact from driving
through or over such obstacles can damage
your tires. Impact with a curb may also cause damage to your tires.
- After any impact, immediately inspect your
tires or have them inspected by the nearest
authorized Aud i dealer . Replace a damaged
t ir e as soon as possible .
- Inspect your t ires every 2,000 miles (3,000
km) for damage and wear . Damage is not al­
ways easy to see. Damage can lead to loss of
air and underinflation, wh ich could event u­
ally cause t ire failure.
If you believe that a
ti re may have been damaged, replace the
tire as soon as possible.
-These tires may wea r more quickly than oth­
ers.
- Please also remember that, while these tires
deliver responsive handling, they may ride
less comfortably and make more noise than
other choices.
Reduced performance in winter/cold
season conditions
All tires are designed for certain purposes .
The low aspect ratio, ultra high performance
tires originally installed on your vehicle are in­
tended for max imum dry and wet road per­
f ormance and handling . They are not suitable
for cold, snowy or icy weather cond it ions.
If
you dr ive under those circumstances, you
should equip your vehicle with all-season or
winter tires, which offer better traction under
those conditions . We suggest you use the rec­
ommended snow or all-season tires specified
for your vehicle, or their equiva lent .
Refer to~
page 255 for mo re detailed infor­
mation regarding w inter tires.
Tire pressure
monitoring system
ill General notes
Applies to veh icles: w ith tire pressure monito ring system
Each tire, including the spare (if provided),
shou ld be checked monthly when co ld and in­
flated to the inf lation pressure recommended
by the vehicle manufacturer on the vehicle
placard or tire inflation pressure label. (If your
vehicle has tires of a different size than the
s iz e indicated on the vehicle placard or tire in­
flat io n pressu re label, you shou ld dete rmin e
the proper tire inflation pressure for those
tires) .
As an added safety feature, your veh icle has
been equipped with a tire pressure monitoring
system ( TPMS) that illuminates a low tire
pressure telltale when one or more of your
tires is significant ly under -inflated . Acco rding­
ly, when the low tire pressure te lltale illumi­
nates, you shou ld stop and check your tires as
soon as possib le, and inflate them to the
proper pressure. Driving on a sign ificantly un­
der-inflated tire causes the tire to overheat
and can lead to tire fa ilure . Under -inflation al­
so reduces fuel effic iency and tire tread life,
and may affect the vehicle 's hand ling and
stopp ing ability.
Please note that the TPMS is not a substitute
for proper tire ma intenance, and it is the driv­
er's respons ibility to maintain correct tire
pressure, even if under -inflation has not
reached the level to trigger illumination of the
T PMS low tire p ressu re tellta le .
Your vehicle has also been equipped with a
TPMS malfunction indicator to ind icate when
the system is not operating properly . Th e
T PMS ma lfunction indicator is combined with
the low tire pressure telltale. When the sys­
tem detects a malfunction, the telltale will
flash for approximately one minute and then
rema in con tinuously illuminated . Th is se­
quence will continue upon subsequent vehicle
start-ups as long as the malfunct ion exists . .,.
