technical data AUDI A6 2013 Owners Manual

4 Table of contents
Fuses and bulbs .... ... .. .. ... .
Fuses . ..... ... . ...... ... .. .. ... .
Bulbs . ... .. ... ... .... ... .. .. ... .
Emergency situations ... .. ... .
General .... ... .. ..... ... .. .. ... .
Starting by push ing or tow ing . .. .. . .
Starting with jumper cab les .. .. .. . .
Use of jumper cab les .. .. .. .. .. .. . .
Eme rgency towing with commercial
tow truck .. ................ ... . .
Lift ing vehicle . ........... .... ... .
Technical data ............. .. . .
General information .. .. .. .. . .
Explana tion of te chnical data . .. ... .
Vehicle iden tifica tion .... ...... .. . .
Weights ... ... .. ..... ... .. .. ... .
Dimensions .... .. ..... ... .. .. ... .
Data .. .. .. .. .. .. .... ... .. .. .. . .
A6 211 hp, 2.0 liter 4 -cylinder engine
A6 310 hp, 3.0 liter 6-cyli nder engine
S6 420 hp, 4.0 lite r 8-cylinder engine
Consumer Information ..... . .
Warranty coverages .... ... .. .. ... .
Operating your vehicle o utside the
U.S.A. o r Canada ......... .. .. .. . .
Aud i Service Repair Ma nua ls and 270
270
273
274 274
274
274
275
276 278
280 280
280
280
280 28 1
282
28 2
283 284
285
285 285
Li terature . . . . . . . . . . . . . . . . . . . . . . . 285
M aintenance . . . . . . . . . . . . . . . . . . . . . 285
Addit ional accesso ries , modifications
a nd parts replacement . . . . . . . . . . . . 28 7
D eclaration o f Compliance,
Te lecommunication and E lectronic
Systems . . . . . . . . . . . . . . . . . . . . . . . . 288
Index . . . . . . . . . . . . . . . . . . . . . . . . . . 290

-Blend must contain not more than 15%
MTBE.
Seasonally adjusted gasoline
Many gasoline grades are blended to perform
espec ially we ll for winter or summer driving.
During seasonal change-over, we suggest that
you fill up at busy gas stat ions where the sea­
sonal adjustment is more likely to be made in
time .
(D Note
-Methanol fuels which do not meet these
requirements may cause corrosion and
damage to plastic and rubber compo­
nents in the fuel system .
- Do not use fue ls that fail to meet the
specified criter ia in this chapter.
- If you are unable to determine whether
or not a particular fue l blend meets the
specifications, ask your service station or
its fuel supp lier.
- Do not use fuel for which the contents
cannot be identified.
- Fuel system damage and performance
problems resulting from the use of fuels
different from those specified are not
the responsibility of Audi and are not
covered under the New Vehicle or the Emission Control System Warranties.
- If you experience a loss of fuel economy
or driveability and performance prob­ l ems due to the use of one of these fuel
blends, we recommend that you switch
to unblended fuel.
Gasoline additives
A major concern among many auto manufac­
turers is carbon deposit build- up caused by
the type of gasoline you use.
Although gasoline grades differ from one manufacturer to another , they have certain
things in common. All gasoline grades contain
substances that can cause deposits to collect
on vital engine parts, such as fuel injectors
and intake valves. Although most gasoline brands include additives to keep engine and
Fuel supply and filling your fuel tank 221
fuel systems clean, they are not equally effec ­
tive .
A udi recommends using TOP TIER Detergent
Gasoline. For more info rmation on TOP TIER
Detergent Gasoline, please go to the official
website (www.toptiergas.com).
After an extended period of using inadeq uate
fuels, carbon deposit build-ups can rob your
engine of peak performance.
Q) Note
Damage or malf unct ion due to poor fue l
quality is not covered by the Aud i New Ve­
hicle Limited Warranty.
Fuel tank
Fuel filler neck
The fuel filler neck is located on the right rear
side panel behind the fuel fille r flap.
If the power locking system should fail, you
can still open the flap manually -for deta iled
instruct ions see¢
page 223 .
You can find the fuel tank capacity of your ve­
hicle in
Technical Data ¢ page 282.
The label on the inside of the fuel fi ller flap
tells you the correct fue l for your vehicle. For
more information about fuel specifications,
see ¢
page 220.
Your vehicle fue l tank has an on board refuel­
li ng vapor recovery system. This feature helps
to prevent fuel vapors from escaping from the
tank and polluting the environment while you refuel your vehicle . In order to fill the tank
properly while protecting the environment,
please fo llow this refueling procedure careful­
ly.
_&. WARNING
Under normal operating conditions, never
carry additional fuel containers in your car.
Gas canisters and other containers used to
transport f uel can be dangero us. Such con­
tainers, full or empty, may leak and could
cause a fire in a collision. If you must
•
•

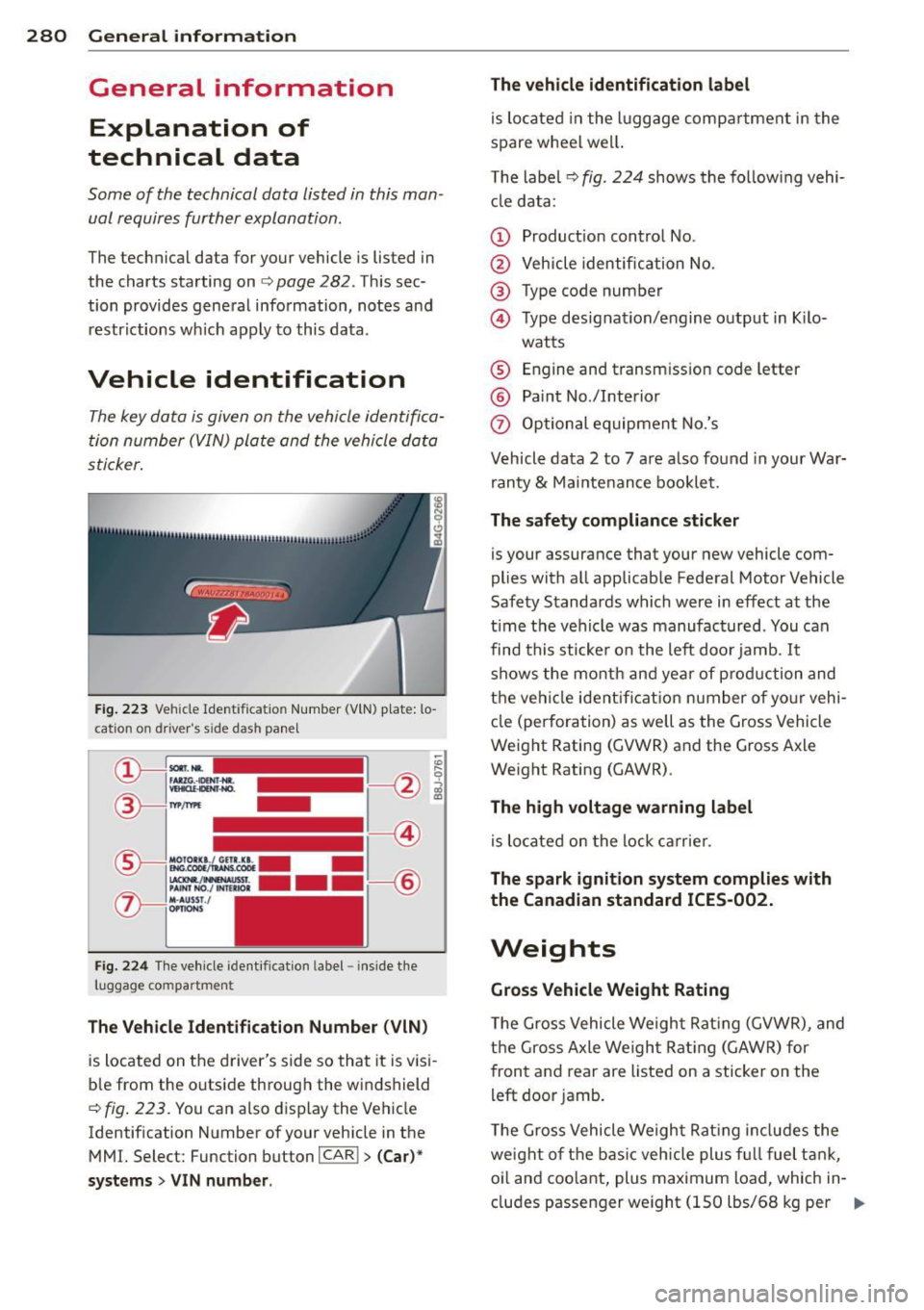

280 General information
General information
Explanation of
technical data
Some of the technical data listed in this man ­
ual requires further explanation .
The technical data for your vehicle is listed in
the charts starting on
r:::> page 282. This sec­
tion provides general information, notes and restrictions which apply to this data.
Vehicle identification
The key data is given on the vehicle identifica­
tion number (VIN) plate and the vehicle data
sticker .
Fig. 223 Veh icle Ide ntificat io n Number (VlN) p late: lo ­
cation on driver 's s ide das h panel
Fig. 224 The vehicle identi fication label -inside the
luggage co mpa rtmen t
The Vehicle Identification Number (VIN)
is located on the driver's side so that it is visi­
ble from the outside through the windshield
r:::> fig . 223. You can also display the Vehicle
Identification Number of your vehicle in the
MMI. Select: Function button
I CAR ! > (Car) *
systems
> VIN number . The
vehicle identification label
is located in the luggage compartment in the
spare wheel well.
The label¢
fig. 224 shows the follow ing vehi­
cle data :
(D Product ion control No .
@ Vehicle identification No.
® Type code number
@ Type designation/engine output in Kilo-
watts
® Engine and transmission code letter
@ Paint No./Interior
(f) Optional equipment No.'s
Vehicle data 2 to 7 are also found in your War­
ranty
& Maintenance booklet.
The safety compliance sticker
is your assurance that your new vehicle com­
plies with all applicable Federal Motor Vehicle
Safety Standards which were in effect at the
t ime the vehicle was manufactured . You can
find this sticker on the left door jamb .
It
shows the month and year of production and
the vehicle ident ification number of yo ur vehi ­
cle (perforation) as well as the Gross Vehicle
Weight Rating (GVWR) and the Gross Axle
Weight Rating (GAWR) .
The high voltage warning label
is located on the lock carrier.
The spark ignition system complies with
the Canadian standard ICES-002.
Weights
Gross Vehicle Weight Rating
The Gross Vehicle Weight Rat ing (GVWR), and
the Gross Axle Weight Rating (GAWR) for
front and rear are listed on a sticker on the
left door jamb.
The Gross Vehicle Weight Rating includes the
weight of the bas ic vehicle plus fu ll fuel tank,
oi l and coo lant, plus maximum load, which in­
cludes passenger weight (150 lbs/68 kg per
Ill>
