General information
Applies to vehicles: with side assist
®
©
Fig . 100 Dr iving situations
AUDI
Fig. 101 Rear of t he ve hicle: positio n of t he se nsors
Side assist functions at speeds above approx i­
mately 19 mph (30 km/h).
@ Vehicl es th at ar e approaching
In certain cases, a vehicle will be classified as
cr itical for a lane change even if it is still
somewhat far away. The fas ter a vehicle ap­
p roaches, the sooner the display in the exteri­
or m irror will t urn on.
@ V ehicles traveling with you
Vehicles traveling w ith you are indicated in the
exterior m irror if they are classified as cr itical
for a lane change. All vehicles detec ted by
side assist are indicated by the time they en­
ter your "blind spot", at the latest.
Audi side assist 9 7
© Vehicle s left behind
If you s low ly pass a vehi cle that s ide assist has
detected (the difference in speed between the
vehicle and you r vehicle is less than 9 mph or
15 km/h), the display in the exterio r mirror
turns on as soon as the vehicle enters your blind spot.
The disp lay will not t urn on if you quickly pass
a vehicle that side assist has detected (the dif­
ference in speed between the veh icle and your
vehicle is greater than 9 mph or 15 km/h).
Functi onal limitations
The radar sensors are designed to detect the
left and right adjacent lanes when the road
lanes are the normal width. In certain situa­
tions, the d isp lay in the exterior mirror may
turn on even though there is no veh icle locat­
ed in the area that is cr itical for a lane change.
For example:
- if the lanes are narrow or if your are dr iving
on the edge of your lane.
If this is the case,
the system may have detected the vehicle in
another lane that is
not adjacent to your
current lane .
- if you a re driving through a curve. Side assist
may react to a vehicle that is one lane ove r
from the adjacent lane.
- if side assist reacts to other objects (such as
high or d isp laced guard rails) .
- In poor weather conditions. The side assist
functions are l imited .
Do not cover the radar sensors¢
fig. 101 with
stickers, depos its, bicycle wheels or other ob­
jects, because this will affect the funct ion. Do
not use s ide ass ist when towing a trailer. For
i nformation on cleaning, refer to ¢
page 210.
_&. WARNING
-Always pay attention to traffic and to t he
area a round your ve hicl e. S ide assist can­
not replace a driver's attention. T he driv­
er a lone is always responsible for lane
changes and similar driving mane uvers.

98 Audi side assist
-Improper reliance on the side assist sys­
tem can cause collisions and serious
personal injury:
- Never rely only on side assist when
changing lanes.
- Always check rear view mirrors to make
sure that it is safe to change lanes.
- Side assist cannot detect all vehicles un­
der all conditions- danger of accident!
- Please note that side assist indicates
there are approaching vehicles, or
vehicles in your blind spot, only after
your vehicle has reached a driving speed
of at least 19 mph (30 km/h).
- In certain situations, the system may not
function or its function may be limited.
For example:
- if vehicles are approaching or being left
behind very quickly . The display may
not turn on in time.
- in poor weather conditions such as
heavy rain, snow or heavy mist .
- on very wide lanes, in tight curves or if
there is a rise in the road surface.
Vehicles in the adjacent lane may not be detected because they are outside
of the sensor range.
(D Note
The sensors can be displaced by impacts or
damage to the bumper, wheel housing and
underbody. This can affect the system.
Have your authorized Audi dealer or au­
thorized Audi Service Facility check their
function.
@ Tips
- If the window glass in the driver's door
or front passenger's door has been tint­ ed, the display in the exterior mirror may
be misinterpreted.
- For Declaration of Compliance to United
States FCC and Industry Canada regula­
tions¢
page 286.
Activating and deactivating
Applies to vehicles: rnit s ide ass ist
Fig. 102 Driver's doo r: Side ass ist butto n
.. Press the button c> A in General informa­
tion on page 9
7 to switch the system on/off .
The LED in the button turns on when side
assist is switched on .
Adjusting the display brightness
Applies to vehicles: wit h side assist
The brightness setting can be adjusted via the
MMI.
.. Select: !CAR I function button> (Car)* sys­
tems control button > Driver assist > Audi
side assist .
The display brightness adjusts automatically
to the brightness of the surroundings, both in
the information and in the warning stage. In
very dark or very bright surroundings, the dis ­
play is already set to the minimum or maxi­
mum level by the automatic adjustment . In
such cases, you may notice no change when
adjusting the brightness, or the change may
only be noticeable once the surroundings
change.
Adjust the brightness to a level where the dis­
play in the information stage will not disrupt
your view forward. If you change the bright­
ness, the display in the exterior mirror will
briefly show the brightness level in the infor­
mation stage. The brightness of the warning
stage is linked to the brightness in the infor­ mation stage and is adjusted along with the
information stage adjustment .

102 Audi drive select
The equipment in your vehicle w ill determine
which settings you ca n adj ust. The fo llowing
Systems Comfort
Engine /Tran smission
balanced
Air suspension * comfortable
Steering comforta ble
Sport d iff erent ial * balanced
Curve light* comfortab le
Belt tensioner * Standard
Adaptive cruise control * comfortable
Engine sound* subtle table p
rov ides a n overview of the characteris ­
tics of eac h driving mode .
Auto Dynamic
balanced sporty
ba lanced sporty
ba lanced spo
rty
ag ile sporty
ba lanced spo
rty
Standard Deployment time
adapted
ba lanced sporty
subtle/spo rtyal
sporty
al Subtle in the driving pos itio n D and sporty in th e d riving pos itio n S.
{DJ Tips
Your Individual mode se ttings are a uto­
mat ica lly store d an d assig ned to t he re­
mote co ntro l key being use d.
Raising/lowering the
vehicle
Raising the vehicle
You can ra ise your veh icle tempora rily, for ex­
ample to dr ive over a tall curb.
., Se lect the following in the
MMI: ICAR !f u nc ­
tion button >
Raise contro l button .
., Wait for the arrows in the display to stop
blinking and the vehicle to reach its fina l po­
s it ion.
Lowering the vehicle
., To lower t he veh icle, select the fo llowing in
the
M MI: ICARlfunction button> Lowe r con­
t ro l button .
., Wait for the a rrows in the display to stop
blinking and the vehicle to lower complete­
l y.
{(D Note
- Remember that your veh icle is not s uita­
ble for driving offroad even when it is
r aised. There is not enough ground clear­
ance. -
If the vehicle is ra ised, it will lower auto­
m at ically whe n driving 6 2 mph (1 00 km/
h) or faster .
Driver messages
Air suspen sion : vehicle currently too low .
Level control running
Air su spension : vehicle curr ently too high .
L e vel control running
The driver message switc hes off when the lev­
el cont rol process is comp lete .

Night vision assistant
Night vision assistant
with detected pedestrian marking
Description
App lies to vehicles: with night v isio n assistant
Fig . 104 Display: nig ht v is ion assistant
"N ight v is ion assistant with pedestrian detec­
tion" uses an infrared camera to monitor the
area in front of your vehicle at night. Within
the limits of the system , it can display objects
up to about 1000 feet (300 meters) away. The
heat image of a pedestrian detected by the
camera is shown in the instrument cluster dis­
play
Q fig . 104 . Warm areas appear lighter
and cold areas appear darker .
Pedestrian detection
Applies to vehicles: with n ig ht v ision ass istant
Fig. 105 Display : yellow pedestrian marking
Night vision assistant 103
Fig. 1 06 D isp lay: symbo l w hen infrare d image is not
visi ble
Night vision assistant can detect pedestrians
that are between about 50 and 300 feet (15
and 90 meters) in front of the vehicle, under
ideal conditions .
If a pedestrian is detected
when it is dark outside and the vehicle head­
lights are switched on, the pedestrian is high ­
lighted in yellow
Qf/g . 105, Qpage 104,
General information.
If another display such
as navigation replaces the image from the
night vision assistant, the symbo l~,, appears
in a tab
Q fig. 106.
(D Tips
If the night vision assistant image does
not appear when the system is sw itched
on, you can access it with the buttons on
the multifunction steering wheel
Q page25.

104 Night visi on assis tant
Pedestrian warning
Applies to vehicles: with night vision assistant
Fig. 107 Display : pedestrian warning
Fig . 108 D is p lay: pedestrian warning w ith a nother dis­
p lay
I f a pedestrian is detected in an area in front
of the vehicle that the system considers criti­
cal, the pedestrian is high lighted in red
¢ fig . 107 and a warning tone sounds. This
area is based on the vehicle speed and steer ­
ing angle. The pedestrian warning prompts
you to pay even closer attention to the area in
front of the vehicle and to watch out for pe­
destrians.
If another display s uch as the tr ip computer
replaces the image from the night vision as­
sistant, the indicator light turns red when
there is a pedestrian warning.¢
fig. 108 .
The pedestrian warning . appears in the
Head-up Display *.
(D Tips
The pedestrian marking and warn ing tone
can be adjusted in the MMI
!:!) page 105.
General information
Applies to vehicles: with night vision assistant
Fig. 109 Fro nt of th e ve hicle: night v ision assistant
camera
T he following situat ions may affect the func­
t ion of the n ight vision assistant system:
- poor visibility such as snow, rain, fog or
heavy road spray
- dirty lens on the n ight vis ion assistant cam -
era
Make sure the night vision assistant camera
¢
fig . 109 is not covered by stickers, deposits
or any other obstructions because that can
prevent the camera from working properly.
For information on cleaning the lens, refer to
¢ page 210.
Pedestrian detection depends on the d iffer ­
ence in temperature between the person and
the background. Pedestr ians may not be de­
tected if the temperature diffe rence is too
small . Th e pedestrian highl ighting feature is
deactivated at tempe ratures above 77 ° F
(25 °C) and when it is light outside.
A WARNING
Night vision assistant has limits and can­
not always detect pedestr ians. Always pay
close attention to traffic and the area
around your vehicle even when night vision
assistant is sw itched on .
- Night vision assistant can only warn
about people located within the visual
range of the infrared camera. The visual
range corresponds to the image in the in­
strument cluster display .
- Night vision assistant may not detect
-
peop le and highlight them if .,.

-they are not in an upright position, for
examp le if they are s itting, crouching
or lying down and/or
- if the outline in the display is incom­
p lete or interrupted, for example be­
cause the person is partially hidden by
a parked veh icle .
(D Tips
-Pedestrian detection and the pedestrian
warming are lim ited to objects that are
detected as pedestr ians. The system
does not detect animals . Even though
the shape and warmth radiated by each
object det ected is evaluated, the system
does have lim itations and it can give in­
correct warnings.
- Fo r techn ical reasons , the image pauses
in split second interva ls.
Switching on and off
Appl ies to vehicles: with night vision assistant
Fig . 110 Area a round the lig ht switch: night vis io n as ­
si st ant button
.. Switch the ignition on and turn the light
switch to the
AUTO position or io.
.. To switch night vision ass istant on, press the
~ button c::> fig. 110. T he image from the
night vision camera appears in the instru­
ment cluster d isp lay.
.. Press the button~ again to sw itch night vi ­
s ion assistant off .
Night vision assistant 105
Settings in the MMI
Applies to vehicles: with night vision assistant
Fig. 111 Disp lay : exa mple of pedest rian detect io n and
warn ing to n e sw it c hed off
.. Select: !CAR ! function button> (Car)* sys­
tems
control button > Driver assist > Night
vision assist.
Highlight pedestrians -
You can switch pedes­
trian detec tion
on and off. If you switch pe­
destrian detection off, the pedestrian warning
tone also switches off . The symbols
Ill and fa
appear in the upper right area of the instru­
ment cluster disp lay
¢ fig. 111.
Warning tone -You can switch the tone for
the pedestrian warning
on and off. When the
warning tone is sw itched off, a yellow symbol
for the deactivated warning tone with a line
through it appears in the upper right of the in­
strument cluster d isplay
c::>fig. 111 .
Contrast -When the night vision assistant is
switched on and the image is visib le in the in­
strument cluster display, you can adjust the
contrast in the image from
Min to Max .
Driver messages
Applies to vehicles: with night vision assistant
Night vision assistant: system malfunction!
The system cannot work properly and is
switched off. See your authorized Audi dealer
for assistance.
Night vision assistant: not available
The system cannot detect properly under cur­
rent conditions and is switched off temporari-
~ ~

108 Automatic Transmission
N - N eutr al
The transmission is in neutral in this position.
Shift to this position for stand ing with the
brakes applied
q .&. in Driving the automatic
transmission on page 11 O.
When the ve hicle is stationary o r at speeds
be low 1 mph (2 km/h), you must always apply
the footbrake befo re and while moving the
l ever out of N .
DIS -Normal position for driving forward
In the D/S position, the transmiss io n can be
operated e ither in the normal mode Dor i n
the sport mode S. To select the sport mode S,
pu ll the se lector lever back briefly . Pulling the
lever back aga in will select the normal mode
D. The instrument cluster display shows the
selected driving mode.
In the normal mode D, the transmission a uto ­
mat ica lly selects the suitab le gea r ratio.
It de­
pends on engine load, veh icle speed and driv­
ing style.
Select the sport mode S for sporty driving .
The vehicle makes fu ll u se of the engine's
power. Shifting may become noticeable when
accelerating.
When the ve hicle is stationary o r at speeds
be low 1 mph (2 km/h), you must always apply
the foot brake before and while moving the lever to D/S out of N .
A WARNING
Read and follow all WARNINGS q .&. in
Driving the automatic transmission on
page 110.
(D Note
-
Coast ing downh ill with the transmission in
N and the e ngine not r unning w ill result in
damage to the automatic transm iss io n
and possib ly the catalyt ic converter.
@ Tips
- Audi drive select : you ca n adj ust the
sporty s hift c haracte ristics in th e
Dy-
namic driving mode.Swi ll appea r in the
instrument cluster display instead of D.
-If you a cc iden tally selec t N whi le driving,
take your foot off the accelerato r pedal
immediately and wa it for the engine to
slow down to idle before select ing D/S.
- If there is a power fai lure, the selector
lever w ill not move out of the P position.
The emergency release can be used if
this happens
c::>page 113.
Automatic Shift Lock (ASL)
Applies to vehicles: with multitronic/5 tronic/tiptron ic
The Automatic Shift Lock safeguards you
against accidentally shifting into a forward or the reverse gear and causing the vehicle to
move unintentionally.
' ) ( )
Fig . 113 Shi ft gate: selector leve r lock pos it ions a nd
re lease button high lig h ted
The selector lever lock is re leased as follows:
.,. Tur n the ignition on .
.,. Step on the brake pedal.
At the same time
press and hold the re lease button on the
side of the gear selector knob
c:> fig . 113
with your thumb until you have moved the
selector lever to the desired posit ion.
Automatic selector leve r lo ck
The selector lever is locked in the P and N po­
s itions when the ignit ion is turned on . Yo u
must press the brake pedal and the re lease
button to select another position . As a re­
minder to the driver, the following warni ng
appea rs in the instrument clus ter display
whe n the selector is in P and N:
When stationary apply brake peda l while se-
lecting gear ..,_

and technical limitations. If may still be necessary to adjust the speed with the brakes.
H ill descent control switches off once the de­
cline levels out or you press the accelerator
pedal.
On vehicles w ith the c ruise control system*
c::> page 82, hill descent con trol is also activat­
ed when the speed is set.
A WARNING
-
Hil l descent control cannot overcome
physical limitations, so it may not be able
to maintain a constant speed under all
conditions. Always be ready to app ly the
brakes.
Manual shift program
App lies to vehicles: with multitron ic/S tronic/t iptronic
Using the manual shift program you can
manually select gears.
Fig . 115 Center co nsole: sh ift ing the gears manually
Fig . 116 Steering wheel: S hift b uttons*
Gear selection with selector lever
The tiptron ic mode can be selected either with
the vehicle stationary or on the move .
.,. Push the selector lever to the right from D/
5. An M appears in the instrument cluster
Automatic Transmission 111
display as soon as the transmission has
shifted.
.,. To upshift, push the selector lever forward
to the plus position
0 c::> fig. 115 .
.,. To downshift, push the lever to the minus
position
0 .
Gear selection with paddle levers*
The shift buttons are activated when the se­
lector lever is in D/S or the tiptronic manual
shift program.
.,. To upshift, touch the button on the right
0
c::>fig. 116.
.,. To downshift, touch the button on the left
0 .
.,. If you do not press a shift button within a
short time while in the D/S posit ion, the
transmission will return to automatic mode.
To keep shifting using the shift buttons,
move the selector lever to the r ight out of
the D/S position.
The transm iss ion automatically sh ifts up or
down before cr itical engine speed is reached.
The transmission only allows manual shifting
when the engine speed is with in the permit­
ted range .
(D Tips
-When you shift into the next lower gear,
the transmission will downshift only
when the re is no possibility of over-rev­
ving the engine.
- When the kick-down comes on, the
transmission will shift down to a lower
gear, depending on vehicle and engine
speeds.
- T iptron ic is inoperative when the trans­
mission is in the fail-safe mode.

Parking system plus
Description
Applies to vehicles: with parking system plus
Audi parking system plus provides audio and
visual signals when parking.
Fi g. 118 Dis p lay f ie ld
Sensors are located in the front and rear
bumpers.
If these detect an obs tacle, visual
and in some situations aud ible signals warn
you.
M ake sure t he sensors are not cove red by
s t icke rs, deposits or any o ther obs truc tions as
it may impair the sensor function. For infor­
mation on cleaning, refer to
c::> page 210 .
The display field begins approximately at:
® 4 ft (1.20 m)
® 3 ft (0 .90 m)
© 5.2 ft (1.60 m)
@ 3 ft (0 .90 m)
The clos er you get to the obstacle, the sho rter
the interval between the audible signa ls. A
con tinuous tone sounds when the obstacle is
l ess than approximate ly 1 ft (0.30 m) away .
Do not continue driving farther¢
& in Gener­
al information on page 114, ¢(Di n General
information on page
114 !
If the d istance to an obstacle remains con­
stant, the volume of the d istance warning
gradually drops after about four seconds (this
does not apply in the continuous tone range).
P arking systems 115
Switching on/off
Applies to vehicles: with parking system plus
Fig. 119 Center co nso le : Pv! button
Fig . 1 20 Infota in m ent : vi su al d is ta n ce d isplay
Switching on
.,. Shift into reverse or
.,. Press the
p,;A button in the center console
c::> fig. 119 . A short confirmation tone
sounds and the LED in the button turns on .
Switching off
.,. Dr ive fo rward fas ter than 6 mph (10 km/ h),
or
.,. press the
P"IA button, or
.,. sw itch the ignit ion off.
Visual d isplay
U sing the segments, yo u can estimate the dis­
tance to a n object in front of o r behind the ve­
hicle ¢
fig. 120 . The red lines mark the ex­
pected d irect ion of travel according to the
steering ang le . A wh ite segment indicates an
identified obstacle that is outside of the vehi­
cle's pat h. Red segments show identified ob­
stacles that are in your vehicle's path . As your
vehicle comes close r to the obstacle, the seg ­
ments move closer to the vehicle . At the lat-
est th e collision area has been reached when ..,.

116 Parking systems
the next to last segment is disp layed . Obsta­
cles in the collision area, including those out­
side of the vehicle 's path, are shown in red. Do
not continue driving farther forward or in re­
verse
q .&. in General information on
page 114, q(f) in General information on
page 114 .
Rear view camera
Introduction
Applies to vehicles: with parking system plus with rear
view camera
Fig. 121 Illustration: Cross parking
F ig. 122 Illustrat ion: paralle l parking
In addition to parking system p lus
q page 115, this parking system also has a
rear view camera .
You can use
cross parking for examp le, to
park in a parking space or in a garage
q fig. 121 . You can use parallel parking if you
wou ld like to park on the side of the road
r::;, fig . 122.
General information
Applies to vehicles: with parking system plus with rear
view camera
F ig. 123 Area covered (D a nd area not covered @by
the rear v iew camera
Fig. 1 24 Rea r lid: Locat ion of t he rear view camera
T he rea r view camera is located above the rear
license p late bracket . Make s ure that the lens
for the parking system
q fig. 124 is not cov ­
ered by deposits or any other obstruct ions be­
cause this can affect the function of the park­
ing system . For informat ion on cleaning, refer
to
q page 210.

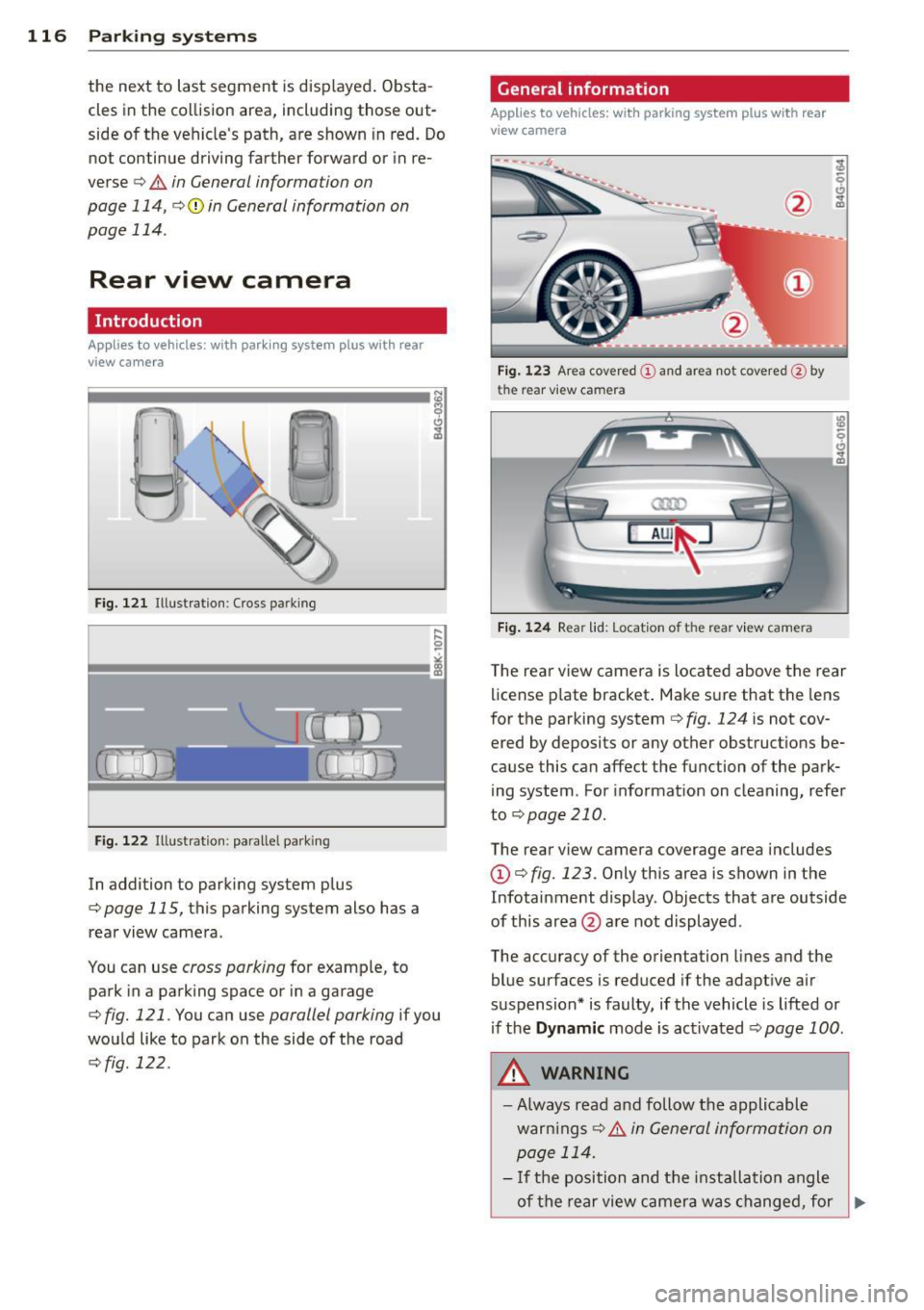

The rear view camera coverage area includes
(D q fig. 123. Only this area is shown in the
Infotainment display . Objects that are outside
of this area @are not displayed.
The accuracy of the orientation lines and the
blue surfaces is reduced if the adapt ive air
suspension* is faulty, if the vehicle is lifted or if the
Dynamic mode is activated r::;, page 100 .
A WARNING
-
-Always read a nd follow the applicable
warn ings
r::;, .&. i n Ge neral information on
p age 114.
- If the position and the installation angle
-
of the rear view camer a was changed, for ~
