" N .... 0 0 <..:l ' about children and Advanced Airbags
¢page 171.
Even though yo ur vehicle is equipped with an Ad­
vanced Airbag System, make certain that all chil­
dren, especially those 12 years and younger, al­
ways ride in the back seat properly restrained for
their age and size. The airbag on the passenger
side makes the front seat a potentially dangerous place for a child to ride. The front seat is not the
safest place for a child in a forward-facing child
seat .
It can be a very dangerous place for an in­
fant or a child in a rearward-fac ing seat.
T he Advanced Airbag System in your veh icle has
been certified to comply with the requirements
of United States Federal Motor Vehicle Safety
Standa rd (FMVSS) 208, as well as Canada Motor
Veh icle Safety Standa rd (CMVSS) 208 as applica­
b le a t the time your veh icle was m an ufact ured.
Accord ing to requirements, the front Advanced
Airbag System on the passenger side has been
certified for "suppression" for infants of about 12 month old and younger and for "low risk de­
ployment" for children aged 3 to 6 years old (as
defined in the standard) .
T he
PASSENGER AIR BAG O FF light in the instru­
ment panel tells you when the front Advanced
Airbag on the passenger side has been turned
off
by the electronic control unit.
Each time yo u switch on the ignition, the
PAS ·
S ENGER AIR BAG OFF
light will come on for a
few seconds and:
- will stay on if the front passenger seat is not
occupied,
- will stay on if the electrical capacitance meas ­
ured by the capac itive passenger detection sys­
tem for the front passenger seat equals the combined capacitance of an infant up to about
one year of age and one of the rearward-facing
or forward-facing child restraints listed in Fed ­
era l Moto r Vehicle Safety Standard (FMVSS)
208 with which the Advanced Airbag System i n
yo ur vehicle was ce rtified. For a l isting of the
child rest raints t hat were used to ce rtify your
vehicle's compliance with the Safety Standa rd
¢ page 173 .
Airbag sys tem
-wi ll stay on if there is a small child or c hild re­
straint on the front passenger seat,
- will go
off if the front passenge r seat is occu ­
pied by an adult as registered by the capac itive
passenger detection system ¢
page 159, Mon­
itoring the Advanced Airbag System.
T he PAS SENGER AIR BAG OFF lig ht comes on
when e lectrica l capacitance registered on the
front passenger seat is equal to or less than the
combined capacitance of a typical 1 year-old in­
fant and one of the rearward-facing or forward­
facing child restraints listed in Federal Motor Ve­
hicle Safety Standard (FMVSS) 208 with wh ich
the Advanced Airbag System in yo ur vehicle was
ce rtified.
If the to tal e lec tric al capacitance reg is tered on
t h e front passenger seat is more than that of a
typ ical 1 year-old ch ild but less than the weight
of a sma ll adult, the front airbag on the passen­
ger side can deploy (the
PASSENGER AIR BAG
OFF
light does not come on).
If the PASSENGER AIR BAG OFF light does not
come on, the front airbag on the passenger side
has not been turned off by the electron ic con trol
u nit and can dep loy if the control unit senses an
impact that meets the cond itions s tored in its
memory .
For example , th e airbag may deplo y if:
- a small ch ild that is heav ier than a typ ical 1
year-o ld child is on the front passenger seat
(regardless of whethe r the child is in one of the
child seats lis ted
¢ page 173), or
- a child who has outgrown c hild rest raints is on
the front passenge r seat.
If the front passenger airbag is turned off, the
PASSENGER AIR BAG OFF light comes on in the
inst rument cluste r and stays on .
If the front passenger airbag deploys, the Feder­
al Standard requires the airbag to meet the "low
risk" deployment cr iteria to reduce the r isk of in­
jury through interact ion w ith the airbag . "Low
r isk " dep loymen t occurs in those crashes that
t ak e place at lowe r decelerations as defined in
the e lectronic control unit¢
page 159, PASSEN -
GER AIR BAG OFF light.
Ill>
149

Airbag syste m

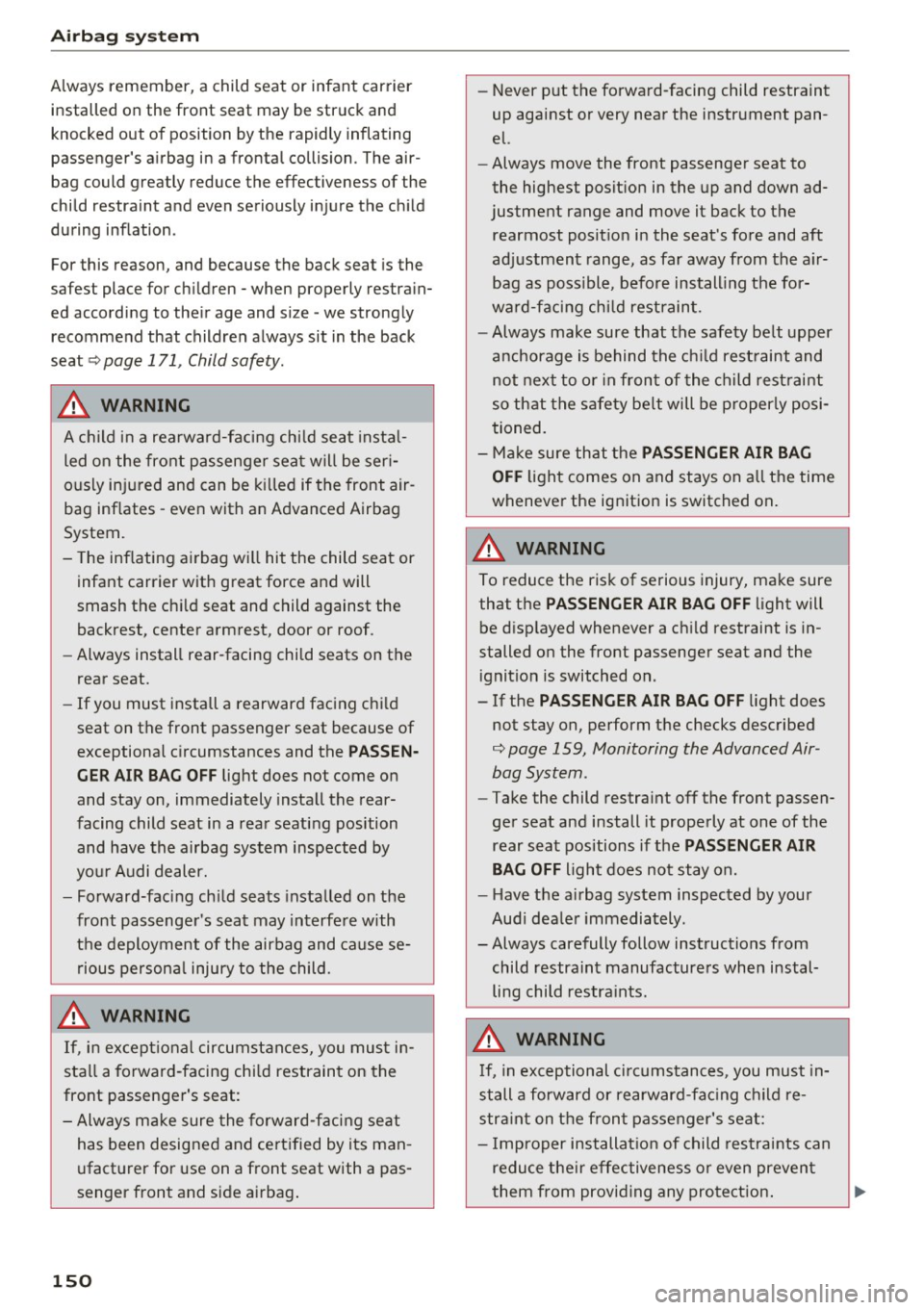

Always remember, a child seat or infant carrier
installed on the front seat may be struck and
knocked out of position by the rapidly inflating
passenger's airbag in a frontal collision. The air­
bag could greatly reduce the effectiveness of the
child restraint and even seriously injure the child
during inflation.
For this reason, and because the back seat is the
safest place for children -when properly restrain­
ed according to their age and size -we strongly
recommend that children always sit in the back
seat
¢ page 171, Child safety.
.8, WARNING

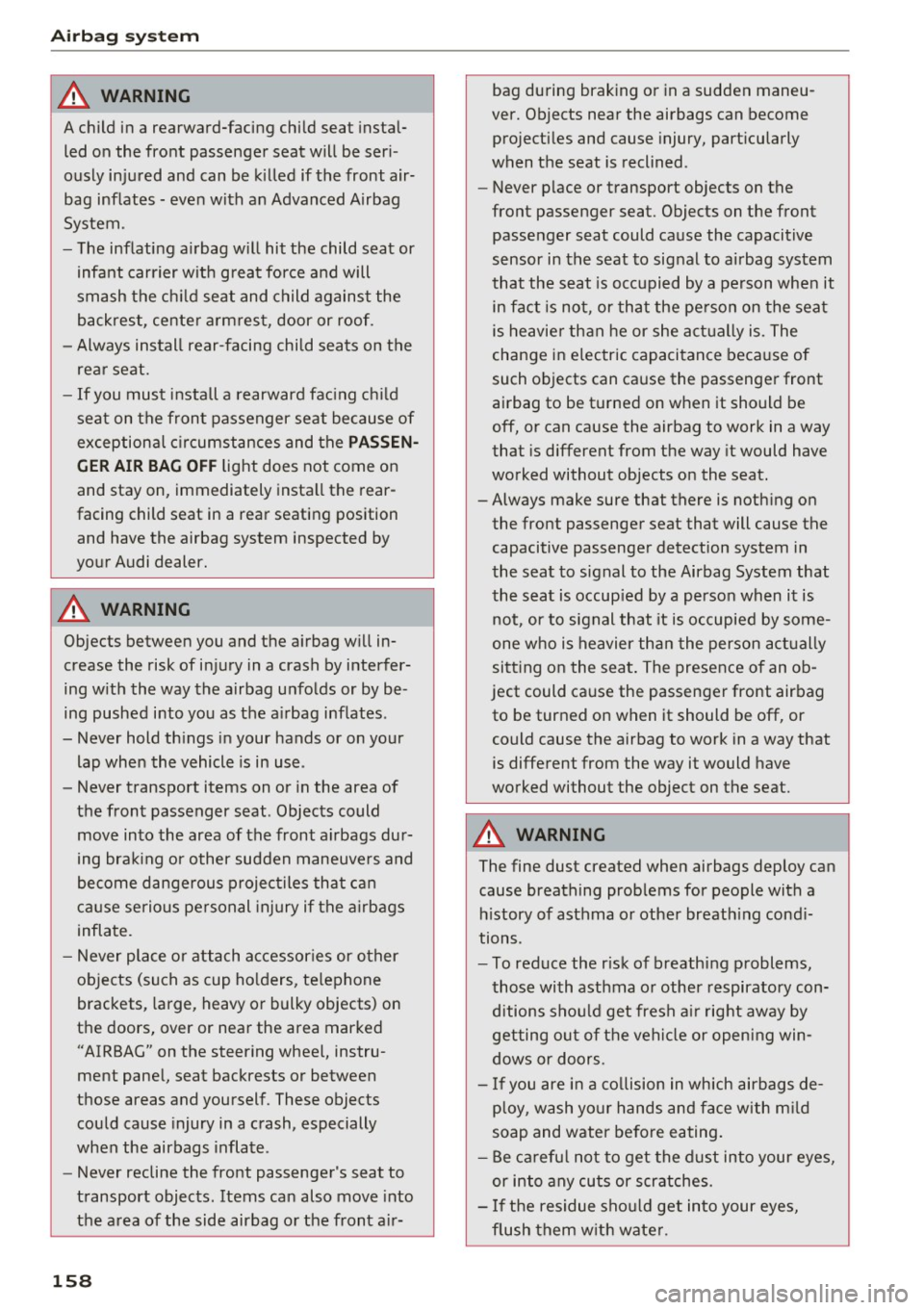

A child in a rearward-facing chi ld seat insta l­
led on the front passenger seat will be ser i­
ously injured and can be killed if the front air­
bag inflates -even with an Advanced Airbag
System.
- The inflating airbag will hit the child seat or
infant carrier with great force and will
smash the chi ld seat and child against the
backrest, center armrest, door or roof.
- Always install rear-facing child seats on the
rear seat.
- If you must install a rearward facing chi ld
seat on the front passenger seat because of
exceptional c ircumstances and the
PASS EN­
G ER AIR BA G OFF
light does not come on
and stay on, immediately install the rear­
facing child seat in a rear seating position
and have the airbag system inspected by
yo ur Audi dealer.
- Forward-facing ch ild seats insta lled on the
front passenger's seat may interfe re with
the deployment of the airbag and cause se­
rious persona l injury to the child.
.8, WARNING
If, in except ional circumstances, you must in­
stall a forward-facing chi ld restraint on the
front passenger's seat:
- Always make sure the forward-facing se at
has been designed and certified by its man ­
ufacturer for use on a front seat with a pas­
senger front and side airbag .
150
-
-Never put the fo rward-facing child restraint
up against or very near the instrument pan­
el.
- Always move the front passenger seat to
the highest posit ion in the up and down ad­
justment range and move it back to the
rearmost posit ion in the seat's fore and aft
ad justment range, as far away from the a ir­
bag as poss ible, before install ing the for­
ward-facing chi ld restrain t.
- Always make sure that the safety be lt upper
anchorage is behind the ch ild rest raint and
not next to o r in fron t of the child rest raint
so that the safety be lt will be properly posi­
tioned.
- Ma ke sure that the
PASSENGER AIR BAG
OFF
light comes on and stays on a ll the time
wheneve r the ignit ion is switched on .
.8, WARNING
-
To reduce the risk of serious injury, make sure
that the
PASSENGER AIR BAG OFF light will
be d isp layed whenever a ch ild restraint is in­
stalled on the front passenge r seat and the
ignit ion is switched on.
- If the
PASSENGER AIR BA G OFF light does
not stay on, perform the checks described
¢ page 159, Monitoring the Advanced Air­
bag System .
-Take the child restraint off the front passen­
ger seat and install it properly at one of the
rear seat positions if the
PASSENGER AIR
BAG OFF
light does not stay on.
- Have the airbag system inspected by your
Aud i dea le r i mmediately.
- Always carefully follow instructions from child restraint manufacture rs when instal­
ling child restra ints .
.8, WARNING
If, i n exceptional ci rcumstances, you must in­
stall a forward or rearward-fac ing child re­
stra int on the front passenger's seat:
- Improper installat ion of child restraints can
reduce the ir effectiveness or even preven t
them from provi ding any pro tect ion .

co
co
.... N
" N .... 0 0 <..:l 'SI'

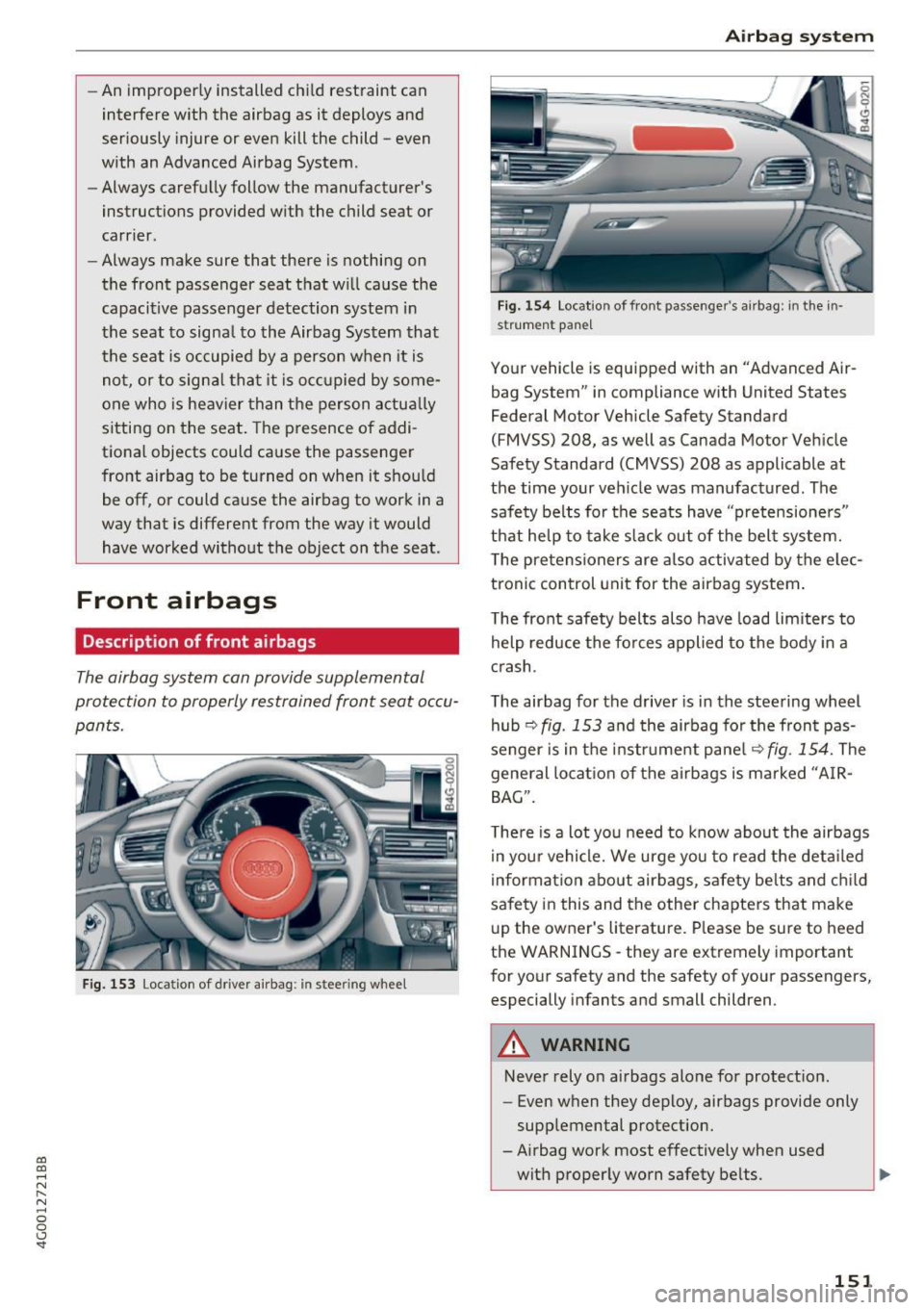

-An improper ly installed ch ild restraint can
interfere with the airbag as it deploys and
seriously injure or even kill the child -even
with an Advanced Airbag System.
- Always carefu lly follow the manufacturer 's
instructions provided w ith the child seat or
carrier .
- Always make sure that there is nothing on
the front passenger seat that w ill cause the
capacit ive passenger detection system in
the seat to signa l to the Airbag System that
the seat is occupied by a person when it is
not, or to signa l tha t it is occ upied by some ­
one who is heavier than the person actua lly
sitting on the seat . The presence of addi ­
tional objects could cause the passenger
front airbag to be turned on when it shou ld
be off, or could cause the airbag to work in a
way that is different from the way it would have worked without the object on the seat .
Front airbags
Description of front airbags
The airbag system can provide supplemental
protection to properly restrained front seat occu­
pants.
Fig. 153 Location of driver airbag: in ste.e ring whee l
Airb ag sys tem
Fig. 154 Location of front passenger's airbag: in the in­
st rument pane l
Your vehicle is equipped with an "Advanced Air­
bag System" in compliance with United States
Federal Motor Vehicle Safety Standard
(FMVSS) 208, as well as Canada Motor Veh icle
Safety Standard (CMVSS) 208 as applicable at
the time your veh icle was manufactured. The
safe ty belts fo r the seats have "pretensioners"
that help to take slack out of the bel t system.
T he pretensioners are also activated by the e lec ­
tronic control unit for the airbag system .
The front safety belts also have load limiters to
help reduce the fo rces applied to the body in a
c rash .
The airbag for the driver is in the steering wheel
hub
¢ fig. 153 a nd the airbag for the front pas­
senger is in the instrument panel~
fig. 154. The
general lo cation of the airbags is marked "A IR­
BAG".
There is a lot you need to know about the airbags i n your vehicle. We urge you to read the deta iled
information about airbags, safety be lts and c hild
safety in this and the other chapters that make
u p the owner's literatu re . Please be sure to heed
the WARNINGS -they are extremely important
for your safety and the safety of your passengers, especially infants and small children.
A WARNING
Never rely on airbags alone for protect ion.
- Even when they deploy, airbags provide only
supplemental protection.
-Airbag work most effectively when used
with properly worn safety be lts .
151

Airbag system
-Therefore, always wear your safety belts and
make sure that everybody in your vehicle is
properly restrained.
- Always hold the steering wheel with both
hands on the outside of the steering wheel
rim at the 9:00 o 'clock and 3 :00 o'clock po­
sitions to help reduce the risk of personal in ­
jury if the driver's airbag inflates .
- Never hold the steering wheel at the 12
o'clock position or with your hands any­
where inside the steering wheel or on the steering wheel hub. Holding the steering
wheel the wrong way increases the risk of
severe injury to the arms, hands, and head if
the driver airbag deploys.
A WARNING
Objects between you and the airbag will in­
crease the risk of injury in a crash by interfer­
ing with the way the airbag unfolds and/or by
being pushed into you as the airbag inflates.
- Always make sure nothing is in the front air-
-
bag deployment zone that could be struck
by the airbag when it inflates.
- Objects in the zone of a deploying airbag
can become projectiles when the airbag de­
ploys and cause serious personal injury.
- Never hold things in your hands or on your lap when the vehicle is in use .
- Never place accessories or other objects
(such as cup holders, telephone brackets,
note pads, navigation systems, or things
that are large, heavy, or bulky) on the doors;
never attach then to the doors or the wind­
shield; never place them over or near or at­
tach them to the area marked ,.AIRBAG" on
the steering wheel, instrument panel or the
seat backrests; never place them between
these areas and you or any other person in
the vehicle.
- Never attach objects to the windshield
above the passenger front airbag, such as
accessory GPS navigation units or music
players. Such objects could cause serious in­
jury in a collision, especially when the air­ bags inflate .
152
-Never recline the front passenger seat to
transport objects. Items can also move into
the deployment area of the side airbags or
the front airbag during breaking or in a sud­
den maneuver . Objects near the airbags can
fly dangerously through the passenger com­
partment and cause injury, particularly
when the seat is reclined and the airbags in­
flate.
A WARNING
A person on the front passenger seat, espe­
cially infants and small children, will receive
serious injuries and can even be killed by be­ ing too close to the airbag when it inflates .
- Although the Advanced Airbag System in
-
your vehicle is designed to turn off the front
passenger airbag if an infant or a small child
is on the front passenger seat, nobody can
absolutely guarantee that deployment un­
der these special conditions is impossible in
all conceivable situations that may happen
during the useful life of your vehicle.
- The Advanced Airbag System can deploy in
accordance with the .,low risk" option for 3-
and 6-year-old children under the U.S . Fed­
eral Standard if a child with electrical capac­
itance greater than the combined capaci­
tance of a typical one-year old infant re­
strained in one of the forward facing or rear­
ward-facing child seats with which your ve­
hicle was certified is on the front passenger
seat and the other conditions for airbag de­
ployment are met.
- Accident statistics have shown that children
are generally safer in the rear seat area than
in the front seating position.
- For their own safety, all children, especially
12 years and younger, should always ride in
the back properly restrained for their age and size.
Advanced front airbag system
Your vehicle is equipped with a front Advanced
Airbag System in compliance with United States
Federal Motor Vehicle Safety Standard 208, as
well as Canada Motor Vehicle Safety Standard ..,.

co
co
.... N
" N .... 0 0 <..:l ' (CMVSS) 208 as applicable at the time your vehi­
cle was manufactured.
The front Advanced Airbag System supp lements
the safety belts to prov ide additional pro te ction
for the driver's and front passenger 's heads and
upper bodies in frontal crashes . The airbags in­
flate only in fronta l impacts when the veh icle de­
celerat ion is high enough.
The front Advanced Airbag System for the front
seat occupants is not a substitute for your safety be lts. Rather, it is part of the overa ll occupant re ­
stra int system in your vehicle. A lways remember
that the airbag system can only help to protect
you, if you are sitting upr ight, wear ing your safe­
ty belt and wear ing it properly. This is why you
and your passengers must always be properly re­
stra ined, not jus t because the law requ ires you to
be.
The Advanced Airbag System in your ve hicle has
been ce rtified to meet the "low risk" require­
ments for 3 and 6 yea r-o ld children o n the pas­
senger side and very sma ll adults on the drive r
side . The low r isk dep loymen t cr iteria are intend­
ed to help reduce the risk of injury through inter­
action with the front airbag that can occur, for
examp le, by being too close to the steering wheel
and instrument pane l when the airbag inflates.
I n addition, the system has been certified to
comp ly with the "supp ression" requirements of
the Safety Standard, to turn off the front airbag
for infants 12 months old and younger who are
restrained on the front passenger seat in child re­
stra ints that are listed in the Standard
c::> page 173, Child restraints and Advanced front
airbag system.
"Suppress ion" requ ires the front a irbag on the
passenger side to be turned off if:
- a ch ild up to about one year of age is restrained
on the front passenger seat in one of the rear­
facing or forward-fac ing infant restra ints listed
in Federal Motor Vehicle Safety Standard 208
with wh ic h the Advanced Ai rbag System in your
vehicle was ce rt ified. For a listi ng of the ch ild
restra ints tha t were used to certify your veh i­
cl e's compl iance wi th the US Safety St andard
c::> page 173,
Airb ag sys tem
- When a person is detected on the front passen ­
ger seat that has an elect rical capacitance that
is more than the total e lectr ica l capacitance of
a child that is about
1 year o ld restrained in one
of the rear-fac ing or forward-facing infant re­
straints (listed in Federa l Motor Vehicle Safety
Standard 208 with which the Advanced Airbag
System in you r vehicle was cert ified), the front
ai rbag on the passenger side may or may not
dep loy.
T he
PASSENGER AIR BAG OFF lig ht comes o n
whe n the elect ronic control unit detects a tota l
elect rical capacitance on the front passe nger sea t
t h at req uires the front airbag to be turned off. If
the
PASSENGER AIR BAG OFF li gh t does not
come on, the front airbag on the passenger side
has not been turned off by the contro l unit and
can deploy if the contro l unit senses an impact
that meets the cond itions stored in its memory.
If the total e lectr ica l capacitance registered on
the front passenger seat is more than that of a
typ ica l 1 year -old, but less than the weight of a
small adult, the front a irbag on the passenger
s ide may deploy (the
PASSENGER AIR BAG OF F
light does not come on) .
For e xample , the airbag may deplo y if:
- a small ch ild that is heav ier than a typ ica l 1
yea r-old child is on the front passenger seat
(regard less of whether the child is in one of the
child seats listed
c::, page 17 3),
- a child who has outgrown c hild restraints is on
the front passenger seat .
If the front passenge r a irbag is t urned off, the
PASSENGER AIR BAG OFF light in the center of
the instr ument pane l will come on and stay on .
If the front passenge r a irb ag deploys, the Feder ­
al S tanda rd requi res t he ai rbag to meet the " low
risk" deployment criteria to he lp red uce the r isk
of i njury through interaction with the airbag .
" Low risk" deployment occurs in those crashes
that take p lace at lower decelerations as defined
in the electronic contro l unit ¢
page 159.
Alway s remember : Even though yo ur vehicle is
equipped with Advanced Airbags, the safest place
for children is properly restrained on the back ..,.
153

Airbag syste m

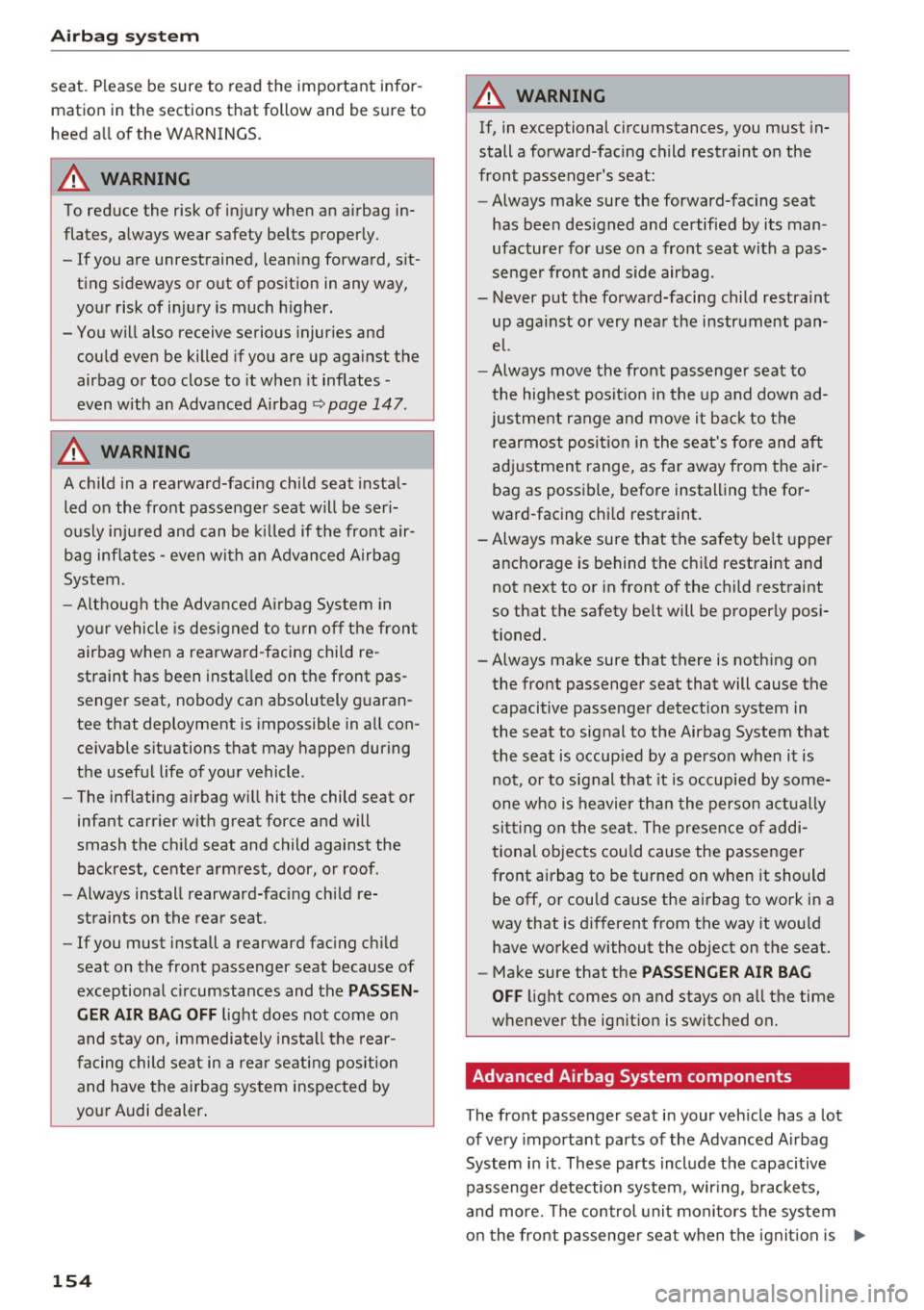

seat. Please be sure to read the important infor­
mation in the sections that follow and be sure to
heed all of the WARNINGS.
.&_ WARNING
To reduce the risk of injury when an airbag in­
flates, always wear safety belts properly.
- If you are unrestrained, leaning forward, sit­ ting s ideways or out of position in any way,
your risk of injury is much h igher.
- You will also receive serious injuries and could even be killed if you are up aga inst the
airbag or too close to it when it inflates -
even with an Advanced Airbag
c::> page 147 .
.&_ WARNING
A child in a rearward-facing chi ld seat instal­
led on the front passenger seat will be ser i­
ously inju red and can be killed if the front air­
bag inflates -even with an Advanced Airbag
System.
- Although the Advanced A irbag System in
yo ur vehicle is designed to tu rn off the front
airbag when a rearwa rd -facing child re ­
straint has been insta lled on the front pas­
senger seat, nobody can absolutely g uaran­
tee that deployment is impossible in all con­
ceivable s ituations that may happen during
the useful life of your vehicle .
- The inflating a irbag w ill hit the child seat or
infant carrier w ith great force and will
smash the ch ild seat and child against the
backrest, center a rmrest, door, or roof .
- Always install rearward-facing ch ild re­
straints on the rear seat .
- If you must install a rearward fac ing ch ild
seat on the front passenger seat because of exceptional c ircumstances and the
PASSEN­
GER AIR BAG OFF
light does not come on
and stay on, immediately insta ll the rear­
facing child seat in a rea r seating position
and have the airbag system inspected by
your Audi dealer .
154
.&_ WARNING ,_
If, in exceptional circumstances, you must in­
stall a forward-facing child restraint on the
front passenger's seat:
- Always make sure the forward-facing seat
has been des igned and certified by its man­
ufacturer for use on a front seat with a pas­
senger front and side airbag.
- Never put the forwa rd-facing child restraint
up against or very nea r the instrument pan­
el.
- Always move the front passenge r seat to
the highest posit ion in the up and down ad­
justmen t range and move it back to the
rearmost posit io n in the seat's fo re and aft
adjustment range, as far away from the a ir ­
bag as poss ible, before install ing the for­
ward-facing chi ld restraint.
- Always make sure that the safety be lt upper
anchorage is behind the chi ld rest raint and
not next to o r in front of the c hild restraint
so that the safety be lt will be p roper ly posi­
tioned.
- Always make sure that there is noth ing on
the front passenger seat that will cause the
capacitive passenger detection system in
the seat to signal to the Airbag System that
the seat is occup ied by a person when it is
not , or to signal that it is occupied by some­
one who is heavier than the person ac tually
si tting o n the sea t. T he presence of addi­
tional objects could cause the passenger
front airbag to be turne d on when it should
be
off, or could cause the airbag to work in a
way that is d ifferent from the way it wou ld
have worked without the object on the seat.
- Make sure that the
PASSENGER AIR BAG
OFF
li ght comes on and stays on all the time
whenever the ign it ion is switched on.
Advanced Airbag System components
T he front passenger seat in your veh icle has a lot
of ve ry important parts of the Advanced A irbag
System i n it. These parts incl ude the capacitive
passenger detection system, wir ing , b rackets,
and more. The control uni t moni tors the system
on the front passenge r seat when t he ignit ion is ..,.

co
co
.... N

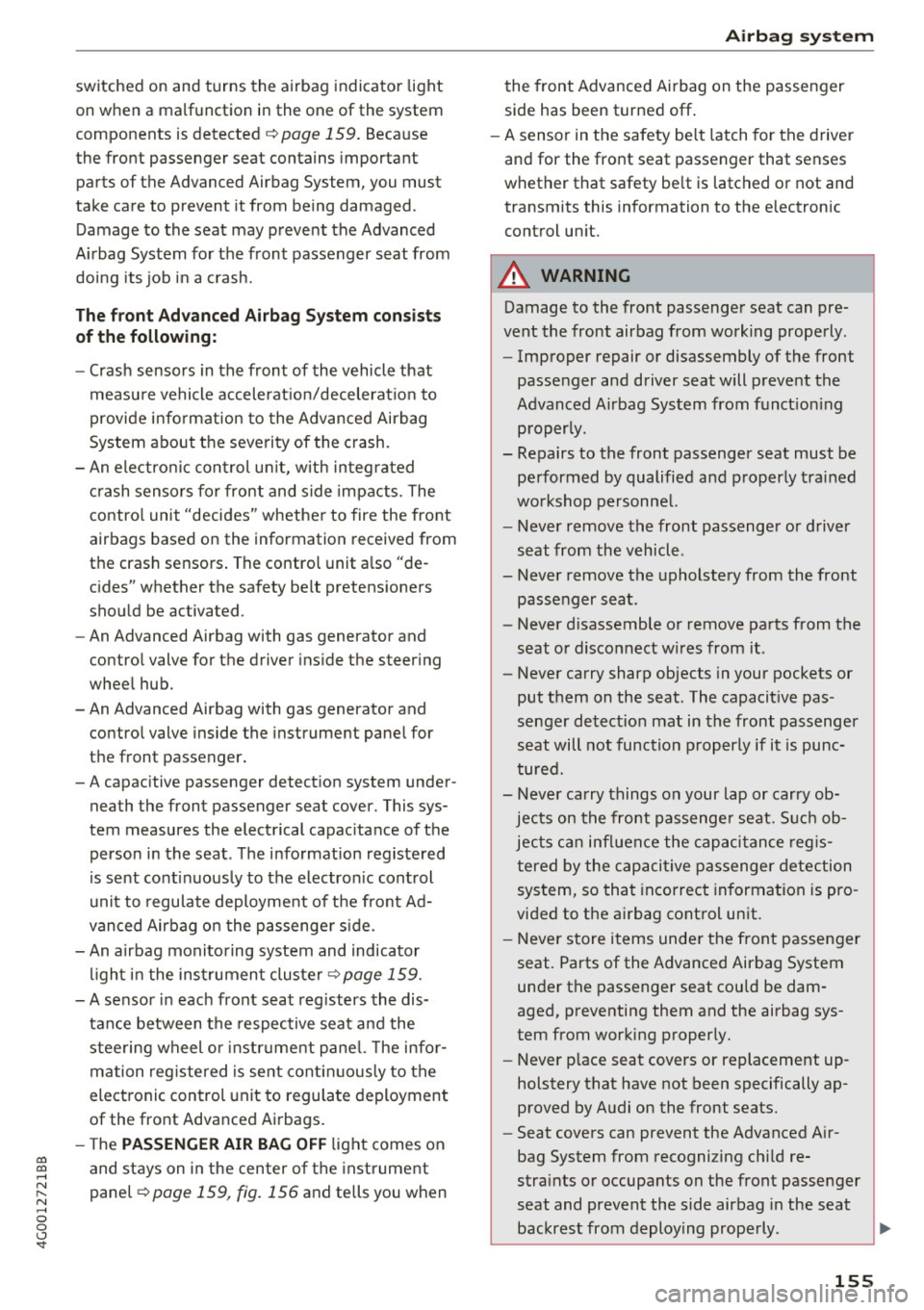

" N .... 0 0 <..:l ' switched on and turns the airbag indicator light
on when a malfunction in the one of the system
components is detected
c::> page 159. Because
the front passenger seat contains important
parts of the Advanced Airbag System, you must
take care to prevent it from being damaged .
Damage to the seat may p revent the Advanced
Airbag System for the front passenger seat from
doing its job in a crash.
The f ront Ad vanc ed Airb ag System con sists
of the following:
- Crash sensors in the front of the vehicle that
measu re vehicle accelerat ion/ decelerat io n to
provide info rmation to the Advanced Airbag
System about the severity of the crash.
- An electro nic cont rol un it, with integrated
c rash senso rs fo r front and side impacts. The
contro l unit "decides" whether to fire the fro nt
airbags based on the information received from
the crash sensors . The contro l unit a lso "de­
c ides" whether the safety be lt pretensioners
shou ld be activated .
- An Advanced Airbag with gas generator and
contro l valve for the driver ins ide the steer ing
wheel hub.
- An Advanced Airbag with gas generator and
contro l valve inside the instrument panel for
the front passenger.
- A capac itive passenger detect ion system under­
neath the front passenger seat cover. This sys­
tem measures the electrical capac itance of the
person in the seat . T he information registered
i s sent conti nuous ly to the electro nic cont rol
unit to regulate deployment of the front Ad­
vanced Airbag on the passenge r side.
- An airbag monito ring system and indicator
li gh t in the ins trument cluster
c::> page 159.
-A sensor i n each front seat registers the dis­
tance between the respective seat and the
stee ring wheel or instrument pane l. The info r­
mation reg istered is sent cont in uous ly to the
electronic control unit to regulate deployment
of the front Adv a need Ai rbags.
- The
PASSENGER AIR BAG OFF light comes on
and stays on in the center of the instrument
pane l
c::> page 159, fig. 156 and tells you when
Airb ag sys tem
the front Advanced Airbag on the passenger
side has been turned off .
- A sensor in the safety belt latch for the driver
and for the front seat passenger that senses
whether that safety be lt is latched or not and
transmits this information to the electronic
control un it.
A WARNING ,-
Damage to the front passenger seat can pre-
vent the front airbag from working properly.
- Improper repair or disassembly of the front
passenger and driver seat will p revent the
Advanced Airbag System from funct io ni ng
p roper ly .
- Repairs to the front passenger seat must be pe rformed by qualified a nd p roperly trained
wo rkshop personne l.
- Never remove the front passenger or driver
seat from the vehicle .
- Never remove the upholste ry from the front
passe nger seat.
- Never d isassemble or remove parts from the
s e at o r disco nnect w ire s from it.
- Never carry sharp objects in your pockets or
put them on the seat. The capacit ive pas­
senge r de tect io n mat in the front passenger
seat will not function properly if it is punc­
tured.
- Never carry things on your lap or carry ob­
jects on the front passenge r seat. S uch ob­
jects c an influen ce the cap aci tance reg is­
t ered by the capaci tive passenger dete ction
sys tem, so that incorrect in formation is pro ­
vided to the ai rbag control un it.
- Never store i tems unde r the front p assenger
seat . Parts of the Advanced Airbag System
under the passenger seat cou ld be dam­
aged, p reventing them and the airbag sys­
tem from working proper ly.
- Never p lace seat covers or replacement up ­
holstery that have not been specifically ap­
proved by Audi on the front seats.
- Seat covers can prevent the Advanced A ir­
bag System from recognizing chi ld re­
stra ints or occupants on the front passenger
seat and preven t the side airbag in the seat
backrest from deploying prope rly .
155

Airbag syste m

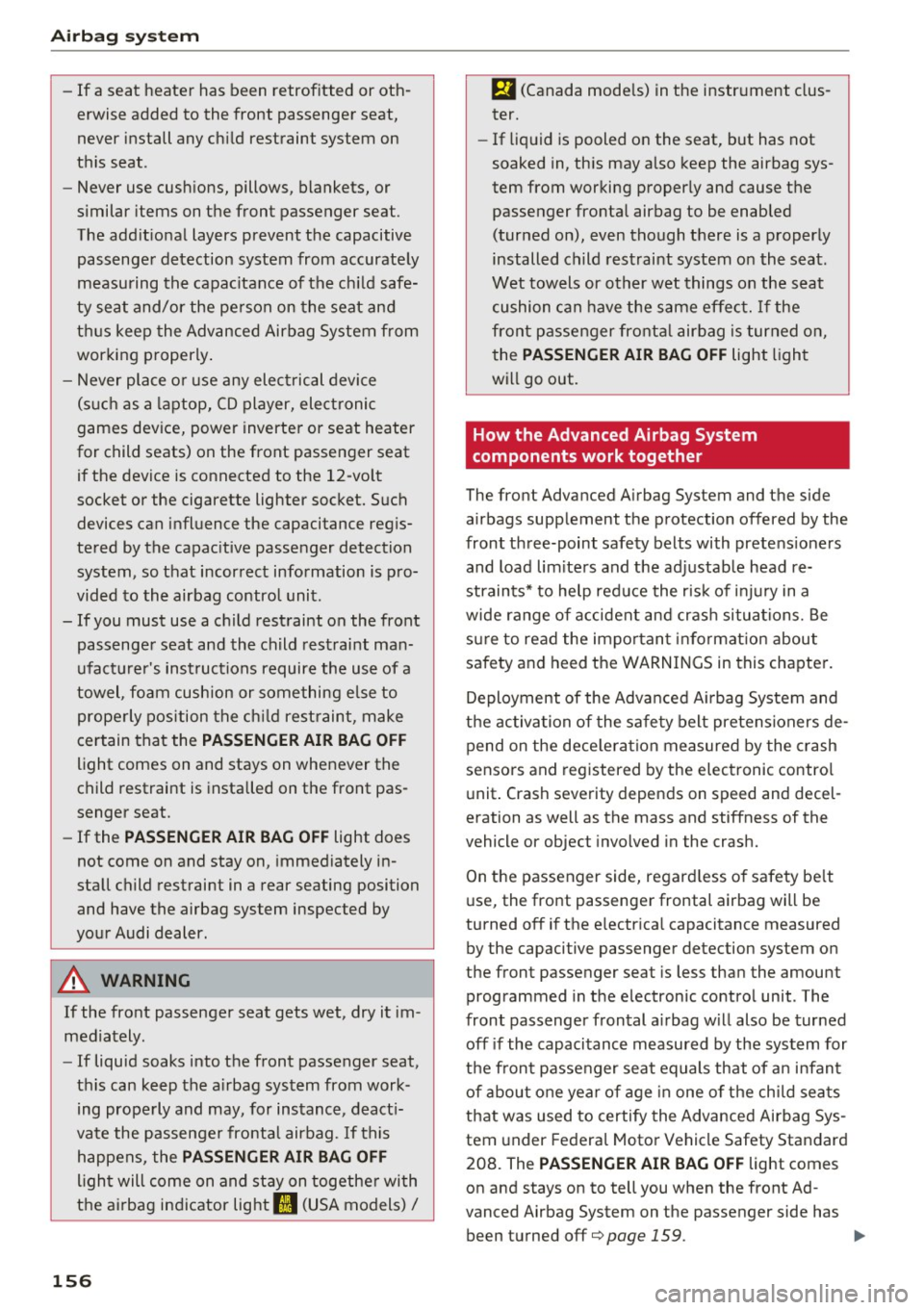

-If a seat heater has been retrofitted or oth­
erwise added to the front passenger seat,
never install any child restraint system on
this seat .
- Never use cushions, pillows, blankets, or
similar items on the front passenger seat.
The additional layers prevent the capacitive
passenger detection system from accurately
measuring the capac itance of the ch ild safe­
ty seat and/or the person on the seat and
th us keep the Advanced Airbag System from
working properly .
- Never place or use any electrical device
(such as a laptop, CD player, electronic
games device, power inverter or seat heater
for child seats) on the front passenger seat if the device is connected to the 12-volt
socket or the cigarette lighter socket. Such devices can influence the capacitance reg is­
tered by the capac itive passenger detection
system, so that incorrect information is pro­
vided to the airbag control unit.
- If you must use a child restraint on the front passenger seat and the child restraint man­
ufacturer's instructions require the use of a
towel, foam cushion or something else to properly position the ch ild rest raint, make
certain that the
PASSENGER AIR BAG OFF
light comes on and stays on whenever the
child restraint is insta lled on the front pas­
senger seat.
- If the
PASSENGER AIR BAG OFF light does
not come on and stay on, immediately in­
stall child restraint in a rear seating position
and have the airbag system inspected by
your Audi dealer.
A WARNING
If the front passenger seat gets wet, dry it im­
mediately.
- If liquid soaks into the front passenger seat,
this can keep the a irbag system from work­
ing properly and may, for instance, deact i­
vate the passenger frontal airbag. If this
happens, the
PASSENGER AIR BAG OFF
ligh t will come on and stay on togethe r with
the airbag indicator light
II (USA models) I
156
E,I (Canada mode ls) in the instr ument clus­
ter.
- If liq uid is pooled on the seat, but has not
soaked in, th is may also keep the airbag sys­
tem from working proper ly and cause the
passenger frontal airbag to be enabled
(turned on), even though there is a p roperly
installed child restraint system on the seat.
Wet towels or other wet things on the seat
cushion can have the same effect. If the
front p assenger front al airbag is turned on,
the
PASSENGER AIR BAG OFF light ligh t
wi ll go out.
How the Advanced Airbag System
components work together
The front Advanced A irbag System and the side
airbags supp lement the protection offered by the
front th ree-point safety belts with pretens ioners
and load lim ite rs and the adj ustab le head re­
straints* to help reduce the risk of i njury in a
wide range of accident and cras h situations. Be
s ur e to read the impo rtant informat ion about
sa fety and heed the WARNINGS in this chapter.
Deployment of the Advanced A irbag System and
the activa tion of the safety belt pretens ioners de­
pend on the dece lera tion measured by the crash
senso rs and registered by the electronic contro l
unit . Crash severity depends on speed and decel­
eration as well as the mass and stiffness of the
vehicle or object involved in the crash.
On the passenger side, regard less o f safety be lt
use, the front passenger frontal airbag will be
turned off if the e lectrica l capacitance measured
by the capacitive passenger detection system on
the front passenger seat is less than the amount
programmed in t he e lectronic contro l unit . The
front passenger frontal a irbag w ill also be tur ned
off if the capacitance measured by the system for
t h e front passenger seat equals that of an infant
of about o ne yea r of age in one o f the ch ild sea ts
that was used to certify the Advanced Airbag Sys­
tem under Federa l Motor Vehicle Safety Standard
208. The
PASSENGER AIR BAG OFF light comes
on and stays on to tell you when the front Ad­
vanced Airbag System on the passenger side has been turned off¢
page 159. ..,.

co
co
.... N
" N .... 0 0 <..:l 'SI"

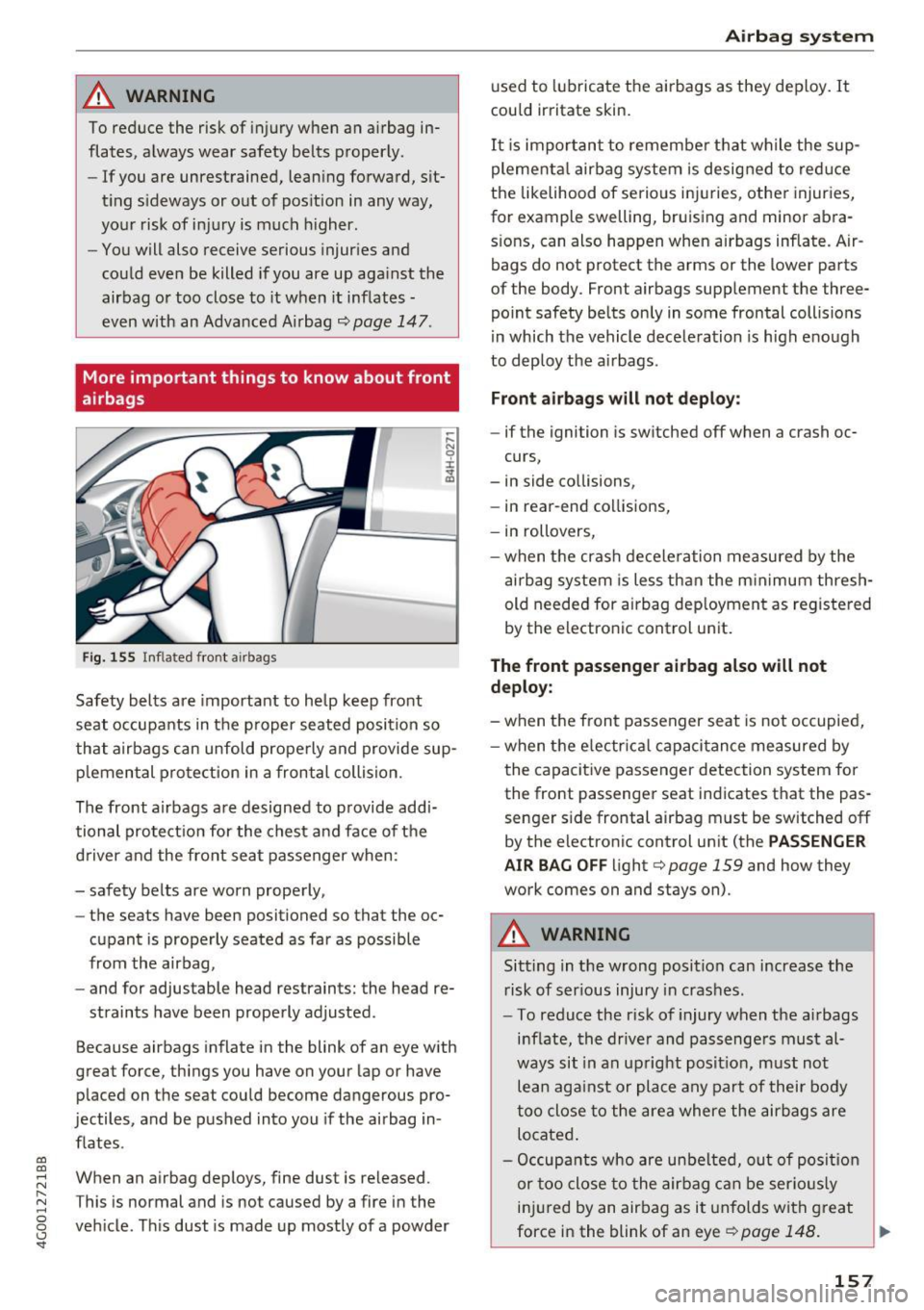

A WARNING
To reduce the risk of injury when an airbag in­
flates, always wear safety belts properly.
- If you are unrestrained, lean ing forward, sit­
t ing s ideways or out of pos ition in anyway,
your risk of injury is much h igher.
- You will also receive serious injur ies and
could even be killed if you are up aga inst the
airbag or too close to it when it inflates -
even with an Advanced Airbag¢
page 147.
More important things to know about front
airbags
F ig. 155 Inflated front airbags
Safety belts are important to help keep front
seat occupants in the p roper seated position so
that a irbags can unfold properly and provide sup­
p lemental protection in a frontal collision.
The front airbags are designed to provide addi­
tional protection for the chest a nd face of the
d river and the front seat passenger when:
- safety belts are worn properly,
- the seats have been positioned so that the oc-
cupant is properly seated as far as possible
from the airbag,
- and for adjustable head restraints: the head re-
straints have been properly adjusted.
Because airbags inflate in the blink of an eye with
great force, things you have on your lap or have placed on the seat could become dangerous pro­
jectiles, and be pushed into you if the airbag in­
flates .
When an a irbag deploys, fine dust is released .
This is normal and is not caused by a fire in the
veh icle. Th is dust is made up mostly of a powder
Airb ag sys tem
used to lubricate the airbags as they deploy. It
could irritate skin.
It is important to remember that wh ile the sup­
plementa l airbag system is designed to red uce
the likelihood of serious injuries, other injur ies,
for example swelling, bruising and minor abra­ s ions, can also happen when airbags inflate. Air­
bags do not protect the arms or the lower parts
of the body. Front airbags supplement the three­
point safety belts on ly in some frontal collisions
in which the vehicle deceleration is high e nough
to deploy the airbags .
Fron t airb ags will not depl oy:
- if the ignition is switched off when a crash oc-
curs,
- in side collisions,
- in rear-end collisions,
- in rollovers,
- when t he crash deceleration measured by the
airbag system is less than the m in imum thresh­
old needed for airbag dep loyment as registe red
by the electronic control unit.
Th e front passenger airbag also will not
deplo y:
- when the front passenger seat is not occupied,
- when the e lectr ica l ca pacitance measured by
the capacitive passenger detection system for
the front passenger seat indicates that the pas­
senger s ide frontal a irbag must be switched off
by the electronic control unit (the
PASSENGER
AIR BAG OFF
light¢ page 159 and how they
work comes on and stays on).
A WARNING
-Sitt ing in the wrong position can increase the
risk of ser ious injury in crashes.
- To reduce the risk of injury when the airbags
inflate, the drive r and passengers must al­
ways sit in an up right posit ion, must not
lea n aga inst or place any part of their body
too close to the area where the airbags are located .
- Occupants who are unbelted, out of position
or too close to the airbag can be serio usly
injured by an airbag as it unfolds with great
force in the blink of an eye¢
page 148. ~
157

Airbag system
A WARNING
A child in a rearward-facing child seat instal­
led on the front passenger seat will be seri ­
ously injured and can be killed if the front air­
bag inflates - even with an Advanced Airbag
System.
- The inflating airbag will hit the child seat or
infant carrier with great force and will
smash the child seat and child against the backrest, center armrest, door or roof.
- Always install rear-facing child seats on the
rear seat.
- If you must install a rearward facing child
seat on the front passenger seat because of exceptional circumstances and the
PASSEN­
GER AIR BAG OFF
light does not come on
and stay on, immediately install the rear­
facing child seat in a rear seating position
and have the airbag system inspected by
your Audi dealer.
A WARNING
Objects between you and the airbag will in­
crease the risk of injury in a crash by interfer­
ing with the way the airbag unfolds or by be­
ing pushed into you as the airbag inflates .
- Never hold things in your hands or on your
lap when the vehicle is in use .
- Never transport items on or in the area of
the front passenger seat . Objects could
move into the area of the front airbags dur­
ing braking or other sudden maneuvers and
become dangerous projectiles that can
cause serious personal injury if the airbags
inflate.
- Never place or attach accessories or other
objects (such as cup holders, telephone
brackets , large, heavy or bulky objects) on
the doors, over or near the area marked "A IRBAG" on the steering wheel, instru­
ment panel, seat backrests or between
those areas and yourself. These objects
could cause injury in a crash, especially
when the airbags inflate .
- Never recline the front passenger 's seat to
transport objects. Items can also move into
the area of the side airbag or the front air-
158
-
bag during braking or in a sudden maneu­
ver. Objects near the airbags can become
projectiles and cause injury, particularly
when the seat is reclined.
- Never place or transport objects on the
front passenger seat. Objects on the front passenger seat could cause the capacitive
sensor in the seat to signal to airbag system
that the seat is occupied by a person when it
in fact is not , or that the person on the seat
is heavier than he or she actually is. The
change in electric capacitance because of
such objects can cause the passenger front
airbag to be turned on when it should be
off, or can cause the airbag to work in a way
that is different from the way it would have
worked without objects on the seat.
- Always make sure that there is nothing on
the front passenger seat that will cause the
capacitive passenger detection system in
the seat to signal to the Airbag System that
the seat is occupied by a person when it is not, or to signal that it is occupied by some­
one who is heavier than the person actually
sitting on the seat. The presence of an ob­
ject could cause the passenger front airbag to be turned on when it should be off, or
could cause the airbag to work in a way that is different from the way it would have
worked without the object on the seat.
A WARNING
The fine dust created when airbags deploy can
cause breathing problems for people with a history of asthma or other breathing condi­
tions .
- To reduce the risk of breathing problems,
those with asthma or other respiratory con­
ditions should get fresh air right away by
getting out of the vehicle or opening win­
dows or doors .
- If you are in a collision in which airbags de­
ploy , wash your hands and face with mild
soap and water before eating.
- Be careful not to get the dust into your eyes,
or into any cuts or scratches.
- If the residue should get into your eyes,
flush them with water .
