Monitoring the
Advanced Airbag System
~ (USA models) /!.f (Canada models)
Airbag monitoring indicator light
Two separate indicators monitor the function of
the Advanced A irbag System: the airbag moni­
toring indicator light and the
PASSENGER AIR
BAG OFF
ligh t.
The Advanced Airbag System as we ll as the side
a ir bags and side curtain airbags with eject ion
mitigation features (including the e lectronic con­
trol unit, sensors and system w iring) are all
monitored co nti nuously to make sure that they
are funct io ni ng properly whenever the ignition is
on . Every t ime you turn on the ignition , the air­
bag system ind icator light
1B (USA models) ! E,I
(C an ada models) will come on for a few seconds
(f unction check).
The system must be inspected when the
indicator light
II ( USA models) Jfll
( Canada models) :
-does not come on when the ignition is switched
on,
- does not go out a few seconds after you have switched on the ign ition, or
- comes on w hile d riving .
I f an airbag system malf unct ion is detected, the
i ndicator lig ht w ill c ome on to se rve as a consta nt
reminder to h ave the system inspected immedi­
a tely .
I f a malfunction occurs that turns the front air­
bag on the passenger side off , the
PASSENGER
AIR BAG OFF
light will come on and stay on
whenever the ignit io n is on .
A WARNING
An airbag system that is not functioning prop­
er ly cannot provide supp lemental protection
in a frontal crash .
- If the airbag indicator l ight
c:::> page 17
comes when the vehicle is be ing used, have
the system inspected immed iate ly by your
authorized Aud i dealer. It is possible that
Airbag system
the airbag will inflate when it is not sup­
posed to, or w ill not inf late w hen it should.
PASSENGER AIR BAG OFF light

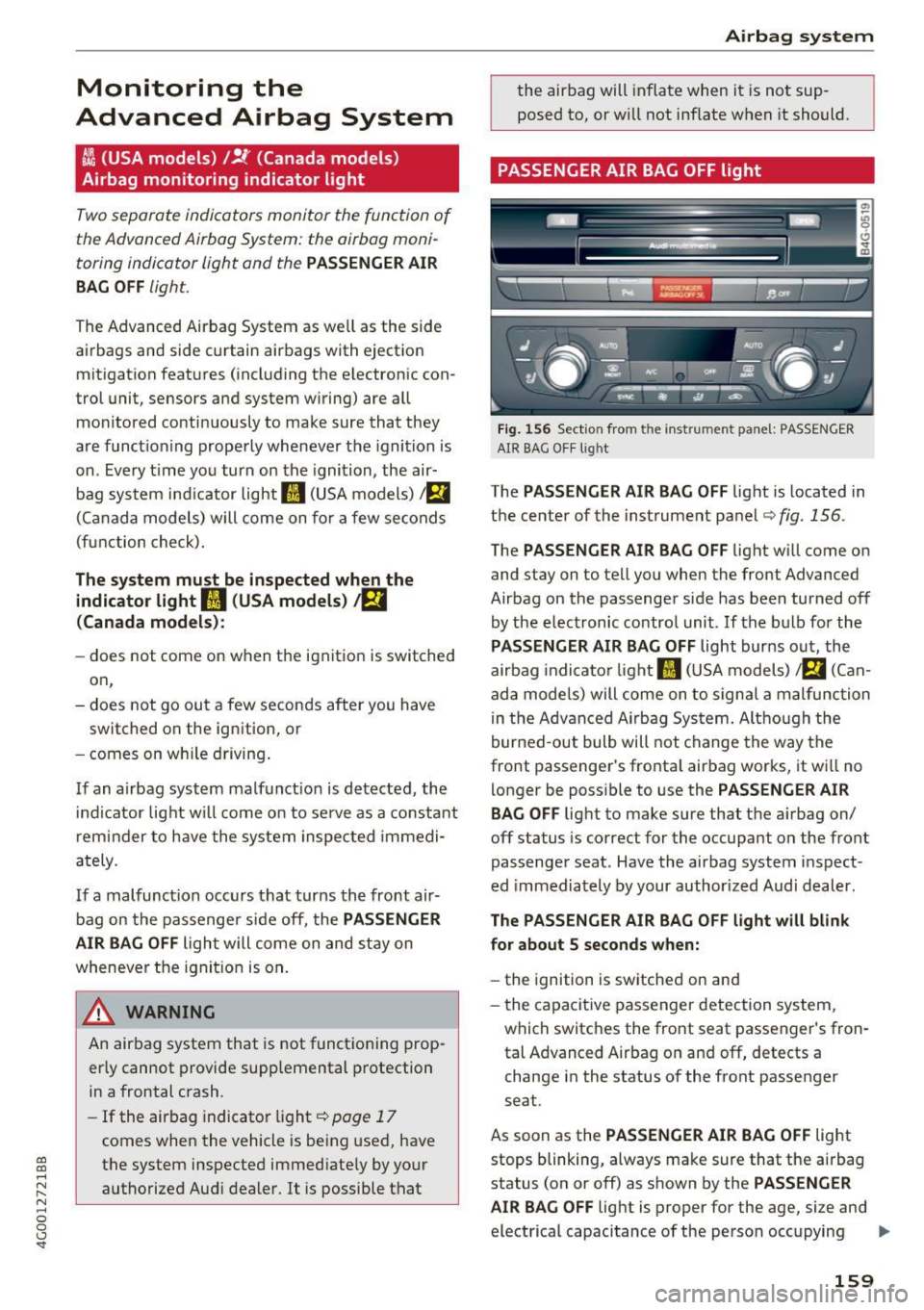

F ig . 1 56 Sect io n from t he inst ru m en t panel: PASSENGER
AIR BAG O FF light
The PASS ENG ER AIR BAG OFF light is located in
the center of the inst rument panel
c:::> fig . 156 .
The PASSENGER AIR BAG OFF light w ill come on
and stay on to tell you when the front Advanced
Airbag on the passenger side has been turned off by the electronic contro l unit. If the b ulb for the
PASSENGER AIR BAG OFF light bur ns out, the
airbag indicato r ligh t
fl (USA models) Q (Can­
ad a mode ls) will come on to signa l a mal func tion
i n the Advanced Airbag Sys tem. Although the
burned -out bulb will not change the way the
front passenger 's fronta l airbag works, it wi ll no
l onger be poss ible to use the
PASSENGER AIR
BAG OFF
light to make sure that the a irbag on/
off status is correct for the occupant on the front
passenger seat . Have the airbag system inspect ­
ed immediately by your author ized Audi dealer.
The PASSENGER AIR BAG OFF light will blink
for about
S seconds when:
- the ignit ion is switched on and
- the capacit ive passenger detection system,
which switches the front seat passenger's fron­
tal Advanced Airbag on and off, detects a
change in the status of the front passenger
seat .
As soon as the
PASSENGER AIR BAG OFF light
stops blinking, always make sure that the airbag
status (on or off) as shown by the
PASSENG ER
AIR BAG OFF
lig ht is proper for the age, size and
electrical capacitance of the person occupying
liJJ>
159

Airbag system
the front passenger seat . Always make sure that
the safety belt for the front passenger seat is
proper ly fastened .
The PASSENGER AIR BAG OFF light will show
the status of the front seat passenger's frontal
Advanced Airbag a few seconds after the igni­
tion is switched on and the airbag indicator
light goes off . The PASSENGER AIR BAG OFF
light:
- will stay on if the front passenger seat is not
occupied;
- will stay on if the electrical capacitance meas­
ured by the capacitive passenger detection sys­
tem for the front passenger seat equals the
combined capacitance of an infant up to about
one year of age and one of the rearward-facing
or forward-facing child restraints listed in Fed­
eral Motor Vehicle Safety Standard 208 w ith
which the Advanced Airbag System in your veh i­
cle was certified; For a list ing of the child re­
straints that were used to certif y you r vehicle's
compliance with the U.S. Safety Standard
¢page 173.
-will go out if the front passenger seat is occu­
pied by an adult as registered by the capacitive
passenger detection system.
- The
PASSENGER AIR BAG OFF light must come
on and stay on if the ignition is on and . ..
- a car bed has been insta lled on the front pas­
senger seat, o r
- a rearward-facing child res traint has been in ­
stalled on the front passenger seat, or
- a fo rw ar d-fa cing child restraint has bee n ins tal­
led on the front passenge r seat,
- and if the electrica l capacitance registered on
the front passenger seat is equa l to or less than
the combined capacitance of a typica l 1 year­
o ld infant and one of the rearward-facing or
forward-facing child restraints listed in Federal
Motor Vehicle Safety Standard 208 with which
the Advanced Airbag System in your vehicle was certified.
If the front passenger seat is not occupied, the
front airbag will not deploy, and the
PASSENGER
AIR BAG OFF
light will stay on. Never install a
rearward-fac ing ch ild restraint on the front pas­
senger seat, the safest place for a child in any
160
kind of child restraint is at one o f th e seating po ­
sitions on the rear seat¢
page 148, Child re­
straints on the front seat -some important
things to know
and ¢ page 171, Child safety.
If the PASSENGER AIR BAG light comes
on ...
If the PASSENGER AIR BAG OFF light comes on
when one of the conditions listed above is met,
be sure to check the light regularly to make cer­
ta in that the
PASSENGER AIR BAG OFF light
stays on continuously whenever the ignition is
on. If the
PASSENGER AIR BAG OFF light does
not appear on and does not stay on a ll the time,
stop as soon as it is safe to do so and
- reactivate the system by tur ning the ignition
off for more than 4 seconds and then turning it
on again;
- remove and re install the child restraint. Make
sure that the child restraint is properly insta l­
led and that the safety belt for the front pas­
senge r seat has been corre ctly routed through
the child restraint as described in the child re­
straint manufacturer's instructions;
- make sure that the convertible lock ing retrac­
tor on the safety belt for the front passenger
seat has been activated and that the safety belt
has been pulled tight.
- make sure that no e lectrica l device (suc h as a
laptop, CD player, e lectronic games device,
power inverter or seat heater for child seats) is
placed or used on the front passenger seat if
the device is connected to the 12-volt socket or
the cigarette lighter socket;
- make sure that no seat heater has been retro­
fitted or otherw ise added to the front passen­
ger seat;
- make sure that noth ing can interfere with the
safety belt buckles and that they are not ob­
structed;
- make sure that there are no wet objects (such
as a wet towel) and no water or other liquids on
the front passenger seat cushion. .,.

co
co
.... N
" N .... 0 0 <..:l - If the PA SSENGE R AIR BAG light st ill doe s
not c om e on ...
If the PASSENGER AIR B AG OFF light still does
not come on and does not stay on continuously
(when the ignition is switched on),
- take the child restraint off the front passenger
seat and install it properly at one of the rear
seat positions. Have the airbag system inspect­ ed by your Audi dealer immediately .
- move the chi ld to a rear seat position and make
sure that the child is properly restra ined in a
child restraint that is appropriate for its size
and age .
The PAS SENGER AIR BAG light should NOT
come on ...
The PASS ENGER AIR B AG OFF light should NOT
come on whe n the ignition is on and an adult is
sitting in a proper seating position on the front passenger seat .
If the PAS SENGER AIR BA G OFF
light comes on and stays on or flashes for about
5 seconds while d riving, under these c ir c umstan­
ces, make s ure that:
- the adult on the front passenger seat is proper­
ly seated on the center of the seat cushion with
his o r her back up aga inst the bac kres t and the
backrest is not recl ined,
- the adult is not taking weight off t he seat by
holding on to the passenger assist handle
above the front passenger door or supporting
their weight on the armrest,
- the safety belt is be ing properly wo rn and that
there is not a lot of slack in the safety belt web ­
bing,
- there are no aftermarket seat covers or cush­
ions or other things (such as blankets) on the
front passenger seat that might cause the ca­
pacitive passenger detection system to miscal­
cu late electrical capac itance.
Important safety instructions on
monitoring the Advanced Airbag System
_& WARNING t= -
- If the status of the Adv a need Airbag System
has changed while the vehicle is moving, the
PA SSENGER AIR BA G OFF light blinks for
Airb ag sys tem
about S seconds to catch the driver's atten­
tion.
If this happens, always stop as soon as
it is safe to do so and check the steps descri­
bed above.
- If the
PASS ENGER AIR B AG OFF light does
not go off when an adult who is not very
small is s itting on the front passenger seat
after taking the steps described above,
make sure the adu lt is properly seated and
rest rained at one of the rear seating posi­
tions. Have the a irbag system inspected by
your authorized Audi dealer before trans­
porting anyone on the front passenge r seat .
A WARNING
-
An airbag system that is not functioning prop­
erly cannot provide supplemental protection
i n a fronta l crash.
- If the airbag indicator light ¢page 17
comes when the vehicle is being used, have
the system inspected immediately by your
author ized Audi dealer.
It is possible that
the airbag will inflate when it is not sup­
posed to, or w ill not inflate when it should .
A WARNING
If the front a irbag inflates, a ch ild witho ut a
chi ld restraint , or in a rearward-facing child
safety seat, or in a forward-fac ing child re­
stra int that has not been properly insta lled
will be serious ly injured and can be killed.
- Even tho ugh you r vehicle is equipped with
an Advanced A irbag System, make certain
that all children, especially 12 years and
younger, always ride on the back seat prop­ erly restrained for their age and size.
-Always install forward or rear -facing child
seats on the rear seat -even w ith an Ad­
vanced Airbag System .
- If you must install a rearward-facing child
seat on the front passenger seat because of
except ional circumstances and the
PA SSEN­
GER AIR BAG OFF
light does not appear and
stay on, immed iately install the rear-facing
child seat in a rear seat ing pos ition and have
the airbag system inspected by your Audi
deale r.
~
16 1

Airbag system
-If, in exceptional circumstances, you must
install a forward-facing child restraint on
the front passenger seat, always move the
seat into its rearmost position in the seat 's
fore and aft adjustment range , as far away
from the airbag as possible . The backrest
must be adjusted to an upright position.
- Make sure that the
PASSENGER AIR BAG
OFF
light comes on and stays on all the time
whenever the ignition is switched on.
_& WARNING
-If the PASSENGER AIR BAG OFF light does
not go out when an adult is sitting on the
front passenger seat after taking the steps
described above, make sure the adult is
properly seated and restrained at one of the
rear seating positions .
- Have the airbag system inspected by your
Audi dealer before transporting anyone on
the front passenger seat .
@ Tips
If the capacitive passenger detection system
determines that the front passenger seat is
empty, the frontal airbag on the passenger
side will be turned
off, and the PASSENGER
AIR BAG OFF
light will stay on.
Repair , care and disposal of the airbags
Parts of the airbag system are installed at many
different places on your Audi. Installing , remov­
ing, servicing or repairing a part in an area of the
vehicle can damage a part of an airbag system
and prevent that system from working properly
in a collision .
There are some important things you have to
know to make sure that the effectiveness of the
system will not be impaired and that discarded
components do not cause injury or pollute the
environment.
A WARNING
Improper care, servicing and repair proce­
dures can increase the risk of personal injury
and death by preventing an airbag from de-
162
ploying when needed or deploying an airbag
unexpectedly :
- Never cover, obstruct, or change the steer­
ing wheel horn pad or airbag cover or the in­
strument panel or modify them in any way .
- Never attach any objects such as cup holders
or telephone mountings to the surfaces cov­
ering the airbag units .
- For cleaning the horn pad or instrument
panel, use only a soft, dry cloth or one mois­
tened with plain water. Solvents or cleaners could damage the airbag cover or change
the stiffness or strength of the material so
that the airbag cannot deploy and protect properly.
- Never repair , adjust, or change any parts of
the airbag system.
-All work on the steering wheel, instrument
panel, front seats or electrical system (in­
cluding the installation of audio equipment,
cellular telephones and CB radios, etc.) must be performed by a qualified technician
who has the training and special equipment
necessary.
- For any work on the airbag system, we
strongly recommend that you see your au­
thorized Audi dealer or qualified workshop.
- Never modify the front bumper or parts of the vehicle body.
- Always make sure that the side airbag can inflate without interference:
- Never install seat covers or replacement
upholstery over the front seatbacks that
have not been specifically approved by
Audi .
- Never use additional seat cushions that
cover the areas where the side airbags in­
flate.
- Damage to the original seat covers or to
the seam in the area of the side airbag
module must always be repaired immedi­
ately by an authorized Audi dealer .
- The airbag system can deploy only once. Af­
ter an airbag has been deployed, it must be
replaced with new replacement parts de­
signed and approved especially for your
Audi model version. Replacement of com­
plete airbag systems or airbag components

co
co
.... N
" N .... 0 0 <.,;) 'SI"
must be performe d by qualified workshops
only. Make sure that any airbag service ac­
tion is entered in your Audi Warranty
&
Maintenance booklet under AIRBAG RE­
PLACEMENT RECORD.
- For safety reasons in severe accidents, the
alternator and starter are separated from
the vehicle battery with a pyrotechn ic circuit
interrupter.
- Work on the pyrotechnic circ uit interrupt­
er must only be performed by a qualified
technicians who have the experience, in­
formation and special tools necessary to
perform the work safely.
- If the veh icle or the c ircuit interrupter is
scrapped, all app licable safety precautions
must be followed .
@) For the sake of the environment
Undeployed airbag modu les and pretension­
ers might be classified as Perch lorate Materi­
al - special handling may apply, see
www.dtsc .ca.gov/hazardouswaste/perchlo­
rate. When the veh icle or parts of the re­
strai nt system including airbag modules and
safety bel ts wit h pretensione rs are scrapped,
all a ppli cable laws and regulations mus t be
observed. Your a uthorized Audi dealer is fa­
m iliar with these requirements and we recom ­
mend that you have your dealer perform this
service for you.
Other things that can affect Advanced
Airbag performance
Changing the vehicle's suspension system can
change the way that t he Advanced Airbag System
pe rforms in a crash. For examp le, using tire-r im
comb inat ions no t approved by Audi, lowering the
ve hicle, changing the s tiffness of the suspens ion,
includ ing the springs, suspension struts, shock
absorbers etc . can change the forces that are
measured by the airbag sensors and sent to the
e lectronic contro l unit . Some suspens ion changes
can, for example, increase the force levels meas­
ured by the sensors and make the airbag system
deploy in crashes in wh ich it would not dep loy if
the changes had no t been made. Other kinds of
Airb ag sys tem
changes may red uce the force levels measured by
the sensors and prevent the airbag from deploy­
i ng when it sho uld.
A WARNING
=
Changing the vehicle's suspension including
use of unapproved tire-rim combinations can
change Advanced Airbag performance a nd in­
crease the risk of serious personal injury in a
crash.
- Never install suspension components that do not have the same performance charac­
ter istics as the components origina lly instal­
led on you r vehi cle.
- Never use tire-rim combinations that have
not been approved by Audi.
Knee airbags
Description of knee airbags
Applies to: vehicles wi th knee airbags
The knee airbag system can provide supplemen­
tal protection to properly restrained front seat
occupants .
Fig. 1 57 Dr iver 's k nee a irbag
The driver knee airbag is in the instrument panel
underneath the s teer ing whee l~
fig . 157, the
airbag fo r the passenger is at abou t the same
heig ht in the i nstr ume nt p ane l underneath the
glove compa rtment.
The knee airbag offers add itiona l protection to
t h e d river's and passenge r's knees and uppe r and
l ower thigh areas a nd supplements the p rotec­
t ion prov ided by the safety bel ts .
If the front airbags deploy, the knee a irbags also
deploy in frontal coll is ions when the deploymen t
Iii--
163

Airbag system
thresho ld stored in the control unit is met
c::>
page 157 , More important things to know
about front airbags .
In addition to their normal safety function, safe­
ty belts help keep the driver or front passenger in
position in a frontal collision so that the airbags
can prov ide supplemental protect ion .
The airbag system is not a substitute for your
safety belt. Rather, it is part of the overall occu­
pant restraint system in your vehicle . Always re­
member that the airbag system can only help to
protect you if you are wearing your safety belt
and wearing it properly . This is why you should
always wear your safety belt, not just because
the law requires you to do soc::>
page 139, Gener­
al information .
Remember too, airbags will deploy only once and
only in certain kinds of accidents -your safety
belts are always there to offer protect ion in those
accidents in which airbags are not supposed to
deploy or when they have already deployed, for
example when your vehicle strikes or is struck by
another after the first collis ion .
This is just one of the reasons why an airbag is
not a substitute for the safety belt. The airbag
system works most effectively when used with
the safety belts. Therefore, always wear your
safety belts correct ly.
It is important to remember that whi le the sup­
p lemental knee airbag system is designed to re­
duce the likelihood of serious injuries, other inju­
ries, for example, swelling, bruising and minor
abras ions and friction burns can also occur when
an airbag inflates .
The knee airbag system basically consists of:
-The electronic control module
- Two inflatab le airbags (airbag and gas genera-
tor), one for the driver and one for the front
passenger
- The airbag indicator light in the instrument
panel
The knee airbag system will not deploy:
- when the ignition is switched off
164 - in frontal
collisions when the deceleration
measured by the contro l unit is too low
- in side collisions
- in rear-end collisions
- in rollovers
- in the event of a system malfunction (warning/
ind icator light is on)
<=:>page 17.
.&_ WARNING
-Safety belts and the airbag system can only
provide protection when occupants are in
th e proper seating position
c::> page 157 .
-If the airbag indicator light c::> page 17
comes when the vehicle is being used, have
the system inspected immediately by your
authorized Audi dealer.
It is possible that
the airbag will inflate when it is not sup ­
posed to, or will not inf late when it should.
How knee airbags work
Applies to: vehicles with knee airbags
The risk of injury to the leg area can be reduced
by fully inflated knee airbags.
Fig. 158 Inflated a irbags protect ing in a frontal coll is io n
The knee airbag system has been designed so
that the airbags for the driver and front passen­
ger dep loy in certain bu t not all fronta l co llisions.
If the front airbags deploy, the knee airbags also
deploy in frontal coll isions when the deployment
threshold stored in the control unit is met.
When the system deploys, the airbags f ill with a
prope llant gas, and inflate between the lower
part of the instrument panel and the driver and
the lower part of the instrument panel and the
front passenger
<=:> page 157, fig . 155. .,..

co
co
.... N
" N .... 0 0 <..:l 'SI"
Although they are not a soft pillow, they can
"cushion" the impact and in this way they can
help to reduce the risk of injury to the lower ex­
tremities .
All of this takes place in the blink of an eye, so
fast that many people don't even realize that the
airbags have deployed . The airbags also inflate
wi th a great deal of force and it is important for
occupant safety that nothing should be in their
way when they deploy .
Fully inflated airbags in comb ination with proper­
ly worn safety belts slow down and limit the o c­
cupant 's forward movement and help to reduce
the r isk of injury .
Important safety instructions on the knee
airbag system
Applies to: veh icles wit h knee airbags
Airbags are only supplemental restraints . Always
wear safety belts correctly and ride in a proper
seating position.
There is a lot that you and your passengers must
know and do to help the safety belts and airbags
to p rovide supplemental protection .
& WARNING
An inflating knee airbag can cause ser ious in­
jury. Wearing safety bel ts incorrec tly and im­
proper sea ting positions increase the r isk o f
serious personal injury and death whenever a
vehicle is being used.
- The knee airbag system cannot protect you
properly if you are seated too close to any of
the airbag locat ions. When ad justing their
seat positions, it is important that both the
driver and the front passenger keep their
upper bod ies a nd knees at the following
min imum safe distances :
- at least 10 inches (25 cm) between the
chest and the steering wheel/instrument
panel.
- at least 4 inc hes (10 cm) between the
knees and the lower part of the instru­
ment panel.
- The risk of persona l injury inc reases if you
lean forward or to the side, or if the seat is
-
Airb ag sys tem
improperly positioned and you are not wear­
ing your safety belt. The risk increases even
more should the airbag deploy.
- Always make sure that the knee a irbag can
inflate w ithout interference . Objects be­
tween you and the airbag can increase the risk of injury in an acc ident by interfering
with the way the airbag deploys or by being
pushed into yo u as the a irbag deploys.
- Never let anybody, especia lly children or
anima ls ride in the footwell in front of the
passenger seat. If the airbag deploys, this
can result in serious or fatal inj uries.
- Never carry objects of any kind in the foot­
well area in front of the driver's or pas­
senger's seat. Bulky objects (shopp ing
bags, fo r example) can interfere with or
prevent proper dep loyment of the airbag .
Small objects ca n be thrown th rough the
vehicle if the airbag deploys and injure you
o r your passengers .
- M ake sure the re are no c rac ks, deep scratch­
es or othe r damage in the area of the inst ru­
men t panel where the knee airbags are lo­
cated.
- If children are incorrec tly se ated, their risk
of injury inc reases in a coll is io n
~ page 171, Child safety.
Side airbags
Description of side airbags
The airbag system can provide supplemental
pro tec tion to properly restrained occupan ts .
Fig . 1 59 Side a irbag locatio n in t he drive r's seat
165

Airbag system
The side airbags are located in the sides of the
front seat backrests¢
fig. 159 and the rear back­
rest facing the doors. They are identified by the
word "AIRBAG".
The side airbags installed for the front seating
positions have been designed and certified to
he lp reduce the risk of injury that can be caused
by airbags when they inflate, particularly when
the occupant sitting next to it is not seated prop­
erly. The side a irbag for the front passenger seat
can be used with properly installed child re­
stra ints . Please be sure to read the important in­
formation and warnings whenever using a child
rest raint in a veh icle: Safety belts¢
page 139,
Airbag system ¢page 147, Child safety
¢ page 171.
The side airbag system basically consists of:
-the electronic control modu le and external side
impact sensors
- the two airbags located in the sides of the front
backrests and the two airbags* located in the
rear backrest
- the a irbag warning light in the instrument clus-
ter.
The airbag system is monitored electronically to make certain that it is functioning properly at all
times. Each time you switch on the ign ition, the
airbag system indicator light will come on for a
few seconds (self diagnostics).
The s ide air bag system supplements the safety
belts and can help to reduce the risk of injury to
the dr iver's, front and rear passenger's upper tor­
so on the side of the vehicle that is struck in a
side collision. The a irbag dep loys only in side im­
pacts and only when the vehicle acceleration reg­
istered by the control unit is high enough. If this
rate is below the reference value programmed in­
to the control unit, the side airbags wi ll not be
triggered, even though the car may be bad ly
damaged as a result of the collision. It is not pos­
sible to def ine an airbag tr igger ing range that
will cover every possible angle of impact, since
the circumstances will vary cons iderably between
one collision and another. Important factors in­
clude, for example, the nature (h ard or soft) of
the impacti ng object, the angle of impact, vehicle
166
speed, etc. ¢ page 167, Important safety in­
structions on the side airbag system .
Aside from their normal safety function, safety
belts work to help keep the driver or front pas­
senger in position in the event of a side collision
so that the side airbags can provide protection .
The airbag system is
not a substitute for your
safety belt . Rather, it i s part of the overall occu­
pant res traint system in your vehicle . Always re ­
member that the side airbag system can only
help to protect you if you are wear ing your safety
belt and wearing it properly. This is another rea­
son why you should a lways wear your safety
belts, not just because the law requires you to do
so¢
page 139, General information .
It is important to remember that while the sup­
plemental side airbag system is designed to re­
duce the likelihood of ser ious injuries, other inju­
ries, for example, swelling, bru is ing, friction
burns and minor abrasions can also be assoc iated
with deployed side airbags. Remember too, side
a irbags w ill deploy only once and only in certa in
kinds of accidents -your safety belts are always
there to offer protection.
Vehicle damage, repair costs o r even the lack of
vehicle damage are not necessarily an ind icat ion
of over-sens itive or fa iled airbag activation. In
some collisions, both front and side airbags may
inflat e. Remember too, that airbags w ill deploy
on ly once and only in certain kinds of collisions -
your safety be lts are always there to offer protec­
tion in those accidents in which airbags are not
supposed to deploy or when they have already
deployed .
The side airbag system will not deploy:
- when the ignition is switched off
- in side co llisions when the acceleration meas -
ured by the sensor is too low
- in front-end collisions
- in rea r-end collisions
- in rollovers.
In some types of accidents the front airbags, side
curta in airbags and side a irbags may be triggered
together .
Iii>

co
co
.... N
" N .... 0 0 <.,;) 'SI"
,&_ WARNING
-Safety belts and the a irbag system wi ll only
provide protection when occupants are in
the proper seating position ¢
page 167.
-If the airbag indicator light¢ page 17
comes when the vehicle is being used, have
the system inspected immediately by your authorized Audi dealer. It is possible that
the airbag will inflate when it is not sup­
posed to, or will not inflate when it should .
How supplemental side airbags work
Side airbags deploy instantly and can help re­
duce the risk of upper torso injuries for occu­
pants who are properly restrained .
Fig. 160 Inflated s ide a irbags on left side of ve hicle, rear
side airbag
When the system is triggered, the airbag is filled
with propellant gas and breaks through a seam in the seat surface area marked "AIRBAG ".
It ex­
pands between the s ide trim panel and the pas­
senger. In order to help prov ide this add itiona l
protection, the side a irbag m ust inflate within a
fract ion of a second at very hig h speed and wi th
g reat force. The supplemental side airbag cou ld
injure you if your seating position is not proper or
upright or if items are located in the area where
the supplemental side airbag expands . This ap­
plies especially to children ¢
page 171, Child
safety .
Supplemental side ai rbags inflate be­
tween the occupant and the door panel on the
side of the vehicle that is struck in certa in side
coll ision ¢
fig. 160 .
Although they are not a soft pillow, they can
"cushion" the impact and in th is way they can
Airb ag sys tem
help to reduce the risk of injury to the upper part
of the body.
A fine dust may develop when the a irbag deploys.
This is no rma l and does not mean there is a fi re
in the vehicle .
Important safety instructions on the side
airbag system
Airbags are only supplemental restraints. Always
properly wear safety belts and ride in a proper
seating position .
There is a lot that you and your passengers must
know and act according ly to he lp the safety belts
and airbags do their job to provide supplemental
protect ion.
A WARNING
-.
An inflat ing s ide a irbag can cause serious or
fatal injury. Improperly wearing safety belts and improper seating posit ions increase the
r isk of ser ious perso na l inju ry and death
whenever a vehicle is being used.
- In order to reduce the risk of injury when
the supplemental side airbag inflates:
- Always s it in an upr ight position and never
lean against the area where the supp le­
mental side airbag is located.
- Never let a child or anyone e lse rest their
head against the side tr im panel in the
area where the supplementa l side airbag
inflates.
- Always make sure that safety belts are
worn correctly,
- Do not let anyone sitting in the front seat
put their hand or any other parts of their
body out of the w indow .
- Always make sure that the side airbag can
inflate w ithout interference.
- Neve r install seat cove rs or repla ceme nt
u pholste ry ove r the front seatb acks that
have not been specifica lly approved by
Audi.
- Never use additional seat c ushions that
cover the areas where the side airbags de- ploy .
Ill>
167

Airbag syste m
-Damage to the origina l seat covers or to
the seam in the area of the side airbag
module must always be repaired immedi­
ately by an authorized Audi dealer.
- Objects between you and the airbag can in­
crease the risk of injury in an accident by in­
terfering with the way the airbag unfolds or by being pushed into you as the a irbag in­
flates.
- Never place or attach accessories or other
objects (such as cup holders, telephone
brackets, or even large, bulky objects) on
the doors, over or near the area marked
"AIRBAG" on the seat backrests.
- Such objects and accessories can become
dangerous projectiles and cause injury
when the supplemental s ide airbag de­
ploys.
- Never carry any objects or pets in the de­
ployment space between them and the
a irbags or allow chi ldren o r othe r passen­
gers to travel in th is posit ion.
- Always use the built-in coat hooks only for
lightweight cloth ing . Never leave any heavy
or sharp-edged objects in the pockets that
may interfere w ith side airbag dep loyment
and can cause personal in jury in an accident .
- Always prevent the side airbags from being
damaged by heavy objects knoc king agains t
or hitting the sides of the seatbacks.
- T he airbag system can only be triggered
once . If the a irbag has been triggered, the
system must be replaced by an authorized
Audi dealership.
- Damage (cracks, deep scratches etc.) to the
original seat covers or to the seam in the
area of the side airbag modu le must always
be repaired immediately by an authorized
Audi dealer.
- If children are seated improper ly, their risk
of injury increases in the case of an acc ident
¢ page 171, Child safety.
- Never attempt to modify any components of the a irbag system in any way.
- In a side collision, side airbags w ill not func­
t ion properly if sensors cannot correctly
measure increasing a ir pressure ins ide the
168
doors when air escapes through larger, un­
closed openings in the door panel.
- Never dr ive with inte rior door trim panels
r emoved.
- Never dr ive when parts have been re­
moved from the inside door pa nel and the
openings they leave have not been proper­
l y closed.
- Never dr ive when loudspeakers in the
doo rs have been removed unless the
speaker holes have been properly closed .
- Always make ce rtain that open ings are
cove red or filled if additional speakers or
othe r equipment is installed in the inside
door panels .
- Always have wor k on the doors done by an
authorized Aud i dea ler or q ualified work ­
shop .
Side curtain airbags
Description of side curtain airbags
The side curtain airbag system can provide sup­
plemental protection to properly restrained oc­
cupants .
Fig. 16 1 Sid e curta in airbags , driver 's side: side curtain air­
bag location
The side curtain airbags are located on both sides
of the inter ior above the front and rear side win­
dows ¢ fig . 161. They are identified by the word
"A IRBAG" on the windshield frame.
The side curtain airbags contain features that provide ejection mitigation to help prevent ve hi­
cle occupants or parts of the ir bodies from be ing
completely or part ially ejected from the veh icle
i nterior in certain side impacts and vehicle roll­
overs .
