could start the engine or operate electrical
equipment such as power windows.
(D Tips
- The operation of the remote control key can
be temporarily disrupted by interference
from transmitters near the vehicle working
i n the same frequency range (such as a cell
phone or radio equipment).
- Using the mechanical key, you can:
- Lock/unlock the glove compartment.
- Manually lock/unlock the vehicle
¢ page 32 .
-Mechanically lock the doors¢ page 32.
-For an explanation on conformity with the
FCC regulations in the United States and the
Industry Canada regulations, see
¢ page 262.
Removing the integrated mechanical key
Fig. 16 Remote contro l maste r key : remov ing t he mech ani
cal key
• Press the release button@¢ fig. 16.
• Pull the mechanica l key @ out of the remote
contro l key.
Open ing and closing
LED and batteries in the remote control key
Fig. 17 Remote control key: removing the battery holder
LED in the remote control key
The LED @ informs you about the function of the
remote control key.
• If you press a button briefly, the LED b links
once .
• If you press and hold a button longer (conven
ience opening), the LED blinks several times.
"' If the LED does not blink, the remote control
key battery is dead . The
1:1 indicator light and
the message
Please change key battery ap
pear . Replace the battery in the remote control
key.
Replacing the remote control key battery
"'Remove the mechanical key ¢page 29 .
"' Press the release button @ on the battery
holder and pull the battery ho lder out of the re
mote control key in the di rect io n of the arrow
at the same time.
• Insert the new battery with the"+" symbol fac
ing down.
• Slide the battery holder carefully into the re
mote control key.
"' Insert the mechanical key.
@) For the sake of the environment
Discharged batter ies must be disposed of us
ing methods that w ill not harm the environ
ment . Do not dispose of them in household
trash.
29
Page 32 of 280
Opening and clo sin g
@ Tips
The replacement battery must meet the same
specifications as the orig inal battery in the re
mote control key.
Unlocking/locking by remote control
F ig . 18 Rem ote contro l key : bu tton prog ra mmin g
• To unlock the vehicle, press the~ button
¢fig. 18.
• To lock the vehicle, press the lil button one
tim e¢ ,& .
• To unlock the luggage compartment lid, press
the
1£1 button br iefly .
• To trigger the alarm, press the
I PANIC I button.
T he vehicle horn and emergency flashers are
activated.
• To turn the alarm off , press the red
I PANIC I
button again .
If the vehicle is unlocked and none of the doors,
the rear lid or hood are opened within 60 se c
onds, the veh icle locks again automatically. This
feature prevents the vehicle from being acciden
tally left unlocked over a long p eriod of t ime.
The settings in the Infotainment system deter mine if the entire veh icle or only the driver 's door
is unlocked when unlocking the vehicle
¢ page 32.
A WARNING
Read and heed all WARNINGS¢.& in Descrip
tion on page 2
7 .
@ Tips
- Only use the remote control key when you
are within view of the vehicle.
30
- The vehicle can only be locked when the se
lector lever is in the P position.
- Do not use the remote control when you are
inside the vehicle. Otherwise, you could un
intentionally lock the vehicle. If you then
tried to start the engine or open a door, the alarm would be tr iggered. If this happens,
press the@ unlock button.
- Only use the pan ic function in an emergen
cy.
Locking and unlocking with the
convenience key
Applies to: vehicles with convenience key
T he doors and luggage compartment lid can be
unlocked/locked without using the remote con
trol key.
F ig . 19 Door han d le : locking t he vehicle
Unlocking the vehicl e
• Grip the door hand le . T he door un locks auto-
matically.
• Pull on the door handle to open the doo r.
Locking the vehicle
• Place the selec to r l eve r in the P position (auto
matic t ransmiss ions), or else the veh icle wi ll
not be ab le to lock .
• To lock the vehi cle, close the door and touch
the sensor in the door handle
once ¢ fig . 19,
¢ ,& . Do not hold the door handle while doing
this.
You can unlock/lock the ve hicle at every door .
T he remote control key cannot be more than ap
proximately 4 ft (1.5 m) away from the door han
dle. It makes no difference whether the master ..,.
Page 33 of 280
co
co
.... N
" N .... 0 0 <.,;) 'SI"
key is in your jacket pocket or in your briefcase,
for example .
The door ca nnot be opened for a br ief period di
rect ly after loc king it. This way you have the op
portunity to check if the doors locked correctly.
The settings in the Infotainment system deter mine if the entire vehicle or only one of the doors
is unlocked when unlocking the vehicle
¢page 32.
WARNING .1!!!!!!!!!. !!..-
Read and heed a ll WARNINGS ~.& in Descrip
tion on page
2 7.
@ Tips
If your vehicle is left stand ing for a long peri
od of time, note the following:
- The proximity senso r switches off after a
few days to save energy. You then have to
pull once on the door handle to unlock the
vehicle and a second time to open it .
- The energy management system gradually
turns off unnecessary convenience functions
to prevent the vehicle battery from draining
and to maintain the vehicle 's abi lity to start
for as long as possible. You may not be able to unlock your vehicle using the convenience
key.
- For an explanation on conformity with the
FCC regulations in the United States and the
Industry Canada regulations, see
¢page 262.
Central locking switch
Fig. 20 Drive r's door: central loc king switch
Open ing and closing
Fig. 21 Rear doo r: ce ntra l locking sw it c h
"' To lock the vehicle, press the~ button ~,&. .
"' To unlock the vehicle, p ress the @l button .
When locking the vehicle with the central locking
switch, the following app lies:
- Opening the door and the luggage compart
ment lid from the
outside is not possible (for
security reasons, such as when stopped at a
light) .
- The L ED in the central locking switch turns on
when all doors are closed and locked.
-Applies to: front doors: you can open the doors
ind ividually from the inside by pulling the door
handle .
- Rear doors: to unlock the doors, pull on the
door ha ndle
one time . To open the doors, pull
on the door handle
again .
- In the event of a crash with a irbag deployment,
the doors unlock automat ically to allow access
to the vehicle.
A WARNING
-The central locking switch also works when
the ignition is switched off and automatical
ly locks the entire vehicle when the~ but
ton is pressed.
- The central locking switch is inoperative
when the vehicle is locked from the outside.
- Locked doors make it more difficult for
emergency workers to get into the vehicle,
which puts lives at r isk. Do not leave anyone
behind in the vehicle, especially c hildren .
@ Tips
Your vehicle locks automatically when it
reaches a speed of 9 mph (15 km/h) (Auto
31
Page 34 of 280
Opening and clo sin g
Lock) c::> page27. You can unlock the vehicle
again using the
crl button in the central lock
ing switch.
Setting the central locking system
In the Infotainment system, you can set which
doors the central locking system will unlock .
.,. Se lect : the ICARI function button > (C ar) * Sy s
tems
control button > V ehi cle sett ing s > (C en
t ral lock ing )* .
Door unlo cking -
you can decide if All doors or
only the
Dri ver door should unlock. The l uggage
compartment lid also unlocks when
All is select
ed . If you select
Dri ver in a vehicle with a conven
ience key*, only the door whose handle you pull
will unlock.
If you select D river , all the doo rs and luggage
compartment lid will un lock if you press the
@l
button on the remote control key twice .
Disable tailg ate handle -If you selec t On , the
luggage compartment lid hand le is locked. I n
this case the luggage compartment lid can be opened with the~ button on the remote control
key or with the
l a l button* in the driver 's door. In
veh icles with a convenience key*, you can st ill
open the luggage compartment lid using the handle if an author ized remote control key is
nea r th e p rox imity se nsor* .
Fold mirrors when locking * -if you select On ,
the exterior rea rview mirro rs fold in automatical
ly when you press the
l@J butto n on the remote
control key or to uch t he senso r* in the handle.
T on e wh en locking ll -if you se lect On , a tone
will sound when you lock the veh icle.
l) Th is fun ctio n is not a vailab le in all coun tries.
32
Emergency unlocking and locking the doors
Each door must be locked separately if the pow
er locking system fails .
Fig. 22 D river's doo r: door loc k cy linder
F ig . 23 Door : eme rge ncy loc king
t!, .., m
a,
l5 0 t!, .., m
If the central locking system malfunctions, you
must un lock/lock the doors separately using the
mechan ica l key.
Unlocking /locking the d river 's door with the
mechanical key
.,. Remove the integrated mechanical key
c::> page 29 or use the separate mechanica l key .
.,. To unlock the driver's door, turn the key to the
open position
@ c::> fig . 22 .
.,. To lock the driver's doo r, move t he selector lev
er to the P pos ition (automatic transm ission)
and turn the key
on e time to the close posit ion
@ c::>,& .
Locking the front pa ssenger's door /rear
doo rs with the mechanical key
The eme rgency lock is loca ted on the rear side of
the front passenger's door and the rear doo rs .
It
is only vis ible whe n the doo r is ope n. .,.
Page 35 of 280
co
co
.... N
" N .... 0 0 <.,;) 'SI'
.. Remove the integrated mechanical key
Q page 29 or use the separate mechan ical key .
.. Pull the cap out of the opening
¢ fig. 23 .
.. Insert the key in the inside slot and turn it all
the way to the right (right door) or left (left
door).
A WARNING
Read and heed all WARNINGS¢ A in Descrip
tion on page
27.
Anti-theft alarm system
If the anti-theft alarm system detects a vehicle
b reak-in, audio and visual warning signals are
triggered. The anti-theft alarm system is activat
ed when the vehicle is locked as usual.
It
switches off when the vehicle is unlocked.
If the alarm is triggered, it w ill shut
off automat
ically after a ce rtain amount of time. Switch the
ignition on or press the~ button on the remote
control key to turn
off the alarm.
Luggage compartment
Lid
Opening /closing the luggage compartment
lid
Fig. 24 Dr iver's door : opening the luggage compartment
li d
Open ing and closing
Fig. 25 Handle in the rea r lid
Opening the luggage compartment lid
.. Press and hold the l""I button on the remote
control key for at least one second . Or
.. Pull the~ button in the driver's door¢
fig. 24.
Or
.. Press the hand le in the luggage compartment
lid
Q fig. 25.
Closing the luggage compartment lid
.,. Use the inside grip to pull the rear lid and allow
it to drop gently to close it¢ _&. .
T he sett ings in the Infota inment system deter
mine if the luggage compartment lid can be
opened using the handle
¢ page 32.
A WARNING
- After closing the luggage compartment lid,
make sure that it is latched. Otherwise the
luggage compartment lid could open sud
denly when driv ing, which increases the risk
of an accident.
- Never drive with the luggage compartment
lid ajar or open, because poisonous gases
can enter the vehicle interior and create the
risk of asphyxiation.
- Never leave your vehicle unattended when
the luggage compartment lid is open. A
child could climb into the vehicle through
the luggage compartment . If the luggage
compartment lid was then closed, the child
would be trapped in the vehicle and unable
to escape. To reduce the r isk of injury, do
not allow children to play in or around the
veh icle. Always keep the luggage compart
ment lid and the doors closed when the ve
hicle is not in use.
33
Page 36 of 280
Opening and closing
-Always make sure no one is in the luggage
compartment lid's range of motion when it
is clos ing, especially near the hinges. Fin
gers or hands could be p inched .
(D Tips
When the vehicle is locked, the luggage com
partment lid can be unlocked separately by
pressing the
l a ! button on the remote control
key. The luggage compartment lid locks auto
matically when it is closed again.
Automatic luggage compartment lid
Applies to: ve hicles w ith a utomat ic luggage compartment lid
The luggage compartment lid can be opened and
closed electrically .
Fig. 26 Driver's door: opening t he luggage compartment
li d
' c::::;s Iii
--- -
Fig . 27 Luggage compar tment lid:@ clos ing butto n,@
l ock button (vehicles w ith convenie nce key•")
Opening the luggage compartment lid
• Press and hold the !<=> I button on the remote
control key for at leas t one second . Or
• Pull the
l=I button in the driver's door briefly
c::>fig. 26. Or
• Press the handle in the luggage compartment
lid.
34
Closing the luggage compartment lid
• Pull the button l= I in the driver's door until the
luggage compartment lid is closed
c::> _&. . Or
• Press the
l= I button in the l uggage compart
ment lid
r::;> fig. 27. The luggage compartment
lid will go down automatically and close ¢ _&. .
Or
• Press and hold the button
la l on the remote
control key until the luggage compartment lid
is closed (vehicles with convenience key*) ¢ _&. .
Make sure there is enough d istance between
you and the luggage compartment lid. The re
should be a maximum
9 feet (3 m) of distance.
Or
• Press the~ button
r:;, fig. 2 7 in the luggage
compartment lid (vehicles with convenience
key*). The remote control key must not be
more than approximately
4 ft (1.5 m) away
from the luggage compartment and it must not
be inside the vehicle. The luggage compart
ment lid wi ll automat ica lly close and lock . The
veh icle locks ¢_&. . Or
• Press the handle in the luggage compartment
lid. The luggage compar tment lid will go down
automatically and close
c::> _&. .
The opening/closing process will stop immedi
ate ly if:
- You pull/release the
!a l button in the dr iver's
door, or
- You press/release the
l<=> I button on the remote
control key (vehicles with convenience key*), or
- You press the~ or~ button (veh icles with
convenience key*) in the luggage compartment
lid, o r
- You push the handle in the luggage compart
ment lid, or
- You press against the luggage compartment lid
aga inst the direction it is moving, or
- When someth ing blocks the luggage compart
ment lid o r makes it difficult for the lid to
move.
If you press the handle or one of the~ or~ but
tons (vehicles with convenience key*) now, the luggage compartment lid will either open or
close, depend ing on what angle it is at.
Page 37 of 280
co
co
.... N
" N .... 0 0 <.:l 'SI'
A WARNING
-Read and follow all WARNINGS¢&. in De
scription on page
27 .
-After closing the luggage compartment lid,
always pull up on it to make sure that it is
properly closed. Otherwise it could open
suddenly when the veh icle is moving.
- To help prevent poisonous exhaust gas from
being drawn into the veh icle, always keep
the luggage compartment lid closed while driving. Never transport objects larger than
those which fit completely into the luggage area, because then the luggage compart
ment lid cannot be fully closed.
- Never leave your vehicle unattended espe
cially with the l uggage compartment l id left
open. A chi ld co uld crawl into the car
through the luggage compartment and pull
the lid shut, becoming trapped and unable
to get out. To reduce the risk of personal in
jury, never let children p lay in or around
your vehicle. Always keep the luggage com partment lid as well as the vehicle doors
closed when not in use.
- Never close the luggage compartment lid
inattentively or without checking first. Al
though the closing force of the luggage
compartment lid is limited, yo u can st ill se
riously injure yourself or others.
- Always ensure that no one is within ra nge of
the luggage compartment lid when it is
moving, in part icular close to the h inges and
the upper and lower edges -fingers o r
hands can be pinched.
- Never try to interfere w ith the l uggage com
partment lid or help i t when it is being
opened or closed automatically.
([) Note
The luggage compartment lid can bump into
objects such as the garage ceiling when open
ing and become damaged.
(D Tips
- The settings in the Infota inment system de
te rmine if the luggage compa rtment lid can
be opened us ing the handle
¢ page 32.
Op enin g an d clos ing
-There are audio signa ls when closing the
luggage compartment lid with the remote
control key (vehicles with conven ience key*)
or with the
l ""'I button in the driver's door.
- When the vehicle is locked, the luggage
compartment lid can be unlocked separately
by pressing the
1£) button on the remote
control key. The luggage compartment lid
locks automatically when it is closed again.
- You can close the luggage compartment lid
using the remote control key (vehicles with
convenience key*) up to a distance of ap
proximately 9 feet (3 m).
- The luggage compartment lid can be oper
ated manually if the vehicle battery is low .
It is necessary to use more force when doing
this. Move the lid s low ly to redu ce the
amou nt of fo rce needed.
Luggage compartment with movement
activated opening
Applies to: vehicles with convenience key and senso r-co ntro l·
led luggage compartment lid
Fig. 28 Rea r of the veh icle: foot movement
Requirements: you must be carrying you r vehicle
k ey w ith you. You m ust be standing at the center
behind the luggage compa rtment lid. You should
be approximately 8 in (20 cm) from the rear of
the ve hicle. The ignition m ust be switched off.
Make sure you have firm footing.
.,. Move your foot back and forth below the b ump
er ¢
fig. 28. Do not touch the bumpe r. Once the
system recognizes the movement, the luggage
compartment l id will open .
T he luggage compar tme nt lid will on ly open if
you make the movement as described. This pre
vents the luggage compartment lid from opening
llll>
3 5
Page 38 of 280
Opening and clo sin g
due to similar movements, such as when you
walk between the rear of th e vehicle and your ga
rage door.
General inform ation
I n some situations, the function may be lim ited
or tempo rar ily unava ilable . This may happen if :
- the luggage compartment lid was closed imme diately before .
-you park close to a hedge and the branches move back and forth under the vehicle for a
long period of time.
- you clean your vehicle , fo r example with a pres
sure washe r or i n a car wash.
- there is heavy rain.
- the bumper is very dirty , for example after driv-
ing on salt-covered roads .
- there is interference to the radio signal from
the ve hicle key, such as from cell phones or re
mote controls .

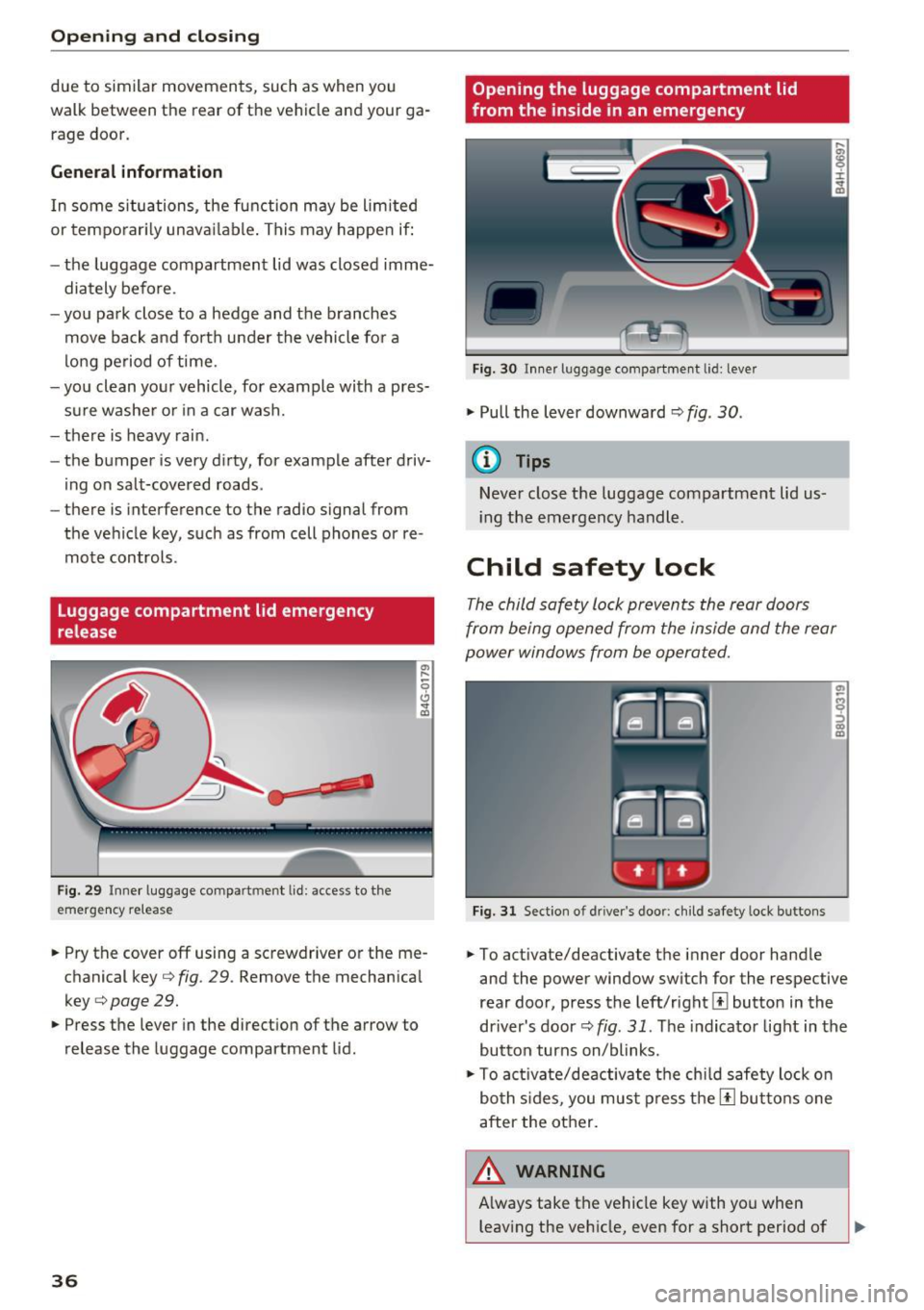

Luggage compartment lid emergency
release
F ig . 29 Inner luggage compart men t lid : access to the
emergen cy re le ase
.,. Pry the cover off using a screwdriver or the me
chan ical key ¢
fig. 29 . Remove the mechan ica l
key ¢
page 29 .
.,. Press the lever in the direct ion of the arrow to
release the luggage compartment lid .
36
Opening the luggage compartment lid
from the ins ide in an emergency
Fig. 30 I nne r luggage compart ment l id : leve r
.,. Pull the lever downward¢ fig. 30 .
(D Tips
Never close t he luggage compartment lid us
i ng the emergency handle .
Child safety lock
The child safety lock prevents the rear doors
from being opened from the inside and the rear
power windows from be operated.
Fig. 31 Sect ion o f dri ver's doo r: ch ild safety loc k bu ttons
.,. To activate/deactivate the inner door hand le
and the power window switch for the respective
rear doo r, press the left/rightl±l button in the
driver's door¢
fig. 31 . The indicator light in the
button turns on/blinks .
.,. To act ivate/deactivate the chi ld safety lock o n
bo th s ides, you mus t press the [!l but tons one
after the other.
A WARNING , ~
A lways take the vehicle key with you when
leaving the veh icle, even for a short period of
Page 39 of 280
co
co
.... N
" N .... 0 0 <.,;) 'SI"
time. T hi s app lies pa rt icu larly when children
remain in the vehicle. Othe rw ise children
co uld start t he engine or operate elect rical
equipment (such as power windows), which
increases the r is k of an accident .
Power windows
Controls
The driver can control all power window s.
F ig. 32 Dr ive r's door : power w indow co ntro ls
All power window sw itches are eq uipped w ith a
two-stage funct ion:
Opening and closing the windows
"' -$ :,
"' CD
~ T o open or close the w indow completely, p ress
the switch down or pu ll the switch up briefly to
the second level. The operation will stop if the
switch is pressed/pu lled again.
~ To se lect a position in between opened and
closed, press/pull the sw itch to the first level
u nt il the desired window position is reached.
Power window switches
(!) L eft front door
@ R ight front door
® L eft rea r d oor
© Right rear door
A WARNING
- Always take the vehicle key wit h you when
leaving the vehicle, even fo r a short period
of time . This applies particularly w hen ch il
dr en re ma in in the vehicl e. O th erwis e chi l
dre n cou ld st art t he engi ne or ope ra te e lec
t ric al eq uip m ent (such as power wi ndows),
Open ing and closing
which increases the risk of an acc ident. The
power windows continue to function until
the dr iver's door or front passenge r's door
has been opened .
- Pay careful attention when closing the w in
dows . Pinch ing could ca use serio us in juries.
- When locking the vehicle from o utside, the
veh icle must be unoccup ied since the win
d ows can no longe r be o pened in an emer
g e ncy .
@ Tips
You can still o pen and close the windows for
approximately 10 mi nutes after tur ning t he
i gnition off . The power windows do not switch
off until the driver 's door o r front passenger 's
door has been open ed .
Convenience opening
All of the windows and the sunroof* can be
opened at once .
The settings in the Infota inment system specify
which w indows will open .
Convenience opening feature
~ Press and hold the~ button on the remote
control key until a ll of the w indows reach the
desired position and the sunroof* is tilted open.
Setting convenience opening in the
Infotainment system
~ Select: the I CAR I funct io n button > (Car) * Sys
tems
contro l button > Vehicle sett ings > Cen
tral locking
> Long-press to open windows .
To enable convenience openin g of the w indows
and the roof *, th e
Front windows , Rear windows
and Roof functions must be switched On .
A WARNING
For security reasons, the w indows and the
su nroof* can o nly be opened wit h the remote
control key at a maximum distance of a pprox
im ately 6 fee t (2 m ) from the veh icle .
37

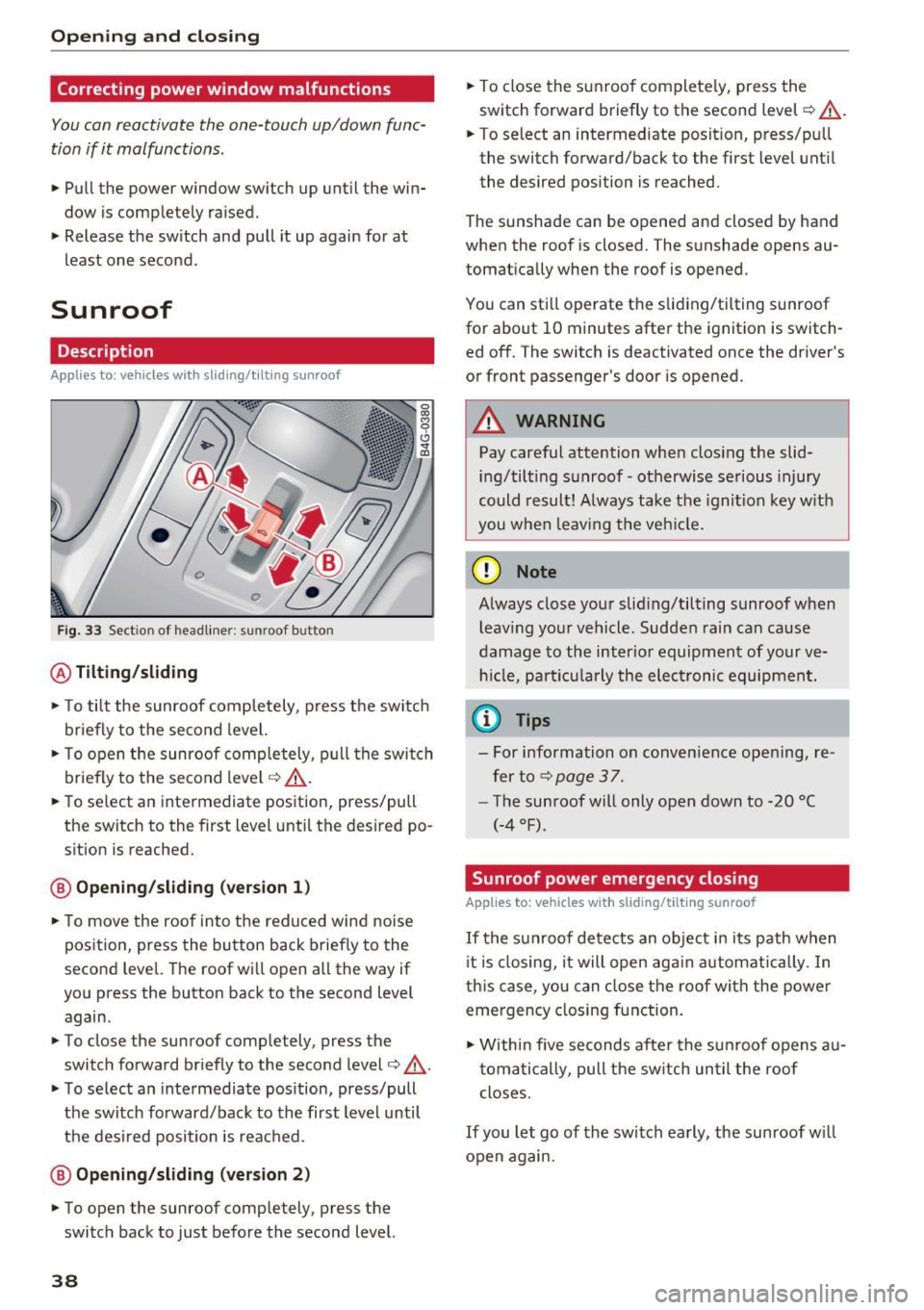

Page 40 of 280
Opening and clo sin g
Correcting power window malfunctions
You con reactivate the one-touch up/down func
tion if it malfunctions .
• Pull the power window switch up unt il the win
dow is completely raised.
• Release the sw itch and pull it up again for at
least one second.
Sunroof
Description
Applies to: veh icles with slid ing/tilting sunroof
Fig. 33 Sect ion of head liner: sunroof button
@ Tilting /sliding
• To tilt the sunroof comp letely, press t he switch
briefly to the second level.
• To open the sunroof completely, p ull the switch
briefly to the second level
c:::> &_ .
• To select an intermediate position, press/pull
the switch to the first level until the desired po
sition is reached.
@ Openin g/sliding (ver sion 1 )
• To move the roof into the reduced wind noise
position, press the button back brief ly to the
second level. The roof will open all the way if
you press the button back to the second level
again.
• To close the sunroof completely, press the
switch forward br iefly to the second level
c:::> & .
• To select an intermediate pos ition, press/pull
the switch forward/back to the first level until
the des ired position is reached .
@ Opening/sliding (ver sion 2)
• To open the sunroof completely, press the
switch back to just before the second level.
38
• To close the sunroof complete ly, press the
switch forward briefly to the second level
c:::> &_.
• To select an intermediate posit ion, press/pu ll
the switch forward/back to the first level until
the desired position is reached.
The sunshade can be opened and closed by hand
when the roof is closed. The sunshade opens au
tomatically when the roof is opened.
You can sti ll operate the sliding/tilting sunroof
for about 10 minutes after the ignition is switch
ed off. The switch is deactivated once the driver 's
or front passenger's door is opened.
A WARNING
Pay careful attention whe n clos ing the slid
ing/tilting s unroof- otherwise serious injury
could result! A lways take the ignition key w ith
you w hen leav ing the veh icle.
-
(D Note
Always close your slid ing/tilting sunroof when
l eav ing your vehicle. Sudden rain can cause
damage to the inter io r equipment of your ve
h icl e, par ticu larly the elect ronic equipment.
(j) Tips
- For information on conven ience ope ning, re
fer to
c:::> page 3 7 .
- The sunroof will only open down to -20 °C
(-4 °F).
Sunroof power emergency closing
Applies to: vehicles with sliding/tilting sunroof
If the s unroof de tects an object in its path when
i t is closing, i t will open again automatically . In
th is case, you can close the roof with the power
emergency closing function .
• Within five seconds af ter the sunroof opens au
tomatically, pull the sw itch un til the roof
closes.
If you let go of the switch ea rly, the sunroof w ill
open again .
