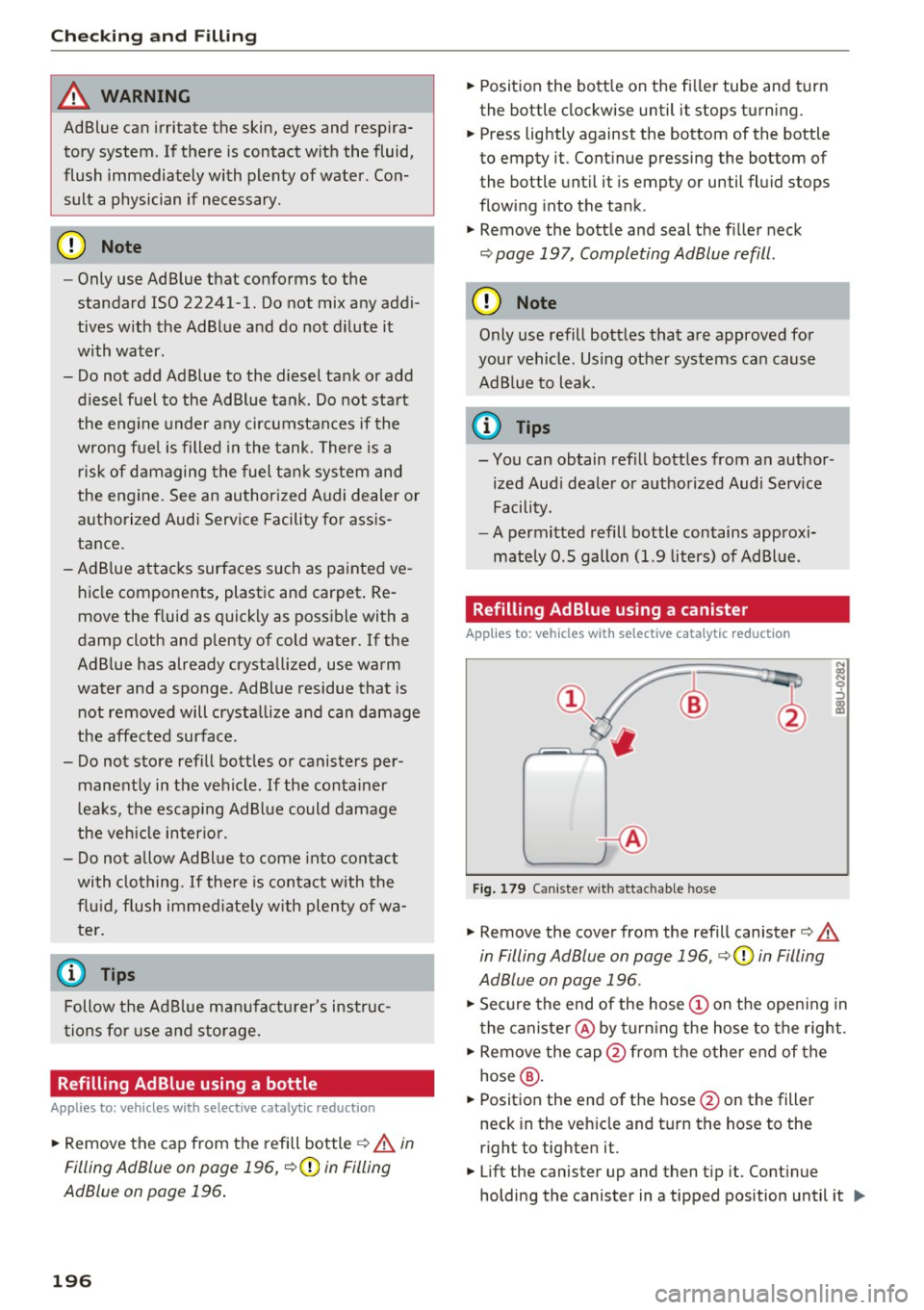

Checking and Filling
& WARNING
AdBlue can irritate the skin, eyes and respira­tory system. If there is contact with the fluid,
flush immediately with plenty of water . Con­
sult a physician if necessary.
(D Note
- Only use Ad Blue that conforms to the
standard ISO 22241 -1. Do not mix any addi ­
tives with the Ad Blue and do not dilute it
with water.
- Do not add Ad Blue to the diesel tank or add diesel fuel to the Ad Blue tank. Do not start
the engine under any circumstances if the
wrong fuel is filled in the tank. There is a
risk of damaging the fuel tank system and
the engine. See an authorized Audi dealer or
authorized Audi Service Facility for assis­
tance.
- AdBlue attacks surfaces such as painted ve­
hicle components, plastic and carpet. Re­
move the fluid as quickly as possible with a
damp cloth and plenty of cold water. If the
Ad Blue has already crystallized, use warm
water and a sponge . AdBlue residue that is
not removed will crystallize and can damage
the affected surface.
- Do not store refill bottles or canisters per ­
manently in the vehicle. If the container
leaks, the escaping AdBlue could damage
the vehicle interior.
- Do not allow AdBlue to come into contact
with clothing. If there is contact with the
fluid , flush immediately with plenty of
wa­
ter.
(j) Tips
Follow the Ad Blue manufacturer 's instruc­
tions for use and storage.
Refilling AdBlue using a bottle
Applies to: vehicles with selective catalytic reduction
... Remove the cap from the refill bottle ¢.&. in
Filling AdBlue on page 196,
c::> (D in Filling
AdBlue on page 196.
196
... Position the bottle on the filler tube and turn
the bottle clockwise until it stops turning.
... Press lightly against the bottom of the bottle
to empty it . Continue pressing the bottom of
the bottle until it is empty or until fluid stops
flowing into the tank .
... Remove the bottle and seal the filler neck
c::> page 197, Completing AdBlue refill.
d) Note
Only use refill bottles that are approved for
your vehicle. Using other systems can cause AdBlue to leak.
(D Tips
- You can obtain refill bottles from an author­
ized Audi dealer or authorized Audi Service
Facility.
- A permitted refill bottle contains approxi­
mately 0.5 gallon (1.9 liters) of AdBlue.
Refilling AdBlue using a canister
Applies to: vehicles with selective catalytic reduction
®
+®
Fig. 179 Canister w ith attachable hose
... Remove the cover from the refill canister c::> .&.
in Filling AdBlue on page 196 , c::>(D in Filling
AdBlue on page 196 .
.,. Secure the end of the hose the canister @by turning the hose to the right.
.,. Remove the cap @from the other end of the
hose @.
... Position the end of the hose @on the filler
neck in the vehicle and turn the hose to the
right to tighten it .
... Lift the canister up and then tip it . Continue
holding the canister in a tipped position until it
1J,,

co
co
.... N

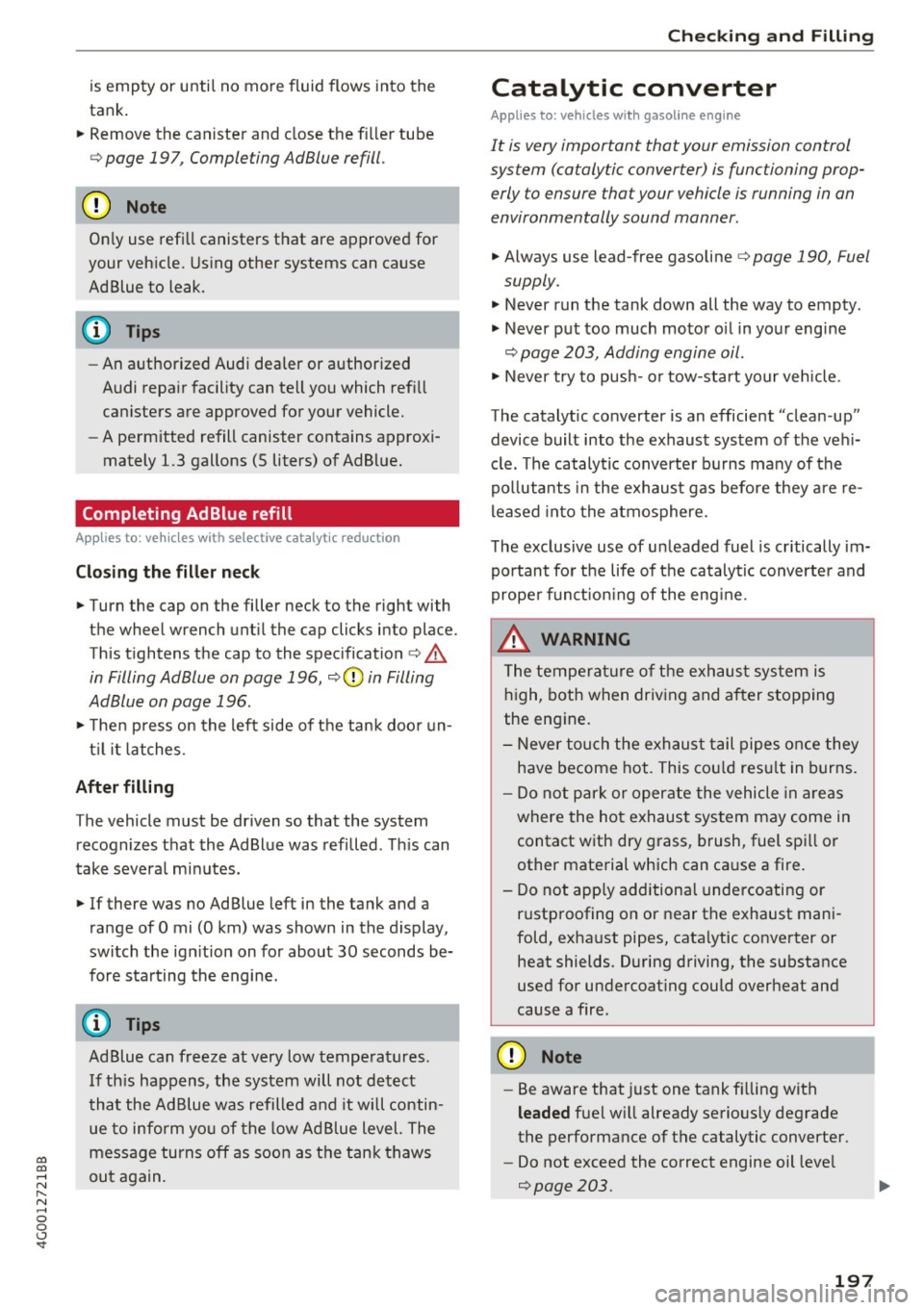

" N .... 0 0 <..:l - is empty or until no more fluid flows into the
tank .
.,. Remove the canister and close the fi ller tube
c:> page 197 , Comple ting AdBlue refill .
CD Note
Only use refi ll canisters that are approved for
your vehicle. Us ing other systems can cause
Ad Blue to leak.
(D Tips
- An authorized Audi dealer or authorized
Audi repair facility can tell you which ref ill
canisters are approved for your vehicle.
- A permitted refill canister conta ins approxi­
mately 1.3 gallons (5 liters) of AdBlue.
Completing AdBlue refill
Applies to: vehicles with selective catalytic reduction
Clo sing the filler nec k
.,. Tu rn the cap on the filler neck to the right with
the wheel wrench until the cap clicks into place.
This t ightens the cap to the specification c::> .&.
in Filling AdBlue on page 196, c:> 0 in Filling
AdBlue on page 196.
.,. The n press on the left side of the tank doo r un-
t il it latches .
After filling
The vehicle must be dr iven so that the system
recognizes that the Ad Bl ue was refilled . Th is can
take severa l m inutes.
.,. If there was no Ad Blue left in the tank and a
range of O mi (0 km) was shown in the display,
switch the ign ition on for about 30 seconds be­
fore starting the engine.
(D Tips
Ad Blue can freeze at very low temperatures.
If th is happens , the system will not detect
that the Ad Blue was refilled and it will contin­
ue to inform yo u of the low Ad B lue level. The
message turns off as soon as the tank thaws
out again .
Ch eck ing and Filling
Catalytic converter
Applies to: vehicles with gasoline engine
It is very important that your emission control
system (cataly tic converter) is functioning prop­
erly to ensure that your vehicle is running in an
environmentally sound manner.
.,. Always use lead-free gasoline c:> page 190 , Fuel
supply.
.,. Never run the tank down all the way to empty .
.,. Never put too much motor o il in your engine
c:> page 203, Adding engine oil.
.,. Never try to push- or tow-start your vehicle.
The catalytic co nverter is an efficient "clean -up"
device built into the exhaust system of the ve hi­
cle. The catalyt ic converter b urns many of the
po llutants in the exhaust gas before they are re­
leased into the atmosphere.
The exclusive use of un leaded fuel is cr itically im­
portant for the life of the catalytic converte r and
prope r funct ion ing of the eng ine .
_&. WARNING
The tempera ture of t he exhaus t sys tem is
h igh, bot h when driv ing and a fter stopping
the engine .
- Never tou ch the exhaust tail pipes once they
have become hot. This cou ld resu lt in burns.
- Do not park or operate the vehicle in ar eas
where the hot exhaus t sys tem may come in
contact with dry grass, b rush, fuel spill or
other material which can ca use a fire.
- Do not app ly additiona l undercoating or
r u stp roofing on or near the exhaust mani­
fold, exha ust pipes, cata lytic converter or
heat shields . D uring driving, the substance
used for undercoat ing could overheat and
cause a fire.
CD Note
- Be aware that just one tank fi lling with
leaded fuel w ill already seriously degrade
the performance of the catalytic converter .
- Do not exceed the correct engine oil leve l
c:> page 203.
197

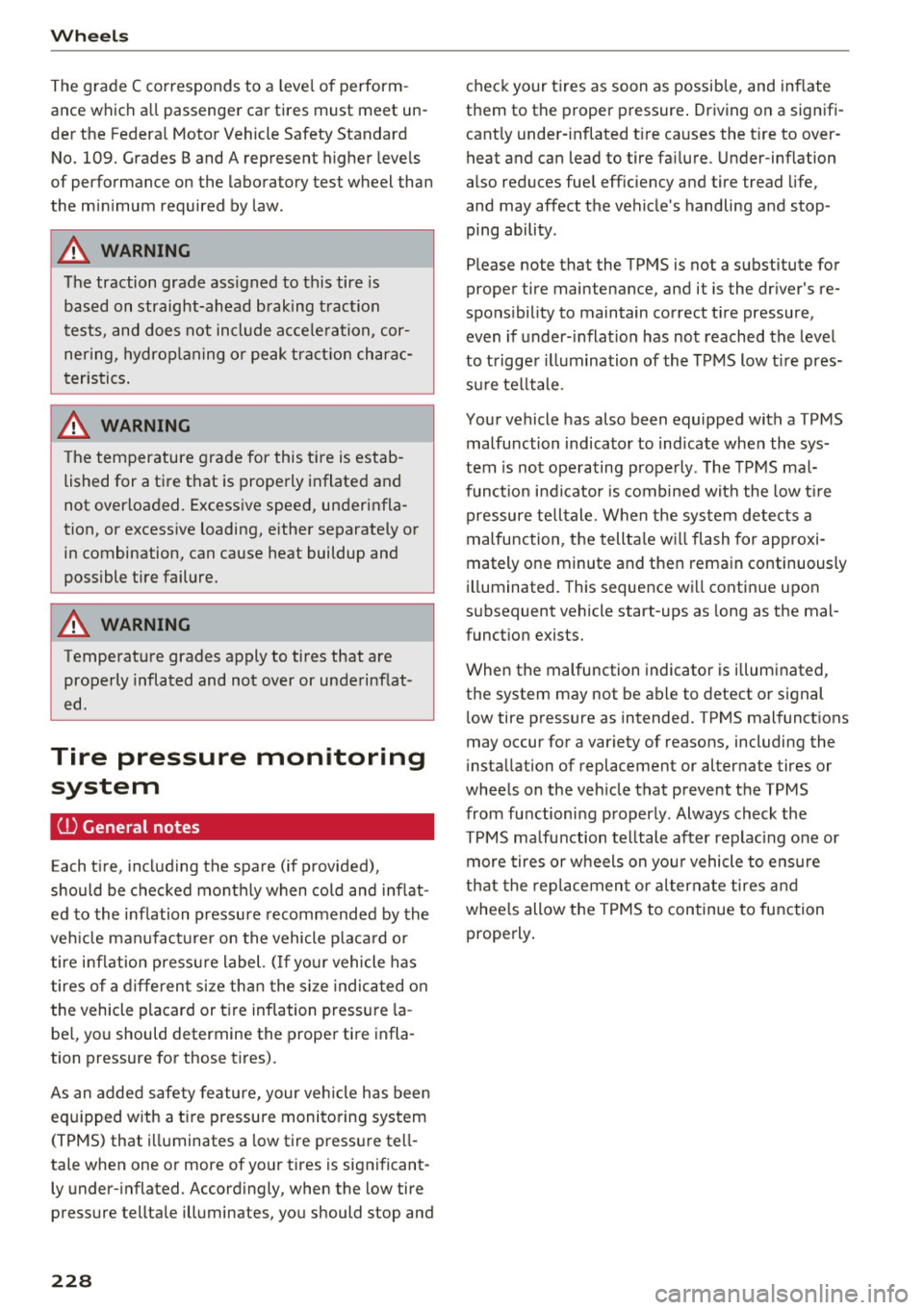

Wheels
The grade C corresponds to a level of perform­
ance which all passenger car tires must meet un­
der the Federal Motor Vehicle Safety Standard No.
109. Grades B and A represent higher levels
of performance on the laboratory test wheel than
the minimum required by law.
A WARNING
The traction grade assigned to this tire is
based on straight-ahead braking traction
tests, and does not include acceleration, cor­
nering, hydroplaning or peak traction charac­
teristics.
A WARNING
The temperature grade for this tire is estab­
lished for a tire that is properly inflated and
not overloaded. Excessive speed, underinfla­
tion, or excessive loading, either separately or
in combination, can cause heat buildup and
possible tire failure.
A WARNING
Temperature grades apply to tires that are properly inflated and not over or underinflat­
ed.
Tire pressure monitoring system
CD General notes
Each tire, including the spare (if provided),
should be checked monthly when cold and inflat­
ed to the inflation pressure recommended by the
vehicle manufacturer on the vehicle placard or
tire inflation pressure label. (If your vehicle has
tires of a different size than the size indicated on
the vehicle placard or tire inflation pressure la­
bel, you should determine the proper tire infla­
tion pressure for those tires).
As an added safety feature, your vehicle has been
equipped with a tire pressure monitoring system
(TPMS) that illuminates a low tire pressure tell­
tale when one or more of your tires is significant­ ly under-inflated. Accordingly, when the low tire
pressure telltale illuminates, you should stop and
228
check your tires as soon as possible, and inflate
them to the proper pressure . Driving on a signifi­
cantly under-inflated tire causes the tire to over­
heat and can lead to tire failure. Under-inflation
also reduces fuel efficiency and tire tread life,
and may affect the vehicle's handling and stop­ ping ability.
Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver's re­
sponsibility to maintain correct tire pressure, even if under-inflation has not reached the level
to trigger illumination of the TPMS low tire pres­
sure tel ltale.
Your vehicle has also been equipped with a TPMS
malfunction indicator to indicate when the sys­
tem is not operating properly. The TPMS mal­
function indicator is combined with the low t ire
pressure telltale. When the system detects a
malfunction, the telltale will flash for approxi­
mately one minute and then remain continuously
illuminated. This sequence will continue upon
subsequent vehicle start-ups as long as the mal­
function exists.
When the malfunction indicator is illuminated,
the system may not be able to detect or signal
low tire pressure as intended. TPMS malfunctions
may occur for a variety of reasons, including the
installation of replacement or alternate tires or
wheels on the veh icle that prevent the TPMS
from functioning properly. Always check the
TPMS malfunction telltale after replacing one or more tires or wheels on your vehicle to ensure
that the replacement or alternate tires and
wheels allow the TPMS to continue to function
properly.

co
co
.... N

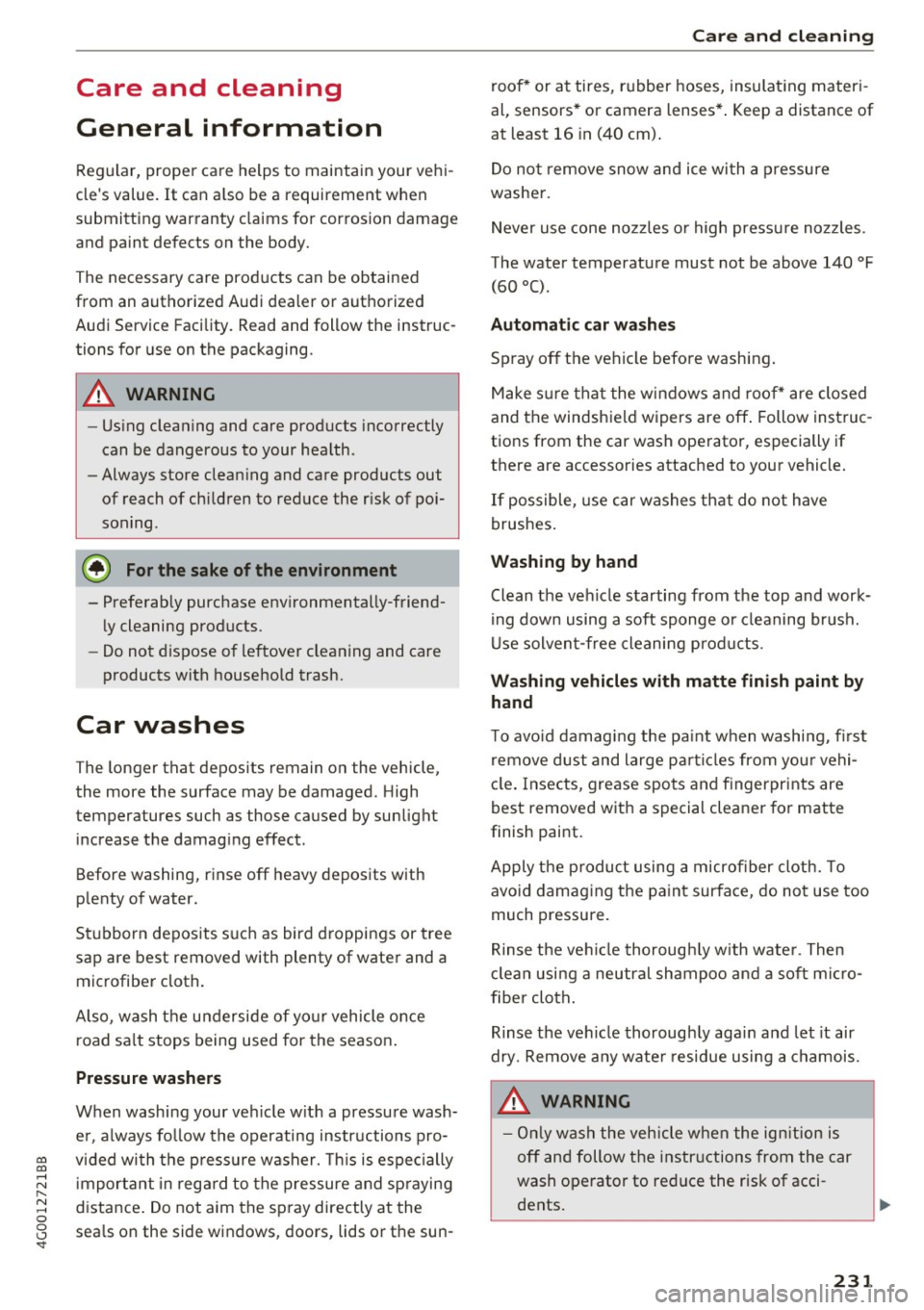

" N .... 0 0 <..:l ' Care and cleaning
General information
Regular, proper care helps to maintain your vehi­
cle's value.
It can a lso be a requirement when
submitting warranty claims for corrosion damage
and paint defects on the body.
The necessary care products can be obtained
from an authorized Audi dealer or authorized
Audi Service Facility . Read and follow the instruc­
tions for use on the packaging.
A WARNING
- Us ing clean ing and care products incorrectly
can be dangerous to your health.
- Always store clean ing and care products out
of reach of children to reduce the r isk of po i­
son ing .
@ For the sake of the environment
- Preferably purchase env ironmenta lly-friend­
l y cleaning products.
- Do not d ispose of leftover cleaning and care
products with household trash.
Car washes
T he longer that deposits remain on the vehicle,
the more the surface may be damaged. High
temperatures such as those caused by sunlight
increase the damag ing effect.
Befor e washing, rinse
off heavy depos its with
p lenty of water.
S tubborn depos its such as bird droppings or tree
sap are best removed with plenty of water and a
microfiber cloth.
A lso, wash t he un derside of yo ur vehicle once
road sa lt stops being used for the season .
Pressure washers
When washi ng your ve hicle w ith a pressure wash­
e r, a lways fo llow the operating instructions pro­
vided wi th the p ressure washer. This is especially
i mportant in rega rd to the pressure and sp raying
d istance . Do not aim the spray directly at the
sea ls on the side windows , doors, lids or the sun-
Ca re and cleaning
roo f* or at tires, r ubber hoses, insulat ing mater i­
al, sensors* or camera lenses* . Keep a distance of
at least 16 in (40 cm) .
Do not remove snow and ice with a pressure
washer.
Never use cone noz zles o r high pressu re noz zles .
The water temperature must not be above 140 °F
(60 °().
Automat ic car washe s
Spray off t he vehicle befo re washing .
Make s ure that the wi ndows and roo f* are closed
and the windsh ie ld wipers are
off . Follow instruc ­
tions from the car wash operator, especially if
there are accessories attached to your vehicle .
If possible, use car washes that do not have
brushes .
Washing
by hand
Clean the ve hicle starting from the top and work­
i ng down using a soft sponge o r cleaning br ush.
U se solven t-free cleaning p rod ucts.
Washing vehicles with matte finish paint
by
hand
T o avo id damag ing the pa int w hen washi ng, fi rst
remove d ust and large p articl es from you r vehi­
cl e. Insects, grease spo ts and f ingerprints are
best removed with a special cleaner for matte
finish paint.
Apply t he p roduct using a microfiber cloth. To
avo id damag ing the pa int surfa ce, do not use too
much pressure.
Rinse the ve hicl e thorough ly w ith wate r. Then
clean usi ng a neutral shampoo and a soft m ic ro ­
fiber clo th .
Rinse the ve hicle thorough ly agai n and let it air
dry. Remove a ny wate r residue using a chamois .
A WARNING
- Onl y wash the vehicle when the ign ition is
off and follow t he instr uctions from the car
wash operator to reduce the risk of acci -
-
dents. .,.
231

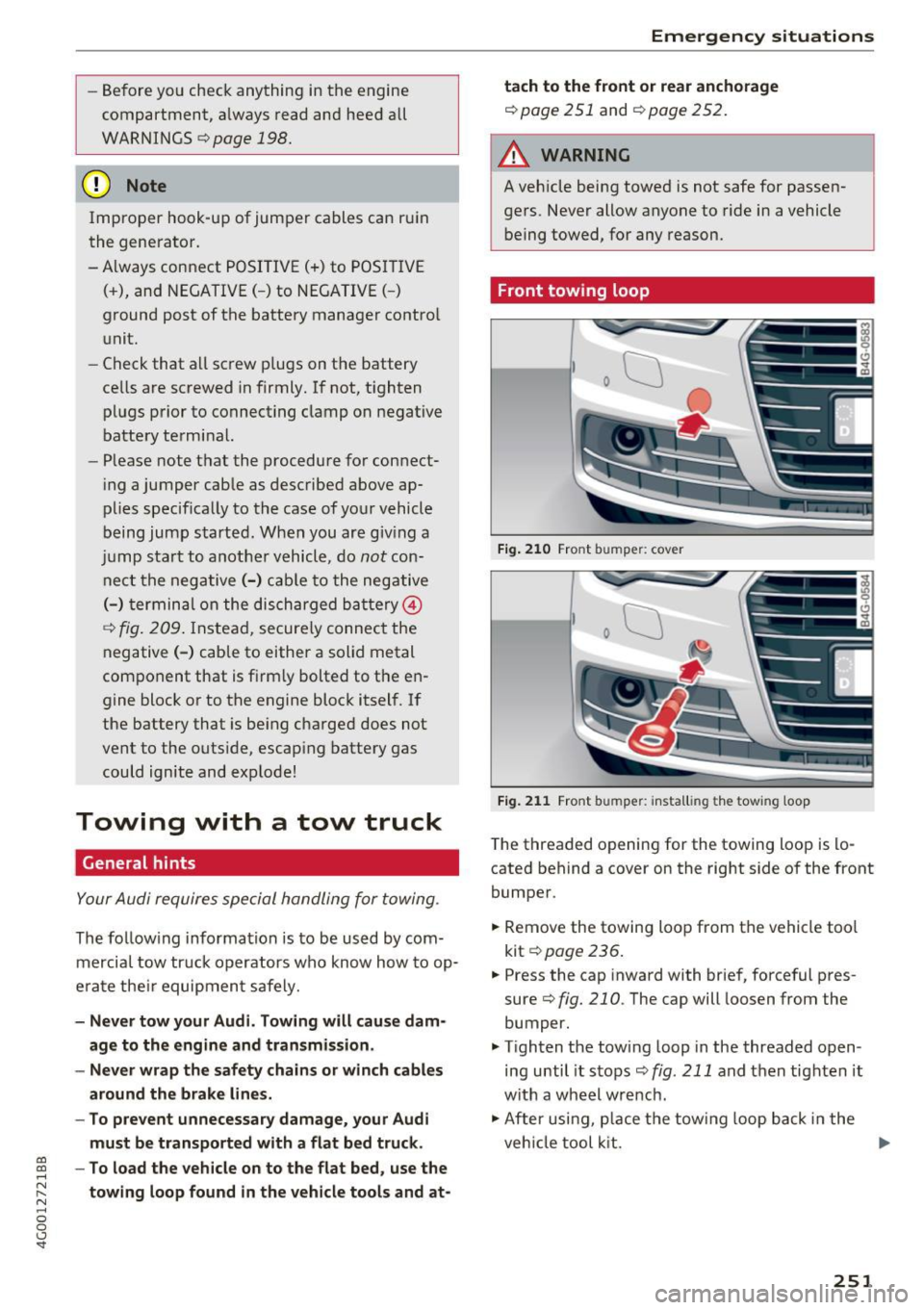

-Before you check anything in the engine
compartment, always read and heed all
WARNINGS
o page 198.
(D Note
Improper hook-up of jumper cables can ruin
the generator.
-Always connect POSITIVE( +) to POSITIVE
(+), and NEGATIVE(-) to NEGATIVE(-)
ground post of the battery manager control
unit.
- Check that all screw plugs on the battery
cells are screwed in firmly. If not, t ighten
plugs prior to connecting clamp on negative
battery terminal.
- Please note that the procedure for connect­
ing a jumper cable as described above ap­
plies specifically to the case of your vehicle
being jump started. When you are giv ing a
ju mp start to another vehicle, do
not con­
ne ct the negative( -) cab le to the negative
(-) terminal on the discharged ba ttery @
o fig. 209. Instead, securely connec t the
negative (-) cable to either a solid metal
component that is firm ly bolted to the en­
gine block or to the engine block itself. If
the battery that is be ing charged does not
vent to the outs ide, escaping battery gas
could ignite and explode!
Towing with a tow truck
General hints
Your Audi requires special handling for towing .
The following information is to be used by com­
mercial tow truck operators who know how to op­
erate the ir equipment safely.
-Never tow your Audi. Towing will cause dam­
age to the engine and transmission .
- Never wrap the safety chains or winch cables
around the brake lines.
- To prevent unnecessary damage, your Audi
must be transported with a flat bed truck .
co
co -To load the vehicle on to the flat bed, use the ....
~ towing loop found in the vehicle tools and at-N .... 0 0 <.,;) 'SI"
Emergency situations
tach to the front or rear anchorage
opage251 and opage252.
.&_ WARNING
-
A vehicle being towed is not safe for passen-
gers. Never allow anyone to ride in a vehicle
being towed, for any reason.
Front towing loop
Fig. 210 Front bumper: cover
Fig. 211 Front bu mper: insta lling t he towing loop
The threaded open ing for the towing loop is lo­
cated behind a cover on the right side of the front
bumper .
.,. Remove the towing loop from the vehicle too l
kit
c:::, page 236.
.,. Press the cap inward with brief, forceful pres ­
sure
o fig. 210 . The cap will loosen from the
bumper.
., Tighten the towing loop in the threaded open­
ing until it stops
r:';> fig. 211 and then tighten it
w ith a wheel wrench .
.,. After usi ng, p lace the towing loop back in the
veh icle tool kit . "'
251

co
co
.... N
" N .... 0 0 <..:l ' Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Sunroof. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Ceram ic brake rotors
New brake pads . . . . . . . . . . . . . . . . . . . . . 122
Certification . . . . . . . . . . . . . . . . . . . . . . . . . 262
Changing engine oil . . . . . . . . . . . . . . . . . . . 204
Child restraints Danger of using child restraints in the front
seat. .. .. .. .. ............... .. .. .. . 148
Where can I get additional information
about child restraints and their use? . . . . 189
Ch ild restraint system anchors . . . . . . . . . . 185
Child safety .. .. ............... .. .... . 171
Important safety instructions for using child
safety seats . . . . . . . . . . . . . . . . . . . . . . . . 17 5
Important things to know when driv ing with
children . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Tether anchors . . . . . . . . . . . . . . . . . . . . . . 188
Tether straps . . . . . . . . . . . . . . . . . . . . . . . 188
Child safety lock Power windows . . . . . . . . . . . . . . . . . . . . . . 36
Rear doors . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Child safety seats
Booster seats . . . . . . . . . . . . . . . . . . . . . . . 181
Convertible child seats . . . . . . . . . . . . . . . 179
Convertible locking retractor . . . . . . . . . . 184
H ow do I properly install a child safety seat
in my vehicle? . . . . . . . . . . . . . . . . . . . . . . . 175
I nfant seats .. .. ............. .. .. .. . 177
I nstall ing a chi ld restraint using the LA TC H
system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
LATCH system . . . . . . . . . . . . . . . . . . . . . . 187
Lower anchorages . . . . . . . . . . . . . . . . . . . 186
Mounting and releasing the anchorage
hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Safety instructions . . . . . . . . . . . . . . . . . . . 17 5
Unused safety belts on the rear seat . . . . 177
Child seats .. .. ................ ..... . 177
Securing . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
C igarette lighter . . . . . . . . . . . . . . . . . . . . . . . 54
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Cleaning/removing ice from windows . . . . . 233
C leaning Alcantara . . . . . . . . . . . . . . . . . . . . 234
Cleaning artificial leather . . . . . . . . . . . . . . . 234
C leaning carbon parts . . . . . . . . . . . . . 233, 234
Cleaning controls . . . . . . . . . . . . . . . . . . . . . 233
Cleaning decorative parts/trim . . . . . . . . . . 233
Index
Cleaning displays . . . . . . . . . . . . . . . . . . . . . 233
Cleaning exhaust tail pipes . . . . . . . . . . . . . 232
Cleaning plastic parts . . . . . . . . . . . . . . . . . . 233
Cleaning rims . . . . . . . . . . . . . . . . . . . . . . . . 232
Cleaning textiles . . . . . . . . . . . . . . . . . . . . . . 234
Climate contro l system . . . . . . . . . . . . . . . . . 60
Automatic auxiliary heater . . . . . . . . . . . . . 64
Automatic recirculation . . . . . . . . . . . . . . . . 64
Basic settings . . . . . . . . . . . . . . . . . . . . . . . . 64
Drive select . . . . . . . . . . . . . . . . . . . . . . . . . 104
Closing Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Sunroof. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Windows . .. .. . ... ............... .. . 37
Closing/opening By remote control . . . . . . . . . . . . . . . . . . . . 30
With the central locking switch . . . . . . . . . 31
With the convenience key . . . . . . . . . . . . . . 30
Closing aid (doors) . . . . . . . . . . . . . . . . . . . . . 27
Closing and opening With the door lock . . . . . . . . . . . . . . . . . . . . 32
Clutch (manual transmission) Indicator light . . . . . . . . . . . . . . . . . . . . . . . 16
Cockpit (overview) . . . . . . . . . . . . . . . . . . . . . . 6
Color code . . . . . . . . . . . . . . . . . . . . . . . . . . . 255
Coming home . . . . . . . . . . . . . . . . . . . . . . . . . 43
Compartments . . . . . . . . . . . . . . . . . . . . . . . . 55
Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . 262
Consumer information . . . . . . . . . . . . . . . . . 259
Consumer Information . . . . . . . . . . . . . . . . . 135
Consumption (fuel) . . . . . . . . . . . . . . . . . . . . 22
Contacting NHTSA . . . . . . . . . . . . . . . . . . . . 135
Convenience key Start ing the eng ine (START ENGINE STOP
button) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Stopping the eng ine (STAR T ENGINE STOP
button) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Switching the ignition on . . . . . . . . . . . . . . 70
Unlocking/locking . . . . . . . . . . . . . . . . . . . . 30
Convenience opening . . . . . . . . . . . . . . . . . . . 37
Convertible child safety seats . . . . . . . . . . . 179
Convertible locking retractor
Activating . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Deactivating . . . . . . . . . . . . . . . . . . . . . . . . 185
Using to secure a child safety seat . . . . . . 184
Cooling down . . . . . . . . . . . . . . . . . . . . . . . . . 66
265

co
co
.... N
" N .... 0 0 <..:l ' Electronic speed limiter . . . . . . . . . . . . . . . . . 26
Electronic stabilization control
Indicator light . . . . . . . . . . . . . . . . . . . . . . .
16
Elec tronic Stabili zation Control . . . . . . . . . . 120
Sport mode . . . . . . . . . . . . . . . . . . . . . . . . 121
Emergency assistance . . . . . . . . . . . . . . . . . 236
Emergency braking function . . . . . . . . . . . . .
75
Emergency flashers . . . . . . . . . . . . . . . . . . . . 43
Emergency locking the front passenger door 32
Emergency operat ion
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
32
Luggage compartment lid . . . . . . . . . . . . . . 36
Selector lever . . . . . . . . . . . . . . . . . . . . . . . .
82
Sunroof .. .. .. ............. .. .. .. .. .. 38
Emergency release
Fuel filler door . . . . . . . . . . . . . . . . . . . . . .
194
Emergency starting . . . . . . . . . . . . . . . . . . . 249
Energy management . . . . . . . . . . . . . . . . . . 124
Indicator light . . . . . . . . . . . . . . . . . . . . . . . 14
Engine
Coolant
... ' .................. ... ' . . 204
Prewarming . . . . . . . . . . . . . . . . . . . . . . . . . 70
Start-Stop system . . . . . . . . . . . . . . . . . . . . 72
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Starting with jumper cab les . . . . . . . . . . . 249
Stopp ing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Warming up/cooling down . . . . . . . . . . . . . 66
E ng ine compartment
Opening/closing the hood . . . . . . . . . . . . .
200
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Safety precautions . . . . . . . . . . . . . . . . . . . 198
Eng ine control ( indicator light) . . . . . . . . . . . 17
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Adding . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Checking the eng ine o il level . . . . . . . . . . . 203
Fuel consumption . . . . . . . . . . . . . . . . . . . 203
Indicator light . . . . . . . . . . . . . . . . . . . . . . . 1 S
O il consumption . . . . . . . . . . . . . . . . . . . . .
202
Specif ication and viscosity . . . . . . . . . . . . . 201
Engine sound . . . . . . . . . . . . . . . . . . . . . . . . 104
Engine speed limitation (indicator light) 18
Eng ine Start/Stop mode
refer to Sta rt/Stop system . . . . . . . . . . . . . 7 4
Engine warm-up request
Indicator light . . . . . . . . . . . . . . . . . . . . . . .
18
Index
Environment
Catalytic conv erter . . . . . . . . . . . . . . . . . . .
197
Diesel particulate filter . . . . . . . . . . . . . . . 198
Proper disposal of drained engine oil . . . . 204
Unleaded fuel.... .. ............... .. 190
EPC (engine contro l) . . . . . . . . . . . . . . . . . . . . 17
ESC
Automatic post-collision braking system .
120
also refer to Electronic stabilization con-
trol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
120
ESP
refer to Electronic stabilization control . . 120
Event Data Recorder ( EDR) . . . . . . . . . . . . . 126
Exterior lighting . . . . . . . . . . . . . . . . . . . . . . . 41
Exterior mirrors
Adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
D' . 1mming ........ .. .................. 45
Heating... .... .. .. ............... .. . 45
Ex terior temperature display.......... .. .
21
F
Fastening
Booster seats . . . . . . . . . . . . . . . . . . . . . . .
181
Convertible child safety seats . . . . . . . . . . 179
Infant seats . . . . . . . . . . . . . . . . . . . . . . . . 17 7
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Folding the rear seats. . . . . . . . . . . . . . . . . . . 57
Foot pedals . . . . . . . . . . . . . . . . . . . . . . . . . . 133
For the sake of the environment
Environmentally-friend ly driving . . . . . . . . 67
Fueling . . . . . . . . . . . . . . . . . . . . . . . . . . . .
192
Leaks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Roof rack . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Warming up the engine . . . . . . . . . . . . . . . . 70
Freeze protection
Coolant additive
Front airbags
. . .. ................ . 204
Description . . . . . . . . . . . . . . . . . . . . . . . . . 151
How they work . . . . . . . . . . . . . . . . . . . . . . 157
Frontal collisions and the laws of physics . . 140
Front seats
Adjusting . . . . . . . . . . . . . . . . . . . . . . . . . .
130
Child restraints in the front seat . . . . . . . . 148
also refer to Seats . . . . . . . . . . . . . . . . . . . . SO
267

co
co
.... N
" N .... 0 0 <..:l ' Speed limiter . . . . . . . . . . . . . . . . . . . . . . . . . 26
Speed warning system . . . . . . . . . . . . . . . . . . 86
Sport differential . . . . . . . . . . . . . . . . . . . . . 104
Indicator light . . . . . . . . . . . . . . . . . . . . . . . 19
Star button . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Start-Stop system . . . . . . . . . . . . . . . . . . . . . . 72
Start/Stop system Engine does not switch off . . . . . . . . . . . . . 73
Engine starts automatically . . . . . . . . . . . . 73
Indicator lights . . . . . . . . . . . . . . . . . . . . . . 73
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Starting/stopping the engine . . . . . . . . . . . 73
Switching off/on . . . . . . . . . . . . . . . . . . . . . 74
START ENGINE STOP button . . . . . . . . . . . . . 70
Starting (engine) . . . . . . . . . . . . . . . . . . . 70, 73
Steering Electromechanical steering ..... .. ... 123, 0
I ndicator light .. ............. .. .. 15 , 123
L ock ing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
also refer to Electromechanical steering . 123
Steering wheel Buttons .. .. .. .. .. .. .... ... .. .. .. .. .. 22
Easy seat entry . . . . . . . . . . . . . . . . . . . . . . . 70
Manual adjustment . . . . . . . . . . . . . . . . . . . 68
Power adjustment . . . . . . . . . . . . . . . . . . . . 69
Shift padd les (automatic transmission) . . . 80
Steering wheel heating . . . . . . . . . . . . . . . . 65
Steps for determining correct load limit . . . 224
Stopping (engine) . . . . . . . . . . . . . . . . . . . 71, 73
Storage compartments . . . . . . . . . . . . . . . . . 55
Storage hooks . . . . . . . . . . . . . . . . . . . . . . . . . 59
S tronic (automatic transmission) . . . . . . . . . 77
Launch control program . . . . . . . . . . . . . . . 81
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Convenience opening . . . . . . . . . . . . . . . . . . 37
Emergency closing . . . . . . . . . . . . . . . . . . . . 38
Sunshade . . . . . . . . . . . . . . . . . . . . . . . . . 46, 47
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Symbo ls
refer to Indicator lights . . . . . . . . . . . . . . . . 10
T
Tachometer .... ............... .. . 9, 10, 21
Tail lights Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Index
TOI clean diesel
refer to Ad Blue . . . . . . . . . . . . . . . . . . . . . . 194
Technical data . . . . . . . . . . . . . . . . . . . . . . . . 255
Technical modifications . . . . . . . . . . . . . . . . 261
Temperature display
Coo lant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Exterior temperature . . . . . . . . . . . . . . . . . . 21
T ether anchors . . . . . . . . . . . . . . . . . . . . . . . 188
Tether strap . . . . . . . . . . . . . . . . . . . . . . . . . 188
Tie-downs . . . . . . . . . . . . . . . . . . . . . . . . 58, 135
Time ......... ... .. .................. 24
tiptronic mode (automatic transmission) . . . 80
t iptronic (automatic transm iss ion) . . . . . . . . 77
Tire pressure (tire pressure monitoring sys ·
tern) .. ... ... .. .. .. ...... ....... .. .. 229
Tires........ ... .. .. ................ . 210
All wheel drive . . . . . . . . . . . . . . . . . . . . . . 124
Low aspect ratio tires . . . . . . . . . . . . . . . . 226
Replacing . . . . . . . . . . . . . . . . . . . . . . . . . . 237
Service life . . . . . . . . . . . . . . . . . . . . . . . . . 218
Tire pressure . . . . . . . . . . . . . . . . . . . . . . . 220
T ire pressure monitoring system . . . 228, 229
Tire pressure table . . . . . . . . . . . . . . . . . . . 221
Treadwear indicators . . . . . . . . . . . . . . . . . 218
Unidirectional....................... 212
Uniform tire quality grading . . . . . . . . . . . 227
T ires and wheels
Glossary of tire and loading terminology . 212
T ires and vehicle load limits . . . . . . . . . . . 223
Tool kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Torn or frayed safety belts . . . . . . . . . . . . . . 141
T owing
Tow trucks . . . . . . . . . . . . . . . . . . . . . . . . . 251
Towing loop .. .. .. .. ............. 251,252
TPMS (tire pressure monitoring system) . . . 229
T railer towing . . . . . . . . . . . . . . . . . . . . . . . . . 83
Information . . . . . . . . . . . . . . . . . . . . . . . . . 85
Operat ing instruct ions . . . . . . . . . . . . . . . . . 83
Parking system... .. ................ . 118
Technical requirements . . . . . . . . . . . . . 83 , 84
T ransmission malfunction (indicator light) . . 81
Transport Canada . . . . . . . . . . . . . . . . . . . . . 136
Turn signals . . . . . . . . . . . . . . . . . . . . . . . . . . 42
u
ULSD No . 2 (Diesel fuel) . . . . . . . . . . . . . . . . 191
273
