AUDI A6 ALLROAD 1999 C5 / 2.G Pneumatic Suspension System

AUDI A6 ALLROAD 1999 C5 / 2.G Pneumatic Suspension System https://www.carmanualsonline.info/img/6/840/w960_840-0.png AUDI A6 ALLROAD 1999 C5 / 2.G Pneumatic Suspension System

Page 1 of 44

AUDI A6 ALLROAD 1999 C5 / 2.G Pneumatic Suspension System Service.For internal use only All rights reserved, including
the right to make technical
changes.
AUDI AG
Dept. I/VK-5
D-85045 Ingolstadt
Fax 0841/89-36367
040.2810.62.20
Technical status 11/00
Prin

Page 2 of 44

AUDI A6 ALLROAD 1999 C5 / 2.G Pneumatic Suspension System 2

The 4-level air suspension system in the allroad quattro is a logical development of the self-
levelling system in the Audi A6.
The principles of the suspension/air suspension system and the desc

Page 3 of 44

AUDI A6 ALLROAD 1999 C5 / 2.G Pneumatic Suspension System
3
Contents
System description  . . . . . . . . . . . . . . . . . . . .  4
The self-study programme is not intended as a workshop manual.
The self-study programme will provide you with informatio

Page 4 of 44

AUDI A6 ALLROAD 1999 C5 / 2.G Pneumatic Suspension System
4
Description of the system
The vehicle level is determined separately at
each axle side by means of 4 level sensors.
Each air suspension strut is allocated a so-
called air spring valve (transv

Page 5 of 44

AUDI A6 ALLROAD 1999 C5 / 2.G Pneumatic Suspension System
5

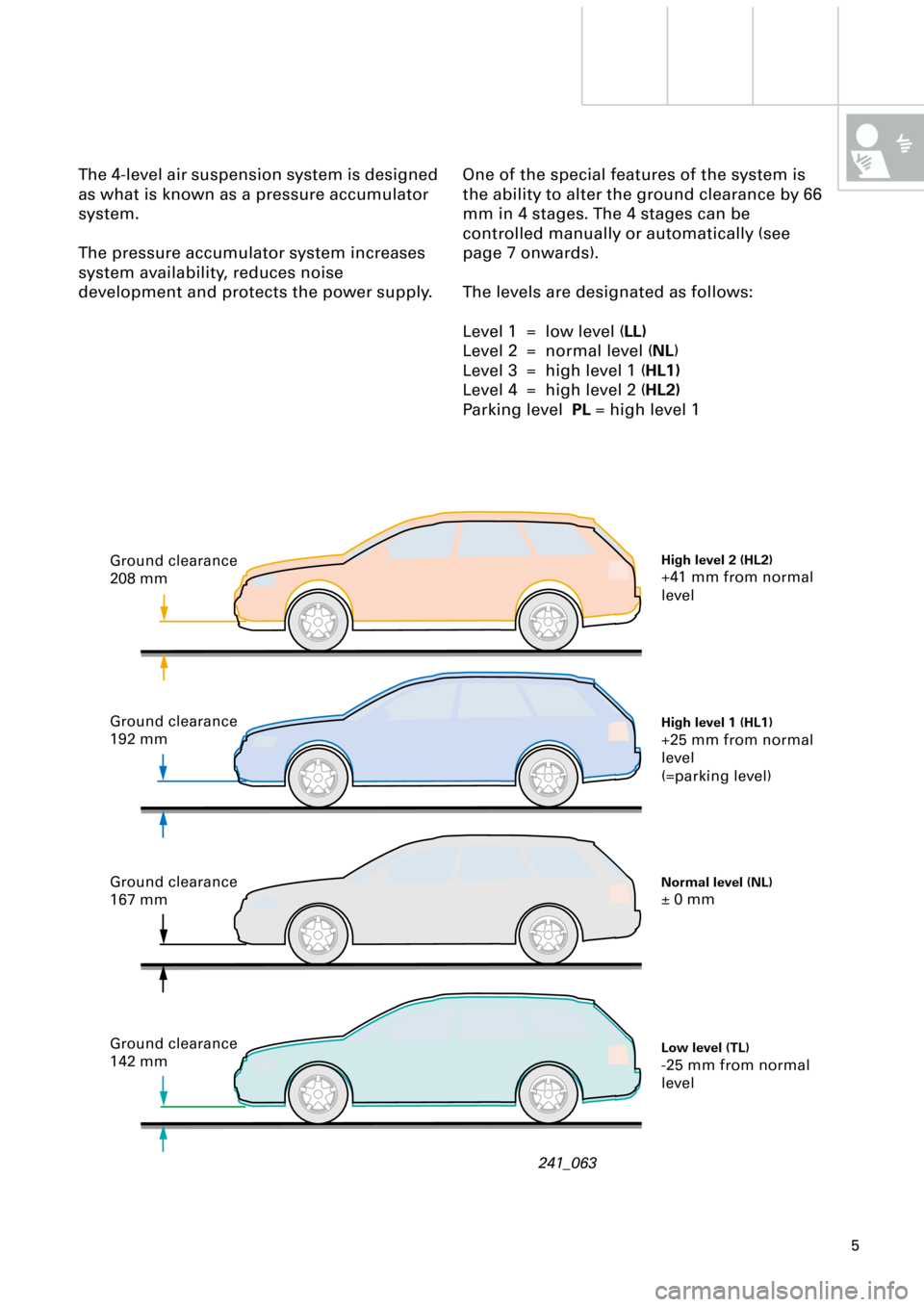

The 4-level air suspension system is designed
as what is known as a pressure accumulator
system.
The pressure accumulator system increases
system availability, reduces noise
development and p

Page 6 of 44

AUDI A6 ALLROAD 1999 C5 / 2.G Pneumatic Suspension System
6
Description of the system
• The 4 level stages can be controlled
manually or automatically within defined
limits (see page 8 onwards).
• Individual automatic functions or the
entire syst

Page 7 of 44

AUDI A6 ALLROAD 1999 C5 / 2.G Pneumatic Suspension System
7

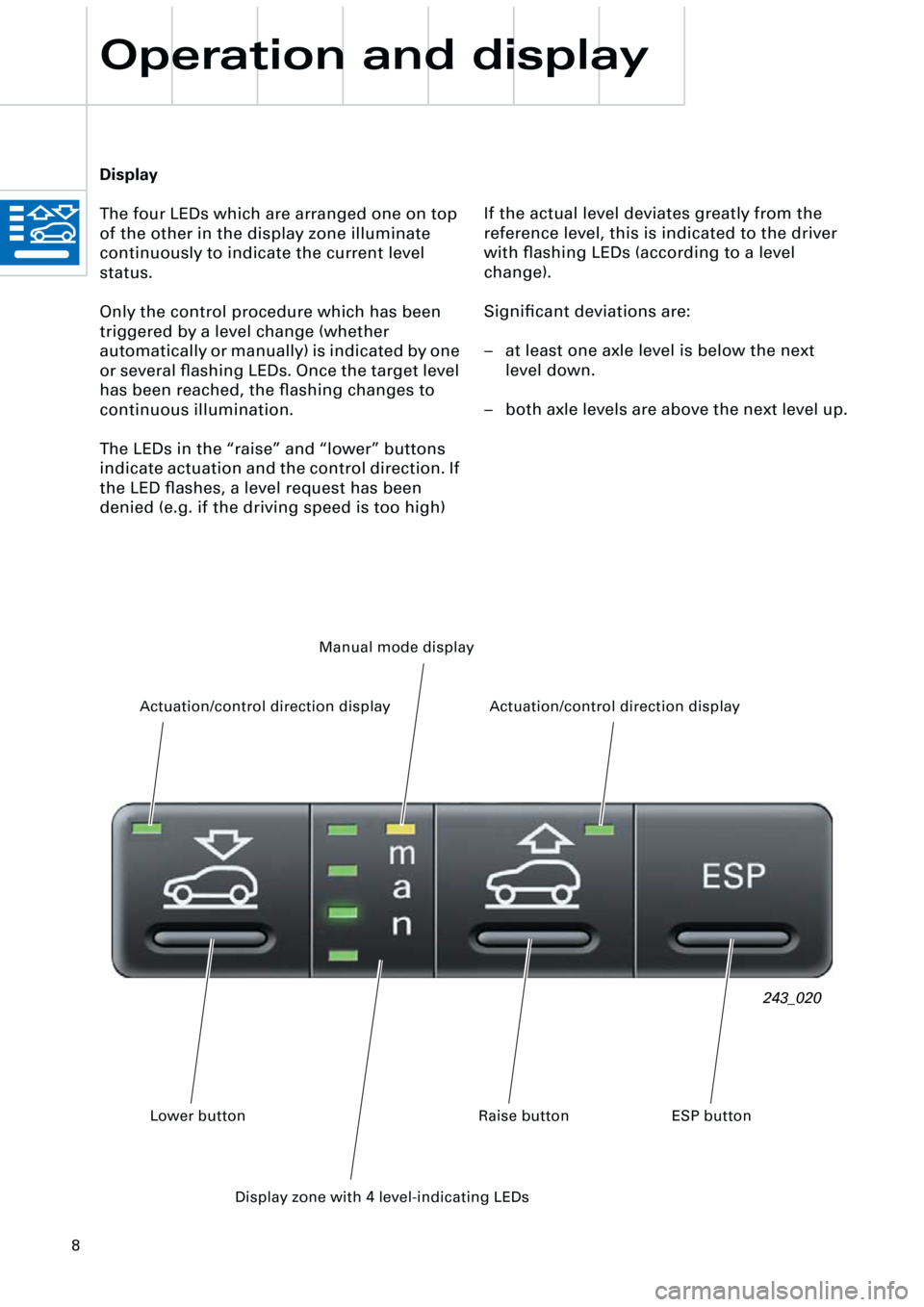

Operation and display
Operation

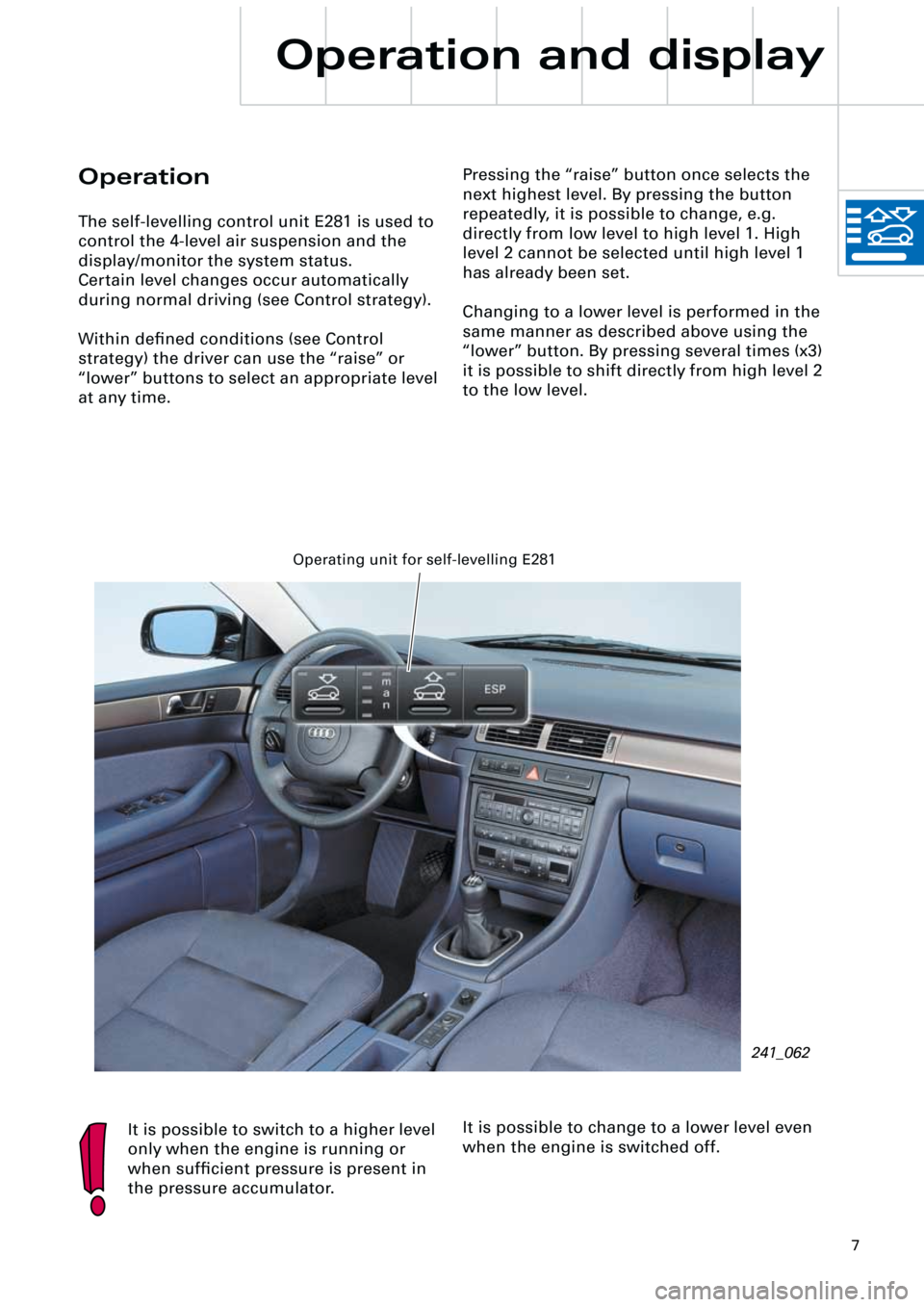

The self-levelling control unit E281 is used to
control the 4-level air suspension and the
display/monitor the system status.
Certain level changes occur autom

Page 8 of 44

AUDI A6 ALLROAD 1999 C5 / 2.G Pneumatic Suspension System
8
Operation and display
If the actual level deviates greatly from the
reference level, this is indicated to the driver
with flashing LEDs (according to a level
change).
Significant deviations

Page 9 of 44

AUDI A6 ALLROAD 1999 C5 / 2.G Pneumatic Suspension System
9
243_022
243_023
243_024
243_025

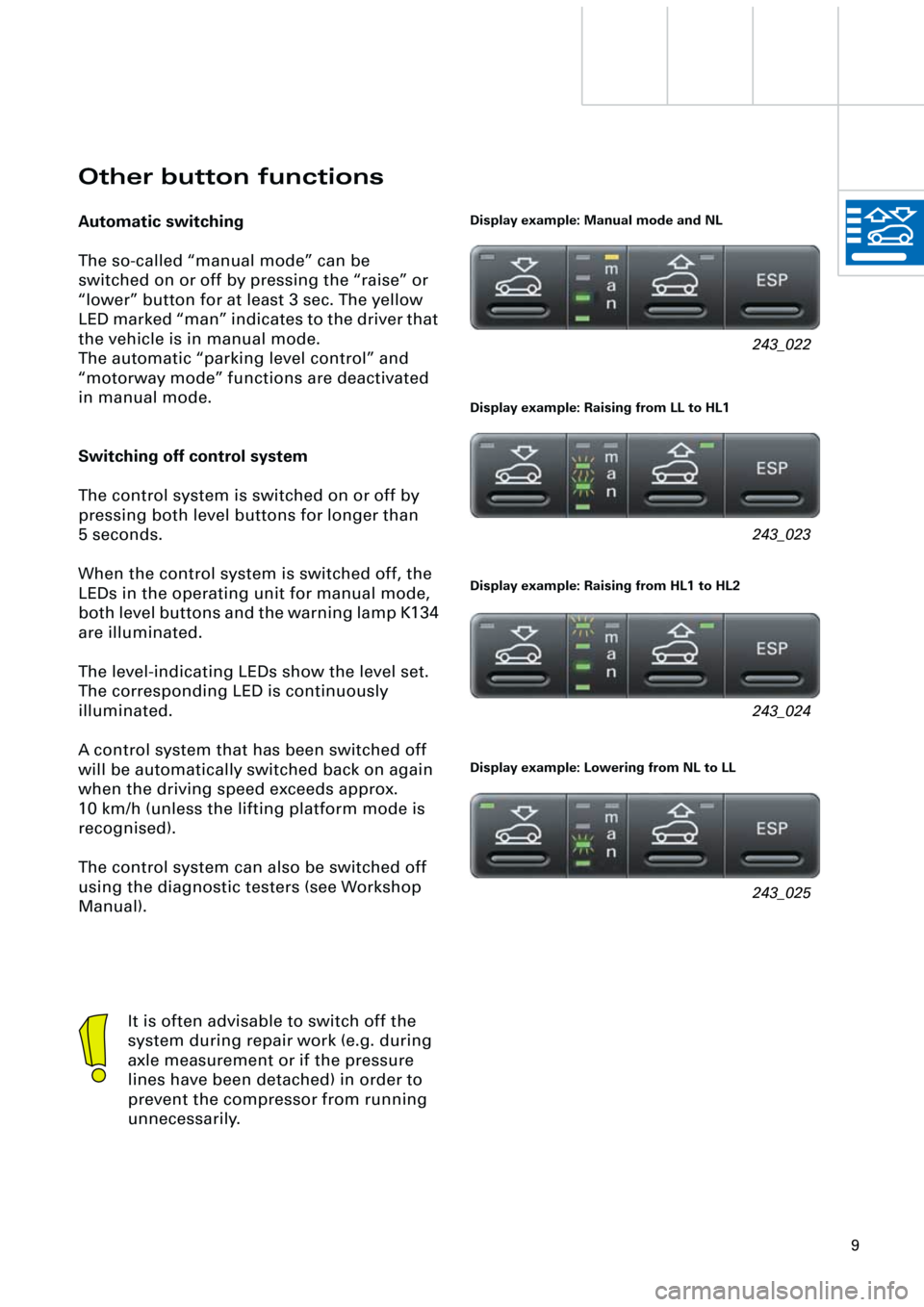

Other button functions
Automatic switching
The so-called “manual mode” can be
switched on or off by pressing the “raise” or
“lower” button for at

Page 10 of 44

AUDI A6 ALLROAD 1999 C5 / 2.G Pneumatic Suspension System
10

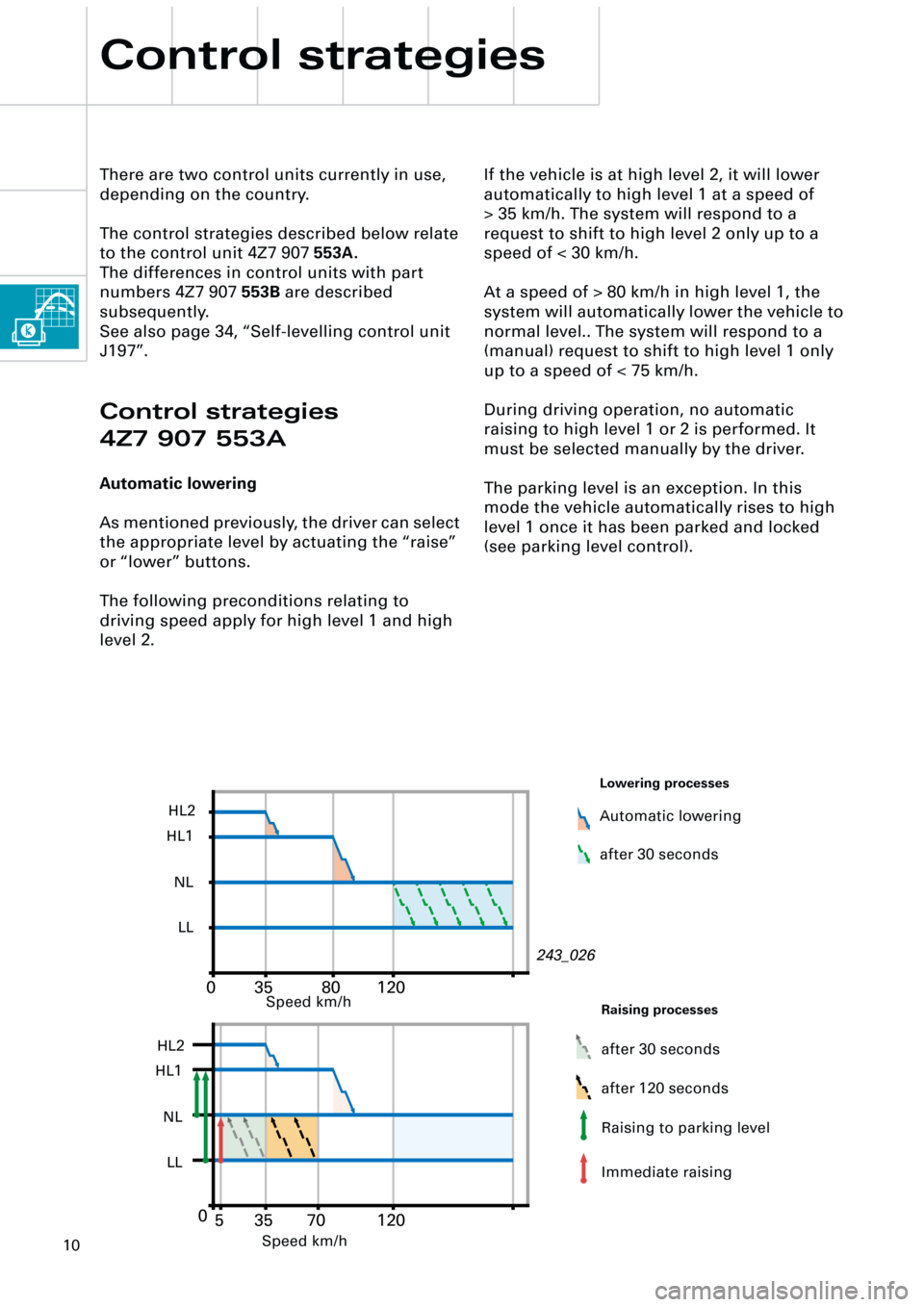

If the vehicle is at high level 2, it will lower
automatically to high level 1 at a speed of
> 35 km/h. The system will respond to a
request to shift to high level 2 only up to a
speed of <
