Seats and storage
_& WARNING
-Do not put any hot beverages in the cup
holder while the vehicle is moving. Hot bev­
erages could spill, which can cause injury.
- Do not use any breakable beverage contain­
ers (for example, made out of glass or por ­
celain) . You could be injured by them in the
event of an accident.
0 Note
Beverage containers in the cup holders should
always have a lid . If not, beverages could spill
and cause damage to vehicle equipment, such
electronics or seat covers .
Cooled glove compartment
Applies to: veh icles with cooled glove compartment
The cooled glove compartment only functions
when the
AIC system is switched on.
Fig. 59 Glove compar tm ent: s witch in g coo ling mode on/
off
~ Turn the knob@ counter-clockwise to switch
the cooling on . The symbols on the knob indi­
cate the correct position.
~ Turn the knob @ clockwise to switch the cool-
ing off .
The glove compartment cooling mode only func­
tions when the vehicle A/C system is switched on .
If the heating is switched on, switching the glove
compartment cooling mode off is recommended.
Other storage compartments
You will find a range of storage compartments
and holders at different locations in the vehicle.
54
- Compartments in the doors
-Compartment in the glove compartment
(cooled*) . The glove compartment can be
locked using the mechanical key.
- Glasses holder* in the headliner (near the rear­
view mirror)
- Storage compartment under the front center
armrest*
- Compartments* on the backrests of the front
seats
- Garment hooks on the sides of the pillars in the
rear of the vehicle and in the rear grab handles
- Compartment in the rear center armrest
- Bag hooks in the luggage compartment
_& WARNING
-To reduce the risk of personal injury in an
accident or sudden stop, always keep the
glove compartment closed while driving.
- Always keep the lid of the compartment for
(sun)glasses* closed while driving to reduce
the risk of injury during a sudden braking
maneuver or in the event of an accident .
- Any articles of clothing that you have hung
up must not interfere with the driver's view.
The coat hooks are designed only for light­
weight clothing. Never hang any clothing
with hard, pointed or heavy objects in the
pockets on the coat hooks. During sudden
braking or in an accident -especially if the
airbag is deployed -these objects could in ­
jure any passengers inside the vehicle .
- Read and follow all WARNINGS
c::> page 168, Important safety instructions
on the side airbag system.
- Hang clothes in such a way that they do not
impair the driver 's vision .
-
-The coat hooks must only be used for light­
weight clothing. Do not leave any heavy or
sharp edged objects in the pockets which
may interfere with the side curtain airbag
deployment and can cause personal injury in
a crash.
- Do not use coat hangers for hanging cloth­
ing on the coat hooks as this can interfere
with proper deployment of the side curtain
airbags in an accident.

Driving
c;,page 130, fig. 142. If you cannot main­
tain this minimum distance, the airbag sys­
tem cannot protect you properly.
- If physical limitations prevent you from sit­
ting 10 in (25 cm) or more from the steer­
ing wheel, check with your authorized Audi
dealer to see if adaptive equipment is avail­
able.
- If the steering wheel is aligned with your
face, the supplemental driver's airbag can­
not provide as much protection in an acci­
dent. A lways make sure that the steering
wheel is aligned with your chest.
- Always hold the steering wheel with your
hands at the 9 o'clock and 3 o'clock posi­
tions to reduce the risk of personal injury if
the driver's airbag deploys .
- Never hold the steering wheel at the 12
o'clock position or with your hands inside
the steering wheel rim or on the steering
wheel hub . Holding the steering wheel the
wrong way can cause serious injuries to the
hands, arms and head if the driver's airbag
deploys.
Power steering wheel position adjustment
A pp lies to: ve hicles w ith power steering wheel adju stment
The steering wheel position can be adjusted elec­
trically up and down and forward and back.
Fig. 75 Switch for adjusting the steering whee l position
• To adjust the height, press the switch up/down.
The steering column will continue moving as
long as you are pressing the switch .
• To move the steering whee l forward or back,
press the switch forward/back. The steering
column will continue moving as long as you are pressing the switch .
68
The steering wheel can also be adjusted when the
ignition is switched off.
In vehicles with memory function*, the steering
column settings are sto red together with the
seat position.
~ WARNING
Improper use of steering wheel adjustment
and improper seating position can cause seri­
ous personal injury.
- Adjust the steering wheel column only when
the vehicle is not moving to prevent loss of
vehicle control.
- Adjust the driver's seat or steering wheel so
that there is a minimum of 10 in (25 cm)
between your chest and the steering wheel
c;,page 130, fig. 142 . If you cannot main­
tain this minimum distance, the airbag sys­
tem cannot protect you properly.
- If physical limitations prevent you from sit­ ting 10 in (25 cm) or more from the steer­
ing wheel, check with your authorized Audi
dealer to see if adaptive equipment is avail­
able.
- If the steering wheel is aligned with your
face, the supplemental dr iver's a irbag can­
not provide as much protection in an acci­
dent. Always make sure that the steering
wheel is aligned with your chest.
- Always hold the steering wheel with your
hands at the 9 o'clock and 3 o'clock posi­
tions to reduce the risk of personal injury if
the driver's airbag dep loys.
- Never hold the steering wheel at the 12
o'clock position or with your hands inside
the steering wheel rim or on the steering
wheel hub. Holding the steering wheel the
wrong way can cause serious injuries to the hands, arms and head if the driver's airbag
deploys.
-

co
co
,...,
N
" N ,...,
0
00
\.J ' ~ Always keep both feet in the footwell so that
you are in control of the vehicle at all times.
F or detailed information on how to adjust the
driver's seat, see¢
page 48.
A WARNING
Drivers who are unbelted, out of position or
too close to the airbag can be seriously in­
jured by an airbag as it unfolds. To help re­
duce the risk of serious personal injury:
- Always adjust the driver's seat and the
steering wheel so that there are at least
10 inches (25 cm) between your breastbone
and the steering wheel.
- Always adjust the driver's seat and the
steering wheel so that there are at least
4 inches (10 cm) between the knees and the
lower part of the instrument panel.
- Always hold the steering wheel on the out­
side of the steering wheel rim with your
hands at the 9 o'clock and 3 o'clock posi­
tions to help reduce the risk of personal in ­
jury if the driver's airbag inflates.
- Never hold the steer ing wheel at the
12 o'clock posit ion or with your hands at
other positions inside the steering wheel
rim or on the steering wheel hub. Holding
the steering wheel the wrong way can cause
serious injuries to the hands, arms and head if the driver 's airbag inflates.
- Pointing the steering wheel toward your
face decreases the ability of the supplemen­
tal driver's airbag to protect you in a colli­ sion.
- Always sit in an upright position and never
lean against or place any part of your body
too close to the area where the airbags are
located.
- Before driving, always adjust the front seats
properly and make sure that all passengers
are properly restrained.
- For adjustable head restraints: before driv­
ing, always also adjust the head restraints
properly .
- Never adjust the seats while the vehicle is
moving. Your seat may move unexpectedly
and you could lose control of the vehicle.
-
Driving safety
-Never drive with the backrest reclined or
tilted far back! The farther the backrests are
tilted back, the greater the risk of injury due
to incorrect positioning of the safety belt
and improper seating position.
- Children must always ride in child seats
¢
page 172 . Special precautions apply
when installing a child seat on the front
passenger seat¢
page 148.
Proper seating position for the front
passenger
The proper front passenger seating position is
important for safe, relaxed driving.
For your own safety and to reduce the risk of in­
jury in the event of an accident, we recommend
that you adjust the seat for the front passenger
to the fol lowing position:
~ Adjust the angle of the seatback so that it is in
an upright position and your back comes in full
contact with it whenever the vehicle is moving.
~ For adjustable head restraints: adjust the head
restraint so the upper edge is as even as possi­
ble with the top of your head. If that is not pos ­
sible, try to adjust the head restraint so that it is as close to this position as possible
¢
page 132. Move the head restraint so that it
is as close to the back of the head as possible.
~ Keep both feet flat on the floor in front of the
front passenger seat.
~ Fasten and wear safety belts correctly
¢page 143.
For detailed information on how to adjust the
front passenger's seat, see¢
page 48.
A WARNING
Front seat passengers who are unbe lted, out
of position or too close to the airbag can be
seriously injured or killed by the airbag as it
unfolds . To help reduce the risk of serious
personal injury:
- Passengers must always sit in an upright po­
sition and never lean against or place any pa rt of their body too close to the area
where the airbags are located. .,,.
131

co
co
.... N
" N .... 0
00
\.J ' -Therefore, always wear your safety belts and
make sure that everybody in your vehicle is
properly restrained.
- Always hold the steering wheel with both
hands on the outside of the steering wheel
rim at the 9:00 o'clock and 3:00 o'clock po­
sitions to help reduce the risk of personal in­
jury if the driver's airbag inflates .
- Never hold the steering wheel at the 12
o'clock position or with your hands any­
where inside the steering wheel or on the steering wheel hub. Holding the steering
wheel the wrong way increases the risk of
severe injury to the arms, hands, and head if
the driver airbag deploys.
& WARNING
Objects between you and the airbag will in ­
crease the risk of injury in a crash by interfer­
ing with the way the airbag unfolds and/or by
being pushed into you as the airbag inflates.
- Always make sure nothing is in the front air-
-
bag deployment zone that could be struck
by the airbag when it inflates.
- Objects in the zone of a deploying airbag
can become projectiles when the airbag de­
ploys and cause serious personal injury.
- Never hold things in your hands or on your
lap when the vehicle is in use.
- Never place accessories or other objects
(such as cup holders, telephone brackets,
note pads, navigation systems, or things
that are large, heavy, or bulky) on the doors;
never attach then to the doors or the wind­
shield; never place them over or near or at­
tach them to the area marked ,,AIRBAG" on
the steering wheel, instrument panel or the seat backrests; never place them between
these areas and you or any other person in
the vehicle .
- Never attach objects to the windshield
above the passenger front airbag, such as
accessory GPS navigation units or music
players. Such objects could cause serious in­
jury in a collision, especially when the air­ bags inflate .
Airbag system
-Never recline the front passenger seat to
transport objects. Items can also move into
the deployment area of the side airbags or
the front airbag during breaking or in a sud­
den maneuver. Objects near the airbags can
fly dangerously through the passenger com­
partment and cause injury, particularly
when the seat is reclined and the airbags in­
flate.
& WARNING
= -
A person on the front passenger seat, espe­
cially infants and small children, will receive
serious injuries and can even be killed by be­ ing too close to the airbag when it inflates.
- Although the Advanced Airbag System in
your vehicle is designed to turn off the front
passenger airbag if an infant or a small child
is on the front passenger seat, nobody can
absolutely guarantee that deployment un­
der these special conditions is impossible in
all conceivable situations that may happen
during the useful life of your vehicle.
= The Advanced Airbag System can deploy in
accordance with the .,low risk" opt ion for 3-
and 6-year-old children under the U.S. Fed­
eral Standard if a child with electrical capac­ itance greater than the combined capaci­
tance of a typical one-year old infant re­
strained in one of the forward facing or rear­
ward-facing child seats with which your ve­
hicle was certified is on the front passenger
seat and the other conditions for airbag de­
ployment are met.
- Accident statistics have shown that children
are generally safer in the rear seat area than
in the front seat ing pos ition.
- For their own safety, all children, especially
12 years and younger, should always ride in
the back properly restrained for their age
and size.
Advanced front airbag system
Your vehicle is equipped with a front Advanced
Airbag System in compliance with United States
Federal Motor Vehicle Safety Standard 208, as
well as Canada Motor Vehicle Safety Standard ..,.
153

co
co
.... N
" N .... 0
00
<..:l 'SI"
These fuels contain substances that can se­
vere ly damage the fuel system and the en­
gine if the engine is started .
Refueling
Fuel filler neck
The fuel filler neck is located on the right rear
side panel behind the fuel filler flap.
If the power locking system should fail , you can
still open the flap manually - for detailed instruc­
tions see
~ page 195 .
You can find the fuel tank capacity of your vehicle in
~ page 262 .
The label on the inside of the fuel filler flap tells
you the correct fuel for your vehicle. For mo re in­
formation about fuel specifications , see
~ page 191 .
You r vehicle fuel tank has an onboa rd refuelling
vapor recovery sys tem . This fea tu re helps to pre­
vent fuel vapors from escaping from the tank and polluting the environment while you refuel your
vehicle. In order to fill the tank properly while
protecting the environment, please follow this
refueling procedure carefully.
_& WARNING
Under norma l operating conditions, never car­
ry additiona l fuel containers in your car. Gas
canisters and other containers used to trans­
port fuel can be dangerous. Such containers,
full or empty, may leak and could cause a fire
in a collision . If you must transport fuel to
use for your lawn mower, snow blower, etc.,
be very careful and always observe local and
state laws regarding the use, transportation
and storage of such fuel containers. Make cer­
tain the container meets industry standards
(ANSI/ASTM F852 -86).
(D Note
Never drive your vehicle until the fuel tank is
completely empty. The irregular supply of
fue l can cause misfiring. Gasoline could enter
the exhaust system and damage the catalyt ic
converter.
Checking and Filling
Fueling procedure
Fig. 176 Righ t re ar sid e of the v ehicl e: openin g th e fu el
fille r door
Fig. 177 Fue l filler doo r with at tached fuel cap
T he fue l filler door is unlocked or locked by the
central locking system.
Opening the fuel cap
"' Press on the left side of the fue l filler door to
open ~
fig. 176 .
"'U nscrew the tank cap counterclockwise.
"' Place the cap from above on the open fuel filler
door ~
fig. 177.
Closing the fuel cap
"' Sc rew the tank cap on to the right on the filler
neck until it cannot turn any farther.
"' Then press on the left s ide of the tank door un-
til it latches.
Once the pump nozzle switches off, the fuel tank
is "full ". Do not fill the tank mo re . Otherwise the
expans ion space in the tank w ill be filled .
The correct fuel type for your vehicle can be
found on a label located on the inside of the fuel
filler door. Fo r additional informa tion on fuel,
see
~ page 191.
193

Checking and Filling
-Ad Blue is required by law to operate this ve­
hicle .
Messages in the instrument cluster display
Applies to: vehicles with selective catalytic reduction
The display indicates if the Ad Blue level is low or
if there is a system malfunction.
AdBlue level low
You will be informed if the Ad Blue in the tank
drops below a certain level.
Please refill AdBlue . Range x mi (km)
This message appears when there is only enough
Ad Blue left to drive the distance indicated in the
driver information system . Fill the AdBlue.
Ad Blue ,0 Refill AdBlue! Cannot start engine
in x mi (x km)! See owner's manual
This message appears when there is only enough
Ad Blue left to drive the distance indicated in the
driver information system. Fill the AdBlue. Other­
wise the engine will not start again if you stop it
once the distance indicated has been driven. You
can also check the remaining distance in the on­
board computer* .
Refill Ad Blue! No restart! See own-
er's manual
This message appears when the Ad Blue tank is
empty . Fill the Ad Blue . Otherwise you will not be
able to start the engine again once you stop it .
The AdB lue must be refilled when the amount in
the tank has reached the minimum level
c::> page 196, Filling AdBlue.
Incorrect filling/system malfunction
A message appears if the Ad Blue tank was filled
with a fluid other than AdBlue and the system
has detected that the tank was fi lled incorrect ly,
or if there is a system malfunction .
Ad Blue-/' Ad Blue : system fault. No re start in
x mi (x km) See owner's manual
This message appears when it is only possible to
d rive the distance indicated in the driver informa­
tion system. Drive to the nearest authorized Aud i
dealer or authorized Aud i Serv ice Facility to have
196
the malfunction corrected . Otherwise the engine
will not start again if you stop it once the dis­
tance indicated has been driven.
AdBlue: System fault No restart!
See owner's manual
This message appears if the system has detected
that the tank was fi lled incorrect ly or that there
i s a ma lfunction. Drive immed iate ly to the near­
est authorized Audi dealer or authorized Audi
Service Facility to have the ma lfunction co rrect ­
ed. Otherwise you wi ll not be able to start the en­
gine again once you stop it.
Filling AdBlue
Applies to: vehicles with selective cata lytic reduct ion
Fig. 180 R ig ht rea r side of t he ve hicle: removing the Ad B l­
ue cap
The Ad Blue tank open ing is located near the die­
sel tank opening . Add at least 1.5 gallons (S . 7
lit ers) of Ad Blue . This is the minimum amount re­
quired to ensure the system detects the refilling
and to start the eng ine. You can add a maximum
of 4.5 gallons (17 lite rs).
Requirement: the request to add AdBl ue must
appear in the ins trument cluster display .
.,. Switch the ignition off.
.,. Open the tank filler door
c::> page 193.
.,. Tu rn the cap on the filler neck counter-clock­
w ise using the wheel wrench from the vehicle
tool kit to remove it
c::> fig. 180.
.. Fill the Ad Blue using a bottle c::> page 197 or a
canister
c::> page 19 7.

co co .... N
" N .... 0
00
\.J - A WARNING ,~
Ad Blue can irritate the skin, eyes and respira­
tory system. If there is contact with the fluid,
flush immediately with plenty of water . Con­
sult a physician if necessary.
CD Note
- Only use Ad Blue that conforms to the
standard ISO 22241 -1. Do not mix any addi ­
tives w ith the AdBlue and do not d ilute it
with water.
- Do not add Ad Blue to the diesel ta nk or add
diesel fuel to the Ad Blue tank. Do not start
the engine under any circumstances if the
wrong f uel is filled in the tank. There is a
risk of damaging the fuel tank system and
the engine. See an author ized Audi dealer or
authorized Audi Service Facility for ass is­
tance .
- Ad B lue attacks surfaces such as pa inted ve ­
hicle components, plast ic and carpet . Re­
move the fluid as quickly as poss ible with a
damp cloth and plenty of cold water. If the
Ad Blue has already crysta llized, use warm
water and a sponge . AdBlue residue that is
not removed will crysta llize a nd can damage
the affected surface.
- Do not store refill bottles or canisters per ­
mane ntly in the vehicle . If the container
l ea ks, the escaping AdBl ue could damage
t h e veh icle inter io r.
- Do not allow AdBlue to come into co ntact
with clothing. If there is contact w ith the
f lui d, f lush immed iate ly w ith p lenty of wa­
te r.
(j) Tips
Follow the Ad B lue man ufact urer's instr uc­
t ions fo r use and storage.
Refilling AdBlue using a bottle
Applies to: vehicles with selective catalytic reduction
.. Remove the cap from the refi ll bottle ¢ A in
Filling AdBlue on page 197, ¢(Din Filling
AdBlue on page 197 .
Check ing and Filling
.. Position the bott le on the fi ller tube and turn
the bottle clockwise until it stops turning .
.. Press lightly against the bottom of the bottle
to empty it. Cont inue pressing the bottom of
the bottle until it is empty or until fluid stops
flow ing into the tank .
.,. Remove the bottle and seal the filler neck
¢ page 198, Completing AdBlue refill.
CD Note
Only use refill bottles that are approved for
your vehicle . Using other systems can cause
Ad B lue to leak.
@ Tips
- You can obtain ref ill bottles from an author­
ized Aud i dea le r o r aut horized Aud i Serv ice
Facility.
- A permitted refi ll bottle contains approxi­
mately 0.5 gallon (1.9 liters) of AdBl ue.
Refilling AdBlue using a canister
Applies to: vehicles with selective catalytic reduction
®
+®
Fig. 181 Can iste r w ith attachable hose
.. Remove the cover from the refill canister¢ A
in Filling AdBlue on page 197, ¢(Din Filling
AdBlue on page 197 .
.,. Secure the end of the hose (Don the opening in
t he caniste r@ by turni ng the hose to the right.
.,. Remove the cap @ from the o ther end of the
hose @.
.. Position the end of the hose @ on the filler
neck in the veh icle and turn the hose to the
r ight to tighten it .
.. Lift the canister up and then t ip it. Cont inue
holding the canister in a tipped pos ition until it ..,.
197

Check ing and F illing
The coolant leve l is monitored through the. in­
dicator light ¢
page 14. However, we do recom­
mend occasionally check ing the coo lant level
manually.
I f you must add coolant, use a mixture of water
and coolant additive. Mixing the coolant additive
with d istilled water is recommended.
Coolant additiv e
The coolant addi tive is made of anti-freezi ng and
corros ion protection agents. Only use the fo llow­
ing coolant additives . These additives may be
mixed with each other.
Coolant additive Specification
Gl3 TL 774)
Gl2++
TL 774 G
The amount of coolant add itive that needs to be
mixed w ith water depends on the climate where
the vehicle will be operated. If the coolant addi­
tive percentage is too low, the coolant can freeze
a nd damage the engine.
Coolant
Freeze protec·
additive tion
Warm reg ions min. 40% m in. -13 ° F
max. 45% (-25 °C)
Cold regions min. 50% max . -40 °F
max . 55% (-40 °C)
([)
Note
-Before the start of winter, have your author­
ized Audi dealer or authorized A udi Se rvice
Fac ility check if the coolant additive in you r
vehicle matches the percentage approp riate
fo r the clim ate. Thi s is especially important
when driving in co lder climates .
- If the approp riate coolant additive is not
available in an emergen cy, do no t add any
other additive. You cou ld damage the en ­
gine. If this happens, only use water and re­ store the correct mixture ratio with the
spec ified coolant additive as soon as possi­
ble.
- Only refill with new coo lant.
- Radiator sealant must not be mixed w ith
the coo lant .
206
· Adding coolant
F ig. 186 En gin e compartment : coolant exp ansion tank
cover
-N
-~
~
Observe the safety precautions ~ .&. in Working
in the engine compartment on page 199.
Check ing the engin e coolant level
Park the vehicle on a leve l surface.
.,. Switch the ignit ion off.
.,. Read the coolant level on the coolant expansion
tank ¢
page 202, fig . 184. The coolant level
must be betwee n the MIN and MAX mark ings
when the e ngine in co ld. When the engine is
wa rm it c an be slightly above the MAX marking.
Adding coolant
Requirement: there must be a residual amount of
coolant in the expansion tank ¢(D .
.,. Let the engine cool down .
.,. Place a cloth over the coolant expansion tank
cap and unscrew the cap counterclockw ise
¢ .8_ .
.,. Add coo lant m ixed in the correct rat io
¢ page 205 up to t he MAX mar king.
.,. Make sure that the f luid level remains stab le.
Add mo re coolant if necessary.
.,. Close the cap securely .
Coolant loss usually ind icates there is a lea k. Im­
med iate ly dr ive your vehi cle to a n author ized
Audi dealer or author ized A udi Service Fac ility
and have the cooling system inspected . If the
cooling system is not leaking, a loss can come
from the coolant boiling through overheating
and being pushed out of the cooling system.

Emerg ency assis ta nce
Emergency assistance
General information
... Park the vehicle as far as possible from moving
traffic in the event of a breakdown. In the event
of a flat tire, park the vehicle on a level surface .
It you are on a steep hill, be especially careful.
.,. Set the parking brake .
.,. Switch the emergency flashers on .
... Set up the warning triangle
r=;,page 240 .
... Have the passengers exit the vehicle . They
should move to a safe place, for example be­
hind a guard rail.
A WARNING
Follow the steps given above. This is for your
protection and the for the safety of other driv­
ers.
Equipment
Warning triangle
A ppl ies to: ve hicles w ith warning triangle
Fig. 196 Luggage compartment lid : wa rnin g triangle
The warning triangle placed in the vehicle at the
factory is located in the luggage compartment.
... Turn the twist lock
r::;, fig. 196 and pull the cover
downward to open the cover .
.,. Remove the warning triangle from its holder.
The luggage compartment lid is only designed to
hold the warning triangle offered by the Audi
Genuine Accessories program.
240
Vehicle tool kit
Fig. 197 Luggage compartment: vehicle tool kit, tire mob i­
lity kit and comp ressor
The vehicle tool kit, vehicle jack*, tire mobility
kit* and compressor are stored in the luggage
compartment under the cargo floor cover.
.,. Lift the cargo floor by the plastic handle .
.,. Tu rn the handle counter-clockwise and remove
the cover or the spare ti re*.
A WARNING
Improper use of the vehicle jack can cause se­
rious personal injuries.
- Never use the screw driver hex head to
tighten wheel bolts, since the bolts cannot
attain the necessary tightening torque if you
use the hex head, potentially causing an ac­
cident.
- The factory-supplied jack is intended only
for your vehicle model. Under no circum­ stances should it be used to lift heavy
veh icles or other loads; you risk injuring
yourself.
- Never start the engine when the veh icle is
raised, which could cause an accident.
- Support the vehicle securely with a ppropri­
ate stands if work is to be performed under­
neath the vehicle; otherwise, there is a po­
tential risk for injury .
- Never use the jack supplied with your Aud i
on another vehicle, particularly on a heavier
one. The jack is only suitable for use on the
veh icle i t came with.
¢j) Tips
The vehicle jack* in your vehicle is mainte­
nance-free.

co
co
.... N
" N .... 0 co <.,;) 'SI'

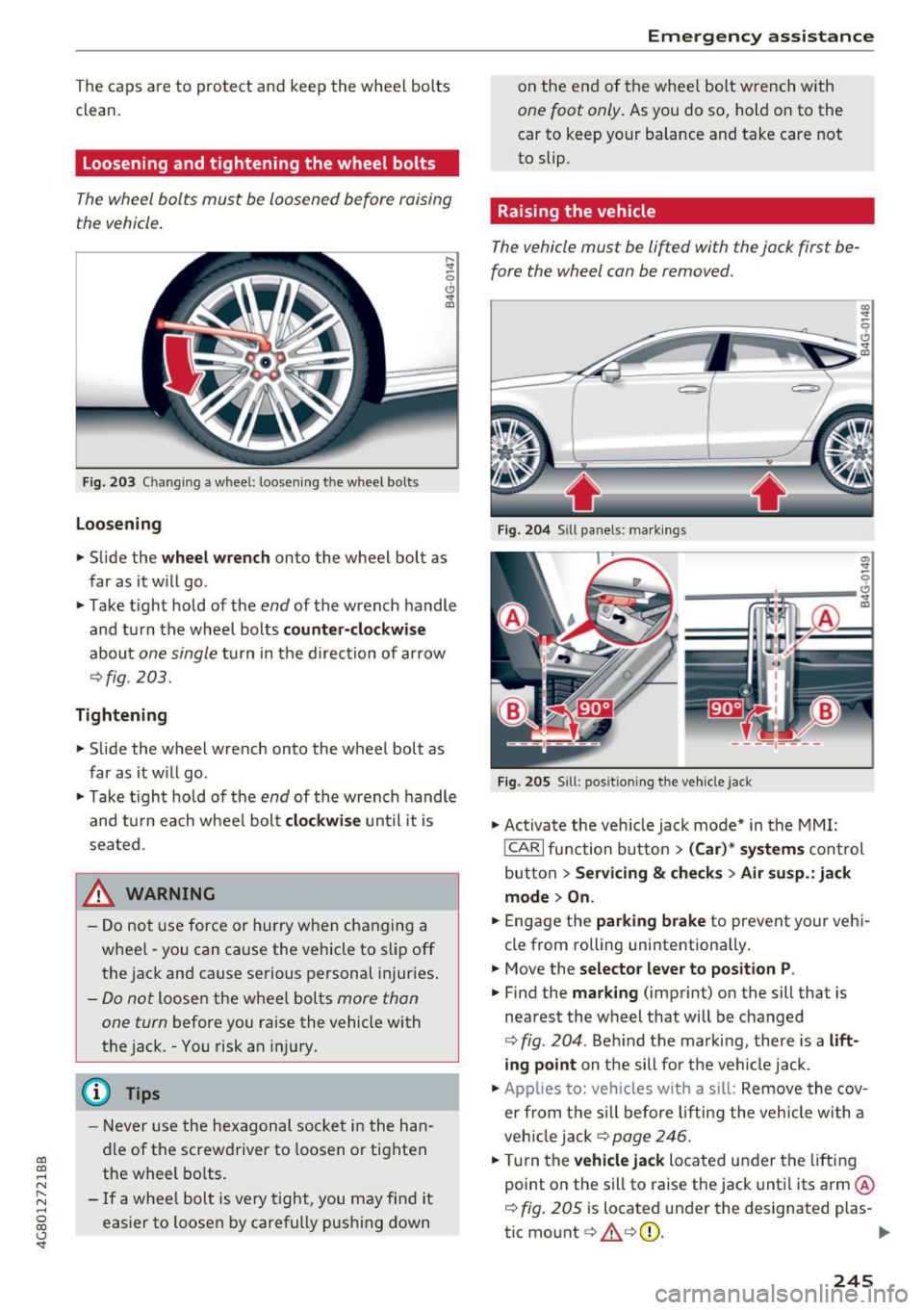

The caps are to protect and keep the wheel bolts
clean.
Loosening and tightening the wheel bolts
The whe el bolts must be loosen ed b efor e raising
the vehicle.
F ig. 20 3 Chan gin g a w hee l: l oose ning t he wheel bo lts
Loo sening
.. Slide the w he el wr enc h onto the wheel bolt as
far as it will go .
.. Take t ight hold of the
end of the wrench hand le
and turn the wheel bolts
c o unt er-clockwis e
about one single turn in the d irection of arrow
¢fig . 203.
Tightening
.. Slide the wheel wrench onto the wheel bolt as
far as it w ill go.
.. Take t ight hold of the
end of the wrench handle
and tu rn each whee l bolt
clockwi se unt il it is
seated .
& WARNING
- Do not use force or hurry when changing a
wheel -you can cause the vehicle to slip off
the jack and cause serious personal injuries .
-Do not loosen the wheel bolts more than
one turn
before you raise the vehicle w ith
the jack. - You risk an injury.
(D Tips
- Never use the hexagonal socket in the han­
dle of the screwdriver to loosen o r tighten
the wheel bo lts .
- If a whee l bolt is very tight, you may find it
easier to loosen by carefully push ing down
Em ergen cy a ssis tanc e
on the end of the whee l bolt wrench with
one foot only . As you do so, hold on to the
car to keep your balance and take care not
to slip .
Raising the vehicle
The vehicl e must b e lift ed with the jock first be­
fore the wheel can be removed.
F ig. 20 4 Sill pane ls: ma rkin gs
F ig. 205 S ill: pos it ion ing t he veh icle jac k
.. Activa te the veh icle jack mode* in the MMI:
!CARI function button > (Car )* sy stems control
button
> S erv ici ng & ch ecks > Air su sp .: jack
mode > On .
.. Engage the parking brake to prevent your vehi­
cl e from rolling unintentiona lly .
.. Move the
selector le ver to p osit ion P .
.. Find the mar king (impr int) on the sill that is
nearest the wheel that will be changed
¢
fig . 204 . Behind the marking , there is a lift­
ing poin t on the sill for the vehicle jack .
.. App lies to: veh icles with a s ill: Remove the cov­
er from the s ill before lifting the vehicle with a
veh icle jack ¢
page 246.
.. Turn the vehicle jack located under the lift ing
point on the sill to raise the jack unt il its arm @
¢
fig. 205 i s locat ed und er the d esignat ed plas-
tic mount ¢
,&¢0. ..,.
