ECO mode AUDI A8 2012 Owner's Manual

Automatic Transmission
tiptronic (8-speed
transmission)
Introduction
Your vehicle is equipped with an electronically
controlled 8-speed automatic transmission .
Upshifting and downsh ifting take place
auto­
matically .
The driver also has the option to shift the
gears
manually r::;, page 112 .
Dynamic Shift Progr am (DSP)
When a moderate driving style is used, the
transmission selects the most economica l
driving mode. The transmission upshifts at a lower RPM and downshifts at a higher RPM to
improve fuel efficiency.
The transmission switches to a sporty mode after a kick-down or when the driver uses a
sporty driv ing style characterized by quick ac­
celerator pedal movements, heavy accelera­
tion, frequent changes in speed and traveling
at the maximum speed.
Selecting the best driving mode is a continu­
ous process. However, the transmiss ion will
also jump to a sporty driving mode if you
press the acce lerator pedal quick ly . When you
do this, the transmission shifts down into a
lower gear, wh ich makes it possible to acceler­
ate quickly (for examp le, when passing anoth­
er vehicle) without having to press the pedal
down into the k ick -down area. Once the trans ­
miss ion has shifted up again, it returns to the
original driving mode as long as it matches
the current driving style.
When driving in hills and mountains, the gear
selection adapts to the grade. This prevents
constant upshifting and downshifting when
driving uph ill.
Automatic Transmission 109
Indicator in the display
Fig. 115 Disp lay : se lecto r leve r posit ion
@ -The current selector lever position is dis­
played continuously . The gear is a lso dis­
played in manual mode
M .
® -This indicator appears temporarily if you
change the selector lever position or if you
press the button on the selector lever
c:> page 109, fig . 116 . The current selector
lever position is shown w ith a white back­
ground.
Selecting a selector lever position
F ig. 116 Selector lever
---p--- --1
----R--- -
---N--- --1
-D/S--
Fig. 117 Pressing the button o n the selector leve r
M O>
9 :c .. CD
The current selector lever pos ition is displayed
on the sele ctor lever
r::;, fig. 116. llll>

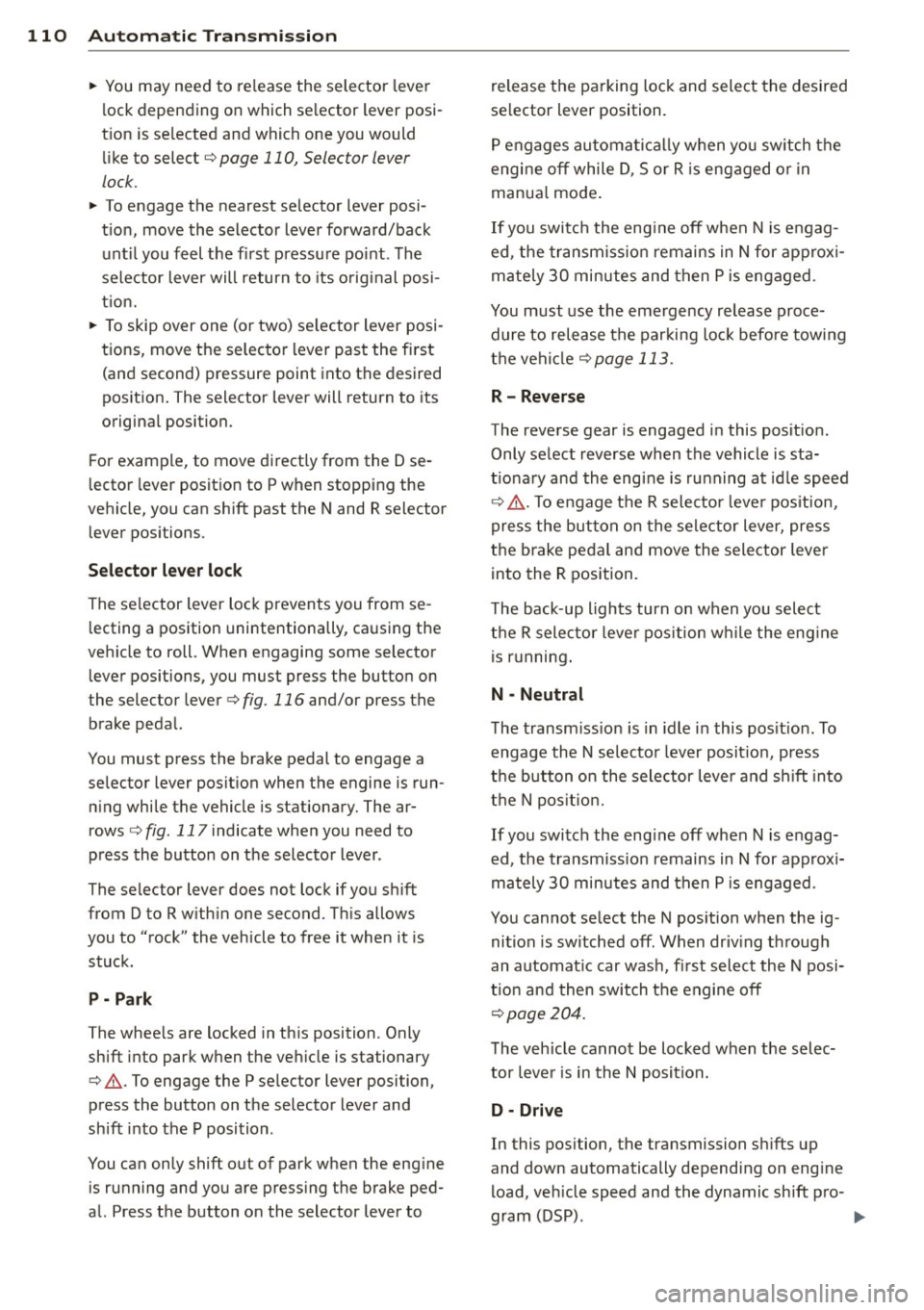

110 Automatic Tran sm iss ion
• You may need to release the selector lever
l ock depending on which se lector lever posi ­
t ion is selected and which one you would
Like to select ¢
page 110, Selector lever
lock.
• To engage the nearest selector lever posi ­
t ion, move the selector lever forward/back
unti l you feel the first pressure point . The
selector lever will return to its original posi ­
t ion.
• To skip over one (or two) se lector lever posi­
tions, move the selector lever past the first
(and second) pressure point into the desired
pos it ion. The selector lever will return to its
origina l position.
For example, to move directly from the D se­
lector lever position to P when stopping the
vehicle, you can shift past the N and R selector lever positions.
S ele ctor l ever lock
The selector lever lock prevents you from se ­
lecting a position unintentionally, causing the
vehicle to roll. When engaging some selector lever positions, you must press the button on
the selector lever¢
fig. 116 and/or press the
brake pedal.
You must press the brake pedal to engage a
selector lever position when the engine is run­ n ing while the vehicle is stationary. The ar­
rows¢
fig. 117 indicate when you need to
press the button on the selector lever .
The selector lever does not lock if you sh ift
from D to R w ith in one second . Th is allows
you to "rock" the vehicle to free it when it is
stuck .
P- P ark
The whee ls are locked in th is position. Only
shift into park when the vehicle is stationary
¢ & .To engage the P selector lever position,
press the button on the selector lever and
shift into the P position .
You can only shift out of park when the eng ine
is running and you are press ing the brake ped­
al. Press the button on the selector lever to r
elease the parking lock and select the desired
selector lever position.
P engages automa tica lly when you sw itch the
engine off while D, Sor R is engaged o r in
manua l mode .
If you switch the eng ine off when N is engag­
ed, the transmiss ion remains in N for approxi­
mately 30 minutes and then Pis engaged .
You must use the emergency release proce­ dure to release the parking lock before towi ng
the vehicle
¢ page 113.
R- Reverse
The reverse gear is engaged in this posit ion .
Only select reverse when the vehicle is sta­
t ionary and the eng ine is running at id le speed
¢ & -To engage the R selector leve r pos ition,
press the button on the selector lever, press
the b rake pedal and move the selector lever
into the R position.
T he back-up lights turn on when you select
the R selector lever pos it ion wh ile the eng ine
. . 1s ru nning .
N -Neutral
The transm iss ion is in idle in this pos it ion . To
engage the N selector lever posit ion, press
the button on the selector lever and sh ift into
t h e N pos it ion.
If you switch the eng ine off when N is e ngag­
ed, the transmiss ion remains in N for approxi­
mately 30 minutes and then P is engaged .
You cannot se lect the N pos ition when the ig­
nition is sw itched off. When dr iv ing th rough
an automat ic car wash, first select the N posi­
t ion and then switch the engine off
¢page 204.
The veh icle cannot be locked when the selec­
tor lever is in the N position.
D - Dri ve
In this pos ition, the transmission sh ifts up
and down automatically depending on eng ine
load, veh icle speed and the dynamic shift pro -
gram (DSP) .
ll-

Advanced Parking System
Advanced Parking System with rear view
camera
Introduction
Applies to vehicles: with park ing system (rear, with rear
view ca mera)
Fig . 121 Parking mode 1: reverse park ing
F ig . 122 Parking mode 2: parallel park ing
"' s ±
" m
Vehicles w ith the parking system advanced
are equipped with a rear view camera in addi­
tion to the acoustic and visua l parking system .
You can choose between two modes to assist
you with park ing. For example, you can use
"parking mode 1" when parking in a parking
space or garage
c::!;> fig . 121. When you want to
park parallel to the edge of the street, select
"parking mode 2"
¢fig. 122 .
Advanced Parking System 115
General Information
Applies to vehicles: wit h parking system advanced
Fig. 123 Area covered @and area not covered @by
the rear view camera.
AUDl
Fig. 124 Rear lid: Locat ion of the rear v iew camera
Sensors in the bumper
Sensors are located in the front and rear
bumpe rs . If these detect an obstacle, audible
and visual signals warn you. The range at
which the sensors begin to meas ure is approx­
imately :
side 3 ft (0.90 m)
front 4 ft (1.20 m)
side 2 ft (0.60 m)
rear center 5.2 ft
(1.60 m)
The close r you get to the obstacle, the shorter
the interval between the audible signals. A
continuous tone sounds when the obstacle is
less than approximately 1 foot (0 .30 meters)
away. Do not continue driving farther!
If the distance to an obstacle remains con­
stant, the volume of the distance warning
gradually drops after about four seconds (this
does not apply in the continuous tone range) . ..,.

116 Advanc ed Parking S ystem
Rear vi ew cam era co ve ra ge area
The MM I display shows the area covered by
the rear view camera
c::> fig. 123 @ . Objects
that are not in the area covered @are not
shown on the MMI display.
We recommend that you p ractice park ing with
the rear view camera in a t raffic -free location
or parking lot to become familiar with the sys ­
tem, the orientation lines, and their function.
When doing th is, there sho uld be good light
and weather conditions.
In the MMI disp lay, objects or vehicles appear
closer or further away if:
- you are driving in reverse gear from a level
surface onto an incline, or a downward
s lope,
- you are d riving in reverse gear toward pro ­
truding objects,
- the vehicle is carrying too much load in the
rear.
The accuracy of the orientation lines and blue
surfaces dim inishes if:
- the adaptive air suspension/sport* is faulty, the vehicle is lifted or dynamic mode is se­
lected
c::> page 103,
- the rear view camera does not provide a reli­
able image, for examp le, in poor visibility
cond it ions or if the lens is dirty,
- the image on the screen is not visible due to
sun glare and reflect ion.
Car in g for the rear view came ra lens
The rear view camera is located above the rear
license plate bracket . For the parking system
to operate, the lens
c::> fig . 124 must be kept
clean:
- Dampen the lens with a household alcohol­
based glass cleaner, and then wipe the lens
clean with a dry cloth
c::> CD.
- Remove snow with a hand brush and ice
preferably with a de-icing spray
c::> (D .
A WARNING
,-
- Senso rs have blind spots in which objects
cannot be detected . Pay special attention to small children and animals because
the sensors cannot always detect them.
- The parking system cannot replace the
driver's attention. The driver alone is re­
sponsible for parking and similar driving maneuvers.
- Always keep your eyes on the vehicle 's
surroundings, us ing the rear view mirror
as well.
- Do not allow yourself to be distracted
from traffic by the rear view camera p ic­
tures.
- If the position and the installation angle
of the camera has changed, for example,
after a rear end col lis ion, do not continue
to use the system for safety reasons .
H ave it checked by a qualified dea le rship.
(D Note
- Low obstacles a lready s ignaled by a
warning can disappear from the system's detection range as they are approached
and w ill not cont inue to be signaled. Ob­
jects such as ba rr ier chains, trailer draw
bars, thin painted vert ica l poles or fen­
ces may not be detected by the system,
posing risk of damage .
- N ever use warm or hot water to remove
snow or ice from the rear view camera
lens - this could ca use the lens to crack!
- When cleaning the lens, never use prod ­
ucts that are abrasive.

@ Tips
-To ensure your safety, erasing the pro­
grammed Homel ink buttons before sell­
i ng the veh icle is recommended.
- Depending on the model of the garage
door opener, you may need to release the
button on the remote and press it again
when programming .
Homelink® 123

Monitoring the
Advanced Airbag
System
I ( USA models) /!{ (Canada models )
Airbag monitoring indicator light
Two separate indicators monitor the function
of the Advanced Airbag System: the airbag
monitoring indicator light and the
PASSEN­
GER AIR BAG
OFF light.
The Advanced Airbag System (including the
electronic control unit, sensor circuits and sys­
tem wiring) is monitored continuously to
make sure that it is functioning properly
whenever the ignit ion is on. Each time you
switch on the ignition, the airbag monitoring
indicator light
m (USA mode ls)/ m (Canada
models) will come on for a few seconds (self
diagnostics).
The system must be inspected when the indicator light
(I (USA models);Ei
(Canada models):
-does not come on when the ignition is
switched on ,
- does not go out a few seconds after you
have switched on the ignition, or
- comes on while driving.
If an airbag system malfun ction is detected,
the indicator light will first start flashing to
catch the driver's attention and then stay on
continuously to serve as a constant reminder
to have the system inspected immediately.
If a mal function occurs that turns the front
airbag on the passenger side
off, the PASSEN­
GER AIR BAG
OFF light will come on and stay
on whenever the ignition is on.
A WARNING
An airbag system that is not funct ioning
properly cannot provide supplemental pro­
tection in a frontal crash.
- If the airbag indicator light comes on, it
means that there may be something
wrong with the Advanced Airbag System .
It is possible that the airbag will inflate
Airbag system 153
when it is not supposed to, or will not in­
flate when it sho uld.
- Have the airbag system inspected imme­
diate ly by your Audi dealer.
PASSENGER AIR BAG OFF light
Fig . 148 Sect ion from t he instru ment panel: PASSEN ­
GER AIR BAG OFF light
The PASSENGER AIR BAG OFF light is located
in the center of the instrument panel
<=>fig . 148 .
The PASSENGER AIR BAG OFF light wi ll come
on and stay on to tell you when the front Ad­
vanced Airbag on the passenger s ide has been
turned
off by the electron ic control unit . Each
time you sw itch on the ign ition, the
PASSEN­
GER AIR BAG
OFF light will flash for a few
seconds and:
- will stay on if the front passenger seat is not
occupied,
- will stay on if there is a small ch ild or child
restraint on the front passenger seat,
- will go out if the front passenger seat is oc­
cupied by an adult as registered by the
weight-sensing mat.
The
PASSENGER AIR BAG OFF light must
come on and stay on
if the ignition is on and
- a car bed has been installed on the front
seat, or
- a rearward-facing child restraint has been
installed on the front passenger seat, or
- a forward -facing chi ld restraint has been in­
stalled on the front passenger seat, or
- the weight reg istered on the front passen­
ger seat is equal to or less than the com -
bined weight of a typical 1 year-o ld
llJl>

156 Airbag system
airbag system and prevent that system from
working properly in a collision.
There are some important things you have to know to make sure that the effectiveness of
the system will not be impaired and that dis­
carded components do not cause injury or pol­
lute the environment.
.&_ WARNING
Improper care, servicing and repair proce­
dures can increase the risk of personal in­
jury and death by preventing an airbag
from deploying when needed or deploying an airbag unexpectedly:
- Never cover, obstruct, or change the steering wheel horn pad or airbag cover
or the instrument panel or modify them
in any way.
- Never attach any objects such as cup
holders or telephone mountings to the
surfaces covering the airbag units.
- For cleaning the horn pad or instrument
panel, use only a soft, dry cloth or one
moi5tened with plain water. Solvent5 or
cleaners could damage the airbag cover
or change the stiffness or strength of the
material so that the airbag cannot de­
ploy and protect properly.
- Never repair, adjust, or change any parts
of the airbag system.
- All work on the steering wheel, instru­
ment panel, front seats or electrical sys­
tem (including the installation of audio
equipment, cellular telephones and CB
radios, etc .) must be performed by a
qualified technician who has the training
and special equipment necessary.
- For any work on the airbag system, we
strongly recommend that you see your authorized Audi dealer or qualified work­
shop.
- Never modify the front bumper or parts
of the vehicle body.
-Always make sure that the side airbag
can inflate without interference:
- Never install seat covers or replace­
ment upholstery over the front seat- backs that have not been specifically
approved by Audi.
- Never use additional seat cushions that
cover the areas where the side airbags
inflate.
- Damage to the original seat covers or
to the seam in the area of the side air­
bag module must always be repaired
immediately by an authorized Audi
dealer.
- The airbag system can be activated only
once . After an airbag has inflated, it
must be replaced by an authorized Audi
dealer or qualified technician who has
the technical information, training and
special equipment necessary.
- The airbag system can be deployed only
once. After an airbag has been deployed,
it must be replaced with new replace­
ment parts designed and approved espe­
cially for your Audi model version. Re­
placement of complete airbag systems
or airbag components must be per­
formed by qualified workshops only. Make sure that any airbag service action
is entered in your Audi Warranty
& Main­
tenance booklet under
AIRBAG REPLACE­
MENT RECORD.
- For safety reasons in severe accidents,
the alternator and starter are separated
from the vehicle battery with a pyrotech­
nic circuit interrupter.
- Work on the pyrotechnic circuit inter­ rupter must only be performed by a
qualified dealer - risk of an accident!
- If the vehicle or the circuit interrupter
is scrapped, all applicable safety pre­
cautions must be followed.
® For the sake of the environment
Undeployed airbag modules and preten­
sioners might be classified as Perchlorate Material - special handling may apply, see
www .dtsc .ca.gov/hazardouswaste/per-
ch lo rate. When the vehicle or parts of the
restraint system including airbag modules
and safety belts with pretensioners are
scrapped, all applicable laws and .,.

168 Child Saf ety
seat. The weight of a child restraint and its
"footprint" vary for different kinds of chi ld re­
straints and for the d ifferent models of the
same kind of child restraint offered by child
restra int manufacturers.
The weight ranges for the individual types,
makes and mode ls of ch ild restra ints that the
NHTSA has specified in the Safety Standard
together with the weight ranges of typical in­
fants and typical 1 year-old child have been
stored in the control unit of the Advanced A ir­
bag System. When a ch ild restrai nt is being
used on the front passenger seat with a typi ­
cal 1 yea r-old ch ild, the Advanced Airbag Sys­
tem compares the we ight measured by the
weight sensing mat with the in formation stor­
ed in the electronic control unit.
The ele ctron ic cont rol unit also registers the
tension on the front passenge r safety belt.
The tension on the safety be lt fo r the front
passenger seat will be different for an ad ult
who is properly using the safety belt as com­
pared to the tension on the belt when it is
used to attach a child restraint to the seat.
The sensor below the latch for the safety belt
for the front seat passenger measu res the
tension on the be lt. The input from this sen­
sor is then used with the we ight to "decide",
whe ther there is a ch ild restraint w ith a typ ica l
1 year-o ld child on the front passenger seat
and whether or not the airbag must be turned
off .
Child restraints and Advanced Airbags
Regardless of the child restraint that you use,
make sure that it has been certified to meet
United States Federal Motor Vehicle Safety
Standards a nd has been certified by its manu­
facture r fo r u se w ith an airbag. Always be s ure
that t he ch ild res traint is p rope rly insta lled at
one o f th e rear seat ing pos itions. If in excep­
tional c ircu mstances you must use it on the
front passenger seat, caref ully read all of the
info rmation on c hild safety and Advanced Air­
bags and heed all of the applicable WARN­
INGS. Make certain that the child restraint is
correctly recognized by the weig ht-sensing mat
inside the front passenger seat, that the
front passenger airbag is turned off and that
the a irbag stat us is always cor rect ly signa led
by the
PASSENGER AIR BAG OFF light.
Many types and models of child res traints
have been available over the years, new mod­
els are introduced regu larly incorporating new
and improved des igns and older models are
taken out of product ion. Ch ild restraints are
not standard ized . Child restraints of the same
type typically have d ifferent weights and sizes
and diff erent 'footpr ints,' the s ize and shape
of the bo ttom of the ch ild restra int that sits
o n t he seat, when they a re inst alled on a vehi­
cle sea t. Th ese d ifferences make it vir tually
impossible to certify compliance with the re ­
quirements for advanced airbags with eac h
and every child restra int that has ever been
sold in the past or will be sold over the course
of the useful life of your veh icle.
For th is reason, the United States National
Highway Traffic Safety Adm inistrat ion has
published a list of specific type, makes and
models of child restraints that must be used
to certify comp liance of the Advanced Airbag
System i n your veh icle w ith the suppression
requirements of Federal Motor Vehicle Safety
Standa rd 208. These chi ld restraints are:
Subpart A - Car bed child restraints
Model
Angel Guard Angel R ide AA 2403FOF
Manufactured on or
after
September 25, 200 7
Subpart B - Rear-facing child restraints
Model Manufactured on or
after
Century SmartFit Dece mber 1, 1999
4543
Cosco Arriva September 25, 2007
22-013PAW and base
22-999W HO
Evenf lo Discove ry Ad -December 1, 1999
just Right 212
I
....

Avoid full throttle
Driving at moderate speeds saves fuel and
improves your mileage.
"" Try and keep well below your car's maxi-
mum speed.
Accelerating gently reduces fuel consump­ tion, engine wear, and does not disturb the
environment.
F ue l consumption, exhaust emissions and en ­
g ine noise increase disproportionately at high
speeds. If you drive at approximately three
quarters of top speed, fuel consumption will be reduced by one half. Never drive faster
than the posted speed limit and weather con­
d itions permit .
Reducing unnecessary idling
Even when your car is just idling it burns up
fuel.
"" Shut the engine off when you are not driv­
ing the vehicle.
"" Do not warm up the veh icle by letting the
engine run at idle .
It makes sense to shut
off the engine in traff ic
jams, when waiting for trains to pass at ra il­
road crossings, or at traffic lights that have
l ong wa its on red. Turning the engine
off fo r
just
30-40 seconds saves more fue l than is
bu rned starting the eng ine again .
It takes a long time for the engine to warm up
fu lly when it is running at idle. However, wear
and nox ious em issions are especially high
when the engine is warming up. So you should
drive away as soon as you start the engine and
avoid running at high rpms while the engine is
still warming up .
(D Note
Do not leave engine idling unattended af­
ter starting . If warning lights should come
on to indicate improper operation, they
wou ld go unheeded. Extended idling also
produces heat, which cou ld result in over-
Dri vin g and en vironm ent 197
'
heating o r othe r damage to the veh icle or
other p roperty .
Regular maintenance
A badly tuned engine unnecessarily wastes a
lot of fuel.
"" Have your veh icle serviced at reg ular i nter-
vals.
By having your veh icle regu la rly serviced by an
Audi dealer he lps to ensu re that it runs prop­
erly and economically. The condition of your
vehicle not only affects its sa fety and ability to
hold its value, it a lso affects
fuel con sump­
tion .
Check your oil e ach t ime you fill your tank .
The amount of o il used is re lated to eng ine
load and speed .
It is normal for the oil consumption of a new
engine to reach its lowest value after a certa in
mileage has been driven .
You must drive your veh icle about 3,000 m iles
(5,000 kilometers) before you can properly
assess oil consumpt ion.
This also app lies to fue l consumption and en­
gine output.
(U) Note
- Have your vehicle maintained properly
and in accordance with the service rec­
ommendations in your Warranty
& Ma in­
tenance booklet . Lack of proper mainte­
nance as well as improper use of the ve­
hicle will impair the function of the
em iss io n cont ro l system and cou ld lead
to damage.
- Do not alter or remove any component of
the Emission Control Sys tem unless ap­
proved by the manufacture r.
- Do not alter or remove any device, such
as heat shie lds, swit ches, ign it ion w ires,
valves, which are designed to p rotec t
your vehicle's Emission Control System
and other important vehicle compo­
nents .
•
•

Trailer towing Driving with a trailer
General information
Your Audi was designed primarily for passen­
ger transportation .
If you plan to tow a trai ler, p lease remember
that the addit ional load will affect durab ility,
economy and performance .
Trailer towing not on ly places more stress on
the vehicle, it also calls for more concentra­
tion from the driver.
F or this reason, a lways fo llow the operating
and d riving instr uctions provided and use
common sense.
(D Note
If you are going to tow a trai ler, you must
activate the trailer operat ion mode
~ page 199, Operating instructions.
Technical requirements
Trailer hitch
Use a weight-carrying hitc h co nforming to the
gross trailer we ight. The hitch must be suita­
b le for your veh icle and trailer and must be
mounted secure ly on the veh icle's chassis at a
technically sound location . Use only a trailer
hi tch wit h a removab le ball moun t. A lways
check with t he trail er hitch ma nufactur er to
make sure tha t you are using the corre ct
hi tch.
Do not use a bumper hitch.
The hitc h must be installed in such a way that
i t does not interfere with the impac t-absorb­
i ng bumpe r sys tem. No mod ifica tio ns should
be made to the vehicle exh aust a nd brake sys­
tems . From time to time, check that a ll hitch
mo unt ing bolts remain securely fastened.
W hen you are not towing a trail er, remove the
traile r hitch ball mount. Th is prevents the
hi tch from causing damage sho uld your ve hi­
cle be str uck from behind ¢& .
Trailer towin g 199
Trailer brakes
If your trailer is equippe d wi th a br akin g sys ­
tem, check to be s ure that i t conforms to all
r egulations .
T he trailer hy draul ic brak e sys tem mus t not be
direc tly connec ted to the vehi cle' s h ydraulic
brake system .
Safety chains
Always use safety chains between your veh icle
and the tra ile r.
Trailer lights
Trai ler lights must meet all regu lations. Be
su re to check with your Audi dealer for cor rect
wir ing, swi tches and relays .
Mirrors
If you are unable to see the traffic behind you
us ing the reg ular o utside mirrors, then you
must insta ll extended mirrors. It is imp ortant
that you
always have clea r v is ion to the rear.
A WARNING ...__ -
Afte r removing the trailer hitch, do not
stor e it i n yo ur v ehicl e. In cas e o f sudden
b ra king, the hitch co uld fly forwar d and in­
ju re you or your p ass en ger s.
Operating instructions
Fi g. 168 MM I dis pl ay: tow ing mode on
Ma ximum trailer weight
A trai ler fo r you r vehicle is limited to a typical
class 1 or class 2 tra iler.
ll>
