(D Note
-Always follow the manufacturer's in­
structions for all electrical accessories
you want to use with the electrical sock­
et!
- Do not connect lamps that contain a ne­
on tube. For technical reasons the lamp
may be damaged.
- Do not connect any 230-volt equipment
to the 115-volt socket. The equipment
may be damaged. If necessary, check the
permissible voltage for the equipment
on the mode l label.
- In the case of some power packs, e.g . for
a laptop computer, the bu ilt-in overcur­
rent shutoff prevents it from be ing
swi tch ed on because of excessive start­
up current. In this case, disco nnect the
power pack from the consumer and re­
connect it after about 10 seconds.
(I) Tips
- Unshielded equipment may cause inter­
ference in the radio and the vehicle elec­
tronics.
- Some eq uipment may work properly be­
cause of the reduced power (wattage),
available from the socket.

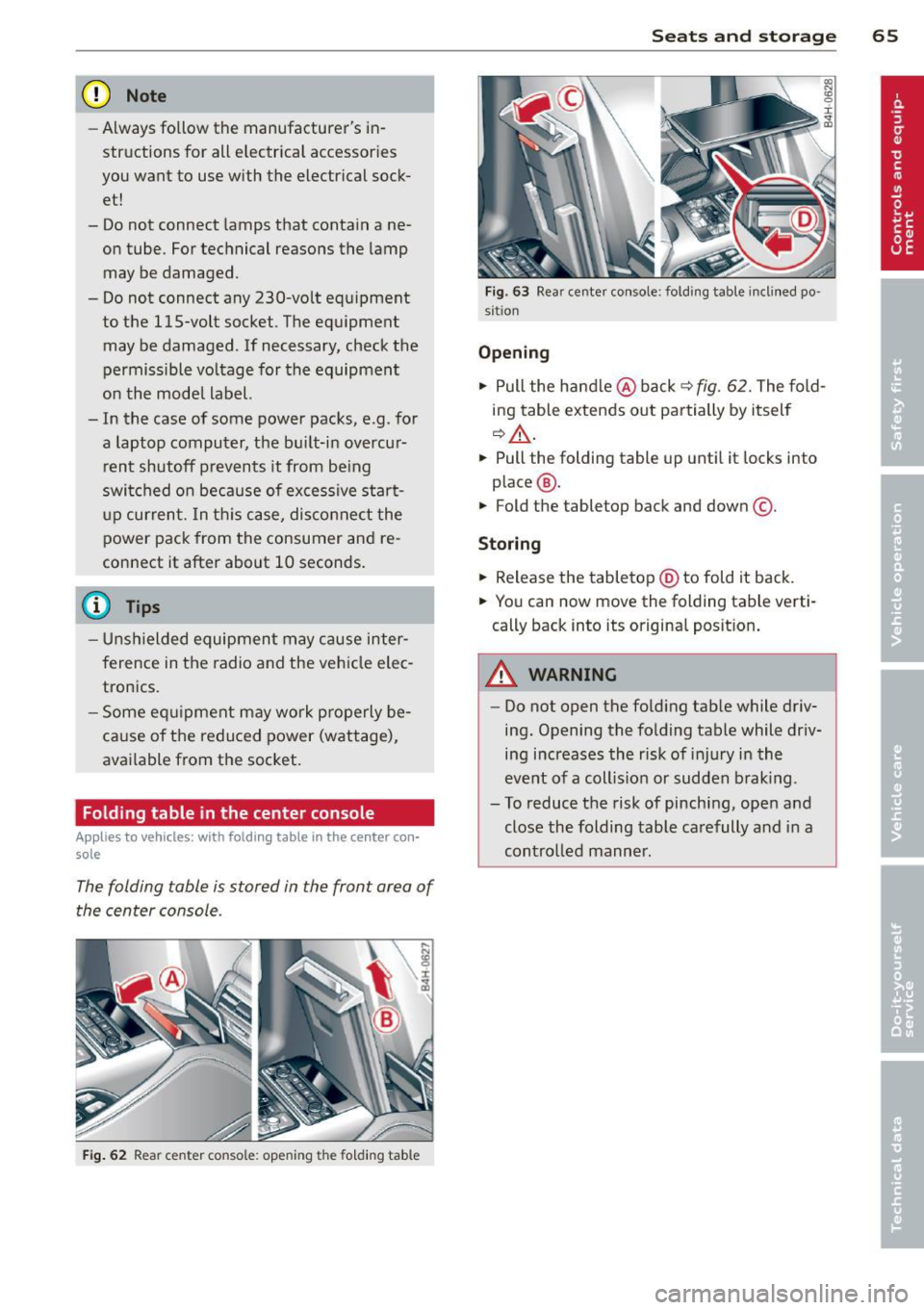

Folding table in the center console
Applies to vehicles: with fold ing table in the center con·
so le
The folding table is stored in the front area of
the center console .
Fig . 62 Rear center console: opening th e fo ld in g table
Seats and storage 65
Fig. 63 Rear center console: fold ing table inclined po ·
s itio n
Opening
.,. Pull the handle @back q fig. 62. The fold ­
ing table extends out partially by itself
~.&. -
.. Pull the folding table up until it locks into
place @.
.. Fold the tabletop back and down©-
Storing
.. Release the tabletop @to fold it back.
.. You can now move the folding table verti·
cally back into its original posit ion .
A WARNING
-Do not open the folding tab le while driv­
ing. Opening the folding table while driv­
ing increases the risk of injury in the
event of a coll is ion or sudden braking .
- To reduce the risk of pinching, open and
close the folding table carefully and in a
contro lled manner .

68 Seats and storage

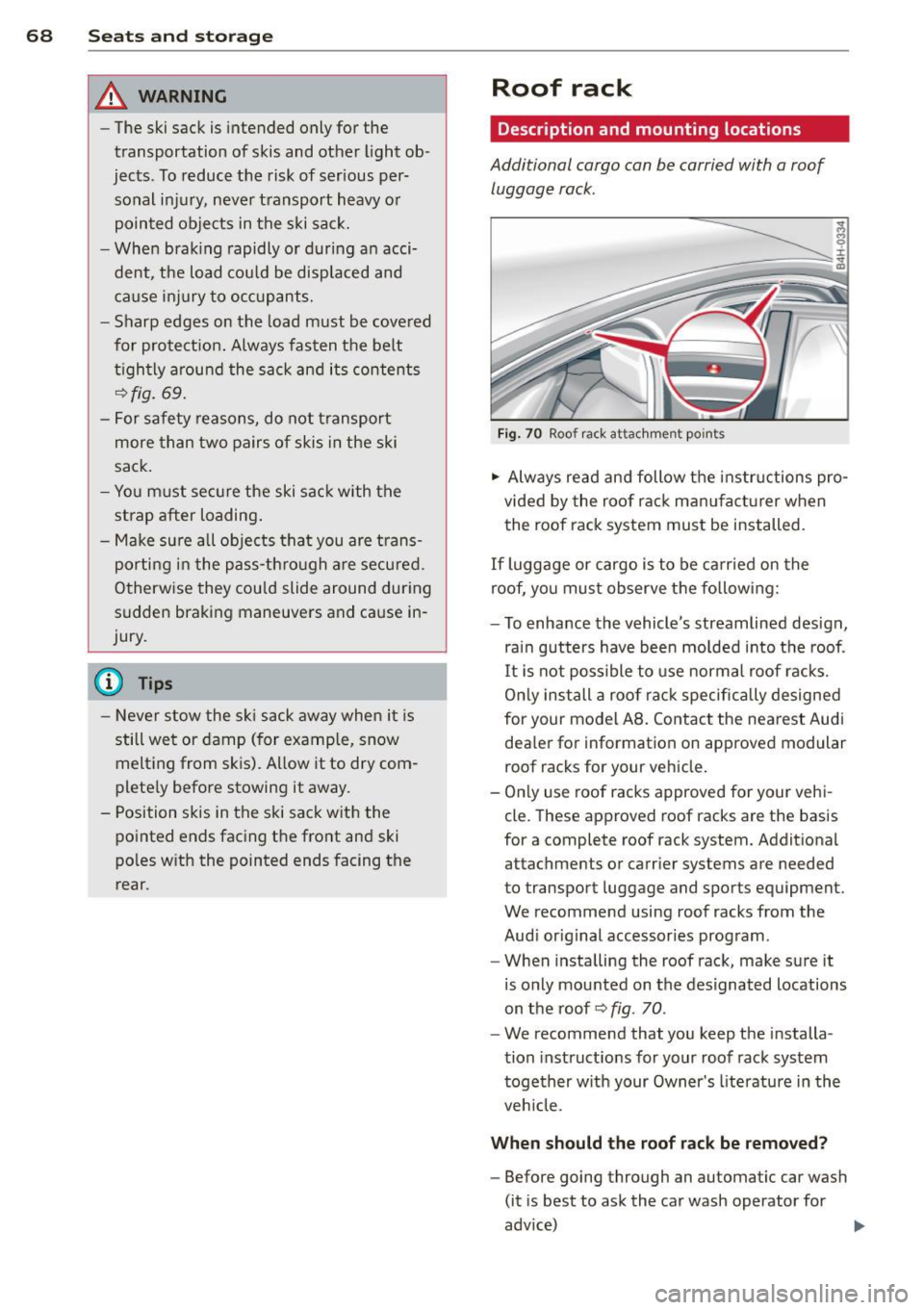

& WARNING
- The ski sack is intended only for the
transportation of skis and other light ob ­
jects . To reduce the risk of serious per­
sonal in jury, never t ransport heavy or
poin ted objects in the ski sa ck.
- When brak ing rapidly or during an acci­
dent, the load could be displaced and
cause injury to occupants.
- Sharp edges on the load must be cove red
for protect ion. Always fasten the belt
ti gh tly around the sack and its contents
¢ fig. 69.
-For safety reasons, do not t ransport
more than two pairs of skis in the ski
sac k.
- You m ust sec ure the ski sack with t he
strap after loading.
- Make sure a ll objects that you are trans­
porting in the pass-through are secured.
Otherwise they cou ld slide around during
sudden braking maneuvers and cause in ­
jury.
@ Tips
- Never stow the sk i sack away whe n it is
still wet or damp (for examp le, snow
melt ing from sk is) . Allow it to dry com­
plete ly before stowing it away .
- Position skis in the ski sack with the pointed ends facing t he front and ski
po les w ith the pointed ends facing the
rear.
Roof rack
Description and mounting locations
Additional cargo can be carried wi th a roof
luggage rack .
Fig . 70 Roo f ra ck attac hment po ints
.,. Always read and follow the instructions pro ­
vided by the roof rack man ufactu rer when
the roof rack system mus t be install ed .
If luggage or cargo is to be ca rried on the
roof, yo u mus t observe the follow ing:
- To enhance the vehicle 's streamlined design,
ra in gutters have been mo lded i nto t he roof .
I t is not poss ible to use normal roof ra cks.
O nl y install a roof ra ck specific ally designed
for your model AB . Contact the nea re st Audi
dea ler for information on approved modular
roof racks for your v ehicle.
- On ly use roof racks approved for your vehi­
cl e. These approved roof racks are the basis
fo r a complete roof rack system. Addition al
a tta chmen ts or carr ier systems are needed
t o transpor t luggage and spor ts equipment.
We recommend using roof rack s from the
Aud i original accessories program.
- When insta lling the roof rack, make sure it
is o nly mounted on the designated locations
on the roof~
fig. 70.
- We recommend that you keep the i nstalla ­
tion instruct ions for your roof rack system
together w ith your Owner's literature in the
ve hicle.
When should the roof rack be removed?
- Before go ing through an automatic car wash
(it is best to ask the ca r wash operator for
adv ice)
...

Storage
(upholder
Fig. 73 Center console: front cupho lder
Fig. 74 Section of the rear bench seat: rear cupholder
Front cupholder
.,. To open the cupholder, tap the cover
¢fig . 73, ¢ &, .
Rear cupholder
.,. To open the cupholder, tap the front strip
¢fig. 14, QA .
In vehicles with a full-length center console in
the rear, the cupholder is located at @
¢ page 64, fig. 61.
A WARNING
Spilled hot liquid can cause an accident
and personal injury .
- Never carry any beverage containers with
hot liquids, such as hot coffee or hot tea,
in the vehicle while it is moving. In case
of an accident, sudden braking or other
vehicle movement, hot liquid could spill, causing scalding burns. Spilled hot liquid
can also cause an accident and personal
injury.
Seats and storage 71
-Use on ly soft cups in the cupholder. Hard
cups and glasses can cause injury in an
accident.
(D Note
Only drink containers with lids should be
carried in the cupholder. Liquid could spill
out and damage your vehicle's electronic
equipment or stain the upholstery, etc.
Cooled glove compartment
The cooled glove compartment only functions
when the AC system is switched on.
Fig. 75 Glove compar tment: switc hing cool ing mode
on/off
.,. Turn the knob ® counterclockwise to
switch cooling on . The symbols on the knob
ind icate the correct position¢
fig. 75 .
.,. Turn the knob ® clockwise to switch cool-
ing off.
The glove compartment cooling mode only
functions when the vehicle AC system is
switc hed on. If the heating is switched on,
switching the glove compartment cooling mode off is recommended .
A WARNING
Always leave the lid on the glove compart­
ment cover closed while dr iving to reduce
the risk of injury.
a) Tips
The glove compartment can be locked us­
i ng the mechanical key¢
page 29.

Warm and cold Climate controls
Description
The climate control system warms, cools and
adds humidity to the a ir in the veh icle inter io r.
It is the most effect ive when the windows and
sunroof* are closed. If the temperature inside
the parked vehicle becomes very warm, open­
ing the window briefly will speed up the cool­
ing process.
I n all heating mode functions except
defrost,
the blower on ly switches to a higher speed
once the engine coolant has r eached a certain
temperature.
Condensation from the cooling system can
drip and form a puddle of water under the ve­hicle. This is normal and does not mean there
is a leak.
Pollut ant filter
The po llutant filte r removes pollutants s uch
as dust and pollen from the air.
The air pollutants filte r must be changed at
the intervals spec ified in you r Wa rra nty
&
Maintenance book let, so that the air condi­
tioner can properly work.
I f you drive you r vehicle in an area with h igh
ai r po llution , the fi lter may need to be
changed more freq uent ly than specified in
your Aud i Warranty
& Ma intenance booklet. If
i n doubt, ask your authorized Audi Service Ad­
visor for advice .
K ey coded settings
The climate con trol settings are a utomat ica lly
stored and assigned to the remote contro l key
that is in use .
& WARNING
Reduced visibility is dangero us and can
cause accidents . -
Warm and cold 75
- For safe driving it is very important that
all windows be free of ice, snow and con­
densat ion.
- Comp letely fam iliarize yourse lf with the
proper use and funct ion of the heat ing
and ve nti lation system and especially
how to defog and defrost the w indows.
- Never use the windshield wiper/washer
system in freez ing weather unt il you
have warmed the w indshield first, using
the heating and ventilation system . The
washer solution may free ze o n the wind­
shie ld and red uce visib ility.
(D Note
- If you suspect that the air conditioner has been damaged, switch the system
off to avoid furt her damage and have it
i n spected by a q ua lified dea lership.
- Repairs to the Audi air conditioner re­
quire specia l techni cal know ledge and
special tools. Contact an autho rized Aud i
dealer fo r ass istance.
@ For the sake of the environment
By reduci ng the amou nt of f uel you use,
you also red uce the amount of pollutan ts
emitted into the air .
(D Tips
- Keep the air intake s lots ( in fro nt of the
w indshield) free from ice, snow and de­
br is in order to maintain the proper f unc ­
tion of the climate control system.
- T he energy management system may
switch the seat heating* or rear window
defroster off temporar i Ly . These systems
are available again as soon as the energy
balance has been restored .
- Air escapes through vents under the rear
window. When placing items of clothing
on the luggage compartment cover, en­
sure that the openings are not covered.

76 Warm and cold
Operation
We recommend pressing the IAU TOI button and setting the temperature to 72 °F (22 °C) .
Fig. 77 Cockp it co ntrols
F ig . 78 fou r zone automat ic cl imate co ntrol: rea r con ­
trols
Press the buttons to t urn the f unctions on or
off . Use the d ials to adjust the temperature,
the blower speed and the air distribution . The
LED in a button will light up when the func­
tion is sw itched on. The settings are show n in
the cl imate co ntrol d isplay a nd are also shown
in the MMI display for a few seconds . The driv­
er and front passenger settings ca n be ad just­
ing separately.
You can a lso adjust the rear left and r ight
sides in the fo ur zone automat ic climate co n­
trol* ~
fig. 78.
IO FF ! Switching the clim ate control
system on/off
The IO FFI b utton switches the climate control
system on or off . It a lso switches on when you
turn the dia l or press any b utton . Airf low from outside is blocked when the c
limate control
system is switched off .
You can a ctivate the residual hea t fu nction
when the ignition is off by p ressing and hold­
i ng the ~ button . The residua l heat from the
coolant is used to heat the vehicle interior.
The residua l heat function switches off a uto ­
matically after about 30 minutes.
IACI Switching cooling mode on /off
T he air is not coo led and h umidity is not re­
moved when cooling mode is switched off.
T his can ca use fog on the windows. Cooling
mode switches off automatically when the
outside temperature is below zero.
1 -1 Switching reci rculation mode on /off
In recircu lation mode, the air inside the vehi ­
cle is c irculated and f iltered. This prevents the
u nfiltered air outs ide the vehicle from enter­
ing the vehicle interior . We recommend
switching recircu lation mode on when driving
t h rough a tunne l or when s itting in traff ic
q &_ .
The !AU TO I button or~ button switches reci r­
cu lation mode off.
IAU TOI Switching automatic mode on
A utomat ic mode maintains a cons tant tem ­
perature inside the vehicle. A ir temperature,
IJli>

airflow and air distribution are controlled au ­
tomatically.
Adjusting the temperature
Temperatu res between 60 °F (+16 °() and
84 °F (+28 °C) can be set. O uts ide of this
range,
lo or hi will appear in the climate con­
trol system disp lay. At both of these settings,
the climate control system runs continuously
at maximum coo ling or heating power. There
is no temperature regulation.
[!] Adjusting the airflow
You can ad just the airf low manually to suit
your needs . To have the airflow regulated au­
tomatically, press the
! AUTO ! button.
~ Adjusting the air distribution
You can manually se lect the vents where the
air will flow. To have the air distribution regu­
l ated automatically, press the
!AUTOI button.
~ I lil* Adjusting Seat heating/
ventilation*
Pressing the button switches the seat heat­
ing/ventilation on at the highest setting ( level
3). The LEDs indicate the temperature leve l.
To reduce the temperature, press the button
again . To switch the seat heating/ventilation
off, press the button repeatedly until the LED
turns off.
After 10 minutes, the seat heating/ventilation
automatically switches from level 3 to level 2.
I n vehicles without the four zone automat ic
climate contro l*, buttons in the rear center
console control the seat heating for both out­
er rear seats*.
~ Switch the defroster on/off
The windsh ield and sid e windows are defrost­
ed or cleared o f condensation as quickly as
possible. The maximum amount of air flows
mainly from the vents be low the windshield.
Recirculation mode switches off . The tempera­
ture is controlled automatically.
The
IAU TOI button switches the defroster off.
Warm and cold 77
~ Switching rear window heater on/off
The rear window heater only operates when
the engine is running. It switches off auto­
matically after 10 to 20 minutes, depending
on the outside temperature.
T o p revent the rear window heater from
switching off automatically, press and hold
the ~ button for more than 2 seconds . This
remains stored until the ignition is switched
off .
I SYNC I Synchronization*
When synchronization is switched on, the set­
tings for the driver's side are applied to the
front passenger's side (except for seat heat­
i ng/venti lation*) . The rear seat is also
synchronized in vehicles with the 4-zone de ­
luxe automatic climate control system* . Syn­
chronization switches off if the sett ings are
adjusted on the front passenger's side or in
the rear* .
You can synchronize the settings in a row by
pressing and holding a knob. For example, to
apply the settings for the front passenger's s ide to the driver's side, press and hold the
knob on the front passenger's s ide.
Air vents
You can open or close the center and rear
vents in the cockpit and the vents in the rear
center console and door pillars us ing the
ridged thumbwheels. The levers adjust the di­
rection of the airflow from the vents.
,&. WARNING
-Do not use the recirc ulation mode for ex­
tended periods of time. The windows
could fog up since no fresh air can enter
the vehicle. If the windows fog up, press
the air recircu lation button again imme­
diately to switch off the air recirculation
function or select defrost .
- Individuals w ith reduced sensitivity to
pa in or temperature could deve lop burns
when using the seat heating function . To
reduce the risk of injury, these indiv idu-
als shou ld not use seat heating. ..,.

82 On the road Requirem ent : The message
Key not recog­
nized. Hold b ack of key against marked area.
See owner 's manual.
must appear and the in ­
dicator light
m must sw itch on.
• Hold the master key vertica lly in the loca­
tion indicated y>l} q fig .
82.
• Press the brake pedal~ A in Starting the
engine on page 80.
.. Press the !~S _T _A_ R_T_ E_N_ G_ I_ N _E_ S_T_ O_ P~ I button.
The eng ine will start .
• Drive to your author ized Audi dealer imme­
diately to have the malfunct ion corrected .
@ Tips
You can view the message again by press­
ing the !START ENGINE STOP I button.
Electromechanical
parking brake
Operation
The electromechanical parking broke replaces
the hand broke.
Fig . 83 Ce nter console: Parking brake
• Pull on the switch(®) ~ fig. 83 @ to app ly
the parking brake . The indica tor light in the
switch illuminates.
• Step on the brake pedal or the accelerator
pedal and press the switch(®) at the same
t ime to release the parking brake. The indi ­
cator light in the switch goes out .
Your vehicle is equipped wit h an electrome­
cha nica l parking brake. The parking brake is
designed to prevent the vehicle from rol ling
unintentionally and rep laces the hand brake . In
addition to the normal functions of a tradi­
tiona l hand brake, the electromechanical
parking brake provides var io us convenience
and safety functions .
When starting from rest
-The integral start ing ass ist helps you when
driving by automatically releasing the park­
ing brake
~ page 83, Starting from rest .
-When starting on inclines, the starting as­
sist prevents the vehicle from unintentiona l­
ly rolling back. The braking force of the
parking brake is not released until sufficient
driving force has been built up at the
wheels.
Emergency brake function
An emergency brake ensures that the vehicle can be slowed down even if the
normal brakes
fail
q page 84, Emergency broking.
Indicator lights
-If the parking brake is closed with the ign i­
tion
switched on the indicator lights come
on - (U SA mode ls)/ . (Canada models)
in the instrument cluster and in the switch.
- If the parking brake is closed with the igni­
tion
switched off the indicator lights come
on - (USA mode ls)/ . (Canada models}
in the instrument cluster and in the sw itch
for about 20 seconds .
A WARNING
Do not press the acce lerator pedal inadver ­
tently if the vehicle is stationary but the
engine is running and a gear is selected.
Otherwise the vehicle will start to
move
immedia tely and could result in a crash.
(D Note
If the symbol . in the display or the indi­
cator light .. (USA models)/ . (Cana­
da models) in the instrum ent cluster flash­
es, there is a malfunction in the brake sys­
tem. Please refer to the detailed descrip-
tion of the indicator lights
~ page 14. ll-

84 On th e road
• You can release the switch (®) once you are
sure that you are developing enough for­
ward momentum at the wheels as you de­
press the accelerator .
Depending on the weight of the rig (vehicle
and trai ler) and the severity of the incline, you
may roll backwards as you start . You can pre­
vent roll ing backwards by holding the parking
brake switch(®) pulled out and accelerating -
just as you would when starting on a hill with
a conventional hand brake .
Emergency braking
In the event that the conventional brake sys­
tem fails or locks .
• In an emergency, pull the switch(®) and
continue to pull it to slow your vehicle down
with the parking brake .
• As soon as you release the sw itch
C®> or ac-
cele rate , the braking p rocess stops.
If you pull the switch(®) and hold it above a
speed of about 5 mph (8 km/h), the emergen ­
cy braking function is in it iated. The veh icle is
b raked at all four wheels by activa ting the hy­
d raul ic br ake system. The b rake performance
is simi lar to making an emergency stop
c::> & .
In order not to activate the emergency brak­
i ng by m ista ke, an audible wa rning tone (bu z­
z er) sounds when the swi tc h
C®> is pulled. As
soon as the switch(®) is released, or the accel­
erator pedal is depressed, emergency braking
stops .
.&_ WARNING
Emergency braking should only be used in
an emergency, when the normal foot brake
has failed or the brake pedal is obstructed.
Using the parking bra ke to perform emer­
gency braking will slow yo ur vehicle down
as if you had made a fu ll brake applicat ion.
T he laws of physics cannot be s uspended
even w ith ESC and its associate d compo­
nents (ABS, ASR, EDL). In corners and
when road or weather conditions are bad, a full brake application can cause the vehi- cle to sk
id or the rear end to break away -
risking an accident.
Speed warning system
, Introduction
The speed warning system helps you to stay
under a specified maximum speed .
The speed warning system warns you if you
are exceeding the maximum speed that you
have set . You will hear a warning tone when
your speed exceeds the stored value by ap­ proximate ly 3 mph (3 km/h). An ind icator
l ight . (USA
models) ;a (Canada mode ls) in
the instr ument cluster d isp lay also tur ns on at
the same time. The indicator light.,.
turns off when the speed decreases be low the
stored maxim um speed.
Setting a th reshold is recommended if you
would like to be rem inded when you reach a
certain maxim um speed. Situations whe re you
may want to do so include driving in a co untry
with a genera l speed limit or if there is a
specified maximum speed for winter tires.
(D Tips
Even though your vehicle is equipped w ith
a speed warn ing system, you should still
watch the speedometer to make sure you
are not dr iv ing faster than the speed limit.
Setting the threshold
You can set, change and delete the threshold
in the MMI.
• Select: !CAR ! function b utton > Car systems
contro l button > Dri ver ass ist > Speed warn ­
ing .
You can set any threshold between 20 mph
(30 km/h) and 150 mph (240 km/h). Sett ings
can each be adj usted in increments of 5 mph
(10 km/h).

92 Audi adaptive cruise control and braking guard
control will also accelerate up to the stored
speed.
The higher the speed , the greater the distance
in yards (meters)¢ .&.. T he
Distance 3 setting
is recommended .
The distances p rov ided are spec ified values.
Depending on the driving situation and the
how the vehicle ahead is dr iving, the actual
distance may be more or less than these tar­
get distances .
The various symbols for the time increments
appear briefly in the info rmation line @
¢ page
89, fig. 91 when you change the set­
tings .
c:::,_c:::, ___ Distance 1: This setting corre-
sponds to a distance of 92 feet/28 meters
when traveling at 62 mph ( 100 km/h), or a
time interval of
1 second.
c:::, __ c:::, __ Distan ce 2: Thi s setting corre­
sponds to a dis tance of 118 feet/36 meters
when traveling at 62 mph ( 100 km/h), or a
time interva l of 1.3 seconds.
c:::, ___ c:::,_ Distance 3: This setting corre-
sponds to a distance of 164 feet/SO meters
when traveling at 62 mph ( 100 km/h), or a
time interva l of 1.8 seconds.
c:::, ____ c:::, Distance 4: This setting corre-
sponds to a distance of 210 feet/64 meters
when traveling at 62 mph ( 100 km/h), or a
time interval of 2.3 seconds.
.&_ WARNING
Following other vehicles too closely in­
creases the risk of collisions and serious
personal injury.
- Setting short distances to the traffic ahead reduces the t ime and distance
available to br ing your vehicle to a safe
stop and makes it even more necessary
to pay close attention to traffic.
- Always obey applicable traffic laws, use
good judgment, and select a safe follow­
ing distance for the traffic, road and
weather conditions .
(D Tips
-Distance 3 is set automatically each time
you switch the ignition on.
- Your standard settings are automatically
stored and assigned to the remote con­
tro l key being used.
Selecting the driving mode
Applies to veh icles: w ith Audi adapt ive cr uise contro l
.,. Select the desired driving mode in dr ive se­
lect
¢ page 103 .
@ Tips
Your settings are automatically stored and
assigned to the remote control key being
used.
Prompt for driver intervention
Applies to vehicles : w it h Audi ada ptive cr uise cont ro l
Fig. 95 Instrument cluster: request for driver inte rven ­
tio n
In certa in s ituations, the system will prompt
yo u to take action . Thi s could happen, for ex­
amp le, if braking by the adaptive cruise con­
trol system is not enough to maintain enough
distance to the veh icle ahead .
The indicator light
I and the symbol in the
display will warn you about the situa tion
¢fig.
95. You w ill also hear an acoustic signal.
- Press the brake pedal to slow your vehicle
down.

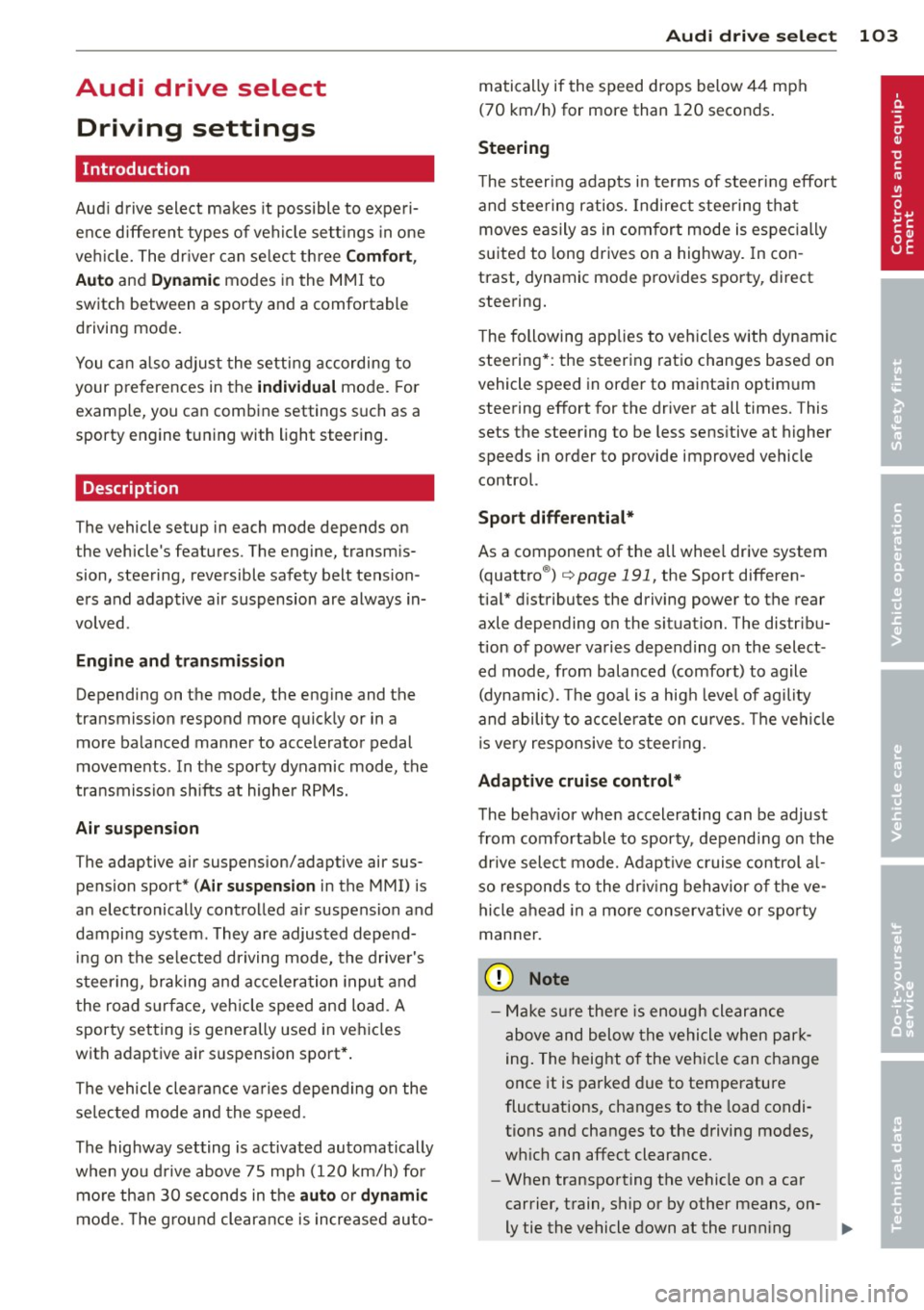

Audi drive select Driving settings
Introduction
Aud i drive select makes it possible to experi­
ence different types of vehicle settings in one
veh icle. The driver can select th ree
Comfort,
Auto
and Dynamic modes in the MMI to
switch between a sporty and a comfortable
driving mode.
You can also adjust the setting according to
your preferences in the
individual mode. For
examp le, you can combine settings such as a
sporty engine tuning with light steering.
Descript ion
The vehicle setup in each mode depends on
the vehicle's features. The engine, transmis­
sion, steering, reversible safety belt tension ­
ers and adaptive air suspension are always in­
volved .
Engine and transmission
Depending on the mode, the engine and the
transmission respond more quickly or in a
more balanced manner to accelerator pedal
movements. In the sporty dynamic mode, the
transmission sh ifts at higher RPMs.
Air suspension
The adaptive air suspension/adaptive air sus­
pension sport*
( Air suspension in the MMI) is
an electronically cont rolled air suspension and
damping system. They are adjusted depend­ ing on the selected driving mode, the driver's
steering, braking and acceleration input and
the road s urface, veh icle speed and load. A
sporty setting is generally used in vehicles
with adaptive air suspension sport *.
The vehicle clearance va ries depending on the
selected mode and the speed .
The highway setting is activated automatically
when you drive above 75 mph (120 km/h) for
mo re than 30 seconds in the
auto or dynamic
mode. The g round clearance is increased auto-
Audi drive select 103
matically if the speed drops below 44 mph
(70 km/h) for more than 120 seconds.
Steering
The steering adapts in terms of steering effort
and steering ratios. Indirect steering that
moves easily as in comfort mode is especially
s ui ted to long drives on a highway. In con­
trast, dynamic mode provides sporty, direct
steering.
T he following applies to vehicles with dynamic
steering*: the steering ratio changes based on
vehicle speed in order to maintain optimum
steering effort for the driver at all times. This
sets the steering to be less sens itive at higher
speeds in order to provide improved vehicle
control.
Sport diffe rential*
As a component of the all whee l drive system
(quattro
® ) c> page 191, the Sport differen­
tial* distributes the driving power to the rear
axle depending on the situat ion. The dis tribu­
tion of power varies depending on the select­
ed mode, from balanced (comfort) to agile
(dynamic). The goal is a hig h level of agility
and ability to accelerate on curves. Th e vehi cle
is very responsive to steer ing.
Adaptive cruise control*
The behav ior when accelerating can be adjust
from comfortable to sporty, depending on the
drive select mode. Adaptive cruise control al­
so responds to the driving behavior of the ve­
hicle ahead in a more conserva tive or sporty
manner.
(D Note
- Make sure there is enough clearance
above and below the vehicle when park­
ing . The height of the vehicle can change
once it is parked due to temperature
fluctuations, changes to the load condi­
tions and changes to the driving modes,
w hich can affect clearance.
- When transporting the vehicle on a car
carrier, train, ship or by other means, on-
ly tie the vehicle down at the running
IJJ,,
