Luggage compartment with movement­
activated opening
Applies to: vehicles with convenience key and sensor-control·
led luggage compartment lid
Fig. 31 Rear of vehicle: foot movement
Requirements: You must be carrying your vehicle
key with you. You must be standing at the center
behind the luggage compartment lid. The d is ­
tance to the rear of the vehicle must be at least
8 inches (20 cm) . The ignition must be switched
off. Make sure you have firm footing.
.. Swing your foot forth and back below the
bumper
r=) fig . 31. Do not touch the bumper.
Once the system recognizes the movement, the
luggage compartment lid will open.
The luggage compartment lid will only open if
you make the movement as described. This pre­
vents the luggage compartment lid from opening
due to similar movements such as when you walk
between the rear of the vehicle and your garage
door.
General information
In some s ituations, the function is limited or
temporarily unavailable. This may happen if:
- the luggage compartment lid was just closed .
- you park close to a hedge and the branches
move back and forth under the vehicle for a
long period of time .
- you clean your vehicle, for example with a pres­
s ure washer or in a car wash .
- there is heavy rain.
- the bumper is very dirty, for example after driv-
ing on salted roads.
- there is interference to the radio signal from
the vehicle key, such as from cell phones or re­
mote controls.
Open ing and closing
Luggage compartment lid emergency
release
If the central locking system fails, the luggage
compartment lid can be opened at the lock cylin­
der.
A U D ,.
Fig. 32 Luggage compartment lid : mechan ica l key in the
l ock cyli nder
.. Remove the mechanical key Q page 31.
.. Insert the key in the lock cylinder as p ictured.
.. Turn the key approximately 45° to the right
r=) fig. 32. The luggage compartment lid opens .
In this position the key cannot be pulled out of
the lock cylinder.
Parental control
Mechanical child safety lock in the rear
doors
The child safety lock prevents the rear doors
from being opened from the inside.
Fig. 33 Rear doors: chil d safety lock
The child safety lock is visible only when the door
is open.
.. Remove the mechanical key
Qpage 31.
.,. To switch on the child safety lock, turn the key
in the direction of the arrow.
39

Opening and closing

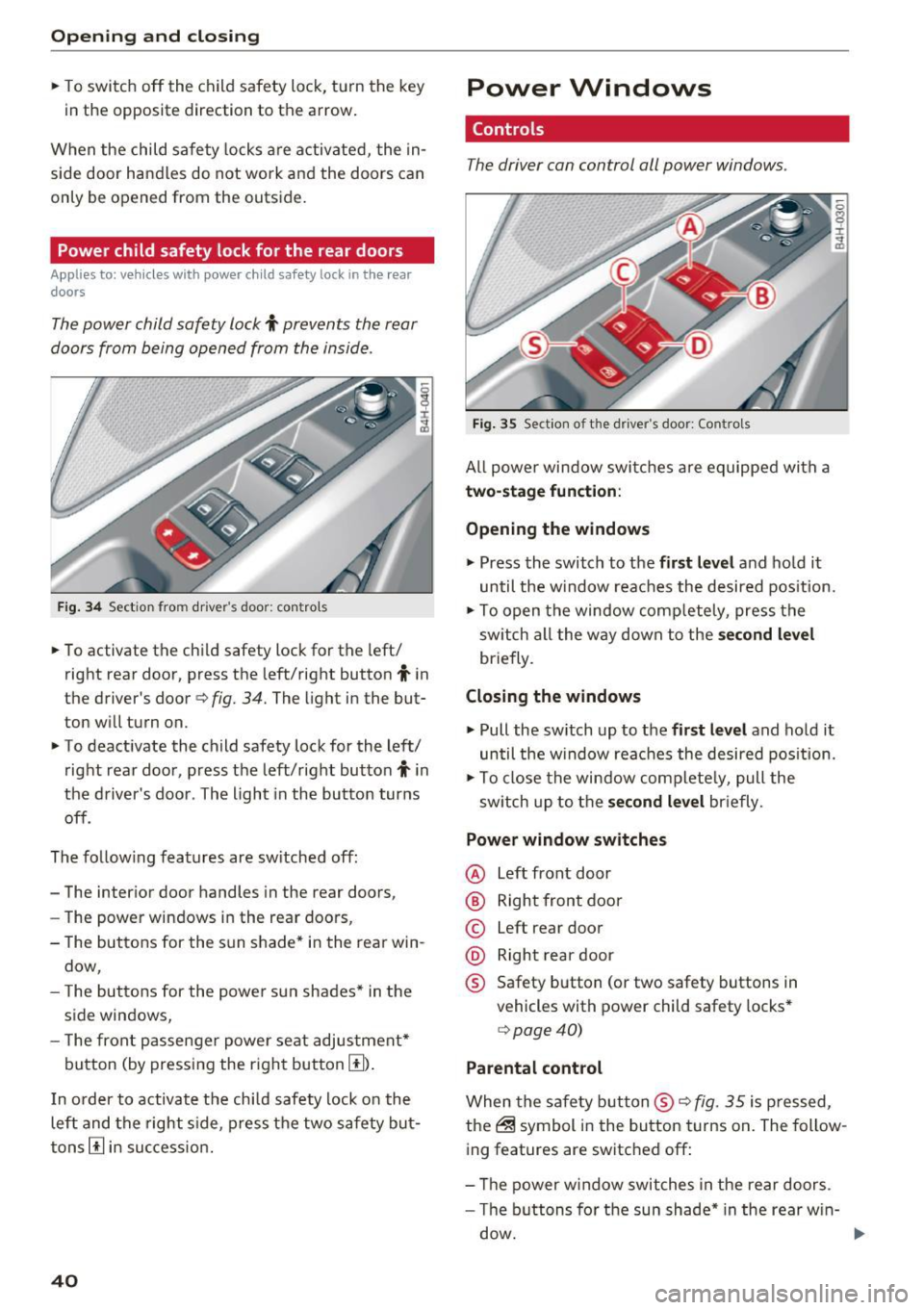

• To switch off the child safety lock, turn the key
in the opposite direction to the arrow.
When the child safety locks are activated, the in­
side door handles do not work and the doors can
only be opened from the outs ide.
Power child safety lock for the rear doors
A pp lies to: ve hicles w ith power c hild safe ty lock in the rea r
do ors
The power child safety lock i prevents the rear
doors from being opened from the inside.
Fig . 34 Sect ion from drive r's doo r: contro ls
• To activate the child safety lock for the left/
right rear door, press the left/right button
i in
the driver's door
Q fig. 34. The light in the but­
ton will turn on.
• To deactivate the child safety lock for the left/
right rear door, press the left/right button
i in
the driver's door . The light in the button turns
off.
The fo llow ing features are sw itched off:
- The interior door handles in the rear doors,
- The power windows in the rear doors,
- The buttons for the sun shade* in the rear win-
dow,
- The buttons for the power sun shades* in the
side windows,
- The front passenger powe r seat adjustment*
button (by pressing the right button
[I) .
In order to activate the ch ild safety lock on the
left and the right s ide, press the two safety but­
tons
[I in success ion.
40
Power Windows
Controls
The driver can control all power windows.
Fig. 35 Section of t he driver 's doo r: Contro ls
All power window switches are equipped with a
two-stage function :
Opening the windows
• Press the switch to the first level and hold it
until the w indow reaches the desired pos ition.
• To open the window comp letely, press the
sw itch all the way down to the
second level
briefly.
Closing the windows
• Pull the sw itch up to the first level and hold it
until the window reaches the desired position.
• To close the window complete ly, pull the
sw itch up to the
second level briefly.
Power window switches
@ Left front door
@ Right front door
© Left rear door
@ Right rear door
® Safety button (or two safety buttons in
vehicles with power child safety locks*
Q page40)
Parental control
When the safety button ® Q fig. 35 is pressed,
the@ symbol in the button turns on. The follow­
ing features are switched off:
- Th e power window switches in the rear doors .
- The buttons for the sun shade* in the rear w in-
dow.

-The buttons for the power sun shades * in the
side windows.
- The button for the front passenger's seat ad­
justment*.
A WARNING 1=
- Always take the vehicle key with you when
leaving the vehicle, even for a short period
of time. This applies particularly when chil­
dren rema in in the vehicle . Otherwise the
children could start the engine or operate
electrical equipment such as power win­
dows. The power windows a re functional un­
ti l the driver's door or passenge r's door has
been opened.
- Pay ca reful attention when closing the win­
dows.
It could cause injury by pinching.
- When locking the veh icle from outside, the
vehicle must be unoccupied since the win­ dows can no longer be opened in an emer­
gency.
@ Tips
- Using the switches © and @, the driver can
also operate the power sunshades* in the
side windows.
- After tu rning the ignition off you can st ill
open and close the w indows for app roxi ­
ma tely 10 minutes. The powe r windows are
not switched off until the driver's door or
passenger's door has been opened.
What to do after a malfunction
-
The one -touch open and close function must be
reactivated if the battery has been disconnected .
.,. Pull and hold the power w indow switch unt il
the window is fully closed.
.,. Release the switch and then pull it again for at
least one second.
Openin g an d clos ing
Valet parking
The valet parking feature protects the luggage
compartment from unauthorized access.
Fig. 36 Valet parking button
With "valet parking" act ivated, the luggage com­
partment lid cannot be opened .
.,. Remove the mechanical key
c::> page 31.
.,. Open the glove compartment and activate
c::> fig. 36 the "valet parking" feature by press­
ing the
!VA LE T I button. The indicator light in
the switch illumina tes.
.,. Close the glove compartment and lock it with
the mechanical key.
.,. Leave the master key with the service personnel
for parking and keep the mechanical key with
you .
When the "valet parking" feature is activated:
- the unlocking button fo r the luggage compart­
ment lid~ in the driver's door is inactive
- the button~ on the master key is inactive
- the opening handle in the luggage compart-
ment lid is inactive.
The vehicle can be driven and locked and un­
locked with the master key . Access to the lug­
gage compartment is b locked.
When the valet parking function is switched on,
the message
V ale t p arki ng activat ed appears in
the instrument cluster d isp lay when you switch
the ignition on.
4 1

Opening and clo sin g

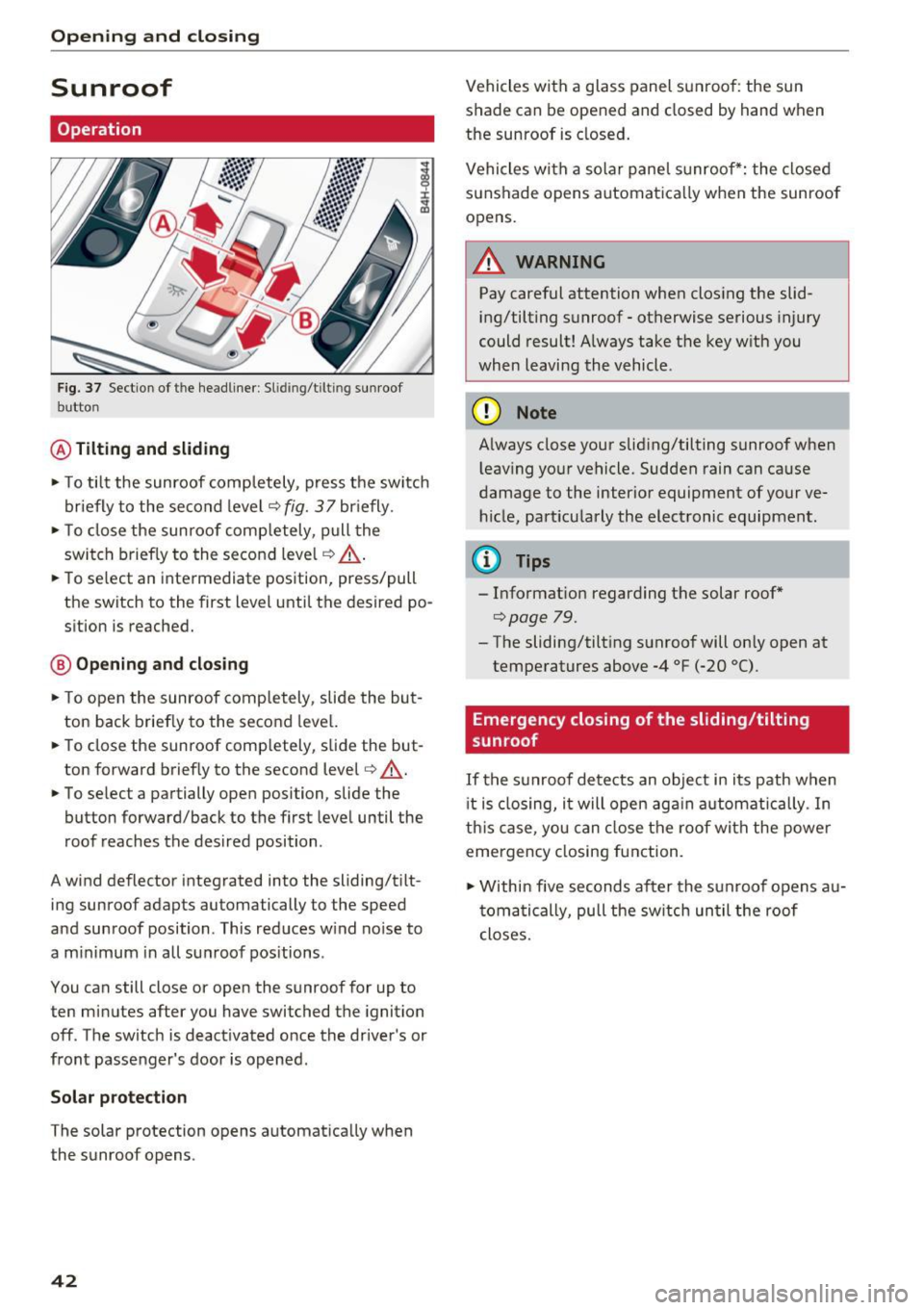

Sunroof
Operation
Fig. 37 Sect io n of the headliner : Sl idin g/tiltin g sun roof
butto n
@Tilting and sliding
• To tilt the sunroof completely, press the switch
briefly to the second level¢
fig. 3 7 briefly .
• To close the sunroof comp letely, pull the
switch brief ly to the seco nd level ¢
A.
• To se lect an intermediate pos ition, press/pull
the switch to the first level until the desired po ­
sition is reached.
@ Op ening and clos ing
• To open the sunroof comp letely , slide the but­
ton back briefly to the second level.
• To close the sunroof comp letely, slide the but­
ton forward briefly to the second level¢
,A.
• To select a partially open position, slide the
button forward/back to the first level until the
roof reaches the desired position .
A wind deflector integrated into the sliding/tilt ­
ing sunroof adapts automatically to the speed
and sunroof position . This reduces w ind noise to
a m inimum in a ll sunroof positions .
You can still close or open the sunroof for up to
ten minutes after you have switched the ignition
off. The switch is deact ivated once the driver's or
front passenger's door is opened .
Solar protecti on
The solar protection opens automat ically when
the sunroof opens .
42 Vehicles with a glass panel sunroo
f: the sun
shade can be opened and closed by hand when
the sunroof is closed .
Vehicles with a solar panel sunroof*: the closed sunshade opens automat ica lly when the sunroof
opens.
A WARNING -
Pay careful attention when closing the slid­
ing/tilting sunroof -otherwise serious injury
could result! A lways take the key with you
when leaving the vehicle .
(D Note
Always close your slid ing/tilting sunroof when
l eav ing your vehicle. Sudden rain can cause
damage to the interior equipment of your ve­ hicle, part icularly the electronic equipment.
(!} Tips
- Informat ion regarding the solar roof*
¢ page 79 .
- The sliding/tilting sunroof will on ly open at
temperatures above -4 °F
(-20 °() .
Emergency closing of the sliding/tilting
sunroof
If the s unroof detects an object in its path when
i t is closing, i t will open aga in automatically . In
th is ca se, you can close the roof with the power
emergency closing function .
• Within five seconds after the s unroof opens au­
t oma tically, pull the sw itch un til the roof
closes.

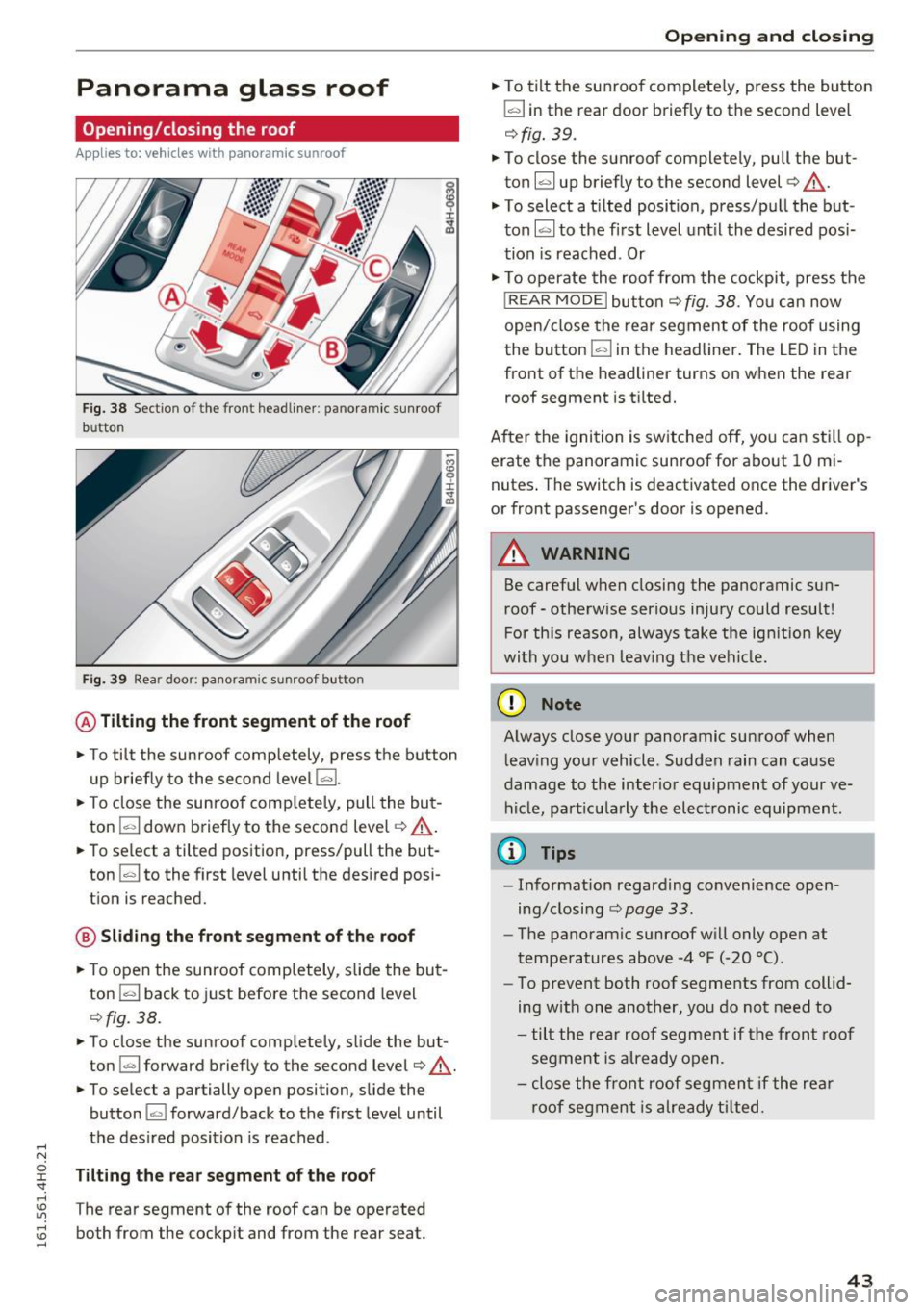

Panorama glass roof
Opening/closing the roof
Appl ies to: ve hicles wit h pa nora mic su nro of
F ig . 3 8 Section of the front headliner : panoramic sun roof
button
F ig. 39 Rear door: pa noramic sunroof button
@ Tilting the front segment of the roof
• To tilt the sunroof comp letely, press the b utton
u p brief ly to the se co n d leve l!a. 1.
• To close the sunroof comp lete ly, pull the but­
ton
l""' I down b riefly to the second level Q _&.
• To se lect a tilted position, press/pull the but­
ton
l ""' I to the first level until the des ired posi ­
tion is reached.
@ Sliding the front segment of the roof
• To open the sunroof completely, slide the but­
ton
l ""' I back to just before the second level
Q fig. 38.
• To close the sunroof comp letely, s lide the but­
ton ~ forward briefly to the second level
Q _& .
• To select a partially open position, slide the
button ~ forward/back to the first leve l until
t h e des ired position is reached .
Tilting the rear segment of the roof
The rear segment of the roof can be operated
both from the cockp it and from the rear seat.
Opening and closing
• To tilt the su nroo f complete ly, press the bu tton
~ in the rear door briefly to the second leve l
¢fig . 39.
• To close the s unroof completely, pull the but ­
ton~ up briefly to the second level
Q _&.
• To select a t ilted position, press/pu ll the but ­
ton~ to the fi rst level unt il the desired pos i­
tion is reached . Or
• To operate the roo f fro m the cockpit, press the
!REAR MODEi button Qfig. 38. You can now
open/close the rear segment of the roof using
the bu tton
l= I in the headliner . The L ED in the
front of the headliner turns on when the rear
roof segment is t ilted.
A ft er the ignition is sw itched off, you ca n st ill op­
erate the panoramic sun roof for about 10 m i­
nutes . The switc h is deactivated once the driver's
or front passenger 's doo r is opened.
_& WARNING
-
Be carefu l when closing the panoramic su n-
roof -otherw ise serious inju ry could result!
For th is reaso n, always take the ig nitio n key
wi th you w hen leav ing t he veh icle .
(D Note
Always close you r panoramic sun roof when
l eav ing you r vehicle . Sudden rain can ca use
damage to the interior equipmen t of your ve ­
h icl e, p art icu la rly the el ect ronic equipment.
{D Tips
- In format io n regarding co nvenience open ­
ing/closi ng
Q pag e 33.
-The pano ramic sunroof w ill only open at
tempe ratures above -4 °F (-20 °C) .
- To prevent both roof segments from collid­
ing w ith one ano ther, yo u do not need to
- til t the rea r ro of segment if t he fron t roof
segmen t is a lready o pen.
- close the front roof segmen t if the rea r
roof segment is already ti lted.
43

Opening and clo sin g

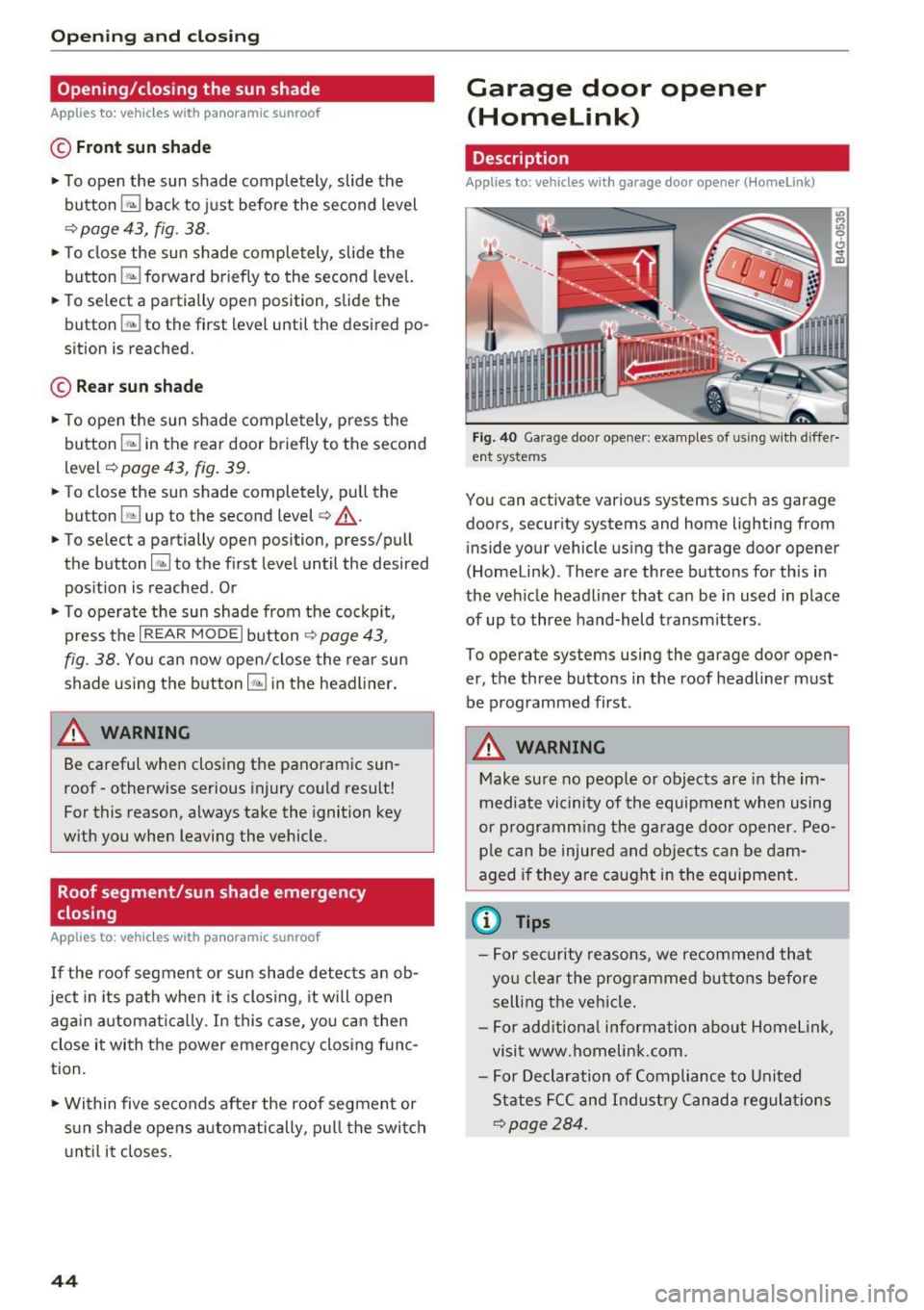

Opening/closing the sun shade
Applies to: ve hicles w ith pa noramic sunroof
© Front sun shade
• To open the sun shade completely, slide the
button
G;J back to just before the second level
q page 43, fig. 38 .
• To close the sun shade completely , slide the
button
G;J forward b riefly to the second level.
• To se lect a partially open position, slide the
button
[!i;] to the first level until the desired po­
sition is reached.
© R ear sun shade
• To open the sun shade completely, press the
button
G;J in the rear door briefly to the second
level ¢
page 43, fig. 39.
• To close the sun shade completely, pull the
button
G;:l up to the second level q ,& .
• To select a partially open position, press/pull
the button~ to the first level until the desired
pos ition is reached . Or
• To operate the sun shade from the cockpit,
press the
I REAR MOD E I button ¢ page 43,
fig. 38. You can now open/close the rea r sun
shade using the button~ in the headliner.
A WARNING
Be careful when closing the panoramic sun­
roof -otherwise serious injury could result!
For this reason , always take the ignition key
w ith you when leaving the vehicle .
Roof segment/sun shade emergency
closing
A pp lies to: ve hicles with pa noramic sunroof
If the roof segment or sun shade detects an ob­
ject in its path when it is clos ing , it will open
aga in automat ica lly. In this case, yo u can then
close it with the power emergency clos ing func­
tion.
-
• Within five seconds after the roof segmen t or
s u n shade opens autom atically, p ull the switch
unt il it closes.
44
Garage door opener
(Homelink)
Description
Applies to: vehicl es wit h garage door o pe ne r (Home Link)
Fig. 40 Ga rage doo r opener: examples of usin g w ith d iffe r·
ent syste ms
You can act ivate various systems such as garage
doors, security systems and home lighting from inside your vehicle using the garage door opener
(Homelink) . There are three buttons for th is in
the veh icle headliner that can be in used in place
of up to three hand-held transmitters.
To operate systems using the ga rage door open­
er, the three buttons in the roof headliner must be programmed first .
A WARNING
Make sure no people or objects are in the im­
mediate vicinity of the equipment when using
or p rogramm ing the garage door opener. Peo­
p le can be injured and ob jects can be dam­
aged if they are caught in the equipment.
(D Tips
- For security reasons, we recommend that
yo u clear the prog rammed buttons before
sell ing the vehicle .
- For add itiona l information about Homel ink,
visit www.homelink .com .
- For Declaration of Compliance to United
States FCC and Indust ry Canada regulat ions
¢page 284.

Adjusting the brightness
You can adj ust the brigh tness for the four zones
Front top , Front f ootwell , Rea r top and Rear
footwell
or for All area s at the same time.
Selecting a color profile
You can se lect from the Ivory , Polar and Rub y/
Polar
color profi les.
@ Tips
The settings are automatically stored and as­
sig ned to the remo te control key that is in
use .
Instrument illumination
You can adjust the brightness of the instrument
and display illumination as well as the Head-up
Display* .
Fig . 4 8 Instr ument ill um ination
.. Press the knob to release it.
.. Turn the knob toward"-" or"+" to reduce or in­
crease the brightness .
.. Press the knob aga in to return it to its orig inal
pos itio n.
(D Tips
The instrument ill umination (for dia ls and
needles) lights o n when the igni tion is switch­
ed on and t he ve hicle lights are tu rned off. As
t he daylight fade s, the illum ina tion of the di­
a ls likewi se dims au tom atic ally a nd w ill go
ou t comp lete ly when the outsi de light is very
low. This feature is meant to rem ind you to
sw itch on the head lights when o utside light
conditions become poor.
Lights and V ision
Vision
Adjusting the exterior mirrors
Fig. 4 9 Driver 's doo r: knob fo r the exte rio r mirr ors
Turn the knob to the des ired position:
Q/P -Adjusting the left/right e xterior mirror.
Move the knob in t he des ired direct ion .
Qill -Hea ting the mir ror glass depend ing o n the
outside tempe rature .
8 -Foldi ng the o utside mir ro rs . In the Infotai n­
ment system , you can se le ct if t he m irro rs fo ld in
a utomat ically when you lock the vehi cle
~ page 33.
Front passenger 's exterior mirror tilt
function
T o help you see the curb when backing into a
parking space, the su rface o f the mirro r tilts
s li ght ly . For this to happen, the knob must be in
the position for the front passenger's outside
mirror .
Yo u can adjus t the tilted mir ro r sur face by turn­
i ng the knob in the desired d irect ion . When you
move out of reverse and into another gea r, the
new m irror position is stored and assigned to the
key you are using.
T he m irror goes back into its or iginal pos ition
once you drive forward faster t han 9 mph (15
km/h) or sw itch the ignition off.
A WARNING
-Cu rved m irror surfaces (aspher ic or convex *)
enlarge the field of v is ion . However, they
make objects in the mirro r appea r small er
51

-The automati c dimm ing mir rors do not dim
when the interior lig hting is turned on or
the reverse gea r is selected.
Sun visors
E ]
®
~ ~--· . _. ,
Fig. 5 1 Su n visor
The s un visors for the dr iver and passenge r can
be released from their b rackets an d turned to­
ward the doors ¢
fig. 51 @. They can also be
moved back and forth lengthwise in this posit ion .
The mir ror light swi tches on when the cover over
the vanity mirror @opens .
There i s a s hade be twee n the dr iver's an d pas ­
se nger's sun visors that c an be used to cove r th e
ga p above the rea rview mir ror.
Sun shade
F ig. 52 Cockpit: Sun s hade switch
Lights and V ision
Fi g. 53 Rea r doo r: Sun s hade b utto n
Extending /retracting the rear window
shade*
.,. To exte nd or ret ract t he s un s hade from the
c ockpit ,
press t he l~•~ I b utt on in the ce nte r con ­
sole
¢ fig . 52 .
.,. To extend or retract the s un s hade from the
rear of the vehicle ,
press the GM button in the
door ¢
fig. 53.
Extending the rear door sun shades*
.,. Close the w ind ow in the re a r door.
.,. To exte nd the sun shade
from the driver's seat ,
pull the left/ right rea r power window switch ~
in the drive r's door.
.,. To extend the sun shade from the
rear of the
vehicle ,
pull the power window sw itch lilii) in the
left/ right rear door .
Retracting the rear door sun shades*
.,. To retract the s un sha de from the driver's seat ,
press the left/right rear power w indow switch
~ in the d river's doo r .
.,. To retract the sun shade from the
rear of the
vehicle ,
press the power w indow switch lia) in
t h e lef t/r ight rear door .
Yo u can adjust the sett ings fo r the rear sun shade
so the shade retracts a utomat ica lly when you se­
l ect t he reverse gear . Se lect :
I CARI f u nct ion but­
ton
> Car systems con trol but ton > Vehicle set­
tings > Automatic rear blind > On .
The se tt ings
are au tom atically stored and assig ned to the re­
mo te con trol key . T he sun sh ade e xten ds again as
soon as t he veh icle be gins traveling forward at a
s p eed greate r than 9 mph (1 5 km/h), as long as
t h e ignitio n has not been switc hed off in the
mea ntime .
53

restraints that are not properly adjusted in­
creases the risk of ser ious or fatal neck in­
jury dramatically.
- Read and heed all WARNINGS
¢page 132,
Proper adjustment of head restraints.
- Vehicles with a pass through in the center
console have seating for four. The long cen­
ter console between the two rear seats is
Memory function
Description
Applies to: vehicles with memory function
The memory functio n allows you to quickly and
eas ily store and recall personal seating profi les
for the driver, front passenger and outer rear
seats* . The memory function is operated through
the master key and the memory buttons in the
driver's/front passenger's doors and the rear
doors".
The driver's seating profi le is stored and assigned
to the master key each time the vehicle is locked.
When you open the door, the seating profile is
Remote control
master key
Driver
Seat X
Head restraint X
Steering wheel* X
Safety belt* X
Both exterior rea rview X
mirrors*
Remote control key
Applies to: veh icles with memory function
To assign the driver's seat settings to the remote
control key when locking the vehicle, the function
must be switched on .
~ Select: I CARI function button > Car systems
control button > Vehicle settings > Seats >
Driver seat > Remote control key > On .
Seats and storage
not a seating position. Therefore, a safety
be lt is not provided.
(D Tips
-To prevent the head restraints from running
into the headliner, they retract automatica l­
ly when moving the seat forward or upward.
- Correctly adjusted head restraints and safe ­
ty be lts are an extremely effective combina­
tion of safety features.
automat ically recalled. If two people use one ve­
hicle, it is recommended that each person always
uses "their own" master key .
T wo seating profiles can be stored in eac h of the
drive r's/front passenger's doors and one seating
profi le in each of the rear doors*. Once stored,
these seating p rofiles can be reca lled at any time.
Th e following sett ings are stored:
Memory button
Driver Front passenger Outer rear seats*
X
X
X
X
X X
X
X
X
@ Tips
If you do not want another driver's settings to
be assigned to the remote control key, switch
off the memory function using the MMI or the
IOFF I button ¢p age 66.
65

© -12 volt socket c:> page 72
@ -Folding table c:> page 68
©-center armrest and storage compartments:
to open the deep compartment, press the rig ht
button and fold the center armrest upward . To
open the compartment fo r the massage funct ion
r emo te contro l*
c:> page 63 and for the tele ­
phone*, press the left button and fo ld the center
armrest upward .
115-volt socket
Applies to: vehicles with 115-volt socket
The 115-vo lt socket can only be used when the
engine is running
c:> & . When you push the con­
nector all the way into the socket, the ch ild safe­
ty mechan ism releases and current flows through
the socket .
Equ ipment th at can be conn ect ed
Electrical devices can be connected to the 1 15
volt socket in the vehicle. Power consumption at
the 115-volt socket must not exceed 150 watts
(300 watts peak) . Check the power consumpt ion
of the equipment on the model plate .
LED on the socke t
-The socket is ready for use when the LED is
green.
- If the LED blinks red, there is a malfunction .
The socket will switch off automatically due to overcurrent or overheating. The socket will
switch on again automatically after a cool­
down period . Any devices that are connected
and switched on will activate again automati­ ca lly
c:> ,& .
A WARNING
- T he so ckets and the electrical accesso ries
conne cted to them operate only when the
ignition is switched on . Incorrect usage can
lead to serious injuries or burns. To reduce
the risk of injuries, never leave children un­
attended in the vehicle w ith the vehicle key.
- Heavy eq uipment or plugs with integrated
power supply units can damage the socket
and lead to injuries.
-
Seat s and sto rage
-Store all connected equipment securely
while the veh icle is moving so that they can­
not be thrown through the vehicle in the
event of a braking maneuver or an accident.
- Never sp ill any liquids on the socket . If any
mo isture gets into the socket, make certain
that all the moisture has dried up before us ­
ing the socket again .
- Equipment that is connected to the vehicle
socket can heat up more than it does when
connected to the public grid .
- When us ing adapters and extens ion cords,
the child safety for the 115-volt socket is
disabled and the socket is live.
- Never insert anyth ing other than the plug of
an app ropr iate electrical accessory into the
soc ket, especially th ings that conduct ele c­
tr icity, e.g. metal pens, knitting need les,
etc. into the contacts of the 115 -vol t sock­
et .
- Turn the electrical equ ipment off if the
socket has switched off because of over­
heating.
(D Note
- Always follow the manufacture r's i nstruc­
tions for a ll electrical accessories yo u wan t
t o use with the e lectr ica l socket!
- Do not connect lamps tha t con tain a neon
t u be. Fo r tech nica l reasons the lamp may be
damaged.
- Do not connect any 230-volt equipment to
t he 115-vo lt socket . The equipment may be
damaged. If necessa ry , check the permiss i­
ble vo ltage for the equipment on the mode l
label.
- In the case of some power packs, e.g. for a
laptop computer , the bui lt-in ove rcurrent
shutoff prevents it from being switched on
because of excessive start-up current. In
this case, disconnect the power pack from the consumer and reconnect it after abo ut
1 0 seconds .
(D Tips
-Unshielded equ ipment may cause interfer­
ence in the radio and the vehicle electronics .
67
