key AUDI A8 2016 Owner's Guide

@ Tips
-Side assist is not active whi le you are ma k­
i ng the ad justment .
- Your settings are automatically stored and
ass igned to the remote control key being
u sed.
Driver messages
A ppl ies to: ve hicl es w ith si de assis t
If side ass ist switches off by itself, the LED in the
button turns off and a message will appear in the
i nstr ument cluster d isp lay :
Audi side assist: Cur rently una vailable . No sen ­
sor vision
The rada r senso rs' vision is affected . Do not cover
the area in front of the senso rs with b ike wheels,
stickers, dirt o r other ob jects . Clean the area in
front of the sensors, if necessary
c:> page 103,
fig . 114.
Audi side assist: Currently unavailable
Side assist c an not be swi tched o n tempo rarily be­
cause there is a mal function (for exam ple, the
battery charge level may be too low) .
Audi side assist: System fault!
The system cannot guarantee that it w ill detec t
ve hicles co rrectly and it is swi tched off . The sen­
s ors have bee n disp laced or are fa ulty. Have the
sy stem checked by an authorized Audi de aler or
au thor ized Au di Service Facility soon.
Audi side assist: Unavailable when towing .
Side assist sw itches off automatically when a fac­
tory-installed trailer hitch is connected to the
e lectr ical connector on the trailer . Th ere is no
g ua rantee the syste m will sw itch off when usi ng
a retrofitted tra ile r hitc h. D o not use s ide assist
when towing a t railer.
Aud i side assist
105

Audi drive select
Adjusting the Individual mode
You can adjust the vehicle settings to your personal preferences.
"'Se lect : I CAR I function button > Set individual
cont rol button. You can now adjust the individ­
ual systems.
The
individual driving mode will automatically be
activated when you have finished configuring the
settings .
Systems Comfort
Engine
and Transmission balanced
Air suspension comfortable
Steering comfortable T
he equipment in your vehicle will determine
which settings you can adjust. The following ta­ ble provides an overview of the characteristics of
each driving mode .
Auto Dynamic
balanced sporty
balanced sporty
balanced sporty
Dynamic
steering* comfortable/ind i r ec1t balanced/di rect sporty/direct
Sport differential * balanced agile sporty
Adaptive cruise control* comfortable balanced sporty
Engine sound* subtle
subtle/sportyal sporty
•> Sub tle in the dri ving posit ion D a nd sp or ty in the driving posi tion S
(D Tips
Your individual mode sett ings are automati­
cally stored and assigned to the remote con­
trol key being used.
Raising/lowering the
vehicle
Raising the vehicle
You can raise your vehicle temporarily, for exam­
p le to drive over a tall curb .
"' Se lect the following in the MMI :
ICARI funct ion
button>
Raise control button.
"'Wa it for the arrows in the display to stop blink­
ing and the vehicle to reach its fina l position.
Lowering the vehicle
"'T o lower the vehicle, select the following in the
MM I:
ICARI function button > Lower control
button.
"' Wait for the arrows in the display to stop blink­
ing and the vehicle to lower completely.
108
(D Note
- Remember that your vehicle is not suitable
for driving offroad even when it is ra ised .
There is not enough ground clearance.
- If the vehicle is raised, it will lower auto­
matically when driving 62 mph (100 km/h)
or faster.
Driver messages
Air suspension: vehicle currently too low. Level
control running
Air suspension: vehicle currently too high. Level
control running
The driver message switches off when the level
control process is complete.

Parking systems
Adjusting the display
and the warning tones
Applies to: ve hicles with parking system plus wit h rea r view
camera/top v iew camera system
The display and warning tones con be adjusted in
the Infotainment.
~ Se lect: ICARI function button> Car systems
contro l button > Driver assist > Parking aid.
Display
On* -
rear view camera image is shown for park­
ing system plus with rear view camera*.
Off -when the parking system is sw itched on, on­
ly audible signals are given.
Warning tones
Front volume -
Volume for the front area
Rear volume -Volume for the rear area
Front frequency -Frequency for the fron t area
Rear frequency -Frequency for the rear area
Music volume while parking -When the parking
system is turned on, the volume of the aud io/vid­
eo source is lowered .
The newly adjusted value is briefly heard from
the signal generator.
(D Tips
- The warning tones can also be adjusted di­
rectly from the visua l display or the camera
i mage. Simp ly press the
Settings contro l
button .
- Changed settings are act ivated when the
parking system is switched on aga in.
- The settings are automat ically stored and
ass igned to the remote control key that is in
use.
Error messages
Applies to: veh icles w ith parking system plus with rear view
camera/top v iew camera system
There is an error in the system if the LED in the
P, YA button is blinking and you hear a continuous
a larm for a few seconds after switching on the
parking system or when the parking system is al-
128
ready activated. If the error is not corrected be­
fore you switch off the ignition, the LED in the
Po/A
button will blink the next time you switch on the
parking system by shifting into reverse.
If a sensor is faulty, the~ symbol will appear in
front of/behind the vehicle in the Infotainment display. If a rear sensor is faulty, only obstacles
that are in the front detect ion area are shown. If
a front sensor is faulty , only obstacles that are in
the rear area are shown .
Peripheral cameras*
There is also a system error if :
- the~" symbol appears in the display and the
corresponding display area is shown in blue.
The camera is not working in this area.
- all segments around the vehicles are red or if
no segments are disp layed.
D rive to your authorized Aud i dealer or author­
iz ed repair facility immediately to have the mal­
function corrected.
Trailer hitch
Applies to: vehicles with parking system plus with rear view
camera/top view camera system
For vehicles using the trailer socket, the parking
system rear sensors do not turn on when you
shift into reverse gear or when you press the
P,YA
button. This resu lts in the following restrictions:
There is no distance warning for the rear. The
front sensors remain activated . Th e visual display
switches to the tra iler tow ing mode . The rear
view camera image will not show the orientation
lin es and the blue surfaces.
(D Tips
Trailer hitches that are not installed at the
factory may cause the parking system to mal­
function or they may restrict its function .

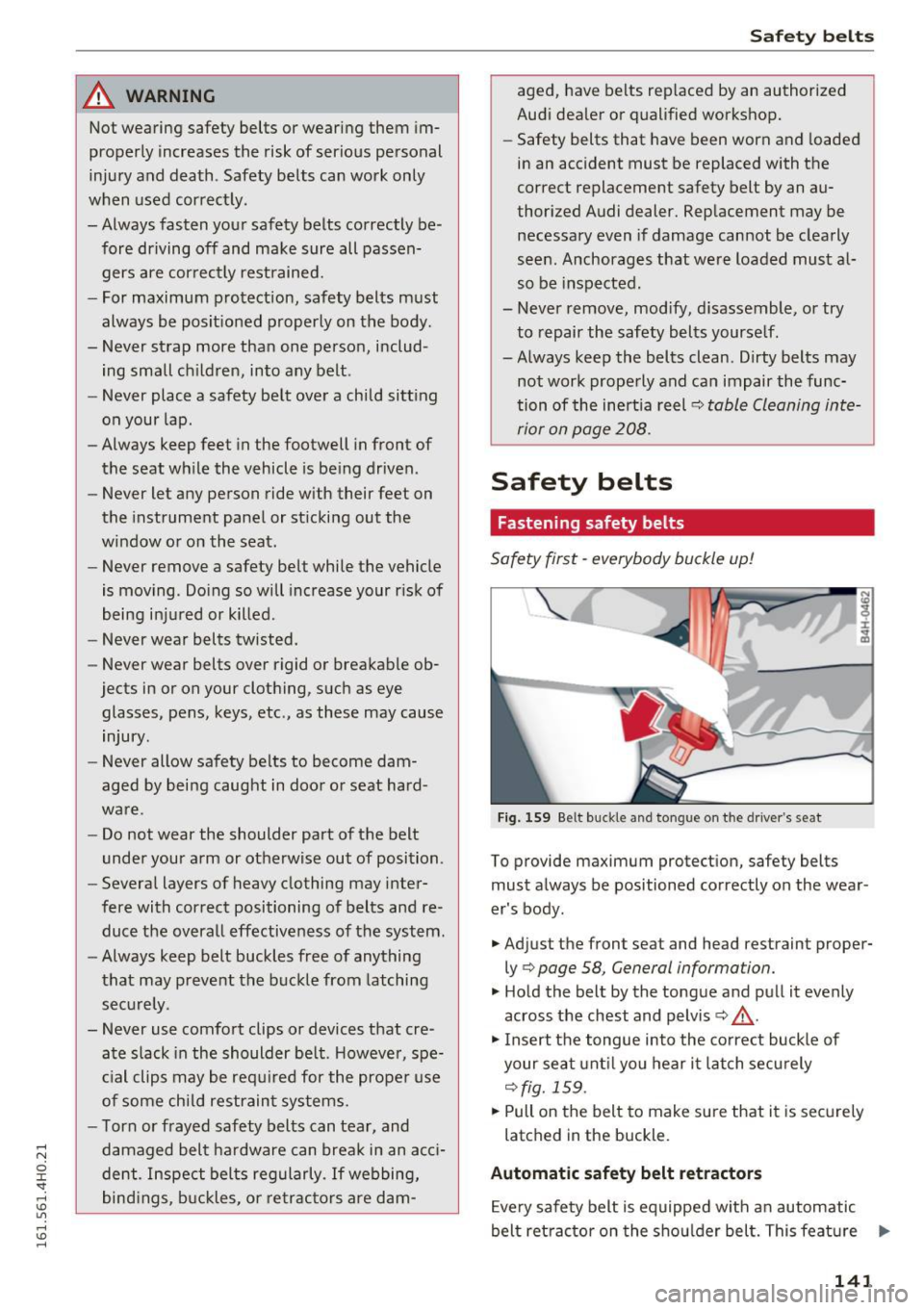

A WARNING
Not wearing safety belts or wearing them im­
properly increases the risk of serious personal
injury and death . Safety belts can work only
when used correct ly.
-Always fasten your safety belts correctly be­ fore driving off and make sure all passen­
gers are cor rect ly restrained.
- For maximum protection, safety belts must
always be posit ioned properly on the body .
- Never strap more than one person, includ­
ing small ch ildren, into any belt .
- Never place a safety belt over a child sitting
on your lap.
- Always keep feet in the footwell in front of
the seat wh ile the vehicle is being driven.
- Never let any person ride w ith their feet on
the instrument panel or sticking out the
window or on the seat .
- Never remove a safety belt while the vehicle
is moving . Do ing so will increase your risk of
being injured or k illed.
- Never wear belts twisted.
- Never wear belts over rigid or breakable ob-
jects in or on your clothing, such as eye
glasses, pens, keys, etc., as these may cause
injury.
- Never allow safety belts to become dam­
aged by being caught in door or seat hard­
ware.
- Do not wear the shoulder part of the belt
under your arm or otherwise out of position .
- Several layers of heavy clothing may inter­
fere with correct positioning of belts and re­
duce the overall effectiveness of the system.
- Always keep belt buckles free of anything
that may prevent the buckle from latching
securely .
- Never use comfort clips or devices that cre­
ate slack in the shoulder be lt . However, spe­
cial clips may be requ ired for the proper use
of some child restraint systems.
- Torn or frayed safety belts can tear, and
damaged belt ha rdware can break in an acc i­
dent. Inspect belts regularly.
If webbing,
bind ings, buckles, or re tractors are dam-
Safet y bel ts
aged, have belts rep laced by an authorized
Aud i dea ler or qualified workshop.
- Safety belts that have been worn and loaded
in an accident must be replaced with the
correct replacement safety belt by an au­
thor ized Audi dealer. Replacement may be
necessary even if damage cannot be clearly
seen. Anchorages that were loaded must al­
so be inspected.
- Never remove, mod ify, d isassemble, or try
to repair the safety belts yourse lf.
-Always keep the belts clean . Dirty belts may
not work properly and can impair the func­
tion of the inert ia reel~
table Cleaning inte­
rior on page 208 .
Safety belts
Fastening safety belts
Safety first -everybody buckle up!
Fig. 159 Be lt buckle and tongue on the driver 's seat
To provide maximum protect ion, safety belts
must always be positioned correctly on the wear­
er's body .
.. Adjust the front seat and head restraint proper­
ly¢
page 58, General information.
.. Hold the belt by the tongue and pull it evenly
across the chest and pelvis
¢ /J:::.. .
.. Insert the tongue into the correct buckle of
your seat unt il yo u hear i t latch secu rely
¢ fig. 159 .
.. Pull on the belt to make sure that it is secure ly
latched in the buckle.
Automatic safety belt retra ctors
E ve ry safety belt is equipped with an automatic
belt ret ractor on the shoulder belt. This feat ure .,..
141

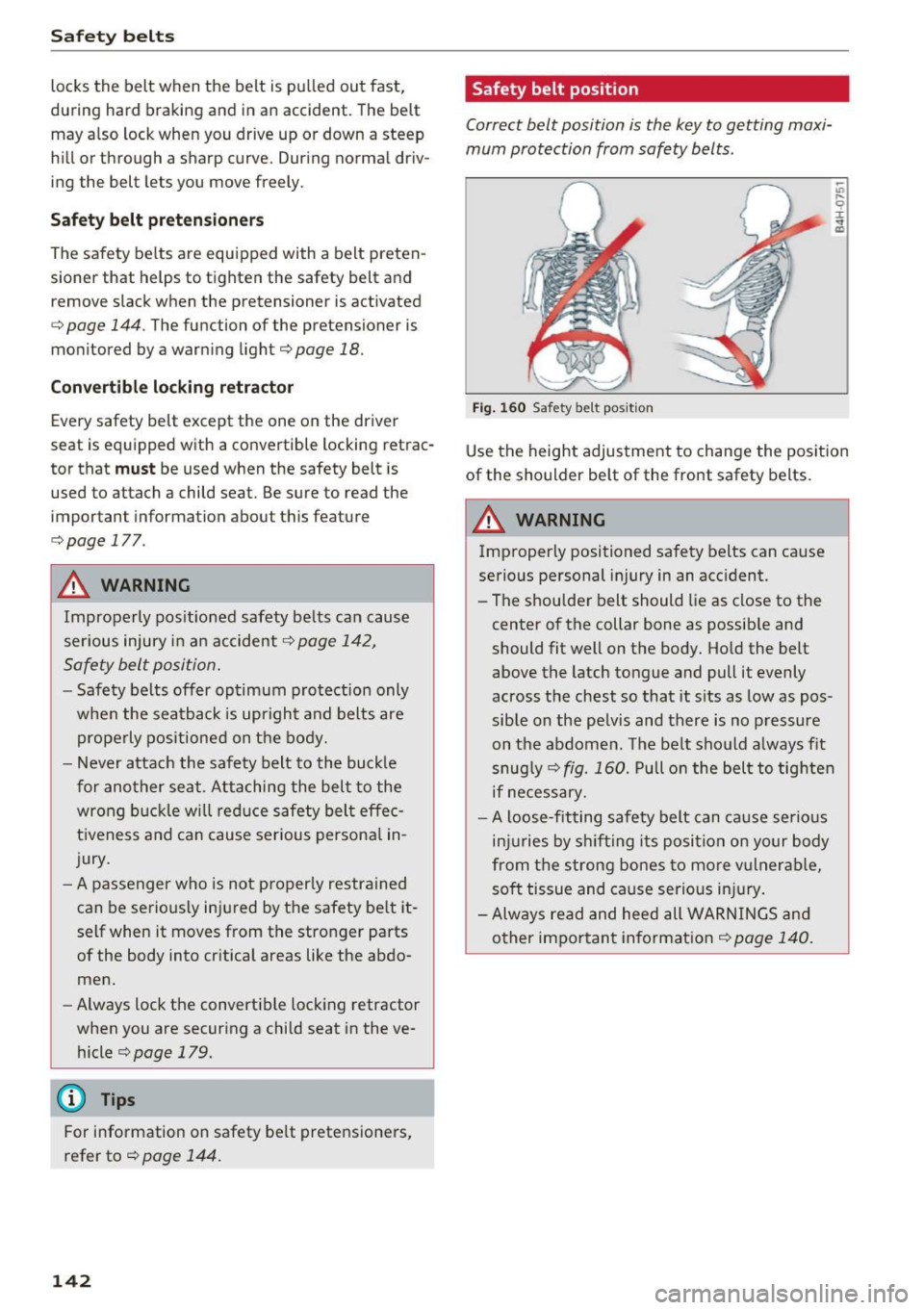

Safe ty belts
locks the belt when the belt is pu lled out fast,
during hard braking and in an accident. The belt
may a lso lock when you drive up or down a steep
h ill or through a sharp curve. Dur ing normal driv­
ing the belt lets you move freely.
Safety belt p reten sion ers
The safety belts are equipped with a belt preten­
sioner that helps to tighten the safety belt and
remove slack when the pretensioner is activated
c> page 144. The function of the pretensioner is
monitored by a warning light
c::> page 18.
Con vertibl e loc king r etracto r
Every safety belt except the one on the driver
seat is equipped with a convertible locking retrac­
tor that
must be used when the safety belt is
used to attach a child seat. Be sure to read the
important information about this feature
c>page 177.
_&. WARNING
Improperly pos it ioned safety be lts can cause
ser ious injury in an accident
c::> page 142,
Safety belt position.
- Safety belts offer optimum protection only
when the seatback is upright and belts are
prope rly positioned on the body.
- Never a ttach the safety belt to the buck le
for ano ther seat. Attaching the belt to the
wrong b uck le wi ll reduce safe ty belt effec­
t iveness and can cause ser ious persona l in­
jury.
- A passenger who is not p roper ly restrained
can be seriously injured by the safety be lt it­
self when it moves from the stronger parts
of the body into critical areas like the abdo­
men.
- Always lock the convert ible lock ing retractor
when you are securing a child seat in the ve­
hicle
c::> page 179.
@ Tips
For information on safety be lt pretensioners,
refer to
c::> page 144.
142
Safety belt position
Correct belt position is the key to getting maxi­
mum protection from safety belts .
Fig. 160 Safety belt position
Use the height adjustment to change the positio n
of the shoulder belt of the front safety belts.
_&. WARNING
Improperly positioned safety belts can cause
serious personal injury in an accident.
- The shou lder belt should lie as close to the
center of the collar bone as possib le and
should fit well on the body. Hold the belt
above the latch tongue and pull it evenly
across the chest so that it s its as low as pos­
sible on the pe lvis and there is no p ressure
on the abdome n. T he belt sho uld a lways fit
snug ly
c::> fig. 160. Pu ll on the bel t to tigh ten
if necess ary.
- A loose-fit ting safety belt can ca use serious
in ju ries by s hifting its posi tion on yo ur body
from the strong bones to mo re v ulnerab le,
so ft tissue and cause serious in jury.
- Always read and heed all WARNINGS an d
other impor tan t information
c::> page 140 .

Fuses an d bulb s
Fuse p anel @ (red ) Fuse panel@ (black )
3 Starter diagnosis, DC/DC converter (with
Start/Stop system) 8 Rear
seat heating
9 Rear exterio r lighting
4 DC/DC converter (with Start/Stop system)
10 Rear
climate contro l blower
5 Image processing
Rear sun shade, closing aid, luggage com-
6 Right headl
ight (headlights with adaptive
light) 11 partment lid
lock, convenience key, fue l
filler doo r
7 ESC control module 12 Luggage compartment lid control module
8 Sound actuator, AEM control modu le
9 Adapt ive cru ise control
10 Transmission
control module
Fuse panel © (red )
No . Equ ipm en t
1 Rear seat adjustment buttons
1 1 Climate control system sensors
3 Left rear
seat (pneumatic)
Fuse panel © (br own ) 5 Trai
ler hitch control module
No. Equipm ent 6 L
eft rear seat
1 Electromechanical parking
brake
7 Right rear seat
2 Suspension control system sensor
8 Traile r hitc h control module
3 Rear Infotainment system control
panel
9 Trailer hitch control module
4 Smart module (tank) 10 Right rear seat (pneumatic)
5 Front climate contro
l system controls
6 Rear climate control system control panel
7 Networking gateway
8 Refrige rator
Fuse panel ® (brown )
No. Equipm en t
1 Start/Stop
system, radio receiver/sound
amplifier
9 Special functions interface
2 Sound amplifier
10 Cell phone adapter, Bluetooth handset
11 AEM control module 3 Start/Stop
system, Rear Seat Entertain-
ment, radio receiver/sou nd amplifier
12 Selector lever
5 Automatic dimming
rearview mirror
13 Ambient lighting 6 DVD changer (glove compa rtment)
14 Rear
exterior lighting
7 TV tuner
15 Fuel pump
8 Infotainment system control panel/drives
16 Electromechanica l parking brake
9 Instrument cluster, analog clock
Fuse panel @ (bl ack ) 10 Infotainment system d isp lay
N o. Equi pm en t 11 Radio receiver
1 Luggage compartment lid movement-acti-
vated openi ng 12
Rearview camera, pe
ripheral cameras
(parking system)
2 Luggage compartment sockets
3 Rear socket
4 Front cigarette lighter
5 adapt ive a ir suspension
6 115 V
socket
7 Electromechan ica l park ing brake
269

Consumer inf orm ation

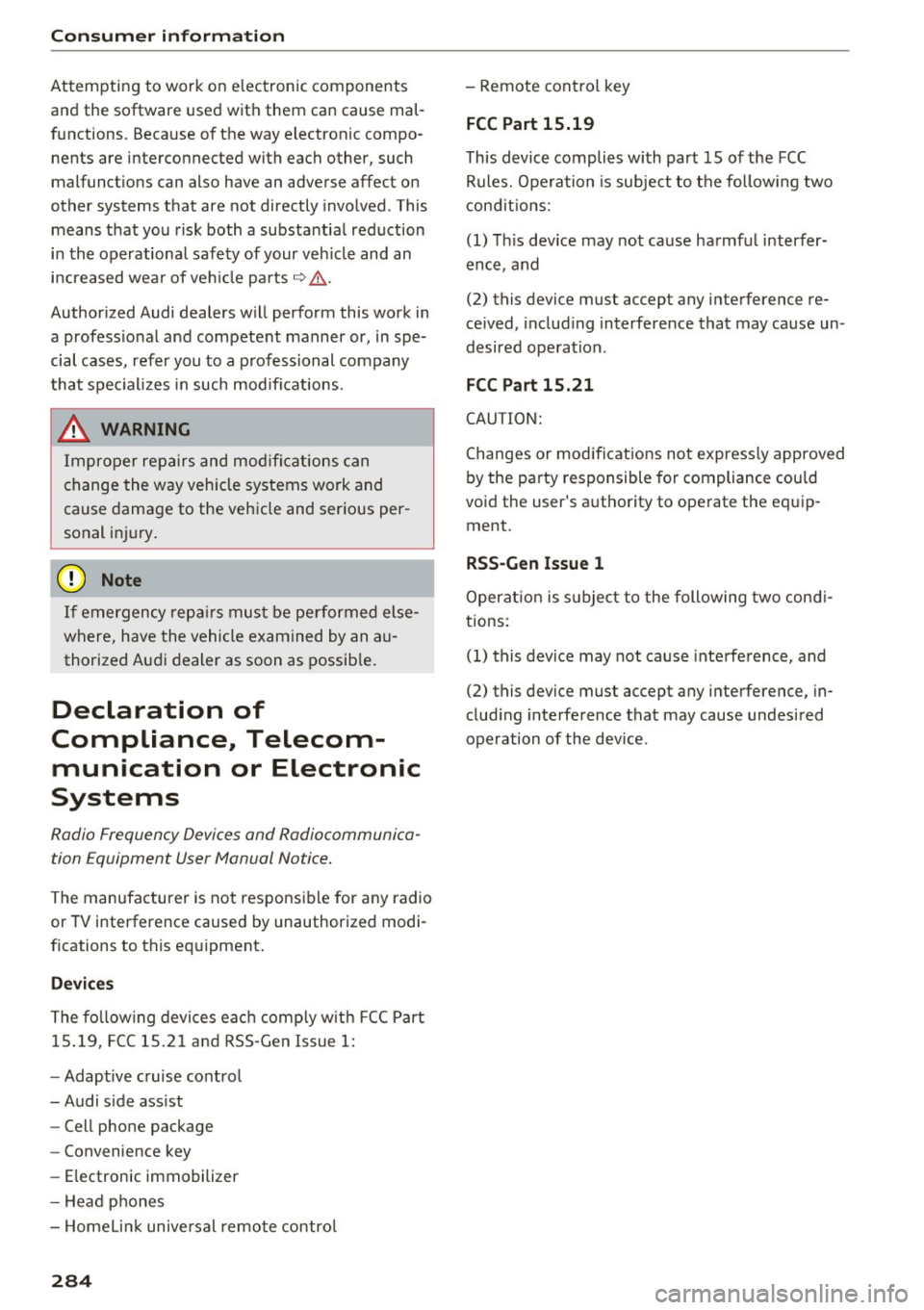

Attempting to work on electronic components
and the software used w ith them can cause mal­
functions. Because of the way e lectronic compo ­
nents a re interconnected with each othe r, such
m alfunct ions can also have an adverse affect on
other systems that are not directly involved . This
means that you risk both a substantial reduction
in the operationa l safety of your veh icle and an
i n creased wea r of ve hicle parts ~ ,&. .
Author ized Audi dealers w ill perform this work in
a profess io nal and competent manner or, in spe­
cial cases, refer you to a p rofessional company
that spec ial izes in such modifications .
_8. WARNING
Improper repairs and modifica tions can
change the way vehicle system s work and
cause damage to the vehicle and serious per ­
sonal injury.
(J} Note
I f emergency repa irs mus t be pe rformed else­
where, have the vehicle examined by an a u­
thorized A udi dealer as soon as possib le .
Declaration of
Compliance, Telecom­ munication or Electronic
Systems
Radio Frequency Devices and Radiocommunica­
tion Equipment User Manual Notice.
The manufacturer is not responsible for any radio
or TV interference caused by unauthorized modi­
f ications to this eq uipment .
Devices
The fo llow ing devices eac h comp ly w it h FCC Part
15 .19, FCC 15.2 1 and RSS -Gen Issue 1:
- Adaptive c ruise contro l
- Audi s ide ass ist
- Cell phone package
- Convenience key
- Electronic immobilizer
- Head p hones
- Homelin k unive rsal remote contro l
284
- Remote cont rol key
FCC Part 15.19
This device complies wi th part 15 of the FCC
Rules. Ope ration is subject to the following two
cond it ions:
(1) This dev ice may not cause ha rmf ul interfer­
ence , and
(2) this device must accept any interference re­
ce ived, includ ing interference that may ca use un ­
desired operat ion .
FCC Part 15 .21
CAU TION:
Changes or modifi cat ions no t express ly approved
by the pa rty responsible for compliance cou ld
void the user's a uthority to operate the eq uip­
ment .
RSS-Gen Issue 1
Operat ion is s ubject to the following two cond i­
t ions:
(1) this device may not cause inte rfe rence, and
(2) this device must accept any i nterference, in­
clud ing inte rfe rence that may cause undesired
ope ration of the dev ice.

Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Guidance fixtures for lower anchorages . . 182
Important safety instructions for using child
safety seats . . . . . . . . . . . . . . . . . . . . . . . .
171
Tether anchors . . . . . . . . . . . . . . . . . . . . . . 184
Tether straps . . . . . . . . . . . . . . . . . . . . . . . 184
Child safety lock
Rear doors (mechanical) . . . . . . . . . . . . . . .
39
Rear doors (power) . . . . . . . . . . . . . . . . . . . 40
Ch ild safety seat
Unused safety belts on the rear seat
173
Child safety seats
Booster seats . . . . . . . . . . . . . . . . . . . . . . .
176
Convertible child seats . . . . . . . . . . . . . . . 174
H ow do I properly install a child safety seat
. h" l ? 171 in my ve 1c e . ................. ..... .
Infant seats . ................. ..... .
173
Installing a child restraint using the LATCH
system . . . . . . . . . . . . . . . . . . . . . . . . . . . .
183
LATCH system . . . . . . . . . . . . . . . . . . . . . . 183
Lower anchorages . . . . . . . . . . . . . . . . . . . 181
Mounting and releasing the anchorage
hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
183
Safety instructions . . . . . . . . . . . . . . . . . . . 171
Child seats .. .. .. ........... .. .. ..... 173
Securing . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
C leaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Climate control system . . . . . . . . . . . . . . . . . 76
Supplementary heater . . . . . . . . . . . . . . . . . 79
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
C losing
Panorama glass roof . . . . . . . . . . . . . . . . . .
43
Sunroof. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Sun shade (panoramic sunroof) . . . . . . . . . 44
Windows .. .. .. ............. .. .. .. .. 40
Coming home . . . . . . . . . . . . . . . . . . . . . . . . .
48
Compact spare tire . . . . . . . . . . . . . . . . . . . . 257
Compartments . . . . . . . . . . . . . . . . . . . . . . . . 73
Compass in the mirror . . . . . . . . . . . . . . . . . . 56
Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . 284
Consumer information . . . . . . . . . . . . . . . . . 281
Consumer Informat ion . . . . . . . . . . . . . . . . . 136
Consumption (fuel) . . . . . . . . . . . . . . . . . . . . 24
;:;:: Contacting NHTSA . . . . . . . . . . . . . . . . . . . . 136
0
~ Controls
~ Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 208 Lil ,...., v:, ,....,
Index
Convenience key . . . . . . . . . . . . . . . . . . . . . . . 34
Starting the engine (START ENGINE ST OP
button) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
81
Stopping the engine (START ENGINE STOP
button) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
81
Switching the ignition on . . . . . . . . . . . . . . 81
Unlocking and locking vehicle . . . . . . . . . . . 34
Convertible child safety seats . . . . . . . . . . . 17 4
Convertib le locking retractor
Activating . . . . . . . . . . . . . . . . . . . . . . . . . .
179
Deactivating . . . . . . . . . . . . . . . . . . . . . . . . 180
Using to secure a child safety seat . . . . . . 179
Coolant
refer to Eng ine coolant
Cooler 227
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 4
Cooling mode (automatic climate control)
77
Cooling system Indicator light . . . . . . . . . . . . . . . . . . . . . . .
15
Cruise control
Changing speed . . . . . . . . . . . . . . . . . . . . . .
89
Presetting your speed . . . . . . . . . . . . . . . . . 89
Switching off . . . . . . . . . . . . . . . . . . . . . . . . 89
Switching on . . . . . . . . . . . . . . . . . . . . . . . . . 88
(upholder . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Current consumption . . . . . . . . . . . . . . . . . . . 24
Curve light . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Cylinder management
refer to Cylinder on demand system . . . . . . 24
Cylinder on demand system . . . . . . . . . . . . . . 24
D
Data recorder . . . . . . . . . . . . . . . . . . . . . . . . 189
Date display . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Daytime running lights . . . . . . . . . . . . . . . . . 46
Declaration of compliance
Adaptive cruise control . . . . . . . . . . . . . . .
284
Audi side assist . . . . . . . . . . . . . . . . . . . . . 284
Cell phone package . . . . . . . . . . . . . . . . . . 284
Convenience key . . . . . . . . . . . . . . . . . . . . . 284
Electronic immobilizer. . . . . . . . . . . . . . . . 284
Homelink universal remote control . . . . . 284
Remote control key . . . . . . . . . . . . . . . . . . 284
Decorative parts/trim
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . .
208
287

Index
DEF What does t his mean whe n it appears i n the
tr ip odomete r display? . . . . . . . . . . . . . . . . 26
D efe ctive light bulb warning . . . . . . . . . . . . . 2 1
Defrost ing (windows) . . . . . . . . . . . . . . . . . . . 78
D eluxe a utomatic cl imate contro l . . . . . . . . . 77
D etermin ing cor rect load limit
Diese l 250
Prewarm ing . . . . . . . . . . . . . . . . . . . . . . . . . 81
Diese l fuel ... .... ... . ...... ... .. .. ... 213
D iese l particu late filte r . . . . . . . . . . . . . 20, 198
Dig ita l compass . . . . . . . . . . . . . . . . . . . . . . . 56
D imensions . . . . . . . . . . . . . . . . . . . . . . . . . . 278
Dimmi ng the rearview mirror . . . . . . . . . . . . 52
Displays Clea ning . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
D is tance dr iven . . . . . . . . . . . . . . . . . . . . . . . . 24
Door/rear lid warn ing . . . . . . . . . . . . . . . . . . . 23
Doors M echanical ch ild safety lock . . . . . . . . . . . . 39
Power child safety lock . . . . . . . . . . . . . . . . 40
D river information system . . . . . . . . . . . . . . . 23
C D/radio disp lay . . . . . . . . . . . . . . . . . . . . . . 2 3
D oor/rear lid warn ing . . . . . . . . . . . . . . . . . 23
Exterior temperat ure disp lay . . . . . . . . . . . 23
On-boa rd computer . . . . . . . . . . . . . . . . . . .
24
D river se ating posi tion . . . . . . . . . . . . . . . . . 130
drive select adapt ive a ir su spension/sport . . . . . . . . . . 106
Adapt ive dampe rs . . . . . . . . . . . . . . . . . . . 106
Cu rve lig ht . . . . . . . . . . . . . . . . . . . . . . . . . 106
D ynamic stee ring . . . . . . . . . . . . . . . . . . . . 106
E ng ine soun d . . . . . . . . . . . . . . . . . . . . . . . 1 06
Safety bel t tensione r . . . . . . . . . . . . . . . . . 106
Sport diffe rentia l . . . . . . . . . . . . . . . . . . . . 106
D rive se lect . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Driving economically . . . . . . . . . . . . . . . . . . 199
Driving sa fely . . . . . . . . . . . . . . . . . . . . . . . . 12 9
D riving throug h wate r . . . . . . . . . . . . . . . . . 199
Driving t ime . . . . . . . . . . . . . . . . . . . . . . . . . . 24
D up licate key . . . . . . . . . . . . . . . . . . . . . . . . . 30
Dust filter
refer to Po llutant filter (automat ic A/C sys -
tem) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Dynamic steering . . . . . . . . . . . . . . . . . 106, 194
288
E
Easy entry featu re . . . . . . . . . . . . . . . . . . . . . . 80
E DL
refer to Elect ronic d ifferential lock . . . . . . 1 90
Efficiency program Fuel economy messages . . . . . . . . . . . . . . . 25
Other equipment . . . . . . . . . . . . . . . . . . . . . 25
E lectrica l accessories (sockets) . . . . . . . . 67, 72
El ectromechanical pa rking brake
E mergen cy br aking . . . . . . . . . . . . . . . . . . . 85
Opera tion . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Releasing and closing . . . . . . . . . . . . . . . . . 83
Start ing assist . . . . . . . . . . . . . . . . . . . . . . . 84
Start ing from rest . . . . . . . . . . . . . . . . . . . . 84
Start ing off with a tra iler. ........... .. . 85
War ning/ indicator lights . . . . . . . . . . . . . . . 15
E lectromechanical power assist . . . . . . . . . . 194
El ectronic diffe re ntia l lock . . . . . . . . . . . . . . 190
War ning/ indica to r li ghts . . . . . . . . . . . . . . . 18
E lectronic differentia l lock (EDL)
War ning/ indicator ligh ts . . . . . . . . . . . . . . . 18
E lectronic immobilizer . .. .. .. ..... ... 26, 31
El ectron ic powe r contro l (EP C)
warning/ind ic a tor ligh t . . . . . . . . . . . . . . . . 19
E lectronic speed limiter . . . . . . . . . . . . . . . . . 29
E lectronic Stabi lizatio n Contro l (ESC) . . . . . 190
War ning/indicato r lights . . . . . . . . . . . . . . . 18
E mergency actuation
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Luggage compartment lid . . . . . . . . . . . . . . 39
Parking loc k . . . . . . . . . . . . . . . . . . . . . . . . 117
Power sunroof . . . . . . . . . . . . . . . . . . . . . . . 42
E mergen cy b raking . . . . . . . . . . . . . . . . . . . . . 85
Emergency flasher . . . . . . . . . . . . . . . . . . . . . 47
War ning/ indicato r lights . . . . . . . . . . . . . . . 22
Emergency ope ration
Panoramic sunroof . . . . . . . . . . . . . . . . . . . . 44
Sun shade (roof) . . . . . . . . . . . . . . . . . . . . . 44
Emergen cy starting . . . . . . . . . . . . . . . . . . . 271
Energy management . . . . . . . . . . . . . . . . . . 195
Engine Compartment . . . . . . . . . . . . . . . . . . . . . . . 222
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
P rewarming . . . . . . . . . . . . . . . . . . . . . . . . . 81
Start -Stop -System . . . . . . . . . . . . . . . . . . . . 85

Jumper cables . . . . . . . . . . . . . . . . . . . . . . . . 272
K
Key
Battery replacement master key . . . . . . . . .
31
Key not recognized . . . . . . . . . . . . . . . . . . . 83
Key replacement . . . . . . . . . . . . . . . . . . . . . 30
Mechanical key . . . . . . . . . . . . . . . . . . . . . . . 31
Kick-down (automatic transmission) . . . . . . 115
Knee airbags . . . . . . . . . . . . . . . . . . . . . . . . . 160
Description . . . . . . . . . . . . . . . . . . . . . . . . . 160
How they work . . . . . . . . . . . . . . . . . . . . . . 161
Important safety instructions . . . . . . . . . . 162
L
Lane Change Assistant
refer to Side ass ist . . . . . . . . . . . . . . . . . . . 102
LATCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Description . . . . . . . . . . . . . . . . . . . . . . . . . 181
Guidance fixtures for lower anchorages . . 182
Install ing a child restraint . . . . . . . . . . . . . 183
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Mounting and releasing the anchorage
hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
183
Leather cleaning/protection . . . . . . . . . . . . 209
Leaving hom e . . . . . . . . . . . . . . . . . . . . . . . . . 48
Lifting jack . . . . . . . . . . . . . . . . . . . . . . 261, 262
Light
Ambience lighting . . . . . . . . . . . . . . . . . . . .
50
Coming/Leaving home . . . . . . . . . . . . . . . . . 48
Daytime running lights . . . . . . . . . . . . . . . . 46
Emergency flashers . . . . . . . . . . . . . . . . . . . 47
H eadlight range control . . . . . . . . . . . . . . . 46
High beam . . . . . . . . . . . . . . . . . . . . . . . . . . 48
H igh beam assist . . . . . . . . . . . . . . . . . . . . . 49
Interior/r eading lights . . . . . . . . . . . . . . . . 50
Low beam . ................... ..... .. 46
Rear fog lights . . . . . . . . . . . . . . . . . . . . . . . 46
Side marker lights . . . . . . . . . . . . . . . . . . . . 46
Turn signals . . . . . . . . . . . . . . . . . . . . . . . . . 48
Light/rain sensor
Headlig hts . . . . . . . . . . . . . . . . . . . . . . . . . .
46
Intermittent (windshield wipers) . . . . . . . . 54
Sensor defective . . . . . . . . . . . . . . . . . . . . . . 22
Index
Lighting
Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
46
Interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Loading the roof rack . . . . . . . . . . . . . . . . . . . 71
Locking
Luggage compartment lid . . . . . . . . . . . . . .
36
Power locking switch . . . . . . . . . . . . . . . . . . 35
Remote control . . . . . . . . . . . . . . . . . . . . . . 33
Using the key . . . . . . . . . . . . . . . . . . . . . . . . 35
Low beams . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Luggage compartment
Luggage compartment net . . . . . . . . . . . . .
68
Pass-through with ski sack . . . . . . . . . . . . . 69
Storing cargo cor rectly . . . . . . . . . . . . . . . 135
Stowing luggage . . . . . . . . . . . . . . . . . . . . 135
Tie-downs . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Luggage compartment lid
Automatic operation . . . . . . . . . . . . . . . . . .
37
Emergency release . . . . . . . . . . . . . . . . . . . . 39
Movement-activated opening . . . . . . . . . . . 39
Opening and closing . . . . . . . . . . . . . . . . . . 36
Lumbar support
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . .
60
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
M
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . 281
Malfunction Ind icator Lamp (MIL) . . . . . 20, 28
Massage function
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . .
60
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Reclining rear seat . . . . . . . . . . . . . . . . . . . . 63
Matte finish paint cleaning . . . . . . . . . . . . . 206
Mechan ica l key . . . . . . . . . . . . . . . . . . . . . . . . 31
Memory function . . . . . . . . . . . . . . . . . . . . . . 65
Mirrors
Adjusting the exterior mirrors . . . . . . . . . . .
51
Compass.. .. .. .. .. ............... .. . 56
dimming .. .... .. ................. .. . 52
Vanity mirrors . . . . . . . . . . . . . . . . . . . . 53, 54
Monitoring the Advanced Airbag System . . 156
Multifunction steering wheel . . . . . . . . . . . . . 24
N
Natural leather
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . .
209
291
