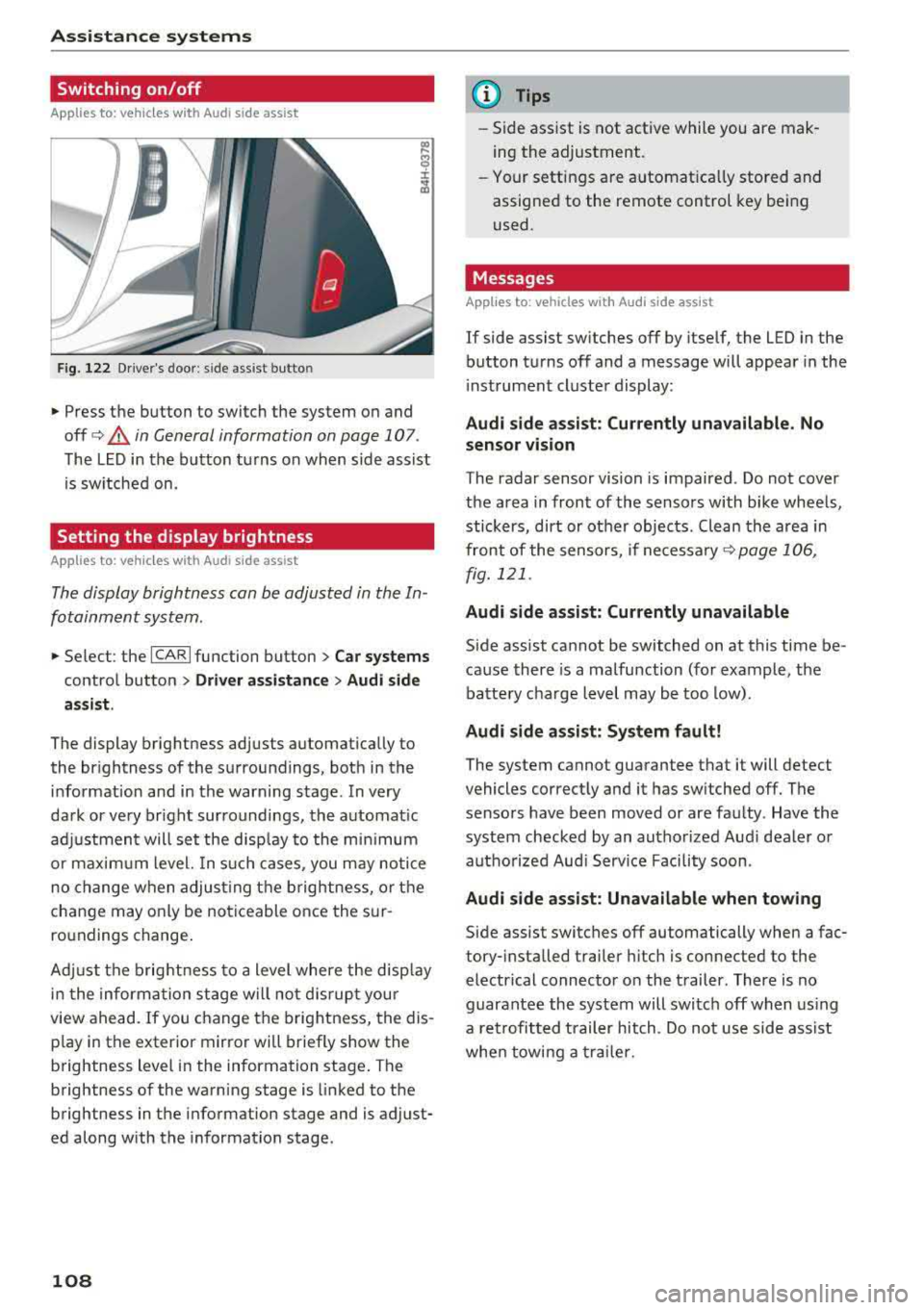

Assistance systems
Switching on/off
Applies to: ve hicles w ith Aud i side ass ist
F ig. 122 Driver's door : side ass ist butto n
• Press the button to switch the system on and
off
c> .&, in General information on page 107 .
The LED in the button turns on when side assist
is sw itched on.
Setting the display brightness
App lies to: ve hicles with Aud i side ass is t
The display brightness can be adjusted in the In ­
fotainment system .
• Select : the ICARI function button > Car systems
control button > Driver assistance > Audi side
assist .
The display brightness adjusts automatically to
the br ightness of the surroundings, both in the
information and in the warning stage . In very
dark or very br ight surroundings, the automat ic
adj ustment will set the disp lay to the minim um
or maximum level. In such cases , you may notic e
no change when adjust ing the brightness, or the
change may only be noticeable once the sur­
ro undings change .
Adj ust the brightness to a level where the disp lay
i n the information stage will no t disrupt your
view ahead.
If you change the brightness, the dis­
p lay in the exter ior mirror wi ll briefly show the
brightness lev el in the information stage . T he
brightness of the warning stage is linked to the
brightness in the information stage and is adjust­
ed along with the information stage.
108
@ Tips
-Side assist is not active while you are mak­
ing the adjustment .
- Your settings are automat ica lly stored and
assigned to the remote control key being
used .
Messages
Applies to : vehicles wi th Audi side ass ist
If side assist switches off by itself, the LED in the
button turns off and a message will appear in the
i nstrument cluster display:
Audi side assist: Currently unavailable. No
sensor vision
The radar sensor vision is impaired . Do not cover
the area in front of the sensors with bike wheels,
stickers, dirt or ot her objects . Clean the area in
front of the sensors, if
necessary ¢ page 106,
fig. 121 .
Audi side assist: Currently unavailable
Side assist cannot be switched on at this time be­
cause there is a malfunction (for example, the
battery charge level may be too low).
Audi side assist: System fault!
The system cannot guarantee that it will detect
vehicles correctly and it has switched off. The
sensors have been moved or are faulty . Have the
system checked by an authorized Audi dealer or
autho rized Aud i Serv ice Facility soon.
Audi side assist: Unavailable when towing
Side assist switches off automatically when a fac­
tory- installed trailer hitch is connected to the
electrical connector on the trailer. There is no
guarantee the system will switch off when using
a retrofitted trailer hitch. Do not use side ass ist
when towing a trailer.

u. co .... N
" N .... 0 0 :c ' Parking systems
General information
A pp lies to: ve hicles with pa rk in g system p lus/rearview cam ­
era/peripheral camera
Depending on your vehicle 's equipment, various
pa rking aids wi ll help you when parking and ma­
ne uvering.
The
p arki ng sys tem plu s assists you when park­
ing by aud ibly and visua lly indicating objects de­
tected in front of and behind the vehicle
¢ page 116.
The re arv ie w ca mer a shows the area beh ind the
veh icle in the Infotainment system d isplay. This
d isplay assists you when you are cross or parallel
pa rking
¢ page 117 . The park ing system p lus
functions are also available
¢ page 116.
The periph eral ca mera s give var ious views to
h e lp you whe n pa rking or maneuver ing
¢ page 120. T he pa rking system pl us functions
are also availab le
¢ page 116.
& WARNING
-Always look for traffic and check the area
around your vehicle by looking at it direct ly
as well. The parking system cannot replace
the driver's attent ion. The driver is always
responsible when enter ing or leav ing a park­
ing space and during similar maneuvers.
- Please note that some surfaces, such as
clothing, are not detected by the system .
-
-Sensors and cameras have blind spots in
wh ich people and objects cannot be detect­
ed . Be especially caut ious of small children
and animals .
- The sensors can be displaced by impacts or
damage to the radiator gr ille, bumper,
wheel housing and the underbody . The park­
ing system may be impa ired as a result.
Have a n author ized A udi dealer or author­
ized Audi Serv ice Facility check their func ­
tion .
- Make s ure the senso rs a re not obstructed by
stickers, deposits o r other materia ls. If they
are, the sensor function could be impaired.
For additiona l information on cleaning, see
¢ page 306.
Parking syste m s
@ Note
-Some objects are not detected or disp layed
by the system under certain circumstances:
- objects such as barrier cha ins, tra iler draw
bars, vertical po les or fences
- objects above the sensors such as wall ex ­
tensions
- objects with certain surfaces or structures
such as cha in link fences or powder snow
- If you continue driving closer to a low ob­
ject, it may disappear from the sensor range . Note that you will no longer be
wa rned about t his obstacle.
(D Tips
-The system may provide a warning even
tho ugh the re are no obstacles in the cover­
age area in some situations, such as:
- certain road surfaces or when there is tall
grass
- externa l ultrasonic sources such as from
cleaning vehicles
- in heavy rain, snow, or th ick vehicle ex ­
haust
- We recommend tha t you practice par king in
a traffic-free location or parking lot to be ­
come fami liar with the system . W hen doing
this, there sho uld be good light and weath­
er conditions.
- You can change the volume and pitch of the
signa ls as well as the
display ¢ page 125.
-Please refer to the instructions for towing a
trai ler located in
r:!:> page 125 .
-What appears in the infotainment display is
somewhat time-delayed .
- T he sensors m ust be kept clean and free of
snow and ice for the parking aid to operate .
115

Parking systems
Parking system plus
Description
Applies to: ve hicles with park ing system p lus
Parking system plus provides audio and v isual
signals when parking .
C>
Fig. 129 Displa y fi eld
Sensors are located in the front and rear bump­
ers. If these detect an obstacle , audible and visu­
al signals warn you.
Make sure the sensors are not covered by stick­
ers, depos its or any other obstructions as it may
impair the sensor function. For information on
cleaning, see
c::> page 306.
The display field begins approximately at:
® 4 ft (1.20 m)
® 3 ft (0.90 m)
© 5.2 ft (1.60 m)
@ 3 ft (0.90 m)
The closer you get to the obstacle, the shorter
the interval between the audible signals. A con­
tinuous tone sounds when the obstacle is less
than approximately 1 foot (0.30 meters) away.
Do not continue driving forward or in reverse
c::> & in General information on page 115, c::> ([) in
General information on page
115!
If the distance to an obstacle remains constant,
the volume of the distance warning gradually
drops after about four seconds (th is does not ap­
p ly in the continuous tone range) .
116
Switching on/off
Applies to : vehicles with parking system plus
Fig. 130 Center console : par kin g aid b utto n
Switching on
.. Shift into reverse, or
.. Press the PwA button in the center console
c::> fig. 130 . A short confirmation tone sounds
and the LED in the button turns on .
Switching off
.. Drive faster than 6 mph (10 km/h), or
.. Press the PwA button, or
.. Switch the ignition off.
Visual display
The segments in front of and behind the vehicle
help you to determine the distance between you
and an obstacle .
The red lines mark the expected direction of trav­
el according to the steering angle. A white seg­
ment indicates an identified obstacle that is out­
side of the vehicle's path . Red segments show
identified obstacles that are in your vehicle's
path. As your vehicle comes closer to the obsta­
cle, the segments move closer to the vehicle . The
collision area has been reached when the next to
last segment is displayed . Obstacles in the colli­
s io n area, including those outside of the vehicle 's
path , are shown in red. Do not continue driving
forward or in
reverse ¢ & in General information
on pag e 115 ,
c::>(D in General information on
page
115!

u. co .... N
" N .... 0 0 :c ' Adjusting the display and the warning tones
A ppl ies to : ve hicles w ith parkin g system plus/rearv iew cam­
era/peripheral ca mera
The display and warning tones can be adjusted in
the Infotainment.
~ Se lect : the ICARI fu nction button > Car systems
contro l button > Driver assistance > Parking
aid .
Display
On * -
an op tical d isp lay is shown for the par kin g
system plus, a rearv iew camera image is s hown
for the rearview camera *.
Off -when the p arking sys tem is sw itche d off,
on ly audib le sign als are give n.
Signal tones
Front volume -
volume for the front area
Rear volume -volume for the rear area
Front frequency -frequency for the front area
Rear frequency -frequen cy fo r the rea r area
Music volume during nav . prompts -the volume
of the a udio/video so urce is lowe red when t he
pa rking system is turned o n
The new ly selected leve l is demonstrated briefly
by the sound generator .
(D Tips
-The wa rning tones ca n also be ad justed d i­
r ectly by the vis ual d isp lay or the pictu re
from the camera. Simply p ress the
Settings
control bu tton.
- Changed sett ings are ac tivated whe n the
p arking system is switched o n aga in.
- The settings for volume and frequency are
a utomat ica lly saved and ass igned to the re­
mo te con trol key be ing used.
Error messages
A pp lies to: ve hicles with parking system plus/rearview cam­
era/per ipheral ca mera
There is an erro r in the system if the LED in the
Pw , button is b link ing and yo u hear a continuous
Parking systems
alarm for a few seconds after sw itch ing on the
par king system or w hen the pa rking system is a l­
r eady activated. If the erro r is not cor rected be ­
fo re you switch off the ignition, the
LED in the Pw ,
button w ill blink the next time you switch on the
park ing system by shifting into reverse.
Parking system plus*
If a senso r is fa ulty, the~ symbo l will appear i n
front of/beh ind the vehicle in the Infotainment
display. If a rear sensor is faulty, on ly obstacles
t h at are i n areas @and @ are shown
Q page 116, fig . 129 . If a front se nsor is faulty,
o n ly obs tacles tha t are in a reas © and @are
shown. The re is a lso a sys tem ma lf u nct ion if all
seg ments arou nd the veh icle are red or if no seg­
me nts are disp laye d.
Peripheral cameras*
The re is a system malfu nction if t he 00 • symbol
appea rs and the co rresponding d isp lay area is
s h own in bl ue. The camera is not wo rking in t his
are a.
Drive to an authorized A udi dealer or authorized
Audi Se rvice Facility immed iate ly to have the
malfu nction corrected.
Trailer hitch
App lies to: vehicles wit h parking system pl us/rea rv iew cam ­
e ra/peri phe ra l cameras an d tra ile r hitc h
When the trailer socket is in use, the par king sys­
tem rear sensors are not act ivated when you sh ift
into reverse gear or when yo u press t he
p, ,1 A but­
ton. This res ults in the following rest rict ions.
Parking system plus*
The re is no distance warning for the rear. The
front senso rs remain activated. T he v isua l disp lay
switches to trailer mode.
Rearview camera*/peripheral cameras*
T he re is no distance warning for the rea r. The
front senso rs remain activated . The visua l disp lay
switches to trailer mode. The rearview came ra
i mage will not s how the orie ntation lines and t he
bl ue surfaces.
IJJ,-
125

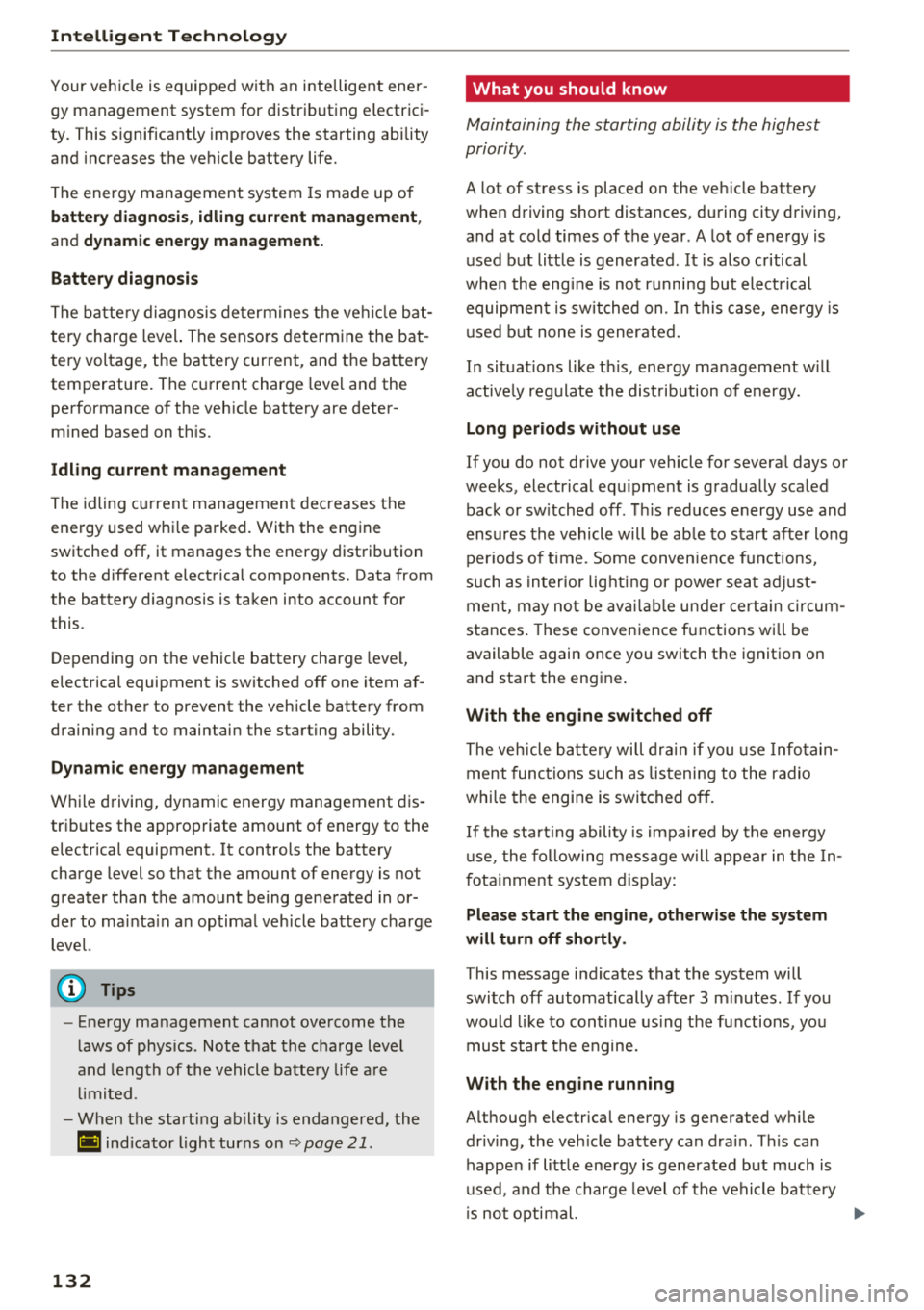

Intelligent Technology
Your vehicle is equipped with an intelligent ener­
gy management system for distributing electrici­
ty. This significantly improves the starting ability
and increases the vehicle battery life.
The energy management system Is made up of
battery diagnosis, idling current management,
and dynamic energy management.
Battery diagnosis
The battery diagnosis determines the vehicle bat­
tery charge level. The sensors determine the bat­
tery voltage, the battery current, and the battery
temperature. The current charge level and the
performance of the vehicle battery are deter­
mined based on this.
Idling current management
The idling current management decreases the
energy used while parked. With the engine
switched off, it manages the energy distribution
to the different electrical components. Data from
the battery diagnosis is taken into account for
this .
Depending on the vehicle battery charge level,
electrical equipment is switched off one item af­
ter the other to prevent the vehicle battery from
draining and to maintain the starting ability.
Dynamic energy management
While driving, dynamic energy management dis­
tributes the appropriate amount of energy to the
electrical equipment. It controls the battery
charge level so that the amount of energy is not
greater than the amount being generated in or­
der to maintain an optimal vehicle battery charge level.
(D Tips
- Energy management cannot overcome the
laws of physics . Note that the charge level
and length of the vehicle battery life are
limited.
- When the starting ability is endangered, the
(•) indicator light turns on ~ page 21.
132
What you should know
Maintaining the starting ability is the highest
priority.
A lot of stress is placed on the vehicle battery
when driving short distances, during city driving,
and at cold times of the year . A lot of energy is
used but little is generated. It is also critical
when the engine is not running but electrical
equipment is switched on. In this case, energy is
used but none is generated.
In situations like this, energy management will
actively regulate the distribution of energy.
Long periods without use
If you do not drive your vehicle for several days or
weeks, electrical equipment is gradually scaled
back or switched off . This reduces energy use and
ensures the vehicle will be able to start after long
periods of time . Some convenience functions,
such as interior lighting or power seat adjust­
ment, may not be available under certain circum­
stances. These convenience functions will be
available again once you switch the ignition on
and start the engine.
With the engine switched off
The vehicle battery will drain if you use Infotain­
ment functions such as listening to the radio
while the engine is switched off.
If the starting ability is impaired by the energy
use, the following message will appear in the In­
fotainment system display:
Please start the engine, otherwise the system
will turn off shortly.
This message indicates that the system will
switch off automatically after 3 minutes. If you
would like to continue using the functions, you
must start the engine.
With the engine running
Although electrical energy is generated while
driving, the vehicle battery can drain. This can
happen if little energy is generated but much is
used, and the charge level of the vehicle battery
is not optimal.
...

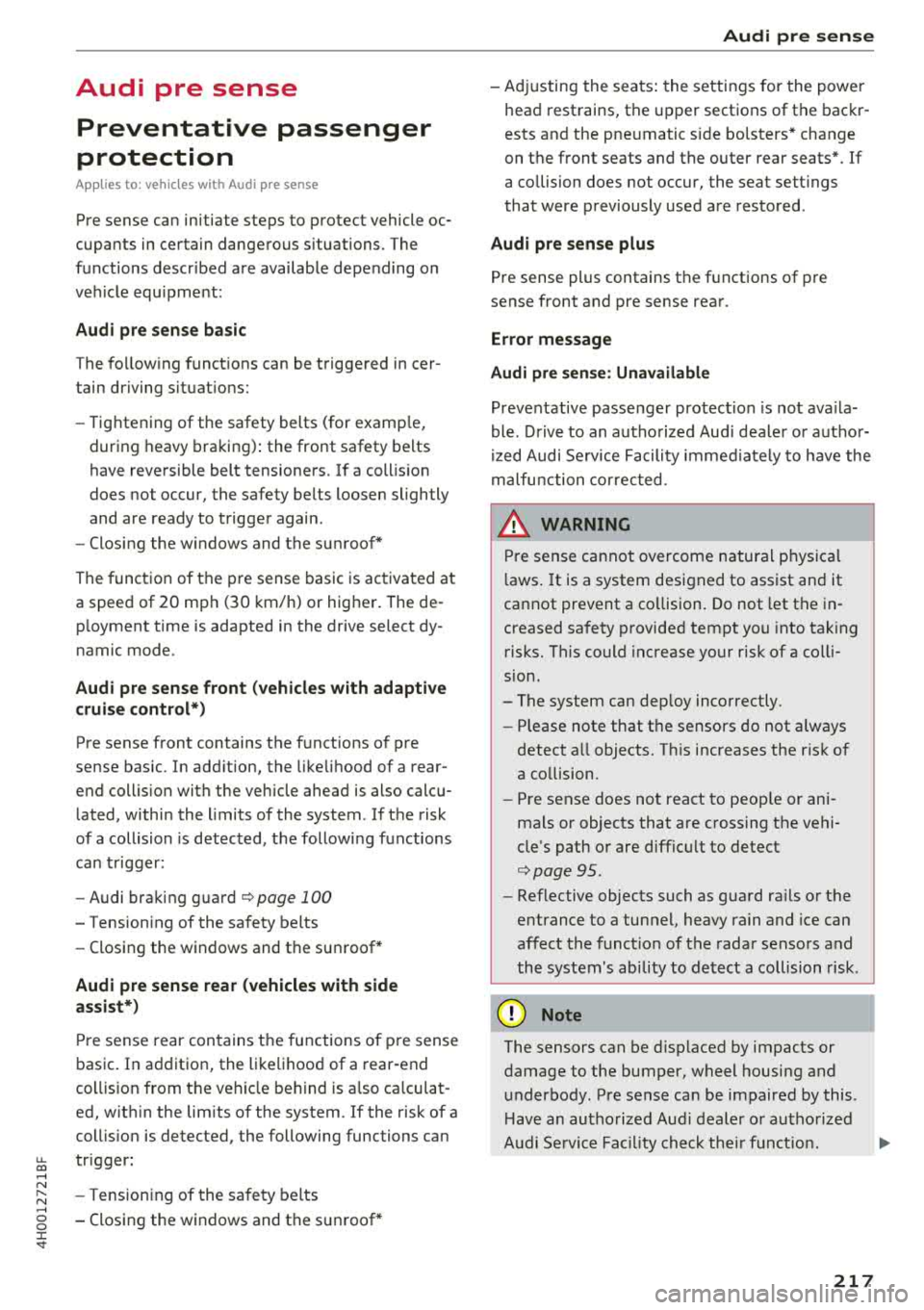

Audi pre sense Preventative passenger
protection
Applies to: ve hicles with Audi pre sense
Pre sense can initiate steps to protect vehicle oc­
cupants in certain dangerous situations. The
functions descr ibed are available depending on
veh icle equ ipment:
Audi pre sense ba sic
The fo llowing functions can be triggered in cer­
tain driving situat ions:
- Tightening of the safety belts (for examp le,
during heavy braking) : the front safety belts
have reversible belt tensioners. If a collision
does not occur, the safety belts loosen slightly
and are ready to trigger again.
- Closing the w indows and the sunroof*
The function of the pre sense basic is activated at
a speed of 20 mph (30 km/h) or hig her . The de­
p loyment time is adapted in the drive select dy ­
namic mode .
Audi pre se ns e front ( vehicl es with adapti ve
cruise contr ol* }
Pre sense front contains the f unctions of pre
sense basic. In add ition, the likelihood of a rear­
end collis ion with the vehicle ahead is also calcu­
lated, within the limits of the system . If the risk
of a collision is detected, t he following functions
can t rigger:
- Audi braking guard
¢page 100
-Tensioning of the safety belts
- Closing the windows and the sunroof *
Audi pre sense rear (vehicles with side
a ss is t*)
Pre sense rear contains t he functions of pre sense
basic. In addition, the like lihood of a rear-end
col lision from t he vehicle behind is a lso ca lculat­
ed, w ith in the lim its of the system. If the risk of a
collis ion is detected, the following functions can
~ tr igger :
.... N
~ -Tensioning of the safety belts
g -Closing the windows and the sunroof *
:c ' Audi pre sense
-Adjusting the seats : the settings for the powe r
head restrains, the upper sections of the backr ­
ests and the pne umatic side bolsters* change
on the front seats and the outer rear seats*. If
a co llision does not occur, the seat sett ings
that were previously used are restored .
Audi pre sen se plus
Pre sense plus contains the f unctions of pre
sense front and pre sense rear .
Error messag e
Audi pre sens e: Unavailable
Preventative passenger protect ion is not ava ila­
ble. Drive to an autho rized Aud i deale r or author­
ized Audi Se rvice Facility immed iately to have the
malfunction corrected.
& WARNING
--
Pr e sense cannot overcome natural p hys ica l
l aws .
It is a system designed to assist and it
cannot prevent a co llision. Do not let the in­
creased safety provided tempt you into tak ing
risks. This could inc rease your r isk of a colli ­
sion.
- The system can dep loy incorrectly.
- Please note that t he sensors do not a lways
detect a ll objects. T his increases the r isk of
a co llision.
- Pre sense does not react to peop le or ani­
mals or objects that are cross ing the vehi­
cle's path or are difficu lt to detect
¢page 95.
- Reflective objects such as gua rd ra ils or the
entrance to a tunnel, heavy ra in and ice can
affect the funct io n of the radar sensors and
the system's ab ility to detect a collision risk.
@ Note
The sensors can be d isplaced by impacts or
damage to the bumper, wheel housi ng and
underbody. Pre sense can be impaired by this .
Have an autho rized Aud i deale r or au tho rized
A udi Se rvice Fac ility check the ir funct io n.
.,.
217

u. co .... N

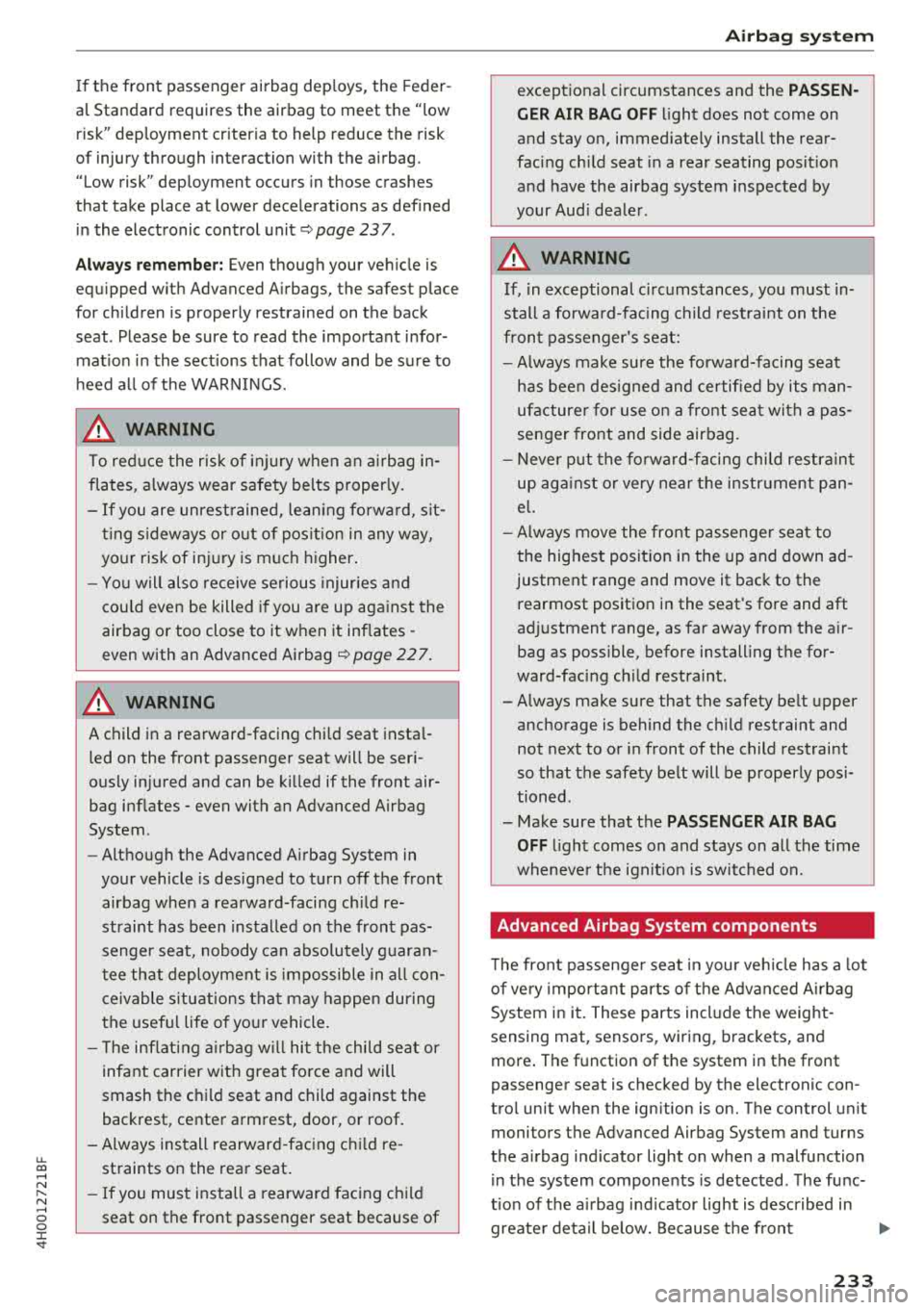

" N .... 0 0 :c ' If the front passenger airbag dep loys, the Feder ­
a l Standard requires the airbag to meet the "low
risk" deployment criteria to help reduce the risk
of injury through interaction with the airbag.
"Low risk" dep loyment occurs in those crashes
that take place at lower decelerations as defined in the electronic control unit
r;:;. page 23 7.
Al way s remember: Even though your vehicle is
equ ipped w ith Advanced A irbags, the s afest p lace
for children is properly restrained on the back
seat . Please be sure to read the important infor­
mat io n in the sect ions that follow and be su re to
h eed a ll of the WARN INGS.
A WARNING
T o red uce the r isk of injury when an airbag in­
flates, a lways wear safety be lts properly .
- If you are unrest rained, lean ing fo rwa rd, s it ­
t ing s idew ays or o ut of pos it ion in any way,
yo ur risk of in jury is much higher .
- Yo u will also receive se rious injur ies a nd
cou ld even be killed if you are up aga inst the
airbag or too close to it when it inflates
-
even with an Advanced Airbag I!!> page 22 7.
A WARNING
A child in a rearward-facing chi ld seat insta l­
led on the front passenger seat will be ser i­
ously injured and can be k illed if the front air­
bag inflates - even with an Advanced Airbag
System .
- Although the Advanced A irbag System in
yo ur vehicle is designed to turn off t he front
airbag when a rearward-facing ch ild re­
straint has been insta lled on the front pas­
senger seat, nobody can abso lutely g uara n­
tee that deployment is impossible in a ll con ­
c e ivable s ituat ions that may happen dur ing
the usefu l life o f yo ur vehicle .
- T he inf lat ing air bag w ill hit th e chi ld sea t or
infant carrier w it h great fo rce and will
smash the c hild seat and child against the
backrest , center a rmrest, door, or roof.
- Always install rearward -fac ing c hild re ­
straints on the rear seat .
- If you must install a rearwar d fac ing c hild
seat on the front passenger seat because of
Airbag syste m
except io n al circumstances and the PASSEN ­
GER AIR BAG OFF
li ght does not come on
and stay on, immed iate ly install the rea r­
faci ng chi ld seat in a rear seating pos it io n
a nd have the airbag system inspected by
your Aud i dea le r.
A WARNING
-
If, in exceptional c ircu mstances, you must in­
stall a forward-fa cing child rest ra in t on the
fron t passenger's seat:
- Always make su re the forward-facing seat
has bee n des igned and certified by its man­
uf acture r for use o n a front sea t with a pas ­
senge r front and side airbag.
- N eve r put the fo rw ar d-faci ng chi ld restra in t
up ag ainst o r very ne ar th e i nstr ument pan ­
el.
- Always move the fro nt passenge r seat to
the hig hest posit io n in the up and down ad ­
justment range and move it bac k to the
rearmost positio n in the seat's fo re and aft
ad justment range, as far away from the a ir ­
bag as poss ible, before install ing the for ­
ward-facing ch ild restraint .
- Always make sure that the safety be lt upper
anchorage is behind the c hild restraint and
not next to o r in front of the ch ild restraint
so that the safety be lt will be p roperly posi­
tioned .
- Make sure that t he
PASSENGER AIR BAG
OFF
l ight comes on and stays on a ll the time
wheneve r th e ignit ion is switched o n.
Advanced Airbag System components
The front passenge r seat in your ve hicle has a lo t
of ve ry important parts of t he Advanced A irb ag
System in it. These parts incl ude the weight ­
sensing mat, sensors, wiring, brackets, and
more . The f unction of th e system in the front
passenger seat is checked by the electronic con­
trol unit when the ign ition is on. The control unit
moni tors the Advanced Airbag System and turns
the a irbag ind icator light on when a malfunction
i n the system compone nts is detected . The func­
t ion of the a irbag ind icator light is described in
greate r deta il be low. Because t he front
233

Airbag syste m
passenger seat contains important parts of the
Advanced Airbag System, you must take care to
prevent it from being damaged . Damage to the
seat may prevent the Advanced A irbag for the
front passenger seat from doing its job in a
crash .
The front Ad vanced Airb ag S ystem con sist s
o f the follo wing :
-Crash sensors in the front of the vehicle that
measure vehicle acceleration/decelerat ion to
provide information to the Advanced Airbag
System about the severity of the crash .
- An electron ic control un it, with integrated
crash sensors for front and side impacts . The
contro l unit "decides " whether to fire the front
airbags based on the information received from
the crash sensors. The contro l unit also "de ­
cides" whether the safety be lt pretensioners
sho uld be activated.
-An Advanced Airbag with gas generator and
contro l valve for the driver inside the steering
whee l hub .
-An Advanced Airbag with gas generator and
contro l valve inside the instrument pane l for
the front passenger.
- A weight -sensing mat unde r th e upho lstery
padding of the front passenger seat cushion
that meas ures the tota l weight on the seat . T he
information registered is sent continuously to
the e lec tronic control unit to regu la te dep loy­
ment of the front Adva need A irbag on the pas ­
senger side .
- An airbag monitoring system and indicator
light in the instrument cluster
c> page 23 7 .
- A sensor in each front sea t registers the dis­
tance between the respective seat and the
steering wheel or instrument panel. The infor­
mation reg istered is sent continuously to the
electronic cont rol u nit to regulate deployment
of the fro nt Advanced A irbags.
- T he
PASSENGER AIR BAG OFF light comes on
and stays on in the center of the instr ument
pane l
c> page 23 7, fig. 232 and tells you w hen
the front Advanced Airbag on the passenger side has been turned off.
-A sensor be low the safety belt latch fo r the
front seat passenger to meas ure the tension on
234
the sa fety be lt. The tension on the safety belt
and the weight registered by the weight -sens­
ing mat he lp the contro l unit "decide" whether
the front airbag for the front passenger seat
should be turned
off or not c> page 228, Child
restraints on the front seat -some important
things to know .
-A sensor in the safety belt latch for the driver
and for the front seat passenger that senses
whether that safety belt is latched or not and
transmits this informat ion to the e lectronic
cont rol u nit.
_&, WARNING
Da mage to the front passenge r seat can pre ­
vent the front airbag from work ing prope rly .
- I mp roper repair or disassembly of the front
passenger and driver seat will p revent the
Advanced Airbag System from functioning
proper ly.
-Repairs to the front passenger seat mus t be
performed by qualified and proper ly trained
workshop personne l.
- Never remove the front passenger or driver seat from the vehicle.
-Never remove the upholstery from the front
passenger seat.
-N ever d is a ssemble o r remove pa rts from the
seat or disconnect wi res from it.
- N ever carry sharp objects in your pocke ts or
p lace them on the seat. If the weight-sens ­
ing mat in the passenger seat is p unctured
it ca nnot work proper ly.
- Never carry things on your lap or carry ob­
jects on the passenger seat. S uch items can
increase t he weight reg istered by the
weight-sensing mat and send the wrong in­ formation to the a irbag control u nit.
- Never store items under the front passenger
seat . Parts of the Advanced Airbag System
under the passenger seat cou ld be dam­
aged, preventing them and the airbag sys­
tem from worki ng p roperly.
- Never place seat covers or replacement up­
holstery that have not been specifically ap­
proved by A ud i on the front seats.
- Seat covers can prevent the Advanced A ir­
bag System from recognizi ng ch ild

restraints or occupants on the front passen­
ger seat and prevent the side airbag in the
seat backrest from deploying properly.
- Never use cushions, pillows, blankets or
similar items on the front passenger seat.
The additional padding will prevent the
weight-sensing mat in the seat from accu­
rately registering the child restraint or per­
son on the seat and prevent the Advanced
Airbag System from functioning properly .

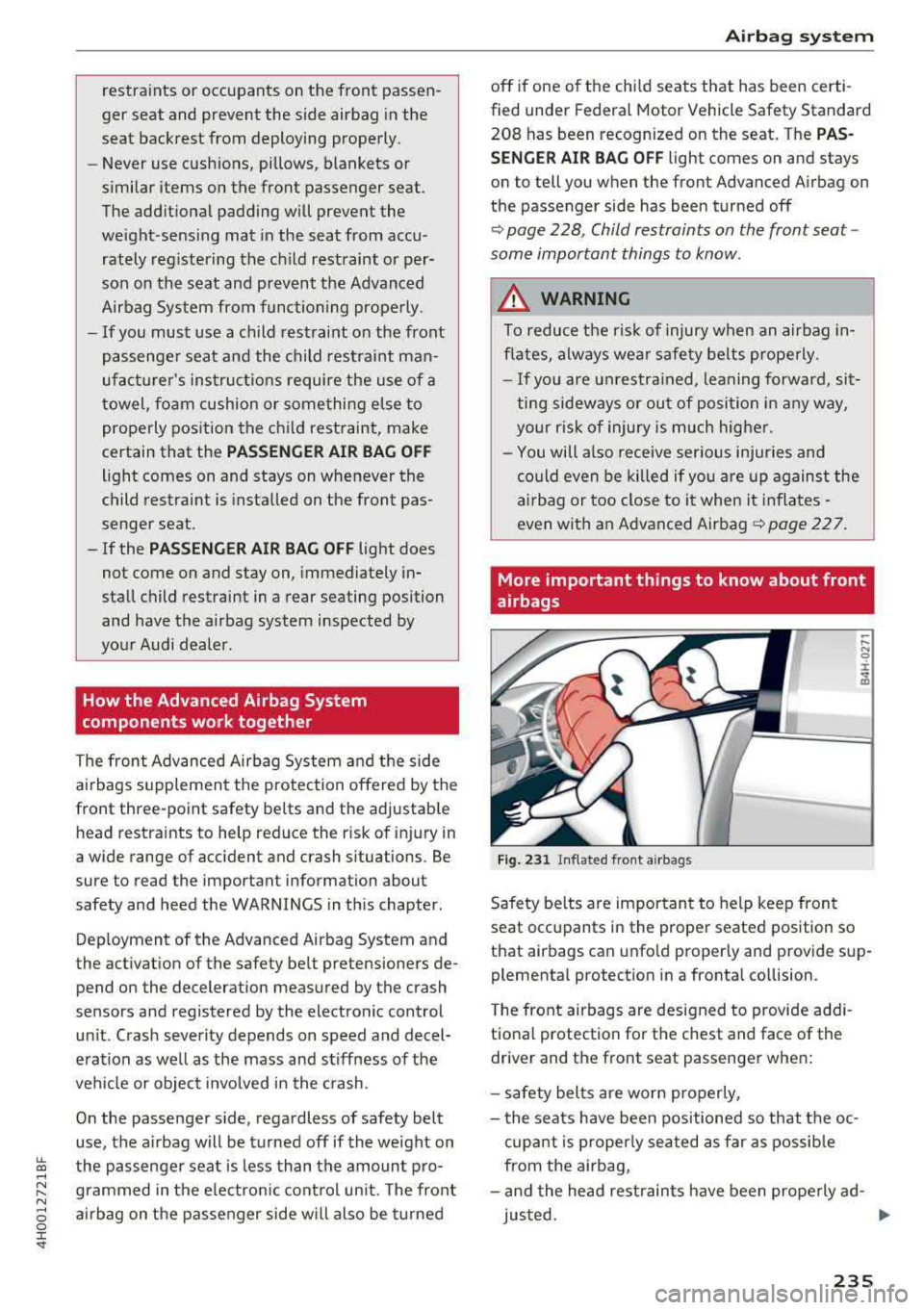

- If you must use a child restraint on the front
passenger seat and the child restraint man­
ufacturer's instructions require the use of a
towel, foam cushion or something else to properly position the child restraint, make
certain that the
PASSENGER AIR BAG OFF
light comes on and stays on whenever the
child restraint is installed on the front pas­
senger seat.
- If the
PASSENGER AIR BAG OFF light does
not come on and stay on, immediately in­
stall child restraint in a rear seating position and have the airbag system inspected by
your Audi dealer .
How the Advanced Airbag System
components work together
The front Advanced Airbag System and the side
airbags supplement the protection offered by the
front three-point safety belts and the adjustable head restraints to help reduce the risk of injury in
a wide range of accident and crash situations . Be
sure to read the important information about
safety and heed the WARNINGS in this chapter.
Deployment of the Advanced Airbag System and
the activation of the safety belt pretensioners de­ pend on the deceleration measured by the crash
sensors and registered by the electronic control
unit. Crash severity depends on speed and decel­
eration as well as the mass and stiffness of the
vehicle or object involved in the crash.
On the passenger side , regardless of safety belt
use, the airbag will be turned off if the weight on
~ the passenger seat is less than the amount pro-...,
~ gram med in the electronic control unit. The front N
8 airbag on the passenger side will also be turned 0 :c ' Airbag system
off if one of the child seats that has been certi­
fied under Federal Motor Vehicle Safety Standard
208 has been recognized on the seat. The
PAS­
SENGER AIR BAG OFF
light comes on and stays
on to tell you when the front Advanced Airbag on
the passenger side has been turned off
~ page 228, Child restraints on the front seat ­
some important things to know .
_&. WARNING
To reduce the risk of injury when an airbag in­
flates, always wear safety belts properly.
- If you are unrestrained, leaning forward, sit­
ting sideways or out of position in any way,
your risk of injury is much higher .
- You will also receive serious injuries and
could even be killed if you are up against the
airbag or too close to it when it inflates
-
even with an Advanced Airbag~ page 227.
More important things to know about front
airbags
Fig. 231 Inflated front airbags
Safety belts are important to help keep front
seat occupants in the proper seated position so
that airbags can unfold properly and provide sup­ plemental protection in a frontal collision .
The front airbags are designed to provide addi­
tional protection for the chest and face of the driver and the front seat passenger when:
- safety belts are worn properly,
- the seats have been positioned so that the oc-
cupant is properly seated as far as possible
from the airbag,
- and the head restraints have been properly ad-
justed .
.,.
235

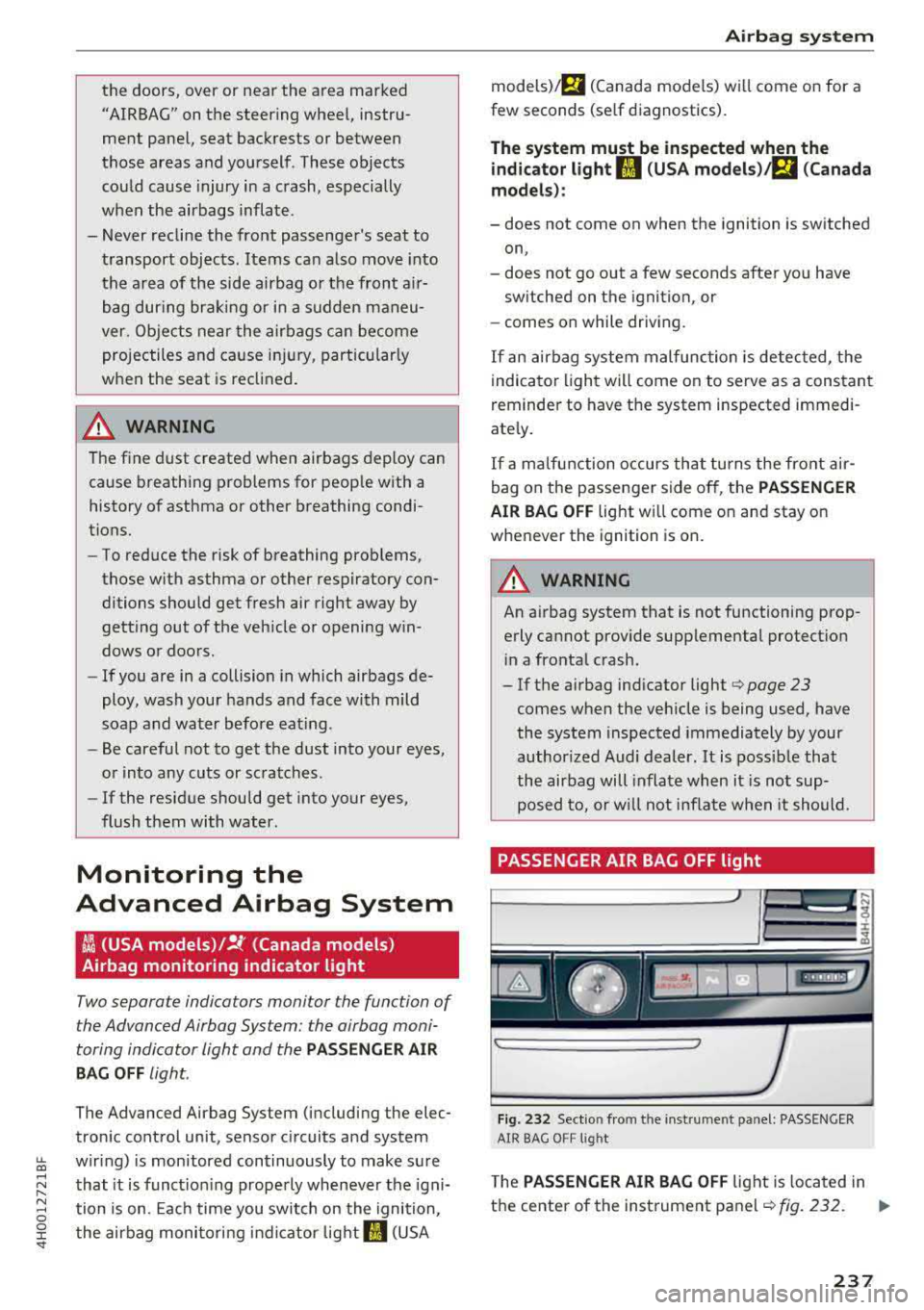

the doors, over or near the area marked
"AIRBAG" on the steering wheel, instru­
ment pane l, seat backrests or between
those areas and yourself . These objects
cou ld cause injury in a crash, especially
when the airbags inflate .
-Never recline the front passenge r's seat to
transport objects. Items ca n also move into
the area of the side airbag o r the front air­
bag during bra king or in a sudden maneu­
ver. Objects near the airbags can become
projectiles and cause in jury, particularly
when the seat is reclined.
A WARNING
T he fine dust created when airbags deploy can
cause breathing problems for people with a
history of asthma or other breathing condi­
tions.
-To reduce the risk of breathing problems,
those w ith asthma or other respiratory con­
ditions should get fresh air right away by
gett ing out of the veh icle or opening w in­
dows or doo rs.
-If you are in a collision in which airbags de­
ploy, wash your hands and face with mild
soap and water before eat ing .
-Be careful not to get the dust into your eyes,
or into any cuts or scratches .
-If the residue should get into your eyes,
flush them with water.
Monitoring the
Advanced Airbag System
~ ( USA models )/!{ (Canada models )
Airbag monitoring indicator light
Two separate indicators monitor the function of
the Advanced Airbag System: the airbag moni­
toring indicator light and the
PASSENGER AIR
BAG OFF
light.
The Advanced Airbag System (including the elec­
tron ic control unit, sensor c ircuits and system
~ wir ing) is monitored continuously to make sure
;:::: that it is funct ion ing prope rly whenever the igni-
" ~ tion is on. Each time you switch on the ignition,
~ the airbag monitoring indicator light fl (USA ' Airbag system
models)/EI (Canada models) w ill come on for a
few seconds (se lf diagnostics).
The system must be inspected when the
indicator light
II (USA models)tE,I (Canada
models) :
-does not come on when the ignition is switched
on,
-does not go out a few seconds after you have
sw itched on the ignition, or
-comes on while driving.
If an airbag system malfunction is detec ted, the
indica tor light will come on to serve as a constant
reminder to have the system inspected immedi­
ately .
If a malfu nction occurs that turns the front air­
bag on the passenger side off, the
PASSENGER
AIR BAG OFF
light will come on and stay on
whenever the ignition is on.
A WARNING
An airbag system that is not functioning prop­
erly cannot prov ide supplemental protect ion
i n a fronta l crash.
-If the airbag indicator light ¢ page 23
comes when the veh icle is being used, have
the system inspected immediately by your
author ized Audi dealer.
It is poss ible that
the airbag will inflate when it is not sup­
posed to, or w ill not inf late when it should.
PASSENGER AIR BAG OFF light
Fi g. 232 Sect io n from th e instrument panel: PASSENGER
AIR BAG O FF lig ht
T he PASSENGER AIR BAG OFF light is located in
the center of the instrument
panel ¢ fig. 232. Ill>
237
