sensor AUDI A8 2018 Owner's Guide

Airbag syste m

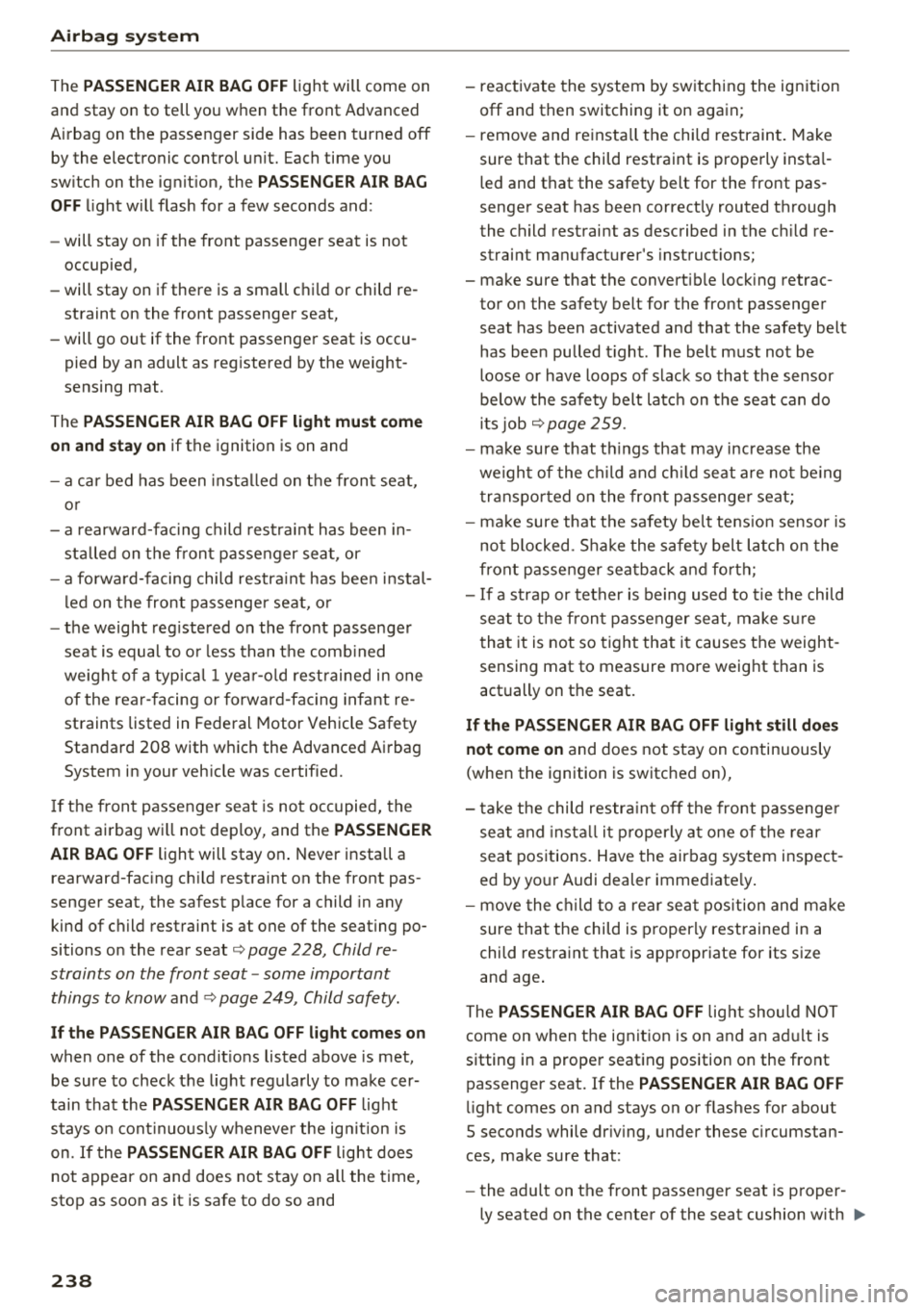

The PASSENGER AIR BAG OFF light will come on
and stay on to tell you when the front Advanced
Airbag on the passenger side has been turned
off
by the electronic control unit. Each time you
sw itch on the ignit ion, the
P ASS ENGER AIR BAG
OFF
light will flash for a few seconds and:
- will stay on if the front passenger seat is not
occupied,
- will stay on if there is a small c hild or child re ­
straint on the front passenger seat,
- will go out if the front passenger seat is occu­
pied by an adult as registered by the weight ­
sensing mat .
The
PA SSENGER AIR BAG OFF light mu st come
on and sta y on
if the ignition is on and
- a car bed has been insta lled on the front seat,
o r
- a rearward-fac ing child rest ra in t has been in ­
stalled on the front passe nger seat, or
- a fo rwa rd-facing child restra int has bee n in stal­
led on the front passenger seat, o r
- the weight reg istered on the fro nt passenger
seat is equal to o r less than the comb ined
we ight of a typ ica l 1 yea r-old restrained in one
of the rear -facing or forward -fac ing infant re­
straints listed in Federal Motor Vehicle Safety
Standard 208 with w hich the Advanced Airbag
System in your vehicle was certified.
I f t he front passenger seat is not occupied, the
front airbag wi ll not dep loy, and the
PASSENGER
AIR BAG OFF
light will stay on . Never insta ll a
rearward-facing child restraint on the front pas ­
senger seat, the safest p lace for a child in any
kind of child restraint is at one of the seating po­
sitions on the rear seat
¢ page 228, Child re­
straints on the front seat -some important
things to know
and ¢ page 249, Child safety.
If the PA SSENGER AIR BAG OFF light comes on
when one of the condit ions listed above is met,
be sure to check the light regularly to make cer­
tain that the
P A SSENGER AIR B AG OFF light
s tays o n cont inuous ly wheneve r the ig nition is
on.
If the PA SSENGER AIR BAG OFF light does
not appear on and does not stay on all the time,
stop as soon as it is safe to do so and
238
- reactivate the system by switching the ignition
off and then switching it on again;
- remove and reinsta ll the chi ld restraint . Make
sure that the child restraint is properly insta l­
led and that the safety belt for the front pas­
senger seat has been correct ly routed through
the child restraint as described in the ch ild re­
straint ma nufacturer's instruct ions;
- make sure that the convert ib le lock ing retrac­
tor on the safety belt for the front passenger
seat has been activated and that the safety belt
has been pulled t ight. The belt must not be
loose or have loops of slack so that the sensor
be low the safety belt latc h on the seat can do
i t s
job¢ page 259 .
-make sure that th ings that may increase the
weight of the ch ild and c hild seat a re not be ing
transpo rted on the front passenge r seat;
- ma ke sure that t he safety be lt te nsion sensor is
not b locked. S hake the safety belt latch on the
front passenger seatback and forth;
- If a strap or tether is being used to t ie the child
seat to t he fron t passenger sea t, make s ure
that it is not so tight that it causes the weight ­
sensing mat to measure more weight than is
actually on the seat.
If th e PAS SENGER AIR BAG OFF light still do es
n o t come on
and does not stay on continuously
(when the ignition is switc hed on),
- take the child restra int
off the front passenge r
seat and insta ll it p roperly a t one of the rear
seat pos itions. Have the airbag system inspect ­
ed by yo ur Audi dealer immediate ly .
- move the ch ild to a rear seat pos ition and m ake
sure that the child is proper ly restrained in a
child restraint that is appropriate for its size
and age .
The
PASSENGER AIR BAG OFF lig ht sho uld NOT
come on when t he ignit ion is on and an ad ult is
sitting in a proper seating position on the front
passenger seat. If the
PASSENGER AIR BAG OFF
li ght comes on and stays on or flashes for about
5 seconds while dr iv ing, under these c ircumstan­
ces, make sure that:
- the adult on the front passenger seat is proper-
ly seated on the center of the seat cushion with
..,.

lL t:0 ....
"' ......
"' .... 0 0 :c ' @ For the sake of the environment
Undeployed airbag modu les and pretension­
ers might be classified as Perch lorate Materi­
al· special handling may apply, see
www.dtsc .ca.gov/hazardouswaste/
perchlorate. When the vehicle or parts of the
restraint system including a irbag modules
and safety belts with p retensioners are scrap·
ped, a ll applicable laws and regu lations must
be observed. Your a uthorized Audi dealer is
familiar w ith these requirements and we rec­
ommend that you have yo ur dealer perform
this service for you .
Other things that can affect Advanced
Airbag performance
Changing the vehicle's suspension system can
change the way that the Advanced Airbag System pe rforms in a crash. For examp le, using tire-r im
comb ina tions not approved by Audi, lowering the
veh icle, chang ing the s tiffness of the suspens ion,
including the springs, suspension struts, shock
absorbers etc . can change the forces that are
measured by the airbag sensors and sent to the
e lectronic contro l unit . Some suspension changes
can, for example, increase the force levels meas­
ured by the sensors and make the airbag system
deploy in crashes in wh ich it would not deploy if
the changes had not been made . Other ki nds of
changes may reduce the fo rce levels measured by
the sensors and preven t the airbag from deploy­
ing when i t should.
A WARNING
Changing the vehicle's suspension including
use of unapproved tire-rim combinations can
change Advanced Airbag performance and in­
crease the risk of serious personal injury in a
crash.
-Never install suspens ion components that
do not have the same performance charac­
teristics as the components originally instal­
led on your veh icle.
-Never use tire-rim combinations that have
not been approved by Audi.
Airbag system
A WARNING
Items stored between the safety belt buckle
and the center console can cause the sensors i n the buckle to send the w rong information
to the electronic control modu le and prevent
the Advanced A irbag System from wo rking
p roperly.
- Always make sure that nothing can interfe re
with the safety belt buckles and that they
are not obstructed.
Knee airbags
Description of knee airbags
The knee airbag system can provide supplemen­
tal protection to properly restrained front seat
occupants.
F ig . 233 Dr ive r's knee airbag
T he driver knee airbag is in the ins trument panel
u nderneath the steer ing
whee l~ fig. 233, the
airbag fo r the passe nger is at abou t the same
height in the instr ument pane l underneath the
glove compartment.
The knee airbag offers add itional protection to
t h e driver 's and passenger's knees and uppe r and
lower thigh areas and supplements the protec­
t ion prov ided by the safety be lts .
If the front airbags deploy, the knee airbags also
deploy in frontal collis ions when the deployment
threshold stored in the control unit is met
~ page 235, More important things to know
about front airbags.
In add ition to their normal sa fety f unct ion, safe-
ty be lts he lp keep the driver or front passenge r in
..,.
241

lL t:0 ....
'"" ......
'"" .... 0 0 :c ' airbags have deployed. The airbags also inflate
with a great deal of force and it is important for
occupant safety that nothing should be in their
way when they deploy .
Full y inflated airbags in comb ination with proper­
ly worn safety belts slow down and limit the oc­
cupant's forward movement and help to reduce
the risk of injury.

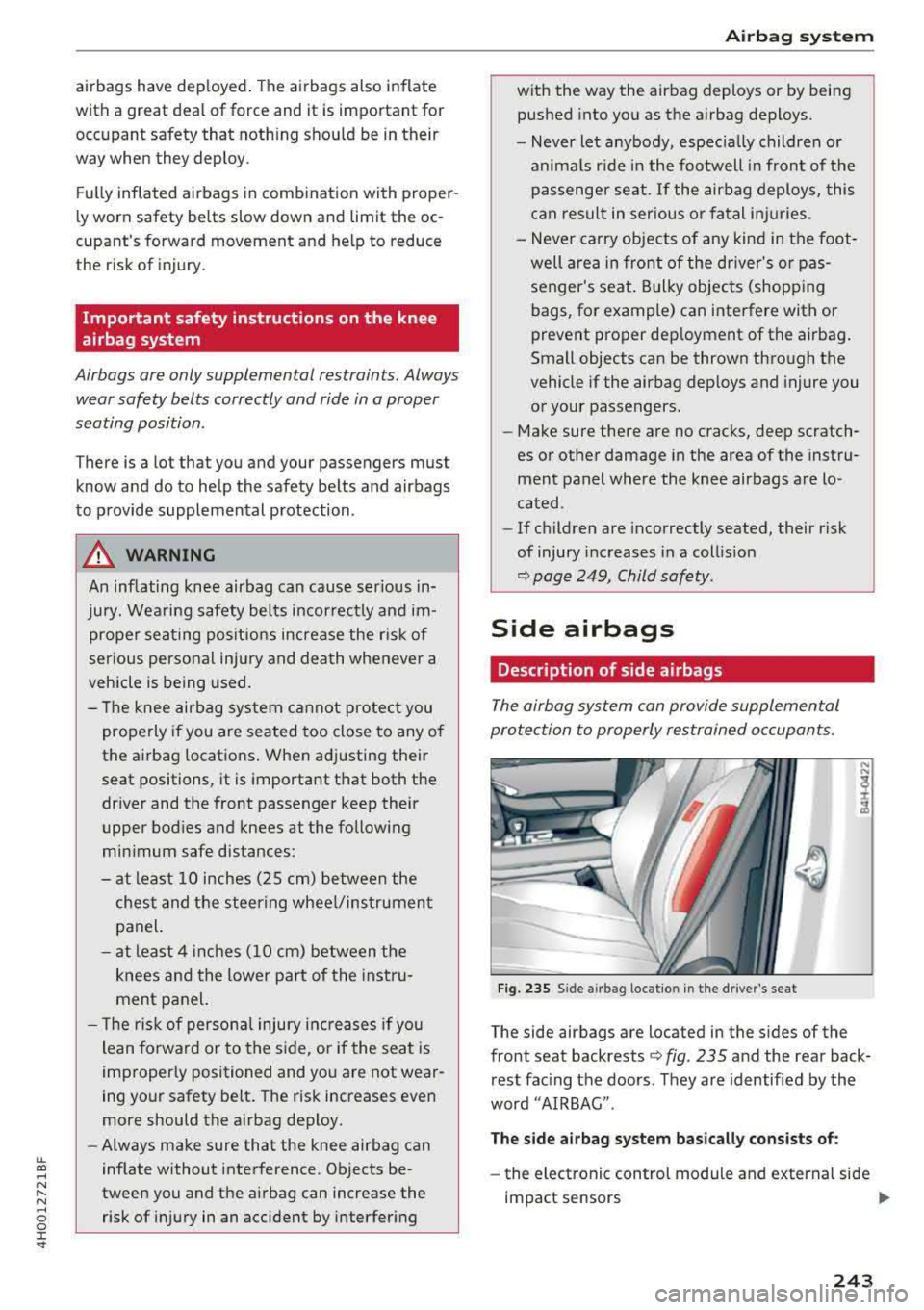

Important safety instructions on the knee
airbag system
Airbags are only supplemental restraints. Always
wear safety belts correctly and ride in a proper
seating position .
There is a lot that you and your passengers must
know and do to help the safety belts and airbags
to provide supplemental protection .
A WARNING
An inflating knee airbag can cause serious in­
jury. Wearing safety belts incorrectly and im­
proper seating positions increase the risk of
serious personal injury and death whenever a
vehicle is being used.
- The knee airbag system cannot protect you
properly if you are seated too close to any of
the airbag locations. When adjusting their
seat positions, it is important that both the
driver and the front passenger keep their
upper bodies and knees at the following
minimum safe distances :
- at least 10 inches (25 cm) between the
chest and the steering wheel/instrument
panel.
- at least 4 inches (10 cm) between the
knees and the lower part of the instru­
ment panel.
- The risk of personal injury increases if you
lean forward or to the side, or if the seat is
improperly positioned and you are not wear­
ing your safety belt. The risk increases even
more should the airbag deploy.
-Always make sure that the knee airbag can inflate without interference. Objects be­
tween you and the airbag can increase the risk of injury in an accident by interfering
Airbag system
with the way the airbag deploys or by being
pushed into you as the airbag deploys.
- Never let anybody, especia lly children or
animals r ide in the footwell in front of the
passenger seat. If the airbag deploys, this
can result in serious or fatal injuries.
- Never carry objects of any kind in the foot­
well area in front of the driver's or pas­
senger's seat . Bulky objects (shopping
bags, for example) can interfere with or
prevent proper deployment of the airbag.
Small objects can be thrown through the
vehicle if the airbag deploys and injure you
or your passengers.
- Make sure there are no cracks, deep scratch­
es or other damage in the area of the instru­
ment panel where the knee airbags are lo­
cated.
- If children are incorrectly seated, their risk
of injury increases in a collision
<=> page 249, Child safety .
Side airbags
Description of side airbags
The airbag system can provide supplemental
protection to properly restrained occupants.
Fig. 235 Side a irbag locatio n in the driver's seat
The side airbags are located in the sides of the
front seat backrests
<=> fig . 235 and the rear back­
r est facing the doors . They are identified by the
word "AIRBAG" .
The side airbag system basically consists of:
-the electronic control module and external side
impact sensors
.,..
243

Airbag system

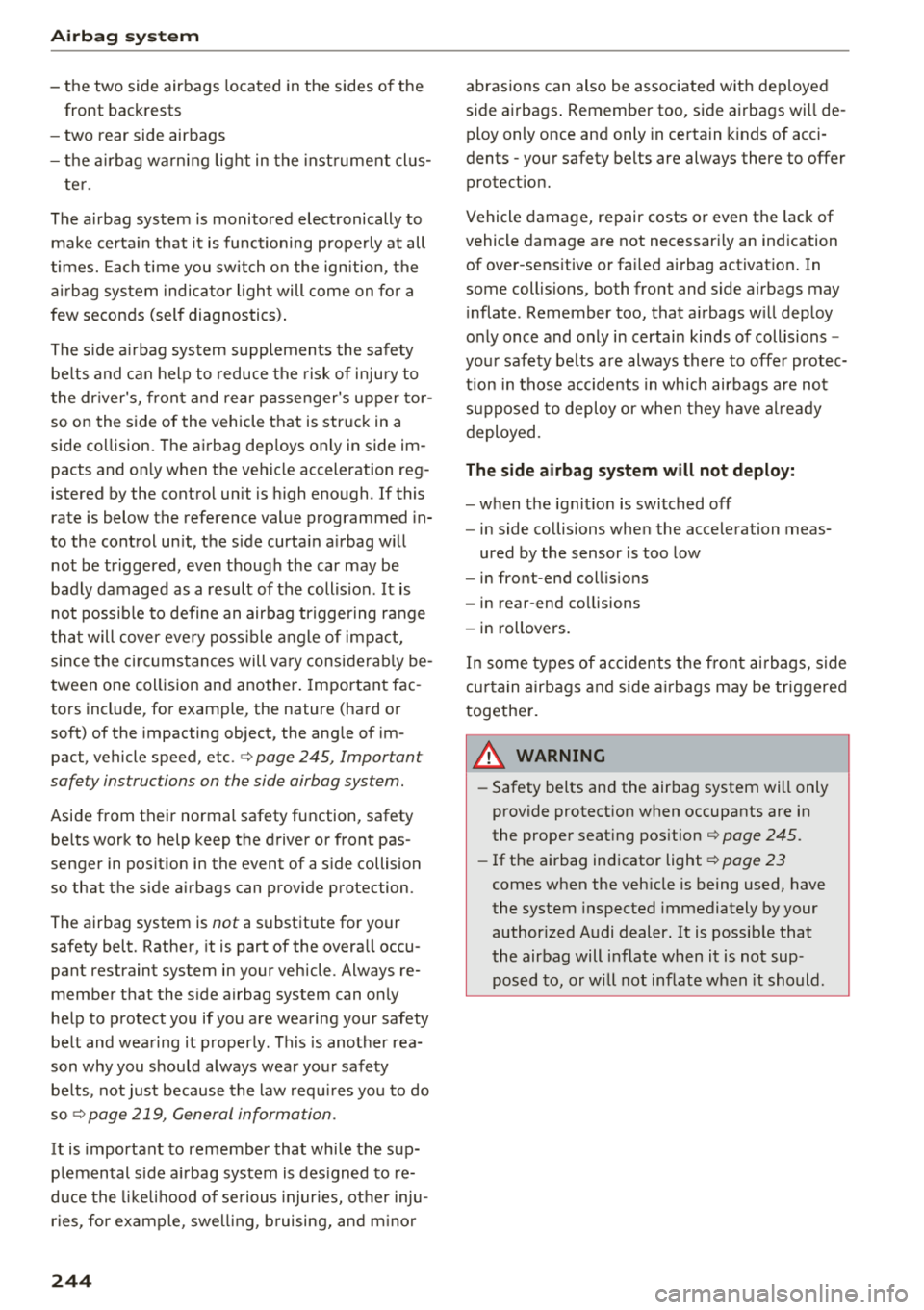

-the two side airbags located in the sides of the
front backrests
- two rear side airbags
- the airbag warnin g light in the inst rument clus -
ter.
The airbag system is monitored electronically to make certa in that it is functioning properly at all
times. Each time you sw itch on the ign ition, the
airbag system indicator light will come on for a
few seconds (self diagnostics) .
The sid e airbag system supplements the safety
be lts and can help to reduce the risk of injury to
t he dr iver's, front and rear passenger's upper tor­
so on the side of the vehicle that is struck in a
side co llision . The airbag dep loys only in side im­
pacts and on ly when the ve hicle acceleration reg ­
istered by the control unit is high enough . If this
rate is below the reference value programmed in­
to the control un it, the side curta in a irbag w ill
not be triggered, even though the car may be
badly damaged as a result of the collision.
It is
not poss ib le to define an airbag triggering range
that will cover eve ry poss ible angle of impact,
since the circumstances will vary considerab ly be ­
tween one collision and another . Important fac­
tors include, for example, the nature (hard or
soft) of the impacting object, the ang le of im­
pact, vehicle speed, etc .
c> page 245, Important
safety instructions on the side airbag system.
Aside from their normal safety function, safety
be lts work to help keep the driver or front pas­
senger in pos it ion in the event of a s ide collision
so that the side a irbags can provide protection .
The airbag system is
not a substitute for your
safety belt. Rather, it is part of the overa ll occu ­
pant restraint system in your vehicle. Always re­
member that the s ide airbag system can only
help to protect you if you are wearing your safety
belt and wearing it properly. This is another rea­
son why you s hou ld always wear you r safety
be lts, not just because the law requ ires you to do
so c> page 219, General information .
It is important to remember that while the sup­
p lemental s ide a irbag system is designed to re­
duce the likelih ood of se rious injur ies, other inju­
ries, for example, swelling, bruising, and minor
244
abrasions can also be associated with deployed
side airbags . Remember too, side airbags wi ll de­
ploy only once and only in certain kinds of acci­
dents - your safety belts are always there to offer
protect ion.
Vehicle damage, repair costs or even the lack of
vehicle damage are not necessar ily an ind ication
of over-sens itive or fa iled airbag activat ion. In
some collisions, both front and side airbags may
i nflate . Remember too, that air bags w ill deploy
o nl y once and only in certain kinds of collisions -
your safety be lts are always there to offer protec­
t ion in those accidents in wh ich airbags a re not
s uppo sed to deploy or when they have already
deployed .
The side airbag system will not deploy:
-when t he ign ition is switched off
- in side collisions whe n the acceleration meas-
ured by the sensor is too low
- in front-end coll is ions
- in rear -end co llisions
- in rollovers.
In some types of accidents th e front airbags, side
curtain airbags and sid e airbags may be trigg ered
together.
A WARNING
- Safety belts and the airbag system will only
provide protection when occupants are in
the proper seat ing position
c> page 245.
-If the airbag indicator light c> page 23
comes when the veh icle is being used, have
the system inspected immediately by your
author ized Audi dealer. It is possible that
the airbag will inflate when it is not sup­
posed to, or will not inflate w hen it should.

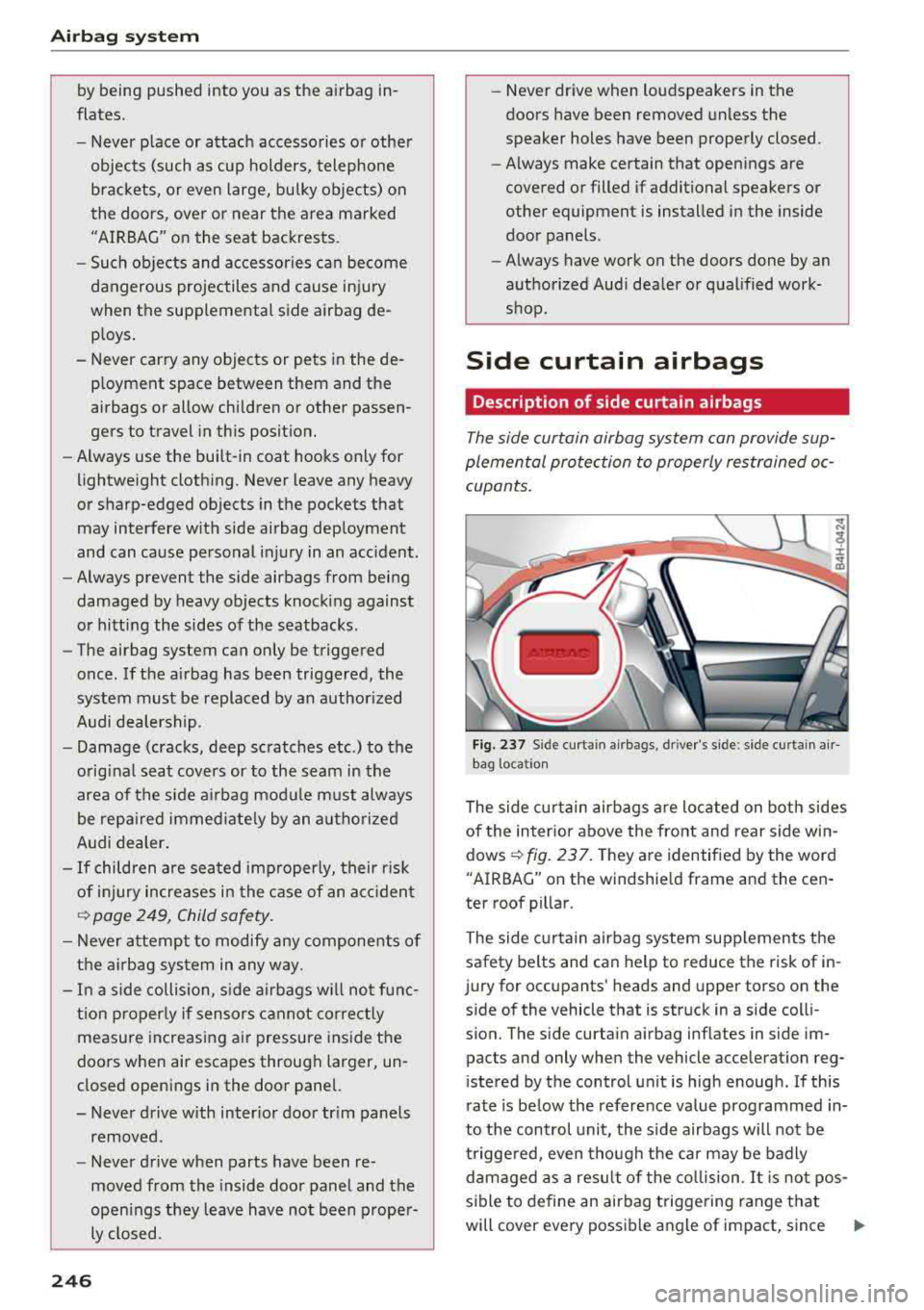

Airb ag syste m
by being pushed into you as the airbag in­
flates.
- Never p lace or attach accessories or other
objects (such as cup holders, telephone brackets, or even Large, bulky objects) on
the doors, over or near the area marked
"AIRBAG" on the seat backrests.
- Such objects and accessories can become
dangerous projectiles and cause injury
when the supplemental side airbag de­ ploys.
- Never carry any objects or pets in the de­ ployment space between them and the
airbags or allow children or other passen­
gers to travel in this position.
- Always use the built-in coat hooks only for
Lightweight clothing. Never leave any heavy
or sharp-edged objects in the pockets that
may interfere w ith side airbag deployment
and can cause personal injury in an accident.
- Always prevent the side airbags from being
damaged by heavy objects knocking against
or hitting the sides of the seatbacks.
- The airbag system can only be triggered
once. If the airbag has been triggered, the
system must be replaced by an author ized
Audi dealership .
- Damage (cracks, deep scratches etc.) to the
original seat covers or to the seam in the
area of the side a irbag mod ule m ust always
be repa ired immed iately by an authorized
Audi dealer .
- If children are seated imp roperly, their risk
of injury increases in the case of an acc ident
¢ page 249, Child safety.
- Never attempt to modify any components of
the a irbag system in any way.
- In a side collision, side a irbags w il l not func­
t ion properly if sensors cannot correctly
measure increasing air pressure ins ide the
doors when air escapes through larger, un­
closed openings in the door panel.
- Never drive with inter ior door tr im panels
removed .
- Never drive when parts have been re­
moved from the inside door panel and the
open ings they leave have not been proper­
ly closed.
2 4 6
- Never drive when loudspeakers in the
doors have been removed unless the
speaker holes have been properly closed.
- Always make certain that openings are
covered or filled if additional speakers or
other equipment is installed in the inside
door panels.
- Always have work on the doors done by an
authorized Aud i dea ler or qualified work­
shop.
Side curtain airbags
Description of side curtain airbags
The side curtain airbag system can provide sup­
plemental protection to properly restrained oc ­
cupants.
Fig. 237 S id e curt ain airbags, driver's sid e: side curtain air­
bag location
The side curtain airbags are located on both sides
of the interior above the front and rear side win­
dows¢
fig. 237. They are identified by the word
"AIRBAG" on the windshield frame and the cen­
ter roof p illar .
The side curtain airbag system supplements the
safety belts and can help to reduce the risk of in­
jury for occupants' heads and upper torso on the
s ide of the vehicle that is struck in a side colli­
sion. The side curtain airbag inflates in side im­
pacts and only when the vehicle acceleration reg­
istered by the control unit is high enough. If this
rate is below the reference value programmed in­
to the control unit, the side airbags will not be
triggered, even though the car may be badly damaged as a result of the collision .

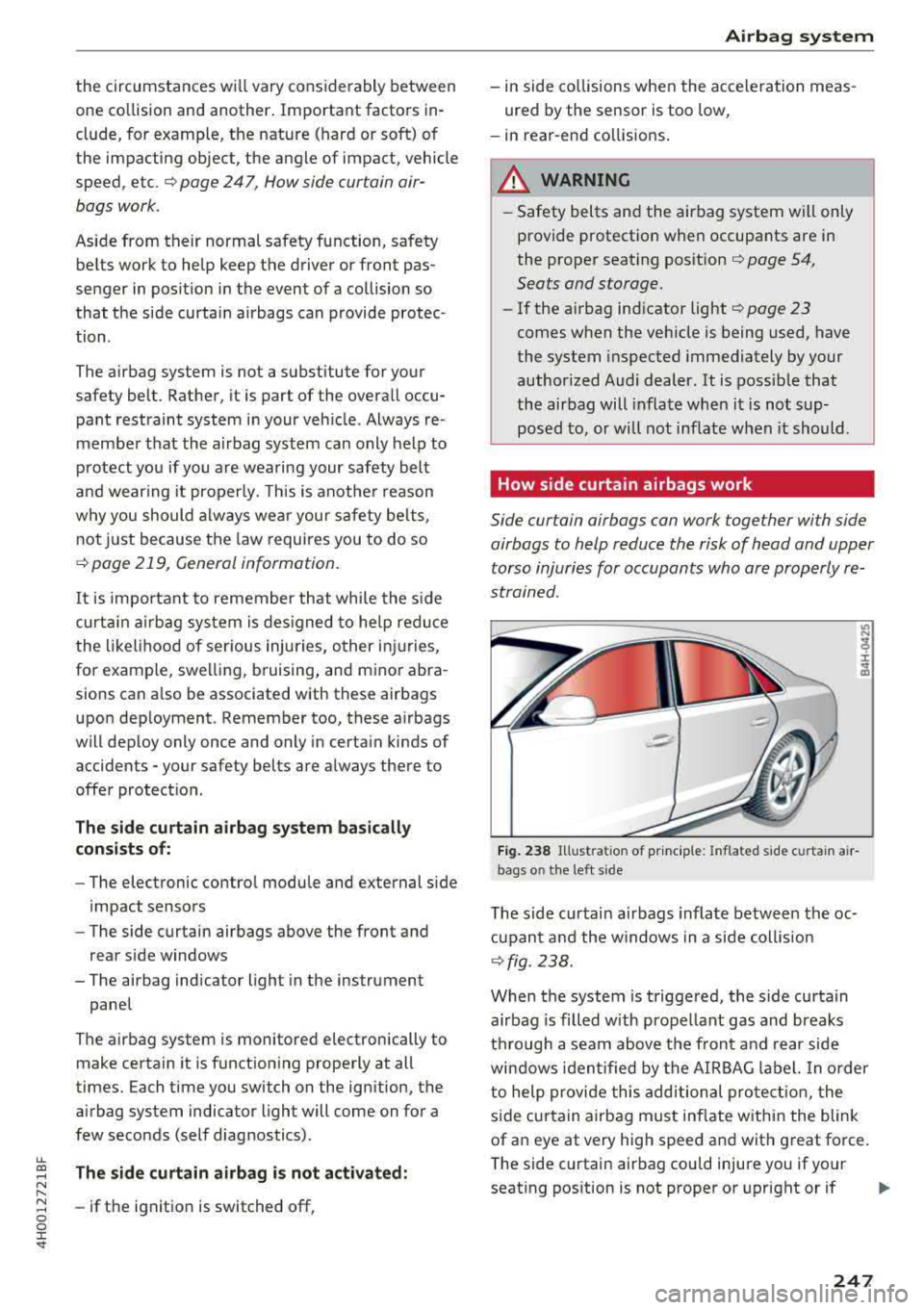

It is not pos­
sible to define an airbag triggering range that
will cover every possible angle of impact, since
..,.

lL t:0 ....
'"" " '"" .... 0 0 :c ' the circumstances will vary considerably between
one co llision and another. Important factors in­
clude, for example, the nature (hard or soft) of
the impacting object, the angle of impact, vehicle
speed, etc.
c> page 247, How side curtain air­
bags work .
Aside from their normal safety function, safety
be lts work to help keep the driver or front pas­
senger in posit ion in the event of a collision so
that the side curta in airbags can provide protec­
tion .
The airbag system is not a substitute for your safety belt. Rather, it is part of the overall occu­
pant restraint system in your veh icle . Always re ­
member t hat the airbag system can only help to
protect you if you are wea ring your safety belt
and wear ing it properly . T his is anothe r reason
why you should always wear your safety be lts,
not just because the law requi res you to do so
¢ page 219, General information.
It is important to remember that while the s ide
curta in a irbag system is des igned to he lp reduce
the likelihood of ser ious injur ies, other injuries,
for example, swe lling, bruising, and minor abra ­
sions can a lso be associated with these airbags
upon dep loyment. Remember too, these airbags
will deploy only once and only in certa in kinds of
accidents
-your safety belts are a lways there to
offer protect ion.
The side curtain airbag system basically
consists of:
- The electronic contro l module and external side
impact senso rs
- The side curtain airbags above the front and
rear s ide windows
- The airbag indicator light in the instrument panel
The airbag system is monitored e lectronically to
make certain it is funct ioning properly at all
times. Each time you switch on the ign ition, the
airbag system indicator light will come on for a
few seconds (self diagnostics) .
The side curtain a irbag is not a ctivated:
- if the ignition is switched off,
Airbag system
- in side co llisions whe n the acceleration meas­
ured by the sensor is too low,
- in rear -end co llisions .
A WARNING
-Safety belts and the airbag system will only
provide protection when occupants are in
the proper seating position
c> page 54,
Seats and storage.
- If the airbag ind icator light i=> page 23
comes when the vehicle is being used, have
the system inspected immediately by your
author ized Audi dealer. It is possible that
the airbag will inflate when it is not sup­
posed to, or w ill not inf late when it should .
How side curtain airbags work
Side curtain airbags can work together with side
airbags to help reduce the risk of head and upper
torso injuries for occupants who are properly re­
strained.
F ig . 2 38 Illus trat io n of pr incip le: Inflated side curta in a ir­
bags o n the left s ide
T he side cu rtain airbags inflate between the oc­
c u pant and the w indows in a side coll is ion
¢fig. 238.
When the system is triggered, the s ide curtain
airbag is filled with propellant gas and breaks
th rough a seam above the front a nd rear side
windows identified by the AIRBAG label. In order
to help provide this additional pro tect io n, the
s ide curtain airbag must inflate w ithin the blink
of an eye at very high speed and with great force.
The side curtain airbag could injure you if your
seat ing pos ition is not proper or upright or if
247

u. co .... N

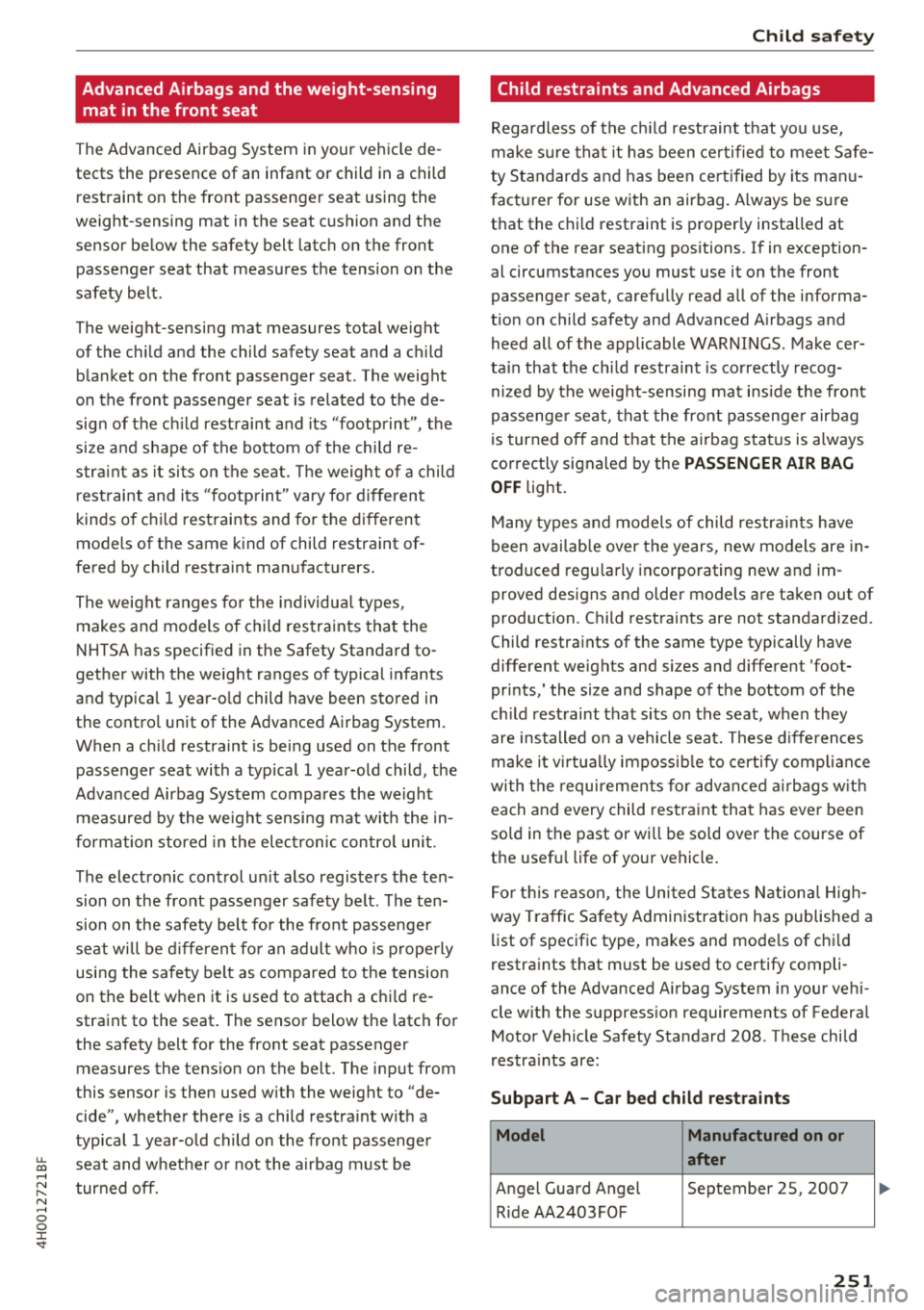

" N .... 0 0 :c ' Advanced Airbags and the weight-sensing mat in the front seat
The Advanced Airbag System in your vehicle de ­
tects the presence of an infant or child in a child restraint on the front passenger seat using the
weight-sensing mat in the seat cushion and the
sensor be low the safety belt latch on the front
passenger seat that measures the tension on the
safety belt.
The weight-sensing mat measures total weight
of the ch ild and the child safety seat and a ch ild
blanket on the front passenger seat. The weight
on the front passenger seat is related to the de­
sign of the ch ild restraint and its "footprint", the
size and shape of the bottom of t he chi ld re­
str aint as it sits on the seat. The weight of a child
restraint and its "footprint" vary for d ifferent
kinds o f child restraints and for the different
models of the same kind of child restraint of­
fered by child restraint manufact urers.
The weight ranges for the individua l types,
makes and models of child restraints that the
NHTSA has specified in the Safety Standard to ­
gether with the weight ranges of typical infants
and typical 1 year-o ld child have been stored in
the control unit of the Advanced A irbag System.
When a child restraint is being used on the front passenger seat with a typ ical 1 year-old child, the
Advanced A irbag System compares the we ight
measured by the we ight sensi ng mat w ith the in ­
formation stored in the electronic contro l uni t.
The electron ic control u nit also registers the ten­
sion on the front passenger safety belt. The ten­
sion on the safety belt for the front passenge r
seat will be d iffe ren t fo r an ad ult who is p roperly
using the safety belt as compared to t he tension
on the belt when it is used to attach a c hild re ­
straint to the seat . The sensor below the latch for
the safety belt for the front seat passenger
measures the tens ion on the belt. The input from
this sensor is then used w ith the weight to "de­
cide", whether there is a child restra int w ith a
typical 1 year-old child on the front passenge r
seat and w hethe r or not the airbag must be
turned off.
Ch ild saf ety
Child restraints and Advanced Airbags
Regardless of the c hild restraint t hat yo u use,
make s ure tha t it has been ce rt ified to mee t Safe ­
ty Standards an d has been cert ified by its man u­
f act urer for use with an airbag. A lways be sure
t h at the c hild restraint is properly installed at
one of the rear seating positions. If in exception­
al circumstances you must use it on the front
passenger seat, careful ly read all of the informa­
t ion on child safety and Advanced A irbags and
heed all of the applicable WARNINGS. Make cer­
ta in that the ch ild restraint is co rrectly recog­
nized by the weight-sensing mat ins ide the front
passenge r seat, that the front passenge r airbag
is turned off and that the a irbag sta tus is always
correctly signaled by the
PASSENGER AIR BAG
OFF
light .
M any types and models of child restra in ts h ave
been avai lab le over the years, new models are in ­
t roduced regu larly incorporating new and im­
proved designs and older models are taken out of
production. Child restraints are not standardized.
Child restra ints of the same type typically have
different weights and sizes and different 'foot­
prints,' the size and shape of the bottom of the
ch ild rest raint that sits on the seat, when they
are installed on a vehicle seat. These d iffe rences
make it v irtu a lly imposs ib le to cert ify comp lian ce
wi th t he requi rements for adv anced airbags w it h
each and every child restra int tha t has ever been
sold in the past or wi ll be so ld over the course of
the usef ul life of your vehicle .
F o r thi s reason, the Uni ted Sta tes N ation al High ­
way Traffic Sa fety Admin istrat ion has published a
li st of specific type, makes and mode ls of chi ld
restraints that must be used to certify compli ­
ance of the Advanced Airbag System in your ve hi­
cle w it h the suppress ion requirements of Federal
Motor Vehicle Safety Standard 208. These chi ld
restra ints are:
Subpart A - Car b ed child restraints
Model Manufactured on or
after
Angel Guard Angel September 2S, 2007 Ride AA2403FOF
251

lL t:0 ....
"" ......

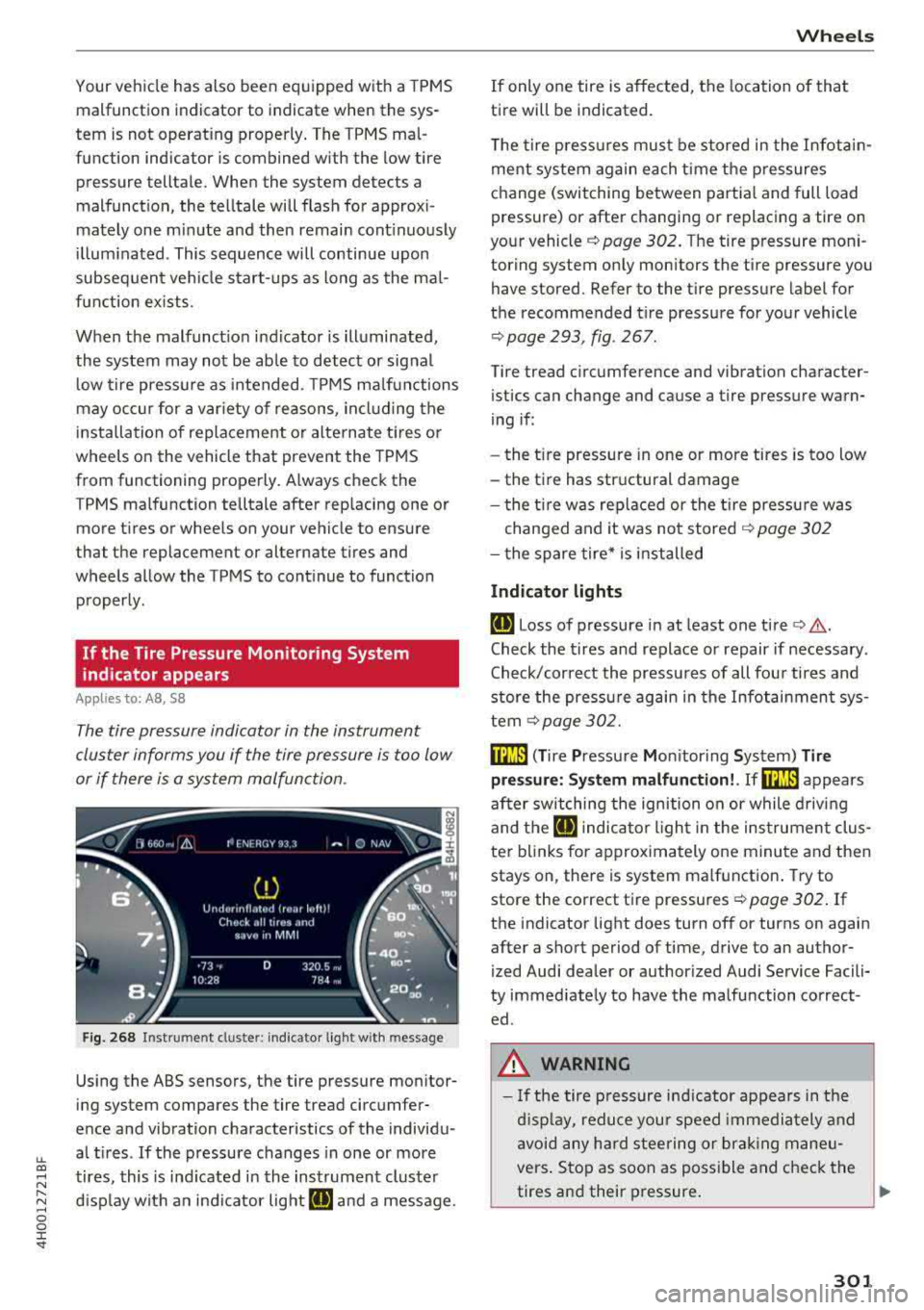

"" .... 0 0 :c ' Your vehicle has also been equipped with a TPM S
malfunction indicator to indicate when the sys­
tem is not operating properly. The TPMS mal­
function indicator is combined with the low tire
pressure telltale. When the system detects a
malfunction, the telltale will flash for approxi­
mately one minute and then remain cont inuously
illuminated . This sequence will continue upon
subsequent vehicle start-ups as long as the mal­
function ex ists.
When the malfunction indicator is illuminated,
the system may not be ab le to detect or signal
low tire pressure as intended . TPM S malfunctions
may occur for a var iety of reasons, including the
installation of replacement or alternate tires or
wheels on the vehicle that prevent the TPMS
from functioning properly. Always check the
TPMS malfunction telltale after replacing one or
more tires or wheels on your vehicle to ensure
that the replacement or alternate tires and
wheels allow the TPMS to continue to function
properly.
If the Tire Pressure Monitoring System
indicator appears
Applies to: AS, 58
The tire pressure indicator in the instrument
cluster informs you if the tire pressure is too low
or if there is a system malfunction .
Fig. 268 Instrument clus ter: indicator light with message
Using the ABS sensors, the tire pressure monitor­
ing system compares the tire tread circumfer­
ence and vibration characteristics of the individu­
al tires . If the pressure changes in one or more
tires, this is ind icated in the instrument cluster
display with an indicator light
ti] and a message .
Wheels
If only one tire is affected, the location of that
tire will be indicated.
The tire pressures must be stored in the Infotain­
ment system again each time the pressures
change (switching between partial and full load
pressure) or after changing or replacing a tire on
your vehicle
c:> page 302. The tire pressure mon i­
toring system only monitors the tire pressure you
have stored. Refer to the tire pressure label for
the recommended tire pressure for your vehicle
c:> page 293, fig . 267 .
Tire tread circumference and vibration character­
istics can change and cause a tire pressure warn­
ing if :
- the t ire pressure in one or more tires is too low
- the tire has structural damage
- the tire was replaced or the tire pressure was
changed and it was not stored
c:> page 302
- the spare tire* is installed
Indicator lights
ti] Loss of pressure in at least one tire c:> ,&..
Check the tires and replace or repair if necessary.
Check/correct the pressures of all four tires and
store the pressure again in the Infotainment sys­
tem
c:>page 302.
mm ( T ire Pressure Monitor ing System) Tire
pressure: System malfunction!. Ifm:m appears
after switching the ignition on or while driving
and the
ti] indicator light in the instrument clus­
ter blinks for approximately one minute and then
stays on, there is system malfunction. Try to
store the correct tire pressures
c:> page 302. If
the indicator light does turn off or turns on again
after a short period of time, drive to an author­
ized Audi dealer or authorized Audi Service Facili­
ty immediately to have the malfunction correct­ ed .
.&, WARNING
- If the tire pressure ind icator appears in the
display, reduce your speed immediately and
avoid any hard steering or braking maneu­
vers. Stop as soon as possible and check the
tires and their pressure.
..,.
301

u. co .... N
" N .... 0 0 :c ' may occur for a variety of reasons, including the
installation of replacement or alternate tires or
wheels on the vehicle that prevent the TPMS
from functioning properly . Always check the
TPMS malfunction telltale after replacing one or
more tires or wheels on your vehicle to ensure
that the replacement or alternate tires and
wheels allow the TPMS to continue to function
properly.
Description
Applies to: 58 plus
The tire pressure monitoring system monitors
the pressure in the four tires when driving.
The system uses sensors that measure the tem ­
perature and pressure in the tires . The data is
sent from these sensors to the control module by
radio frequency.
The Tire Pressure Monitoring System shows the
current pressures and temperatures of the tires
in the Infota inment system
c:> page 303 . It also
compa res the current tire pressures with the
stored tire press ures and gives a warning in the
driver information system if the tire pressure is
different from what is stored
c:> page 304.
The system does not detect if the stored tire
pressures match the recommended tire pres­
sures.
- Every time the tire pressures change, for exam-
ple when the load in the vehicle changes,
- after replac ing a tire, or
- if wheels with new wheel sensors are used,
you must store the tire pressures again
c:> page 304.
A WARNING
-The tire pressure mon itor ing system assists
the driver in monitoring tire pressures. The
dr iver is responsible for having the tires in­
flated to the correct pressure.
- Do not change the tire pressure when the
temperature of the tire is extremely high.
T his cou ld result in serious damage to the
t ir e and even cause the tire to burst, in­
creasing the risk of an accide nt.
Wheels
-A tire with low pressure flexes more . This
heats the tire up too much. This could cause
the tread to separate and even cause the
tire to burst, increasing the risk of an acci­
dent.
- The Tire Pressure Monitoring System does
not warn you of damage or defects in the
tire construct ion that could cause the tire to
burst, for example. Inspect your tires regu­
larly.
@ For the sake of the environment
Low tire pressure increases fuel consumption
and tire wear.
(D Tips
-The pressure of the spare t ire* is not mon i­
tored.
- If tires are replaced, the sensors/va lves do
not need to be removed or replaced. Just re­
placed the valve stem and, if necessary, the
valve and the whee l electronics . If you have
questions, see an authorized Audi dealer or
authorized Audi Service Facility.
Displaying tire pressures/temperatures
Applies to: 58 plus
Requirement: the ignition must be switched on.
.. Select: the I CAR! funct ion button > Car systems
> Service & control > Tire pressure monitor >
Display tire pressure .
The current tire pressures are shown in green and
yellow numbers in the Infotainment system:
-Green: the current tire pressure and the spec i­
fied tire pressure are approx imately the same .
-Yellow: the current tire pressure is too low
compared to the specified tire pressure .
The specified tire pressure is the last tire pres ­
sure that was stored
c:> page 304 .
Note that the tire pressure also depends on the
temperature of the tire . The tire pressure in­
creases as the engine becomes warmer while
driv ing.
.,.
303

Wheels
~ WARNING
Read and follow the important information
and notes ¢
page 303.
© Tips
The tire pressure or tem perature a re not di s­
played in ada pta tion mode. Da shes --.-- a re
shown in place of the press ure and tempera ­
ture .
Tire pressure loss
Applies to: 58 plus
F ig. 269 D isp lay: ind icator light wi th a message
-
If the IE indica to r li ght turns on, the p ressure in
at least one ti re is too low or new sensors were
not adapted :
RE indicator lights turns on after turning the
ignition on
The tire pressure is too low compared to the
specif ied pressure .
.,. Check and store the t ire pressure(s) the next
ti me it is poss ible¢
page 304 .
RE indicator light turns on while driving
Wheels with new senso rs were not adapted or
the t ire pressu re has reached a c ritical leve l com­
p ar ed to the specified press ure.
.,. Avo id unnecessary steering and braking maneu-
vers .
.,. Adapt you r d riving style to the situation .
.,. Stop as soon as possible and check the t ire(s) .
.,. If it i s po ssible to co nti nu e d riving, see an au-
t horized Audi dea le r or a uthorized Audi Service
Fa cility immed iate ly and have your tire(s) re­
paired or replaced.
304
A WARNING
, -
Read and fo llow the important information
and notes
¢ page 303.
Storing new tire pressures
App lies to: 58 pl us
Correctly stored tire pressure specifications are
necessary for reliable tire pressure monitoring.
.,. Check the tire pressures in all wheels .
-
.,. If necessary , correct the tire press ure according
to the specifications on the sticker on the driv ­
er's doo r
q page 291. On ly co rrect t he pressure
in t ires whose tempe rature is appro ximate ly
the same as the ambient tempera ture. If the
tempe rature of the tire is higher than the ambi­
ent air tempe rature, the t ire pressure must be
i n creased approxim ate ly 3 PSI (0 ,2 ba r) above
the val ue on the sticker .
.,. Switch the ignitio n on .
.,. Select: !CAR ! function button > Car systems >
Tire pressure mon itoring > Sto re tire pressure .
After storing, the t ire pressu re monitoring sys­
tem measures t he current t ire pressures and
s to res them as the new specif ied pressures .
.,. If the changed tire p ressures are not displayed
in the Infotainment system, d riv e the veh icle
for approximately 10 minutes so that the sen­ so r signa l from the w heels is received again.
D ur ing this adapta tion phase, --,--is displayed
fo r pressure and temperat ure and t he Tire Pres­
su re Moni toring Sys tem is on ly p arti all y av ail a­
ble: it only warns yo u if one or more of the tire
pressures is/are under t he minim um permitted
val ue. If th is is the case, the
IE indicator light
appears with a message .
A WARNING
Read and follow the important information
and notes
q page 303.
Malfunctions
App lies to: 58 plus
-
If the Tire Pressure Mon itoring System is not
available, t he
mm indicato r light appears in the
dr ive r informa tion system . T he
IE indica to r light .,..
