4KE012721BE

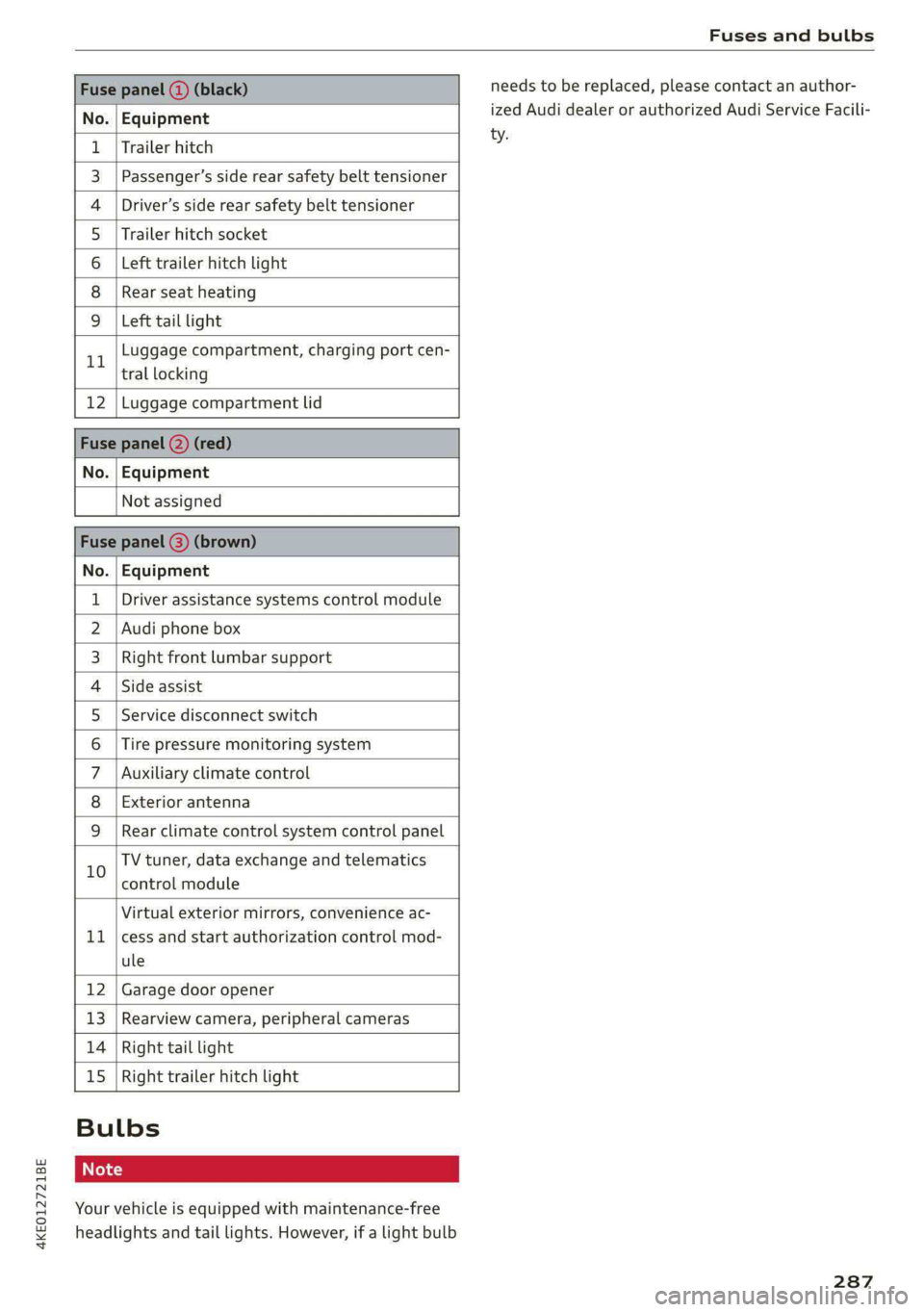

Fuses and bulbs


Fuse panel (3) (black)

No. Equipment

Trailer hitch

Passenger’s side rear safety belt tensioner

Driver’s side rear safety belt tensioner

Trailer hitch socket

Left trailer hitch light

Rear seat heating

Ola;
AD)
M/A]
W]e
Left tail light

Luggage compartment, charging port cen-















11 tral locking
12 | Luggage compartment lid
Fuse panel @) (red)
No. | Equipment
Not assigned
Fuse panel (8) (brown)
No. | Equipment
1 | Driver assistance systems control module
2 | Audi phone box
3 | Right front lumbar support
4 | Side assist
5 | Service disconnect switch
6 |Tire pressure monitoring system
7 |Auxiliary climate control
8 | Exterior antenna
9 | Rear climate control system control panel

Bb oO
TV tuner, data exchange and telematics
control module

LL
Virtual exterior mirrors, convenience ac-
cess and start authorization control mod-
ule

12 Garage door opener

13. Rearview camera, peripheral cameras

14 Right tail light

15

Right trailer hitch light

Bulbs
Your vehicle is equipped with maintenance-free
headlights and tail lights. However, if a light bulb
needs to be replaced, please contact an author-
ized Audi dealer or authorized Audi Service Facili-
ty.
287
