different tire speeds. For this rea­son, in case of emergency, only
use a spare tire that has the same
circumference as the regular
tires.
&_ WARNING -
-Only use tire/rim combina­ tions and suitable wheel bolts
that have been approved by
Audi. Otherwise, damage to
the vehicle and an accident could result.
-For technical reasons, it is not
possible to use tires from oth­
er vehicles - in some cases,
you cannot even use tires from
the same vehicle model.
-Make sure that the tires you
select have enough clearance
to the vehicle . Replacement
tires should not be chosen
simply based on the nominal
size, because tires with a dif­
ferent construction can differ
greatly even if they are the
same size. If there is not
enough clearance, the tires or
the vehicle can be damaged and this can reduce driving
safety and increase the risk of
an accident.
Wheels
-Only use tires that are more
than 6 years old when abso­ lutely necessary and drive
carefully when doing so.
-Do not use run-flat tires on
your vehicle. Using them when
not permitted can lead to ve­
hicle damage or accidents.
- If you install wheel covers on
the vehicle, make sure they al­ low enough air circulation to
cool the brake system. If they
do not, this could increase the
risk of an accident.
Tire wear/damage
Fig. 157 Ti re profi le: tread wear indica­
tor
Tire wear
Check the tires regularly for wear .
-Inflation pressure that is too low
or high can increase tire wear
considerably.
-Driving quickly through curves,
rapid acceleration and heavy
braking increase tire wear. ..
199

Wheels
-Have an authorized Audi dealer or authorized Audi Service Facili­
ty check the wheel alignment if
there is unusual wear .
-Have the wheels rebalanced if an
imbalance is causing noticeable
vibration in the steering wheel. If you do not, the tires and other
vehicle components could wear more quickly.

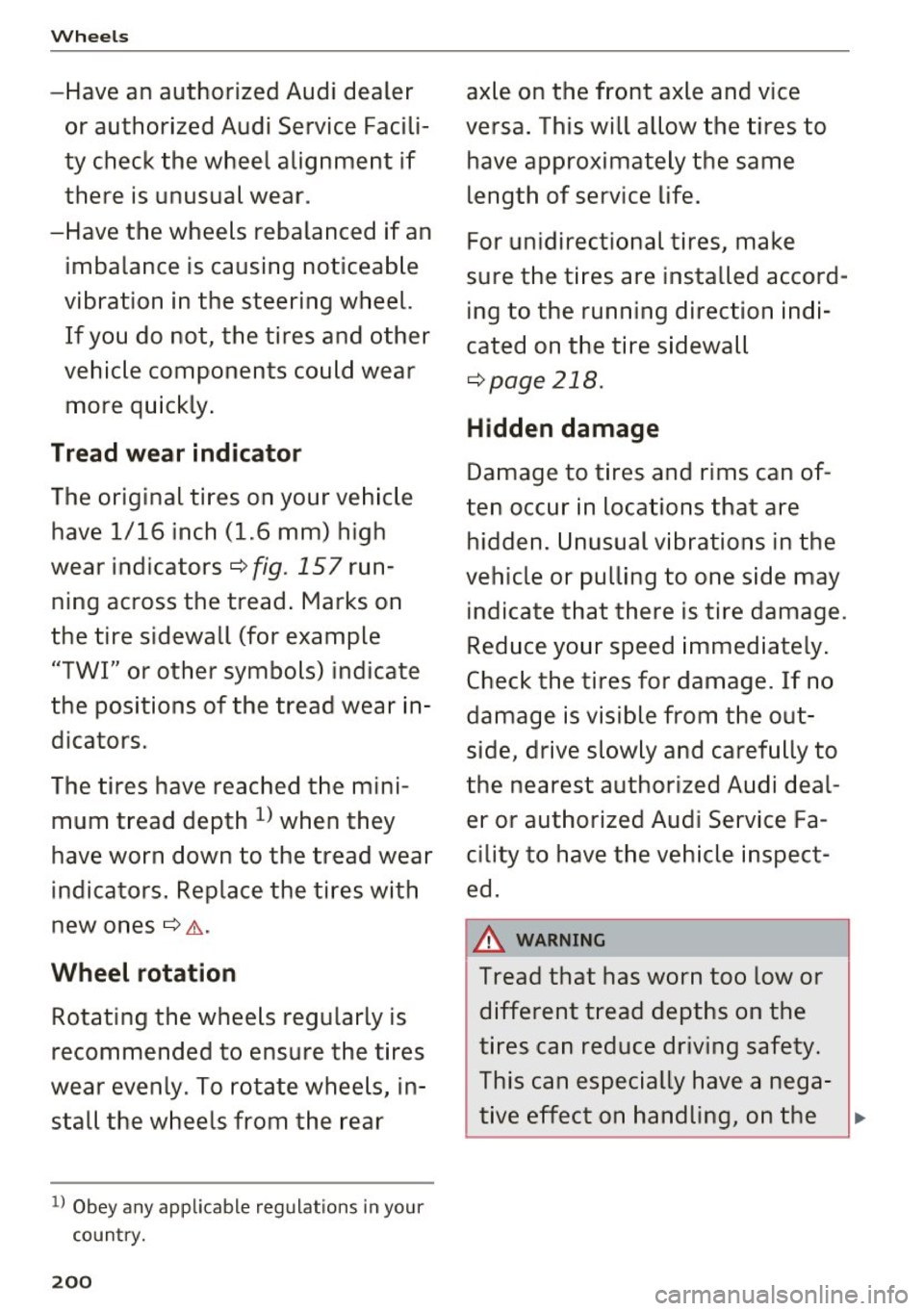

Tread wear indicator
The original tires on your vehicle
have 1/16 inch (1.6 mm) high
wear indicators
c:::> fig. 157 run­
ning across the tread. Marks on
the tire sidewall (for example
"TWI" or other symbols) indicate
the positions of the tread wear in­
dicators.
The tires have reached the mini­ mum tread depth
l) when they
have worn down to the tread wear
indicators. Replace the tires with
new ones
c:::>,1i..
Wheel rotation
Rotating the wheels regularly is
recommended to ensure the tires
wear evenly . To rotate wheels, in­
stall the wheels from the rear
1> Obey any applicable regulations in your
country.
200
axle on the front axle and vice
versa. This will allow the tires to
have approximately the same
length of service life.
For unidirectional tires, make
sure the tires are installed accord­
ing to the running direction indi­
cated on the tire sidewall
c:::> page 218.
Hidden damage
Damage to tires and rims can of­
ten occur in locations that are
hidden. Unusual vibrations in the
vehicle or pulling to one side may indicate that there is tire damage .
Reduce your speed immediately .
Check the tires for damage. If no
damage is visible from the out­
side, drive slowly and carefully to
the nearest authorized Audi deal­
er or authorized Audi Service Fa­
cility to have the vehicle inspect­
ed.
WARNING
Tread that has worn too low or
different tread depths on the
tires can reduce driving safety.
This can especially have a nega-
tive effect on handling, on the ,..

....
"' 0 ::, 00 ... \D Ln
"' \D ....
risk aquaplaning when driving
through water, when driving
through curves and when brak­ ing, which increases the risk of
an accident.

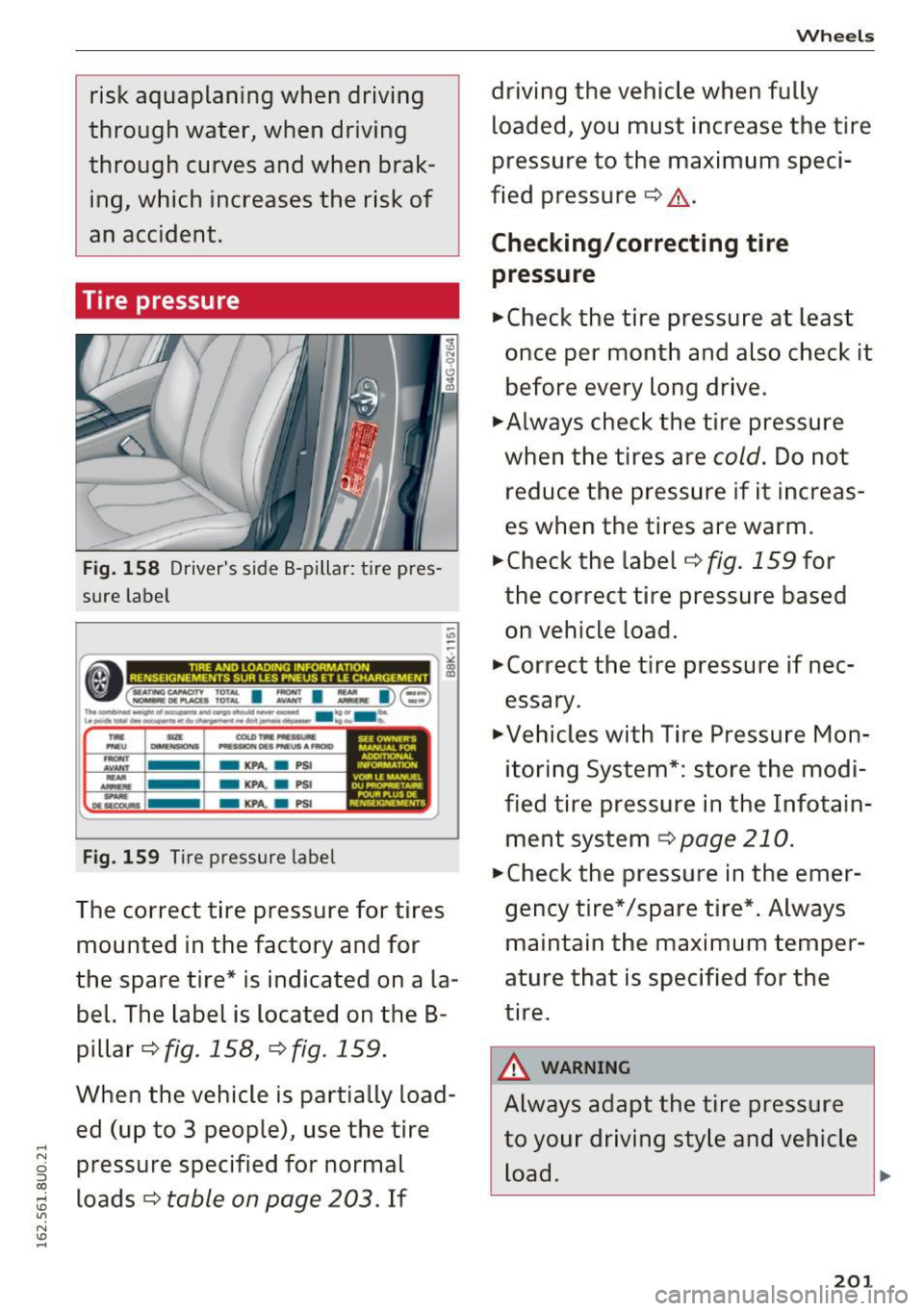

Tire pressure
Fig. 158 Driver's side B-pillar: tire pres­
sure label
"' -
-,,-----------------.. .,;;
9c::::=.: I :=; I ~ I )@ l8 n. .................................. _ _. .... _ .... '-.................................. ,.._._. ·-...
-VNn
--
-00-
- KPA. . PSI
- KPA. . PSI
- KPA. . PSI
Fig. 159 Tire pressure label
The correct tire pressure for tires
mounted in the factory and for
the spare tire* is indicated on a la­
bel. The label is located on the 8-
pillar
c:>fig. 158, c:>fig. 159.
When the vehicle is partially load­ ed (up to 3 people), use the tire pressure specified for normal
loads
c:> table on page 203. If
Wheels
driving the vehicle when fully loaded, you must increase the tire
pressure to the maximum speci­
fied pressure
c:> A .
Checking/correcting tire
pressure
.. Check the tire pressure at least
once per month and also check it before every long drive .
.. Always check the tire pressure
when the tires are
cold. Do not
reduce the pressure if it increas­
es when the tires are warm .
.. Check the label
c:> fig. 159 for
the correct tire pressure based on vehicle load.
.. Correct the tire pressure if nec­
essary.
..vehicles with Tire Pressure Mon­
itoring System*: store the modi­
fied tire pressure in the Infotain­
ment system
c:> page 210.
.. Check the pressure in the emer­
gency tire*/spare t ire*. Always
maintain the maximum temper­
ature that is specified for the
tire.
& WARNING
Always adapt the tire pressure
to your driving style and vehicle Load. ..
201

Wheels
-Overloading can lead to loss of vehicle control and increase
the risk of an accident. Read and follow the important safe­
ty precautions inc:::> page 203,
Tires and vehicle load limits.
-The tire must flex more if the tire pressure is too low or if
the vehicle speed or load are
too high . This heats the tire up
too much. This increases the
risk of an accident because it
can cause the tire to burst and
result in loss of vehicle con­
trol.
-Incorrect tire pressure in ­
creases tire wear and has a
negative effect on driving and

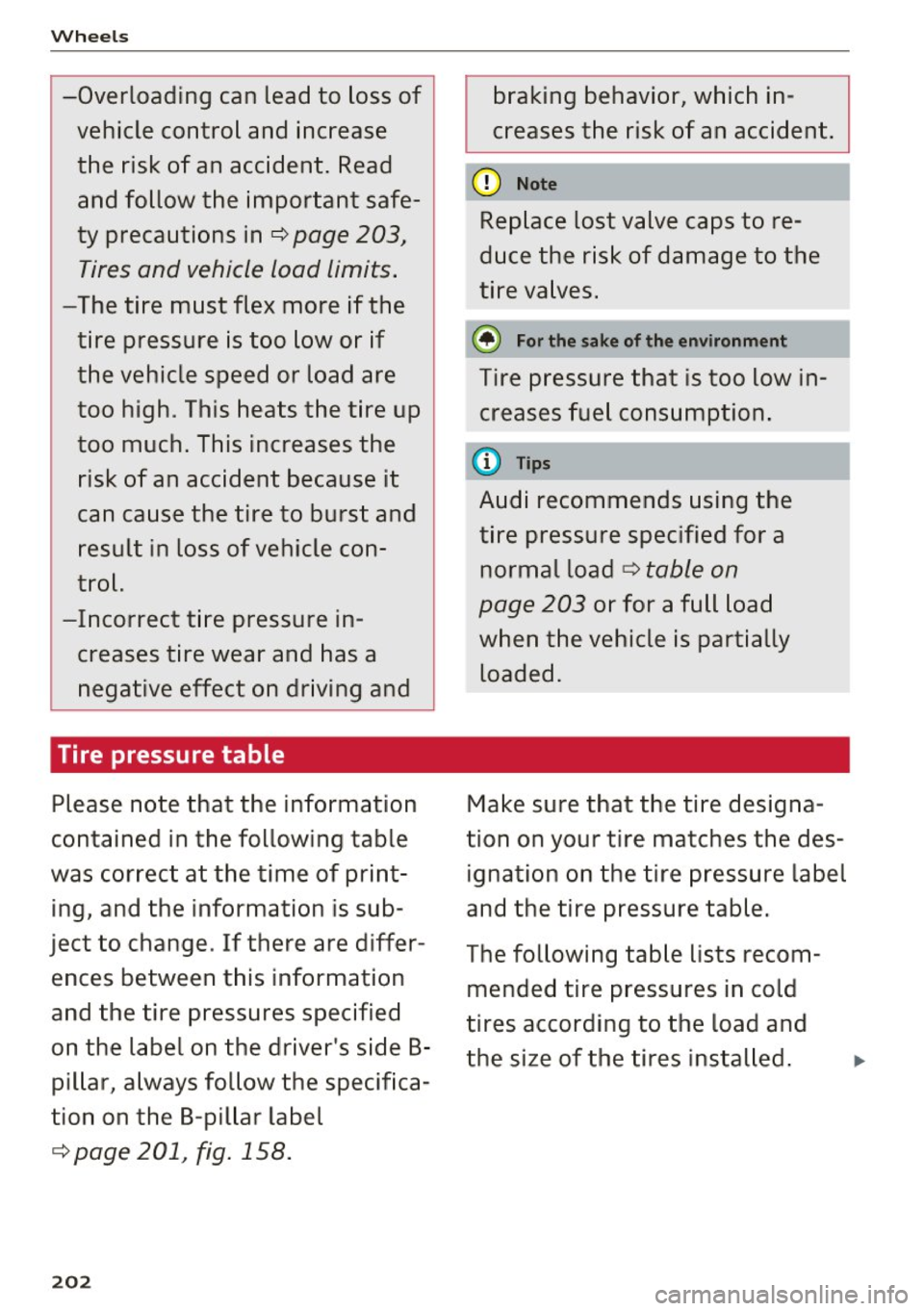

Tire pressure table
Please note that the information
contained in the following table
was correct at the time of print­ ing, and the information is sub­
ject to change . If there are differ­
ences between this information
and the tire pressures specified
on the label on the driver's side 8- pillar, always follow the specifica­
tion on the 8-pillar label
c:::>
page 201, fig. 158.
202
braking behavior, which in ­
creases the risk of an accident.
(D Note
Replace lost valve caps to re­
duce the risk of damage to the
tire valves.
@ For the sake of the environment
Tire pressure that is too low in­
creases fuel consumption.
(D Tips
Audi recommends using the
tire pressure specified for a
normal load c:::>
table on
page 203
or for a full load
when the vehicle is partially
loaded.
Make sure that the tire designa­
tion on your tire matches the des­ ignation on the tire pressure label
and the tire pressure table.
The following table lists recom­ mended tire pressures in cold
tires according to the load and
the size of the tires installed.

Wheels

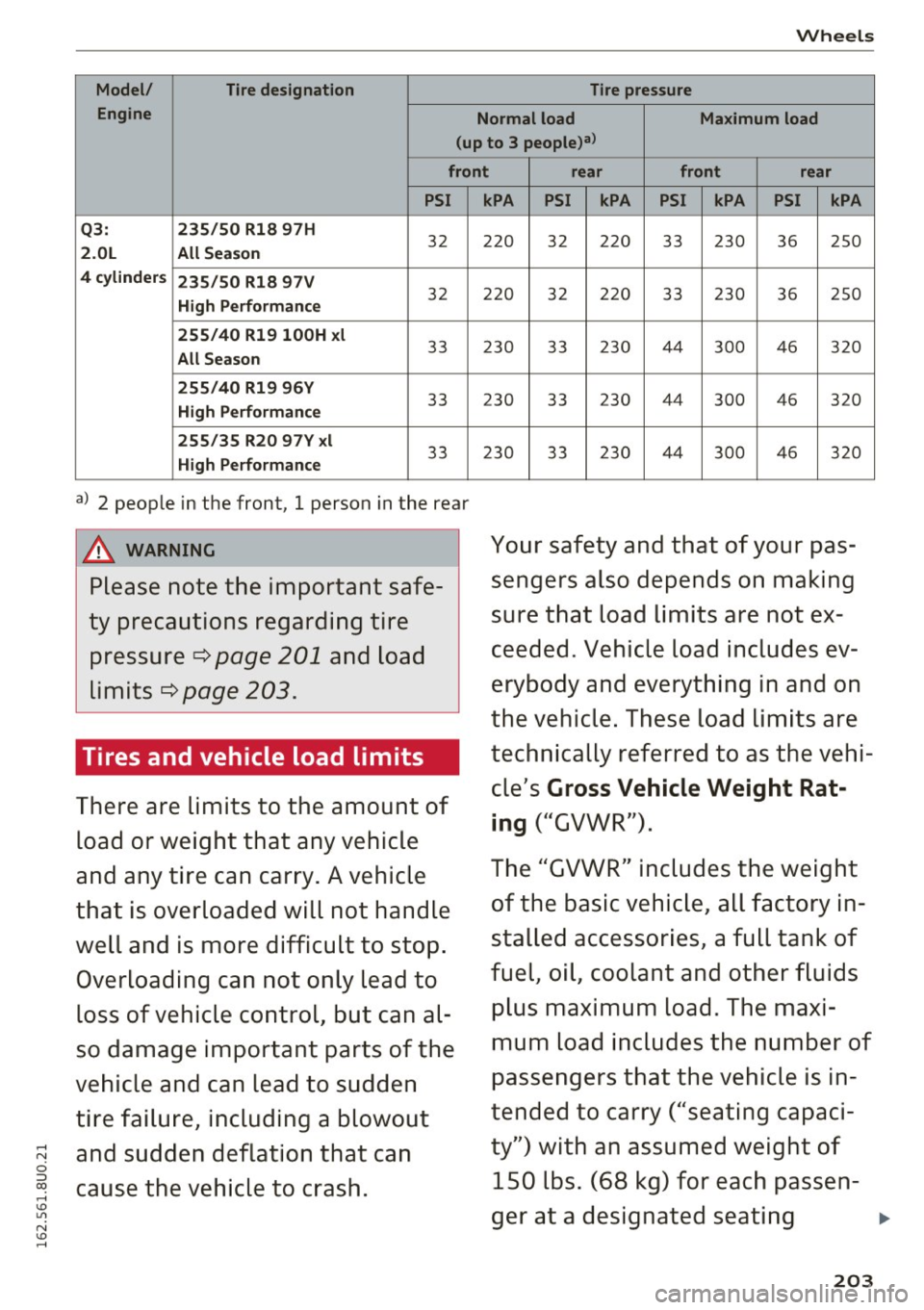

Model/ Tire designation Tire pressure
Engine Normal load Maximum load
(up to 3 people)a>
front rear front rear
PSI
Q3: 235/50 Rl8 97H
2.0L All Season
32
4 cylinders
235/50 Rl8 97V
High Performance
32
255/40 Rl9 l00H xl
All Season
33
255/40 Rl9 96Y
High Performance
33
255/35 R20 97Y xl
High Performance
33
a) 2 people in the front , 1 person in the re ar
A WARNING
-
Please note the important safe-
ty precautions regarding tire
pressure
c=> page 201 and load
limits ¢
page 203.
Tires and vehicle load limits
There are limits to the amount of
load or weight that any vehicle
and any tire can carry. A vehicle
that is overloaded will not handle
well and is more difficult to stop.
Overloading can not only lead to
loss of vehicle control, but can al­
so damage important parts of the
vehicle and can lead to sudden
tire failure, including a blowout
and sudden deflation that can
cause the vehicle to crash.
kPA PSI kPA PSI kPA PSI kPA
220 32 220 3 3 23 0 36 2 50
220 32 220 33 230 36 250
230 33 230 44 300 46 320
2 30 33 230 44
300 46
320
230 33 230 44 300 46 320
Your safety and that of your pas­
sengers also depends on making
sure that load limits are not ex­
ceeded. Vehicle load includes ev­
erybody and everything in and on
the vehicle. These load limits are
technically referred to as the vehi­
cle's
Gross Vehicle Weight Rat­
ing
("GVWR").
The "GVWR" includes the weight
of the basic vehicle, all factory in­
stalled accessories, a full tank of
fuel, oil, coolant and other fluids
plus maximum load. The maxi­
mum load includes the number of
passengers that the vehicle is in­
tended to carry ("seating capaci­
ty") with an assumed weight of
150 lbs. (68 kg) for each passen-
ger at a designated seating
11--
203

Wheels
position and the total weight of
any luggage in the vehicle. If you
tow a trailer, the weight of the trailer hitch and the tongue
weight of the loaded trailer must be included as part of the vehicle
load.

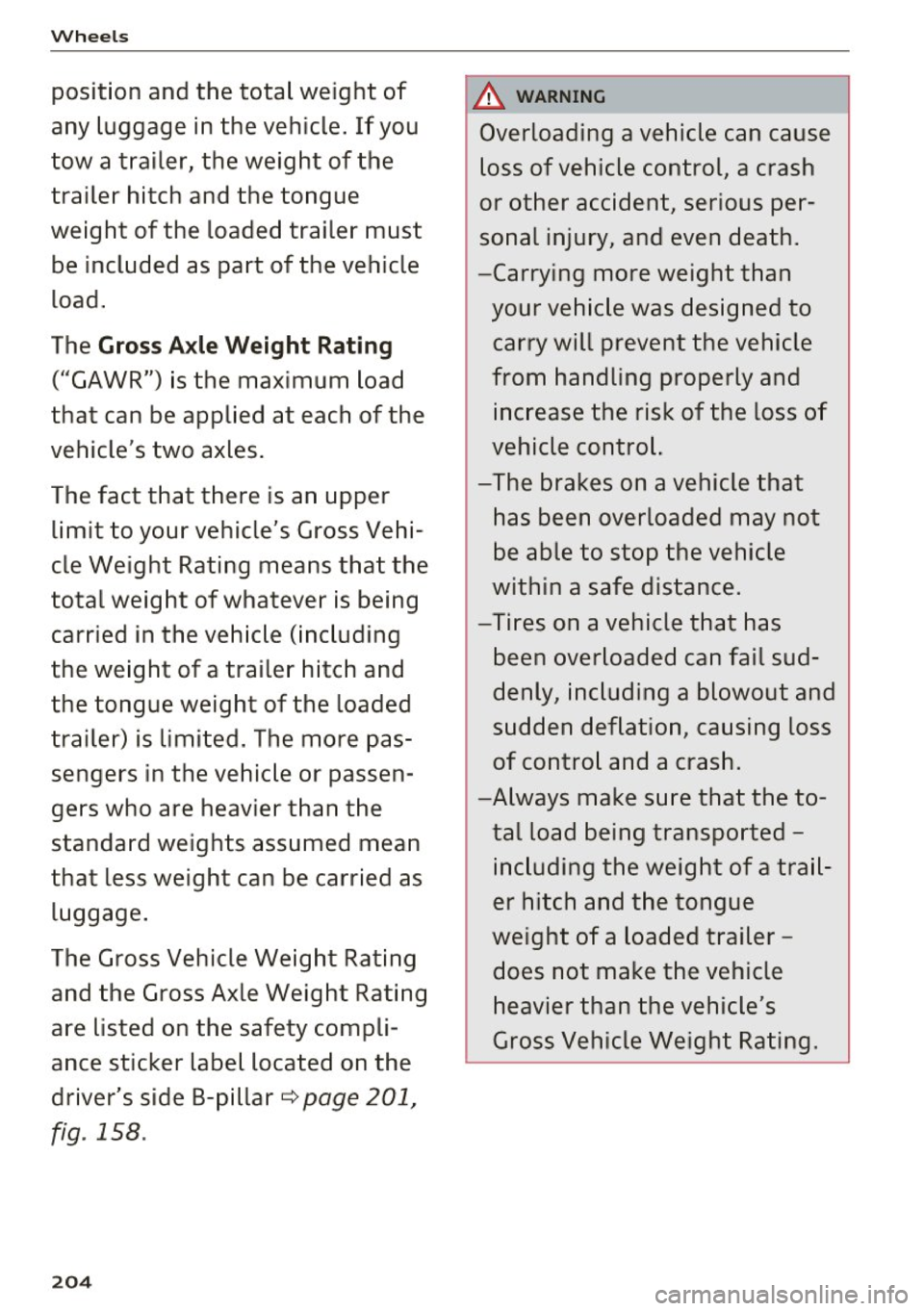

The
Gross Axle Weight Rating
("GAWR") is the maximum load
that can be applied at each of the
vehicle's two axles.
The fact that there is an upper
limit to your vehicle's Gross Vehi­
cle Weight Rating means that the
total weight of whatever is being
carried in the vehicle (including
the weight of a trailer hitch and
the tongue weight of the loaded
trailer) is limited. The more pas­
sengers in the vehicle or passen­
gers who are heavier than the
standard weights assumed mean
that less weight can be carried as luggage.
The Gross Vehicle Weight Rating
and the Gross Axle Weight Rating
are listed on the safety compli­
ance sticker label located on the
driver's side B-pillar
~ page 201,
fig . 158 .
204
_& WARNING
Overloading a vehicle can cause
loss of vehicle control, a crash
or other accident, serious per­
sonal injury, and even death.
-Carrying more weight than
your vehicle was designed to carry will prevent the vehicle
from handling properly and
increase the risk of the loss of
vehicle control.
-The brakes on a vehicle that has been overloaded may not
be able to stop the vehicle
within a safe distance.
-Tires on a vehicle that has
been overloaded can fail sud­
denly, including a blowout and
sudden deflation, causing loss of control and a crash.
-Always make sure that the to­
tal load being transported -
including the weight of a trail­
er hitch and the tongue
weight of a loaded trailer -
does not make the vehicle
heavier than the vehicle's
Gross Vehicle Weight Rating.

Determining correct load
limit
Use the example below to calcu­
late the total weight of the pas­
sengers and luggage or other
things that you plan to transport
so that you can ma ke sure that
your vehicle will not be overload­ ed .
Steps for Determining Correct
Load Limit
1 . Locate the statement "THE
COMBINED WEIGHT OF OCCU­ PANTS AND CARGO SHOULD
NEVER EXCEED XXX KG OR XXX
LBS"on your vehicle 's pla card
(tire inflation pre ssure l abel)
¢ page 201, fig. 158.
2 . Determine the combined
weight of the drive r and pas­
s engers that will be riding in
your vehicle.
3 . Subtra ct the combined weight
of the driver and passengers
from
" XXX" kilograms or "XXX"
pounds shown on the sticker
¢ page 201 , fig. 158 .
4. The re sulting figure equals the
available amount of cargo and
luggage load capacity. For ex­
ample, if the
" XXX" amount
equals 1400 lbs. and there will
Wheels
be five 1 SO lbs. pa ssengers in
your vehicle, the amount of available cargo and luggage load capacity i s 650 lb s.
(1400-750 (5 X 150) = 650
lbs.)
5. Determin e the combined
weight of luggage and cargo
being loaded on the vehicle.
That weight may not safely ex­
ceed the available cargo and luggage load capa city cal culat­
ed in Step 4 .
6. If your vehi cle will be towing a
trailer, load from your trailer
will be transferred to your ve­
hicle. Con sult thi s manual to
determine how this reduces
the available cargo and lug­ gage load capacity of your vehi­
cle.
..,.Check the tire sidewall
(¢page 191 , fig. 156) to deter­
mine the designated load rating
for a specific tire.
Wheel bolts and rims
Wheel bolts
Wheel bolts mus t be clean and loosen/tig hte n
easily .
Rims
Rims with a bo lted r im ring * or with bo lted w heel
cove rs* cons ist of mult iple p ieces. These compo-
nents were bolted togethe r using s pec ial bolts ..,.
205

Wheels
and a special procedure. You must not repair or
disassemble them¢&. .
A WARNING
Wheel bolts that are tightened or repaired in­
correctly can become loose and result in loss
of vehicle control, which increases the risk of
an accident. For the correct t ightening specifi ­
cation, refer to ¢
page 214, After changing a
wheel .
- Always keep the wheel bolts and the
threads in the wheel hub clean and free of grease.
- Only use wheel bolts that fit the rim .
- Always have damaged rims repaired by an
authorized Audi dealer or authorized Aud i
Service Facility . Never repair or disassemble
rims yourself, because this inc reases the risk
of an accident.
Winter tires
Winter tires s ignificantly improve the vehicle's
handling when driving in winter conditions . Be­
cause of their construction (width, compound,
tread pattern), summer tires provide l ess trac­
tion on ice and snow.
.,. Use winter tires on all four wheels.
.,. Only use winter tires that are approved for your
vehicle.
.,. Please note that the maximum permitted
speed may be lower with winter tires
q .&,. . An
authori zed Audi dealer or authori zed Audi Serv­
ice Facility can inform you about the maximum
permitted speed for your tires .
.,. Check the tire pressure after install ing wheels
q page 201.
The effectiveness of winter tires is reduced great­
ly when the tread is worn down to a depth of
0 .157 inch (4 mm). The character istics of winter
tires also decrease greatly as the tire ages, re­
gardless of the remaining tread.
A WARNING
- Never drive faster than the maximum per­
mitted speed for your tires. This cou ld cause
the tires to heat up too much. This increases
206
-
the risk of an accident because it can cause
the tire to burst.
- Always adapt your driving to the road and
traffic conditions . Drive carefully and reduce
your speed on icy or slippery roads . Even
winter tires can lose traction on black ice .
@ For the sake of the environment
Reinstall summer tires at the appropriate
time, because they prov ide better handling
when roads are free of snow and ice. Summer
tires cause less road noise, tire wear and fuel
consumpt ion .
(D Tips
You can also use all season tires instead of
winter tires. Please note that in some coun­
tries where winter tires are required, only
winter tires w ith the ~ symbol may be per­
mitted.
Snow chains
Snow chains improve traction in the snow .
.,. Only install snow chains on the front wheels.
This applies also to vehicles with all wheel
drive* .
.,. Check and correct the seating of the snow
chains if necessary after driving a few feet. Fol­
low the instructions from the manufacturer.
.,. Note the maximum permitted speed when dr iv­
ing with snow chains. Do not exceed 30 mph (SO km/h).
Snow cha ins not only improve the
driving in win­
ter road conditions, but also the
braking .
Use of snow chains is only permitted with certain
rim/tire combinat ions due to technical reasons .
Check with an author ized Audi dealer or author­
ized Audi Service Facility to see if you may use
snow chains.
The snow chains must have
low-profile links and
must not be thicker than 0.53 inch (13.5 mm),
including the lock.
You must remove the chains when driving on
roads that are
free of snow . When roads are free ..,.

of snow, snow chain s can imp air handling and
damage the t ires, and t he chains will quickly be
destroyed.
A WARNING
Using incorrect snow chains or installing snow
chains incorrect ly can result in loss of vehicle
co ntrol, which increases the risk of an acc i­
dent .
Snow chains can damage the r ims/wheel cov­
ers* if the chains come into d irect contact
w ith them. Remove the wheel covers* first.
Use coated snow chains .
Low aspect ratio tires
Your Audi is facto ry-equipped with low aspect ra­
tio ti res. These t ires have been tho rough ly tested
and been se lected specifically for yo ur model fo r
thei r superb per formance, road feel and handling
under a variety of driving conditions. Ask your au­
thorized Audi dealer for more details .
The low aspect ratio of these t ires is indica ted by
a numera l of
55 or les s in the tire's size designa ­
tion. The numeral represents the ratio of the
tire's sidewall height i n relation to its tread width
expressed in percentage. Conventional tires have
a height/w idth ratio of 60 or more.
Th e performance of low-aspect- ratio tire s is par­
ticularly sensit ive to improper inflation pre s·
sure . It is therefore important that low aspect
ratio tires are inflated to the specified pressure
and that the inflation pre ssure is regul arly
ch ecked and ma intained . Tire pre ssure s should
be checked at least once a month and a lways
before a long tr ip
c> page 201.
What you can do to avoid tire and rim
damage
L ow aspect rat io tires can be damaged more easi­
ly by impact wi th pot holes, c urbs, gull ies or
r idges on the ro ad, p articul arly if the tire is un­
de rinflated.
I n o rder to minimize the occurrence of impact
damage to the t ires of your ve hicl e, we recom-
Wh eel s
mend that you observe the following preca u­
tions:
- Always ma in tain recommended inflat io n pres­
sures. Check yo ur tire pressure every 2,0 00
m iles (3,000 km) and add air if necessary .
- Dr ive c arefully on roads w it h potholes, deep
gullies or ridges . The impac t from dr iving
through or over such obstacles can damage
your tires. Impact with a curb may a lso cause
damage to your tires.
- After any impact, immediate ly inspect your
tires or have them inspected by the nearest au ­
thorized Audi dealer. Replace a damaged tire as
soon as possible.
- Inspect your tires every 2,000 m iles (3,000 km)
for damage and wear. Damage is not always
easy to see . Damage can lead to loss of air and
underinflation, wh ich could even tually cause
tire fa ilure. If yo u believe that a tire may have
been damaged, replace the tire as soon as pos­
sib le.
- These tires may wear more quickly tha n others .
- Please also remember that, while these tires
delive r responsive ha nd ling, they may ride less
comfortably a nd make mo re noise than other
choi ces.
Reduced performance in winter /cold se ason
conditions
All t ires are des igned for certai n purposes. The
low aspect ratio, ultra high performance tires
o rigi na lly installed on your veh icle are intended
f or maximum dry and wet road performance and
handling . They are not suitable for co ld, snowy or
icy weather conditions . If you drive under those
c ircumstances, you should equip yo ur vehicle
with all-season or winter tires, which offer better
tract ion under those conditions. We suggest you
u se the recommended snow or all-season tires
spec ified for your veh icle, or their equiva lent .
Refer to
c> page 206 for more detailed informa­
t ion regarding winter tires.
Uniform tire quality grading
- Tread wear
- Traction AA ABC
- Temperature ABC
207

Wheels
Quality grades can be found where applicable on
the tire side wall between tread shoulder and maximum section width
¢ page 191, fig. 156.
For example: Tread wear 200, Traction AA, Tem­
perature
A.
All passenger car tires must conform to Federal
Safety Requirements in addition to these grades.
Tread wear
The tread wear grade is a comparative rating
based on the wear rate of the tire when tested
under controlled conditions on a specified gov­
ernment test course.
For example, a tire graded 150 would wear one
and one half (1 1/2) times as well on the govern­
ment course as a tire graded 100.
The relative performance of tires depends upon
the actual conditions of their use, however, and may depart significantly from the norm due to
variations in driving habits, service practices and differences in road characteristics and climate.
Traction
The traction grades, from highest to lowest, are
AA, A, Band
C. Those grades represent the tire 's
ability to stop on wet pavement as measured un­
der controlled conditions on specified govern­ ment test surfaces of asphalt and concrete. A tire
marked C may have poor traction performance
¢&_ .
Temperature
The temperature grades are A (the highest), B,
and C, representing the tire's resistance to the
generation of heat and its ability to dissipate heat when tested under controlled conditions on
a specified indoor laboratory test wheel.
Sustained high temperature can cause the mate­ rial of the tire to degenerate and reduce tire life,
and excessive temperature can lead to sudden
tire failure ¢&. .
The grade C corresponds to a level of perform­
ance which all passenger car tires must meet un­
der the Federal Motor Vehicle Safety Standard
No. 109 . Grades Band A represent higher levels
208
of performance on the laboratory test wheel than
the minimum required by law.
A WARNING -
The traction grade assigned to this tire is
based on straight-ahead braking traction
tests, and does not include acceleration, cor­ nering, hydroplaning or peak traction charac­
teristics .
A WARNING
The temperature grade for this tire is estab­
lished for a tire that is properly inflated and
not overloaded. Excessive speed, underinfla­
tion, or excessive loading, either separately or
in combination, can cause heat buildup and
possible tire failure.
A WARNING
Temperature grades apply to tires that are properly inflated and not over or underinflat­
ed.
Tire pressure monitoring system
(l) General notes
Appl ies to vehicles: with tire pressure mon itoring system
-
Each tire, including the spare (if provided),
should be checked monthly when cold and inflat­
ed to the inflation pressure recommended by the
vehicle manufacturer on the vehicle placard or
tire inflation pressure label. (If your vehicle has
tires of a different size than the size indicated on
the vehicle placard or tire inflation pressure la­
bel, you should determine the proper tire infla­
tion pressure for those tires).
As an added safety feature, your vehicle has been
equipped with a tire pressure monitor ing system
(TPMS) that illuminates a low tire pressure tell­
tale when one or more of your tires is significant-
ly under-inflated. Accordingly, when the low tire
pressure telltale illuminates, you should stop and
check your tires as soon as possible, and inflate
them to the proper pressure . Driving on a signifi­
cantly under-inflated tire causes the tire to over­
heat and can lead to tire failure . Under-inflation ..,.
