AUDI Q3 2017 Owner´s Manual

a:,
a:,
...... N r--. N
'"' 0 0 ::, a:,
Driver information
system
Overview
Applies to: ve hicles with driver information system
Fig. 6 Display on vehicles w it h driver information system
and mu ltifunction steering w heel*
~ N
0
::) CX) al
Driving information and vehicle settings are
shown in the instrument cluster display. The type
of display and the contents depend on the vehicle
eq uipment.
Depending on the vehicle equipment, the driver
information system is controlled with either the
buttons on the windshield wiper lever*
i::> page 19or with the buttons on the mult i­
function steering wheel*
c:> page 19.
On vehicles w ith a multifunction steering wheel*,
the information @ is shown in tabs @. The tabs
are visible as soon as yo u press a button on the
multifunction steering wheel*.
The instrument cluster display provides informa­
tion about :
® Time and date c:> page 9
Digita l speedometer
On -board computer
i::> page 20
Efficiency program ¢page 21
Reduced display *
Indicator lights and messages
¢page 10
Service interval display c:> page 170
Cruise control system*
Parking aid*
Aud io*
Telephone* Navigation*
Driver in forma tion system
© Odometer and trip odometer (only in the
first tab*)
<::>p age 10
@ Outside temperature ¢ page 9, selector
l ever posit ion
(D Tips
- Yo u can set the units used for temperature,
speed and other measurements in the Info ­
tainment system.
- For information on the audio and naviga­
tion* functions, refer to the separate Info­
tainment system owner's manual.
Operation
Operating using the windshield wiper lever
Appl ies to: vehicles with driver information system without
multifu nction steer ing wheel
-------- ®
Fig. 7 Windshield wiper lever: operating the driver infor ­
ma tion system
Operating
• Switch the ignition on . The last select function
is displayed.
• To switch betwee n the on-board computer
0,
fJ , the efficiency program ii or, for example,
the cruise contro l system*, press the
I RESET I
button @.
• To access additiona l information below or
above, press the button @ down or up .
Recalling indicator lights and messages
• Press the !RESET I button @.
Resetting values to zero
• Select a value in the desired trip computer or in
the efficiency program. ..,.
19

Driver information system
• Press and hold the I RESET I button @for at
least one second . All values in the selected on­
board computer or in the efficiency program
are reset to zero.
Operating using the multifunction steering
wheel
A pp lies to: ve hicles w ith driver information system and multi­
fun ction s teeri ng w hee l

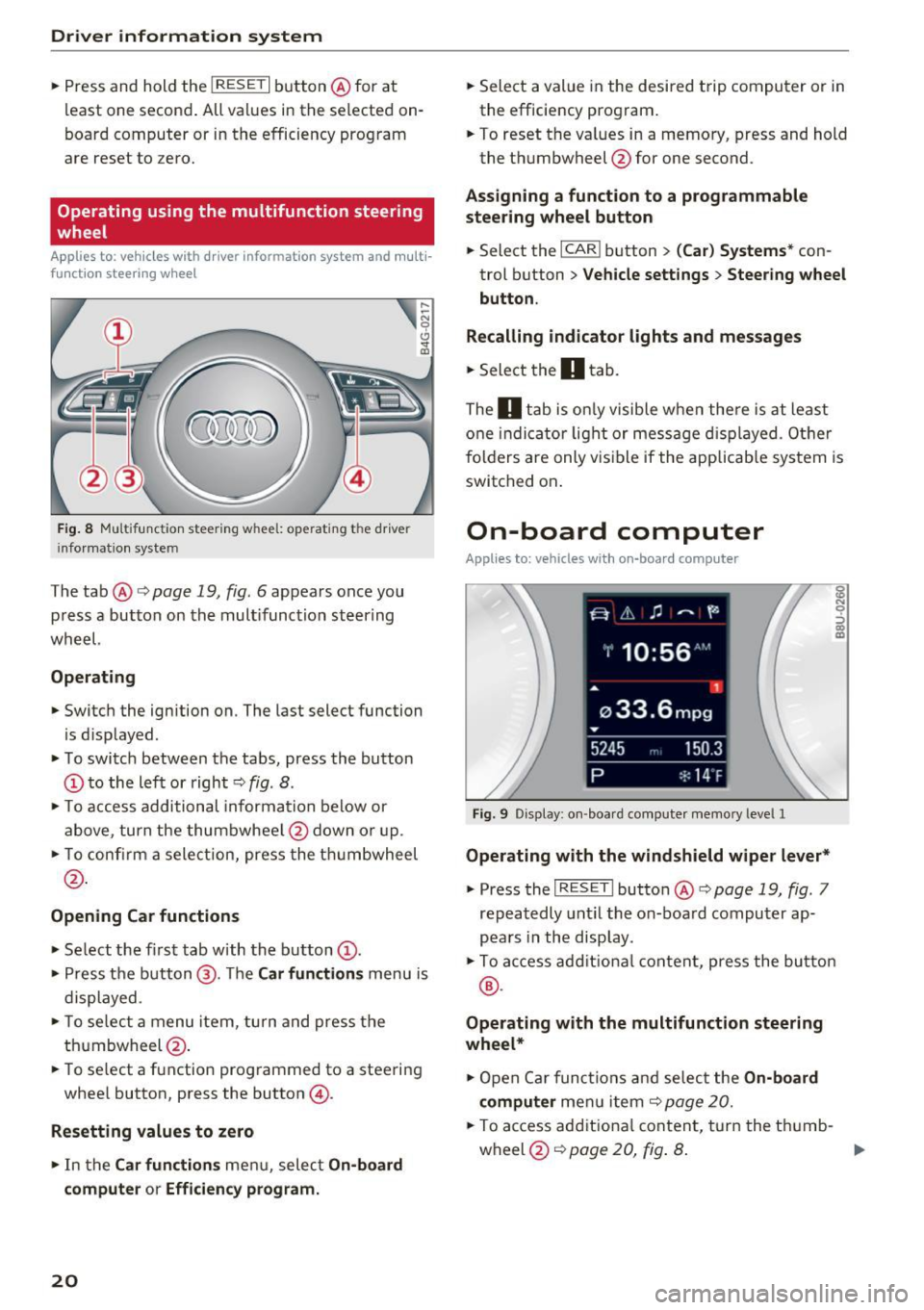

Fig. 8 Mult ifunction steering wheel: operat ing the drive r
i nfo rmation system
The tab@¢ page 19, fig. 6 appears once you
press a button on the mult ifunction steering
wheel.
Operating
,-.. ~ N
0
Cl • Switch the ignition on. The last select function
is d isp layed.
• To switch between the tabs, press the button
(D to the left or right~ fig. 8.
• To access additional information below or
above, turn the thumbwheel @down or up.
• To confirm a selection, press the t humbwheel
@ .
Opening Car functions
• Se lect the first tab with the button (D .
• Press the button @. Th e Car functions menu is
displayed .
• To se lect a menu item, turn and press the
thu mbwheel @.
• To se lect a function programmed to a steering
wheel button, press the button
@ .
Resetting values to zero
• In the Car functions me nu, select On-board
computer or Efficiency program.
20 •
Select a value in the desired trip computer or in
the efficiency program.
• To reset the va lues in a memory, press and hold
the thumbwheel @for one second.
Assigning a function to a programmable
steering wheel button
• Select the ICAR I button> (Car) Systems* con­
trol button >
Vehicle settings > Steering wheel
button .
Recalling indicator lights and messages
• Select the D tab.
The
D tab is on ly visible when there is at least
one indicator light or message displayed. Ot her
folders are only v is ib le if the applicable system is
switched on .
On-board computer
Applies to: vehicles wi th on -boa rd comp uter
Fig. 9 Display: on -boa rd computer memory level 1
Operating with the windshield wiper lever*
• Press the I RESET I button @ ¢ page 19, fig. 7
repeatedly until the on-board computer ap­
pears in the disp lay.
• To access add itiona l content, press the button
®·
Operating with the multifunction steering
wheel*
• Open Car functions and select the On-board
computer
menu item ~ page 20.
• To access additiona l content, turn the thu mb-
wheel @~
page 20, fig. 8. ""

a:,
a:,
...... N r--. N .-< 0 0 ::, a:,
You can identify which on-board computer is cur ­
r e ntly being shown in the display based on th e
small
O or fl .
The o n-board computer 0 ¢ fig . 9 is a short-term
memo ry .
It collects driving information from the
time the ignition is switch ed on until it is sw itch ­
ed off. If you continue driving within two hours
after switching the ignition off, the new values
are included when calculating the current trip in­
formation .
Unlike the short-term memory , the long-term
memory (on-board computer
fl ) is not erased
automatically. You can select the time period for
evaluating trip information yourself .
You can call up the following information consec­
utively in on -board computer
O or fl :
- Date
- Range
- Travel time
- Average consumption
- Average speed
- Distance
- Current fuel consumption
@ Tips
Information on the efficiency program
¢page 21.
Efficiency program
Overview
Applies to: vehicles with efficiency program

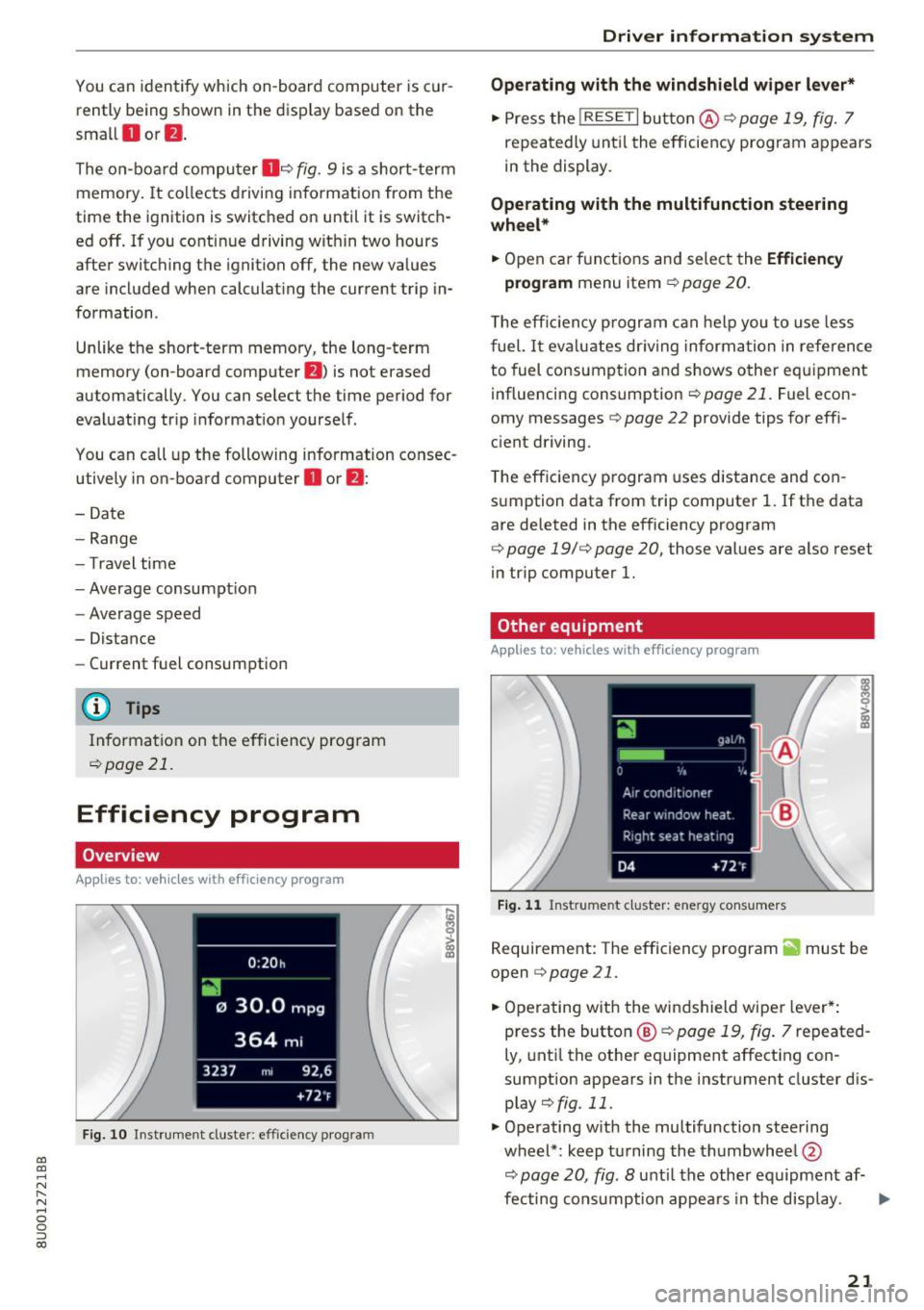

Fig. 10 Instrument cluster: e ffi ciency program
Driver in forma tion system
Operating with the windshield wiper lever*
.,. Press the !RESE T I button @¢page 19, fig. 7
repeatedly until the efficiency program appears
in the display .
Operating with the multifunction steering
wheel*
.,. Open car f unctions and select the Efficiency
program
menu item ¢ page 20.
The eff iciency program can help you to use less
fuel.
It eva luates dr iving information in reference
to fuel consumption and shows other equipment
influencing consumption
¢ page 21. Fuel econ­
omy messages ¢
page 22 provide tips for effi­
c ient driving.
The efficiency program uses distance and con­
sumption data from trip computer
1. If the data
are deleted in the efficiency program
¢
page 19/ ¢ page 20, those values are also reset
in trip computer
1.
Other equipment
Applies to : vehicles with efficiency program
Fig. 11 Instrume nt cluster: e nerg y consumers
Requirement: The efficiency program ii must be
open
¢ page 21 .
.,. Operating with the windshield wiper lever*:
press the button@¢
page 19, fig. 7 repeated­
ly, until the other equipment affecting con­
sumption appears in the instrument cluster dis­
play
¢ fig . 11 .
.,. Operating w ith the multifunction steering
wheel* : keep turning the thumbwheel@
¢
page 20, fig . 8 unti l the other equipment af-
fecting consumption appears in the display. .,.
21

Driver information system
Other equipment that is currently affecting fuel
consumption is listed in the efficiency program .
The display shows up to three other items of
equ ipment @. The equipment using the most
power is listed first. If more than three items us­
ing power are switched on, the equipment that is
currently us ing the most power is displayed.
A gauge @also shows the current total con­
sumption of all other consumers.
Fuel economy messages
Applies to: vehicles with efficiency program

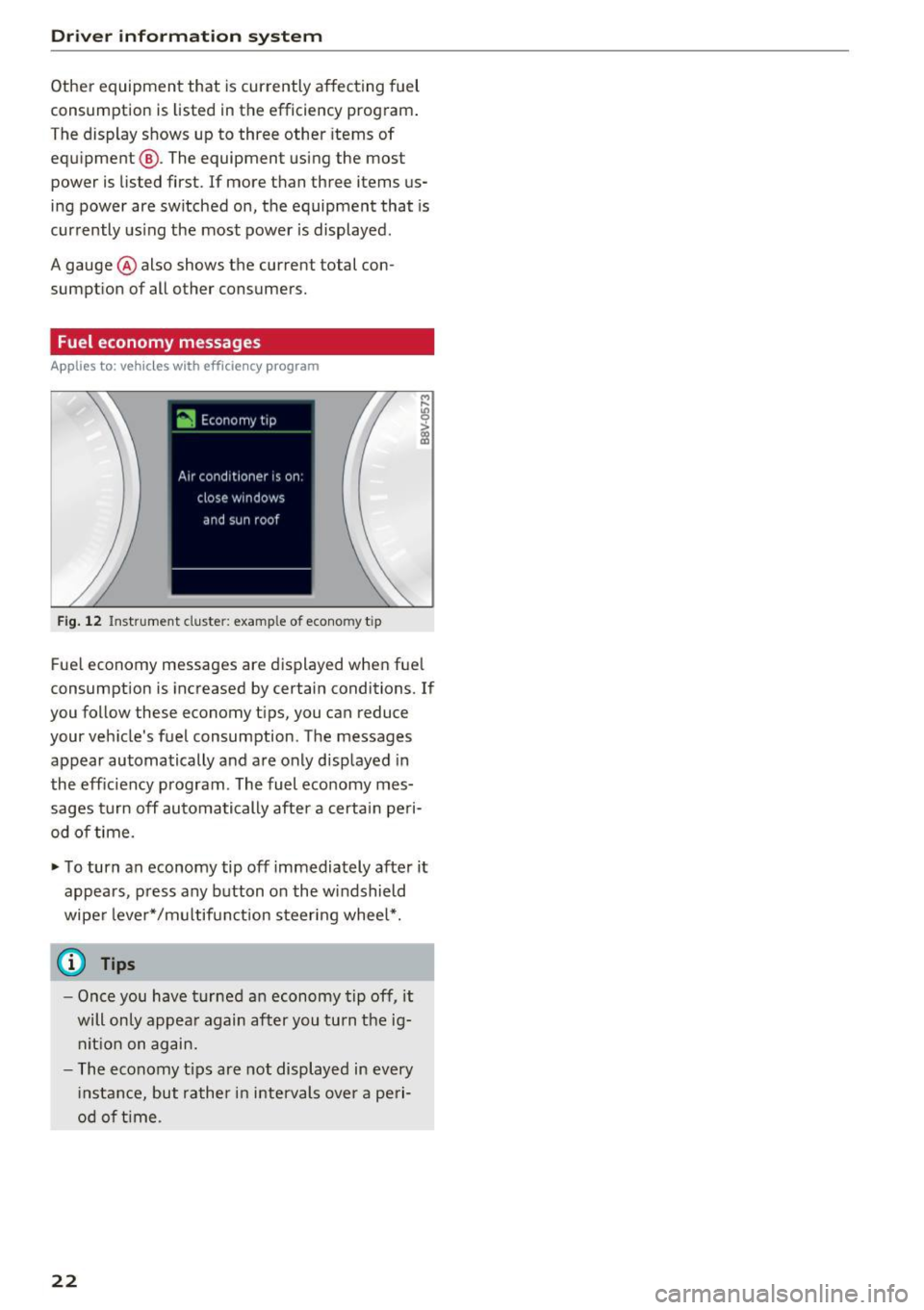

Fig . 12 Instrument cluster: example of economy t ip
Fue l economy messages are d isplayed when fue l
consumption is increased by certain conditions. If
you follow these economy tips, you can reduce
your vehicle's fuel consumption. The messages
appear automatically and are only displayed in
the efficiency program . The fuel economy mes­
sages turn off automatically after a certai n pe ri­
od of time.
• To turn an economy tip off immediately after it
appears, press any button on the windshield
wipe r lever*/multifunction steering wheel*.
(D Tips
-Once you have turned an economy tip off, it
will only appea r again after you turn the ig­
nition on again.
- The economy tips are not displayed in every
instanc e, but rather in intervals over a peri­
od of time .
22

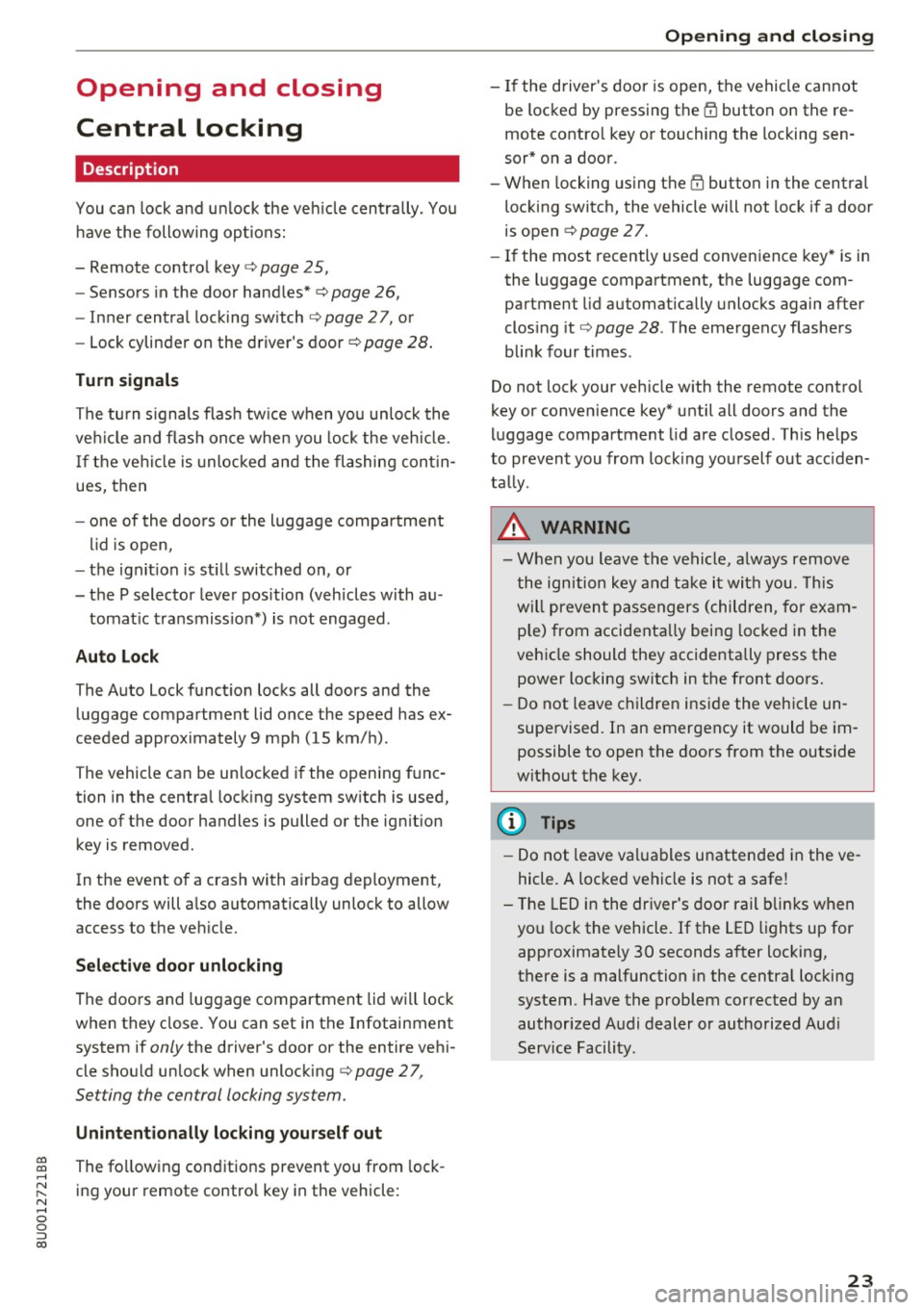

Opening and closing
Central locking
Description
You can lock and unlock the veh icle centrally . You
have the following options:
- Remote control key
c> page 25,
-Sensors in the door handles* c> page 26,
-Inner central locking switch c> page 2 7, or
- Lock cylinder on the driver's door
c> page 28.
Turn signals
The turn s ignals flash tw ice when you un lock the
veh icle and flash once when you lock the vehicle.
If the vehicle is unlocked and the flashing contin­
ues, then
- one of the doors or the luggage compa rtment
lid is open,
- the ignition is still switched on, or
- the P selector lever position (vehicles with au -
tomat ic transmission*) is not engaged.
Auto Lock
The Auto Lock function locks all doors and the
luggage compartment lid once the speed has ex­
ceeded approximately 9 mph (15 km/h) .
T he vehicle can be unlocked if the opening func­
tion in the central locking system switch is used,
one of the door handles is pulled or the ignition key is removed.
In the event of a crash with airbag deployment,
the doors will also automatically unlock to allow
access to the vehicle.
Selective door unlocking
The doors and luggage compartment lid will lock
when they close. You can set in the Infotainment
system if
only the driver's door or the entire vehi ­
cle shou ld unlock when unlocking
c> page 27 ,
Setting the central locking system.
Unintentionally locking yourself out
~ The following conditions prevent you from lock-.....,
~ ing your remote control key in the vehicle: N ...... 0 0
:::,
00
Opening and closing
- If the driver's door is open, the vehicle cannot
be locked by pressing the
fi'.J button on the re­
mote contro l key or touching the locking sen­
sor* on a door.
- When locking using the
ffi button in the central
locking switch, the vehicle will not lock if a door
is open
c> page 27.
- If the most recently used convenience key* is in
the luggage compartment, the luggage com­
partment lid automatically unlocks again after
closing it
c> page 28. The emergency flashers
blink four times.
Do not lock your vehicle with the remote control
key or convenience key* until all doors and the
luggage compartment lid are closed . This helps
to prevent you from locking yourself out acc iden­
tally .
A WARNING
- When you leave the vehicle, always remove
the ignition key and take it with you. This
will prevent passengers (children, for exam­
ple) from accidenta lly being locked in the
vehicle should they accidentally press the
power locking switch in the front doors.
- Do not leave children inside the vehicle un­
supervised. In an emergency it would be im­
possible to open the doors from the outside
without the key.
(D Tips
- Do not leave valuables unattended in the ve­
hicle. A locked vehicle is not a safe!
- The LED in the driver's door rail blinks when
you lock the vehicle . If the LED lights up for
approximately 30 seconds after locking,
there is a malfunction in the central locking
system . Have the problem corrected by an
authorized Audi dealer or authorized Audi
Service Facility.
23

Opening and clo sin g
Key set
Fig. 13 Your veh icle key set
I X CX) cc
@ Remote control key o r con venience k ey*
The convenience key is a remote control key with
special functions
c> page 26 and c> page 62.
W ith the remote control key, you can lock and
unlock the vehicle and start the engine . To fold
the key out and back in place, press the release button
c> fig. 13 -arrow-.
Repla cing a ke y
If a key is lost, see an authorized Audi dealer or
authorized Audi Service Facility . Have
this key de ­
activated .
It is important to bring a ll keys with
you .
If a key is lost, you should report it to your
insu rance company.
Numb er of k ey s
You can check the number of keys ass igned to
your veh icle in the instrument cluster d isplay . It
will show you this when you adjust the time
c> page 9. For examp le, the display 1/2 means
you are using vehicle key numbe r one out of two
keys total assigned to the vehicle. This way, you
can make sure that you have all the keys when
purchasing a used vehicle.
Electronic immobilizer
The immob il izer prevents una uthorized use of
the vehicle .
Under certain c ircumstances, the veh icle may not
be ab le to start if there is a key from a different
veh icle man ufact urer on the key cha in.
A WARNING
Always take the vehicle key with you when
leaving the vehicle, even for a short period of
24
time . This applies particularly when children
rema in in the vehicle. Otherwise the children
could start the engine or operate electrical
equipment such as power windows .
A WARNING
Applies to: vehicles with ignition lock
Do not remove the key from the ign it ion lock
until the vehicle has come to a complete stop.
Otherw ise, the steering lo ck could engage
suddenly and increase the risk of an accident.
@ Tips
- T he opera tion of the remote cont rol key can
be temporarily disrupted by interference
from transmitters in the v ic inity of the vehi­
cle working in the same frequency range
(such as a ce ll phone or radio equipment).
- For an exp lanation on conformity with the
FCC regulations in the Un ited States and the
Industry Canada regulat ions, see
c> page 221.
LED and batteries in the remote control key
Fig . 14 Remot e con tro l key: LED
Fig . 15 Remote con tro l key : o pen in g th e cov er

a:,
a:,
...... N r--. N .-< 0 0 ::, a:,

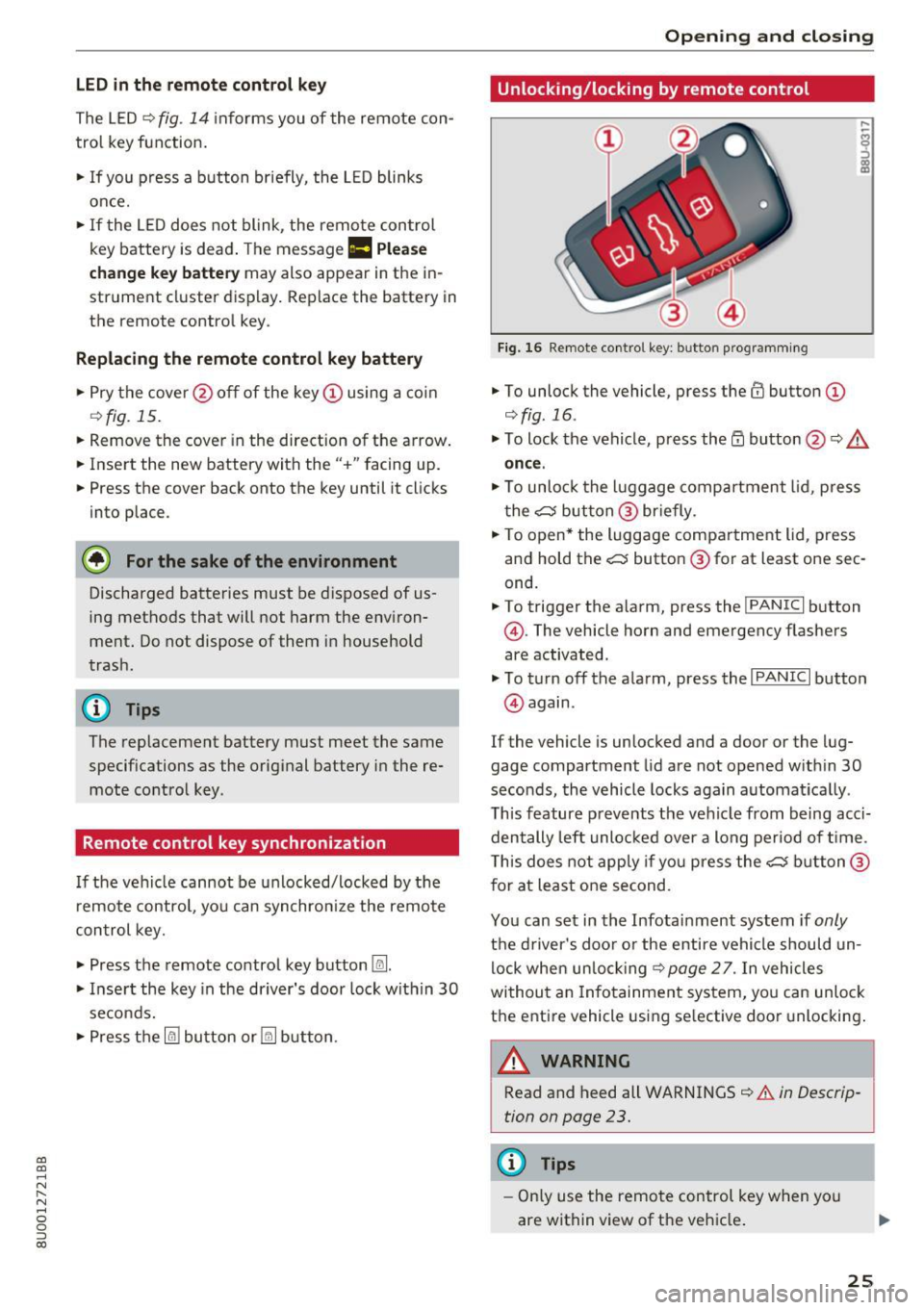

LED in the remote control key
The LED ¢ fig . 14 in fo rms you of the remote con­
tro l key function .
.. If you p ress a b utton b riefly, the L ED blinks
on ce .
.. If the L ED does no t blink , the remote con trol
key batt ery is dead . The message
1:1 Please
change key battery
may also appear in the in­
strument cluster display . Replace the battery in
the remote contro l key.
Replacing the remote control key battery
.. Pry the cover @off of the key CD using a coin
¢ fig. 15.
.. Remove the cover in the direction of the arrow .
.. Inse rt the n ew battery with the" +" facing up.
.. Press the cover back onto the key until it clicks
into place .
@ For the sake of the environment
Discharged batteries must be disposed of us­
ing methods that will not harm the env iron­
ment. Do not dispose of them in household
tras h.
@ Tips
The replacement battery must meet the same
specifications as the orig inal battery i n the re­
m ote co ntro l key .
Remote control key synchronization
If the ve hicle ca nnot be u nlock ed/locked by the
r emo te control, yo u can synchron ize the remo te
con trol key.
.. Press the remote co ntrol key button [@].
.. Inse rt the key in the driver's door lock wit hin 30
se con ds.
.. Press th e ~ button or~ button .
Open ing and closing
Unlocking/locking by remote control
Fi g. 16 Remote control key: b utto n p rogra mming
.. To unlock the vehicle, press the ffi butto n CD
¢fig.16 .
.,. To lock the vehicle, press the~ button @¢ &
once .
.,. To unlo ck the l uggage compart ment lid, press
t he
c:5 but ton @ briefly.
.,. To open* the l uggage compar tment lid, p ress
an d hold the
c:5 button @for at least one sec­
ond.
.. To trigger the a la rm, press the
! PANIC I button
@ . The vehicle ho rn and emergency flashers
are activated.
.,. To t urn off t he ala rm, press the
I PANIC I button
@ again .
If the vehicle is un locked and a door or the l ug­
gage compartment lid are not opened w it hi n 30
secon ds, the vehicle locks again a utoma tica lly .
T h is feature p revents the ve hicl e from being acc i­
dentally left unl ocked over a long period of t ime.
T h is does not app ly if yo u press the
c:5 bu tton @
f or at le ast o ne second .
Yo u can set in th e Infotainment system if
only
t h e dr iver's doo r o r the entire vehicle should un­
lock w hen unlo cking <=?
page 2 7. In vehicles
withou t an Infotainment sys tem, yo u can unloc k
the entire vehicle using se lective door unlocking .
A WARNING ,..__
Read and heed all WARNI NGS¢ &. in Descrip ­
tion on page 23 .
(D Tips
- Only use the remo te control key w hen yo u
are within view o f th e veh icle.
25

Opening and clo sin g
-The vehicle can only be locked when these­
l ector lever is in the P position (automatic
transmission).
- Do not use t he remote control when you are
inside the vehicle . Otherwise, you could un­
i ntentionally lock the vehicle. If you then
tried to start the engine or open a door, the
a larm wou ld be triggered. If this happens,
press the
CD unlock button.
- Only use the panic funct ion in an emergen­
cy.
Locking and unlocking with the
convenience key
A pp lies to : ve hicles w ith conven ience key
The doors and luggage compartment lid can be
unlocked/locked without using the remote con­ trol key.
F ig . 1 7 Doo r hand le: unlock ing/ lock ing senso r
Unlocking the vehicle
• To unlock the d river's or front passenger's door,
grab the door hand le of the respective door .
The door unlocks automatically.
• To open the door, pull the door hand le.
• To open the luggage compartment lid, press
the grip piece in the luggage compartment lid
c> page28.
Locking the vehicle
Requirement: the P selector lever position must
be engaged and all doors must be closed.
• To lock the vehicle, close the door an d touch
the sensor on the door handle
on ce c> fig. 17,
c> .&, . Do not hold the door hand le wh ile doing
this.
26
Un locking and locking the vehicle can o nly be
done at the front doors . The remote control key
cannot be more than approx imately
4 ft (1.5 m)
away from the door handle. It makes no differ­
ence whether the master key is in your jacket
pocket or in your briefcase, for example.
The door cannot be opened for a brief period d i­
rectly after locking it. This way you have the op­
portunity to check if the doors locked correctly.
You can set in the Infotainment system if
only
the driver 's door or the entire vehicle should un­
l ock when unlock ing
c> page 27. In vehicles
without an Infotainment system, you can unlock
the entire vehicle using se lective doo r unlocking .
_& WARNING
Read and heed all WARNINGS c> ,& in Descrip­
tion on page 23.
(D Tips
If your vehicle is left standing for a long peri­
od of t ime, note the following:
- The proximity sensor sw itches off after a
few days to
save ene rgy. You then have to
pull once on the door handle to unlock the
vehicle and a second time to ope n it.
- The energy management system gradually
tu rns off unnecessary convenience functions
to prevent the veh icle battery from drain ing
and to main tain the ve hicl e's ability to start
for as long as poss ible. You may no t be ab le
to unlo ck your veh icle using the conven ience
key.
- For an ex planation on co nfo rm ity w it h t he
FCC reg ulations in the Un ited States and the
I n dustry Canada regulations, see
c>poge 221.

a:,
a:,
...... N r--. N
'"' 0 0 ::, a:,
Central locking switch
Fig. 18 Dr iver's door: central locking switch
Fig. 19 Rear center console: central locking switch
.,. To lock the veh icle, press the fi'.l button ¢,&. .
.,. To unlock the veh icle, press the
63 button .
You can
lock and unloc k your vehicle using the
central locking switch in the driver's or front pas­
senger's door¢
fig. 18. You can only lo ck your
ve hicle using the central locking switch o n the
center console
c::> fig. 19.
When locking the vehicle with the central locking
switch, the fo llow ing applies :
- Open ing the door and the luggage compart ­
ment lid from the
outside is not possible (for
security reasons, such as when stopped at a
l ight) .
- The LED in the central locking switch turns on
when all doors are closed and locked.
- Front doors: you can open the doors indiv idual­
ly from the inside by pulling the door handle.
- Rear doors: to unlock the doors, pull on the
door handle
one time . To open the doors, pull
on the door hand le
again.
- In the event of a crash with airbag deployment,
the doors unlock automatically to allow access
to the vehicle.
Op enin g an d clos ing
A WARNING
--The central locking switch a lso works when
the ignition is sw itched off a nd automatical­
ly locks the entire vehicle when the
fi'.l but­
ton is pressed.
- The central locking switch is inoperative
when the vehicle is locked from the outside.
- Locked doors make it more difficult for
emergency workers to get into the vehicle,
which puts lives at r isk. Do not leave anyone
behind in the vehicle, especially child ren.
a) Tips
- Your vehicle locks automatically when it
reaches a speed of 9 mph (15 km/h) (Auto
Lock)
¢ page 23. You can unlock the veh icle
agai n using the
63 button in the cent ral lock­
ing switch.
- T he doors cannot be un locked with the cen­
tral locking switch on the cen ter conso le.
Setting the central locking system
In the Infotainment system, you can set which
doors the central locking system will unlock.
.,. Select: the I CAR ! function button > ( Car ) Sys­
tem s*
control button > Vehicle setting s > (Cen­
tral lo cking )*.
Unloc k do ors -
you can decide if All doors or only
the
Dr iver door should unlock . The luggage com­
partment lid also un locks when
All is selected. If
you select
Driver in a vehicle wi th a convenience
key*, only the door whose hand le you p ull w ill un­
lock.
If you se lect
Driv er, a ll the doors and luggage
c ompartmen t lid w ill unlock if you p ress the
[fil]
button on the remote control key tw ice.
Tone wh en locking -if you select On , a tone will
sound when you lock the vehicle .
27

Opening and closing

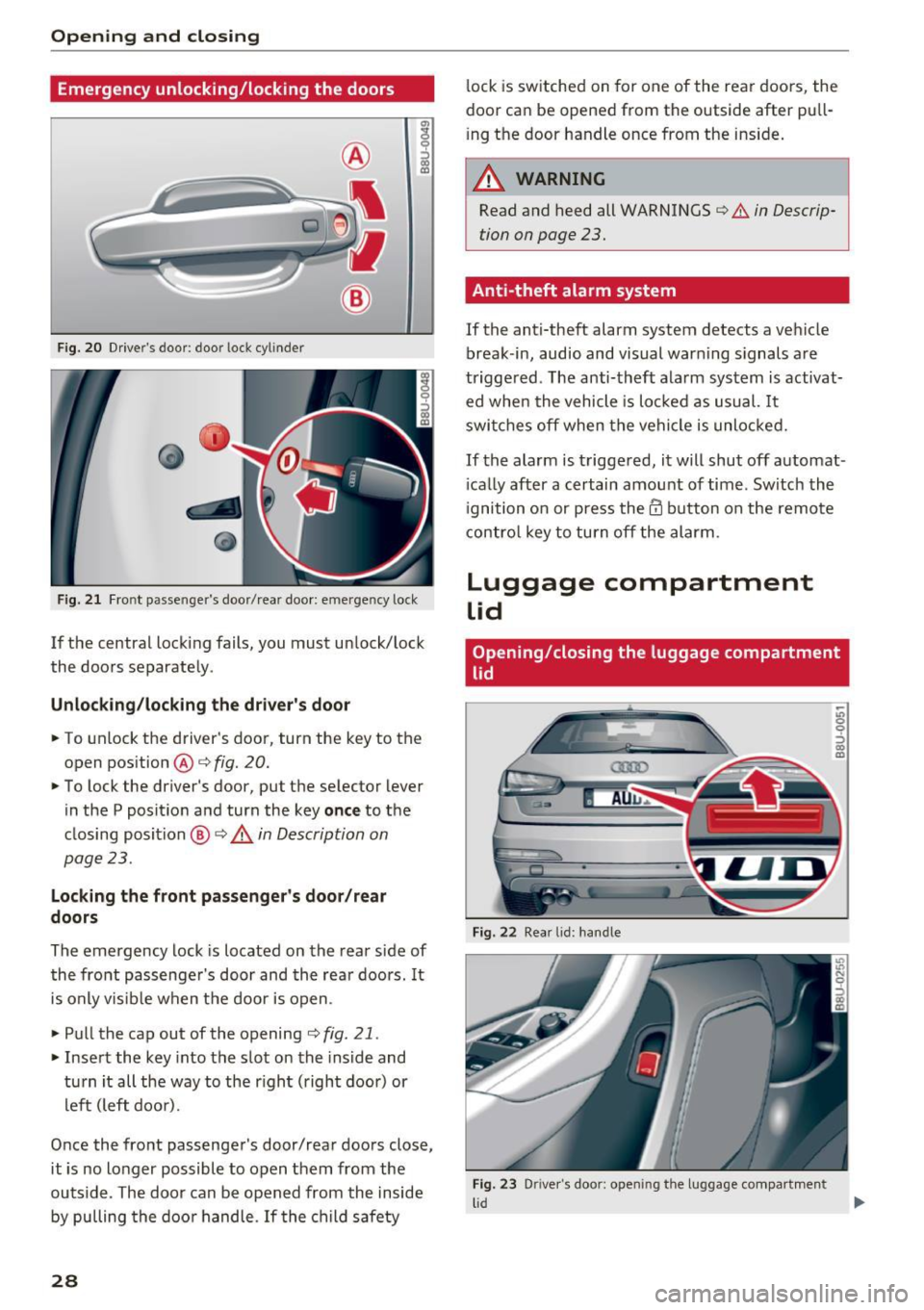

Emergency unlocking/locking the doors
Fig. 20 Driver's door: door lock cylinder
Fig. 21 Fr ont passenger 's door/rear door: emergency lock
If the central locking fails, you must unlock/lock
the doors separately.
Unlocking/locking the driver's door
.,. To unlock the driver's door, turn the key to the
open pos ition ®<=>
fig. 20 .
.,. To lock the driver's door, put the selector lever
in the P posit ion and turn the key
once to the
closing position @<=>.&. in
Description on
page 23 .
Locking the front passenger's door/rear
doors
The emergency lock is located on the rear side of
the front passenge r's door and the rear doors. It
is only visib le when the door is open .
.,. Pull the cap out of the opening <=>
fig. 21 .
.,. Insert the key into the slot on the ins ide and
turn it all the way to the r ight (right door) or
left (left door).
Once the front passenger's door/rear doors close, it is no longer possible to open them from the
outside . The door can be opened from the inside
by pu lling the door handle . If the child safety
28
lock is switched on for one of the rear doors, the
door can be opened from the outside after pu ll­
i ng the door handle once from the inside.
_& WARNING
Read and heed all WARNINGS c:> A in Descrip­
tion on page 23.
Anti-theft alarm system
If the anti-theft alarm system detects a vehicle break-in, audio and visual warning signals are
triggered. The anti-theft alarm system is activat­
ed when the vehicle is locked as usual. It
switches off when the vehicle is unlocked.
If the alarm is triggered, it will shut off automat­
i ca lly after a certain amount of time. Switch the
i gnition on or press the@ button on the remote
control key to turn off the alarm .
Luggage compartment
lid
Opening/closing the luggage compartment
lid
Fig. 22 Rear lid: handle
Fig. 23 Drive r's doo r: opening the luggage compartment
l id
-is 9 ::, co a,
