AUDI Q5 2013 Workshop Manual

Clear vision Lights
Switching the lights on and off
F ig . 43 Instrument pane l: light sw itch
Sw itching on AUTO - Automatic headlight
contr ols
• Turn the light switch to AUTO ¢ fig. 43.
S w itchin g on the side m arker light s
• Turn the light switch to :oo~.
Switching on low beams
• Turn the light switch to @-0.
Swi tchin g off the light s
• Turn the light switch to 0.
The low beams only i lluminate with the igni­
tion turned on.
With the s ide marker lights or headlights
switched on, the symbol next to the light
switch illuminates
:oo:.
AUTO -Automatic headlight control
With the switch in the AUTO position, the low
beams are swi tched on a utomatica lly depend­
ing on the ambient light, for example in a tun­
ne l, at dusk and when it is raining or snowing.
When the low beams are switched on, the
:oo:
symbol comes on. The low beams remain
switched on regardless of the ambient light
when you turn on the fog lights.
When you turn
off the ign ition, the low beams
are automatically switched
off.
W ith automatic headlight control, you also
have the high-beam function avai lab le . How -
Clear vi sion 49
ever, if you have not switched h igh beams
back to low beams while driving with auto­
matic headlight control, only the low beams
come on the next time you turn on automatic
headlight control. In order to return to high
beams aga in, you first have to pull the high
beam lever back to the normal position and
then push the lever forward .
Light sen so r malfunct ion
In the event of a light sensor malfunction, the
driver is notified in the instrument cluster dis­
play :
fal Automat ic headlight s/ automati c wipers
defec tive
For safety reasons, the low beams are turned
on permanently with the switch in
AUTO .
However, you can continue to turn the lights
on and
off using the light switch . Have the
light sensor checked as soon as possible at an
authorized Audi dealer or other qualified
workshop.
A WARNING
- Automatic headlights are only intended
to assist the driver. They do not relieve
the dr iver of his respons ibility to check
the head lights and to turn them on man ­
ually accord ing to the current lig ht and
visibility conditions. For example, fog cannot be detected by the light sensors.
So always sw itch on the headlights @-0
under these weather conditions and
when dr iving in the da rk .
- Crashes can happen when you cannot see
the road ahead and when you cannot be
seen by other moto rists. Always turn on
the head lights so that you can see ahead
and so that others can see your car from
the back.
- Please obey all laws when using the
lighting systems described here.
(l'} Tips
-The light sensor for head light control is
located in the rear
view mirror mount.
Yo u should therefore no t apply any

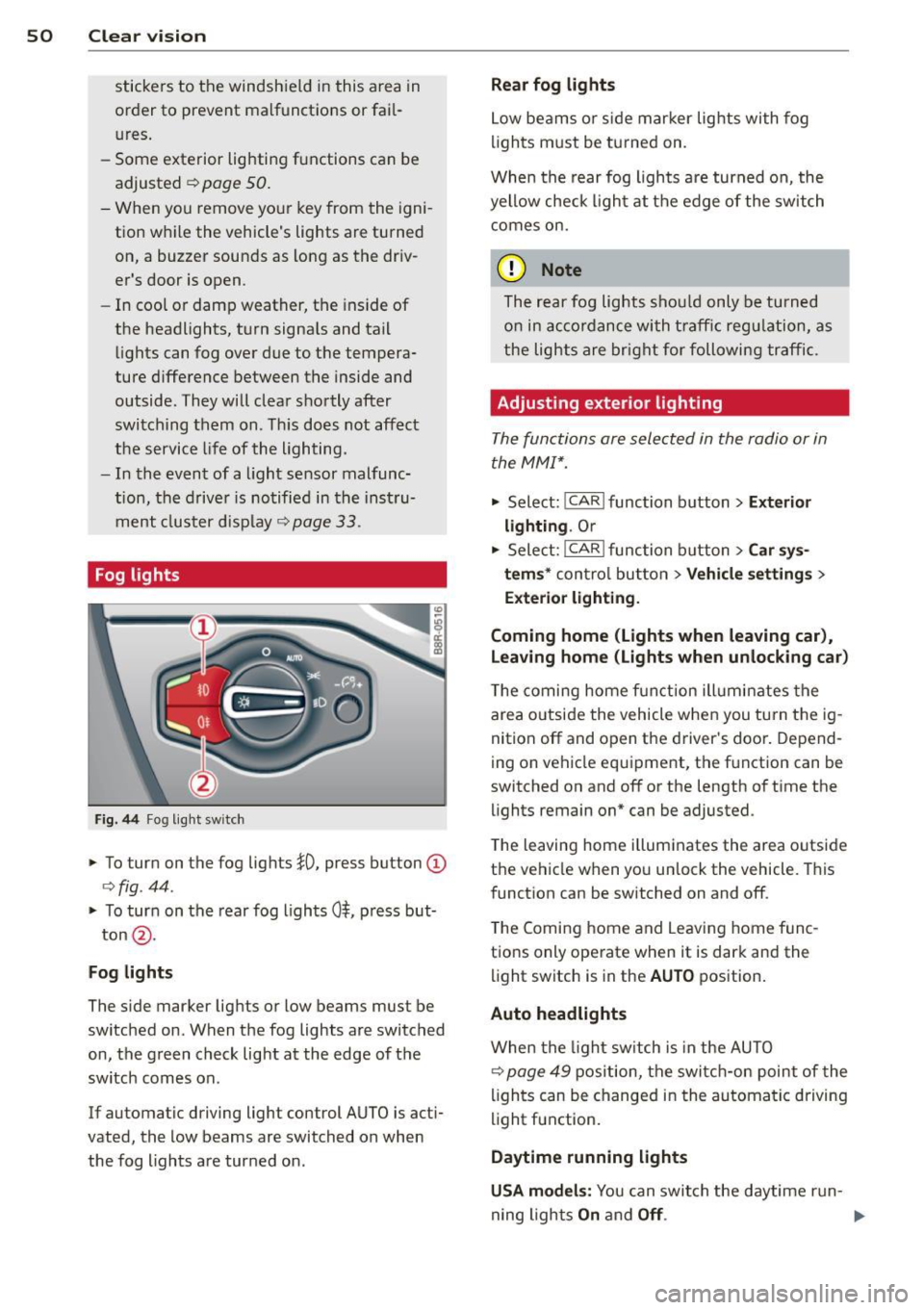

50 Clear vis ion
stickers to the windshield in this area in
or der to prevent malfunctions or fai l­
u res .
- Some exte rior lig hti ng f unctions can be
adjusted
c> page 50 .
-When yo u remove yo ur key from the igni ­
tion while the vehicle's lights are turned
on, a buzze r sounds as long as the driv­
er's door is open .
- In coo l or damp weather , the ins ide of
the headlights, t urn signa ls and tail
li ghts can fog over due to the tempera­
ture difference between the inside and
outside. They will clea r sho rtly after
switching them on . T his does not affect
the service life of the lighting .
- In the even t of a light sensor malfunc­
t ion, the d river is no tified in th e inst ru­
ment cluster disp lay
c> page 33.
Fog lights
Fig . 44 Fog light sw it c h
.,. To tur n on the fog ligh ts iO, press button ©
c>fig . 44 .
.,. To tur n on the rear fog l ights Ot p ress but-
ton @.
Fog lights
The s ide marker lig hts or low beams must be
switched on . When the fog lights a re switched
on, the green check light at the edge of the
sw itch comes on.
If automatic driving light control AUTO is act i­
vated, the low beams are switched on when
the fog lights are tur ned on .
Rear fog lights
Low be ams o r sid e mar ker lights wi th fog
li gh ts m ust be t urned on .
When the rear fog lights a re turned on, the
yellow check ligh t a t the edge of the switch
comes on.
(D Note
The rear fog lights s houl d only b e turned
o n in acc ord ance wi th t raff ic reg ulation, a s
the lights are brig ht for following tra ffic.
Adjusting exterior lighting
The functions are sele cted in the radio or in
the MM I*.
.,. Select: !CAR ! function b utton> Ext erior
lighting .
Or
.,. Sele ct:
!CAR ! func tion b utton> Car sys­
tem s*
contro l bu tton > Vehicle setting s >
Exterior lighting.
Coming home (Lights when leaving car ),
Leaving home (Lights when unlocking car)
T he coming home f unct ion ill umi nates the
are a outside the vehicle whe n you tu rn the i g­
nit ion off and open the d river 's door . Depend­
ing on vehicle equ ipment, the f unction can be
switched on and off or the length of t i me the
lights remain on* can be adjusted .
T he leaving home illum inates the area outside
t h e vehicle when you unlock the vehicle . This
funct ion can be switched on and off .
T he Comi ng home and Leaving home f unc­
t io ns only ope rate when it is dark and the
light switch is in the
AUTO position .
Auto headlights
When the lig ht sw itch i s in the AU TO
c> page 49 position, the swi tch-on point of the
li gh ts can be changed i n the automa tic driving
light function.
Daytime running lights
USA models: You can swit ch the daytime run-
ning lights
On a nd Off . .,..

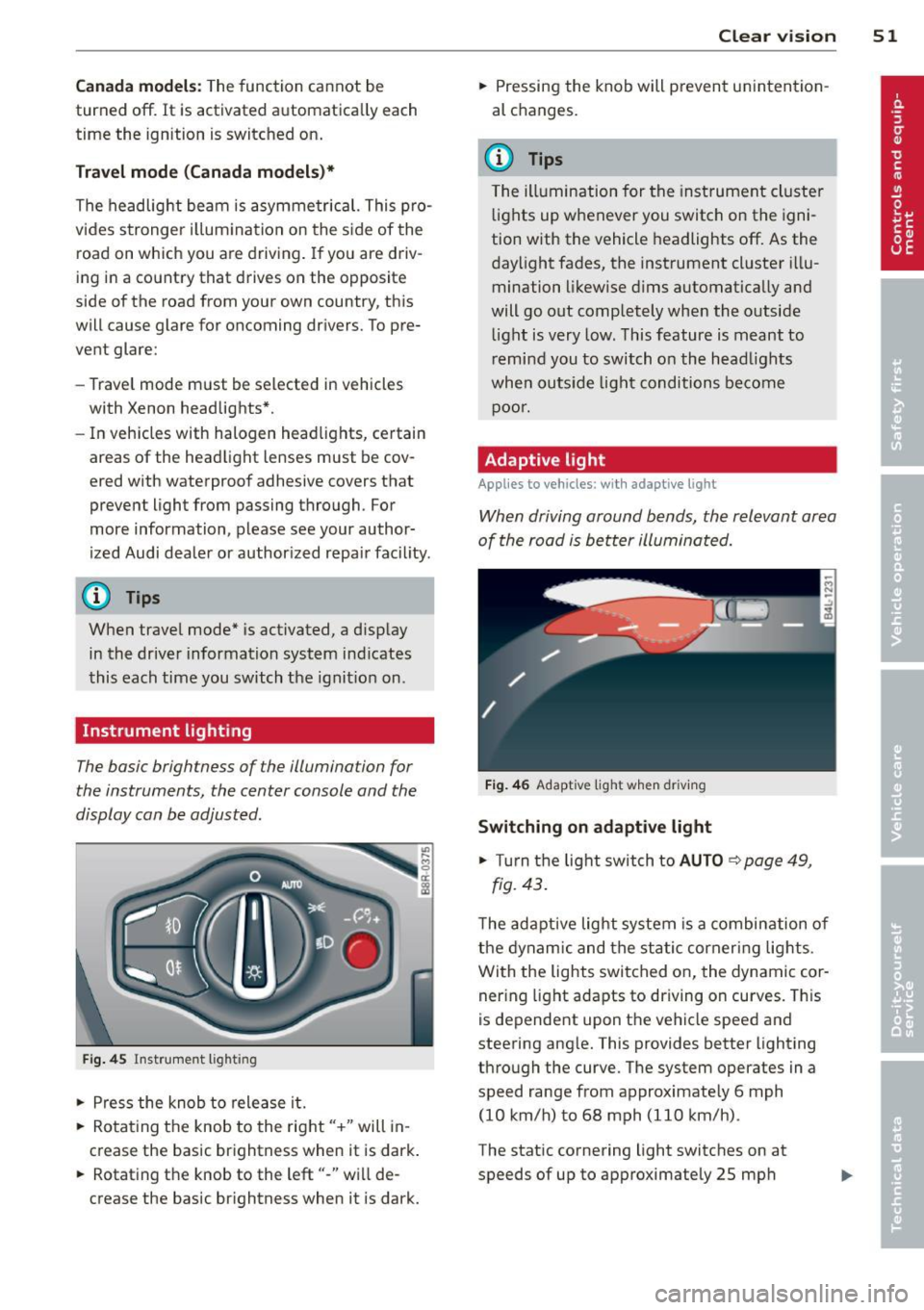

Canada models : The function cannot be
turned off.
It is activated a utomatica lly each
time the ignition is switched on.
Travel mod e (Canada models)*
The headlight beam is asymmetrical. This pro­
vides stronge r illum ination on the s ide of the
road on which you are driving . If you are driv ­
ing in a co untry that drives on the opposite
side of the road from your own country, this
will cause glare for oncoming drivers. To pre­
vent glare:
- Trave l mode must be selected in vehicles
with Xenon headlights*.
- In vehicles with halogen headlights, certain
areas of the head light lenses must be cov­
ered with waterproof adhesive covers that
prevent light from passing through. For
more information, please see your author­
ized Audi dealer or author ized repair facility .
@ Tips
When travel mode* is activated, a d isp lay
in the drive r information system ind icates
this each time you switch the ignit io n on .
Instrument lighting
The basic brightness of the illumination for
the instruments, the center console and the
display can be adjusted .
Fig. 45 Inst rume nt lighting
.. Pres s the knob to release it.
.. Rota ting the knob to the rig ht" +" will in ­
c rease the basic brightness when it is dark .
.. Rotating the knob to the left"-" will de­
crease the bas ic br ightness when it is dark. Clear vi
sion 51
.. Pressing the knob will p revent un intention ­
al changes.
(D Tips
T he ill umination for the instrument cluster
lights up w henever you switch on the igni­
tion with the vehicle headlights off. As the
day light fades, the instrument cluster i llu­
mination likewise dims automatica lly and
will go out completely when the outside li ght is very low. This feature is meant to
r emind you to switch on the head lights
whe n outside lig ht conditions become
p oor .
Adaptive light
Applies to vehicles: wi th adaptive light
Wh en driving around bends, the relevant area
of the road is be tter illuminated.
Fi g. 4 6 Adapt ive light w hen driv ing
Switching on adapt ive light
.. Turn t he light switch to AUTO ¢ page 49,
fig. 43 .
The adaptive lig ht system is a combin ation o f
the dynam ic and the static corneri ng lights.
Wi th the lights switched on, the dynamic cor ­
ner ing light adapts to driving on curves. This
is dependent upon t he vehicle speed and
steering ang le. This provides better lighting
through the curve. The system operates in a
speed range from approximate ly 6 mph
(10 km/h) to 68 mph (110 km/h) .
The static cornering light switches on at
speeds of up to approximately 25 mph

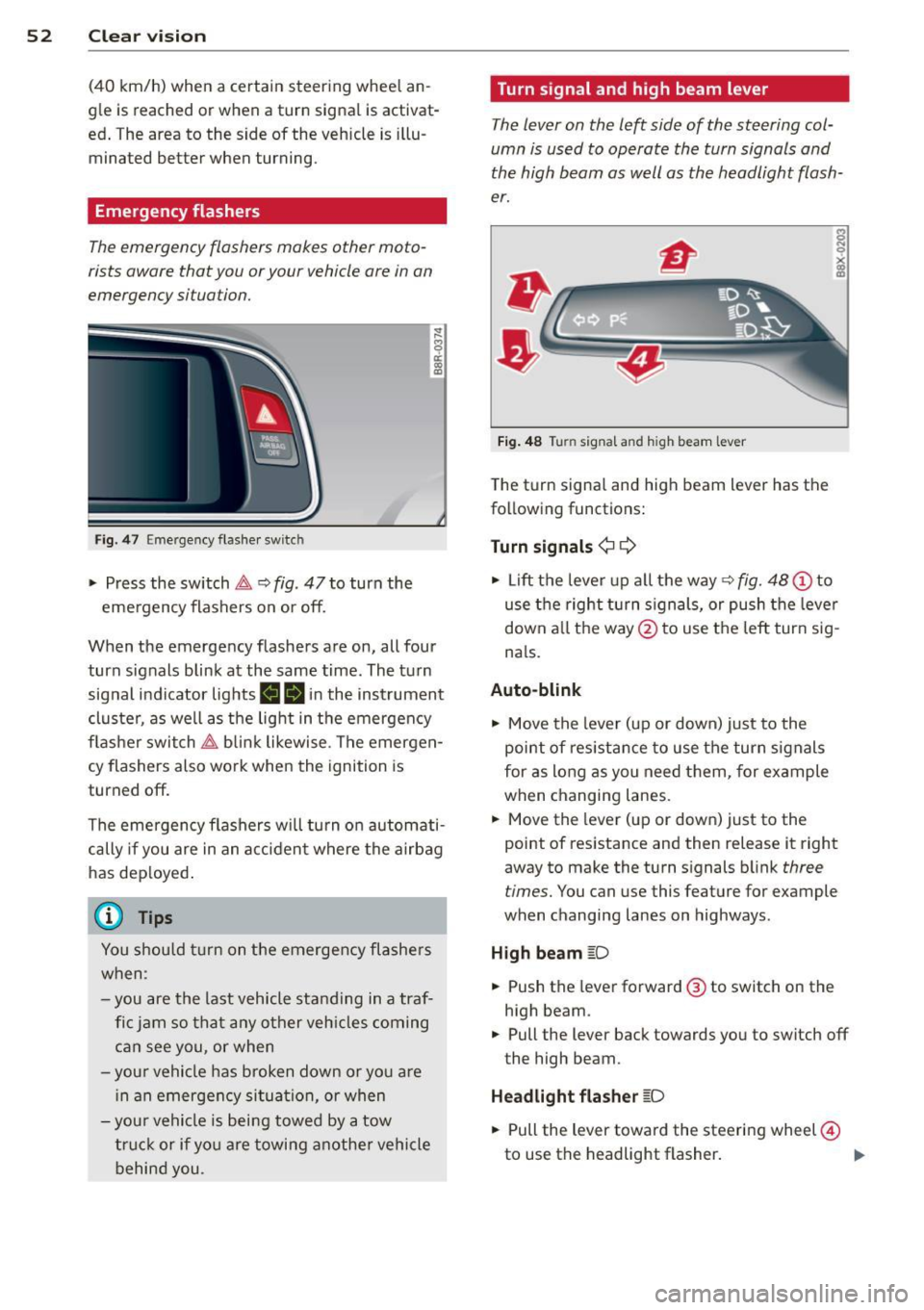

52 Clear vision
(40 km/h) when a certain steering wheel an­
gle is reached or when a turn signal is activat­
ed. The area to the side of the vehicle is illu­
minated better when turning .
Emergency flashers
The emergency flashers makes other moto­
rists aware that you or your vehicle are in an
emergency situation.
Fig . 4 7 Emer gency flasher switc h
"" Press the switch &-, ¢ fig. 47 to turn the
emergency flashers on or off.
~
9 a: (X) a:,
When the emergency flashers are on, all four
turn signals blink at the same time. The turn signal indicator lights
BB in the instrument
cluster, as well as the light in the emergency
flasher switch &-, blink likewise . The emergen­
cy flashers also work when the ignition is
turned off.
The emergency flashers will turn on automati­
cally if you are in an accident where the airbag
has deployed.
@ Tips
You should turn on the emergency flashers
when :
-you are the last vehicle standing in a traf­
fic jam so that any other vehicles coming
can see you, or when
-your vehicle has broken down or you are
in an emergency situation, or when
-your vehicle is being towed by a tow
truck or if you are towing another vehicle
behind you. Turn signal and high beam lever
The
lever on the left side of the steering col­
umn is used to operate the turn signals and
the high beam as well as the headlight flash­
er.
Fig. 48 Turn signal and high beam lever
The turn signal and high beam lever has the
following functions:
Turn signals¢ ¢
s
"" '? X co a,
"" Lift the lever up all the way c:> fig. 48 (!) to
use the right turn signals, or push the lever
down all the way@ to use the left turn sig­
n a ls.
Auto-blink .,. Move the lever (up or down) just to the
point of resistance to use the turn signals
for as long as you need them, for example
when changing lanes .
.,. Move the lever (up or down) just to the
point of resistance and then release it right
away to make the turn signals blink
three
times.
You can use this feature for example
when changing lanes on highways .
High beam
[D
"" Push the lever forward ® to switch on the
high beam .
.,. Pull the lever back towards you to switch off
the high beam.
Headlight flasher
[D
.. Pull the lever toward the steering wheel@
to use the headlight flasher.
IJJ>

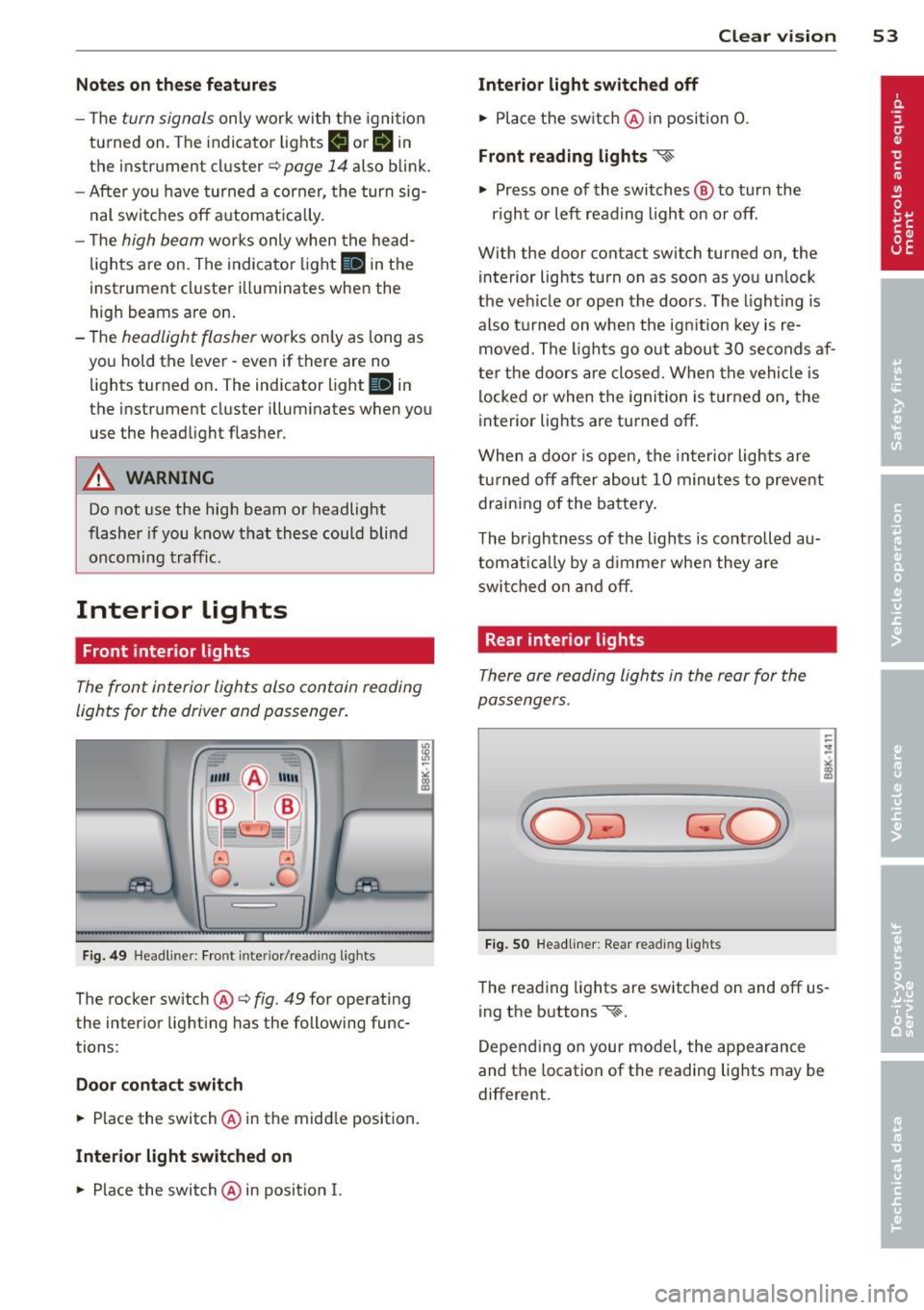

Notes o n these featur es
-The turn signals only work with the ignition
turned on. The indicator lights
II or Ill in
the instrument cluster
¢page 14 also b link.
- After you have turned a corner, the turn sig-
nal switches off automatica lly.
- The
high beam works only when the head­
lights are on. The indicator light
II in th e
instrument cluster illuminates when the
high beams are on.
- The
headlight flasher wo rks only as long as
you hold the lever -even if there are no
lights turned on. The indicator light
II in
the instrument cluster illuminates when you
use the headlight flasher.
A WARNING
Do not use the high beam or headlight
flasher if you know that thes e cou ld blind
oncoming traffic.
Interior lights
Front interior lights
-
The front interior lights also contain reading
lights for the driver and passenger .
r ,,,,, , 11111
~8 ,~
G) Gl
,o . . o
I
Fig. 49 Headliner: Fro nt inte rior/rea ding lights
The rocker switch @¢ fig. 49 for operating
the interior lighting has the following func­
tions :
Door cont act swi tch
.,. Place the switch @ in the middle position.
Inte rior light switched on
.,. Place the switch@ in posit ion I.
Clear vision 5 3
Interior light switch ed off
.,. Place the sw itch @ in position 0.
Front re ad in g lights ~
.,. Press one of the switches@ to turn the
r ight or left reading light on or off .
With the door contact switch turned on, the
interior lights turn on as soon as you unlock
the vehicle or open the doors. The lighting is
also turned on when the ignition key is re­
moved. The lights go out about 30 seconds af­
ter the doors are closed. When the vehicle is locked or when the ignition is turned on, the
interior lights are turned off.
When a doo r is open, the interior lights are
tu rned off after about 10 minutes to prevent
draining of the battery .
The brightness of the lights is controlled au­
tomat ica lly by a d immer when they are
swi tched on and off.
Rear interior lights
There are reading lights in the rear for the
passengers .
Fig . 50 Headliner: Rear read ing lig hts
The read ing l ights are switched on and off us­
ing the buttons ~-
Depending on your model, the appearance
and the location of the reading lights may be
different .

54 Clear vision
Vision
Sun visors
Using the sun visors makes driving safer.
Fig. 51 Sun visor
The sun visors for the driver and passenger
can be pulled out of their brackets in the cen­
ter of the vehicle and turned towards the
doors
i::> fig. 51 (D. After the sun visor has
been turned to the door, it can be extended*
lengthwise.
Vanity mirror
The vanity mirrors on the sun visors are cov­
ered. When the lid is opened @, the m irror
light in the headliner turns on automatically .
It turns off when the lid is closed and the visor
is folded up again.
Sun shade
App lies to vehicles: with s un shade
Fig. 52 Sun shade pulled up on
a rear window
.. Pull the shade out and hang it in the brack ­
et on the upper door frame
~fig. 52.
Wiper and washer
system
Switching the windshield wipers on
+ ®
Fig . 53 Windshield w iper lever
Fig.
54 Rear w iper actuat io n
Move the windshield w iper lever to the corre­
sponding position:
@ -Windshield wiper off
(D-Interval mode. The windshield wiper au­
tomatically activates when you drive 2 mph (4
km/h). The higher the sensitivity of the rain
sensor is set (sw itch @to the right), the ear li­
er the windsh ield wipers react to moisture on
the windshield . In some models, you can
switch rain sensor mode
off and sw itch inter­
mittent mode on in the MMI*. Select:
ICAR!
function button > Car systems* control but­
ton
> Driver assist > Rain sensor. In interm it­
tent mode, you can adjust the interval time
using the@switch.
@ -Slow wipin g
@-Fast wip ing
@ -Single wipe
®-Clean the win dshie ld. To eliminate water
droplets, the windsh ield wiper performs one
afterwipe operation after severa l seconds
ll>-

while driving. You can switch this function off by moving the lever to position ® within 10
seconds of the afterwipe operation. The after­
wipe function is reactivated the next time the ignit ion is switched on.
The rear wiper automatically switches on
when the reverse gear is engaged and the
front w indshield wipers are on and in opera ­
tion .
C lea ning the headlights *. The headlight wash ­
er system * operates on ly when the headlights
are on. If you move the lever to pos ition ®,
the headlights are washed in interva ls .
® -Wipe the rear window. The rear wiper
moves about every 4 seconds .
0-Clean the rear window. The number of
wiping operations depends on how long the l ever is held in positio n 7.
A WARNING
-The ra in sensor is only intended to assist
the driver. The driver is still responsible
for man ually sw itching the w ipers on ac­
cording to the v is ibility conditions.
- The windshie ld may not be treated w ith
water-repe lling windshie ld coat ing
agents. Unfavorable conditions, such as
wetness, darkness, low sun, can res ult in
increased glare. W iper b lade chatter is
also possible .
- Proper ly functioning w indshie ld w iper
blade s are required fo r a clear view and
sa fe dr iv ing .
(D Note
-In the case of frost, check whether the
windsh ield wiper b lades a re fro zen to
t h e windshie ld. Swit ching on the wind ­
s h ield wipers can d amage t he wipe r
blades!
- Prior to using a car w ash, the windshield
wipe r system m ust be swit ched off (lever
i n position 0) . This helps to prevent unin­
tentiona l switching on and damage to
the windshie ld w iper system.
Clear v is ion 5 5
(D Tips
- The windshie ld w ipers are switched off
when the ign it ion is tu rned off . Act ivate
the windsh ield wipers after the ignition
is switc hed back on by moving t he wind­
shield wipe r lever to any position .
- Worn or d irty windshield wiper blades
result in streaking. This ca n affect the
rai n sensor function. Check your wind­
shield w iper blades regularly.
- The washer fluid nozz les of the wind­
shield washe r system a re heated at low
tempe rat ures whe n the ignition is on .
- When stopping temporarily, e .g. at a
t raffic light, the set spe ed of the wind­
shield wiper s is automatically reduced by
one speed.
Service position
The windshield wiper blades ore replaced in
the service position.
"' If the w iper blades are no t frozen to t he
w indshield, br ing the w indshie ld w iper lever
to the basic position @¢
page 54, fig . 53 .
"' Sele ct: !CAR !func tion butt on> Windshield
wipers
> Service position . Or
"' Sele ct: I CAR I func tion b utton > Car sy s­
tem s*
contro l butto n > Servicing & checks >
Wiper service position . Or
"' Switch the ignit ion off and move the wind­
shield w iper lever to position ©¢
page 54,
fig . 53.
- On -changing the windshield wiper b lades
can only be done if you b ring the wiper arms
to the service position . You will also avoid
pai nt damage to the hood when working on
the wipe rs in th is posit ion .
-Off -the w indshield w ipers are moved to
their in itia l position again .
(D Note
Neve r mane uver yo ur vehicle with t he
front windshie ld w iper arms raised s ince
they wi ll automatically be moved back to

56 Clear vis ion
their basic position above a speed of 3
mph (6 km/h) and can scratch the hood .
(D Tips
-You can also use the service pos ition, for
example , if you want to protect the
windsh ield from icing by using a cover .
- The service position automatically
switches to
Off when you operate the
winds hield wiper lever , or speed exceeds
3 mph (6 km/h).
Replacing windshield wiper blades
Wiper blades in good condit ion help keep the
windshield cl ear .
Fig. 55 Remov ing t he w iper blade
Removing the wiper blade
""' Bring the wind shield wipers to the service
pos it ion
¢ page 55.
""' Fo ld the windshield wiper arm away from
the windshie ld .
""' Press the lo cking knob @¢
fig. 55 on the
wiper blade . Hold t he w iper blade fi rm ly.
""' Remove the w iper blade in the direc tion of
the arrow .
Attaching th e wiper blade
""' Insert the new wipe r blade into the mount
on the w iper arm @until you hear it latch
i n to place .
""' Place the wiper arm back on the windshie ld .
A WARNING
- Clean yo ur wipe r blades regular ly wit h a
w indshield washer solution to prevent
streaking . If the wiper blades are very
dirty, for example with insects, carefu lly clean the wiper blades with a sponge or a
soft brush.
- For your safety, yo u should replace the
wiper blades once or twice a year. See
your authori zed Audi dealer for replace­
ment b lades.
(D Note
- The windshie ld wi per blades must only
be replaced when in the service pos ition
¢
page 55! Otherwise, you risk damag­
ing the paint on the hood or the wind­
shield wipe r moto r.
- To help prevent damage to the w iper sys­
tem, always loosen blades wh ich are fro­
zen to the windshield before operating
w ipers .
- To help prevent damage to wiper blades,
do not use gasoline, kerosene, paint
thinner, or other solvents on o r near the
w iper blades.
- To help prevent damage to the w ip er
arms o r other compo nents, do not at­
t empt to move the wipe rs by hand .
(D Tips
Comme rc ial hot waxes applied by auto­
matic car washes affect t he how easily the
glass surfa ce ca n be cleaned.
Replacing the rear wiper blade
Fig . 56 Rea r w ipe r: Re mov ing t he w ipe r bl ade
Removing the wiper blade
""' Fold the windshie ld w iper arm away from
the wi ndshield .
""' Pull the w iper blade and holder out of the
g
q er a, II)
mou nt. .,.

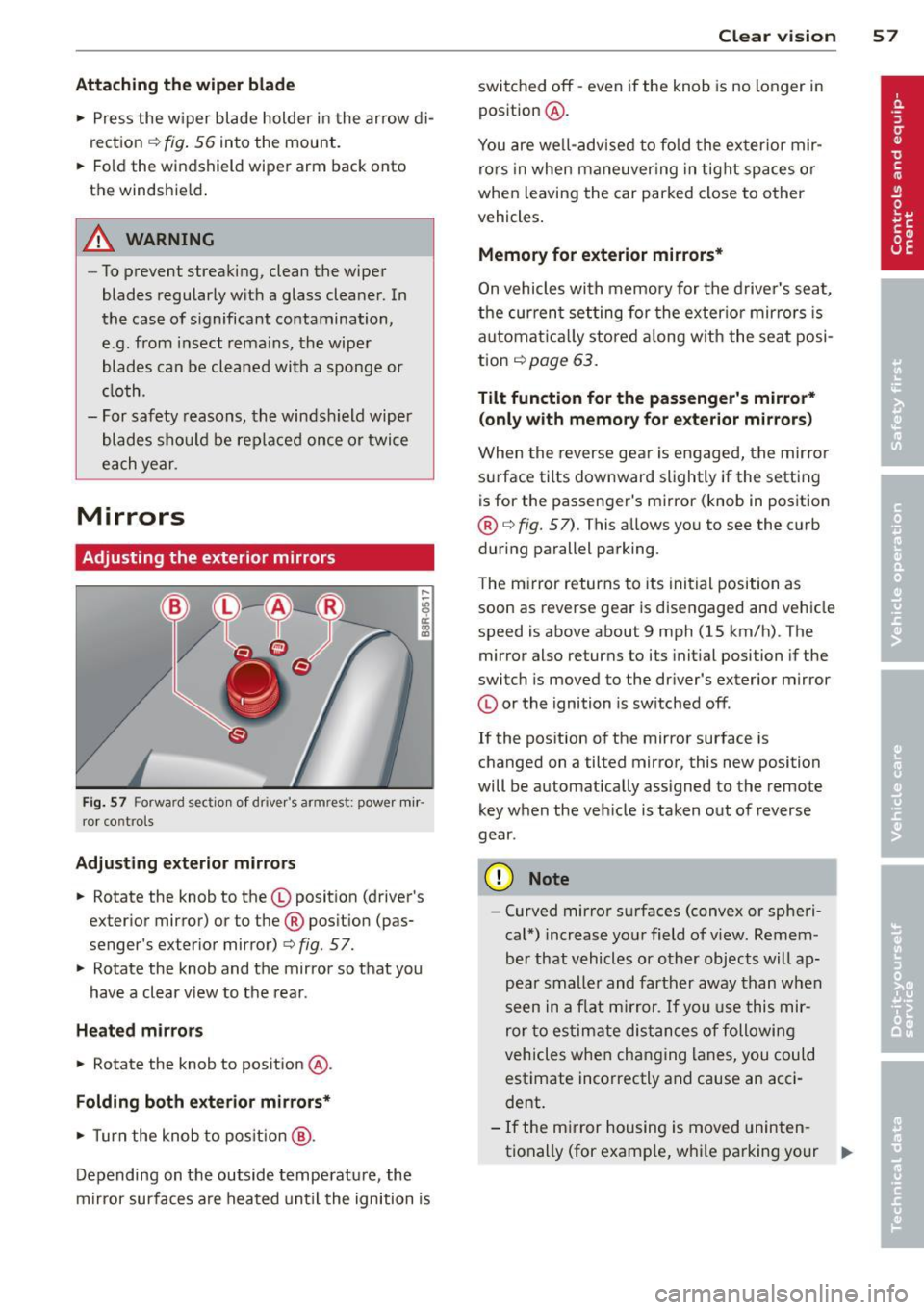

Attaching the wiper bl ade
• Press the w iper blade holder in the arrow d i­
rect ion
c::> fig. 56 into the mount.
• Fold the windshield wiper arm back onto
the windshie ld .
A WARNING
- To prevent streaking, clean the wiper
blades regularly w ith a glass cleaner. In
the case of significant contamination,
e.g. from insect rema ins, the wiper
blades can be cleaned with a sponge or
cl oth.
- For safety reasons, the windsh ield wiper
blades sho uld be replaced once or twice
each year.
Mirrors
Adjusting the exterior mirrors
-
Fi g. 57 Forward section of dr iver 's armrest: power mir ·
ror co ntro ls
Adju sting e xterior m irrors
• Rotate the knob to the© position (driver's
exterior mirror) or to the® pos ition (pas·
senger's exterior mirror)
c::> fig. 57.
• Rotate the knob and the mirror so that you
have a clear view to the rear.
Heated mi rrors
• Rotate the knob to posit ion ® ·
Folding both e xterior mirrors*
• Turn the knob to pos it io n @ .
Depending on the outside temperature, the
m irror surfaces are heated unt il the ignition is
Clear vi sion 5 7
switched off -even if the knob is no longer in
position @.
You are we ll-advised to fold the exter ior mir·
rors in when maneuver ing in tight spaces o r
when leaving the car parked close to other
vehicles.
Memory for exterior mirrors*
On vehicles with memory for the drive r's seat,
the cur rent setting for the exter ior mirro rs is
automat ica lly stored a long w ith the sea t posi·
tion
c::> page 63.
Tilt function f or the passenger 's mirror*
(only with memory for e xterior mirrors )
When the reverse gear is engaged, the mirror
surface tilts downward slightly if the setting
is for the passenger's mirror (knob in position
®
c::> fig. 57) . This all ows you to see the curb
during parallel parking.
The mirror returns to its initial position as
soon as reverse gear is disengaged and vehicle
speed is above about 9 mph
(15 km/h). The
mirror also returns to its initial position if the
switch is moved to the dr iver's exterior mirror
© or the ignition is switched off .
If the position of the mirror surface is
changed on a tilted mirror, this new position
will be automatically assigned to the remote
key when the vehicle is taken out of reverse
gear .
(D Note
-Curved mirror surfaces (convex or spheri·
cal*) increase you r field of v iew . Remem­
ber that vehicles or other objects will ap­
pear smalle r and farther away than when
seen in a flat m irror.
If you use this mir ­
ror to estimate distances of following
vehicles when changing lanes, you could
estimate incorrectly and cause an acci·
dent.
- If the m irror housing is moved uninten­
tionally (for examp le, while pa rking your .,..

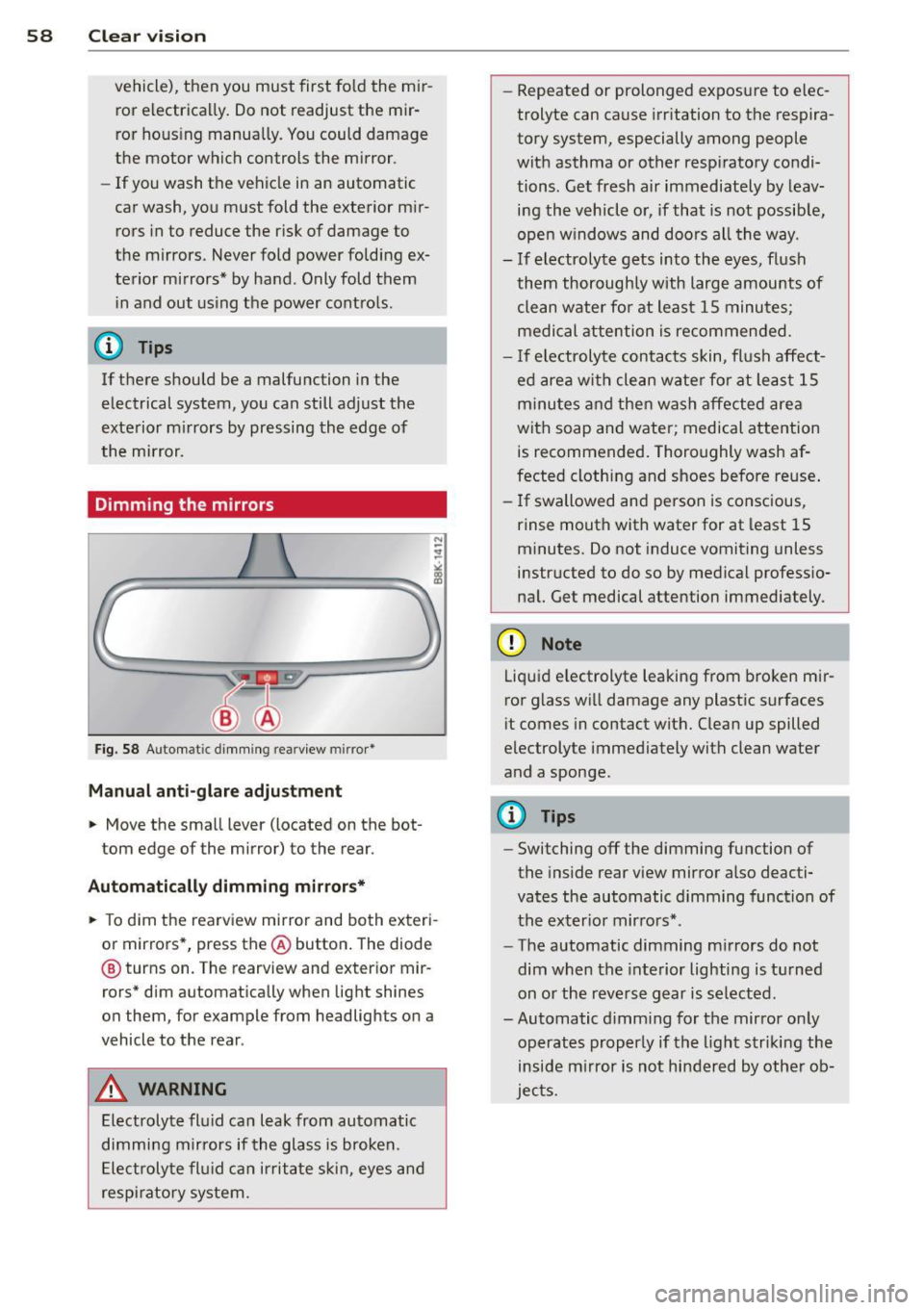

58 Clear vision
vehicle), then you must first fold the mir­
ror electrically. Do not readjust the mir­
ror housing manually. You could damage
the motor which controls the mirror.
- If you wash the vehicle in an automatic
car wash, you must fold the exterior mir­
rors in to reduce the risk of damage to
the mirrors. Never fold power folding ex­
terior mirrors* by hand . Only fold them
in and out using the power controls.
@ Tips
If there should be a malfunction in the
electrical system, you can still adjust the
exterior mirrors by pressing the edge of
the mirror.
Dimming the mirrors
Fig. 58 Automat ic dimming rearview mirror*
Manual anti-glare adjustment
.. Move the small lever (located on the bot­
tom edge of the mirror) to the rear.
Automatically dimming mirrors* .. To dim the rearview mirror and both exteri­
or mirrors*, press the@button. The diode
@ turns on. The rearview and exterior mir­
rors* dim automatically when light shines
on them, for example from headlights on a
vehicle to the rear .
A WARNING
Electrolyte fluid can leak from automatic
dimming mirrors if the glass is broken.
Electrolyte fluid can irritate skin, eyes and
respiratory system. -
Repeated or prolonged exposure to elec ­
trolyte can cause irritation to the respira­
tory system, especially among people
with asthma or other respiratory condi­
tions. Get fresh air immediately by leav­
ing the vehicle or, if that is not possible,
open windows and doors all the way.
- If electrolyte gets into the eyes, flush
them thoroughly with large amounts of clean water for at least 15 minutes;
medical attention is recommended.
- If electrolyte contacts skin, flush affect­
ed area with clean water for at least 15
minutes and then wash affected area
with soap and water; medical attention
is recommended. Thoroughly wash af­
fected clothing and shoes before reuse.
- If swallowed and person is conscious,
rinse mouth with water for at least 15
minutes. Do not induce vomiting unless
instructed to do so by medical professio­
nal. Get medical attention immediately .
(D Note
Liquid electrolyte leaking from broken mir­
ror glass will damage any plastic surfaces
i t comes in contact with. Clean up spilled
electrolyte immediately with clean water
and a sponge.
@ Tips
- Switching off the dimming function of
the inside rear view mirror also deacti­
vates the automatic dimming function of
the exterior mirrors* .
- The automatic dimming mirrors do not
dim when the interior lighting is turned
on or the reverse gear is selected.
-Automatic dimming for the mirror only
operates properly if the light striking the
inside mirror is not hindered by other ob­
jects.
