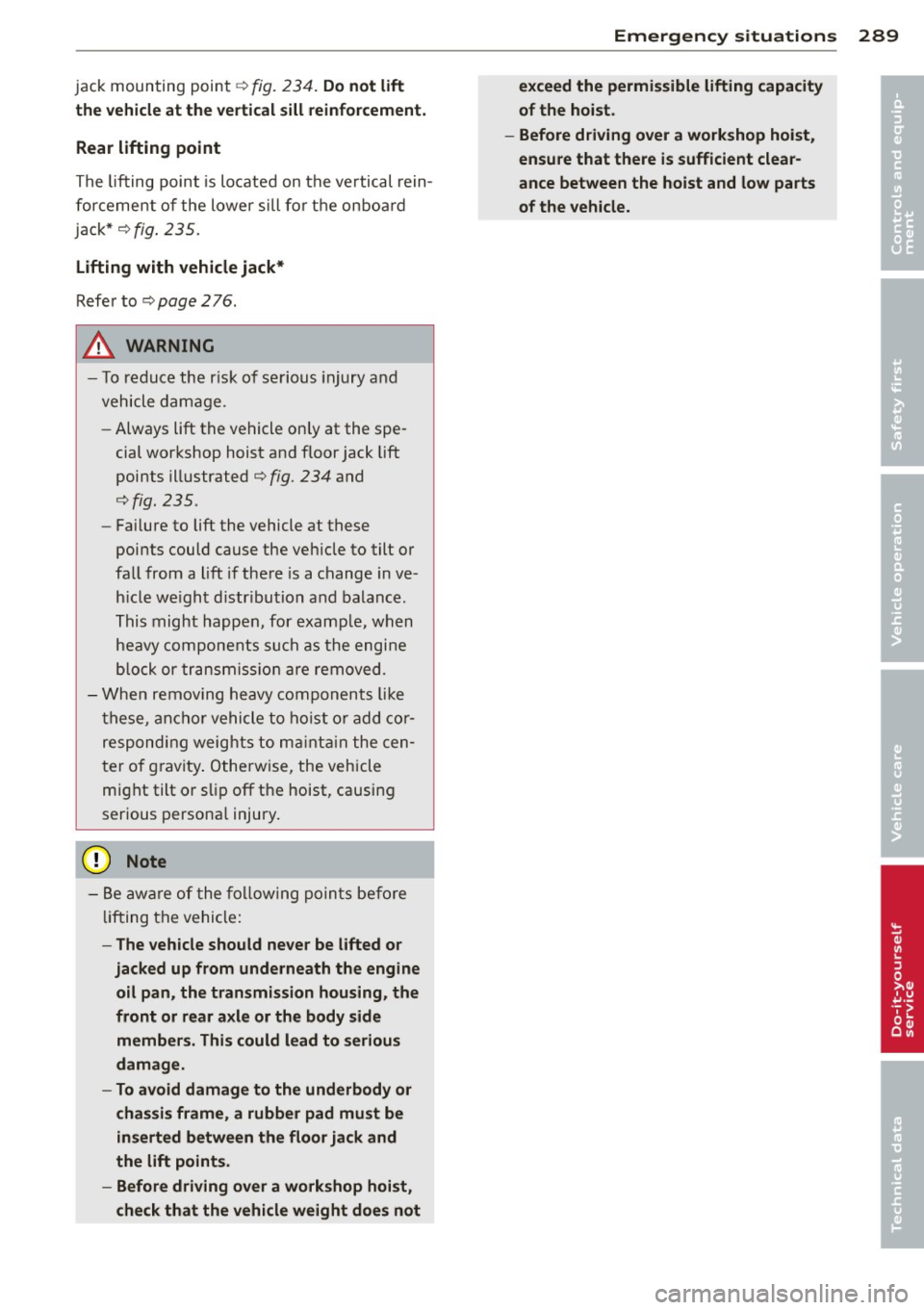

jack mounting point ¢ fig. 234 . Do not lift
the vehicle at the vertical sill reinforcement.
Rear lifting point
T h e lift ing poin t is lo cate d on th e vertical rein ­
fo rc ement o f the lower s ill for th e on boar d
jack*
¢ fig . 235.
Lifting with vehicle jack*
Refe r to ¢ page 2 76 .
A WARNING
- To reduce the r is k o f se rious injury a nd
vehicle da mage.
- Always lift the ve hicle on ly at the spe­
cial w ork shop h oist and flo or jack lift
points illustrated¢
fig. 234 and
¢fig. 235 .
-Fai lure to lift the vehicle at these
poi nts could cause the ve hicle to tilt or
fa ll from a lift if the re is a change in ve ­
h icl e w eigh t distr ibu tion and balance .
This might happen, for exam ple, w hen
heavy c ompone nts su ch as the engi ne
b lo ck or tran smi ss ion ar e removed .
- W hen re mov ing heavy co m ponents like
th ese , a nch or ve hicle to ho ist or add cor­
res pon din g weig hts to maintai n the cen­
ter o f gravity . Othe rwise, the vehicle
mig ht tilt or s lip off the hoist , causi ng
serious persona l injury .
(D Note
- Be aw ar e of t he fo llow ing poin ts be fore
lift ing t he vehicle:
- The vehicle should never be lifted or
jacked up from underneath the engine oil pan, the transmission housing, the
front or rear axle or the body side members. This could lead to serious
damage.
- To avoid damage to the underbody or
chassis frame, a rubber pad must be
inserted between the floor jack and
the lift points .
- Before driving over a workshop hoist,
check that the vehicle weight does not
-
Emergency situations 289
exceed the permissible lifting capacity
of the hoist .
- Before driving over a workshop hoist ,
ensure that there is sufficient clear­
ance between the hoist and low parts
of the vehicle.
•
•

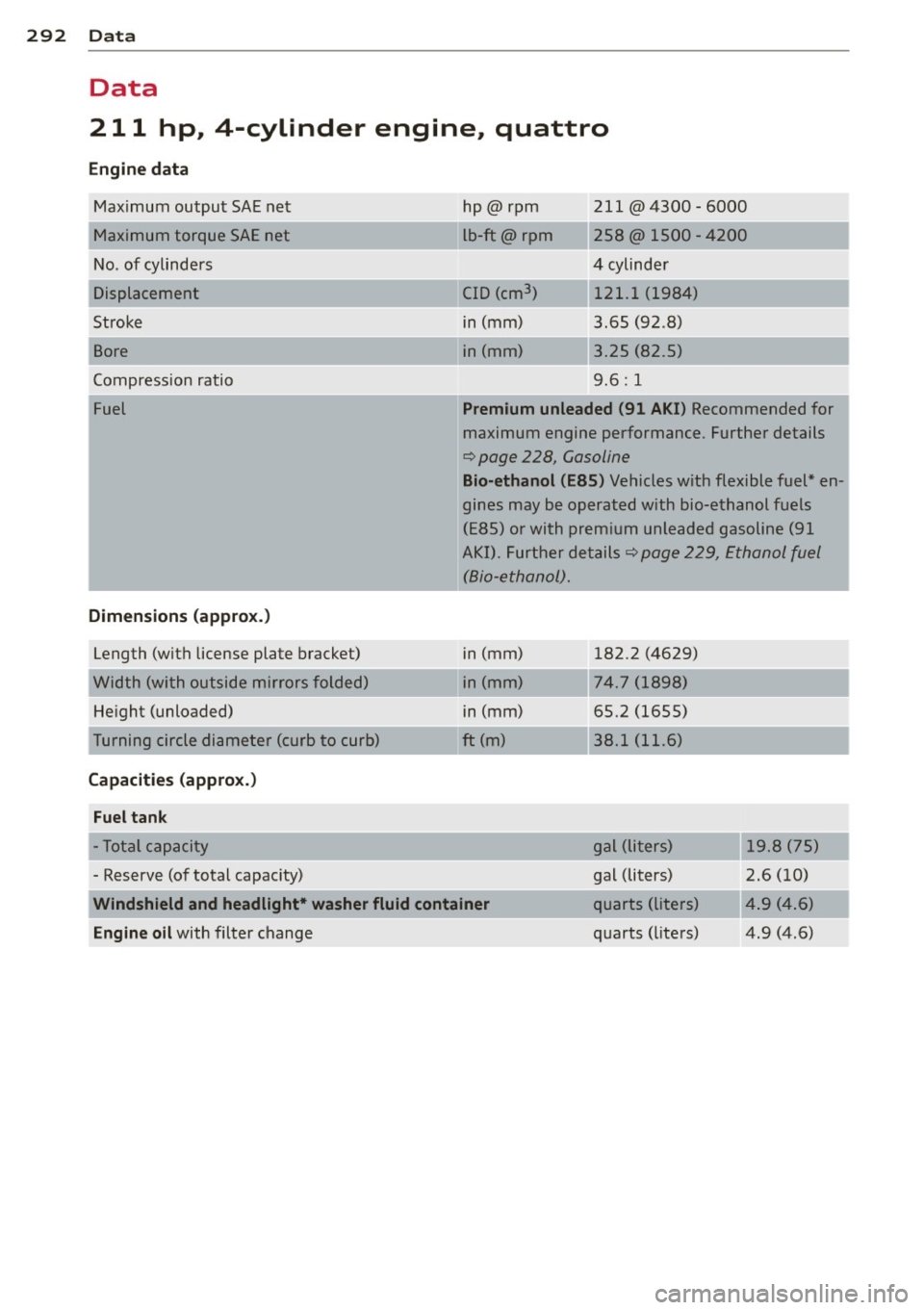

292 Data
Data
211 hp, 4-cylinder engine, quattro
Engine data
Maximum output SA E ne t
M aximum torque SAE net
No . of cylinders
Displacement
Stroke
Bore
C ompression ratio
Fuel
Dimensions (approx.)
Length (with license plate bracket)
W idth (with outside mirrors folded)
He ight (unloaded)
Tu rning circle di ame ter (curb to c urb)
Capacities (approx.)
Fuel tank
h p@rpm
l b-ft@rpm
C ID (cm
3
)
in (mm)
i n (mm) 211 @4300 - 6000
258@ 1500 -
4200
4 cylinde r
121.1 (1984)
3.65 (92 .8)
3 .25 (82.5)
9.6: 1
Premium unleaded (91 AKI ) Recommended for
m aximum engine performance. Further details
¢ page 228, Gasoline
Bio-ethanol (E85 ) Vehicles with flexible fuel* en­
g ines may be operated with bio-ethanol fuels
( E85) or with premium unleaded gasoline (91
A KI). Further details~ page 229, Ethanol fuel
(Bio-e thanol) .
in (mm)
i n (mm)
i n (mm)
ft
(m)
182.2 (4629)
74 .7 ( 1898)
65.2 (1655)
3 8 .1 ( 11.6)
- To tal cap acity gal (
liters)
-------------
1 9.8 (75)
2 .6 ( 10)
- Reserve (o f total capacity) gal (liters)
Windshield and headlight* washer fluid container
Engine oil
with filter change quarts (liters)
q
uarts (liters) 4.9 (4 .6)

Data

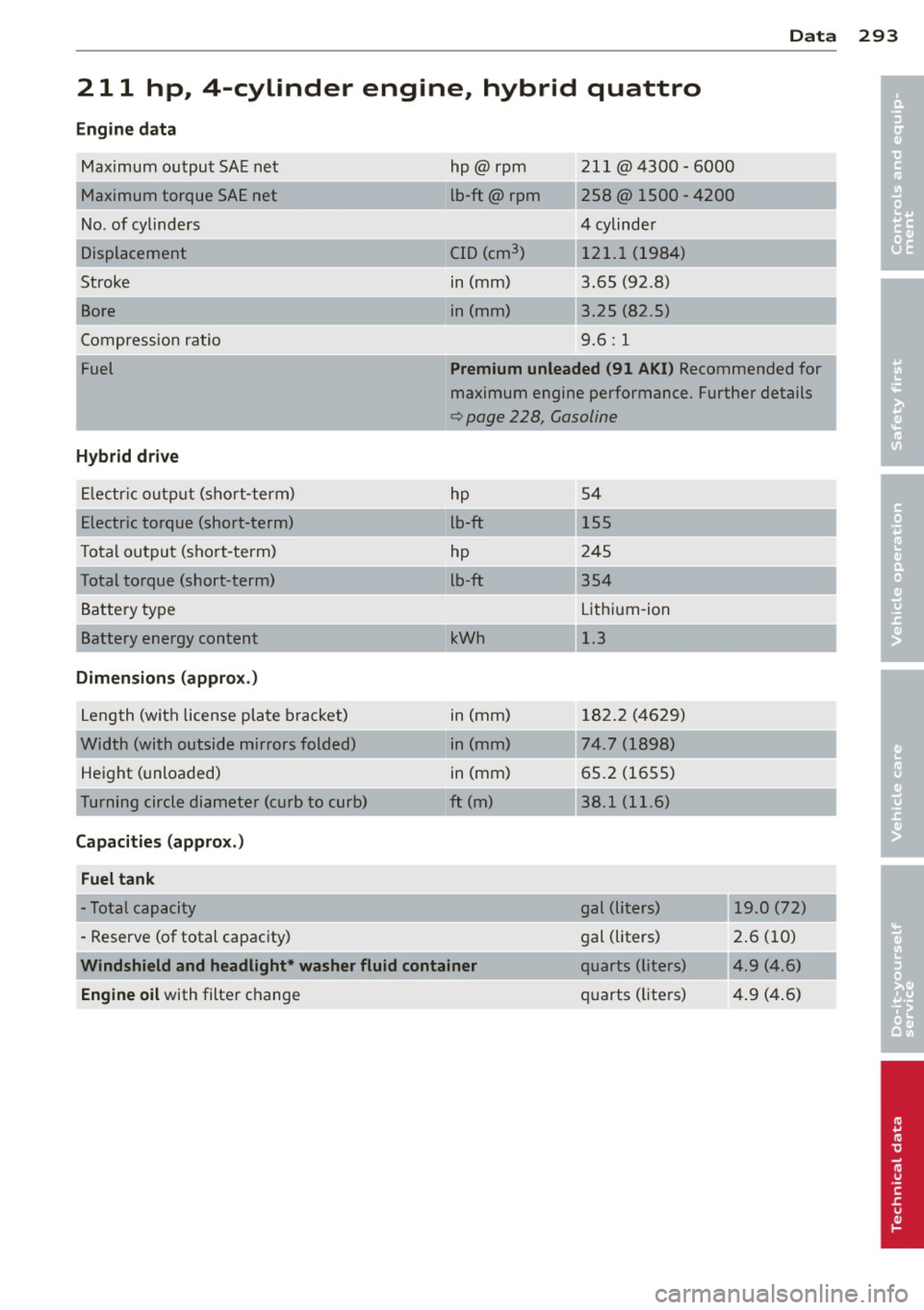

211 hp, 4-cylinder engine, hybrid quattro
Engine data
Maximum output SAE net
Maximum torque SAE net
No . of cylinders
Displacement
Stroke
Bore
Compression ratio
Fuel
Hybrid drive
Electric output (short-term)
Electric torque (short-term)
T otal output (short-term)
Total torque (short-term)
Battery type
Battery energy content
Dimensions (approx.)
Length (with license plate bracket)
Width (with outside mirrors folded) Height (unloaded)
Turning circle diameter (curb to curb)
Capacities (approx.)
Fuel tank
- Total capacity
- Reserve (of total capacity) hp@rpm
lb-ft@ rpm
-~,
ClD (cm3
)
in (mm)
in (mm) 211 @4300
-6000
258@ 1500 -4200
4 cylinder 121.1 (1984)
3.65 (92 .8)
3.25 (82 .5)
9.6: 1
Premium unleaded (91 AKI) Recommended for
maximum engine performance. Further details
c:> page 228, Gasoline
hp 54
lb-ft 155
hp 245
lb-ft 354
Lithium-ion
kWh 1.3
in (mm) 182.2 (4629)
in (mm) 74.7 (1898)
in (mm) 65.2 (1655)
ft (m)
38.1 (11.6)
gal (liters) 19 .0 (72)
gal (liters) 2.6 (10)
Windshield and headlight* washer fluid container quarts (liters) 4.9 (4.6)
Engine
oil with filter change quarts
(liters) 4 .9 (4 .6)
293
•
•

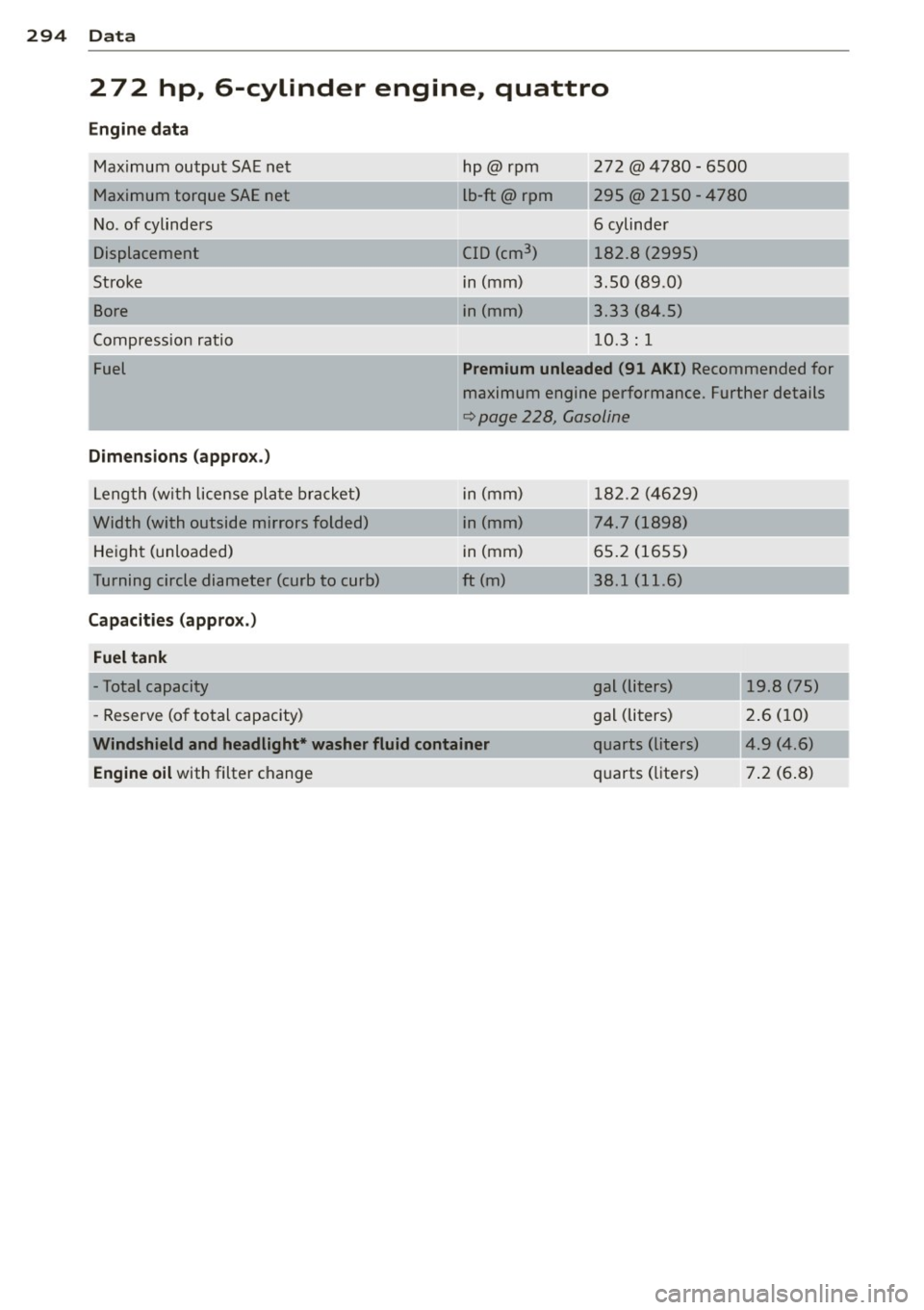

294 Data
2 72 hp, 6-cylinder engine, quattro
Engine data Maximum output SAE net
Maximum torque SAE net
N o. of cylinders
Displacement
Strok e
Bore
C ompression ratio
Fuel
Dimensions (approx .)
Leng th (wit h license pl ate brac ket)
Width (with outside mirrors folded) He igh t (unloaded)
T urning circle diamet er (curb to curb)
Capacities (appro x.)
Fuel tank
- Total capacity
- Reserve (o f to tal capacity) h
p@rpm
L b-ft@ rpm
C ID (cm
3
)
in (mm)
i n (mm) 272 @4780 - 6500
295@ 2
150- 4780
6 cylinde r
182.8 (2995)
3.50 (89.0)
3 .33 (84.5)
1 0.3 : 1
Premium unleaded (91 AKI) Recommended for
m aximum engine performance. Further details
¢ pag e 228, Gasoline
i n (mm) 1 82.2 (4 629)
i n (mm)
74.7 (1898)
i n (mm) 65.2 (165 5)
ft (m) 38.1 (11.6)
gal (liters) 19.8 (75)
g al (li ters) 2.6 (1 0)
Windshield and headlight* washer
fluid container quarts (liters) 4.9 (4.6)
Engine oil with filter c hange q
uarts (lite rs) 7 .2 (6 .8)
