-If you must install a rearward facing child
safety seat on the front passenger seat be­
cause of exceptional circumstances and the
PASSENGER AIR BAG OFF light does not
come on and stay on, immediately install
the rear-fac ing ch ild safety seat in a rea r
seating pos it ion and have the airbag system
inspec ted by your A udi dealer.

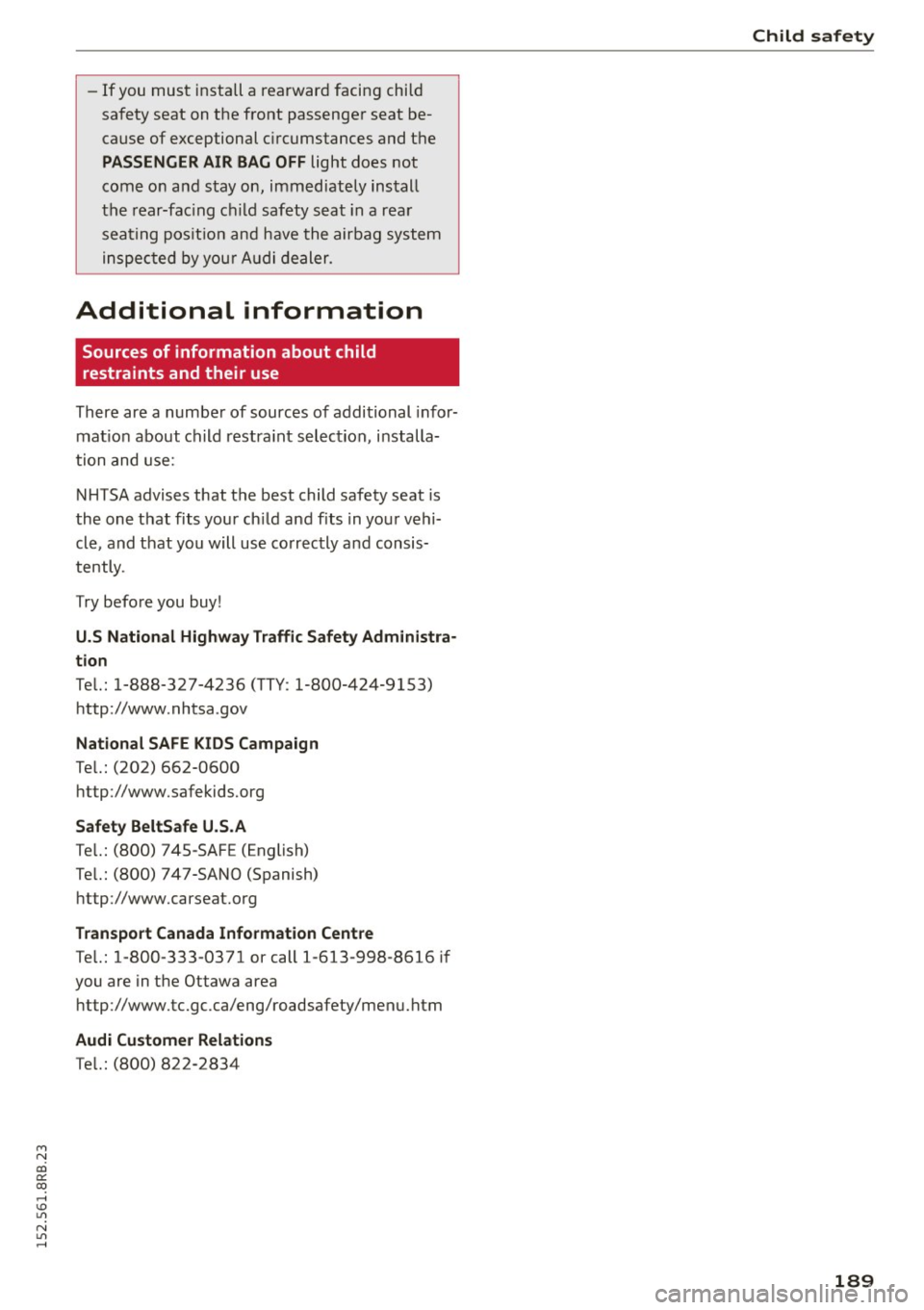

Additional information
Sources of information about child
restraints and their use
There are a numbe r of sources of additional infor­
mat ion about ch ild restra int select ion, installa­
tion and use:
NHTSA advises that the best child safety seat is
the one t hat fits your ch ild and f its in your vehi­
cle, and that you will use co rrectly and consis­
tently.
T ry before you buy!
U.S National Highway T raffic Safety Administra­
tion
Te l.: 1-888-327-4236 (TTY: 1-800-424-9153)
http :/ /www .nhtsa .gov
National SAFE KIDS Campaign
Te l.: (202) 662-0600
h ttp://www.safekids.org
Safety BeltS afe U .S .A
T e l. : (800) 745-SAFE (English)
Te l.: (800) 747-SANO (Spanish)
h ttp://www.carseat.org
T ran spo rt Canada Info rm ation Cent re
T e l. : 1-800-333-0371 or call 1-613-998-8616 i f
you are in t he Ottawa area
h ttp://www.tc.gc.ca/eng/roadsafety/menu. htm
Audi Customer Relations
Te l. : (800) 822 -2834
Child sa fety
189

Smart Technology

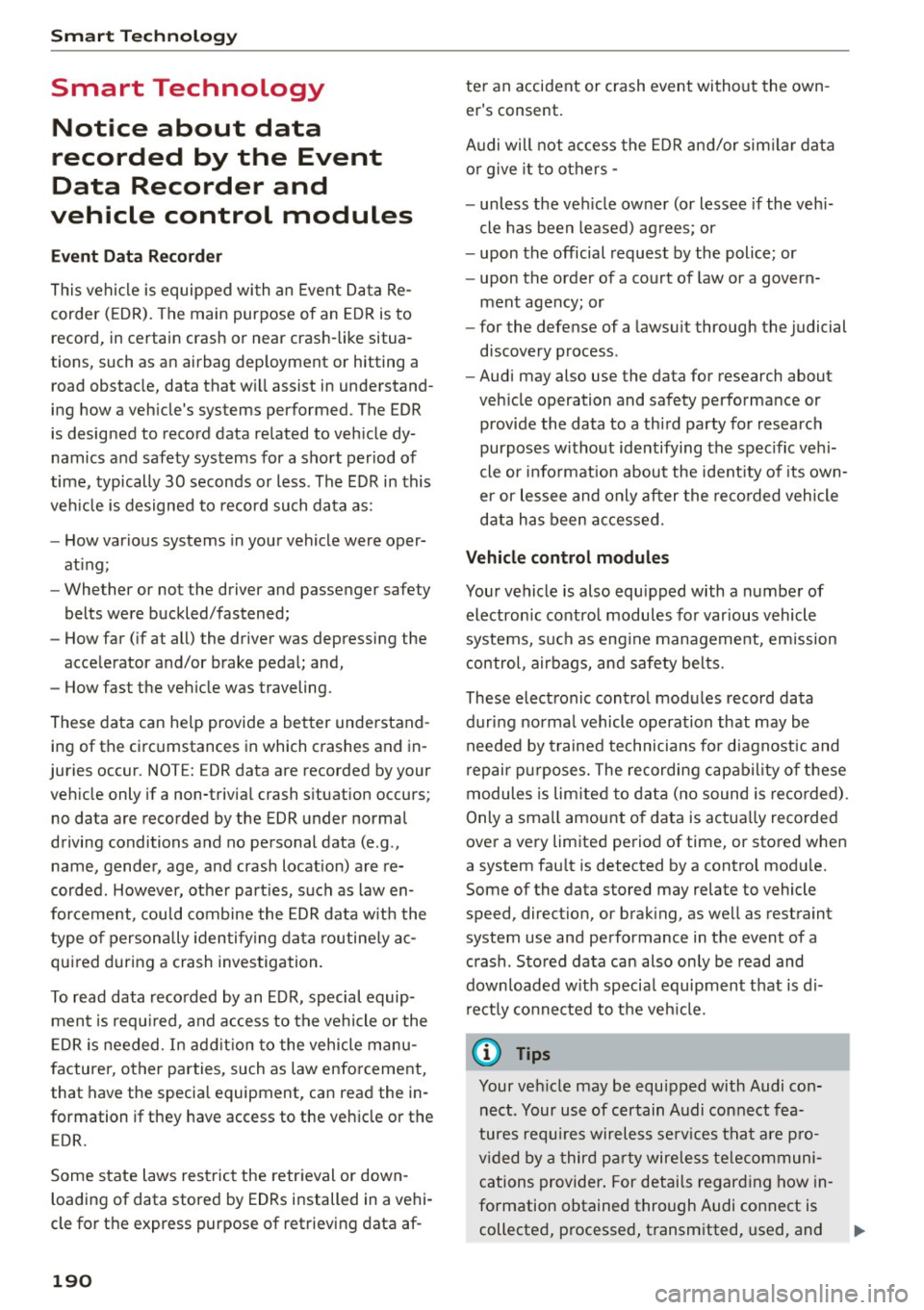

Smart Technology Notice about data
recorded by the Event
Data Recorder and
vehicle control modules
Event Data Recorder
This vehicle is equipped with an Event Data Re­
corder (EDR) . The main purpose of an EDR is to
record, in certain crash or near crash-like situa­
tions, such as an airbag deployment or hitting a
road obstacle, data that will assist in understand ­
ing how a vehicle 's systems performed . The EDR
is designed to record data related to vehicle dy­
namics and safety systems for a short period of
time, typically 30 seconds or less . The EDR in this
veh icle is designed to record such data as:
- How various systems in your vehicle were oper­
at ing;
- Whe ther or not the driver and passenger safety
belts were buckled/fastened;
- How far (if at all) the driver was depressing the
accelerator and/or brake pedal; and,
- How fast the vehicle was traveling.
These data can help provide a better understand­
ing of the circumstances in which crashes and in­
juries occur. NOT E: EDR data are recorded by your
vehicle only if a non-trivial crash situation occurs;
no data are recorded by the EDR under normal
driving conditions and no personal data (e.g .,
name, gender , age, and crash location) are re­
corded. However, other part ies, such as law en­
forcement, could combine the EDR data with the
type of personally identify ing data routinely ac­
qui red during a crash investigation.
To read data recorded by an EDR, special equip­
ment is requ ired, and access to the vehicle or the
E DR is needed. In addition to the vehicle manu­
facturer, other parties, such as law enforcement,
that have the specia l equipment , can read the in­
formation if they have access to the vehicle or the E DR.
Some state laws restrict the retrieval or down­
loading of data stored by EDRs installed in a vehi­
cle for the express purpose of retrieving data af-
190
ter an accident or crash event without the own ­
er's consent.
Audi will not access the EDR and/or similar data
o r g ive it to others -
- unless the veh icle owner (or lessee if the veh i­
cle has been leased) agrees; or
- upon the official request by the police; or
- upon the order of a court of law or a govern-
ment agency; or
- for the defense of a lawsuit through the judicial
discovery process .
- Audi may also use the data for research about
veh icle operation and safety performance or
provide the data to a third party for research
purposes without identifying the spec ific vehi­
cle or information about the ident ity of its own­
er or lessee and only after the recorded vehicle
data has been accessed.
Vehicle control modules
Your vehicle is also equipped with a number of
electronic control modules for var ious vehicle
systems, such as engine management, emission
control, airbags, and safety belts .
These electronic control modules record data dur ing norma l vehicle operation that may be
needed by trained technicians for diagnostic and
repair purposes. The recording capabil ity of these
modules is lim ited to data (no sound is recorded).
Only a small amount of data is actua lly recorded
over a very limited period of time, or stored when
a system fau lt is detected by a contro l modu le.
Some of the data stored may relate to vehicle
speed, direction, or braking, as well as restraint
system use and performance in the event of a crash. Stored data can also only be read and
down loaded w ith specia l equipment that is di­
rectly connected to the vehicle.
(D Tips
Your vehicle may be equipped with Audi con­
nect . Your use of certain Audi connect fea­
tures requires wireless serv ices that are p ro­
v ided by a third party wireless telecommuni­
cations provider . For details regarding how in­
formation obtained through Audi connect is
collected, processed, transmitted, used, and ..,..

M N
co
a:
co
,...., \!) 1.1"1
N 1.1"1 ,....,
shared, please see your contract with the
wireless telecommunications provider and the
"About Aud i connect" tab in your vehicle's
MMI*:
IMENU I button> Audi connect > About
Audi connect .

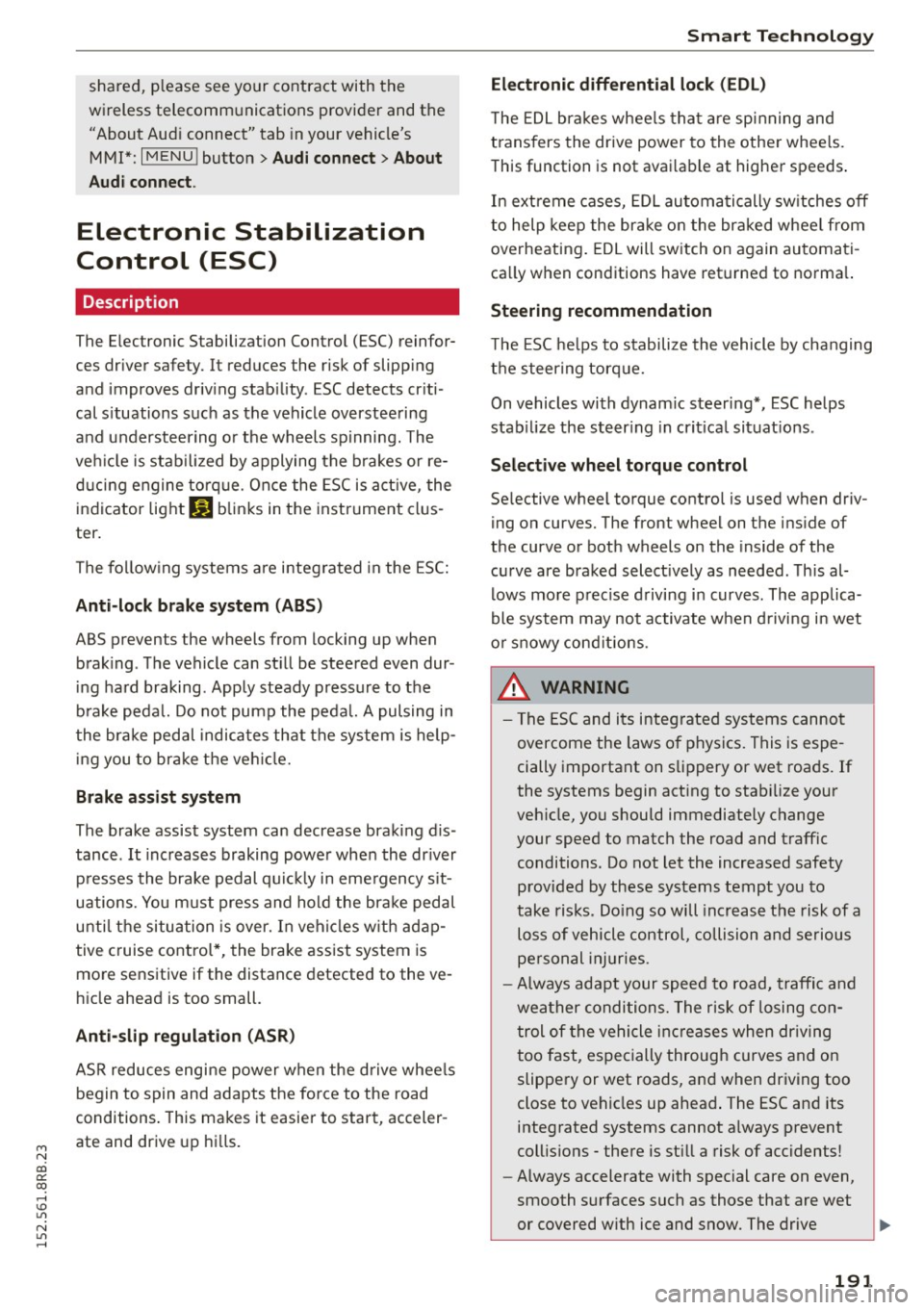

Electronic Stabilization
Control (ESC)
Description
The Electronic Stabilization Control (ESC) reinfor­
ces driver safety. It reduces the risk of slipping
and improves driving stability. ESC detects criti­
cal s ituations such as the vehicle oversteering
and understeering or the wheels sp inning. The
veh icle is stab ilized by applying the brakes or re­
ducing engine torque. Once the ESC is act ive, the
indicator light
m blinks in the instrument clus­
ter.
The fol low ing systems a re integrated in the ESC:
Anti-lock brake system (ABS)
ABS prevents the wheels from locking up when
brak ing . The vehicle can still be steered even dur­
ing hard braking. Apply steady pressure to the
brake pedal. Do not pump the pedal. A pulsing in
the brake pedal indicates that the system is help­
ing you to brake the vehicle.
Brake assist system
The brake assist system can decrease braking d is­
tance . It increases braking power when the dr iver
presses the brake pedal quick ly in emergency s it­
uations. You must press and hold the brake pedal
unti l the situation is over. In vehicles w ith adap ­
tive cruise control*, the brake assist system is
more sensitive if the distance detected to the ve­
hicle ahead is too small.
Anti-slip regulation (ASR)
ASR reduces engine power when the drive whee ls
begin to spin and adapts the force to the road
conditions. This makes it easier to start, acceler­
ate and drive up hills.
Smart Technology
Electronic differential lock (EDL)
The EDL brakes whee ls that are spinning and
trans fers the drive power to the other whee ls.
This function is not avai lable at higher speeds .
In extreme cases, EDL automatically sw itches off
to help keep the brake on the braked wheel from
overheating. EDL will switch on again automati­
ca lly when conditions have returned to normal.
Steering recommendation
The ESC helps to stabilize the vehicle by changing
the steering torque.
On vehicles with dynam ic steering*, ESC helps
stab ilize the steer ing in crit ical situat ions .
Selective wheel torque control
Selective wheel torque control is used when driv­
ing on curves. The front wheel on the inside of
the curve or both wheels on the inside of the
curve are braked select ively as needed. This al­
lows more precise driving in curves. The applica­
ble system may not activate when driving in wet
o r snowy conditions .
A WARNING
-
-The ESC and its integrated systems cannot
overcome the laws of physics. This is espe­
cially important on slippery or wet roads. If
the systems begin acting to stabilize your
vehicle, you should immediately change
your speed to match the road and traffic conditions . Do not let the increased safety
provided by these systems tempt you to
take risks. Doing so will increase the risk of a
loss of vehicle control, collision and serious
personal injuries.
- Always adapt your speed to road, traffic and
weather conditions. The risk of los ing con­
trol of the vehicle increases when driving
too fast, especially through curves and on
slippery or wet roads, and when driving too
close to vehicles up ahead . The ESC and its
integrated systems cannot a lways prevent
coll isions - there is st ill a risk of acc idents!
- Always accelerate with special care on even,
smooth surfaces such as those that are wet
or covered with ice and snow. The drive
191

Smart Technology
wheels can spin even with these assistance
systems that cannot always help to reduce
the risk of loss of vehicle control.
@ Tips
-ABS and ASR only work correctly when all
four whee ls are equipped with identical
Switching on/off
tires . Different tire sizes can lead to a reduc­
tion in engine power .
- You may hear noises when the systems de­
scribed are working.
- When installing a factory-supplied roof rack
system on the roof railing, the ESC will
adapt itself to a different center of gravity.
ESC turns on automatically when you start the engine.
Fig. 185 Version A: Lower center console, YJ. OFF butto n
The fo llow ing situations are exceptions where it
may be useful to sw itch on offroad mode to allow
the wheels to spin:
- Rocking the vehicle to free it when it is stuck
- Driving in deep snow or on loose ground
Offroad mode on
Fig. 186 Ve rs ion B: Upper center co nsole, YJ. O FF button
-Driving with snow chains
- Driving downhill while braking on loose ground
- Driving on rough terrain when much of the car's
weight is lifted off the wheels (axle articula­
tion)
Offroad mode off
Behavior
The ESC and ASR stabilization functions are The full stabilization function of the ESC
limited
c> & .
Operation Press the l.13 OFF I button.
Indicator Ill turns on.
lights
Driver mes· Stabilization control (ESC): Offroad .
sages Warning! Restricted stability
A WARNING
- You should only switch offroad mode on if
your driving abilit ies and road conditions
permit.
- The stabilization function is limited when offroad mode is switched on. The driving
wheels cou ld spin and the vehicle could
swerve, especially on slick or slippery road
surfaces.
192
and ASR is availab le again.
Press the
1.$ OFF I button again.
II turns off.
Stabilization control (ESC): On
(D Tips
Offroad mode cannot be switched on when
adaptive cruise control" is switched on .

M N
co ~ co

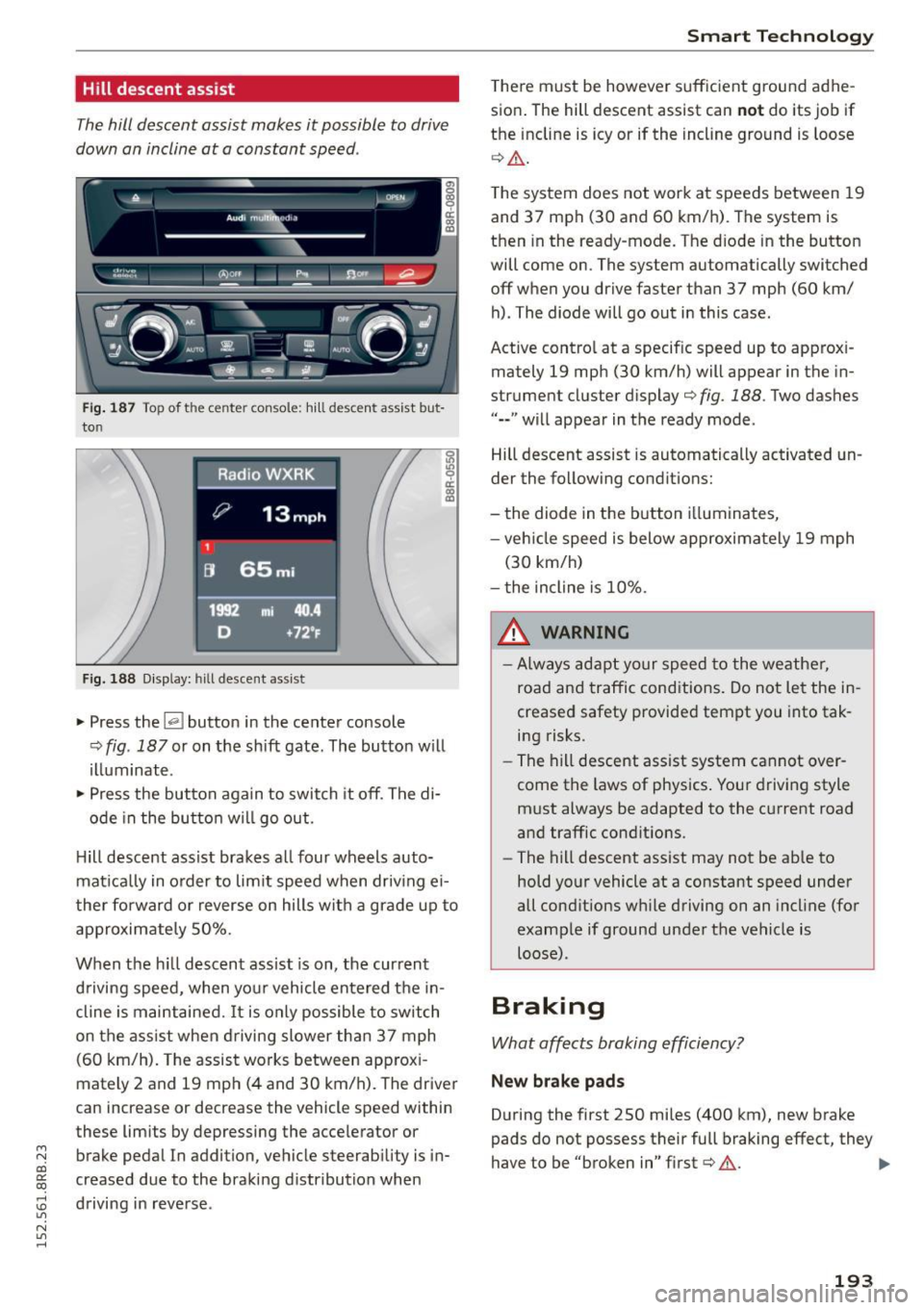

Hill descent assist
The hill descent assist makes it possible to drive
down on incline at a constant speed .
~!:t'::t Cl)Of~ ........ - -~ -fi31.. ..,_e..,,. --
I: ~_c)': ~ ~ ~ ~- .·· ~ n
l ... , .. --~ . ; - - -
Fig. 187 Top of t he ce nte r con so le: h ill descen t ass ist bu t­
to n
Fig. 188 D isplay: hill descent assist
~ Press the~ button in the center console
~ 1/) 9 a:
~
¢ fig. 187 or on the shift gate. The button w ill
illuminate .
~ Press the button again to switch it off. The di-
ode in the butto n w ill go out.
H ill descent assist brakes all four wheels auto­
mat ica lly in o rder to lim it speed when driv ing ei­
ther fo rward or reverse on hills with a grade up to
approximately 50%.
When the h ill descent assist is on, the current
d riving speed, when your vehicle entered the in­
cline is maintained.
It is only possible to switch
on the ass ist when d riving slower than 37 mph
(60 km/h). The assist works between app rox i­
mately 2 and 19 mp h (4 and 30 km/h). The driver
can increase or decrease the vehicle speed within
these limits by depressing the acce lerator or
brake pedal In addition , vehicle steerability is in­
creased due to the braking distribution when
:0 driving in reverse .
"' N
"' ......
Smart Technology
There must be however suffic ient ground adhe­
sion . The hill descent assist can
n ot do its job if
the incline is icy or if the incline ground is loose
¢ Ll:). .
The system does not work at speeds between 19
and 37 mph (30 and 60 km/h) . The system is
then in the ready-mode. The d iode in the button
will come on . The system automatically switched
off when you drive faster than 37 mph (60 km/
h) . The diode will go out in this case .
Active control at a specif ic speed up to approx i­
mately 19 mph (30 km/h) will appear in the in­
strument cluster display¢
fig. 188. Two das hes
"--" will appear in the ready mode.
Hill descent assist is automatically activated un­
der the fo llowing conditions:
- the diode in the button i lluminates,
- veh icle speed is below approximately 19 mph
(30 km/h)
- the incline is 10% .
A WARNING
-
-Always adapt your speed to the weather,
road and traffic conditions. Do not let the in ­
creased safety provided tempt you into tak­ ing risks.
- The hill descent assist system cannot over­
come the laws of physics . Your driving style
must always be adapted to the current road
and traffic conditions.
- The hill descent assist may not be ab le to
hold your vehicle at a constant speed under
all conditions w hile driving on an incl ine (for
example if ground under the vehicle is loose) .
Braking
What affects broking efficiency?
New brake p ad s
During the first 250 miles (400 km), new brake
pads do not possess their full braking effect, they
have to be "broken in" first¢ &. .,,.
193

Smart Technolog y
Operating c ondit ion s and drivin g hab it s
The brakes on today 's automobi les are st ill sub­
ject to wear, depending largely on operating con­ ditions and driving habits¢.&. . On vehicles that
are either driven mostly in stop-and-go city traf­
f ic or are driven hard, the brake pads should be
checked by your authori zed Audi dealer more of­
ten than specified in the
Wa rra nty & Mainte­
n an ce boo kle t .
Fa ilure to have your brake pads
inspected can result in reduced brake perform­
ance.
On steep slopes, you should use the brak ing ef­
fect of the eng ine . Th is way, you prevent unnec ­
essary wear on the brake system. If you must use
your brakes, do not ho ld the brakes down contin­
uously. Pump the brakes at inte rva ls.
Operat ing no ise
Noises may occur when braking depending on the
speed, brak ing force and outside conditions such
as temperature and humid ity .
Effect of w ate r an d r oad sal t
In certain situations, for example after driving
through water, in heavy rain, after overn ight con­
densat ion or after washing your car, the braking
effect can be reduced by mo isture or ice on the
brake rotors and brake pads . The brakes must be
d ried first with a few carefu l brake applications.
At h igher speeds and with the w indshield wipers
turned on, the brake pads press against the brake rotors for a short amount of t ime . This occurs at
regular intervals without the d river noticing and
p rov ides for better brake response t ime unde r
wet conditions .
The effectiveness of the brakes can be reduced
when the vehicle is dr iven on a salt-covered road
a nd the brakes are not used . L ikew ise, you clean
off accumulated sa lt coating from brake discs
and pads with a few cautious applications of the brake ¢.&. .
Corros ion
There may be a tendency for dirt to bui ld up on
the brake pads and corros ion to fo rm on the discs
if the car is not driven regularly or on ly for short
trips with litt le use of the brakes.
194
If the brakes are not used frequently, or if corro­
sion has formed on the discs, it is advisable to clean off the pads and d iscs by braking firmly a
few times from a moderate ly high speed¢.&. .
Fault s in the brak e system
If you shou ld notice a sudden increase in bra ke
pedal travel, then one of the two brake circuits
may have failed
¢ .&. .
Lo w b rake fluid l evel
Malfunctions can occur in the brake system if the
brake flu id leve l is too low. The brake fl uid level is
monitored electronica lly.
Brake boos ter
The brake booster increases the pressure that you
generate w ith the brake pedal. It on ly operates
whi le the engine is runn ing o r with the ig nit ion
switched on (hybrid drive*)
¢ ,& .
Brake lining we ar status
Brake lining wear may be checked by visual in ­
spection of the condition of the brake pads
through the open ings in the wheel. If necessary ,
the wheel may be removed for this inspec tion
¢ page 260, Replacing wheels .
& WARNING -
- New brake pads don't have the best stop­
ping power and m ust be "broken-in" during
the initial 250 miles (400 km) . You can com­
pensate for this by pressing the brake pedal
more f irm ly. This also applies later when
new pads are installed.
- You should perform braking maneuvers for
the purpose of cleaning the brake system
only if road conditions permit. Other road
users must not be put at r isk -you may
cause an accident!
- Before descend ing a steep grade, reduce
speed and sh ift transmission into a lower
gea r or lower dr iving range. Do not ride the
bra kes or ho ld the peda l down too long or
too often . This could cause the bra kes to get
hot and diminish braking efficiency.
- Do not "ride the brakes" by rest ing your foot
on the pedal when you do not intend to
~

M N
co
a:
co
,...., \!) 1.1'1
N 1.1'1 ,....,

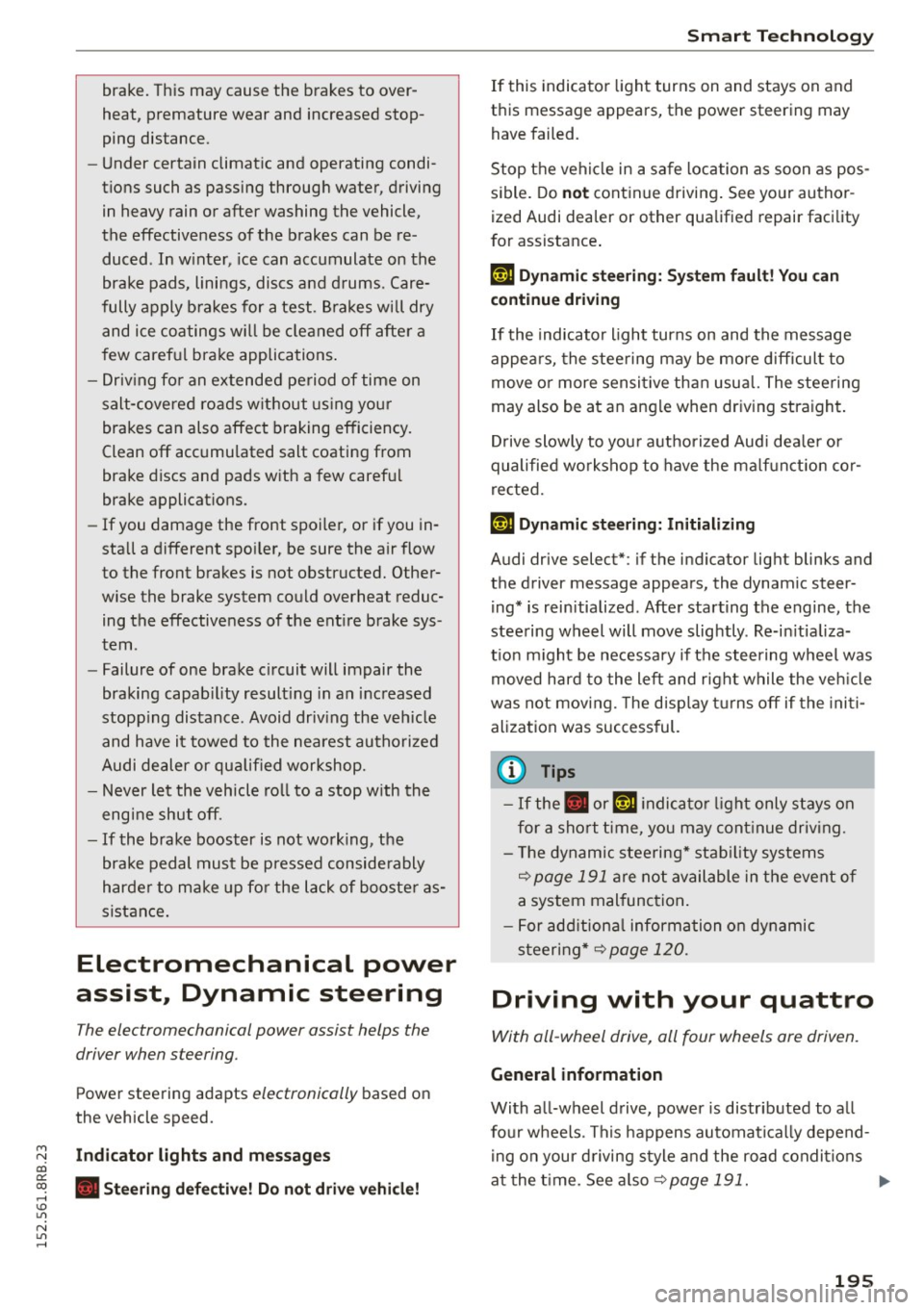

brake. This may cause the brakes to over­
heat, premature wear and increased stop­
ping distance.
- Under certain climatic and operating condi­
tions such as passing through wate r, driving
in heavy rain o r after washing the vehicle,
the effectiveness of the brakes can be re­ duced. In w inter, ice can accumulate on the
brake pads, linings, discs and drums . Care­
fully apply b rakes for a test. B rakes wi ll dry
and ice coatings wi ll be cleaned off after a
f ew caref ul bra ke applications .
- Dr iv ing for an extended period of time on
salt-covered roads w ithout using you r
brakes can also affect braking efficiency .
Clean off accumulated salt coating from
brake discs and pads w ith a few caref ul
brake applicat ions.
- If you damage the front spoiler, or if you in­
stall a different spoi ler, be sure the air flow
to the front brakes is not obstructed. Other­
wise the brake system could overheat reduc­ ing the effectiveness of the ent ire brake sys­
tem .
- Failure of one brake c ircuit will impair the
braking capab ility result ing in an increased
stopp ing distance. Avoid driv ing the veh icle
and have it towed to the nearest authori zed
Audi dealer or qu alified workshop.
- Never let the vehicle roll to a stop w ith the
eng ine shut off.
- If the brake booster is not work ing, the
brake pedal must be pressed conside rably
harder to make up fo r the lack of booste r as­
sist ance.
Electromechanical power
assist, Dynamic steering
The electromechanical power assist helps the
driver when steering.
Power stee ring adapts electronically based on
the vehicle speed.
Indicator light s and mess age s
• Stee ring def ective! Do not drive vehicle!
Smart T echno log y
If this indicato r light turns on and stays on and
t h is message appears, the power steering may
have failed.
Stop the vehi cle in a sa fe location as soo n as pos­
s ible . Do
not cont inue driving . See yo ur author­
ized Audi dea ler or other qualified repair facility
for assistance .
'Iij Dynamic steering: Sy stem fault! You c an
continue dri ving
If the indicato r light turns on and the message
appea rs, the stee ring may be more d ifficult to
move o r more sensit ive th an usua l. The steering
may also be at an angle when driving straight .
Drive slowly to you r authorized Audi dea le r o r
qualified wo rkshop to have the ma lf u nct ion co r­
re cted.
,~n D ynamic steering: Initializing
Audi drive select*: if the indicator light blinks and
the driver message appears, the dynamic steer­
i ng* is reinitialized. After starting the engine, the
stee ring wheel will move slightly . Re-in itia liza­
t ion m ight be necessa ry if the stee ring wheel was
moved h ard to the left and r ight while the veh icle
was not moving. The disp lay t urns off if the ini ti­
alization was success ful.
(D Tips
- If the . or
(~fl indica tor light only stays on
for a sho rt time, you may cont inue driving.
- T he dynamic s teering* stab ility systems
<:!> page 191 are no t available in the event of
a system mal func tion .
- For add ition al information on dynamic
steer ing*
<:!> page 120.
Driving with your quattro
With all -wheel drive, all four wheels are driven.
General information
With a ll-wheel d rive, power is distr ibuted to a ll
fo ur wheels. This happens automati ca lly depend­
i ng on your d riving s tyle and the road condi tions
a t t he t ime . See a lso <:!>
page 191. .,.
195

Smart Technolog y
A center differentia l distributes the driving power
variably to the front and rear axle. It works to­
gether with selective wheel torque contro l, which
activates when driving through curves
c:::;,page 191.
The all-wheel drive concept is designed for high
engine power . Your vehicle is exceptionally pow­
erful and has excellent driving characteristics bo th under normal driv ing condit ions and on
snow and ice . Always read and follow safety pre ­
cautions
c:::;, .&. .
Wint er tires
When driving in the winter, your vehicle with all­
wheel drive has an advantage, even with regular
tires. In winter road conditions it may be advisa­
ble to mount winter tires (or all-season tires) for
improved dr iveability and braking: these tires
must be mounted on
a ll four wheels . See a lso
c:::;, page 250, Winter tires.
Tire chain s
Where tire chains are manda tory on certain
roads, this normally also applies to vehicles with
all-wheel drive c:::;, page 250, Snow chains.
Repl acing wheels /tire s
Vehicles with all-whee l drive must always have
tires of the same size. Also avoid tires with differ­
ent tread depths . For deta ils see page
c:::;, page 242, New tires or wheels .
A WARNING
Always adjust your driving to road and traffic
conditions. Do not let the extra safety afford­
ed by all-wheel drive tempt you into ta king
extra r is ks.
- Althoug h the all-whee l dr ive is very effec­
t ive, always remember that brak ing capac ity
is limited by tire traction . You should there­
fore not drive at excessive speeds on icy or slippery road surfaces .
- On wet road su rfaces, be careful not to drive
too fast because the front wheels could be­
gin to slide on top of the water (aquaplan­
ing). If this should occur, you will have no
warning from a sudden increase in engine
speed as with a front -whee l drive vehicle.
196
Always drive at speeds which are suited to
the road cond it ions -risk of crash.
Energy management
Starting ability is optimized
Energy management controls the distribution of
electrical energy and thus optimizes the availa­ bility of electrical energy for starting the engine .
If a vehicle with a conventional energy system is
not driven for a long period of time, the battery
i s d ischarged by idling current consumers (e .g .
i mmob ili zer). I n certain c ircumstances it can re­
s ul t in the re be ing insuffi cient energy available to
start the eng ine.
Intelligent energy management in your vehicle
hand les the d ist ribution of electrical energy.
Start ing ability is ma rkedly improved and the life
of the ba ttery is extended .
Bas ica lly, energy management consists of
bat­
t e ry diagn osi s, idling curr ent man ag ement
and
d ynami c energy management .
Batte ry diag nosi s
Battery diagnosis continuously determines the
state of the battery. Se nsors determine battery
vo ltage, battery current and battery tempera­
tu re. This determines the cu rrent state of cha rge
and the power of the battery .
Idling current management
Idling current management reduces energy con ­
sumption whi le the vehicle is standing . W it h the
i gnition switched off, it cont ro ls the energy sup­
ply to the various electrical components. Data
from battery d iagnosis is cons idered.
Depend ing on the battery's state of charge , indi­
v idual consumers are gradua lly tu rned off to pre­
vent excessive discharge of the batte ry and thus
maint ain s tarting capability.
Dynamic ener gy management
While the vehicle is being driven, dynamic ene rgy
management distr ibutes the energy gene rated
accord ing to the needs of the individual compo-
nents. It regu lates consumption, so that more
II>

M N
co
a:
co
,...., \!) ..,.,
N ..,., ,....,

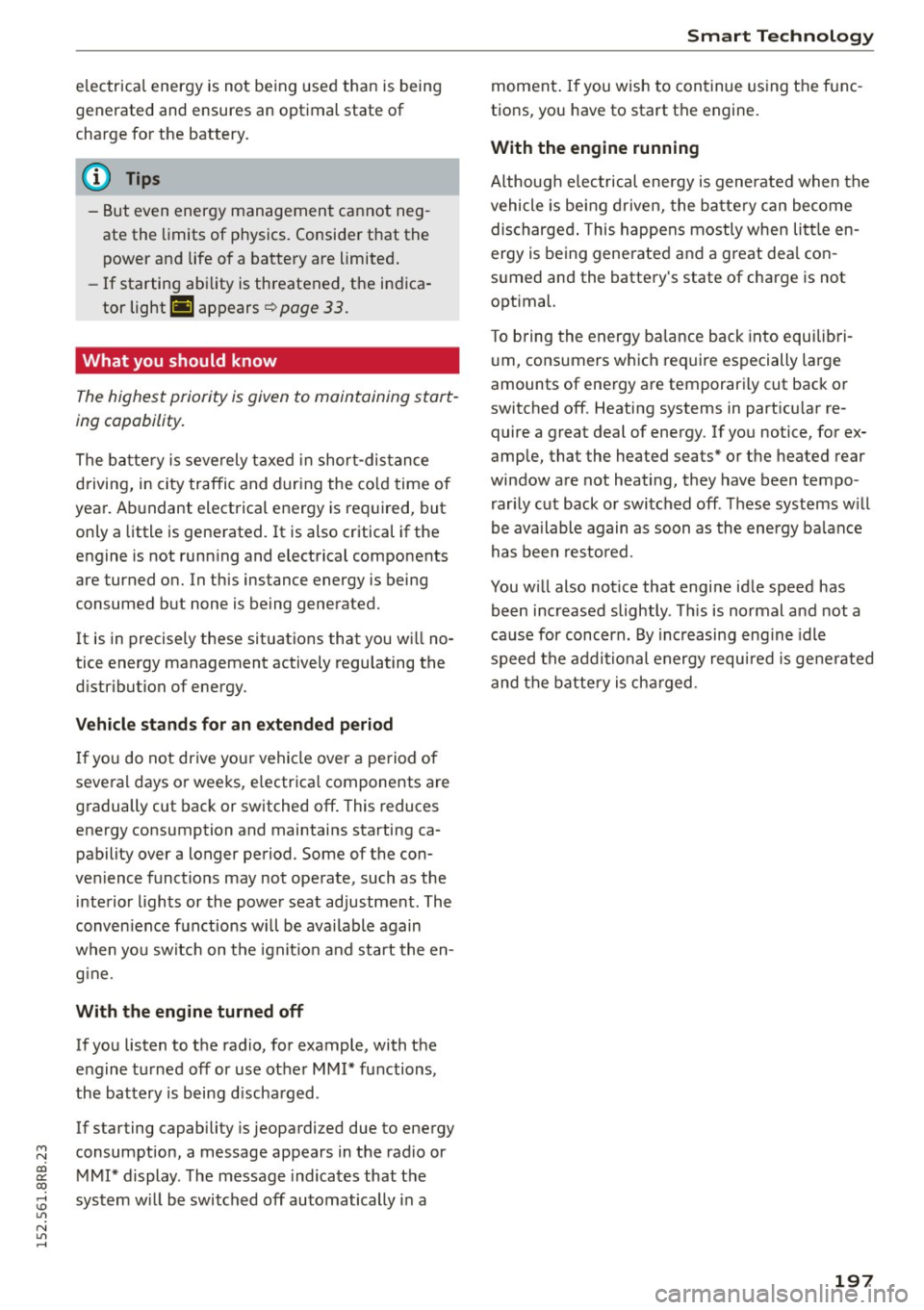

electrical energy is not being used than is being
generated and ensures an optimal state of
charge for the battery.
(D Tips
- But even energy management cannot neg­
ate the limits of physics. Consider that the power and life of a battery are limited.
- If starting ability is threatened, the indica­
tor light (•] appears ~
page 33.
What you should know
The highest priority is given to maintaining start­
ing capability.
The battery is severely taxed in short-distance
driving, in city traffic and during the co ld time of
year. Abundant electrical energy is required, but
only a little is generated. It is also critical if the
engine is not running and electrical components
are turned on. In this instance energy is being
consumed but none is being generated.
It is in precisely these situations that you wi ll no­
tice energy management actively regulating the
d istribution of energy.
Vehicl e stands fo r an e xte nded p eriod
If you do not drive your vehicle over a period of
several days or weeks , e lectrica l components are
gradually cut back or switched off . This reduces
energy consumption and maintains starting ca ­
pability over a longer period . Some of the con­
ve nience funct ions may not operate, such as the
interior lights or the power seat adjustment. The
conven ience functions wi ll be available again
when you switch on the ignit io n and start the en­
g ine.
With the engine turned off
If you listen to the radio, for example, with the
engine turned off or use other MMI* functions ,
the battery is being d ischarged .
If starting capability is jeopardized due to energy
consumption, a message appears in the radio or MMI* display . The message indicates that the
system w ill be switched off automatically in a
Smart T echno log y
moment . If you wish to continue using the func­
tions, you have to start the engine.
With the engin e running
Although electrical energy is generated when the
vehicle is be ing driven, the battery can become
discharged . This happens mostly when litt le en ­
ergy is being generated and a great dea l con ­
s u med and the batte ry's state of charge is not
opt imal.
T o bring the energy ba lance back into equilibri­
u m, consumers which require especially large
amounts of ene rgy are temporarily cut back or
switched off. Heating systems in particu lar re ­
quire a great deal of energy. If you notice, for ex­
amp le, that the heated seats* or the heated rear
window are not heating, they have been tempo ­
rar ily cut back or switched off . These systems w il l
be available again as soon as the energy ba lance
has been restored.
You w ill also notice that engi ne idle speed has
been increased slightly . T h is is normal and not a
cause for concern. By increasing eng ine idle
speed the additional energy requi red is generated
and the battery is ch arged .
197

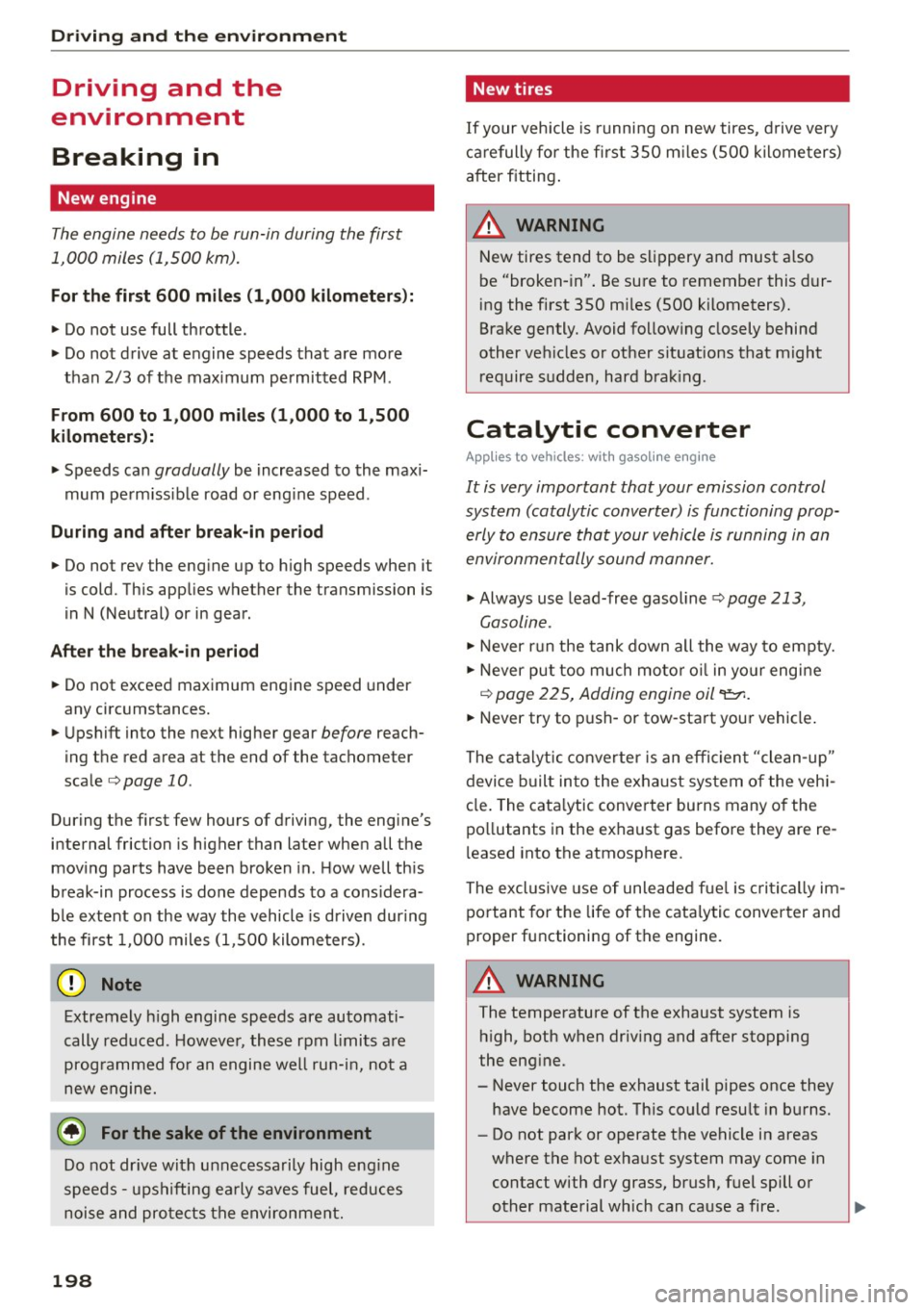

Driving and the environment
Driving and the
environment
Breaking in
New engine
The engine needs to be run-in during the first
1,000 miles (1,500 km).
For the first 600 miles (1,000 kilometers ):
.,. Do not use full throttle.
.,. Do not drive at engine speeds that are more
than 2/3 of the maximum permitted RPM .
From 600 to 1,000 miles (1,000 to 1,500
kilometers ):
.,. Speeds can gradually be increased to the maxi­
mum perm issib le road or engine speed.
During and after break-in period
.,. Do not rev the engine up to high speeds when it
is cold. This applies whether the transmission is
in N (Neutral) or in gear .
After the break•in period
.,. Do not exceed maximum engine speed under
any circumstances.
.,. Upshift into the next higher gear
before reach­
ing the red area at the end of the tachometer
scale
¢page 10.
During the first few hours of driving, the engine's
internal friction is higher than later when all the
moving parts have been broken in. How well this
break-in process is done depends to a cons idera­
b le extent on the way the vehicle is driven dur ing
the first 1,000 miles (1,500 kilometers).
{[) Note
Extremely high engine speeds are automati­
cally reduced. However, these rpm limits are
prog rammed fo r an engine well run-in, not a
new engine.
@ For the sake of the environment
Do not drive with unnecessarily high engine
speeds -upshifting early saves fuel, reduces
noise and protects the environment.
198
· New tires
If your vehicle is running on new tires, drive very
ca refully for the first 350 m iles (500 k ilometers)
after fitting.
_& WARNING
New tires tend to be slippery and must a lso
be "broken-in" . Be sure to remember this dur­
ing the first 350 m iles (500 k ilometers).
Brake gently. Avoid following closely behind
other vehicles or other situations that might
require sudden, hard brak ing.
Catalytic converter
App lies to vehicles : wit h gasoli ne e ngi ne
It is very important that your emission control
system (catalytic converter) is functioning prop­
erly to ensure that your vehicle is running in an
environmentally sound manner .
.,. Always use lead-free gasoline ¢page 213,
Gasoline .
.,. Never run the tank down all the way to empty.
.,. Never put too much motor oil in your engine
¢ page 22 5, Adding engine oil 9::r..
.,. Never try to push- or tow-start your vehicle .
The catalytic converter is an efficient "clean-up"
device b uilt into the exhaust system of the vehi­
cle. The cata lytic converter burns many of the
po llutants in the exhaust gas before they are re­
l eased into the atmosphere.
-
The exclusive use of unleaded fuel is c ritica lly im­
portant for the life of the catalytic converter and
proper functioning of the engine.
A WARNING
The temperature of the exhaust system is
high, both when driv ing and after stopping
the eng ine.
-
- Never touch the exhaust tail pipes once they
have become hot. This could result in burns.
- Do not park or operate the vehicle in areas
where the hot exhaust system may come in
contact with dry grass, brush, fuel spill or
other material which can cause a fire.
