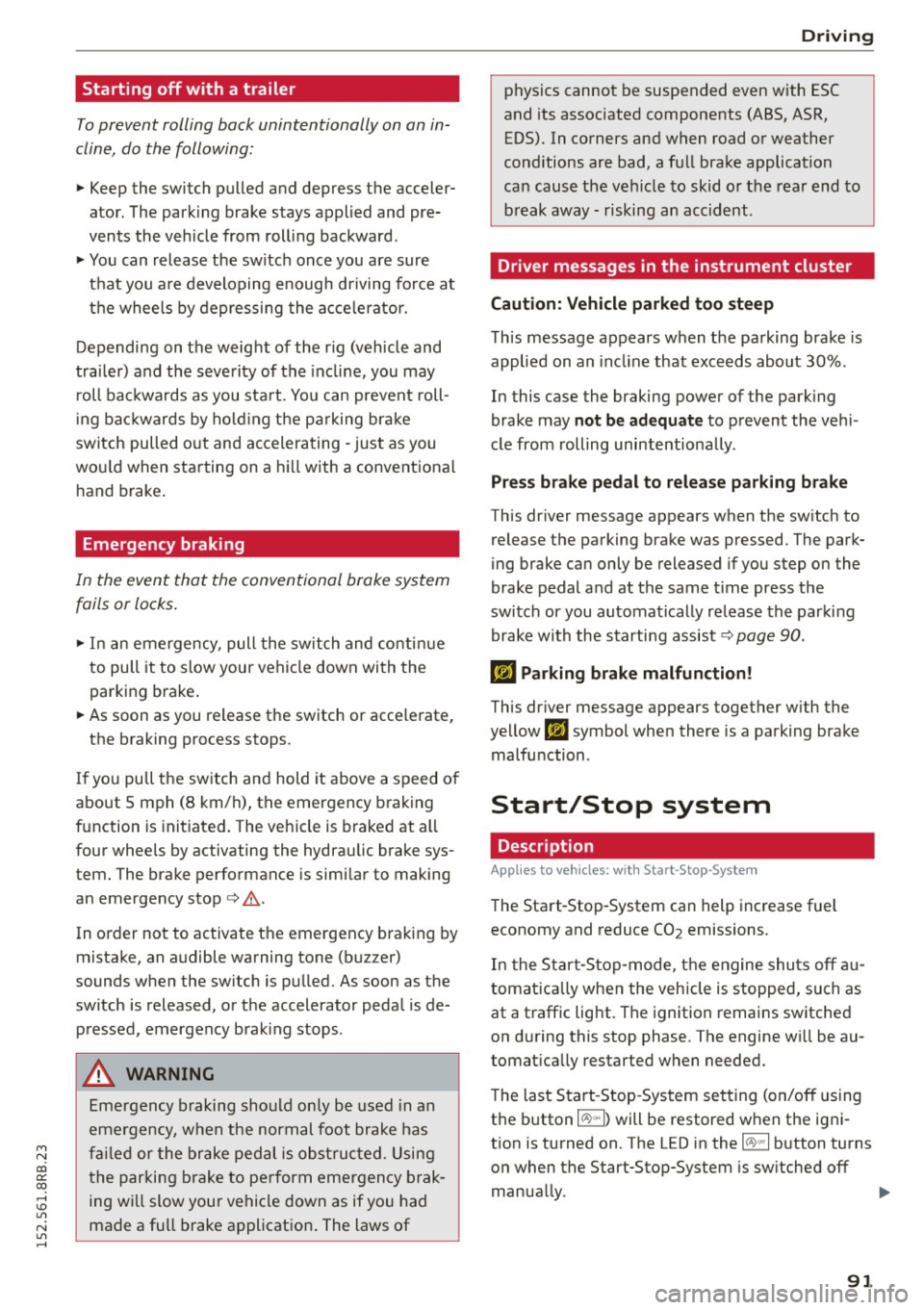

Starting off with a trailer
To prevent rolling back unintentionally on an in­
cline, do the following:
11-Keep the switch pulled and depress the acceler­
ator. The park ing brake stays applied and pre­
vents the vehicle from roll ing backward .
11-You can release the switch once you are sure
th at you a re developing enough dr iving force at
the whee ls by depressing the a cce le rato r.
Depending on the weight of the r ig (veh icle and
trai ler) and the severity of the inc line, you may
r oll bac kwards as you sta rt . Yo u can prevent roll­
in g ba ckwards by ho ld in g the pa rking brake
sw itch pulled o ut and accelera ting - just as you
wo uld when sta rting on a hill with a conventiona l
hand brake .
Emergency braking
In the event that the conventional brake system
fails or locks .
11-In a n eme rgency, pull the sw itch and conti nue
to pull it to slow your vehi cle down wi th the
parking brake .
11-As soon as you release the switch or acce le rate,
the braking process stops.
If yo u pull the sw itch and hold it above a speed of
about S mph (8 km/h), t he emergency braking
f u nction is init iated . The veh icle is braked at all
four whee ls by activating the hydra ulic brake sys­
t em. The brake performance is simi lar to making
an emergency stop¢.&. .
In o rder not to activate the emergency brak ing by
mistake, an audible warning tone (b uzzer)
sounds w hen the sw itch is p ulled. As soon as t he
sw itch is released, or the accelerator peda l is de­
p ressed, emergency brak ing stops.
A WARNING
Emergency b raking should on ly b e used i n an
eme rgency, when the normal foot brake has
f ail ed or the br ake pedal is obstruc ted. Using
t he par king brake to pe rform emergency brak­
ing w ill slow your vehicle down as if you had
made a fu ll brake a pplicat ion . The laws of
Dri ving
physics cannot be suspended even with ESC
and its associated components (ABS, ASR,
EDS). In corners and when road or weather
c o nditions are bad, a f ull brake application
can cause the vehicle to skid o r th e rear end to
b reak away -risking an accid ent .
Driver messages in the instrument cluster
Caution: Vehicle parked too steep
T h is message appears w hen t he pa rking brake is
applied on an in cli ne that exceeds about 30% .
In this case the braking power of the park ing
brake may
not be adequat e to prevent the veh i­
cle from rolling unintentionally .
Press brake pedal to release parking brake
This dr iver message appears when the sw itch to
release the parking bra ke was pressed. The par k­
ing brake can only be released if you step on the
brake pedal and at the same t ime press t he
switch or you automat ica lly release the parki ng
brake with the starti ng assist ¢
page 90.
fpjj Parking brake malfunction!
This dr iver message appears together w ith the
yellow
rm symbol whe n there is a parking brake
malfu nction .
Start/Stop system
Description
Applies to veh icles: w ith Start -Stop -System
T he Sta rt-Stop -System can help increase fuel
economy and reduce CO2 emissions.
In the Star t-Stop -mode, the engine shu ts o ff au­
tomatica lly when the vehicle is stoppe d, such as
at a t raffic lig ht. The ignition remains sw itche d
on during this stop phase. The engine w ill be au­
tomat ica lly restarted when needed.
The last S tart -Stop -System sett ing (on/off using
t h e b utton
10 ~1) will be restored w hen the ig ni­
t ion is turned on. The LED in the
l(A) ~I b utton turns
on when the Start-Stop-System is sw itched off
manua lly.
91

Driving

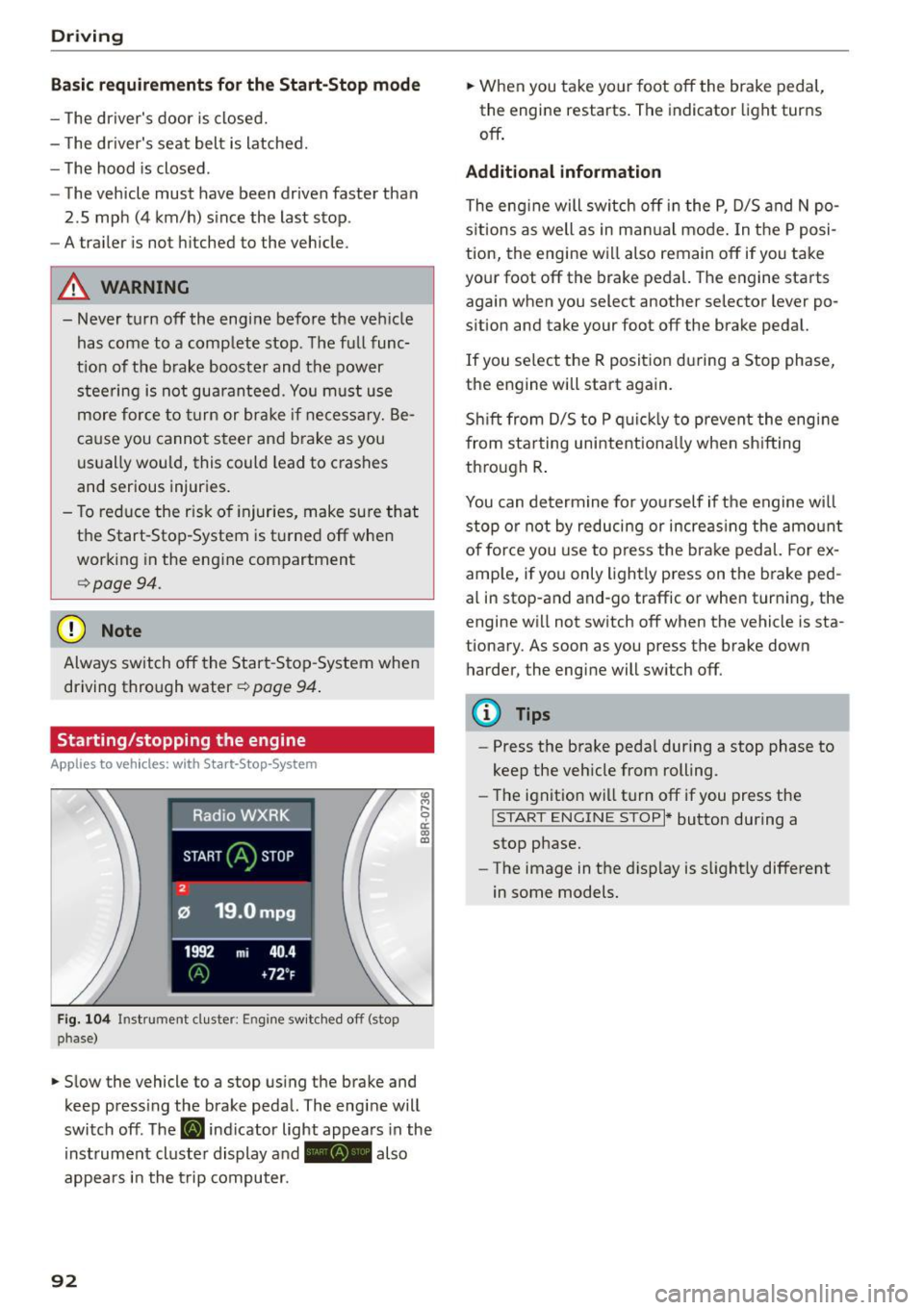

Ba sic requirements for the Start -Stop mod e
- The driver's door is closed.
-The driver's seat belt is latched.
- The hood is closed.
- The vehicle must have been driven faster than
2.5 mph (4 km/h) since the last stop .
- A trai ler is not h itched to the vehicle.
A WARNING
-Never turn off the engine before the veh icle
has come to a comp lete stop. The full func­
t ion of the b rake booster and the power
stee ring is not guaranteed. Yo u mus t use
more force to t urn or brake if ne cessary. Be­
ca use you cannot steer and brake as you
us ually would, this could lead to crashes
and serious injuries.
- To red uce the r isk o f injuries, make sure that
the Start-Stop-System is t urned off whe n
working in the engine compartment
c:>page 94.
(D Note
Always switch off the Start -Stop -System when
driving through water
c::> page 94 .
Starting/stopping the engine
App lies to veh icles: w ith S tart-Stop-System
F ig. 104 Instrument duster: Engine sw itc hed off (stop
phase)
"' .... 9 a: OJ (D
.,. Slow the vehicle to a stop using the brake and
keep press ing the brake peda l. The engine will
switch off. The
[i] indicator light appea rs in the
instrument cluster display a nd - also
appears in the t rip computer.
92
.,. When you take your foot off the brake pedal,
the engine restarts. The indicator light turns
off .
Additional information
The eng ine will switch off in the P, D/5 and N po­
s it ions as well as in ma nual mode. In the P posi­
tion, the engine will also remain off if you take
your foot off the brake pedal. The engine starts
again when you select another selector lever po­
sition and take your foot off the brake pedal.
If you se lect the R positio n during a Stop phase,
the engine will start again.
Sh ift from D/S to P quic kly to prevent the eng ine
from sta rting unintent iona lly when sh ifting
th rough R .
You can determine for yo urself if the engine will
stop or not by reducing or increas ing the amo unt
of force you use to press the brake pedal. For ex­
ample, if you only lightly press on the b rake ped ­
al in stop-and and-go traffic or when turn ing, the
engine w ill not switch off when the vehicle is sta­
tionary. As soon as you press the brake down
harder, the engine will switch off.
{!) Tips
-Press the brake peda l during a stop phase to
keep the vehicle from rolling.
- The ignit ion wi ll turn off if you press the
!START ENGINE STOP I* button during a
stop phase.
- The image in the d isp lay is slight ly different
in some models.

M N
co ~ co
rl I.O
"' N
"' rl
General information
Applies to vehicles: with Start-Stop-System
The standard Start-Stop-mode can be cancelled
for different system-related reasons.
Fig . 105 Instrument cluster: E ngin e-Stop tempo rarily un­
available
Engine will not switch off
.... M
9 cc IX) ID
Before each stop phase, the system checks if cer­
tain conditions have been met. For example, the
engine will
not be switched off in the following
situations:
- The engine has not reached the minimum re­
quired temperature for Start-Stop-mode.
- The interior temperature selected by the A/C system has not been reached.
- The outside temperature is extremely high/low.
- The windshield is being defrosted ~
page 82.
-The park ing system* is switched on .
- The battery cha rge level is too low.
- The steer ing whee l is sharply turned or there is
a steering movement.
- After engaging the reverse gear.
Engine automatically restarts
The stop phase is interrupted in the following sit­
uations, for example. The engine restarts without
any action by the driver.
- The interior temperature varies from the tem­
perature selected in the A/C system.
- The windshield is beeing defrosted
~ page 82.
-The brake pedal is pressed several times in a
row.
Driving
- The battery charge level becomes too low.
Switching the ignition off automatically
To prevent the battery from draining, the ignition
will switch off
automatically when all of the fol­
lowing condit ions have been met:
- The vehicle has already been driven.
- The engine has been turned off by the Start-
Stop-System.
- The driver's door is opened.
- The driver's seat belt is removed .
- The brake pedal is not pressed down.
- The vehicle is stationary .
In this case, the activated low beam will be re­
placed by the side marker lights. The side marker
lights will switch off after approximately 30 mi ­
nutes or when you lock the vehicle .
If the Start-Stop-System has
not turned off the
engine or if you have switched the Start-Stop­
System off manually, the ignition will
not be au­
tomatically switched off and the engine will con­
tinue to run~,&. .
A WARNING
Never allow the engine to run in confined
spaces - danger of asphyxiation.
(D Tips
-
If you shift into the D/S or N positions after
sh ifting into reverse, the vehicle must be driv­
en faster than 6 mph (10 km/h) in orde r for
the engine to switch off again.
93

Driving

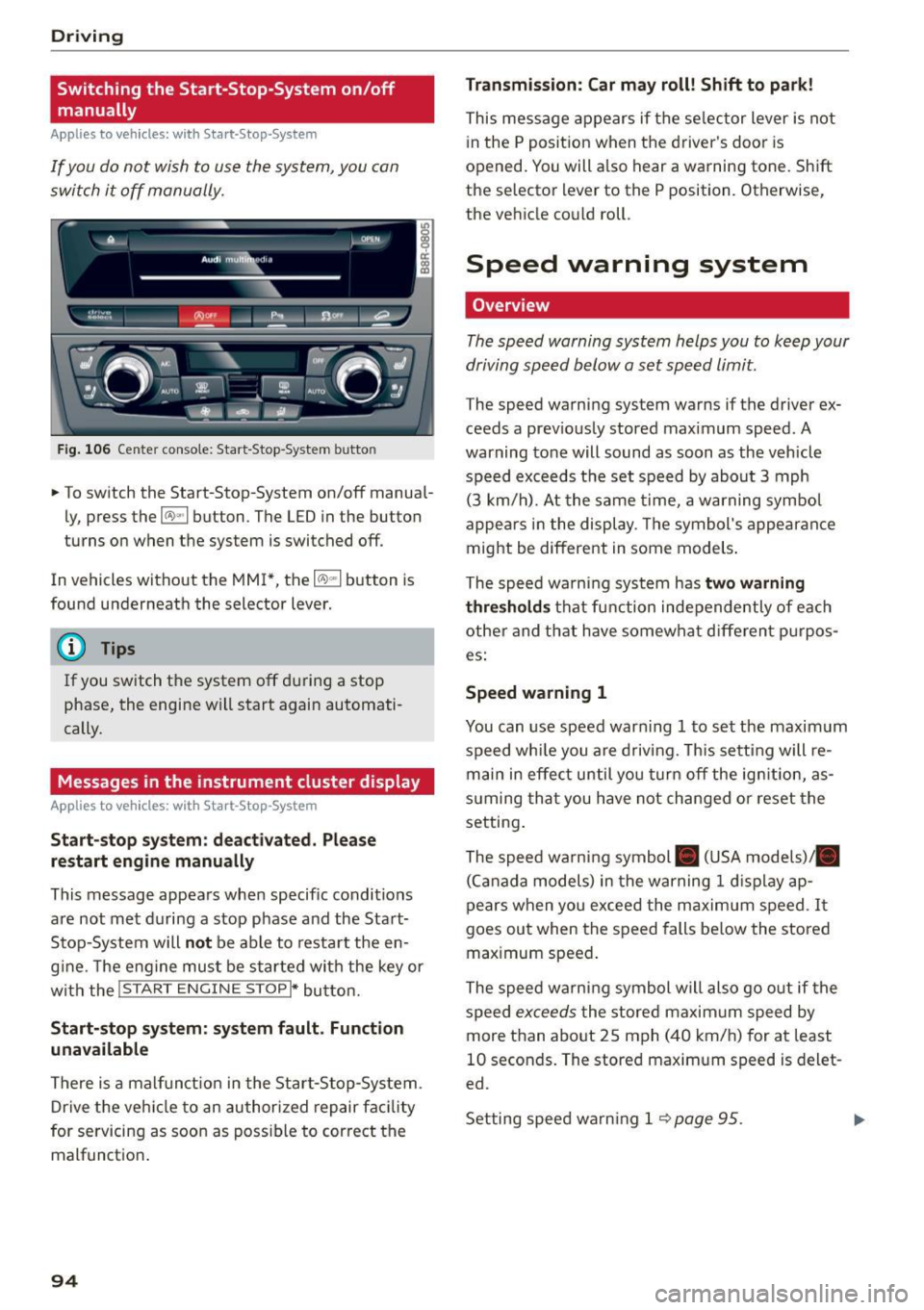

Switching the Start-Stop-System on/off
manually
Applies to veh icles: with Sta rt-Stop-System
If you do not wish to use the system, you can
switch it off manually.
F ig . 10 6 Ce nter co nsole : Start -S top -System butto n
• To switch the Start-Stop-System on/off manua l­
ly, press the
1 0 ••1 button . The LED in the button
turns on when t he system is switched off .
In vehicles without the MMI*, the
10 ~1 b utton is
found underneath the selector lever.
@ Tips
If you switch t he system off du ring a stop
phase, the engine will start again automati ­
cally.
Messages in the instrument cluster display
Applies to veh icles: with Start-Stop-System
Start-stop system: deactivated. Plea se
restart engine manually
This message appea rs whe n specific conditions
are not met du ring a stop phase and the Sta rt­
Stop-System will
not be able to resta rt the en­
g ine. The e ngine mu st be started with the key or
w ith the !S TAR T
ENGINE STOPI* button.
Start-stop system: system fault. Function
unavailable
There is a malf unct ion in the Star t-Stop -System .
Dr ive the veh icle to an author ized repair fac ility
for servicing as soon as poss ible to cor rect the
malfunct ion .
94 Transmission
: Car may roll! Shift to park!
This message appears if the se lector lever is not
i n the
P posit ion when the driver 's door is
opened. You will a lso hear a warning tone. Sh ift
the selector lever to the
P position. Otherwise,
the vehicle could roll .
Speed warning system
Overview
The speed warning system helps you to keep your
driving speed below a set speed limit.
The speed warning sys tem warns if the driver ex­
ceeds a prev iously stored maximum speed. A
warning tone will sound as soon as the vehicle
speed exceeds t he set speed by abo ut
3 mph
(3 km/h). At the same time, a warning sym bol
appe ars in t he display . Th e symbol's appea ran ce
might be different in some models .
The spe ed wa rni ng system has
two warning
thre sholds
that fu nction inde pendently of eac h
other and tha t have somewha t diffe ren t p urpos­
es:
Speed warning 1
You can use speed war ning 1 to set the maxim um
speed wh ile you are d riv ing. This setting will re­
main in effec t until yo u turn off the ig nition, as­
s u ming tha t you have not changed or reset the
setting .
The speed wa rn ing symbol . (USA models)/ .
(C an ada model s) in the warning
1 d is pla y ap ­
pears when yo u exceed the maximum speed . It
goes ou t when the speed falls be low the stored
max imum speed .
The speed warni ng symbol will also go o ut if the
speed
excee ds the stored maxim um speed by
more than abo ut
2 5 mph (4 0 km/h) for at least
10 seconds . The stored maxim um speed is delet­
ed.
Set ting spee d warn ing 1
<=? page 95 . .,._

Driving

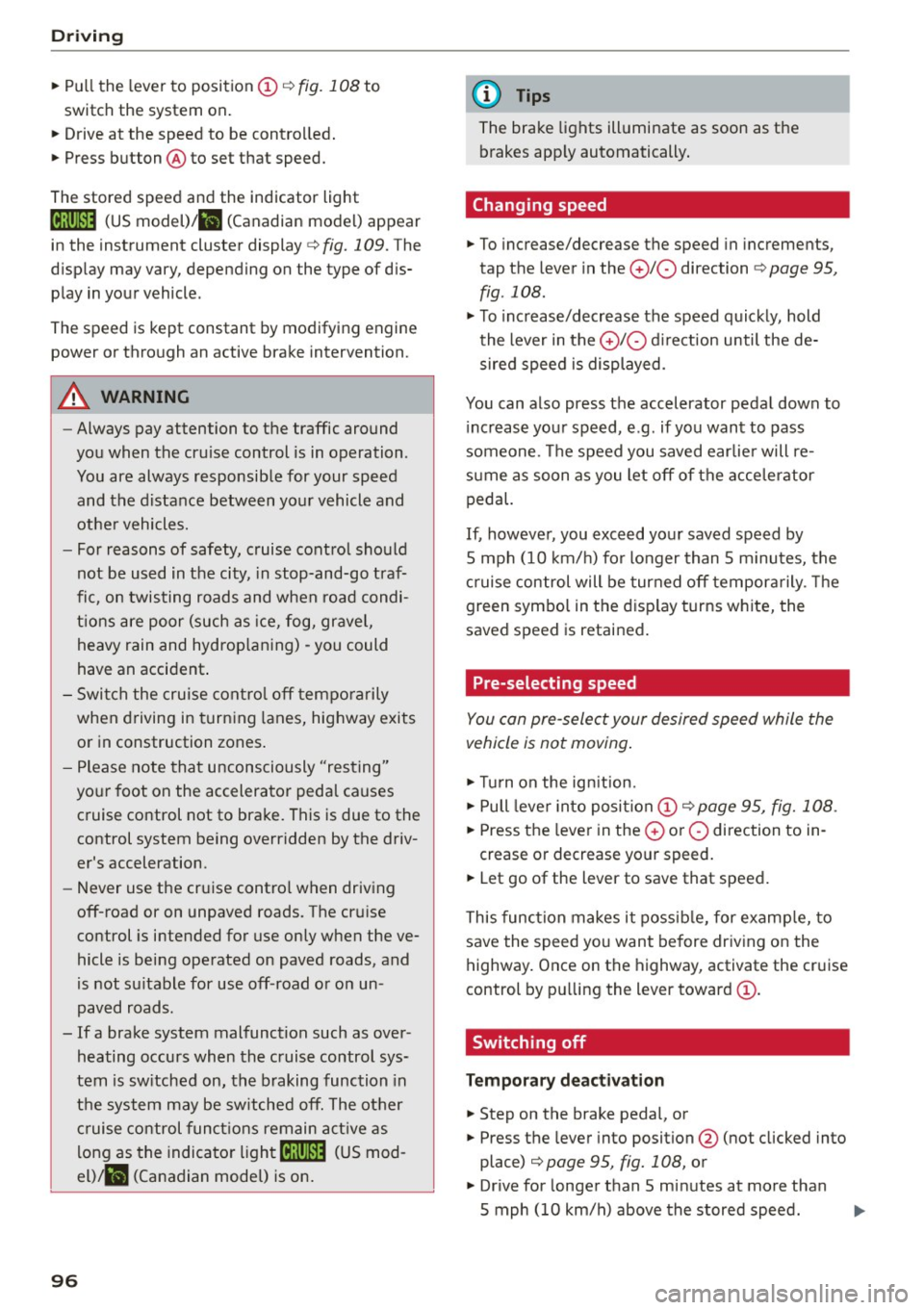

"'Pull the lever to position @¢ fig. 108 to
switch the system on.
"'Drive at the speed to be controlled.
"' Press button @to set that speed.
The stored speed and the indicator light
[ij;jl)~i~ (US model)/BI (Canadian model) appear
in the instrument cluster display¢
fig. 109. The
display may va ry, depending on the type of dis­
play in your vehicle .
The speed is kept constant by modifying engine
power or through an active brake intervention.
A WARNING
- Always pay attention to the traffic around
you when the cruise control is in operation .
You are always responsible for your speed
and the distance between your vehicle and
other vehicles.
- For reasons of safety, cruise control should
not be used in the city, in stop-and-go traf­
fic, on twisting roads and when road condi­
tions are poor (such as ice, fog, gravel,
heavy rain and hydroplaning) -you could
have an accident.
- Switch the cruise control off temporarily
when driving in turning lanes, highway exits
or in construction zones.
- Please note that unconsciously "resting"
your foot on the accelerator pedal causes
cruise control not to brake. This is due to the
control system being overridden by the driv­
er's acceleration.
- Never use the cruise control when driving
off-road or on unpaved roads . The cruise
control is intended for use only when the ve­
hicle is being operated on paved roads, and
is not suitable for use off-road or on un­
paved roads.
- If a brake system malfunction such as over­ heating occurs when the cruise control sys­
tem is switched on, the braking function in
the system may be switched off. The other
cruise control functions remain active as
long as the indicator
light[ij;11 )~1~ (US mod­
el)/lil (Canadian model) is on.
96
(D Tips
The brake lights illuminate as soon as the
brakes apply automatically.
Changing speed
"'To increase/decrease the speed in increments,
tap the lever in the
010 direction ¢ page 95,
fig . 108.
"'To increase/decrease the speed quickly, hold
the lever in the
010 direction until the de­
sired speed is displayed.
You can also press the accelerator pedal down to increase your speed, e .g . if you want to pass
someone . The speed you saved earlier will re­
sume as soon as you let off of the accelerator
pedal.
If, however, you exceed your saved speed by
S mph (10 km/h) for longer than 5 minutes, the
cruise control will be turned off temporarily. The
green symbol in the display turns white, the
saved speed is retained.
Pre-selecting speed
You can pre-select your desired speed while the
vehicle is not moving.
"'Turn on the ignition.
"'Pull lever into position
(I) ¢page 95, fig. 108 .
"'Press the lever in the 0 or 0 direction to in-
crease or decrease your speed.
"' Let go of the lever to save that speed.
This function makes it possible, for example, to
save the speed you want before driving on the
highway. Once on the highway, activate the cruise
control by pulling the l ever toward @.
· Switching off
Temporary deactivation
"' Step on the brake pedal, or
"'Press the lever into position@(not clicked into
place) ¢
page 95, fig. 108, or
"'Drive for longer than S minutes at more than
S mph (10 km/h) above the stored speed.

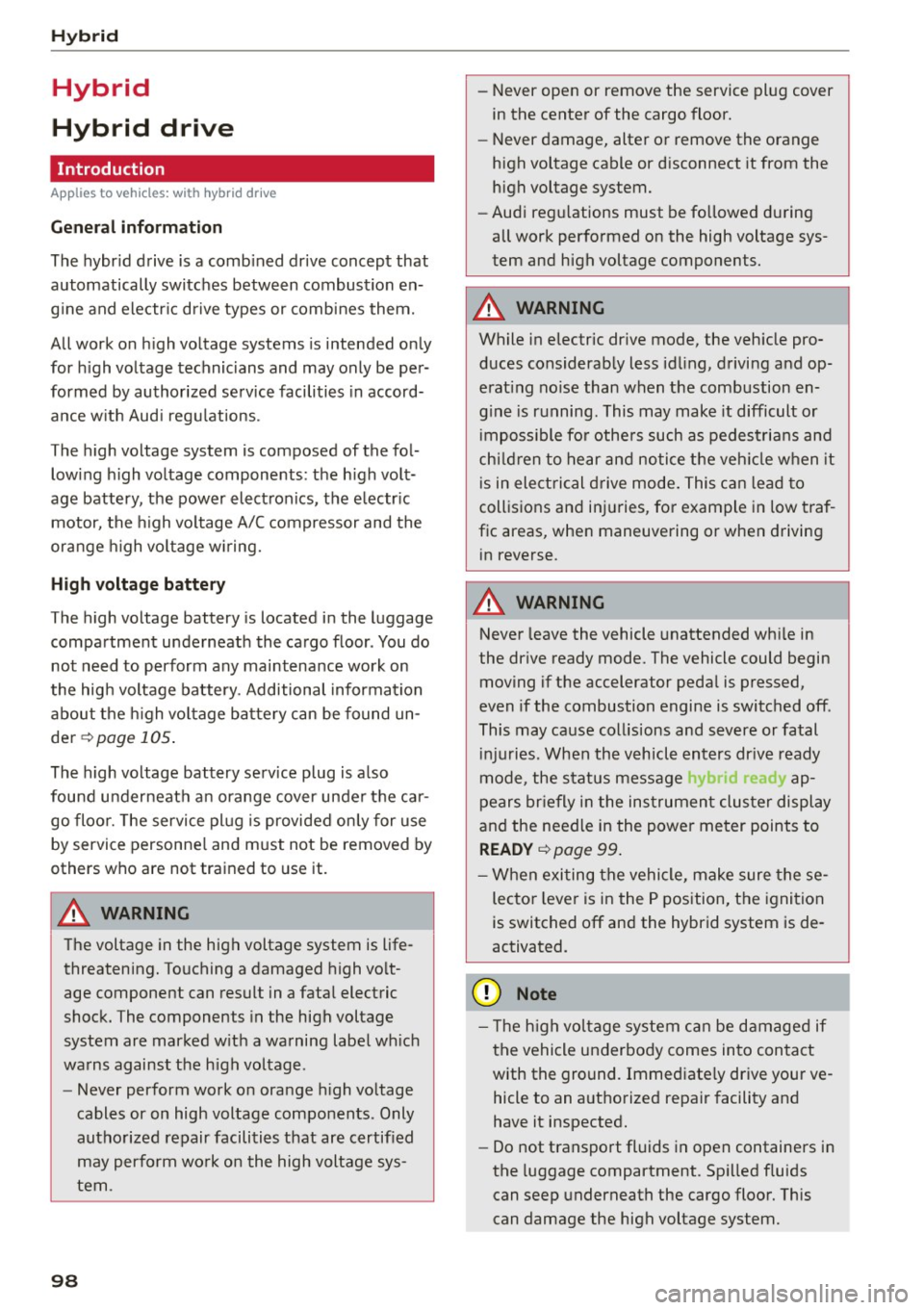

Hybrid
Hybrid
Hybrid drive
Introduction
App lies to veh icles: w ith hybr id drive
Gener al inf orm ation
The hybr id drive is a combined drive concept that
automatically switches between combustion en­
g ine and electr ic drive types or combines them.
All work on h igh voltage systems is intended only
for h igh voltage technicians and may only be per­
formed by authorized service facilities in accord­
ance w ith Aud i regulations.
The high voltage system is composed of the fol­ lowing h igh voltage components: the h igh volt­
age battery, the power electronics, the e lectr ic
motor, the h igh voltage A/C compressor and the
orange h igh vo ltage w iring.
High volta ge battery
The high voltage battery is located in the luggage
compartment underneath the cargo floor . You do
not need to perform any maintenance work on
the high voltage battery. Additional information
about the h igh vo ltage battery can be found un­
der
r::!v page 105 .
The high voltage battery service plug is a lso
found underneath an orange cover under the ca r­
go floo r. T he service plug is provided on ly for use
by service personne l and must not be removed by
others who are not trained to use it .
A WARNING
The voltage in the high voltage system is life­
threatening. Touching a damaged high vo lt­
age component can result in a fatal electric
shock. The components in the high voltage
system are marked w ith a warning label wh ich
warns against the h igh voltage.
- Never perform work on orange h igh voltage
cables or on high voltage components. Only
authorized repair facilities that are certified
may perform wo rk on the high voltage sys­
tem.
98
- Never open or remove the service plug cover
in the center of the cargo floor.
- Never damage, alter o r remove the orange
high voltage cable or disconnect it from the
high voltage system.
- Aud i regu lations must be followed during
all work performed on the high voltage sys­
tem and high voltage components.
A WARNING
While in electric dr ive mode, the veh icle pro­
duces considerab ly less id ling, driving and op­
erat ing no ise than when the combustion en­
g ine is running. This may make it difficult or
impossible fo r othe rs such as pedes trians and
chi ld ren to hear and notice the veh icle when it
is in electrical drive mode . This can lead to
collisions and inj uries, for example in low traf ­
fic areas, when maneuvering or when driving
in reverse.
A WARNING
Never leave the vehicle unattended whi le in
the drive ready mode. The vehicle could begin moving if the accelerator peda l is pressed,
even if the combustion engine is switched off .
This may cause collisions and severe or fatal injuries. When the vehicle enters dr ive ready
mode, the status message
h• .,rid ii J ap­
pears br iefly in the instrumen t cluster display
and the needle in the powe r meter points to
READ Y ¢ page 99.
-When exi ting the vehicle, make sure these ­
lecto r lever is i n the P position, the ignition
is switched off and the hybrid system is de­
activated.
(D Note
- T he h igh voltage system can be damaged if
the vehicle underbody comes into contact
with the ground. Immediate ly drive your ve­
hicle to an authorized repair facility and
have it inspected.
- Do not transport fluids in open containers in
the luggage compartment. Spill ed fluids
can seep underneath the cargo floor. This
can damage the high voltage system.
-

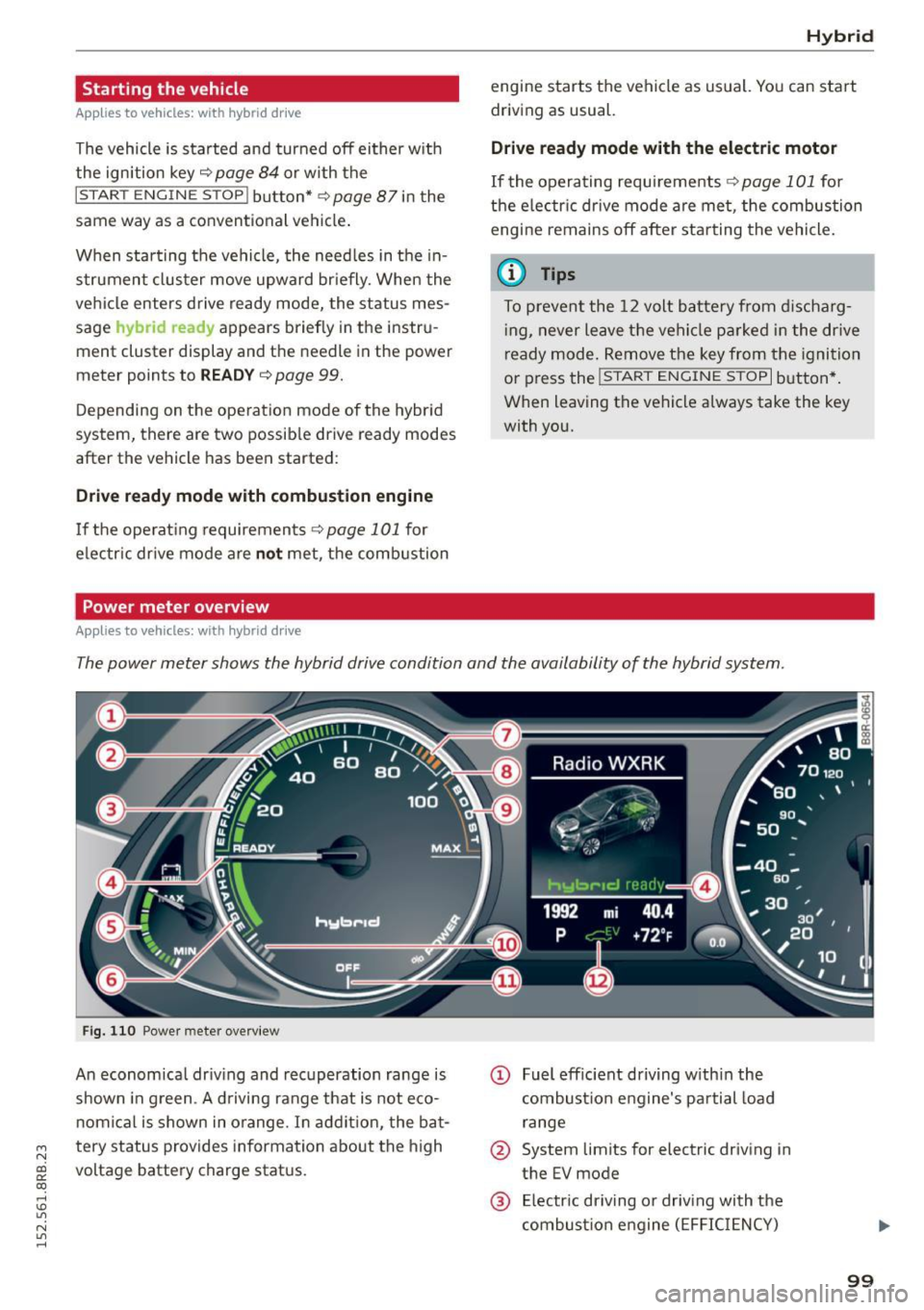

Starting the vehicle
Applies to vehicles: with hybrid drive
The vehicle is started and turned off either w ith
the ign ition key
q page 84 or with the
IS TAR T ENGINE STOP I button* ¢page 87 in the
same way as a conventional vehicle .
When starting the vehicle, the need les in the in­
strument cluster
move upward br iefly. When the
vehicle enters d rive ready mode, the status mes­
sage
hybrid ready appears briefly in the instru ­
ment cluster display and the needl e in the power
meter points to READY
q page 99.
Depending on the operation mode of the hybr id
system, there are two possib le drive ready modes
after the vehicle has been started:
Drive r eady mode with combustion engine
If the ope rat ing requirements q page 101 for
e lec tric dr ive mode are
not met, the combustion
Power meter overview
Applies to vehicles: with hybrid drive
H ybri d
engine starts the vehicle as usual. You can start
driving as usual.
Drive ready m ode with th e el ectric motor
If the operating requi rements 9 page 101 for
the e lectr ic dr ive mode are met , the combustion
engi ne remains off after starting the vehicle.
(j) Tips
To p reven t the 12 volt batte ry from d ischarg­
i ng, never leave t he veh icle parked in the dr ive
ready mode. Remove the key from the igni tion
or press the
! S T AR T ENGINE ST OP I button *.
When leaving the vehicle always take the key
with you.
The power meter shows the hybrid drive condition and the availability of the hybrid system.
F ig. 1 10 Powe r meter overview
An economical dr iv ing and recuperation range is
shown in g reen . A d riving range that is not eco­
n omical is shown in o range. In addi tion, the ba t-
"' tery status provides information about the high
N
~ voltage battery charge stat us.
co
rl I.O
"' N
"' rl
@ Fuel eff icient driving with in the
combust ion engine 's pa rtial load
range
@ System limits for electric driving in
the EV mode
@ El ectric dr iving or driv ing with the
combust ion engine (EFFIC IENCY)
99

Hybrid

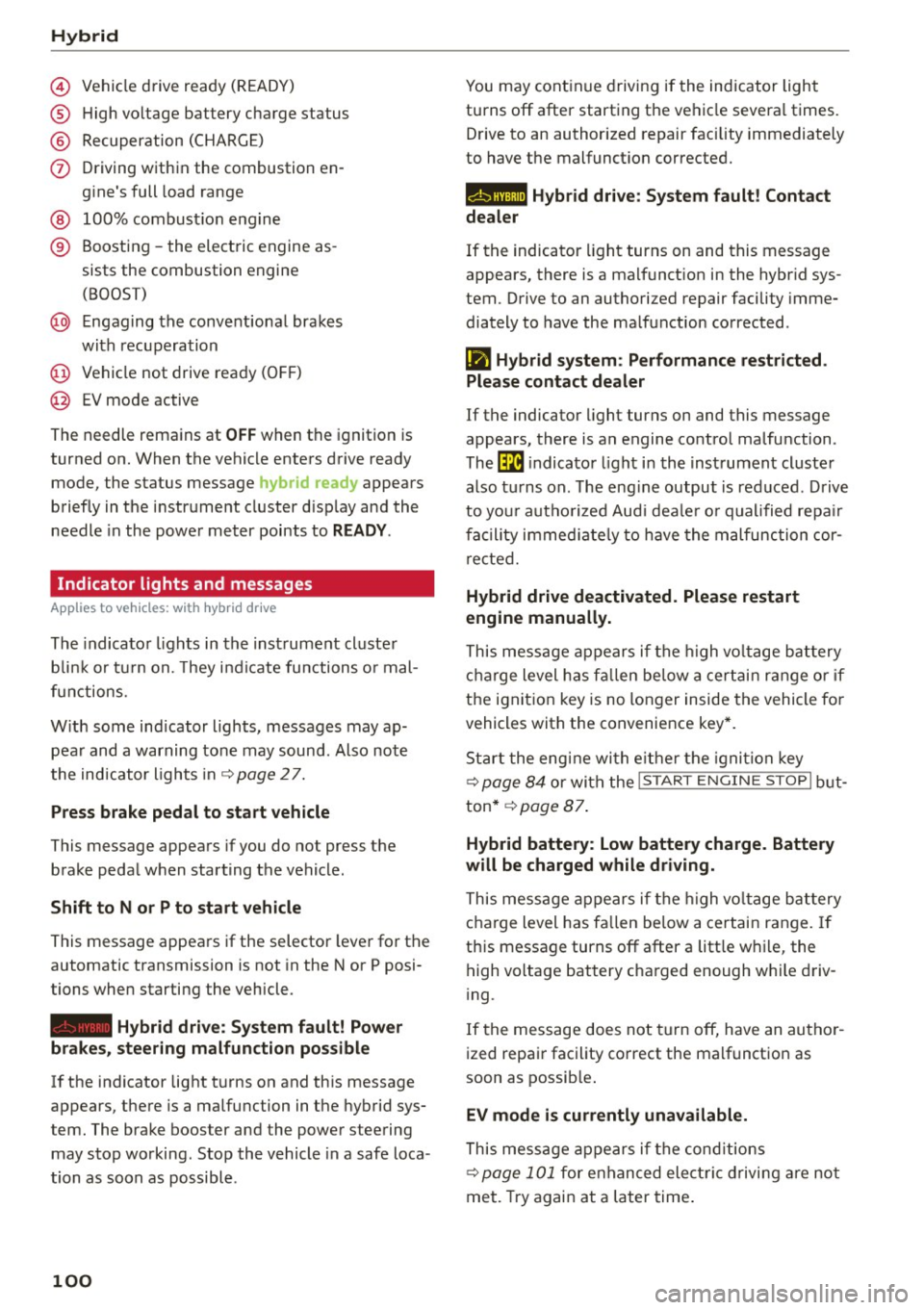

© Vehicle drive ready (READY)
® High voltage battery charge status
® Recuperation (CHARGE)
(f) Driving within the combustion en ­
gine's full load range
@ 100% combust ion engine
® Boosting -the electric engine as­
sists the combustion engine (BOOST)
@ Engaging the convent ional brakes
with recuperation
@ Vehicle not drive ready (OFF)
@ EV mode active
The needle remains at
OFF when the ignition is
turned on. When the vehicle enters drive ready mode, the status message
hybrid ready appears
briefly in the instrument cluster d isplay and the
needle in the power meter points to
READY .
Indicator lights and messages
Applies to vehicles: with hybrid drive
The indicator lights in the instrument cluster
b lin k or tu rn on. They i ndicate functions o r mal­
functions.
W ith some ind icator lights, messages may ap­
pear and a warning tone may sound. Also note
the indicator l ights in ¢
page 2 7.
Press brake pedal to start vehicle
This message appears if you do not press the
brake pedal when starting the vehicle.
Shift to N or P to start vehicle
This message appears if the selector lever for the
automatic transmission is not in the Nor P posi­
tions when starting the vehicle .
-Hybrid drive: System fault! Power
brakes, steering malfunction pos sible
lfthe indicator light turns on and this message
appears, there is a malfunction in the hybrid sys­
tem. The brake booster and the power steering
may stop working. Stop the vehicle in a safe loca ­
tion as soon as possible.
100
You may continue driving if the indicator light
turns off after starting the vehicle severa l times.
Drive to an authorized repair facility immediately
to have the malfunct ion corrected.
Q/ij:@ ,j rlybrid drive: System fault! Contact
dealer
If the indicator light turns on and this message
appears, there is a malfunct ion in the hybr id sys ­
tem. Drive to an authorized repair facility imme­
diately to have the ma lfunction corrected.
Ill Hybrid system : Performance restricted .
Please contact dealer
If the indicator light turns on and this message
appears, there is an engine control malfunction .
The
ffa i ndicator light in the instrument cluster
also t urns on. The eng ine output is red uced . Drive
to you r autho rized Aud i deale r o r qualified repair
facility immediate ly to have the malfunction cor­
rected.
Hybrid drive deactivated. Please restart
engine manually.
This message appears if the high volta ge battery
charge level has fallen be low a certain range or if
the ignition key is no longer inside the vehicle fo r
vehicles with the convenience key*.
Start the engine with e ither the ignition key
¢
page 84 or with the !S TAR T EN GINE STOPI but­
ton* ¢
page 87.
Hybrid battery: Low battery charge. Battery
will be charged while driving.
This message appears if the high volta ge battery
charge level has fa llen below a certain range. If
this message turns off after a litt le while, the
high voltage battery charged enough w hile driv­
i ng .
If the message does not turn off, have an autho r­
ized repair facility correct the malfunct ion as
soon as possible.
EV mode is currently unavailable.
This message appears if the cond itions
¢ page 101 for enhanced elect ric driving are not
met. Try again at a later time.

M N
co
a:
co
,...., \!) 1.1"1
N 1.1"1 ,....,

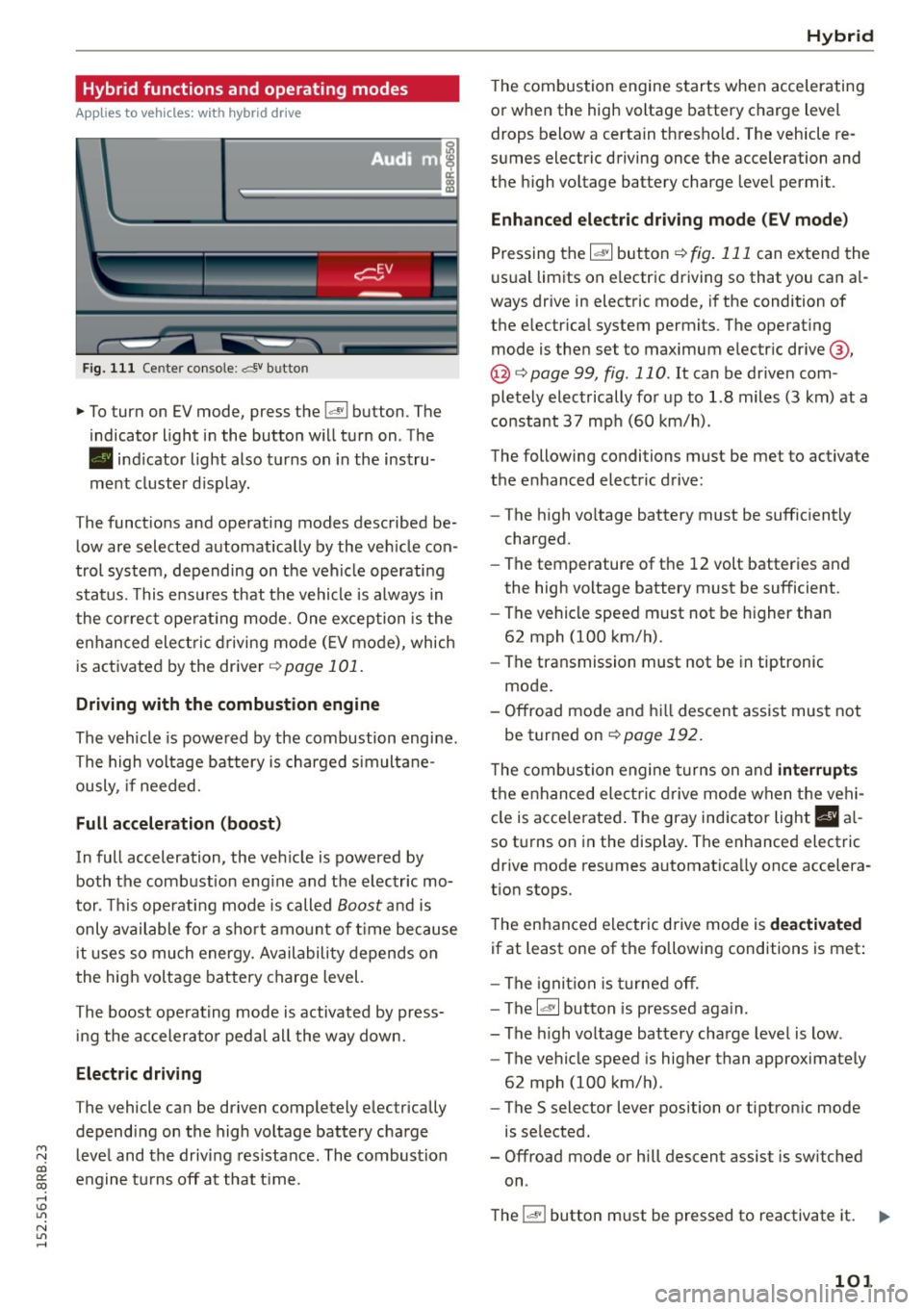

Hybrid functions and operating modes
Appl ies to vehicles: with hybri d drive
Fig. 111 Center console: av bu tton
.,. To turn on EV mode, press the l.,,;v l button. The
indicator light in the button will turn on. The
• indicator light also turns on in the instru­
ment cluster display.
The functions and operating modes described be­
low are selected automatically by the veh icle con­
trol system, depending on the vehicle operating
status. This ensures that the vehicle is always in
the correct operating mode. One exception is the
enhanced elect ric driving mode
(E V mode), which
is activated by the driver ¢
page 101.
Driving with the combustion engine
The vehicle is powered by the combustion engine.
The high voltage battery is charged simultane­
ously, if needed.
Full acceleration (boost)
In full acceleration, the vehicle is powered by
both the combustion eng ine and the electric mo­
tor . This operating mode is called
Boost and is
only available for a short amount of time because
i t uses so much energy. Availability depends on
the high voltage battery charge level.
The boost operating mode is activated by press­ in g the accelerator peda l all the way down.
Electric driving
The vehicle can be driven completely electrically
depending on the high voltage battery charge
level and the driving res istance . The combustion
engine turns off at that t ime .
Hybrid
The combustion engine starts when accelerating
or when the high voltage battery charge level drops below a certain thresho ld. The vehicle re­
sumes electric driving once the acceleration and
the high voltage battery charge level permit .
Enhanced electric driving mode (EV mode)
Pressing the 1~· 1 button r::!> fig. 111 can extend the
usual limits on e lectric driving so that you can a l­
ways drive in electric mode, if the condition of
the electrical system permits. The operating
mode is then set to maximum electric drive @,
@ <:!> page 99, fig . 110. It can be driven com­
pletely electrically for up to 1.8 miles (3 km) at a
constant
37 mph (60 km/h).
The following conditions must be met to activate
the enhanced electric drive:
- The high voltage battery must be sufficiently
charged.
- The temperature of the
12 volt batteries and
the high voltage battery must be sufficient.
- The vehicle speed must not be higher than
62 mph (100 km/h).
- The transmission must not be in tiptronic
mode.
- Offroad mode and hill descent assist must not
be turned on
r::!;>page 192.
T he combustion engine turns on and interrupt s
the enhanced ele ctric drive mode when the vehi­
cle is acce lerated. The gray ind icator light
I§ a l­
so turns on in the display. The enhanced electric
drive mode resumes automatica lly once accelera­
tion stops.
The enhanced electric drive mode is
deactivated
if at least one of the following conditions is met :
- The ignition is turned off.
- The
l~ ·I button is pressed aga in.
- The high voltage battery charge level is low .
- The vehicle speed is higher than approximately
62 mph (100 km/h) .
- The
S selector lever position or tiptronic mode
is selected.
- Offroad mode or hill descent assist is switched
on .
The
l "'-'' I button must be pressed to reactivate it. 1iJ11-
101

Hybrid

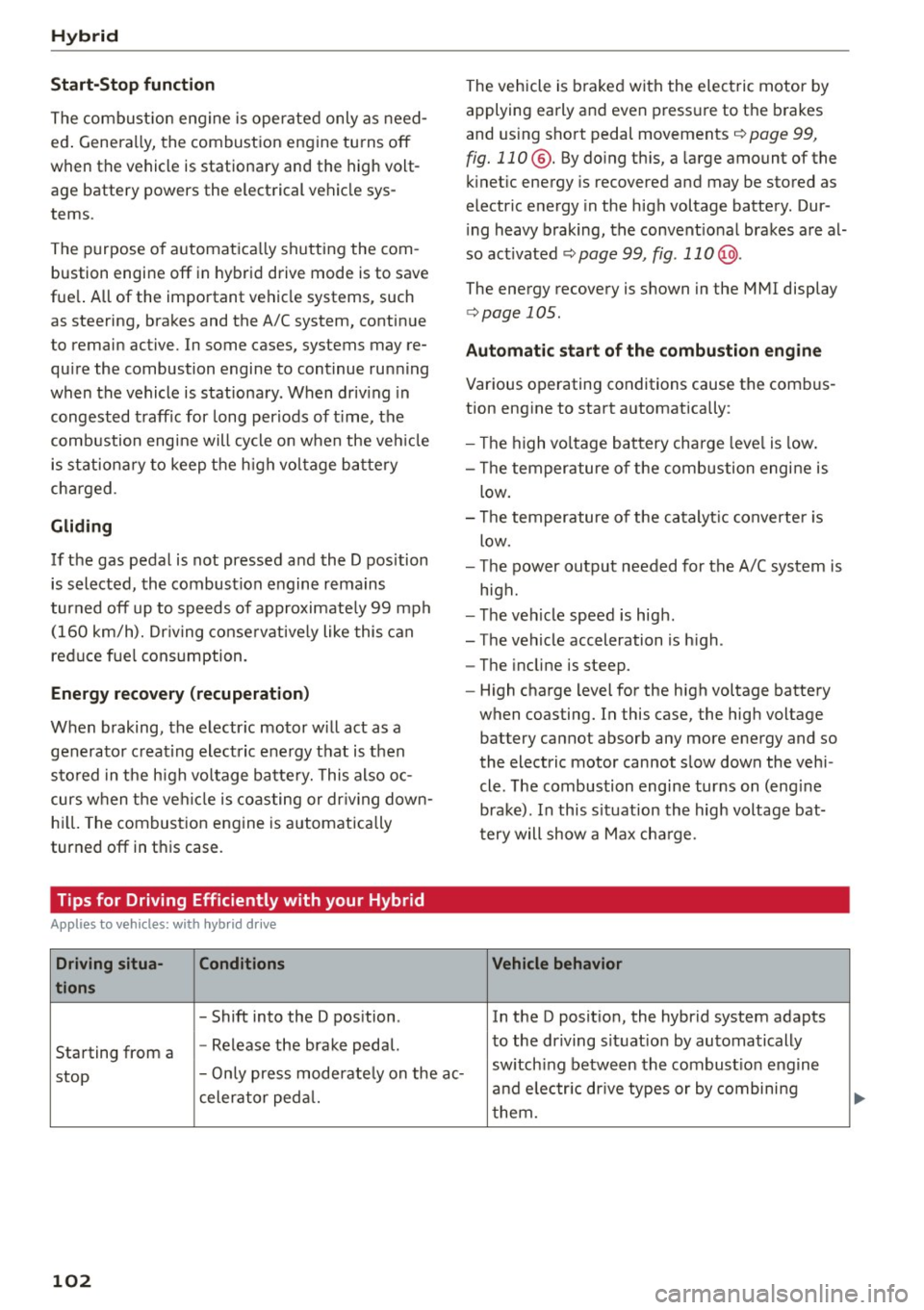

St art-Stop function
The combust ion engine is operated only as need­
ed . Genera lly, the combustion engine turns
off
when the vehicle is stationary and the high volt­
age battery powers the electrical vehicle sys­
tems .
The purpose o f automatica lly shutting the com­
bustion engine
off in hybrid drive mode is to save
fue l. All of the important vehicle systems, such
as steering, brakes and the A/C system, contin ue
to remain active. In some cases, systems may re­
qu ire the combustion engine to continue running
when the vehicle is stationary. When driv ing in
congested traffic for long periods of t i me, the
combustion engine will cycle on when the veh icle
is stationa ry to keep the h igh voltage battery
charged .
Gliding
If the gas pedal is not pressed and the D position
is selected, the combustion engine rema ins
turned
off up to speeds of approximate ly 99 mph
(160 km/h). Dr iving conse rvative ly like this can
r educe fue l consumpt ion.
Energy recovery (recup eration )
When braking, the e lectr ic motor will act as a
generator creating electric energy that is then
s to red in the h igh voltage batte ry. This also oc­
curs when the ve hicle is coas ting or dr iv ing down­
hi ll. The combust ion engine is automatically
turned
off in t his case.
Tips for Driving Efficiently with your Hybrid
Applies to veh icles: w ith hybrid drive
Driving situa- Conditions
tions
- Shift into the D pos ition .
Starting from a -
Release the brake pedal.
stop -
Only press mode rate ly on the ac-
celer ator peda l.
102
The vehicle is braked with the electric motor by
applying early and even press ure to t he brakes
and us ing short pedal movements¢
page 99,
fig. 110@. By do ing th is, a large amount of the
k inet ic energy is recovered and may be stored as
electric energy in the high voltage batte ry. Dur ­
i ng heavy braking, the convent ional brakes are al­
so act ivated
¢ page 99, fig . 110 @.
The energy recovery is shown in the MMI display
¢page 105 .
Automatic start of the combu stion engine
Various operating conditions cause the combus ­
tion eng ine to start a utomatica lly :
- T he high vo ltage battery charge leve l is low.
- T he temperature of the combustion engi ne is
low.
- Th e temperature of the cataly tic converte r is
low.
- T he power output needed for the A/C system is
high.
- T he veh icle speed is high .
- The vehicle acceleration is h igh .
- The incline is steep.
- High charge level for the high voltage battery
when coasting. In this case, the hig h voltage
battery cannot absorb any more ene rgy and so
the electric motor cannot s low down the veh i­
cle. The combustion engine tur ns on (eng ine
brake) . In this situation the high voltage bat­
tery will show a Max cha rge.
Vehicle behavior
In the D posit io n, the hybrid system adapts
to the driving s ituat ion by automatically
sw itch ing between the combust io n engine
a nd e lectr ic dr ive types or by combini ng
them.
