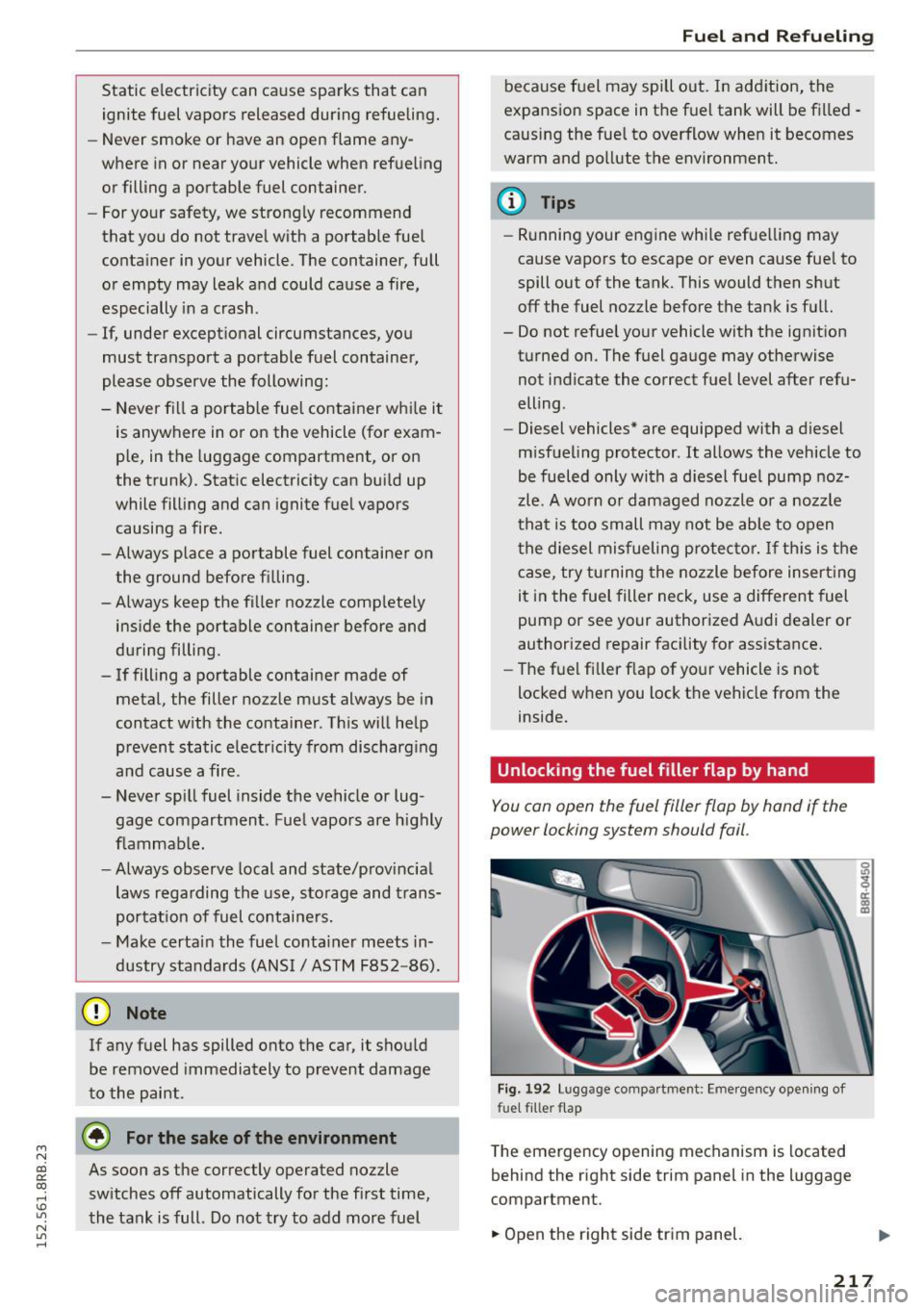

Static electricity can cause sparks that can ignite fuel vapors released during refueling.
- Never smoke or have an open flame any­
where in or near your vehicle when refueling or filling a portable fuel container.
- For your safety, we strong ly recommend
that you do not travel with a portable fuel
container in your vehicle. The container, full
or empty may leak and could cause a fire,
especially in a crash.
- If, under exceptional circumstances, you
must transport a portable fuel container,
please observe the following:
- Never fill a portable fuel container whi le it
is anywhere in or on the vehicle (for exam­
ple, in the luggage compartment, or on
the trunk). Static electricity can bui ld up
while filling and can ignite fuel vapors causing a fire.
- Always place a portable fuel container on
the ground before filling.
-Always keep the fi ller nozzle complete ly
ins ide the portable container before and
during filling.
- If filling a portable container made of
metal, the filler nozz le must always be in
contact w ith the container . Th is will help
prevent static e lectricity from discharg ing
and cause a fire .
- Never sp ill fuel inside the vehicle or lug­
gage compartment. Fue l vapors are highly
flammab le.
- Always observe local and state/provincial laws rega rding the use, storage and trans­
portat ion of fuel contai ners.
- Make certa in the fuel container meets in­
dustry standards (ANSI/ ASTM F852 -86) .
(D Note
If any fuel has spilled onto the car, it shou ld
be removed immediately to prevent damage
to the paint .
@ For the sake of the environment
As soon as the correctly operated nozzle sw itches off automatically for the first time,
the tank is full . Do not try to add more fuel
Fu el a nd R efu elin g
because f uel may spill out. In addition, the
expansion space in the fuel tank will be fi lled -
causing the fue l to overflow when it becomes
warm and pollute the environment.
@ Tips
- Running your engine whi le refue lling may
cause vapors to escape or even cause fue l to
spill out of the tank. This would then sh ut
off the fuel nozzle before the tank is full.
- Do not refuel your vehicle with the ignition turned on. The fuel gauge may otherwise not indicate the correct fuel level after refu­
elling .
- Diesel vehicles* are equipped with a diesel
m isfueling protector .
It allows the vehicle to
be fueled only with a d iesel fue l pump noz­
zle . A wo rn o r damaged nozzle o r a nozz le
that is too small may not be able to open
the diesel misfueling protector.
If this is the
case , try turning the nozzle before insert ing
it in the fuel filler neck, use a different fuel
pump or see your authorized A udi dealer or
authorized repair facility for assistance.
- The fuel fi ller f lap of your vehicle is not
locked when you lock the vehicle from the
inside.
Unlocking the fuel filler flap
by hand
You can open the fuel filler flap by hand if the
power locking system should fail.
Fig. 192 L u ggage compa rtm en t: Em erge ncy ope ning of
fue l fille r flap
The emergency op ening mechanism is located
behind the right side trim panel in the luggage
compartment.
• Open the right side trim panel.
217

Fuel and Refueling

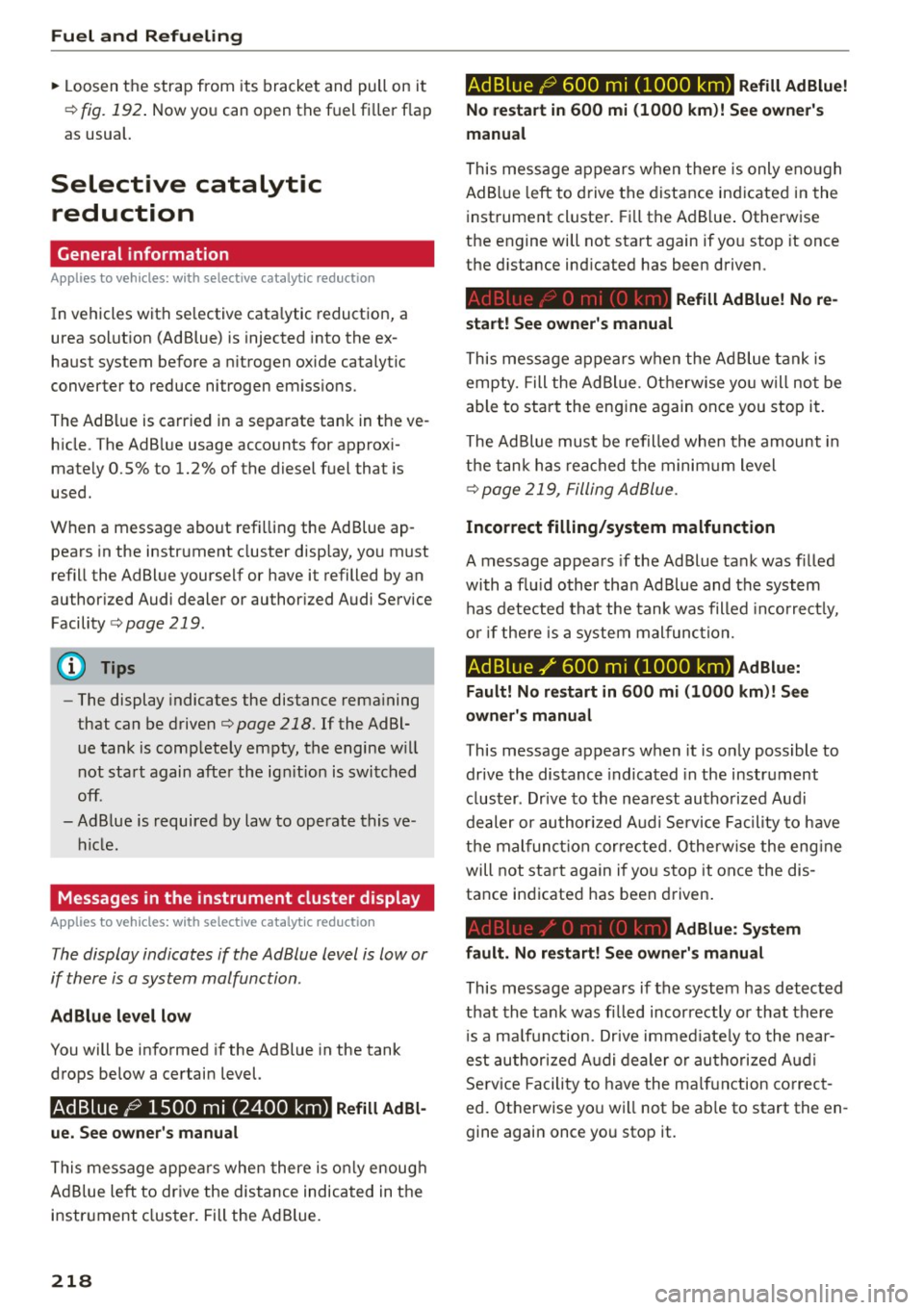

"' Loosen the strap from its bracket and pull on it
¢
fig. 192 . Now you can open the fuel filler flap
as usual.
Selective catalytic reduction
General information
Applies to vehicles: with selective catalytic reduct ion
In vehicles with selective catalytic reduction, a
urea solution (Ad Blue) is injected into the ex­
haust system before
a nitrogen oxide catalytic
converter to reduce nitrogen emissions .
The AdBlue is carried in a separate tank in the ve­
hicle. The AdB lue usage accounts for approxi­
mately 0.5% to 1.2% of the diesel fuel that is
used.
When a message about refilling the Ad Blue ap­
pears in the instrument cluster disp lay, you must
refill the Ad Blue yourself or have it refilled by an
authorized Audi dealer or authorized Audi Service
Facility ¢
page 219.
(1) Tips
-The display indicates the distance remaining
that can be driven¢
page 218. If the Ad Bl­
ue tank is completely empty, the engine will
not start again after the ignition is switched
off.
-Ad Blue is required by law to operate this ve­
hicle .
Messages in the instrument cluster display
Applies to vehicles: with selective catalytic reduct ion
The display indicates if the Ad Blue level is low or
if there is a system malfunction.
AdBlue level low
You will be informed if the Ad Blue in the tank
drops below a certain level.
Ad Blue /9 1500 mi (2400 km) Refill Ad Bl-
ue. See owner's manual
This message appears when there is only enough
Ad Blue left to drive the distance indicated in the
instrument cluster. Fill the Ad Blue.
218
Ad Blue /9 600 mi (1000 km) Refill Ad Blue!
No restart in 600 mi (1000 km)! See owner's
manual
This message appears when there is only enough
Ad Blue left to drive the distance indicated in the
instrument cluster. Fill the AdB lue . Otherwise
the engine will not start again if you stop it once
the distance indicated has been driven.
Refill Ad Blue! No re­
start! See owner's manual
This message appears when the Ad Blue tank is
empty. Fill the Ad Blue . Otherwise you will not be
able to start the engine again once you stop it.
The Ad Blue must be refilled when the amount in
the tank has reached the minimum level
¢ page 219, Filling AdBlue .
Incorrect filling/system malfunction
A message appears if the Ad Blue tank was filled
with a flu id other than Ad Blue and the system
has detected that the tank was filled incorrect ly,
or if there is a system malfunction.
AdBlue ./' 600 mi (1000 km) AdBlue:
Fault! No restart in 600 mi (1000 km)! See
owner's manual
This message appears when it is only possible to
drive the distance indicated in the instrument
cluster. Drive to the nearest authorized Audi
dealer or authorized Audi Service Facility to have
the malfunction cor rected. Otherwise the engine
will not start again if you stop it once the dis­
tance indicated has been driven.
AdBlue: System
fault. No restart! See owner's manual
This message appears if the system has detected
that the tank was fi lled incorrectly or that there
i s a malfunction. Drive immediate ly to the near­
est authorized Audi dealer or authorized Audi
Service Facility to have the malfunction correct­
ed. Otherwise you will not be ab le to start the en­
gine again once you stop it .

Fuel and Refu elin g

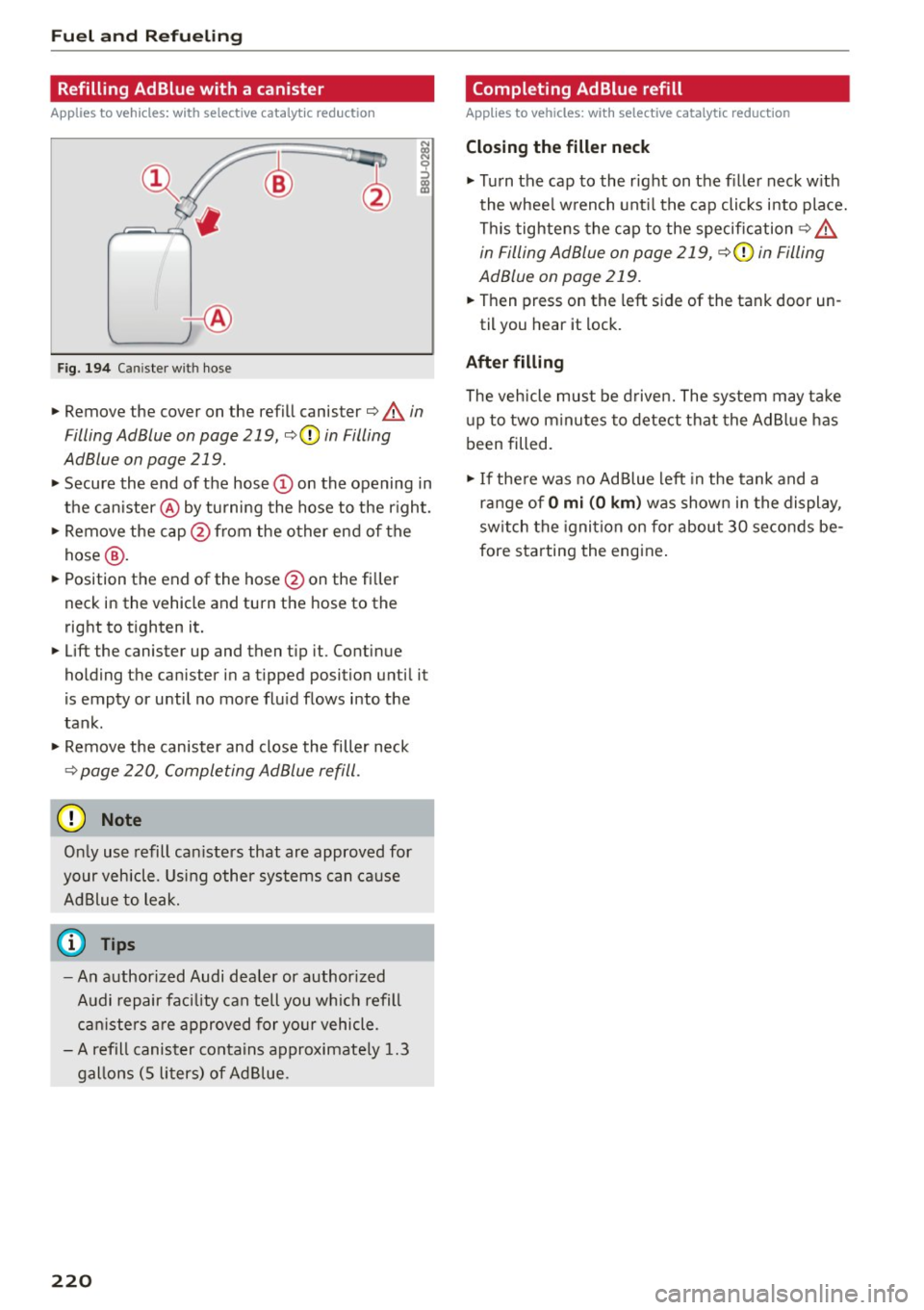

Refilling AdBlue with a canister
App lies to veh icles: w ith selective cata lyt ic red uctio n
@
+®
Fig. 194 Canister with hose
"' Remove the cover on the refill canister c:::> A in
Filling Ad Blue on page 219,
c:::> 0 in Filling
AdBlue on page 219 .
"' Secure the end of the hose(!) on the opening in
the canister @ by turning the hose to the r ight.
"' Remove the cap @from the other end of the
hose @.
"' Position the end of the hose @on the fi ller
neck in the vehicle and turn the hose to the
right to tighten it.
"'Lift the canister up and then tip it. Continue
holding the canister in a tipped position until it
is empty or until no more flu id flows into the
tank .
"' Remove the canister and close the filler neck
c:::> page 220, Completing AdBlue refill .
0 Note
Only use refill canisters that are approved for
your vehicle. Us ing other systems can cause
Ad Blue to leak.
@ Tips
- An authorized Audi dealer or author ized
Audi repair facility can tell you w hich refill
can iste rs a re approved for your vehicle.
- A refill canister contains approximate ly 1. 3
gallons (5 liters) of Ad Blue.
220
Completing AdBlue refill
App lies to vehicles: wit h selective cata lyt ic reduction
C losin g the filler neck
"'Turn the cap to the right on the filler neck w ith
the wheel w rench until the cap clicks i nto place.
This tightens the cap to the specification
c:::> A
in Filling AdBlue on page 219, c:::> 0 in Filling
AdBlue on page 219.
"'Then press on the left side of the tank door un-
til you hear it lock.
Aft er filling
The vehicle must be driven. The system may take
up to two m inutes to detect that the Ad Blue has
been filled.
"' If there was no AdBlue left in the tank and a
range of
O mi (0 km ) was shown in the display,
sw itch the ignition on for about 30 seconds be­
fore starting the engine.

M N
Checking and Filling Hood
Releasing the engine hood
The engine hood is released from inside the vehi­
cle .
Fig . 195 Drive r's side footwe ll: e ng ine hood re lease lever
"' Wi th the driver's door open, pu ll the leve r un­
der the instrument panel in the direction of the
arrow
c::> fig . 195.
The hood pops up s light ly under spri ng press ure.
Opening the engine hood
Fig. 196 Relea se leve r un der the eng ine hood
Before opening the engine hood, make su re that
the w indshield wipers are flat aga inst the wind­
shield. Otherwise, they could damage the paint
on the hood .
"' Pull up on the release under the hood
c:> fig . 196. This releases the catch.
"' Open the hood all the way
c::> A.
~ _&. WARNING
rl
:5: Hot engine coo lant can burn you.
N l/1 rl
Ch eck in g and Fillin g
-To reduce the risk of being burned, never
open the hood if you see or hear steam or
coolant escaping from the eng ine compart­
ment. Wait until no steam or coolant can be
seen or heard before carefully opening the hood.
Closing the engine hood
"' Pull the hood down until the pressu re from the
struts is reduced.
"' Le t the hood
drop down and latch in p lace. Do
not try to push it shut;
it may fa il to engage
c::> A .
A WARNING
-
A hood that is not completely latched cou ld
fly up and block your view while driv ing.
-
- When you close the engine hood, check it to
make sure the safety catch has properly en­
gaged . The hood should be flush with the
surrounding vehicle body parts .
- If you notice while driv ing that the hood is
not secured properly, stop at once and close
it .
Working in the engine compartment
Be especially careful whenever you work in the
engine compartment.
Wheneve r you must pe rfo rm an y wo rk in the
eng ine comp artment , for e xample chec king and
fi lling differen t fluids , ther e is a ri sk of i nju ry,
bu rn s and acci den ts. To p re ve nt pe rsonal injur y
al way s ob serve the follo wing WARN INGS . The
e ngi ne compartm ent of an y ve hicle is a haza rd­
ou s area
~ ,&..
A WARNING
To help avoid injury, before you check any­
thing under the hood:
- Turn off the eng ine.
- Remove the ignition key.
- Apply the parking brake.
-
- Move selector lever of automatic transmis-
sion to P (Park).
221

Checking and Filling
-Always let the engine cool down. Hot com­
ponents will burn skin on contact .
- To reduce the risk of being burned, never
open the hood if you see or hear steam or
coolant escaping from the engine compart­
ment . Wait until no steam or coolant can be
seen or heard before carefully opening the
hood.
- Keep children away from the engine com­
partment .
- Never spill fluids on hot engine compo­
nents . They can cause a fire .
- Never touch the radiator fan. The auxiliary
electric fan is temperature controlled and
can switch on suddenly.
- Never open the coolant reservoir cap when
the engine is still warm. The coolant system
is pressurized and hot coolant could spray
out .
- Protect your face, hands and arm from steam or hot engine coolant by placing a
thick rag over the cap when you open the coolant reservoir .
- Do not remove the engine cover under any
circumstances. This increases the risk of
burns.
- If work on the fuel system or the electrical
system is necessary :
- Always disconnect the battery.
- Never smoke or work near heaters or open
flames . Fluids in the engine compartment
could start a fire.
- Keep an approved fire extinguisher imme­
diately available.
- To avoid electrical shock and personal injury
while the engine is running or being started, never touch:
- Ignition cables
- Other components of the high voltage
electronic ignition system.
- If you must perform a check or repair with
the engine running:
- First, fully apply the parking brake , move
selector lever of automatic transmission
to P (Park).
222
- Always use extreme caution to prevent
clothing, jewelry, or long hair from getting
caught in the radiator fan, V-belts or other
moving parts, or from contacting hot
parts . Tie back hair before starting, and do
not wear clothing that will hang or droop
into the engine.
- Minimize exposure to emission and chemi­
cal hazards
~ ,&. .
&, WARNING
California Proposition 65 Warning:
- Engine exhaust , some of its constituents,
and certain vehicle components contain or
emit chemicals known to the State of Cali­
fornia to cause cancer and birth defects and
reproductive harm. In addition, certain flu­
ids contained in vehicles and certain prod­
ucts of component wear contain or emit
chemicals known to the State of California
to cause cancer and birth defects or other
reproductive harm.
- Battery posts, terminals and related acces­ sories contain lead and lead compounds,
chemicals known to the State of California
to cause cancer and reproductive harms .
Wash hands after handling .
('.!) Note
When adding fluids, always make sure that
they are poured into the proper container or
filler opening, otherwise serious damage to
vehicle systems will occur.
@ For the sake of the environment
To detect leaks in time, inspect the vehicle
floor pan from underneath regularly. If you
see spots from oil or other vehicle fluids, have
your vehicle inspected by an authorized Audi dealer.

M N
co ~ co
rl I.O
"' N
"' rl
Checking and Filling
Engine compartment
Engine compartment
These are the mos t important item s that you can check .
Fig. 197 Typical layou t fo r container s and e ngine oil filler ca p
(D Jump start point(+) under a cover 23 2, 272
@ Brake fluid reservoir (0) . . . . . . . . 229
@ Engine oil filler cap(~) . . . . . . . . 225
@ Coolant expansion tank (- L) . . . . . 227
® Jump start point(-) w ith hex head
s crew . . . . . . . . . . . . . . . . . . . . . . . 232, 272
@ Windshield/headlight washer con -
tainer
(Q) . . . . . . . . . . . . . . . . . . . 234
T he po sit ion of the engine oil filling hole
c:> fig. 197 (item @) can differ depending on the
engine design .
A WARNING
Before you check anything in the engine com­
partment, always read and heed all WARN­
INGS
c:> &. in Working in the engine compart­
ment on page 221.
Engine oil
Engine oil specifications
The engine oil used must conform to exact sp eci­
f ications.
T he service interval disp lay in the instrument
cluster of your vehicle will inform you when it is
time for an oi l chang e. We recommend that you
hav e your oil chang ed by an authori zed A udi Serv ­
ic e Advi sor .
If you have to top off the oil between oil changes,
use the Audi oil qua lity standa rd specified in the
tab~ .
~
223

Checking and F ill in g
Audi oil quality standard
Gas oline VW 502 00 or
engi ne
vw 504 00
Die sel
vw 50 7 00
e n g in e
Using the proper engine o il is important for the
functionality and serv ice life of the engine. Your
engine was facto ry-filled with a high-qua lity oil
which can usually be used throughout the entire
year.
(D Note
Your Limited New Vehicle Warranty does not
cover damage or malfunctions due to failure
to follow recommended maintenance and use
requirements as set forth in the Audi Owner's Manual and Warranty
& Ma intenance booklet.
- Use only a high qua lity eng ine oil that ex-
pressly complies w ith the Audi o il quality
standard specified for your vehicle's engine.
Using any other oil can cause serious engine
damage.
- Do not mix any lubricants or other additives
into the engine oil. Doing so can cause en­
gine damage.
(D Tips
If you need to add oil and there is none availa­
ble that meets the Audi o il quality standard
your eng ine requires, you may add a total of
no more than 0.5 quart/liter of a h igh-quality
"synthe tic"oil that meets the followi ng speci­
fications.
- Vehicles with gasoli ne engine: AC EA A3 o r
API SM wi th a viscosity g rade of SAE OW-30,
SA E SW-30 or SAE SW-40 .
- Vehicles wi th d iesel engine: AC EA C3 o r
API CF wi th a v iscosi ty grade of SA E OW-30
or SAE SW-30.
- Fo r more information abo ut eng ine oil t hat
has been approved for your vehicle, please
contact eithe r your a uthorized Audi dea le r
or A udi Customer Relations at
1 (800) 822-2834 or visit our web site at
www.aud iusa.com or www .aud icanada.ca.
224
· Eng ine oil consumption
The engine in your vehicle depends on an ade­
quate amount of oil to lubricate and cool all of
its moving parts.
In order to prov ide effective lubrication and coo l­
i ng of internal engine components, all internal
combust ion engines consume a certa in amount
of oil. Oil consumpt ion va ries from engine to en­
gine and may change sig nificantly over the life of
the engine. Typically, eng ines wi th a specified
break -in period (see¢
page 198) consume mo re
o il during t he b reak-in period than they co nsume
after oil consumption has stabilized .
Un der normal cond itions, the rate o f oi l con­
sumption depends on the q uality and viscos ity o f
the oil, the RPM (revolutions per min ute) at
which the engine is operated, the ambient tem­ perature and road condit ions. Further factors are
the amount of o il dilution from water condensa­
tion or fuel residue and the ox idat ion leve l of the
o il. As any engine is subject to wear as mileage
builds up, the oil consumption may inc rease over
time unt il rep lacement of worn compone nts may
become necessary.
With a ll these variab les coming into p lay, no
standard rate of oil consumpt ion can be estab­
li shed or spec ified. There is no alte rnative to reg­
u lar and frequent checking of the oil leve l, see
Note .
If the yellow engine oil leve l warning symbo l in
the i nstrument cluster
II lights up, you should
c h ec k t he o il level as soon as poss ible
cf> page 2 25. Top off the oil at your ear liest con­
venience
r:!> page 225.
A WARNING
Before you check anything in the engine com­
partment, always read and heed a ll WARN­
INGS¢ .&.
in Working in the engine compart­
ment on page 221.
(D Note
Driving wit h an insufficient oi l level is likely to
cause severe damage to the engine.
liJJ,

M N
co ~ co
rl I.O
"' N
"' rl
@ Tips
-The oil pressure warning display. is not
an indicator of the oil level. Do not rely on
it. Instead, check the oil level in your en­
gine at regular intervals, preferably each
time you refuel , and always before going
on a long trip .
-If you have the impression your engine con­
sumes excess ive amounts of o il, we recom­
m end th at you cons ult an a uthorized Aud i
deal er to have th e cau se of yo ur co nc ern
p ro perly di ag no se d . Keep i n mi nd th at the
a ccurate meas ureme nt o f oil c onsu mpti on
r equires great care and m ay ta ke some time.
An a uthorized Audi dea ler has i nstr uctions
abo ut how to meas ure o il cons umption ac­
curate ly.
Checking the engine oil level
F ig. 19 8 Disp lay: O il level indicator
Read oil level
.. Pa rk your vehicle so that i t is hor izont ally level.
.. Shu t the engine off when i t is at oper ating te m-
perature.
.. Switc h on ly the ignition back on.
.. Wa it approx. two minutes .
.. Se lect:
I CARI funct ion button > Oil level. Or
.. Select:
ICARI funct ion button> Car systems *
control button > Servicing & checks > Oil level.
.. Read the oil leve l in the radio or MMI* Display
¢ fig . 198. Add e ng in e oil if the bar of the oil
l evel i ndicator is nea r "M in"
9page 225.
The oil level needs to be c hec ked at regular inter­
va ls. The best t im es to do this are whenever you
ref uel and prior to long t rips.
Checking and Filling
D epend ing on the way t he vehicle is dr iven and
the ope rat ing cond itions, oil consumption ca n be
u p to a 1/2 quart pe r 600 miles (0 .5 liter per
1,000 km). Consumption may be higher within
the fi rst 3,000 mi les (5,000 km).
(D Tips
The oil leve l indicator in t he ra dio or MMI*
D isp lay is only an information display. If t he
o il level is too low , a minimum oi l warn ing ap­
p ears in the instrume nt cl uster. Add oil
¢ page 225. If the hood has been o pen ed,
t h e cur ren t oil leve l is shown in t he instru­
m ent cl uster the n ext tim e the ig niti on i s
sw itch ed on.
Adding engine oil 0 N ~ N ,;, a, co
Fig . 199
Engine compa rtment: cove r on th e e ng in e oi l fill­
er neck
Befo re you check a nyth ing in the engine compart­
ment ,
always read and heed all WARNINGS
¢ & in Working in the engine compartment on
page 221 .
.. Shut the eng ine off .
.. Unscrew the cap
'l!:7-to the eng ine o il filling
hole
¢ fig. 199, 9page223, fig.197 .
.. Carefully top off with 0.5 quarts (0.5 liters) of
the appropriate oil ¢
page 223 .
.. Check t he oil level aga in after two m inutes
<:> page 225, Checking th e e ngin e oil l eve l.
.. Top off the o il, if necess ary .
.. Scr ew the cap back on the filling hole.
& WARNING
-
- W hile to p pin g off , the o il m ust not come in
contact w ith hot e ngine parts - fire hazar d!
225

Checking and F ill in g
- The oi l fi ller cap mus t be pr operly secured to
p re vent oil from being sprayed on the hot
engine and exhaust system when the engine
is running - fire hazard!
- If your skin has come in contact with the en­
gine oil, you must subsequently clea nse it
tho roughly .
CD Note
-Check the o il level using the radio or the
MMI*. If the message
Please reduce oil lev ­
el
appears, contact your authorized Audi
dealer or other qualified wo rkshop to have
excess oil ext racted if necessa ry .
- Audi does not recommend the use of oil
additive s. They may damage the engine
and adversely affect your New Vehicle War ­
ranty .
@ For the sake of the environment
- Under no circ umstances ca n the o il come in
contact w ith the sewage network o r the soil.
- Observe and fo llow lega l regu lations whe n
dispos ing of empty oil co ntaine rs .
Changing the engine oil
We recommend that have your oil changed by an
authorized Audi dealer or a qualified service sta ­
tion .
Before you check any thing in the engine compart­
ment,
always read and heed all WARNINGS c> .&.
in Working in the engine compartment on
page 221 .
The engine oil must be changed according to the i n terva ls specified in your Warranty
& Mainte­
nance booklet . This is ve ry impo rtant because the
lubricat ing propert ies of o il diminish gradua lly
du ring normal ve hicl e use.
Unde r some circumstances the eng ine o il should
be changed more frequent ly. Change oil more of­
ten if yo u drive most ly short distances, operate
t he vehicle in d usty areas or unde r predom inan tly
s top-and-go traff ic co ndit io ns, o r have you r vehi ­
cle where tem peratures rema in be low freezing
for extended periods .
226
Detergent additives in the oil will make fresh oil
l ook dark after the engine has been running fo r a
short time. Th is is norma l and is not a reason to
c h ange the oi l more often than recommended.
Beca use o f the p rob lem of p roper disposal, along
with t he specia l too ls and necessary expertise re­
quired, we strongly recommend that yo u have
your oi l changed by an authori zed
Audi dealer or
a q ua lified service station.
If you choose to change your oil yourself , please
note the fo llow ing important info rmat ion:
_& WARNING
To reduce the risk of personal inj ur y if you
must change the eng ine oil in your vehicle
yourself:
- Wear eye protect ion.
- To reduce t he risk of burns from hot eng ine
oil, let the engine coo l d own to the to uch.
-
- W hen removing the o il dra in p lug with your
fingers, stay as far away as possible. Always
keep you r forearm parallel t o the ground to
he lp prevent hot o il from running down your
arm .
- Dra in the oil i nto a container designed for
this purpose , one large enough to hold at
l e ast the tota l amount o f oil in you r engine.
- Engine oil is poisonous. Keep it we ll out of
the reach of ch ildren .
- Continuous contact w it h used eng ine oi l is
ha rmf ul to your skin . Always protect your
skin by washi ng oil off tho roughly wi th soap
a nd wate r.
CD Note
N eve r mix oil additives with you r engine oil.
These add itives can damage your engine and
adverse ly affec t your Aud i Lim ited New Vehi­
cle Warranty.
@ For the sake of the environment
-Before changi ng your oil , first make sure
you know wh ere you ca n prope rly dispose of
t h e us ed oil.
- Always disp ose of used eng ine oil properly.
Do not dump it o n garden soi l, wooded

M N
co
a:
co
,...., \!) 1.1'1
N 1.1'1 ,....,
areas, into open streams or down sewage
drains.
- Recycle used engine oil by taking it to a used
engine oil collection facility in your area, or
contact a service station.
Cooling system
Coolant
T he engine coolant performs two functions: it
keeps the engine from overheating and it pro ­
tects the engine from freezing in the winter .
The cooling system is sealed and generally re­
qu ires little attention .
T he cooling system has been filled at the factory
with a permanent coolant which doe s not need to
be changed . T he cool ant consists of a mixture of
specia lly condit io ned water and the ma nufactur ­
e r's g lycol-basedcoo lant additive G 13 antifreeze
w ith a nticorros ion add itives (50% for USA mod­
e ls; 60% for Canadian models) . Thi s m ixt ure bot h
a ssures the ne cessary frost protection and pro­
tec ts meta l components in the engine 's cooling
system from corrosion and sca ling. It a lso raises
the boiling point of the coolant.
D o not red uce the conce ntra tion o f th e coo lant i n
the summer by add ing p la in wa ter.
The propor­
tion of coolant additive must be at least 50% but not more than 60 %
to maintain antifreeze
protection and cooling efficiency . If the coolant
frost protection is too low, the coolan t could
freeze and damage t he vehicle heat ing and en­
g ine cooling system .
For yea r-round driving, antifree ze is added at the
factory for tempe ratu res down to:
- -31°F ( -35°C) USA
- - 4 0°F ( - 40°C) C anada .
I f yo u mu st add coo lant, use a m ixt ure of wate r
a nd coolant add it ive. Mixing the coolant additive
with d istilled water is recommende d.
_& WARNING
Be fore yo u check any thing i n the engine com ­
par tment, always read and hee d all WAR N-
Checking and Fillin g
IN GS ¢ .& in Working in the engine compart­
ment on page 221.
@ Note
- Be fore winte r sets in , have the coo lant
checke d to see if the coolant additive in you r
vehicle is sufficient to meet the climate con­ diti ons. This is espec ia lly important if you
live in a region where the winter is extreme­
ly cold . If necessary, increase the p ropo rtion
o f coolan t addi tive to 60%.
- Whe n adding coolant additive to your cool­
ing system, remember :
- We recommend using o nly coo lan t add i­
tive G12++ o r G13 fo r yo ur vehicle . This
coolant ad dit ive is available at author ized
A ud i dealers . Othe r types of antifreeze ca n
significantly reduce cor rosion protect ion .
The resulting cor rosion can ca use a loss of
coolant a nd serious e ngine damage .
- Do not add any type of rad iator leak sealant
to your vehicle's engine coolant. Adding ra­ diat or repa ir flu id may adverse ly affect the
function and perfo rmance of your cooling
system and cou ld result i n damage not cov­
ere d by your New Vehicle Lim ited W arra nty .
Checking the engine coolant level
Th e engine coolant level can be checked with a
quick glance.
Fi g. 200 Engin e compar tmen t: cov er on th e coo lant ex pan ­
s io n ta nk
Befo re you ch eck a nyth ing in the eng in e compart­
me nt,
always read and heed all WARNINGS
¢ ,& in Working in the engine compartmen t on
page 221.
~
227
