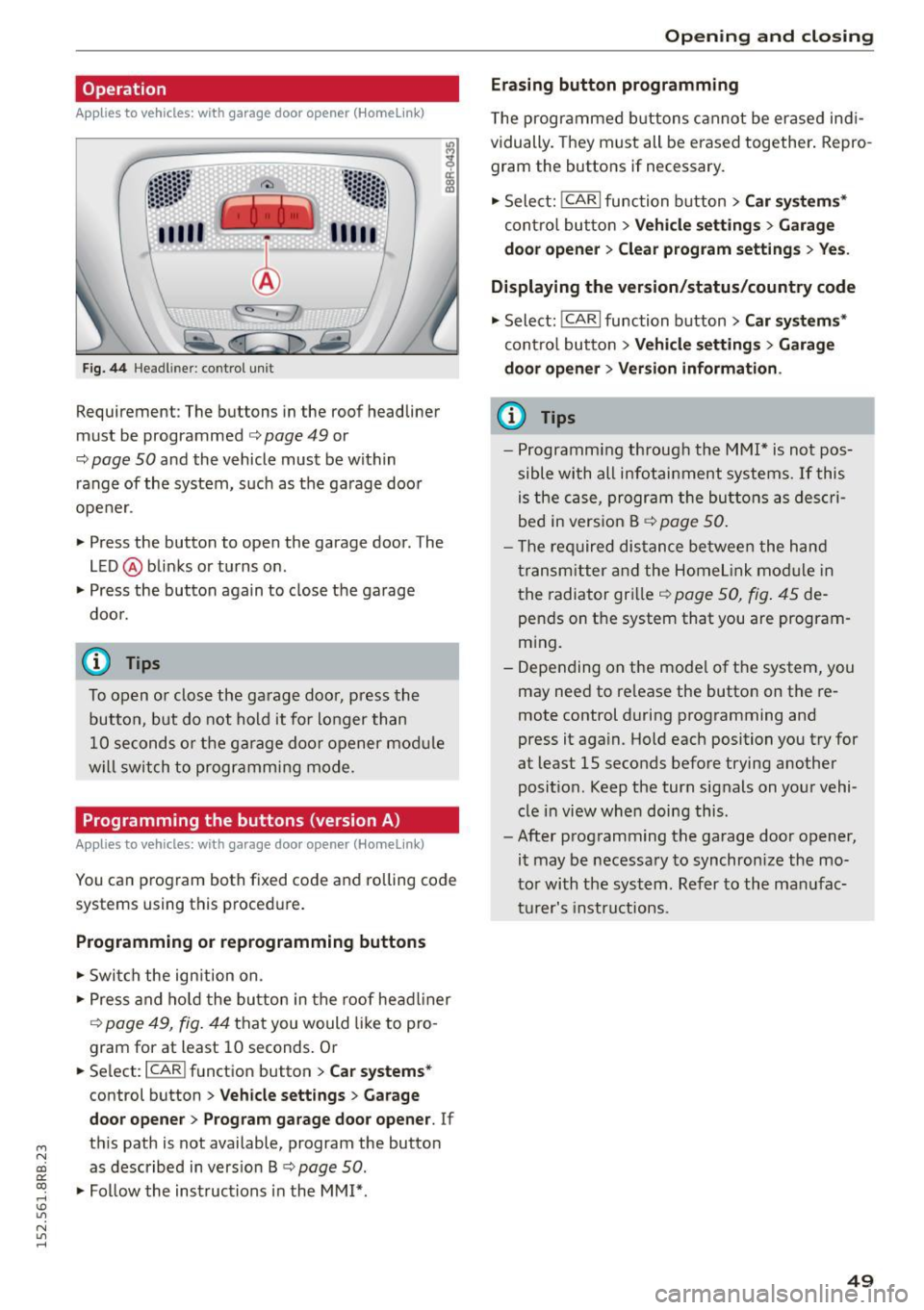

Operation
Applies to vehicles: with garage door opener (Homelink)
Fig. 44 Hea dlin er: co ntrol un it
Requirement : The but tons in the roof headliner
mu st be programmed
c:> page 49 or
c::> page SO and the vehicle must be within
range of the system, such as the garage door
opener .
" Press the button to open the garage door . T he
LED @ blinks or turns on .
" Press the button again to clos e the garage
doo r.
@ Tips
To open o r close the ga rage doo r, press the
button, but do not hold it fo r longer than
10 seconds o r the g arage doo r opener mod ule
w ill switch to programm ing mode .
Programming the buttons (version A )
Applies to vehicles: with garage door opener (Ho meli nk)
You can p rogram both fixed code and roll ing code
systems using this proced ure.
Programming or reprogramming buttons
" Swi tch the ign ition on .
" Press and ho ld the bu tton in the roof head liner
c::> page 49, fig. 44 that you would like to pro ­
gram for at least 10 seconds . Or
.. Se lect:
I CAR I function button > Car sy stem s*
control button > Vehicle sett ing s > Garage
door opene r> Program gar age door opener .
If
th is path is not available, program the button
as described in vers io n B
c::> page SO .
"Fo llow the instructions in the MMI* .
Opening and clo sing
Erasing button programming
The programmed b uttons cannot be er ased ind i­
vidually. They must all be erased together . Repro­
gram the buttons if necessary .
" Select:
!CARI function button> Car sy ste m s*
contro l butto n > Vehicle settin gs > Garag e
d oo r opener
> Clear program setting s > Yes.
Displaying the version /status /country code
" Select: !CARI function button> Car sy ste ms *
cont ro l button > Vehicle s etting s> Garage
d o or open er > Version information .
(D Tips
-Programm ing throug h the MMI* is not pos­
sible with all infotai nment systems. If this
is the ca se, program the buttons as des cri ­
bed in vers ion B
c::> page 50 .
- T he req uired dis tance be twee n the h and
transm itter and the Home link mo dule in
the radiator gr ille
c::> page 50, fig . 45 de­
pends on t he system that you are program­
m ing.
- Depending on the mode l of the system, you
may need to re lease the button on the re­
mote control during programming and
press it aga in. Hold each position you try for
at least 15 seconds before trying another
posit ion . Keep the turn signals on your vehi ­
cle i n view when doing this.
- After programm ing the garage door opener,
it may be necessary to synchronize the mo­
to r wi th the sys tem. Ref er to the man ufac­
t ur e r's instru ct ions .
49

Opening and closing
Programming the buttons (version 8)
Applies to vehicles: with garage door opener (Homelink)
Fig . 4 5 Dis tan ce betwee n th e ra diato r grille a nd the hand
t ra n sm itter
Programming the button : Part 1 with th e
controls
1. Switch the ignition on .
2. Press and hold both outer buttons in the roof headliner
c;, page 49, fig. 44 until the LED @
turns off comp lete ly (after about 20 sec ­
onds). This procedure clears the standard co­
des that were set at the factory and does
not
need to be repeated again to p rogram the
other buttons .
3. Br iefly p ress the button on the roof head liner
that you wou ld like to p rog ram.
4. Wai t unti l the LED @ beg ins to b link quickly.
P rog ramming mode is active for S minutes .
5. Move in front of your ve hicle while ho ld ing
the orig inal remote control for the system
that would like to program to a button in the
roof headliner.
P rogramming the button : Part 2 at the
radiator grille
6. Ho ld the remote control up to the radiator
grille on your vehicle
c;, fig . 45.
7. Press and hold the remote control until the
turn sig nals on yo ur vehicle b link . This may
take up to 30 seconds .
8 . If th e emergen cy flashe rs bl ink three times,
the programm ing was s uccessful.
If the
emergency flashers on ly blink one time, the
5 minute t ime limit for t he p rogramming has
e nded o r the p rog ramming was not success­
fu l. Repeat the programming from the t hird
step, or try changing t he distance to the radi­
ator grille.
50
9 . If the garage door or other system does not
open using the buttons i n the roof headliner
even tho ugh the programming was success­
ful, the system may use a rolling code in­
stead of a fixed code.
Rolling code program ­
ming
must be perfo rmed c;, page 51.
The other two b uttons in the roof headliner can
be programmed according to the instruct io ns
above. Beg in with the third step.
Erasing button programming
The programmed buttons cannot be erased indi ­
vidually. They m ust all be erased together . Repro ­
gram the buttons if necessary .
.,.. Sw itch t he ignit io n on.
.,.. Press and hold both outer buttons in the roof
head liner until the LED @turns off completely
(after about 20 seconds) .
Reprogramming the buttons
.,.. Switch the ignit io n o n.
.,.. To reprogram an individua l bu tto n, press and
hold the button unti l the LED @starts to flash
quickly (after a bout 10 seconds) . Release the
button immed iately . Programm ing mode is ac­
tive for S m inutes .
.,.. Continue with the fifth step.
@ Tips
- Programming using the buttons in the roof
headliner is not poss ible with all Infotain­
ment systems. If th is is the case, program
t he b uttons as descr ibe d in version A
c;, page 49 .
-Th e re quired dis tance between the hand
t ransm itt er an d th e H ome link mo dule i n
t h e radiator gr ille
c;, fig. 45 dep end s on t he
s y st em t hat you are pr ogra mming.
- Depen ding on the mode l of the sys tem, you
m ay need to re lease the bu tton on t he re­
m ote co nt rol dur ing p rog ramming an d
p ress i t ag ain. H old ea ch posi tion you try for
a t l east 15 seco nds be fo re trying another
p osit io n. K eep the tur n signa ls on you r vehi ­
cle in view when doing this .

M N
co
a:
co
,...., \!) 1.1'1
N 1.1'1 ,....,

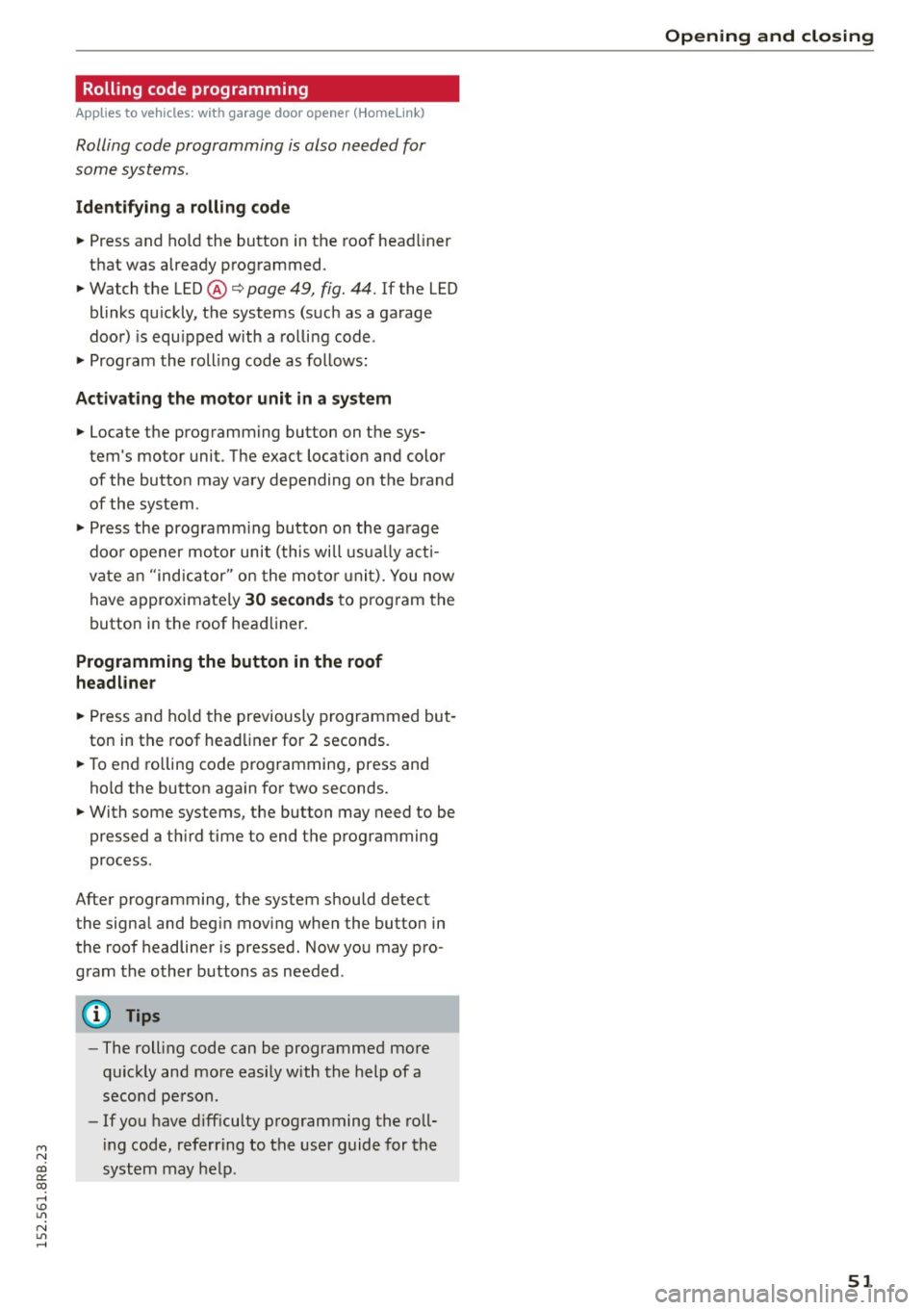

Rolling code programming
Applies to vehicles: with garage door opener (Homelink)
Rolling code programming is also needed for
some systems .
Identifying a rolling code
~ Press and hold the button in the roof head liner
that was already programmed .
~ Watch the LED@ Q page 49, fig. 44. If the LED
blinks qu ickly, the systems (such as a garage
door) is equ ipped with a rolling code.
~ Program the rolling code as follows:
Activating the motor unit in a system
~ Locate the programming button on the sys­
tem's motor unit. The exact location and color of the button may vary depending on the brand
of the system.
~ Press the programm ing button on the garage
door opener motor unit (this will usually acti­
vate an "indicator" on the motor unit). You now
have approximately
30 seconds to program the
button in the roof headliner.
Programming the button in the roof
headliner
~ Press and hold the previously programmed but­
ton in the roof head liner for 2 seconds .
~ To end rolling code programming, press and
ho ld the button again for two seconds.
~ With some systems, the button may need to be
pressed a th ird time to end the programming
process .
After programming, the system should detect
the signal and beg in mov ing when the button in
the roof headliner is pressed. Now you may pro­
gram the other buttons as needed .
(D Tips
-The roll ing code can be programmed more
quick ly and more easily with the help of a
second person .
- If you have difficulty programming the roll­
i ng code, referring to the user guide for the
system may help.
Opening and closing
51

Lights and Vi sion
Lights and Vision
Exterior Lighting
Switching the lights on and off
Fig. 46 Inst rume nt pane l: ligh t sw itc h
Sw itch ing on AUTO -Automati c headlight
controls
• Turn the light switch to AUTO ¢ fig . 46 .
Sw itch ing on the side m arker lights
• Turn the light switch to ;o o: .
Switching on low beams
• Turn the light swit ch to io.
Switch ing off the lights
• Turn the ligh t sw itch to 0 .
The low beams only illuminate with the ignition
t urned on.
With the side marker lights or headlights switch­
ed on , the symbol next to the light switch illumi­
nates
~oo :.
AU TO - Automatic headlight control
W ith the swi tch i n the AUTO position, the low
beams are switched o n automatically depend ing
on the ambient light, fo r example in a tunnel, at
dusk and when it is raining or sno win g . When th e
low beams are switched on, the
oe> o: symbol comes
on . The low beams rema in switched on regard­
less of the amb ient light when you turn on the
fog lights .
When you turn
off the ignition, the low beams
are automatically switched
off .
52 With automatic headlight cont
ro l, you also have
t he high-b eam function available . However , if you
have not switched high beams back to low beams
while dr iving with automatic headlight control ,
on ly the low beams come on the next time you
turn o n automatic headlight control. In order to
r etu rn to high beams again, you f irs t h ave to pull
the high beam lever back to the no rma l posit ion
and t hen push the lever forwa rd .
Light sensor malfunction
In the event o f a light sensor malfunction, the
driver is notified in the instrument cluster dis ­
play:
El Automatic headlights / automatic wipers
defective
For safety reasons, the low beams are turned on
permanently with the switch in
AUTO . However,
you can continue to turn the lights o n and
off us­
i ng the light switch. Have the light sensor
checked as soon as possib le at an authorized Audi
dealer or other qualified wo rkshop.
_&, WARNING
- Automatic headlights are only intended to
as sis t the driver. T hey do no t re lieve the
driver of his re sponsibili ty to c heck th e
headligh ts and to turn them o n manually
according to the c urrent light and visibility
conditions . For e xamp le, fog cannot be de­
tected by the light sensors. So always switch
on t he headlights
io unde r these weather
conditions and whe n driving in the dark .
- Cras hes can happen when you cannot see
the road ahead and when you cannot be
seen by ot her motorists. Always turn on the
headl ights so that you ca n se e ahead a nd so
that others can se e yo ur car fro m the back.
- Please obey all laws when usi ng the lighting
sys tems described her e.
(D Tips
- The light sensor for headlight control is lo ­
cated in the rear v iew mirror mount . You
should therefore not app ly any st ickers to
the windsh ield in this area in o rder to pre­
vent malfunctions or fail ures.

M N
co ~ co
rl I.O
"' N
"' rl
-Some exterior lighting functions can be ad ­
j u sted
¢page 53.
-W hen yo u remove your key from the ignition
while the vehicle 's lights are turned on, a
buzzer sounds as Long as the driver 's doo r is
open.
- In coo l or damp weather, t he inside of the
headlig hts, turn signals and tail lights can
fog over d ue to the temperature difference
between the inside and outs ide. They will
clea r sho rtly after sw itching them on. This
does not affect t he service life of the light­
ing .
- In the event of a light sensor malfunct ion,
the driver is not ified in the instr ument clus­
te r d is play ¢
pag e 32.
Fog lights
Fig . 4 7 Fog lig ht sw itch
" To turn on the fog lights }D, press button (D
¢fig. 47.
"To turn on the rear fog lights 0$. p ress button
@ .
Fog lights
The s ide marker lights or Low beams must be
switched on. When the fog lights are swi tched
on, the g re e n check light at the edge of the
sw itch comes on.
If automat ic driving light control AUTO is activat­
ed, the low beams are switched on whe n the fog
lights a re turned on .
Rear fog light s
Low beams or side marker lights with fog lights
must be turned on.
Lights and Vis ion
W hen the rear fog ligh ts are turned on, the yel ­
low check light at the edge of the s witch comes
o n.
(D Note
The rear fog lights sho uld only be turned on in
accorda nce with traffic regulation, as the
li g hts are bright fo r fo llow ing traff ic .
Adjusting exterior lighting
The functions are selected in the radio or in the
MMI* .
"Sele ct: !CARI func tion button> Exterior light­
ing.
Or
.. Select:
~,c- A- R~ I function button > Car systems *
contro l button > Vehicle settings > Exterior
lighting .
Coming home (Lights when leaving car) ,
Leav ing home (Lights when unlocking car )
The coming home function ill uminates the area
outside the vehicle when you turn the ignit io n off
and open t he d river 's doo r. Depending on vehicle
equipment, the function ca n be sw itched on an d
off or the le ngth of time the lights remain on"
can be ad justed .
The leaving home i llum inates the area outside
t h e ve hicle w hen you un lock the vehicle. T his
func tion can be switched on and off .
The Comi ng home and Leaving home funct ions
o nly operate w hen it is dark and t he lig ht sw itch
is i n the
AUTO position .
Auto headlights
When the light sw itch is in the AU TO ¢ page 52
pos ition, the switch-on point of the lights can be
c h anged in the automat ic dr iving light funct ion.
Daytime running lights
USA models: Y ou can swit ch the d aytime r unning
lig hts
On and Off .
Canada models:
Th e f unc tion cann ot be tur ned
off .
It is acti vat ed a utom aticall y each t ime t he ig-
ni tion is switched on. .,,_
53

Lights and Vi sion

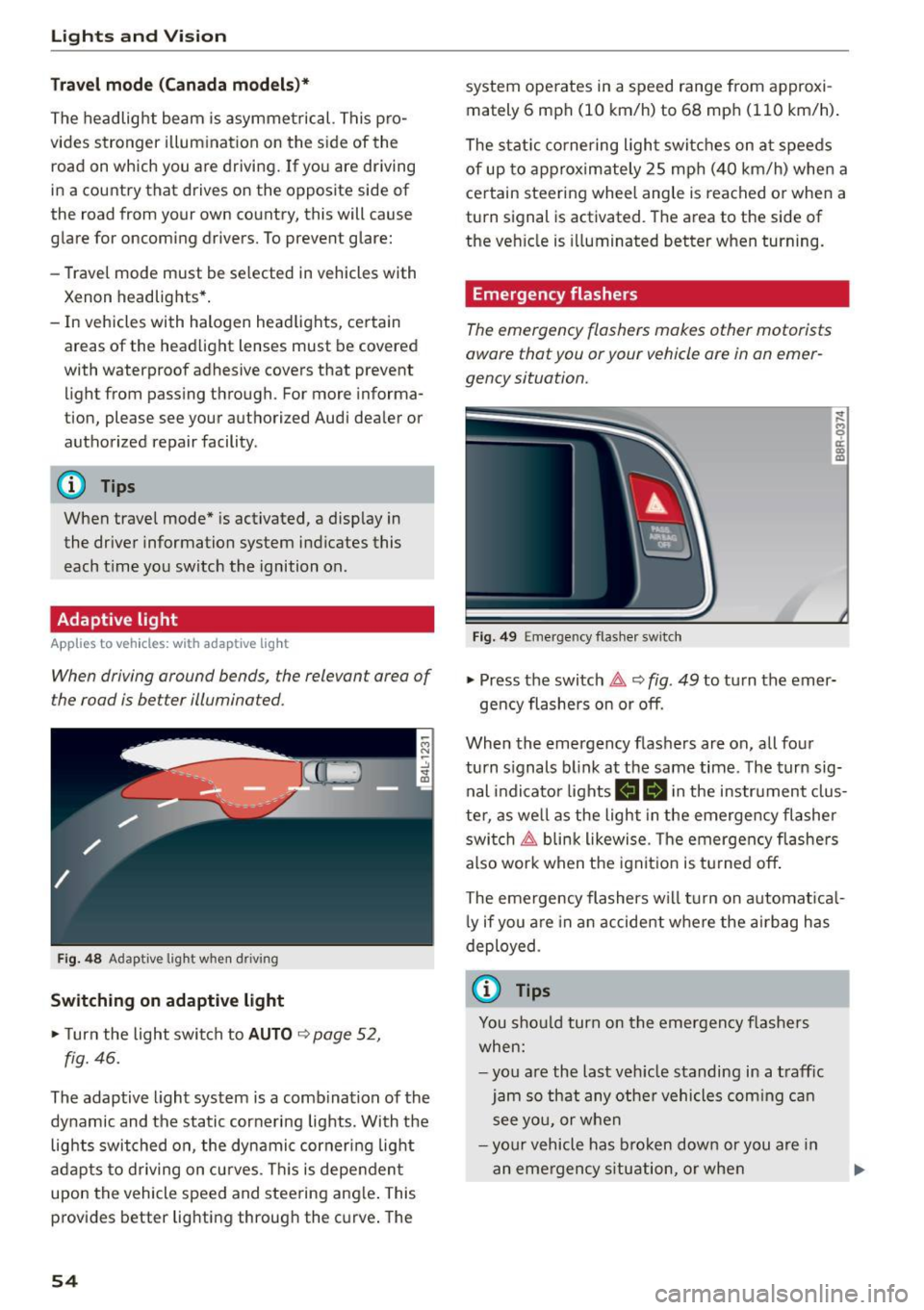

Travel mode (Canada mod els )*
The headlig ht beam is asymme trical. T his pro­
vides stronger illum inat ion on the s ide of the
road on which you are drivi ng. If yo u are driving
in a country that drives on the opposite side of
the road from your own country, this will cause
glare for oncoming drivers. To prevent glare:
- Trave l mode must be se lected in vehicles with
Xenon headlights* .
- In vehicles with halogen headlights, ce rtain
areas of the headlight lenses must be covered
with waterproof adhesive covers that prevent
li ght from pass ing t hrough. For more informa­
tion, please see your authorized Audi dea le r or
autho rized repair facility .
(!) Tips
When travel mode* is activated, a disp lay in
the dr iver information system indicates this
each t ime yo u switch the ignition on .
Adaptive light
Applies to vehicles: w ith adaptive lig ht
When driving around bends, the relevant area of
the road is better illuminated.
Fig. 48 Adaptive light when d riving
Switching on adaptive light
~ T urn the light swit ch to AUTO ~ page 52,
fig. 46.
The adaptive light system is a com bi nation of the
dynamic and the static corneri ng lights. With the
lig hts switched on, the dynami c cornering light
a dapts to driving on cu rves . Thi s is dependen t
upon the vehicle speed and stee ring ang le . This
p rovides better lig hti ng throug h the c urve . The
54
system ope rates in a speed range from approxi­
mately 6 mph (10 km/h) to 68 mp h (1 10 km/h) .
The stat ic cornering ligh t switc hes on a t spee ds
of up to ap proximately 25 mp h (4 0 km/h) whe n a
ce rtain steering wheel angle is reached o r when a
turn signal is activated. T he a rea to the side of
the ve hicle is illuminated better when turning.
Emergency flashers
The emergency flashers makes other motorists
aware that you or your vehicle ore in an emer­
gency situation.
Fig . 49 Eme rge ncy flas her switc h
~
9 a: (X) m
~ Press the switch 1t1t, ~ fig. 49 to tu rn the em er-
ge ncy flashers on or off.
When the emergency flashers are on, all fo ur
turn s ignals b link at the same time . The turn sig­
nal indicato r lights
II Bi n the instrument clus­
te r, as we ll as the light in the emerge ncy fl asher
swi tc h ~ blin k likewise . T he emergen cy flashe rs
a lso wor k w hen t he ignit io n is tu rne d off .
The eme rgency flashers w ill turn on a utomat ica l­
l y if y ou a re in an a ccide nt w here the a irb ag h as
deployed .
(j) Tips
You sho uld turn on t he emergen cy f lashe rs
whe n:
- yo u are the last veh icle standi ng in a t raff ic
j am so t hat any othe r vehicles c oming c an
s ee y ou, or whe n
- your v ehicle has broke n dow n or you a re in
a n em ergency s ituat ion, or when

M N
co ~ co
rl I.O
"' N
"' rl
-your vehicle is being towed by a tow truck or
if you are towing another vehicle behind
you.
Turn signal and high beam lever
The lever on the le~ side of the steering column
is used to operate the turn signals and the high
beam as well as the headlight flasher.
Fig. SO Turn s ignal a nd high beam lever
The turn s ignal and high beam lever has the fol·
lowing functions:
Turn signals ¢1 ¢
• Lift the lever up all the way o fig. 50 (D to use
the right turn s ignals, or push the lever down
all the way @to use the left turn signals .
Auto-blink
8 N
0
~ IXI
• Move the lever (up or down) just to the point of
resistance to use the turn signals for as long as
you need them, for example when changing
lanes.
• Move the lever (up or down) just to the point of
resistance and then release it right away to
make the turn signals blink
three times. You
can use this feature for example when changing
lanes on highways.
High beam gD
• Push the lever forward @ to switch on the high
beam.
• Pull the lever back towards you to switch off
the high beam.
Headlight flasher ~D
• Pull the lever toward the steering wheel@ to
use the head light flasher .
Lights and Vision
Notes on these features
-The turn signals only work w ith the ignition
turned on. The indicator lights
II orlll in the
instrument cluster
o page 14 also blink.
- After you have turned a corner, the turn signal
switches off automatically.
- The
high beam works only when the headlights
are on. The indicator light
SI in the instrument
cluster illuminates when the high beams are
on.
- The
headlight flasher works only as long as you
hold the lever· even if there are no lights
turned on. The indicator light
SI in the instru­
ment cluster illuminates when you use the
headlight flasher .
A WARNING
-Do not use the high beam or headlight flasher
i f you know that these could blind oncoming
traffic.
Interior lighting
Front/rear interior lights
_. --=:.
I-~~
._ -- v
8 G
o .. .. c
l
Fig. Sl Front headline r: inter ior lighting controls
Fig. S2 Rear headliner : rea r read ing lig h ts
55

Lights and Vision
@Interior lights
Press the switch¢ fig. 51 in the corresponding
position.
0 -Interior lights off
I -Interio r lights on
If the sw itch is in the center position, the interior
lighting is controlled automatically.
@ Front/rear reading lights
To turn a reading light on/off, press the button
@~ fig. 51 or ¢fig. 52.
The appearance and location of the rear reading
lights may differ depending on the model.
Instrument illumination
The basic brightness of the illumination for the
instruments, the center console and the display
can be adjusted.
Fig. 53 Instrume nt illumina tion
.. Press the knob to release it .
.. Turn the knob toward "-" or"+" to reduce or in­
crease the brightness .
.. Press the knob again to return it to its original
position.
(D Tips
The instrument illumination (for dials and
needles) lights on when the ignition is switch­
ed on and the vehicle lights are turned off. As
the daylight fades, the illumination of the di­
als likewise dims automatically and will go
out completely when the outside light is very
low. This feature is meant to remind you to
switch on the headlights when outside light
conditions become poor.
56
Vision
Sun visors
Using the sun visors makes driving safer .
Fig. 54 Sun visor
The sun visors for the driver and passenger can
be pulled out of their brackets in the center of
the vehicle and turned towards the doors
~ fig. 54 @. After the sun visor has been turned
to the door, it can be extended* lengthwise .
Vanity mirror
The vanity mirrors on the sun visors are covered.
When the lid is opened @, the mirror light in the
headliner turns on automatically.
It turns off
when the lid is closed and the visor is folded up
again.
Sun shade
App lies to vehicles: wi th sun s had e
Fig. 55 Su n sha de pulled up on a rear win dow
.. Pull the shade out and hang it in the bracket on
the upper door frame ~
fig. 55.

M N
co ~ co
rl I.O
"' N
"' rl
Windshield wipers
Switching the windshield wipers on
Fig. S6 Windshie ld wiper lever
Fig. S7 Rear w ipe r act uation
Move the windshield wiper lever to the corre­
spond ing pos ition:
@ -Windshield wiper off
(D-Interval mode. The windshield w iper auto­
matical ly activates when you drive 2 mph (4 km/
h). The higher the sensitivity of the rain sensor is
set (switch @ to the right), the earlier the wind­
shield w ipers react to moisture on the wind­
shield. In some models, you can switch rain sen­
sor mode off and switch intermittent mode on in
the MMI* . Select:
!CARI function button> Car
systems*
contro l button > Driver assist > Rain
sensor.
In i nterm ittent mode, you can adjust the
interval time using the@ switch .
@-Slow wiping
®-Fast wiping
©-Single wipe
® -Clean the windshield . To eliminate water
d roplets , the w indshield wiper performs one af­
terwipe operat ion after several seconds while
dr iving . You can switch this function off by mov-
Lights and Vision
ing the lever to position® within 10 seconds of
the afterwipe operation. The afterwipe function is reactivated the next t ime the ignition is switch ­
ed on.
T he rear wiper automat ica lly switches on when
the reverse gear is engaged and the front wind­ shield wipers are on and in operation.
Cleaning the headlights*. The headlight washer
system * operates only when the headlights are
on . If you move the lever to position ®, the
headlights are washed in interva ls .
@ -Wipe the rear window. The rear wipe r moves
about every 4 seconds.
(!) -Clean the rear window . Th e number of wiping
operations depends on how long the lever is held
in position 7.
_&. WARNING
-
- The rain sensor is only intended to assist the
driver . The driver is still responsible for
manually switching the wipers on according
to the visibility condit ions.
- The windshield may not be treated with wa­
ter-repelling windshield coating agents. Un­
favorable conditions, such as wetness, dark­ ness, low sun, can result in increased glare.
W iper blade chatter is also possible .
- Properly funct ion ing windshield wiper
blades are requ ired for a clear view and safe
driving.
(D Note
- In the case of frost, check whether the windshield wiper blades are frozen to the
windshield . Switching on the w indshield
wipers can damage the wiper blades!
- Prior to using a car wash, the windshield
w iper system must be sw itched off (lever in
position 0). This helps to prevent un inten­
tional switching on and damage to the
w indshield wiper system.
(D Tips
-The windshie ld wipers are switched off
when the ignit ion is turned off. Activate the
w indshield wipers after the ignition is ..,
57

Lights and Vision
switched back on by moving the windshield
wiper lever to any position .
- Worn or dirty windshie ld wiper blades result
in streaking . This can affect the rain sensor
function . Check your windshield wiper
blades regularly.
- The washer fluid nozzles of the windshield
washer system are heated at low tempera­
tures when the ignit ion is on.
- When stopp ing temporarily, e.g. at a traffic
light, the set speed of the windshield wipers
i s automatically reduced by one speed.
Cleaning windshield wiper blades
Clean the windshield wiper blades when they be­
g in to leave streaks. Use a soft cloth and glass
cleane r to clean the windshield wiper blades .
Front wiper
.,. Place the windshield wiper arms in the service
position. Refer to
c> page 58.
.,. Lift the w iper arm away from the front w indow.
Rear wiper
.,. Lift the wiper arm away from the rear window.
A WARNING
Dirty w indshield wiper blades can impair your
view. This can lead to acc idents.
Replacing windshield wiper blades
Fig. 58 Removing the w iper blade
Wiper service position/blade replacement
posit ion
"' ij
a: CX) ID
.,. Switch the ignition off and move the windshield
wiper lever to posit ion ©
c> page 57, fig. 56.
58
The windshie ld wipers move into the service po­
sition .
.,. To bring the wipers back into the origina l posi­
tion, switch the ignition on and press the wind­
shield w iper lever.
You can also turn the service position on or off in
the radio or MMI*:
.,. Switch the windshie ld wipers off (position @
c>page 57, fig. 56).
.,. Select: !CAR I function button> Windshield
wipers
> Service position > On /Off . Or
.,. Select:
!CAR I function button> Car systems*
cont rol butto n > Servicing
& checks > Wiper
s ervice position
> On/Off .
Removing the wiper blade
.,. Lift the windsh ield wiper arm up from the wind ­
shield .
.,. Press the locking knob@
c> fig. 58 on the wiper
blade. Ho ld the wiper blade firmly .
.,. Remove the wiper blade in the direction of the
arrow .
Attaching the wiper blade .,. Insert the new wiper blade into the mount on
the wipe r arm @until you hear it latch into
place .
.,. Place the wiper arm back on the winds hield.
.,. Tur n the se rvice position off.
A WARNING
F or your safety, you shou ld rep lace the wiper
b lades once or twice a year. See your author­
ized Audi dealer for rep lacement blades.
(D Note
- Th e windshie ld wiper blades must only be
replaced when in the service position! Oth­
erwise, you risk damaging the paint on the
hood or the w indshield wiper motor.
- Yo u should not move your vehicle or press
the windsh ield wiper lever when the wiper
arms are fo lded away from the windshield.
The windshield w ipers would move back in­
to their original position and could damage
the hood and windshie ld .
