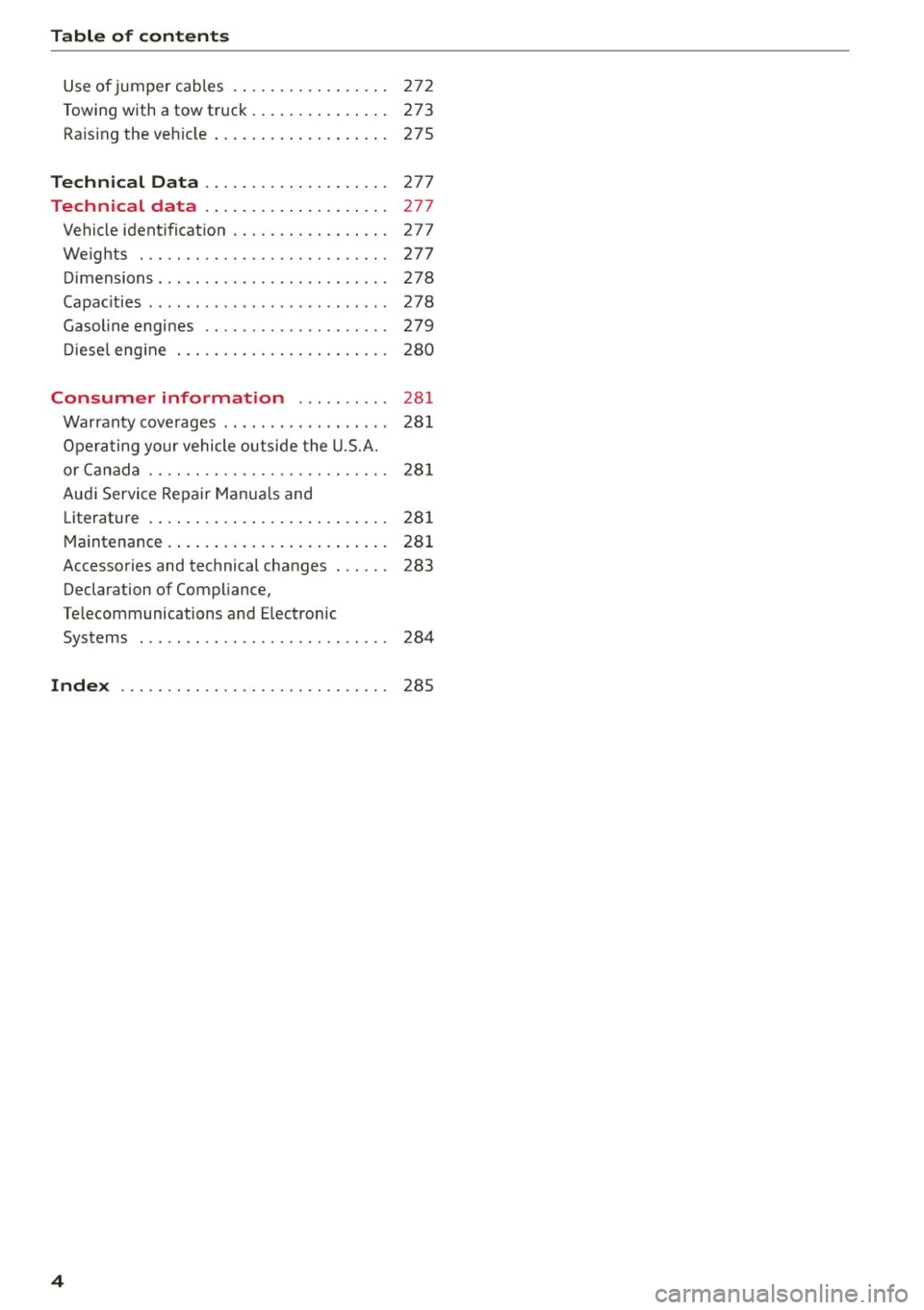

Table of contents
Use of jumper cables . . . . . . . . . . . . . . . . . 272
Towing with a tow truck. . . . . . . . . . . . . . . 273
Raising the vehicle . . . . . . . . . . . . . . . . . . . 275
Technical Data . . . . . . . . . . . . . . . . . . . . 277
Technical data . . . . . . . . . . . . . . . . . . . . 277
Vehicle identificat ion . . . . . . . . . . . . . . . . . 277
Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . 277
Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . 278
Capac ities . . . . . . . . . . . . . . . . . . . . . . . . . . 278
Gasoline engines . . . . . . . . . . . . . . . . . . . . 279
D iese l eng ine . . . . . . . . . . . . . . . . . . . . . . . 280
Consumer information . . . . . . . . . . 281
Warranty coverages . . . . . . . . . . . . . . . . . . 281
Operating your vehicle outside the U.S.A.
or Canada . . . . . . . . . . . . . . . . . . . . . . . . . . 281
Audi Service Repair Manuals and Literature . . . . . . . . . . . . . . . . . . . . . . . . . . 281
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . 281
Accessories and technical changes . . . . . . 283
Declaration of Compliance,
Te lecommunications and E lectronic
Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . 284
Index ..... ...... ........... .. .. ... 285
4

Offroad driving
Off road driving
Driving under difficult
conditions and off-road
General information
The opera tion of the E lectronic Stabilization Con­
trol (ESC) is expanded for operation away from paved roads. In situat ions where s lip or a differ­
ential locking function is required, the offroad mode can be activated
<=> page 191. Your Aud i al­
so has permanent a ll-wheel drive in addition .
However, your Audi is not a pure offroad veh icle.
It was not bu ilt for driving under extreme condi­
tions, e.g. for trips that are in the nature of an ex­
pedit io n.
Dri ve o nly on roads and offro ad sections which
match the des ign of you r vehicle and your abil i­
ties as a dr iver. Neve r take r isks!
B efo re driving offroad
- Check the eng ine oil level, tire p ressure, cool­
ant leve l, and the fluid level i n the windshield
washer reservo ir.
- Stow luggage items and other objects in the
lu ggage compartment, and sec ure them
against slid ing aro und.
After dri ving off road
- After trips offroad, remove any twigs and othe r
f oreign objects from the grill, the unde rbody
and the wheels . Pay special attention to foreign
objects (stones) which have become lodged in
the tire tread.
- Clean the body and the vehicle unders ide, and
inspect the vehicle for poss ible damage.
- Clean dirty windows, headlamp lenses, rear
lights, and license p lates.
- Perform a brake check (particularly after t ravel ­
li ng through water).
A WARNING
- Drive especia lly attentive ly and plan ahead
in diffic ult road cond itions and w hen
off­
road. Excessive speed or incorrect mane u­
vers can cause in ju ries and damage to the
vehicle.
202
- Always adapt your speed and driving sty le to
road, off road, traffic, and weather cond i­
tions. Dr ive espec ially slowly offroad w hen
your view is restricted.
- Please be aware that in offroad mode, par­
ticularly on a smooth and slippery road, the
wheels may have an increased tendency to
spin and the vehicle may break away -dan­
ge r of skidding!
- Stability is limited in the offroad mode .
® For the sake of the environment
Avoid damage to the environment and respect
nature.
(D Tips
Only drive where it is permitte d and stay on
marked roads and paths .
Explanation of some technical terms
The following data refer to ideal cond itions. De­
pend ing on veh icle load a nd gro und cond itions
and the env ironment, the numbe rs may vary.
It is
the d river 's responsibility to decide whethe r ave­
h icle can overcome a specific s ituation
<=> .&, .
Gradient angle
The number of meters in alt itude ga ined over a
distance of 109 .4 yards or 100 meters (grade)
are given as a pe rcentage o r degrees . Info rma­
tion about the gradient the ve hicle can climb un­
der i ts own power (depends in part on the road
s ur fa ce and eng ine power). M axim um permi tted
grade: 31°
Ground clearance
The distanc e between the road s urface and the
l owest poi nt of the veh icle underbody . G round
cl ear ance 7.9 in ( 20 0 mm)
A WARNING
Exceed ing the s tated max imum figur es c an
res ult in seve re injuries or vehicle damage .
- All the info rm ation w as g athered on level,
-
fi rm and non -slip pery road s urfaces, and un-
de r dry weather conditions .
llll>

M N
co ~ co
rl I.O
"' N
"' rl
Technical data
Vehicle identification
F ig. 236 Veh icle Identificat ion Number (VlN) plate: loca·
t ion on driver 's side dash pane l
XXXXX XX -X -XXXX XXX XX
CD+ ~t :1:: xxxxxxxx xx x xxxxxxxx
T VP /fffl XXX XXX
XX XXXXXXX XX X X XX
XXX
KW XXX
®i ~:J ·f lfils~~ XXXX XXX XXX
®-+ ~ N:a=i~l xxxx ; xxxx xxx ; xx
11. • AUSS, I OPTIONS
E0A 7D5 4UB 6XM 5SG 5R W
2EH J0Z lLB l
A S lBA
3FC SMU 7Xl
FOA
9G3 0G7 0YH OJF
TL 6 3 KA
8EH UlA X98 QZ 7
lXW 803 908 824 020
7T6 CV7 7K0 4X3 2K2
3L4 4KC 3Y0 413 502
lS A
7GB 01A 4G0
XX. X XX X XX X xxxx
Fig. 237 Veh icle identificat ion label: inside the luggage
compartment
Vehicle Identification Number (VLN )
The Veh icle Iden tific ation Number is located in
d iffe rent p laces:
- under the w indshield on the dr iver's side
c::> fig . 236.
-in the radio or in the MM I*: Select: I CAR I func­
t ion but ton
> Vehicle ID numb er (VIN ) or se·
Le et
I CAR I funct ion button > Car sy s tem s* con·
tro l bu tton
> Servicing & checks > VIN num­
ber .
-on the vehicle identific ation label.
Technical d ata
Vehicle id entification label
T he vehicle identification label is lo cate d in the
lu ggage compartment above the compartment
for the vehicle too ls.
T he label
c::> fig . 23 7 shows the fo llow ing vehicle
da ta:
(D Vehicl e Ident ificat ion Number (VIN)
@ Vehicle type, engine o utp ut, transmission
@ Engine and transm ission code
@ Pain t number and inte rior
® Optional equipment numbers
T he information of the vehicle identification label
can a lso be found in your W arranty
& Ma inte­
nance booklet.
Safety compliance sticker
T he safety complianc e sticker is your assurance
that your new vehi cle complies w ith all appli cable
F ede ra l Mo to r Vehi cle Safety Sta ndards which
were in effec t at the time the vehicle was ma nu­
fact ured. Yo u can find this sticker on the door
jamb on the driver's side. It shows the month and year of product ion and the vehicle identification
number of your vehicle (perforation) as well as
t h e Gross Veh icle Weight Rating (GVWR) and the
G ross Ax le Weight Rating (GAWR).
H igh vo lt a ge warn ing lab el
The high voltage warning label is located in the
engi ne compartment next to the engine hood re·
lease. The spark ignit ion system complies with
the Canadian standard ICES-002 .
Weights
Gross Vehicle Weight Rating
The Gross Vehicle Weight Rating (GVWR), and
the Gross Axle Weight Rat ing (GAWR) for front
and rear are listed o n a sticker on the door jamb
on the dr iver's side.
The Gross Vehicle Weight Rating includes the
weight of the bas ic vehicle plus full fuel tank, oil
and coolant, plus maximum load, which includes
passenger weight (150 lbs/68 kg per designated
seat ing pos ition) and luggage we ight
c::> .&, . ..,_
277

Technical data
Gross Axle Weight Rating
The Gross Axle Weight Rating is the maximum
load that can be applied at each axle of the vehi ­
cle ¢& .
Vehicle capacity weight
The vehicle capacity we ight (max. load) is listed
on the driver's side 8 -p ill ar.
_& WARNING
- T he actual Gross Axle Weight Rating at the
front and rear axles should not exceed the
permissible weights, and their combination
must not exceed the Gross Vehicle Weight
Rating.
Dimensions
Length in (mm)
Width in (mm)
Width (across mirrors) in (mm)
Height (unloaded)al in (mm) -
Exceeding permissible weight ratings can
result in veh icle damage, acc idents and per­
sonal injury.
(D Note
- The vehicle capacity weight figures apply
when the load is distributed evenly in the
vehicle (passengers and luggage). When
transporting a heavy load in the luggage
compartment, carry the load as near to the
rear axle as possible so that the vehicle's
hand ling is not impaired.
- Do not exceed the maximum permissible
axle loads or the maximum gross veh icle
we ight. Always remember that the vehicle's
hand ling will be affected by the extra load.
T herefore, adjust your speed accordingly.
- Always observe local regulations .
QS/QS hybrid SQS
182.6 (4639) 183 .0 (4647)
74.7 (1898) 75 .2 (1911)
82.2 (2089) 82 .2 (2089)
65 .2 (1655) 65.3 (1658)
al T h e he ight of t he ve hicl e depends on the tires and the su spens ion.
When driving up steep ramps, on rough roads,
over curbs, etc. it is important to remember that
some parts of your vehicle, such as spo ilers or ex- haust system components, may be close
to the
ground . Be careful not to damage them.
Capacities
QS/SQS QS hybrid
Fuel tank: total capacity gal (liters) approx. 19.8 (75) approx. 19.0 (72)
Windshield and headlight* quarts (liters) approx.
4.9 (4.6) approx. 4.9 (4.6)
washer fluid container
278

Technical data
Diesel engine
QS 3.0 TDI, 6 cylinder
Maximum output SAE net hp@rpm 240@ 3750 - 4000
Maximum torque SAE net lb-ft @ rpm 428@
1750 -2250
Displacement CID (cm
3
) 181.1 (2967)
Engine oil with filter change quarts (liters)
6.8 (6.4)
Fuel
ULSD No. 2, ¢ page 215, Diesel fuel
280

M N
co
a:
co
,...., \!) ..,.,
N ..,., ,....,
Electronic Stabilization Control . . . . . . . . . . 191
Electronic Stabilization Control (ESC)
H ill descent assist . . . . . . . . . . . . . . . . . . .
193
Offroad mode . . . . . . . . . . . . . . . . . . . . . . . 192
Warn ing/ indicator lights . . . . . . . . . . . . . . . 15
Emergency braking . . . . . . . . . . . . . . . . . . . . . 91
Emergency flasher . . . . . . . . . . . . . . . . . . . . . 54
Warning/indicator lights . . . . . . . . . . . . . . . 16
E mergency key . . . . . . . . . . . . . . . . . . . . . . . . 36
Starting engine . . . . . . . . . . . . . . . . . . . . . . 86
Emergency locking of the doors . . . . . . . . . . . 42
Emergency operation
Luggage compartment lid . . . . . . . . . . . . . .
45
Emergency release
Selector lever ...................... .
E t . mergency s artmg ........... .... ... .
Emergency unlocking
128
271
Ignition key . . . . . . . . . . . . . . . . . . . . . . . . . 38
Energy management . . . . . . . . . . . . . . . . . . 196
Engine
Compartment . . . . . . . . . . . . . . . . . . . . . . .
223
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
H ood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Jump starting . . . . . . . . . . . . . . . . . . . . . . . 105
Starting . . . . . . . . . . . . . . . . . . . . . . 84, 87, 99
Startingwithjumpercab les . ... .. .. ... 271
Stopping . . . . . . . . . . . . . . . . . . . . . . 86, 88, 99
E . ngine compartment . . . . . . . . . . . . . . . . . . 223
Safety instructions . . . . . . . . . . . . . . . . . . . 221
Working the engine compartment ... .. . 221
E . l ngine coo ant system . . . . . . . . . . . . . . . . . 227
Adding coolant . . . . . . . . . . . . . . . . . . . . . . 228
Checking coolant leve l . . . . . . . . . . . . . . . . 227
Malfunction . . . . . . . . . . . . . . . . . . . . . . . . . 29
Radiator fan . . . . . . . . . . . . . . . . . . . . . . . . 229
Engine coolant temperature
Temperature gauge . . . . . . . . . . . . . . . . . . .
10
Engine hood
Closing .. .. .. .... ...... ... .. .. .. .. .
How to release the hood ...... .. .... . .
Engine oil Adding
Additives . .. ................. .. .... .
Changing .. ................. .. .... .
Check oil level .............. .... ... .
221
221
223
225 225
226 225
Consumption . . . . . . . . . . . . . . . . . . . . . . . 225
Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Index
Oil consumption . . . . . . . . . . . . . . . . . . . . . 224
Pressure malfunction . . . . . . . . . . . . . . . . . . 30
Sensor defective . . . . . . . . . . . . . . . . . . . . . . 33
Specification and viscosity . . . . . . . . . . . . . 223
Engine speed limitation . . . . . . . . . . . . . . . . . 33
Environment
Catalytic converter . . . . . . . . . . . . . . . . . . .
198
Diesel particulate filter . . . . . . . . . . . . . . . 199
Disposing of your vehicle battery . . . . . . . 233
Driving at high speeds . . . . . . . . . . . . . . . . 200
Fuel...... .... .. .. .............. ... 216
Leaks under your vehicle . . . . . . . . . . . . . . 221
Letting the vehicle stand and warm up . . . 200
Proper disposal of drained brake fluid . . . 230
Proper disposal of drained engine coolant 228
Proper disposal of drained engine oil 225, 226
Recycling used engine oil. . . . . . . . . . . . . . 225
Roof rack . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 4
Unleaded fuel.. .. ... .......... .. .. ..
213
What shou ld I do with an old battery? . . . 233
EPC
refer to Electronic power control . . . . . . . . 15
ESC
refer to Electronic Stabilization
Control (ESC) . . . . . . . . . . . . . . . . . . . . . . . .
15
Ethyl alcohol (Fuel) . . . . . . . . . . . . . . . . . . . . 214
Event Data Recorder (EDR) . . . . . . . . . . . . . . 190
Expansion tank . . . . . . . . . . . . . . . . . . . . . . . 227
Explanation of some technical terms . . . . . 202
Exterior lighting . . . . . . . . . . . . . . . . . . . . . . . 52
Exterior mirrors
Adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . .
59
D . . ,mmmg ...... .. ............. .... .. . 60
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Eyeglasses compartment . . . . . . . . . . . . . . . . 79
F
Fall line
Fan Radiator
Fastening 202
229
Booster seats . . . . . . . . . . . . . . . . . . . . . . . 180
Convertible child safety seats . . . . . . . . . . 178
Infant seats . . . . . . . . . . . . . . . . . . . . . . . . 177
Flexib le fue l . . . . . . . . . . . . . . . . . . . . . . . . . 214
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
289

M N
co
a:
co
,...., \!) ..,.,
N ..,., ,....,
Selector lever 123
Emergency release . . . . . . . . . . . . . . . . . . . 128
Service and disposal
Safety belt pretens ioner
Service interval display ....... . .. ... ... . .
Service position
lSl
22
refer to
Replacing wiper blades . . . . . . . . . 58
SE T button . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Shift paddles . . . . . . . . . . . . . . . . . . . . . . . . . 127
Ship transport . . . . . . . . . . . . . . . . . . . . . . . . 106
Side airbags
D .. escnpt 1on . ............. .... .. .. .. .
H ow they work ........... .. .. .. .. .. .
Side assis t
Activating and deactivating ........ ... .
Adjusting the brightness .......... ... .
C leaning the sensors ...... .. .. .. .. .. .
D .. escnpt 1on . ............. .... .. .. .. .
166
167
118
118
209
116
Sensor range . . . . . . . . . . . . . . . . . . . . . . . 117
Side curtain airbags . . . . . . . . . . . . . . . . . . . 169
Description . . . . . . . . . . . . . . . . . . . . . . . . . 169
Howtheywork .. .. ...... ... .. ... ... . 170
Safety instructions . . . . . . . . . . . . . . . . . . . 171
Side marker lights . . . . . . . . . . . . . . . . . . . . . 52
Snow chains . . . . . . . . . . . . . . . . . . . . . . . . . 250
Index
Steering
Electromechanical power assist ... ...
195, 0
Indicator light . . . . . . . . . . . . . . . . . . . . . .
195
Locking the steering . . . . . . . . . . . . . . . . . . 84
Malfunction . . . . . . . . . . . . . . . . . . . . . . 30, 34
Manually adjusting the steering wheel . . . . 84
also refer to
Electromechanical power as-
s ist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
195
Steering wheel column
Adjusting manually . . . . . . . . . . . . . . . . . . .
84
Steps for determining correct load limit . . . 249
Stopping the engine . . . . . . . . . . . . . . . . . 86, 88
Stopping (engine) . . . . . . . . . . . . . . . . . . . . . . 99
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
(upholder door pockets . . . . . . . . . . . . . . . . 76
G love compartment . . . . . . . . . . . . . . . . . . . 78
Sun shade . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Supplementary (climate control) . . . . . . . . . . 83
Switches
Emergency flashers . . . . . . . . . . . . . . . . . . .
54
Symbols
Red . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28
Yellow .... .... .. ............. .... .. . 31
Socket .. ... ... .............. ... ... ... 77 T
Sound system display
Driver information display . . . . . . . . . . . . . .
20
Sources of informat ion about ch ild restraints
and their use . . . . . . . . . . . . . . . . . . . . . . . . .
189
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . 13
Speed warning system . . . . . . . . . . . . . . . . . . 94
Start-Stop-System
Engine does not switched off . . . . . . . . . . .
93
Engine starts automatically . . . . . . . . . . . . 93
Indicator lights . . . . . . . . . . . . . . . . . . . . . . 92
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Starting/stopping the engine . . . . . . . . . . . 92
Switching off/on . . . . . . . . . . . . . . . . . . . . . 94
Start/Stop system . . . . . . . . . . . . . . . . . . . . . 91
START ENGINE STOP button (Conven ience
key) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
87, 88
Star ting from rest . . . . . . . . . . . . . . . . . . . . . . 90
Startingoffwithatrai ler ....... ... .. .... 91
Starting the engine . . . . . . . . . . . . . . . . . 84, 87
Starting (engine) . . . . . . . . . . . . . . . . . . . . . . 99
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Ta il lights
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . .
209
TDI clean diesel
refer to Ad Blue. .. ................ ... 218
Technical data . . . . . . . . . . . . . . . . . . . . . . . . 277
Technical modifications . . . . . . . . . . . . . . . . 283
Tether anchors . . . . . . . . . . . . . . . . . . . . . . . 187
Tether strap . . . . . . . . . . . . . . . . . . . . . . . . . 187
T ie-down rings . . . . . . . . . . . . . . . . . . . . 70, 141
tiptronic
Automatic Shift Lock (ASL) . . . . . . . . . . . .
124
Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Emergency mode . . . . . . . . . . . . . . . . . . . . 127
Hill descent control . . . . . . . . . . . . . . . . . . 126
Kick-down . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Manua l shift program . . . . . . . . . . . . . . . . 127
Selector lever . . . . . . . . . . . . . . . . . . . . . . . 123
tip tron ic (automatic transmission) . . . . . . . 123
Tire Mobility System . . . . . . . . . . . . . . . . . . . 105
295
