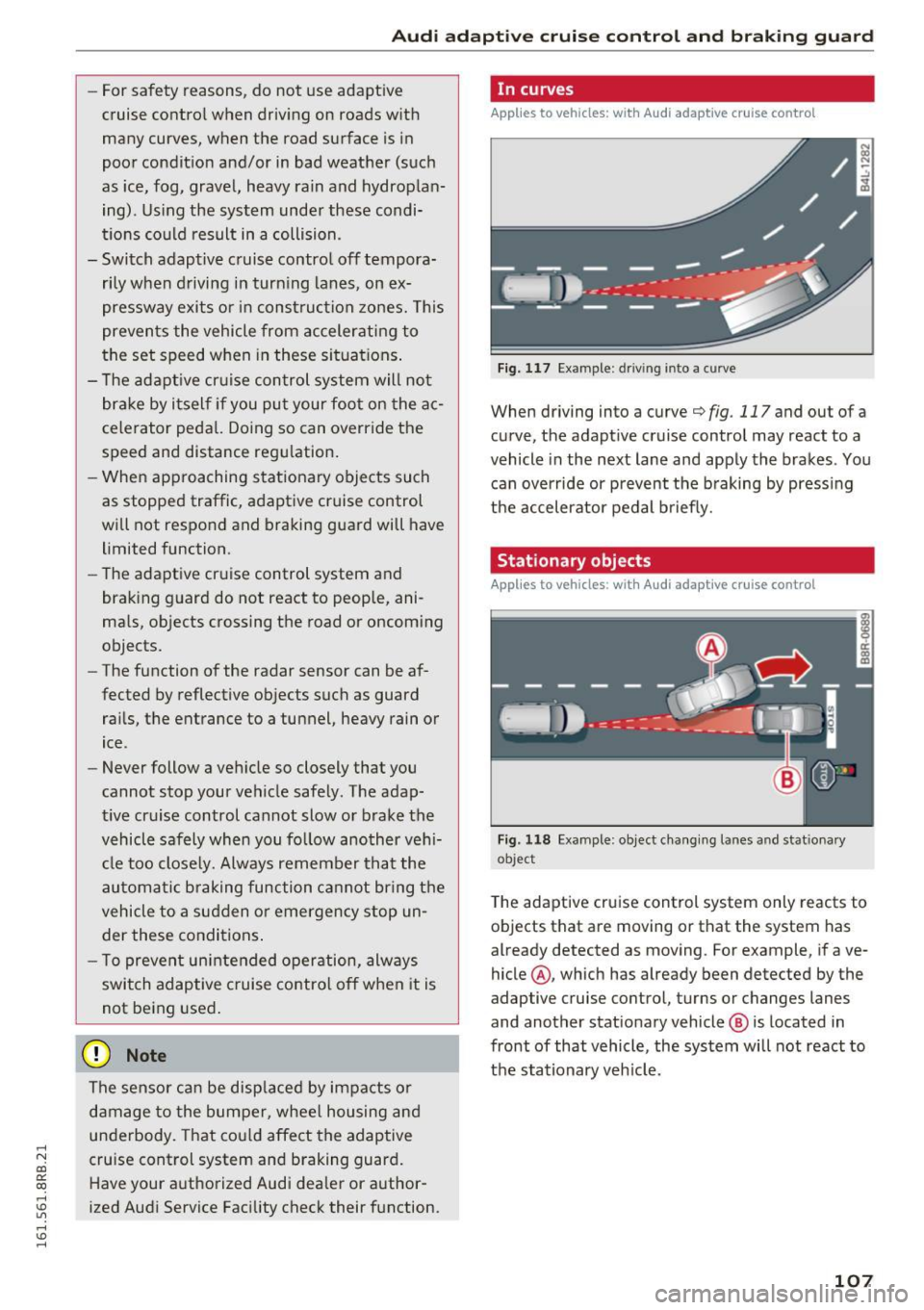

Audi ada pti ve c ruise contr ol and br akin g gu ard
-For safety reasons, do not use adapt ive
cruise contro l when driv ing on roads with
many curves, when the road surface is in
poor condit ion and/or in bad weather (such
as ice, fog, gravel, heavy rain and hydroplan­
ing) . Us ing the system under these condi­
t ions could result in a collision .
- Switch adaptive cruise contro l off tempora­
rily when driving in turn ing lanes, on ex­
pressway exits or in const ruc tion zones. This
preven ts the vehicle from accelerating to
the set speed when in these situat ions .
- T he adapt ive cr uise con trol system will no t
br ake by i tself if you pu t your foot on the ac­
celerator peda l. Doing so can override the
speed and distance regulation.
- Whe n approaching stat ionary obje cts such
as stopped traffic, adapt ive cruise control
will not respo nd and braking guard will have
limited function .
- The adaptive cruise control system and
brak ing guard do not react to peop le, ani­
ma ls, objects crossing the road or oncom ing
objects.
- The function of the radar sensor can be af­
fected by reflective objects such as guard
rai ls, t he entrance to a tunnel, heavy rain or
ice.
- Never follow a veh icle so closely that you
cannot stop your vehicle safely . The adap­
t ive cr uise control cannot slow or brake the
vehicle safely when you follow another veh i­
cle too close ly. Always remember th at the
au tom atic b raking function ca nnot br ing the
vehicle to a sudden or emergency stop un­
der these conditions .
- T o preven t unintended operation, always
switch adaptive cruise co ntro l off w hen it is
not being used .
(D Note
The sensor can be disp laced by im pacts o r
d amage to the bumper, whee l housing and
underbody. That cou ld affect the adaptive
cru ise control system and braking guard.
Have your a uthorized Audi dea ler or author­
ized Audi Service Fac ility check their function.
In curves
App lies to vehicles: with A udi adapt ive cr uise control
Fig. 117 Ex amp le : d ri ving int o a c urve
When driving into a curve¢ fig. 117 and out of a
curve, the adapt ive cruise control may react to a
vehicle in the next lane and apply the brakes . Yo u
can override or prevent the b raking by press ing
the accelerator pedal b riefly.
Stationary objects
Applies to vehicles: wit h Audi adaptive c ruise control
Fi g. 1 18 Example: object c hang ing lanes a nd st ationary
ob ject
The adaptive cruise control system only reacts to
objects that are moving or that the system has
already detected as moving. For example, if ave­
hicle @, which has already been detected by the
adaptive cruise control, turns or changes lanes
and another stat ionary vehicle @ is located in
front of that vehicle, the system will not react to
t h e stationary veh icle.
107

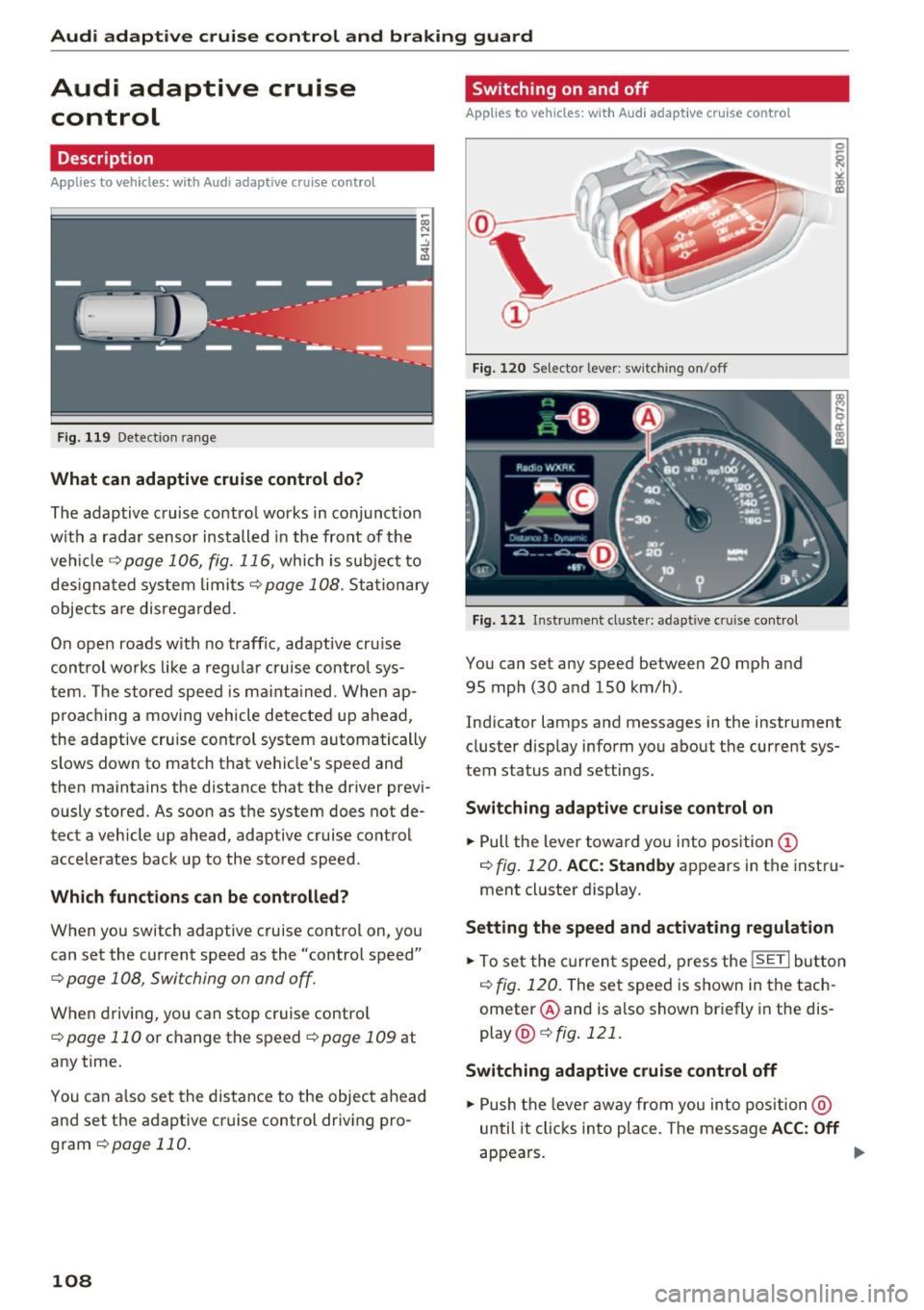

Audi adaptive cruise control and braking guard
Audi adaptive cruise
control
Description
A pplies to veh icles: with Audi adaptive cruise co ntrol
F ig. 119 Detection range
What can adaptive cruise control do?
The adaptive cruise control works in conjunct ion
with a radar sensor installed in the front of the
veh icle¢
page 106, fig. 116, which is subject to
designated system limits
¢page 108. Stationary
objects a re disregarded.
On open roads with no traffic, adaptive cru ise
control works like a regular cruise control sys­
tem. The stored speed is ma inta ined. When ap­
proaching a moving vehicle detected up ahead,
the adaptive cruise control system automatically
slows down to match that vehicle's speed and
then maintains the distance that the driver previ­
ously stored. As soon as the system does not de­
tect a vehicle up ahead, adaptive cruise control accelerates back up to the stored speed.
Which functions can be controlled?
When you switch adaptive cruise control on, you
can set the current speed as the "control speed"
¢ page 108, Switching on and off.
When driving, you can stop cruise control
¢
page 110 or change the speed ¢ page 109 at
any time.
You can also set the distance to the object ahead
and set the adaptive cruise control driving pro­
gram
¢page 110.
108
Switch ing on and off
App lies to vehicles: wit h Audi ada ptive cruise control
Fig. 120 Selector lever: switch ing on/o ff
Fig. 121 Instrument cl uster: adapt ive c ruise control
You can set any speed between 20 mph and
95 mph (30 and 150 km/h) .
Indicator lamps and messages in the instrument cluster display inform you about the current sys­
tem status and settings .
Switching adaptive cruise control on
.,. Pull the lever toward you into position (D
¢ fig. 120. ACC: Standby appears in the instru­
ment cluster display.
Setting the speed and activating regulation
.,. To set the current speed, press the ISETI button
¢
fig. 120. The set speed is shown in the tach­
ometer @and is also shown briefly in the dis­
play @¢
fig. 121 .
Switching adaptive cruise control off
.,. Push the lever away from you into position @
until it clicks into place. The message ACC: Off
appears. Iii>

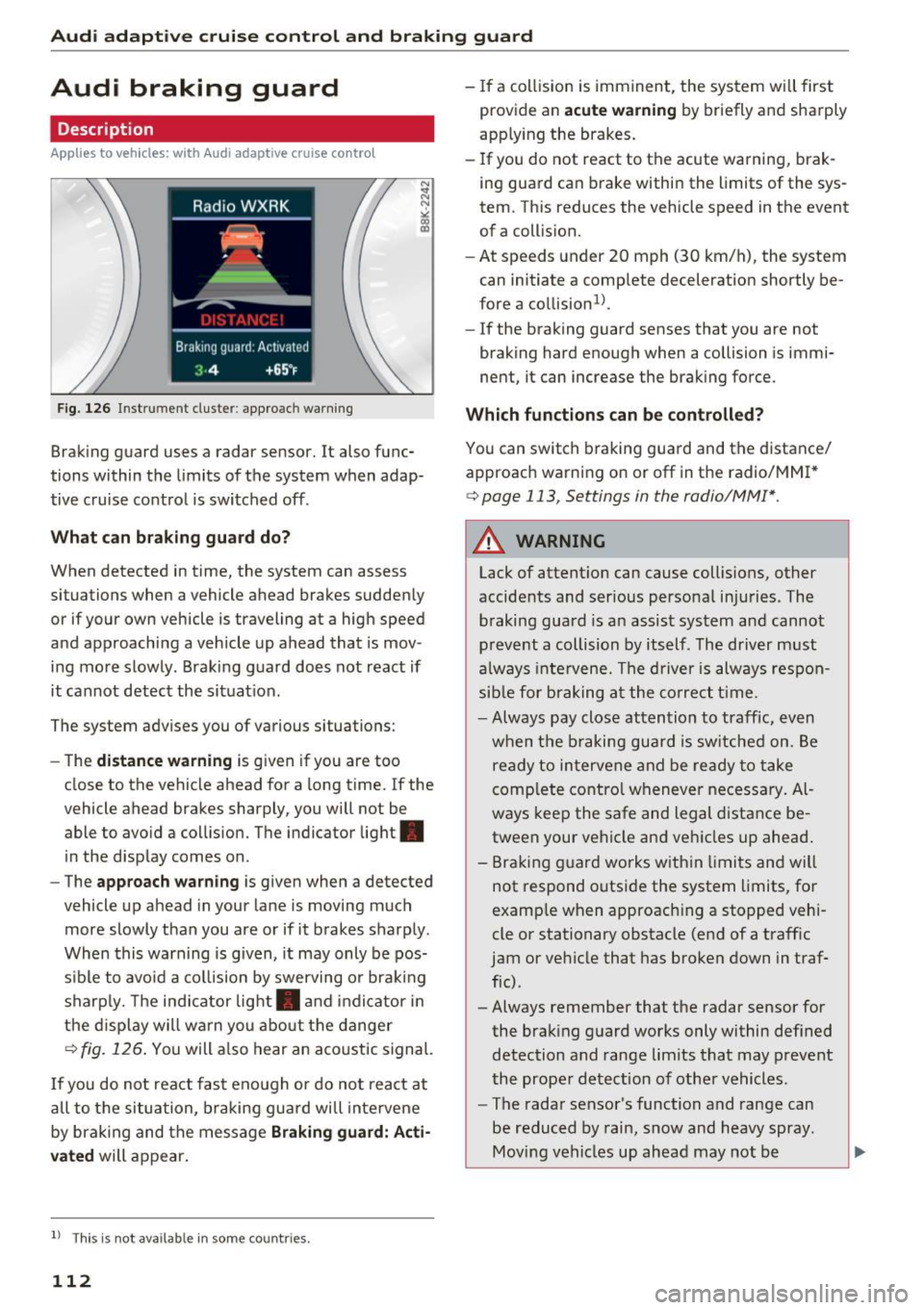

Audi adaptive cruise control and braking guard
Audi braking guard
Description
Applies to vehicles: with Audi adaptive cruise contro l
Fig. 126 In strument cluste r: appro ach warning
Braking guard uses a radar sensor. It also func­
tions within the limits of the system when adap­
tive cruise control is switched off .
What can braking guard do?
When detected in time, the system can assess
situations when a veh icle ahead brakes suddenly
or if your own vehicle i s traveling at a high speed
and approaching a vehicle up ahead that is mov­
ing more slowly . Braking guard does not react if
it cannot detect the situat ion.
The system advises you of variou s situations:
- The
distance warning is given if you are too
close to the vehicle ahead for a long time. If the
vehicle ahead brakes sharply, you will not be
able to avoid a collision. The indic ator light .
in the display comes on.
- The
approach warning is given when a detected
vehicle up ahead in your lane is moving much
more slowly than you are or if it brakes sharply .
When this warning is given, it may only be pos­
s ib le to avo id a collision by swerving or braking
sharply. The indicator light . and indicator in
the display will warn you about the danger
¢fig. 126. You will also hear an acoustic signal.
If you do not react fast enough or do not react at
a ll to the situation, braking guard will intervene
by braking and the message
Braking guard: Acti­
vated
will appear.
l) Thi s is no t a vail able in som e coun trie s.
112
- If a collision is imminent, the system will first
provid e an
acute warning by briefly and sharply
app ly ing the b rakes.
- If you do not react to the acute warning, brak­
ing guard can brake within the limits of the sys ­
tem . This reduces the vehicle speed in the event
of a collision.
- At speeds under 20 mph (30 km/h), the system
can initiate a comp lete deceleration shortly be­
fore a collision ll.
- If the braking gua rd senses that you are not
braking hard enough when a collision is immi­
nent, it can increase the braking force.
Which functions can be controlled?
You can switch braking guard and the distance/
approach warning on or off in the radio/MM
I*
¢ page 113 , Settings in the radio/MM!* .
A WARNING
Lack of attent ion can cause collisions, other
accidents and ser ious personal injuries . The
braking guard is an assist system and cannot
prevent a collision by itself . The driver must
always intervene. The driver is always respon­
sible for braking at the correct time .
- Always pay close attention to traffic, even
when the braking guard is switched on. Be
ready to intervene and be ready to take
complete control whenever necessary. Al­
ways keep the safe and legal distance be ­
tween your vehicle and vehicles up ahead .
- Braking guard works within limits and will
not respond outside the system limits, for
examp le when approach ing a stopped vehi­
cle or stationary obstacle (end of a traffic
jam or vehicle that has broken down in traf­
fic) .
- Always remember that the radar sensor for
the braking guard works only within defined
detection and range limits that may prevent
the proper detection of other vehicles.
- The radar sensor's function and range can
be reduced by rain, snow and heavy spray.
Moving vehicles up ahead may not be
-

,....,
N
co
er::
co

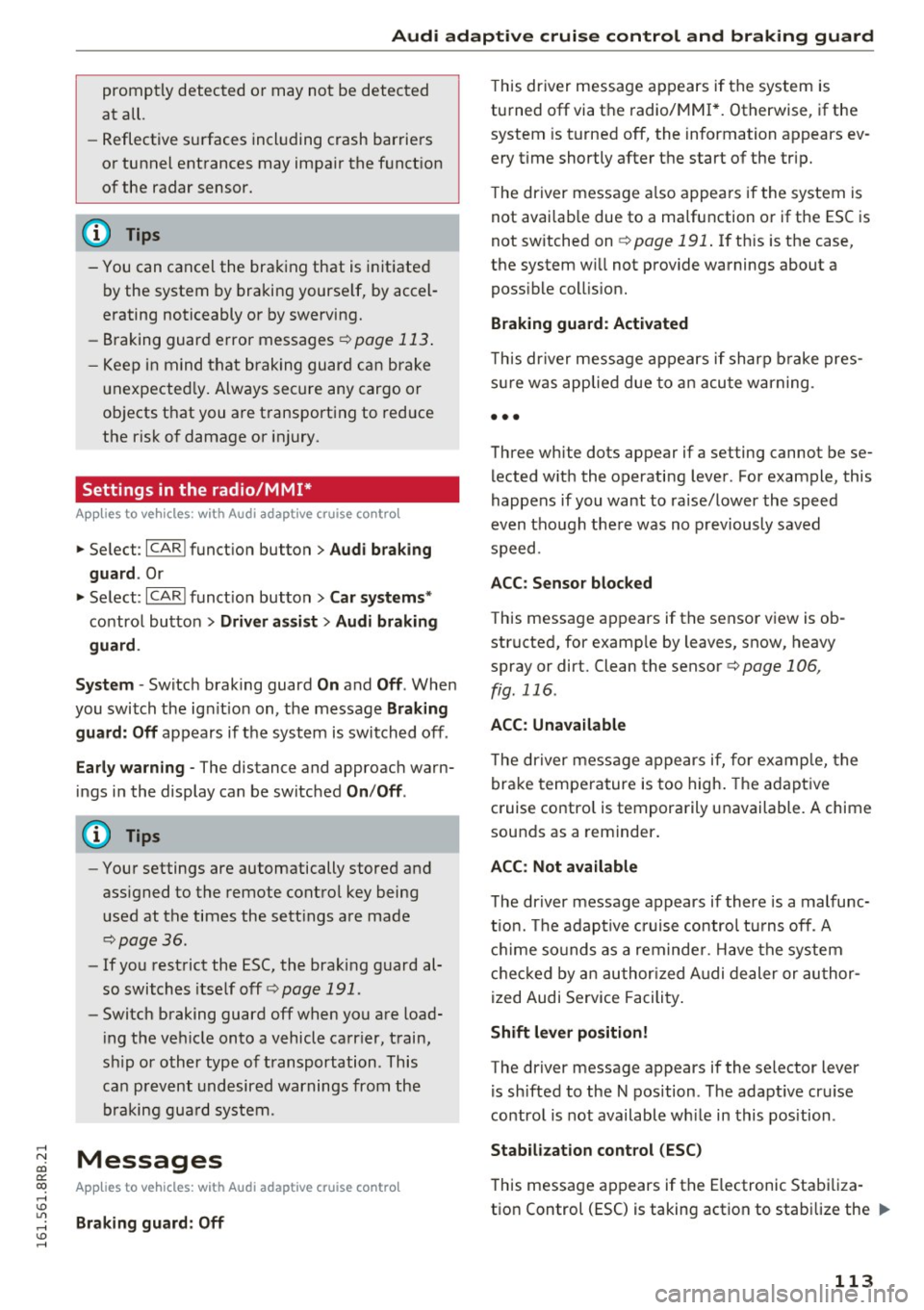

,...., Audi adapt ive cruis e control and braking gua rd
promptly detected or may not be detected
at all.
- Reflective surfaces including crash barriers
or tunnel entrances may impair the function
of the radar sensor.
(D Tips
- You can cancel the braking that is initiated
by the system by braking yourse lf, by accel ­
erating noticeably or by swerving.
- Braking guard error messages
¢page 113 .
-Keep in mind that braking guard can brake
unexpected ly. Always secure any cargo or
objects that you are transporting to reduce
the risk of damage or injury.
Settings in the radio/MMI*
App lies to vehicles: with Audi adaptive cruise co ntro l
... Se lect : I CARI funct ion button > Au di bra king
guard .
Or
... Select:
~ I C~ A~ R~ I funct ion button > Car sy stem s*
contro l bu tton > Driv er a ssis t> A udi br aking
g uard .
S ystem -
Switch braking guard On and Off. When
you switch the ig nition on, the message
Brak ing
guard: Off
appears if the system is switched off .
Early warning -The distance and approach warn­
ings in the display can be switched
On /Off .
{D) Tips
-Your settings are automatically stored and
ass igned to the remote control key being
used at the times the sett ings are made
¢ page 36.
-If you restrict the ESC, the braking guard al­
so switches itse lf off ¢
page 191.
-Switch braking guard off when you are load­
i ng the veh icle onto a vehicle carr ier, train,
sh ip or other type of transportation . This
can p revent undesired warnings from the
braking gua rd system.
Messages
App lies to vehicles: with Audi adaptive cruise contro l
Braking guard : Off
This driver message appears if the system is
turned off via the radio/MM I *. Otherwise, if the
system is turned off, the information appears ev ­
ery time shortly after the start of the trip.
The driver message a lso appears if the system is
not availab le due to a malfunction or if the ESC is
not switched on
¢ page 191 . If th is is the case,
the system w ill not provide warnings about a
poss ible coll is ion.
B rak ing guard : Activated
T h is dr iver message appears if sharp b rake pres­
s ur e was applied due to an acute warning.
•••
Three white dots appear if a setting cannot be se­
lected w ith the operating lever . For example, this
happens if you want to ra ise/lower the speed
even though the re was no p reviously saved
speed.
A CC : Sensor bloc ked
This message appears if the sensor v iew is ob ­
structed, for examp le by leaves, snow, heavy
spray or dirt. Clean the sensor¢
page 106,
fig. 116.
ACC: Unavailable
The driver mess age appears if, for examp le, the
brake tempera ture is too high. The adaptive
cruise contro l is temporarily unavailable. A chime
sounds as a reminder .
ACC: Not available
The driver message appears if there is a malfunc­
t ion. The adaptive cruise control tu rns off. A
c hi me so unds as a reminde r. Have the system
c hec ked by an author ized Audi dealer or au thor­
ized Audi Service Facility .
Shift lever position!
The driver message appears if the selector lever
is shifted to the N pos ition . The adapt ive cru ise
control is not available wh ile in this position .
Stabilization cont rol (ESC)
T his message appears if the E lectronic Stabi liza­
t ion Control (ESC) is taking action to stabi lize the ..,.
113

..... N
co ~ CX)
..... I.Cl U"I
..... I.Cl .....

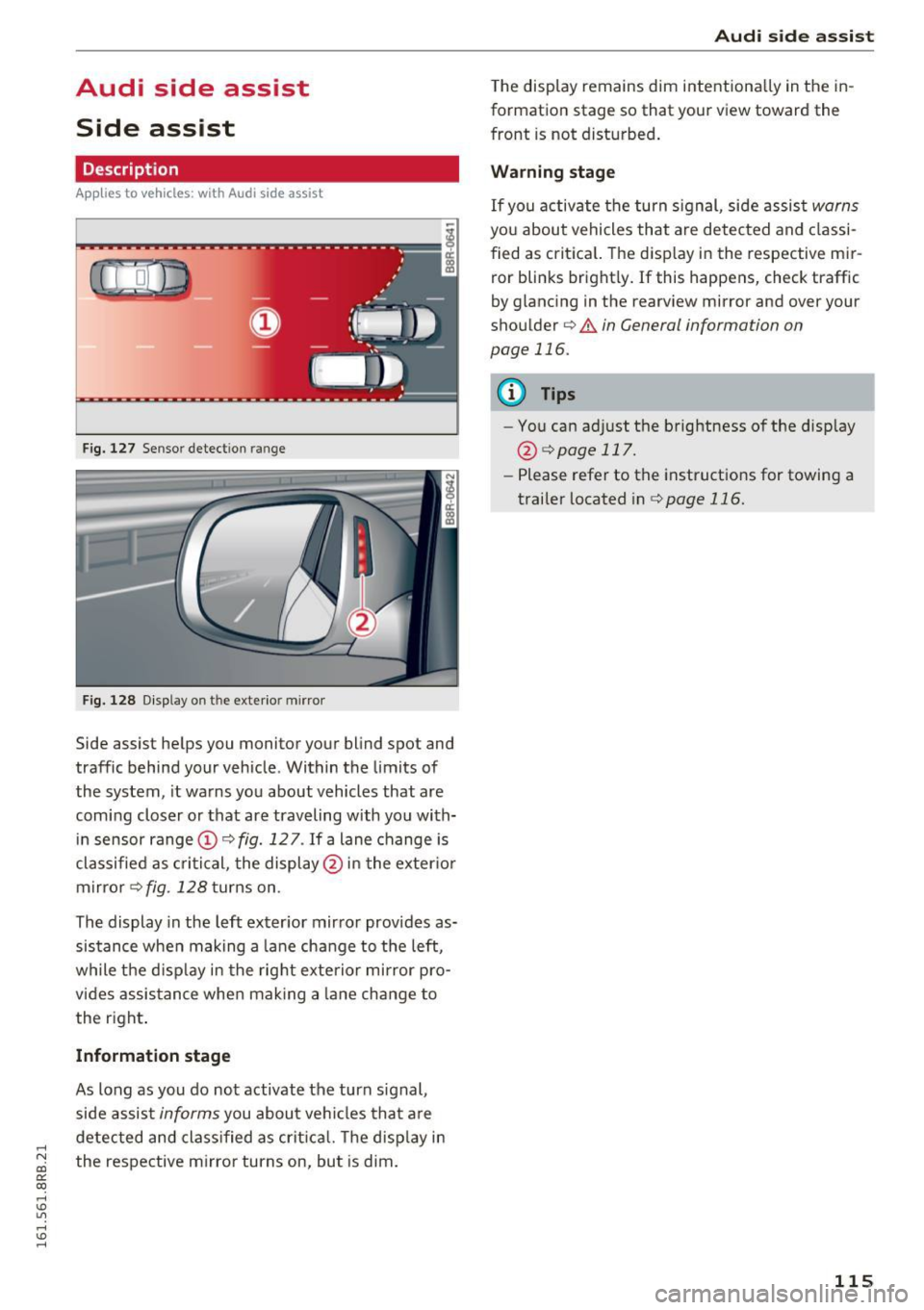

Audi side assist Side assist
Description
App lies to vehicles: with Audi side assist
Fig. 127 Sensor dete ction rang e
Fig. 128 Display o n the exterio r mirror
Side assist helps you monitor your blind spot and
traffic behind your vehicle . Within the limits of
the system , it warns you about vehicles that are
coming closer or that are traveling with you with­
in sensor range ©
c::, fig. 12 7. If a lane change is
classified as critical, the display @ in the exter ior
mirror
c::, fig . 128 turns on .
The display in the left exterior mirror provides as­
sistance when making a lane change to the left,
while the d isp lay in the right exterior mirror pro ­
vides assistance when making a lane change to
the right .
Information stage
As long as you do not activate the turn signal,
side assist
informs you about vehicles that are
detected and class ified as critica l. The disp lay in
the respective mirro r turns on , but is dim .
Aud i side assist
The display remains dim intentionally in the in­
formation stage so that your view toward the
front is not disturbed.
Warning stage
If you activate the turn signal , side assist warns
you about vehicles that are detected and classi­
fied as critical. The display in the respect ive mir­
ror blinks bright ly. If this happens, check traffic
by glancing in the rearview mirror and ove r you r
shoulder c::,
.&. in General informa tion on
page 116.
{!) Tips
- You can adjust the brightness of the display
@ c::,
page 117.
-Please refer to the instructions for towing a
trailer located inc::,
page 116.
115

Audi side assist
General information
Applies to vehicles: with Audi side assist
F ig . 129 Driving s it ua tion s
Fig. 130 Rear of the veh icle: Posit ion of the se nsor s
Side assist functions at speeds above approxi­
mately 19 mph (30 km/h).
(D Vehicles that are appro aching
M
! OJ CD
In certain cases, a vehicle will be classified as
cr itical for a la ne change even if it is still some­
what far away. The faster a veh icle approaches ,
the soo ner the d isplay in the exterior mirror w il l
turn on.
@ Vehicles tra veling with you
Veh icles traveling with you are ind icated in the
exterior m irror if they are classified as critical for
a lane change. All ve hicl es detected by side assist
116
are indicated by the time they enter your "blind
spot", at th e latest .
@ Vehicle s left behind
If you slow ly pass a vehicle that s ide assist has
de tected (the diffe rence in speed between the
vehicle and your vehicle is less than 9 mph or
15 km/h), the display in the exterior mirror turns
on as soon as the vehicle enters your blind spot.
The display w ill not turn on if you quickly pass a
vehicle that side ass ist has detected (the differ­
ence in speed between the vehicle and your vehi­
cle is greater than 9 mph or 15 km/h).
Functional limitation s
The radar sensors are designed to detect the lef t
and rig ht adjacent lanes whe n the road lanes are
the normal width . In certa in situations, the dis­
play in the exterior mirror may turn on even
t hough there is no vehicle located in the area
that is crit ica l for a lane change. For example :
- if the lanes a re narrow o r if your are driving on
the edge of your lane . If this is the case, the
system may have detect ed the vehicle in anoth­
e r lane that is
not adjacent to your current lane.
- if yo u are driving through a curve. Side assist
may r eact to a vehicle that is on e lane over
from the ad jacent lane.
- if side assist reacts to other objects (such as
high or disp laced guard rai ls) .
- In poor weather condit ions. The side assist
functions are limited .
Do no t cover the radar sensors ¢
fig. 130 wit h
stickers, deposits, bicycl e wheels or other ob­
jects, because this wi ll affect the function. Do not
u se side assist when towing a trailer . For infor­
mation on cleaning, refer to ¢
page 207.
A WARNING
-Always pay attention to traffic and to the
area around your veh icle . S ide assist cannot
replace a driver's attention . The driver alone
is always responsib le for lane changes and
sim ila r driv ing mane uve rs .

..... N
co ~ CX)
..... I.Cl U"I
..... I.Cl ..... -
Improper reliance on the side assist system
can cause collisions and serious personal in­
jury:
- Never rely only on side assist when chang­
ing lanes.
- Always check rear view mirrors to make
sure that it is safe to change lanes.
- Side assist cannot detect all vehicles under
all conditions -danger of accident!
- Please note that side assist indicates there
are approaching vehicles, or vehicles in your
blind spot, only after your vehicle has
reached a driving speed of at least 19 mph
(30 km/h).
- In certain situations, the system may not
function or its function may be limited. For
example:
- if vehicles are approaching or being left
behind very quickly. The display may not
turn on in time.
- in poor weather conditions such as heavy
rain, snow or heavy mist.
- on very wide lanes, in tight curves or if
there is a rise in the road surface. Vehicles
in the adjacent lane may not be detected
because they are outside of the sensor
range.
(D Note
The sensors can be displaced by impacts or
damage to the bumper, wheel housing and
underbody. This can affect the system. Have
your authorized Audi dealer or authorized
Audi Service Facility check their function.
(D Tips
-If the window glass in the driver's door or
front passenger's door has been tinted , the
display in the exterior mirror may be misin­
terpreted.
- For Declaration of Compliance to United
States FCC and Industry Canada regulations
¢page 283.
Audi side assist
Activating and deactivating
Applies to vehicles: with A udi side ass ist
Fig. 131 Dr iver 's do or: Sid e assis t button
.,. Press the button ¢ & in General information
on page 116
to switch the system on/ off . The
LED in the button turns on when side assist is
switched on .
Adjusting the display brightness
Applies to vehicles: with Audi side assist
The signal brightness can be set in the radio or
MM!*.
.,. Select: !CAR I function button> Audi side assist .
Or
.,. Select: !CAR I function button> Car systems *
control button > Driver assist > Audi side as­
sist.
The display brightness adjusts automatically to
the brightness of the surroundings, both in the
information and in the warning stage. In very
dark or very bright surroundings, the display is
already set to the minimum or maximum level by
the automatic adjustment. In such cases, you
may notice no change when adjusting the bright­
ness, or the change may only be noticeable once
the surroundings change .
Adjust the brightness to a level where the display
in the information stage will not disrupt your
view forward. If you change the brightness, the
display in the exterior mirror will briefly show the
brightness level in the information stage . The
brightness of the warning stage is linked to the
brightness in the information stage and is adjust­
ed along with the information stage adjustment . ..,.
117

Audi side assist

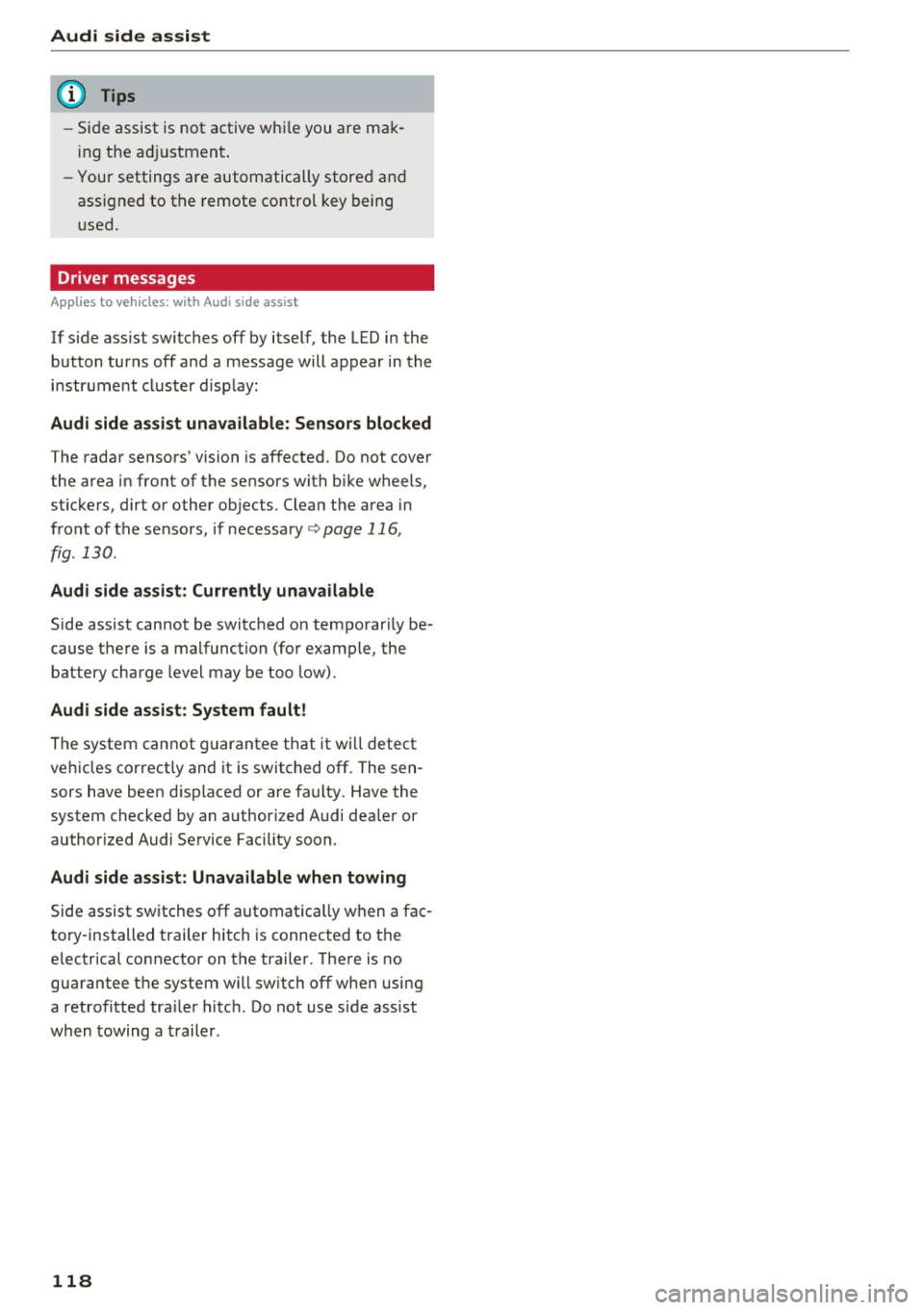

(D Tips
-Si de assist is not active w hile you are mak­
i ng t he a dju stment .
- You r settings are automatic ally store d an d
assi gned to t he remote co ntrol key being
u sed.
Driver messages
A ppl ies to ve hicles: w ith Audi side assis t
If side ass ist switches off by itself, the LED in the
button turns off a nd a message will appear in the
i n str ument cluster d isp lay :
Audi side assist unavailable: Sensors blocked
The rada r senso rs ' vision is affected. Do not cove r
the area in front of the sensors with b ike wheels,
stickers , dirt or other objects. Clean the area in
front of the sensors, if necessary
c> page 116 ,
fig. 130.
Audi side assist: Currently unavailable
Side assist cannot be switched on tempo rar ily be­
cause there is a malfunction (for example, the
battery charge level may be t oo low).
Audi side assist: System fault!
The system cannot guarantee that it wi ll detect
ve hicl es co rrectly and it is switc hed off. The sen­
sors have been d isp laced or are fa ulty. Have the
system checked by an a uthorized Audi dealer or
author ized Audi Se rvice Facility soon.
Audi side assist: Unavailable when towing
Side assist sw itches off automati ca lly w hen a fac ­
to ry -installed trailer hitch is connected to t he
electrical connector on the trailer. The re is no
gua rantee the system w ill sw itch off whe n using
a retrofitted tra ile r hitc h. Do not use side assist
when towing a trailer.
118

,....,
N
co
er::
co
,...., Audi drive select Drive settings
Introduction
Applies to vehicles: with Audi drive select
Drive select provides the possibility to experience
d iff erent types of vehicle settings in one veh icle.
F or instance, using the three
Comfort, Auto and
Dynamic modes, the driver can switch from a
sporty to a comfortab le driving mode with the
press of a button.
Addit ionally, in vehicles with MM I*, the vehicle
setup for
Individual* mode can be customized by
you. This makes it possible to combine settings
such as a sporty engine tuning with comfortable
steering.
A WARNING
-
Improper use of the drive select can cause
collisions, other accidents and serious person­
al injury.
Description
App lies to vehicles: with Audi drive select
The vehicle setup in each mode depends on the
veh icle's features . However, the engine, auto­
matic transmission and steering are always in­
volved.
Engine and automatic transmission
Depending on the mode, the engine and the au ­
tomatic transm ission respond quicker or in a
more balanced manner to accelerator pedal
movements . In the sporty dynam ic mode, the au­
tomatic transmission shifts at higher RPMs .
Steering
The steering adapts in terms of steering effort
and steering ratios . Indirect steer ing that moves
eas ily, like the steering in comfort mode, is best
suited to long drives on a highway. In contrast,
dynamic mode provides sporty, direct steering.
The follow ing applies to vehicles with dynam ic
steering*: the steering rat io changes based on
vehicle speed in order to ma inta in optim um
steering effort for the driver at all times. This
Audi drive select
sets the steering to be less sensitive at higher
speeds in order to provide improved vehicle con­
tro l. At reduced speeds, however, steering is
more direct in order to keep the steering effort as
minimal as possible when the driver is maneuver­
ing the vehicle. At low and average speeds, dy ­
nam ic steering additionally prov ides more re­
sponsive steering performance .
Adaptive dampers*
The adaptive dampers* use sensors to record in­
formation regarding steering movements, brak­ ing and acceleration operations by the driver,
road surface, driving speed, and load . This makes
it possible to adapt damping to the driving situa­
t ion virtua lly in real time. Drive select also makes
it possible to sat isfy the desire for sporty suspen­
sion (Dynamic) and comfortable suspension
(Comfort) without giving up balanced tuning (Au­
to).
Engine sound*
T he sound of the eng ine is adapted to the select ­
ed mode and ranges from subtle to spo rty.
Adaptive cruise control*
The behavior when accelerating can be adjusted
from comfortable to sporty, depending on the drive select mode. Adaptive cruise control also
responds to the driv ing behavior of the vehicle
ahead in a more conservative or sporty manner.
(D Tips
- In some models, the maximum vehicle
speed can only be reached in the
Auto and
Dynamic modes.
- Selecting the
Dynamic mode results in spo r­
ty shift ing characteristics. The S gear posi­
tion engages automatically.
- In vehicles that have dynamic steering*, op­
erating noise is heard when starting or stop­
ping the engine . This does not indicate a
prob lem.
119

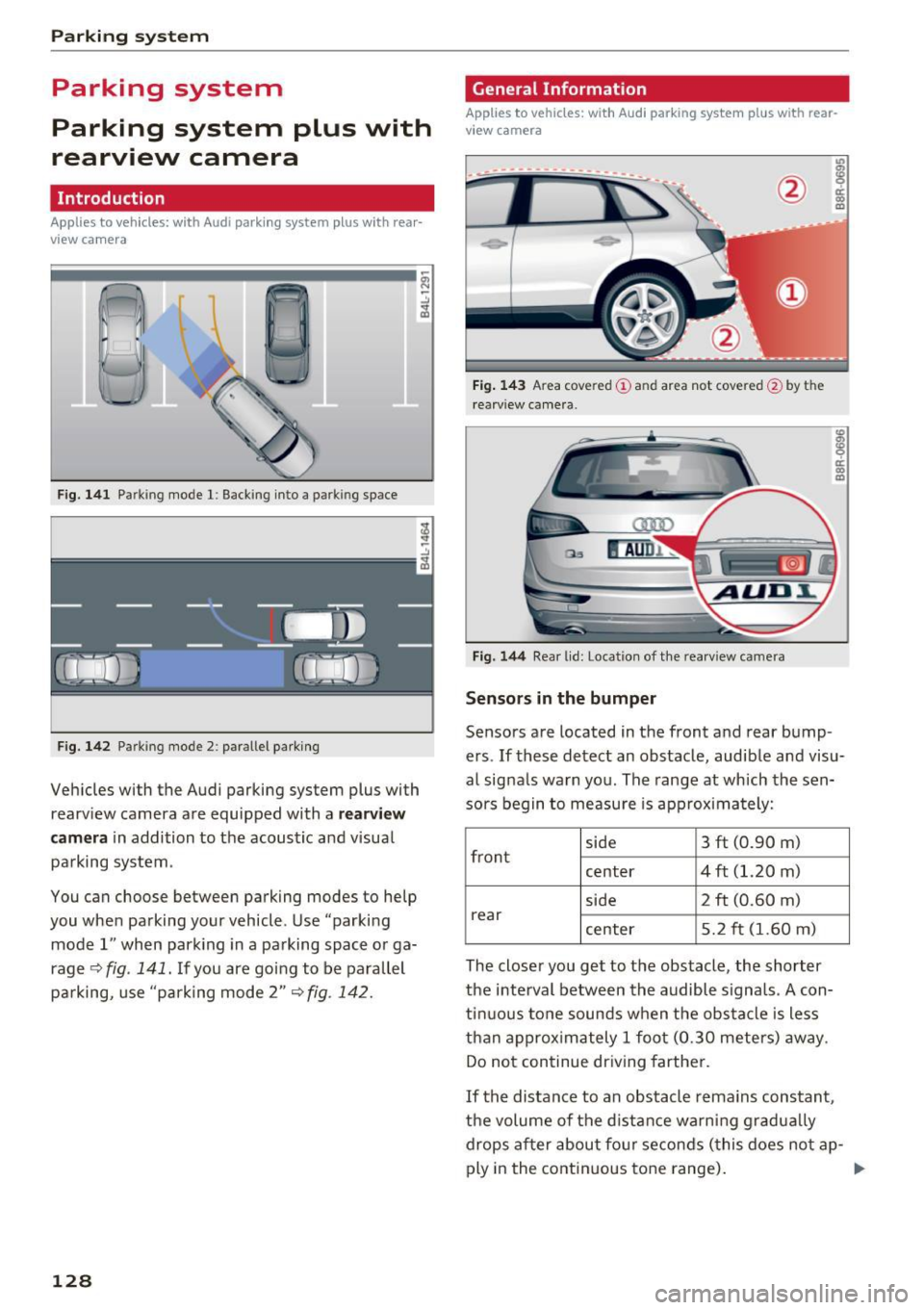

Parking system
Parking system
Parking system plus with
rearview camera
Introduction
Applies to vehicles: with Audi parking system plus with rear­
view camera
Fig. 141 Parkin g mo de 1 : Back ing i nto a pa rk in g space
Fig. 142 Parkin g mo de 2: par allel parking
Vehicles with the Audi parking system plus with
rearview camera are equipped with a
rearview
ca mera
in addition to the acoustic and visual
parking system .
You can choose between parking modes to help
you when parking your vehicle . Use "parking
mode 1" when park ing in a parking space or ga­
rage
Q fig . 141. If you are going to be parallel
parking, use "parking mode 2 "
~ fig. 142.
128
General Information
Applies to vehicles: with Audi parking system plus with rear­
view camera
Fig. 143 Area cover ed (!) an d area not covered @by the
rearv iew camera .
-
==== ffl
Fig. 144 Rear lid: Loca tion of the rearview ca mera
Sensors in the bumper
U')
~ ci: CIO m
8 ci: CIO m
Sensors are located in the front and rea r bump ­
ers . If these detect an obstacle , audible and visu­
al signa ls warn you . The range at which the sen­
sors begin to measure is approxima tely:
side 3
ft (0.90 m)
front center 4
ft (1.20 m)
s ide 2
ft (0.60 m)
rear center 5.2 ft (1.60 m)
The closer you get to the obstacle , the shorter
the interval between the audible signals . A con­
t inu ous tone sounds when the obstacle is less
than approximately
1 foo t (0.30 meters) away .
Do not continue driving farther.
If the distance to an obstacle remains constant ,
the volume of the distance warning gradua lly
drops after about four seconds (this does not ap­
ply in the continuous tone range).
