[i] Adjusting seat heating*
Pressing the button switches the seat heating on
at the highest setting (level 3) . The LEDs indicate
the temperature level. To reduce the tempera­
ture, press the button again. To switch the seat heating off, press the button repeatedly until the
LED turns off.
After 10 minutes, the seat heating automatically
switches from level 3 to level 2.
lil Adjusting seat ventilation*
Pressing the button switches the seat ventilation
on at the highest sett ing (level 3). The LEDs indi­
cate the venti lation level. To reduce the ventila ­
tion level, press the button again. To switch the
seat v entilation off, press the button repeatedly
until the LED turns off.
I ..., FRONT I Switch the defroster on/off
The windshield and side windows are defrosted
or cleared of condensation as quickly as possib le.
The maximum amount of air flows mainly from
the vents below the windshield. Recirculation
mode switches off. The temperature should be
set to 72 °F (22 °() or higher. The temperature is
controlled automatically .
T he
IAUTOI button switches the defroster off.
llliil REARI Switching rear window heater on/
off
The rear window heater on ly operates when the
engine is running. It switches off automatica lly
after a few minutes, depending on the outs ide
temperature.
To prevent the rear window heater from switch­ing off automatically, press and hold the
!llil> REAR I
button for more than 2 seconds . This remains
s tored until the ignition is switched off .
Air vents
You can open and close the center and rear air
vents using the thumbwheels . The levers adjust
the direction of the airflow from the vents.
You can adjust the air temperature in the rear by
turning the thumbwheel toward the red side to
Warm and cold
make it warmer or toward the blue s ide to make
it coo ler.
A WARNING
-~
- Do not use the recirculation for extended
periods of time. The windows could fog up
since no fresh air can enter the vehicle . If
the windows fog up, press the air rec ircula ­
tion button again immed iately to switch off
the air rec irculat ion function or select de­
frost.
- Individuals with reduced sensit ivity to pain
or temperature could develop burns when
using the seat heating* function. To reduce
the risk of injury, these individua ls should
not use seat heating.
(D Note
To avoid damage to the heating elements* in
the seats, do not kneel on the seats or place heavy loads on a small area of the seat.
Setup
The basic climate control settings can be adjust­
ed in the radio or MMI*.
"'Select: !CAR I function button> A/C control but­
ton. Or
"' Select:
!CAR ! function button> Car systems*
control button >
A/C.
Automatic recirculation
When switched on, automat ic rec irculat ion con­
trols the recirculation mode automatically. If the
windows fog up, press the
I@ F RON T I button.
Synchronization
When synchronization is switched on, the same
settings are appl ied to both the driver and front
passenger , except for the seat heating/ventila­
t ion* . Synchronization switches off when you ad­
just the settings on the front passenger's sid e.
You can also sw itch synchronizat ion on by press-
i ng and holding the knob on the driver's side. ..,.
79

Warm and cold

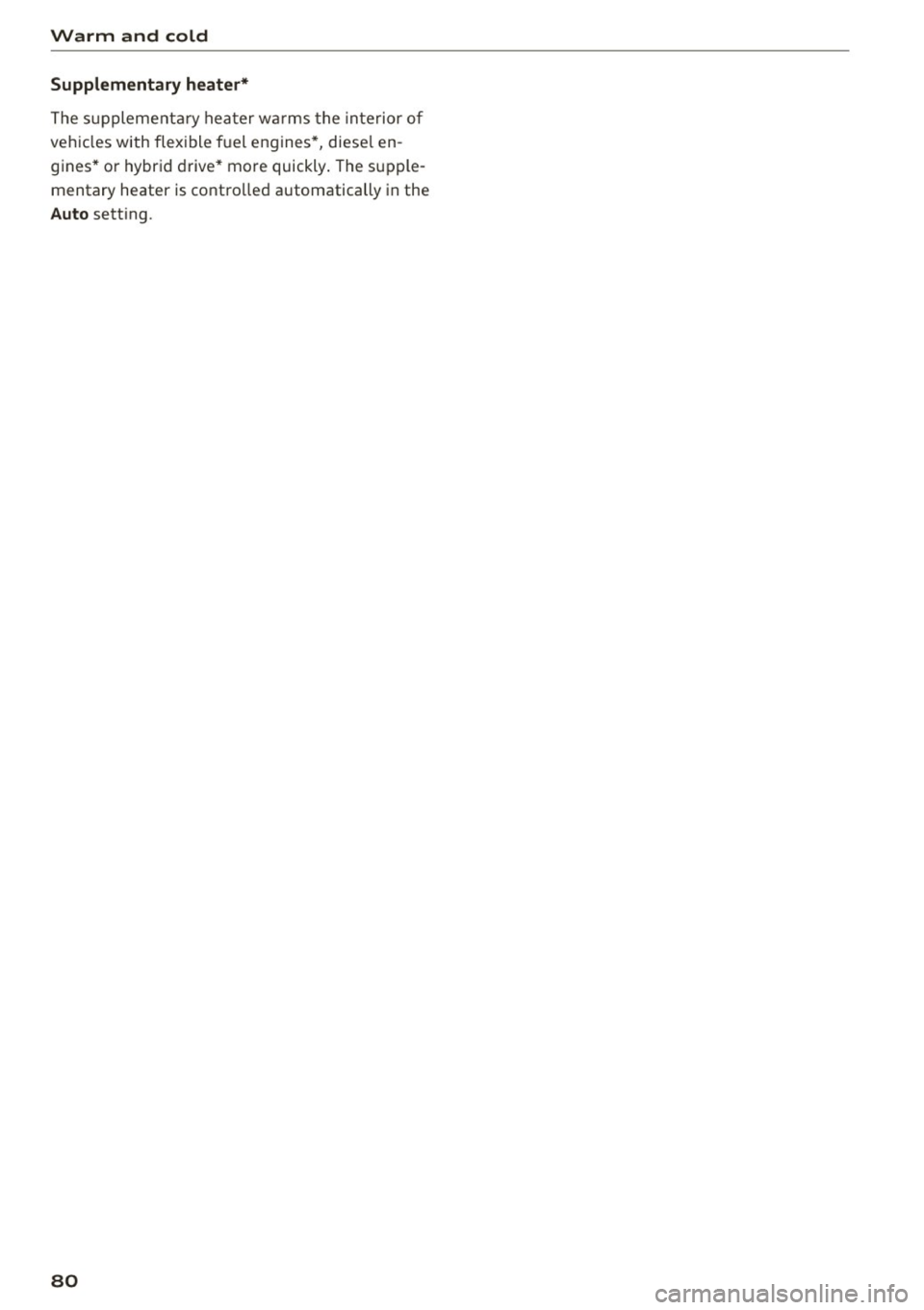

Supplementary heater*
The supplementary heater warms the interior of
veh icles with flexible fuel engines*, diesel en­
gines* or hybrid drive* more quickly. The supple­
mentary heater is controlled automatically in the
Auto setting.
80

a,
a,
,...,
N l"­N ,...,
0 0
0:
co
Driving
Steering
Manually adjustable steering wheel
The height and reach of the steering wheel can
be adjusted .
Fig. 97 Lever under the steering column
Fi rst, ad just t he driver 's sea t correct ly.
• Pull the lever ¢
fig. 97 -Arrow- ¢ A.
• Move the steer ing whee l to the desired posi­
t ion.
• Push the lever against the steeri ng column un-
ti l it locks .
There must be at leas t 10 inches (25 cm) be­
tween your chest and the center of the stee rin g
wheel. If yo u cannot sit mo re than 10 inches (25
cm) from the steering wheel, see if adaptive
equipment is available to help you reach the ped­
a ls and increase the distance from the steering
wheel.
F or detailed information on how to adjust the
driver's seat, see
¢ page 61 .
.&_ WARNING
Improper use of steering wheel adjustment
and improper seating position can cause ser i­
ous personal injury.
- Adjust the steering whee l co lumn on ly w hen
the vehicle is not mov ing to prevent loss of
vehicle control.
- Adjust the driver's seat or steering wheel so
that there is a min imum of 10 inches (25
cm) betwee n your chest and t he steer ing
w heel
¢page 132, fig. 150 . If you cannot
-
D rivi ng
maintain t his minim um distance, the airbag
system cannot p rotect yo u proper ly.
- If physical limitations prevent you from sit­
ting 10 inches (25 cm) or more from the
steer ing whee l, check with your author ized
Audi dealer to see if adaptive equipment is
ava ilable.
- If the steer ing whee l is aligned w ith your
face, the supplementa l driver's a irbag can­
not provide as much protect io n in an acc i­
dent. Always ma ke sure that the steer ing
wheel is aligned with you r chest.
- Always hold the steering wheel with your
hands at the 9 o'clock and 3 o' clock posi­
tions to reduce the risk of pe rso nal inju ry if
the dr iver's a irbag dep loys .
- Never ho ld the stee ring wheel at the 12
o'cl ock position or wi th you r hands inside
the stee rin g wheel rim or on t he s teer ing
wheel h ub. Holding the stee ring w heel the
wrong way can cause serious inj uries to the
hands, arms and head if the driver's airbag
deploys .
Ignition lock
Starting engine with the key
Th e ignition is switched on and the engine start­
ed with the ignition key .
Fig . 9 8 Igh iti oh key
Starting the engine
• Insert the key into the ign ition lock .
• Hybrid drive*: re fer to the information for start ­
ing the vehicle under
¢ page 101.
• Step on the brake pedal an d move the selector
lever to the P or N position.
• Press the key¢
fig. 98 -the engine will start. II>
81

Driving

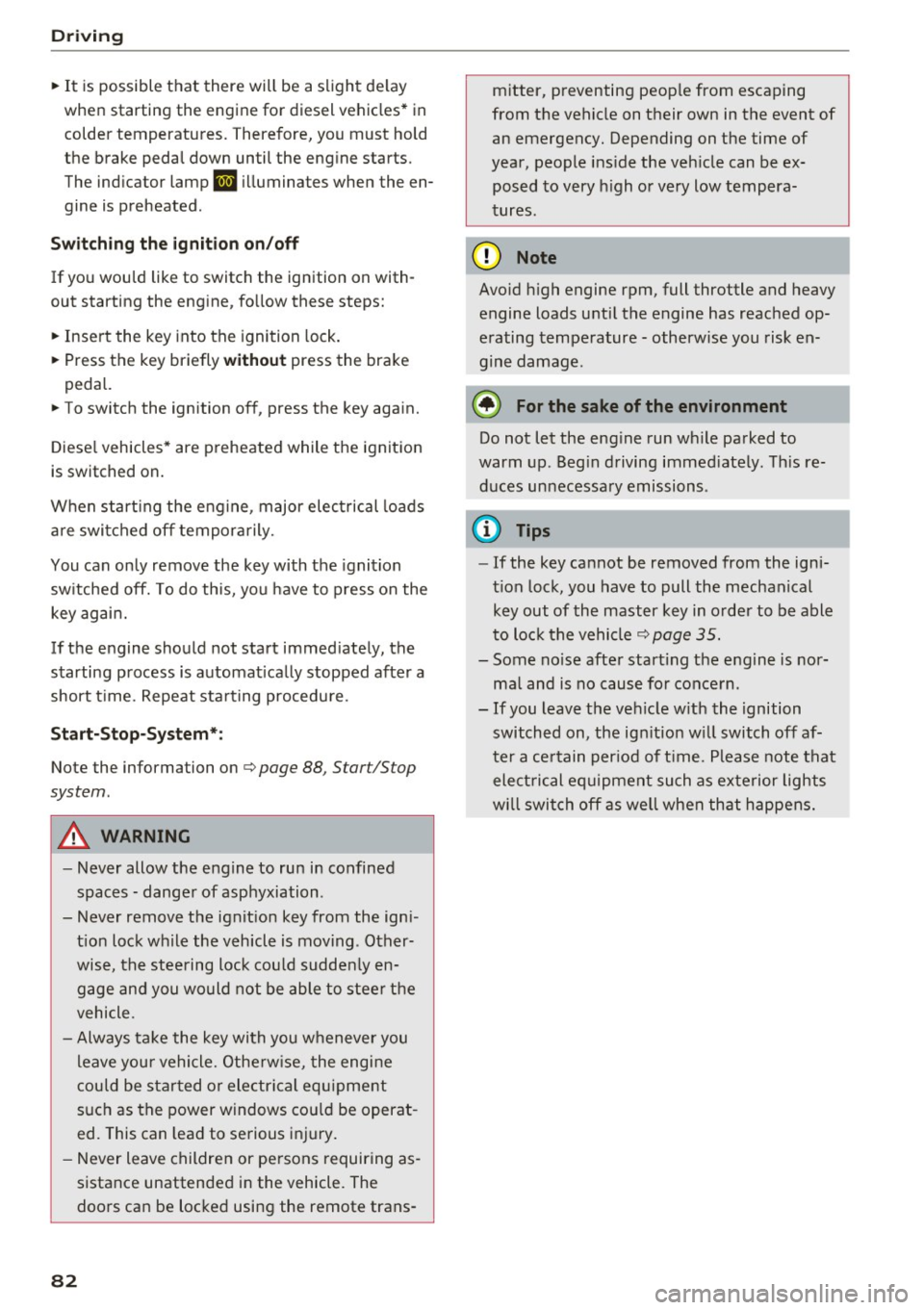

"' It is possible that there will be a slight de lay
when starting the engine for diesel vehicles* in
colder temperatures. Therefore, you must hold
the brake pedal down until the eng ine starts.
The ind icator lamp
IJ i llumina tes when the en­
gine is preheated .
Switching the ignit ion on /off
If you would like to switch the ign ition on with­
out starting the engine, fo llow these steps:
"' Inse rt the key into the igni tion lock .
"' Press the key briefly
without press the brake
pedal.
"' To switch the ignition off, press the key aga in.
Diese l vehicles * are p reheate d while the ignition
is switched on.
W hen start ing the e ngine, major elec trical loads
are swi tched off temporarily.
You can only remove the key with the ignition
sw itched off. To do this, yo u have to press on the
key again.
I f the engine sho uld not start immed iately, the
s tarting p rocess is a utomat ica lly stopped after a
short t ime. Repeat sta rt ing procedu re .
Start-Stop-System*:
Note the information on ¢ page 88, Start/S top
system.
A WARNING
- Never allow t he engine to ru n in confined
spaces - dange r of asphyxiation .
- Never remove the ig nit ion key from the ign i­
t ion loc k w hile the veh icle is moving . Other­
wise, the steering lock cou ld sudde nly en­
g age and you would not be able to stee r the
vehicle.
- Always ta ke the key with you w henever you
leave yo ur vehicle. Othe rw ise, the engi ne
c ould be s tar ted or ele ctrica l e qui pme nt
s u ch as the power windows cou ld be operat ­
ed. This can lead to se rious i njury.
- Never leave childre n or pe rsons requiring as ­
sistance unattended i n the vehicle. The
doors can be locked usi ng the remote trans-
82
-
m itter, p reventing peop le from escaping
from the vehicle on their own in the event of
an emergency. Depending on the time of
yea r, people ins ide the veh icle can be ex­
posed to very high or very low tempera­
t ures .
(D Note
Avoid h igh engine rpm, full throttle and heavy
engine loads unti l the engine has reached op­
e rating temperature - otherwise you risk en­
gine damage.
@ For the sake of the environment
Do not let the eng ine run wh ile parked to
warm up . Beg in d riving immed iate ly . Th is re­
d uces unnecessa ry emissions .
(D Tips
-If the key cannot be removed from the igni­
t ion loc k, you have to pull the mechan ical
key out of the master key in o rder to be able
to loc k the vehicle ¢
page 35.
-Some no ise afte r start ing the e ngine is nor­
ma l and is no cause fo r co nce rn.
- If you leave the ve hicle w ith the ignition
switched on, the ig nitio n w ill switch off af­
ter a ce rtain per io d of t ime. Please note that
ele ct rical eq uipme nt such as e xte rior lights
w ill swit ch off as we ll whe n th at happens .

a,
a,
..... N
" ('I ..... 0 0
0:
co

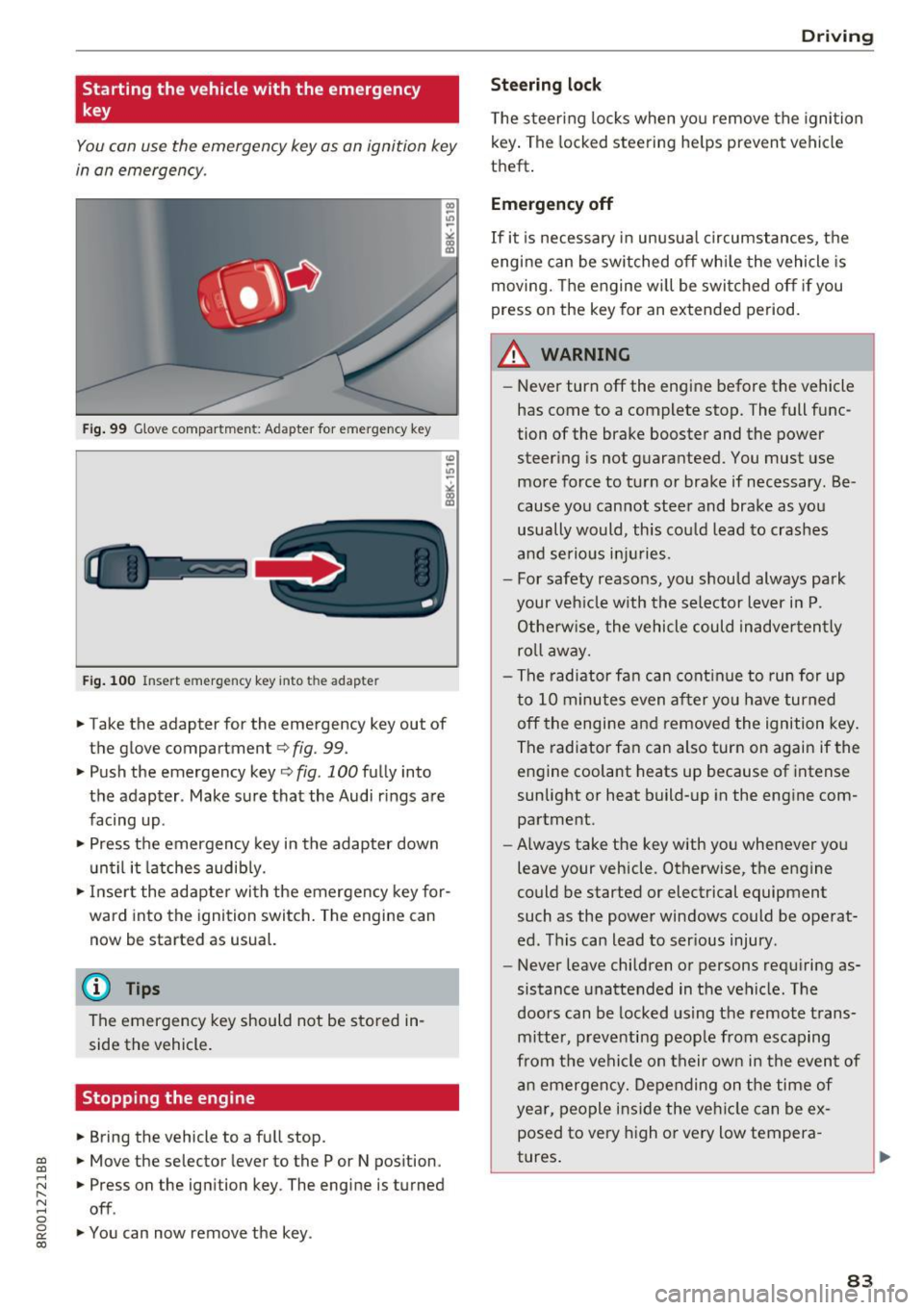

Starting the vehicle with the emergency
key
You can use the emergency key as an ignition key
in an emergency .
Fig. 99 G lo ve compar tme nt: A dap ter for e mergen cy key
F ig . 1 00 In sert emergen cy key into t he ad ap te r
.. Take the adapter for the emergency key out of
t he glove compartmen t¢
fig. 99.
.. Push the emergency key¢ fig. 100 fully into
the adapter . Make sure that the Audi r ings are
facing up .
.. Press the emergency key in the adapter down
until it latches audib ly.
.. Inse rt the adapter wi th the emergency key for­
ward into the ign ition switch. The engine can
now be started as usual.
@ Tips
The emergency key should not be sto red in­
side the vehicle.
Stopping the engine
.. Bring the vehicle to a full stop.
.. Move the selector lever to the P or N pos ition .
.. Press on the ignition key . The engine is turned
off.
.. You can now remove the key .
Drivi ng
Ste ering lock
T he s teeri ng locks when yo u remove the ignition
k ey . The locked steering he lps prevent vehicle
theft .
Emergency off
If it is necessary in unusua l circumstances, the
engine can be switched off wh ile the vehicle is
moving. The engine will be swi tched off if you
press on the key for an extended period.
A WARNING ~
- Never turn off the engine before the vehicle
has come to a complete stop. The full func­
tion of the brake booster and the power
steer ing is not guaranteed. You must use
more force to turn or brake if necessary . Be ­
cause yo u cannot steer and brake as you
usually would, this cou ld lead to crashes
and se rio us i njur ies.
- For safety reasons, you should always park
your veh icle w ith the selector lever i n P.
Otherw ise, the vehicle could inadve rten tly
ro ll aw ay.
- The radiator fa n can cont inue to run for up
t o 10 minutes even after you have turned
off the engine and removed the ignition key .
The radiator fan can also turn on again if the engine coolant heats up because of intense
sunlig ht or heat build-up in the eng ine com­
partment .
- Always take the key with you whenever you
leave your vehicle . Otherwise, the engine
could be started or electrical equipment
such as the power windows could be operat­
ed . T his can lead to ser ious injury .
- Never leave children or persons requiring as­
sistance unattended in the vehicle. T he
doors can be locked using the remote t rans­
mitter, pr eve nti ng peop le from escaping
from t he vehicle on their own in the even t of
a n emergency. Depe nding on the time of
year, peo ple i nside the ve hicle can be ex­
posed to very high o r very low tempera ­
tures .
83

Driving
CD Note
If the engine has been under heavy load for
an extended period, heat builds up in the en­
gine compartment after the engine is switch­
ed off- there is a risk of damaging the eng ine.
Allow the e ngine to ru n at idle for about two
m inutes befo re switching it off.
Convenience key
Starting the engine
Applies to: veh icles with Convenience key
The I S TAR T ENGINE ST OP ! button switches the
ignition on and starts the engine.
F ig . 101 Ce nter console: START ENGINE STOP b utto n
Starting the engine
.. Hybrid dr ive *: refer to the informat ion for start ­
ing the vehicle under
c:> page 101.
.. Step on the brake pedal and move the se lector
lever to P or N
c;, ,& .
.. Press on the ~ , S_T_A_R _T_ E_N_G_I_N_E_S_T_O_P~I butto n
c:>fig . 101 -the engine will start.
.. It is possible t hat there will be a sl ight de lay
whe n starting the eng ine fo r diesel vehi cles* in
colde r temperatu res. There fore, you must hold
the brake pedal down until the eng ine starts.
The ind icator lamp
1,1 i lluminates when the en­
gine is p reheated.
Sw itching the ignition on /off
If you would like to swi tch the ign ition on with­
out starting the eng ine , fo llow these steps:
.. Press the
I S TAR T E NGIN E STO PI button with ­
out pressing the brake pedal.
.. To switc h the ignition off, press the button
again.
84
D iesel ve hicl es* are preheated whi le the ignition
is switched on.
Whe n sta rting the engine, m ajo r electr ica l loads
are switched off temporarily .
If the engine should not start immediately , the
sta rt ing process is au tomatically stopped after a
sho rt time. Repeat s tarting pro cedure.
Start-Stop-System*:
Note the informat ion on c> page 88, Start/Stop
system .
A WARNING
-Never a llow the engine to r un in confined
spaces -da nger of asphyx ia ti on.
- Always take t he key w ith you wheneve r yo u
le ave your veh icle . Otherwise, the e ngine
co uld be st arte d or elect rical equipmen t
such as the powe r wi nd ows could be ope rat­
ed . Thi s can lead to ser ious injury .
- Never le a ve children o r persons req uiring as­
sis tance unattended in the ve hicle. Th e
-
doors can be locked using the remote trans­
mitter, preventing peop le from esca ping
from t he vehicle on t heir own in the event of
an emergency . Depending on the time of
year, people i ns ide the veh icle can be ex­
posed to very h igh o r very low tempera ­
tures .
CD Note
Avo id h igh engine rpm, full throttle and heavy
engine loads u nti l the engine has reac hed op­
erating tempe rature -otherwise you risk en ­
g ine damage .
@ For the sake of the environment
Do not let the eng ine run wh ile parked to
warm up . Beg in driving immed iate ly . Th is re ­
d uces un necessary emissions .
@ Tips
-Some no ise after starting t he engine is nor­
ma l and is no cause for conce rn .
- If you leave the ve hicle w ith the ignition
switched on, the ig nition w ill switch of f af-
te r a ce rtain per iod of t ime . Please note that ..,.

CD
CD
.... N ,-... N .... 0 0 C<'. 00
electrical equipment s uch as exterior lights
will switch off as well when that happens.
Switching engine off
A pp lies to: ve hicles with Conve nien ce key
~ Bring your vehicle to a complete stop.
~ Move the selector lever to the P or N position.
~ Press the I STAR T ENGINE ST OPI button
¢ page 84, fig. 101.
Ste ering lock
The steering locks when you turn the engine off
using the
! S TART ENGINE STOPI button and
open the dr iver's door. The locked steering helps
prevent vehicle theft.
Emer gency off
If necessary, the engine can be switched off with
the selector lever in the R or D/S position. The
engine stops if you press and ho ld the
I START ENGINE STOPI button at speeds below
6 mph (10 km/h) and press the brake pedal.
A WARNING
- Never turn off the engine before the veh icle
has come to a comp lete stop. The fu ll func­
t ion of the brake booster and the power
steering is no t gua ranteed. You must use
more fo rce to turn or brake i f necessary. Be­
cause you cannot steer and b rake as you
usually wou ld, this could lead to crashes
and ser ious injuries.
- For safety reasons, you should a lways park
your vehicle with the selector lever in P .
Otherwise, the vehicle could inadvertently
roll away.
- The radiator fan can continue to run for up
to 10 m inutes even after you have turned
off the engine and removed the ignition key.
The radiator fan can also turn on again if the engine coolant heats up because of intense
sunlight or heat bui ld-up in the engine com­
partment.
- Always take the key with you whenever you
leave you r vehicle. Othe rw ise, the engine
c ou ld be started o r electrical equ ipme nt
D riv ing
such as the power windows could be operat­
ed. This can lead to ser ious injury.
- Never leave chi ldren or persons requiring as­
sistance unattended in the vehicle. The
doors can be locked using the remote trans­ mitter, preventing people from escaping
from the vehicle on their own in the event of
a n emergency. Depending on the time of
year, people ins ide the veh icle can be ex­
posed to very high o r very low tempera­
tures.
0 Note
If the engine has been under heavy load for
an extended pe riod, heat bu ilds up in the en­
g ine compartment afte r the engine is switch­
ed off -there is a ris k of damaging the engine.
A llow the engine to run at id le for about two
minutes before switching it off.
Driver messages
Ignition i s on
This message appears and a warning tone sounds
if you open the drive r's door when the ig nition is
swi tched on.
No k ey id ent ified
This message appears when the
I START ENGINE STOP !* button is pressed if there
is no master key inside the vehicle or if the sys­
tem does not recognize it. For example, the mas­
ter key cannot be recognized if it is covered by an
obje ct (e.g. al uminum brief case) which
screens
the radio s ignal. Elec tronic devices such as ce ll
phones can a lso interfere with the radio signal.
Pre ss brake p edal to start en g ine
This message appears if you do not press the
brake pedal to start the engine.
S hift to N or P to start en gine
This message appears when attempting to start
the engine if the se lector lever for the automatic
transm ission is not in the P or N position. The en­
gine can on ly be started with the se lector in
these positions.
Ill-
85

Driving
!I Is the key in the vehicle ?
This message appears in a veh icle with Conven­
ience key* if the master key is removed from the
ve hicle w ith the engine r unning.
If the maste r
key is no longer in the vehicle, you cannot switch
on the ignition after stopping the engine and you
also cannot start the eng ine again. Moreover, you
cannot lock the veh icle from the outside with the
key.
Shift to P otherw ise vehicle can roll awa y. Door s
do not lo ck if le ver i s not in P.
This message appea rs fo r sa fe ty reasons a long
with a warning signal.
It appears i f the se lector
lever for the automatic transmission is not in the
P posit ion when switching off the ignition. Move
the selector lever to the P position, otherwise the
vehicle is not secured aga inst rolling away. You
also cannot lock the vehicle using the locking
button* on the door handle or using the remote
key .
Turn off ignition befo re lea ving car
This message appears if the driver's door is
opened while the ignit ion is switched on. A lways
switch off the ignition if you are leaving the vehi­
cle . See also
c::> page 90.
Turn off ignition before lea ving car. Batte ry is
discha rging
This message appea rs if the d river's doo r is
opened while the ignition is sw itched on. A lways
switch off the ignition if you are leaving the vehi­
cle . See also
c::> page 90.
Shift to P and turn off ignition, otherwi se vehi­
cle can roll awa y
This message appea rs if the d river's door is
ope ned while t he igni tion is switched on and the
selec to r l ever is not in the P posi tion. Shift t he
selector lever in to the P position and switch off
the ignition when you exit the vehicle . Otherwise
the vehicle cou ld roll. See also¢
page 90.
Convenien ce key defective! Use ignition lock
This message appea rs if the eng ine must be
started or stopped using the ignit io n key and no t
t he !STAR T
ENGINE ST OPI* b utton .
86
Electromechanical
parking brake
Operation
The electromechanical parking brake replaces
t he hand brake.
Fig. 102 Center co nsole : Pa rk ing brake
.. Pull on the switch (®) c::> fig. 102 to apply the
park ing brake. The indicator lights in the switch
and . (USA models)/ . (Canada models) in
the inst rument cluste r illuminat e.
.. With the ignition switched on, step on the
brake pedal or the ac celerator peda l and press
t he swi tch(®) at the same time to release the
p arking brake . The indicator lights in the switch
and . (USA models)/ . (Canada models) in
the instrument cluster go out .
Y our vehicle is equipped wi th an ele ctromechan i­
ca l park ing brake . The parking brake is desig ned
to prevent the vehicle from ro lling unintentional­
ly and replaces the hand b rake.
In add ition to the no rmal functions of a trad i­
tiona l hand b rake, the e lectromechanical parking
brake provides various convenience and safety
funct ions .
When starting from rest
-The integra l st art ing ass ist helps yo u when
dr iving by automati ca lly re leas ing t he pa rking
brake
c::> page 87, Starting from rest .
-When starting on inclines, the starti ng assis t
prevents the vehicle from unintentionally ro ll­
ing back. The brak ing force of the park ing brake
is not re leased unti l su fficient dr iving force has
been bu ilt up at the whee ls. ..,.

CD
CD
.... N ,-... N .... 0 0 C<'. 00
Emergency brake function
An emergency brake ensures tha t the vehicle can
be slowed down even if the
normal brakes fai l
¢ page 88, Emergency braking.
A WARNING
If a drive range is engaged with t he vehicle
stat iona ry and the engine running, you must
in no instance accelerate care lessly . Other­
w ise the vehicle will start to move immed iate­
ly- risk of a n accide nt.
(D Tips
- If the parking brake is app lied with the igni­
tion switched off, the indicator lights in the
switch and . (USA models)/ . (Cana-
da models) in the instrumen t cluster will go
out af ter a ce rtain per io d of t ime .
- Occasiona l noises when the park ing brake is
applied and re leased a re normal and a re not
a cause for conce rn.
- When the vehicle is parked, the park ing
brake goes th ro u gh a se lf-tes t cycle at regu­
l a r i nte rva ls . Any associated noises a re no r­
mal.
Parking
~ P ress the brake ped al to stop the vehicle.
~ Pull the switch c::> page 86, fig. 102 to set the
parking b rake.
~ Move the selecto r lever to P .
~ Turn the eng ine off c::> .&, .
-
~ When on incl ines or declines, turn the steering
wheel so that the veh icle w ill roll into the curb
if it beg ins to move .
A WARNING
-Whe n you leave your ve hicl e -even if onl y
br iefly- alw ays remove the ig nition key. Thi s
applies p articul arly when children rem ain i n
t h e ve hicle . Othe rwise the c hildren could
sta rt the eng ine, release t he parking brake
o r operate elect rical eq uipment (e.g. powe r
windows). There is the risk of an accident.
- When the vehicle is loc ke d , no one - part icu­
larly not children shou ld remain in the vehi-
-
D riving
cle. Locked doors make it more d ifficult for
emergency wo rkers to get into the vehicle -
putting lives at r isk.
Starting from rest
The starting assist function ensures that the
parking brake is released automatically upon starting.
Stopping and applying parking brake
~ Pull the sw itch to app ly the parkin g brake.
Starting and automatically releasing the
parking brake
~ W he n you start to drive as usu a l, t he p ark ing
b rake is automa tic ally released and yo ur vehicle
beg ins to move.
When stop ping at a tr affic sig nal or sto pping in
c ity traff ic on vehicles wi th an aut omat ic t ra ns­
mission, t he parking brake can be app lied . The
vehicle does not have to be held with the foot­
bra ke. The pa rking brake e liminates the tendency
to c reep w ith a dr ive range engaged. As soon as
you drive off as usual, the parking brake is re­ leased a utomat ica lly and the vehicle starts to
move .
Starting on slopes
When starting on incl ines, the sta rting assist pre­
vents the vehicle from un intent iona lly rolling
back. The b raking force of the parking brake is
not re leased unt il su ff icient dr iving force has
been buil t up at t he wheels .
(D Tips
For safety reasons, the park ing brake is re­
l eased automatically on ly when t he d river's
safety be lt is engaged in t he buc kle.
Starting off with a trailer
To prevent rolling back unintentionally on an in­
cline, do the following:
~ Keep the switch pulled and depress the acceler­
ator . The parking brake stays applied and pre-
vents the veh icle from roll ing backward . .,,.
87

Driving
"'You can re lease the switch once you are sure
that you are developing enough driving force at
the wheels by depressing the accelerator.
Depending on the weight of the r ig (vehi cle and
trai ler) and t he severity of the incline, you may
ro ll backwards as you start . You ca n prevent roll­
ing bac kwards by holding the parking brake
sw itch pulled out and accelerating -just as you
wou ld when sta rting on a hill with a conventional
hand b rake.
Emergency braking
In the even t that the conventional brake system
fails or locks .
"'In an emergency, pull the switch and cont inue
to pull it to slow your ve hicle down with the
park ing b rake .
"' As soon as you release the switch or accelerate,
the b raking process stops .
If you pull the sw itch and hold it above a speed of
about 5 mph (8 km/h), the eme rge ncy brak ing
f u nction is ini tiated . The vehicle is braked at all
four whee ls by activating th e hydrau lic brake sys­
t em. T he b rake perfo rman ce is sim ila r to making
a n emergency stop ~.&, .
In order not to activate the emergency brak ing by
mista ke, an audib le wa rn ing tone (buzz er)
sounds w hen the sw itch is p ulled . As soon as the
sw itch is rele ased, or the a cce le ra to r pedal is de­
p ressed, eme rgency bra king stops.
_& WARNING
Emergency braking should only be use d in an
emergency, w hen the normal foot brake has
failed or the bra ke peda l is obstr ucted . Using
the parking b rake to perfo rm emergency
brak ing will slow your vehicle down as if you
had made a fu ll bra ke ap plication . The laws of
physics c annot be suspended even wi th E SC
a nd i ts asso ciated componen ts (AB S, AS R,
ED S). I n corne rs and when r oad or we ather
c ondi tions are bad , a f ull bra ke ap plicat ion
can ca use the vehicle to sk id or the rea r end to
break away -ris king an accident .
88 '
Driver messages in the instrument cluster
Caution: Vehicle parked too steep
This message appears when the pa rking brake is
applied on an in cl in e that exceeds about 30%.
In this case the braking power of the pa rking
brake may
not be adequate to prevent the veh i­
cle from roll ing unin ten tionally.
Press b rake pedal to release parking brake
This dr iver message appears when the sw itch to
r elease the parking brake was pressed. The pa rk­
i ng brake can only be released if you step on the
brake pedal and at the same time p ress the
switch or you automat ica lly re lease the par king
bra ke w ith the sta rting ass is t ~
page 87 .
f pj Parking brake malfunction!
This dr iver message appears together with the
yellow
DI symbol when there is a parki ng b rake
malfunction .
Start/Stop system
Description
Applies to: vehicles wit h Start ·Stop ·System
The Sta rt -Stop-System can he lp increase f uel
economy and reduce CO2 emissions.
I n the Start -Stop -mode, the eng ine sh uts off au ­
tomat ica lly when the vehicle is sto pped, such as
at a t raff ic light. The ignition remains switched
on du ring this stop phase . The eng ine will be au­
tomat ically restarted when needed.
The last Start-Stop -System setting (on/off using
the b utton
l(A)~ I) will be restored when the igni­
tion is turned on. The L ED in t he
l(A) ~I b utton turns
o n when the Start-Stop-System is switched off
manua lly .
Ba sic requirements for the Start-Stop mode
- The driver 's door is closed.
- The drive r's sea t b elt is latched.
- The hood is closed .
- The vehicle m ust have bee n driven fas ter than
2.5 mph (4 km/h) s ince the last s top.
- A t railer is not hitched to the vehicle . .,.
