AUDI Q7 2009 Owner´s Manual

_____________________________________________ A_ d_a ...: pc.. t _i_ v _e_ C_ ru_ is_ e_ C_ o_n_ t_ r_ o _ l __ lfflll
For example, if the interval DI STA NCE 3 is set, a vehicle in front is
followed at a
time interval of 1.8 seconds.
For a speed of
50 mph (80 km /h ) this wou ld be equivalent to a
distance of
1 3 1 fe et (40 meter s) to the vehicle in front.
Symbol Dynamics
D is ta nce at 25 mph (40 km /h )
Di stance at 50 mph (80 km /h )
D is ta nce at 75 mph (120 km /hi DISTANCE 1
c:::,_c:::, ___
1 second
Sporting
36 Feet (11 Meters)
72 Feet (22 Meters)
108 Feet
133 Meters)
How your vehicle r esponds when accelerating and fol lowing other
vehicles with ACC operating can be adapted to your personal wishes through different driving programs. Depending on which driving
program and which d istance you choose, your vehicle will respond
Setting s DISTANCE 1
Symbol for time interval
c:::,_c:::, ___
The distances given here are nominal va lues . The vehicle speed may
exceed or fall short of these target speeds, depending on the
driving situation and the driving style of the vehicle ahead .
DISTANCE 2 DISTANCE3 DISTANCE 4
~ __ c:::, __ c:::, ___ c:::,_ c:::, ____ c:::,
1
.3 seconds 1.8 seconds 2.3 seconds
Standard Standard Comfortable
46 Feet ( 14 Meters) 66 Feet (20 Meters) 82 Feet (25 Meters)
95 Feet (29 Meters) 131 Feet (40 Meters) 167 Feet (51 Meters)
144 Feet (44 Mete rs) 197 Feet (60 Meters) 249 Feet (76 Meters)
more dynamically or more comfortably when accelerating and
braking . The setting is selected through the MMI menu
Ad aptiv e
Crui se Co ntr ol=>
page 165 , "MMI settings" .
DISTANCE 2 DISTANCE 3 DIS TA NC E 4
~--~-- ~---~-~----~
Supp ort for: Bumper-to -bumper Bumper-to-bumper Bumper-to -bumper Secondary roads,
traffic, brisk driving
R espon se in "dynam ic " driving program 1
Respon se in "stand ard " driving progr am 2
Respon se in "comf ort " driving program 3
(dynamic) 1 ----- 2 ----- 3 - ---- 4 --- -- 5 (comfortable)
Controls and equip ­
ment
tra ffic, "keeping pace"
comfortably
2
3
4 traffic, "keeping pace" trailer operation
comfortably
2
3
3 4
4 5
I • •

• ..__A_ d_ a-:.. p_t _iv _ e_ C_r_ u_ i _s _ e_ C_ o_n_ t_ r_ o_ l _____________________________________________ _
& WARNING
Following other vehicles too closely increases the risk of a crash
and serious personal injury .
• Following other vehi cles too closely , particularly at h igher
speeds increases the risk of colli sions and serious personal injury.
• Setting short distances to the traffic ahead reduces the time
and distance available to bring your vehicle to a safe stop and
makes it even more necessary to pay close attention to traffic .
• Always select a speed and distance to traffic ahead that is safe
and appropriate under the prevailing traffic , road , weather and
lighting conditions .
• Never rely on the distan ce control feature of ACC alone to
prevent rear-end collisions. Always be prepared to brake and take
evasive action to avoid collisions and other acc ident situations .
• Never allow the closing speed between you and other vehicles
to be so h igh that the Adaptive Cruise Control may not be able to
slow your vehicle safely. If closing speed is too high , you must
apply the brakes yourself to reduce the risk of a rear-end crash .
• Always select a greater following distance to the vehicle ahead
on wet roads than on dry roads .
• Always re ad and heed the informat ion and WARNINGS ::::>
& in
"Description" on
page 152.
[ i J Tips
The distance setting i s re set to the factory default DISTANCE 3 the
next time the i gnition is turned on. •
Driver information
Applies to veh icles : w ith Adapt ive Cru ise Cont rol
Displays in the instrument cluster
Depen din g o n the driving si tuati on, driver inf ormation is
dis played in the ins trumen t clus ter.
@ Spe ed om eter and indicator lig ht displ ay
@ Display in the instru ment clu ster
Fig . 16 7 Overview
in strument clu ste r
© Speedometer and ind icator light display
Im por tan t in fo rm ati on co ncerni ng veh icle ope ration w ith Ada ptiv e
Cruise Control is shown in display area@. T he desired speed you
s et is in dica te d in the spee dome ter (LED l igh ts aro un d t he edg e).
T he indicator lights show whether the system has detected a v ehic le
trave ling ahead .
© Display in the instrument cluster
In di sp lay area @ informati on fr om the navigati on syste m* a nd t he
trip computer is disp layed in addition to information about Adaptive
Cru ise Control.
You can s ele ct amo ng th e di ffer ent i nformati on by repeat ed br ief
taps on the [R ESET] button on the windshield wiper lever
=> p ag e 41 , "O peration". ~

_____________________________________________ A_ d_a ...: p_ t_ i_ v _e_ C_ ru_ is_ e_ C_ o_n _ t_ r_o _ l _ __._
Certain pieces of information in the bottom part of the display are
not shown permanent ly . Informa tion is displayed on ly if you set or
change the speed set ting, change the time interval , when messages
are displayed or if the Adaptive C ruise Co ntrol is turned off for safety
reasons. •
Applies to vehicles: with Ada ptive C rui se Cont rol
Display in the speedometer
Desired speed
Fig. 16 8 Displa y in th e
s p ee do mete r
The desired speed set by the driver is displayed by a red LED .
If the desired speed was set between two lines on the speedomete r
using the
[SET I button, the two closest light emitting diodes will
come on
=> fig . 168.
T he system allows on ly speeds to be set between 20 to 95 mph (30
to 150 km/h) to be set . This speed range is faintly illuminated in the
speedometer (LED l ights).
Indi cator light s (sy mbols )
• ""c:::::> Open road : The indicator light ""c:::::> shows that ACC is active
and that no moving vehic le has been detected with in range of the
radar sensor up ahead in your lane of trave l. The set speed is main ­
tained.
Con tro ls and eq uip­
ment
• c:::::>1n ,c:::::> Dri ving in traffi c: The indicator light c:::::>11, ,c::::, shows that a
ve hicle moving in your lane of travel has been detec ted up front in
your lane of travel. Your speed is adjusted according to the speed of
t he vehicle up front . ACC accelerates and brakes automa tically
within the system's capabilities.
• c:::::>11 "c:::::> Driver intervention prompt : The red flash ing warning
light
~11 .. .::::::, means Reque st for driver to a ssume control . You as the
driver mus t slow the vehic le with the foot b rake . The symbol
.::::::,11 .. c:::::>
tells you that the Adaptive Cruise Con trol is not able to s low the
vehic le down enough to keep a enough distance to the vehic le in
front of you. A warn ing tone wi ll also sound when the symbo l
appears . For more information about the driver intervention prompt
=> page 764.
& WARNING
Improper u se of the Adap tive Cr uise Contr ol features and inat ten ­
tion can lead to a crash and serious person al injury .
• Never allow t he clo sing speed between you and other vehi cle s
to be so high that the Adapt ive Cruise Control may not be able to
s lo w your vehi cle safely .
If clos ing speed is too h igh , you must
apply the brakes your self to reduce the risk of a rear-end crash .
• Alway s s ele ct a greater follo wing di stance to the veh icle up
ahead on wet ro ads than on dry road s.
• Always re ad and heed the information and WARNINGS=>
& in
" Description " on
pag e 152.
[ i ] Tips
• I f you use the accelerator to go faster than the speed of the
vehicle ahead of you, the driver intervention p rompt wil l not be
accompanied by a wa rning tone .
• I f the speed you previously set is exceeded, the indicator light in
the speedometer wi ll swi tch off .•
Vehicle care I I Technical data

• ..__A_ d_a...: p:,..._ ti_v _ e_ C_ ru_ is_ e_ C_ o_n_ t_ r_ o _ l ___________________________________________ _
Applies to veh ic les: with Adapt ive Cruise Contro l

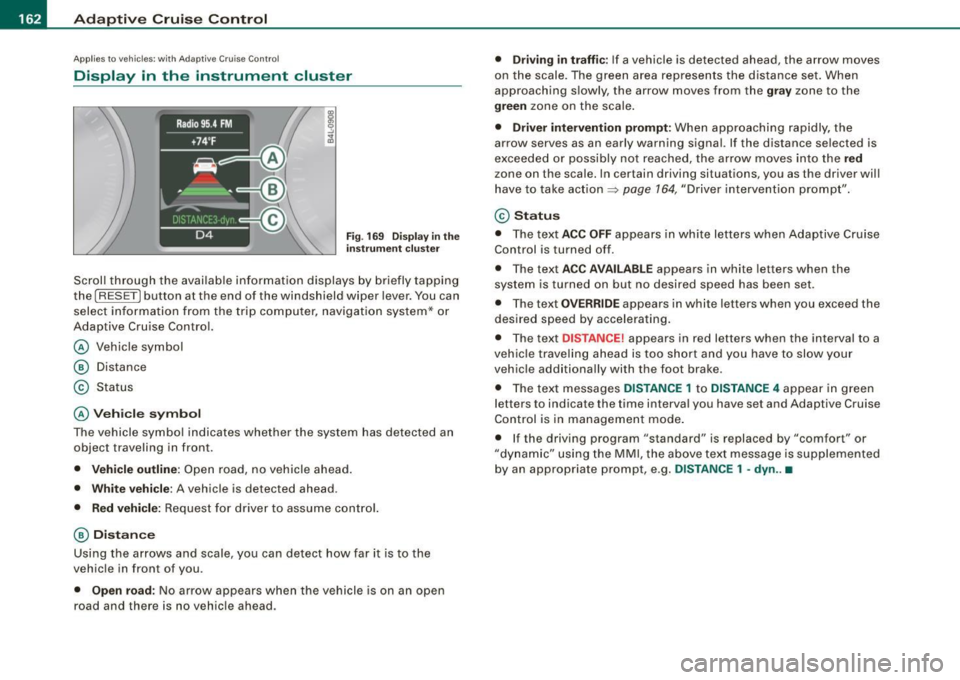

Display in the instrument cluster
Fig . 169 Displ ay in the
in strumen t cluster
Scroll through the avai lab le information displays by briefly tapping
the
I RESET] button at the end of the windshield wiper lever. You can
select information from the trip compu ter, navigation system* or
Adaptive Cruise Contro l.
@ Vehicle symbol
@ Dis tance
© Status
@ Veh icle sy mbol
The vehicle symbol indicates whether the system has detected an
object traveling in front.
• Vehicle outl in e: Open road, no vehicle ahead .
• Whit e vehi cle : A vehicle is detec ted ahead .
• Red vehicle: Request for driver to assume contro l.
@ Distance
Using the arrows and scale, you can detect how far it is to the
vehic le in front of you .
• Open road: No arrow appears when the vehicle is on an open
road and there is no vehicle ahead .
• Driving in traff ic: If a vehicle is detected ahead, the arrow moves
on the scale . The green area represents the d istance set . When
approaching s lowly, the arrow moves from the
gray zone to the
green zone on the scale .
• Driver intervention prompt : When approaching rapidly, the
arrow serves as an early warning signal. If the distance selected is
exceeded or possibly no t reached, the arrow
moves into the red
z one on the scale. In certain driving situations, you as the driver will
have to take action ::::,
page 764, "Driver interventio n prompt" .
© Status
• The tex t ACC OFF appears in white letters when Adaptive Cruise
Control is turned off.
• The text
ACC AVAILABL E appears in white letters when the
system is turned on but no desired speed has been set .
• The text
OVE RRIDE appears in white letters when you exceed the
desired speed by accelerating .
• The text
DISTANCE! appears in red letters when the interval to a
vehic le trave ling ahead is too short and you have to slow y our
vehic le additionally with the foot brake .
• The text messages
DISTANCE 1 to DISTANCE 4 appear in green
letters to indicate the time interval you have set and Adaptive Cruise
Control is in management mode .
• I f the driving program "standard" is replaced by "comfor t" or
"dynamic" using the MMI, the
above text message is supplemented
by an appropriate prompt, e .g.
DISTANCE 1 -dyn .. •

Adaptiv e Crui se Contro l ""' __________________________ ___;__;~-------
Applies to vehic les: w it h Ad aptive Crui se Co nt rol
System status indicator
The text messages and symbols shown in this area of the
display are not displayed permanently.
T ime in ter va ls (s uch a s c::;, __ __ c::;, }
Fig . 170 System
sta tus in dicator
The different symbols for the time intervals (distance) appear if you
change the settings:::;, fig. 170 .
Three white dots .. . appear if a setting canno t be made with the
operating lever . The following are possible reasons
• If you pull the control lever towards you to resume speed but no
requested speed was set.
• I f you push the lever up to increase (or down to reduce) speed
when no speed has been set previously.
• If you push the lever up to increase (or dow n to reduce) speed
and this speed is outside the 20 to 95 mph (30 to 150 km/h) speed
range .
A CC no t ava ila bl e
The text message ACC not av aila ble appears, for examp le, if the
temperature of the brakes is excessive. Adaptive Cruise Control is
t emporarily not available . A warning tone sounds as a reminder.
Controls and equip ­
ment A
CC not ava ilable!
The text message ACC not availabl e! appears in the event of a
malfunction. Adaptive Cruise Control is turned off. A warning tone
sounds as a reminder . Have the system inspected by a qua lified
dea lership.
ACC s ensor bl ocked
!
The text message ACC se nsor blo cke d ! appears when the ACC
System can no longer accurately detect vehicles moving up ahead
in your lane of
travel. Adaptive Cruise Control is turned off. A
warning tone a lso sounds as a reminder.
To decide whether it is necessary to switch off the ACC (ACC sensor b locked
!) or if it is only a temporary condition (ACC Functionally
limited), the system wi ll also takes into consideration the ou tside
temperature and/or the windshield wiper operation.
The ACC sensor is dirty or b locked (e .g . leaves, snow).
The ACC sensor is located behind the area to the right of the front license p late. If the ACC sensor is dirty or b locked, c lean the area to
restore system operat ion.
ESP activ at ion
The text message ES P activ ation appears i f the E lectronic Stabiliza­
tion Program (ESP} has intervened. In this case the Adaptive Cruise
Control is automatically turned off . This is accompanied by a
warning tone.
S peed
The set speed in mph (Canada km/h) always appears when saving or
changing the speed in Adaptive Cru ise Control :::;, page 156, "How is
the speed stored?" and:::;, page 156, "Changing stored speed".
A CC function alit y limited
The message ACC functionalit y lim ited appears when the ACC
System does not detect any moving vehicles up ahead in your lane
of trave l for a longer period of time. During this time, the distance
t o moving vehicles in your lane of trave l up ahead is not be ing main -~
I • •

• ..__A_ d_a...: p:,..._ ti_v _ e_ C_ ru_ is_ e_ C_ o_n_ t_ r_ o _ l ___________________________________________ _
tained. The ACC system is not switched off, and increased attention
to the traffic situation is absolutely necessary. The following may be
reasons why the message
ACC functionality limited appears:
• The ACC sensor is dirty . The ACC system is not reacting, or is not
reacting correctly, to moving vehicles up ahead in your lane of
travel.
• There may be very light traffic on and there is nothing that marks
the side of the road (for example, guard rails, traffic signs, trees). As
soon as a moving vehicle up ahead is detected again, ACC becomes
active again and the message disappears .
The ACC sensor is located behind the area to the right of the front
license pla te . If the ACC sensor is dirty or blocked, clean the area to
restore system operation.
Parking brake !
The text message Parking brake ! appears, when the parking brake
is applied. ACC is turned off. A warning tone sounds as a reminder.
Stationary object ahead
The text messag e Stationary object ahead appears, when you want
to activate the system and there is a stationary vehicle or an object
immediately in front of you.
Gradient too steep
The text message Gradient too steep appears when the maximum
gradient for proper ACC operation has been exceeded. Adaptive
Cruise Control is turned off. A warning tone also sounds as a
reminder.
ACC off: manual control!
The text message ACC off: manual control! appears after the vehicle
has been brought to a standstill by the Adaptive Cruise Control. In
this case you must depress the brake pedal to prevent the vehicle
from rolling. A warning tone sounds as a reminder .
Selector lever position!
The text message Selector lever position! appears when the
selector lever is moved to position
N. In this position, Adaptive
Cruise Control is not available. •
Applies to vehi cles : wi th Ad aptive Cr uise Co ntro l
Driver intervention prompt
The driver intervention prompt calls on the driver to take
over the situation.
Fig. 171 Instrument
cluster: Driver inter­
vention prompt
In certain situations , the braking power of the Adaptive Cruise
Control is not enough to maintain an adequate distance to the
vehicle up ahead. In these situations, the Adaptive Cruise Control
calls the driver to take action .
The
driver intervention prompt alerts you visually and audibly to
take over .
• A red vehicle is shown in the instrument cluster display
::::::,fig.171.
• The text DISTANCE! appears in the status line .
• The indicator light
.:=:,1,, ,.:=:> in the speedometer blinks red.
• A warning tone sounds.

_____________________________________________ A_ d_a ...: pc.. t _i_ v _e_ C_ ru_ is_ e_ C_ o_n_ t_ r_ o _ l __ lllll
[ i ] Tip s
• Adaptive Cruise Contro l is switched off after pressing the foot­
brake . The speed saved up this point can be resumed.
• To resume the saved speed, release the brake pedal and press
the control lever=>
page 157, "Turning Adaptive Cruise Control off
temporarily".
• If you use the accelerator to go faster than the speed of the
vehicle ahead of you , the
dr iver i nterve ntion pr ompt will not be
accompanied by a warning signal.
• If the speed you previously set is exceeded , the indica tor light in
the speedometer wi ll switch off. •
Applies to v ehi cles: with Ad aptive Crui se Co nt rol
MMI settings
Individual settings for Adaptive Cruise Control can be
selected in the MM/ .
Fig. 172 M MI Display:
A dapti ve C ruise
Co ntrol
Settings for the driving program can be adjusted indiv idu ­
ally to the particular user and saved in the MMI. This can
only be done with the eng ine running.
- Press the
I CAR] funct ion button.
Controls and equip ­
ment
Select Sy stem s* in the CAR menu.
- Select
Adaptive Crui se Control . The Adaptive C ruise
Control
menu appears.
Select
driving program .
Select the desired driv ing program .
Sett in g t he d riving p rogram
In the driving progr am menu you can adjust the characteristics of
Adaptive Cruise Contro l to your own preferences using
d yn ami c,
s ta nd ard
or comfort .
Sav ing sett ing s
Your individua l settings are automatical ly saved and assigned to the
remote control key being used (remote key storage). If the key is
given to another person, the saved settings remain as they are. •
System limitations
Applies to veh ic les : w ith Ada ptiv e Crui se Cont ro l
General information
The radar sensor has limits that the driver must know to
be able to use ACC properly.
The Adaptive Cruise Control works within limits that ar e also related
to radar sensor range and sight distance . In some situations ACC
may react unusually or late from the driver's point of view . There ­
fore, always be attentive to what is happening around you and always be ready to intervene, if necessary :
• when driving around curves=>
page 166
• when vehicles up front are not in line with your vehicle
=>
page 166
• when other vehic le s are changing lanes=> page 167
I • •

• ..__A_ d_a...: p:,..._ ti_v _ e_ C_ ru_ is_ e_ C_ o_n_ t_ r_ o _ l ___________________________________________ _
• when other vehicles are difficu lt to dete ct~ page 167
• when vehicles up ahead are not moving or obs tacles are in your
trave l lane ~ page
167
& WARNING
The radar sensor's fun ction and range can be redu ced by rain ,
s now and hea vy spray. Mo ving vehicle s up ahead may not be
promptl y dete cted or m ay not be detected at all.
• Alway s pay careful attention to the traffic situ atio n and be
ready to inter vene and be ready to take compl ete control wh en­
ever ne ce ssa ry . •
App lies to vehicles : wi th Ada ptive Cruise Contro l
When driving around curves
Fig . 17 3 Ve hicle
e nt erin g a curv e
Entering a cur ve
Fig . 174 Vehicle
l eav ing a curve
When entering a curve, the Adaptive Cruise Control may react to a
vehicle in the next lane and apply the brakes in your vehicle
~ fig. 173. The braking action can be overridden by depressing the
accelerator pedal.
Leaving a curve
At the end of very long curves, ACC's predictive lane reading can
cause ACC to react to another vehicle in the next lane and apply the
brakes on your vehicle~ fig. 174. The braking action can be over­
ridden by depressing the accelerator pedal. •
Applie s to vehic les : w ith Ad aptiv e Crui se Cont rol
Vehicles offset to one side
~
l==================1 i
Fig. 175 V ehicle trav ­
e lin g ahe ad o uts ide th e
de tec tion rang e of th e
r ad ar sen sor ..

_____________________________________________ A_ d_a ...: p_ t_ i_ v _e_ C_ ru_ is_ e_ C_ o_n _ t_ r_o _ l _ __._

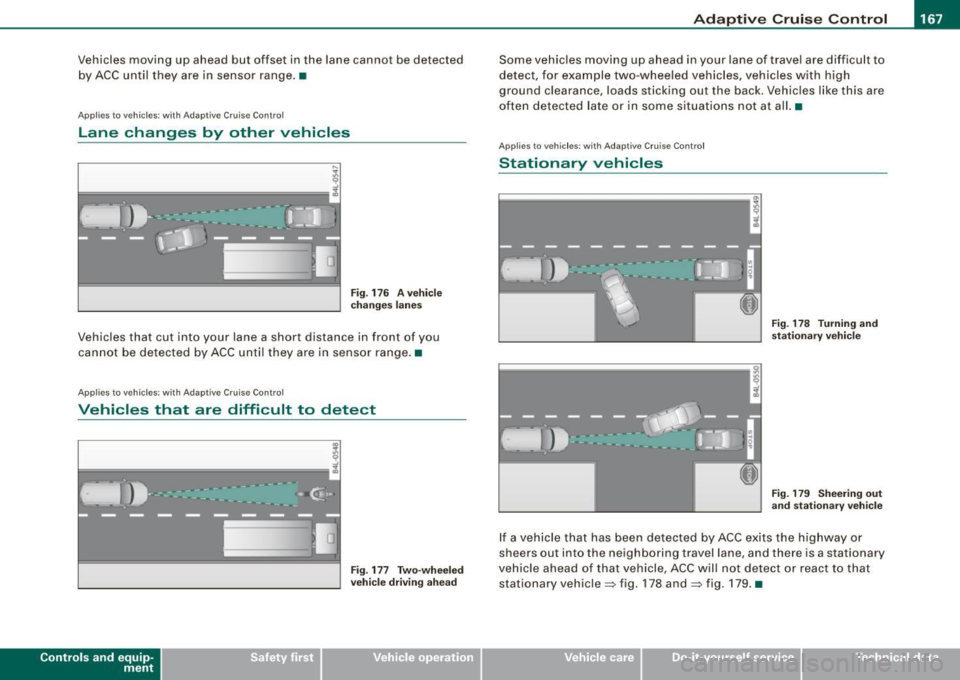

Vehicles moving up ahead but offset in the lane cannot be detected
by ACC until they are in sensor range. •
Applies to vehicles: with Adaptive Cruise Control
Lane changes by other vehicles
0
F ig . 176 A ve hic le
c h anges la n es
Vehicles that cut into your lane a short distance in front of you
cannot be detected by ACC until they are in sensor range.•
Applies to vehicles: with Adaptive Cruise Control
Vehicles that are difficult to detect
~==========--;; !
Contro ls and eq uip­
ment
Fig . 177 T wo-wheel ed
ve hicle drivi ng a he ad
Some vehic les moving up ahead in your lane of travel are difficult to
detect, for example two -wheeled vehicles, vehicles with high
ground clearance, loads sticking out the back. Vehicles like this are
often detected late or in some si tuations not at all. •
Applies to veh ic les: with Adaptive Cruise Contro l
Stationary vehicles
i-----------------.. ~
;
Fig. 178 Turnin g and
sta tio na ry ve hic le
F ig. 179 S hee ring out
a nd stat ionary v ehicle
If a vehicle that has been detected by ACC exits the highway or
sheers out into the neighboring travel lane, and there is a stationary
vehic le ahead of that vehicle, ACC will not detect or react to that
stationary vehicle~ fig. 178 and~ fig. 179. •
Vehicle care I I irechnical data

• .___A_ d_a_ p:- t_i v_ e_ C_ r_u _is _ e_C_ o_ n_ t_ r_ o_ l --------------------------------------------
Audi braking guard
App lies to vehicles: with Adaptive Cruise Contro l
Description
Audi braking guard warns you of a possible collision with
a moving vehicle up ahead.
F ig. 180 Disp lay in t he
i nstrumen t cluster
The Audi braking guard is active from a speed of approx. 20 mph
(30 km/h) and works within the system limits=>
page 165 even when
the Adaptive Cruise Control is deactivated.
A radar sensor is built into the front of the vehicle=>
page 154,
fig. 160. The system is intended to measure the distance to reflec ­
tive surfaces. If a measurement is not possible, the system does not respond.
When the measurement has been taken, the system can recognize a possib ly hazardous s ituation, for example, when a vehicle up
ahead in your lane of travel sudden ly brakes or when your own
vehic le is mov ing at high speed towards a much s lower vehic le up
ahead. As soon as the system senses that a possible collision with
t he vehicle up ahead can only be avoided by immediate full brake
application or by an avoidance maneuver, a warning appears.
The system has a default response time to be able to signal before a co llision occurs. This system response time is automatica lly
reduced if you acce lerate actively, for example to join a highway. Braking, transverse acceleration and the steering angle can lead to
a reduced system response time. The warning is deact
ivated if you
begin to overtake with full acceleration.
The system can make you aware of two different hazardous situa ­
t ions:
Distan ce
The distance warning is g iven if the system calculates that there is
not enough distance to the vehic le up ahead a period of more than
5 seconds . If the distance is less than 30 feet (9 meters) at 50 mph
(80 km/h), for example, an optical display comes on in the instru ­
ment cluster=> fig. 180.
If the vehicle ahead brakes sharply, Audi braking guard cannot help
you to avoid a co llision, even in the case of an immed iate response .
T ake immediate action to avoid the collision and increase the
distance to the vehicle up ahead .
Speed
If there is a much slower vehicle moving up ahead in your lane, or if
the vehic le ahead brakes sharply, the Aud i braking guard calculates
t he point from which a co llision can only be avoided by full braking
or by an avoidance maneuver. If a warning does sound, a possible
collision with the vehicle in front can only be avoided through an
evasive maneuver or by braking.
The warning is given in two stages :
• Pre-warning: A visual disp lay appears in the instrument cl uster
and a warning tone sounds.
• Acut e warning : If you do not respond to the pre -warning, the
second stage warning is given . A quick brake application helps to
direct your attention to the road and traffic situation .
Under heavy braking, the brake assistant::::>
page 154also he lps you
benefit from maximum braking efficiency. _..
