ESP AUDI Q7 2010 Owner´s Manual

Opening and closing
Opening and closing
Keys
Key set
C !
Fig. 23 Key set
© Ma ster key with remote control
You can centrally lock and u nlock your vehicle and start the eng ine
with the master key with remote cont ro l.
@ Valet key
The v alet key only fi ts the loc k in t he d river's doo r and the ignition
lock. If you have to leave the key with somebody else, you are well­
advised to tur n over the vale t key only .
Be aware tha t the rear lid a nd g love compa rtment ca n be opened
from inside the vehicle using the release b uttons . It is therefore best
t o activ ate t he va let key fu nction to preven t unauth oriz e d ac cess to
the glove compartment and the luggage compartment when
someone else has charge of your vehicle=>
page 4 3.
© Emergency key
Th e emergency key is only for tempo rary use if the vehicle key should
be lost or misp laced =>
&.
Key replacement
If you lose a key, contact your authorized Aud i dealer immediately to
h ave the
lost key disab le d . B e sure to bri ng all you r keys wi th yo u.
Registered keys
You can check to find out how many keys have been reg iste red to your
vehicle. Therefore, when b uying a used veh icle, make sure to get all
of the remote keys be long to it.
Calling up the registered keys=>
page 13.
Data in the master key
Wh ile you are driv ing, service and maintenance relevant data are
be in g con tinuously s tored on yo ur mast er key. Your Aud i serv ice
adviser can read out these data and tell you about work that is needed
on yo ur vehi cle. T hi s also app lies to vehi cles w it h Conve nience key* .
& WARNING
• Do not leave your vehicle unattended with the key in the igni ­
tion lock. Entry by unauthor ized persons could endanger you or
result in theft or damage the vehicle. Alway s lock all doors and
take the key.
• Do not leave children unattended in the vehicle, especially with
access to vehicle keys. Unguarded access to the keys prov ides chil­
dren the opportunity to start the engine and /or a ctivate vehicle
systems such as the power windows etc. Unsupervised operation
of any vehicle system by children can result in serious injury .
[ i ] Tips
• If you open t he dr iver's doo r wi th t he key left in the igni tion lock ,
a ch ime will sound. Thi s is your reminder to remove the key and lock
the doo r. _.,,

without a key using the lock ing button. Eac h door has a prox imity
senso r and a lock ing b utton.
Automatic locking
Th e a utomat ic lo ck ing feature locks a ll the veh icle doors and the rear
lid when you drive faster than 9 mph (15 km/h). This function can be
tu rne d on and off in the MMI
Central locking Men u~ page 47.
You can unlock the vehicle from the ins ide by:
• removing the key from the ign ition switch (the vehicle w ill auto ­
matically un lock itself) o r
• press ing the unlock part of the powe r lock switch
63 or
• pulling the door handle (tw ice to open the rear doors).
& WARNING
• When you lock y our veh icle from outs ide, nobody -especiall y
c hildren· should remain in side th e vehicle . Remember , when you
lock the vehicle from the outside the window s cannot be opened
from the inside .
• When you leave the vehicle, alwa ys remove the ignit ion key
and take it with y ou. This will prevent pa ssenger s (children, for
e x ample ) from accidentally be ing locked in the veh icle should
they ac cidentally pre ss the power lo cking swit ch in the front
door s.
• Do not leave children inside the vehicle unsup ervi sed . In an
emergency it would be impossible to op en the doors from the
out side without the ke y.
[ i ] Tips
• In the event of a cras h w ith airbag deployment all loc ked doors
will be a utomatically unlocked to give access to the veh icle occupants
from t he outside.
• If the power locking system should malfunction, you can lock each
door ind ividually using the ve hicle key ~
page 48.
Con tro ls a nd e quip ­
m en t Vehicle
OP-eration
Opening and closing
• If the power lock ing system should fail, you can still open the fuel
tank flap in a n emergency ~
page 292.
• You are well advised not to keep valuables inside an unattended
vehicle , visib le or no t. Even a properly locked veh icle c annot p rovide
the security of a safe .•
Unlocking and locking the vehicle with the
remote control
How the remote control works .
Fig. 28 Rem ote
con trol: functi on
button s
Eit he r the driver's door only or the entir e vehicle wi ll unlock
when the unlock button© is pressed once, de pend ing on the
settings in the MMI
Central locking menu ~ page 47.
To unlock the vehicle CD
- Press button @.
- P ress button @
two times with in two seconds to unlock
all doors and the rear lid .
To lock the vehicle ffi
-Press button @~ & in "General d escrip tion" on
page 44 .
Vehicle care Do-it-yourselt service iTechnical data

After you close the door, you will no longer be able to open it from the
ou tside .
The door can be opened from the inside by pulling once respective ly
twice (rear doors) on the door handle. If the chi ld safety lock is
engaged in one of the rea r doors, the doo r has to be opened from the
outs ide after pulling on the handle once from the inside. •
Rear Lid
Opening and closing rear lid
Yo u can open the rear lid from inside the vehicle using a
switch in the driver's door.
Con tro ls a nd e quip ­
m en t
Fig . 33 Drive r's doo r:
r em ote re ar lid r elea se
F ig . 3 4 P osition of
h an dle in t he re ar lid
Vehicle OP-eration
Opening and closing
Opening the rear lid
- Press the middle button cC:5 on the remote contro l master
key,or
- Press the unlock button
cC:5 in the driver's door:::;, fig . 33 ,
or
- Press the handle on the rear lid :::;, fig. 34 .
- The rea r lid unlocks automatically and opens slightly .
- Lift the rear lid.
Closing the rear lid
-Pull the rear lid down and allow itto drop gently . The lid is
then closed automatically~ &.
& WARNING
• Afte r cl osing the re ar lid , alw ay s pull up on it to make sure that
it i s properly closed . Otherwise it c ould open suddenl y when the
veh icle is moving .
• To help preven t poisonous exhaust gas from being d raw n into
the vehicle , alwa ys keep the rear lid clo sed whil e driv in g. N ever
tran sport object s larger than tho se w hich fit c ompl etel y into th e
luggage area , bec au se then the rea r lid can not be fully closed .
• Never leav e your vehi cle unatt end ed es pecially with th e re ar lid
left open. A child could c rawl into th e ca r th rough the lugg age
c om partment and pull the lid shut , bec omin g trapped and un able
to get out. To reduc e the risk o f pers onal inju ry, never let children
p la y in or around your v ehicle . Alway s ke ep the rear lid as w ell as
the veh icle doors clo sed whe n no t in u se.
• Alway s en sure that no one i s with in ran ge of th e rea r lid when
it i s m ov in g , in p articular clo se to the hinge s -fingers or hand s can
be pinch ed . .,
Vehicle care Do-it-yourselt service iTechnical data

Open ing and closing
Rear lid emergency unlocking
If the rear lid cannot be opened, an emergency release is
provided.
-------------------! ~ ~ -;[,
D
~ ................... -.. -.. -
- Tilt the seatback forward.
- Move into the trunk.
Fig. 37 Sect ion of the
luggage compartment:
Access to eme rgency
release
Fig. 38 Section of the
luggage compartment :
Emergency re lease
- Take the screwdriver from the vehicle tool kit. As an alter-
native, you can also use the vehicle key.
- Put the flat side of the screw driver into the recess and pry
the cover up=> fig. 37 -Arrow-.
- Press the lever in the direction of the arrow~ fig. 38 to
unlock the rear lid .•
Child safety lock
Power child safety lock for the rear doors t
The power child safety lock prevents the rear doors from
being opened from the inside .
Fig. 39 Sect ion from
drive r's door: controls
The rear doors are equipped with a power child safety lock . It
is operated with the two safety buttons(!) in the driver's door
~ fig. 39.
- Press the left and/or r ight safety button to d isable the
rear power window(s) and prevent the respective rear door
from being opened from the inside . The LED in the button
will light up when the child safety lock is turned
on.
Press the illuminated button again to turn the child safety
features
off.
When the child safety lock is activated, the interior door open ing
lever is inoperative; the door can only be opened from the outside. In
add ition, the window regulator fo r that door is also inoperative when
the child safety lock is activated.
If the child safety lock has been activated on one or both sides, the
buttons in the rear for the Pa noramic slid ing sunroof* are disabled. .,

If the child safety lock has been activated on the left and on the right
side, t he rear cont rols are locke d on veh icles wi th re ar a ir-c ondi­
tioning* . Dashes" ---" are shown in the displays for the rear climate
controls, and t he rear ai r-conditioning can only be operate d from the
cl imate contro ls in the cabin ::::;, page 116 .
[I) Tips
• In order to activate t he child safety lock on the left and the r ight
side, yo u have to press the two safety b uttons in success ion.
• Make certain that the c heck light comes on in t he correspondi ng
safety switch when the c hild safety loc k is activated. •
Convenience key
App lies to vehicl es: w ith Conven ience key
Description
A ccess and vehicl e opera tion based on: Mas ter key
remains in driver 's pocket.
Th e Conve nience key vehicle a uth o rization syste m allows keyless
unlocking, lock ing and start ing of the vehicle. You only have to car ry
th e master key on your perso n.
It makes no d ifference whether the master key is i n your jacke t pocke t
or in your br ief case . As soon as you approach yo ur vehicle, the Conve ­
nie nce key recog nizes the reques t fo r access, checks for author izat io n
and enab les the fo llow ing functions:
• Unlo cking the vehicle ::::;, page 54.
• Locking the vehicle ::::;, page 54.
• Switching on ignition and start ing the eng ine by press ing the
[ S T ART ] button; the master key does not have to be in t he ign it ion
switch::::;, page 12 7.
Controls and equip ­
ment Safety first
Opening and closing
& WARNING
•
When you lock your vehicle from outside, nobody -especially
children - should remain in side the vehicle . Remember, when you
lock the vehicle from the outside the windows cannot be opened
from the inside .
• When you leave the vehicle, always remove the ignition key
and take it with you. This will prevent pa ssenger s (children, for
example ) from accidentally being locked in the vehicle should
they accidentally press the power locking switch in the front
doors .
• Do not leave children in side the vehicle unsupervised. In an
emergency it would be impossible to open the doors from the
outside w ithout the key .
[ i ] Tips
• In order for the Convenience key to function , you must a lways
carry the master key with yo u.
• In order to be able to unloc k or loc k the vehicle, the a utho rized
master key must be within a range of about S feet (1.5 meters) from
the door o r the rear lid.
• Of course, you can still unlock and lock your veh icle using the
buttons on the master key . T he se lecto r lever must be in the P posi ­
tion .
• F or Declar ation o f Compliance to Uni ted St ates FCC a nd I ndu stry
Canada regulations::::;, page 369 . •
Vehicle care Technical data

Opening and closing
Applie s to veh icl es : wi th Conv enie nce key
Unlocking the vehicle
The doors and the rear lid can be unlocked without oper­
ating the master key.
Fig. 40 Convenience
key: unlocking vehicle
door
- Take hold of the door handle . The door is unlocked auto-
matically.
- Pull the handle to open the door.
A door is unlocked as soon as you approach the door handle and the
system recognizes an authorized master key . The vehicle can be
unlocked at any door. The authorized master key only has to be within
a range of about 5 feet (1.5 meters) from the respective door.
When a door is unlocked, the driver's door is always unlocked as well.
It depends on the settings in the central locking menu in the MMI
whether the entire vehicle is unlocked or only certain doors
~ page 47.
[I] Tips
If your vehicle has been standing for an extended period, please note
the following : •
The proximity sensors are deactivated after a few days to save
power . You then have to pull on the door handle once to unlock the
vehicle and a second t ime to open the vehicle.
• To prevent the battery from being discharged and to preserve your
vehicle 's ability to start for as long as possible, the energy manage­
ment system gradually switches off unnecessary convenience func­
tions . It is possible that you will not be able to unlock your veh icle
using these convenience functions. •
Appli es to vehicles : wit h Con venie nce key
Locking the vehicle
The vehicle can be locked without operating the master
key.
Fig . 41 Convenience
k ey: Locking the
vehicle
- Move the selector lever to the P position .
- Press the locking button in the door handle to lock the
vehicle =>& .
The vehicle can be locked at any door . The authorized master key only
has to be within a range of about 5 feet (1.5 meters) from the parti c­
ular door.
T he selector lever must be in the P position, otherwise the vehicle
cannot be locked.

& WARNING
• Wh en you lock your vehicle from outs ide , nobody - especially
c hildren - should remain in side the vehicle . Remember , when you
lo ck the vehicle from the outside the windows cannot b e opened
from the inside .
• When you lea ve the vehicle, always remove the ignit ion key
and take it with you. This will prevent pa ssenger s (c hildren, for
e xample ) from a ccidentally be ing locked in the vehicle should
they accidentally pres s the power locking switch in the front
doors .
• Do not leave children inside the vehicle unsuperv ised . In an
e mergency it would be impossible to open the door s from the
outside without the key.
[I] Tips
It is not possible to re -open the door fo r a b rief period directly after
clos ing it . This a llows you to ensure that the doors are p roper ly
loc ked .•
Anti-theft alarm system
The an ti-theft alarm triggers an al arm if any one
attempts to break into the vehicle .
The a nti-theft alarm system trigge rs an a udible a larm and t urns o n
th e emergen cy flas her if an unau thori zed inte rfe rence wi th t he
vehicle is sensed by the system.
How is the anti-theft alarm system sw itched on?
T he anti-theft alarm system is switched on when you lock the vehicle.
Th e system is activa ted app rox ima tely 30 seconds after the vehicle is
locked. The indicator light on top o f the doo r trim start flashing
r a pidly fo r 30 seconds and then blink s low ly .
Controls and equip ­
ment Safety first
Opening and closing
How is the anti-theft alarm system switched off?
Th
e an ti- the ft alarm system is switche d off on ly when yo u unlock your
veh icle . If you do not o pen a door wit hin 60 seconds after you have
unlocked wit h the remote control , the vehicle will lock itself again
automa tically .
When will the anti-theft alarm system be
triggered?
When the vehicle is locked, the a larm system monitors and protects
the following parts of the veh icle:
• engine compartment
• lu ggage compa rtment
• doors
• ignition
Whe n the system is activated, the alarm will be triggered if one of the
doors, the engine hood or the rear lid are opened, or if the ignition is
t ur ne d on . The anti-t heft a la rm system will a lso go off when the
ba ttery is d isco nnected.
You can also trigger the alarm by pressing the PANIC button on your remote con trol. This will alert o ther peop le in case of eme rge ncy.
Press the
PANIC butto n aga in to turn off the a larm .
How is the anti-theft alarm switched off when
triggered?
Th e alarm sys tem is swi tched off whe n yo u un lo ck the veh icle o r whe n
the ignit ion is sw itched on . The a larm will also switch itself off when
i t comes to the end o f its cy cl e.
Emergency flasher and horn
Th e emerge ncy fl ashe r will blink briefly and the hor n sounds whe n
the doo rs, engine hood and rear lid a re prope rly closed.
If the eme rgency flashers do not blink, o r th e horn does no t soun d,
check the doo rs, eng ine hood and rear lid to make s ure they a re prop­
er ly closed.
If you close a door, the hood o r the rear lid with the anti -
Vehicle care Technical data

Opening and closing
theft alarm switched on, the emergency flashers will blink and the ....
horn will so und only after you have closed the doo r o r li d.
[ i ] Tips
For the anti -t h eft a larm system to function p rope rly, ma ke sure all
vehicle doors a nd windows are closed before leaving the vehicle .•
Power windows
Controls
Switches for front door windows
@ operates the window in the driver's door.
Fig. 42 Drive r's doo r:
power wind ow
switche s
® operates the window in the front passenger 's door .
Switches for rear w indows
© operates the left rear window .
® operates the right rear window .
Safety switch
© Safety switch for rear w indow operat io n.
& WARNING
• Do not leav e children unatt ended in the vehicle , especially with
a cces s to vehicle key s. Un supervi sed use of the keys can re sult in
starting of the engine and use of vehicle sy stems such as power
window s, etc . which could result in seriou s injury .
• Remember -you can still open or close the power windows for
about ten minutes after the ignition is switched off . Only when
e ith er of the front doors are opened are the power windows
s witched off.
• Be careful when clos ing th e window s. Check to see that no one
is in the way, or serious injury could re sult !
• Always remo ve the ign ition key whenever you leave your
vehicle.
• If you lock your vehicle f rom the outside, no one, especially
children, should remain in the vehicle.
• Do not st ick anything on the windows o r the windshield that
may interfere with the driver 's field of vi sion .
[I] Tips
In a ddit ion to the sw itches in t he driver's doo r there is a separate
switch in each door for the power window in that door =>
page 57,
fig. 4 3. a
Switches in the driver 's door
The driver can operate all windows.
If the respective sw itch is pus hed or pu lled the w indow will
open or close . T he power window switches have a
two-posi-
tion function : ..,

Opening the windows
-Push the s witch to the first stop and hold it t here u ntil t he
win dow has lowered to the desired posi tio n.
- Push t he switch briefly to the
second stop : the window
w ill automa tically o pen all t he way .
Closing the windows
-Pull t he swi tch up to the first stop and h old it th ere until
the wi ndow has risen to th e desired pos it ion .
- P ull the swit ch quickly to the
second position: the window
wi ll auto matically c lose all th e way ~
& in "Co ntrols" .
Activating/deactivating the rear windows
- P ress the left (!) switch ~ page 56, fig . 42 to deactivate
on ly the window regulator in the left door. The indicator
light in t he switch illu minates .
-Press t he r ight ff) switch~ page 56, fig . 42 to deactivate
only t he window reg ulator in the right door. The ind icator
li ght in the switch illuminates.
- Press the
ff) sw itch again to reac tivate t he win dow reg u-
lator. The indicator lig ht in the switch goes ou t.
If you press both(!) switches ® in succession, the fo llowing func ­
t ions are switc hed off in the rea r of the ve hicle:
• The window reg ulator sw itches in the rear doors.
• The buttons fo r th e Pano ram ic s liding su nroof *.
• On vehicles with rear climate cont rol *, ope ration from the rear is
blocked . Dashes" ---" are shown in the displays fo r the rear climate
controls, a nd the rear air -conditioning can only be operate d from the
cl ima te contro ls in th e cabin:::::,
page 116 .
Controls and equip ­
ment Safety first
Opening and closing
•
If only the left (!)switc h was pressed, t he window regulator in the
left rear door an d t he buttons in the re ar for the Panoramic sli ding
sunroof* are deactivated. In addition, the door is locked.
• If
only the right(!) switch wa s presse d, the win dow regu lator in
the
right rear door and the buttons in the rear for the Pa noramic
sliding s unroof * are dea ctiva ted. In addi tion, the door is locked .
T hi s fea ture has been provided for the safety of sma ll chi ldren r iding
in the rear of the vehicle .
[ i ] Tips
• T he windows can st ill be opened and closed for about ten minutes
after the ign ition has been tu rned off. The power w indows are no t
shut off unt il one of the front doors is opened.
• In order to ac tivate the child safe ty lock on the left and the rig ht
side, you have to p ress the two safety switches in succession. Make
c ertain that t he check light comes on the co rrespond ing safe ty sw itch
when the child safety lock is activated. •
Switch in the front passenger's door and on
the rear doors
Fig. 43 Swit ch loc a­
t ion fr ont pa ssenge rs
door
The pow er window switc h has a two-position function:
Vehicle care Technical data

Opening and closing
C ,
. ,, . . ,,
~~~
~ 80 ~- OB
. ' . ,.:, . :,
Tilting front roof segment
...
"' ...
;

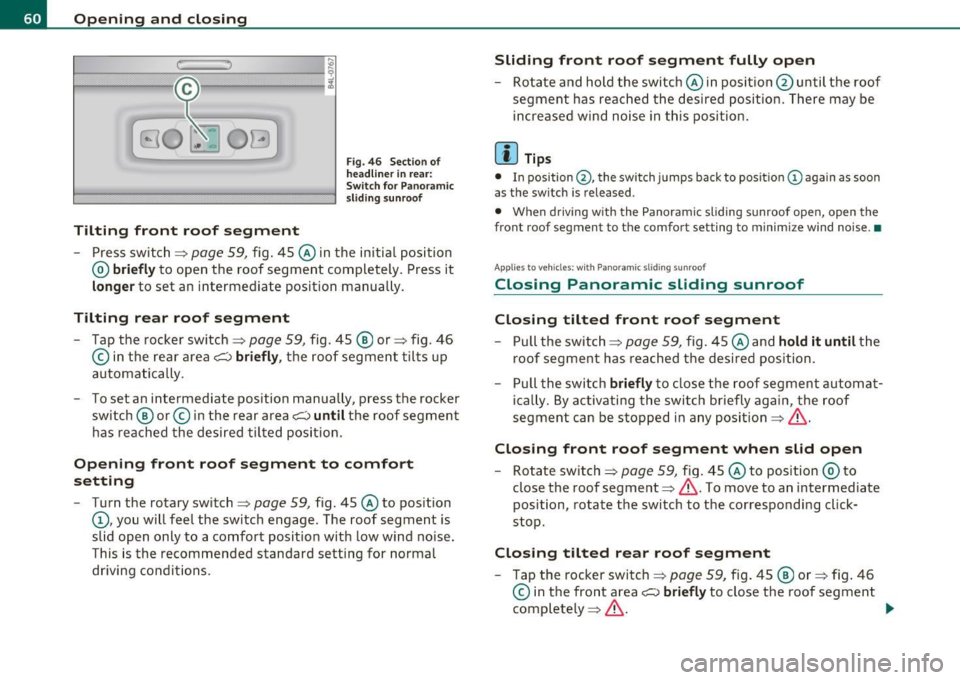

Fig. 46 Section of
headliner in rear:
Switch for Panoramic
sliding sunroof
- Press switch==> page 59, fig. 45 @in the initial position
@ briefly to open the roof segment completely . Press it
longer to set an intermediate position manually.
Tilting rear roof segment
-Tap the rocker switch==> page 59, fig. 45 ®or==> fig. 46
© in the rear area~ briefly, the roof segment tilts up
automatically.
- To set an intermediate position manually, press the rocker
switch @ or© in the rear area~ until the roof segment
has reached the desired tilted position .
Opening front roof segment to comfort
setting
-Turn the rotary switch:::;, page 59, fig. 45 @to position
(D, you will feel the switch engage. The roof segment is
slid open only to a comfort position with low wind noise.
This is the recommended standard setting for normal
driving conditions.
Sliding front roof segment fully open
-Rotate and hold the switch @in position @until the roof
segment has reached the desired position. There may be
increased wind noise in this position.
[I) Tips
• In position @, the switch jumps back to posit ion (D again as soon
as the switch is released .
• When driving w ith the Panoramic sliding sunroof open, open the
front roof segment to the comfort set ting to minimize wind noise .•
A pp lies to veh icles: w ith Panoramic sliding sunroof
Closing Panoramic sliding sunroof
Closing tilted front roof segment
-Pull the switch==> page 59, fig. 45 @and hold it until the
roof segment has reached the desired position.
- Pull the switch briefly to close the roof segment automat­
ically . By activating the switch briefly again , the roof
segment can be stopped in any position ==>& .
Closing front roof segment when slid open
-Rotate switch:::;, page 59, fig. 45 @to position @ to
close the roof segment==>& . To move to an intermediate
position , rotate the switch to the corresponding cl ick ­
stop.
Closing tilted rear roof segment
- Tap the rocker switch==> page 59, fig. 45@ or:::;, fig . 46
© in the front area~ briefly to close the roof segment
completely :::;,& .
1))-
