AUDI Q7 2010 Owner´s Manual
Manufacturer: AUDI, Model Year: 2010, Model line: Q7, Model: AUDI Q7 2010Pages: 390, PDF Size: 93.04 MB
Page 41 of 390
Setting values to zero
To delete one current va lue from the trip computer, select the
desired funct ion and press the Reset button @for at least one
second. The follow ing values can be set to zero
individually using the
Reset button:
• Average fuel mileage
• Average speed
• Elapsed time
• Distance
In addit ion,
all the values in the single-trip or the total-trip memory
can be deleted simultaneously=>
page 39 .
[ i J Tips
All stored values will be lost if the vehicle battery is disconnected. •
MMI settings
Basic settings for the trip computer can be made in the
MMI.
-Select: Function button I CAR ]> Systems* > Instrument
cluster > On-board computer 1 or On-board computer 2.
The val ues in the single-trip or the total-trip memory can all be reset
to zero at the same time under
Reset in the menu.
In addition, you can determine what information from the trip
computer should be shown in the instrument cluster display . If one
of the p ieces of driver information is turned
Off, that driver informa
tion will not be shown in the display. The in format ion will continue to
be ca lculated by the trip computer and can be turned back
On at any
time. •
Controls and equip
ment Safety first
Driver information display
Vehicle care
Technical data
Page 42 of 390
Opening and closing
Opening and closing
Keys
Key set
C !
Fig. 23 Key set
© Ma ster key with remote control
You can centrally lock and u nlock your vehicle and start the eng ine
with the master key with remote cont ro l.
@ Valet key
The v alet key only fi ts the loc k in t he d river's doo r and the ignition
lock. If you have to leave the key with somebody else, you are well
advised to tur n over the vale t key only .
Be aware tha t the rear lid a nd g love compa rtment ca n be opened
from inside the vehicle using the release b uttons . It is therefore best
t o activ ate t he va let key fu nction to preven t unauth oriz e d ac cess to
the glove compartment and the luggage compartment when
someone else has charge of your vehicle=>
page 4 3.
© Emergency key
Th e emergency key is only for tempo rary use if the vehicle key should
be lost or misp laced =>
&.
Key replacement
If you lose a key, contact your authorized Aud i dealer immediately to
h ave the
lost key disab le d . B e sure to bri ng all you r keys wi th yo u.
Registered keys
You can check to find out how many keys have been reg iste red to your
vehicle. Therefore, when b uying a used veh icle, make sure to get all
of the remote keys be long to it.
Calling up the registered keys=>
page 13.
Data in the master key
Wh ile you are driv ing, service and maintenance relevant data are
be in g con tinuously s tored on yo ur mast er key. Your Aud i serv ice
adviser can read out these data and tell you about work that is needed
on yo ur vehi cle. T hi s also app lies to vehi cles w it h Conve nience key* .
& WARNING
• Do not leave your vehicle unattended with the key in the igni
tion lock. Entry by unauthor ized persons could endanger you or
result in theft or damage the vehicle. Alway s lock all doors and
take the key.
• Do not leave children unattended in the vehicle, especially with
access to vehicle keys. Unguarded access to the keys prov ides chil
dren the opportunity to start the engine and /or a ctivate vehicle
systems such as the power windows etc. Unsupervised operation
of any vehicle system by children can result in serious injury .
[ i ] Tips
• If you open t he dr iver's doo r wi th t he key left in the igni tion lock ,
a ch ime will sound. Thi s is your reminder to remove the key and lock
the doo r. _.,,
Page 43 of 390
• For security reasons, replacement keys are only available from
Audi dealers. •
Master key with remote control
The remote control allows you to lock or unlock the
vehicle electronically .
Fig. 24 Fold-up
master key with
remote control
- To fold the key out and back in place, press the release
button~ fig. 24.
The transmitter and battery are located in the head of the remote
control. The receiver is located inside the vehicle. The maximum
effective range depends on several things . Remember, if the battery
is weak, the effective range decreases.
If you need to replace the remote control, or if you need to have it
repaired, you must see your authorized Audi dealer. Only then can you
use the key again.
Personalizing the master key
When the ignition is turned off or when the vehicle is locked, various
convenience settings are stored automatically and assigned to the
key that was used. The settings that are assigned to the master key
are reca lled automatically when the vehicle is unlocked, when the
door is opened or when the ignition is switched on.
Contro ls a nd e quip ·
m en t Vehicle
OP-eration
Opening and closing
Settings are saved for the follow ing systems:
• Climate control
• Central locking
• Windows
• Ambience lighting*
• Seat memory*
• Stee ring wheel heating*
• Adaptive Cruise Control*
• Audi side assist*
• Parking system*
Th e
Remote control key function must be activated in the MMI
~ page 88, so that the settings for the driver's seat (including the
settings for the steering column and exterior mirrors) are saved on
the master key through the seat memory when the vehicle is locked,
and are set automatically when the vehicle is unlocked.
[ i ] Tips
• If the ignition is switched on, the remote control system is deacti·
vated .
• The remote control system can be affected by other systems oper·
ating in the same frequency range close to the vehicle, such as mobile
telephones, television broadcasting stations, etc.
• For Declaration of Compliance to United States FCC and Industry
Canada regulations~
page 369. •
Vehicle care Do-it-yourselt service iTechnical data
Page 44 of 390
Opening and closing
Check Light in the master key
The check light in the master key provides information
about different conditions.
Check light functions in the master key:
Vehicle within range of the key
Fig. 25 Check light in
the master key
If the vehicle is within range of the key, the check light comes on
briefly once when a button is pressed.
Vehicle outside the range of the key
If the vehicle is outside the range of the key, the check light comes on
briefly once and then shows the status of the vehicle door locks:
• If the light is flashing quickly, the vehicle is not locked.
• If the light is flashing slowly, the vehicle is locked.
State of master key battery
If the check light does not come on, the battery is dead and has to be
replaced. In addition, when the battery is dead the symbol appears
in the instrument cluster display as well as the message:
Please change key battery
Battery replacement=:> page 42.
[I] Tips
Please note that the current state of the vehicle door locks can only
be recalled with the master key that was last used to lock the vehicle.
It is possible that a different state is shown for the door locks on the
other master key which is not the same as that of the vehicle. •
Master key battery replacement
Each master key contains a battery housed under the
cover.
Fig. 26 Master key:
opening the cover
We recommend having the battery changed by an authorized
Audi dealer. However, if you wish to replace the dead battery
yourself, proceed as follows:
- Pry apart the base~ fig. 26
© and the cover @ carefully
with a coin.
- Remove the cover (arrow).
- Remove the dead battery from the cover.
- Install the new battery. Please make certain that the"+"
sign on the battery faces down. Correct polarity is shown
on the cover. _..
Page 45 of 390
- Place the cov er w ith t he new battery on t he k ey bas e and
press bot h parts together .
For the sake of the environment
Dispose of dead batter ies proper ly so as not to po llute the envi ron
ment.
(I) Tips
Th e replaceme nt ba ttery mus t be the same spec ifica tion as the
orig inal. •
Electronic immobilizer
The immo bili zer helps t o prevent unauth ori zed use of
your v ehicl e.
A compu ter chip ins ide you r key au toma tically deac tiva tes the elec
tr on ic immob ilizer whe n you inse rt the key in the ignition lock, o r on
vehicles with Convenience key *, when the key is inside the ve hicle.
W hen you remove the key from the ignition lock, or on vehicles with
Conven ience key, when you remove the key from the vehicle, the elec
tr on ic immo biliz er is a utomat ic al ly activa ted once aga in.
& WARNING
Always take the key with you when you leave the vehicle . The key
can di sarm the elect ronic engine immobilizer and permit an unau
thor ized per son to start the engine and enable operation of the
vehicle systems such a s power w indow or Panoramic sliding
s unroof* leading to serious personal injur y.
(I) Tips
• Th e immobi lize r prevent s unauthori zed use of t he ve hicle. The
vehicle cannot be started if an unauthorized key is used. The vehicle
Controls and equip
ment Safety first
Opening and closing
may not start if another rad
io dev ice such as a key for another vehicle
or a transponder is loc ated on t he key ring.
• For Declaration of Compliance to United States FCC and Industry
Ca nad a regulat ions :::>
page 369. •
Valet key function
The val et key function prevents unauthorized persons
from opening the glove compartment or rear lid.
Fig. 27 Center
cons ole : butt on for
v a le t key functio n
Activating and deactivating the function
- Insert t he master key into the ignition lock a nd switch on
t h e ign it ion .
- Press th e
[VA LET] button~ fig . 27 to activate/ deac ti
va te the fu nction a s desired. The indicato r light in t he
butto n illum inates when the f uncti on is ac tive.
- Remove the mas ter key f rom t he ign ition lock.
- Hand ove r on ly t he
valet key~ page 40, fig. 23 to t he
person w ho will take charge of the vehi cle.
Whe n the function is switched on, the b uttons fo r open ing the rear lid
and glove comp artment have no funct ion. However, please note the
following exceptions:
~
Vehicle care Technical data
Page 46 of 390
Opening and closing
Exceptions
If the ignition has been switched on using the master key, you can
st ill open the glove compartment and the rear lid.
As long as the ignit ion is switched off, you can still open the rear lid
using the rear lid button on the
master key c:5 . The same holds true
for using the rear lid release handle in conjunction with the Conve
nience key* .
For this reason, be sure to only hand over the
valet key to the person
who wi ll take charge of your vehicle.
[ i J Tips
Be sure to activate the function before handing over the valet key to
someone else . The valet key only fits the lock in the driver 's door and
the ignition lock. •
Power locking system
General description
The power locking system locks or unlocks all doors and
the rear lid simultaneously .
The power locking system in your vehicle incorporates the following
functions :
• Central locking function
• Selective unlock feature=>
page 47
• Remote contro l feature => page 41
• Convenience key*=> page 53
• Anti -theft alarm system=> page 55
All the doors and the rear lid are locked by the central locking system
when you lock the vehicle. You can set whether generally only the
dr iver's door or all doors and the rear lid should be unlocked when yo u open the vehicle in
the MMI menu
Central locking to suit your indi
vidual desires =>
page 47.
Unlocking the vehicle
You can unlo ck the vehicle from outside e ither by using the remote
control
or by insert ing and turning the key in the driver 's door lock.
When you
unlock yo ur vehicle:
• The anti-theft alarm system is deactivated briefly.
• Th e vehicle inter ior lights illuminate for approximately 30
seconds.
• All turn signal lights will flash twice when the car is unlocked .
• After unlocking the vehicle, you have 60 seconds to open a door or
the rear lid. Afte r 60 seconds , the ve hicle automatically locks and the
anti-theft alarm system activates again.
Th e rear lid can be locked or unlocked eithe r by using the remote
control
or by insert ing and turning the key in the driver's door lock.
Unlocking the vehicle with the remote control will on ly
unlock the
rear lid, to
open it, the lid hand le needs to be pressed.
Locking the vehicle
You can lock the vehicle from outside e ither by using the remote
control
or by inserting and turning the key in the drivers's door lock.
When you
lock the veh icle:
• All doors and the rear lid are locked.
• All turn signal lights will flash once when the car is locked.
• The anti-theft alarm system is activated . The horn of the anti
theft alarm system w ill sound and the anti -theft alarm system readi
ness light, located in the upper part of the driver's door panel, will
start to blink .
• The vehicle interior lights turn off .
Unlocking and lock ing with Convenience key*
On vehicles which are equipped with the Convenience key* authoriza
tion system, the doors are unlocked
without a key by means of a prox-
im ity sensor in the door handle. The doors are similarly locked ....
Page 47 of 390
without a key using the lock ing button. Eac h door has a prox imity
senso r and a lock ing b utton.
Automatic locking
Th e a utomat ic lo ck ing feature locks a ll the veh icle doors and the rear
lid when you drive faster than 9 mph (15 km/h). This function can be
tu rne d on and off in the MMI
Central locking Men u~ page 47.
You can unlock the vehicle from the ins ide by:
• removing the key from the ign ition switch (the vehicle w ill auto
matically un lock itself) o r
• press ing the unlock part of the powe r lock switch
63 or
• pulling the door handle (tw ice to open the rear doors).
& WARNING
• When you lock y our veh icle from outs ide, nobody -especiall y
c hildren· should remain in side th e vehicle . Remember , when you
lock the vehicle from the outside the window s cannot be opened
from the inside .
• When you leave the vehicle, alwa ys remove the ignit ion key
and take it with y ou. This will prevent pa ssenger s (children, for
e x ample ) from accidentally be ing locked in the veh icle should
they ac cidentally pre ss the power lo cking swit ch in the front
door s.
• Do not leave children inside the vehicle unsup ervi sed . In an
emergency it would be impossible to op en the doors from the
out side without the ke y.
[ i ] Tips
• In the event of a cras h w ith airbag deployment all loc ked doors
will be a utomatically unlocked to give access to the veh icle occupants
from t he outside.
• If the power locking system should malfunction, you can lock each
door ind ividually using the ve hicle key ~
page 48.
Con tro ls a nd e quip
m en t Vehicle
OP-eration
Opening and closing
• If the power lock ing system should fail, you can still open the fuel
tank flap in a n emergency ~
page 292.
• You are well advised not to keep valuables inside an unattended
vehicle , visib le or no t. Even a properly locked veh icle c annot p rovide
the security of a safe .•
Unlocking and locking the vehicle with the
remote control
How the remote control works .
Fig. 28 Rem ote
con trol: functi on
button s
Eit he r the driver's door only or the entir e vehicle wi ll unlock
when the unlock button© is pressed once, de pend ing on the
settings in the MMI
Central locking menu ~ page 47.
To unlock the vehicle CD
- Press button @.
- P ress button @
two times with in two seconds to unlock
all doors and the rear lid .
To lock the vehicle ffi
-Press button @~ & in "General d escrip tion" on
page 44 .
Vehicle care Do-it-yourselt service iTechnical data
Page 48 of 390
Open ing and closing
- Watch that all turn signal lights flash once .
To unlock rear lid only ~
-Press button © for approximately one second.
PANIC Button
Push the red button @to activate the panic function . The
horn sounds and the turn signals flash.
Push the button @ again to deactivate the panic function.
On vehicles with Convenience key*, the selector lever must be in the P
position, otherwise the vehicle cannot be locked.
& WARNING
R ead and f ollo w all W ARNING S~ & in "G eneral de scription " on
page 44 .
(I] Tips
• In order to make sure the locking function is work ing, you should
always keep your eye on the vehicle to make sure it is properly locked.
• Do not use the remote control if you are ins ide the car, otherwise
you may uninten tionally lock the vehicle, and then you wo uld se t off
the ant i- theft alarm when you try to start the eng ine or open a door .
In case this happens anyhow, push the unlock button@.
• Use the panic function only if you are in an emergency situation .•
Operating tocks with the key
To lock and unlock the vehicle from the outside, turn the
key in the lock of the driver's door .
To unlock the vehicle
Fig. 2 9 K ey turn s fo r
openi ng an d closi ng .
- Insert the key into the lock of the driver's door.
- Turn the key one
time to position @to unlock the driver's
door .
- Turn the key
two times to posit ion @ => fig. 29 to unlock
al l doors and the rear lid.
To lock the vehicle
- Close all windows and doors properly.
- Turn the key in the lock of the driver's door to the lock
position @=>
& in "General description" on page 44.
& WARNING
Read and foll ow all WARNING S~ & in "General de sc ription " on
pag e 44. •
Page 49 of 390
Settings in the MMI
Selective unlock feature -the driver can determine in the
M MI which doors are unloc ked through the central
locking system.
- Select: Funct ion button !CAR ]> Systems *> Central
locking .
In the Central lock ing menu you can determine w hich doors should
be unlocked w hen you unlock the vehicle with t he remote control. For
example, if you switch the item passenger 's door
Off , th e passenger's
door is no longer in cl ud ed i n the centra l locking system, and w ill not
be un locked by p ressing the unlock button on the master key remote
control.
T here is a lso a
side sele ctive unlo cking option av ailable that can be
set to fit your needs. You can continue to unlock all the doors and the
rea r lid a s befo re. P ress the opening but ton o n the mas ter key tw ice.
Auto lo cking can also be switc hed On and Off .
[ i J Tips
When lock ing t he veh icle, all doors and the tr unk lid are locked
automatically . •
Con tro ls a nd e quip
m en t Vehicle
OP-eration
Opening and closing
Locking and unlocking the vehicle from
inside
The vehicle can be locked or unlocked from th e insid e
using the power loc king switch es.
F ig . 3 0 F ront do ors:
pow er l ock in g sw it c h
F ig. 31 Rear doo rs:
p owe r locki ng switch
How to Lock all doors and the rear lid
simultaneously
- Press the upper pa rt of the power locking switch@=> &-
How to unlock all doors and the rear lid
simultaneously
- Press the lowe r part of the switc h@ .
Vehicle care Do-it-yourselt service iTechnical data
Page 50 of 390

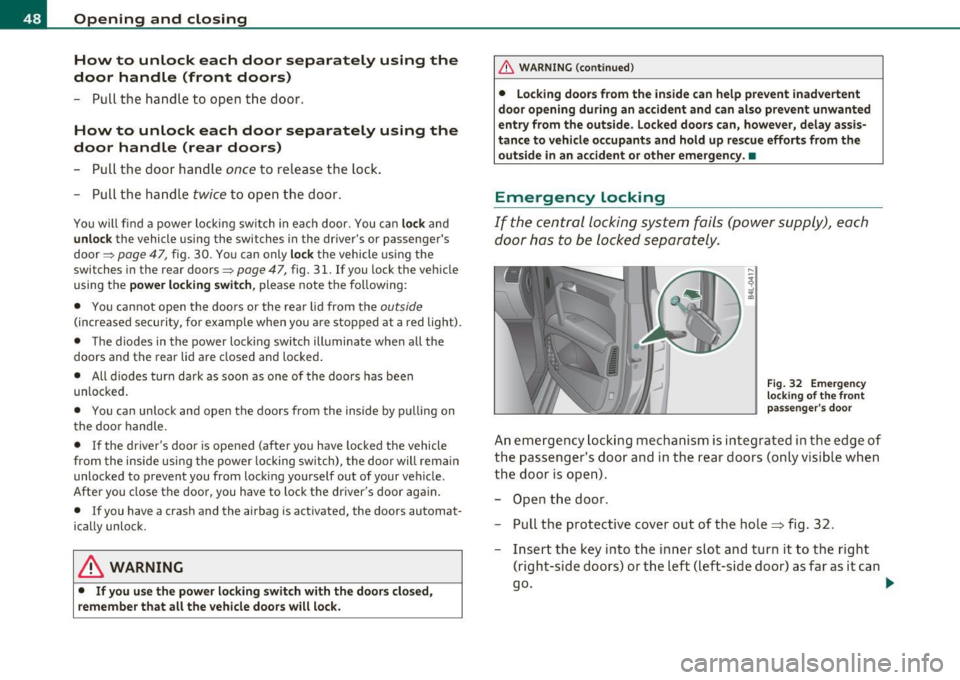

Opening and closing How to unlock each door separately using the
door handle (front doors)
-Pull the handle to op en the door.
How to unlock each door separately using the
door handle (rear doors)
- Pull the door handle once to release the lock .
- Pull the handle
twice to open t he door .
You will find a power locking sw itch in eac h door. You can lo ck and
unlock the vehicle using the switches in the dr iver's or passenger's
door =>
page 47, fig. 30. Yo u can only lo ck the vehicle usi ng the
switches in the rear doors=>
page 47, fig . 31. If you lock the vehicle
using the
power l ocking switch , please note the following :
• You can not open the doo rs or the rea r lid from the
outside
(increased security, for example when you are stopped at a red light).
• The d iodes in the power locking switch illuminate when all the
doors and the rear lid are closed and locked .
• All d iodes turn dark as soon as one of the doors has been
unlocked .
• You can unlock and open the doors from the inside by pu lling on
t he doo r handle .
• If the driver's door is opened (after yo u have locked the vehicle
from the inside usi ng the power locking sw itch), the door will rem ain
unlocked to prevent you from locking yourse lf out of your vehicle .
After you close t he doo r, you have to lock the driver's door aga in.
• If you have a cras h and the airbag is act ivated, the doors automat
ically unlo ck.
& WARNING
• If you use the power locking switch with the doors closed ,
remember th at all the vehicle doors w ill lock .
& WARNING (contin u ed )
• Locking doors from the inside can help prevent inad vertent
d oor opening during an a ccident and can also prevent unwanted
entry from the outside . Lo cked doors can , howe ver , delay assis
tance to vehicle occupants and hold up rescue efforts from the outside in an accident or other emergen cy.•
Emergency Locking
If the centra l locking system fails (power supply), each
door has to be locked separately.
Fi g. 3 2 Eme rgen cy
lo cking of th e fr ont
p ass enger's doo r
An em ergency lock ing mechan ism is inte grated i n th e edge of
the passe nger's doo r and in the rear doors (only v isib le wh en
the door is op en) .
- Ope n the door .
- Pull t he protective cover out of the hole => fig. 32 .
- Inse rt the key into the inner slot an d tu rn it to the right
(right-side doors) or the left (left-side door) as far as it can
go .
~
