AUDI Q7 2010 Owner´s Manual

& WARNING
• Be careful when closing the windows . Check to see that no one
is in the way , or seriou s injury could re sult!
• Always read and heed WARNING~
& in "General description "
on
page 44. •

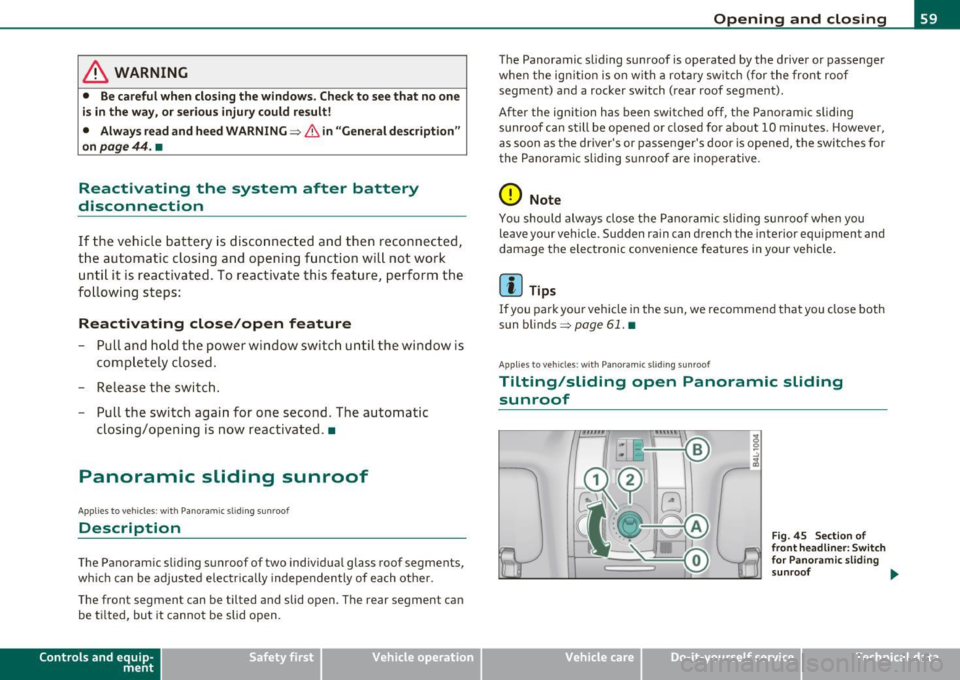

Reactivating the system after battery
disconnection
If the vehicle batt ery is disco nnec ted and then reconnec ted,
the automat ic closing and open ing f unction will not wor k
unt il it is react ivated . To reactivate th is feature , perform the
fo llow ing steps :
Reactivating close/open feature
-Pu ll an d ho ld t he power window switc h until t he window is
com pletely clo sed .
- Release the swi tch.
- Pull t he switch again for one second . The a utomat ic
closi ng/opening is now reactivated .•
Panoramic sliding sunroof
Ap plies to ve hicle s: w ith Panor am ic s lidin g sunr oof
Description
The Pano ram ic sli ding sunroof of two individual glas s roof segments,
w hich can be adjusted e lec trically independen tly of each ot he r.
T he front segmen t can be tilted and s lid open . The rear segmen t ca n
be tilted, but it cannot be slid open .
Contro ls a nd e quip ­
m en t Vehicle
OP-eration
Opening and closing
The Panoramic slid ing sunroof is operated by the driver or pa ssen ger
w hen the ig nitio n is o n with a rot ary switch ( for the fro nt roof
segment) and a rocker switch (rear roof segment) .
After the ignition has b een switch ed off , the Panoramic slid ing
s u nroof can still be ope ned o r closed for abo ut 10 minu tes. Howeve r,
as soon as the d rive r's o r pa ssenger's door is opened, the sw itches for
t he Panoram ic sliding s unroof are i noperative .
0 Note
You should always close the Pa n oramic slid ing su nroo f whe n you
leave your vehicle. Sudden ra in can drench the in terior equ ipmen t and
damage the electronic conven ience feat ures in your vehicle .
[ i ] Tips
If you park your ve hicle in the s un, we recommen d that you clo se both
s u n blinds ~
page 61. •
App lies to v ehicl es: w ith P anoramic sl id in g sun roof
Tilting/sliding open Panoramic sliding
sunroof
Vehicle care
F ig . 45 Se ction of
fr ont headliner : Switch
for Pa no ram ic sl id ing
sunroof ...
Do-it-yourselt service iTechnical data

Opening and closing
C ,
. ,, . . ,,
~~~
~ 80 ~- OB
. ' . ,.:, . :,
Tilting front roof segment
...
"' ...
;
Fig. 46 Section of
headliner in rear:
Switch for Panoramic
sliding sunroof
- Press switch==> page 59, fig. 45 @in the initial position
@ briefly to open the roof segment completely . Press it
longer to set an intermediate position manually.
Tilting rear roof segment
-Tap the rocker switch==> page 59, fig. 45 ®or==> fig. 46
© in the rear area~ briefly, the roof segment tilts up
automatically.
- To set an intermediate position manually, press the rocker
switch @ or© in the rear area~ until the roof segment
has reached the desired tilted position .
Opening front roof segment to comfort
setting
-Turn the rotary switch:::;, page 59, fig. 45 @to position
(D, you will feel the switch engage. The roof segment is
slid open only to a comfort position with low wind noise.
This is the recommended standard setting for normal
driving conditions.
Sliding front roof segment fully open
-Rotate and hold the switch @in position @until the roof
segment has reached the desired position. There may be
increased wind noise in this position.
[I) Tips
• In position @, the switch jumps back to posit ion (D again as soon
as the switch is released .
• When driving w ith the Panoramic sliding sunroof open, open the
front roof segment to the comfort set ting to minimize wind noise .•
A pp lies to veh icles: w ith Panoramic sliding sunroof
Closing Panoramic sliding sunroof
Closing tilted front roof segment
-Pull the switch==> page 59, fig. 45 @and hold it until the
roof segment has reached the desired position.
- Pull the switch briefly to close the roof segment automat­
ically . By activating the switch briefly again , the roof
segment can be stopped in any position ==>& .
Closing front roof segment when slid open
-Rotate switch:::;, page 59, fig. 45 @to position @ to
close the roof segment==>& . To move to an intermediate
position , rotate the switch to the corresponding cl ick ­
stop.
Closing tilted rear roof segment
- Tap the rocker switch==> page 59, fig. 45@ or:::;, fig . 46
© in the front area~ briefly to close the roof segment
completely :::;,& .
1))-

-To set an intermediate position manually, press the rocker
switch in the front area
e:> until the roof segment has
reached the desired tilt position==>& .
& WARNING
Improper use of the Panoramic sliding sunroof can cause serious
personal injury.
• Be careful when closing the Panoramic sliding sunroof. Not
paying attention could cause you or others to be trapped and
injured as the Panoramic sliding sunroof closes.
• Always take the key with you when you leave the vehicle to
prevent injuries caused by the Panoramic sliding sunroof closing
• Never leave children or persons requiring assistance alone in
the vehicle, especially when they could access the vehicle keys.
Unsupervised use of the keys can result in the engine being started
or use of vehicle systems such as the power windows, etc. which
could result in serious injury. The doors could be locked with the
remote key, delaying help in an emergency.
• The Panoramic sliding sunroof will continue to operate until
the ignition key has been removed a nd one of the front doors has
been opened. •
Applies to vehicles : w ith Panoram ic sliding sunroof
Convenience closing feature
The Panoramic sliding sunroof can be closed from outside
with the key in the driver's door lock .
-Insert the key into the driver's door lock.
- Turn and hold the key in the lock position ®==>
page 46,
fig. 29 until the Panoramic sliding sunroof is completely
closed ==> & in "Closing Panoramic sliding sunroof" on
page 60. The power sun blind is also closed.
Con tro ls a nd e quip ­
m en t Vehicle
OP-eration
Opening and closing
& WARNING
Be careful when closing the Panoramic sliding sunroof. Not paying
attention could cause you or others to be trapped and injured as
the Panoramic sliding sunroof closes. •
Applies to v ehicl es: w ith Panoramic slid in g sunroof
Opening and closing sunshade
I .~ "'
r~ 1~· I
0 g
"I ..!J
"' a,
' ~
G
{(e)
B
0
0 ..
~ ~ ffl ""'
[f 'd 11 -I
t _, $
b l•,:,,,;; =·:::"' == ;'·== ··.••,:::-= ·•,::: ::::= ·•=·· = ·=· ======· •=··•·•-,· =,~=·,., .. c":::'• .. ·= '·"•' :::· ,=••,•s ::::::::: j ~
Fig. 47 Section of
front headliner: Switch
for sunshade
Fig. 48 Section of
headliner in rear:
I>· .. ,.:._::;::-_·;r .,;:;, :::;>:,: -:-·. _::: ;:::'·;-}.- .::,.:.-: ::::: :~ ,.:.·-:- -":-· Switch for sunshade
The two segments of the Panoramic sliding sunroof are each
equipped with a sunshade for protection against the sun's
rays. The front shade is power operated, the rear shade is
opened and closed manually . To prevent the vehicle interior _.,
Vehicle care Do-it-yourselt service iTechnical data

Opening and closing
from heating up, you should close both sunshades when you
park your vehicle in the sun.
Opening and closing front sunshade
Tap the rear -:c;"J" of the rocker switch~ page 61, fig. 47 or
the rocker switch for rear-seat passengers~
page 61,
fig. 48 briefly to open the sunshade fully.
- Tap the front
·'J.rT of the rocker switch briefly to close the
sunshade fully~& .
- To set an intermediate position manually, press the front or rear of the rocker switch (depending on the position of
the shade)
until the desired position is reached ~ & .
Opening and closing rear sunshade
-Hold the sunshade by the grip and push it to the desired
position.
& WARNING
Never close the sunshade without paying attention or checking -
danger of injury! •
Applies to veh icles : w ith Panoram ic sliding sunroof
Emergency closing
In an emergency, the Panoramic sliding sunroof can be
closed electrically.
If the Panoramic sliding sunroof detects an object in its path
when it is closing, it will open again automatically. In this
case, you can close the roof with the power emergency
closing function .
Emergency closing of front roof segment
- Turn the switch~ page 59, fig . 45 @ to the normal posi­
tion @.
- Within five seconds after the sunroof opens automati­
cally, pull the switch until the roof segment closes.~&.
The driver's and front passenger's doors must be closed.
- If the power emergency closing function is not possible, you must close the roof manually~
page 63.
Emergency closing of rear roof segment
-Within five seconds after the sunroof opens automati­
cally, press the front
e:> of the rocker switch~ page 59,
fig. 45 ® until the roof segment closes~&. The driver's
and front passenger's doors must be closed.
- If the power emergency closing function is not possible,
you must close the roof manually ~
page 64.
& WARNING
Improper use of the Panoramic sliding sunroof can cause serious
personal injury.
• Be careful when closing the Panoramic sliding sunroof. Not
paying attention could cause you or others to be trapped and
injured as the Panoramic sliding sunroof closes.
• Always take the key with you when you leave the vehicle to
prevent injuries caused by the Panoramic sliding sunroof closing
• Never leave children or persons requiring assistance alone in
the vehicle, especially when they could access the vehicle keys.
Unsupervised use of the keys can result in the engine being started
or use of vehicle systems such as the power windows, etc. which
could result in serious injury. The doors could be locked with the
remote key, delaying help in an emergency. .,,.

& WARNING (continued)
• The Panoramic sliding sunroof will continue to operate until
the ignition key has been removed and one of the front doors has
been opened .•
A pp lies to vehicles : w ith Panoram ic sl iding sunroof

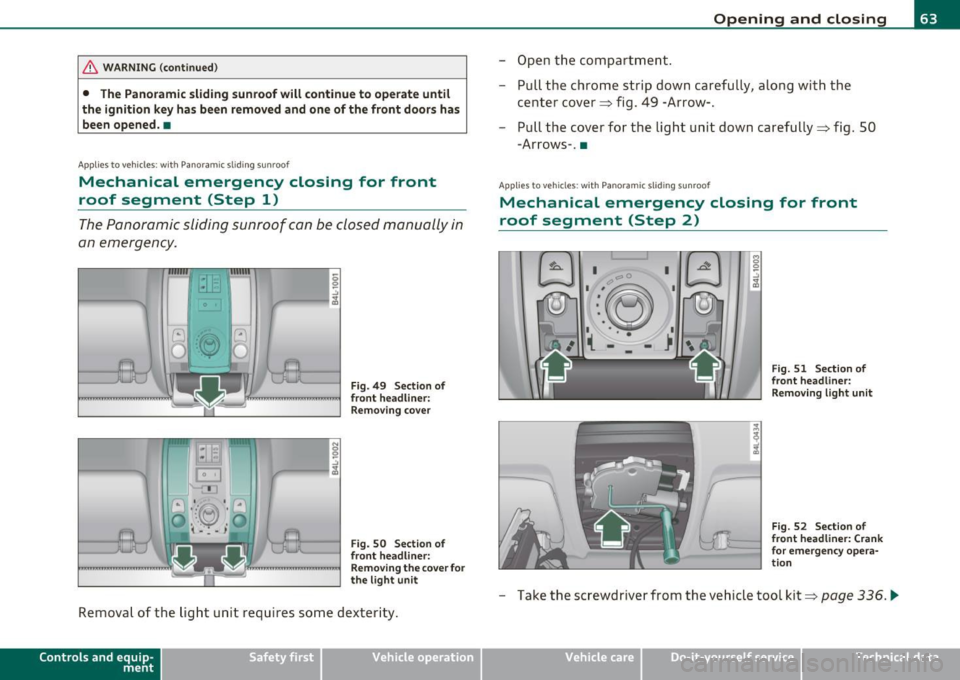

Mechanical emergency closing for front
roof segment (Step 1)
The Panoramic sliding sunroof can be closed manually in
an emergency.
Fig. 49 Section of
front headliner: Removing cover
Fig. 50 Section of
front headliner:
Removing the cover for
the light unit
Removal of the light unit requires some dexterity.
Contro ls a nd e quip ­
m en t Vehicle
OP-eration
Opening and closing
-Open the compartment.
- Pull the chrome strip down carefully, along with the
center cover~ fig. 49 -Arrow-.
- Pull the cover for the light unit down carefully~ fig. 50
-Arrows-. •
Applies to v ehicles: w ith Pano ramic slid ing sun roof
Mechanical emergency closing for front
roof segment (Step 2)
I 0
'-:'~
-~ •-- 1 I • • •
( -
I
I I
Fig. 51 Section of
front headliner:
Removing light unit
Fig. 52 Section of
front headliner: Crank
for emergency opera­
tion
- Take the screwdriver from the vehicle tool kit~ page 336 . .,_
Vehicle care Do-it-yourselt service iTechnical data

Open ing and closing
- R emove the two screws=> fig . 5 1 - Arrows- from the light
unit.
- Carefully remove the light unit .
- Remove the crank from the bracket on the fuse cover on
the left front of the instrument panel=>
page 346,
fig . 258 ® ·
- Push the crank into the hexagonal hole as far as it can go
=>
page 63, fig. 52.
- Hold the crank down and turn it to close the roof .
- Re-install the light unit . For installation, reverse the
removal sequence.
- Return the crank to its location in the fuse box cover
=>
page 346, fig. 258 and install the cover.
- Have the problem corrected.
[I] Tips
To turn the crank for emergency closing more easily, you should use
the screwdriver handle as an aid~
page 63, fig. 52. First, remove the
screwdriver from the handle, then push the handle onto the crank. •
Applies to v ehic les: with P anor amic s lidin g sunroof
Mechanical emergency closing for rear roof
segment
- Carefully remove the cover for the rear roof segment drive
in the rear area of the headliner .
- Remove the crank from the bracket on the fuse cover on the left front of the instrument panel=>
page 346,
fig. 258 ® ·
- Press the crank into the hexagona l hole in the drive as far
as it wi ll go (bas ica lly, as shown in=>
page 63, fig . 52) .
- Ho ld the crank down and turn it to close the roof.
- Re-install the cover.
- Return the crank to its locat ion in the fuse box cover
=> page 346, fig. 258 and install the cover .
- Have the problem co rrected .
[I] Tips
To turn the crank for emergency closing more easily, you should use
the screwdriver handle from the tool kit~
page 336 as an aid. First,
remove the screwdriver from the handle, then push the handl e onto
the c rank .•

Clear vision
Lights
Switching the headlights on and off -'t!-
In the "AUTO" position, a light sensor* automatically
swit ches the head- and tai llights on and off in response
to light condition s.
F ig . 5 3 Inst rum ent
pan el: li ght swit ch
The light switch must not be overturned past the stops in
either direction.
Switching on automatic headlight control
-Turn the light swi tch to AUTO ::::, fig. 53.
Switching on the side marker lights
-Tur n the light sw itch to 300~.
Switching on the headlights and high beam
- Turn the light swi tch to ~D.
- Push the high beam lever forward towards the instrume nt
panel=>
page 69.
Con tro ls a nd e quip ­
m en t Vehicle
OP-eration
Switching off the lights
-Turn the lig ht swit ch to 0.
Clear vision
The headligh ts only work when the ignition is switched on. Whi le
sta rting the engine or when switchi ng off the ignition, the headlights
will go off and o nly the s ide marker lights will be on.
After start ing th e engine, the headlights are automatically adjusted*
to the load and a ng le of the vehicle (fo r example, during acceleration,
braking) . This prevents oncoming traffic from experiencing unneces­
sary head light glare from your head lig hts.
If the system is not operati ng p roperly, a warning symbol in t he Auto­
Check Control is displayed =>
page 34.
With the side marker lights o r headlights switched on, the symbol
next to the light switch illuminates
coo:.
Daytime running lights
• USA models: The daytime running lights w ill come on automati­
ca lly when the ign ition is turned on and the light switch => fig. 53 is
in the
O position or the AUTO position (only in daylight conditions).
Th e
Daytime running light s function can be tu rned on and off in the
MMI menu
Exterior lighting=> page 66.
• Canada model s: The d ay time r unning ligh ts w ill come on a uto­
matically when the ig nitio n is turned on and the light switch=> fig. 53
is in the
O pos itio n or the AUTO position (on ly in daylight conditions)
=> & .
Automatic headlight control *
In the switch pos ition AUTO t h e automatic headlight control is
tu rned on. The low beams and tail lights a re turned on au tomatically
throug h a light sensor as soon as ambient br ightness (e .g . when
driving into a tunnel) falls below a va lue preset at the factory . When
amb ient b rightness increases again, the low beams are turned off
again automatically =>& . ..,_
Vehicle care Do-it-yourselt service iTechnical data

Clear vision
In the AUTO positio n the low beams are switched off automatically
w hen the ign it ion is turned o ff.
Light Sensor Malfunction*
In the event of a light senso r m alfun ction, the driver is not ified in the
instrument cluster display:
~ Automatic headlight s/ automatic wipers defective
For safety reasons the low beams a re turned on permane ntly with the
switch in
AUTO . However, you can contin ue to turn the lights on and
off using the light sw itch. Have the light sensor checked as soon as
possible at an autho rized Audi dealer or q ua lified workshop.
& WARNING
• Never u se daytime running lights to see where you are going .
They are not bright enough and w ill not let you see far enough
ahead for safety, especially at dusk o r when it i s dark . Always
s witch on the low beams at du sk or when it i s dark.
• Automati c headlights* are only intended to a ssist the driver .
They do n ot relieve the driver of h is re spon sibility to check the
headlights and to turn them on manually according to the current
light and visibility condition s. For example, fog and rain cannot be
detected by the light sensors. So alw ays sw it c h on the headl ights
under the se weather condition s and when driving in th e dark
io.
• Crashes can happen when you cannot see the road ahead and
when you cannot be seen by other motori sts.
- Always tu rn on the headlights so that you can see ahead and
so that others can se e your car from the back.
(I) Tips
• With the swit ch in AUTO front fog lig hts a nd rea r fog l ights ca nnot
be t urned on in addition. •
The lig ht sensor* for headlight contro l is located in the rear view
mi rror moun t. D o no t apply any stickers to the w indshield in this area
to prevent malfunctions or failures .
• If you remove the ign ition from t he ignit ion lock wh ile the head ­
lights are still on, a buzzer wi ll sound as long as the driver's door is
open to remind you to t urn off the lights.
• Always observe the spec ific local regulations for your area as to
when to use your lig hts .•
Adjusting exterior lighting
T he functions are set in the f\1f\1J.
- Select: Function button [CAR ]> Systems *> Exterior
lighting .
Coming home
The Corning hom e function ensures tha t a fter turning off the igni­
tion and open ing the driver 's door
the veh icle per iphery is illum i­
nated in the dark. I n addition, the front fog lights, the ta il lights an d
the license plate l ight are turned on . On-time can be set for a period
from O (o ff) to 60 seconds .
Leaving home
The Leaving home function ens ures tha t when unlocking the vehicle
periphery is illuminated in the dark. In add ition, the front fog lights,
the tai l lights and the license p late light are turned on . This funct ion
can be turned on and off .
Daytime running ligh ts
USA models : The daytime running lights can be turned on or off using
this funct ion .
Canada model s: The function cannot be t urned off. It is activated
automatically each time the ignition is t urned on. This men u item is
shown "greyed out". •

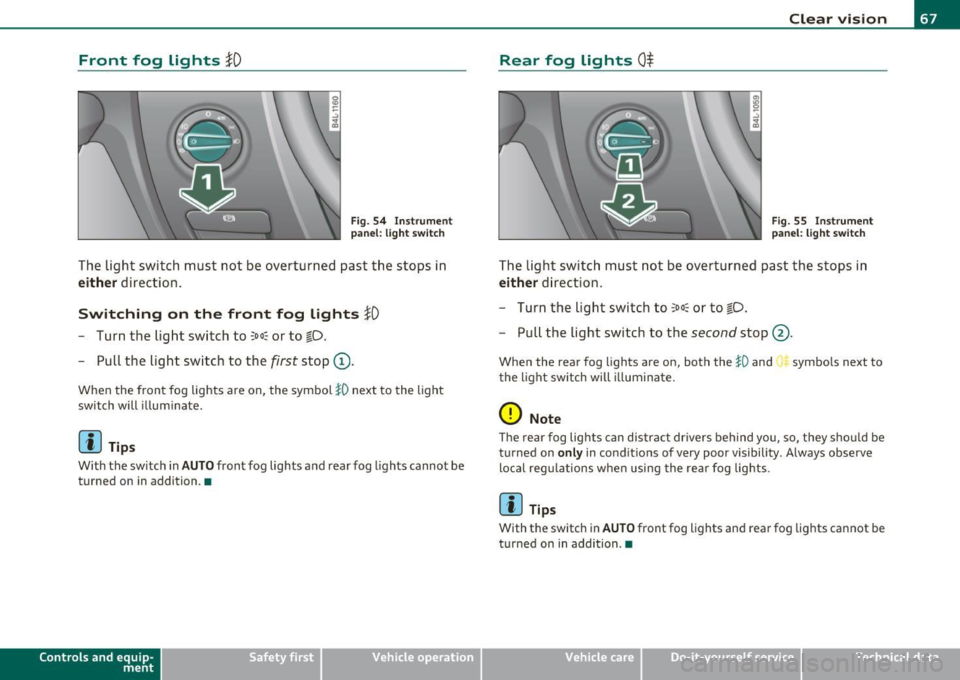

Front fog Lights }O
Fig. 54 Instru men t
panel : light s witch
The light switch must not be overturn ed past the stops in
either direction.
Switching on the front fog lights }D
Turn the light switch to :oo:: or to io .
- Pull the light switch to the first stop (D.
When the front fog lights are on, the symbo l tO next to the light
switch will illum inate .
[I] Tips
With the sw itch in AUTO front fog lights and rear fog lights cannot be
turned on in addition .•
Con tro ls a nd e quip ­
m en t Vehicle
OP-eration
Rear fog Lights 0$
Clear vision
Fi g. 55 Inst rume nt
p ane l: li ght s witch
The light switch must not be ove rturned past the stops in
eithe r direct ion .
- Turn the light switch to
:oo:: or to ~O.
- Pull the light switch to the
second stop @.
When the rear fog lights are on, both the tO and ,._ symbols next to
the l ight sw itch will illumina te.
0 Note
T he rear fog lights can distract drivers behind you, so, they sho uld be
turned on
only in cond it ions of very poor visibility . Always observe
loca l reg ulations when using the rear fog lights.
[I] Tips
With the switch in AU TO front fog lights and rea r fog lights cannot be
turned on in addition .•
Vehicle care Do-it-yourselt service Technical data

Clear vision
Applies to vehicles : with Adaptive Light
Adaptive Light
When driving around bends, the relevant area of the road
is better illuminated.
Switching on Adaptive Light
Fig . 56 Adaptive Light
when driving
- Turn the light switch to AUTO~ page 65, fig. 53.
The Adaptive Light is a dynamic cornering light. When the light is on,
it follows the curve of the road. It is dependant upon the vehicle
speed and the angle of the steering wheel. The curve is then better
illuminated. The system works when the vehicle is moving from
6 mph (10 km/) to 68 mph (110 km/h).
The cornering light will switch on automatically at a specific steering
wheel angle. It works up to an approximate speed of 44 mph
(70 km/h).
At approximately 72 mph (115 km/h) the expressway light switches
on, which better distributes the light and increases the light cone
range . The expressway light switches off at approximately 62 mph
(100 km/h). •
Applies to vehicles : w ith light package
Perimeter lighting in the mirror housing
LEDs in the exterior mirror housing illuminate the ground
during entry.
This function ensures that when unlocking, the vehicle periphery is
illuminated in the dark. LEDs in the exterior mirror housing are
switched on. The function cannot be turned off separately .•
Emergency flasher ~
The emergency flasher makes other motorists aware that
you or your vehicle are in an emergency situation.
Fig. 57 Center
console: emergency
flasher switch
-Press the switch~~ fig. 57 to turn the emergency
flashers on or off .
When the emergency flasher is on, all fou r turn signals blink at the
same time. The turn signal indicator lights¢
9 in the instrument
cluster, as well as the light in the emergency flasher switch~ blink
likewise.
The emergency flashers will turn on automatically if you are in an
accident where the airbag has deployed.
