AUDI Q7 2013 Owner´s Manual

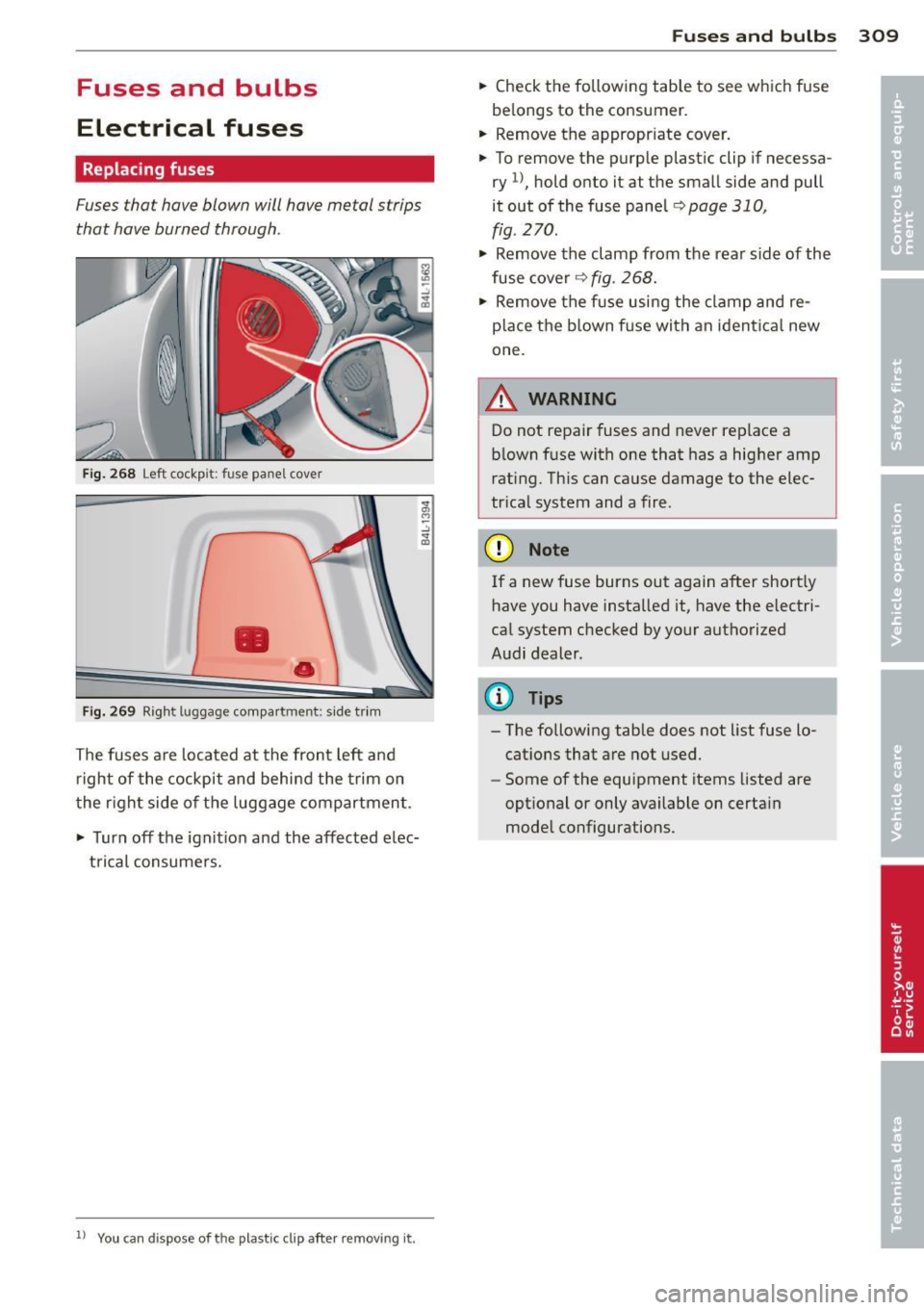

Fuses and bulbs
Electrical fuses
Replacing fuses
Fuses that have blown will have metal strips
that have burned through.
Fig. 268 Left cockpit: fuse panel cove r
•
•
Fig. 269 Right lu ggage compa rtment: side tr im
The fuses are located at the front left and
right of the cockpit and behind the trim on
the right side of the luggage compartment.
.. Turn off the ignit ion and the affected elec-
trical consumers.
11 You can dis pose of the pla st ic d ip afte r remov ing it.
Fuses and bulbs 309
.. Check the following table to see which fuse
be longs to the consumer.
.. Remove the appropr iate cover .
.. To remove the purp le plastic clip if necessa­
ry
1> , hold onto it at the small side and pull
it out of the fuse panel
9 page 310,
fig. 270 .
.. Remove the clamp from the rear side of the
fuse cover
9 fig. 268 .
.. Remove the f use using the clamp and re­
place the b lown fuse with an ident ica l new
one.
A WARNING
--
Do not repair fuses and never replace a
blown fuse with one that has a higher amp
rating. This can cause damage to the elec­
tr ica l system and a fire.
(D Note
If a new fuse burns out again after short ly
have you have installed it, have the electri­
cal system checked by your authorized
Audi dealer .
{!) Tips
-The following table does not list fuse lo­
cat ions that are not used.
- Some of the equipment items listed are
opt ional or only available on certain
mode l configurations .

310 Fuses and bulb s

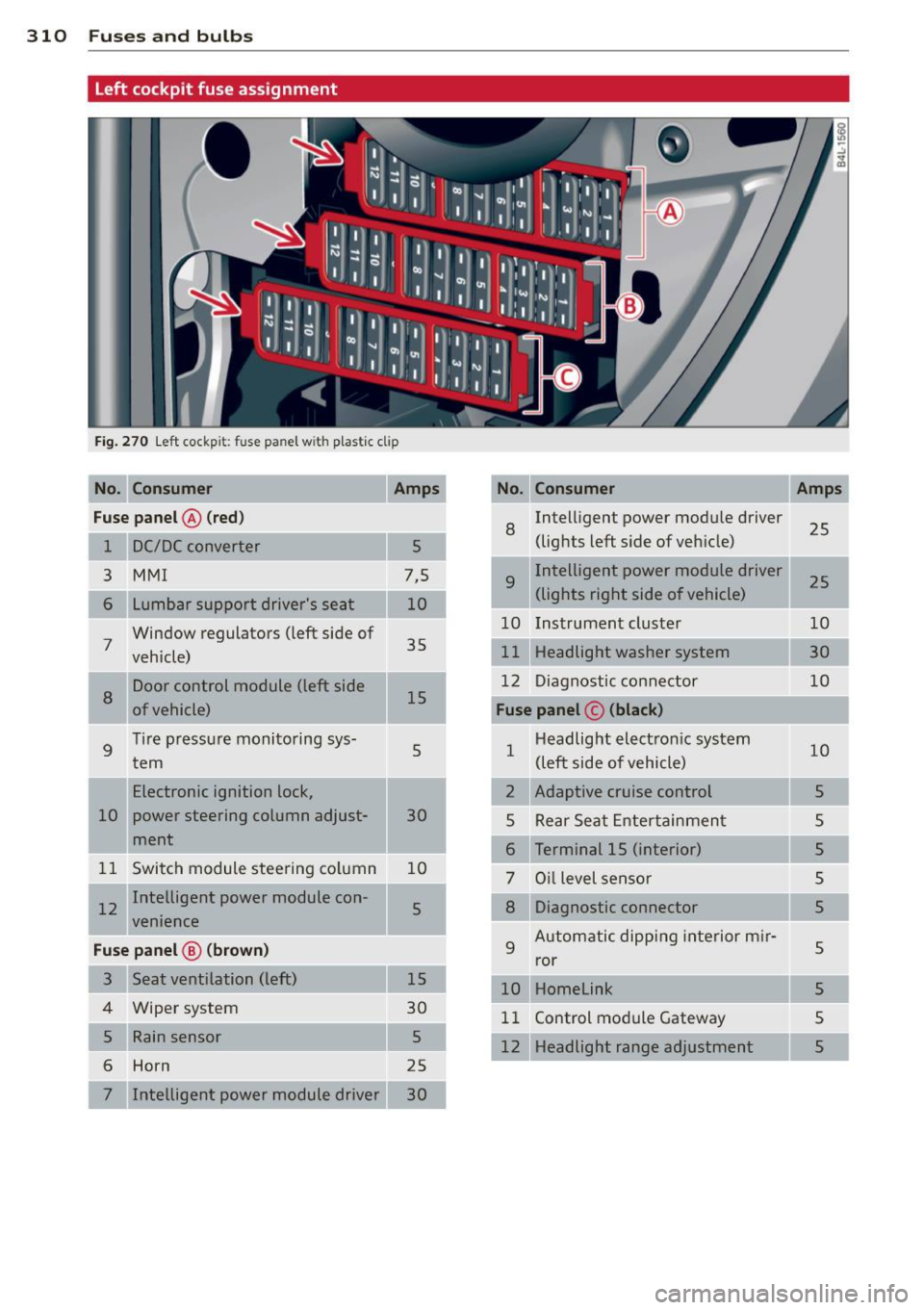

Left cockpit fuse assignment
Fig. 270 Left cockpit: fuse panel w ith p lastic clip
No. Consumer
Fu se pa nel @ (red )
8 Intelligent power modu le driver
25
1 5 (lights left s
ide of veh icle)
3
MMI 7,5 9 Intelligent power module driver 25
6 Lumbar support driver's seat
(lights right side of vehicle)
Window regulators (left side of 10 Instrument cluster
10
7 vehicle) 35
11 Headlight
washer system
Door control module (left side 12 Diagnostic connector
10
8 of vehicle) 15 Fu
se panel © (black )
9 Tire pressure monitoring sys-
5 1 Headlight electron
ic system
10
tern (left side of vehicle)
.
Electronic ignition lock,
2 Adaptive cruise control
5
10 power steering column adjust-
30
5 Rear Seat Ente rtainment
s
I ment 6 Terminal 15 (interior)
5
11 Switch module steering co lumn 10
7 Oil level sensor 5
I 12 Intelligent power module con-5 8 Diagnostic connector
5
venience
F u se pa nel @ (b ro wn) 9 Automatic dipping
interior m ir-5 ror
3 10 Homelink
5
4 Wiper system 11 Control module Gateway 5
5 5
12 Headlight range adjustment 5
6 Horn
25
7 Intelligent power module driver 30

Fuse s and bulb s 311

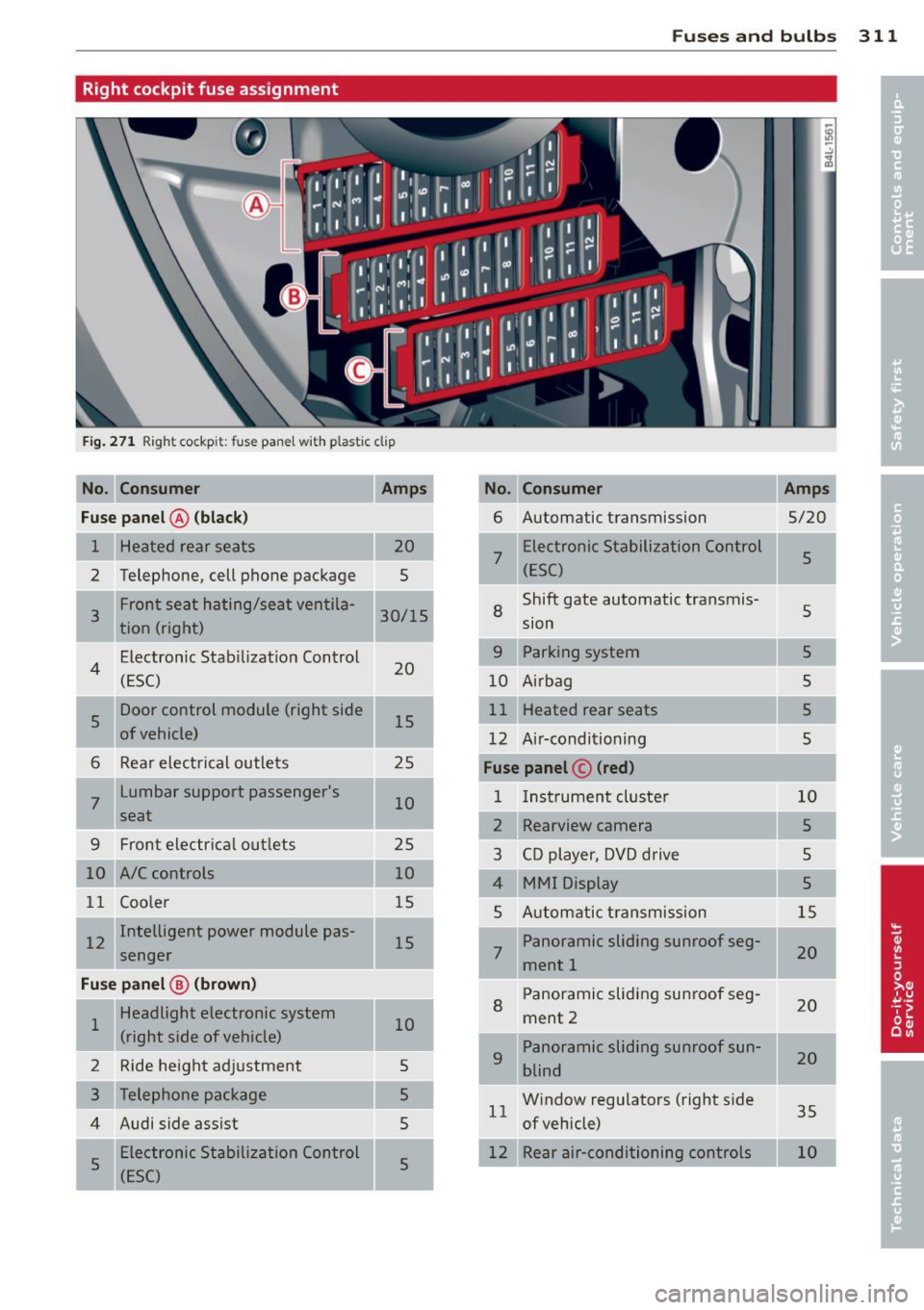

Right cockpit fuse assignment
Fig . 27 1 Righ t cockp it: f use pane l w ith pla stic clip
No. Con sumer Amps No. Consumer Amps
Fu se pa nel@ (bla ck )
6 Automatic transmission
5/20
1 Heated rear seats
7
Electronic Stabilization Control 5
2 Telephone, cell phone package (ESC)
--Shift gate automatic transmis-
Front seat hating/seat ventila-
8 s 3 30/15
tion (right) sion
Electron ic Stab ilizat ion Control
9 Parking system 5
4 (ESC) 20
10 Airbag s
s
Door control module (right side 15 Heated rear seats
5
of vehicle) 12 Ai r·conditioning 5
6 Rear electrical outlets 25 Fuse panel © (red )
7
Lumbar support passenger's
10 1
Instrument cluste r 10
seat 2 Rearview camera 5
9 Front electrical outlets 25
3 CD player, DVD drive s
10 A/C controls 10
MMI Display 5
11 Coo ler 15
5 Automatic transmission 15
I 12 Intelligent power module pas-
15 Panoramic sliding sunroof seg-
senger 7 ment 1 20
Fu
se p anel@ (b rown ) Panoramic sliding sunroof seg-
Headlight electronic system
8 ment 2 20
1 10
(right side of vehicle) Panoramic sliding sunroof sun-
2 Ride height adjustment 5
9 blind 20
5 Window regulators (right side
1 1 35
4 Audi side assist
5 of vehicle)
5 Electronic Stabili
zation Control
5 12 Rear air-conditioning controls
(ESC)

312 Fuses and bulb s

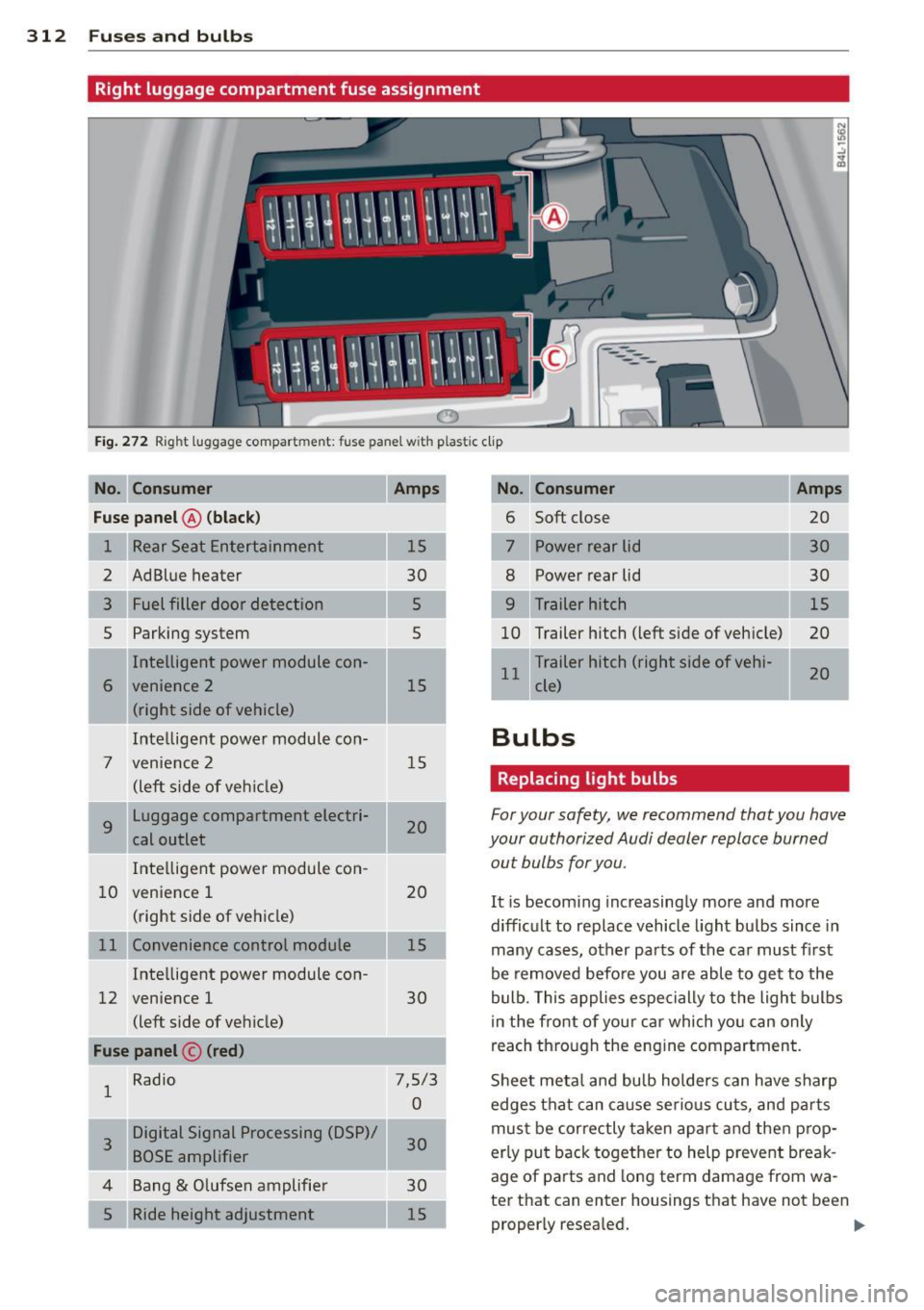

Right luggage compartment fuse assignment
0
Fig. 272 Rig ht luggage compartment: fuse panel with plastic clip
Fus e pa nel @ (bl ac k)
1 15
2 AdBlue heater 30
3 Fuel filler door detection
5 Parking system
Intelligent power module con-
6 venience 2
15
(right side of vehicle)
Inte lligent power module con-
7 venience 2 15
(left side of vehicle)
1 9
Luggage compartment electri-
20
cal outlet
Inte lligent power module con-
10 venience 1 20
(right side of vehicle)
11 Convenience control module 15 Intelligent power module con-
12 venience 1
30
(left side of vehicle)
Fuse pa nel © (red )
1 Radio
7,5/3
0
3 Digital Signal Processing (DSP)/
30
BOSE amplifier
4 Bang & O lufsen amplifier 30
5 Ride height adjustment
15
No. Consumer
6 Soft close
7 Power rear lid
8 Power rear lid
9 Trailer hitch
10 Trailer hitch (left side of vehicle)
-
11 Trailer hitch (right side of vehi-
20
cle)
I
Bulbs
Replacing light bulbs
For your safety, we recommend that you have
your authorized Audi dealer replace burned out bulbs for you .
It is becoming increasingly more and more
difficult to replace vehicle light bulbs since in
many cases, other parts of the car must first
be removed befo re you are able to get to the
bulb. This applies especially to the light bulbs
in the front of your car which yo u can only
reach through the engine compartment.
Sheet metal and bu lb holders can have sharp
edges that can cause se rious cuts, and pa rts
must be correctly taken apart and then prop­
erly put back together to help prevent break­
age of parts and long term damage from wa­
ter that can enter housings that have not been
properly re sea led.
Ill-

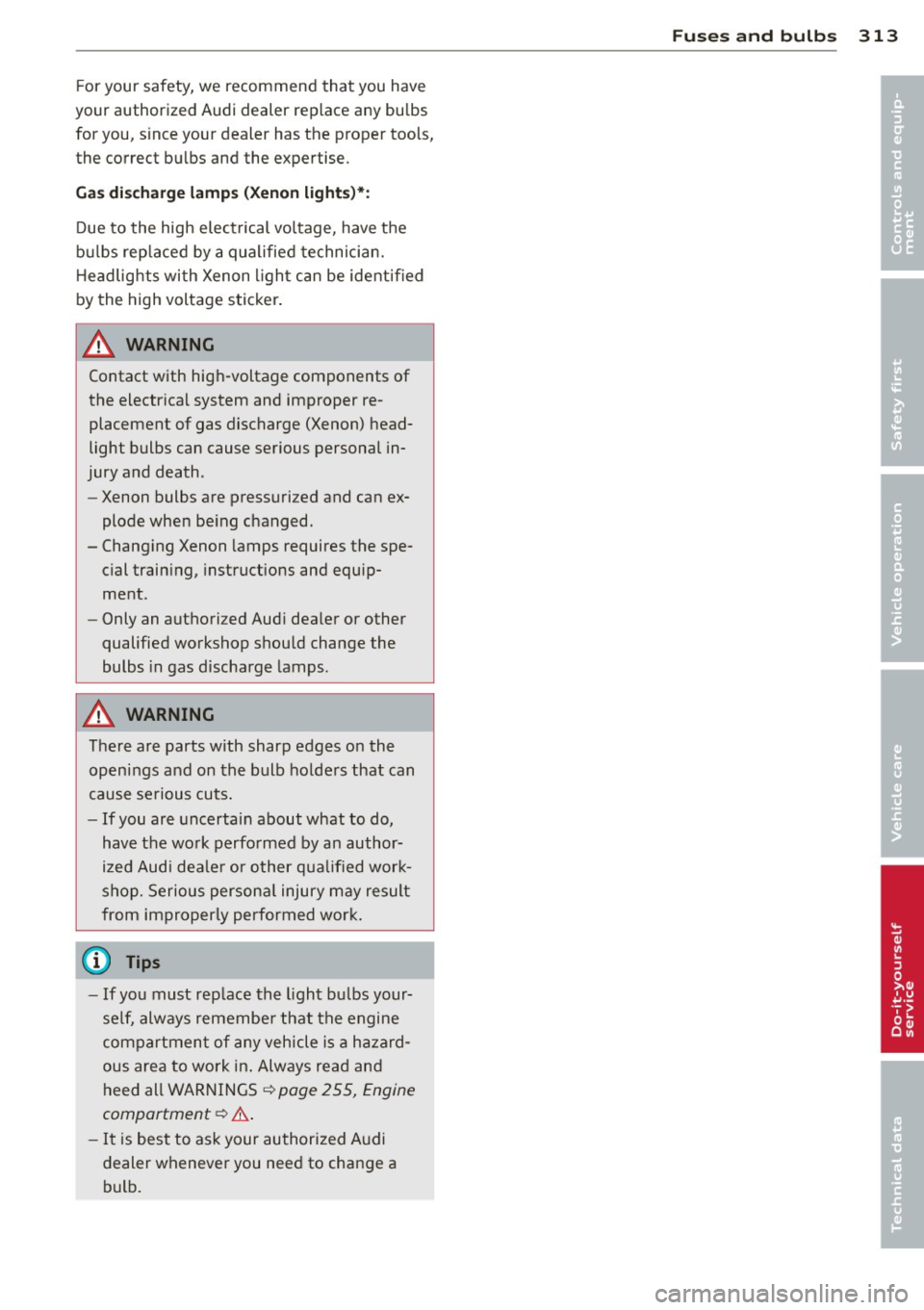

For your safety, we recommend that you have
your authorized Audi dealer replace any bulbs for you, s ince your dealer has the proper tools,
the correct bu lbs and the expertise.
G as discharg e lamps (Xenon li ght s)*:
Due to the high elect rical voltage, have the
bu lbs rep laced by a qualified technician.
H eadlights with Xenon light can be identified
by the high voltage sticker .
~ WARNING
Contact with high-voltage components of
the electrical system and improper re­
placement of gas discharge (Xenon) head­
light bulbs can cause serious personal in­
jury and death .
- Xenon bulbs are pressurized and can ex­
plode when be ing changed.
- Chang ing Xenon lamps requires the spe­
c ial train ing, instructions and equip­
ment.
- Only an authorized Aud i dea ler or other
qualified workshop should change the
bulbs in gas discharge lamps.
A WARNING
There are parts with sharp edges on the
openings and on the bulb holde rs that can
cause se rious cuts.
- If you are uncertain about what to do,
have the work performed by an author­
ized Audi dea le r or other qua lified work­
shop. Serious persona l injury m ay result
from improperly performed work .
@ Tips
-If you must rep lace the light bu lbs your­
se lf, always remembe r that the engine
compartmen t of any vehicle is a hazard­
ous area to work in . Always read and
heed all WARNINGS
~ page 255, Engine
comportment ¢.& .
-It is best to ask your authorized A udi
dealer whenever you need to change a
bulb.
Fu ses and bulb s 313
•
•

314 Emergency situations
Emergency situations
General
This chapter is intended for trained emer­
gency crews and working personnel who
have the necessary tools and equipment to perform these operations.
Starting by pushing or
towing
Q;) Note
Your vehicle is equipped with an automatic
transmission. Consequently, the engine
cannot be started by pushing or towing.
Starting with jumper
cables
If necessary, the engine can be started by
connecting it to the battery of another vehi­
cle.
If the engine should fail to start because of a
discharged or weak battery, the battery can be
connected to the battery of
another vehicle,
using a
pair of jumper cables to start the en­
gine .
Jumper cables
Use only jumper cables of sufficiently large
cross section to carry the starter current safe­
ly. Refer to the manufacturer's specifications.
Use only jumper cables with
insulated termi­
nal clamps which are distinctly marked:
plus(+) cable in most cases colored red
minus(-) cable
in most cases colored black .
A WARNING
Batteries contain electricity, acid, and gas.
Any of these can cause very serious or fatal
injury. Follow the instructions below for
safe handling of your vehicle's battery.
- Always shield your eyes and avoid lean­
ing over the battery whenever possible. -
A discharged battery can freeze at tem­
peratures just below 32 °F (0 °C). Before
connecting a jumper cable, you must
thaw the frozen battery completely, oth­
erwise it could explode.
- Do not allow battery acid to contact eyes
or skin . Flush any contacted area with
water immediately .
- Improper use of a booster battery to
start a vehicle may cause an explosion.
- Vehicle batteries generate explosive gas­
es . Keep sparks, flame and lighted ciga­
rettes away from batteries.
- Do not try to jump start any vehicle with
a low acid level in the battery .
- The voltage of the booster battery must
also have a 12-Volt rating. The capacity
(Ah) of the booster battery should not be
lower than that of the discharged bat­
tery . Use of batteries of different voltage
or substantially different "Ah" rating
may cause an explosion and personal in­
jury.
- Never charge a frozen battery. Gas trap­
ped in the ice may cause an explosion.
- Never charge or use a battery that has
been frozen. The battery case may have
be weakened.
- Use of batteries of different voltage or
substantially different capacity (Ah) rat­
ing may cause an explosion and injury.
The capacity (Ah) of the booster battery
should not be lower than that of the dis­
charged battery.
- Before you check anything in the engine
compartment, always read and heed all
WARNINGS¢
page 255, Engine com­
partment.
@ Note
- Applying a higher voltage booster bat­
tery will cause expensive damage to sen­
sitive electronic components, such as
control units, relays, radio, etc.
- There must be no electrical contact be­
tween the vehicles as otherwise current
could already start to flow as soon as the
positive(+) terminals are connected. ..,.

@ Tips
-The discharged battery must be properly
connected to the vehicle's electrical sys­
tem. When jump start ing or charging the
battery, never connect the negative
ground cable to the battery negative
post because the battery manager sys­
tem must be able to detect the battery's
state of cha rge. A lways connect the neg­
ative g round cab le to the negative
gro und post o f the battery manage r con­
trol uni t.

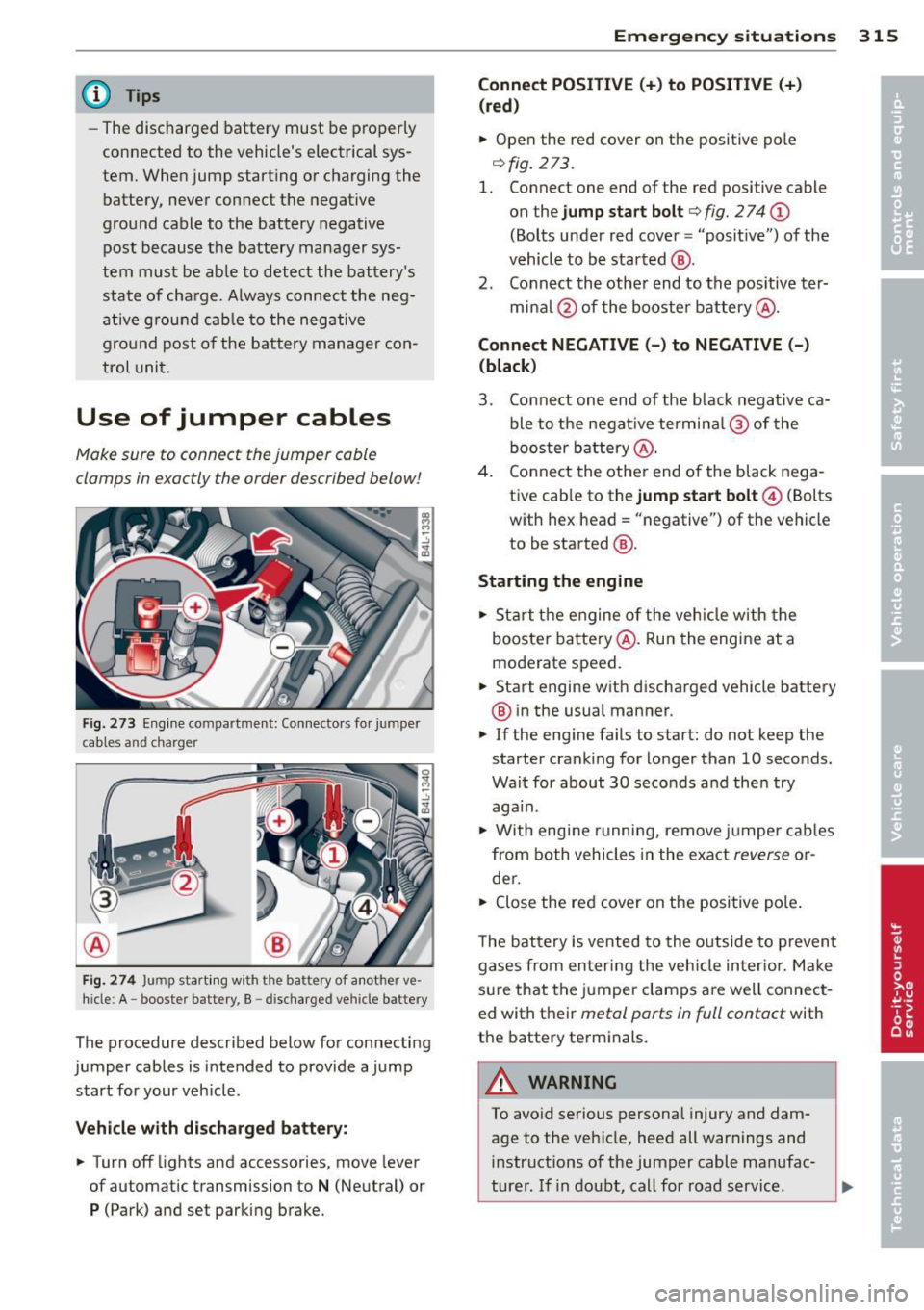

Use of jumper cables
Make sure to connect the jumper coble
clomps in exactly the order described below!
Fig. 273 Engine compartment: Con nectors fo r jumper
cables and charger
Fi g. 27 4 Jump start ing with the battery of another ve­
hicle:
A-booster battery, B -discha rged vehicle battery
The procedure described below for connecting
jumper cables is intended to provide a jump
start for your veh icle .
Vehicle with discharged batter y:
.. Turn off lights and accessories, move lever
of automatic transmission to
N (Neutral) or
P (Park) and set parking brake.
Emergenc y situ ation s 315
Connect POSI TIVE(+ ) to POSITIVE (+ )
(red )
.. Open the red cover on the positive pole
¢fig. 273.
1. Connect one end of the red positive cable
on the
jump sta rt bolt ¢ fig. 2 7 4 (D
(Bolts under red cover = "posit ive") of the
vehicle to be started ®·
2. Co nnect th e other end to the pos itive ter-
mina l@ of the booster battery @.
Connect NEGATIVE( -) to NEGATIVE(-)
( black )
3. Connect one end of the black negative ca­
ble to the negat ive termina l@ of the
booster b attery @.
4 . Connect the othe r end of the black nega­
tive cable to the
jump start bolt@ (Bolts
with hex head= "negative") of the vehicle
to be started @.
Sta rting the engine
.,. Sta rt the e ngine of the veh icle with the
booster ba tte ry @ . Ru n the engine at a
moderate speed .
.. Start engine with discharged vehicle battery
® in the usual manner.
.. If the engine fails to start: do not keep the
starter crank ing fo r longer than 10 seconds.
Wa it for about 30 seconds a nd the n try
again .
.,. With engine runni ng, remove jumper cab les
from both vehicles in the exa ct
reverse or­
de r .
.. Close the red cover on the posi tive po le .
T he battery is vented to the outside to p reven t
gases from en ter ing the veh icle inter ior. Make
s ur e that the jumper clamps a re well connect­
ed with their
metal ports in full contact with
the battery term inals.
.&_ WARNING
-To avoid serious personal injury and dam­
age to the ve hicle, heed all warnings and
i n structions of the jumper cable manufac-
-
turer . If in doubt, call for road service . IIJ>

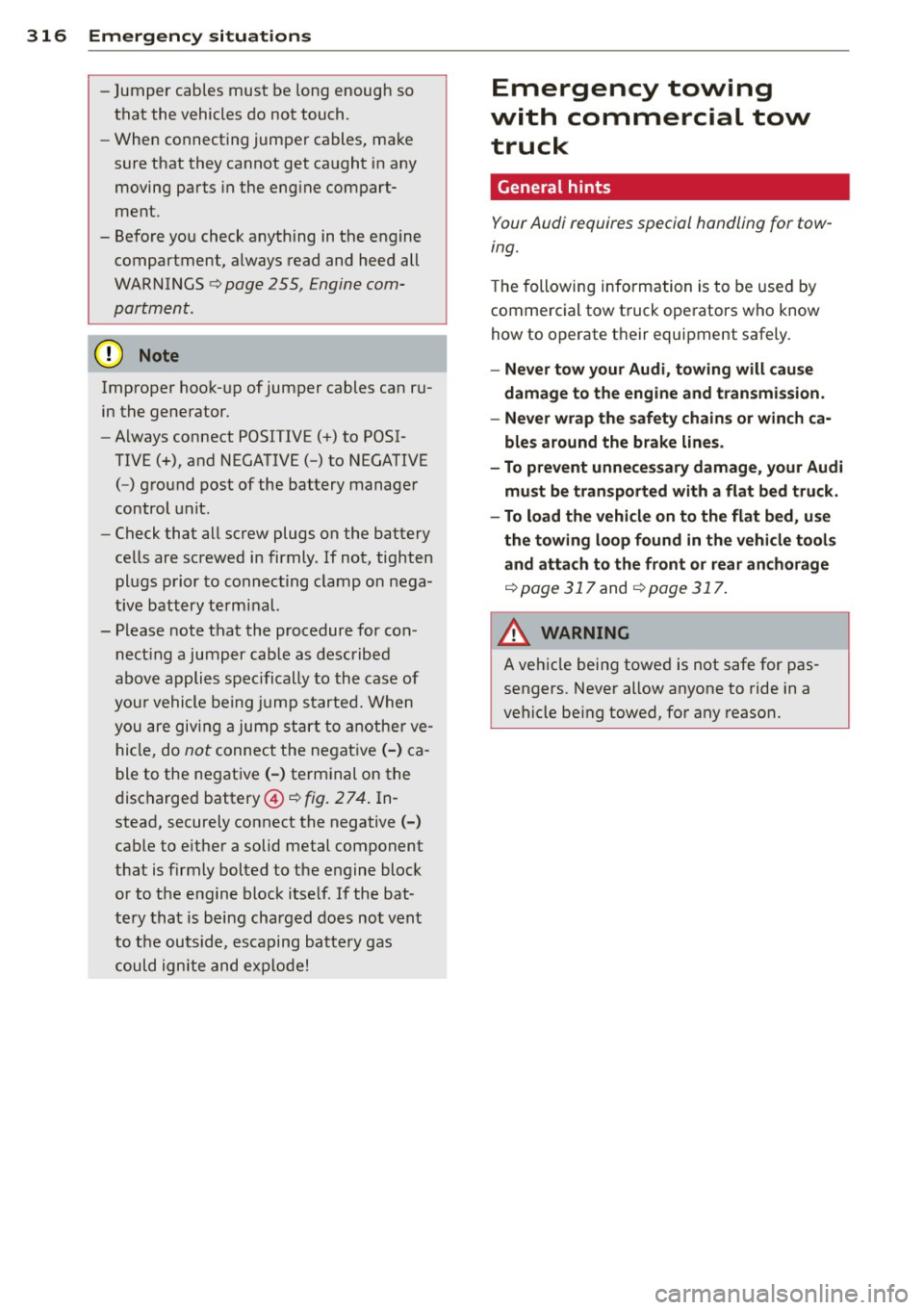

316 Emergency sit uat ions
-Jumper cables must be long enough so
that the vehicles do not touch.
- When connecting jumper cables, make
sure that they cannot get caught in any
moving parts in the engine compart­
ment.
- Before you check anything in the engine compartment, always read and heed all
WARNINGS c>
page 255, Engine com­
partment.
({D Note
Improper hook-up of jumper cables can r u­
in the generator.
- Always connect POSITIVE( +) to POSI­
TIVE(+), and NEGATIVE( -) to NEGATIVE
( - ) ground post of the battery manager
control unit.
- Check that all screw plugs on the battery
cells are screwed in firmly. If not, tighten
plugs prior to connecting clamp on nega­
tive battery terminal.
- Please note that the procedure for con­
nec:t i ng a jumper cable as described
above applies spec ifically to the case of
you r vehicle being jump started. When
you are giving a jump star t to anothe r ve­
hicle, do
not connect the negat ive (-) ca­
ble to the negat ive (-) terminal on the
discharged battery@c>
fig. 2 74. In­
stead, securely connect the negative(-)
cable to e ither a solid metal component
that is firmly bolted to the engine block
or to the engine block itse lf. If the bat­
te ry that is being charged does not vent
to t he outside, escaping batte ry gas
could ignite and explode!
Emergency towing
with commercial tow
truck
General hints
Your Audi requires special handling for tow­
ing.
T he following information is to be used by
commercial tow truck operators who know
how to operate their equipment safely.
- Nev er tow your Audi , towing will cau se
damage to the engine and tr an smi ssion .
- Ne ver wrap th e safety chain s or winch ca­
ble s around the brak e lines.
- To pre vent unne ce ss ary damage, your Audi
mus t be tr an sp o rt ed with a flat bed tru ck.
- To load th e vehi cle on to th e flat b ed, use
the towing l oop found in the ve hicle to ols
an d att ach to th e front or rea r a ncho rage
i=> page 317 and c> page 317 .
& WARNING
--==
A vehicle being towed is not safe for pas-
sengers. Never allow anyone to ride in a
vehicle be ing towed, for any reason.
-

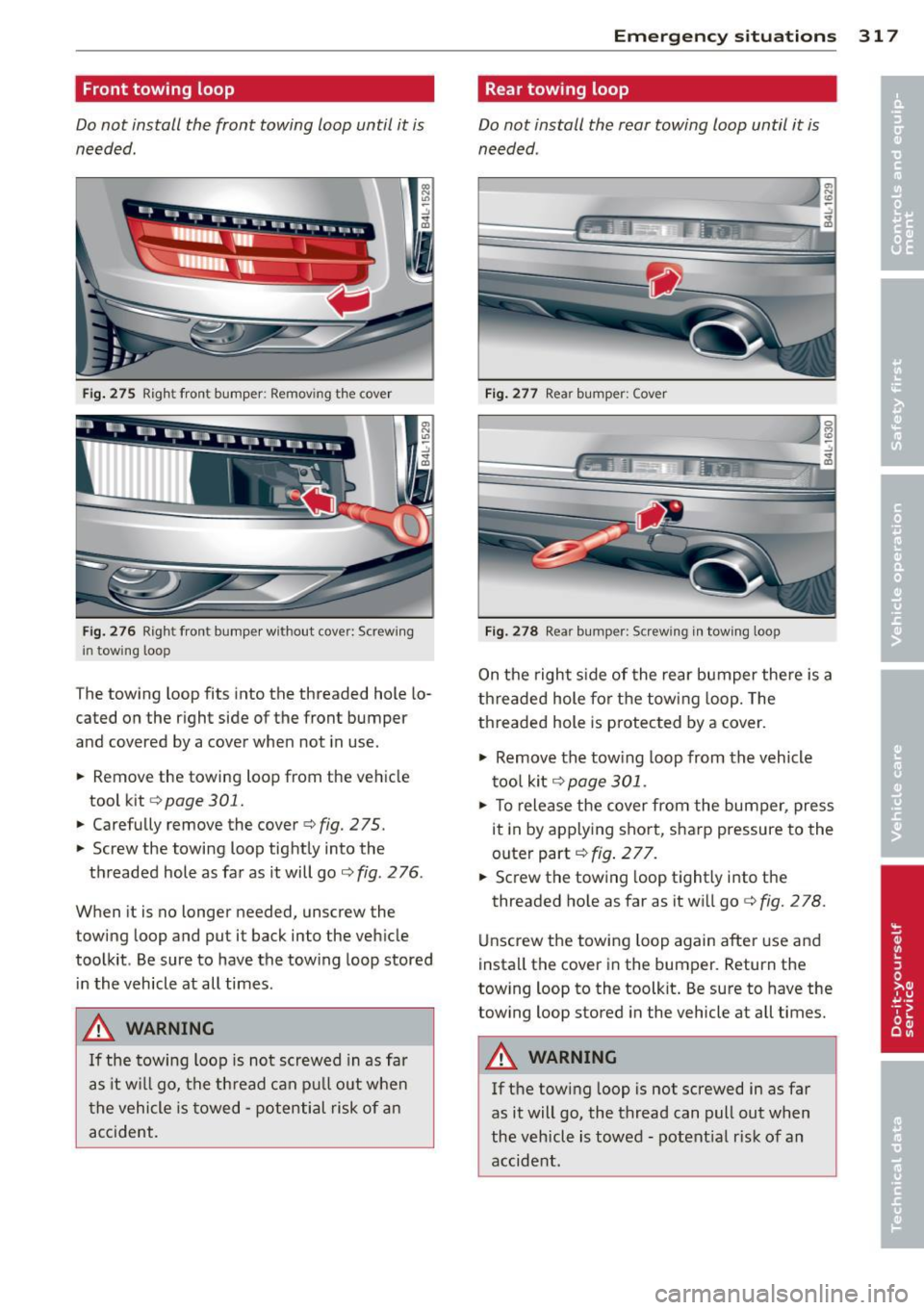

Front towing loop
Do not install the front towing loop until it is
needed.
Fig. 275 Right front bumper: Removing the cover
Fi g. 276 Right fron t bumper w ith out cover: Screwing
i n towing loop
The towing loop fits into the threaded hole lo­
cated on the right side of the front bumper
and covered by a cover when not in use.
.. Remove the towing loop from the vehicle
tool kit
c:> page 301.
.. Carefully remove the cover c:> fig. 275.
.. Screw the towing loop tightly into the
threaded hole as far as it will go
c:> fig . 276 .
When it is no longer needed, unscrew the
towing loop and put it back into the vehicle
toolkit . Be sure to have the towing loop stored
in the vehicle at all times .
_&, WARNING
If the towing loop is not screwed in as far
as it w ill go, the th read can pull out when
t he vehicle is towed -potential risk of an
accident.
Emergenc y situ ation s 31 7
Rear towing loop
Do not install the rear towing loop until it is
needed .
Fig . 277 Rear bumper: Cover
F ig. 278 Rear bumper: Screw ing in tow ing loop
On the right s ide of the rear bumper there is a
th readed hole for the towing loop. The
threaded hole is protected by a cover.
.,. Remove the tow ing loop from the vehicle
too l kit
c:> page 301 .
.. To release the cover from the bumper, press
it in by applying sho rt, sharp pressure to the
outer part
c:> fig . 277.
.. Screw the tow ing loop t ightly i nto the
threaded ho le as far as it wi ll go
c:> fig. 278.
Unscrew the towing loop again afte r use and
install the cover in the bumper. Return the
towing loop to the toolkit . Be sure to have the
towing loop stored in the vehicle at all times.
_&, WARNING
If the tow ing loop is not screwed in as far
as it will go, the thread can pull out when
the vehicle is towed -potent ia l risk of an
accide nt.

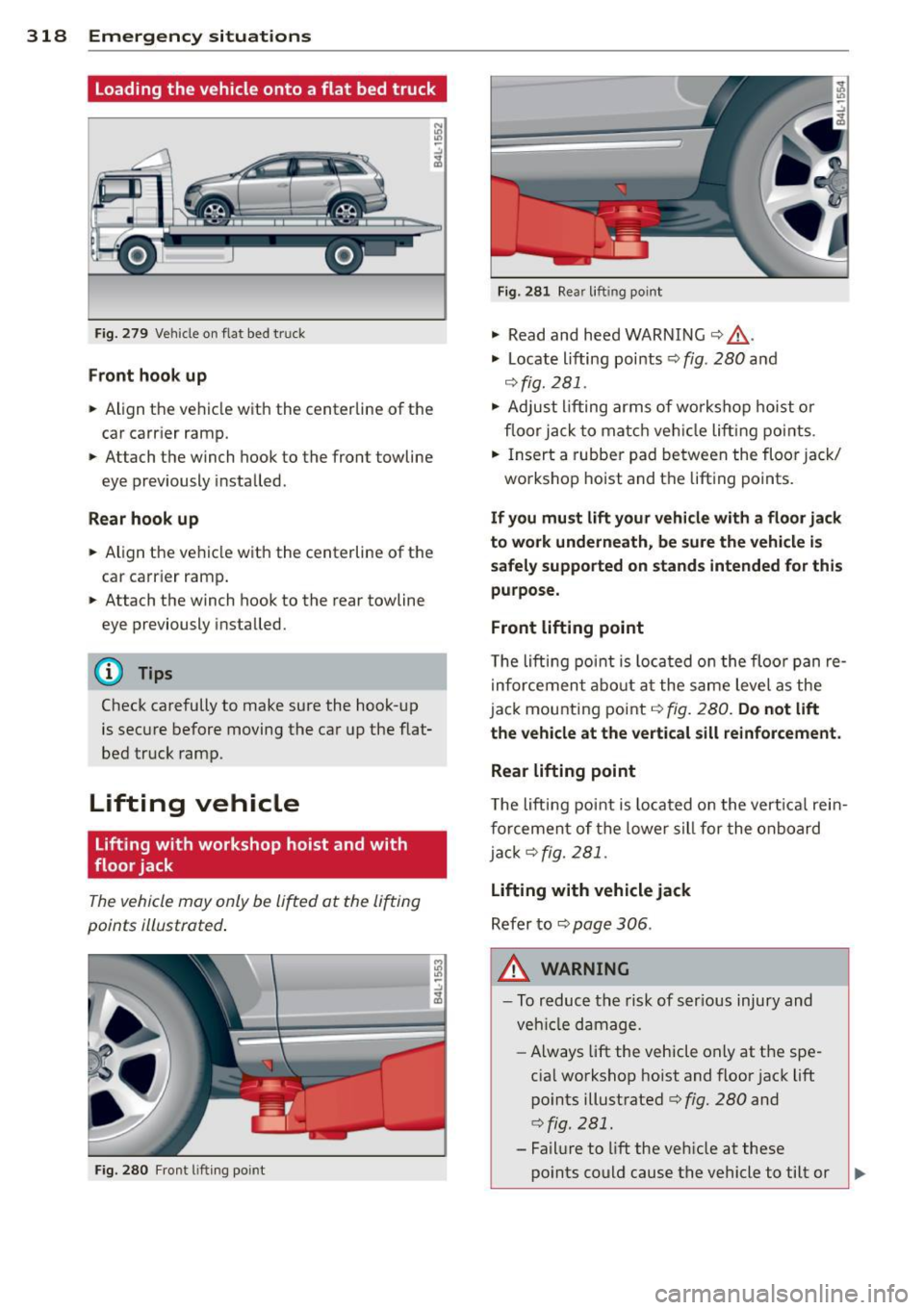

318 Emergency situations
loading the vehicle onto a flat bed truck
Fig . 27 9 Vehicle o n flat bed truck
Fr ont hook up
,,. Align the ve hicle with the centerline of the
car carr ier ramp.
,,. Attach the winch hook to the front towline
eye previously insta lled.
Rear hook up
,,. Align the vehicle with the centerline of the
car ca rrier ramp .
,,. Attach the winch hook to the rear towline
eye previously installed.
{!) Tips
C heck carefully to make sure the hook- up
is sec ure be fore moving the car up the flat­
bed truck ramp.
Lifting vehicle
lifting with workshop hoist and with
floor jack
T he vehicle may only be li~ed at the lifting
points illustrated .
Fig . 280 Front lifting po int
F ig . 281 Rear lift ing point
,,. Read and heed WARNING q ,,&. .
,,. Locate lifting poi nts q fig. 280 and
q fig. 281 .
,,. Adjust lifting arms of wo rks hop ho ist o r
floor ja ck to ma tc h veh icle lift ing po ints .
,,. Insert a rubber pad be tween the floo r ja ck /
workshop hoist and t he lift ing points.
If you mu st lift your vehi cle with a floor jack
to work underneath, be sure the vehicle is safely supported on stand s intended for this
purpose.
Front lifting point
T he lift ing po in t is loca ted o n the flo or pan re ­
i nforcemen t about a t the same leve l as the
jack mounting point
q fig. 280. Do not lift
the vehicle at the vertical sill reinforcement .
Rear lifting point
T he lifti ng poi nt is located o n the vert ic al rei n­
f o rcemen t of the lower s il l for the onbo ard
jac k
c> fig. 281.
lifting with vehicle jack
Refer to c:> page 306 .
A WARNING
---To re duce the risk of ser ious injury and
veh icle da mage.
- Always lift the vehicle only at the spe­
c ia l workshop hoist and floor jac k lift
po ints illust rated
c> fig. 280 and
c> fig. 281 .
- Fail ure t o lift the veh icle at these
po ints could cause the vehicle to tilt or ,...
