u co .... N r-... N .... 0
0
:E: '
Applies to: vehicles wit h Start/Stop system
Automatic start /stop deacti vated: Please
restart engine manually
This message appears whe n specific condi tions
are not met dur ing a stop phase. The Star t/Stop
system wi ll not be ab le to restart the engine . The
engine must be started with the
I STAR T ENGINE STOPI button.
Automatic st art /stop system: malfunct ion!
Function unavailable. Pl ease contact Service
There is a malfunction in the Start/Stop system .
Drive the ve hicle to an author ized A udi dealer or
author iz ed Service Facility as soon as poss ible to
have the ma lfunction corrected.

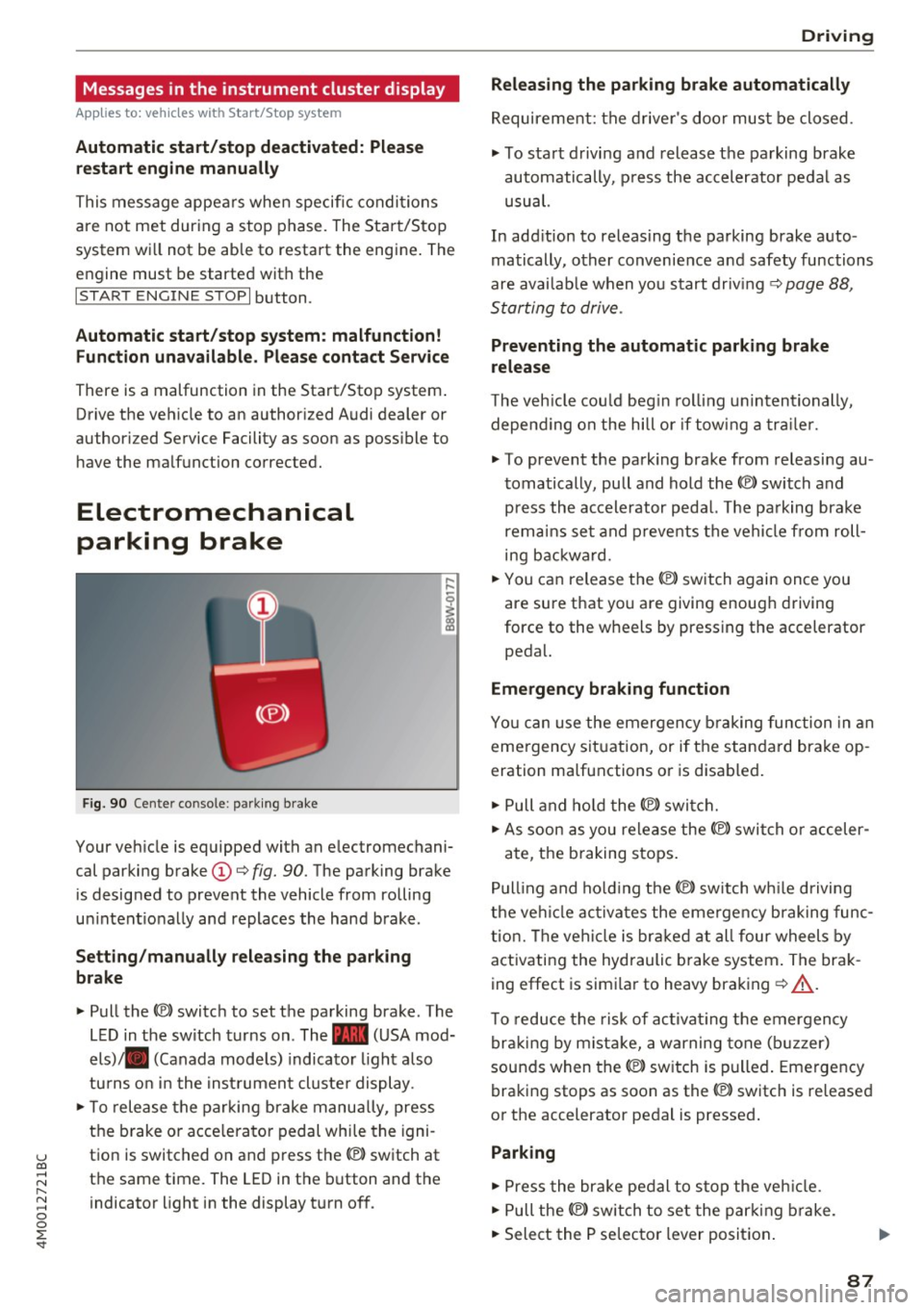

Electromechanical
parking brake
F ig . 90 Cen ter co nso le: park ing brake
Your veh icle is equipped with an electromechani
cal parki ng brake
(D ¢ fig. 90. The parking brake
is designed to prevent the vehicle from rolling
u ni ntent io nally and replaces the hand brake.
Setting /manually releasing the parking
brake
"' Pull the(®) switch to set the pa rking brake . The
L ED in t he switch turns on. The -(USA mod
els) . (Canada mode ls) indicato r light a lso
tu rns o n in the inst rument cl uste r display .
"'T o release the parking b rake manu ally, press
the b rake o r acce lera to r pedal whi le the igni
t ion is switched on and press th e® ) switch at
the same time. The LED in the b utton and the
indicator light in the display t urn of f.
D riving
Releasing the parking brake automatically
Requirement: the d rive r's doo r mus t be closed.
"' To start d rivi ng and release the parking brake
automatically, p ress the accelerator pedal as
usual.
In add it ion to releas ing the parking brake auto
matically, other convenie nce a nd safety functions
are avai lab le when you start driving ¢
page 88,
S tarting to drive .
Preventing the automatic parking brake
release
The veh icle cou ld beg in rol ling u nintentionally,
depe nding on the hill or if tow ing a traile r.
"' To prevent the park ing brake from releasi ng au
t omatically, pu ll and hold the®) switch and
p ress the accele rator peda l. The parking brake
remain s se t a nd p revents the vehi cle from roll
ing b ackwa rd.
"' You can release the®) switch again once you
are sure that yo u are giving enoug h driving
force to the wheels by pressing the accelerator
peda l.
Emergency braking function
You ca n use the emergency b raking function in an
eme rgency sit uation, or if the standard brake op
eration ma lfunctions o r is disab led .
"' Pull and ho ld the(®) switch .
"' As soon as you release the ®> switch or acceler -
ate, t he b raking stops .
Pu lling and ho ld ing the®) switch w hile driving
t h e ve hicl e ac tiva tes the eme rge ncy brak ing func
tion. The ve hicl e is brak ed a t all four wheels by
activating the hydraulic b rake system . The brak
ing effect is simi lar to heavy braking ¢
A_.
To reduce the risk of ac tivat ing the emergency
b raki ng by mist ake, a war ning tone (b uzzer)
sounds when the®) switch is p ulled . Emergency
braking stops as soon as the(®) switch is released
o r the accelerator pedal is pressed .
Parking
"'Press the bra ke pedal to stop the veh icle .
"' Pull the®) switch to set the par king brake.
"' Select the P se lec tor lever position .
87
Page 92 of 402
Driving
Incline angle
A rising difference in a ltitude (incline) on a 109
yard (100 m) stretch is given in perce ntage or de
g rees . Data indicating whether the vehicle can
drive up an incline by itself (dependent on the
road surface and the engine power among other
factors). Maximum permitted incline angle: 31
°
G round clearance
The distance between the road s urface and the
lowest point on the vehicle underbody .
-Vehi cles with steel su sp en si on : gro und clear
ance : 8 .3 in (210 mm)
- Vehi cles with air suspen sion* : maximum
ground clear ance: 9.7 in (245 mm)
&, WARNING
Exceed ing the specified max imum values can
lead to severe personal injur ies or vehicle
damage.
- All data was co llec ted on f lat, firm, non
s li ppery road surfaces and under d ry weath
er conditions .
- Ideal conditions do not apply to offroad driving. Neve r go a ll the way up to the maxi
mum va lues , but rather always leave a sa fe
ty margin.
Messages
There is only one motto when driving in difficult
conditions and offroad: drive slowly and with
caution!
Observe the fo llowing when driv ing on unpaved
roads:
• Only drive in terrain that is s uita b le for the ve
hicle and your d riving ability. Never take any
u nnecessary risks!
• Drive slowly and carefu lly.
• Pay attention to the
ground clearance of your
vehicle.
• Activate the
offroad mode as needed
¢ page 149.
• Use the hill desc ent assist when dr iv ing down
steep h ills
9page 150.
90
Difficult terrain and off -road
When dr iving in unf ami liar areas and off road,
drive slowly and keep on the watch for unexpect
ed obstacles (such as potho les, rocks, tree
stumps, etc .).
To p revent the vehicle from bottom ing o ut and to
reduce the risk of underbody damage, yo u should
drive across uneven gro und on only one side of
the ve hicle so that only two of your wheels cross
the uneven area, instead of driving across the
center of the uneve n area with all four wheels.
D rive quickly thro ugh sandy or marshy off-road
sections and do not stop, if at all possib le .
Driving through water
Also read the information fo und in 9 page 79.
Driving on a slope
If you a re ever unable to drive up a h ill, do not try
to turn around . Dr ive back down in
reve rse in
stead . Othe rw ise you run the risk of tipping over .
If the vehicle threatens to t ip over when dr iving
across a slope, you must immediat ely steer
downhill in the direction of the slope .
Do not park your vehicle on steep hills .
To reduce the risk of tipping over, drive on hills in
the d irection of the downward slope (fall line) -
ne ver crosswise.

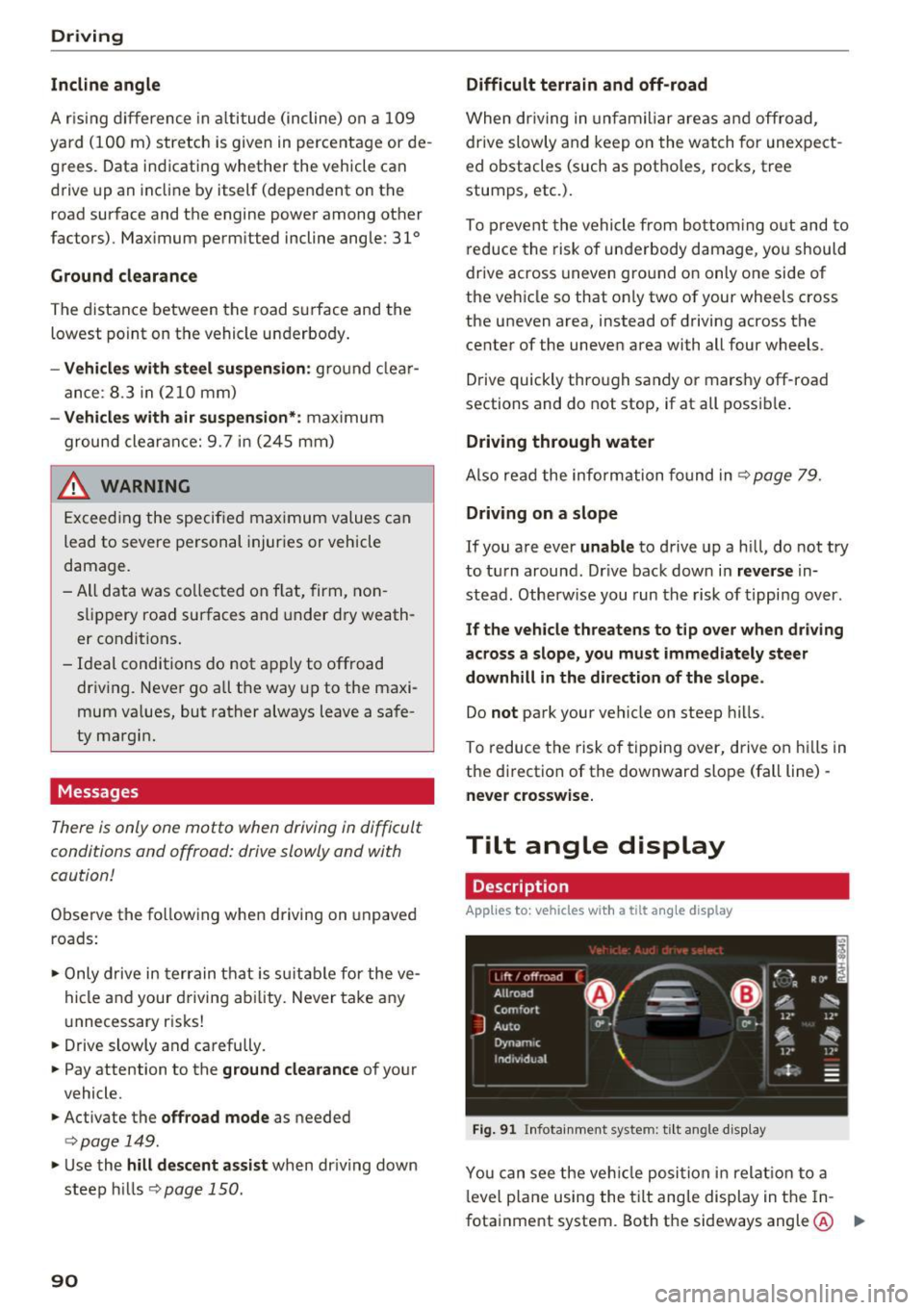

Tilt angle display
Description
Applie s to: ve hicles w ith a tilt ang le d isp lay
I l 1ft r offr:'l;ic1
·, 1
~ '
Allroad -
0
l • . ,. _,....
J
Comfort ~ ~
Auto Jl• 11· 0- .
Dynam ic
~ ~
Individual 11 • 11•
.,t,.
F ig. 91 I n fota inme nt system : til t an gle d isp lay
You can see the ve hicle position in relat io n to a
l evel p lane using the t ilt ang le display in the In
fotainment system . Both the sideways angle @ .,.
Page 152 of 402
Intelligent Technology
_&. WARNING
You should only switch offroad mode on or
switch ESC/ ASR off if your driving abilities
and the traff ic conditions perm it. There is a
r isk of slid ing.
- The stabilization function is limited when
offroad mode is switched on. The driving
wheels co uld spin and the vehicle could
swerve , especially on slick or slippery road
surfaces.
- T here is no vehicle stab ilizat ion when ESC/
ASR are switched off .

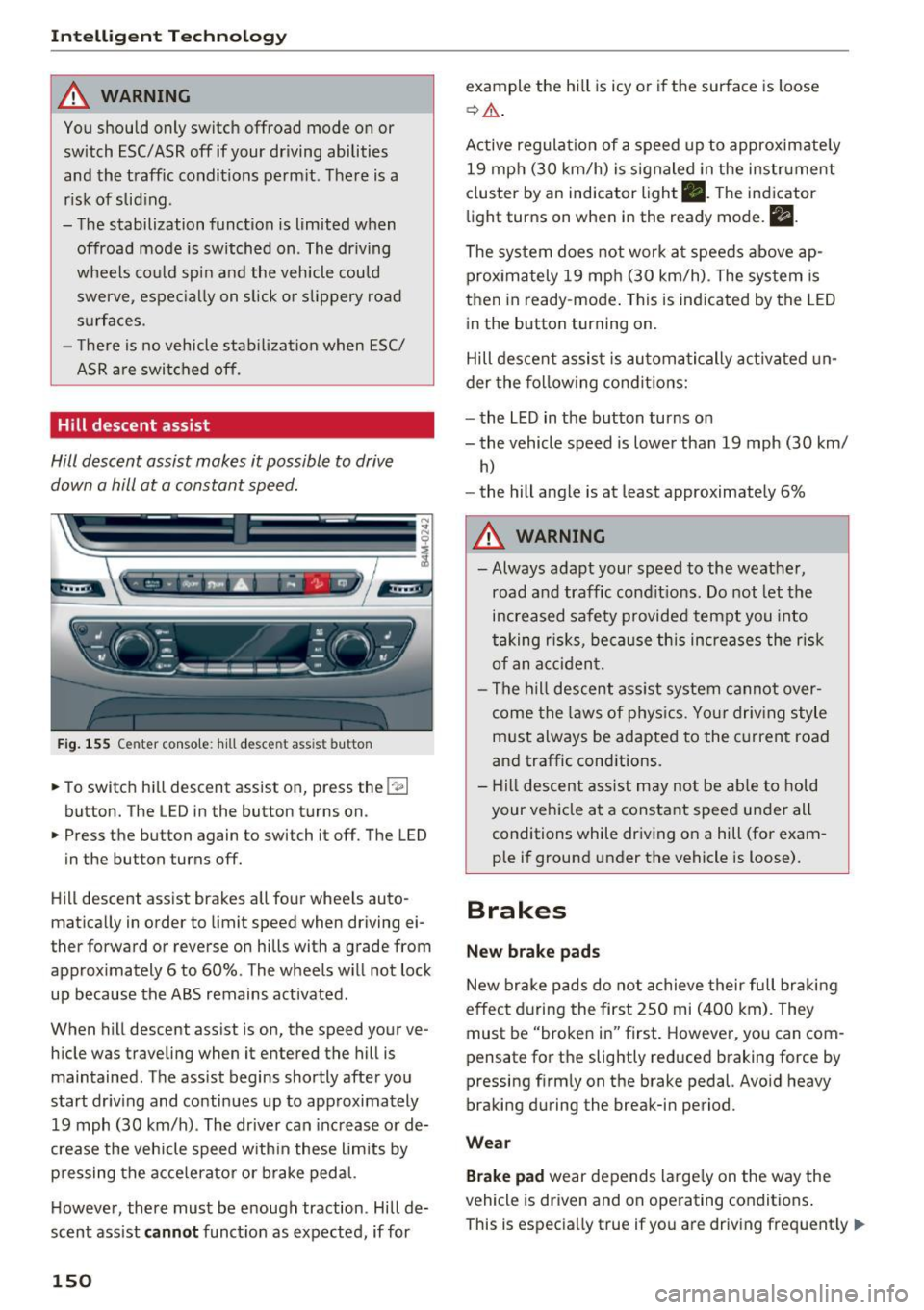

Hill descent assist
Hill descent assist makes it possible to drive
down a hill at a constant speed.
Fig. 155 Center console: hill descent ass ist button
.. To switch hill descent assist on, press the 1-
.. Press the button again to switch it off. The LED
in the button turns off.
Hill descent assist brakes all four wheels auto
matically in order to limit speed when driving ei
ther forward or reverse on hills with a grade from approximately 6 to 60%. The wheels w ill not lock
up because the ABS remains activated.
When hill descent assist is on, the speed your ve
hicle was traveling when it entered the hill is maintained. The assist begins shortly after you
start driv ing and continues up to approximately
19 mph (30 km/h). The driver can increase or de
crease the vehicle speed w ith in these limits by
pressing the accelerato r or brake pedal.
H owever, there must be enough traction. Hill de
scent assist
cannot function as expected, if for
150
example the hill is icy or if the surface is loose
~ & .
Active regulat ion of a speed up to approximately
19 mph (30 km/h) is signaled in the instrument
cluster by an indicator light •. T he indicator
light turns on when in the ready mode.
II.
The system does not work at speeds above ap
proximately 19 mph (30 km/h). The system is
then in ready-mode . This is indicated by the LED
in the button turning on.
Hill descent assist is automatically activated un
der the following conditions:
- the LED in the button turns on
- the vehicle speed is lower than 19 mph (30 km/
h)
-the hill angle is at least approximately 6%
_&. WARNING
-
- Always adapt your speed to the weather,
road and traffic conditions. Do not let the
increased safety provided tempt you into
taking risks, because this increases the risk
of an accident.
- The hill descent assist system cannot over
come the laws of phys ics. Your driving style
must always be adapted to the current road
and traffic cond itions .
- Hill descent assist may not be able to hold
your vehicle at a constant speed under all
conditions while driving on a hill (for exam
ple if ground under the vehicle is loose).
Brakes
New brake pads
New brake pads do not achieve their full braking
effect during the first 250 mi (400 km). They
must be "broken in" first. However, you can com
pensate for the slightly reduced braking force by
pressing f irmly on the brake pedal. Avo id heavy
braking during the break-in period.
Wear
Brake pad wear depends largely on the way the
vehicle is driven and on operating conditions .
This is especially true if you are driv ing frequent ly
IJ,,
Page 154 of 402
Intelligent Technology

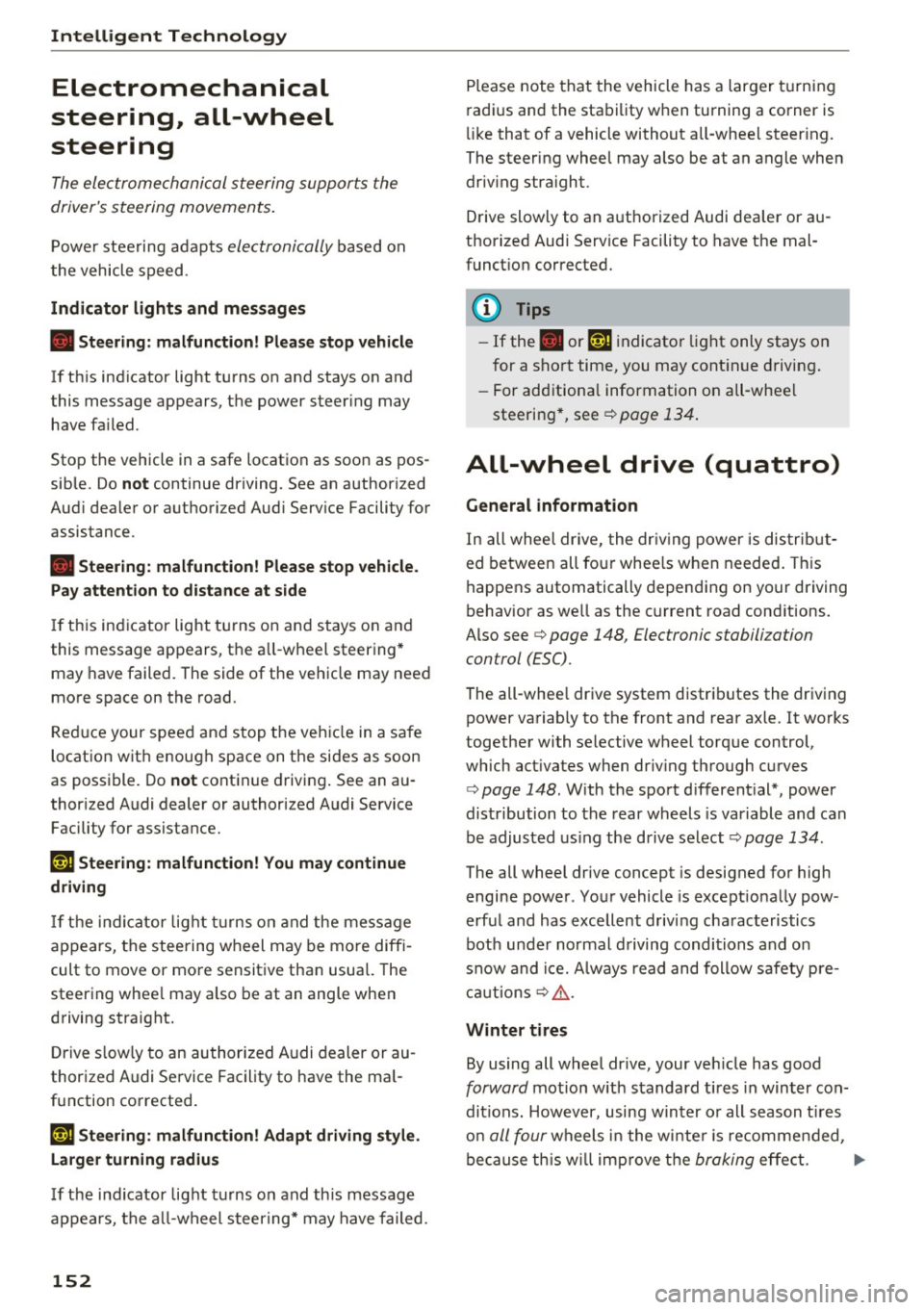

Electromechanical
steering, all-wheel
steering
The electromechanical steering supports the
driver's steering movements .
Power steering adapts electronically based on
the vehicle speed.
Indicator lights and messages
• Stee ring: malfunction! Please stop vehi cle
If th is ind icator light turns on and stays on and
this message appears, the power steer ing may
have fa iled.
Stop the vehicle in a safe location as soon as pos
sib le. Do
not continue driving. See an author iz ed
Aud i dealer or authori zed Aud i Serv ice Facility for
assistance.
• Steering: malfunction! Please stop vehicle.
Pay attention to distan ce at side
If th is ind icator light turns o n and stays o n and
this message appears, the a ll-wheel steering*
may have failed . The side of the vehicle may need
more space on the road.
Red uce your speed and stop the veh icle in a safe
locat ion wit h enough space on the sides as soon
as possible. Do
not continue d riving . See an au
thor ized Audi dealer or authorized Audi Service
Facility for assistance.
'T@ Steering : malfunction! You may continue
dri ving
If t he indicator lig ht t urns on and the message
appears, the steering wheel may be more diff i
cult to move or mo re sensitive tha n usua l. The
steering whee l may a lso be at an angle when
driving straight.
D rive s low ly to an authorized A udi dealer or au
thor ized Audi Se rvice Facility to have the ma l
function corrected.
'T@ Ste ering : ma lfunction! Adapt driving style .
Larger turning radius
I f the indicator lig ht tu rns on and th is message
appears, the a ll-wheel steering* may have failed .
152
Please note that the vehicle has a larger t urning
radi us and the stabi lity w hen turning a corner is
lik e that of a vehicle without all-whee l steer ing.
The steering wheel may also be at an angle when driv ing straight.
Drive slowly to an a uthorized Audi dea ler or au
thorized Audi Serv ice Facility to have t he mal
funct ion corrected.
(D Tips
- If the . or 'T-ij indicato r light only stays on
for a sho rt time, you may cont inue driving .
- For add itiona l information on all-wheel
steering *, see ¢
page 134 .
All-wheel drive (quattro)
General informat ion
I n all whee l drive, the dr iv ing power is dis trib ut
ed between all four whee ls when needed . This
happens automatically depending on your driving
behavior as we ll as the c urrent road cond it ions.
Also see ¢
page 148, Electronic stabili zation
control (ESC).
The all-whee l drive system distributes the driving
power va riably to the front and rear axle. It works
together with selective wheel torq ue control,
which act ivates when dr iv ing through curves
¢ page 148. With the sport d ifferent ial*, power
dist ribution to the rear wheels is variable and can
be adjusted using the drive se lect
¢ page 134.
The all wheel drive concept is designed for high
engine power . Your vehicle is except iona lly pow
erfu l and has excellent driving charac teristics
bot h unde r normal d riving conditions and o n
snow and i ce. Always read and follow safety pre
c au tions
c:::> .&, .
Winter tires
By using all wheel dr ive, your ve hicle has good
forward motion w ith standard tires in win ter con
dit ions. However, using w in ter or all season t ires
o n
all four wheels in the w inte r is re comme nded,
be cau se th is w ill imp rove t he
braking effe ct. IJII>-
Page 342 of 402
Wheel s
Occupant loading and distri
bution for vehicle normal load
for various designated seat ing
capacit ies
Refer to the tire inflation pres
sure label ¢
page 343, fig . 276
for the number of seating posi
tions . Refer to the table¢
table
on page 345
for the number of
people that correspond to the ve
hicle normal load .
New tires or wheels
Audi recommends having all work
on tires or wheels performed by
an authorized Audi dealer or au
thorized Audi Service Facility .
These facilities have the proper knowledge and are equipped with
the required tools and replace
ment parts.
.,. New tires do not yet have the
optimum gripping properties. Drive carefully and at moderate
speeds for the first 350 miles (500 km) with new tires .
.,. Use tires of the same construc
tion, size (rolling circumference)
and as close to the same tread pattern as poss ible on all four
wheels .
340
.,.Do not replace tires individually .
At least replace both tires on the
same axle at the same time.
.,. Audi recommends that you use
Audi Original Tires. If you would
like to use different tires, please
note that the tires may perform
differently even if they are the
same size ¢
,&..
.,. If you would like to equip your
vehicle with a tire/rim combina
tion that is different from what
was installed at the factory, con
sult with an authorized Audi
dealer or authorized Audi Service Facility before making a pur
chase ¢&, .
If the spare t ire is different from
the regular tires installed on the
vehicle -for example, if winter
tires or wide tires are installed -
then only use the spare tire tem
porarily in case of emergency and
drive carefully while it is in use. It
should be replaced with a regular
tire as soon as possible.
On
all wheel drive vehicles, all
four wheels must be equipped
with tires that are the same brand and have the same construction
and tread pattern so tha t the
drive system is not damaged by .,.
Page 353 of 402
u co ...... N r-... N ...... 0
0
:E: '
UJ General notes
Each tire, including t he spare (if provided),
should be checked monthly when cold and inflat
e d to the inflation pressure recommended by the
veh icle manufacturer on the vehicle placard or
tire inflat ion pressure label. (If your vehicle has
tires of a different size than the size indicated on
the veh icle placard or t ire inflation pressure la
be l, you shou ld determine the prope r ti re infla
tion pressure fo r those t ires) .
As an added safety feature , your veh icle has been
equ ipped w ith a t ire pressure monitoring system
(TPMS) that illuminates a low tire p ress ure te ll
tale whe n one or more of yo ur t ires is significant
l y under- infla ted . Accordingly, when the low tire
p ressure tellta le ill uminates, yo u should stop and
check your tires as soon as possible, and inflate
them to the proper press ure. Driving on a s ignifi
cantly under-inflated tire causes the tire to over
heat and can lead to t ire failure. Under-inflation
also reduces fuel efficiency and tire tread life,
and may affect the veh icle's handling and stop
p ing ability.
P lease note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver's re
sponsib ility to ma inta in correct tire p ressure,
even if u nder-inflation has not reached t he leve l
to tr igger illum inat io n of the TPMS low tire p res
sure telltale.
Your veh icle has also been equ ipped w ith a TPMS
malfunct ion ind icator to indicate when the sys
tem is not operat ing properly. The TPMS ma l
f u nction indicator is combined w ith the low tire
p ressure tellta le. Whe n the system de tects a
mal function, the te lltale will flash fo r approxi
mate ly one min ute and then remain continuo usly
illum inated. This sequence will continue upon
subseq uent veh icle start-ups as long as the ma l
function ex ists .
When the malfunction indicator is ill uminated,
the system may not be ab le to detect or signa l
low tire press ure as intended. TPMS ma lfunctions
may occur for a var iety of reasons, including the
Wh eel s
insta llation o f replacement or alternate tires or
whee ls on the vehicle that prevent the TPMS
from functioning p roper ly . Always check the
TPMS ma lfunction te lltale after replac ing one or
more tires or wheels on your vehicle to ensure
that the rep lacement or a lternate tires a nd
wheels allow the TPMS to continue to fu nction
prope rly .
If the tire pressure monitoring indicator
appears
The tire pressure indicator in the instrument
cluster informs you if the tire pressure is too low
or if there is a system mo/function .
Using the ABS se nsors, the t ire pressu re moni to r
i ng system compares the tire tread circumfer
en ce and vibr ation character ist ics of the ind ividu
al tires . If the press ure changes in one o r more
t ires , th is is indicated in the instrument cluster
display with an indicato r light
[I] and a message.
If only one tire is affected, the location of that
t ire will be indicated.
T he tire press ures must be stored in the Infotain
ment system again each time the p ressures
change (switching between partial and full load
pressure) or after changing or replac ing a tire on
your vehicle
c:> page 352. The tire pressure mon i
tor ing system on ly mon itors the tire pressure you
have stored . Refer to the t ire pressu re label fo r
the re commended t ire pressu re fo r yo ur vehicle
c:> page 343, fig . 2 76.
T ire tread c irc umference and vibra tion characte r
ist ics can change and ca use a tire press ure wa rn
i ng if :
- the t ire pressure in one or more tires is too low
- the t ires have structural damage
- the t ire was rep laced or the t ire pressu re was
changed and it was not stored
c:> page 352
- tires that a re on ly pa rtially used are replaced
w ith new tires
Indicator lights
[I]-L oss of pressu re in at leas t one tire c:> ,&. .
Check the tires and replace or repair if necessary .
Check/correct the pressures of all four tires and .,.
351
Page 354 of 402
Wheels
store the pressure again in the Infotainment
system
¢ page 352.
mm (T ir e Pr essure Monito ring System) Tire
pressure : malfunction ! See owner' s manual.
If
mm appears after switch ing the ignit ion on o r
while driving and the
[I] indicator light in the in
strument cluster blinks fo r approximately one
minute and then stays on, there is system mal
function. Try to store the correct tire pressures
¢ page 352 . In some cases, you must drive for
several minutes after storing the pressures until
the ind icator light turns off . If the i ndicator light
does t urn off o r tu rns on aga in afte r a short peri
od of time , d rive to an au tho riz ed A ud i dealer o r
author ized Audi Service Facility immed iate ly to
have the ma lfunction co rrected .
A WARNING
-If the t ire pressu re indicator appears in the
display, reduce your speed immediate ly and
avoid any hard steer ing or braking maneu
vers. Stop as soon as possib le and check the
t ires and their pressu re.
- The driver is responsib le for maintaining the
correct tire pressure. You must check the
t ire pressure regu larly.
- Under certain conditions (such as a sporty
dr iv ing style, winter cond itions o r unpaved
roads), the tire p ressure mon itoring system
indicator may be delayed.
@ Tips
- The t ire pressure monitoring system can al
so stop work ing when there is an ESC mal
funct ion.
- Using snow chains may result in a system
malfunction.
- The t ire pressure monitoring system in your
Audi was calibrated with "A udi Orig inal
Tires"
¢ page 340. Using these ti res is rec
ommended .
352
' Storing tire pressures
If the tire pressure changes or a tire is replaced,
it must be confirmed in the Infotainment sys
tem .
"Make sure before stor ing that the t ire pressures
of all four tires meet the specified values and
are adapted to the load
¢ page 343 .
"Switch the ignit io n on.
" Sele ct in the Infotainment system:
IMENU J but
ton
> V ehicle > Servi ce & checks > Tire pres
s u re monitor
> Store tire pre ssure > Ye s, store
now .
'
(D Tips
Do not store the tire pressures if snow chains
are installed .
Run-flat tires
Introduction
Applies to: vehicles with run-flat tires
A run-flat tire helps to maintain vehicle mobility
when there is a loss of pressure.
Run-flat tires have reinforced sidewalls that pro
tect the tire if there is a loss of pressure.
If the ti re pressure monitoring system indicates a
l oss of pressure in one or severa l ti res, you can
continue driving on run-flat tires fo r at least 20
miles (30 km). Drive to an authorized A udi dealer
or authorized Audi Serv ice Facility immediately to
have the problem corrected.
Continuing to d rive on run-flat tire s is no
longe r po ssible if
- there is visible damage to the tires, such as
cracks in the sidewalls .
- strong vibrat ions are felt wh ile driving, or the
tire beg ins to smoke due to a strong build-up of
heat .
- the t ire was heavily damaged, for example in an
accident There is a r isk that parts of the tire
tread will detach and damage important veh i
cle components .
- the Electron ic Stabilization Contro l (ESC) is not
working or is cont inuously running .
Page 355 of 402
u co ...... N r-... N ...... 0
0
:E: '
working .
I f it is no longer possib le to continue dr iv ing de
spite having run-flat tires, see an authori zed Aud i
dea ler or autho rized Aud i Service Facility for as
sistance.
A WARNING
Run-flat tires may only be used on vehicles
that were equ ipped with them at the factory.
- The veh icle must have suspension designed
for run-f lat tires and a factory- installed tire
pressure monitoring system.
- Incorrect use of run-flat tires can lead to ve
hicle damage or accidents . Contact an a u
thorized Aud i dea ler or authorized Audi
Service Facility to learn if run-flat tires may be used on your veh icle and if so, which
ones.
- If run-flat tires are used, they must be in
stalled on all four wheels. Mixing tire types
is not permi tted.
- If you have to dr ive when the tire pressure is
too low or there is no t ire pressure, note the
following:
- Do not drive faster than 50 mph (80 km/
h) because this increases the risk of an ac
cident. Observe any laws spec ific to the
country where you are driv ing.
- Avoid full-throttle acceleration, heavy
braking, and fast cornering, because this
increases the risk of an accident.
- The vehicle may become more difficult to
control.
- See an authorized Aud i dealer or author
ized Audi Service Fac ility for assistance if
the t ire is too heavily damaged.
- Have the faulty tires replaced and the rims
checked for damage by an author ized Audi
dealer or author ized Audi Se rvice Facility.
- The driver is responsib le for the vehicle, for
correcting the t ire pressure and for rep lac
ing faulty parts . Therefore, always adjust
yo ur dr iv ing to the g iven s ituation .
Wheel s
(D Tips
-Audi Original run-flat tires can be ident ified
by the "AOE" labeling on the t ire s idewa ll.
- You can use the tire mobility kit
~ page 360 on r un-flat tires.
353
