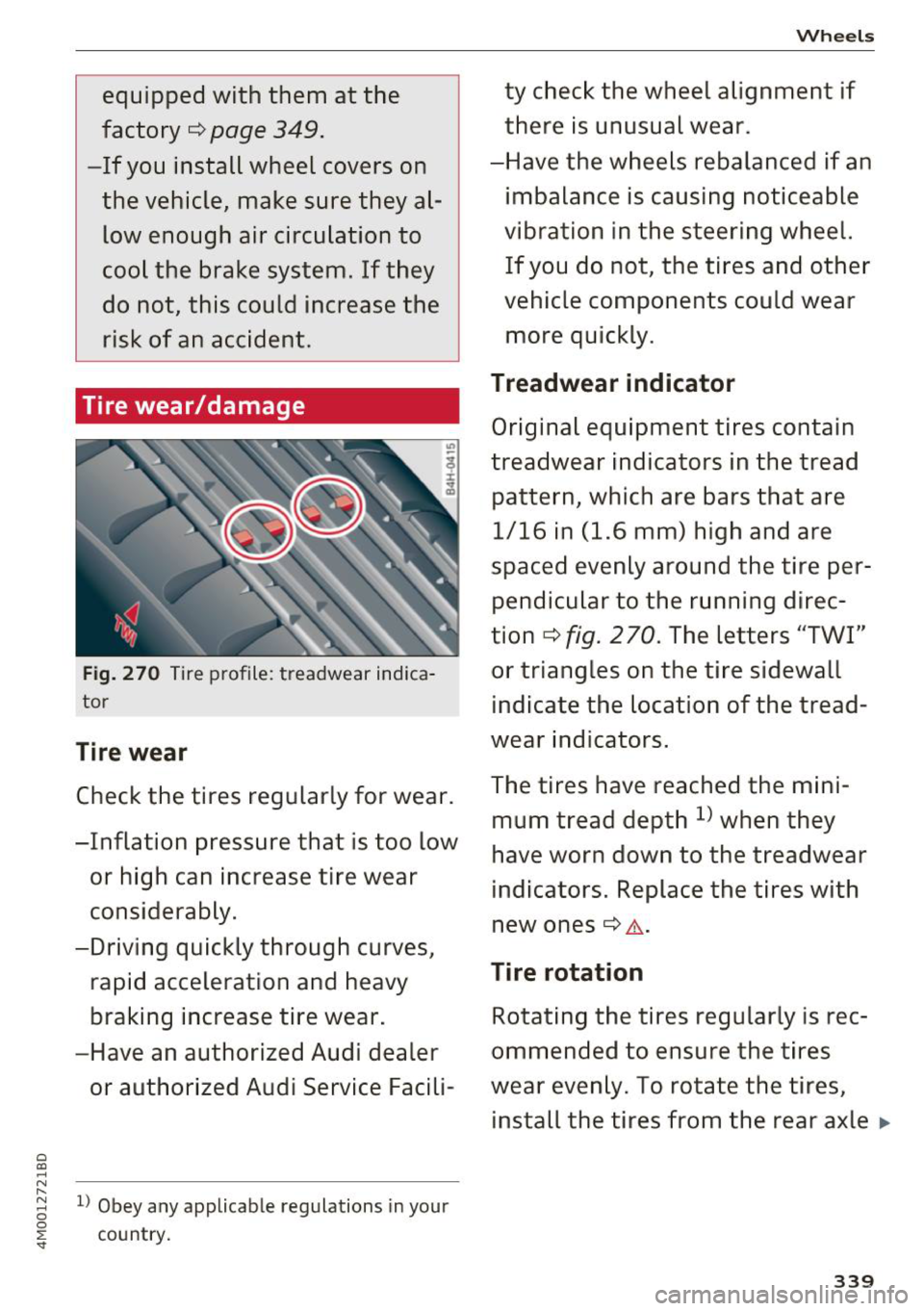

equipped with them at the
factory
r=> page 349.
-If you install wheel covers on
the vehicle, make sure they al­ low enough air circulation to
cool the brake system. If they
do not, this could increase the risk of an accident.
Tire wear/damage
Fig. 270 Tire profile : treadwear indica­
tor
Tire wear
Check the tires regularly for wear.
-Inflation pressure that is too low or high can increase tire wear
considerably.
-Driving quickly through curves, rapid acceleration and heavy
braking increase tire wear.
-Have an authorized Audi dealer or authorized Audi Service Facili-
"
8 l) Obey any applicable regulations in your
0 ~ country.
Wheels
ty check the wheel alignment if
there is unusual wear.
-Have the wheels rebalanced if an imbalance is causing noticeable
vibration in the steering wheel. If you do not, the tires and other
vehicle components could wear more quickly.
Treadwear indicator
Original equipment tires contain
treadwear indicators in the tread
pattern, which are bars that are 1/16 in (1.6 mm) high and are
spaced evenly around the tire per­ pendicular to the running direc­
tion ¢
fig. 2 70. The letters "TWI"
or triangles on the tire sidewall indicate the location of the tread­
wear indicators.
The tires have reached the mini­ mum tread depth
l) when they
have worn down to the treadwear
indicators. Replace the tires with
new ones¢ &.-
Tire rotation
Rotating the tires regularly is rec­
ommended to ensure the tires
wear evenly. To rotate the tires, install the tires from the rear axle ..,.
339

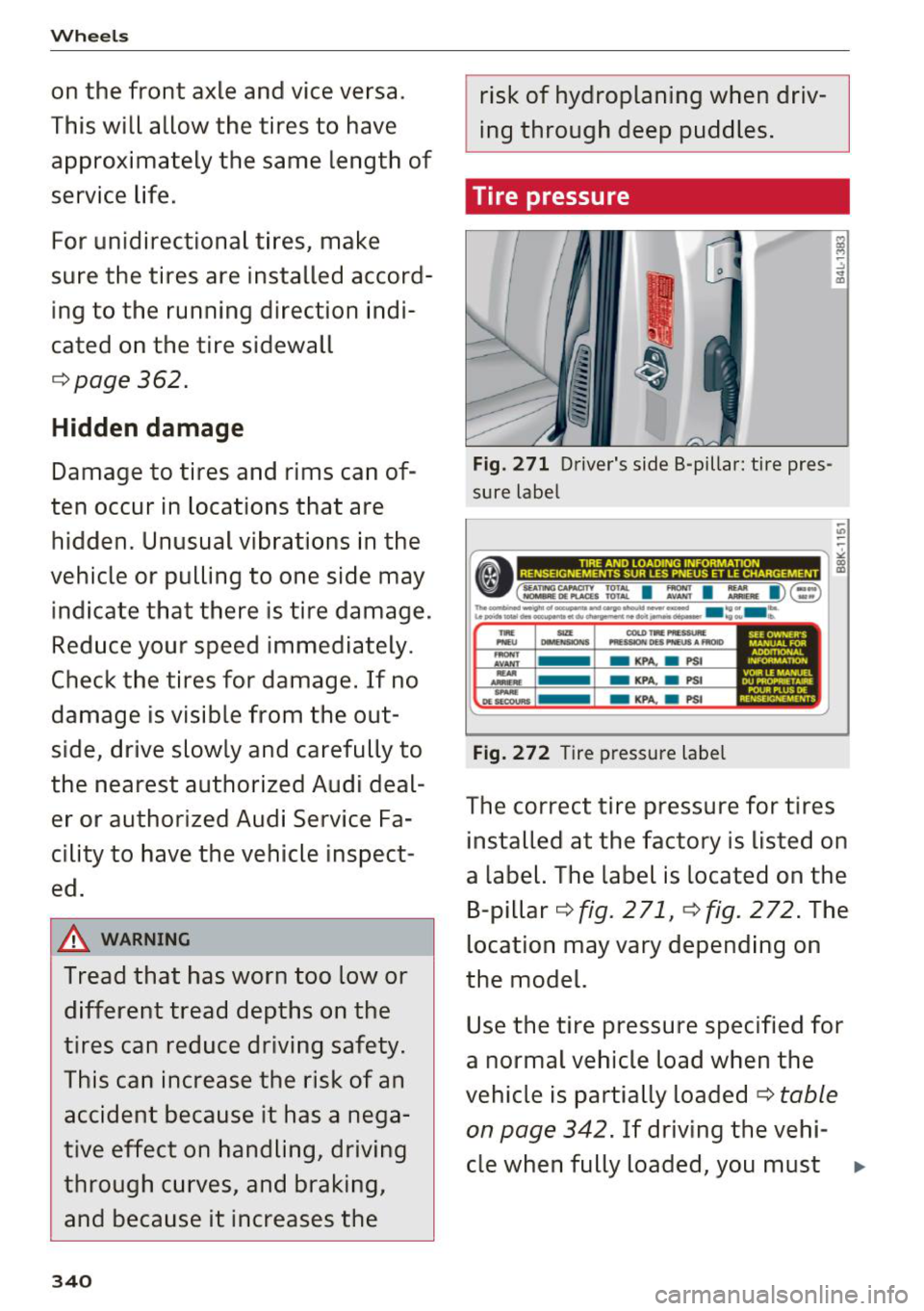

Wheels
on the front axle and vice versa.
This will allow the tires to have approximately the same length of
service life.
For unidirectional tires, make
sure the tires are installed accord­
ing to the running direction indi­
cated on the tire sidewall
¢ page 362.
Hidden damage
Damage to tires and rims can of­
ten occur in locations that are
hidden. Unusual vibrations in the
vehicle or pulling to one side may indicate that there is tire damage.
Reduce your speed immediately.
Check the tires for damage. If no
damage is visible from the out­
s ide, drive slowly and carefully to
the nearest authorized Audi deal­ er or authorized Audi Service Fa­
cility to have the vehicle inspect­
ed.
.&_ WARNING
Tread that has worn too low or
different tread depths on the
tires can reduce driving safety.
This can increase the risk of an
accident because it has a nega­
tive effect on handling, driving
through curves, and braking, and because it increases the
340
risk of hydroplaning when driv­
ing through deep puddles.
Tire pressure
I
4
Fig. 271 Driver's side 8-pillar : tire pres­
sure label
-"' --~-----------~ ,;
ta (i ta SIZI: COU> TIii£ P'RESSUIIIE l'NEU OMlHilONS PMSSION OU l"HEUI A fflOK> .... , .. AVANT -KPA. • PSI
-...,_ -KPA. • PSI
Fig. 272 Tire pressure label
SEE OWMER"S MANU4l.FOA AODmONAI. INFORMATION VO .. Lf MAN\JIE\. DU PROPRIE"T AIRE l"OU"PlUSDE RENSEIGNEM!NTS
The correct tire pressure for tires
installed at the factory is listed on
a label. The label is located on the B-pillar
¢ fig. 271, ¢fig. 272. The
location may vary depending on
the model.
Use the tire pressure specified for
a normal vehicle load when the
vehicle is partially loaded¢
table
on page 342.
If driv ing the vehi-
cle when fully loaded, you must ...

0 a, .... N
" N

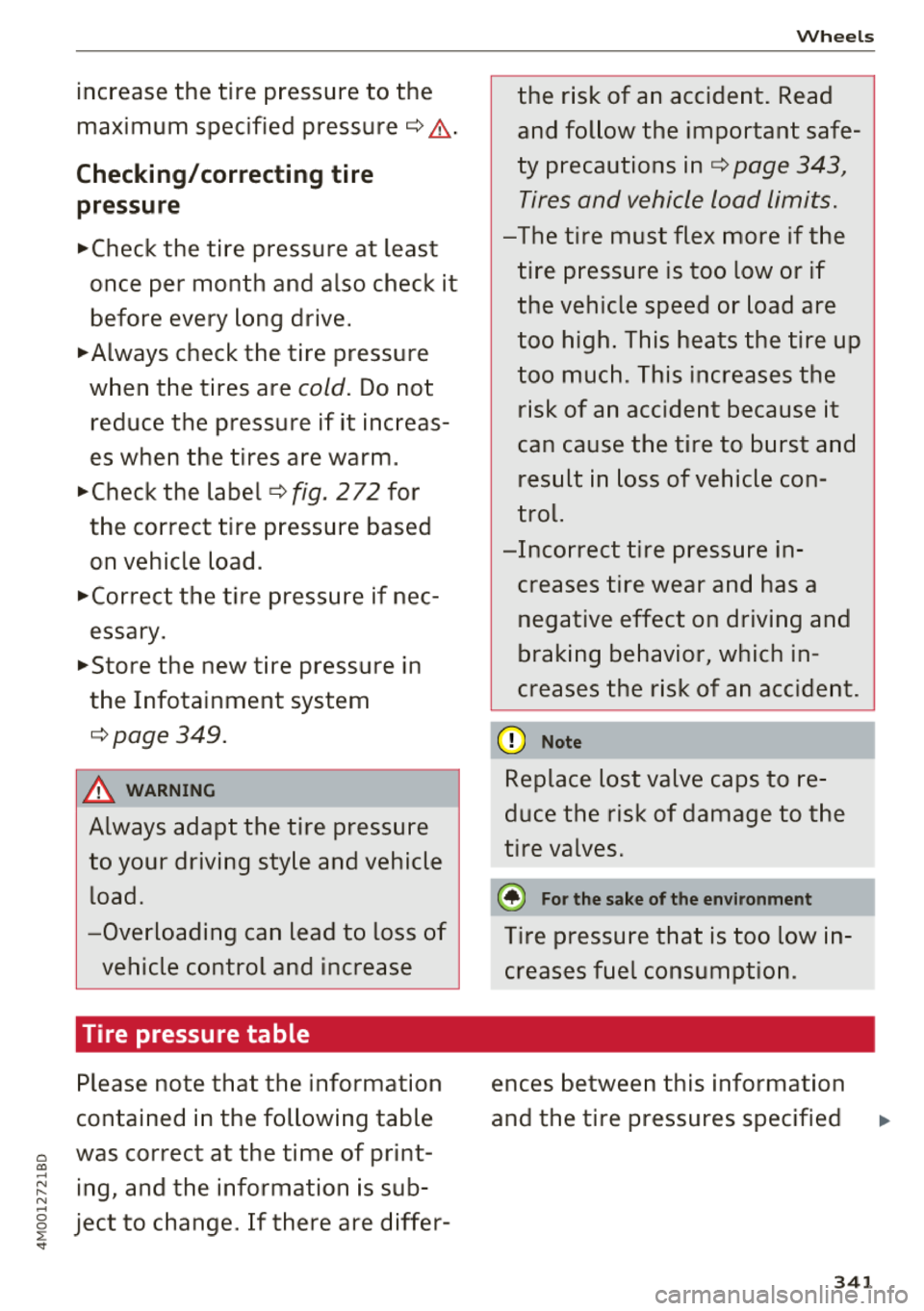

increase the tire pressure to the
maximum specified pressure¢,& .
Checking/correcting tire
pressure
.,.Check the tire pressure at least
once per month and also check it
before every long drive.
.,.Always check the tire pressure
when the tires are
cold. Do not
reduce the pressure if it increas­
es when the tires are warm .
.,.Check the labe l¢
fig. 2 72 for
the correct tire pressure based
on vehicle load.
.,,.Correct the tire pressure if nec­
essary.
.,.Store the new tire pressure in
the Infotainment system
¢ page 349.
& WARNING
Always adapt the tire pressure
to your driving style and vehicle
load.
-Overloading can lead to loss of
vehicle control and increase
Tire pressure table
Please note that the information
contained in the following table
was correct at the time of print­ ing, and the information is sub-
...
g ject to change. If there are differ-l: ..
Wheels
the risk of an accident. Read
and follow the important safe­
ty precautions in ¢
page 343,
Tires and vehicle load limits.
-The tire must flex more if the
tire pressure is too low or if
the vehicle speed or load are
too high. This heats the tire up
too much . This increases the
risk of an accident because it
can cause the tire to burst and
result in loss of vehicle con­
trol.
-Incorrect tire pressure in­ creases tire wear and has a negative effect on driving and
braking behavior, which in­
creases the risk of an accident.
@ Note
Replace lost valve caps to re­
duce the risk of damage to the
tire valves.
@ For the sake of the environment
Tire pressure that is too low in­
creases fuel consumption .
ences between this information
and the tire pressures specified
341

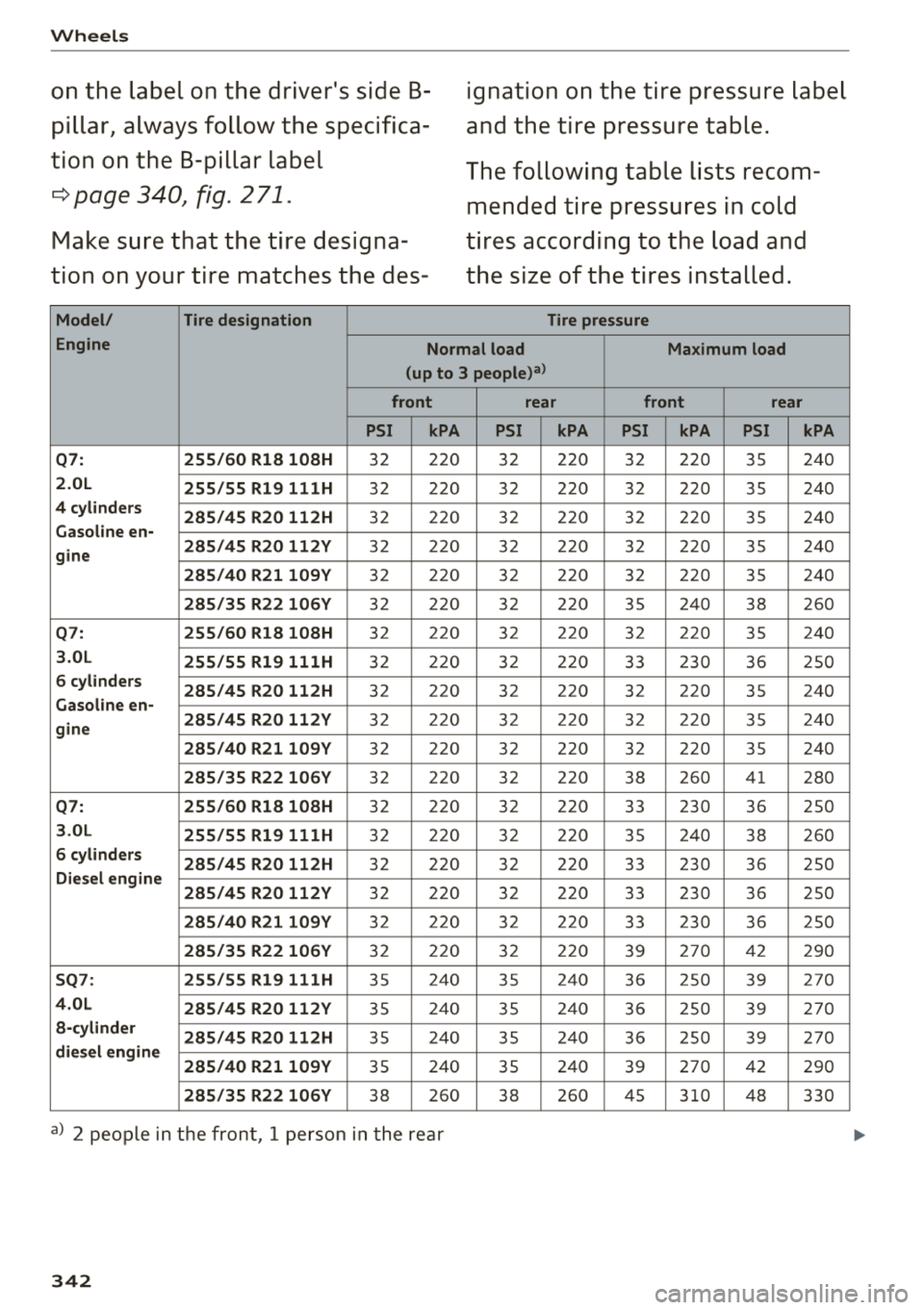

Wheels
on the label on the driver's side B­
pillar, always follow the specifica­
tion on the B-pillar label
r::=> page 340, fig. 271.
Make sure that the tire designa­
tion on your tire matches the des-
Model/ Tire designation
ignation on the tire pressure label
and the tire pressure table.
The following table lists recom­ mended tire pressures in cold
tires according to the load and
the size of the tires installed.
Tire pressure
Engine Normal load Maximum load
(up to 3 people)a)
front rear front rear
PSI kPA PSI kPA PSI kPA PSI kPA
Q7:
255/60 R18 108H 32 220 32 220 32 220 35 240
2.0L 255/55 R19 111H 32 220 32 220 32 220 35 240
4 cylinders
285/45 R20 112H 32 220 32 220 32 220 35 240
Gasoline en-
gine 285/45 R20 112V
32 220 32 220 32 220 35 240
285/40 R21109Y 32 220 32 220 32 220 35 240
285/35 R22 106V 32 220 3
2 220 35 240 38 260
Q7: 255/60 R18 108H 32 22 0 32 22 0 32 22 0 35 2
40
3.0L 255/55 R19 111H 32 220 32 220 33 230 36 250
6 cylinders
285/45 R20 112H 32 22 0 32 22 0 32 22 0 35 2
40
Gasoline en-
gine 285/45 R20 112V
32 220 32 220 32 220 35 240
285/40
R21109Y 32 220 32 220 3 2 220 35 240
285/35 R22 106V 32 220 32 220 38 260 41 280
Q7: 255/60 R18 108H 32 2
20 32 220 33 230 3 6 250
3.0L
255/55 R19 111H 32 220 32 220 35 240 38 260
6 cylinders
285/45 R20 112H 32 220 32 220 33 230 36 250
Diesel engine
285/45 R20 112V
32 220 32 220 33 230 36 250
285/40 R21109Y 32 22 0 32 22 0
33 2
30
36 2
50
285/35 R22 106V 32 220 32 220 39 270 42
290
SQ7: 255/55 R19 111H 35 2
4 0
35 24
0
36 25
0
39 27
0
4.0L
285/45 R20 112V 35 240 35 240
36 250 39 270
a-cylinder
285/45 R20 112H 35 240
35 240
36 250
39 270
diesel engine
285/40 R21109Y
35 240 35 240
39 270 42
290
285/35 R22 106V 38 2 60 38 260 45 310 48 330
a) 2 peop le in the front , 1 person in the rear
342

0 a, .... N
" N .... 0
0
l: ..

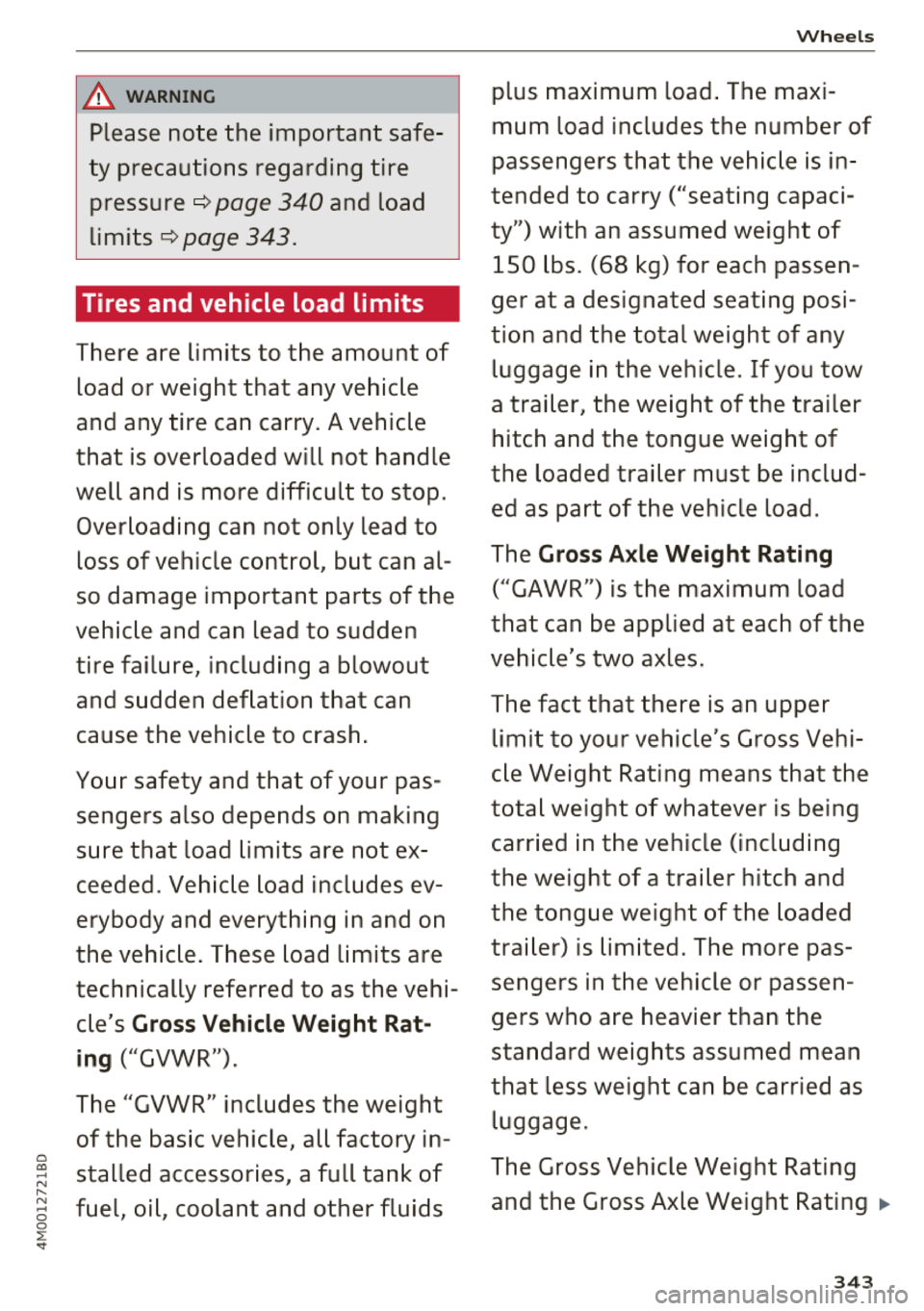

& WARNIN G
Please note the important safe­
ty precautions regarding tire
pressure
c:::> page 340 and load
limits
c:::>poge 343.
Tires and vehicle load limits
There are limits to the amount of
load or weight that any vehicle
and any tire can carry. A vehicle
that is overloaded will not handle
well and is more difficult to stop.
Overloading can not only lead to
loss of vehicle control, but can al­
so damage important parts of the
vehicle and can lead to sudden
tire failure, including a blowout
and sudden deflation that can
cause the vehicle to crash .
Your safety and that of your pas­ sengers also depends on making
sure that load limits are not ex­
ceeded . Veh icle load includes ev­
erybody and everything in and on
the vehicle . These load limits are
technically referred to as the vehi­
cle's
Gross Vehicle Weight Rat ­
ing ("GVWR").
The "GVWR" includes the weight
of the basic vehicle, all factory in­
stalled accessories, a full tank of
fuel, oil, coolant and other fluids
Wheels
plus maximum load . The maxi­
mum load includes the number of
passengers that the vehicle is in­
tended to carry ("seating capaci­
ty ") with an assumed weight of
150 lbs. (68 kg) for each passen ­
ger at a designated seating posi­
tion and the total weight of any
luggage in the vehicle . If you tow
a trailer, the weight of the trailer
hitch and the tongue weight of
the loaded trailer must be includ­ ed as part of the vehicle load .
The
Gross A xle Weight Rating
(" GAWR ") is the maximum load
that can be applied at each of the
vehicle's two axles.
T he fact that there is an upper
limit to your vehicle 's Gross Vehi­
cle Weight Rating means that the
total weight of whatever is being
carried in the vehicle (including
the weight of a trailer hitch and
the tongue weight of the loaded
trai ler) is lim ited. The more pas­
sengers in the vehicle or passen ­
gers who are heavier than the
standard weights assumed mean
that less weight can be carried as luggage.
The Gross Vehicle Weight Rating and the Gross Axle Weight Rating .,.
34 3

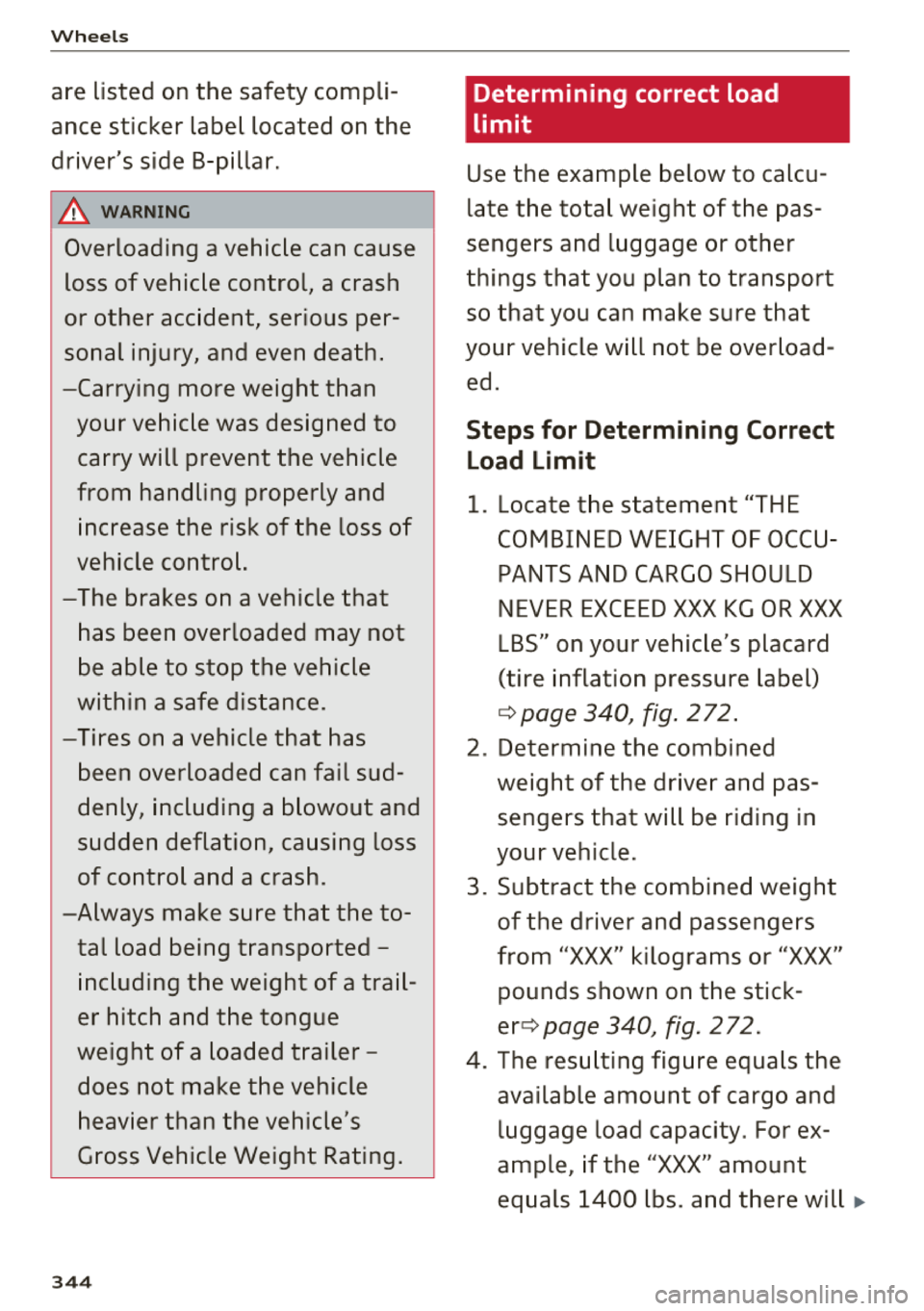

Wheels
are listed on the safety compli­
ance sticker label located on the
driver's side B-pillar.
A WARNING ,-= · -
Overloading a vehicle can cause
loss of vehicle control, a crash
or other accident, serious per­
sonal injury, and even death .
-Carrying more weight than your vehicle was designed to carry will prevent the vehicle
from handling properly and i ncrease the risk of the loss of
vehicle control.
-The brakes on a veh icle that
has been overloaded may not
be able to stop the vehicle
within a safe distance.
-Tires on a vehicle that has been overloaded can fail sud­
denly, including a b lowout and
sudden deflation, causing loss
of contro l and a crash.
-Always make sure that the to­ tal load being transported -i nc luding the weight of a tra il­
er hitch and the tongue
weight of a loaded trailer­
does not make the vehicle
h eavier than the vehicle's
Gross Vehicle Weight Rating.
3 44
Determining correct load
limit
Use the example below to calcu­
late the tota l weight of the pas­
sengers and luggage or other
things that you plan to transport
so that you can make sure that
your vehicle will not be over load ­
ed.
Steps for Determining Correct Load Limit
1 . Locate the statement " TH E
COMBIN ED WE IGH T OF OCC U­
PANTS AND CARGO SHOU LD
NEVER EXCEED XXX KG OR XXX
LBS" on your vehic le's placard
(tire inflation pressure label)
¢ page 340, fig . 272 .
2. Determine the combined
weight of the drive r and pas­
sengers that will be riding in
your vehicle.
3. Subtract the combined weight
of the driver and passengers
from
"XXX" kilograms or "XXX"
pounds shown on the stick­
er ¢
page 340, fig. 272 .
4. The resu lting figure equa ls the
available amount of cargo and
luggage load capacity . For ex­
ample, if the "XXX" amount
eq uals 1400 lbs. and there will~

Cl a:, ...... N
" N ...... 0
0
::r ' be five 150 lb s. pa ssenge rs in
y o ur vehi cle, th e am ount of
ava ilable cargo a nd lu ggage
l oa d cap acity is 650 lb s.
(1400-750 (5
X 150) = 650
lb s.)
5 . Determine th e combined
w eight of lu gga ge and cargo
bein g load ed on the vehicle .
Th at w eight m ay not sa fel y
ex ­
ceed th e av ail able car go and
lu ggage l oad capa city ca lc ul at­
e d in St ep 4 .
6 . If your vehicle will b e to wing a
tr ail e r, load from your tr ailer
will b e tran sferr ed to your
v e­
hi cle . C on sul t thi s manual t o
dete rmin e how this re du ces
th e av ailabl e c argo and lug­
ga ge load cap acity o f your vehi­
c le.
.,. Che ck th e tir e s idewall
(c:::> p ag e 33 1, fig. 269) to det er­
min e the de signated load r ating
for a specific tire.
Wheel bolts and rims
Wheel bolts
Wheel bolts must be clean and loosen/t ighten
eas ily .
Rims
Rims w ith a bolted rim ring* o r with bolted wheel
cove rs* consis t of multip le pieces. These compo­
nents were bolted together using specia l bolts
Wheels
and a spec ia l proced ure. Yo u must not repair or
disass emb le them <::>
.&..
A WARNING
--
Wheel bo lts that are tightened or repaired in­
correct ly can become loose and resu lt in loss
of vehicle contro l, wh ich increases the risk of
an accident . For the cor rect tighten ing specifi­
cation, see <::>
page 362, Finishing .
-Always keep the wheel bolts and the
threads in the wheel h ub clean and free of
g rease .
- Only use wheel bolts that fit the rim .
- Always have damaged rims repaired by an
author ized Audi dealer or author ized Audi
Serv ice Facility . Never repair or disassemb le
rims yo urself, because th is increases the r isk
of an acc ident.
Winter tires
Winter tires sign ifican tly imp rove the vehi cle's
handling when dr iv ing in winter conditions . B e­
ca use of their const ruct ion (w idth, compou nd,
tread pattern), summer tires provide less trac ­
tion on ice and snow .
.,. Use winter tires on all four wheels.
.,. On ly use winter tires that a re app roved fo r yo ur
ve hicle.
.,. Please not e that th e maximum permitted
speed may be lower with winter ti res
c:> &. in
General information on page 330 .
An author­
ized Aud i dealer or authori zed Aud i Serv ice Fa­
cility can inform you about t he maximum per ­
m itted speed for your tires .
.,. Check the tire p ressure afte r insta lling wheels
<::> page 340 .
The effectiveness of w inter tires is reduced great­
ly when t he tread is wo rn down to a depth of
0.16 in (4 mm). The cha racter istics of w inte r
t ir es also decrease g reatly as the t ire ages, re ­
gard less o f th e rem aining t read.
@ For the sake of the environment
Reinstall summer tires at the app ropr iate
time , beca use they prov ide bette r handling
when roa ds are free o f snow and ice. Summer ..,.
345

Wheels
tires cause less road noise, tire wear and fuel
consumption.
(D Tips
You can also use all season tires instead of
winter tires. Please note that in some coun­
tries where winter tires are required, only
winter tires with the
& symbol may be per­
mitted.

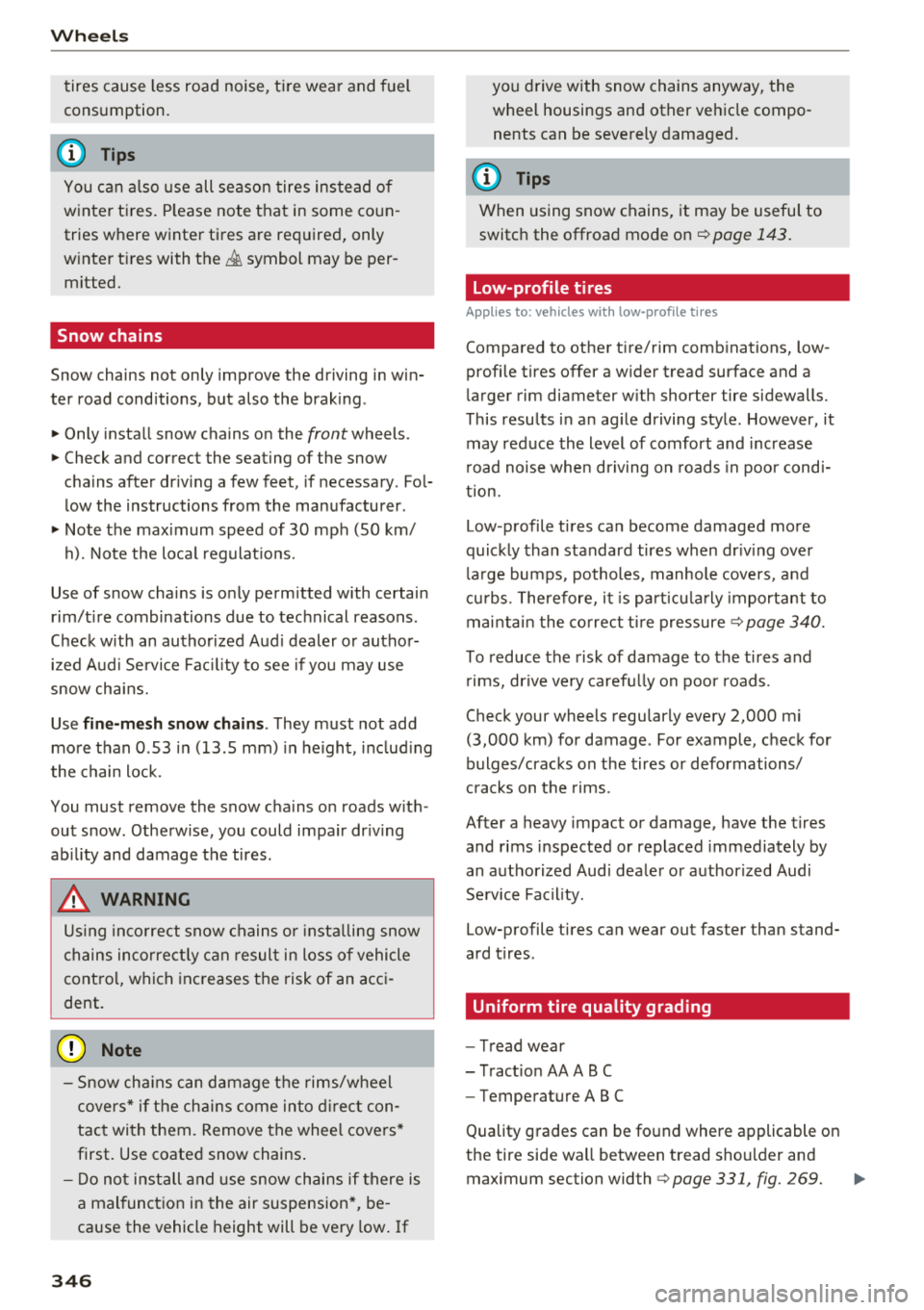

Snow chains
Snow chains not only improve the driving in win­
ter road conditions, but also the braking .
~ Only install snow chains on the front wheels.
~ Check and correct the seating of the snow
chains after driving a few feet, if necessary . Fol­
low the instructions from the manufacturer.
~ Note the maximum speed of 30 mph (SO km/
h). Note the local regulations.
Use of snow chains is only permitted with certain
rim/tire combinations due to technical reasons.
Check with an authorized Audi dealer or author­
ized Audi Service Facility to see if you may use
snow chains.
Use
fine-mesh snow chains . They must not add
more than 0 .53 in (13.5 mm) in height, including
the chain lock.
You must remove the snow chains on roads with ­
out snow. Otherwise, you could impair driving
ability and damage the tires.
.&_ WARNING
Using incorrect snow chains or installing snow
chains incorrectly can result in loss of vehicle
control, which increases the risk of an acci­
dent.
(LlJ) Note
- Snow chains can damage the rims/wheel
covers* if the chains come into direct con­
tact with them. Remove the wheel covers*
first. Use coated snow chains.
- Do not install and use snow chains if there is
a malfunction in the air suspension*, be­
cause the vehicle height will be
very low. If
346
you drive with snow chains anyway, the
wheel housings and other vehicle compo­ nents can be severely damaged.
(D Tips
When using snow chains, it may be useful to
switch the offroad mode on
r=> page 143.
Low-profile tires
Applies to: vehicles with low-profile tires
Compared to other tire/rim combinations, low­
profile tires offer a wider tread surface and a
larger rim diameter with shorter tire sidewalls.
This results in an agile driving style. However, it
may reduce the level of comfort and increase
road noise when driving on roads in poor condi­
tion.
Low -profile tires can become damaged more
quickly than standard tires when driving
over
large bumps, potholes, manhole covers, and
curbs . Therefore, it is particularly important to
maintain the correct tire pressure
r=.> page 340.
To reduce the risk of damage to the tires and
rims, drive
very carefully on poor roads.
Check your wheels regularly every 2,000 mi
(3,000 km) for damage . For example, check for
bulges/cracks on the tires or deformations/
cracks on the rims.
After a heavy impact or damage, have the tires
and rims inspected or replaced immediately by
an authorized Audi dealer or authorized Audi
Service Facility.
Low-profile tires can wear out faster than stand­
ard tires .
Uniform tire quality grading
- Tread wear
- Traction AA ABC
- Temperature ABC
Quality grades can be found where applicable on
the tire side wall between tread shoulder and maximum section width
r=.> page 331, fig. 269.

Cl a:, ...... N
" N ...... 0
0

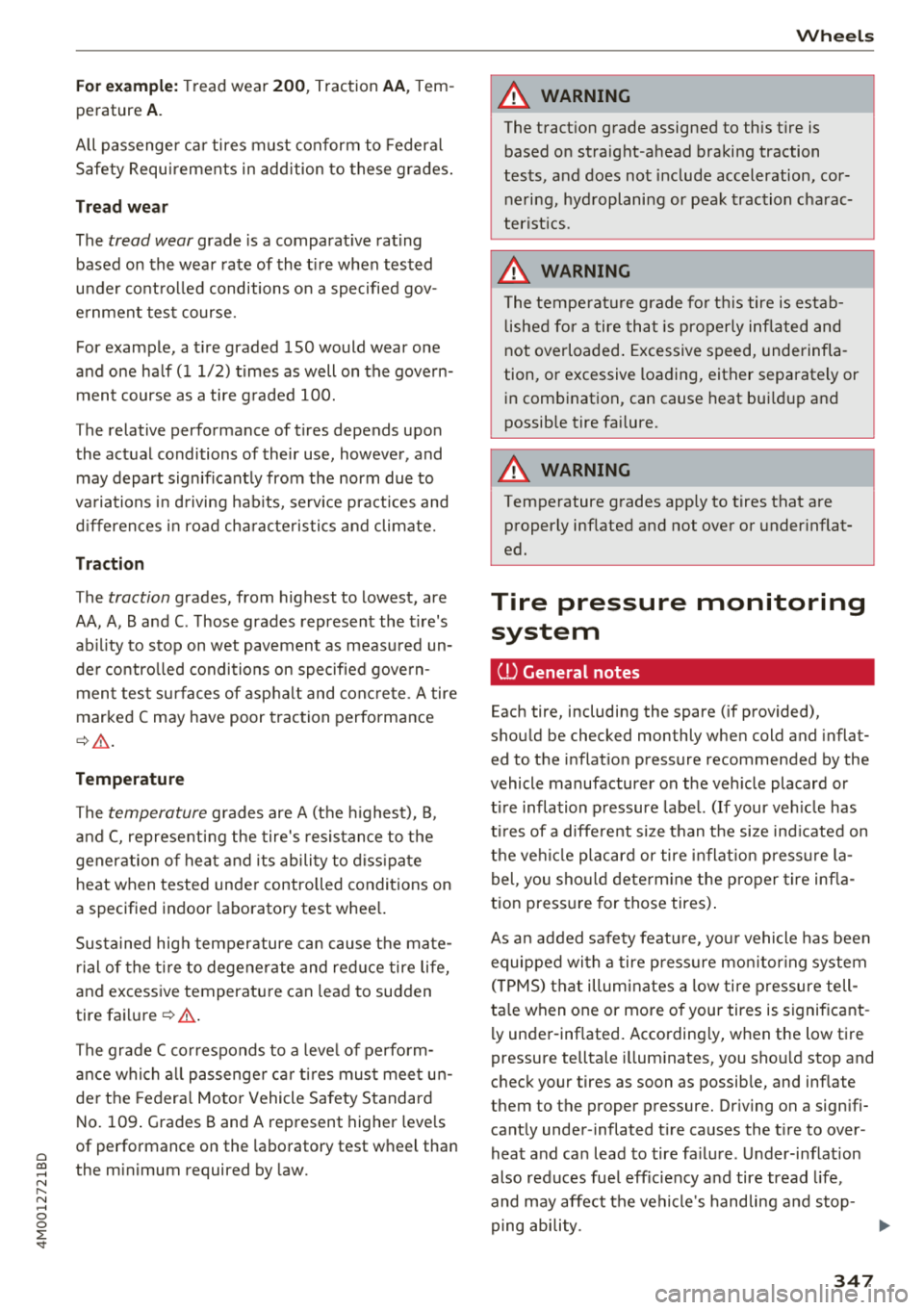

::r ' For example: Tread wear 200, Traction AA, Tem­
perature
A.
All passenger car tires must conform to Federal
Safety Requirements in addition to these grades.
Tread wear
The tread wear grade is a comparative rating
based on the wear rate of the tire when tested
under controlled conditions on a specified gov­
ernment test course.
For example, a tire graded 150 would wear one
and one ha lf (1 1/2) times as well on the govern­
ment course as a tire graded 100.
The relative performance of tires depends upon
the actual conditions of their use, however, and
may depart significant ly from the norm due to
variations in driving habits, service practices and
differences in road characteristics and climate.
Traction
The traction grades, from highest to lowest, are
AA, A, B and
C. Those grades represent the tire's
ability to stop on wet pavement as measured un­
der controlled conditions on specified govern­
ment test surfaces of asphalt and concrete . A tire
marked C may have poor traction performance
¢ &, .
Temperature
The temperature grades are A (the highest), B,
and C, representing the tire's resistance to the
generation of heat and its ability to dissipate
heat when tested under controlled conditions on
a specified indoor laboratory test wheel.
Sustained high temperature can cause the mate­
rial of the tire to degenerate and reduce tire life,
and excessive temperature can lead to sudden
tire failure¢ &,.
The grade C corresponds to a level of perform­
ance which all passenger car tires must meet un­
der the Federal Motor Vehicle Safety Standard
No. 109. Grades Band A represent higher levels
of performance on the laboratory test wheel than
the minimum required by law.
Wheels
A WARNING
--
The traction grade assigned to this tire is
based on straight-ahead braking traction
tests, and does not include acceleration, cor­
nering, hydroplaning or peak traction charac­
teristics.
A WARNING
The temperature grade for this tire is estab­
lished for a tire that is properly inflated and
not overloaded. Excessive speed, underinfla­
tion, or excessive loading, either separately or
in combination, can cause heat buildup and
possible tire failure.
A WARNING
-
--
Temperature grades apply to tires that are
properly inflated and not over or underinflat­
ed.
Tire pressure monitoring system
ill
General notes
Each tire, including the spare (if provided),
should be checked monthly when cold and inflat­
ed to the inflation pressure recommended by the
vehicle manufacturer on the vehicle placard or
tire inflation pressure label. (If your vehicle has
tires of a different size than the size ind icated on
the vehicle placard or tire inflation pressure la­
bel, you should determine the proper tire infla­
tion pressure for those tires).
As an added safety feature, your vehicle has been
equipped with a tire pressure monitoring system
(TPMS) that illuminates a low tire pressure tell­
tale when one or more of your tires is significant­ ly under -inflated. Accordingly, when the low tire
pressure telltale illuminates, you should stop and
check your tires as soon as possible, and inflate
them to the proper pressure. Driving on a signifi­ cantly under-inflated tire causes the tire to over­
heat and can lead to tire failure . Under-inflation
also reduces fue l efficiency and tire tread life,
and may affect the vehicle 's handling and stop-
ping ability. .,.
347

Wheels

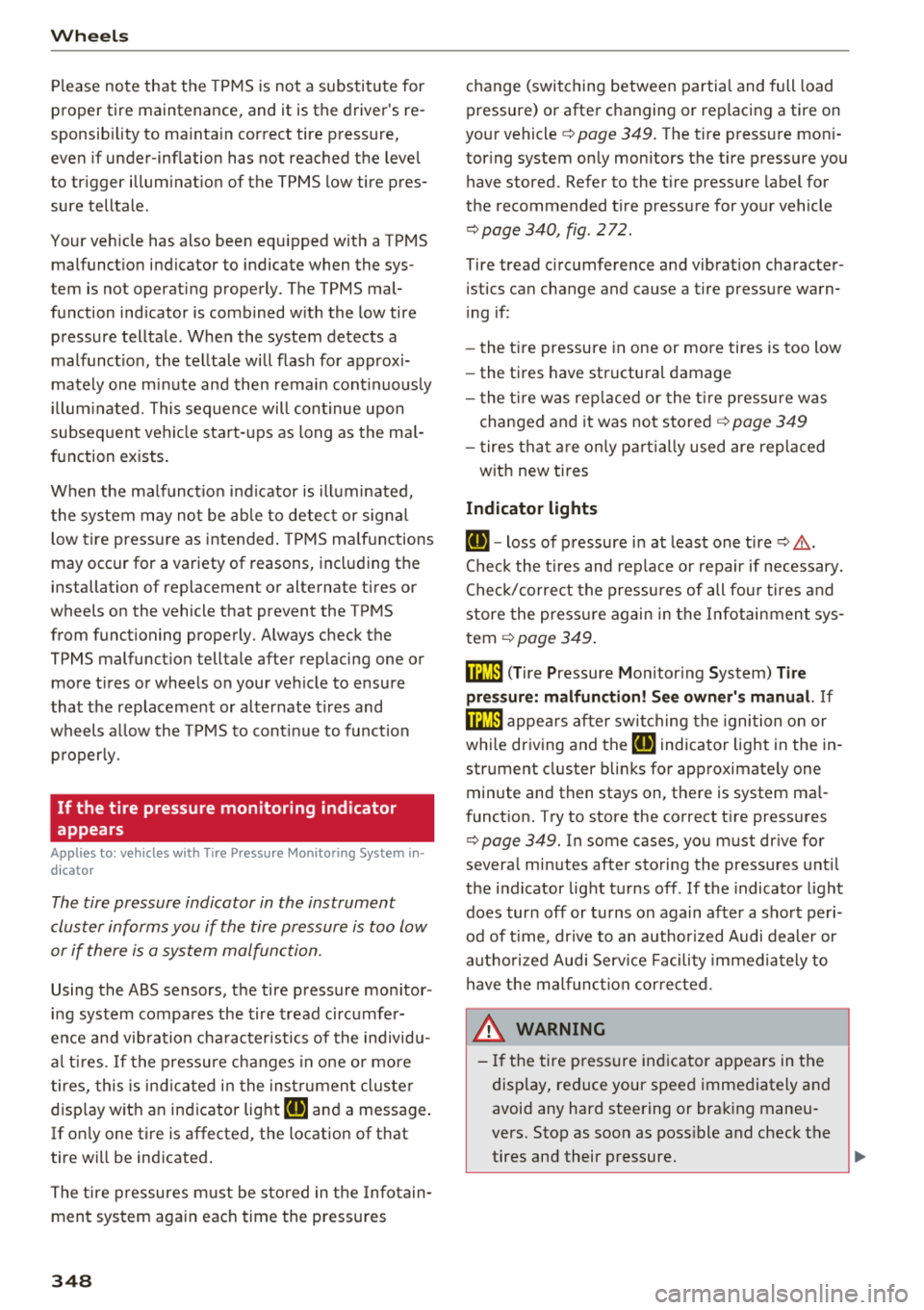

Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver's re­
sponsibility to maintain correct tire pressure,
even if under-inflation has not reached the level
to trigger illumination of the TPMS low tire pres­
sure telltale.
Your vehicle has also been equipped with a TPMS
malfunction indicator to indicate when the sys­
tem is not operating properly. The TPMS mal­
function indicator is combined with the low tire pressure telltale. When the system detects a
malfunction, the telltale will flash for approxi­
mately one minute and then remain continuously
illuminated. This sequence will continue upon
subsequent vehicle start-ups as long as the mal­
function exists.
When the malfunction indicator is illuminated,
the system may not be able to detect or signal
low tire pressure as intended. TPMS malfunctions
may occur for a variety of reasons, including the
installation of replacement or alternate tires or
wheels on the vehicle that prevent the TPMS
from functioning properly . Always check the
TPMS malfunction telltale after replacing one or
more tires or wheels on your vehicle to ensure
that the replacement or alternate tires and
wheels allow the TPMS to continue to function
properly.
If the tire pressure monitoring indicator
appears
Applies to: vehicles with Tire Pressure Monitoring System in­
dic ato r
The tire pressure indicator in the instrument
cluster informs you if the tire pressure is too low
or if there is a system malfunction.
Using the ABS sensors, the tire pressure monitor ­
ing system compares the tire tread circumfer­
ence and vibration characteristics of the individu­
al tires . If the pressure changes in one or more
tires, this is indicated in the instrument cluster
display with an indicator light
RI] and a message.
If only one tire is affected , the location of that
tire will be indicated.
The tire pressures must be stored in the Infotain­
ment system again each time the pressures
348
change (switching between partial and full load
pressure) or after changing or replacing a tire on
your vehicle ~
page 349. The tire pressure moni­
toring system only monitors the tire pressure you have stored. Refer to the tire pressure label for
the recommended tire pressure for your vehicle
~ page 340, fig . 272.
Tire tread circumference and vibration character­
istics can change and cause a tire pressure warn­
ing if:
- the tire pressure in one or more tires is too low
- the tires have structural damage
- the tire was replaced or the tire pressure was
changed and it was not stored
~ page 349
- tires that are only partially used are replaced
with new tires
Indicator lights
RI] -loss of pressure in at least one tire~,& .
Check the tires and replace or repair if necessary.
Check/correct the pressures of all four tires and
store the pressure again in the Infotainment sys­
tem
~ page 349.
m (Tire Pressure Monitoring System) Tire
pressure: malfunction! See owner's manual.
If
m appears after switching the ignition on or
while driving and the
RI] indicator light in the in­
strument cluster blinks for approximately one
minute and then stays on, there is system mal­
function. Try to store the correct tire pressures
~ page 349. In some cases, you must drive for
several minutes after storing the pressures until
the indicator light turns off . If the indicator light
does turn off or turns on again after a short peri­
od of time, drive to an authorized Audi dealer or
authorized Audi Service Facility immediately to
have the malfunction corrected.
& WARNING
- If the tire pressure indicator appears in the
display, reduce your speed immediately and
avoid any hard steering or braking maneu­
vers. Stop as soon as possible and check the
tires and their pressure.
