Page 361 of 394
4M0012721BG
Fusesandbulbs
Afuse thathasblownwillhavemetalstripsthat
haveburnedthrough.

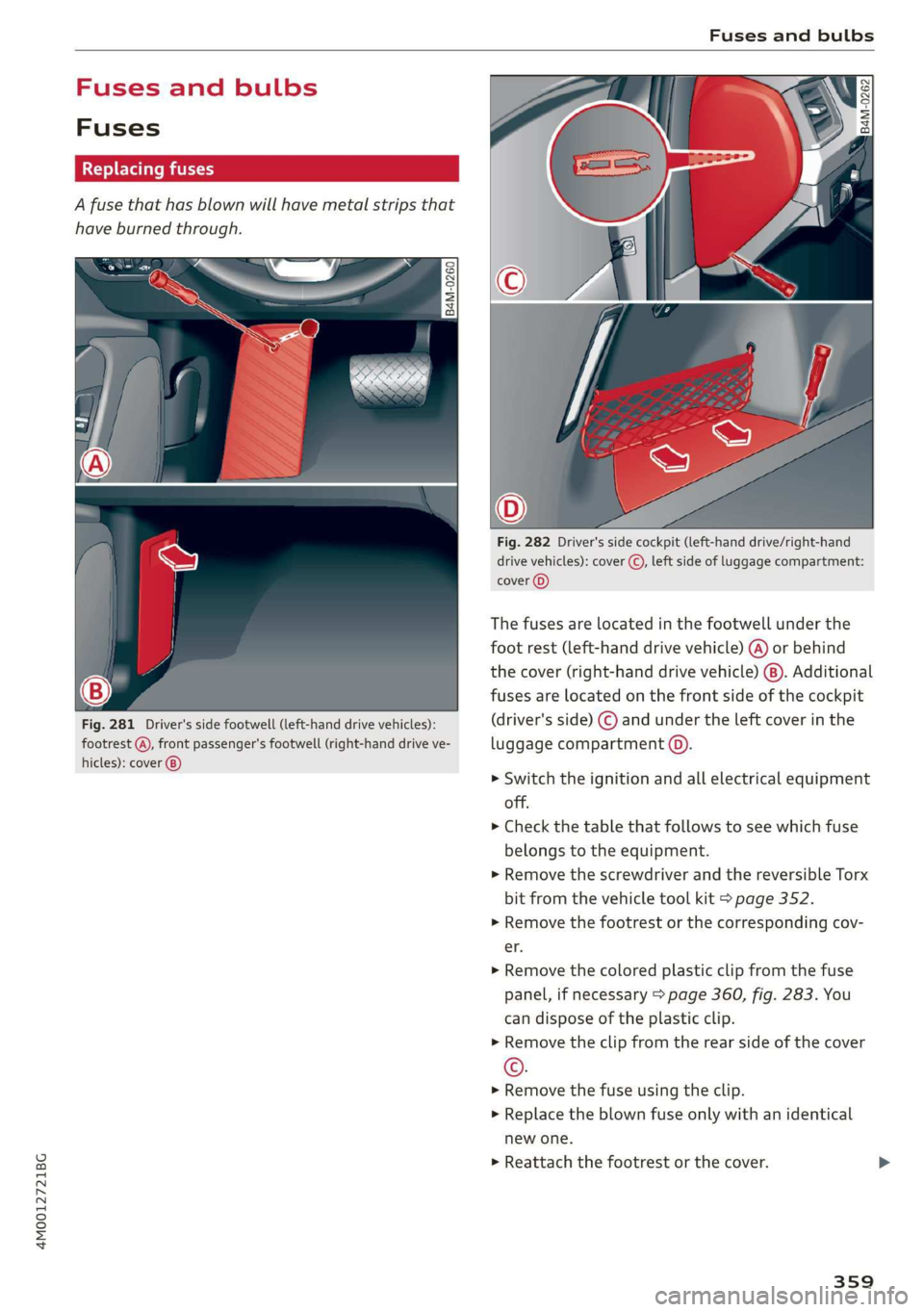

Fig.281Driver'ssidefootwell(left-handdrivevehicles):
footrest rontpassenger'sfootwell(right-handdrive ve-
hicles):cover®)
Fig.282Driver'ssidecockpit(left-handdrive/right-hand
drivevehicles):cover©,leftsideofluggagecompartment:
cover()
Thefusesarelocatedinthefootwellunderthe
footrest(left-handdrivevehicle)(@)orbehind
thecover(right-handdrivevehicle)
fusesarelocatedonthefrontsideofthecockpit
(driver'sside)©andundertheleftcoverinthe
luggagecompartment©
>Switchtheignitionandallelectricalequipment
off.
»Checkthetablethatfollowstoseewhichfuse
belongstotheequipment.
>RemovethescrewdriverandthereversibleTorx
bitfromthevehicletoolkit>page352.
>Removethefootrestorthecorrespondingcov-
er.
>Removethecoloredplasticclipfromthefuse
panel,ifnecessary>page360,fig.283.You
candisposeoftheplasticclip.
>Removetheclipfromtherearsideofthecover
(Cc).
>Removethefuseusingtheclip.
>Replace theblownfuseonlywithanidentical
newone.
»Reattachthefootrestorthecover.
359
Page 362 of 394
Fusesandbulbs
Fusecoloridentification
ColorCurrentrating
inamps
Black1
Purple3
Lightbrown5
Brownes)
Red 10
BlueiS
Yellow20
Whiteortransparent/|25
Green30
Orange40
ZAWARNING
Donotrepairfusesandneverreplaceablown
fusewithonethathasahigheramprating.
Thiscancausedamagetotheelectricalsys-
temandincreasestheriskoffire.
cyNote
Ifanewfuseburnsoutagainshortlyafteryou
haveinstalledit,havetheelectricalsystem
checkedassoonaspossibleby anauthorized
AudidealerorauthorizedAudiServiceFacili-
ty.
G)Tips
—Thefollowingtabledoesnotlistfuseloca-
tionsthatarenotused.
—Someoftheequipmentlistedinthefollow-
ingtablesappliesonlytocertainmodelver-
sionsorcertainoptionalequipment.
360
Fuseassignment-driver's/front
passenger'sfootwell

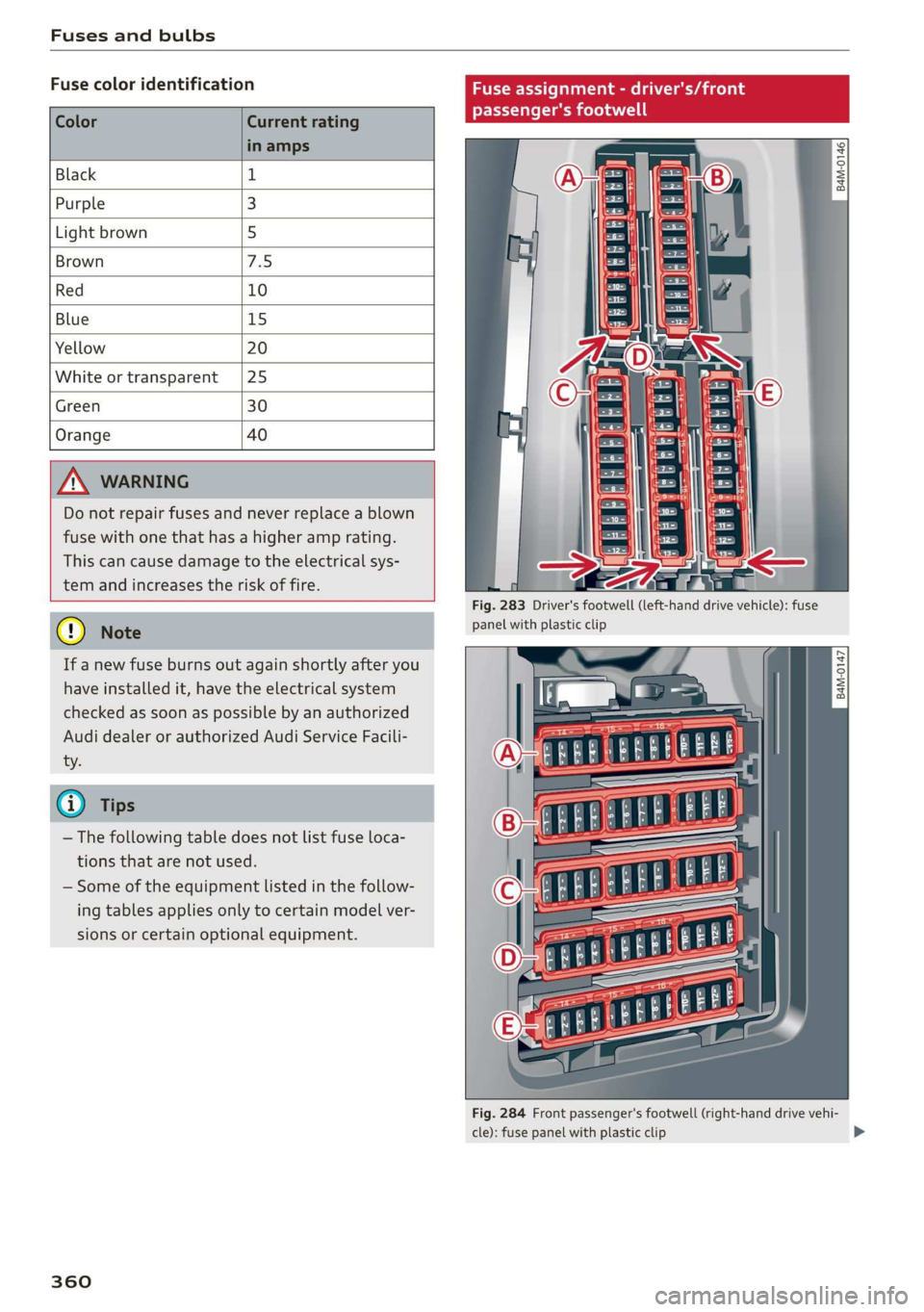

Fig.283Driver'sfootwell(left-handdrivevehicle):fuse
panelwithplasticclip
2
Fig.284Frontpassenger'sfootwell(right-handdrive vehi-
cle):fusepanelwithplasticclip
2
=
g|
== a
B4M-0147
>
Page 363 of 394
4M0012721BG
Fusesandbulbs
Fusepanel(4)(brown)Fusepanel©(black)
No.|Equipment10Windshieldwashersystem/headlight
2Massairflowsensor,camshaftadjustment,washersystem
chargeaircoolerpump11|Left reardoorcontrolmodule
3|Fuelinjectors,crankshafthousingheaterFusepanel@)(brawn
Vacuumpump,hotwaterpump,exhausta
4No.
|
Equipment
doors,ozonesensor
5|BrakelightsensorSeatventilation,seatheating,rearview
91|mirror,climatecontrolsystem,rearcli-
6|Engine valves,camshaftadjustmentmatecontrolsystemcontrols
7_|Heatedoxygensensors2|Gateway,climatecontrolsystem
8|Waterpump4|Transmissionheatingvalve
9|Hotwaterpump5|Enginestart
10|Oilpressuresensor,oiltemperaturesensor8|Nightvisionassist,garage dooropener
11|Clutchpedalpositionsensor,enginestart9|Adaptivecruisecontrol
12|Enginevalves11|Videocamera
13|Radiatorfan12|MatrixLEDheadlight/rightLEDheadlight
14|Fuelinjectors13|MatrixLEDheadlight/leftLEDheadlight
15|Ignitioncoils,heatedoxygensensors14|Rearwindowwiper
16|Fuelpump16|Rear SeatEntertainmentpreparation
Fusepanel@)(red)Fusepanel(£)(red)
No.|EquipmentNo.|Equipment
1[Ignitioncoils1|Anti-theftalarmsystem
2_|Enginevalves2.|Enginecontrolmodule
5_|Enginemount3|Lumbarsupport
6|Emergencycallsystem4.[Automatictransmissionselectormecha-
7|Instrumentpanelnism
8|Climatecontrolsystem(blower)5S|Horn
10
|
Dynamicsteering6|Electromechanicalparkingbrake
Fusepanel©(black)7|Gatewaycontrolmodule
78|Interiorheadlinerlights
No.|Equipment
1|Frontseatheating10|Airbagcontrolmodule
2.|Windshieldwipers11|ElectronicStabilizationControl(ESC)
3.|Leftheadlightelectronics12|Diagnosticconnector,light/rainsensor
:13|Climatecontrolsystem
4|Panoramicglassroof
&|Letetrontdeorcontrolmodule14|Rightfrontdoorcontrolmodule
6|Sockets15|A/Ccompressor
7|Rightreardoorcontrolmodule
9|Rightheadlightelectronics
361
Page 364 of 394
Fusesandbulbs
Fuseassignment-Driver'ssideoftheFuseassignment-Leftsideoftheluggage
(hole4)9(oTnaleats
@ag g
22
= =
aa

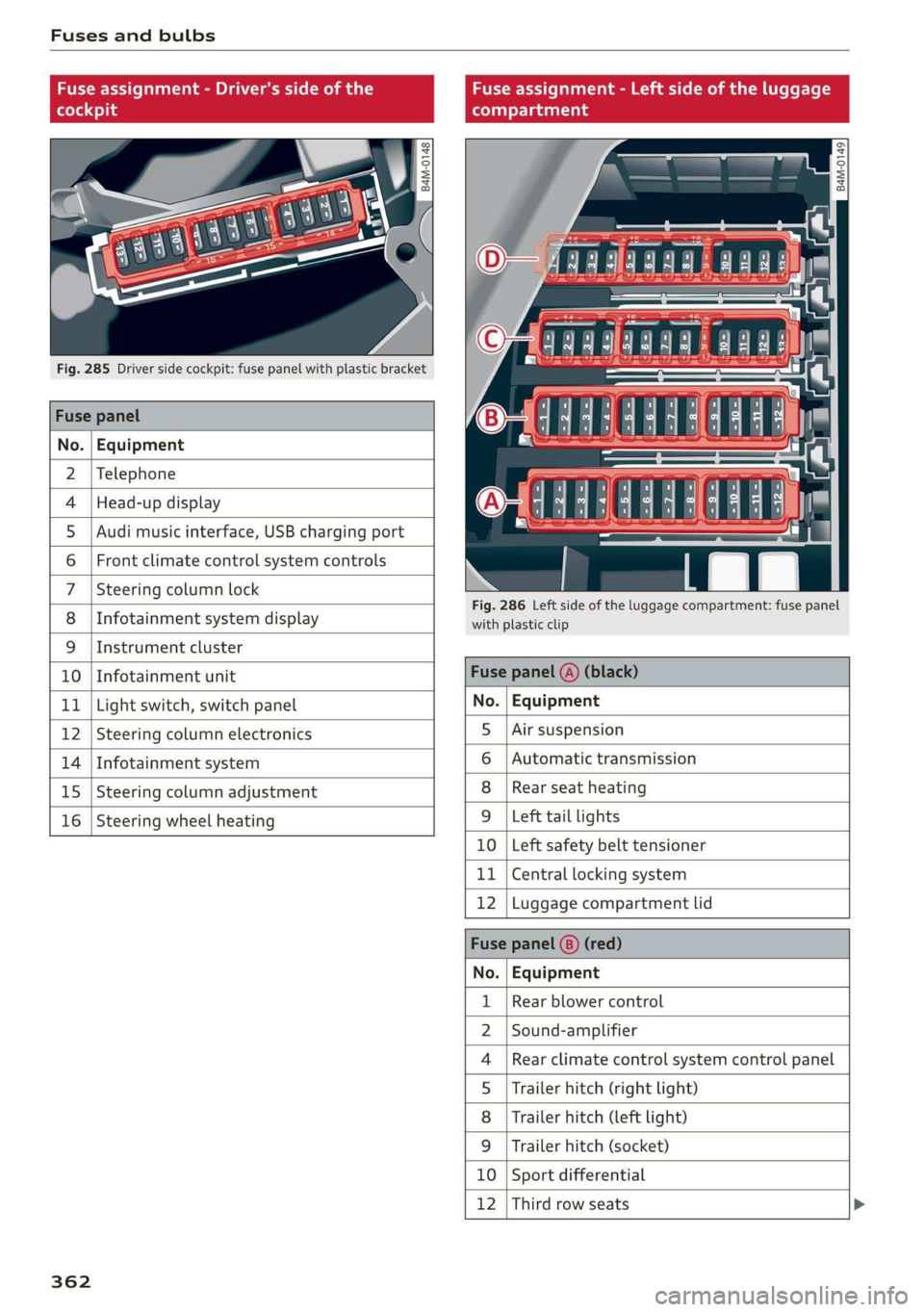

Fig.285Driversidecockpit:fusepanelwithplasticbracket
Fusepanel
No.|Equipment
2|Telephone
4|Head-updisplayO4444:4449858
5|Audimusicinterface,USBchargingport=
6|Frontclimatecontrolsystemcontrols|
7|Steeringcolumnlock
; .Fig.286Leftsideof theluggagecompartment:fusepanel
8
|
InfotainmentsystemdisplayCanney
9|Instrumentcluster
10
|
InfotainmentunitFusepanel(A)(black)
11
|
Lightswitch,switchpanelNo.|Equipment
12
|
Steeringcolumnelectronics5
|
Airsuspension
14
|
Infotainmentsystem6
|
Automatictransmission
15
|
Steeringcolumnadjustment8
|
Rearseatheating
16
|
Steeringwheelheating9
|
Lefttaillights
10|Leftsafetybelttensioner
11|Centrallockingsystem
12|Luggagecompartmentlid
Fusepanel(8)(red)
No.|Equipment
Rearblowercontrol
Sound-amplifier
Rearclimatecontrolsystemcontrolpanel
Trailerhitch(rightlight)
Trailerhitch(leftlight)
Trailerhitch(socket)
10|Sportdifferential
12|Thirdrowseats
WO;a;m|)AINI
FR
362
Page 365 of 394
4M0012721BG
Fusesandbulbs
Fusepanel©(brown)
No.|Equipment
Telephone
Lumbarsupport
Audisideassist
Rear SeatEntertainmentpreparation
Vehicleopening/start(NFC)
Smartmodule(tank)
WO}lOlIN|/
MA]
WIN
CD/DVDplayer
12|Garagedooropener
13|Rearviewcamera,peripheralcameras
14|Righttaillights
16|Rightsafetybelttensioner
Fusepanel(0)(red)
No.|Equipment
Noassignment
Bulbs
Replacinglightbulbs
Foryoursafety,werecommendthatyouhave
yourauthorizedAudidealerreplaceanybulbsfor
you.
Itisbecomingincreasinglymoreandmorediffi-
culttoreplacevehiclelightbulbssinceinmany
cases,otherpartsofthecarmustfirstbere-
movedbeforeyouareabletogettothebulb.
This appliesespeciallytothelightbulbsinthe
frontofyourcarwhichyoucanonlyreach
throughtheenginecompartment.
Sheetmetalandbulbholderscanhave sharp
edgesthatcan causeseriouscuts,partsmustbe
correctlytakenapartandthenproperlyputback
togethertohelppreventbreakageofpartsand
longtermdamagefromwaterthatcanenter
housingsthathavenotbeenproperlyresealed.
Foryoursafety,werecommendthatyouhave
yourauthorizedAudidealerreplaceanybulbsfor
you,sinceyourdealerhas thepropertools,the
correctbulbsandtheexpertise.
Gasdischargelamps(Xenonlights):
Duetothehighelectricalvoltage,havethebulbs
replacedbyaqualifiedtechnician.Headlights
withXenonlightareidentifiedbythehighvolt-
agesticker.
LEDheadlights*
LEDheadlightsrequirenomaintenance.Please
contactyourauthorizedAudidealerifabulb
needstobereplaced.
Z\WARNING
ChangingXenonlampswithoutthenecessary
equipmentcancauseseriouspersonalinjury.
—Bulbsarepressurizedandcanexplodewhen
beingchanged.Potentialriskofinjury!
—Onvehiclesequippedwithgasdischarge
bulbs(Xenonlight)life-threateninginjuries
canresultfromimproperhandlingofthe
high-voltageportionsofsuchlamps!
—OnlyyourauthorizedAudidealerorquali-
fiedworkshopshouldchangethebulbsin
gasdischargelamps.Thereare partswith
sharpedgesontheopeningsandonthe
bulbholdersthatcancauseseriouscuts.If
youareuncertainaboutwhattodo,havethe
workperformedbyanauthorizedAudideal-
er orqualifiedworkshop.Seriouspersonal
injurymayresultfromimproperlyper-
formedwork.
@Tips
—Ifyoustillpreferto replacethelightbulbs
yourself,beawarethattheenginecompart-
mentisahazardousareatoworkin>Ain
Workingintheenginecompartmenton
page313.
—ItisbesttoaskyourauthorizedAudidealer
wheneveryouwanttochangeabulb.
363
Page 366 of 394
Emergencysituations
Emergencysituations
General
Thischapterisintendedfortrainedemergency
crewsandworkingpersonnelwhohavethenec-
essarytoolsandequipmenttoperformthese
operations.
Startingbypushingor
towing
@)Note
Vehicleswithanautomatictransmission
cannotbestartedbypushingortowing.
Startingwithjumper
cables
Ifnecessary,theenginecanbestartedbycon-
nectingittothebatteryofanothervehicle.
Iftheengineshouldfailtostartbecauseofadis-
chargedorweakbattery,thebatterycanbecon-
nectedtothebatteryofanothervehicle,usinga
pairofjumpercablestostarttheengine.
Jumpercables
Useonlyjumpercablesofsufficientlylargecross
sectiontocarrythestartercurrentsafely.Refer
tothemanufacturer'sspecifications.
Useonlyjumpercableswithinsulatedterminal
clampswhicharedistinctlymarked:
plus(+)cableinmostcasescoloredred
minus(-)cableinmostcasescoloredblack.
creasestheriskofanexplosionandchemi-
calburns.Afterjumpstartingthevehicle,
drivetoanauthorizedAudidealerorauthor-
izedAudiServiceFacilityimmediatelyto
havethevehiclebatterychecked.
—Donotallowbatteryacidtocontacteyesor
skin.Flushanycontactedareawithwater
immediately.
—Improperuseofaboosterbatterytostarta
vehiclemaycause anexplosion.
—Vehiclebatteriesgenerateexplosivegases.
Keepsparks,flameandlightedcigarettes
awayfrombatteries.
—Donottrytojumpstartanyvehiclewitha
lowacidlevelinthebattery.
— Thevoltageoftheboosterbatterymustalso
havea12-Voltrating.Thecapacity(Ah)of
the boosterbatteryshouldnotbelower
thanthatofthedischargedbattery.Useof
batteriesofdifferentvoltageorsubstantial-
lydifferent“Ah”ratingmaycause anexplo-
sionandpersonalinjury.
—Neverchargeafrozenbattery.Gastrapped
intheicemaycause anexplosion.
—Neverchargeoruseabatterythathasbeen
frozen.Thebatterycasemayhave beweak-
ened.
—Useofbatteriesofdifferentvoltageorsub-
stantiallydifferentcapacity(Ah)ratingmay
causeanexplosionandinjury.Thecapacity
(Ah)oftheboosterbatteryshouldnot be
lowerthanthatofthedischargedbattery.
—Beforeyoucheckanythingintheengine
compartment,alwaysreadandheedall
WARNINGS&page313.
Z\WARNING
Batteriescontainelectricity,acid,andgas.
Anyofthese cancauseveryseriousorfatalin-
jury.Followtheinstructionsbelowforsafe
handlingofyourvehicle’sbattery.
—Alwaysshieldyoureyesandavoidleaning
overthebatterywheneverpossible.
—Adeadbatterycanfreezeattemperatures
around
32°F(0°C).Ifthevehiclebatteryis
frozen,youmustthawitbeforeconnecting
thejumpstartcables.Ifyoudonot,thisin-
364
C)Note
—Applyingahighervoltageboosterbattery
willcauseexpensivedamagetosensitive
electroniccomponents,suchascontrol
units,relays,radio,etc.
—Theremustbe noelectricalcontactbetween
thevehiclesasotherwisecurrentcouldal-
readystarttoflowassoonasthepositive
(+)terminalsareconnected.
Page 367 of 394
4M0012721BG
Emergencysituations
@Tips
Thedischargedbatterymustbeproperlycon-
nectedtothevehicle'selectricalsystem.
Whenjumpstartingorchargingthebattery,
neverconnectthenegativegroundcableto
thebatterynegativepostbecausethebattery
managersystemmustbeabletodetect the
battery'sstateofcharge.Alwaysconnectthe
negativegroundcabletothenegativeground
postofthebatterymanagercontrolunit.
Usingthejumpstart
cable
Bothjumpstartcablesmustbeconnectedinthe
correctorder.
Fig.287Enginecompartment:connectorsforjumpstart
cablesandacharger
Fig.288Jumpstartingusingabatteryinanothervehicle:
@-providingcurrent,@)-drained
Pleasenotethattheconnectingprocessforthe
jumpstartcablesdescribedbelowisintendedfor
whenyourvehicleisbeingjumpstarted.
Vehiclewithdrainedvehiclebattery
>Set theparkingbrakeandselectthe“P”(Park)
selectorleverposition.
>Switchtheignitionandallelectricalequipment
off.
Connectingthepositivecable(red)tothe
positiveterminal
>Opentheredcoveronthepositiveterminal
>fig.287.
1.Secureoneendofthepositivecable(red)to
thejumpstartpin>fig.288@(pinunder
theredcover=“positive”)onthevehiclethat
needstobestarted@).
2.Securetheotherendofthepositivecable
(red)tothepositiveterminal@)onthebat-
teryprovidingthecurrent@).
Connectingthenegativecable(black)tothe
negativeterminal
3.Secureoneendofthenegativecable(black)
tothenegativeterminal@)onthebattery
thatisprovidingthecurrent@).
4.Securetheotherendofthenegativecable
(black)tothejumpstartpin@(hexheadpin
=“negative”)onthevehiclethatneedstobe
started ®).
Startingtheengine
»Starttheengineinthevehicleprovidingthe
jumpstart@andletitrunatidle.
>Nowstarttheengineonthevehiclewiththe
drainedbattery@).
>Iftheenginedoesnotstart,stopthestarting
procedureafter10secondsandthenrepeatit
afterapproximately30seconds.
»Oncetheenginewiththedrainedvehiclebat-
teryhasbeenstarted,removethecablesinthe
reverseorderfromthewaytheywereinstalled.
>Closetheredcoveronthepositiveterminal.
Thebatteryisventedtotheoutsidetoprevent
gasesfromenteringthevehicleinterior.Make
surethatthejumperclampsarewellconnected
withtheirmetalpartsin fullcontactwiththe
batteryterminals.
Z\WARNING
Toavoidseriouspersonalinjuryanddamage
tothevehicle,heedallwarningsandinstruc-
tionsofthejumpercablemanufacturer.Ifin
doubt,callforroadservice.>
365
Page 368 of 394

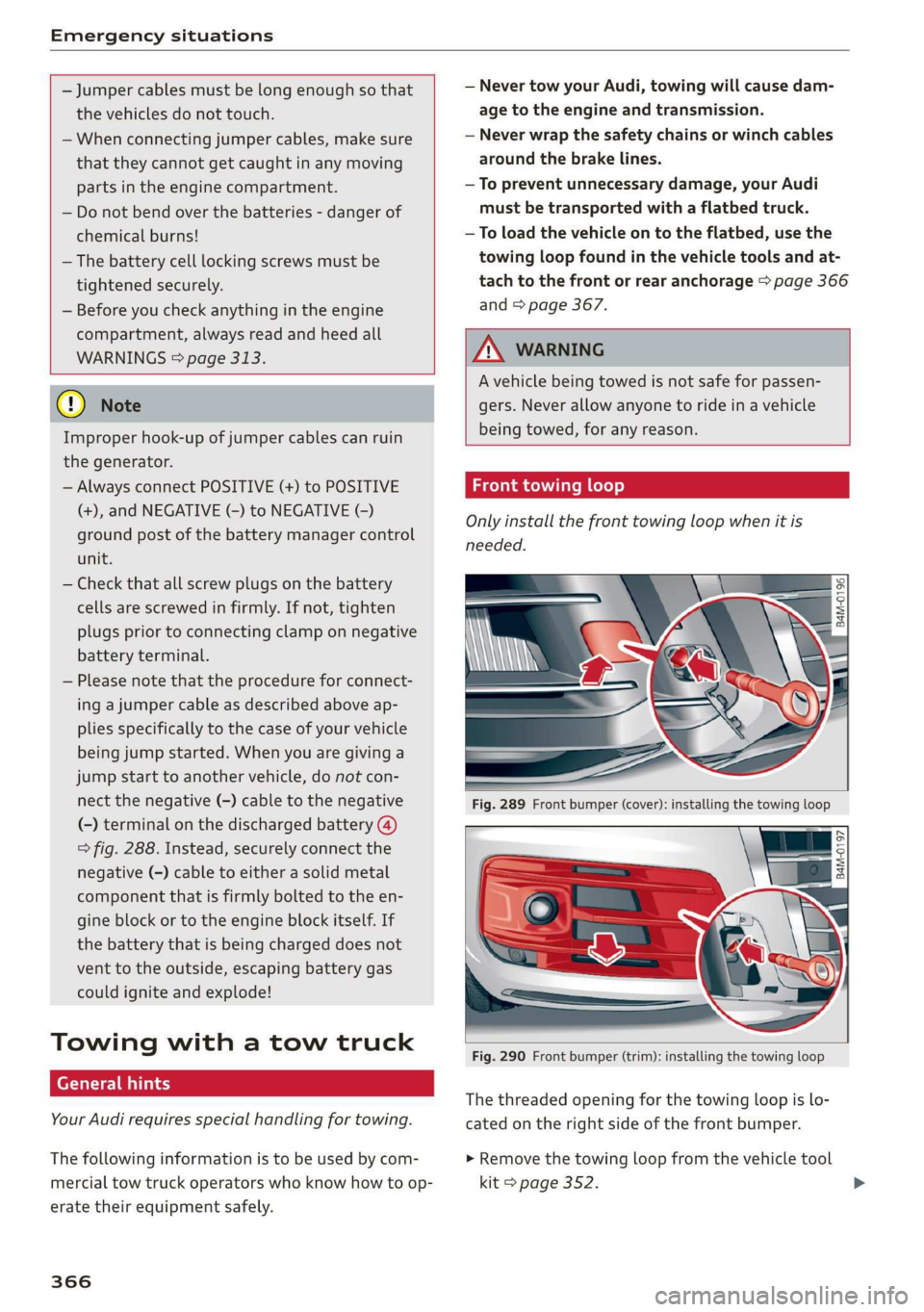

Emergencysituations
—Jumpercables mustbelongenoughsothat
thevehiclesdonottouch.
—Whenconnectingjumpercables,makesure
thattheycannotgetcaughtinanymoving
partsintheenginecompartment.
—Donotbendoverthebatteries-dangerof
chemicalburns!
—Thebatterycelllockingscrewsmustbe
tightenedsecurely.
—Beforeyoucheckanythingintheengine
compartment,alwaysreadandheedall
WARNINGS>page313.
@Note
Improperhook-upofjumpercablescanruin
thegenerator.
—AlwaysconnectPOSITIVE(+)toPOSITIVE
(+),andNEGATIVE(-)toNEGATIVE(-)
groundpostofthebatterymanagercontrol
unit.
—Checkthatallscrewplugsonthebattery
cellsarescrewedinfirmly.Ifnot,tighten
plugspriortoconnectingclamponnegative
batteryterminal.
—Pleasenotethattheprocedureforconnect-
ingajumpercableasdescribedaboveap-
pliesspecificallytothecaseofyourvehicle
beingjumpstarted.Whenyouaregivinga
jumpstarttoanothervehicle,donotcon-
nect
thenegative(-)cabletothenegative
(-)terminalonthedischargedbattery@)
>fig.288.Instead,securelyconnectthe
negative(-)cabletoeitherasolidmetal
componentthatisfirmlyboltedtotheen-
gineblockortotheengineblockitself.If
thebatterythatisbeingchargeddoesnot
vent
totheoutside,escapingbatterygas
couldigniteandexplode!
Towingwithatowtruck
YourAudirequires specialhandlingfortowing.
Thefollowinginformationistobeusedbycom-
mercialtowtruckoperatorswhoknowhowtoop-
eratetheirequipmentsafely.
366
—NevertowyourAudi,towingwillcausedam-
agetotheengineandtransmission.
—Neverwrapthesafetychainsorwinchcables
aroundthebrakelines.
—Topreventunnecessarydamage,yourAudi
mustbetransportedwithaflatbedtruck.
—Toloadthevehicleontotheflatbed,use the
towingloopfoundinthevehicletoolsandat-
tachtothefrontorrearanchorage>page366
and>page367.
Z\WARNING
Avehiclebeingtowedisnotsafeforpassen-
gers.Neverallowanyonetorideinavehicle
beingtowed,foranyreason.
Fronttowingloop
Onlyinstallthefronttowingloopwhenitis
needed.
B4M-0196
B4M-0197
Fig.290Frontbumper(trim):installingthetowingloop
Thethreadedopeningforthetowingloopislo-
catedontherightsideofthefrontbumper.
>Removethetowingloopfromthevehicletool
kit>page352.
Page 369 of 394
4M0012721BG

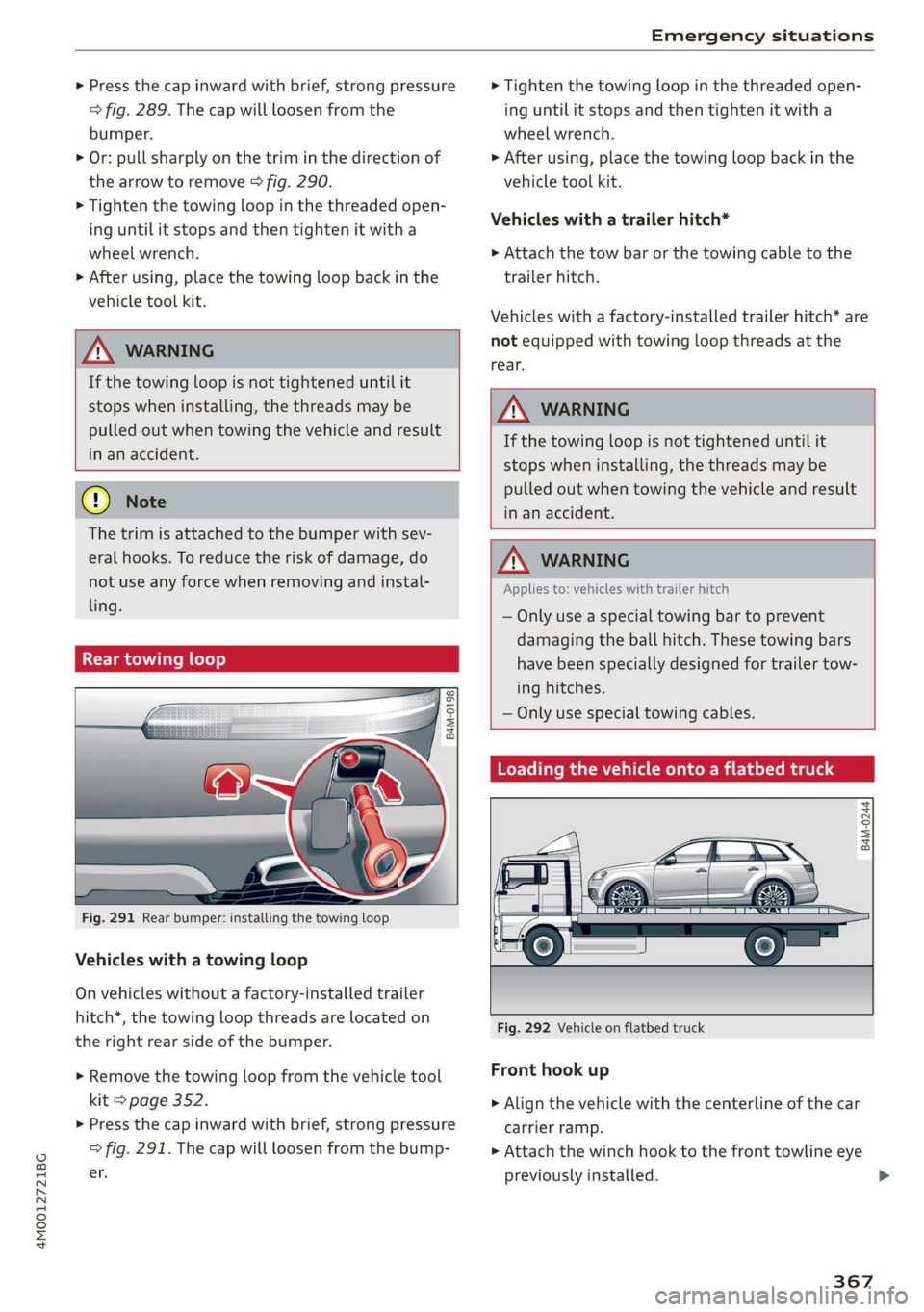

Emergencysituations
>Pressthecapinwardwithbrief,strong pressure
>fig.289.Thecapwillloosenfromthe
bumper.
> Or:pullsharplyonthetriminthedirectionof
thearrowtoremove>fig.290.
>Tightenthetowingloopinthethreadedopen-
inguntilitstopsandthentightenitwitha
wheelwrench.
> Afterusing,placethetowingloopbackinthe
vehicletoolkit.
ZAWARNING
Ifthetowingloopisnot tighteneduntilit
stopswheninstalling,thethreadsmaybe
pulledoutwhentowingthevehicleandresult
inanaccident.
@)Note
Thetrimisattachedtothebumperwithsev-
eralhooks.Toreducetheriskofdamage,do
notuseanyforcewhenremovingandinstal-
ling.
Reartowingloop
2
is gz
==oa
Fig.291Rearbumper:installingthetowingloop
Vehicleswithatowingloop
Onvehicleswithoutafactory-installedtrailer
hitch*,thetowingloopthreadsarelocatedon
therightrear sideofthebumper.
>Removethetowingloopfromthevehicletool
kit>page352.
>Pressthecapinwardwithbrief,strong pressure
>fig.291.Thecapwillloosenfromthebump-
er.
>Tightenthetowingloopinthethreadedopen-
inguntilitstopsandthentightenitwitha
wheelwrench.
>Afterusing,placethetowingloopbackinthe
vehicletoolkit.
Vehicleswithatrailerhitch*
>Attachthetowbarorthetowingcabletothe
trailerhitch.
Vehicleswithafactory-installedtrailerhitch*are
notequippedwithtowingloopthreadsatthe
rear.
ZAWARNING
Ifthetowingloopisnottighteneduntilit
stopswheninstalling,thethreadsmaybe
pulledoutwhentowingthevehicleandresult
inanaccident.
Z\WARNING
Appliesto:vehicleswithtrailerhitch
—Onlyuseaspecialtowingbartoprevent
damagingtheballhitch.Thesetowingbars
havebeenspeciallydesignedfortrailertow-
inghitches.
—Onlyusespecialtowingcables.
CelleAMRe-Miciaeltemaata4
B4M-0244
Fig.292Vehicleonflatbedtruck
Fronthookup
>Alignthevehiclewiththecenterlineofthecar
carrierramp.
>Attachthewinchhooktothefronttowlineeye
previouslyinstalled.>
367
Page 370 of 394
Emergencysituations
Rearhookup
>Alignthevehiclewiththecenterlineofthecar
carrierramp.
>»Attachthewinchhooktothereartowlineeye
previouslyinstalled.
@)Tips
Checkcarefullytomakesurethehook-upis
securebeforemovingthecaruptheflatbed
truckramp.
Raisingthevehicle
Liftingwithworkshophoistandwithfloor
jack
Thevehiclemayonlybeliftedatthelifting
pointsillustrated.
2 & q 2
==a
B4M-0211
Fig.294Rearliftingpoint
>ReadandheedWARNING&A\.
>Locateliftingpoints>fig.293and>fig.294.
>Adjustliftingarmsofworkshophoistorfloor
jack tomatchvehicleliftingpoints.
> Insertarubberpadbetweenthefloorjack/
workshophoistandtheLiftingpoints.
368
Ifyoumustliftyourvehiclewithafloorjackto
workunderneath,besurethevehicleissafely
supportedonstandsintendedforthispurpose.
Frontliftingpoint
Theliftingpointislocatedonthefloorpanrein-
forcementaboutatthesamelevelasthejack
mountingpoint>fig.293.Donotliftthevehi-
cleattheverticalsillreinforcement.
Rearliftingpoint
Theliftingpointislocatedontheverticalrein-
forcementofthelowersillfortheonboardjack
>fig.294.
Liftingwithvehiclejack
Referto>page356.
ZA\WARNING
—Toreducetheriskofseriousinjuryandvehi-
cledamage.
—Alwayslift thevehicleonlyatthespecial
workshophoistandfloorjackliftpointsil-
lustrated>fig.293and>fig.294.
—Failuretoliftthevehicleatthesepoints
couldcausethevehicletotiltorfallfroma
liftifthereisachangeinvehicleweight
distributionandbalance.Thismighthap-
pen,forexample,whenheavycomponents
suchastheengineblockortransmission
areremoved.
—Whenremovingheavycomponentslike
these,anchorvehicletohoistoraddcorre-
spondingweightstomaintainthe centerof
gravity.Otherwise,thevehiclemighttiltor
slipoffthehoist,causingseriouspersonal
injury.
@)Note
—BeawareofthefollowingpointsbeforeLift-
ingthevehicle:
—Thevehicleshouldneverbeliftedor
jackedup fromunderneaththeengineoil
pan,the transmissionhousing,thefront
orrearaxleorthebodysidemembers.
Thiscouldleadtoseriousdamage.
