AUDI R8 COUPE 2020 Owners Manual
Manufacturer: AUDI, Model Year: 2020, Model line: R8 COUPE, Model: AUDI R8 COUPE 2020Pages: 308, PDF Size: 82.41 MB

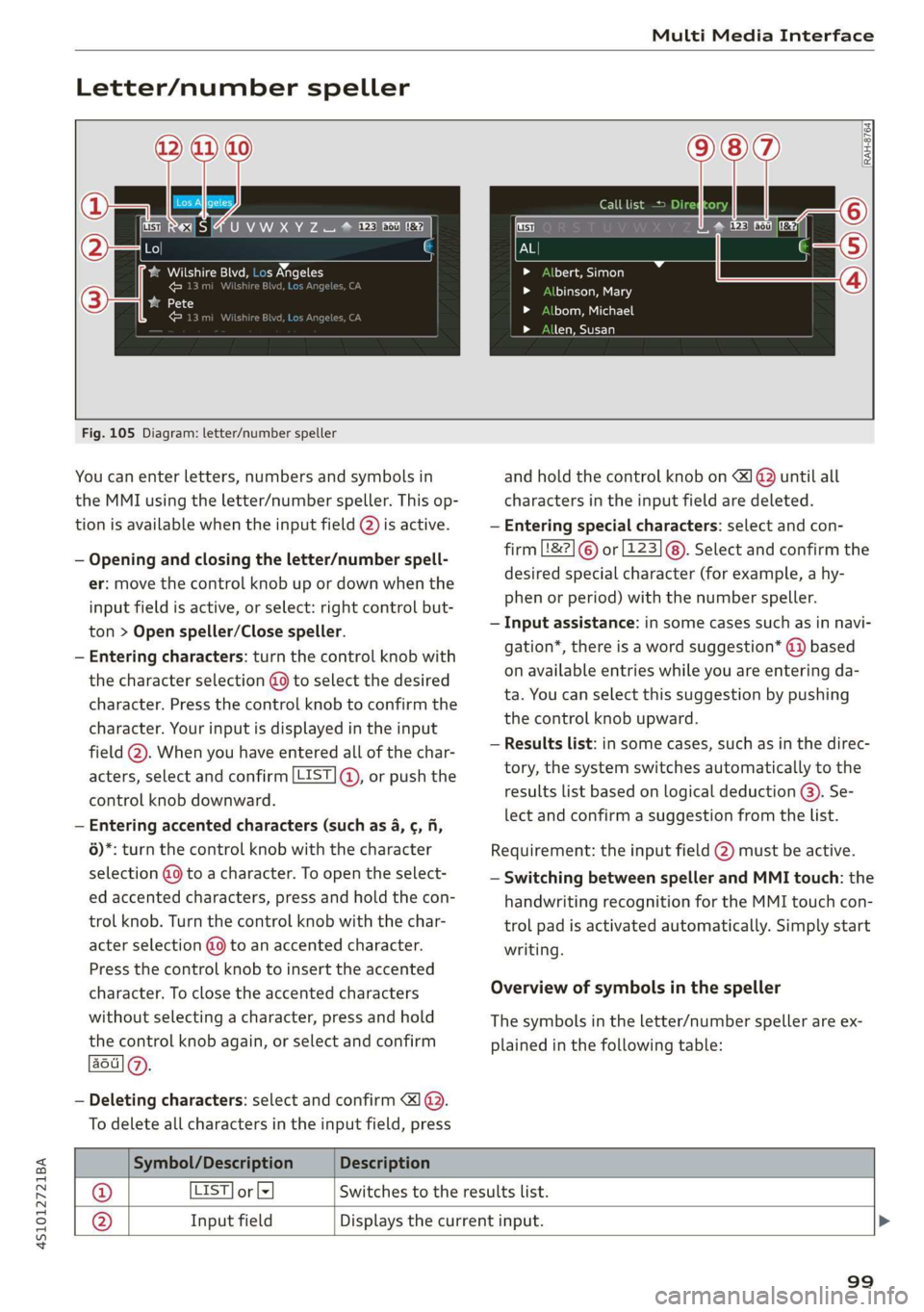

Page 101 of 308
4S1012721BA
Multi Media Interface
Letter/number speller
LIS UVWXYZ ® © fi Fe
Lo t
a.
i. _
Penns meee eter
cee
bate)
ra
RAH-8764
oa.
NE 9123) aoa) |e;
tte aol)
LoyTa ea 8
loleu Me ealie
len, Susan
Fig. 105 Diagram: letter/number speller
You can enter letters, numbers and symbols in
the MMI using the letter/number speller. This op-
tion is available when the input field @) is active.
— Opening and closing the letter/number spell-
er: move the control knob up or down when the
input field is active, or select: right control but-
ton > Open speller/Close speller.
— Entering characters: turn the control knob with
the character selection @ to select the desired
character. Press the control knob to confirm the
character. Your input is displayed in the input
field @. When you have entered all of the char-
acters, select and confirm [LIST @, or push the
control knob downward.
— Entering accented characters (such as 4, ¢, fi,
6)*: turn the control knob with the character
selection @9 to a character. To open the select-
ed accented characters, press and hold the con-
trol knob. Turn the control knob with the char-
acter selection @9 to an accented character.
Press the control knob to insert the accented
character. To close the accented characters
without selecting a character, press and hold
the control knob again, or select and confirm
aot] @).
— Deleting characters: select and confirm 4 @.
To delete all characters in the input field, press
and hold the control knob on 1 @ until all
characters in the input field are deleted.
— Entering special characters: select and con-
firm [8&2] © or [423] @). Select and confirm the
desired special character (for example, a hy-
phen or period) with the number speller.
— Input assistance: in some cases such as in navi-
gation*, there is a word suggestion* @) based
on available entries while you are entering da-
ta. You can select this suggestion by pushing
the control knob upward.
— Results list: in some cases, such as in the direc-
tory, the system switches automatically to the
results list based on logical deduction @). Se-
lect and confirm a suggestion from the list.
Requirement: the input field @) must be active.
— Switching between speller and MMI touch: the
handwriting recognition for the MMI touch con-
trol pad is activated automatically. Simply start
writing.
Overview of symbols in the speller
The symbols in the letter/number speller are ex-
plained in the following table:
Symbol/Description Description
@ LIST] orl Switches to the results list.
@ Input field Displays the current input. >
99

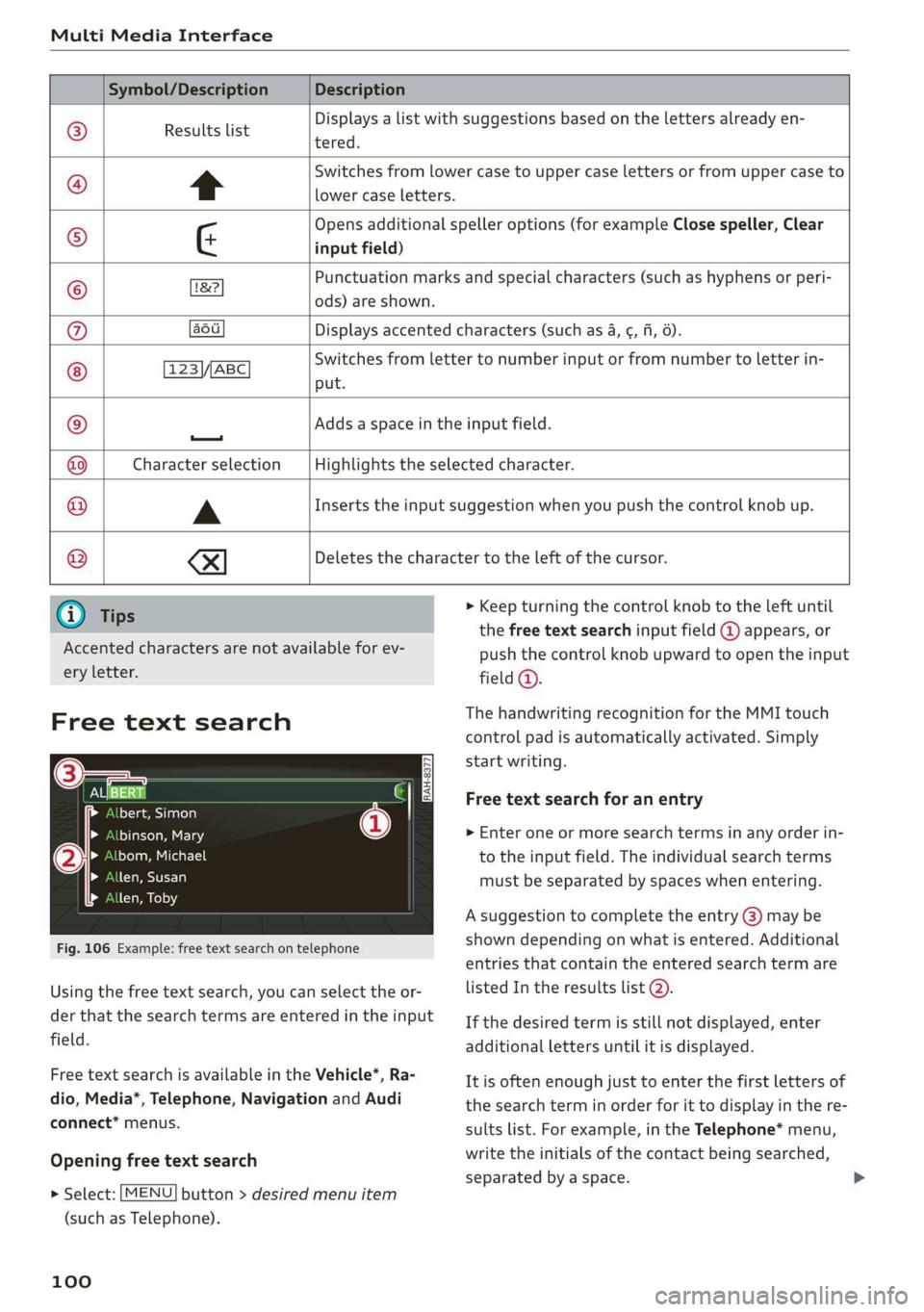

Page 102 of 308
Multi Media Interface
Symbol/Description Description
RSLS USE Displays a list with suggestions based on the letters already en-
ods) are shown.
® tered.
@ Switches from lower case to upper case letters or from upper case to
é lower case letters.
© Opens additional speller options (for example Close speller, Clear
¢ input field)
© 1a Punctuation marks and special characters (such as hyphens or peri-
@
aou Displays accented characters (such as 4, ¢, ff, 6).
TSS/ABE Switches from letter to number input or from number to letter in-
put.
Adds a space in the input field.
“4
Character selection Highlights the selected character.
®
|
©
|O|
©
A Inserts the input suggestion when you push the control knob up.
ips
the free text search input field @ appears, or
push the control knob upward to open the input
ery letter. field @.
Accented characters are not available for ev-
The handwriting recognition for the MMI touch
control pad is automatically activated. Simply
(3) start writing.
an Free text search for an entry
bert, Simon
tole E1 Bf >» Enter one or more search terms in any order in-
Tea Mieal= to the input field. The individual search terms
TESTU must be separated by spaces when entering.
len, Toby
Free text search
A suggestion to complete the entry @) may be
shown depending on what is entered. Additional
entries that contain the entered search term are
Using the free text search, you can select the or- listed In the results list @).
der that the search terms are entered in the input
field.
Fig. 106 Example: free text search on telephone
If the desired term is still not displayed, enter
additional letters until it is displayed.
Free text search is available in the Vehicle*, Ra-
dio, Media*, Telephone, Navigation and Audi
connect* menus.
It is often enough just to enter the first letters of
the search term in order for it to display in the re-
sults list. For example, in the Telephone* menu,
write the initials of the contact being searched,
separated by a space.
Opening free text search
> Select: [MENU] button > desired menu item
(such as Telephone).
100

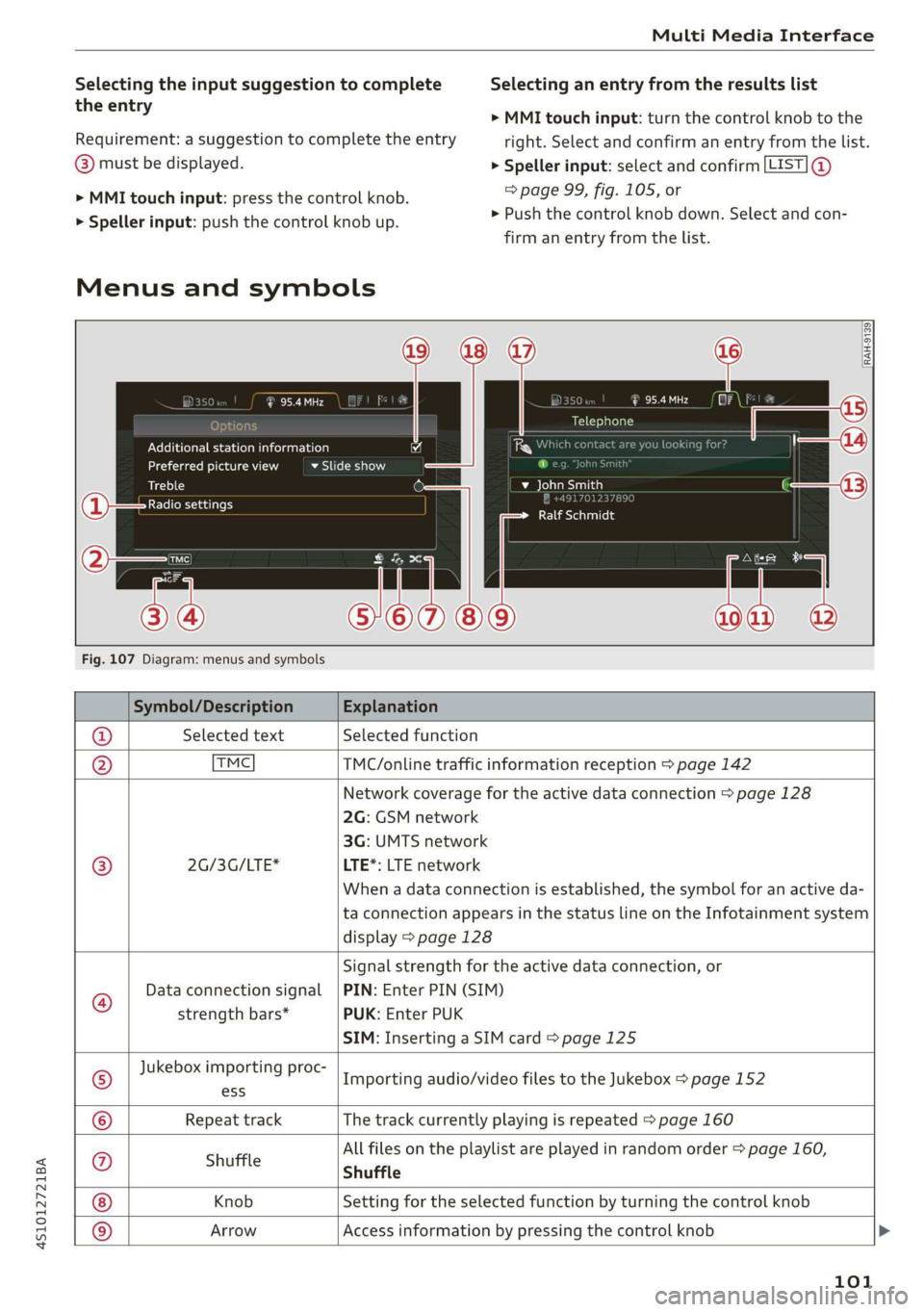

Page 103 of 308
4S1012721BA
Multi Media Interface
Selecting the input suggestion to complete
the entry
Requirement: a suggestion to complete the entry
@® must be displayed.
> MMI touch input: press the control knob.
> Speller input: push the control knob up.
Selecting an entry from the results list
> MMI touch input: turn the control knob to the
right. Select and confirm an entry from the list.
> Speller input: select and confirm [LIST] @
=> page 99, fig. 105, or
» Push the control knob down. Select and con-
firm an entry from the list.
Menus and symbols
aera ard
Additional station information
v Slide show Preferred picture view
Treble
Radio settings
uae war OF
Telephone
b A olilams inital
LEZ 1
Ralf Schmidt
Fig. 107 Diagram: menus and symbols
Symbol/Description Explanation
@ Selected text Selected function
@ TMC TMC/online traffic information reception > page 142
Network coverage for the active data connection > page 128
2G: GSM network
3G: UMTS network
® 2G/3G/LTE* LTE*: LTE network
When a data connection is established, the symbol for an active da-
ta connection appears in the status line on the Infotainment system
display > page 128
iS)
Data connection signal
strength bars*
Signal strength for the active data connection, or
PIN: Enter PIN (SIM)
PUK: Enter PUK
SIM: Inserting a SIM card > page 125
Jukebox importing proc-
® ess Importing audio/video files to the Jukebox > page 152
© Repeat track The track currently playing is repeated > page 160
All files on the playlist are played in random order > page 160,
huff
@ shuffle Shuffle
Knob Setting for the selected function by turning the control knob
© Arrow Access information by pressing the control knob
101

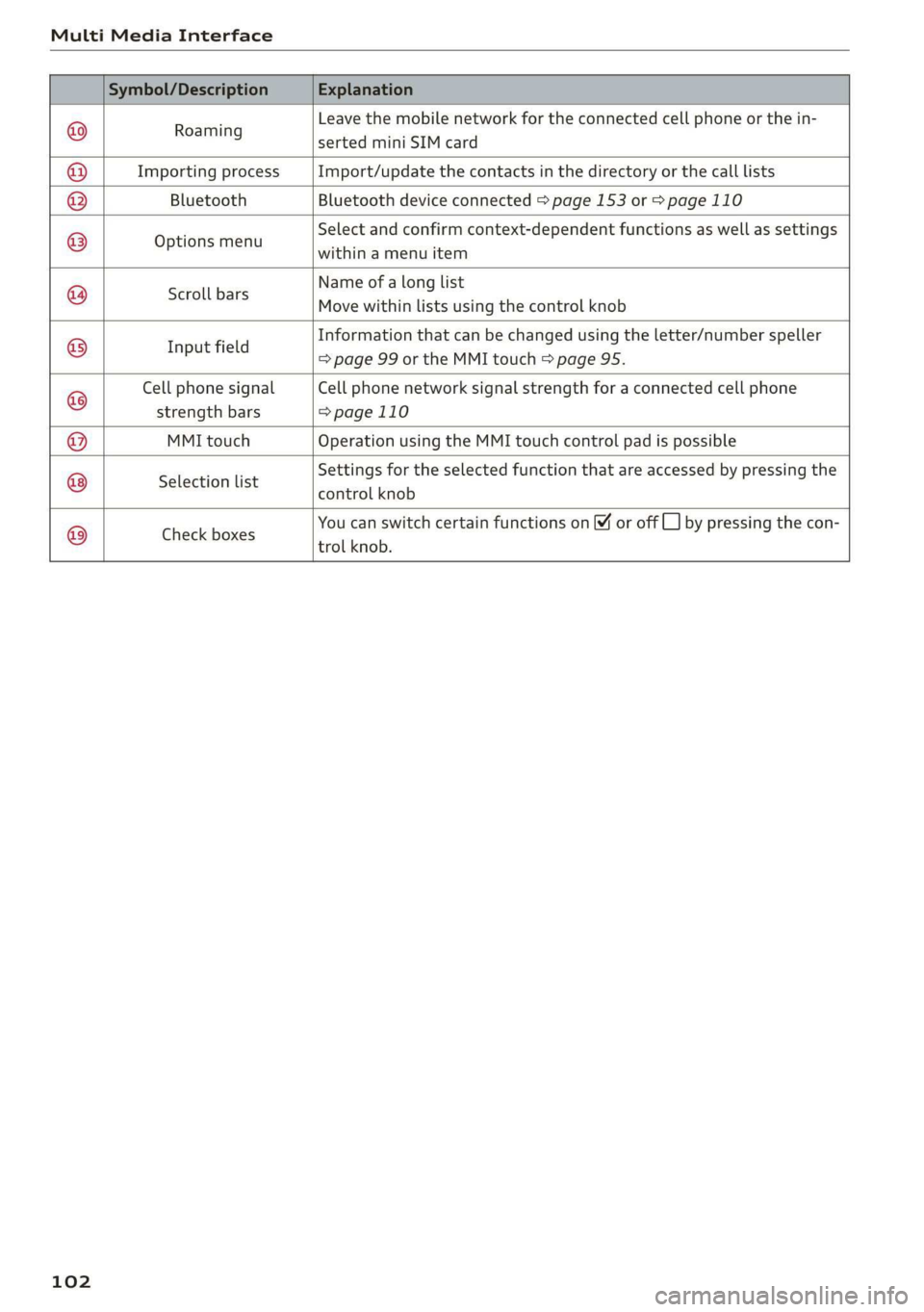

Page 104 of 308
Multi Media Interface
Symbol/Description Explanation
Roaming
Leave the mobile network for the connected cell phone or the in-
serted mini SIM card
Importing process Import/update the contacts in the directory or the call lists
Bluetooth Bluetooth device connected > page 153 or > page 110
Options menu
Select and confirm context-dependent functions as well as settings
within a menu item
Scroll bars
Name of a long list
Move within lists using the control knob
Input field
Information that can be changed using the letter/number speller
=> page 99 or the MMI touch > page 95.
Cell phone signal
strength bars
Cell phone network signal strength for a connected cell phone
=>page 110
©}
©
|
©
|
©
|
©
|O/O|
©
MMI touch Operation using the MMI touch control pad is possible
2) Selection list
Settings for the selected function that are accessed by pressing the
control knob
©
Check boxes
You can switch certain functions on Y or off L] by pressing the con-
trol knob.
102
Page 105 of 308
4S1012721BA
Voice recognition system
BAR COMMANDS
RAH-8462|
* Telephone + Favorites a)
+ Audi connect * Call (XY) SDS
* Navigation + Enter number
* Directory * Redial
* Radio * Read new text message
+ Media + Navigate to (XY)
* Sound + Enter address/destination
* Help + Online destinations
+ Help Speech dialog system * Cancel route guidance
* Help Telephone * Map
* Help Audi connect + Line (XY)
* Help Navigation * Next page / previous page
* Help Map * Cancel
* Help Radio * No, I meant (XY)
* Help Media * Correction
TELEPHONE: a
+ Enter number Call list a.
+ Delete number / correction Redial sie
+ Directory Call mailbox
* Call (XY) Enter PIN / delete PIN
* business / private / land line / mobile Telephone favorites
NAVIGATION i
+ Navigate to (XY) + Exclude next route section / Exclude
«Business address / Private address next street
+ Start / cancel route guidance * Route list
+ Directory * Calculate alternative routes
+ Last destinations * Online destinations
+ Navigation favorites * Special destination
+ Drive home
- Enter address
+ Enter country / town / street / state
+ Exclude route / Exclude route for (XY) km /m
MAP.
* Map
* Day map / Night map
* 2D driving position map / 2D north position map / 3D map / Destination map / Overview map
AUDI CONNECT
* Audi connect * Flight information / Train information
* Travel information / Parking information + City events
* Fuel prices * Online news
* Weather + Twitter
+ Radio presets « Jukebox rs}
+ Last stations * CD/DVD MEDIA
*FM + SDcard1/SDcard2
*FM/AM/ SIRIUS XM « Audi music interface / iPod / USB / Bluetooth /
+ Station (XY) / Frequency (XY) Wi-Fi / Medium (XY)
* Traffic announcement on / off * Media favorites / Artists / Albums / Genres /
Tracks / Playlists / Videos
* Folder up
* Random playback on / off
Fig. 108 Command overview
103

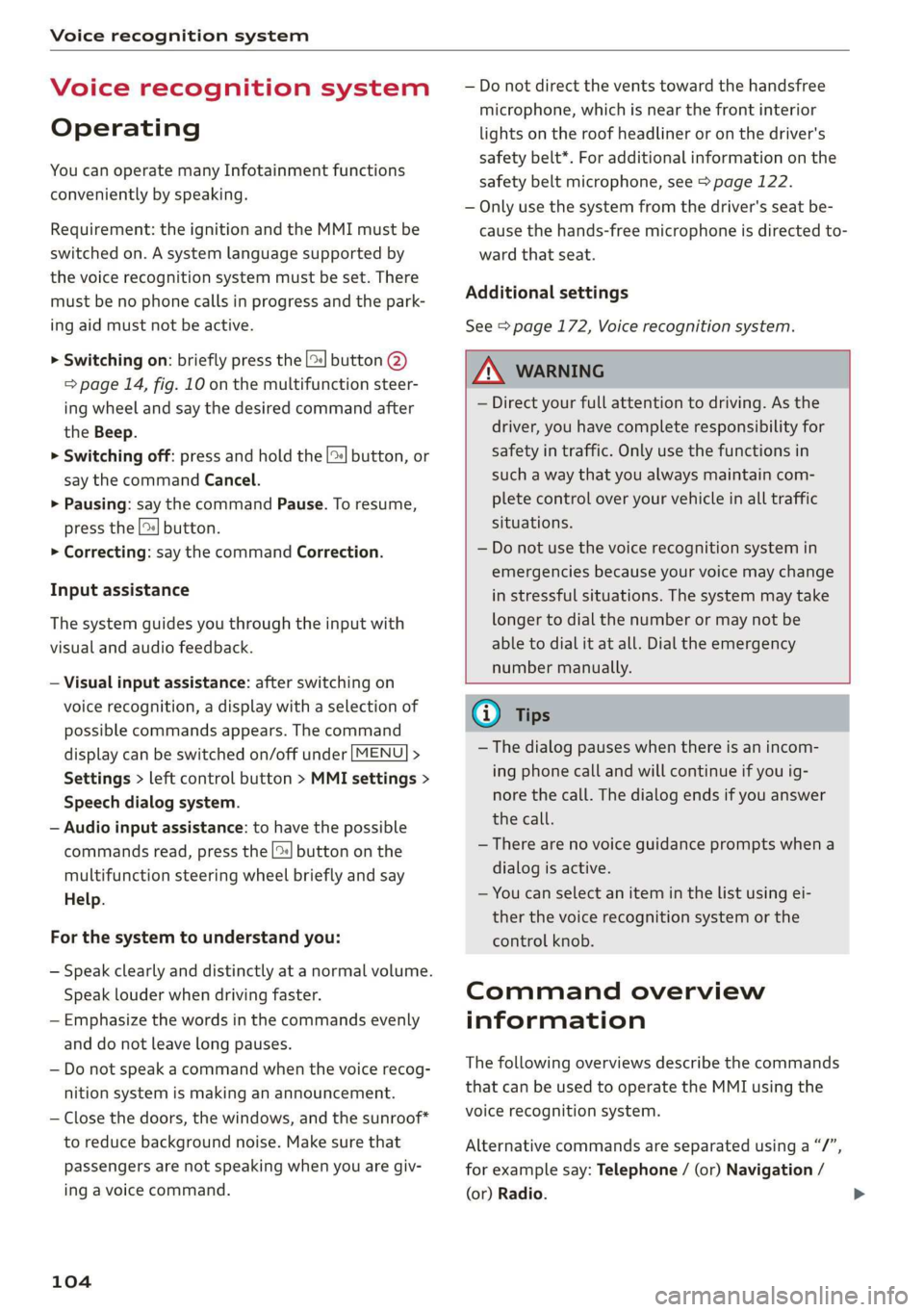

Page 106 of 308
Voice recognition system
Voice recognition system
Operating
You can operate many Infotainment functions
conveniently by speaking.
Requirement: the ignition and the MMI must be
switched on. A system language supported by
the voice recognition system must be set. There
must be no phone calls in progress and the park-
ing aid must not be active.
> Switching on: briefly press the [2] button @)
=> page 14, fig. 10 on the multifunction steer-
ing wheel and say the desired command after
the Beep.
> Switching off: press and hold the |] button, or
say the command Cancel.
> Pausing: say the command Pause. To resume,
press the |] button.
> Correcting: say the command Correction.
Input assistance
The system guides you through the input with
visual and audio feedback.
— Visual input assistance: after switching on
voice recognition, a display with a selection of
possible commands appears. The command
display can be switched on/off under [MENU] >
Settings > left control button > MMI settings >
Speech dialog system.
— Audio input assistance: to have the possible
commands read, press the [2] button on the
multifunction steering wheel briefly and say
Help.
For the system to understand you:
— Speak clearly and distinctly at a normal volume.
Speak louder when driving faster.
— Emphasize the words in the commands evenly
and do not leave long pauses.
— Do not speak a command when the voice recog-
nition system is making an announcement.
— Close the doors, the windows, and the sunroof*
to reduce background noise. Make sure that
passengers are not speaking when you are giv-
ing a voice command.
104
— Do not direct the vents toward the handsfree
microphone, which is near the front interior
lights on the roof headliner or on the driver's
safety belt*. For additional information on the
safety belt microphone, see > page 122.
— Only use the system from the driver's seat be-
cause the hands-free microphone is directed to-
ward that seat.
Additional settings
See > page 172, Voice recognition system.
ZA\ WARNING
— Direct your full attention to driving. As the
driver, you have complete responsibility for
safety in traffic. Only use the functions in
such a way that you always maintain com-
plete control over your vehicle in all traffic
situations.
— Do not use the voice recognition system in
emergencies because your voice may change
in stressful situations. The system may take
longer to dial the number or may not be
able to dial it at all. Dial the emergency
number manually.
Gi) Tips
— The dialog pauses when there is an incom-
ing phone call and will continue if you ig-
nore the call. The dialog ends if you answer
the call.
— There are no voice guidance prompts when a
dialog is active.
— You can select an item in the list using ei-
ther the voice recognition system or the
control knob.
Command overview
information
The following overviews describe the commands
that can be used to operate the MMI using the
voice recognition system.
Alternative commands are separated using a “/”,
for example say: Telephone / (or) Navigation /
(or) Radio.
Page 107 of 308
4S1012721BA

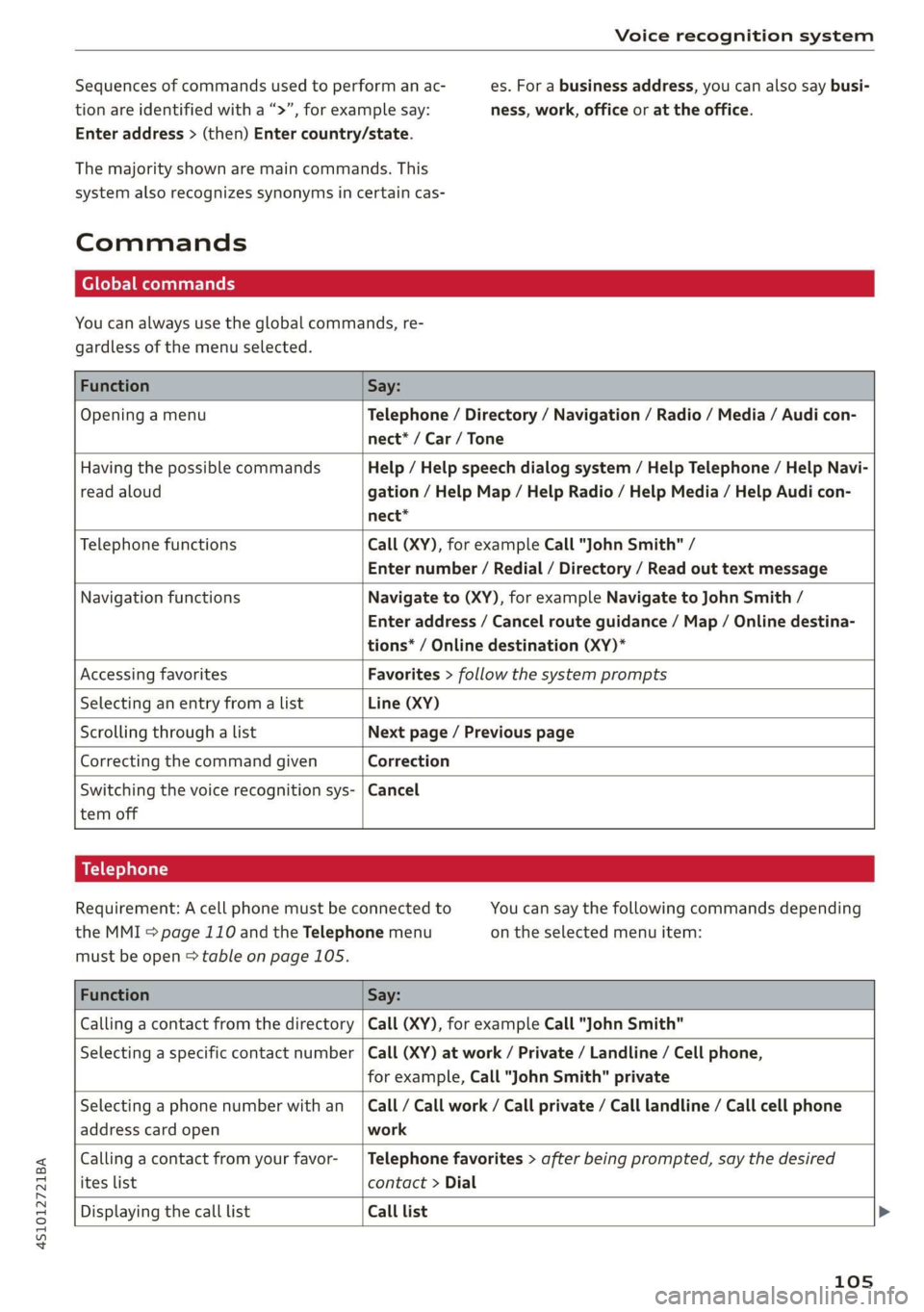

Voice recognition system
Sequences of commands used to perform an ac-
acm
tion are identified with a “>”, for example say:
es. For a business address, you can also say busi-
ness, work, office or at the office.
Enter address > (then) Enter country/state.
The majority shown are main commands. This
system also recognizes synonyms in certain cas-
Commands
Global commands
You can always use the global commands, re-
gardless of the menu selected.
Function Say:
Opening a menu Telephone / Directory / Navigation / Radio / Media / Audi con-
nect®* / Car / Tone
Having the possible commands
read aloud
Help / Help speech dialog system / Help Telephone / Help Navi-
gation / Help Map / Help Radio / Help Media / Help Audi con-
nect*
Telephone functions Call (XY), for example Call "John Smith" /
Enter number / Redial / Directory / Read out text message
Navigation functions Navigate to (XY), for example Navigate to John Smith /
Enter address / Cancel route guidance / Map / Online destina-
tions* / Online destination (XY)*
Accessing favorites Favorites > follow the system prompts
Selecting an entry from a list Line (XY)
Scrolling through a list Next page / Previous page
Correcting the command given Correction
Switching the voice recognition sys-
tem off
Cancel
Telephone
Requirement: A cell phone must be connected to
the MMI > page 110 and the Telephone menu
must be open > table on page 105.
You can say the following commands depending
on the selected menu item:
Function Say:
Calling a contact from the directory Call (XY), for example Call "John Smith"
Selecting a specific contact number Call (XY) at work / Private / Landline / Cell phone,
for example, Call "John Smith" private
Selecting a phone number with an
address card open
Call / Call work / Call private / Call landline / Call cell phone
work
Calling a contact from your favor-
ites list
Telephone favorites > after being prompted, say the desired
contact > Dial
Displaying the call list
Call list
105
Page 108 of 308

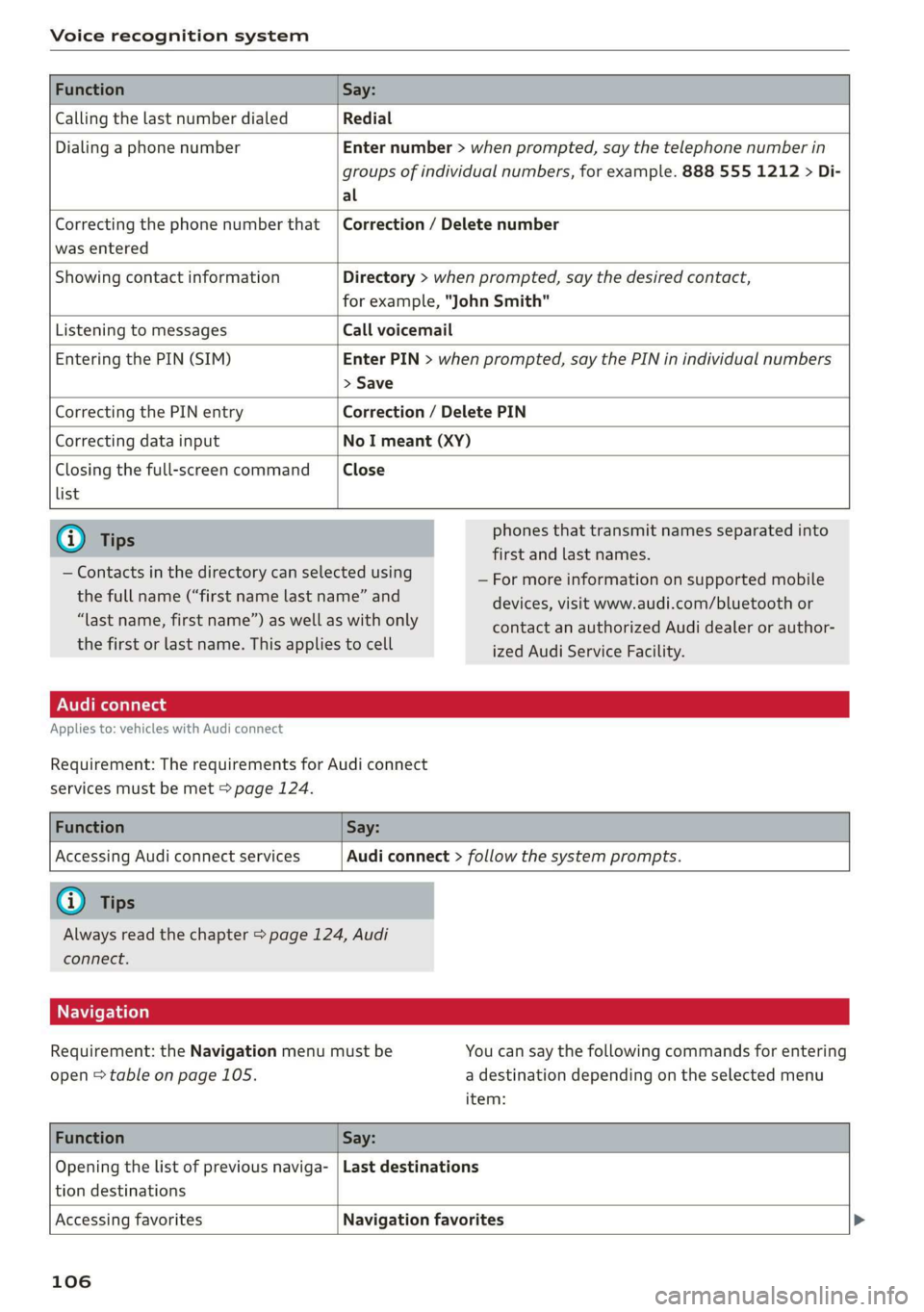

Voice recognition system
Calling the last number dialed Redial
Dialing a phone number Enter number > when prompted, say the telephone number in
groups of individual numbers, for example. 888 555 1212 > Di-
al
Correcting the phone number that | Correction / Delete number
was entered
Showing contact information Directory > when prompted, say the desired contact,
for example, "John Smith"
Listening to messages Call voicemail
Entering the PIN (SIM) Enter PIN > when prompted, say the PIN in individual numbers
> Save
Correcting the PIN entry Correction / Delete PIN
Correcting data input No I meant (XY)
Closing the full-screen command Close
list
phones that transmit names separated into
first and last names.
. — For more information on supported mobile
the full name (“first name last name” and devices, visit www.audi.com/bluetooth or
“last name, first name”) as well as with only contact an authorized Audi dealer or author-
the first or last name. This applies to cell ized Audi Service Facility.
— Contacts in the directory can selected using
ONeill
Applies to: vehicles with Audi connect
Requirement: The requirements for Audi connect
services must be met > page 124.
Accessing Audi connect services Audi connect > follow the system prompts.
|
Always read the chapter > page 124, Audi
connect.
Requirement: the Navigation menu must be You can say the following commands for entering
open > table on page 105. a destination depending on the selected menu
item:
Opening the list of previous naviga- | Last destinations
tion destinations
Accessing favorites Navigation favorites >
106
Page 109 of 308
4S1012721BA
Voice recognition system
Function Say:
Selecting the home address Home address or Drive home
Entering an address with guidance
from the system
Enter address > follow the system prompts
Individual commands for entering a
destination
Enter country / Enter state / Enter city / Enter ZIP code / Enter
street / Enter house number
Making a correction while entering
a destination
Correction
Navigating to a contact Drive me to (XY) or Navigate to (XY), for example Drive me to
"John Smith"
Navigating to a specific address for
a contact
Navigate to (XY) business / private,
for example, “Navigate to John Smith private”
Navigating to favorites Navigation favorites > Line (XY) / Line contents > Start route
guidance when prompted
Starting route guidance with an ad-
dress card open
Navigate / Navigate to private address / Navigate to business
address
Entering a new destination/stop-
over when route guidance is active
Enter destination > enter the desired address when prompted >
confirm the new destination/stopover if prompted
Starting route guidance after enter-
ing a destination
Start route guidance
Canceling current route guidance Cancel route guidance
Calculating alternative routes Calculate alternative routes
Entering a point of interest by se-
lecting a search area with guidance
from the system
Point of interest > Change search area > category or subcatego-
ry when prompted, for example “restaurant”
Destination input categories Audi Service / Train station / Airport / Hotel / Hospital / Park-
ing area / Rest area / Restaurant / Gas station etc.
Search areas for entering points of
interest
Nearby / Along the route / Near destination / Near stopover /
In a new city / In a new state/country
Entering an online destination* Online destination (XY), for example “Online destination
"Lakeview Hotel"”
Correcting data input No I meant (XY)
Closing the full-screen command
list
Close
Requirement: you must be in the Navigation or
Map menu.
You can say the following commands for more
settings in Navigation:
Function Say:
General map options Map / Day map / Night map / Automatically change map color
Map type 2D heading-up map / 2D north-up map / 3D map / Destina-
tion map / Overview map / Standard map / Traffic map / Satel-
lite map*®)
Showing the route list
Route list
107
Page 110 of 308

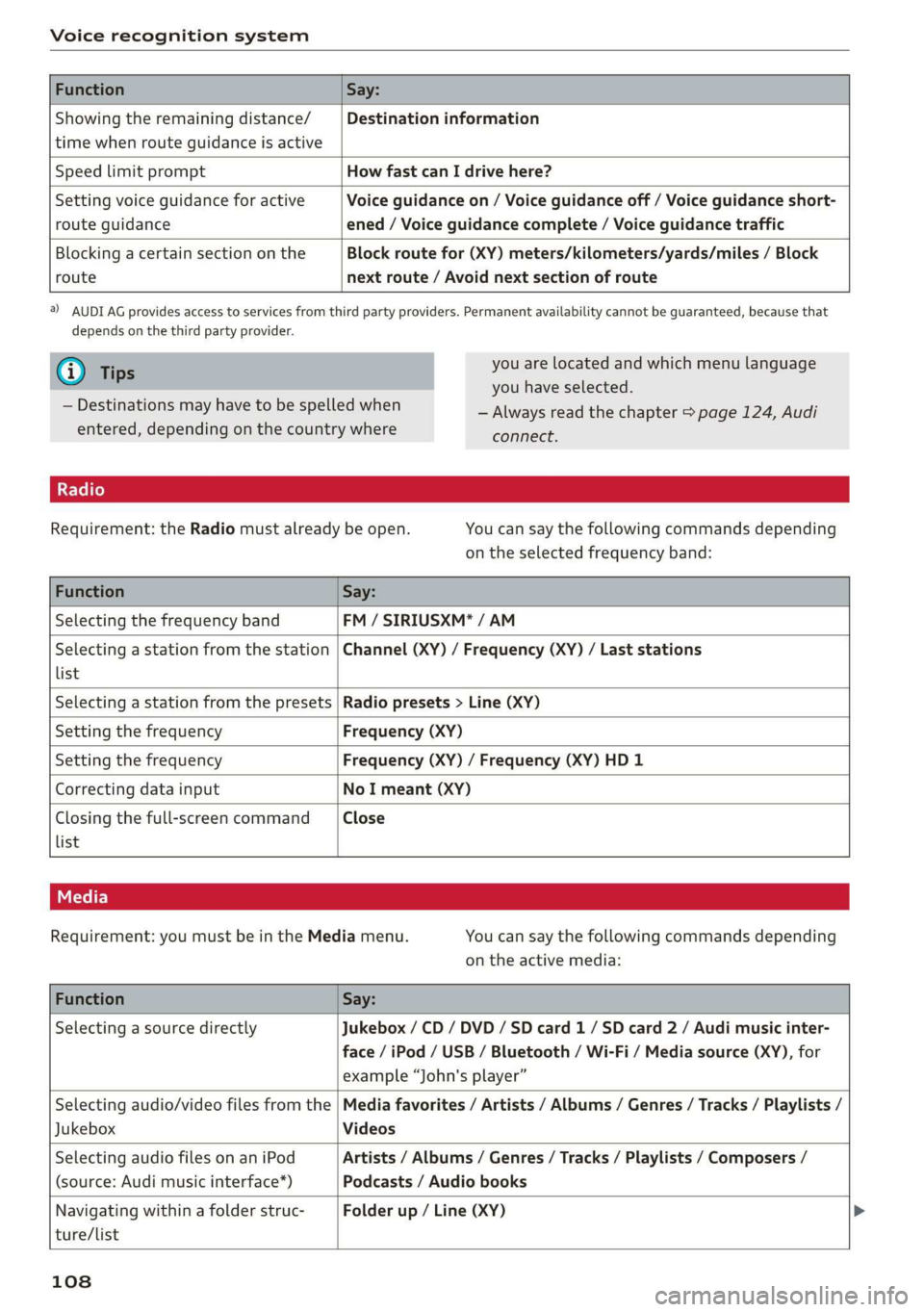

Voice recognition system
Function Say:
Showing the remaining distance/ Destination information
time when route guidance is active
Speed limit prompt How fast can I drive here?
Setting voice guidance for active Voice guidance on / Voice guidance off / Voice guidance short-
route guidance ened / Voice guidance complete / Voice guidance traffic
Blocking a certain section on the Block route for (XY) meters/kilometers/yards/miles / Block
route next route / Avoid next section of route
a) AUDI AG provides access to services from third party providers. Permanent availability cannot be guaranteed, because that
depends on the third party provider.
G) Tips you are located and which menu language
you have selected.
— Always read the chapter > page 124, Audi
connect.
— Destinations may have to be spelled when
entered, depending on the country where
Requirement: the Radio must already be open. You can say the following commands depending
on the selected frequency band:
Function Say:
Selecting the frequency band FM / SIRIUSXM* / AM
Selecting a station from the station | Channel (XY) / Frequency (XY) / Last stations
list
Selecting a station from the presets | Radio presets > Line (XY)
Setting the frequency Frequency (XY)
Setting the frequency Frequency (XY) / Frequency (XY) HD 1
Correcting data input No I meant (XY)
Closing the full-screen command Close
list
Requirement: you must be in the Media menu. You can say the following commands depending
on the active media:
Function Say:
Selecting a source directly Jukebox / CD / DVD / SD card 1/ SD card 2 / Audi music inter-
face / iPod / USB / Bluetooth / Wi-Fi / Media source (XY), for
example “John's player”
Selecting audio/video files from the | Media favorites / Artists / Albums / Genres / Tracks / Playlists /
Jukebox Videos
Selecting audio files on an iPod Artists / Albums / Genres / Tracks / Playlists / Composers /
(source: Audi music interface*) Podcasts / Audio books
Navigating within a folder struc- Folder up / Line (XY) >
ture/list
108
